INSTALLATION AND OPERATING INSTRUCTIONS
for all
VEFSA Freezer Models
809-208A Rev. C. 02/09/2026
3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105
Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: victoryrefrigeration.com
SEE BACK COVER FOR
WARRANTY REGISTRATION
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory2
WELCOME
Contents
Welcome ................................................................................................................................................................... 2
Safety ........................................................................................................................................................................ 3
Important Information .......................................................................................................................................... 4
Product Information .............................................................................................................................................. 5
Clearance and Placement ..................................................................................................................................... 6
Unpacking and Set Up ............................................................................................................................................7
Shelf Installation ..................................................................................................................................................... 8
Electrical ................................................................................................................................................................... 9

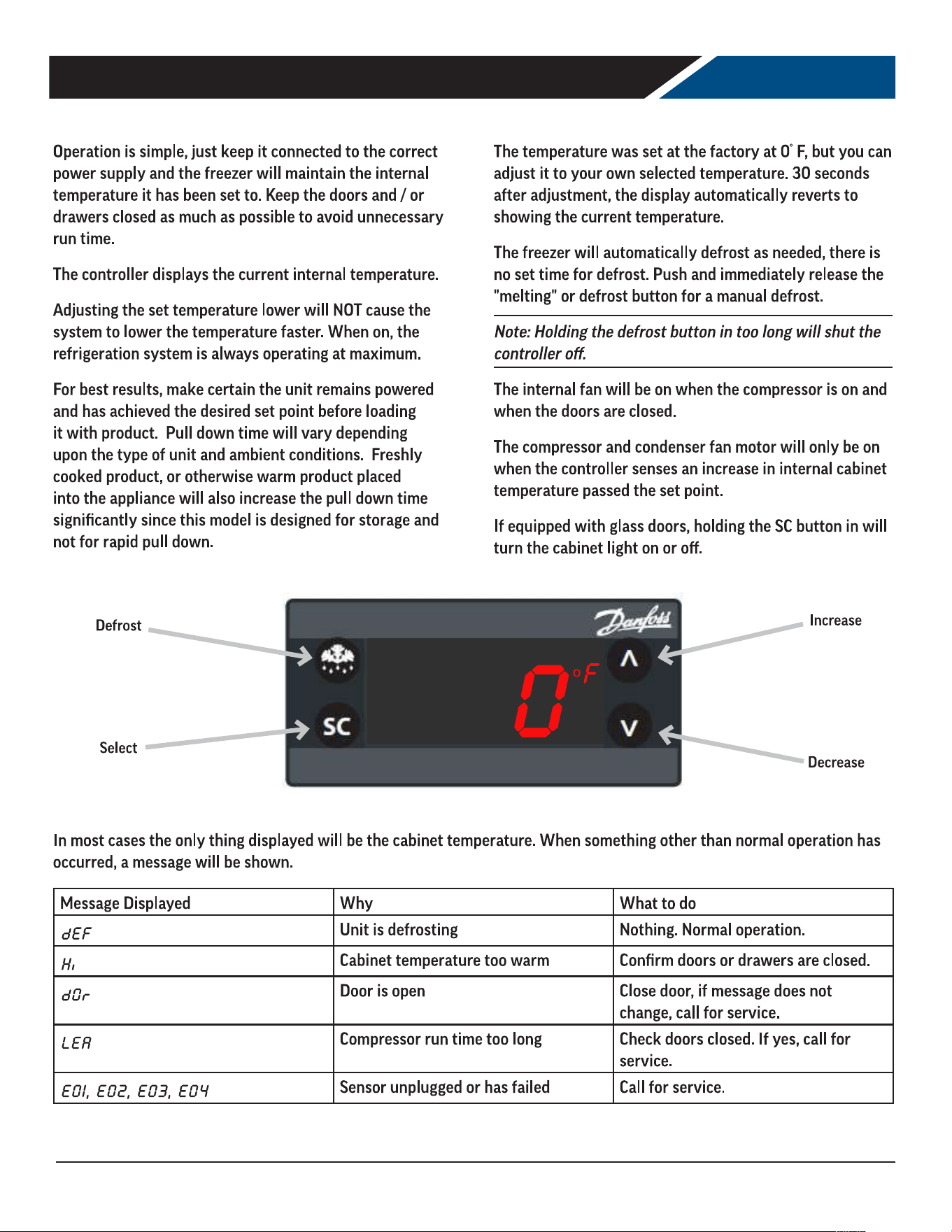

Using The Unit ........................................................................................................................................................10
Sequence of Operations Freezer .............................................................................................................. 11
Cleaning and Maintenance .................................................................................................................................15
Condenser Cleaning ...............................................................................................................................................16
Methods For Cleaning Stainless Steel..............................................................................................................17
Help ...........................................................................................................................................................................18
For The Service Tech - R290 ..............................................................................................................................19

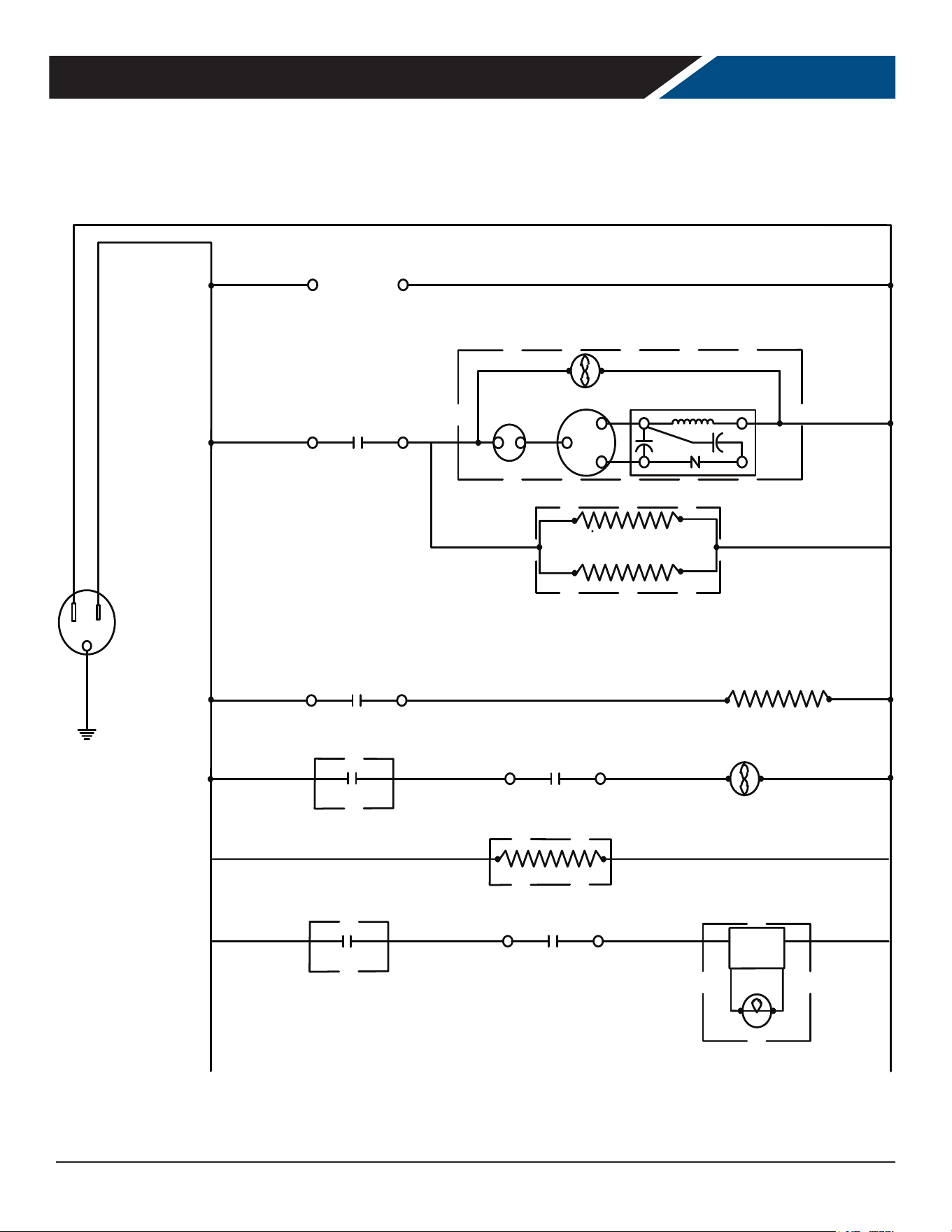

For The Service Tech - Wiring Diagrams .........................................................................................................20
Limited Warranty .................................................................................................................................................22
Limited Warranty (continued) ........................................................................................................................... 23

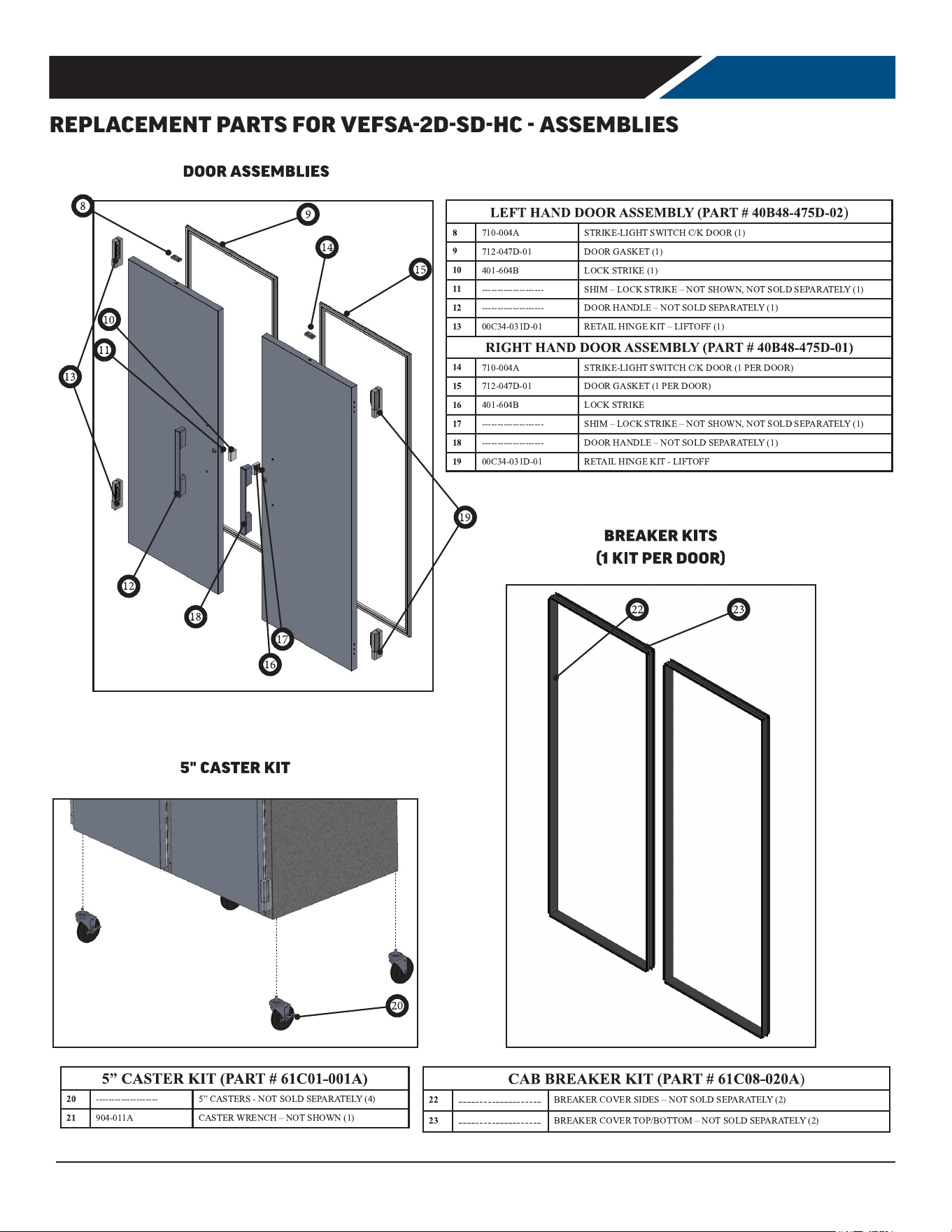

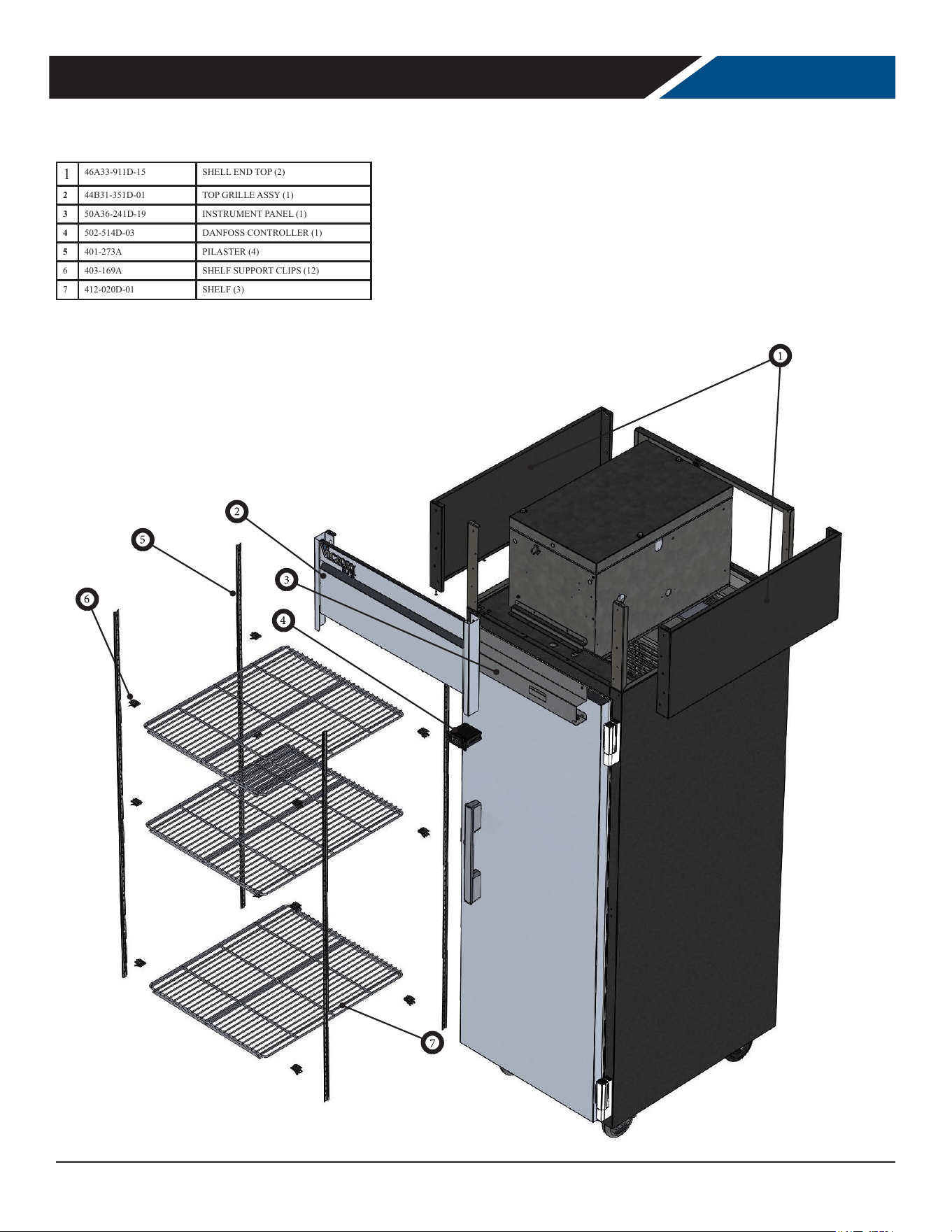

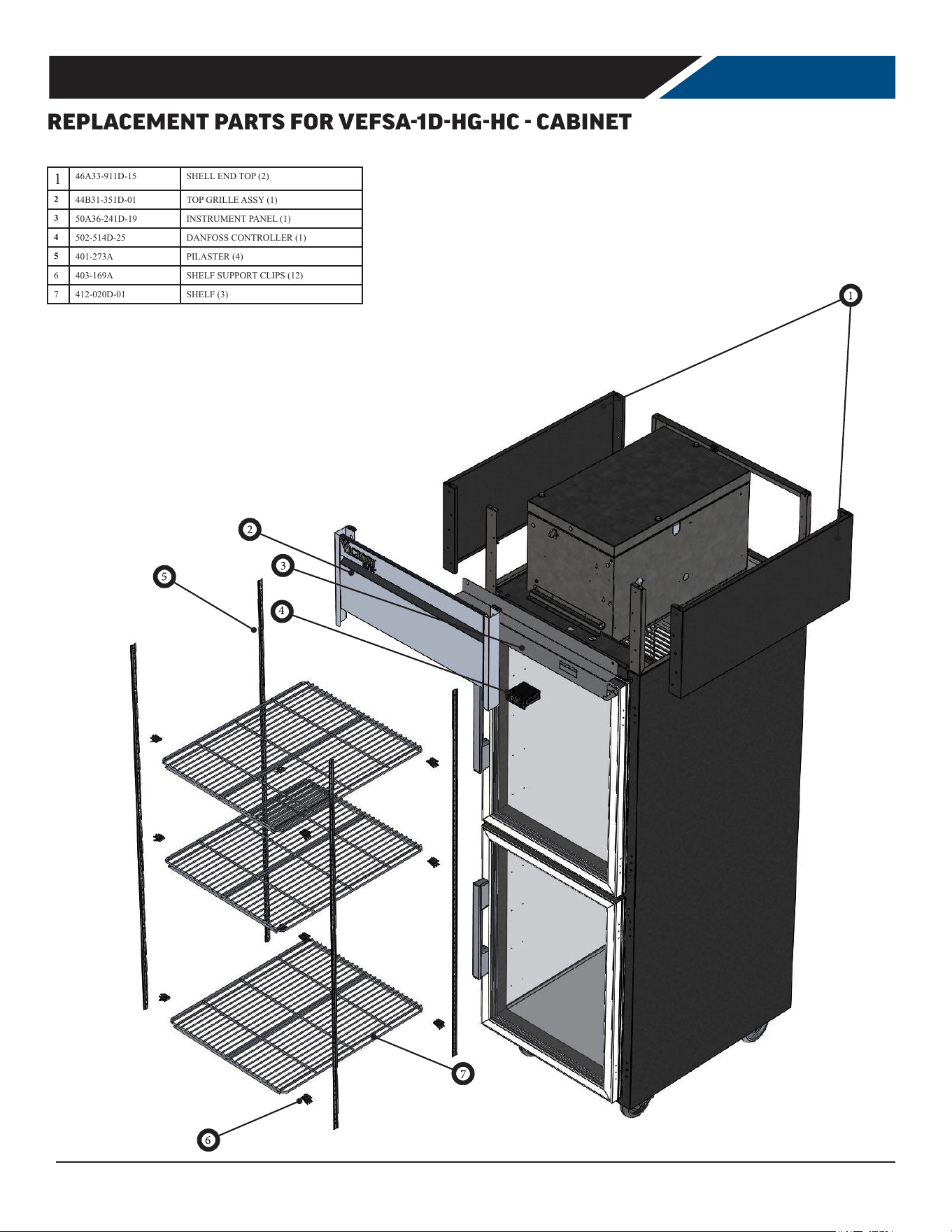

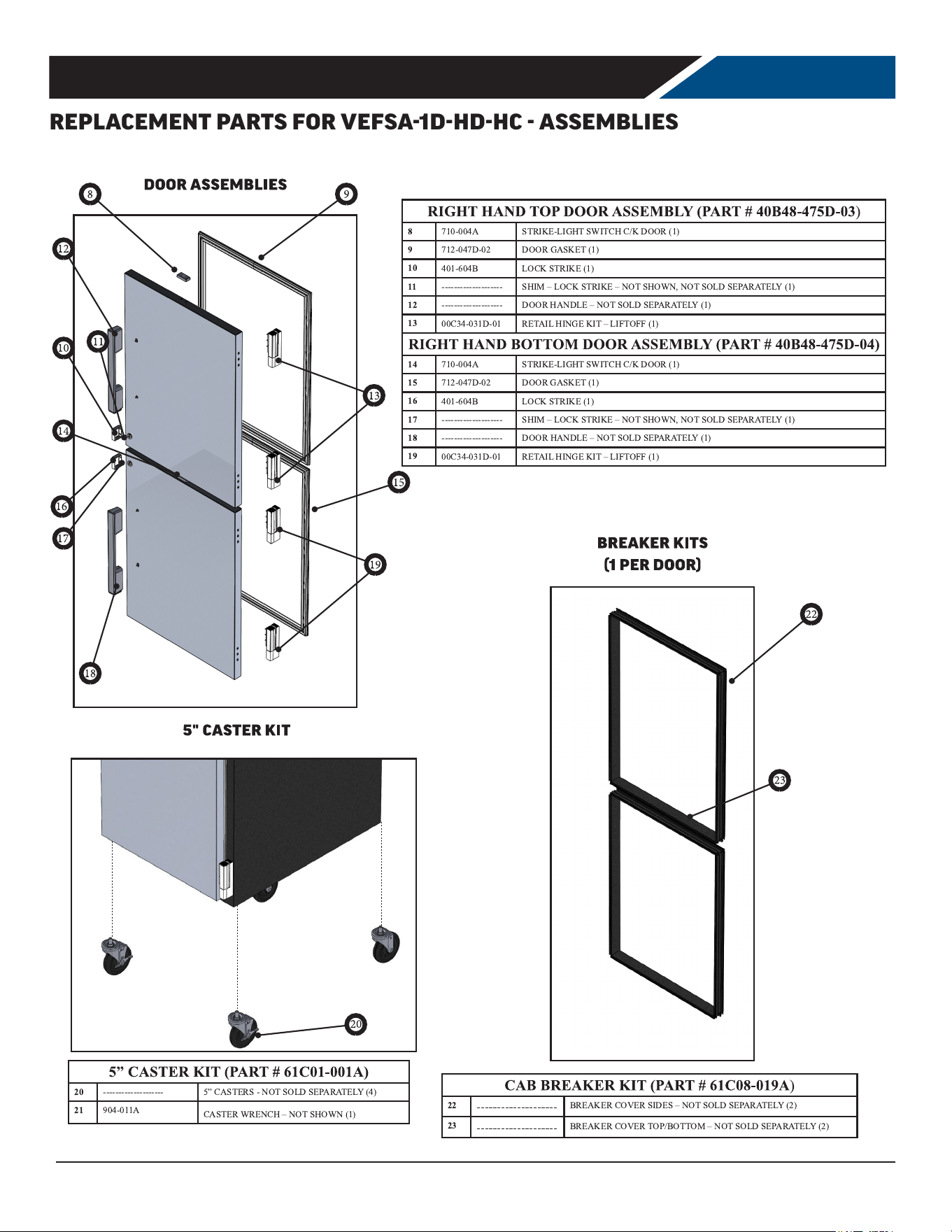

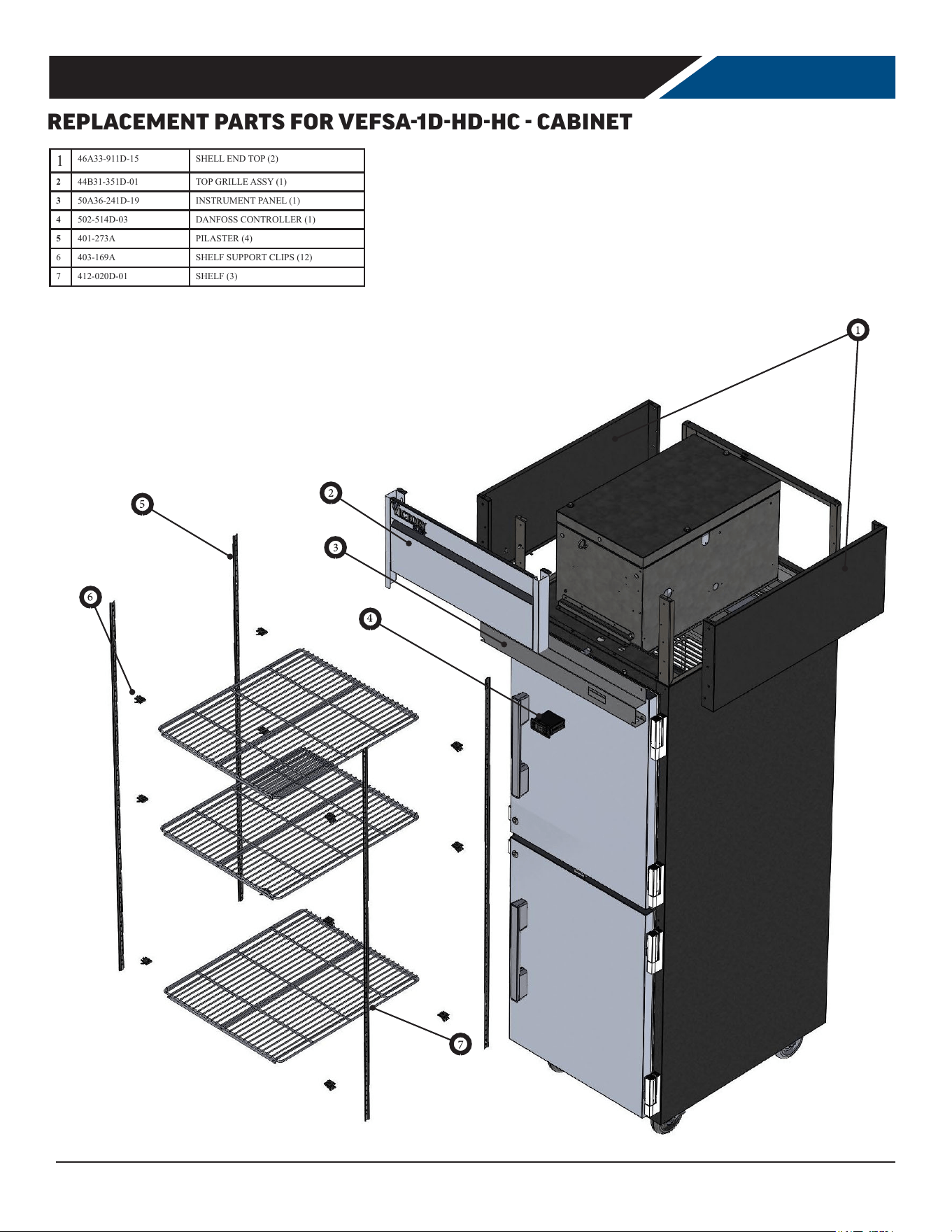

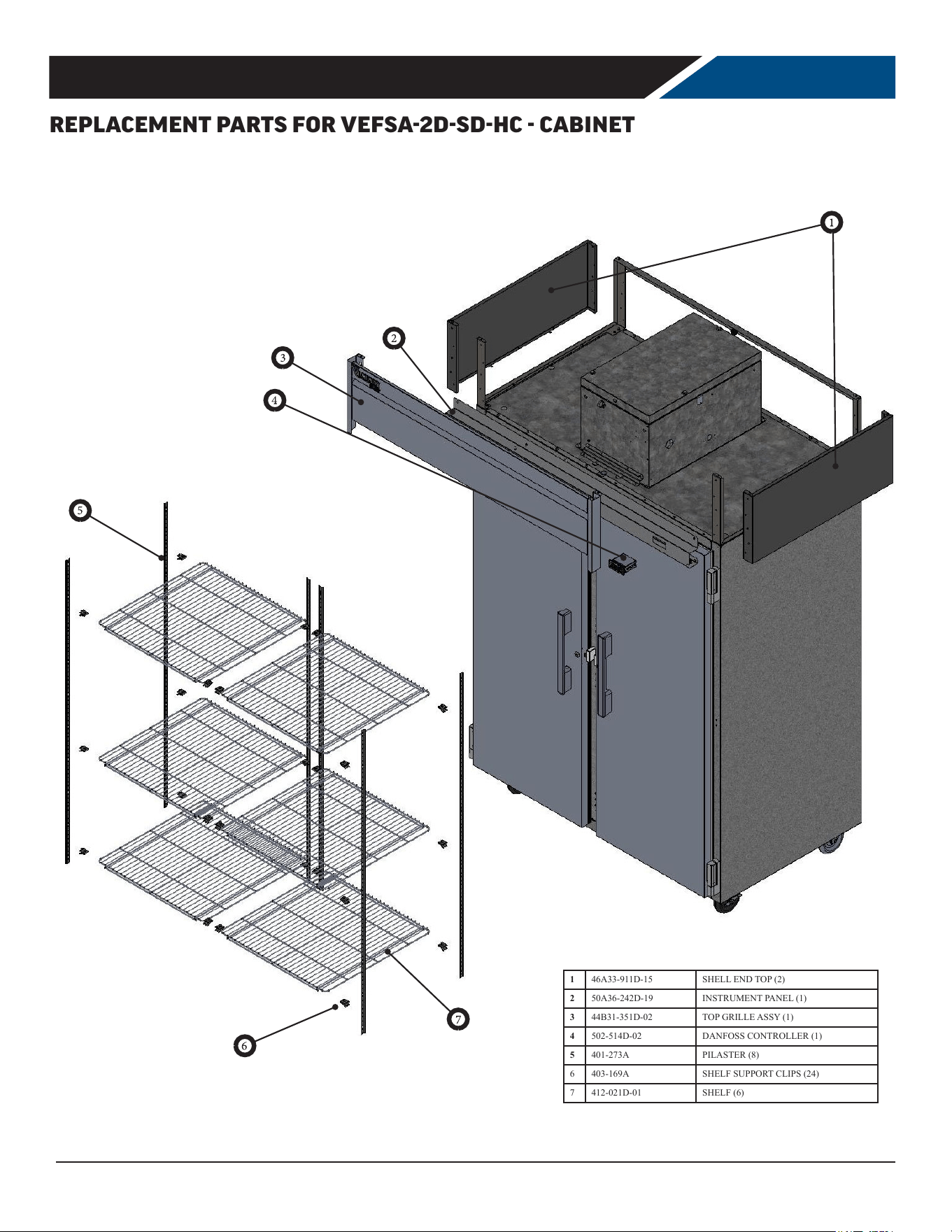

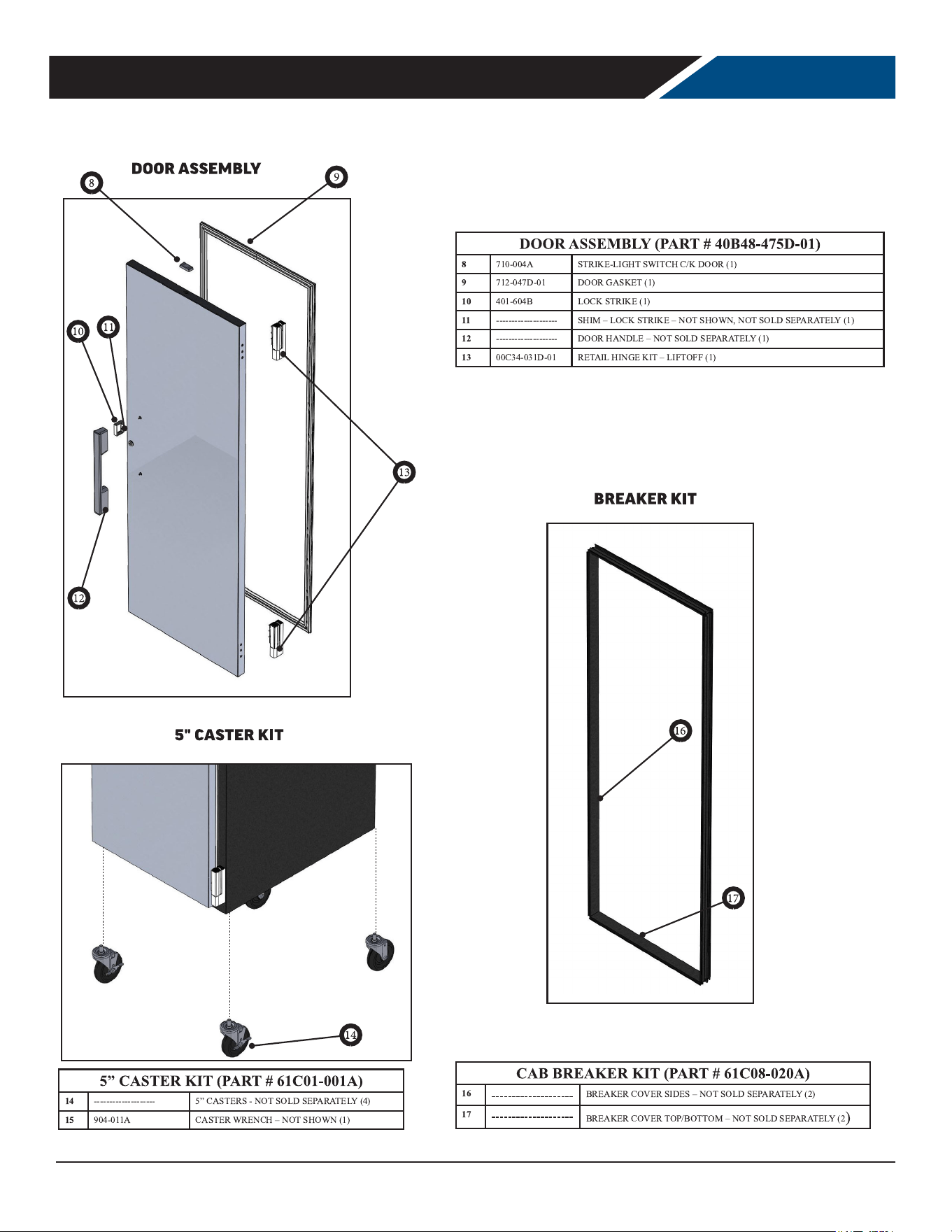

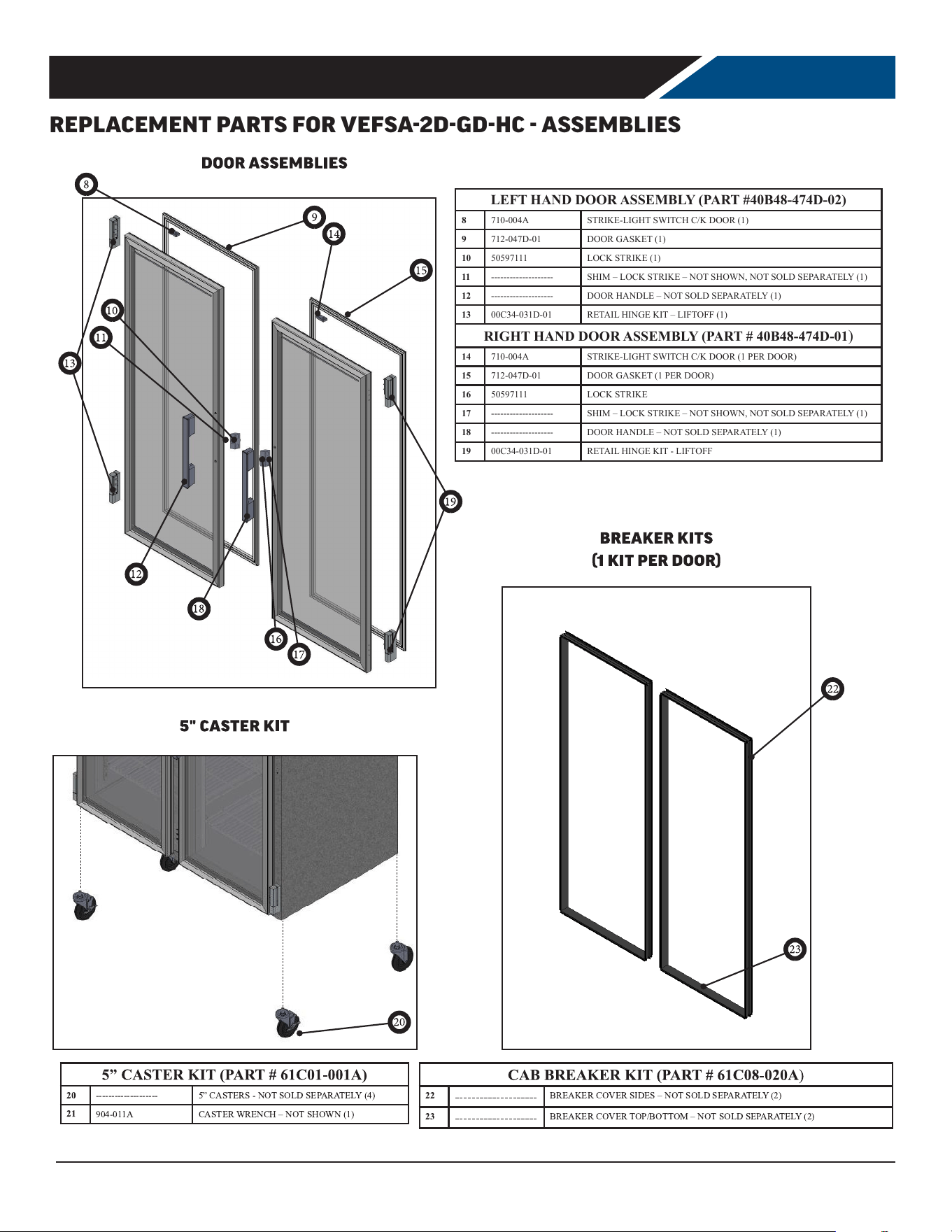

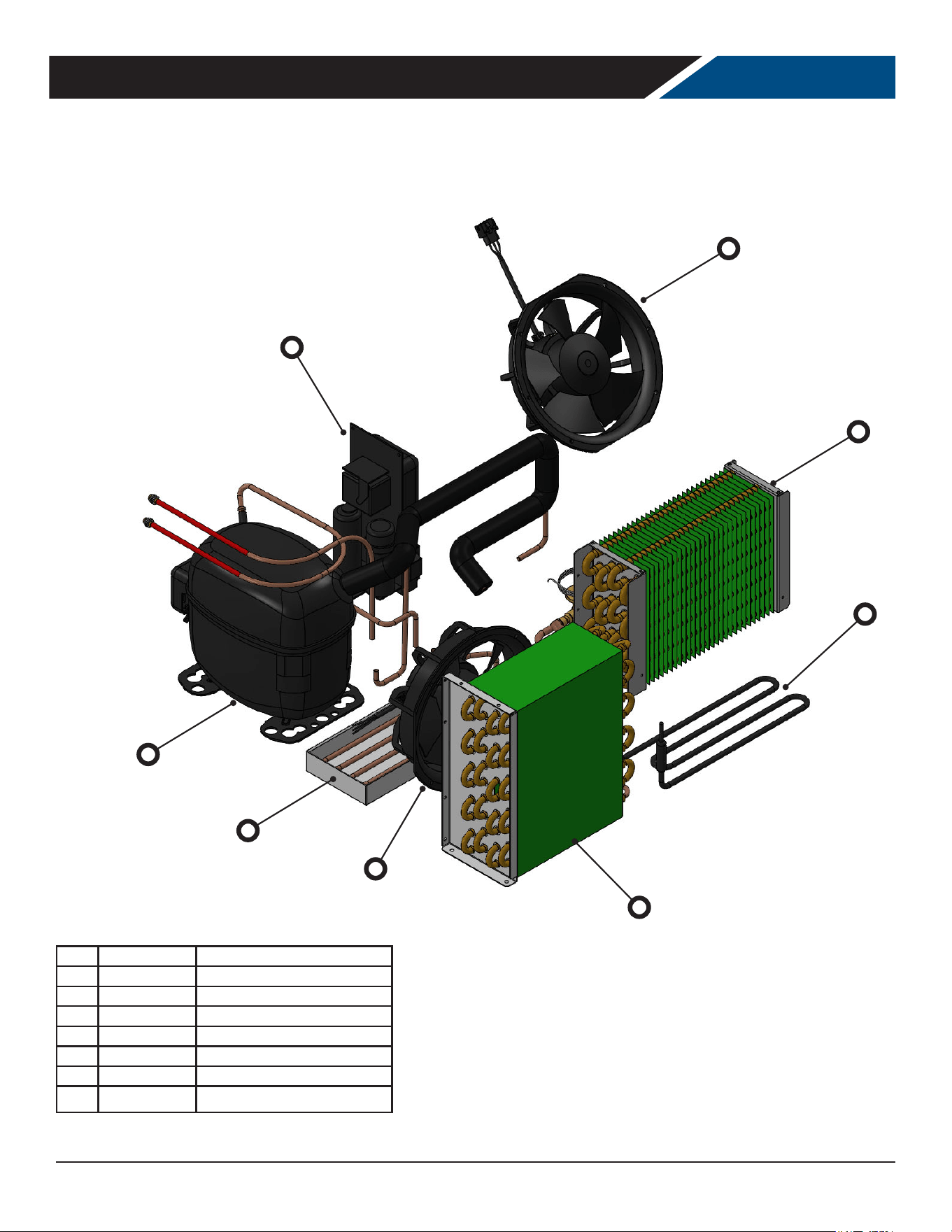

Replacement Parts ...............................................................................................................................................24
Important Information
• PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR USING, IF RECOMMENDED
PROCEDURES ARE NOT FOLLOWED, WARRANTY
CLAIMS MAY BE DENIED.
• Your warranty registration information is located with
this manual. Please complete the card and submit it to
Victory Refrigeration within TEN days of installation.
Failure to properly register equipment may limit or
void the warranty.
• Victory Refrigeration reserves the right to
change specications and product design without
notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions, or
replacements for previously purchased equipment.
Thank you for purchasing a Victory cabinet. This series
has passed our strict quality control inspection and meets
the high standards set by Victory Refrigeration! You have
made a quality investment that with proper maintenance
will give you many years of reliable service!
Please read the following installation and maintenance
instructions before installing or using your unit.
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 3
SAFETY
This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However,
safe operation and maintenance are your responsibilities.
Use: When using this unit, please:
• Move it carefully. If on casters be sure the casters
do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move
with enough help to avoid tipping or dropping the
cabinet.
• Prevent children from playing in or on the cabinet.
Persons unable to use this product must be
prevented access.
• Follow all instructions. There are many safety
labels and directions on the unit. Heed them.
• Watch your ngers. There may be pinch points near
the door hinges.
Maintenance
Do NOT:
• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.
• Store gasoline, kerosene or any other ammable
material near the cabinet.
Do ALWAYS
• Use a Victory recommended technician certied to
repair R290 equipment.
• Use ONLY Victory factory service parts. Use of non
OEM parts can be dangerous because of the design
changes needed to safely use R290.
Observe the Caution and Warning notices. They are indicators of
important safety information. Keep this manual for future reference.
Important Information to Add
Record the model number, serial number and the date of installation here for future reference. The model and serial
numbers are on the unit's serial number dataplate, which is located on the left inside wall.
Model Number
Serial Number
Date of Installation
Purchased From
CAUTION
WARNING
CAUTION
CAUTION
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory4

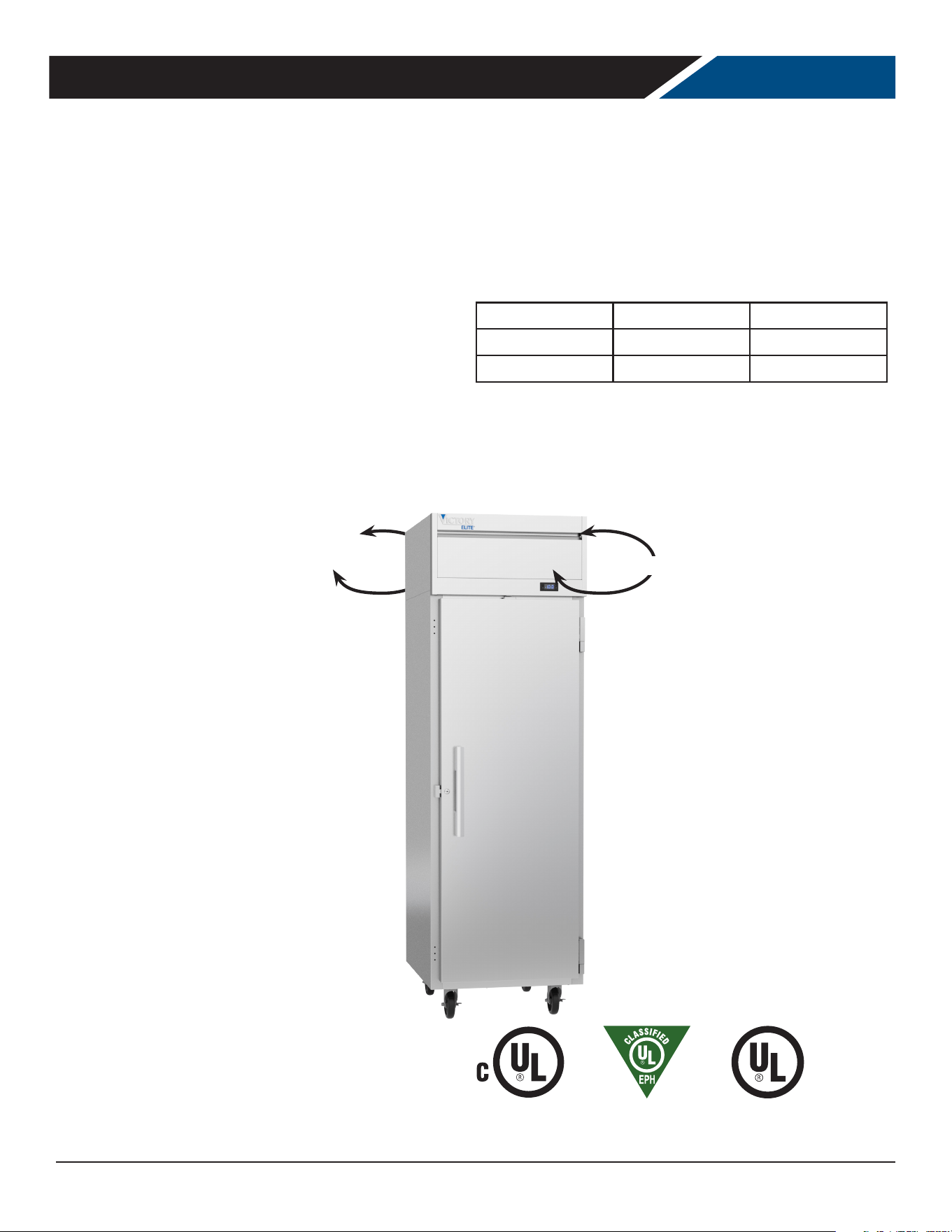

IMPORTANT INFORMATION
This unit is intended to be used in a commercial application. That includes bars and restaurants.
If installed in a residence some commercial service companies may not be able to service it on site.
The manufacturer has designed and produced this machine with the nest in materials. The manufacturer assumes no
liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.
Limitations
The machine is designed for use indoors in a controlled
environment. It must be kept dry, not overheated or
subjected to excessive cold. May only be connected to
a dedicated electrical circuit. Extension cords are not
permitted.
Minimum Maximum
Voltage 103.5 126.5
Room Air Temp 60º F 100º F
Air Flow, All Models regardles of section, door count or door material.
Agency Approvals
These marks appear on the dataplate or serial tag, located
in the inside of the left wall. The dataplate also contains
the model and serial numbers as well as electrical
requirements.
Warm Air OUT
Room Air IN
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 5
Model
Cabinet Dimensions
w x d x h (Inches)
Half or Full
Door
Glass or
Solid Door
Full Load
Amps
Power Cord
Plug (NEMA)
Refrigerant Type /
Charge (g) / Charge (oz)
VEFSA-1D-SD-HC 26 x 33 7/8 x 85 Full Solid
11.0
5-15P
R-290 / 115 / 4.05
VEFSA-1D-HD-HC 26 x 33 5/8 x 85 Half Solid
VEFSA-1D-GD-HC 26 x 33 5/8 x 85 Full Glass
VEFSA-1D-HG-HC 26 x 33 5/8 x 85 Half Glass
VEFSA-2D-SD-HC 52 x 33 7/8 x 84 7/8 Full Solid
10.0
R-290 / 130 / 4.59
VEFSA-2D-HD-HC 52 x 33 5/8 x 84 7/8 Half Solid
VEFSA-2D-GD-HC* 52 x 33 5/8 x 84 7/8 Full Glass
13.2
5-20P
VEFSA-2D-HG-HC* 52 x 33 5/8 x 84 7/8 Half Glass
VEFSA-3D-SD-HC* 78 x 33 7/8 x 84 7/8 Full Solid
R-290 / 115 / 4.05
VEFSA-3D-HD-HC* 78 x 33 5/8 x 84 7/8 Half Solid
VEFSA-3D-GD-HC* 78 x 33 5/8 x 84 7/8 Full Glass
VEFSA-3D-HG-HC* 78 x 33 5/8 x 84 7/8 Half Glass
Height includes casters.
PRODUCT INFORMATION
• As shipped, all models are set to 0
o
F., maintaining the cabinet temperature of 0ºF and below.
• All models are 115 volts, 60 Hz AC.
• ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, REFRIGERANT AND REFRIGERANT CHARGE FOR THE
MOST UP TO DATE AND ACCURATE VALUES.
• There are no access valves on the refrigeration system.
* two systems per cabinet.
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory6
User Manual for TMR Refrigerators Beverage-Air
Rev. 12/21Beverage-Air24

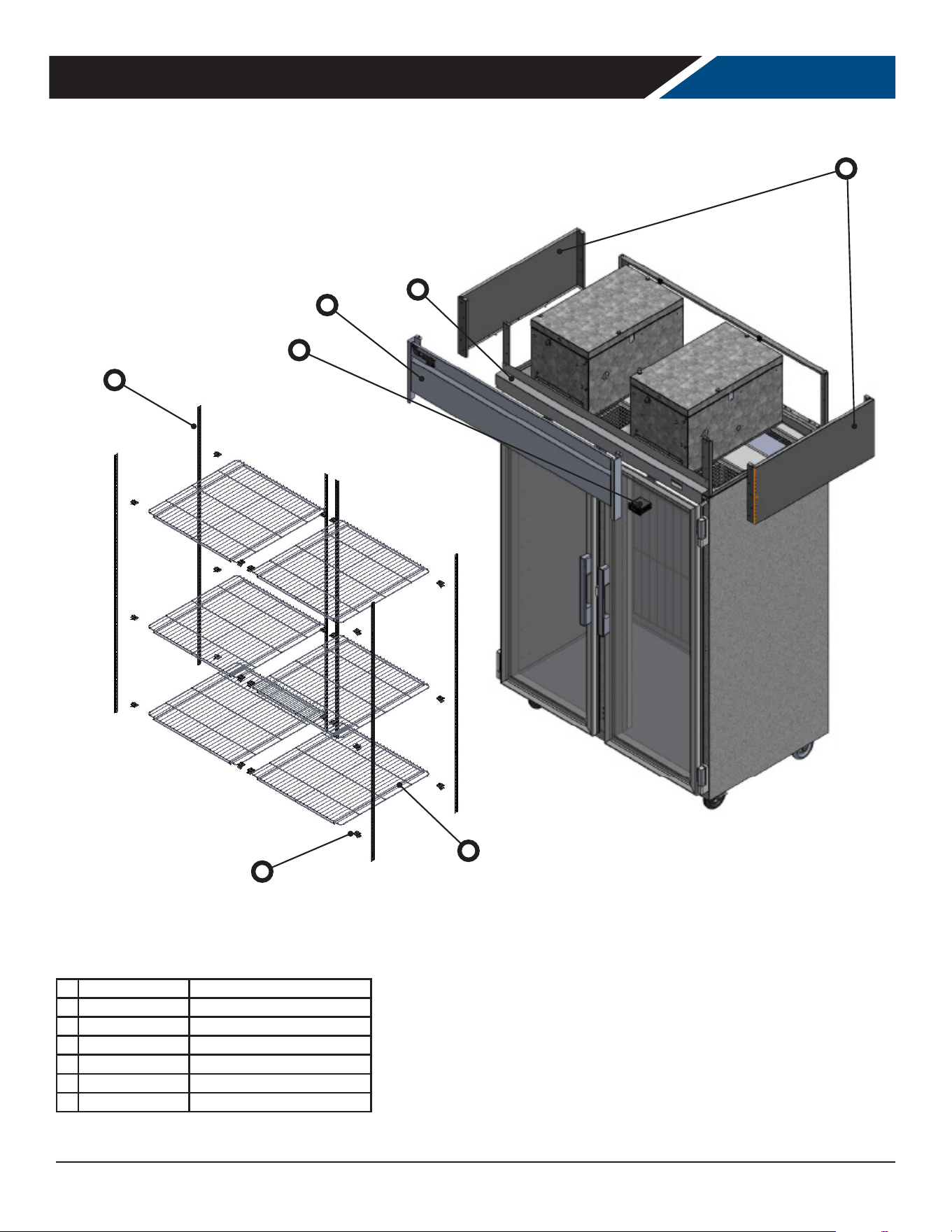

GENERAL PARTS
User Manual for TMR Refrigerators Beverage-Air
Rev. 12/21Beverage-Air24
GENERAL PARTS

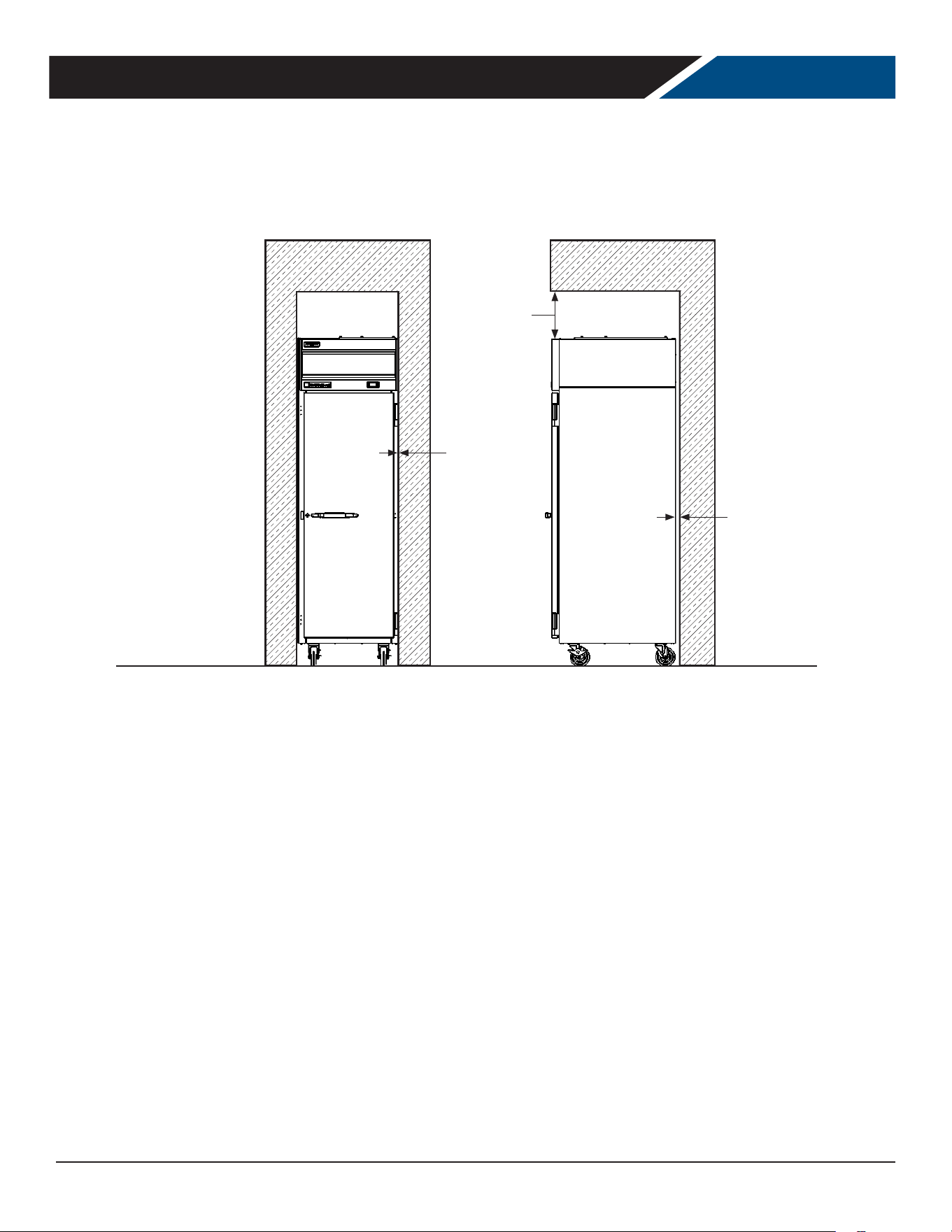

CLEARANCE AND PLACEMENT
12"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT
MINIMUM
CLEARANCE
0"
REAR
MINIMUM
CLEARANCE
Placement
Consider the following when selecting a location for your Refrigerator:
Clearance:
• 12.0 in. at the top
• 0.0 in. at the rear
• 0.0 in. at the left side
• 0.0 in. at the right side
• 0.0 in. at the bottom
Floor Load: The oor on which the Refrigerator is located must be even and level, free from vibrations, and strong enough
to support the combined weights of the unit and maximum product load.
Ventilation: Grille area at front must be free and clear of any object or wall.
Power Outlet: Dedicated power outlet is located within the length of the unit's power cord.
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 7
UNPACKING AND SET UP
CAUTION
Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is
suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim.
Do NOT contact the manufacturer.
Uncrating
Tools Needed: ¾” box wrench, adjustable wrench, level,
at head screw driver, and box cutter.
1. Cut the stretch wrap along a corner post and remove
the cardboard top capping and the corner posts.
Note: additional clear plastic protective wrap is
applied directly to any product with a glass door.
2. Discard stretch wrap and any cardboard that will not
be recycled.
3. Move unit as close to nal position as possible before
removing the skid.
Note: The skid must be removed before the casters or
legs can be attached.
Do NOT tip unit on its front or sides. If tipped onto the
back, unit must not be started for 3 hours.
Skid Removal and Caster Attachment
Tip the unit forward and remove the skid.
Risk of personal injury.
Unit must be securely supported
while attaching casters or legs.
WARNING
1. Remove the shipping bolts using the ¾” box wrench
while cabinet is held in one direction. Repeat the process
while the cabinet is held in the opposite direction.
2. None of the threads on the leg or caster stem should
be visible once screwed in.
3. Tilt the cabinet in one direction approximately 8” and
block it securely with pieces of 2x4 lumber or other
suitable material.
4. Thread the stem casters or legs into the ½ -13 holes in
the bottom of the cabinet. Tighten by hand as much
as possible. Some models may already have levelers
installed. If so, then the levelers will need to rst be
removed and discarded.
5. Once the caster or leg cannot be turned any further,
use a 3/4 inch wrench to tighten the nut in between
the mounting plate and the wheel of the caster until
snug.
6. Repeat this procedure with unit secured in the
opposite direction so as to access the remaining legs/
casters/levelers.
7. If plate casters or legs are installed instead of stem
casters or legs, then repeat step 3 above and secure
the plate with either #14 AB screws, or ¼-20 screws,
depending upon which are required.
8. If levelers are employed, then repeat step 3 above and
thread the leveler in place. Then repeat step 6.
Leveling:
Cabinets must be leveled when installed. Level should be
measured on the headrail.
Failure to level your cabinet may result in door not
sealing, closing correctly, or condensed water draining not
draining properly.
For cabinets with legs, rotate the foot of the leg with an
adjustable wrench to achieve desired height for leveling.
For cabinets with casters, leveling can be achieved by
placing large washers in between the ½’ stud and the
holes located on the bottom of the case.
Do NOT loosen casters to level the cabinet. Casters MUST
be tightly secured to cabinet for full strength.
Install or attach any accessories that will be used
Remove any plastic covering the stainless steel.
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory8

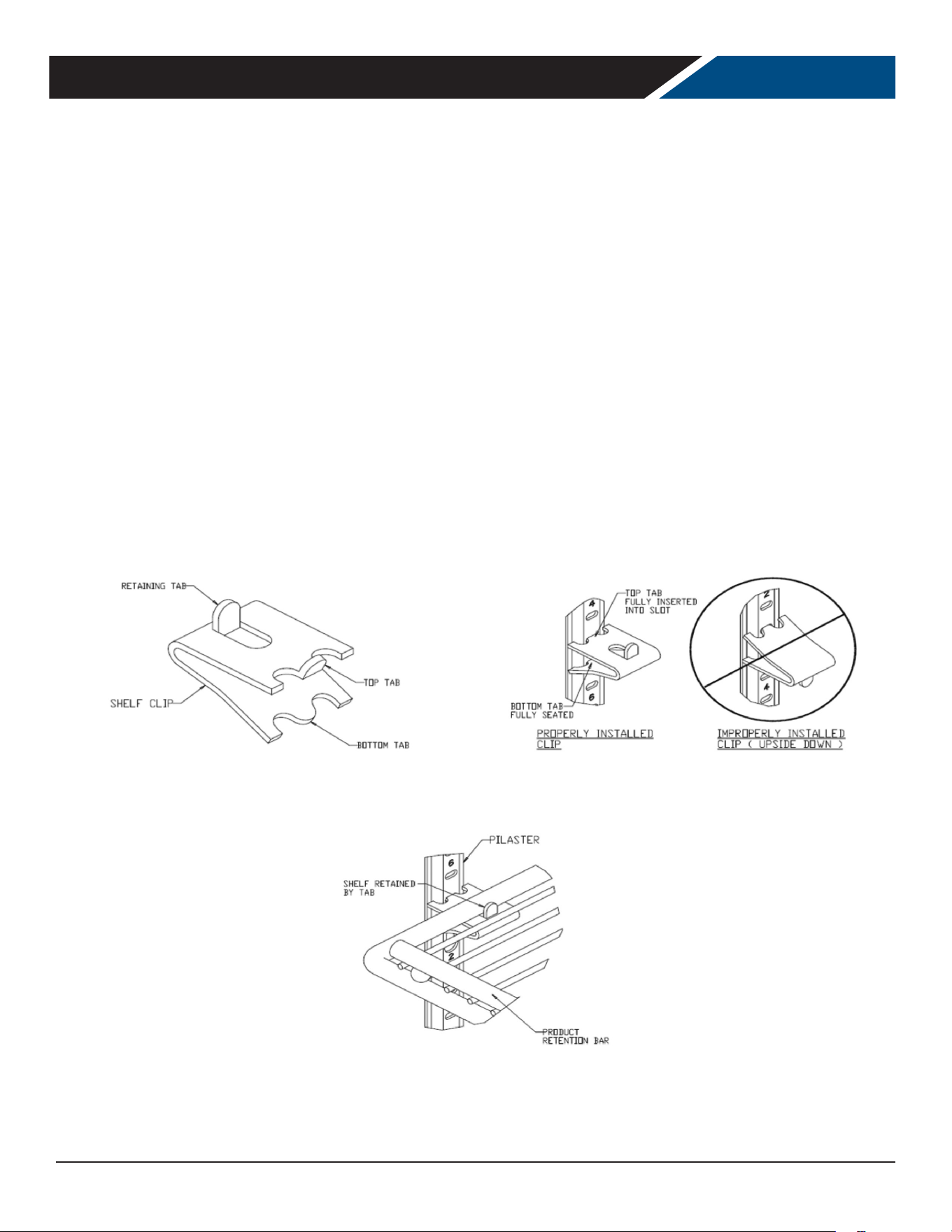

1. Determine the proper location for the shelf clips.
The reference numbers on the pilaster can serve as a
guide to ensure all clips are properly located.
2. Insert the top tab of the shelf clip into the desired
hole of the pilaster. The retaining tab MUST be facing
up as shown.
3. Rotate the clip downwards and insert the bottom tab
into the matching hole in the pilaster. The clip may
need to be squeezed slightly during installation.
4. Install all remaining clips.
5. Install shelves onto clips with the product retention
bar facing up. Be careful not to dislodge clips during
installation.
6. Place shelves so that the retaining tab on the clip
captures the shelf as shown.
7. Conrm that the shelf is resting on ALL 4 clips and
that the clips are securely attached to the pilasters.
8. Improper shelf clip installation could cause the shelf
and / or the product on it to fall, resulting in damage
to the unit and possible bodily injury.
9. Do NOT overload the shelves. The unit is designed to
use all shelves that are supplied in an equally spaced
manner. Contact Victory customer service if fewer
shelves or a dierent conguration to ensure shelf
overloading will not occur.
SHELF INSTALLATION
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 9
ELECTRICAL
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P or 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this issue
in a location that requires GFCI circuit protection, Victory
recommends using either an Eaton, SGF20, or HUBBELL
Model Number GFRST83W 20A Heavy Duty Hospital
Grade Self-Test GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
• Check for proper electrical hook-up.
• Cabinet MUST NOT SHARE A RECEPTACLE with
another piece of equipment
• Check that all clearances are in line with the
aforementioned guidelines.
• Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product. For
proper energy eciency and airow we recommend a
minimum 1” clearance between product and side walls, 4”
clearance between product and ceiling, and 1” clearance
from the bottom of the unit.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them.
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P plug or a 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL
5-15P
5-20P
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
ELECTRICAL
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for RS and RSA Refrigerators Victory
Rev. 04/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
GFCI
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI outlets
which have a trip limit of 4 to 6 mA. To avoid this
issue in a location that requires GFCI circuit protection,
Victory recommends using a HUBBELL Model Number
GFRST83W 20A Heavy Duty Hospital Grade Self-Test
GFCI Receptacle.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
After the cabinet has been installed, leveled, and cleaned
as described above, refer to the following checklist:
Check for proper electrical hook-up.
Cabinet MUST NOT SHARE A RECEPTACLE with another
piece of equipment
Check that all clearances are in line with the
aforementioned guidelines.
Check that cabinet is level.
* NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
ELECTRICAL
Rev. 06/21
User Manual for VERSA Refrigerators Victory
Rev. 09/22Victory10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the top
area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover.
2. Remove door from the unit including the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away).
4. On the bottom of the door the same hole plugs are
present and need to be removed.
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit.
6. Install the hinge bracket upright on the unit. The thick
portion of the hinge bracket should be on the bottom
as you mount them.
7. The door portion of the hinges need to be removed and
rotated 180 degree and remounted.
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted.
9. Slide door back into position and gently lower into the
white pivot cam.
10. Replace hinge cover.
ELECTRICAL
ELECTRICAL
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P plug or a 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL
5-15P
5-20P
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P plug or a 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL
5-15P
5-20P
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P plug or a 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL
5-15P
5-20P
User Manual for VEFSA Freezers Victory
Rev. 09/22 Victory 9
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and either a
5-15P plug or a 5-20P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 0º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
Door Reversal Instructions
1. Remove hinge cover
2. Remove door from the unit to include the hinge
mounting brackets
3. Remove white hole covers from the side of the door
opening you would like the hinges to be located (do
not throw away)
4. On the bottom of the door the same hole plugs are
present and need to be removed
5. Take the hole plugs and insert them into the screw
holes where the hinges were originally located on the
unit
6. Install the hinge bracket upright on the unit. The
thick portion of the hinge bracket should be on the
bottom as you mount them
7. The door portion of the hinges need to be removed
and rotated 180 degree and remounted
8. Install the hole plugs that were removed from the
bottom of the door into the holes where the handle
was rst mounted
9. Install the handle on what is now the top of the door
10. Slide door back into position and gently lower into the
white pivot cam
11. Replace hinge cover
ELECTRICAL
5-15P
5-20P
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory10
USING THE UNIT
0123ÿ567869ÿ3ÿÿ322231ÿ223623
ÿ !"!#$%!&'(#))
ÿÿÿ
ÿ
,
-
./012ÿ456ÿ.104
789:;<=>?ÿ=AÿA=B8C9DÿEFA<ÿG998ÿ=<ÿH>??9H<9Iÿ<>ÿ<J9ÿH>::9H<ÿ
8>K9:ÿAF88CLÿ;?I
ÿ<J9ÿM:99N9:ÿK=CCÿB;=?<;=?ÿ<J9ÿ=?<9:?;Cÿ
<9B89:;<F:9ÿ=<ÿJ;AÿO99?ÿA9<ÿ<>PÿQ998ÿ<J9ÿI>>:Aÿ;?IÿRÿ>:ÿ
I:;K9:AÿHC>A9Iÿ;AÿBFHJÿ;Aÿ8>AA=OC9ÿ<>ÿ;S>=IÿF??9H9AA;:Lÿ
:F?ÿ<=B9P
TJ9ÿH>?<:>CC9:ÿI=A
8C;LAÿ<J9ÿHF::9?<ÿ=?<9:?;Cÿ<9B89:;<F:9Pÿ
UIEFA<=?Vÿ<J9ÿA9<ÿ<9B89:;<F:9ÿC>K9:ÿK=CCÿW7TÿH;FA9ÿ<J9ÿ
ALA<9Bÿ<>ÿC>K9:ÿ<J9ÿ<9B89:;<F:9ÿM;A<9:PÿXJ9?ÿ>?Dÿ<J9ÿ
:9M:=V9:;<=>?ÿALA<9Bÿ=Aÿ;CK;LAÿ>89:;<=?Vÿ;<ÿB;Y=BFBP
Z>:ÿO9A<ÿ:9AFC<ADÿB;G9ÿH9:<;=?ÿ<J9ÿF?=<ÿ:9B;=?Aÿ8>K9:9Iÿ
;?IÿJ;Aÿ;HJ=9S9Iÿ<J9ÿI9A=:9IÿA9<ÿ8>=?<ÿO9M>:9ÿC>;I=?Vÿ
=<ÿK=<Jÿ8:>IFH<Pÿÿ\FCCÿI>K?ÿ<=B9ÿK=CCÿS;:LÿI989?I=?Vÿ
F8>?ÿ<J9ÿ<L89ÿ>MÿF?=<ÿ;?Iÿ;BO=9?<ÿH>?I=<=>?APÿÿZ:9AJCLÿ
H>>G9Iÿ8:>IFH<Dÿ>:ÿ><J9:K=A9ÿK;:Bÿ
8:>IFH<ÿ8C;H9Iÿ
=?<>ÿ<J9ÿ;88C=;?H9ÿK=CCÿ;CA>ÿ=?H:9;A9ÿ<J9ÿ8FCCÿI>K?ÿ<=B9ÿ
A=V?=]H;?<CLÿA=?H9ÿ<J=AÿB>I9Cÿ=AÿI9A=V?9IÿM>:ÿA<>:;V9ÿ;?Iÿ
?><ÿM>:ÿ:;8=Iÿ8FCCÿI>K?P
TJ9ÿ<9B89:;<F:9ÿK;AÿA9<ÿ;<ÿ<J9ÿM;H<>:Lÿ;<ÿ^
_
ÿZDÿOF<ÿL>FÿH;?ÿ
;IEFA<ÿ=<ÿ<>ÿL>F:ÿ>K?ÿA9C9H<9Iÿ<9B89:;<F:9Pÿ`^ÿA9H>?IAÿ
;M<9:ÿ;IEFA<B9?<Dÿ<J9ÿI=A8C;Lÿ;F<>B;<=H;CCLÿ:9S9:<Aÿ<>ÿ
AJ>K=?Vÿ<J9ÿHF::9?<ÿ<9B89:;<F:9P
TJ9ÿM:99N9:ÿK=CCÿ;F<>B;<=H;CCLÿI9M:>A<ÿ;Aÿ?
99I9IDÿ<J9:9ÿ=Aÿ
?>ÿA9<ÿ<=B9ÿM>:ÿI9M:>A<Pÿ\FAJÿ;?Iÿ=BB9I=;<9CLÿ:9C9;A9ÿ<J9ÿ
aB9C<=?Vaÿ>:ÿI9M:>A<ÿOF<<>?ÿM>:ÿ;ÿB;?F;CÿI9M:>A<P
W><9bÿc>CI=?Vÿ<J9ÿI9M:>A<ÿOF<<>?ÿ=?ÿ<>>ÿC>?VÿK=CCÿAJF<ÿ
<J9ÿ
H>?<:>CC9:ÿ>dP
TJ9ÿ=?<9:?;CÿM;?ÿK=CCÿO9ÿ>?ÿKJ9?ÿ<J9ÿH>B8:9AA>:ÿ=Aÿ>?ÿ;?I
ÿ
KJ9?ÿ<J9ÿI>>:Aÿ;:9ÿHC>A9IPÿ
TJ9ÿH>B8:9AA>:ÿ;?IÿH>?I9?A9:ÿM;?ÿB><>:ÿK=CCÿ>?CLÿO9ÿ>?ÿ
KJ9?ÿ<J9ÿH>?<:>CC9:ÿA9?A9Aÿ;?ÿ=?H:9;A9ÿ=?ÿ=?<9:?;CÿH;O=?9<
ÿ
<9B89:;<F:9ÿ8;AA9Iÿ<J9ÿA9<ÿ8>=?<P
eMÿ9fF=889IÿK=<JÿVC;AAÿI>>:ADÿJ>CI=?Vÿ<J9ÿghÿOF<<>?ÿ=?ÿK=CC
ÿ
<F:?ÿ<J9ÿH;O=?9<ÿC=VJ<ÿ>?ÿ>:ÿ>dP
g9C9H<
i9M:>A<
e?H:9;A9
i9H:9;A9
e?ÿB>A<ÿH;A9Aÿ<J9ÿ>?CLÿ<J=?VÿI=A8C;L9IÿK=CCÿO9ÿ<J9ÿH;O=?9<ÿ<9B89:;<F:9PÿXJ9?ÿA>B9<J=?Vÿ><J9:ÿ<J;?ÿ?>:B;Cÿ>89:;<=>?ÿJ;Aÿ
>HHF::9IDÿ;ÿB9AA;V9ÿK=CCÿO9ÿAJ>K?P
j9AA;V9ÿi=A8C;L9I XJL XJ;<ÿ<>ÿI>
klm
n?=<ÿ=AÿI9M:>A<=?VW><J=?VPÿW>:B;Cÿ>89:;<=>?P
op
h;O=?9<ÿ<9B89:;<F:9ÿ<>>ÿK;:Bh>?]:BÿI>>:Aÿ>:ÿI:;K9:Aÿ;:9ÿHC>A9IP
kqr
i>>:ÿ=Aÿ>89?hC>A9ÿI>>:Dÿ=MÿB9AA;V9ÿI>9Aÿ?><ÿ
HJ;?V9DÿH;CCÿM>:ÿA9:S=H9P
slt
h>B8:9AA>:ÿ:F?ÿ<=B9ÿ<>>ÿC>?VhJ9HGÿI>>:AÿHC>A9IPÿeMÿL9ADÿH;CCÿM>:ÿ
A9:S=H9P
luvwÿluywÿluzwÿlu{
g9?A>:ÿF?8CFVV9Iÿ>:ÿJ;AÿM;=C9Ih;CCÿM>:ÿA9:S=H9P
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 11
SEQUENCE OF OPERATIONS FREEZER
The freezer operates based on the air temperature measured by the probe located at the return air.
ON OFF
COMPONENT OPERATION
CONTROLLER
ACTION
OPERATION
CONTROLLER
ACTION
COMPRESSOR
Compressor turns
on when the air
temperature at the
probe is above the
sum of the set point
+ 2.5
The Compressor Contact
is energized
Compressor turns
o when the air
temperature at
probe is equal to
or less than the set
point – 2.5
The Compressor Contact
is de-energized
(ERC 112 - Terminal #1) (ERC 112 - Terminal #1)
CONDENSER FAN
The Condenser
Fan turns on when
the Compressor is
running
The Condenser Fan is
wired directly to the
Compressor, not through
the controller
The Condenser Fan
turns o when the
Compressor is not
running
The Condenser Fan is
wired directly to the
Compressor, not through
the controller
EVAPORATOR
FAN
The Evaporator
Fan turns on when
the Compressor is
running and the
doors are closed.
The Evaporator Fan is
wired to the Fan Contact
The Evaporator Fan
turns o when the
Compressor is not
running, and when
door is opened
while Compressor is
running
The Evaporator Fan is
wired to the Fan Contact
(ERC 112 - Terminal #5) (ERC 112 - Terminal #5)
DEFROST HEATER
The Defrost Heater
will activate
on cumulative
Compressor runtime
of 6 hours, and when
temperature drops
too low
The Defrost Heater
Contact is energized
When either the
defrost is not
scheduled or the
temperature at
defrost probe
has reached the
defrost termination
temperature.
The Defrost Heater
Contact is de-energized
(ERC 112 - Terminal #6) (ERC 112 - Terminal #6)
FACE/DOOR
HEATERS
The Face & Door
Heaters turn
on when the
Compressor is
running
The Door/Face Heater
are wired to the
Compressor Contact
The Face & Door
Heaters turn
o when the
Compressor is not
running
The Door/Face Heater
are wired to the
Compressor Contact
(ERC 112 - Terminal #1) (ERC 112 - Terminal #1)
LIGHT
The light will turn on
when the is
pressed (or when the
door is opened with
solid doors)
The Light Contact is
energized
The light will turn
o when the
is pressed (or when
the door is closed
with solid doors)
The Light Contact is de-
energized
(ERC 112 – Terminal #4) (ERC 112 – Terminal #4)
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory12

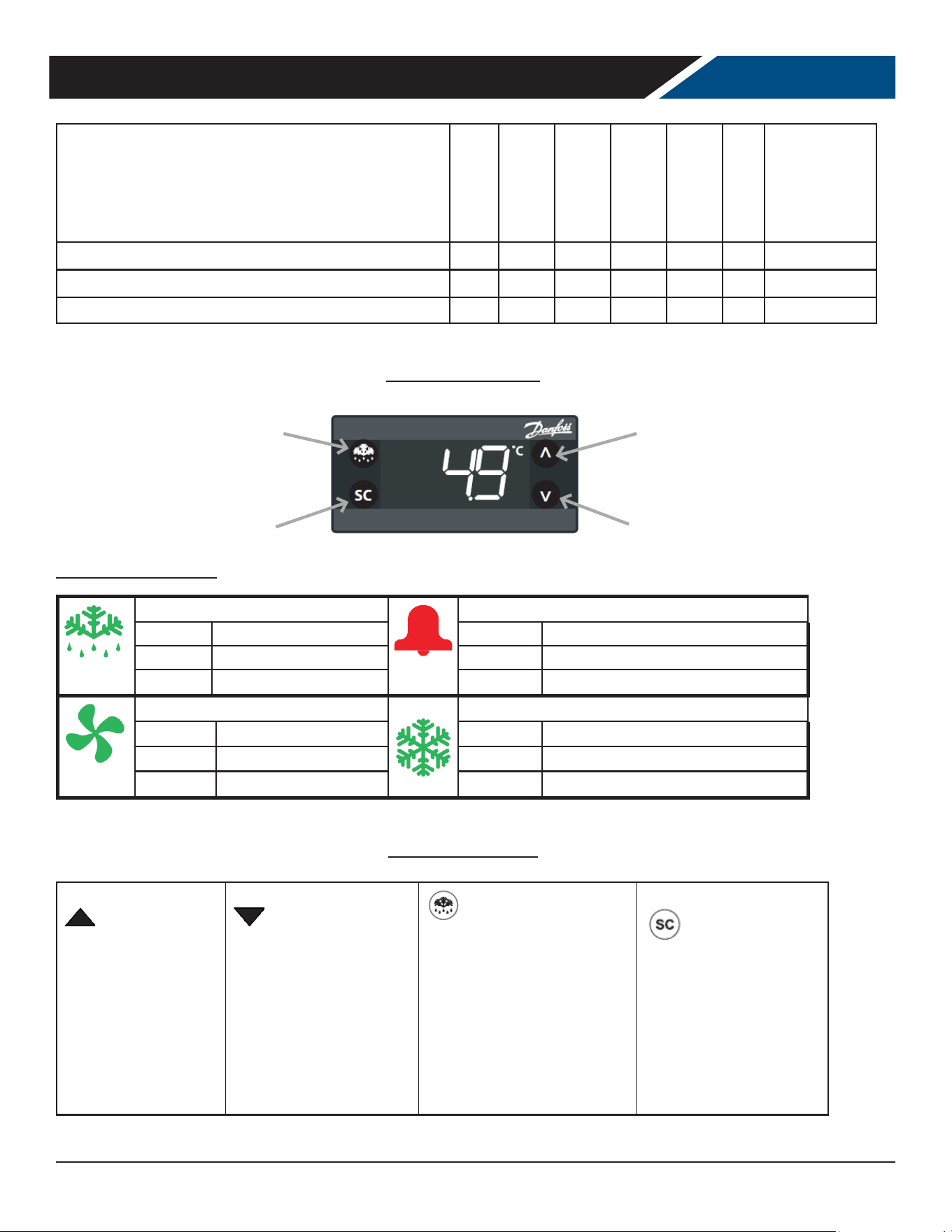

Condition
Compressor
Condenser
Fan
Evaporator
Fan
Defrost
Heater
Face/Door
Heater
Drain Heater
Lights
Cabinet Temp > Set point + 2.5 ON ON ON OFF ON ON ON or OFF
Cabinet Temperature <= Set point - 2.5 OFF OFF OFF OFF OFF ON ON or OFF
Defrost OFF OFF OFF ON OFF ON ON or OFF
Electronic Controller
Control Panel Display
Defrost LED Alarm LED
On xed: Defrost active On xed: ALARM Present
O: Defrost is o Flashing: ALARM Silenced
O: No Alarm
Fan LED Compressor LED
On xed:
Fan active
On xed: Compressor active
O:
Fan O
Flashing: Delay, protection or activation blocked
O: No Alarm
Keyboard Functions
UP
DEFROST (ESC)
SELECT (OK)
DOWN
UP
Quick press and release
•
Increases Set Point
Long press and release
•
Increases display brightness
DOWN
Quick press and release
•
Decreases Set Point
Long press and release
•
Decreases display brightness
DEFROST (ESC)
Quick press and release
•
Activates manual defrost
Long press and release
•
Controller enter stand-by mode
SET (ENTER)
Quick press and release
•
Toggles lights on/o
Long press and release
•
Toggles display °F/°C
NOTE: When switched on, the instrument panel performs a lamp test for a few seconds.
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 13

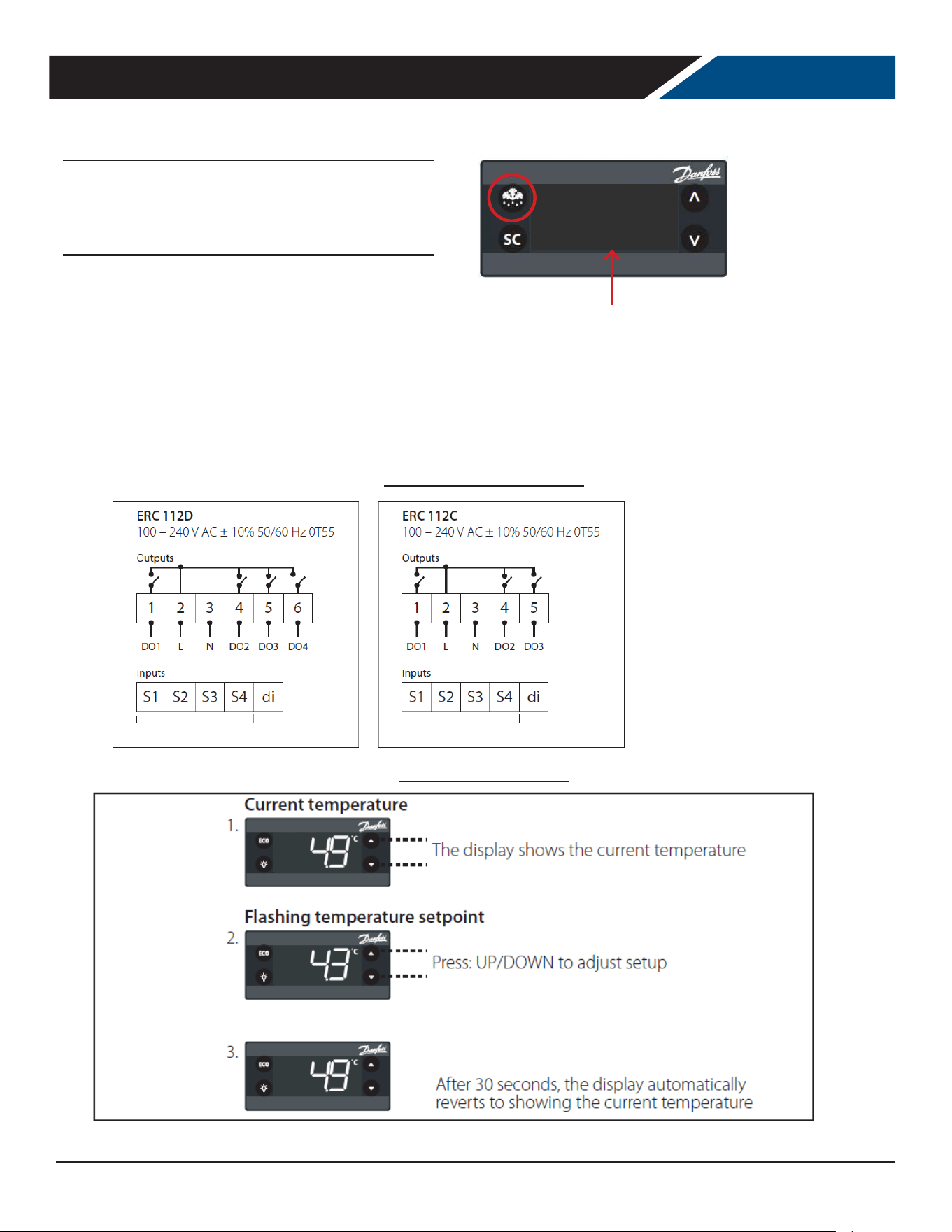

Control Panel Connections
Changing the Set point
Note: When the controller is in a Standby Mode, a
blue dot will be displayed as shown here. To switch
out of Standby Mode, push and release the Defrost
button.
.
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory14

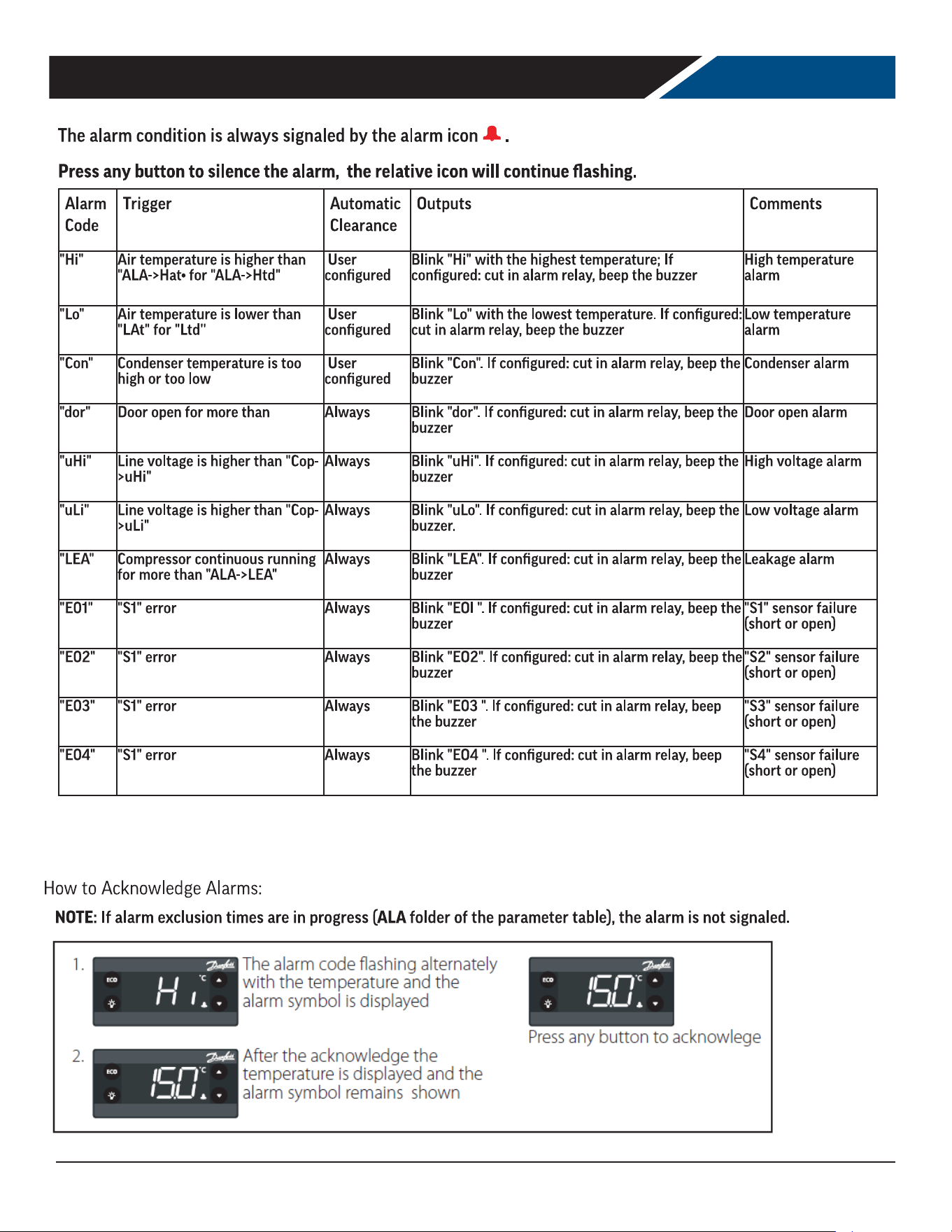

0123ÿ567869ÿ3ÿÿ223623
ÿ !"#$% &'
()*+,ÿ./ÿ01023ÿ4561789:;ÿ<9348ÿ024ÿ9;ÿ=2:>2488ÿ?@A@ÿ/:1C42ÿ:/ÿ<D4ÿ=02034<42ÿ<0E14FGÿ<D4ÿ01023ÿ98ÿ;:<ÿ89>;014CH
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 15
CLEANING AND MAINTENANCE
Cleaning Schedule:
Cabinet
Daily wipe down
Weekly interior
Condenser coil
Quarterly cleaning
Gaskets
Daily inspection, check
that hinges are tight to
the cabinet.
Routine maintenance
Annually
Daily Exterior Cleaning
It is much easier to clean on a regular basis than to have to remove stains once they have built up.
1. Wash with a clean sponge and a mild detergent that
does not contain chlorine.
2. Rinse with clean water.
3. Dry with a soft cloth.
4. Polish with a soft cloth, wiping with the grain.
5. Wipe weekly with stainless steel cleaner.
Weekly Interior Cleaning
1. Remove all food, food related items and shelves. Store
the food at a safe temperature.
2. Disconnect power to the unit (unplug it or switch the
breaker o).
3. Remove all loose food particles from the inside walls,
oor, door liner and ceiling.
4. Scrub all interior surfaces and door gaskets with a
warm (100
o
F to 110
o
F) detergent solution and a soft
scrub brush.
5. Rinse with clean water and allow to air dry.
6. Return the shelves to the unit and secure them.
7. Restore power.
8. Return food to the unit when it has reached a
safe temperature.
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory16

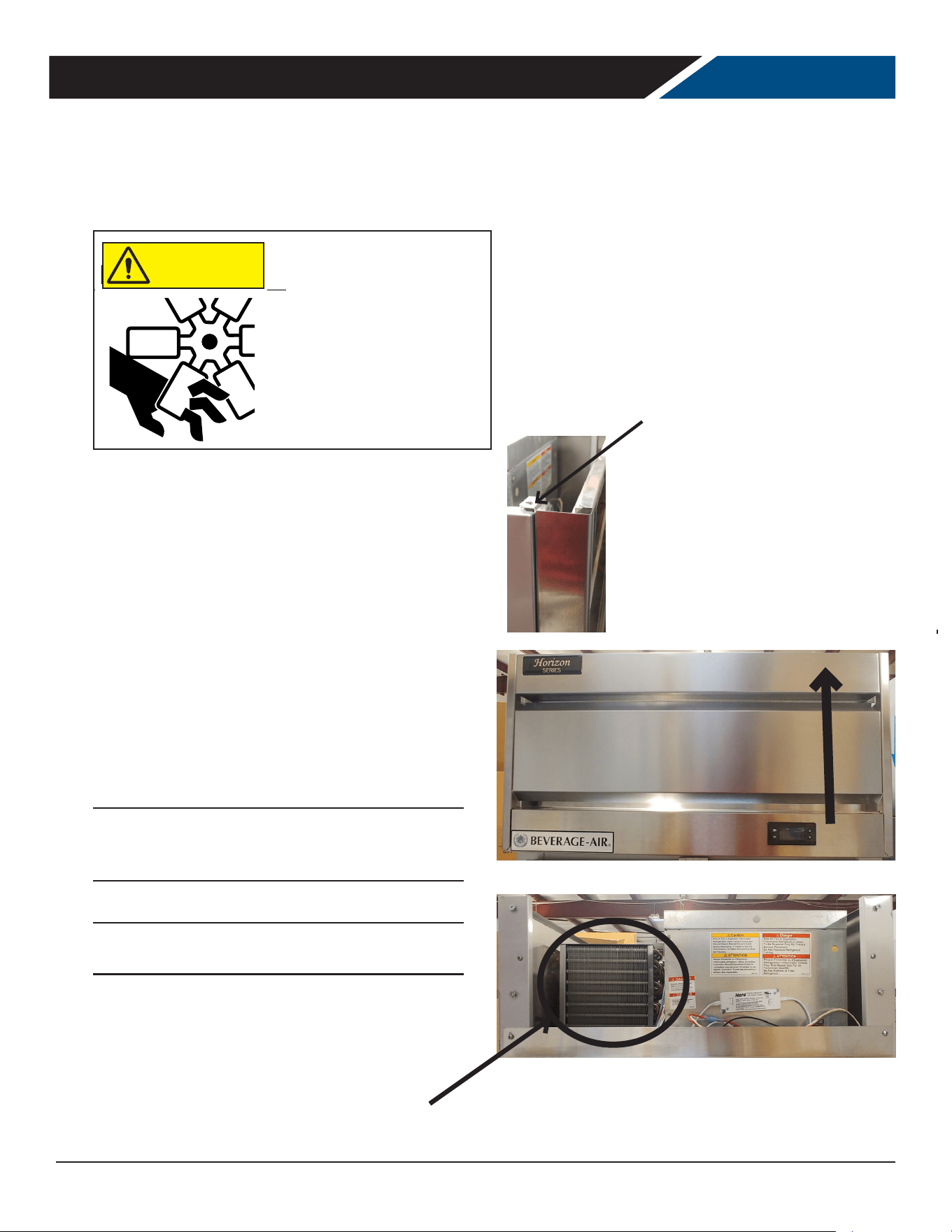

CONDENSER CLEANING
Keeping the condenser coil clean is critical to ecient
operation.
1. Unplug unit from power supply.
2.
Rotating fan blade can cause
personal injury.
Unplug unit from power supply
before beginning to clean
condenser
CAUTION
3. Remove two Phillips head screws from the top
corners of the front panel
4. Lift upwards on the front panel to remove
5. To reinstall the front panel line up the keeper screws
behind the panel and rmly pull downwards
6. Reinstall the screws on the top corners
7. Examine condenser surface, if dusty, brush and
vacuum the dust and lint from the surface of the
coil. Brush up and down to avoid damaging the ns.
Use care to not disturb the wires connected to the
controller.
Note: If the coil is greasy, the coil will need to be
cleaned with coil cleaner and that should be left to an
experienced technician.
8. Return grill to unit.
Note: Air lters are not recommended as they restrict
the ow of cooling air.
Remove Screws
Condenser Surface
Push Up and O
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 17
Cleaning Needed Cleaning Agent Method of Application Aect on Finish
Smears and ngerprints
Areal 20, Lac-O-Nu, Lumin Wash
O’Cedar Cream Polish, Stainless
Shine.
Rub with cloth as directed
on the package.
Satisfactory for use on all
nishes.
Provides barrier lm to
minimize prints.
Stubborn Spots and
Stains, Baked-On
Splatter, and Other
Light Discolorations
Allchem Concentrated Cleaner.
Apply with damp sponge or
cloth.
Rub with damp cloth.
Use in direction of polish lines
on No. 4 (polished) nish. May
scratch No.
2 (mill) and Nos. 7 and 8
(polished) nishes.
Samae, Twinkle or Cameo Copper
Cleaner
Rub with damp cloth.
Grade FFF Italian pumice, whiting,
or talc.
Rub with dry cloth.
Liquid NuSteel
Paste NuSteel or DuBois Temp.
Copper’s Stainless Steel Cleaner
Revere Stainless Cleaner
Household cleansers, such as
Old Dutch, Lighthouse, Sunbrite,
Wyandotte, Bab-O, Gold Dust,
Sapolio, Bon Ami, Ajax, or Comet
Grade F Italian Pumice, Steel
Bright, Lumin Cleaner, Zud,
Restore, Sta-Clean, or Highlite.
Penny-Brite or Copper-Brite.
Use small amount of cleaner.
Rub with dry cloth using a
small amount of cleaner.
Apply with damp sponge or
cloth.
Rub with a damp cloth. May
contain chlorine bleaches.
Rinse
thoroughly after use.
Rub with a damp cloth.
Rub with a dry cloth using a
small amount of cleaner.
Heat tint or
discoloration
Penny-Brite or Copper-Brite.
Past NuSteel, DuBois Temp,
or Tarnite. Revere Stainless Steel
Cleaner. Allen Polish, Steel Bright,
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains Wyandotte,
Bab-O or Zud.
Rub with a dry cloth.
Rub with a dry cloth or stain-
less steel wool.
Apply with damp sponge or
cloth.
Rub with a damp cloth.
Burnt-On Foods and
Grease Fatty Acids,
Milkstone (where
swabbing or rubbing
is not practical)
Easy-O, De-Grease-It, 4 to 6%
hot solution of such agents as
trisodium phosphate or sodium
tripolyphosphate or 5 to 15% caustic
soda solution
Apply generous coating. Allow
to stand for 10-15 minutes.
Rinse.
Repeated application may be
necessary.
Excellent removal, satisfactory
for use on all nishes.
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains
Oakite No. 33, Dilac Texo 12, Texo NY,
Flash-Klenz, Caddy Cleaner,
Turco Scale 4368 or Permag 57.
Swab and soak with clean
cloth.
Let stand 15 minutes or more
according to directions on
package, then rinse and dry.
Satisfactory for use on all
nishes
Hard Water Spots
and Scale
Vinegar.
5% oxalic acid, 5% sulfamic acid, 5 to
10% phosphoric acid, or Dilac, Oakite
No. 33, Texo 12, Texo N.Y.
Swab or wipe with cloth. Rinse
with water and dry.
Swab or soak with cloth. Let
stand 10-15 minutes. Always
follow with neutralizer rinse,
and dry.
Satisfactory for all nishes.
Satisfactory for all nishes.
Eective on tenacious deposits
or where scale
has built up.
METHODS FOR CLEANING STAINLESS STEEL
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory18
HELP
Trouble Diagnosis for the User
Malfunction Possible Cause Likely Solution
No cooling - unit is silent
Unit not plugged in.
Fuse or circuit breaker tripped.
Power cord plug loose in outlet.
Connect to proper voltage circuit Replace
fuse or reset breaker.
Check outlet for loose connection, replace
as needed
Unit cools but seems to be on all the time Dirty condenser Clean condenser
Space temperature too high
Dirty condenser
Evaporator iced over Unit in high
temperature environment
Clean condenser Defrost evaporator
Reduce temperature of room
Space temperature too low Temperature control Adjust or replace control
Trouble Diagnosis for the Technician
No cooling - compressor does not hum Temp control stuck in open position Replace temp control.
No cooling - compressor hums but does not
start
Low voltage to unit.
Compressor starting system failure
Check voltage, correct as needed. Check
start relay and start capacitor. See next
step.
No cooling - compressor starts but shuts
o
Compressor start relay failure Compressor
start capacitor failure
Replace relay. Replace capacitor.
No cooling - compressor cycles on and o Overheating weak overload
Clean condenser, check fan motor and
blade. Check refrigerant charge. Replace
overload.
Unit cools, but is slow to pull cabinet
temperature down
Evaporator fan not turning
Check fan(s), on multiple fan units one fan
may be turning slowly and will need to be
replaced.
Unit cools but turns on and o frequently
No product in cabinet. Temperature control
defective Refrigeration issue
Fill cabinet Replace control
Have system checked
Makes excessive noise
Tubing rattle Loose parts
Bent or broken fan blade Noisy fan motor
Check tubing for routing Check for loose
components Replace fan blade
Replace fan motor
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 19
FOR THE SERVICE TECH - R290
Refrigeration service should only be attempted by a trained trade professional certied to work on R290 systems.
Here are some critical service items.
This list does not qualify anyone to service the unit. It is a
reminder and checklist for the service tech. Keep these in
mind for R290 service:
• Wire nuts are NOT to be used when changing an
electrical part.
• The switches in this product are sealed, only exact
replacements may be used.
• The process tubes are to be used for service access.
• Cut out (with tubing cutter) refrigeration components
that are to be replaced. Do NOT un-braze.
• Because R290 can be vented into the air during
service, the venting MUST be in an area free from
ame or spark. It must also be in a well ventilated
area, with a nearby open window or door.
• A sign noting service of a system containing propane
must be attached to the unit during refrigeration
service.
• A combustible gas leak detector must be used to
inform anyone in the area when propane is present in
the air.
Other Information:
Evacuation: It is critical that a refrigeration system be
leak free and internally dry. A thorough evacuation with
a good vacuum pump with a micron gauge attached is the
only way to ensure that the system is dry and ready for a
charge of refrigerant.
Charging: The system is critically charged and the proper
type and amount MUST be weighed in.
Overcharge symptoms: Unit will cool properly but
the suction line temperature will be unusually cold.
Compressor run time will be longer than normal.
Undercharge symptoms: Long run time, poor cooling and
a hot compressor dome are the main symptoms of an
undercharge.
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory20
FOR THE SERVICE TECH - WIRING DIAGRAM FOR ONE SYSTEM MODELS
WHITE
2
1
BLACK
BLACK
WHITE
EVAP FAN
POWER
SUPPLY
LAMP
*SEE CONTROLLER DETAIL
2
3
*SEE CONTROLLER DETAIL
WHITE
BLACK
COMPRESSOR DETAIL
L.E.D. LAMP
DIGITAL INPUT
SIGNAL
START RELAY
10
COMP
CONDENSER FAN
C
R
S
2
4
OL
1
R.C.
S.C.
2
*SEE CONTROLLER DETAIL
4
*SOLID DOOR MODELS ONLY
115VAC 60 HZ
FACE HEATER (1)
DOOR HEATER (1)
*SEE CONFIGURATION CHART
2
5
*SEE CONTROLLER DETAIL
DRAIN TUBE HEATER
DEFROST HEATER
2
6
*SEE CONTROLLER DETAIL
DIGITAL INPUT
SIGNAL
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 21

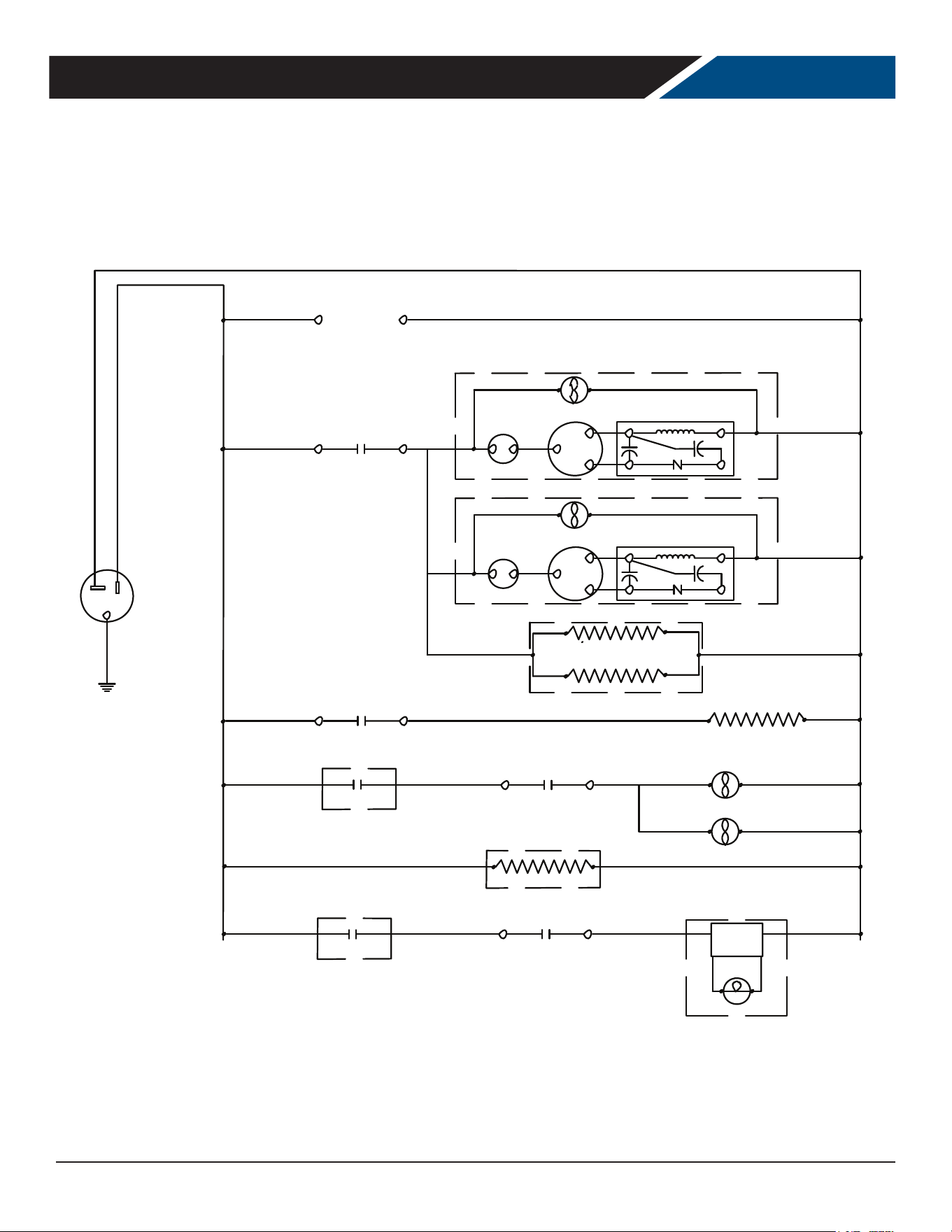

FOR THE SERVICE TECH - WIRING DIAGRAM FOR TWO SYSTEM MODELS
WHITE
2
1
BLACK
BLACK
WHITE
*SEE CONTROLLER DETAIL
2
3
*SEE CONTROLLER DETAIL
WHITE
BLACK
COMPRESSOR DETAIL
START RELAY
10
COMP
CONDENSER FAN
C
R
S
2
4
OL
1
R.C.
S.C.
115VAC 60 HZ
COMPRESSOR DETAIL
START RELAY
10
COMP
CONDENSER FAN
C
R
S
2
4
OL
1
R.C.
S.C.
EVAP FAN
POWER
SUPPLY
LAMP
L.E.D. LAMP
DIGITAL INPUT
SIGNAL
2
*SEE CONTROLLER DETAIL
4
*SOLID DOOR MODELS ONLY
FACE HEATER (1)
DOOR HEATER (1)
*SEE CONFIGURATION CHART
2
5
*SEE CONTROLLER DETAIL
DRAIN TUBE HEATER
DEFROST HEATER
2
6
*SEE CONTROLLER DETAIL
DIGITAL INPUT
SIGNAL
EVAP FAN
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory22
LIMITED WARRANTY
Warranty (Continental USA & Canada Only)
SEVEN (7) YEAR PARTS, LABOR, AND COMPRESSOR
LIMITED WARRANTY
Victory® Refrigeration (Victory) warrants to the
original purchaser of Victory branded equipment,
that such equipment is free from defects in material
and workmanship, under normal use, proper
maintenance and service as indicated by Victory’s
installation and operation instructions, for a period
of SEVEN (7) years from the date of installation, or
eighty-seven (87) months from the date of shipment
from the manufacturer, whichever is earlier. In
addition, Victory® Refrigeration (Victory) warrants the
hermetically/semi-hermetically sealed compressor
(part only) for SEVEN (7) years; not to exceed eighty-
seven (87) months from the date of shipment from
Victory, provided upon receipt of the compressor,
manufacturer examination shows the sealed
compressor to be defective. This warranty does not
cover freight for the replacement compressor or
freight for return of the failed compressor. Also, this
compressor-part only warranty does NOT apply to
any electrical controls, condenser, evaporator, fan
motors, overload switch, starting relay, capacitors,
temperature control, lter/drier, accumulator,
refrigeration tubing, wiring harness, labor charges, or
supplies which are covered by the standard warranty
above.
*Units shipped after 07/1/2024. Previous warranty
applies to units shipped prior.
Exceptions:
• Warranty does not apply for units installed
in a Residential application. Units are intended for
Commercial use only.
• Blast Chillers carry a 3 year parts and labor
warranty; 2 additional years for the compressor.
Normal wear type parts, such as light bulbs/lamps,
gaskets, fuses, batteries, blast chiller/freeze probes,
thermostat or electronic controller calibration and/
or adjustment, and any normal maintenance items as
outlined in the Owner’s Manual, adjustment of door
mechanisms or freight damage are not covered by this
warranty. For this warranty, the original purchaser
shall be deemed to mean the individual or company for
whom the product was originally installed.
Proof of purchase must be supplied to Victory to
validate the warranty. This warranty is valid only
if equipment is properly installed, and started-up as
outlined in the Owner’s Manual.
Units that utilize variable speed compressor
technology can experience nuisance tripping on Class
A GFCI outlets which have a trip limit of 4 mA to 6
mA. To avoid this issue in a location that requires GFCI
circuit protection, Beverage Air & Victory recommends
using a HUBBELL Model Number GFRST83W 20A
Heavy Duty Hospital Grade Self-Test GFCI Receptacle.
Removal or alteration of the serial/ data plate from
equipment shall be deemed to release Victory from
all warranty obligations or any other obligations,
expressed or implied . The warranty does not cover
installation, start-up, normal maintenance, food
loss, or other consequential damage, and it excludes
components that are removable without tools. Our
obligation under this warranty shall be limited to
repairing or replacing, including labor, any part of such
product, which proves defective.
Victory reserves the right to examine any product
claimed to be defective. The labor warranty shall be
for self-contained units only and for standard straight
time, which is dened as normal service rate time,
for service performed during normal working hours.
Any service requested outside of a servicer’s normal
working hours will be covered under this warranty
at the normal rate and any additional overtime rate
will be the responsibility of the equipment purchaser.
Victory shall not be responsible for any costs incurred
if the work is performed by other than Victory’s
authorized service personnel. Reimbursement claims
for parts and/or labor service costs must be made in
writing. Model, cabinet serial number and installation
location must be shown on the claim. A receipted bill
from the servicing agency must accompany the claim,
together with full details of the service problems,
diagnosis and work performed. Victory reserves
sole discretion whether further documentation on a
claim is to be submitted. Any part determined to be
defective in the product should be returned to the
company within thirty (30) days under the terms of
this warranty and must be accompanied by a record
of the cabinet model, serial number, with a return
material authorization number (RMA#) issued by
Victory.
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 23
LIMITED WARRANTY (CONTINUED)
Special installation/applications, including remote
locations, are limited in coverage by this warranty.
Any installation that requires extra work, and/
or travel, to gain access to the unit for service is
the sole responsibility of the equipment purchaser.
Improper operation resulting from factors, including
but not limited to, improper or negligent cleaning
and maintenance, low voltage conditions, inadequate
wiring, outdoor use and accidental damage are
not manufacturing defects and are strictly the
responsibility of the purchaser.
Except Blast Chillers, a product is designed for
maintaining temperature and not bringing food to a
desired temperature, so cannot be held responsible for
this function under warranty.
Units must be in conditioned environments or
warranty will be void.
Condenser coils must be cleaned at regular intervals.
Failure to do so can cause compressor malfunction and
will void warranty. Although cleaning requirements
vary in accordance with the operation of various
products, Victory recommends a minimum monthly
cleaning.
NOTE: NO CLAIMS CAN BE MADE AGAINST THESE
WARRANTIES FOR SPOILAGE OF PRODUCTS,
LOSS OF SALES OR CONSEQUENTIAL DAMAGES.
THE FOREGOING WARRANTIES ARE EXPRESSLY
GIVEN IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS, IMPLIED, OR STATUTORY, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
WHICH ARE HEREBY DISCLAIMED, AND ALL OTHER
OBLIGATIONS OR LIABILITIES ON OUR PART, AND
WE NEITHER ASSUME, NOR AUTHORIZE ANY OTHER
PERSON TO ASSUME FOR US, ANY OBLIGATION OR
LIABILITY IN CONNECTION WITH THE SALE OF SAID
REFRIGERATION UNITS OR ANY PARTS THEREOF.
These warranties shall not be assignable and shall be
honored only in so far as the original purchaser.
These warranties do not apply outside the limits of
the USA and Canada, nor do they apply to any part
that has been subject to misuse, neglect, alteration,
accident, or to any damage caused by transportation,
ood, re, acts of terrorism, or acts of God.
LIMITATION OF LIABILITY:
Victory or its aliates shall not be liable for any
indirect, incidental, special or consequential
damages, or losses of a commercial nature arising
out of malfunctioning equipment or its parts or
components thereof, because of defects in material or
workmanship. In no event shall Victory be liable for a
sum more than the purchase price of the item.
THE ORIGINAL OWNER’S SOLE AND EXCLUSIVE
REMEDY AND VICTORY’S SOLE AND EXCLUSIVE
LIABILITY SHALL BE LIMITED TO THE REPAIR
OR REPLACEMENT OF PARTS OR COMPONENTS
CONTAINED IN THE EQUIPMENT IDENTIFIED
ABOVE WHICH UNDER NORMAL USE AND SERVICE
MALFUNCTION AS A RESULT OF DEFECTS IN
MATERIAL OR WORKMANSHIP, SUBJECT TO THE
APPLICABLE PROVISIONS AND LIMITATIONS STATED
ABOVE. 07/2024
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory24
REPLACEMENT PARTS FOR VEFSA-1D-SD-HC - CABINET
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56751758,ÿ5ÿ,+9:.(/
;
<=
>??@ABBC@BDEFGHHÿGJCÿKLMÿNOP
Q
<<
R?B@?DBC@SBKLMÿTUVHHGÿ>EEWÿNBP
X
DS
>?=@O<BC@BAVJEKUYZGJKÿM>JGHÿNBP
[
DS
O@DB?C@S?C>J\LEEÿ]LJKULHHGUÿNBP
^
<SB@O_?>MVH>EKGUÿN<P
=<S?@B=A>EFGH\ÿEYMMLUKÿ]HVMEÿNBOP
_<BO@SOSC@SBEFGH\ÿN?P
`
a
b
c
d
e
f
1
46A33-911D-15 SHELL END TOP (2)
2
44B31-351D-01 TOP GRILLE ASSY (1)
3
50A36-241D-19 INSTRUMENT PANEL (1)
4
502-514D-03 DANFOSS CONTROLLER (1)
5
401-273A PILASTER (4)
6 403-169A SHELF SUPPORT CLIPS (12)
7 412-020D-01 SHELF (3)
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 25
REPLACEMENT PARTS FOR VEFSA-1D-SD-HC - ASSEMBLIES
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56751758,ÿ5ÿ+11(-9*:(1
733'ÿ+11(-9*;
<=ÿ,+1/('ÿ>:/
9'(+>('ÿ>:/
?@@AÿCDDEFGHIÿJKCALÿMÿNOGNPQNRS?QOTU
P
VWXYXXZ[\]^_`aYb_cd]ÿ\f_]gdÿgh`ÿijj^ÿkWl
m
VWnYXZViYXWijj^ÿc[\`a]ÿkWl
TO
ZXWYoXZpbjg`ÿ\]^_`aÿkWl
TT
YYYYYYYYYYYYYYYYYYYY\d_qÿrÿbjg`ÿ\]^_`aÿrÿsj]ÿ\djfstÿsj]ÿ\jbiÿ\au[^[]abvÿkWl
Tw
YYYYYYYYYYYYYYYYYYYYijj^ÿd[sibaÿrÿsj]ÿ\jbiÿ\au[^[]abvÿkWl
Tx
XXgyZYXyWiYXW^a][_bÿd_scaÿ`_]ÿrÿb_z]jzzÿkWl
S{ÿ|CDLEAÿ}~LÿJKCALÿMÿT|OTQOOTCU
TN
YYYY
YYYYYYYYYYYYYYYYÿg[\]a^\ÿYÿsj]ÿ\jbiÿ\au[^[]abvÿkZlÿ
TS
XZ
YXWW[g[\]a^ÿf^asgdÿrÿsj]ÿ\djfsÿkWl
|CGÿGAEC}EAÿ}~LÿJKCALÿMÿT|OPQOwOCU
T
YYYYYYYYYYYYYYYYYYYY
p^a[`a^ÿgja^ÿ\_ia\ÿrÿsj]ÿ\jbiÿ\au[^[]abvÿknl
TR
YYYYYYYYYYYYYYYYYYYY
p^a[`a^ÿgja^ÿ]juhpj]]jqÿrÿsj]ÿ\jbiÿ\au[^[]abvÿknl
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory26

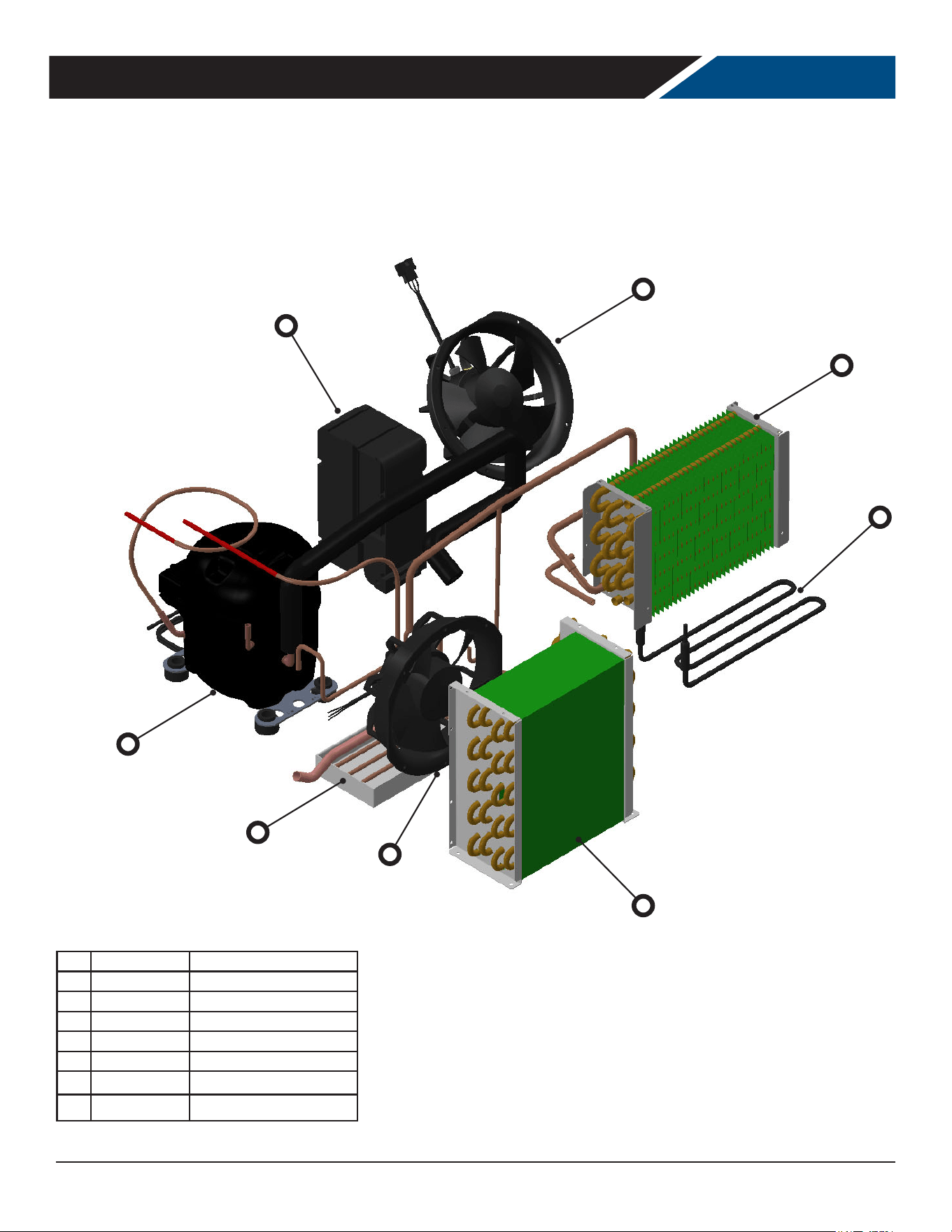

REPLACEMENT PARTS FOR VEFSA-1D-SD-HC - FREEZER SYSTEM
18
19
20
21
23
22
24
25
18 501-186D-02 EVAP FAN (1)
19 305-570D EVAP COIL (1)
20 510-022D-03 DEFROST HEATER (1)
21 305-449D CONDENSER COIL (1)
22 501-186D-01 CONDENSER FAN (1)
23 V002838 CONDENSATE PAN (1)
24 312-215D
COMPRESSOR (1)
25
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 27
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56758758,ÿ5ÿ,+9:.(/
;
<=>
??@ABBC@BDEFGHHÿGJCÿKLMÿNOP
Q
<<R
?B@?DBC@SBKLMÿTUVHHGÿ>EEWÿNBP
X
DS>
?=@O<BC@BAVJEKUYZGJKÿM>JGHÿNBP
[
DSO@
DB?C@S?C>J\LEEÿ]LJKULHHGUÿNBP
^
<SB@O_?>MVH>EKGUÿN<P
=<S?@B=A>EFGH\ÿEYMMLUKÿ]HVMEÿNBOP
_<BO@SOSC@SBEFGH\ÿN?P
`
a
b
c
d
e
f
REPLACEMENT PARTS FOR VEFSA-1D-HD-HC - CABINET
1
46A33-911D-15 SHELL END TOP (2)
2
44B31-351D-01 TOP GRILLE ASSY (1)
3
50A36-241D-19 INSTRUMENT PANEL (1)
4
502-514D-03 DANFOSS CONTROLLER (1)
5
401-273A PILASTER (4)
6 403-169A SHELF SUPPORT CLIPS (12)
7 412-020D-01 SHELF (3)
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory28
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56758758,ÿ5ÿ+11(-9*:(1
733'ÿ+11(-9*:(1
9'(+;('ÿ;:/1
<6ÿ)('ÿ733'=
>?ÿ,+1/('ÿ;:/
@ABCDÿCFGHÿDIJÿHII@ÿFKKLMNOPÿQJF@DÿRÿSTNSUVSWXHVTYZ
U
[\]^]]_`abcdef^gdhibÿakdbliÿlmeÿnoocÿp\Z
q
[\r^]_[n^]rnoocÿh`aefbÿp\Z
sT
_]\^t]_ugoleÿabcdefÿp\Z
ss
^^^^^^^^^^^^^^^^^^^^aidvÿwÿgoleÿabcdefÿwÿxobÿaiokxyÿxobÿaognÿafz`c`bfg{ÿp\Z
s|
^^^^^^^^^^^^^^^^^^^^noocÿi`xngfÿwÿxobÿaognÿafz`c`bfg{ÿp\Z
sY
]]l}_^]}\n^]\cfb`dgÿidxhfÿedbÿwÿgd~bo~~ÿp\Zÿ
@ABCDÿCFGHÿNIDDIM ÿHII@ÿFKKLMNOPÿQJF@DÿRÿSTNSUVSWXHVTS
sS
[\]^]]_`abcdef^gdhibÿakdbliÿlmeÿnoocÿp\Z
sX
[\r^]_[n^]rnoocÿh`aefbÿp\Z
s
_]\^t]_ugoleÿabcdefÿp\Z
sW
^^^^^^^^^^^^^^^^^^^^aidvÿwÿgoleÿabcde
fÿwÿxobÿaiokxyÿxobÿaognÿafz`c`bfg{ÿp\Z
sU
^^^^^^^^^^^^^^^^^^^^noocÿi`xngfÿwÿxobÿaognÿafz`c`bfg{ÿp\Z
sq
]]l}_^]}\n^]\cfb`dgÿidxhfÿedbÿwÿgd~bo~~ÿp\Zÿ
XÿFKDL@ÿADÿQJF@DÿRÿsTsVTTsF
|T
^^
^^^^^^^^^^^^^^^^^^ÿl`abfcaÿ^ÿxobÿaognÿafz`c`bfg{ÿp_Zÿ
|s
]
_^]\\`
l`abfcÿkcfxliÿwÿxobÿaiokxÿp\Z
FNÿN@LFL@ÿADÿQJF@DÿRÿsTUVTsqFZ
||
^^^^^^^^^^^^^^^^^^^^
ucf`efcÿlofcÿadnfaÿwÿxobÿaognÿafz`c`bfg{ÿprZ
|Y
^^^^^^^^^^^^^^^^^^^^
ucf`efcÿlofcÿbozmuobbovÿwÿxobÿaognÿafz`c`bfg{ÿprZ
REPLACEMENT PARTS FOR VEFSA-1D-HD-HC - ASSEMBLIES
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 29

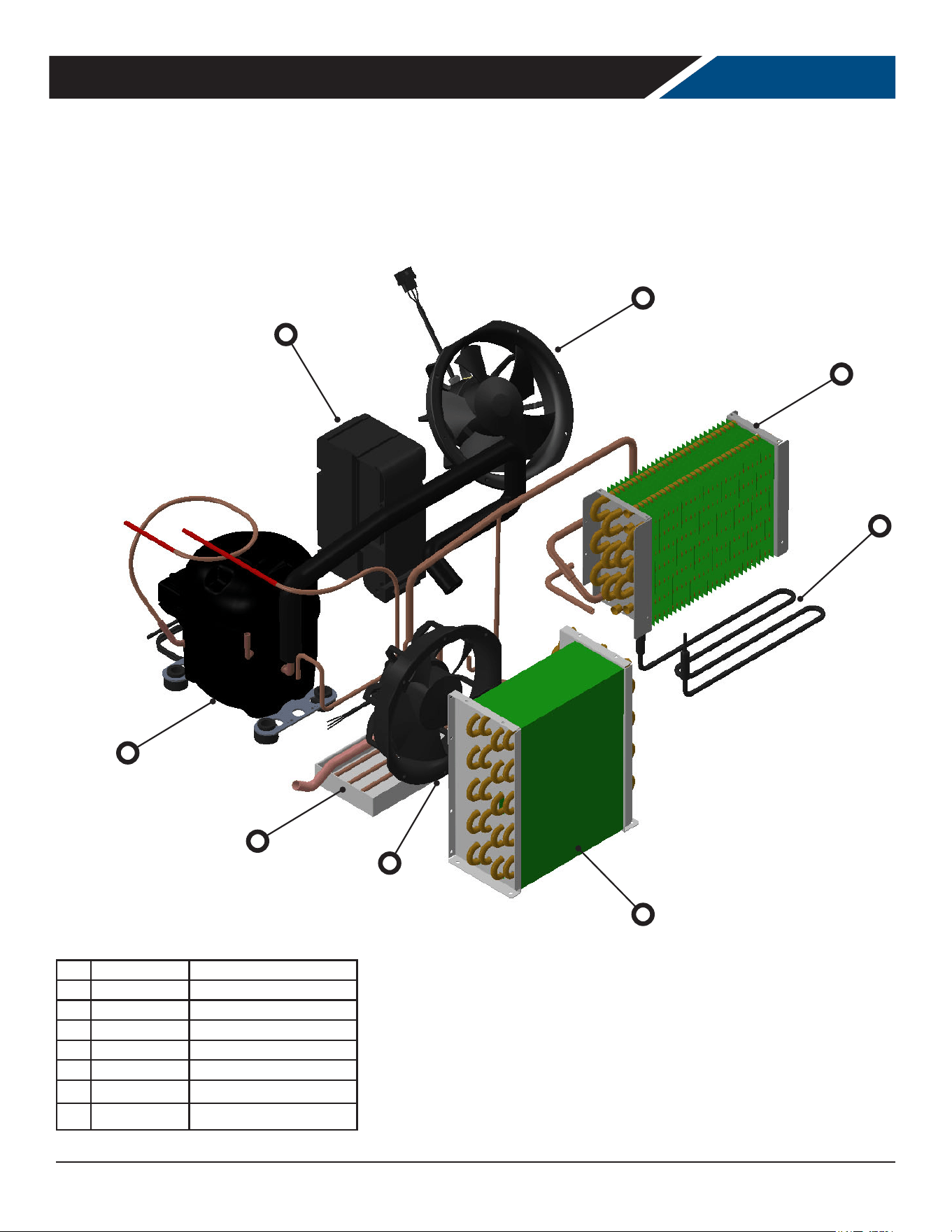

REPLACEMENT PARTS FOR VEFSA-1D-HD-HC - FREEZER SYSTEM
24
25
26
27
29
28
30
31
24 501-186D-02 EVAP FAN (1)
25 305-570D EVAP COIL (1)
26 510-022D-03 DEFROST HEATER (1)
27 305-449D CONDENSER COIL (1)
28 501-186D-01 CONDENSER FAN (1)
29 V002838 CONDENSATE PAN (1)
30 312-215D
COMPRESSOR (1)
31
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory30
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿ !"#$%%
&'()*+','-.ÿ(*&.0ÿ12&ÿ3'&0*45647648+ÿ4ÿ+*9:-'.
;
<=>
??@ABBC@BDEFGHHÿGJCÿKLMÿNOP
Q
<<R
?B@?DBC@SBKLMÿTUVHHGÿ>EEWÿNBP
X
DS>
?=@O<BC@BAVJEKUYZGJKÿM>JGHÿNBP
[
DSO@
DB?C@SOC>J\LEEÿ]LJKULHHGUÿNBP
^
<SB@O_?>MVH>EKGUÿN<P
=<S?@B=A>EFGH\ÿEYMMLUKÿ]HVMEÿNBOP
_<BO@SOSC@SBEFGH\ÿN?P
`
a
b
c
d
e
f

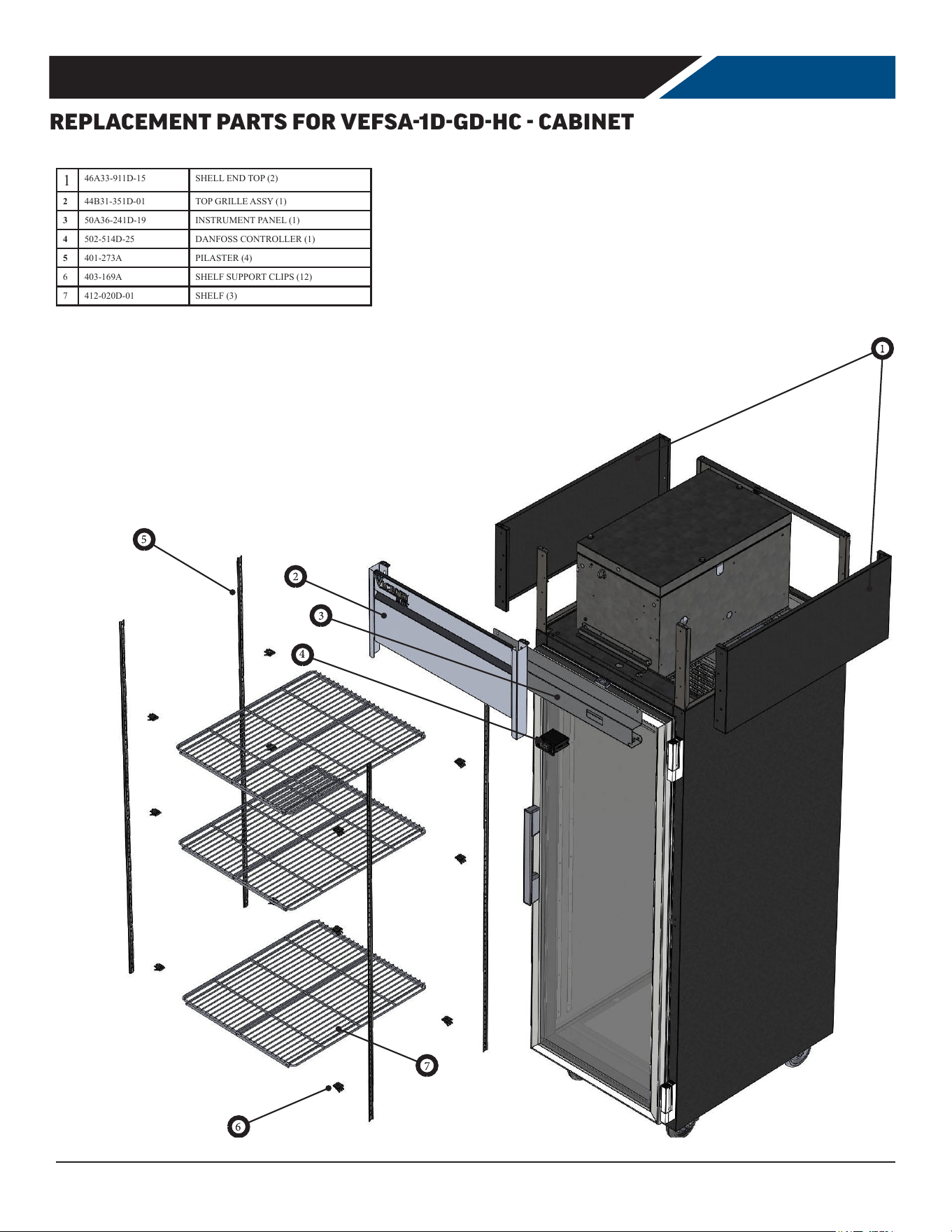

REPLACEMENT PARTS FOR VEFSA-1D-GD-HC - CABINET
1
46A33-911D-15 SHELL END TOP (2)
2
44B31-351D-01 TOP GRILLE ASSY (1)
3
50A36-241D-19 INSTRUMENT PANEL (1)
4
502-514D-25 DANFOSS CONTROLLER (1)
5
401-273A PILASTER (4)
6 403-169A SHELF SUPPORT CLIPS (12)
7 412-020D-01 SHELF (3)
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 31
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56758759,ÿ5ÿ+11(-:*;(1
733'ÿ+11(-:*<
=>ÿ,+1/('ÿ?;/
:'(+?('ÿ?;/
@AABÿDEEFGHIJÿKLDBMÿNÿOPHOQROST@RPUV
Q
WXYZYY[\]^_`abZc`de^ÿ]g`^heÿhiaÿjkk_ÿlXm
n
WXoZY[WjZYXjkk_ÿd\]ab^ÿlXm
UP
pYpqWXXXckhaÿ]^_`abÿlXm
UU
ZZZZZZZZZZZZZZZZZZZZ]e`rÿsÿckhaÿ]^_`abÿsÿtk^ÿ]ekgtuÿtk^ÿ]kcjÿ]bv\_\^bcwÿlXm
Ux
ZZZZZZZZZZZZZZZZZZZZjkk_ÿe\tjcbÿsÿtk^ÿ]kcjÿ]bv\_\^bcwÿlXm
UT
YYhy[ZYyXjZYX_b^\`cÿe`tdbÿa`^ÿsÿc`z^kzzÿlXm
{|ÿ}DEMFBÿ~MÿKLDBMÿNÿU}PURPPUDV
UO
ZZ
ZZZZZZZZZZZZZZZZZZpÿh\]^b_]ÿZÿtk^ÿ]kcjÿ]bv\_\^bcwÿl[mÿ
U{
qY
[ZYXX\h\]^b_ÿg_btheÿsÿtk^ÿ]ekgtÿlXm
}DHÿHBFD~FBÿ~MÿKLDBMÿNÿU}PQRPxPDV
U
ZZZZZZZZZZZZZZZZZZZZ
_b\ab_ÿhkb_ÿ]`jb]ÿsÿtk^ÿ]kcjÿ]bv\_\^bcwÿlom
US
ZZZZZZZZZZZZZZZZZZZZ
_b\ab_ÿhkb_ÿ^kvik^^krÿsÿtk^ÿ]kcjÿ]bv\_\^bcwÿlom

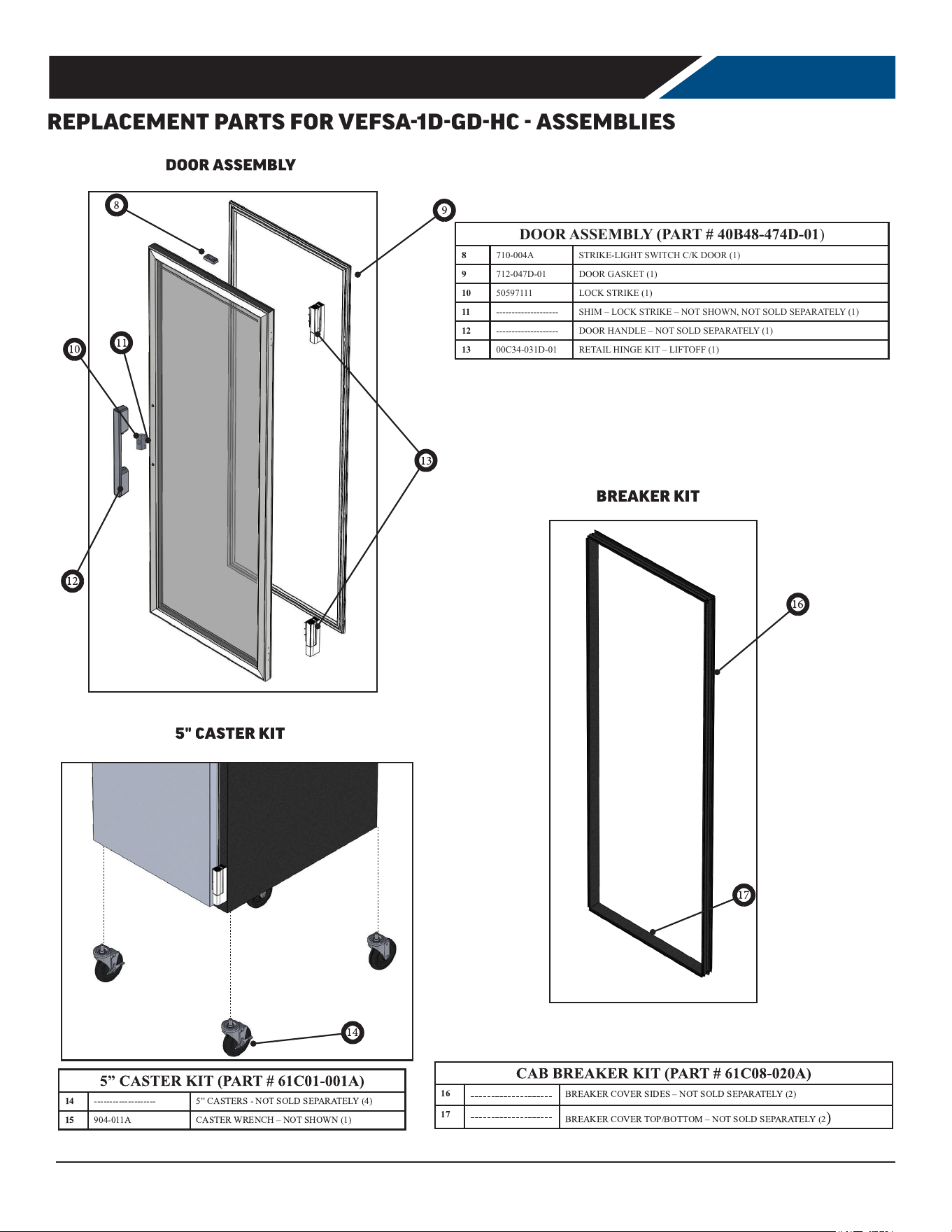

REPLACEMENT PARTS FOR VEFSA-1D-GD-HC - ASSEMBLIES
DOOR ASSEMBLY (PART # 40B48-474D-01)
8
710-004A STRIKE-LIGHT SWITCH C/K DOOR (1)
9
712-047D-01 DOOR GASKET (1)
10
50597111 LOCK STRIKE (1)
11
-------------------- SHIM – LOCK STRIKE – NOT SHOWN, NOT SOLD SEPARATELY (1)
12
-------------------- DOOR HANDLE – NOT SOLD SEPARATELY (1)
13
00C34-031D-01 RETAIL HINGE KIT – LIFTOFF (1)
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory32
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56758759,ÿ5ÿ'(2':8('+/:3.ÿ1;1/(-
<=>?<@<=AB@?CDEFGÿIFJÿK<L
<MN?>@>O?BDEFGÿPQRSÿK<L
C?N?>@TTMBPQJUVJWVXÿPQRSÿK<L
C<>?<@<=AB@?<PQJUVJWVXÿIFJÿK<L
CCY??C=N=PQJUVJWFZVÿ[FJÿK<L
CNN<C@<OMBPQ\GXVWWQXÿK<L
]^
]_
`a
`]
``
`b

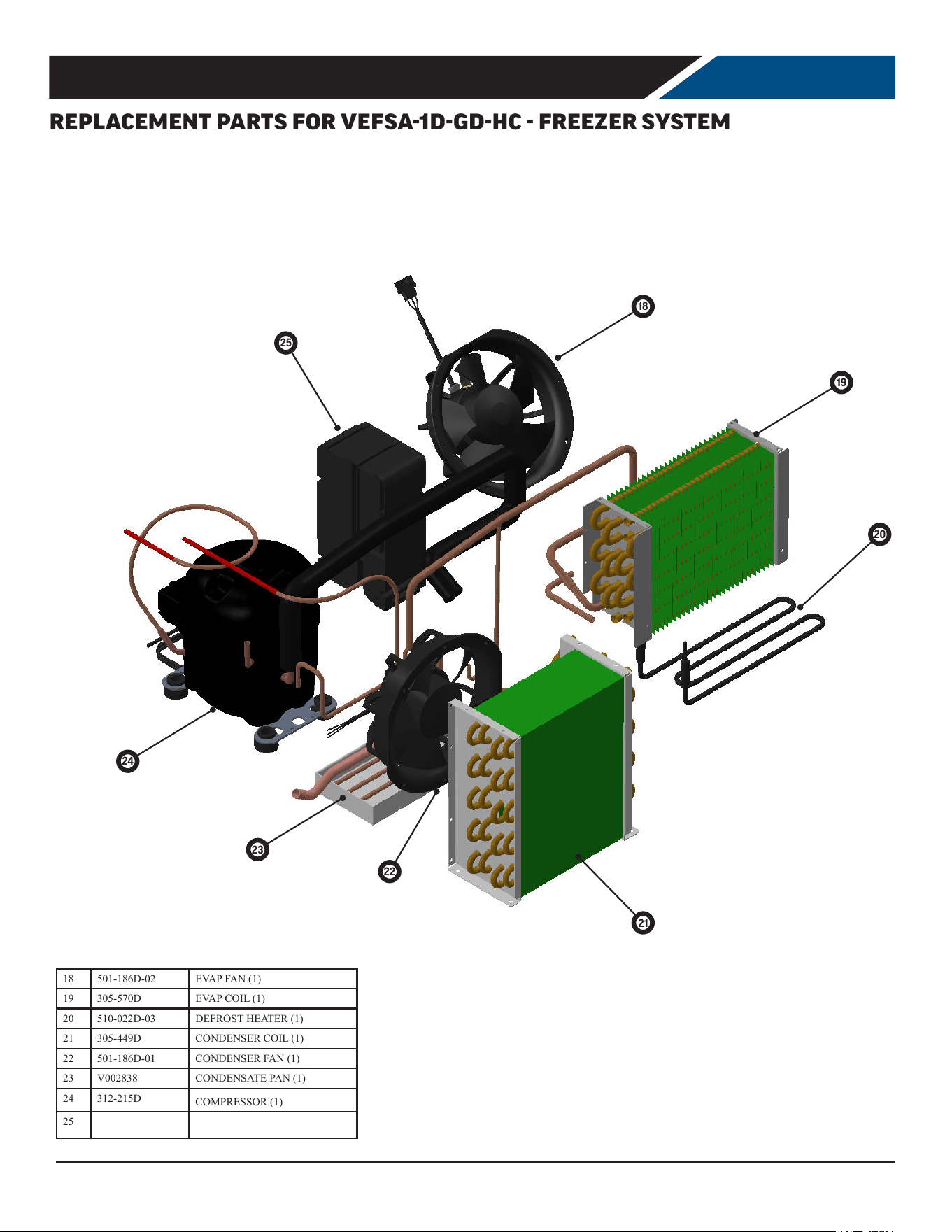

REPLACEMENT PARTS FOR VEFSA-1D-GD-HC - FREEZER SYSTEM
18
19
20
21
23
22
24
25
18 501-186D-02 EVAP FAN (1)
19 305-570D EVAP COIL (1)
20 510-022D-03 DEFROST HEATER (1)
21 305-449D CONDENSER COIL (1)
22 501-186D-01 CONDENSER FAN (1)
23 V002838 CONDENSATE PAN (1)
24 312-215D
COMPRESSOR (1)
25
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 33
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56758958,ÿ5ÿ,+:;.(/
<
=>?
@@ABCCDACEFGHIIÿHKDÿLMNÿOPQ
R
==S
@CA@ECDATCLMNÿUVWIIHÿ?FFXÿOCQ
Y
ET?
@>AP=CDACBWKFLVZ[HKLÿN?KHIÿOCQ
\
ETPA
EC@DATPD?K]MFFÿ^MKLVMIIHVÿOCQ
_
=TCAP`@?NWI?FLHVÿO=Q
>=T@AC>B?FGHI]ÿFZNNMVLÿ^IWNFÿOCPQ
`=CPATPTDATCFGHI]ÿO@Q
a
b
c
d
e
f
g
REPLACEMENT PARTS FOR VEFSA-1D-HG-HC - CABINET
1
46A33-911D-15 SHELL END TOP (2)
2
44B31-351D-01 TOP GRILLE ASSY (1)
3
50A36-241D-19 INSTRUMENT PANEL (1)
4
502-514D-25 DANFOSS CONTROLLER (1)
5
401-273A PILASTER (4)
6 403-169A SHELF SUPPORT CLIPS (12)
7 412-020D-01 SHELF (3)
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory34
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56758958,ÿ5ÿ+11(-:*;(1
733'ÿ+11(-:*;(1
<=ÿ,+1/('ÿ>;/
:'(+>('ÿ>;/1
?6ÿ)('ÿ733'@
ABCDEÿDGHIÿEJKÿIJJAÿGLLMNOPQÿRKGAEÿSÿTUOTVWTXYIWUYZ
V
[\]^]]_`abcdef^gdhibÿakdbliÿlmeÿnoocÿp\q
r
[\s^]_[n^]snoocÿh`aefbÿp\q
tU
u]uv[\\\goleÿabcdefÿp\q
tt
^^^^^^^^^^^^^^^^^^^^aidwÿxÿgoleÿabcdefÿxÿyobÿaiokyzÿyobÿaognÿaf{`c`bfg|ÿp\q
t}
^^^^^^^^^^^^^^^^^^^^noocÿi`yngfÿxÿyobÿaognÿaf{`c`bfg|ÿp\q
tY
]]l~_^]~\n^]\cfb`dgÿidyhfÿedbÿxÿgdboÿp\q
ABCDEÿDGHIÿOJEEJN ÿIJJAÿGLLMNOPQÿRKGAEÿSÿTUOTVWTXYIWUTZ
tT
[\]^]]_`abcdef^gdhibÿakdbliÿlmeÿnoocÿp\q
t
[\s^]_[n^]snoocÿh`aefbÿp\q
t
u]uv[\\\goleÿabcdefÿp\q
tX
^^^^^^^^^^^^^^^^^^^^aidwÿxÿgoleÿabcdef
ÿxÿyobÿaiokyzÿyobÿaognÿaf{`c`bfg|ÿp\q
tV
^^^^^^^^^^^^^^^^^^^^noocÿi`yngfÿxÿyobÿaognÿaf{`c`bfg|ÿp\q
tr
]]l~_^]~\n^]\cfb`dgÿidyhfÿedbÿxÿgdboÿp\q
ÿGLEMAÿBEÿRKGAEÿSÿtUtWUUtGq
}U
^^
^^^^^^^^^^^^^^^^^^uÿl`abfcaÿ^ÿyobÿaognÿaf{`c`bfg|ÿp_qÿ
}t
v]
_^]\\`l`abfcÿkcfyliÿxÿyobÿaiokyÿp\q
GOÿOAMGMAÿBEÿRKGAEÿSÿtUVWUtrGq
}}
^^^^^^^^^^^^^^^^^^^^
cf`efcÿlofcÿadnfaÿxÿyobÿaognÿaf{`c`bfg|ÿpsq
}Y
^^^^^^^^^^^^^^^^^^^^
cf`efcÿlofcÿbo{mobbowÿxÿyobÿaognÿaf{`c`bfg|ÿpsq

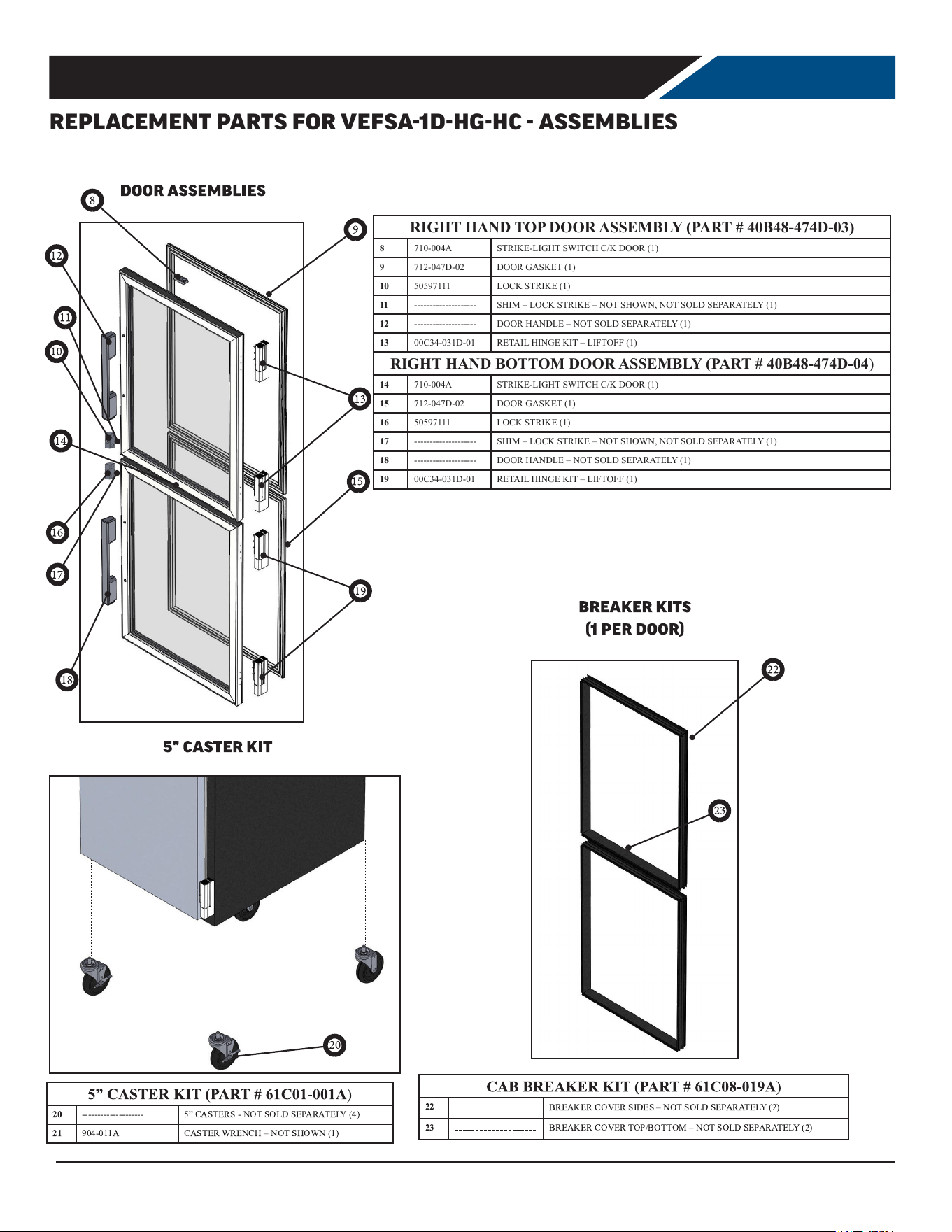

REPLACEMENT PARTS FOR VEFSA-1D-HG-HC - ASSEMBLIES
RIGHT HAND TOP DOOR ASSEMBLY (PART # 40B48-474D-03)
8
710-004A STRIKE-LIGHT SWITCH C/K DOOR (1)
9
712-047D-02 DOOR GASKET (1)
10
50597111 LOCK STRIKE (1)
11
-------------------- SHIM – LOCK STRIKE – NOT SHOWN, NOT SOLD SEPARATELY (1)
12
-------------------- DOOR HANDLE – NOT SOLD SEPARATELY (1)
13
00C34-031D-01 RETAIL HINGE KIT – LIFTOFF (1)
RIGHT HAND BOTTOM DOOR ASSEMBLY (PART # 40B48-474D-04)
14
710-004A STRIKE-LIGHT SWITCH C/K DOOR (1)
15
712-047D-02 DOOR GASKET (1)
16
50597111 LOCK STRIKE (1)
17
-------------------- SHIM – LOCK STRIKE – NOT SHOWN, NOT SOLD SEPARATELY (1)
18
-------------------- DOOR HANDLE – NOT SOLD SEPARATELY (1)
19
00C34-031D-01 RETAIL HINGE KIT – LIFTOFF (1)
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 35

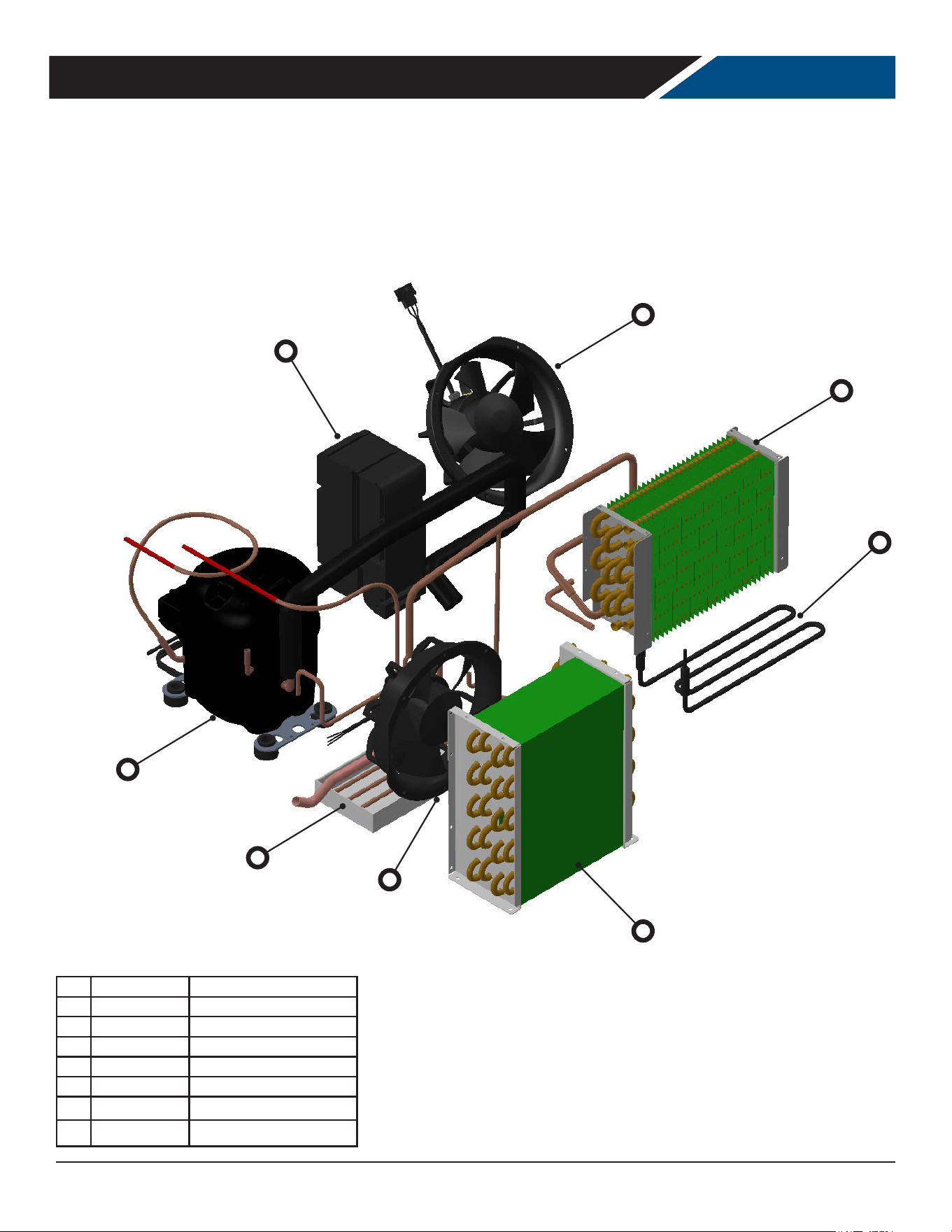

REPLACEMENT PARTS FOR VEFSA-1D-HG-HC - FREEZER SYSTEM
24
25
26
27
29
28
30
31
24 501-186D-02 EVAP FAN (1)
25 305-570D EVAP COIL (1)
26 510-022D-03 DEFROST HEATER (1)
27 305-449D CONDENSER COIL (1)
28 501-186D-01 CONDENSER FAN (1)
29 V002838 CONDENSATE PAN (1)
30 312-215D
COMPRESSOR (1)
31
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory36
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56751758,ÿ5ÿ,+9:.(/
;
<=>??@ABBC@BDEFGHHÿGJCÿKLMÿNOP
Q
DR>?=@O<OC@BASJEKTUVGJKÿM>JGHÿNBP
W
<<X?B@?DBC@ROKLMÿYTSHHGÿ>EEZÿNBP
[
DRO@DB?C@R?C>J\LEEÿ]LJKTLHHGTÿNBP
^
<RB@O_?>MSH>EKGTÿN`P
=<R?@B=A>EFGH\ÿEUMMLTKÿ]HSMEÿNO<P
_<BO@ROBC@RBEFGH\ÿN=P
a
b
c
d
e
f
g
REPLACEMENT PARTS FOR VEFSA-2D-SD-HC - CABINET
1
46A33-911D-15 SHELL END TOP (2)
2
50A36-242D-19 INSTRUMENT PANEL (1)
3
44B31-351D-02 TOP GRILLE ASSY (1)
4
502-514D-02 DANFOSS CONTROLLER (1)
5
401-273A PILASTER (8)
6 403-169A SHELF SUPPORT CLIPS (24)
7 412-021D-01 SHELF (6)
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 37
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56751758,ÿ5ÿ+11(-9*:(1
;<ÿ,+1/('ÿ=:/
>?@AÿCDEFÿFGGHÿDII?JK>LÿMNDHAÿOÿPQKPRSPTUFSQVW
R
XYZ[ZZ\]^_`abc[daef_ÿ^ha_ifÿijbÿkll`ÿmYW
n
XYo[Z\Xk[ZYkll`ÿe]^bc_ÿmYW
pQ
\ZY[qZ\rdlibÿ^_`abcÿmYW
pp
[[[[[[[[[[[[[[[[[[[[^fasÿtÿdlibÿ^_`abcÿtÿul_ÿ^flhuvÿul_ÿ^ldkÿ^cw]`]_cdxÿmYW
pV
[[[[[[[[[[[[[[[[[[[[kll`ÿf]ukdcÿtÿul_ÿ^ldkÿ^cw]`]_cdxÿmYW
py
ZZiz\[ZzYk[ZY`c_]adÿfauecÿba_ÿtÿda{_l{{ÿmYW
H|}CAÿCDEFÿFGGHÿDII?JK>LÿMNDHAÿOÿPQKPRSPTUFSQp~
pP
XYZ[ZZ\]^_`abc[daef_ÿ^ha_ifÿijbÿkll`ÿmYÿwc`ÿkll`W
pU
XYo[Z\Xk[ZYkll`ÿe]^bc_ÿmYÿwc`ÿkll`W
p
\ZY[qZ\rdlibÿ^_`abc
pT
[[[[[[[[[[[[[[[[[[[[^fasÿtÿd
libÿ^_`abcÿtÿul_ÿ^flhuvÿul_ÿ^ldkÿ^cw]`]_cdxÿmYW
pR
[[[[[[[[[[[[[[[[[[[[kll`ÿf]ukdcÿtÿul_ÿ^ldkÿ^cw]`]_cdxÿmYW
pn
ZZiz\[ZzYk[ZY`c_]adÿfauecÿba_ÿ[ÿda{_l{{
UÿDIA?Hÿ|AÿMNDHAÿOÿpQpSQQpD~
VQ
[[[[[[[[[[[[[[[[[[[[ÿi]^_c`^ÿ[ÿul_ÿ^ldkÿ^cw]`]_cdxÿm\Wÿ
Vp
Z\[ZYY]i]^_c`ÿh`cuifÿtÿul_ÿ^flhuÿmYW
DKÿKH?D?Hÿ|AÿMNDHAÿOÿpQRSQVQDW
VV
[[[[[[[[[[[[[[[[[[[[
r`c]bc`ÿilc`ÿ^akc^ÿtÿul_ÿ^ldkÿ^cw]`]_cdxÿmoW
Vy
[[[[[[[[[[[[[[[[[[[[
r`c]bc`ÿilc`ÿ_lwjrl__lsÿtÿul_ÿ^ldkÿ^cw]`]_cdxÿmoW
9'(+=('ÿ=:/1ÿ
ÿ=:/ÿ)('ÿ733'
733'ÿ+11(-9*:(1
REPLACEMENT PARTS FOR VEFSA-2D-SD-HC - ASSEMBLIES
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory38
REPLACEMENT PARTS FOR VEFSA-2D-SD-HC - FREEZER SYSTEM
24 501-186D-02 EVAP FAN (1)
25 305-570D EVAP COIL (1)
26 510-022D-03 DEFROST HEATER
27 305-449D CONDENSER COIL (1)
28 501-186D-01 CONDENSER FAN (1)
29 V002838 CONDENSATE PAN (1)
30 312-204D COMPRESSOR (1)
31
•
24
25
26
27
29
28
30
31
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 39
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56758758,ÿ5ÿ,+9:.(/
;
<=>??@ABBC@BDEFGHHÿGJCÿKLMÿNOP
Q
DR>?=@O<OC@BASJEKTUVGJKÿM>JGHÿNBP
W
<<
X?B@?DBC@ROKLMÿYTSHHGÿ>EEZÿNBP
[
DRO@DB?C@R?C>J\LEEÿ]LJKTLHHGTÿNBP
^
<RB@O_?>MSH>EKGTÿN`P
=<R?@B=A>EFGH\ÿEUMMLTKÿ]HSMEÿNO<P
_<BO@ROBC@RBEFGH\ÿN=P
a
b
c
d
e
f
g

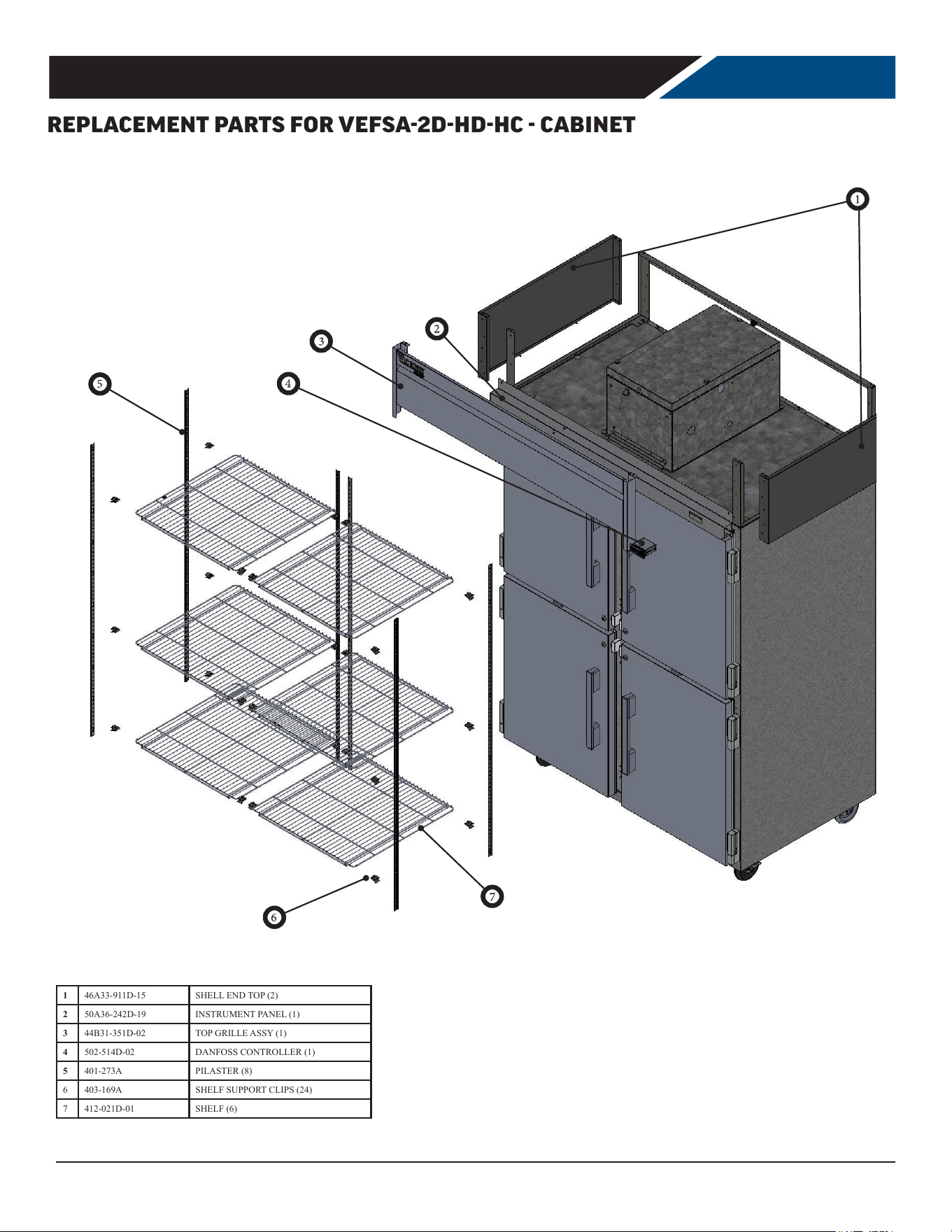

REPLACEMENT PARTS FOR VEFSA-2D-HD-HC - CABINET
1
46A33-911D-15 SHELL END TOP (2)
2
50A36-242D-19 INSTRUMENT PANEL (1)
3
44B31-351D-02 TOP GRILLE ASSY (1)
4
502-514D-02 DANFOSS CONTROLLER (1)
5
401-273A PILASTER (8)
6 403-169A SHELF SUPPORT CLIPS (24)
7 412-021D-01 SHELF (6)
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory40

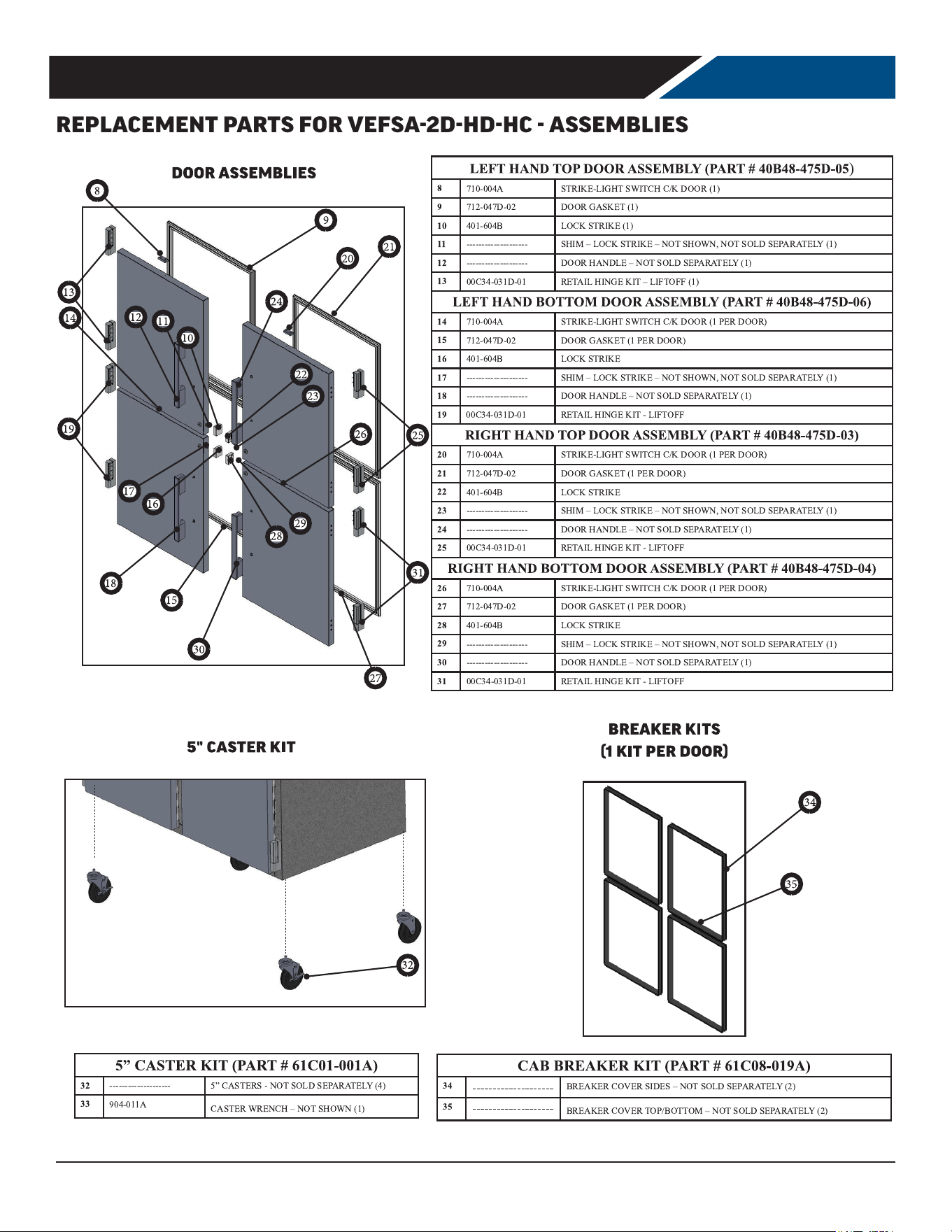

0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56758758,ÿ5ÿ+11(-9*:(1
;<ÿ,+1/('ÿ=:/
>?@AÿCDEFÿAGHÿFGGIÿDJJ?KL>MÿNHDIAÿOÿPQLPRSPTUFSQUV
R
WXYZYY[\]^_`abZc`de^ÿ]g`^heÿhiaÿjkk_ÿlXV
m
WXnZY[WjZYnjkk_ÿd\]ab^ÿlXV
oQ
[YXZpY[qckhaÿ]^_`abÿlXV
oo
ZZZZZZZZZZZZZZZZZZZZ]e`rÿsÿckhaÿ]^_`abÿsÿtk^ÿ]ekgtuÿtk^ÿ]kcjÿ]bv\_\^bcwÿlXV
ox
ZZZZZZZZZZZZZZZZZZZZjkk_ÿe\tjcbÿsÿtk^ÿ]kcjÿ]bv\_\^bcwÿlXV
oy
YYhz[ZYzXjZYX_b^\`cÿe`tdbÿa`^ÿsÿc`{^k{{ÿlXV
>?@AÿCDEFÿLGAAGK ÿFGGIÿDJJ?KL>MÿNHDIAÿOÿPQLPRSPTUFSQ|}
oP
WXYZYY[\]^_`abZc`de^ÿ]g`^heÿhiaÿjkk_ÿlXÿvb_ÿjkk_V
oU
WXnZY[WjZYnjkk_ÿd\]ab^ÿlXÿvb_ÿjkk_V
o|
[YXZpY[qckhaÿ]^_`ab
oT
ZZZZZZZZZZZZZZZZZZZZ]e`rÿsÿckhaÿ]^_`abÿsÿtk^ÿ]ekgtuÿtk^ÿ]kcjÿ]bv\_\^bcwÿlX
V
oR
ZZZZZZZZZZZZZZZZZZZZjkk_ÿe\tjcbÿsÿtk^ÿ]kcjÿ]bv\_\^bcwÿlXV
om
YYhz[ZYzXjZYX_b^\`cÿe`tdbÿa`^ÿZÿc`{^k{{
I~CAÿCDEFÿAGHÿFGGIÿDJJ?KL>MÿNHDIAÿOÿPQLPRSPTUFSQy}
xQ
WXYZYY[\]^_`abZc`de^ÿ]g`^heÿhiaÿjkk_ÿlXÿvb_ÿjkk_V
xo
WXnZY[WjZYnjkk_ÿd\]ab^ÿlXÿvb_ÿjkk_V
xx
[YXZpY[qckhaÿ]^_`ab
xy
ZZZZZZZZZZZZZZZZZZZZ]e`rÿsÿckhaÿ]^_`abÿsÿtk^ÿ]ekgtuÿtk^ÿ]kcjÿ]bv\_\^bcwÿlXV
xP
ZZZZZZZZZZZZZZZZZZZZjkk_ÿe\tjcbÿsÿtk^ÿ]kcjÿ]bv\_\^bcwÿlXV
xU
YYhz[ZYzXjZYX_b^\`c
ÿe`tdbÿa`^ÿZÿc`{^k{{
I~CAÿCDEFÿLGAAGK ÿFGGIÿDJJ?KL>MÿNHDIAÿOÿPQLPRSPTUFSQP}
x|
WXYZYY[\]^_`abZc`de^ÿ]g`^heÿhiaÿjkk_ÿlXÿvb_ÿjkk_V
xT
WXnZY[WjZYnjkk_ÿd\]ab^ÿlXÿvb_ÿjkk_V
xR
[YXZpY[qckhaÿ]^_`ab
xm
ZZZZZZZZZZZZZZZZZZZZ]e`rÿsÿckhaÿ]^_`abÿsÿtk^ÿ]ekgtuÿtk^ÿ]kcjÿ]bv\_\^bcwÿlXV
yQ
ZZZZZZZZZZZZZZZZZZZZjkk_ÿe\tjcbÿsÿtk^ÿ]kcjÿ]bv\_\^bcwÿlXV
yo
YYhz[ZYzXjZYX_b^\`cÿe`tdbÿa`^ÿZÿc`{^k{{
UÿDJA?Iÿ~AÿNHDIAÿOÿ|oQoSQQoD}
yx
ZZZZZZZZZZZZZZZZZZZZÿh\]^b_]ÿZÿtk^ÿ]kcjÿ]bv\_\^bcwÿl[Vÿ
yy
Y[ZYXX\
h\]^b_ÿg_btheÿsÿtk^ÿ]ekgtÿlXV
DLÿLI?D?Iÿ~AÿNHDIAÿOÿ|oQRSQomD}
yP
ZZZZZZZZZZZZZZZZZZZZ
q_b\ab_ÿhkb_ÿ]`jb]ÿsÿtk^ÿ]kcjÿ]bv\_\^bcwÿlnV
yU
ZZZZZZZZZZZZZZZZZZZZ
q_b\ab_ÿhkb_ÿ^kviqk^^krÿsÿtk^ÿ]kcjÿ]bv\_\^bcwÿlnV
733'ÿ+11(-9*:(1
9'(+=('ÿ=:/1ÿ
ÿ=:/ÿ)('ÿ733'
REPLACEMENT PARTS FOR VEFSA-2D-HD-HC - ASSEMBLIES
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 41

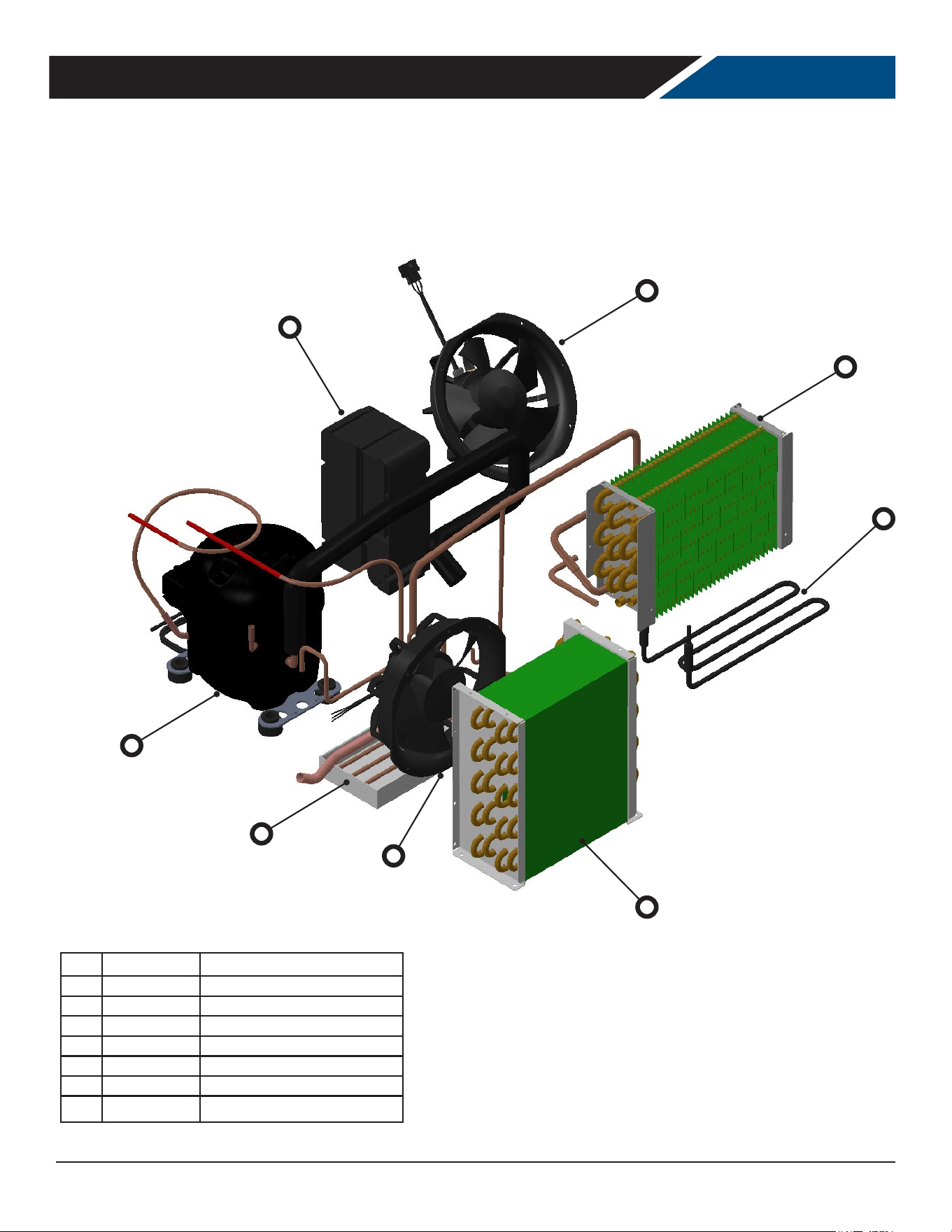

REPLACEMENT PARTS FOR VEFSA-2D-HD-HC - FREEZER SYSTEM
36
37
38
39
41
40
42
43
36 501-186D-02
EVAP FAN (1)
37 305-570D EVAP COIL (1)
38 510-022D-03 DEFROST HEATER (1)
39 305-449D CONDENSER COIL (1)
40 501-186D-01 CONDENSER FAN (1)
41 V002838 CONDENSATE PAN (1)
42 312-215D COMPRESSOR (1)
43
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory42
User Manual for VERSA Refrigerators Victory
Rev. 11/22 Victory 45
REPLACEMENT PARTS FOR VERSA-2D-GD-HC - CABINET
1
46A33-911D-15 SHELL END TOP (2)
2
50A36-242D-19 INSTRUMENT PANEL (1)
3
44B31-351D-02 TOP GRILLE ASSY (1)
4
502-513D-02 DANFOSS CONTROLLER (1)
5
401-273A PILASTER (8)
6 403-169A SHELF SUPPORT CLIPS (24)
7 412-021D-01 SHELF (6)
1
2
4
3
5
6
7
REPLACEMENT PARTS FOR VEFSA-2D-GD-HC - CABINET
1
46A33-911D-15 SHELL END TOP (2)
2
50A36-242D-19 INSTRUMENT PANEL (1)
3
44B31-351D-02 TOP GRILLE ASSY (1)
4
502-514D-25 DANFOSS CONTROLLER (1)
5
401-273A PILASTER (8)
6 403-169A SHELF SUPPORT CLIPS (24)
7 412-021D-01 SHELF (6)
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 43
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56758759,ÿ5ÿ+11(-:*;(1
<=ÿ,+1/('ÿ>;/
?@ABÿDEFGÿGHHIÿEJJ@KL?MÿNOEIBÿPQRLQSTQUVGTRWX
S
YZ[\[[]^_`abcd\ebfg`ÿ_ib`jgÿjkcÿlmmaÿnZo
p
YZq\[]Yl\[Zlmmaÿf^_cd`ÿnZo
rR
s[stYZZZemjcÿ_`abcdÿnZo
rr
\\\\\\\\\\\\\\\\\\\\_gbuÿvÿemjcÿ_`abcdÿvÿwm`ÿ_gmiwxÿwm`ÿ_melÿ_dy^a^`dezÿnZo
rW
\\\\\\\\\\\\\\\\\\\\lmmaÿg^wledÿvÿwm`ÿ_melÿ_dy^a^`dezÿnZo
rV
[[j{]\[{Zl\[Zad`^beÿgbwfdÿcb`ÿvÿeb|`m||ÿnZo
I}~DBÿDEFGÿGHHIÿEJJ@KL?MÿNOEIBÿPÿQRLQSTQUVGTRrX
rQ
YZ[\[[]^_`abcd\ebfg`ÿ_ib`jgÿjkcÿlmmaÿnZÿydaÿlmmao
r
YZq\[]Yl\[Zlmmaÿf^_cd`ÿnZÿydaÿlmmao
r
s[stYZZZemjcÿ_`abcd
rU
\\\\\\\\\\\\\\\\\\\\_gbuÿvÿe
mjcÿ_`abcdÿvÿwm`ÿ_gmiwxÿwm`ÿ_melÿ_dy^a^`dezÿnZo
rS
\\\\\\\\\\\\\\\\\\\\lmmaÿg^wledÿvÿwm`ÿ_melÿ_dy^a^`dezÿnZo
rp
[[j{]\[{Zl\[Zad`^beÿgbwfdÿcb`ÿ\ÿeb|`m||
ÿEJB@Iÿ}BÿNOEIBÿPÿrRrTRRrEX
WR
\\\\\\\\\\\\\\\\\\\\sÿj^_`da_ÿ\ÿwm`ÿ_melÿ_dy^a^`dezÿn]oÿ
Wr
t[]\[ZZ^j^_`daÿiadwjgÿvÿwm`ÿ_gmiwÿnZo
ELÿLI@E@Iÿ}BÿNOEIBÿPÿrRSTRWREo
WW
\\\\\\\\\\\\\\\\\\\\
ad^cdaÿjmdaÿ_bld_ÿvÿwm`ÿ_melÿ_dy^a^`dezÿnqo
WV
\\\\\\\\\\\\\\\\\\\\
ad^cdaÿjmdaÿ`mykm``muÿvÿwm`ÿ_melÿ_dy^a^`dezÿnqo
:'(+>('ÿ>;/1ÿ
ÿ>;/ÿ)('ÿ733'
733'ÿ+11(-:*;(1
REPLACEMENT PARTS FOR VEFSA-2D-GD-HC - ASSEMBLIES
LEFT HAND DOOR ASSEMBLY (PART #40B48-474D-02)
8
710-004A STRIKE-LIGHT SWITCH C/K DOOR (1)
9
712-047D-01 DOOR GASKET (1)
10
50597111 LOCK STRIKE (1)
11
-------------------- SHIM – LOCK STRIKE – NOT SHOWN, NOT SOLD SEPARATELY (1)
12
-------------------- DOOR HANDLE – NOT SOLD SEPARATELY (1)
13
00C34-031D-01 RETAIL HINGE KIT – LIFTOFF (1)
RIGHT HAND DOOR ASSEMBLY (PART # 40B48-474D-01)
14
710-004A STRIKE-LIGHT SWITCH C/K DOOR (1 PER DOOR)
15
712-047D-01 DOOR GASKET (1 PER DOOR)
16
50597111 LOCK STRIKE
17
-------------------- SHIM – LOCK STRIKE – NOT SHOWN, NOT SOLD SEPARATELY (1)
18
-------------------- DOOR HANDLE – NOT SOLD SEPARATELY (1)
19
00C34-031D-01 RETAIL HINGE KIT - LIFTOFF
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory44

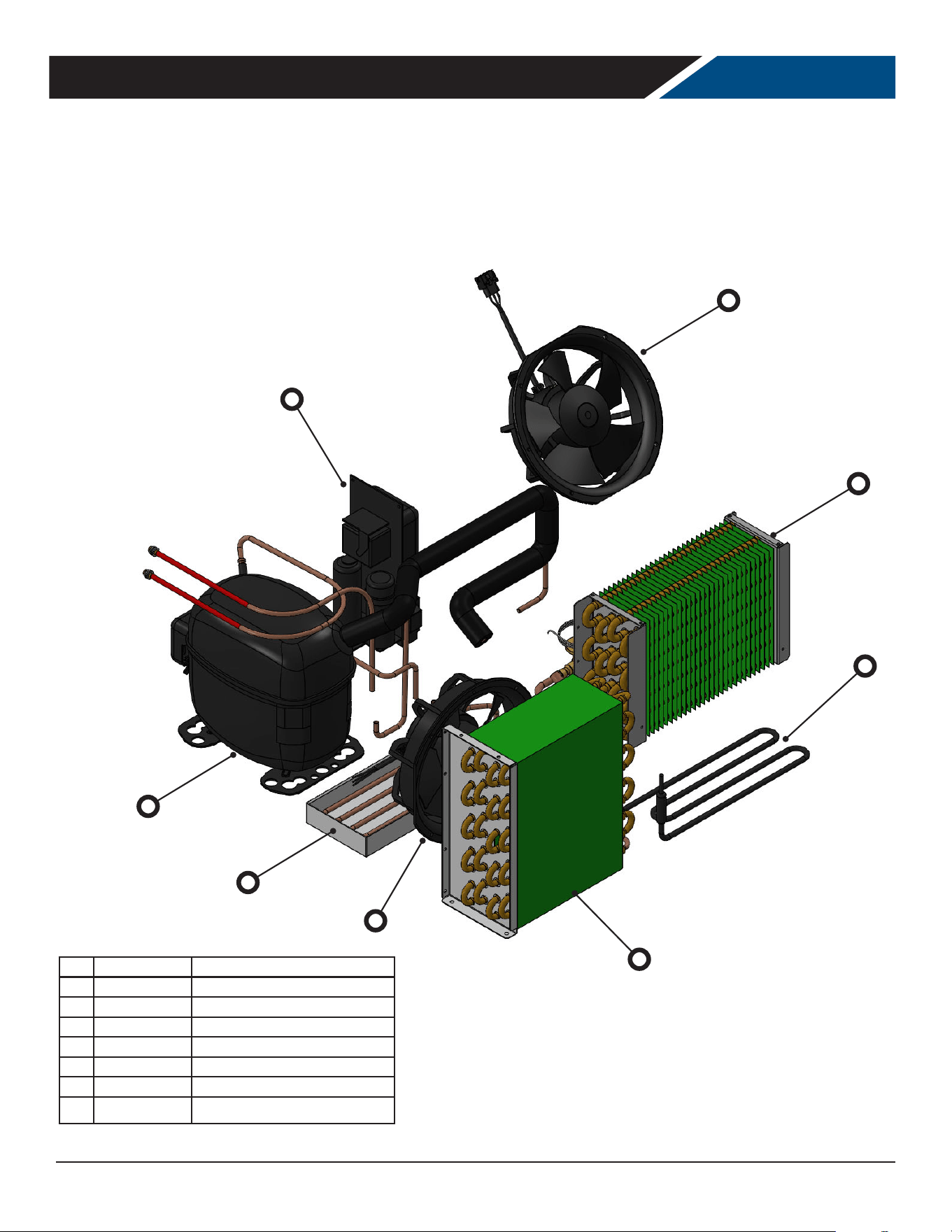

REPLACEMENT PARTS FOR VEFSA-2D-GD-HC - FREEZER SYSTEM
24 501-186D-02 EVAP FAN (1)
25 305-570D EVAP COIL (1)
26 510-022D-03 DEFROST HEATER (1)
27 305-449D CONDENSER COIL (1)
28 501-186D-01 CONDENSER FAN (1)
29 V002838 CONDENSATE PAN (1)
30 312-215D COMPRESSOR (1)
31
24
25
26
27
29
28
30
31
**TWO DOOR UNITS WITH GLASS DOORS HAVE TWO SEPARATE FREEZER SYSTEMS**
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 45
User Manual for VERSA Refrigerators Victory
Rev. 11/22Victory48
REPLACEMENT PARTS FOR VERSA-2D-HG-HC - CABINET
1
46A33-911D-15 SHELL END TOP (2)
2
50A36-242D-19 INSTRUMENT PANEL (1)
3
44B31-351D-02 TOP GRILLE ASSY (1)
4
502-513D-02 DANFOSS CONTROLLER (1)
5
401-273A PILASTER (8)
6 403-169A SHELF SUPPORT CLIPS (24)
7 412-021D-01 SHELF (6)
1
2
4
3
5
6
7

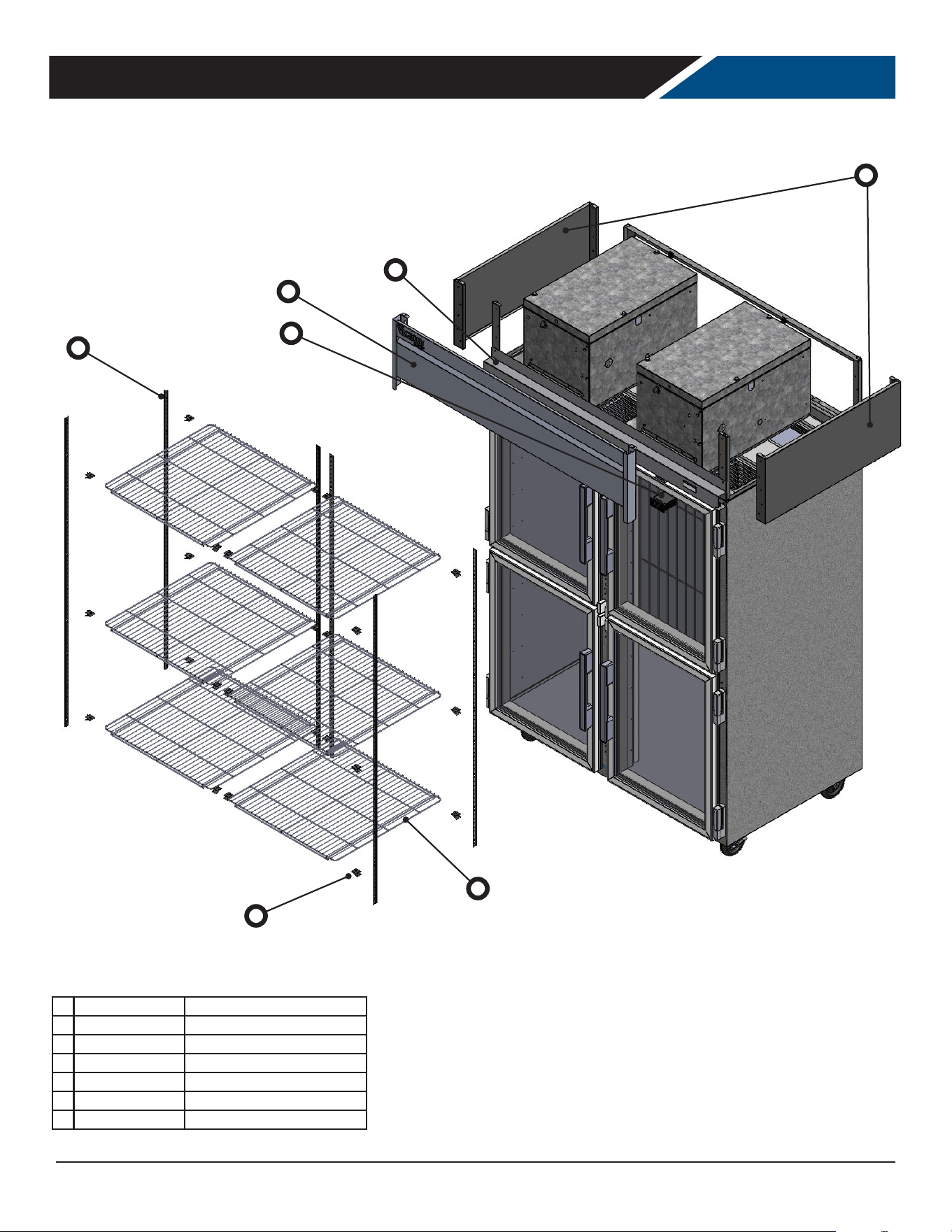

REPLACEMENT PARTS FOR VEFSA-2D-HG-HC - CABINET
1
46A33-911D-15 SHELL END TOP (2)
2
50A36-242D-19 INSTRUMENT PANEL (1)
3
44B31-351D-02 TOP GRILLE ASSY (1)
4
502-514D-25 DANFOSS CONTROLLER (1)
5
401-273A PILASTER (8)
6 403-169A SHELF SUPPORT CLIPS (24)
7 412-021D-01 SHELF (6)
User Manual for VEFSA Freezers Victory
Rev. 02/26Victory46
0123ÿ567869ÿ3ÿÿ2323631ÿ3
ÿ !"#$%&
'()*+,(-(./ÿ)+'/1ÿ23'ÿ4('1+56758958,ÿ5ÿ+11(-:*;(1
733'ÿ+11(-:*;(1
<=ÿ,+1/('ÿ>;/
:'(+>('ÿ>;/1ÿ
?@ÿ>;/ÿ)('ÿ733'A
BCDEÿGHIJÿEKLÿJKKMÿHNNCOPBQÿRLHMEÿSÿTUPTVWTXYJWUZ[
V
\]^_^^`abcdefg_heijcÿblecmjÿmnfÿoppdÿq]r
s
\]t_^`\o_^toppdÿiabfgcÿq]r
uU
v^vw\]]]hpmfÿbcdefgÿq]r
uu
____________________bjexÿyÿhpmfÿbcdefgÿyÿzpcÿbjplz{ÿzpcÿbphoÿbg|adacgh}ÿq]r
u~
____________________oppdÿjazohgÿyÿzpcÿbphoÿbg|adacgh}ÿq]r
uY
^^m`_^]o_^]dgcaehÿjezigÿfecÿyÿhecpÿq]r
BCDEÿGHIJÿPKEEKO ÿJKKMÿHNNCOPBQÿRLHMEÿSÿTUPTVWTXYJWU[
uT
\]^_^^`abcdefg_heijcÿblecmjÿmnfÿoppdÿq]ÿ|gdÿoppdr
uZ
\]t_^`\o_^toppdÿiabfgcÿq]ÿ|gdÿoppdr
u
v^vw\]]]hpmfÿbcdefg
uX
____________________bjexÿyÿhpmfÿbcdefgÿyÿzpcÿbjplz{ÿzpcÿbphoÿbg|adacgh}ÿq]
r
uV
____________________oppdÿjazohgÿyÿzpcÿbphoÿbg|adacgh}ÿq]r
us
^^m`_^]o_^]dgcaehÿjezigÿfecÿ_ÿhecp
MGEÿGHIJÿEKLÿJKKMÿHNNCOPBQÿRLHMEÿSÿTUPTVWTXYJWUY[
~U
\]^_^^`abcdefg_heijcÿblecmjÿmnfÿoppdÿq]ÿ|gdÿoppdr
~u
\]t_^`\o_^toppdÿiabfgcÿq]ÿ|gdÿoppdr
~~
v^vw\]]]hpmfÿbcdefg
~Y
____________________bjexÿyÿhpmfÿbcdefgÿyÿzpcÿbjplz{ÿzpcÿbphoÿbg|adacgh}ÿq]r
~T
____________________oppdÿjazohgÿyÿzpcÿbphoÿbg|adacgh}ÿq]r
~Z
^^m`_^]o_^]dgcaeh
ÿjezigÿfecÿ_ÿhecp
MGEÿGHIJÿPKEEKO ÿJKKMÿHNNCOPBQÿRLHMEÿSÿTUPTVWTXYJWUTr
~
\]^_^^`abcdefg_heijcÿblecmjÿmnfÿoppdÿq]ÿ|gdÿoppdr
~X
\]t_^`\o_^toppdÿiabfgcÿq]ÿ|gdÿoppdr
~V
v^vw\]]]hpmfÿbcdefg
~s
____________________bjexÿyÿhpmfÿbcdefgÿyÿzpcÿbjplz{ÿzpcÿbphoÿbg|adacgh}ÿq]r
YU
____________________oppdÿjazohgÿyÿzpcÿbphoÿbg|adacgh}ÿq]r
Yu
^^m`_^]o_^]dgcaehÿjezigÿfecÿ_ÿhecp
ZÿHNECMÿEÿRLHMEÿSuUuWUUuH[
Y~
____________________vÿmabcgdbÿ_ÿzpcÿbphoÿbg|adacgh}ÿq`rÿ
YY
w^`_^]]amabcgdÿldgzmjÿyÿzpcÿbjplzÿq]r
HPÿPMCHCMÿEÿRLHMEÿSuUVWUusH[
YT
____________________
dgafgdÿmpgdÿbeogbÿyÿzpcÿbphoÿbg|adacgh}ÿqtr
YZÿ
____________________
dgafgdÿmpgdÿcp|npccpxÿyÿzpcÿbphoÿbg|adacgh}ÿqtr

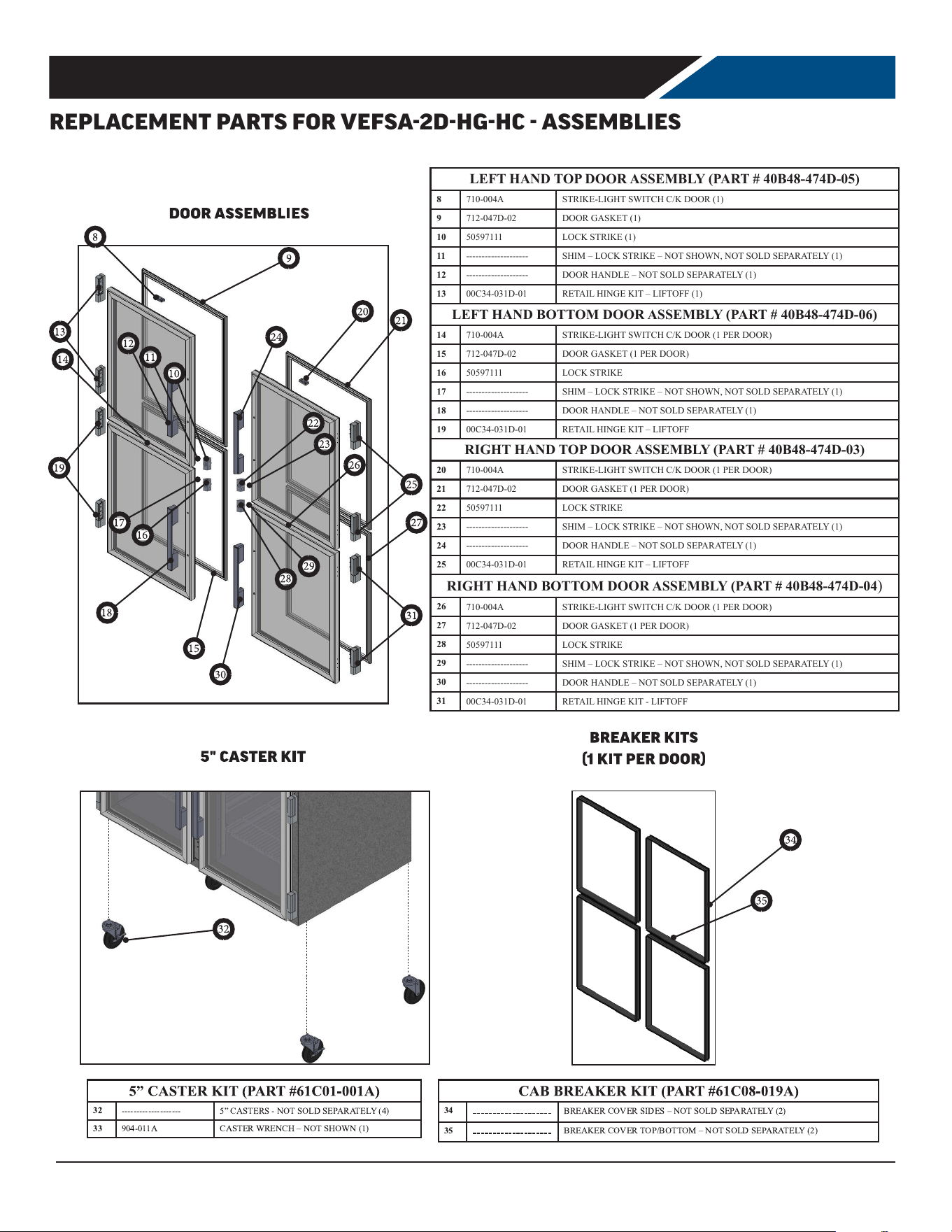

REPLACEMENT PARTS FOR VEFSA-2D-HG-HC - ASSEMBLIES
LEFT HAND TOP DOOR ASSEMBLY (PART # 40B48-474D-05)
8
710-004A STRIKE-LIGHT SWITCH C/K DOOR (1)
9
712-047D-02 DOOR GASKET (1)
10
50597111 LOCK STRIKE (1)
11
-------------------- SHIM – LOCK STRIKE – NOT SHOWN, NOT SOLD SEPARATELY (1)
12
-------------------- DOOR HANDLE – NOT SOLD SEPARATELY (1)
13
00C34-031D-01 RETAIL HINGE KIT – LIFTOFF (1)
LEFT HAND BOTTOM DOOR ASSEMBLY (PART # 40B48-474D-06)
14
710-004A STRIKE-LIGHT SWITCH C/K DOOR (1 PER DOOR)
15
712-047D-02 DOOR GASKET (1 PER DOOR)
16
50597111 LOCK STRIKE
17
-------------------- SHIM – LOCK STRIKE – NOT SHOWN, NOT SOLD SEPARATELY (1)
18
-------------------- DOOR HANDLE – NOT SOLD SEPARATELY (1)
19
00C34-031D-01 RETAIL HINGE KIT – LIFTOFF
RIGHT HAND TOP DOOR ASSEMBLY (PART # 40B48-474D-03)
20
710-004A STRIKE-LIGHT SWITCH C/K DOOR (1 PER DOOR)
21
712-047D-02 DOOR GASKET (1 PER DOOR)
22
50597111 LOCK STRIKE
23
-------------------- SHIM – LOCK STRIKE – NOT SHOWN, NOT SOLD SEPARATELY (1)
24
-------------------- DOOR HANDLE – NOT SOLD SEPARATELY (1)
25
00C34-031D-01 RETAIL HINGE KIT – LIFTOFF
RIGHT HAND BOTTOM DOOR ASSEMBLY (PART # 40B48-474D-04)
26
710-004A STRIKE-LIGHT SWITCH C/K DOOR (1 PER DOOR)
27
712-047D-02 DOOR GASKET (1 PER DOOR)
28
50597111 LOCK STRIKE
29
-------------------- SHIM – LOCK STRIKE – NOT SHOWN, NOT SOLD SEPARATELY (1)
30
-------------------- DOOR HANDLE – NOT SOLD SEPARATELY (1)
31
00C34-031D-01 RETAIL HINGE KIT - LIFTOFF
User Manual for VEFSA Freezers Victory
Rev. 02/26 Victory 47

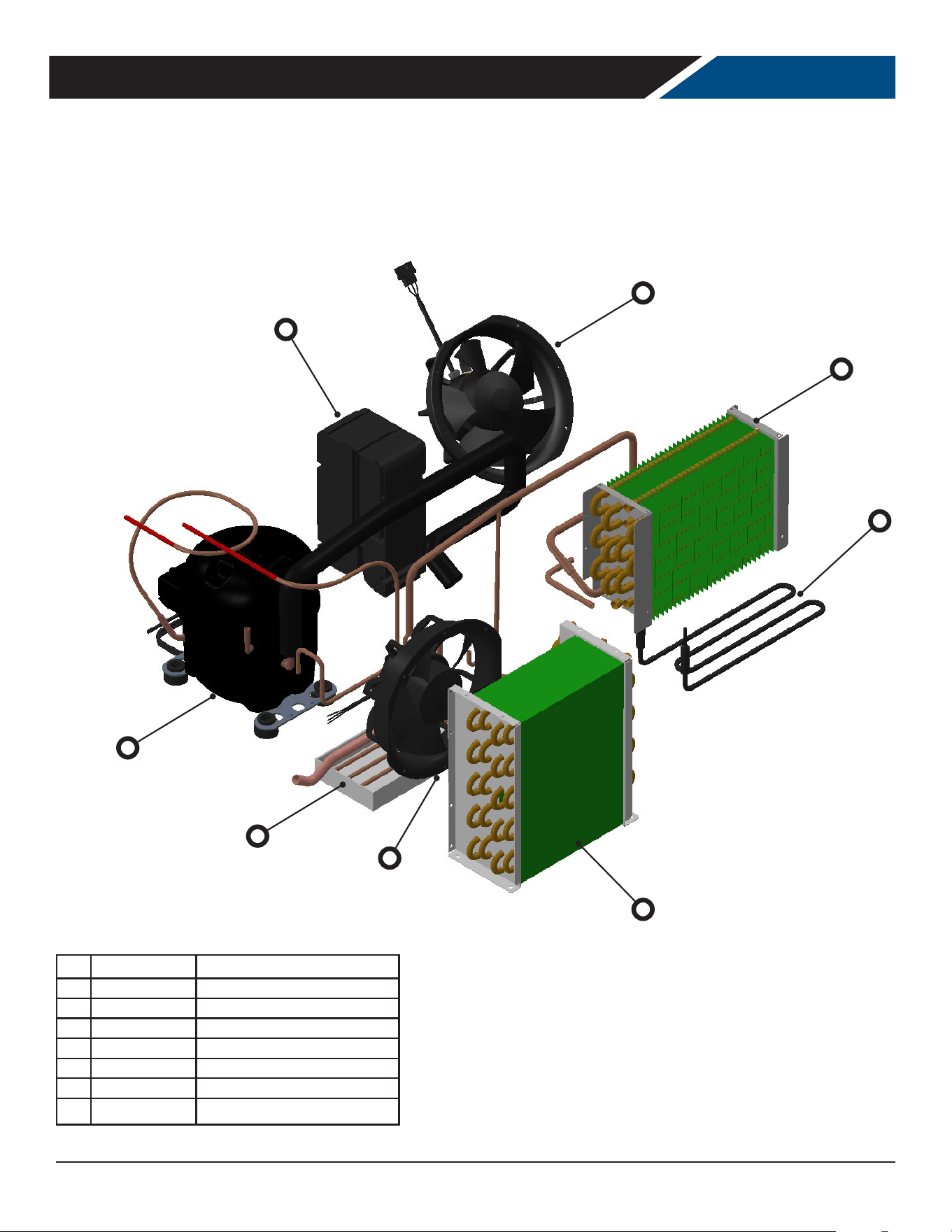

REPLACEMENT PARTS FOR VEFSA-2D-HG-HC - FREEZER SYSTEM
36
37
38
39
41
40
42
43
36
501-186D-02 EVAP FAN (1)
37 305-570D EVAP COIL (1)
38 510-022D-03 DEFROST HEATER (1)
39 305-449D CONDENSER COIL (1)
40 501-186D-01 CONDENSER FAN (1)
41 V002838 CONDENSATE PAN (1)
42 312-215D COMPRESSOR (1)
43
**TWO DOOR UNITS WITH GLASS DOORS HAVE TWO SEPARATE FREEZER SYSTEMS**
User Manual for VEFSA Freezers Victory
Rev. 02/26
Warranty Registration
Register your product online at victoryrefrigeration.com/parts-service or ll out and mail the form below.
Cabinet Model Number: _____________________________________________ Date Of Installation: _________________
Cabinet Serial Number: _____________________________________________
Location Of Product
Business Name: ____________________________________________________
Business Street: ____________________________________________________
Business City: ____________________________________ State: _________ Postal Code:___________
Mail to: Victory, 3779 Champion Blvd, Winston-Salem, NC 27105
