FROST-FREE TOP MOUNT FREEZER REFRIGERATOR
User Manual
Models:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Models: Serial Number:
FF712W
FF713B
FF714SS
LRF712W
LRF713B
LRF714SS
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
Table of Contents
Important Safety Instructions
Technical Information & Circuit Diagram
Names of Parts
Installation
Operation and Maintenance
Cleaning the Appliance
Troubleshooting
Disposal
Limited Warranty
1
3
4
5
6
7
8
8
10
Important Safety Instructions
To reduce the risk of fire, electrical shock, or injury follow these basic precautions
when using your refrigerator.
1. WARNING - Keep ventilation openings in the
appliance enclosure or in the built-in structure
clear of obstruction.
2. WARNING - Do not touch the interior of the
chiller compartment with wet hands. This could
result in frost bite.
3. WARNING - Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the
manufacturer.
4. WARNING - Do not damage the refrigerant circuit
when handling, moving, or using the refrigerator.
5. WARNING - Do not use electrical appliances
inside the food storage compartment of the
refrigerator, unless they are of the type
recommended by the manufacturer.
6. WARNING – DANGER Never allow children to play
with, operate, or crawl inside the refrigerator.
Risk of child entrapment. Before you throw away
your old refrigerator:
a. Take off the doors
b. Leave the shelves in place so that children
may not easily climb inside
7. Unplug the refrigerator before carrying out user
maintenance on it.
8. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
9. If a component part is damaged, it must be
replaced by the manufacturer, its service agent, or
similar qualified persons in order to avoid a
hazard.
10. Please dispose of the refrigerator according to
local regulations as the refrigerator contains
flammable gas and refrigerant.
11. Follow local regulations regarding disposal of the
refrigerator due to flammable refrigerant and gas.
All refrigeration products contain refrigerants,
which under the guidelines of federal law must be
removed before disposal. It is the consumer's
responsibility to comply with federal and local
regulations when disposing of this product.
12. This appliance is intended to be used in
households and similar applications such as:
• Staff kitchen areas in shops, offices, and other
working environments
• Farmhouses and by clients in hotels, motels,
and other residential type environments
• Bed and breakfast type environments
• Catering and similar non-retail applications.
13. Do not store or use gasoline or any flammable
liquids inside or in the vicinity of this refrigerator.
14. Do not use extension cords or ungrounded (two
prong) adapters with this refrigerator. If the power
cord is too short, have a qualified electrician install
an outlet near the refrigerator. Use of an extension
cord can negatively affect the refrigerator’s
performance.
15. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified person in order to avoid a hazard.
16. Do not store explosive substances, such as aerosol
cans with a flammable propellant, in this appliance.
17. Lamp replacement by professionals.
1
REFRIGERANT
The refrigerant circuit of the appliance contains
isobutene (R600a), a natural gas with a high level of
environmental compatibility, which is nevertheless
flammable. During transportation and installation of
the appliance, ensure that none of the components of
the refrigerant circuit become damaged.
W
ARNING:
Risk of fire/flammable materials.
If the refrigerant circuits become damaged:
• Avoid open flames and sources of ignition.
• Ventilate the room in which the appliance is
located.
B
EFORE USE
• Before connecting the appliance to the power
supply, let it stand for about 2 hours, which will
reduce the possibility of malfunctions in the
cooling system due to transport handling.
• Clean the appliance, and be thorough, especially
in the interior (See Cleaning the Appliance).
• In case the interior accessories are not correctly
placed, rearrange them as described (See Name of
Parts).
I
NSTRUCTIONS FOR USE
These instructions are intended for the user. They
contain the correct and safe use of the appliance. They
were prepared for various models, therefore the
description of some functions and accessories may vary
by model.
ENERGY SAVING TIPS
• Try not to open the door frequently, especially
when the weather is humid and hot. Once you
open the door, ensure it is closed as soon as
possible.
• Check the appliance is sufficiently ventilated
(adequate air circulation around the appliance).
• Set the thermostat from higher to lower settings
as soon as possible (depending on how loaded the
appliance is ambient temperature etc.).
• Before loading the appliance with packages of
fresh foods, ensure they are cooled to ambient
temperature.
• Ice and frost layer increase energy consumption,
defrost the appliance when the layer is 1/8” thick.
IMPORTANT
• DANGER: Risk of child entrapment. Before
discarding your old refrigerator:
- Remove the doors.
- Leave the shelves in place so that children
may not easily climb inside.
• The appliance must be correctly connected to the
power supply. (See: HOW TO INSTALL).
• Do not use an extension cord or ungrounded (two
prong) adapters.
• Do not touch the cooled surfaces while the
appliance operates, especially not with wet hands,
to prevent it from sticking to the cold surface.
• Do not freeze bottles containing liquid, especially
soft drinks, such as mineral water, sparkling wine,
beer, or sodas. Liquid expands during freezing and
the glass bottles are likely to break.
• Do not eat frozen foods (bread, fruit, vegetables),
which can cause frostbite.
• If the food has a strange odor or color, throw it
away, it is very likely that it is spoiled and therefore
dangerous to eat.
• Disconnect the appliance from the power supply
before repairing it (only a qualified technician
should repair it), before cleaning.
• Do not defrost the appliance with other electric
devices (hair dryer etc.) or scrape ice or frost layers
with sharp tools.
• Locate the rating plate is inside the appliance or
outside on the rear wall.
2
Technical Information & Circuit Diagram
Technical Information
High Side
300 PSI
Low Side
120 PSI
Refrigerant
R600a
Amount
1.02oz
Rated Voltage
115V
Rated Frequency
60Hz
Rated Current
1.5A
LED Lamp Power
2W
Defrost Power
120W
Net Weight
71lbs
Blowing Gas
Cyclopentane
3

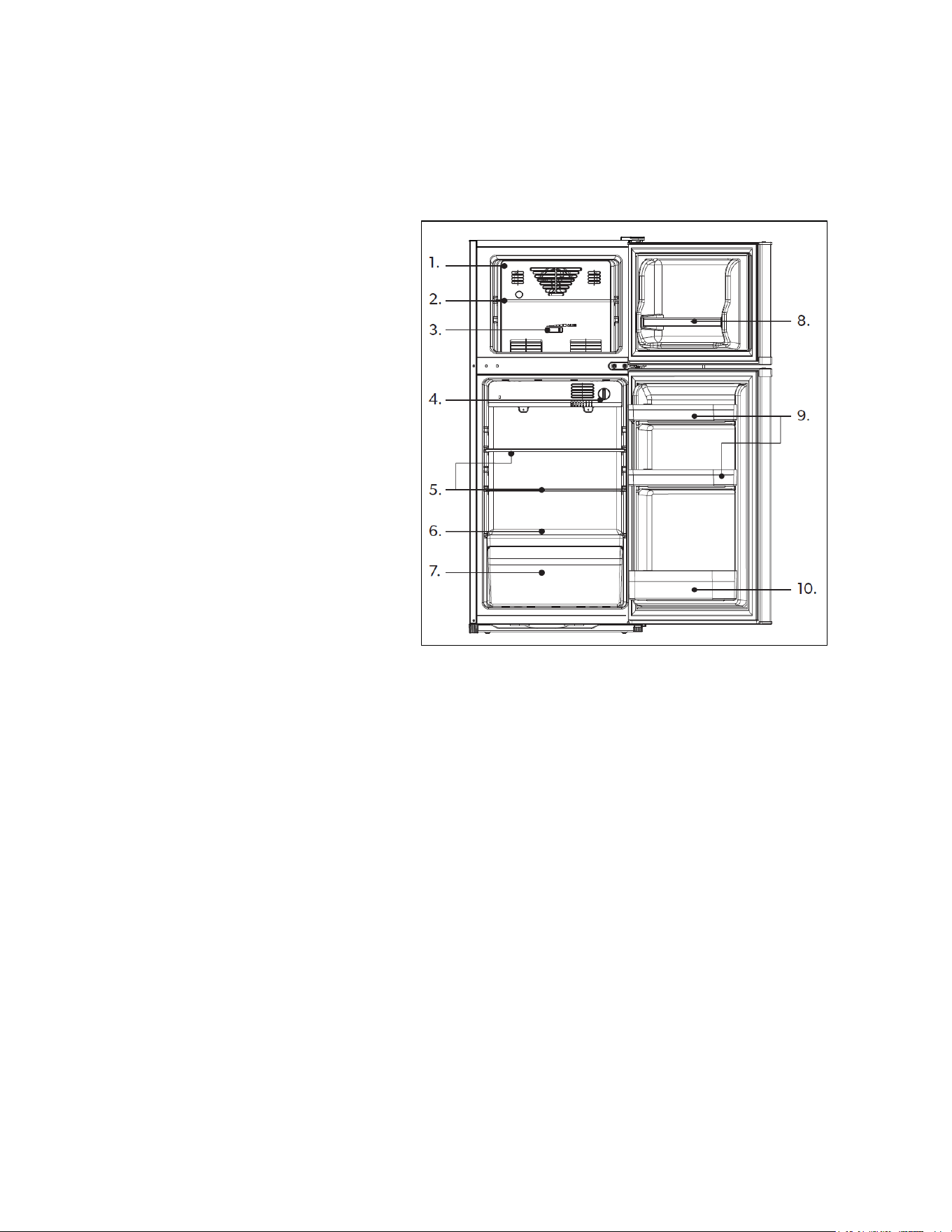

Names of Parts
1. Freezer Baffle
2. Freezer Shelf
3. Freezer Thermostat
4. Refrigerator Thermostat
5. Refrigerator Shelf
6. Crisper Cover
7. Crisper Drawer
8. Freezer Door Shelf Rail
9. Refrigerator Door Bin (Upper)
10. Refrigerator Door Bin (Lower)
4
Installation
POSITIONING
Position the appliance away from heat sources such as
stoves, radiators, direct sunlight etc.
Before connecting the power supply, remove the foam
base and screw down the front foot of appliance
ensuring it is properly leveled.
Appliances must not be exposed to rain. Sufficient air
must be allowed to circulate in the lower rear section
of appliances, as poor air circulation can affect
performance. Built-in appliances should be positioned
away from heat sources such as heaters and radiators
and out of direct sunlight. There should be a clearance
of at least 3 inches behind and 4 inches between both
sides of the appliance. Kitchen units (e.g. cupboards)
should be at least 2 inches away from the appliance to
ensure adequate ventilation.
ADJUST THE FOOT
Before connecting the power supply,
make sure the refrigerator is stable.
To adjust the feet, rotate them. Adjust
until the refrigerator stands evenly and
does not wobble.
ELECTRICAL CONNECTION
• Before connecting the appliance to the power
supply, ensure that the voltage and frequency as
indicated on the data plate correspond to those of
the electrical mains.
• A deviation of -6% to +6% is admissible with
respect to the rated voltage. For operation with
other voltage supplies, an adequately powered
autotransformer is required.
• Always connect the appliance to an efficient
grounding system.
• Place the appliance in an upright position for at
least 2 hours before switching it on.
REVERSING THE DOOR
The door may be reversed to allow for more convenient
installation. This procedure requires tipping the
appliance.
1. Remove the hinge cover and the top hinge.
2. Lift the freezer door upward to disengage it from
the middle hinge. Place the door carefully on a
padded surface.
3. Using a screwdriver, remove the middle hinge. Lift
the refrigerator door upward to disengage it from
the lower hinge. Place the door carefully on a
padded surface.
4. Swap the lower hinge and adjustable leg to the
opposite side of the unit.
5. Remove the hinge pins located on the top of the
refrigerator door and the bottom of the freezer
door. Insert the replacement hinge pin (provided)
on the opposite side of each door.
6. Place the refrigerator door on the lower hinge,
ensure that the hinge pin is inserted into the hole
in the bottom of the unit. Reattach the middle
hinge on the opposite side of the unit.
7. Place the freezer door on the middle hinge, ensure
that the hinge pin is inserted into the hole in the
bottom of the door. Close the door and then
attach the top hinge. Ensure that the top hinge pin
is inserted in the hole at the top of the freezer
door. Replace the hinge covers.
IMPORTANT:
We recommend that two people perform the
reversal. Support the appliance securely and take
care when fitting and tightening screws.
5
Operation and Maintenance
TEMPERATURE CONTROL PANELS
SETTING THE TEMPERATURE CONTROL
To control the internal temperature, adjust the control
dials according to the ambient temperature or your
intended use.
The first time you turn the unit on, set the temperature
control for the refrigerator and the freezer:
• Refrigerator - MAX
• Freezer - MID
The range of temperature control:
• Refrigerator: MIN (warmest) to MAX (coldest)
• Freezer: MIN (warmest) to MAX (coldest)
After 24 to 48 hours, adjust the temperature control to
the setting that best suits your needs. Setting both the
refrigerator and freezer sections to MID is usually
sufficient for home or office refrigerator use.
STORING FOOD AND DRINK
For optimal performance of the refrigerator
compartment, follow these guidelines:
1. Do not place hot liquids or food in the refrigerator.
2. Cover or wrap food prior to storage.
3. Arrange food so that air can circulate freely inside
the compartment.
• Meat (all types): Wrap in protective material.
Storage time should not exceed 2 days.
• Cooked food & cold meals: Cover and store them
on the appropriate shelves.
• Fruit and vegetables: Wash and store them in the
crisper drawer.
• Bananas, potatoes, onions and garlic: Avoid
storing them in the refrigerator unless properly
wrapped.
STORING FROZEN FOOD/FREEZING FRESH FOOD
Frozen food should be stored in the freezer
compartment for a maximum of one month.
• Place food in the freezer as soon as possible after
purchase.
• Never exceed the storage period indicated on the
food packaging.
• Only open the freezer door when necessary and
keep it open for the shortest time possible.
When restarting the appliance after being unused,
switch it on without food for 2–3 hours with the
thermostat set to the highest setting. Once cooled,
load food into the freezer as needed and then adjust
the thermostat to a normal operating setting.
Refrigerator
Freezer
NOTE:
If the unit is unplugged, lost power, or is turned
off, allow 3 to 5 minutes before restarting it. If
you attempt to restart before this time delay,
the refrigerator-freezer will not start.
IMPORTANT:
If food stored in the freezer is defrosted, e.g. due
to a power failure, it should be consumed within a
short time, even if not completely thawed.
6
CARE FOR BEST PERFORMANCE
1. Do not exceed the storage capacity of the
appliance. If the unit has been out of operation for
an extended time (due to power outage or system
failure), dispose of any stored food as needed.
2. Arrange food properly in the compartments to
avoid cross-contamination.
3. Some fresh vegetables and fruits are sensitive to
cold and are not suitable for storage in the chill
compartment.
LAMP REPLACEMENT
The LED lamp cannot be replaced by the user. It must
be replaced by a service technician or similarly qualified
person.
For assistance, call our Customer Service facility at 800-
932-4267 (Ext. 513) between 9:00 AM and 5:00 PM ET
or visit our website summitappliance.com/support at
any time.
To order replacement parts, visit our website:
summitapplianceparts.com
DEFROSTING FOOD
For best cooking results, defrost frozen food in the
refrigerator or at room temperature. Defrosting at
room temperature is faster.
• Small items can be cooked directly from frozen by
slightly extending the cooking time.
• For larger items, use a microwave oven to shorten
defrosting time.
DEFROSTING THE APPLIANCE
During normal operation, moisture from food and air
entering the refrigerator can cause frost to form on the
evaporator. Excessive frost reduces cooling efficiency
and increases energy consumption.
• This appliance features an auto-defrost function,
so manual defrosting is not required.
• Water from melted frost is drained into the drip
tray at the lower rear of the unit and evaporates
naturally.
PROLONGED PERIODS OF DISUSE
If the appliance is not used for an extended period:
1. Set the thermostat knob to the OFF or 0 position
and disconnect the power supply.
2. Remove all food, defrost, and clean the appliance.
3. Leave the door slightly open to prevent odors and
mold.
Cleaning the Appliance
• Disconnect the power supply before cleaning the
appliance.
• Do not use coarse or aggressive cleaning agents
as you may damage the surface.
• Clean the exterior with cloth.
• Remove the detachable accessories and clean
them with water and liquid detergent. Plastic
parts are not dishwasher safe.
• Wash the interior of the appliance with wet cloth,
adding one or two spoonfuls of vinegar.
• After cleaning, connect the appliance to power
supply and reload it.
7
Troubleshooting
Defective operation of the appliance is not always due to a technical fault but is often caused by incorrect installation
or use. To avoid unnecessary technical assistance and related expenses we recommend the following procedures.
Issue
Check
Internal temperature is not cool enough
- Door closes properly.
- Thermostat setting is correct.
- Appliance is not near heat sources.
- Air circulation at rear is unobstructed.
- Condenser is not blocked.
Internal temperature is too low
- Thermostat setting is correct.
Excessive noise level
- Appliance is leveled correctly.
Appliance does not operate
- Thermostat is not set to “OFF” or “0”.
- Power supply is connected.
- Plug is inserted correctly into the mains socket.
- Circuit breaker has not tripped, fuse is intact.
- Power cable is not faulty.
If you have checked the information above and you still need help with your appliance, call our Customer Service facility at 800-932-4267 (Ext. 513)
between 9:00 AM and 5:00 PM ET or visit our website summitappliance.com/support at any time. We will do our best to answer your questions.
To order replacement parts, visit our website: summitapplianceparts.com
Disposal
The packing materials are recyclable. Please follow these recommendations:
• Dispose paper, cardboard, and cartons in the appropriate recycling containers.
• Dispose of plastics in the designated recycling containers.
• If recycling bins are not available in your area, place materials in general waste bins or take them to an
appropriate collection center.
NOTE:
If the power cable needs replacement, disconnect the appliance from the mains. A new cable must be requested
from the Technical Service and installed by a qualified technician. Ensure it is properly connected and secured.
8
WARNING: This product can expose you to chemicals including Nickel (Metallic) which is
known to the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov
Note: Nickel is a component in all stainless steel and some other metallic compositions.
AVERTISSEMENT : Ce produit peut vous exposer à des produits chimiques, y compris le Nickel
(Métallique) qui est connu dans l’état de Californie pour provoquer le cancer.
Pour plus d’informations, rendez-vous sur www.P65Warnings.ca.gov
Remarque: Le Nickel est un composant de tout l’acier inoxydable et de certaines autres compositions
métalliques.
CALIFORNIA CARB/SNAP DISCLOSURE
This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB regulations.
However, we are required by California Law to provide the following disclosure statement in every product sold in California.
"This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances' for that
specific end-use, in accordance with California Code of Regulations, title 17, section 95374. This disclosure statement
has been reviewed and approved by Felix Storch, Inc. and Felix Storch, Inc. attests, under penalty of perjury, that these
statements are true and accurate."
This product does not use any refrigerants on the 'List of Prohibited Substances'"
DIVULGATION CARB/SNAP DE CALIFORNIE
Ce produit utilise un réfrigérant hydrocarboné respectueux de l'environnement et est entièrement conforme à la réglementation
California CARB.
Cependant, la loi californienne nous oblige à fournir la déclaration de divulgation suivante dans chaque produit vendu en Californie.
"Il est interdit d'utiliser cet équipement en Californie avec des réfrigérants figurant sur la ‘Liste des substances interdites’ pour cette
utilisation finale spécifique, conformément au California Code of Regulations, titre 17, section 95374. Cette déclaration de divulgation
a été examinée et approuvée par Felix Storch, Inc. et Felix Storch, Inc. atteste, sous peine de parjure, que ces déclarations sont
vraies et exactes."
Ce produit n'utilise
aucun
réfrigérant figurant sur la "Liste des Substances Interdites"
9
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Warranty coverage is available within the 48 contiguous United States, along with select areas of Alaska, Hawaii, and
Canada. For locations not covered, consumers can either contact a local provider or coordinate with Felix Storch, Inc. to
find nearby service options, which may qualify for partial reimbursement.
The warranty for this appliance is valid for one year from the date of purchase, provided the appliance is operated and
maintained according to the instructions included with the product. The warrantor will cover the cost of factory-specified
parts and repair labor needed to correct defects in materials or workmanship. Service must be performed by a designated
service company.
All parts, except the compressor, are warranted for one year against manufacturing defects. Plastic parts, shelves, and
cabinets are produced to commercially acceptable standards but are not covered for damages incurred during handling
or for breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace
or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are
excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the 48 contiguous United States, along with
select areas of Alaska, Hawaii, and Canada.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in
accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS
PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com
10
