1 This module is a high-performance, low-cost IoT Bluetooth transceiver designed based on Bluetooth 5.0 chip. This module
adopts a stamp shaped interface and an onboard PCB antenna design. This module has the characteristics of low power
consumption, small size, and strong anti-interference ability.

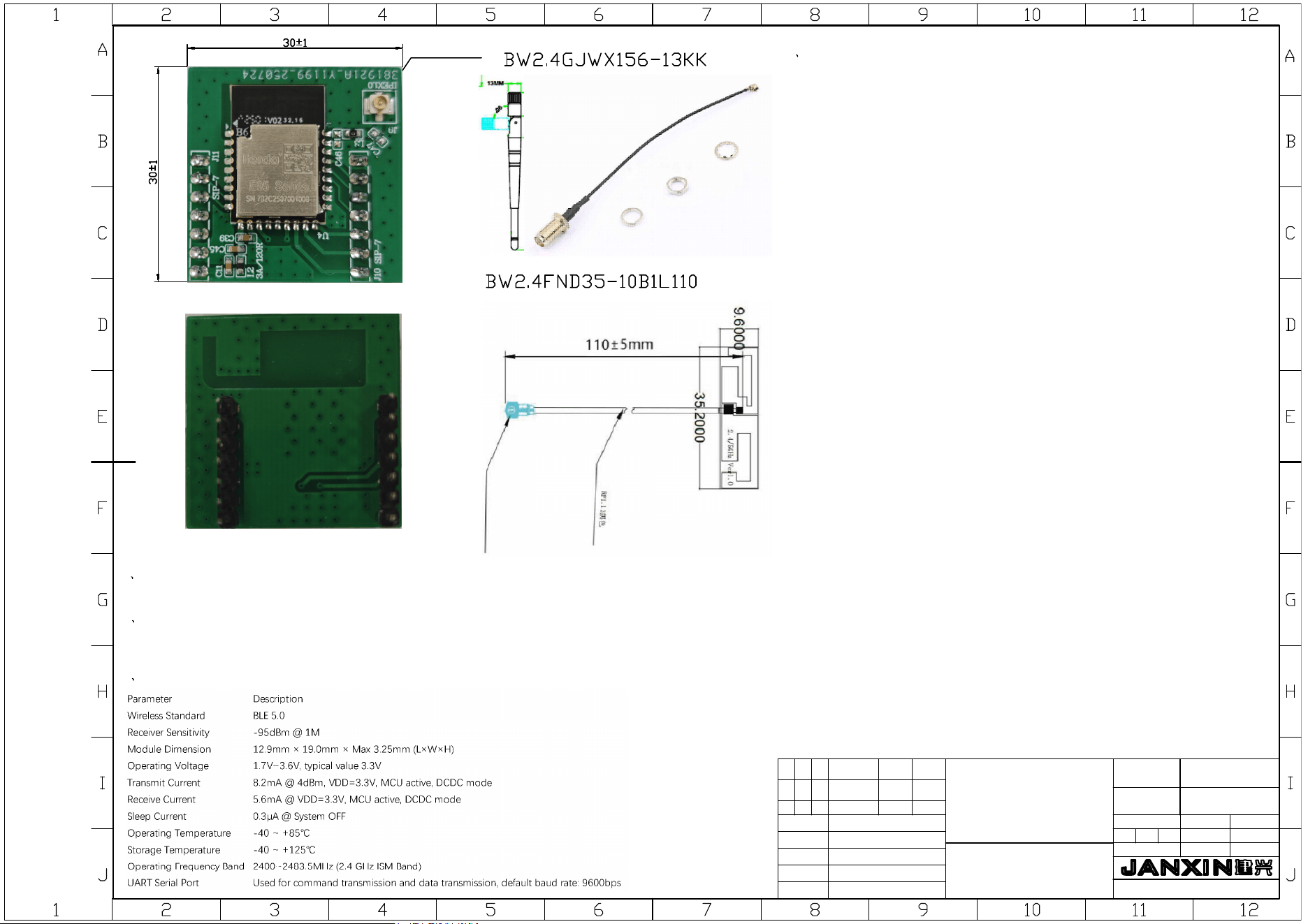

2 This module requires an external antenna, which can be paired with BW2.4FND35-10B1L110 FPC or
BW2.4GJWX156-13KK/BWSMAJ-IPEX1.13L2000 antenna. The control distance on the generator field machine can meet
50 meters, and users can directly connect to the MCU according to the pin definition. The antenna interface of this module is
IPXE1.0
3 Key Features
Total 1 page Page 1
pattern marking
weight proportion
B
Approver
Bid reviewer
Reviewer
Proofreader
Prepared by
Specification
document
Product Code
B113A-015-BLUE
Mode
Document No.: B113A-015-BLUE-PD-A/0
4 This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This device generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
device does cause harmful interference to radio or television reception, which can be determined
by turning the device off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the device and receiver.
--Connect the device into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the
following two conditions: (1) This device may not cause interference. (2) This device must accept
any interference, including interference that may cause undesired operation of the device
RF warning for portable device:
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment
Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS)
d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux
deux conditions suivantes : (1) Cet appareil ne doit pas causer d'interférences. (2) Cet appareil
doit accepter toutes les interférences, y compris celles susceptibles de provoquer un
fonctionnement indésirable de l'appareil
Please notice that if the FCC identification number and ISED number are not visible when the
module is installed inside another device, then the outside of the device into which the module is
installed must also display a label referring to the enclosed module. This exterior label can use
wording such as the following: "Contains FCC ID: 2BBZS-B113015BL” and “Contains
IC: 35341-B113015BL" any similar wording that expresses the same meaning may be used.
The module is limited to OEM installation ONLY. The OEM integrator is responsible for
ensuring that the end-user has no manual instruction to remove or install module.
This radio transmitter [IC: 35314-B113015BL] has been approved by Innovation, Science and
Economic Development Canada to operate with the antenna types listed below, with the
maximum permissible gain indicated. Antenna types not included in this list that have a gain
greater than the maximum gain indicated for any type listed are strictly prohibited for use with
this device.
Dipole antenna with 4.13dBi (for 2.4GHz) and FPC antenna with 3.97dBi (for 2.4GHz)
IPEX
GND
NC
PWR_CTL
NC
RX
TX
PWR_IND
VBAT
GND
RESET
DOUT_IND
CONN_IND
NC
GND
IPEX
Name:Bluetooth Module
Model:B113A-015-BLUE
FCCID:2BBZS-B113015BL
IC:35314-B113015BL
