BIT SOCKET
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major top
brands and does not necessarily mean to cover all categories of tools offered by us. You are
kindly reminded to verify carefully when you are placing an order with us if you are actually saving
half in comparison with the top major brands.
background
- 1 -
32PCS 32H/18PCS 18H/13PCS 13T/34PCS 34T/10PCS 10M/60PCS 60TE/
107PCS 107 THE/31PCS 31TE+ADAPTER

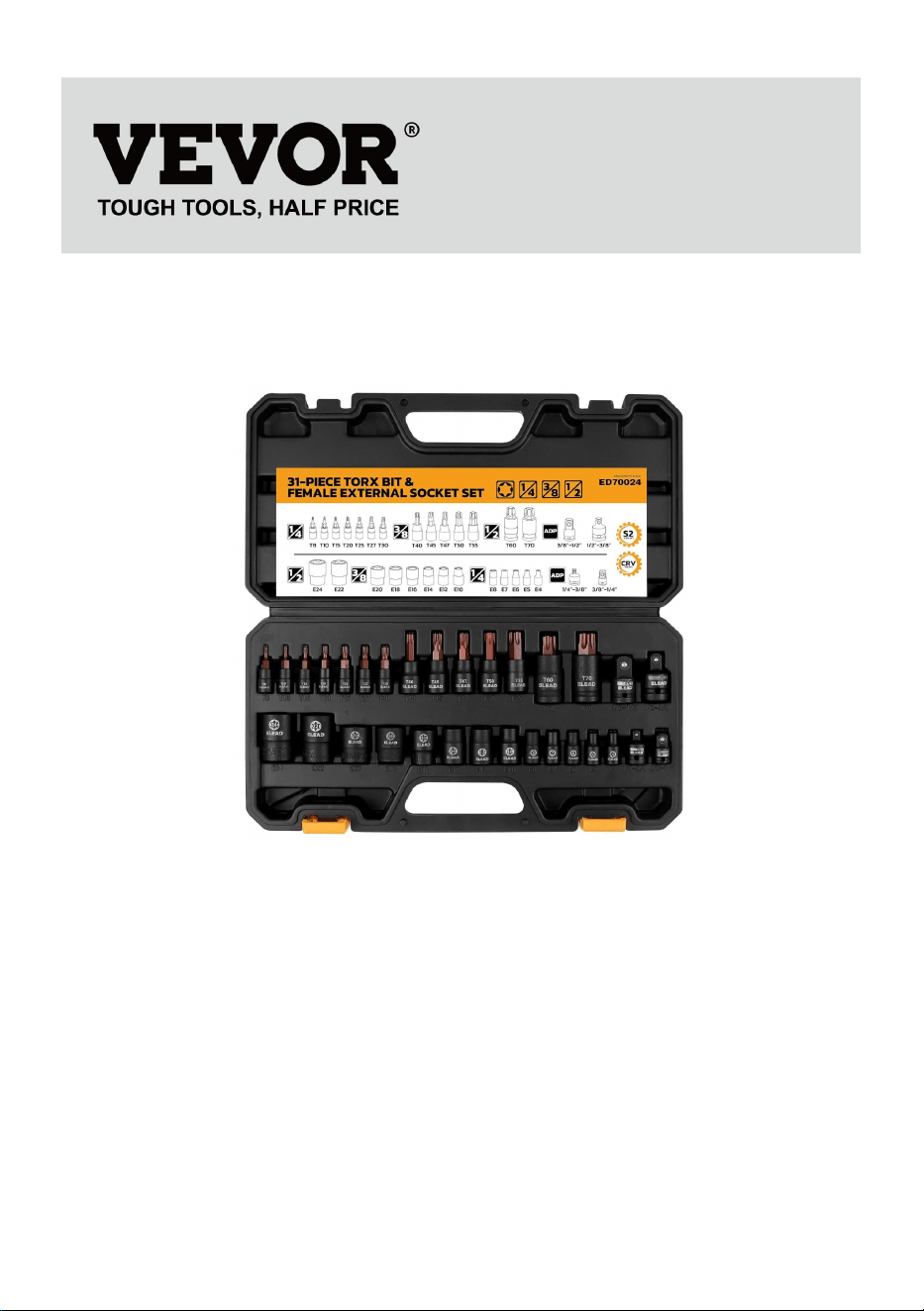

(The picture is for reference only; please refer to the actual object)
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before
operating. VEVOR reserves a clear interpretation of our user manual. The
appearance of the product shall be subject to the product you received. Please
forgive us that we won't inform you again if there are any technology or software
updates on our product.
BIT SOCKET
background
- 2 -
SAFETY INSTRUCTION AND PRECAUTIONS
Symbol
Symbol Description
Warning: To reduce the risk of injury, the user must read the
instructions manual carefully.
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to
an accident. To reduce the risk of injury, fire, or electrocution,
please always follow the recommendations shown below.
WARNING:To reduce the risk of injury, the user must read the
instructions manual carefully.
1.Use as intended only. The bit socket is not a toy, and it cannot be played
by children to prevent children from eating it by mistake.
2.The bit socket cannot be used to injure people maliciously.
3.Flammable: Keep away from open flame. This product box will ignite and
burn if brought into contact with an open flame.
4.Keep away from sharp points, blades and other items, so as not to
scratch the product box.
SAVE THESE INSTRUCTIONS
background
- 3 -
PART LIST
MODEL
QTY
CONTENT
32PCS 32H
32
1/4 "Socket Bit:
Metric H2-2.5-3-4-5-5.5-6
Imperial
H5/64"-3/32"-1/8"-5/32"-3/16"-7/32" -1/4"
3/8 "Socket Bit:
Metric H7-8-9-10-12
Imperial H9/32 "-5/16" -3/8 "-7/16" -1/2"
1/2 "Socket Bit:
Metric H14-15-17-19
Imperial H9/16 "-5/8" -11/16 "-3/4"
18PCS 18H
18
3/8"Socket Bit:
Metric H3-4-4.5-5-5.5-6-7-8-9-10
Imperial
H1/8"-5/32"-3/16"-7/32"-1/4"-9/32"-5/16"-
3/8"
13PCS 13T
13
1/4"Socket Bit: T8, T10, T15, T20, T25,
T27, T30
3/8"Socket Bit: T40, T45, T47, T50, T55
1/2"Socket Bit: T60
34PCS 34T
34
1/4"Socket Bit: T6, T7, T8,T9, T10, T15,
T20, T25, T27, T30
3/8"Socket Bit: T40, T45, T47, T50, T55
1/2"Socket Bit: T60
，
T70
1/4"Socket Bit: TT6,TT7, TT8,TT9, TT10,
TT15, TT20, TT25, TT27, T30
3/8"Socket Bit: TT40, TT45, TT47, TT50,
TT55
1/2"Socket Bit: TT60, TT70
background
- 4 -
10PCS 10M
10
1/4"Socket Bit: M4, M5, M6
3/8"Socket Bit: M8, M9, M10, M12,
M14(with a hole)
1/2"Socket Bit: M16(with a hole),
M18(with a hole)
60PCS
60TE
60
1/4"Socket Bit: T6,T7, T8,T9, T10, T15,
T20, T25, T27, T30
3/8"Socket Bit: T40, T45, T47, T50, T55
1/2"Socket Bit: T60, T70
1/4"Socket Bit: TT6,TT7, TT8,TT9, TT10,
TT15, TT20, TT25, TT27, TT30
3/8"Socket Bit: TT40, TT45, TT47, TT50,
TT55
1/2"Socket Bit: TT60, TT70
1/4"Socket Bit: TP8, TP10, TP15, TP20,
TP25, TP27, TP30
3/8"Socket Bit: TP40, TP45, TP50,
1/2"Socket Bit: TP55,TP60
1/4"E-Torx Socket: E4, E5, E6, E7, E8
3/8"E-Torx Socket: E10, E11, E12, E14,
E16
1/2"E-Torx Socket: E18, E20, E22, E24
107PCS
107 THE
107
1/4"Socket Bit:
Metric 2mm, 2.5mm, 3mm, 4mm, 5mm,
5.5mm, 6mm, 6.5mm
3/8"Socket Bit:
Metric 7mm, 8mm, 9mm, 10mm, 12mm;
1/2"Socket Bit:
Metric 14mm, 15mm, 17mm, 19mm
1/4"Socket Bit:
Imperial 5/64", 3/32", 1/8", 5/32", 3/16",
7/32", 7/64",9/64", 1/4"
3/8"Socket Bit:
Imperial 9/32", 5/16", 3/8", 7/16", 1/2"
background
- 5 -
1/2"Socket Bit:
Imperial 9/16", 5/8", 11/16", 3/4"
3/8" Socket Bit(Extended):
Metric
3mm-4mm-5mm-6mm-7mm-8mm-9mm-
10mm
Imperial
1/8"-5/32"-3/16"-7/32"-1/4"-9/32"-5/16"-
3/8"
1/4"Socket Bit: T8, T10, T15, T20, T25,
T27, T30;
3/8"Socket Bit: T40, T45, T47, T50, T55;
1/2"Socket Bit: T60, T70
1/4"Socket Bit(Extended): T8, T10, T15,
T20, T25, T27, T30;
3/8"Socket Bit(Extended): T40, T45,
T50, T60;
1/4"Socket Bit(with a hole): TT6,TT7,
TT8,TT9, TT10, TT15, TT20, TT25, TT27,
TT30
3/8"Socket Bit(with a hole): TT40, TT45,
TT47, TT50, TT55
1/2"Socket Bit(with a hole): TT60, TT70
1/4"E-Torx Socket: E4, E5, E6, E7, E8
3/8"E-Torx Socket: E10, E11, E12, E14,
E16
1/2"E-Torx Socket: E18, E20, E22, E24
31PCS
31TE+
adapter
31
Torx Socket Bit: T8, T10, T15, T20, T25,
T27, T30, T40, T45, T47, T50, T55, T60,
T70
E-Torx Socket: E4, E5, E6, E7, E8, E10,
E12, E14, E16, E18, E20, E22, E24
Adapter:1/4" to 3/8" ;3/8" to 1/4";
3/8" to 1/2" ;1/2" to 3/8"
background
- 6 -
MAINTENANCE
1. Put the bit socket back into the storage box after use to avoid loss of
parts.
2.The bit socket should be stored indoors to avoid prolonged outdoor
exposure.
3. If dirt and dust are found on the tools, please clean them in time.
CAUTIONS
Do not exceed the specifications when using the socket bit or it may cause a bad
result. The below table is for reference.For more details, please refer to ISO 2936,
ASEM B18, DIN ISO 8764-1:2006, etc.
Type
Torque
(N.M)
Type
Torque
(N.M)
Type
Torque
(N.M)
Type
Torque
(N.M)
PH0
1
T15
6.47
H1.5
1.1
H3/16"
28.23
PH1
3.9
T20
10.57
H2
2.11
H1/4"
63.22
PH2
10.3
T25
15.9
H2.5
4.07
SL3
0.85
PH3
32
T27
22.61
H3
7.84
SL4
1.92
PH4
88.7
T30
31.36
H4
16.07
SL5
4.63
PZ0
1
T40
54.54
H5
29.8
SL5-6
5.1
PZ1
3.9
T45
86.7
H6
49.41
SL6-8
6.27
PZ2
10.3
T50
133.06
H7
76.08
SL8-10
7.21
PZ3
32
T55
219.43
H1/16"
1.1
SL10-12
8.39
PZ4
88.7
T60
380.79
H5/64"
2.04
SL5/32"
5.1
T6
0.75
T70
599.2
H3/32"
3.61
SL5/16"
14.11
T7
1.36
S0
3.67
H7/64"
5.49
SL3/16"
6.27
T8
2.27
S1
8.16
H1/8"
7.84
SL7/32"
6.66
T9
2.84
S2
16.32
H9/64"
14.51
SL1/4"
7.84
T10
3.75
S3
20.39
H5/32"
15.68
SL9/32"
8.39
background
Technical Support and E-Warranty Certificate
www.vevor.com/support
background
