1
PRODUCT SPECIFICATION
J
S-WI-6
Wi-Fi IEEE 802.11 a/n/ac/ax
Modules
2
JS-WI-6 Data Sheet
The Information provided herein is subject to change without prior notice by Juganu. Please
verify all details with Juganu. Any information included in this document is and shall remain, at
all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing,
receipt or possession of any information thereof shall constitute the granting or transferring of
any right or license to copy, use or reproduce such information or any physical article or device,
or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise
in writing by Juganu Ltd.
Juganu HQ
1 Yahadut Canada St., Or-Yehuda, Israel
Tel.: + 972-3-5310031
sales@juganu.com
JS-WI-2.4/6 Rev 1.0
Revision History
Version
Date
Contents of Revision Change
Preparde
Checked
Approved
V1.0
2024/7/1
New version
Asaf
David
Yossi
3
JS-WI-6 Data Sheet
The Information provided herein is subject to change without prior notice by Juganu. Please
verify all details with Juganu. Any information included in this document is and shall remain, at
all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing,
receipt or possession of any information thereof shall constitute the granting or transferring of
any right or license to copy, use or reproduce such information or any physical article or device,
or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise
in writing by Juganu Ltd.
Juganu HQ
1 Yahadut Canada St., Or-Yehuda, Israel
Tel.: + 972-3-5310031
sales@juganu.com
JS-WI-2.4/6 Rev 1.0
1.
General Description
1.1 Introduction
The JS-WI-6 is a multi-radio MCU module. The radio provides support for Wi-Fi 802.11ax in the
5-7GHz band communications. The interface of the radios is PCI express. The device are
restricted to outdoor operation only.
1.2 Description
Model Name
JS-WI-6
Product Description
Support Wi-Fi/ functionalities
Host Interface
See below tables
Operating temperature
-40°C to 85°C
Storage temperature
-40°C to 95°C
4
JS-WI-6 Data Sheet
The Information provided herein is subject to change without prior notice by Juganu. Please
verify all details with Juganu. Any information included in this document is and shall remain, at
all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing,
receipt or possession of any information thereof shall constitute the granting or transferring of
any right or license to copy, use or reproduce such information or any physical article or device,
or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise
in writing by Juganu Ltd.
Juganu HQ
1 Yahadut Canada St., Or-Yehuda, Israel
Tel.: + 972-3-5310031
sales@juganu.com
JS-WI-2.4/6 Rev 1.0
2.

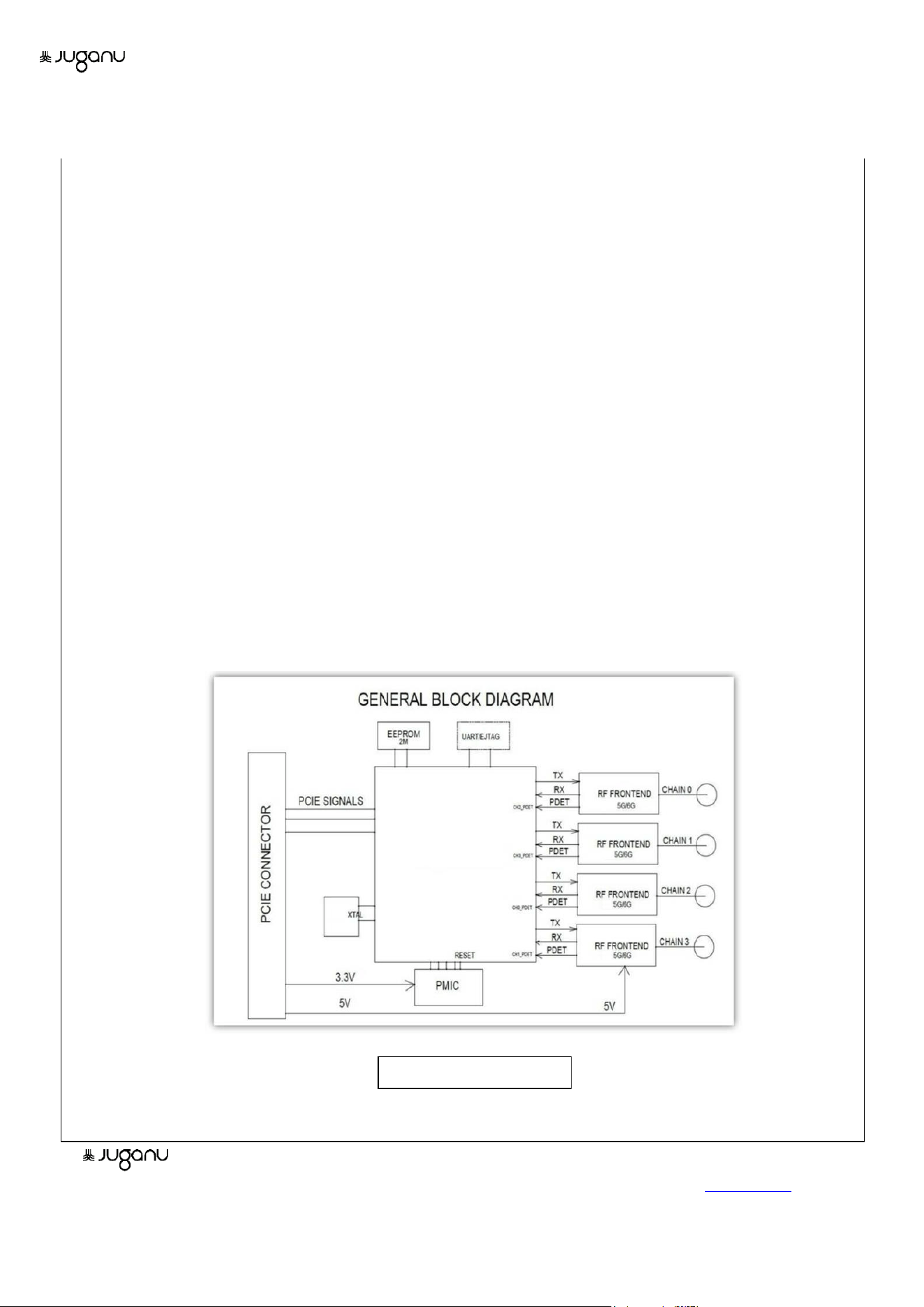

Block Diagram
JS-WI-6 block diagram
5
JS-WI-6 Data Sheet
The Information provided herein is subject to change without prior notice by Juganu. Please
verify all details with Juganu. Any information included in this document is and shall remain, at
all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing,
receipt or possession of any information thereof shall constitute the granting or transferring of
any right or license to copy, use or reproduce such information or any physical article or device,
or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise
in writing by Juganu Ltd.
Juganu HQ
1 Yahadut Canada St., Or-Yehuda, Israel
Tel.: + 972-3-5310031
sales@juganu.com
JS-WI-2.4/6 Rev 1.0
4.
General Specification
4.1 5GHz RF Specification
JS-WI-6 HW
WLAN Standard
IEEE 802.11 a/n/ac/ax Wi-Fi compliant
Frequency Range (Central
freq@BW=20MHz)
5.18 GHz ~ 7.115GHz
WIFI Features
802.11ax WIFI6, WIFI6E ready , MIMO 4x4,
BW: 20,40,80,160MHz
Test Items
Typical Value
EVM
Output Power
802.11ax /20MHz: MCS11 20dBm ± 1 dB
EVM ≤ -30dB
Receive Sensitivity SISO
(11ax,20MHz) @10% PER = -64dBm
(11ax,40MHz) @10% PER = -60dBm
(11ax,80MHz) @10% PER = -57dBm
(11ax,160MHz) @10% PER = -54dBm
Maximum input level
802.11ax: -20 dBm
Operating Temperature
-40°C to 85°C
VCC
5V
Host Interface
PCIE,GPIOs
6
JS-WI-6 Data Sheet
The Information provided herein is subject to change without prior notice by Juganu. Please
verify all details with Juganu. Any information included in this document is and shall remain, at
all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing,
receipt or possession of any information thereof shall constitute the granting or transferring of
any right or license to copy, use or reproduce such information or any physical article or device,
or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise
in writing by Juganu Ltd.
Juganu HQ
1 Yahadut Canada St., Or-Yehuda, Israel
Tel.: + 972-3-5310031
sales@juganu.com
JS-WI-2.4/6 Rev 1.0
5.

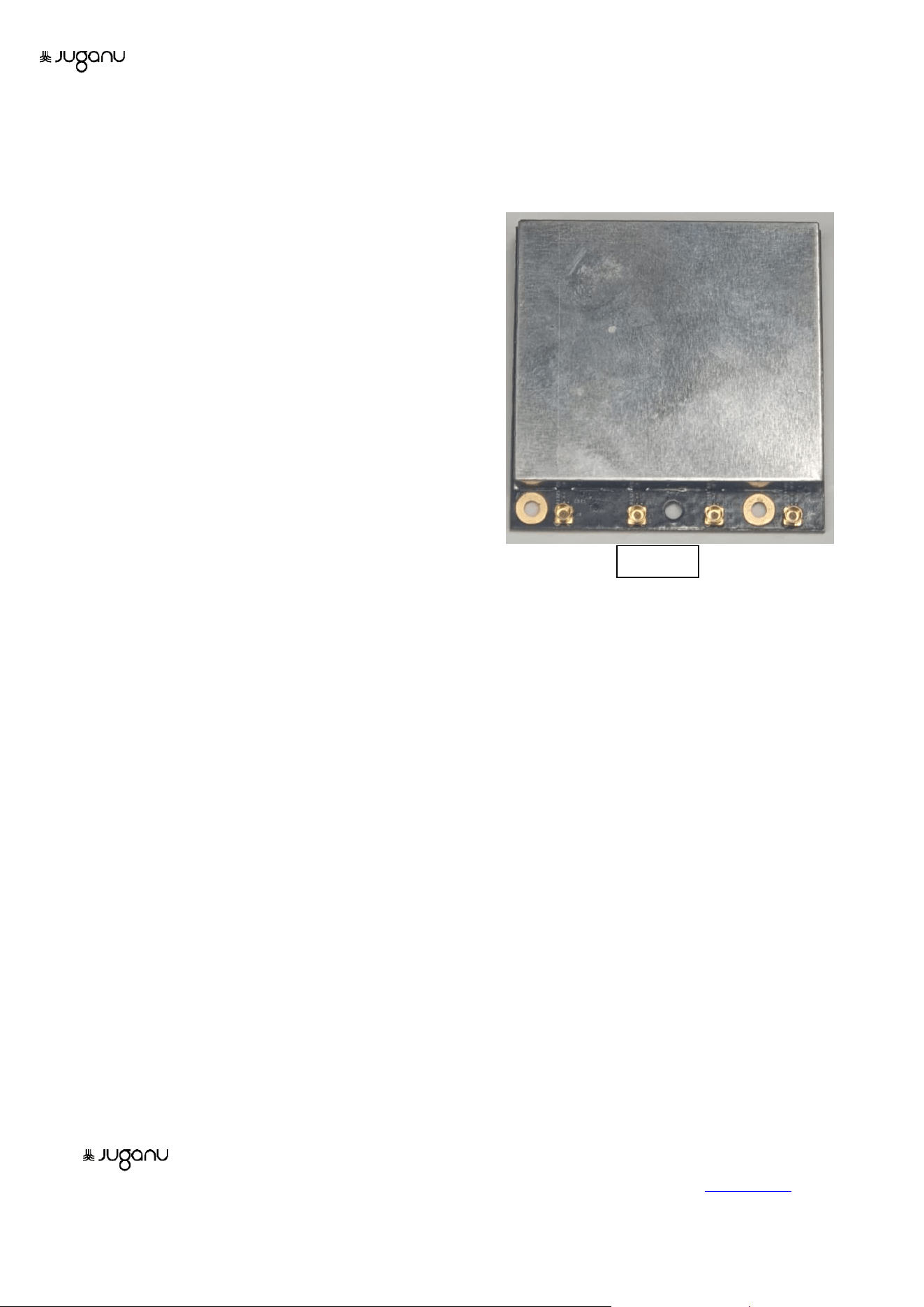

Module pictures
JS-WI-6
Integration instructions for host product manufacturers according to KDB
996369 D03 OEM Manual v01
Conditions on using JUGANU Ltd. regulatory approvals:
A. Customer must ensure that its product (The ” RF module”) is electrically identical to
JUGANU Ltd. reference designs. Customer acknowledges that any modifications to
JUGANU Ltd. reference designs may invalidate regulatory approvals in relation to the
CUSTOMER Product, or may necessitate notifications to the relevant regulatory
authorities.
B. Customer is responsible for ensuring that antennas used with the product are of the
same type, with same or lower gains as approved and providing antenna reports to
JUGANU Ltd.
C. Customer is responsible for regression testing to accommodate changes to
JUGANU Ltd. reference designs, new antennas, and portable RF exposure safety
testing/approvals.
D. Appropriate labels must be affixed to the CUSTOMER Product that comply with
applicable regulations in all respects.
E. A user’s manual or instruction manual must be included with the customer product
that contains the text as required by applicable law. Without limitation of the foregoing,
an example (for illustration purposes only) of possible text to include is set forth below:
2.2
List of applicable FCC rules
FCC Part 15 Subpart E
2.3
Specific operational use conditions
Radio Technology: 5G WIFI
Operation frequency: 802.11a/n (HT20)/ac (VHT20)/ax20: 5180~5240MHz;
5745~5825MHz
802.11n (HT40)/ac (VHT40)/ax40: 5190~5230MHz;
5755~5795MHz
802.11ac (VHT80)/ax80: 5210MHz, 5775MHz
Channel separation: 20MHz for 802.11a/ 802.11ac (VHT20)/ 802.11n (HT20)/ax20
40MHz for 802.11ac (VHT40)/ 802.11n (HT40)/ax40
80MHz for 802.11ac (VHT80)/ax80
Modulation type: IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK)
IEEE 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK)
IEEE 802.11ac: OFDM (64QAM, 16QAM, QPSK, BPSK)
IEEE 802.11ax: OFDMA
(64QAM, 16QAM, QPSK, BPSK, 256QAM, 1024QAM)
Antenna Type: PCB antenna 1, Maximum Gain is 4.43dBi
PCB antenna 2, Maximum Gain is 4.43dBi
PCB antenna 3, Maximum Gain is 2.77dBi
PCB antenna 4, Maximum Gain is 2.77dBi
(Antenna information is provided by applicant.)
The module can be used for mobile or portable applications with a maximum
4.43dBi antenna. The host manufacturer installing this module into their product
must ensure that the final composit product complies with the FCC requirements
by a technical assessment or evaluation to the FCC rules, including the transmitter
operation. The host manufacturer has to be aware not to provide information to the
end user regarding how to install or remove this RF module in the user's manual of
the end product which integrates this module. The end user manual shall include
all required regulatory information/warning as show in this manual.
2.4
Limited module procedures
Not applicable. The module is a Single module and complies with the requirement
of FCC Part 15.212.
2.5
Trace antenna designs
The antenna used is the PCB antenna on the module.
2.6
RF exposure considerations
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation. Changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to operate
the equipment.
The antennas used for this transmitter must be installed to provide a separation
distance of at least 20cm from all persons and must not be located or operating in
conjunction with any other antenna or transmitter.
2.7
Antennas
Antenna Specification are as follows:
Antenna Type: PCB antenna
Antenna Gain (Peak): 5GWIFI: 4.43dBi (Provided by applicant)
This device is intended only for host manufacturers under the following conditions:
The transmitter module may not be co-located with any other transmitter or
antenna;
As long as the conditions above are met, further transmitter test will not be
required. However, the host manufacturer is still responsible for testing their end-
product for any additional compliance requirements required with this module
installed (for example, digital device emissions, PC peripheral requirements, etc.).
2.8
Label and compliance information
Host product manufacturers need to provide a physical or e-label stating “Contains
FCC ID: 2ATPH-JS-WI-6” With their finished product.
2.9
Information on test modes and additional testing requirements
Radio Technology: 5G WIFI
Operation frequency: 802.11a/n (HT20)/ac (VHT20)/ax20: 5180~5240MHz;
5745~5825MHz
802.11n (HT40)/ac (VHT40)/ax40: 5190~5230MHz;
5755~5795MHz
802.11ac (VHT80)/ax80: 5210MHz, 5775MHz
Channel separation: 20MHz for 802.11a/ 802.11ac (VHT20)/ 802.11n (HT20)/ax20
40MHz for 802.11ac (VHT40)/ 802.11n (HT40)/ax40
80MHz for 802.11ac (VHT80)/ax80
Modulation type: IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK)
IEEE 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK)
IEEE 802.11ac: OFDM (64QAM, 16QAM, QPSK, BPSK)
IEEE 802.11ax: OFDMA
(64QAM, 16QAM, QPSK, BPSK, 256QAM, 1024QAM)
Antenna Type: PCB antenna 1, Maximum Gain is 4.43dBi
PCB antenna 2, Maximum Gain is 4.43dBi
PCB antenna 3, Maximum Gain is 2.77dBi
PCB antenna 4, Maximum Gain is 2.77dBi
(Antenna information is provided by applicant.)
2.10
Additional testing, Part 15 Subpart B disclaimer
The modular transmitter is only FCC authorized for FCC Part 15 Subpart E that
the host product manufacturer is responsible for compliance to any other FCC
rules that apply to the host not covered by the modular transmitter grant of
certification. If the grantee markets their product as being Part 15 Subpart B
compliant (when it also contains unintentional-radiator digital circuity), then the
grantee shall provide a notice stating that the final host product still requires Part
15 Subpart B compliance testing with the modular transmitter installed.
