INSTALLATION AND OPERATING INSTRUCTIONS
for all Hydrocarbon
STF School Milk Cooler Models
3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105
Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: beverage-air.com
809-189A REV. C. 02/09/2026
SEE BACK COVER FOR
WARRANTY REGISTRATION
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air2
WELCOME
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Clearance and Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Unpacking and Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

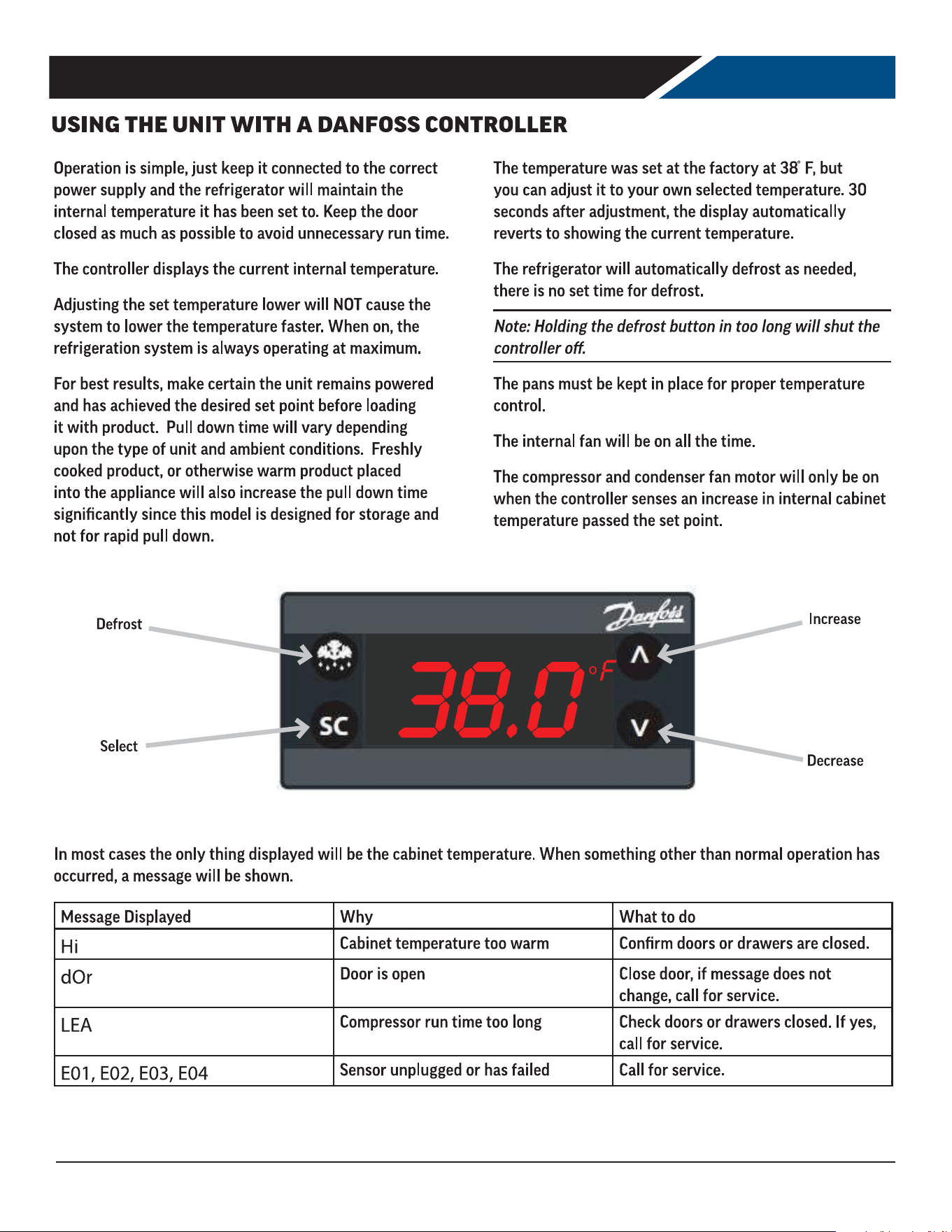

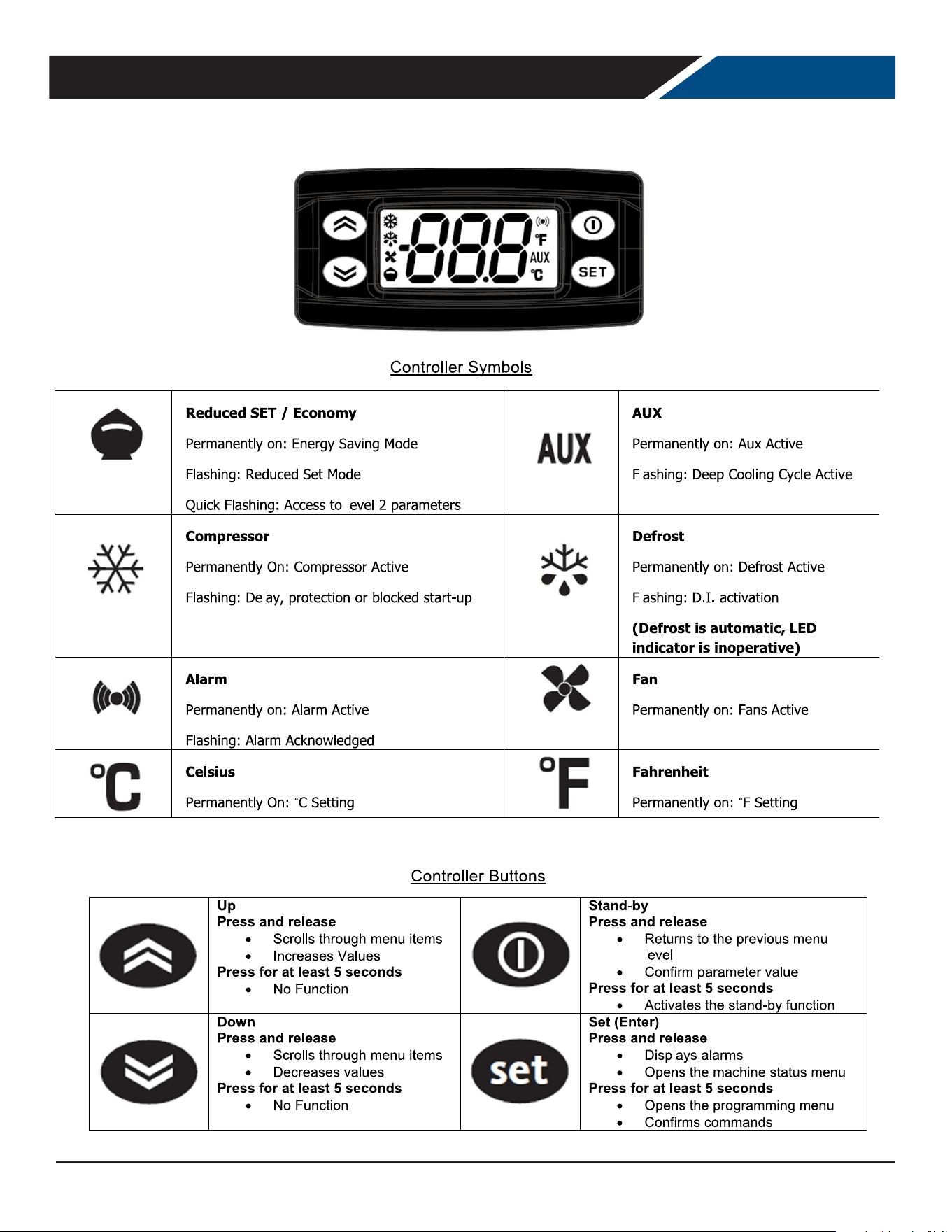

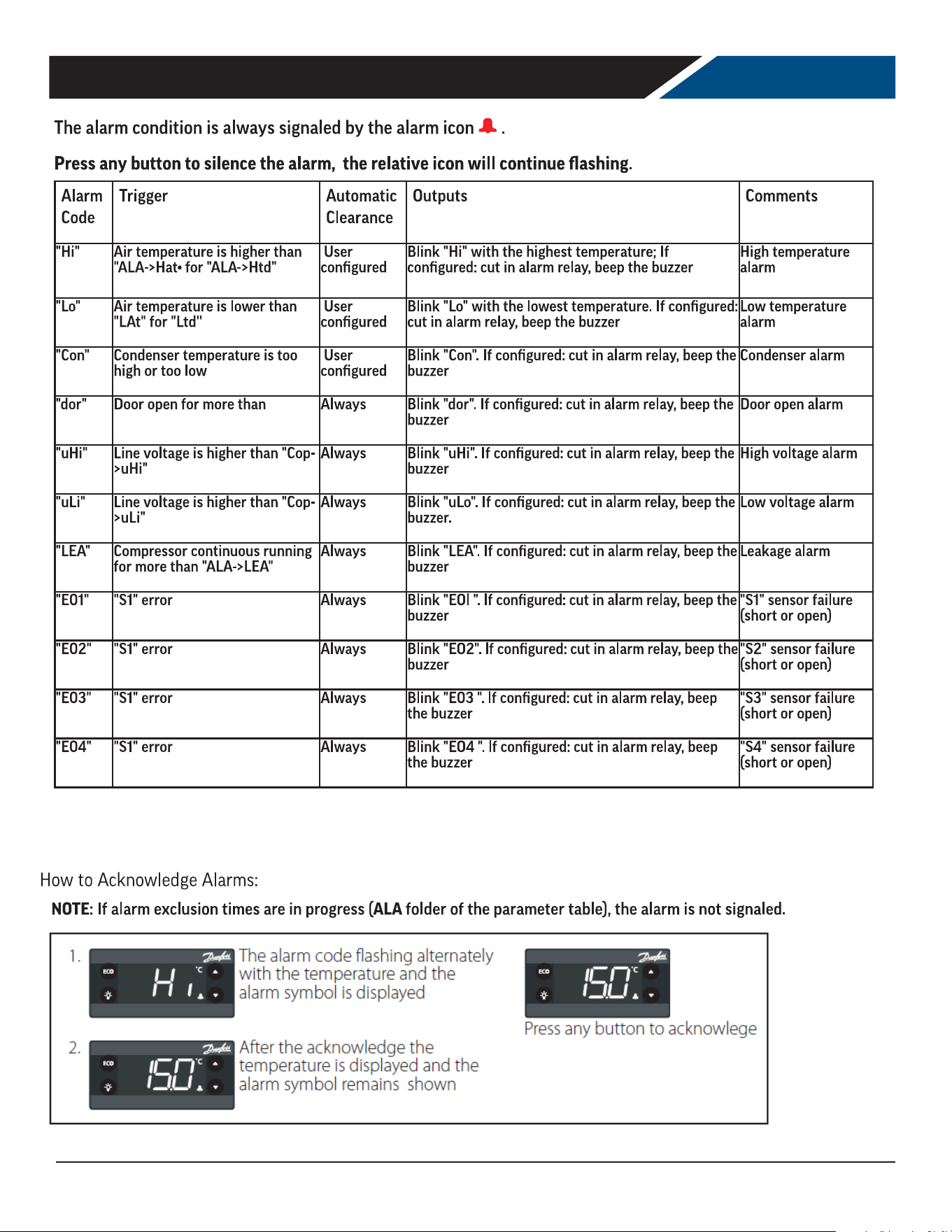

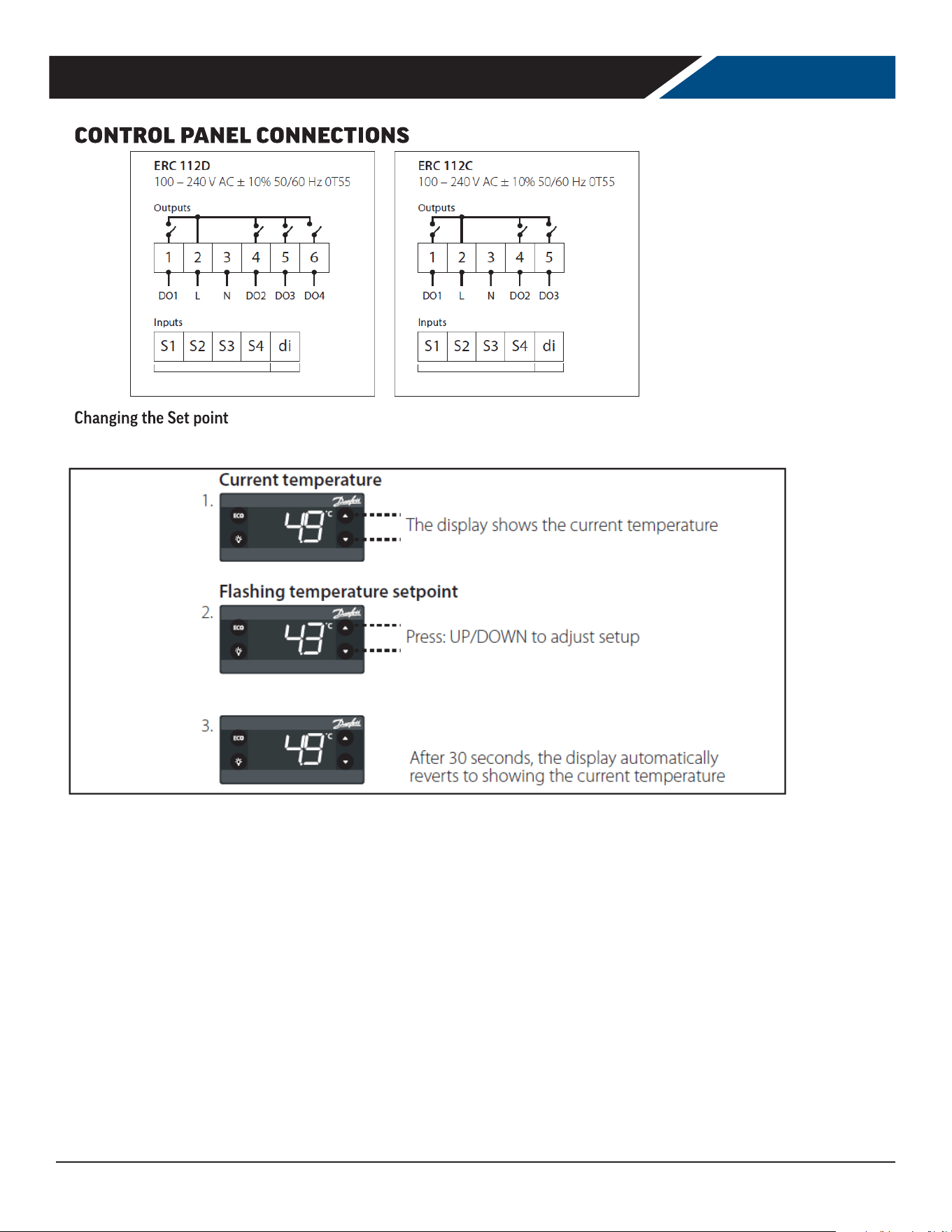

Using The Unit - Danfoss Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

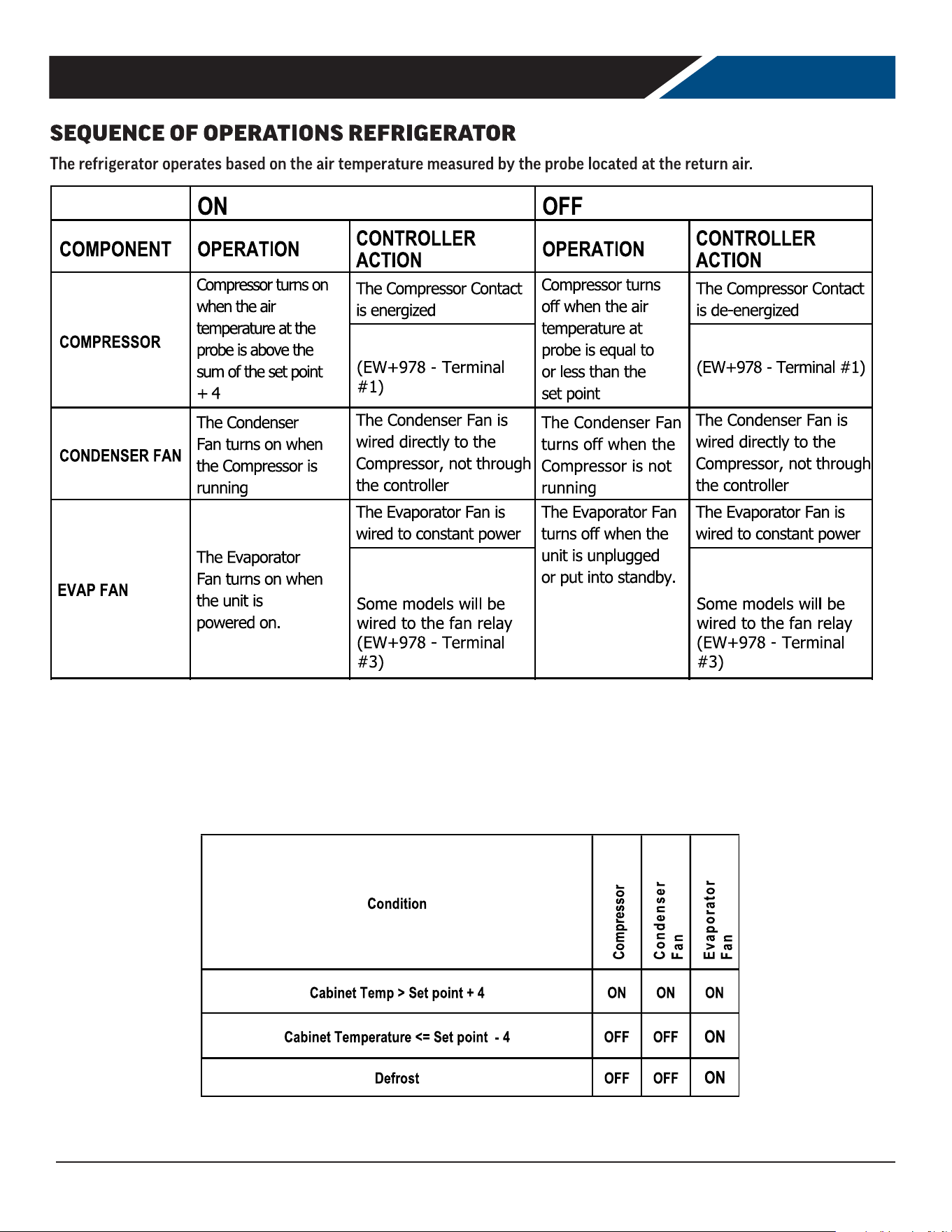

Sequence of Operations Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

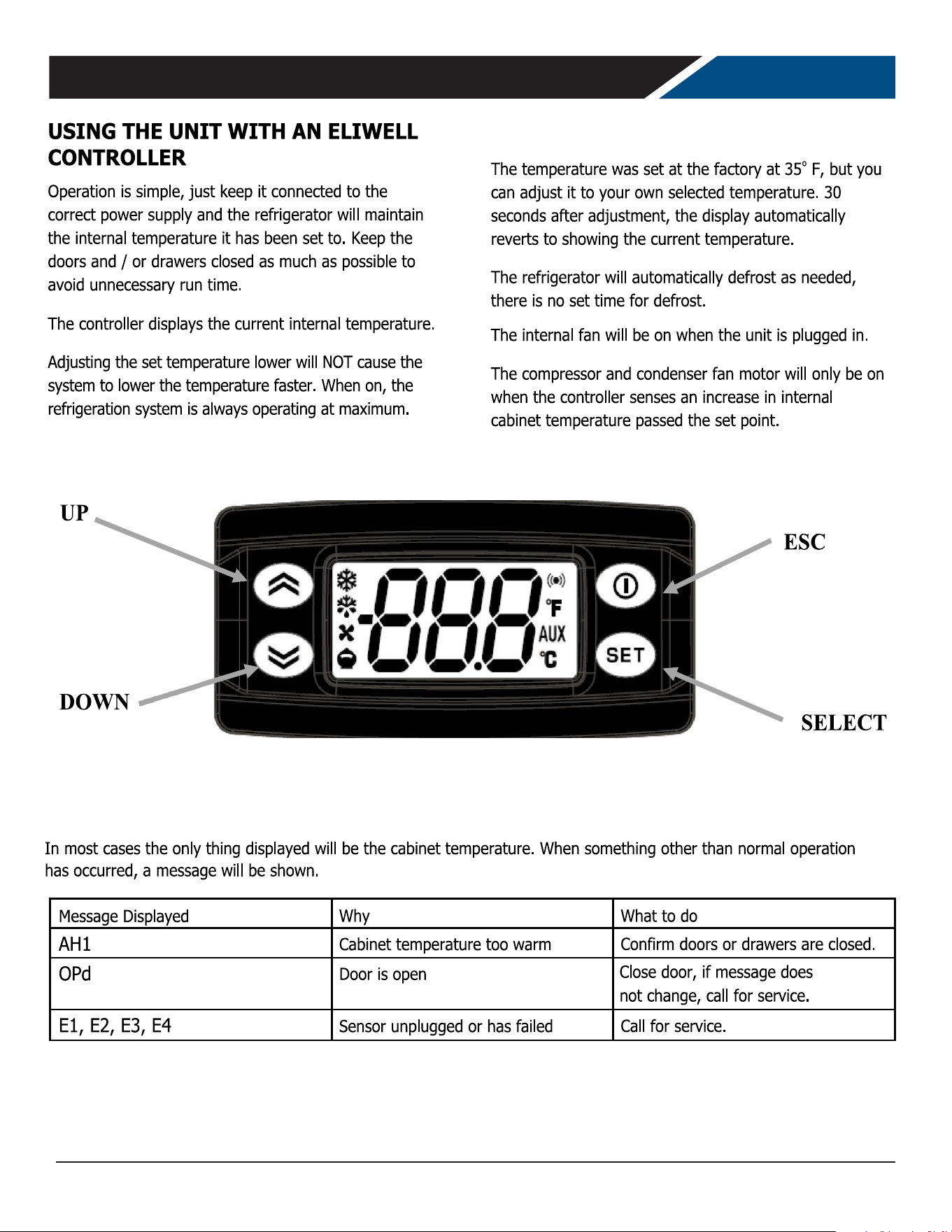

Using The Unit - Eliwell Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Sequence of Operations Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Condenser Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Methods For Cleaning Stainless Steel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
For The Service Tech - R290 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

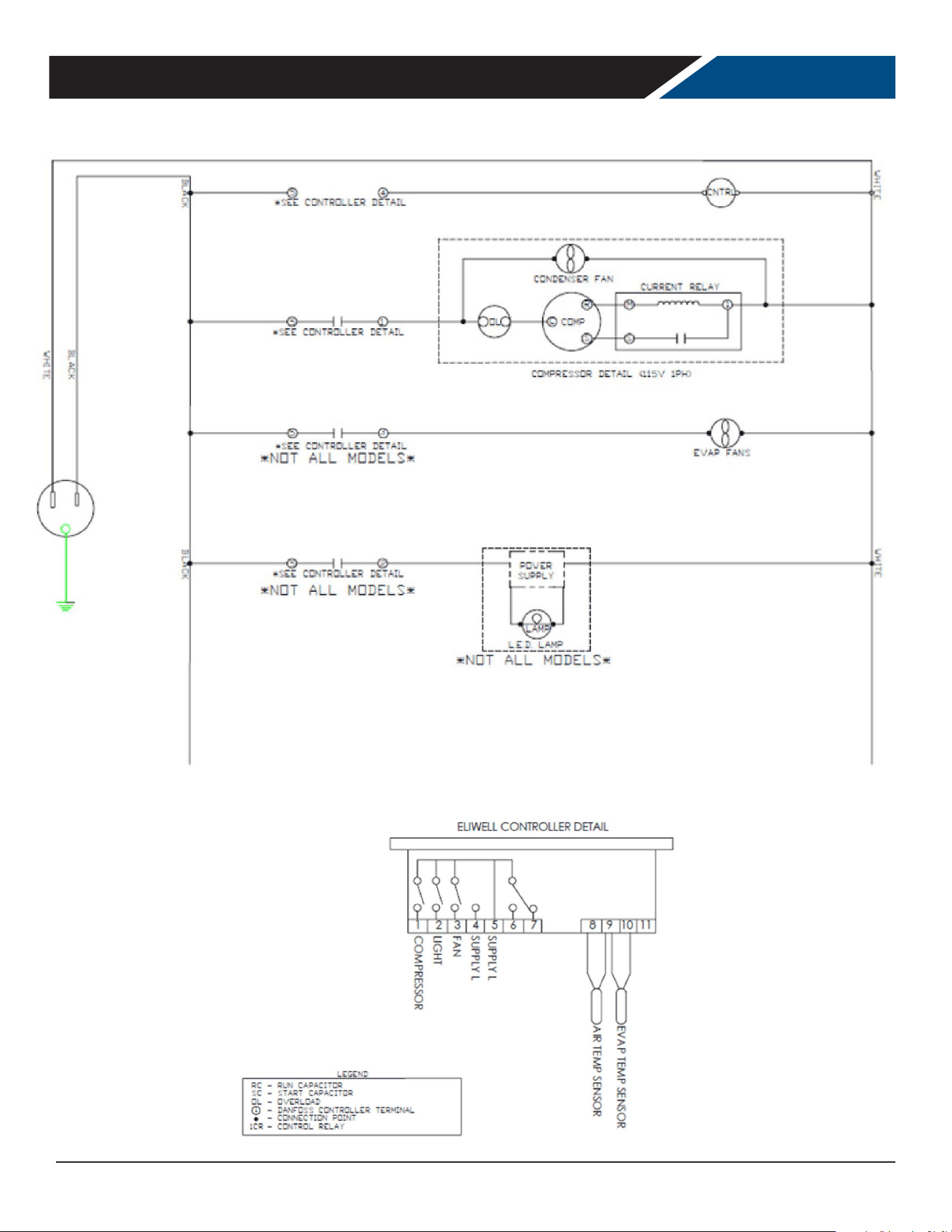

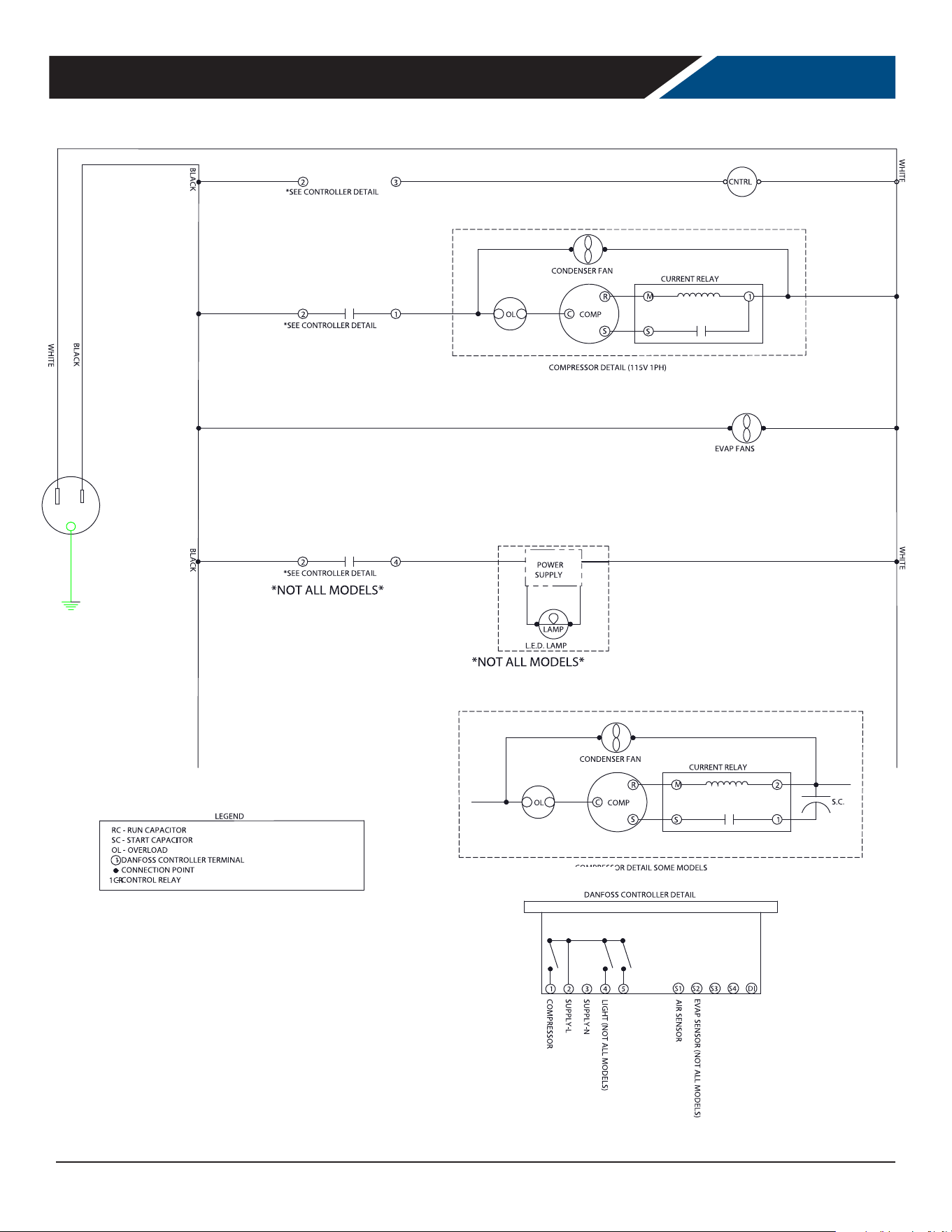

For The Service Tech - Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Limited Warranty (continued) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Important Information
• PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR USING, IF RECOMMENDED
PROCEDURES ARE NOT FOLLOWED, WARRANTY
CLAIMS MAY BE DENIED.
• Your warranty registration information is located with
this manual. Please complete the card and submit it to
Beverage-Air within TEN days of installation. Failure
to properly register equipment may limit or void the
warranty.
• Beverage-Air reserves the right to change
specications and product design without
notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions, or
replacements for previously purchased equipment.
Thank you for purchasing a Beverage-Air cabinet. This
series has passed our strict quality control inspection and
meets the high standards set by Beverage-Air! You have
made a quality investment that with proper maintenance
will give you many years of reliable service!
Please read the following installation and maintenance
instructions before installing or using your unit.
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 3
SAFETY
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance
Use: When using this unit, please:
• Move it carefully. If on casters be sure the casters
do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move
with enough help to avoid tipping or dropping the
cabinet.
• Prevent children from playing in or on the cabinet.
Persons unable to use this product must be
prevented access.
• Follow all instructions. There are many safety
labels and directions on the unit. Heed them.
• Watch your ngers. There may be pinch points near
the door hinges.
Maintenance
Do NOT:
• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.
• Store gasoline, kerosene or any other ammable
material near the cabinet.
Do ALWAYS
• Use a Beverage-Air recommended technician certied
to repair R290 equipment.
• Use ONLY Beverage-Air factory service parts. Use of
non OEM parts can be dangerous because of the design
changes needed to safely use R290.
Observe the Caution and Warning notices. They are indicators of
important safety information. Keep this manual for future reference.
Important Information to Add
Record the model number, serial number and the date of installation here for future reference. The model and serial
numbers are on the unit's serial number dataplate, which is located on the left inside wall.
Model Number
Serial Number
Date of Installation
Purchased From
CAUTION
WARNING
CAUTION
CAUTION
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air4
IMPORTANT INFORMATION
This unit is intended to be used in a commercial application. That includes schools and cafeterias.
If installed in a residence some commercial service companies may not be able to service it on site.
The manufacturer has designed and produced this machine with the nest in materials. The manufacturer assumes no
liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.
Limitations
The machine is designed for use indoors in a controlled
environment. It must be kept dry, not overheated or
subjected to excessive cold. May only be connected to
a dedicated electrical circuit. Extension cords are not
permitted.
Minimum Maximum
Voltage 104 127
Room Air Temp 60º F 100º F

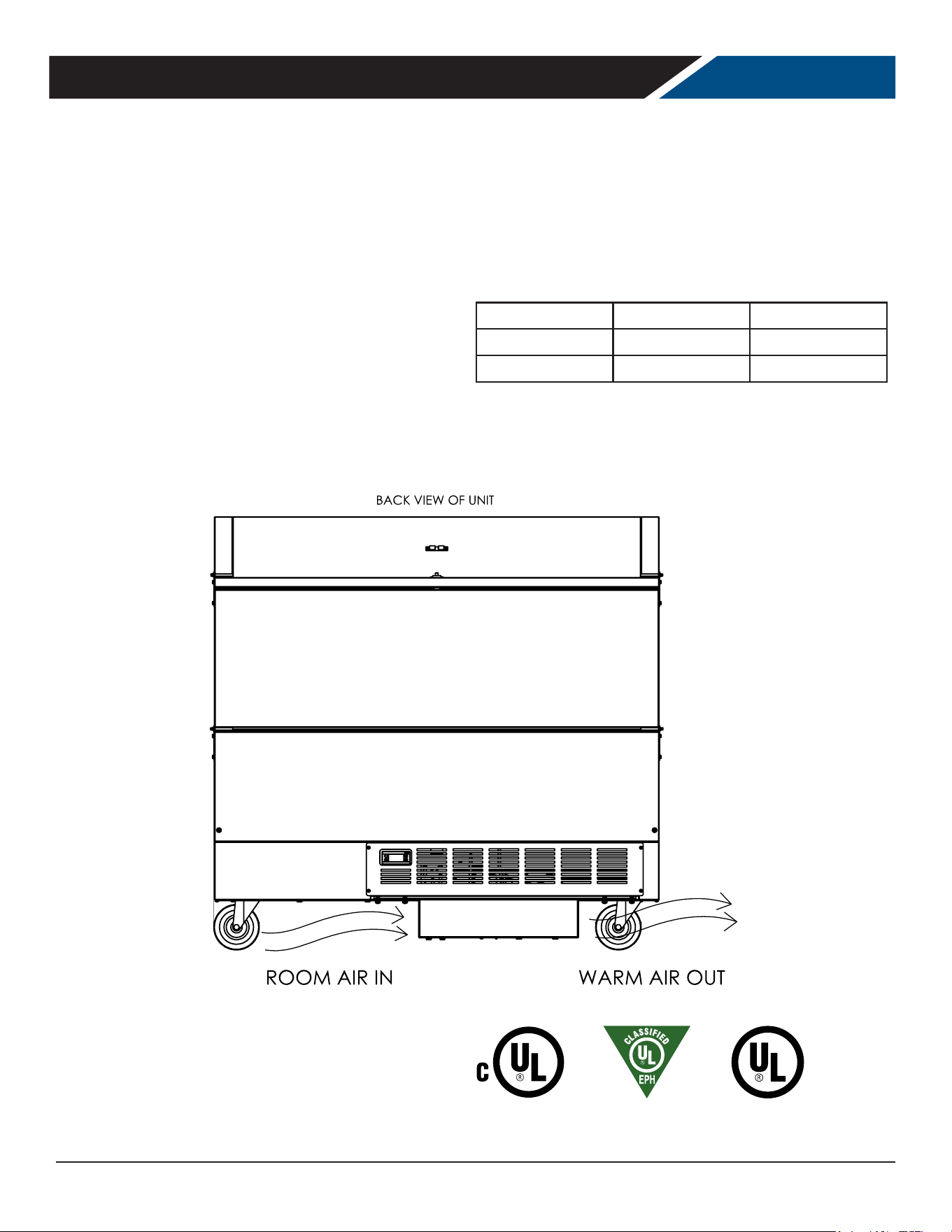

Air Flow
Agency Approvals
These marks appear on the dataplate or serial tag, located
in the inside of the left wall. The dataplate also contains
the model and serial numbers as well as electrical
requirements.
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 5
Model
Cabinet Dimensions
w x d x h (Inches)
Glass
or Solid
Door
Full
Load
Amps
Power Cord
Plug (NEMA)
Refrigerant Type
/ Charge g /
Charge oz
STF49HC 49 x 34 x 47 3/4 Solid 2.46
5-15P R-290 / 70 / 2.5
STF58HC 58 x 34 x 47 3/4 Solid 2.46
Height includes casters
PRODUCT INFORMATION
• All models will maintain product temperature between 35.5 and 40.5 degrees F. at the factory setting of 38.
0
F.
• All models are 115 volts, 60 Hz AC.
• ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, REFRIGERANT AND REFRIGERANT CHARGE FOR THE
MOST UP TO DATE AND ACCURATE VALUES.
• There are no access valves on the refrigeration system.
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air6

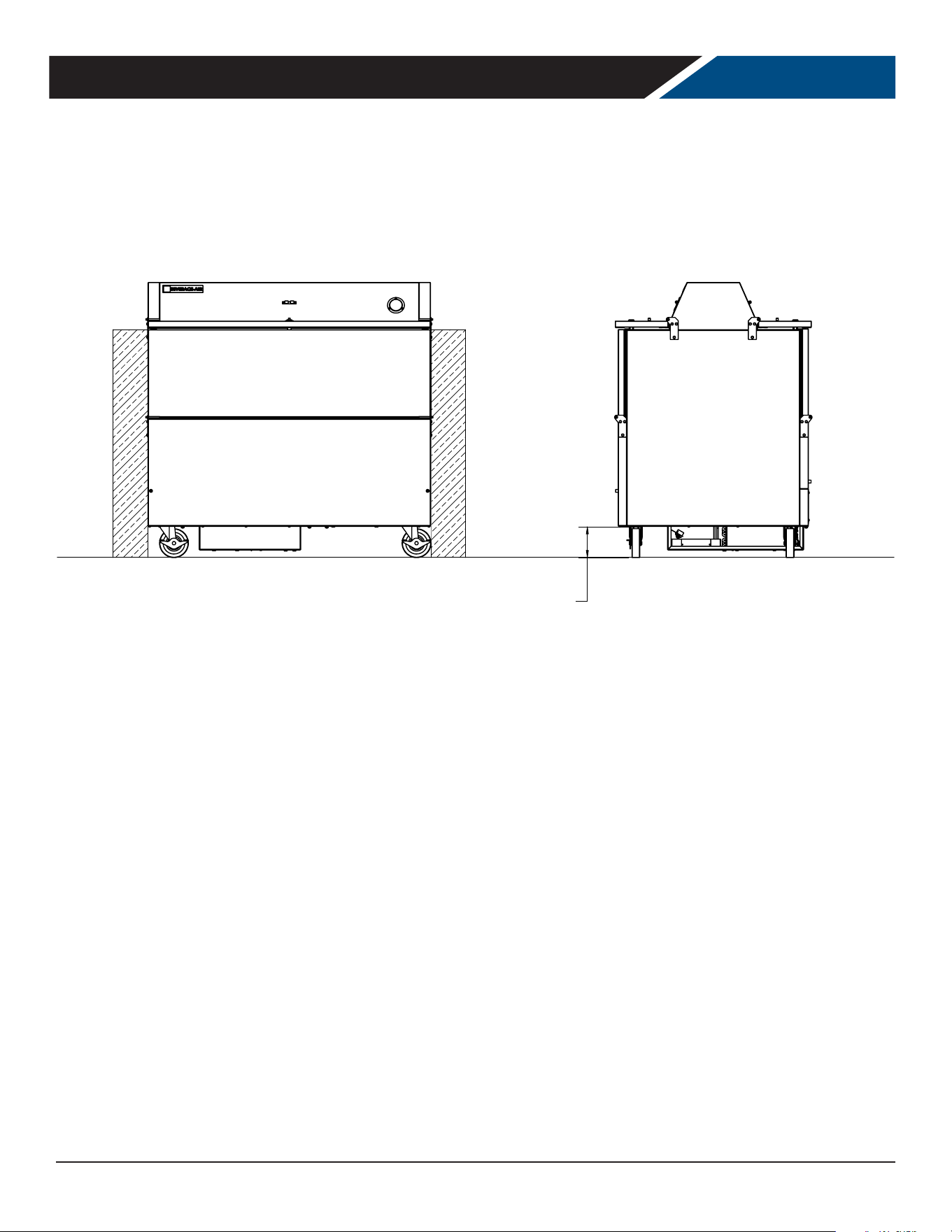

CLEARANCE AND PLACEMENT
Placement
Consider the following when selecting a location for your Refrigerator:
Clearance:
• 0" - Left
• 0" - Right
• 0" - Rear
• 4 3/8" - Below
Floor Load: The oor on which the Refrigerator is located must be even and level, free from vibrations, and strong enough
to support the combined weights of the unit and maximum product load.
Ventilation: Grille area at front must be free and clear of any object or wall.
Power Outlet: The installation of this appliance requires a dedicated power outlet located within the length of the unit's
power cord and be accessible for the purpose to disconnect power
CLEARANCE
4 3/8"
BOTTOM
MINIMUM
CLEARANCE
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 7
UNPACKING AND SET UP
Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is
suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim.
Do NOT contact the manufacturer.
Uncrating
Tools Needed: ¾” box wrench, adjustable wrench, level,
at head screw driver, and box cutter.
1. First, remove the cardboard top capping, all clear
tape, and all staples including those at the bottom of
the cardboard carton and skid.
2. Next, start from the top of the carton. Using the box
cutter, carefully make one continuous cut to the
bottom of the skid. Remove cardboard carton and
discard.
3. Then, move unit as close to nal position as possible
before removing the skid.
4. Remove the brackets securing the unit to the skid.
Note: The skid must be removed before the casters or legs
can be attached.
Do NOT tip unit on its front or sides. If tipped onto the
back, unit must not be started for 3 hours.
Leveling:
Cabinet must be installed on a level surface. Failure to
install on a level surface may result in the door not sealing
or not remaining in position correctly, or during defrost
maintenance, condensed water not draining properly.
Install or attach any accessories that will be used
Remove any plastic covering the stainless steel.
CAUTION
Do NOT loosen casters to level
the cabinet. Casters MUST be
tightly secured to cabinet for
full strength.
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air8
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
bottom area, and the inside wall of the cabinet will begin
to become cold.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever
moving or servicing the unit. The
refrigerant is contained in a sealed
system, but if released it may be
ammable.
ELECTRICAL
CAUTION
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 9

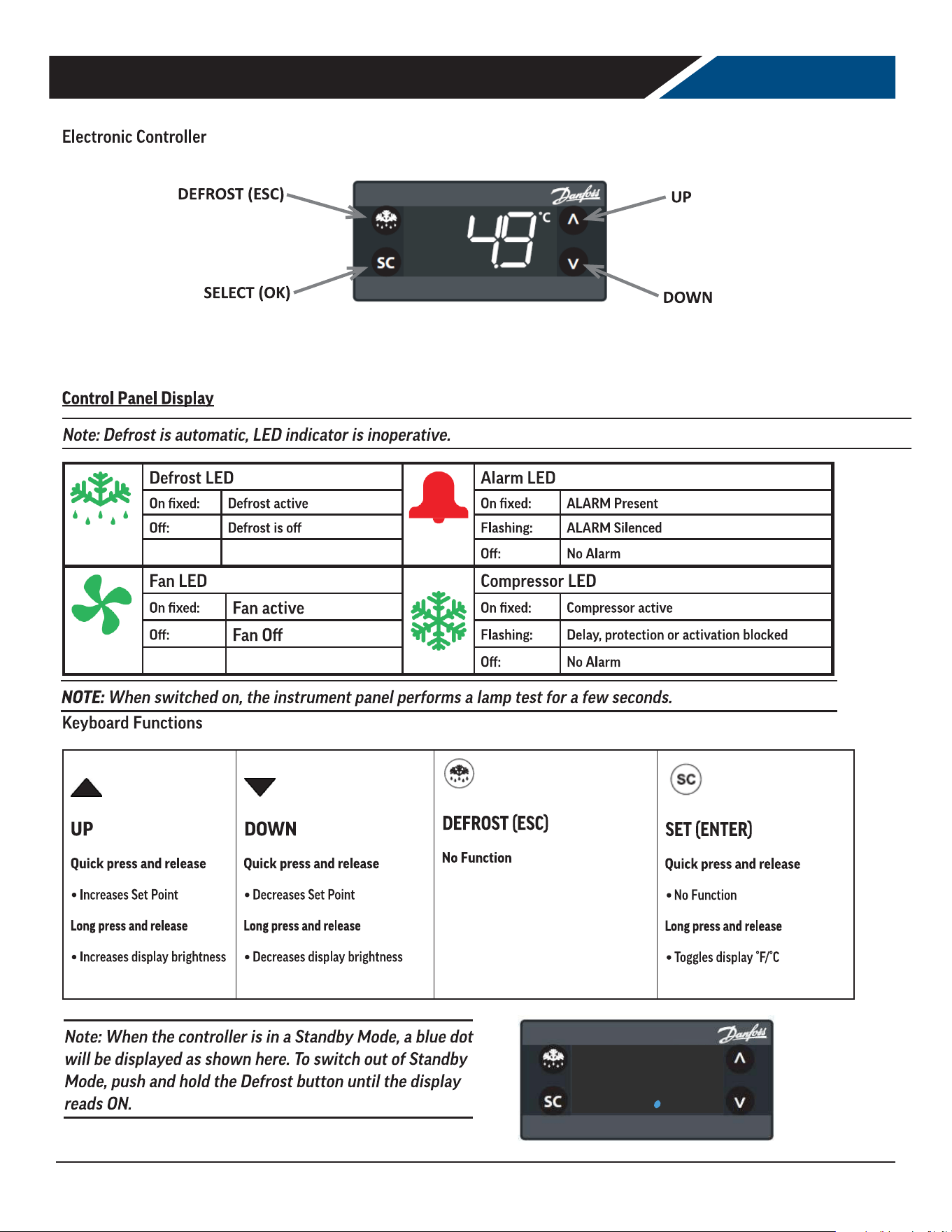

0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%
&'()*ÿ,-.ÿ&)(,ÿ/(,-ÿ0ÿ10)23''ÿ43),5366.5ÿ
789:ÿ<=>?=@ÿAB:ÿCDEÿF9G9:=H9IJK:
LMNOÿQRSRQTUVUWXYUZ[\WQQ
7]^_`ÿCaEÿ7_^CÿbÿcJ_de]]ÿfe_CgehhEg
ijMklmnopÿnqÿqnrjsMtÿuvqmÿwMMjÿnmÿxoppMxmMyÿmoÿmzMÿxokkMxmÿ
jo{Mkÿqvjjs|ÿlpyÿmzMÿkM}kn~Mklmokÿ{nssÿrlnpmlnpÿmzMÿ
npmMkplsÿmMrjMklmvkMÿnmÿzlqÿMMpÿqMmÿmoOÿMMjÿmzMÿyookÿ
xsoqMyÿlqÿrvxzÿlqÿjoqqnsMÿmoÿlNonyÿvppMxMqqlk|ÿkvpÿmnrMO
zMÿxopmkossMkÿynqjsl|qÿmzMÿxvkkMpmÿnpmMkplsÿmMrjMklmvkMOÿ
yuvqmnp~ÿmzMÿqMmÿmMrjMklmvkMÿso{Mkÿ{nssÿiÿxlvqMÿmzMÿ
q|qmMrÿmoÿso{MkÿmzMÿmMrjMklmvkMÿ}lqmMkOÿzMpÿoptÿmzMÿ
kM}kn~Mklmnopÿq|qmMrÿnqÿls{l|qÿojMklmnp~ÿlmÿrlnrvrO
okÿMqmÿkMqvsmqtÿrlwMÿxMkmlnpÿmzMÿvpnmÿkMrlnpqÿjo{MkMyÿ
lpyÿzlqÿlxznMNMyÿmzMÿyMqnkMyÿqMmÿjonpmÿM}okMÿsolynp~ÿ
nmÿ{nmzÿjkoyvxmOÿÿvssÿyo{pÿmnrMÿ{nssÿNlk|ÿyMjMpynp~ÿ
vjopÿmzMÿm|jMÿo}ÿvpnmÿlpyÿlrnMpmÿxopynmnopqOÿÿkMqzs|ÿ
xoowMyÿjkoyvxmtÿokÿomzMk{nqMÿ{lkrÿj
koyvxmÿjslxMyÿ
npmoÿmzMÿljjsnlpxMÿ{nssÿlsqoÿnpxkMlqMÿmzMÿjvssÿyo{pÿmnrMÿ
qn~pnÿxlpms|ÿqnpxMÿmznqÿroyMsÿnqÿyMqn~pMyÿ}okÿqmokl~Mÿlpyÿ
pomÿ}okÿkljnyÿjvssÿyo{pO
zMÿmMrjMklmvkMÿ{lqÿqMmÿlmÿmzMÿ}lxmok|ÿlmÿ
ÿtÿvmÿ
|ovÿxlpÿlyuvqmÿnmÿmoÿ|ovkÿo{pÿqMsMxmMyÿmMrjMklmvkMOÿÿ
qMxopyqÿl}mMkÿlyuvqmrMpmtÿmzMÿynqjsl|ÿlvmorlmnxlss|ÿ
kMNMkmqÿmoÿqzo{np~ÿmzMÿxvkkMpmÿmMrjMklmvkMO
zMÿkM}kn~Mklmokÿ{nssÿlvmorlmnxlss|ÿyM}koqmÿlqÿpMMyMytÿ
mzMkMÿnqÿpoÿqMmÿmnrMÿ}okÿyM}koqmOÿ
omMÿosynp~ÿmzMÿyM}koqmÿvmmopÿnpÿmooÿsop~ÿ{nssÿqzvmÿ
mzMÿ
xopmkossMkÿoÿO
zMÿjlpqÿrvqmÿMÿwMjmÿnpÿjslxMÿ}okÿjkojMkÿmMrjMklmvkMÿ
xopmkosO
zMÿnpmMkplsÿ}lpÿ{nssÿMÿopÿlssÿmzMÿmnrMOÿ
zMÿxorjkMqqokÿlpyÿxopyMpqMkÿ}lpÿromokÿ{nssÿops|ÿMÿopÿ
{zMpÿmzMÿxopmkossMkÿqMpqMqÿlpÿnpxkMlqMÿnpÿnpmMkplsÿxlnpMm
ÿ
mMrjMklmvkMÿjlqqMyÿmzMÿqMmÿjonpmO
ÿ
ÿ
MsMxm
M}koqm
pxkMlqM
MxkMlqM
pÿroqmÿxlqMqÿmzMÿops|ÿmznp~ÿynqjsl|Myÿ{nssÿMÿmzMÿxlnpMmÿmMrjMklmvkMOÿzMpÿqorMmznp~ÿomzMkÿmzlpÿpokrlsÿojMklmnopÿzlqÿ
oxxvkkMytÿlÿrMqql~Mÿ{nssÿMÿqzo{pO
Mqql~Mÿnqjsl|My z| zlmÿmoÿyo
lnpMmÿmMrjMklmvkMÿmooÿ{lkropÿkrÿyookqÿokÿykl{MkqÿlkMÿxsoqMyO
¡
ookÿnqÿojMpsoqMÿyooktÿn}ÿrMqql~MÿyoMqÿpomÿ
xzlp~Mtÿxlssÿ}okÿqMkNnxMO
¢£¤
orjkMqqokÿkvpÿmnrMÿmooÿsop~zMxwÿyookqÿokÿykl{MkqÿxsoqMyOÿ}ÿ|Mqtÿ
xlssÿ}okÿqMkNnxMO
£¥¦§ÿ£¥©§ÿ£¥ª§ÿ£¥«
Mpqokÿvpjsv~~Myÿokÿzlqÿ}lnsMylssÿ}okÿqMkNnxMO
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air10

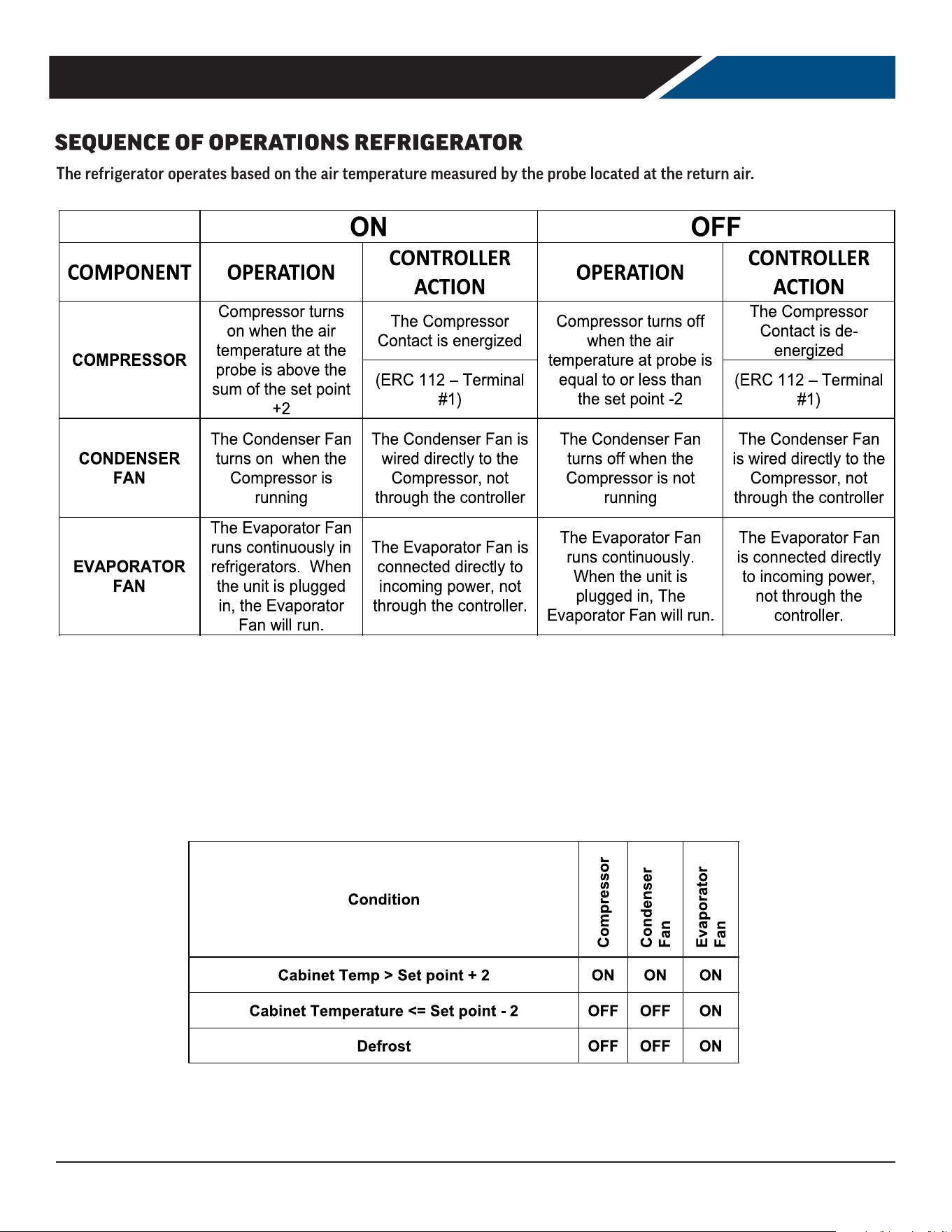

0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 11
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%%
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air12
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 13
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air14
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 15
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air16

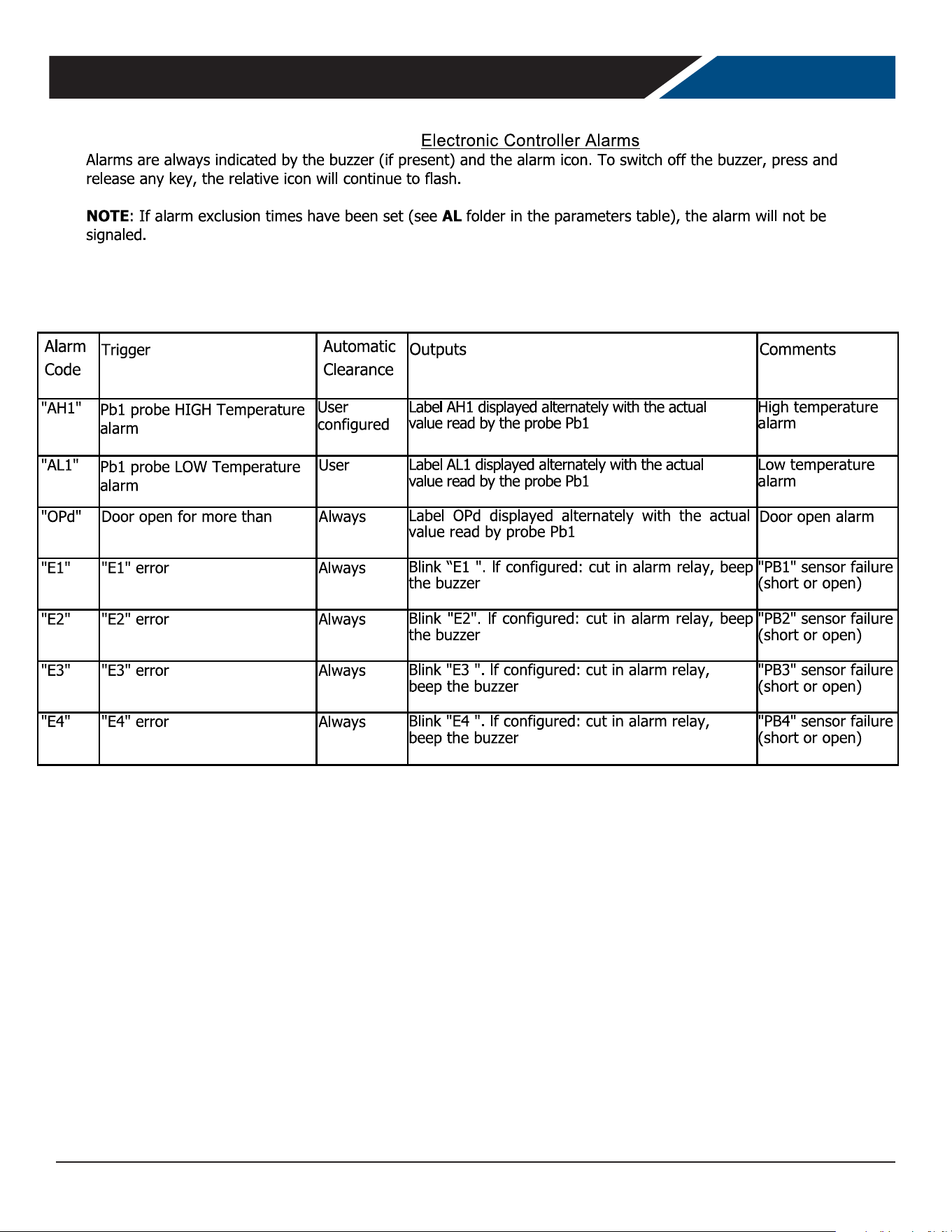

0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 17
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air18
CLEANING AND MAINTENANCE
Cleaning Schedule:
Cabinet
Daily wipe down
Weekly interior
Condenser coil
Quarterly cleaning
Gaskets
Daily inspection
Routine maintenance
Annually
Daily Exterior Cleaning
It is much easier to clean on a regular basis than to have to remove stains once they have built up.
1. Wash with a clean sponge and a mild detergent that
does not contain chlorine.
2. Rinse with clean water.
3. Dry with a soft cloth.
4. Polish with a soft cloth, wiping with the grain.
5. Wipe weekly with stainless steel cleaner.
Weekly Interior Cleaning
1. Remove all food, food related items. Store the food at
a safe temperature.
2. Disconnect power to the unit (unplug it or switch the
breaker o).
3. Remove all loose food particles from the inside walls,
oor, door liner and ceiling.
4. Scrub all interior surfaces and door gaskets with a
warm (100
o
F to 110
o
F) detergent solution and a soft
scrub brush.
5. Rinse with clean water and allow to air dry.
6. Restore power.
7. Return food to the unit when it has reached a safe
temperature.
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 19
CONDENSER CLEANING

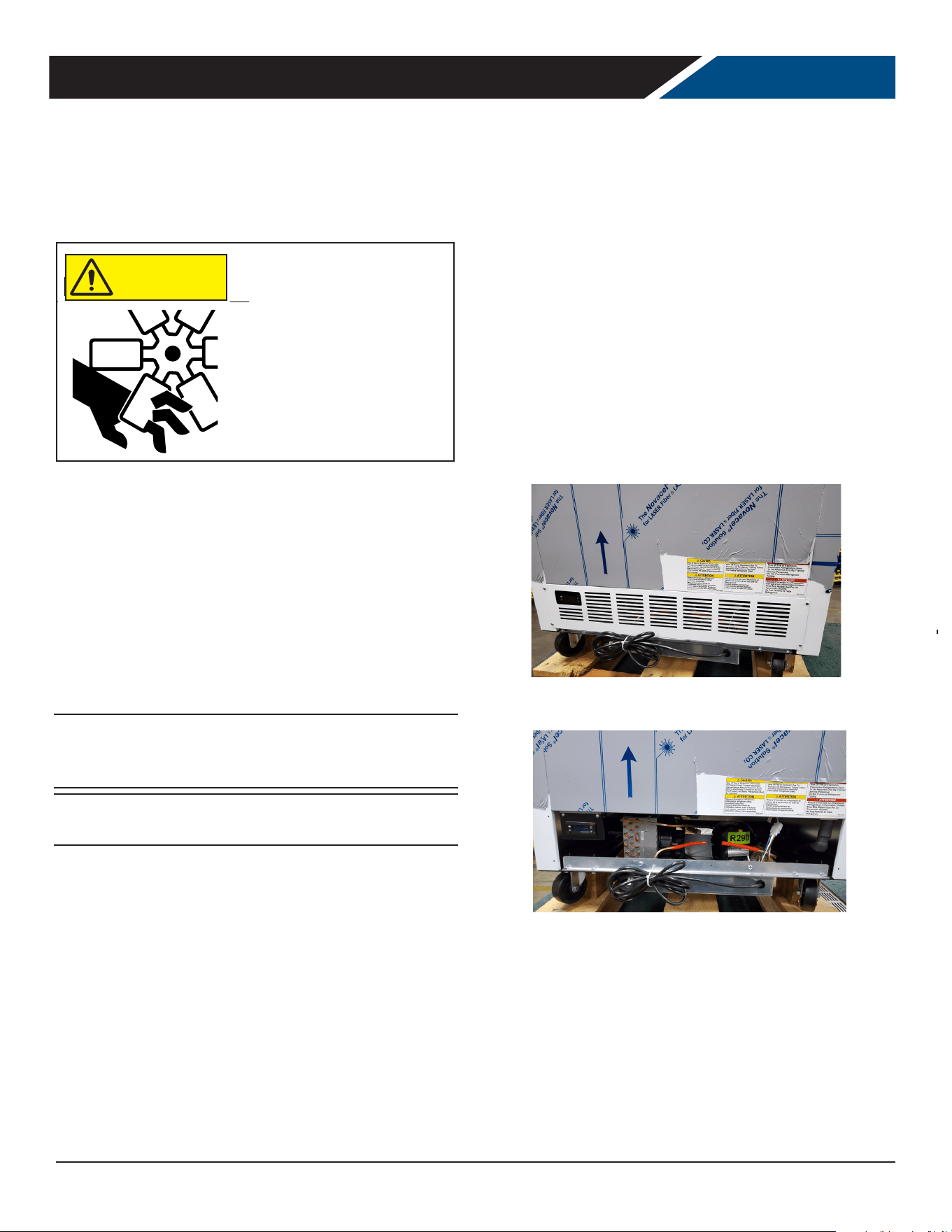

Rotating fan blade can cause
personal injury.
Unplug unit from power supply
before beginning to clean
condenser
CAUTION
Keeping the condenser coil clean is critical to ecient
operation.
1. Unplug unit from power supply.
2. Remove the Phillips head screws on the left and right
of the rear panel
3. Pull the panel away from the unit.
4. Brush o the surface of the condenser ns. Do NOT
bend the ns.
5. Vacuum the surface of the condenser ns.
6. To reinstall the rear panel line up the screw holes and
reinstall the Philips head screws.
Note: If the coil is greasy, the coil will need to be cleaned
with coil cleaner and that should be left to an experienced
technician.
Note: Air lters are not recommended as they restrict the
ow of cooling air.
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air20
Cleaning Needed Cleaning Agent Method of Application Aect on Finish
Smears and ngerprints
Areal 20, Lac-O-Nu, Lumin Wash
O’Cedar Cream Polish, Stainless
Shine.
Rub with cloth as directed
on the package.
Satisfactory for use on all
nishes.
Provides barrier lm to
minimize prints.
Stubborn Spots and
Stains, Baked-On
Splatter, and Other
Light Discolorations
Allchem Concentrated Cleaner.
Apply with damp sponge or
cloth.
Rub with damp cloth.
Use in direction of polish lines
on No. 4 (polished) nish. May
scratch No.
2 (mill) and Nos. 7 and 8
(polished) nishes.
Samae, Twinkle or Cameo Copper
Cleaner
Rub with damp cloth.
Grade FFF Italian pumice, whiting,
or talc.
Rub with dry cloth.
Liquid NuSteel
Paste NuSteel or DuBois Temp.
Copper’s Stainless Steel Cleaner
Revere Stainless Cleaner
Household cleansers, such as
Old Dutch, Lighthouse, Sunbrite,
Wyandotte, Bab-O, Gold Dust,
Sapolio, Bon Ami, Ajax, or Comet
Grade F Italian Pumice, Steel
Bright, Lumin Cleaner, Zud,
Restore, Sta-Clean, or Highlite.
Penny-Brite or Copper-Brite.
Use small amount of cleaner.
Rub with dry cloth using a
small amount of cleaner.
Apply with damp sponge or
cloth.
Rub with a damp cloth. May
contain chlorine bleaches.
Rinse
thoroughly after use.
Rub with a damp cloth.
Rub with a dry cloth using a
small amount of cleaner.
Heat tint or
discoloration
Penny-Brite or Copper-Brite.
Past NuSteel, DuBois Temp,
or Tarnite. Revere Stainless Steel
Cleaner. Allen Polish, Steel Bright,
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains Wyandotte,
Bab-O or Zud.
Rub with a dry cloth.
Rub with a dry cloth or stain-
less steel wool.
Apply with damp sponge or
cloth.
Rub with a damp cloth.
Burnt-On Foods and
Grease Fatty Acids,
Milkstone (where
swabbing or rubbing
is not practical)
Easy-O, De-Grease-It, 4 to 6%
hot solution of such agents as
trisodium phosphate or sodium
tripolyphosphate or 5 to 15% caustic
soda solution
Apply generous coating. Allow
to stand for 10-15 minutes.
Rinse.
Repeated application may be
necessary.
Excellent removal, satisfactory
for use on all nishes.
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains
Oakite No. 33, Dilac Texo 12, Texo NY,
Flash-Klenz, Caddy Cleaner,
Turco Scale 4368 or Permag 57.
Swab and soak with clean
cloth.
Let stand 15 minutes or more
according to directions on
package, then rinse and dry.
Satisfactory for use on all
nishes
Hard Water Spots
and Scale
Vinegar.
5% oxalic acid, 5% sulfamic acid, 5 to
10% phosphoric acid, or Dilac, Oakite
No. 33, Texo 12, Texo N.Y.
Swab or wipe with cloth. Rinse
with water and dry.
Swab or soak with cloth. Let
stand 10-15 minutes. Always
follow with neutralizer rinse,
and dry.
Satisfactory for all nishes.
Satisfactory for all nishes.
Eective on tenacious deposits
or where scale
has built up.
METHODS FOR CLEANING STAINLESS STEEL
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 21
HELP
Trouble Diagnosis for the User
Malfunction Possible Cause Likely Solution
No cooling - unit is silent
Unit not plugged in.
Fuse or circuit breaker tripped.
Power cord plug loose in outlet.
Connect to proper voltage circuit Replace
fuse or reset breaker.
Check outlet for loose connection, replace
as needed
Unit cools but seems to be on all the time Dirty condenser Clean condenser
Space temperature too high
Dirty condenser
Evaporator iced over Unit in high
temperature environment
Clean condenser Defrost unit
Reduce temperature of room
Space temperature too low Temperature control Adjust or replace control
Trouble Diagnosis for the Technician
No cooling - compressor does not hum Temp control stuck in open position Replace temp control.
No cooling - compressor hums but does not
start
Low voltage to unit.
Compressor starting system failure
Check voltage, correct as needed. Check
start relay and start capacitor. See next
step.
No cooling - compressor starts but shuts
o
Compressor start relay failure Compressor
start capacitor failure
Replace relay. Replace capacitor.
No cooling - compressor cycles on and o Overheating weak overload
Clean condenser, check fan motor and
blade. Check refrigerant charge. Replace
overload.
Unit cools but turns on and o frequently
No product in cabinet. Temperature control
defective Refrigeration issue
Fill cabinet Replace control
Have system checked
Makes excessive noise
Tubing rattle Loose parts
Bent or broken fan blade Noisy fan motor
Check tubing for routing Check for loose
components Replace fan blade
Replace fan motor
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air22
FOR THE SERVICE TECH - R290
Refrigeration service should only be attempted by a trained trade professional certied to work on R290 systems.
Here are some critical service items.
This list does not qualify anyone to service the unit. It is a
reminder and checklist for the service tech. Keep these in
mind for R290 service:
• Wire nuts are NOT to be used when changing an
electrical part.
• The switches in this product are sealed, only exact
replacements may be used.
• The process tubes are to be used for service access.
• Cut out (with tubing cutter) refrigeration components
that are to be replaced. Do NOT un-braze.
• Because R290 can be vented into the air during
service, the venting MUST be in an area free from
ame or spark. It must also be in a well ventilated
area, with a nearby open window or door.
• A sign noting service of a system containing propane
must be attached to the unit during refrigeration
service.
• A combustible gas leak detector must be used to
inform anyone in the area when propane is present in
the air.
Other Information:
Evacuation: It is critical that a refrigeration system be
leak free and internally dry. A thorough evacuation with
a good vacuum pump with a micron gauge attached is the
only way to ensure that the system is dry and ready for a
charge of refrigerant.
Charging: The system is critically charged and the proper
type and amount MUST be weighed in.
Overcharge symptoms: Unit will cool properly but
the suction line temperature will be unusually cold.
Compressor run time will be longer than normal.
Undercharge symptoms: Long run time, poor cooling and
a hot compressor dome are the main symptoms of an
undercharge.
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 23
FOR THE SERVICE TECH - WIRING DIAGRAM - DANFOSS CONTROLLER
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
'()ÿ+,-ÿ.-)/01-ÿ+-1,ÿ2ÿ30)045ÿ6075)78ÿ674'(..ÿ
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air24
FOR THE SERVICE TECH - WIRING DIAGRAM - ELIWELL CONTROLLER
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
'()ÿ+,-ÿ.-)/01-ÿ+-1,ÿ2ÿ30)045ÿ6075)78ÿ-903-99
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26 Beverage-Air 25
LIMITED WARRANTY
WARRANTY (Warranty valid in USA and Canada)
SEVEN (7) YEAR PARTS, LABOR AND COMPRESSOR
WARRANTY:
Beverage-Air Corporation warrants to the original
purchaser of Beverage-Air branded equipment,
including all parts thereof, that such equipment is
free from defects in material and workmanship, under
normal use, with proper maintenance, and service as
indicated by Beverage-Air installation and operation
instructions, for a period of SEVEN (7) years from
the date of installation, or eighty-eight (88) months
from the date of shipment from the manufacturer,
whichever is earlier (units shipped from July 1, 2024
are eligible for 7-year warranty). In addition, Beverage-
Air warrants the hermetically/semi-hermetically
sealed compressor (part only) for SEVEN (7) years; not
to exceed eighty-eight (88) months from the date of
shipment from Beverage-Air, provided upon receipt of
the compressor, manufacturer examination shows the
sealed compressor to be defective. This warranty does
not cover freight for the replacement compressor or
freight for the return of the failed compressor.
* Units shipped after 07/01/2024. Previous warranty
applies to units shipped prior.
EXCEPTIONS:
• CT96 and CF3 models carry a ONE (1) year parts
and labor warranty, limited to fteen (15) months
from date of shipment from Beverage-Air. These are
excluded from additional compressor warranty.
• SR/SF (Slate) models carry a TWO (2) year parts and
labor warranty, limited to twenty-seven (27) months
from date of shipment from Beverage-Air.
• BZ, VM, CDR, DPCR, MT and Blast Chillers carry a
THREE (3) year parts and labor warranty; additional
TWO (2) years compressor part only.
• Units installed in Residential applications will be
not covered under this warranty. Units are intended
for Commercial use only.
Also, this compressor-part only warranty does NOT
apply to any electrical controls, condenser, evaporator,
fan motors, overload switch, starting relay, capacitors,
temperature control, lter/drier, accumulator,
refrigeration tubing, wiring harness, labor charges, or
supplies which are covered by the warranty above.
Note: 3rd party extended warranties are not covered by
this warranty statement.
Normal wear parts, as deemed by Beverage-Air, such
as but not exclusive to, light bulbs/lamps and gaskets
are not covered by this warranty. For the purpose of
this warranty, the original purchaser shall be deemed
to mean the individual or company for who the product
was originally installed.
Units that utilize variable speed compressor technology
can experience nuisance tripping on Class A GFCI
outlets which have a trip limit of 4 mA to 6 mA. To
avoid this issue in a location that requires GFCI circuit
protection, Beverage-Air & Victory recommends using a
HUBBELL Model Number GFRST83W 20A Heavy Duty
Hospital Grade Self-Test GFCI Receptacle. Nuisance
tripping not covered under warranty.
Our obligation under this warranty shall be limited to
repairing or replacing, including labor, any part of such
product, which proves thus defective. Beverage-Air
reserves the right to examine any product claimed to
be defective and request photos of the unit prior to
dispatching service. Moisture or water damage is not
covered under warranty. If service is deemed non-
warranty, Beverage-Air reserves the right to bill the end
user for service.
The labor warranty shall be for self-contained units
only and for standard straight time, which is dened
as normal service rate time, for service performed
during normal working hours. All warranty labor will
be covered at standard time. Any service requested
outside of a servicer's normal working hours including
weekends and any additional overtime will be at
the responsibility of the equipment purchaser. Any
part or accessory determined to be defective in the
product should be returned to the company within
thirty (30) days under the terms of this warranty
and must be accompanied by a record of the cabinet
model, serial number, and identied with a return
material authorization number (RMA#) issued by the
manufacturer.
Special installation/applications, including remote
locations, are limited in coverage by this warranty.
Any installation that requires extra work, and/or
travel, to gain access to the unit for service is the sole
responsibility of the equipment purchaser.
Improper operation resulting from factors, including
but not limited to, improper or negligent cleaning
and maintenance, improper installation, low voltage
conditions, inadequate wiring, outdoor use (unless
otherwise specied) and accidental damage are
not manufacturing defects and are strictly the
responsibility of the purchaser.
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26Beverage-Air26
LIMITED WARRANTY (CONT'D)
With the exception of Blast Chillers, the product
is designed for maintaining temperature and not
bringing food to a desired temperature and therefore
cannot be held responsible for this function under
warranty. Units must be in a conditioned environment
or warranty will be void. Non-standard use of unit can
also be subject to reduced or voided warranty.
Condensing coils must be cleaned at regular intervals
as a part of preventative maintenance for optimal
performance. Failure to do so is subject to a voided
warranty. Although cleaning requirements vary
in accordance with operation of various products,
Beverage-Air recommends a minimum monthly
cleaning.
NO CLAIMS CAN BE MADE AGAINST THIS WARRANTY
FOR SPOILAGE OF FOOD, PRODUCTS, LOSS OF SALES
OR CONSEQUENTIAL DAMAGES.
THE FOREGOING WARRANTIES ARE EXPRESSLY
GIVEN IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS, IMPLIED, OR STATUTORY, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
WHICH ARE HEREBY DISCLAIMED, ALL OTHER
OBLIGATIONS OR LIABILITIES ON OUR PART, AND
WE NEITHER ASSUME, NOR AUTHORIZE ANY OTHER
PERSON TO ASSUME FOR US, ANY OBLIGATION OR
LIABILITY IN CONNECTION WITH THE SALE OF SAID
REFRIGERATION UNITS OR ANY PARTS THERE OF.
This warranty shall not be assignable and shall be
honored only in so far as the original purchaser. This
warranty does not apply outside the limits of the
United States of America and Canada, nor does it apply
to any part that has been subject to misuse, neglect,
alteration, accident, or to any damage caused by
transportation, ood, re, acts of terrorism, or acts of
God.
LIMITATION OF LIABILITY:
Beverage-Air Corporation or their aliates shall
not be liable for any indirect, incidental, special or
consequential damages, or losses of a commercial
nature arising out of malfunction equipment or its
parts components thereof, as a result of defects in
material or workmanship.
THE ORIGINAL OWNER'S SOLE AND EXCLUSIVE
REMEDY AND BEVERAGE-AIR'S SOLE AND EXCLUSIVE
LIABILITY SHALL BE LIMITED TO THE REPAIR
OR REPLACEMENT OF PARTS OR COMPONENTS
CONTAINED IN THE EQUIPMENT IDENTIFIED
ABOVE WHICH UNDER NORMAL USE AND SERVICE
MALFUNCTION AS A RESULT OF DEFECTS IN
MATERIAL OR WORKMANSHIP, SUBJECT TO THE
APPLICABLE PROVISIONS AND LIMITATIONS STATED
ABOVE.
Note: Additional Terms and Conditions of sale may
apply. Notice: Specications are subject to change
without notice. Contact Beverage-Air for specic model
agency approval. All prices are ex-works Brookville,
PA. July 1, 2024
User Manual for STF School Milk Cooler Beverage-Air
Rev. 02/26
Warranty Registration
Register your product online at beverage-air.com/parts-service or ll out and mail the form below.
Cabinet Model Number: _____________________________________________ Date Of Installation: _________________
Cabinet Serial Number: _____________________________________________
Location Of Product
Business Name: ____________________________________________________
Business Street: ____________________________________________________
Business City: ____________________________________ State: _________ Postal Code:___________
Mail to: Beverage-Air, 3779 Champion Blvd, Winston-Salem, NC 27105
