WELLS BLOOMFIELD, LLC
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
fax: 314-781-2714
www.wellsbloomfield.com
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
OWNERS MANUAL
BUILT-IN WELL
MODULAR
WARMERS
with
INFINITE,
THERMOSTAT or DIGITAL
CONTROLS
MODELS
M200, M227, MOD200, MOD227
M300, M327, MOD300, MOD327
M400, M427, MOD400, MOD427
M500, M527, MOD500, MOD527
Includes
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
011C
p/n 2M-Z16298 Rev. (-) M011C.02 120816
MOD-200T
MOD-200TDN
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
Unless otherwise specified, all commercial cooking
equipment manufactured by WELLS BLOOMFIELD, LLC is
warranted against defects in materials and workmanship
for a period of one year from the date of original installation
or 18 months from the date of shipment from our factory,
whichever comes first, and is for the benefit of the original
purchaser only.
THIS WARRANTY IS THE COMPLETE AND ONLY
WARRANTY, EXPRESSED OR IMPLIED IN LAW
OR IN FACT, INCLUDING BUT NOT LIMITED TO,
WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE, AND/OR FOR
DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES IN
CONNECTION WITH WELLS BLOOMFIELD PRODUCTS.
This warranty is void if it is determined that, upon inspection
by an authorized service agency, the equipment has been
modified, misused, misapplied, improperly installed, or
damaged in transit or by fire, flood or act of God. It also
does not apply if the serial nameplate has been removed,
or if service is performed by unauthorized personnel.
The prices charged by Wells Bloomfield for its products
are based upon the limitations in this warranty. Seller’s
obligation under this warranty is limited to the repair of
defects without charge by a Wells Bloomfield factory
authorized service agency or one of its sub-service
agencies. This service will be provided on customer’s
premises for non-portable models. Portable models (a
device with a cord and plug) must be taken or shipped
to the closest authorized service agency, transportation
charges prepaid, for service. In addition to restrictions
contained in this warranty, specific limitations are shown in
the Service Policy and Procedure Guide. Wells Bloomfield
authorized service agencies are located in principal cities.
This warranty is valid in the United States and Canada and
void elsewhere. Please consult your classified telephone
directory, your foodservice equipment dealer or contact:
Wells Bloomfield, LLC
10 Sunnen Dr., P.O.Box 430129 St. Louis MO 63143 USA
phone (636) 678-6314 or fax (314) 781-2714
for information and other details concerning warranty.
Unless otherwise specified, all commercial cooking
The prices charged by Wells Bloomfield for its products
LIMITED WARRANTY STATEMENT
SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS
NOTE: For your protection, please note that equipment
in this shipment was carefully inspected and packaged
by skilled personnel before leaving the factory. Upon
acceptance of this shipment, the transportation company
assumes full responsibility for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any
visible loss or damage is noted on the freight bill or
express receipt, and that the note of loss or damage is
signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: if damage is
unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and file
“CONCEALED DAMAGE” claim with them. This
should be done within fifteen (15) days from the date
the delivery was made to you. Be sure to retain the
container for inspection.
Wells Bloomfield cannot assume liability for damage or loss
incurred in transit. We will, however, at your request, supply
you with the necessary documents to support your claim.
NOTE:
For your protection, please note that equipment
3.
CONCEALED LOSS OR DAMAGE:
if damage is
SHIPPING DAMAGE CLAIM PROCEDURE
1. Resetting of safety thermostats, circuit breakers, over
load protectors, and/or fuse replacements are not
covered by this warranty unless warranted conditions
are the cause.
2. All problems due to operation at voltages or phase
other than specified on equipment nameplates are
not covered by this warranty.
Conversion to correct voltage and/or phase must be
the customer’s responsibility.
3. All problems due to electrical connections not made
in accordance with electrical code requirements
and wiring diagrams supplied with the equipment are
not covered by this warranty.
4. Replacement of items subject to normal wear, to
include such items as knobs, light bulbs; and, normal
maintenance functions including adjustments of
thermostats, adjustment of micro switches and
replacement of fuses and indicating lights are not
covered by warranty.
5. Damage to electrical cords and/or plug due to exposure
to excessive heat are not covered by this warranty.
6. Full use, care, and maintenance instructions supplied
with each machine. Noted maintenance and
preventative maintenance items, such as servicing and
cleaning schedules, are customer responsibility. Those
miscellaneous adjustments noted are customer
responsibility. Proper attention to preventative
maintenance and scheduled maintenance procedures
will prolong the life of the appliance.
7. Travel mileage is limited to sixty (60) miles from an
Authorized Service Agency or one of its sub-service
agencies.
8. All labor shall be performed during regular working
hours. Overtime premium will be charged to the buyer.
9. All genuine Wells replacement parts are warranted for
ninety (90) days from date of purchase on non-warranty
equipment. This parts warranty is limited only to
replacement of the defective part(s). Any use of non-
genuine Wells parts completely voids any warranty.
10. Installation, labor, and job check-outs are not
considered warranty and are thus not covered by this
warranty.
11. Charges incurred by delays, waiting time or operating
restrictions that hinder the service technician’s ability to
perform service are not covered by warranty. This
includes institutional and correctional facilities.
xi
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
WARRANTY xi
SPECIFICATIONS 1 - 3

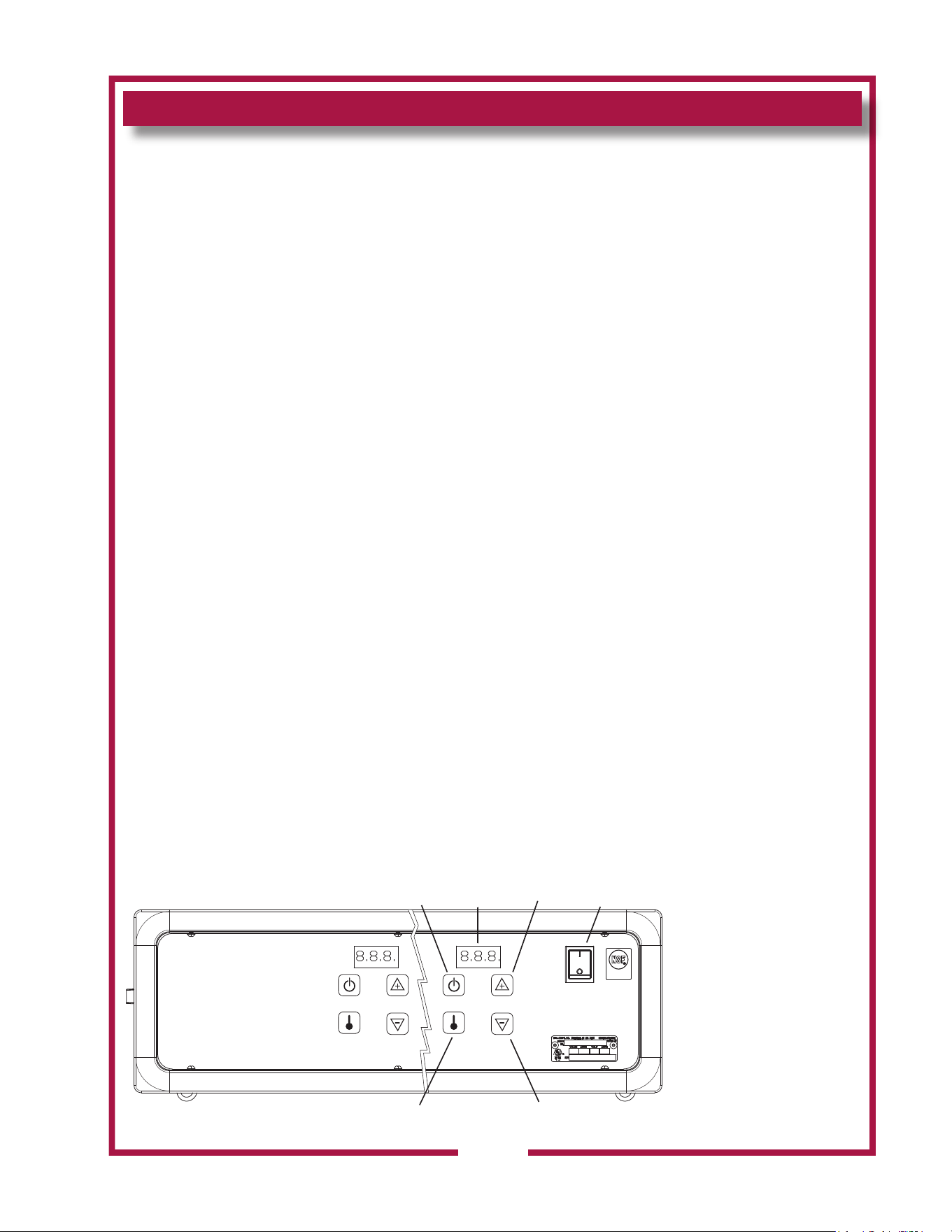

FEATURES & OPERATING CONTROLS 4
PRECAUTIONS & GENERAL INFORMATION 5
AGENCY LISTING INFORMATION 5
INSTALLATION 6
OPERATION 8
CLEANING INSTRUCTIONS 10
TROUBLESHOOTING SUGGESTIONS 12
MAINTENANCE INSTRUCTIONS 13

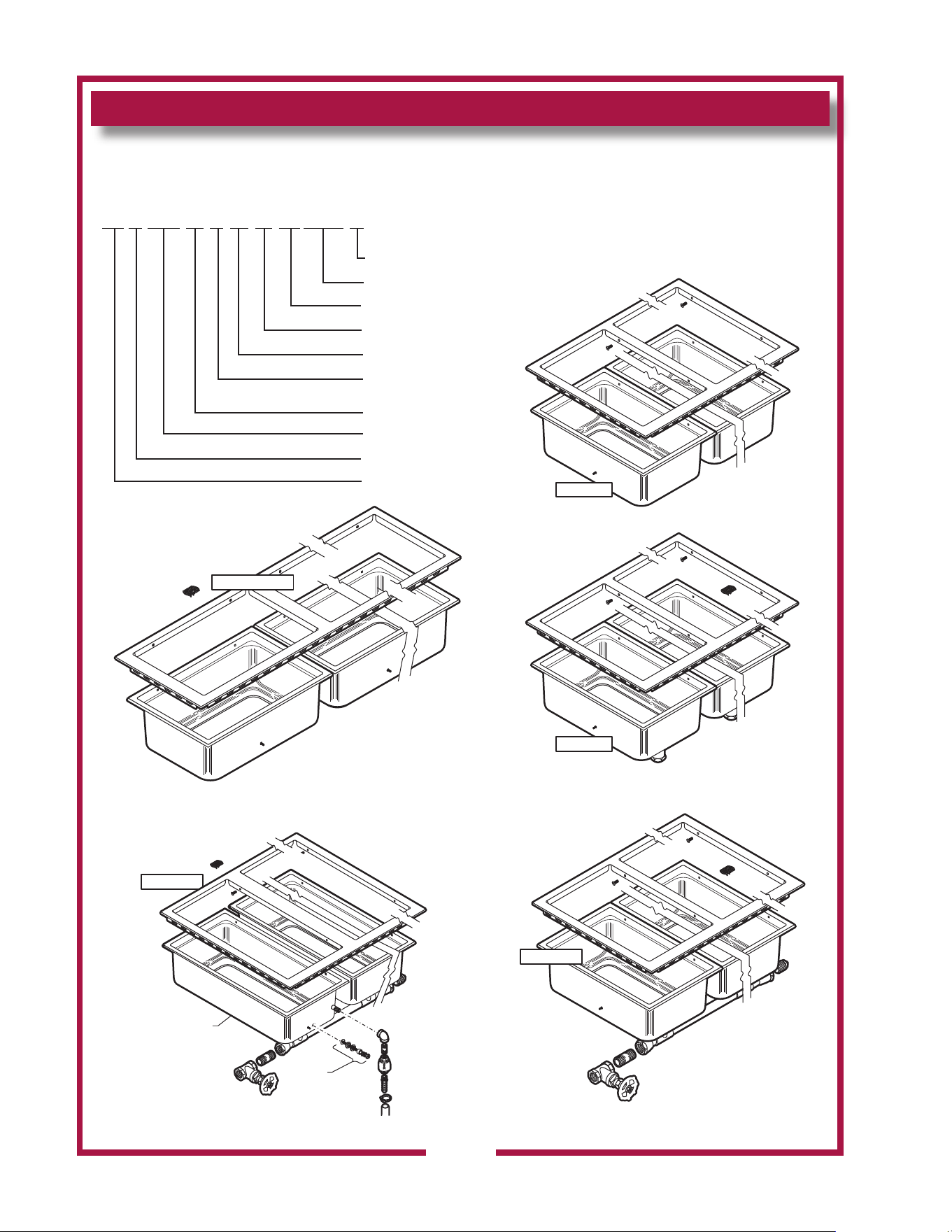

MODEL NUMBER IDENTIFICATIONS 14

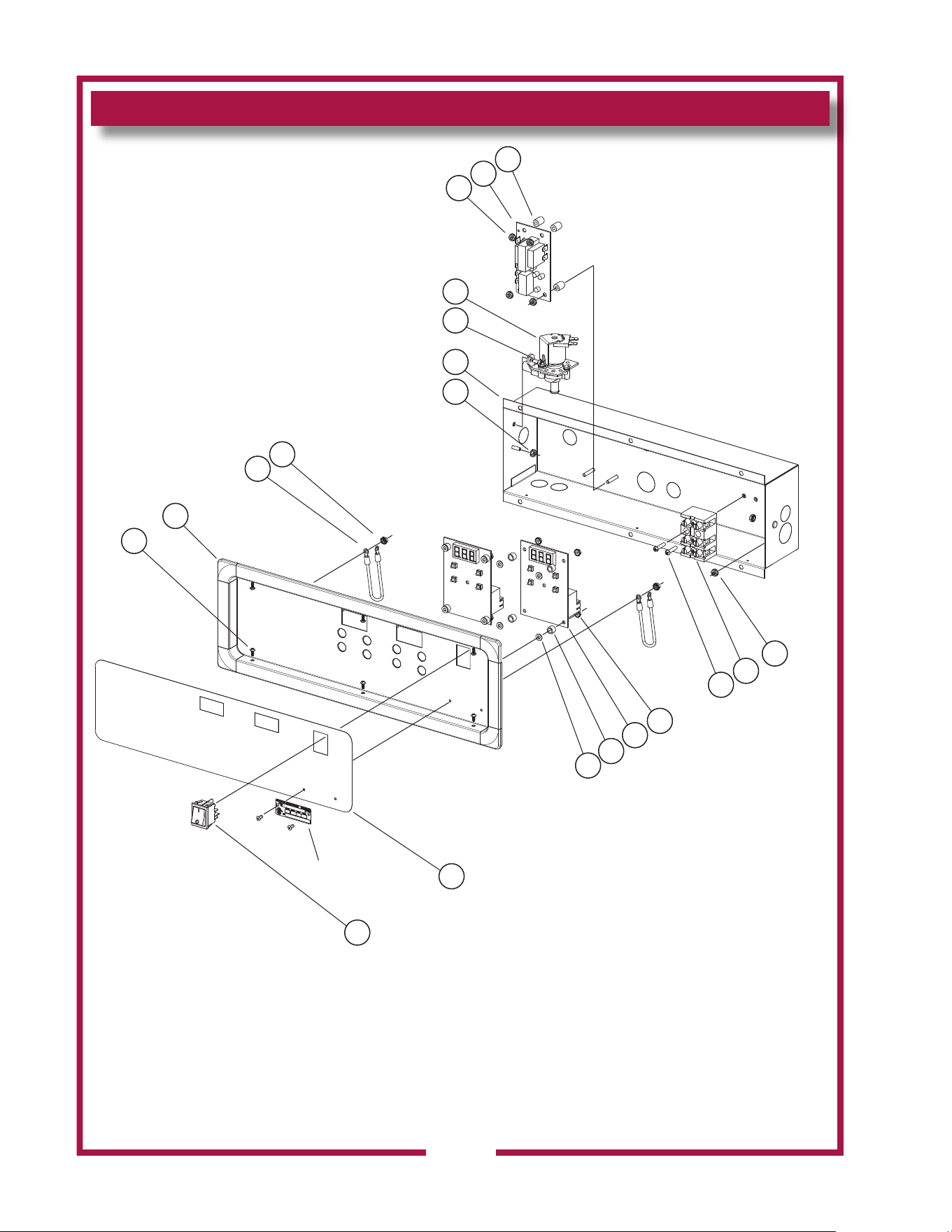

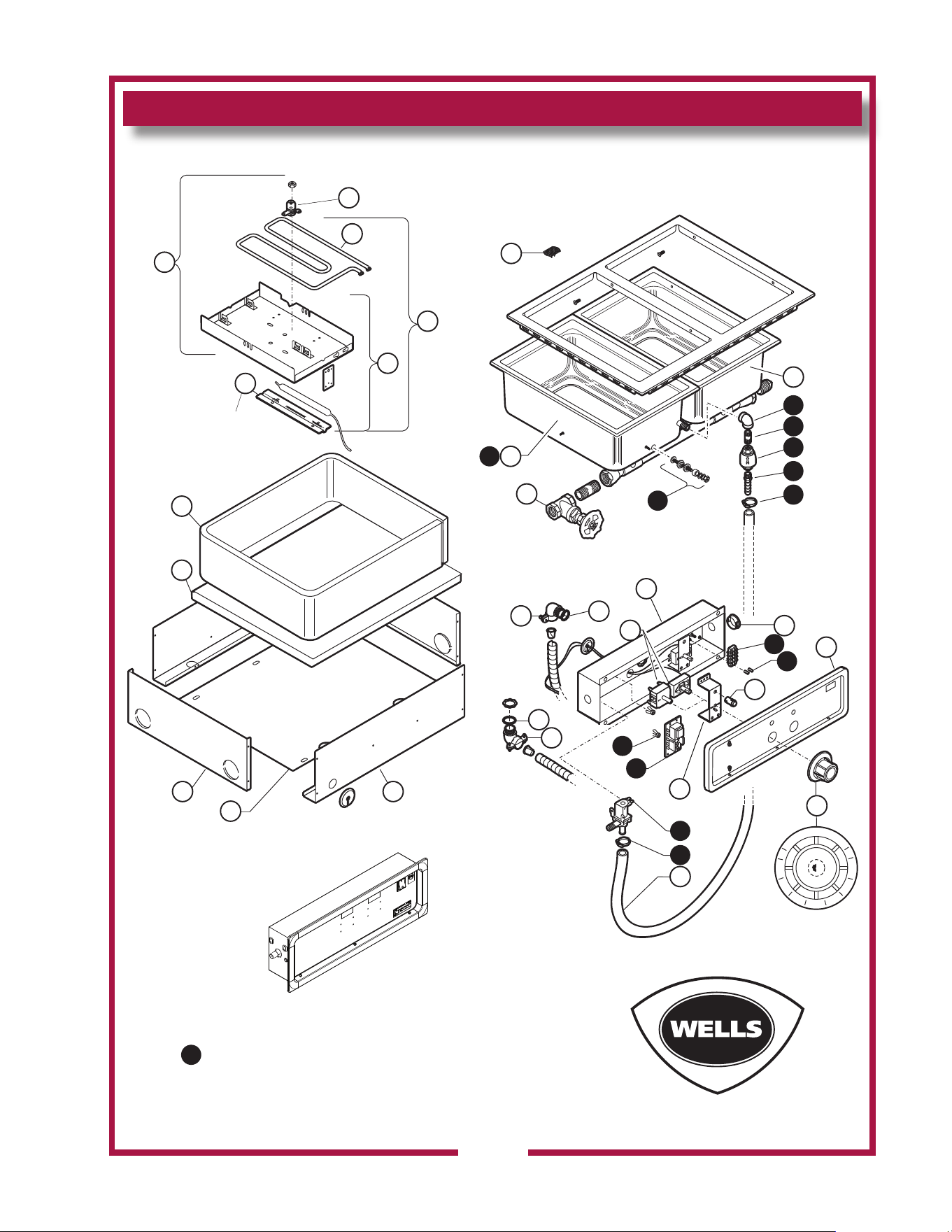

EXPLODED VIEW & PARTS LIST 15 - 25

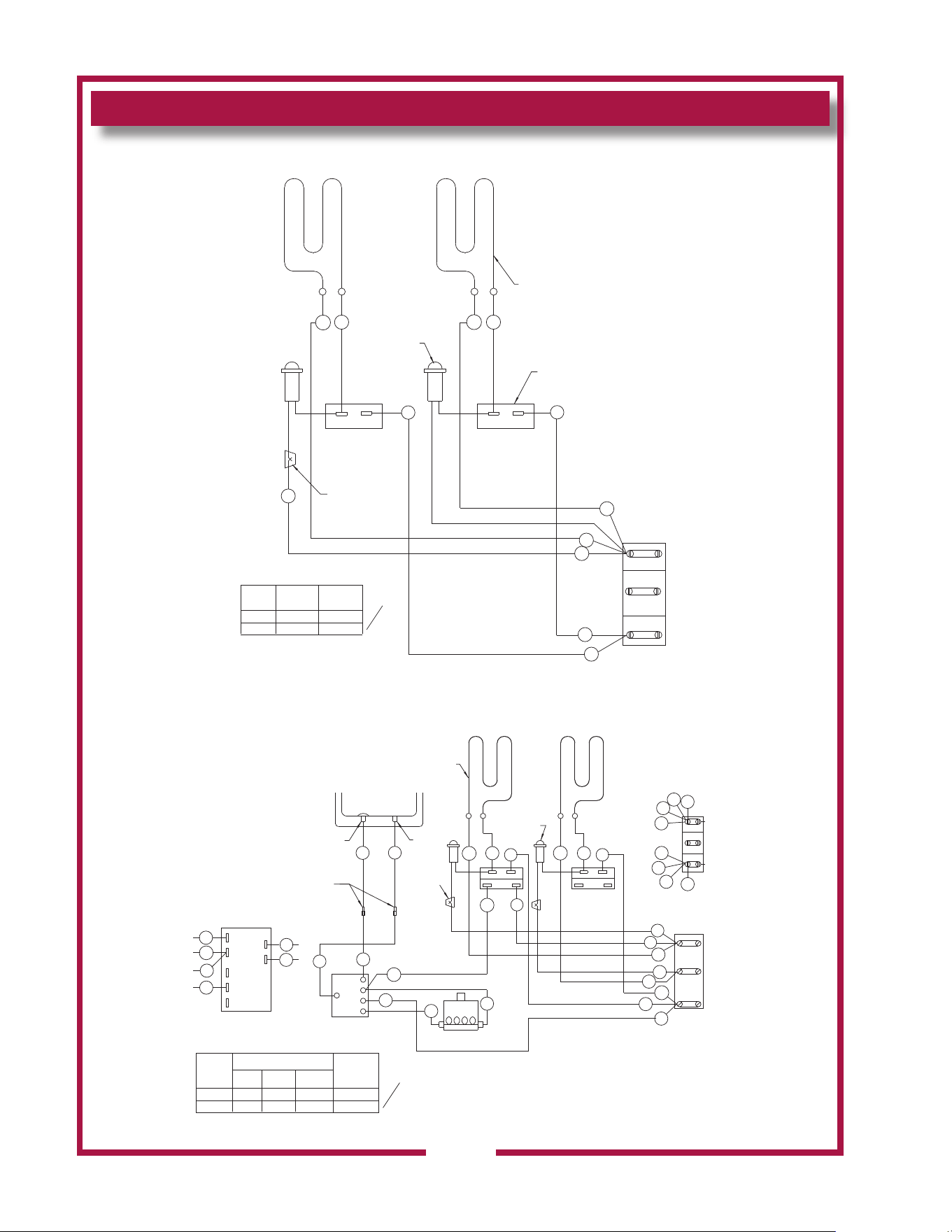

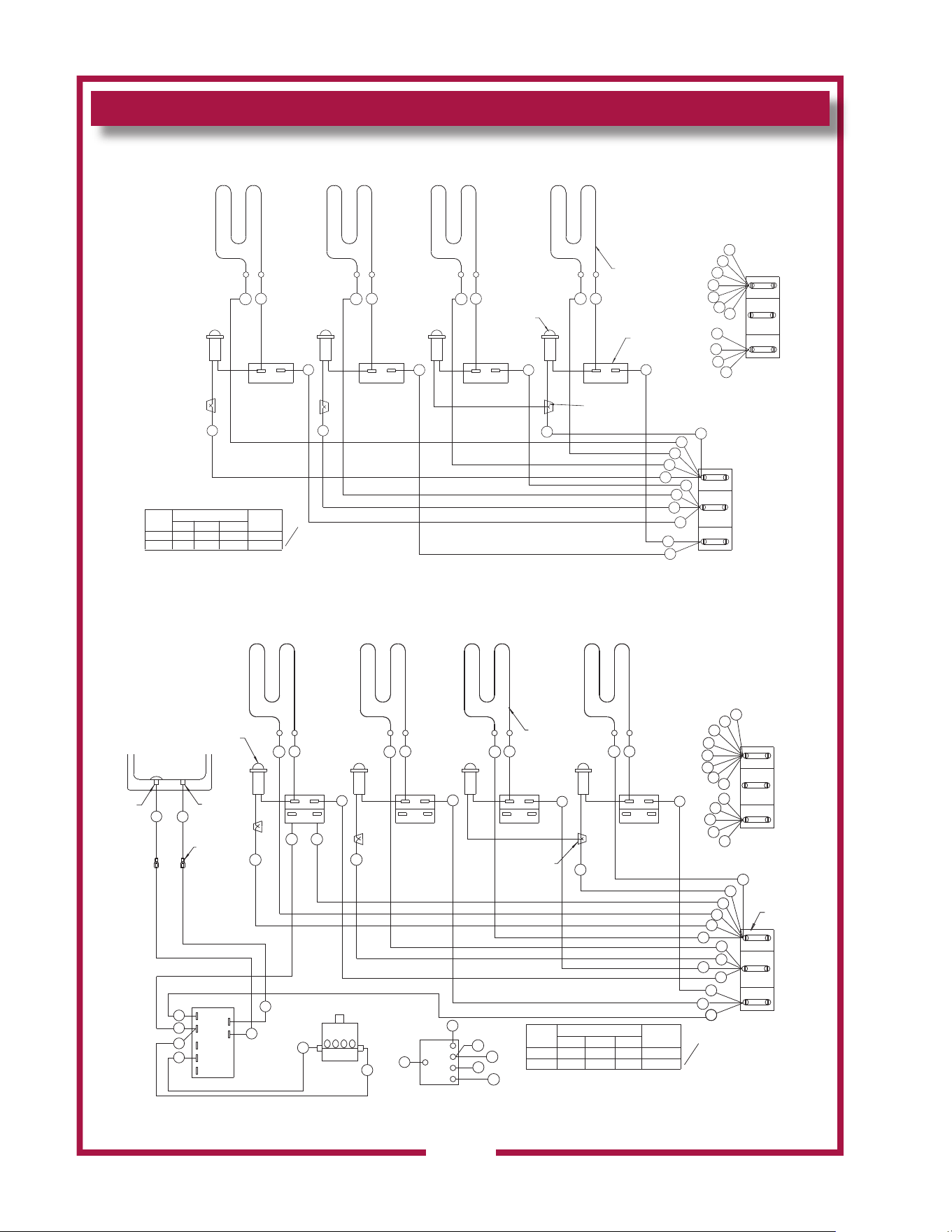

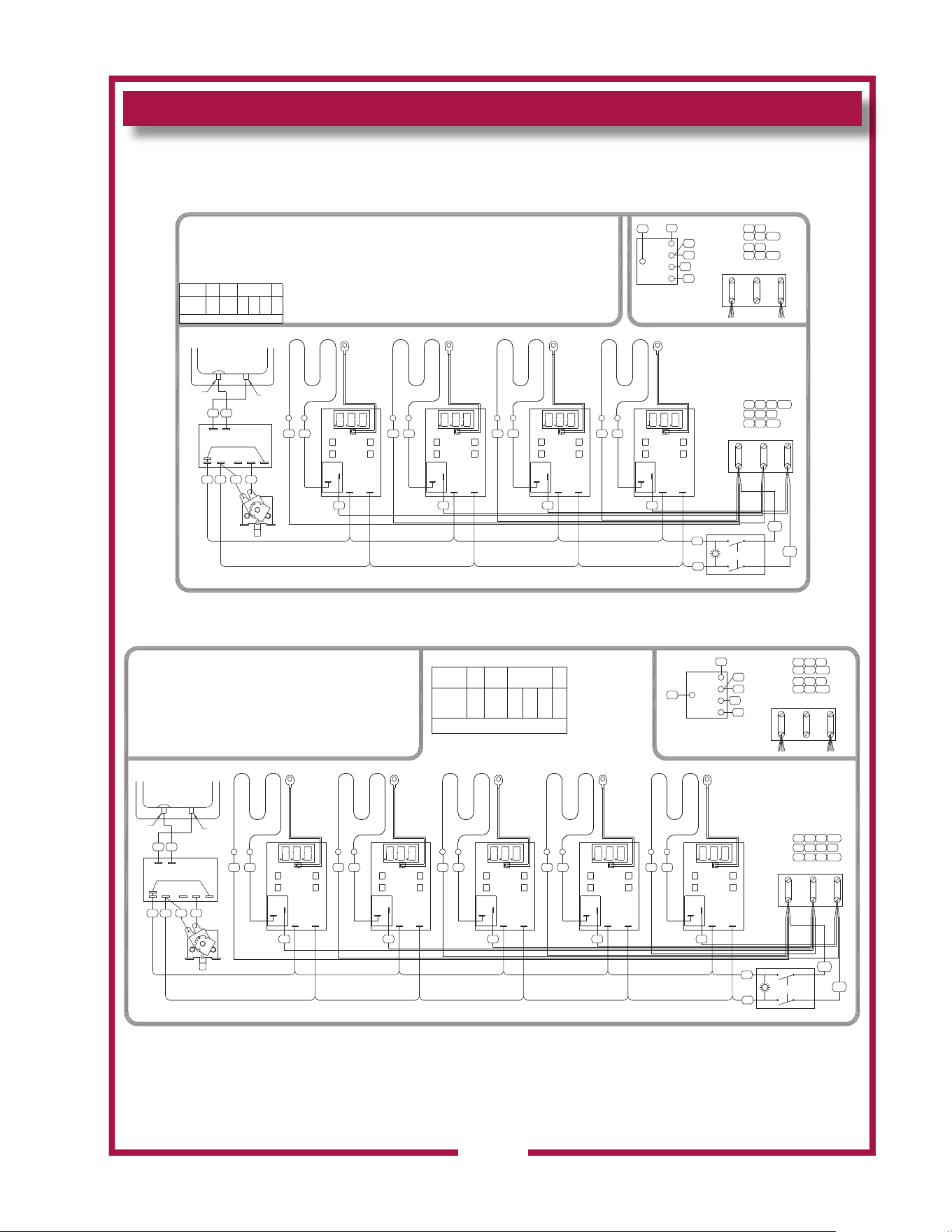

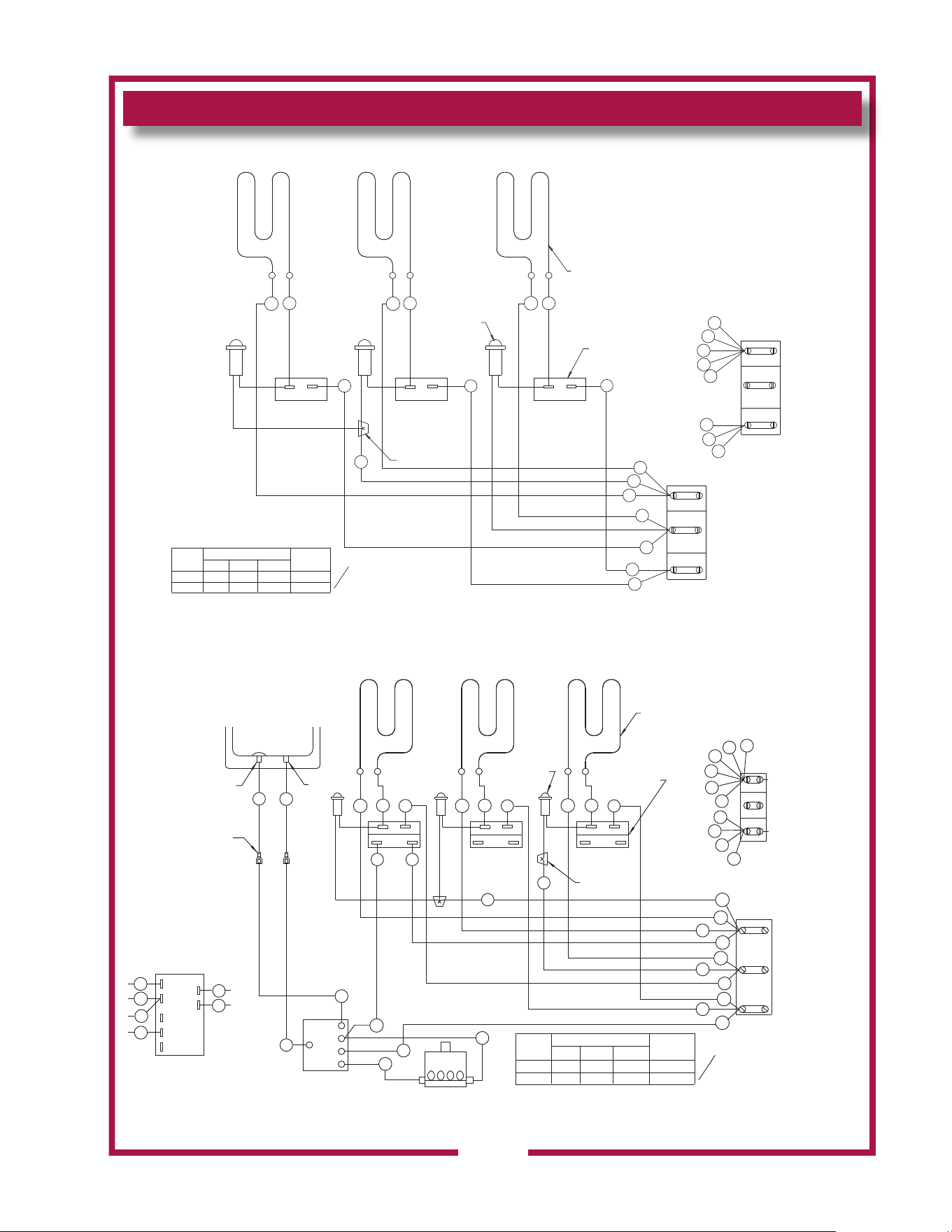

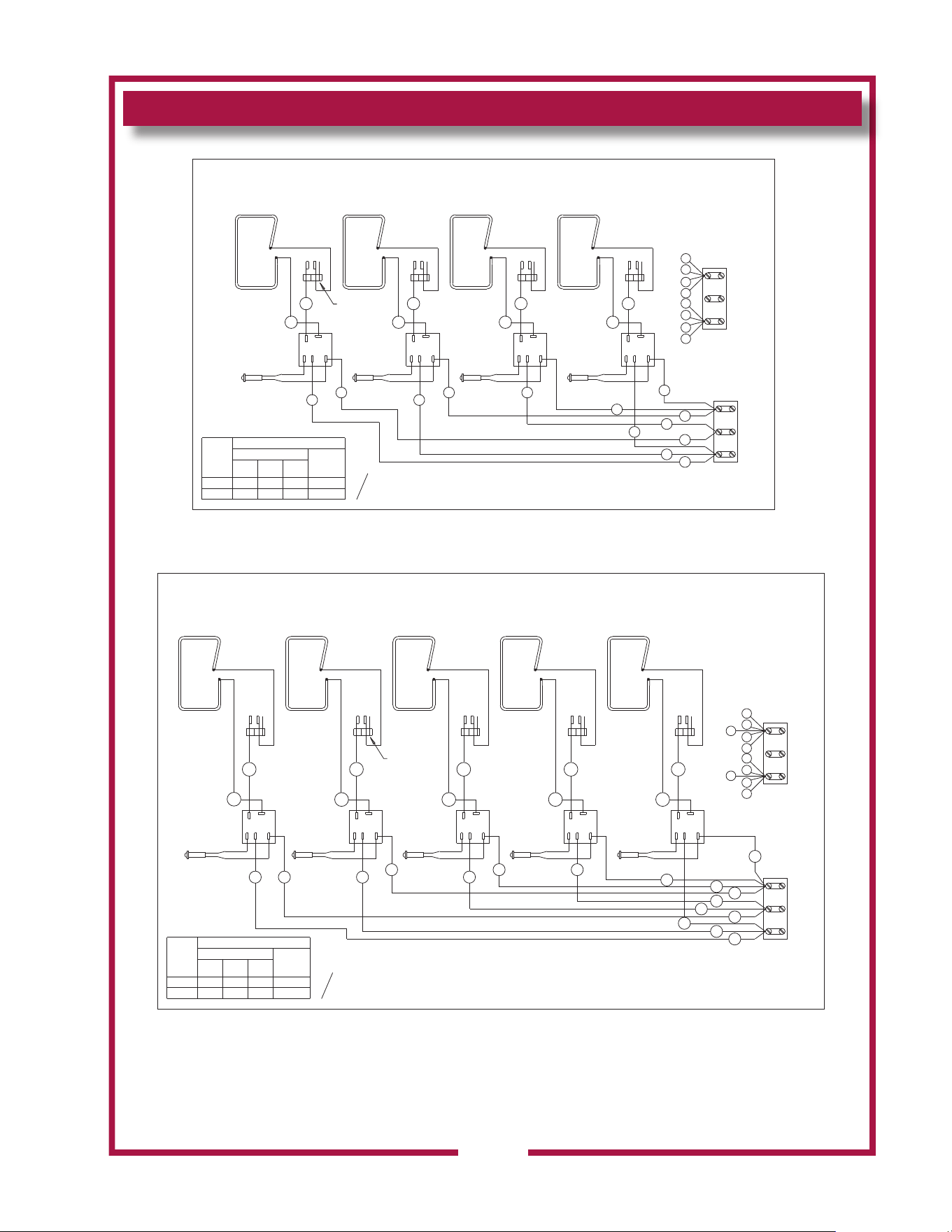

WIRING DIAGRAM 26 - 35
PARTS & SERVICE 36
CUSTOMER SERVICE DATA 37
Thank You for purchasing this Wells Bloomfield appliance.
Proper installation, professional operation and consistent maintenance of this appliance will ensure that it
gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use and care for the
appliance in a manner which will ensure its optimum performance.
WA
RR
AN
TY
xi
TABLE OF CONTENTS
Th
an
k Yo
u
fo
r
pu
rc
hasi
ng
t
hi
s
Well
s
Bl
oo
mfield
ap
plia
nc
e.
INTRODUCTION
SPECIFICATIONS (Infinite)
MODEL VOLTS WATTS
AMPS 3ø
AMPS1ø
L1 L2 L3
MOD200, D, DM
208V
1800W - - - 8.7A
240V
2400W - - - 10.0A
MOD300, D, DM
208V 2700W 7.5A 7.5A 7.5A 13.0A
240V 3600W 8.7A 8.7A 8.7A 15.0A
MOD400, D, DM
208V 3600W 11.2A 11.2A 7.5A 17.3A
240V 4800W 13.0A 13.0A 8.7A 20.0A
MOD500, D, DM
208V 4500W 15.0A 11.2A 11.2A 21.6A
240V 6000W 17.0A 13.0A 13.0A 25.0A
1
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
SPECIFICATIONS (Thermostat)
MODEL VOLTS WATTS
AMPS 3ø
AMPS1ø
L1 L2 L3
MOD-200T
208 VAC 2480W 6.0A 6.0A 10.3A 11.9A
MOD-200TD
MOD-200TDM
240 VAC 3300W 6.9A 6.9A 11.9A 13.8A
MOD-200TN
208 VAC 2480W 6.0A 6.0A 10.3A 11.9A
MOD-200TDN
MOD-200TDMN
240 VAC 3300W 6.9A 6.9A 11.9A 13.8A
MOD-227TD
208 VAC 2480W 6.0A 6.0A 10.3A 11.9A
MOD-227TDM
240 VAC 3300W 6.9A 6.9A 11.9A 13.8A
MOD-300T
208 VAC 3725W 10.3A 10.3A 10.3A 17.9A
MOD-300TD
MOD-300TDM
240 VAC 4950W 11.9A 11.9A 11.9A 20.6A
MOD-300TN
208 VAC 3725W 10.3A 10.3A 10.3A 17.9A
MOD-300TDN
MOD-300TDMN
240 VAC 4950W 11.9A 11.9A 11.9A 20.6A
MOD-327TDM
208 VAC 3725W 10.3A 10.3A 10.3A 17.9A
240 VAC 4950W 11.9A 11.9A 11.9A 20.6A
MOD-400T
208 VAC 4960W 14.5A 14.5A 9.8A 23.8A
MOD-400TD
MOD-400TDM
240 VAC 6600W 17.8A 17.8A 11.3A 27.5A
MOD-427TDM
208 VAC 4960W 14.5A 14.5A 9.8A 23.8A
240 VAC 6600W 17.8A 17.8A 11.3A 27.5A
MOD200TDM/AF
208 VAC 2480W 6.0A 6.0A 10.3A 11.9A
240 VAC 3300W 6.9A 6.9A
11.9A 13.8A
MOD200TDMN/AF
208 VAC 2480W 6.0A 6.0A 10.3A 11.9A
240 VAC 3300W 6.9A 6.9A 11.9A 13.8A
MOD227TDM/AF
208 VAC 2480W 6.0A 6.0A 10.3A 11.9A
240 VAC 3300W 6.9A 6.9A 11.9A 13.8A
MOD300TDM/AF
208 VAC 3725W 10.3A 10.3A 10.3A 17.9A
240 VAC 4950W 11.9A 11.9A 11.9A 20.6A
MOD300TDMN/AF
208 VAC 3725W 10.3A 10.3A 10.3A 17.9A
240 VAC 4950W 11.9A 11.9A 11.9A 20.6A
MOD327TDM/AF
208 VAC 3725W 10.3A 10.3A 10.3A 17.9A
240 VAC 4950W 11.9A 11.9A 11.9A 20.6A
MOD400TDM/AF
208 VAC 4960W 14.5A 14.5A 9.8A 23.8A
240 VAC 6600W 17.8A 17.8A 11.3A 27.5A
MOD427TDM/AF
208 VAC 4960W 14.5A 14.5A 9.8A 23.8A
240 VAC 6600W 17.8A 17.8A 11.3A 27.5A
MOD500TDM/AF
208 VAC 6200W 19.5A 14.6A 14.6A 29.8A
240 VAC 8250W 22.1A 16.9A 16.9A 34.4A
MOD527TDM/AF
208 VAC 6200W 19.5A 14.6A 14.6A 29.8A
240 VAC 8250W 22.1A 16.9A 16.9A 34.4A
2
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
SPECIFICATIONS (Digital)
MODEL VOLTS WATTS
AMPS 3ø
AMPS1ø
L1 L2 L3
M200CE
208/240V 2,475 / 3,312 6.0 / 6.9 6.0 / 6.9 10.3 / 11.9 11.9 / 13.8
M200E
M200CED
M200ED
M200CED6
M200ED6
M200CEDM
M200EDM
M200CEDM6
M200EDM6
M200CEAF
M200EAF
M200CEAF6
M200EAF6
M227CEDM
M227EDM
M227CEDM6
M227EDM6
M227CEAF
M227EAF
M227CEAF6
M227EAF6
M300E
208/240V 3, 733 / 4,944 10.3 / 11.9 10.3 / 11.9 10.3 / 11.9 17.9 / 20.6
M300E6
M300EAF
M300EAF6
M300ED
M300ED6
M300EDM
M300EDM6
M327EAF
M327EAF6
M327EDM
M327EDM6
M300EAFTH 208/240V 2,704 / 3,600 7.5 / 8.7 7.5 / 8.7 7.5 / 8.7 13 / 15
M400E
208/240V 4,950 / 6,600 14.5 / 17.8 14.5 / 17.8 9.8 / 11.3 23.8 / 27.5
M400E6
M400EAF
M400EAF6
M400ED
M400ED6
M400EDM
M400EDM6
M427EAF
M427EDM
M427EDM6
M500E
208 / 240V 6,198 / 8,256 19.5 / 22.1 19.5 / 22.1 19.5 / 22.1 29.8 / 34.4
M500E6
M500EAF
M500EAF6
M500ED
M500ED6
M500EDM
M500EDM6
M527EAF
M527EAF6
M527EDM
M527EDM6
3
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers

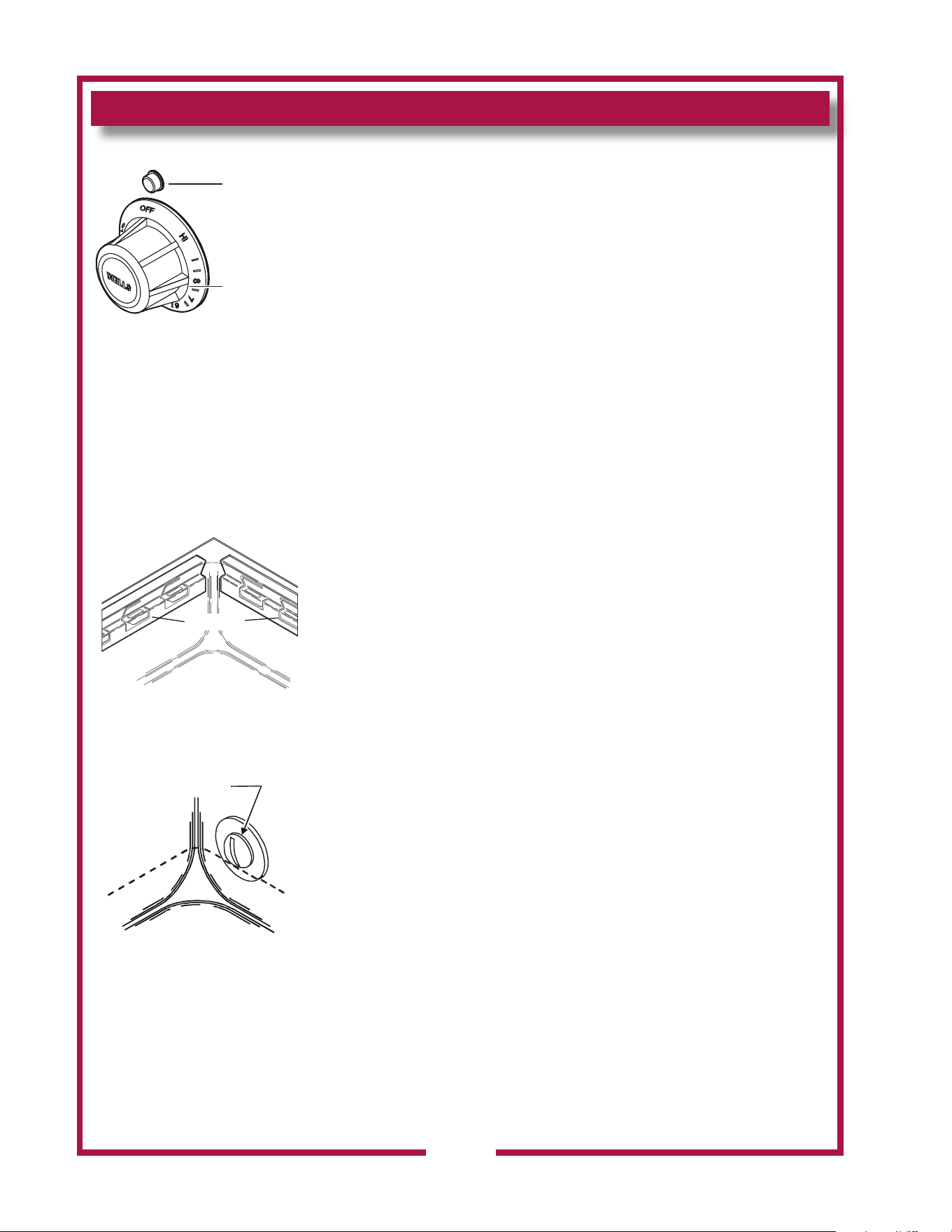

FEATURES & OPERATING CONTROLS
A. THERMOSTAT
1. On thermostatically controlled warmers, power is applied to the
heating element according to the control knob position and the actual
temperature at the temperature sensing thermobulb.
2. The desired temperature is controlled by rotating the temperature
control knob. The knob has a numeric scale, where higher numbers
correspond to higher temperature.
3. On warmers equipped with an indicator light, the light will glow when
the thermostat is calling for heat (i.e. the element is energized).
4. The TEMPERATURE CONTROL KNOB will rotate approximately 300º,
and will reach a “stop” at both ends.
The OFF position is marked.
NOTE: The dial position is an indication of the temperature setting. Actual
temperature will vary depending upon the type of product and food
consistency.
A. INFINITE SWITCH
1. On INFINITE SWITCH CONTROLLED warmers, power is applied to
the heating element based on the control knob position, which varies
the duty cycle of the heating element.
2. The desired temperature is controlled by rotating the TEMPERATURE
CONTROL KNOB. The knob may have a numeric scale, where
higher numbers correspond to higher temperature. LO is the lowest
temperature setting; PREHEAT is a “continuous on” setting. Infinite
switch controlled warmers are equipped with a hi-limit device to prevent
overheating. The hi-limit will self-reset after the warmer has cooled.
3. On warmers equipped with an INDICATOR LIGHT, the light will glow
when the infinite switch is in any position other than OFF.
4. The TEMPERATURE CONTROL KNOB will rotate without stopping,
with PREHEAT and OFF having obvious detents.The OFF position is a
“positive” OFF (i.e. the switch is positively held in the open position).
NOTE:
An infinite switch controls temperature by varying the ratio of “on”
time to “off” time. Thus, no temperature sensing devise is required.
B. MOUNTING
1. MOD-series built-in warmers may are equipped with wellsloks, uniquely
designed turnout tabs which help secure the warmer top flange to the
countertop.
2. See the Installation Instructions, supplied with the particular appliance.
C. DRAINS
1. Models wih a “D” (e.g. M200TD) have drains for each pan, with each
pan having an individual drain valve.
2. Models with a “DM” units (e.g. M200TDM) have the individual drain lines
manifolded together, with a single drain valve for the entire manifold.
D. AUTOFILL
1. On AUTOFILL units, water level is automatically fed into the
“master” pan whenever that pan’s thermostat is ON .
2. Water level is sensed by a WATER LEVEL PROBE in the “master” pan.
INDICATOR
LIGHT
TEMPERATURE
CONTROL
KNOB
IL2468
IL2469
WELLSLOKS
IL2524

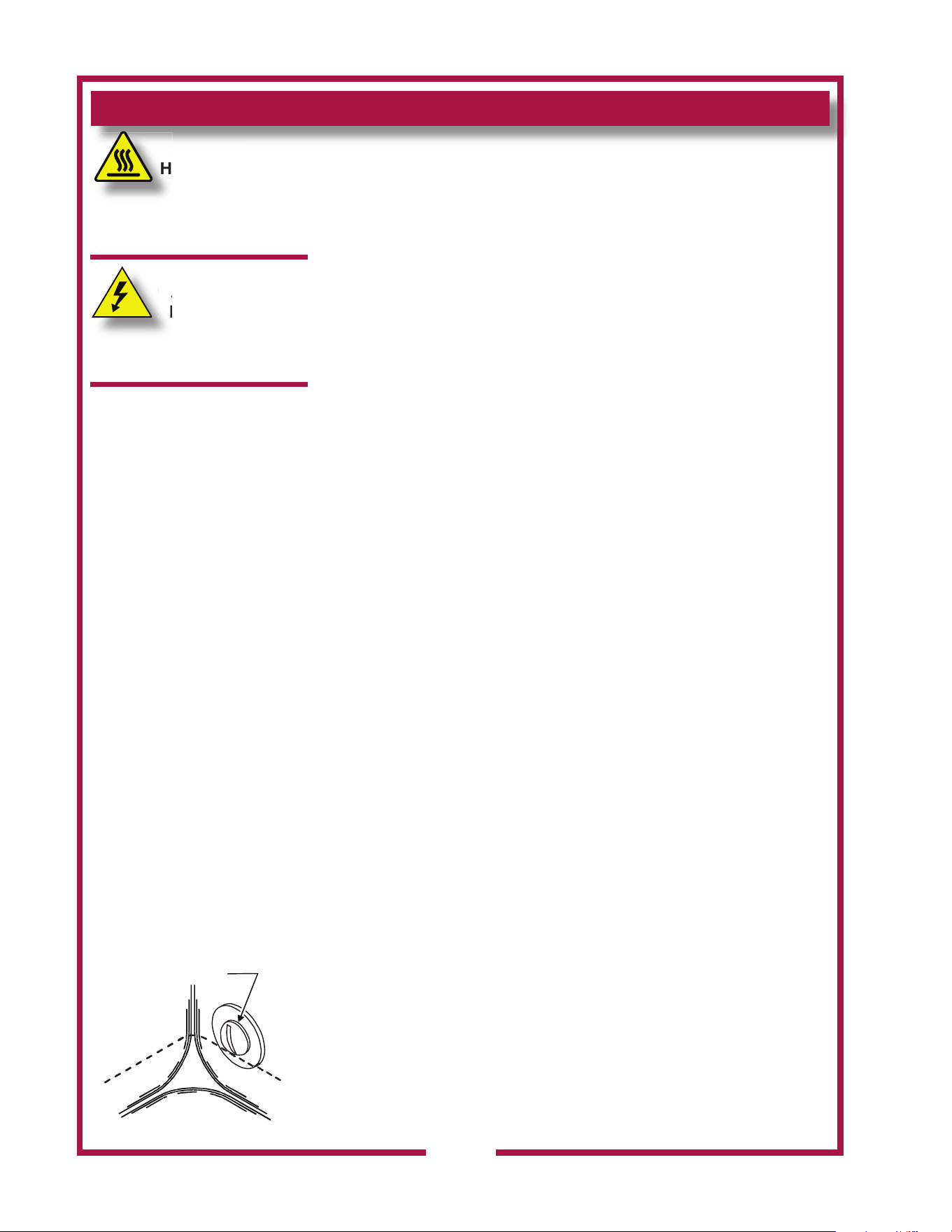

WATER LEVEL
SENSOR
WATER LEVEL
IMPORTANT:
DO NOT LEAVE ON
“PREHEAT”
Unit may cycle on hi-limit
control, leading to premature
failure of the hi-limit controls
device.
4
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PRECAUTIONS AND GENERAL INFORMATION
E6070
AGENCY LISTING INFORMATION
Refer to the product nameplate for the specific appliance for agency
listings. In general:
This appliance conforms to NSF Standard 4 for sanitation only if
installed in accordance with the supplied Installation Instructions.
UL Listed warmers are U Listed under UL File E6070.
STD 4
UL Listed Warmers
WARNING:
SHOCK HAZARD
All servicing requiring
access to non-insulated
electrical components must
be performed by a factory
authorized technician.
DO NOT open any access
panel which requires the use
of tools. Failure to follow this
warning can result in severe
electrical shock.
CAUTION:
RISK OF
DAMAGE
DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance may result
if these instructions are not
followed.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
WA
WA
S
HO
All servicin
This appliance is intended for use in commercial establishments only.
This appliance is intended to hold pre-heated food for human
consumption. No other use is recommended or authorized by the
manufacturer or its agents.
Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.
Disconnect this appliance from electrical power before performing any
maintenance or servicing.
This appliance is not jet stream approved. Do not direct water jet
or steam jet at this appliance, or at any control panel or wiring. Do
not splash or pour water on, in or over any controls, control panel or
wiring.
Exposed surfaces of this appliance can be hot to the touch and may
cause burns.
Do not operate this appliance if the control panel is damaged. Call
your Authorized Wells Service Agent for service.
The technical content of this manual, including any wiring diagrams,
schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualified technical personnel.
Any procedure which requires the use of tools must be performed by a
qualified technician.
This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics,
parts breakdown illustrations, notices and labels must remain with the
appliance if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
CA
R
IS
D
AM
CA
H
Exposed
su
5
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation. Refer to
SHIPPING DAMAGE CLAIM
PROCEDURE on the inside
front cover of this manual.
WARNING:
RISK OF INJURY
Installation procedures must
be performed by a qualified
technician with full knowledge
of all applicable electrical and
plumbing codes. Failure can
result in personal injury and
property damage.
CAUTION
FIRE HAZARD
Avoid storing flammable or
combustible materials in, on or
near the appliance.
IMPORTANT: For warmers
installed in plastic counter
tops, the counter material
must be protected from the
heat of the warmer in order to
prevent discoloration and/or
deterioration. Wellsloks are
not suitable for this purpose.
The installer should contact
the manufacturer or distributor
of the countertop material for
specific instructions.
IMPORTANT: Wellslok
Extension Kits must be
used ONLY with UL Listed
warmers approved for
installation in wood counter
tops. Refer to the Installation
Instructions provided with the
warmer.
UNPACKING & INSPECTION
Carefully remove the appliance from the carton. Remove all protective
plastic film, packing materials and accessories from the Appliance
before connecting electrical power or otherwise performing any
installation procedure.
Carefully read all instructions in this manual and the Installation
Instruction Sheet packed with the appliance before starting any
installation.
Read and understand all labels and diagrams attached to the
appliance.
Carefully account for all components and accessories before discarding
packing materials. Store all accessories in a convenient place for later
use.
INSTALLATION NOTES
1. Installation and start up of built-in warmers MUST be performed
by an authorized installation company.
2. It is the responsibility of the installer to verify that this warmer
installation is in compliance with the specifications listed in this
manual and on the specification sheet provided.
3. It is the RESPONSIBILITY OF THE INSTALLER to check with
the authority having jurisdiction, in order to verify that this warmer
installation is in compliance with local code requirements.
4. Water supply and drain installation must meet all applicable
local, state and federal plumbing codes and ordinances.
5. Refer to Installation Instructions included with the warmer for
Underwriters Laboratories conditions of acceptability, electrical
requirements and other installation concerns.
BUILT-IN WARMERS
1. This is a GENERAL GUIDE. For specific cutout dimensions
and other installation details, refer to the Installation
Instructions supplied with the warmer.
2. Cutout dimensions for warmer units and control panels are
listed on the Installation Instructions provided with the warmer.
NOTE: Cutout dimensions are different for auto-fill and non auto-fill
units, control panels, and for wood and metal counters. Verify the
dimensions are correct for the installation before making the cutout.
Specific cutout specifications are list on the installation sheet included
with the unit.
WA
R
IS
Installation
NOTE:
DO NOT discard
UN
PA
C
K
IN
G
&
IN
SP
EC
TI
ON
INSTALLATION
CA
FIRE
Avoid storin
6
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers

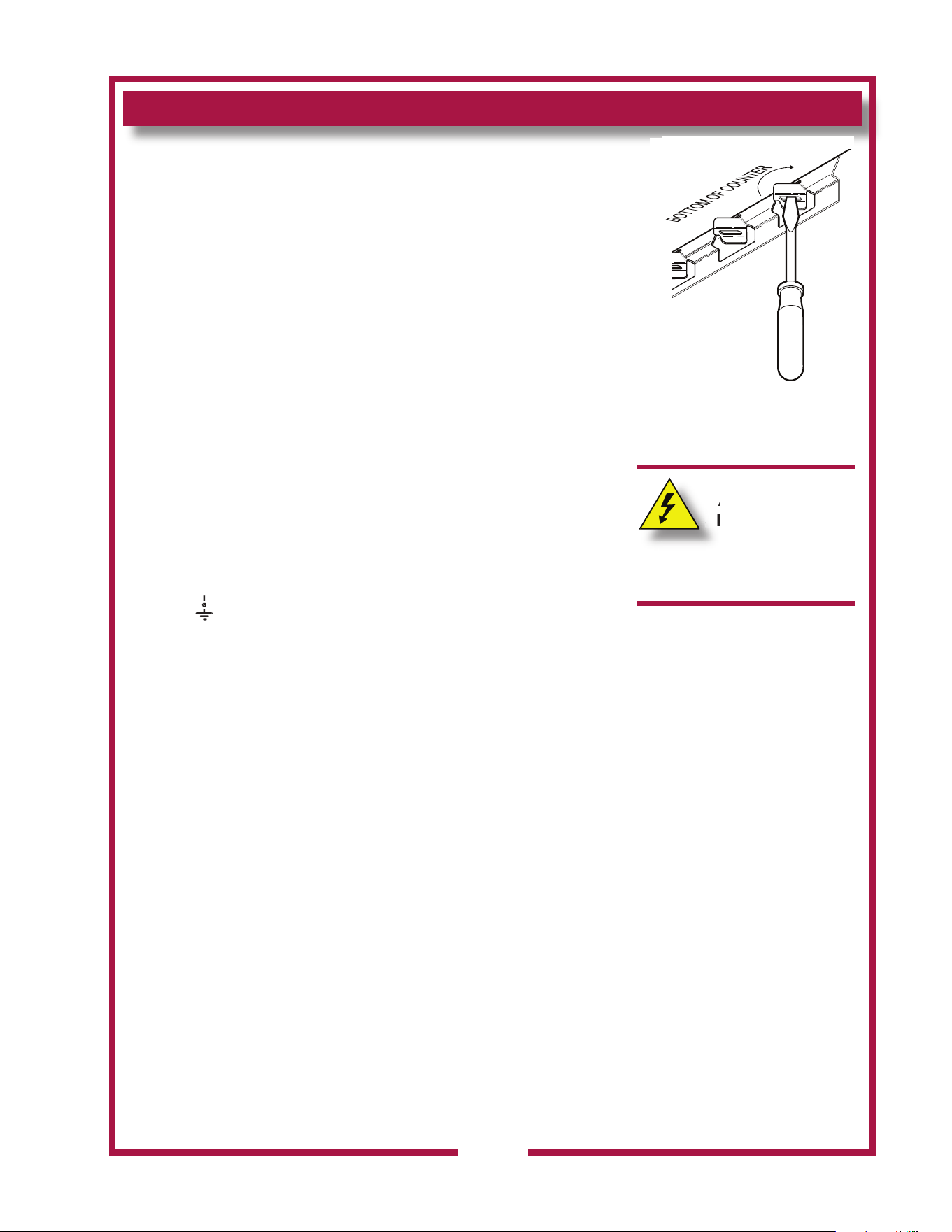

INSTALLATION
3. For “top-mounted” warmers (i.e. warmers mounted from above the
counter top):
a. Verify that provided sealants are applied to the underside of the
warmer top flange prior to setting the unit into the cutout.
b. After installation, verify that the tabs on the Wellsloks are turned
out to lock the warmer into the counter.
c. Apply a thin bead of food-grade silicone sealant around the flange
to seal it to the counter.
d. Wellslok extension kits are available for installing warmers in
counter tops where the standard Wellslok would not normally
reach. The extension kit will adapt to counter tops up to 1¾” thick.
ELECTRICAL INSTALLATION
1. Refer to the product nameplate. Verify the electrical service
power. Voltage and phase must match the nameplate
specifications. Wiring the warmer to the wrong voltage can
severely damage the unit or cause noticeably decreased
performance.
2. Available electrical service amperage must meet or exceed the
specifications listed on the specification sheet provided with the
warmer.
3. Warmer and control unit must be connected to an appropriate
building ground. Ground connection will be marked “GND” or
” “ .
NOTE: Wire gauge, insulation type and temperature rating , as
well as type, size and construction of conduit, must meet or exceed
applicable specifications of local codes and of the National
Electrical Code.
PLUMBING INSTALLATION
For use in the State of Massachusetts, this appliance must be
installed in compliance with Massachusetts Fuel Gas and
Plumbing Code CMR 248.
1. IMPORTANT: All plumbing installations must be performed by
a qualified plumber.
2. For units equipped with a DRAIN LINE: Some jurisdictions
may require an approved air gap or other back-flow
prevention device in the drain. It is the responsibility of the
plumber to determine such requirement, to provide and
properly install the required device.
3. AUTOFILL units are equipped with a DRAIN LINE: Some
jurisdictions may require an approved air gap or other back-
flow prevention device in the drain. It is the responsibility of the
plumber to determine such requirement, to provide and properly
install the required device.
4. For AUTOFILL units: Some jurisdictions may require an
approved back-flow preventer in the water supply line. It is the
responsibility of the plumber to determine such requirement, and
to provide and properly install the required device.
Autofill supply must be connected to a COLD WATER line only.
NOTE: Damage caused
by leaks due to improper
installation is NOT covered by
warranty.
CAUTION:
SHOCK HAZARD
The ground lug of this
appliance must be connected
to a suitable building ground.
IMPORTANT: Contact a
licensed electrician to install
and connect electrical power
to the appliance.
IMPORTANT: Damage due to
being connected to the wrong
voltage or phase is NOT
covered by warranty.
IMPORTANT: Electrical
installation other than as
specified on the specification
sheet will void the UL listing,
and may void the warranty.
NOTE: Plumb connections
must be made in compliance
with all Federal, State and
Local Plumbing Codes and
Ordinances.
CA
S
HO
The ground
7
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
OPERATION
WET OR DRY OPERATION for WARMERS
1. Carefully read the description of the warmer operation on the
specification sheet.
2. a. Most warmers are designed for WET OR DRY operation.
b. Warmers may be used wet, or may be used dry. However
warmers may NOT be used wet-to-dry or dry-to-wet unless
they have been allowed to cool to room temperature between the
change in wet or dry operation.
c. Wells Manufacturing recommends operating WET for consistent
food heating.
d. If your wet-operation warmer is allowed to run dry, turn it
OFF and allow to cool to room temperature before adding water.
3. If the warmer is to be used for WET operation, add approximately 1” of
hot tap water before turning the warmer on. Use of hot water will allow
a faster preheat.
a. Check the water level frequently and add hot water as necessary
to prevent the warmer from running dry. Do not add water to the
warmer if it has run dry.
b. If your wet-operation warmer is allowed to run dry, turn it OFF and
allow to cool to room temperature before adding water.
4. Damage caused by allowing a wet-operation warmer to run dry,
is NOT covered by warranty. Damage caused by adding water
to a dry warmer when hot is NOT covered by warranty.
PRE-HEATING THE WARMER
1. Place desired pan(s) or inset(s) with appropriate adapter top on warmer.
a. Insets are available as accessories in 2½ qt., 4qt., 7 qt., and 11 qt.
sizes with lids and adapter tops.
b. For dry operation, a 6” deep pan or inset is recommended.
2. Turn temperature control to HI or highest temperature setting.
3. Allow warmer to preheat for approximately 30 minutes, then set
the control for the desired temperature. Be sure to keep the warmer
covered during preheat and operation.
AUTOFILL WARMERS
1. Autofill warmers sense water level by a sensor placed at the proper
level. For manifolded autofill warmers, the water level sensor / fill tube
is in one pan only, normally in the far left pan.
2. Water fills the pan through an inlet tube. For manifolded autofill
warmers, the fill tube is normally in the far left pan. All other sections fill
at the same time through the drain manifold.
3. The autofill function is active only when the thermostat for the pan with
the water level sensor is turned ON .
4. Make sure the drain valve is fully closed before turning any t-stats ON.
5. The autofill function is only activated when the far left thermostat is
turned ON. For manifolded autofill warmers, be sure to turn far left
thermostats ON before turning any other control ON, to avoid heating a
dry pan.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
CAUTION:
SHOCK HAZARD
DO NOT splash or pour water
onto control panel or wiring.
Always use an inset.
DO NOT place food directly
into the warmer.
Always pour hot water into the
warmer before it is preheated.
DO NOT pour water into a
dry, heated warmer. This may
damage the unit.
DO NOT put ice into a
warmer pan. This will cause
condensation on the inside of
the warmer. Damage caused
by condensation is NOT
covered by warranty.
Stir thick food items frequently
to keep food heated uniformly.
Keep insets covered to
maintain food quality and
temperature.
DO NOT use AUTOFILL
warmers in the dry mode.
This may damage the water
level sensor. NEVER turn the
thermostat ON for the pan
with the sensor and fill tube
unless the entire warmer unit
is to be used in the wet mode.
CA
S
HO
CA
CA
H
Exposed su
IL2524
WATER LEVEL
SENSOR
WATER LEVEL
8
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
9
OPERATION (continued)
AUTOFILL WARMERS continued
6. DO NOT use autofill warmers in the dry mode. This may damage the water
level sensor probe. NEVER turn the thermostat ON for the pan with the
probe and fill tube unless the entire warmer unit is to be used in the wet
mode.
7. Clean water level sensor daily to maintain water level in warmer.
OPERATION
1. Always use an inset. DO NOT place food directly into the warmer.
2. Check water level in wet-operation warmer frequently during use. Running
warmers dry will lower the temperature of the food in the insert pan, and may
damage the warmer.
3. Alternating between wet and dry operation in any individual
warmer is NOT recommended.
4. DO NOT use metal tools, steel wool, or caustic or abrasive
cleanser to clean warmer pan.
WARMERS WITH MANIFOLDED DRAIN
1. Manifolded warmers have a single drain valve.
2. Water poured into any one section will seek the same water level with all
sections on the manifold.
3. Make sure the drain valve is fully closed before filling warmer.
Digital Control Operation
This control will provide close regulation of the temperature in the basin and
give an indication of the air temperature surrounding the food container. The
temperature is adjustable from 100° to 200°F. Pressing the ON/OFF button of
the temperature control activates the heating circuit. The setpoint is displayed
by pressing and holding the TEMP button. Adjust the regulated temperature
by pressing the + or – buttons while holding the TEMP button down. The
actual basin temperature is displayed when no buttons are pressed and the
control is in the ON mode. The dot in the lower corner of the display indicates
when the control is calling for heat.
When provided the master power switch controls the heating circuit and the
automatic water fill ocntrol. Turn “OFF” the power switch when draining or
cleaning the unit.
IL2525
Power
Switch
On/Off
Button
Up
Temp
Display
Temp
Down
ABOVE: Digital Electronic Control Panel (certain models only)
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
DAILY CLEANING INSTRUCTIONS
PREPARATIONS: Turn control knob(s) to OFF. Allow warmer to cool
before proceeding.
Remove any insets, pans and/or adapter tops.
Drain or remove water from well if used for
wet operation.
FREQUENCY: Minimum - daily.
TOOLS: Mild Detergent
Solution: 10 Parts Warm Water to 4 Parts Vinegar
Plastic Scouring Pad
Clean Cloth or Sponge
Food-Grade Silicone Sealant
1. Wipe entire unit down using a clean cloth or sponge and mild
detergent.
2. Use a plastic scouring pad to remove any hardened food particles
or mineral deposits.
IMPORTANT: DO NOT use steel wool for cleaning.
3. Rinse warmer thoroughly with a vinegar and water solution to
neutralize all detergent cleanser residue.
4. Inspect warmer flange-to-counter seal. Reseal with food-grade
silicone sealant if necessary. Failure to do so may allow grease and
water to leak into insulation and heating element, causing a potential
fire and/or electric shock hazard.
5. Inspect warmer tank for damage. Damage to the outer body may
allow grease and water to leak into insulation and heating element,
causing a potential fire and/or electric shock hazard. Contact your
Authorized Wells Service Agency to inspect warmer if water or grease
contamination is suspected.
6. Close drain valve. Add proper amount of warm water. Turn control
knob(s) ON and check for proper operation.
DAILY CLEANING INSTRUCTIONS
CLEANING INSTRUCTIONS
10
CAUTION:
SHOCK HAZARD
DO NOT splash or pour water
into or over any control panel
or wiring.
CAUTION:
SHOCK HAZARD
Disconnect warmer from
electric power before cleaning
CAUTION:
BURN HAZARD
Allow warmer to cool
completely before cleaning.
CA
BU
Allow warm
CA
SH
Disconne
ct
CA
S
HO
DO NOT spl
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
CLEANING INSTRUCTIONS
11
WEEKLY CLEANING INSTRUCTIONS
PREPARATIONS: Remove any insets, pans and/or adapter tops.
Drain or remove water from well if used for wet
operation.
FREQUENCY: Weekly, or whenever lime or scale is seen
accumulating on the sides of the warmer pans.
TOOLS: Commercial Delime Cleaner
Plastic Scouring Pad
Clean Cloth or Sponge
1. Add water to pans until water is at normal operating level
(1” - 1 1/2” deep) or covers accumulated scale.
2. Heat water to maximum temperature (190ºF or higher).
3. Pour contents of one package of commercial delime cleaner
into each warmer pan. Stir to dissolve cleaner. Turn heat
control OFF. Cover pans.
4. Allow solution to soak at least one hour, or overnight for heavy
scale buildup.
5. Drain hot water from pans. Scrub with a plastic scouring pad.
Rinse thoroughly with hot water, then dry.
6. Refill pans with hot tap water and resume operation.
7. Heavy scale buildup may require additional treatments.
CAUTION:
CHEMICAL BURN
HAZARD
Deilimng chemicals may be
caustic. Wear appropriate
personal protective equipment.
Follow cleaner manufacturer’s
instructions for safest use.
CA
CA
CH
HA
Deilimng che
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
TROUBLESHOOTING SUGGESTIONS
12
There are no user-serviceable components in this appliance.
In all instances of damage or malfunction, contact your Authorized Wells Service Agency for repairs.
SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY
No power to warmer Circuit breaker off or tripped Reset circuit breaker
Warmer will not heat Temperature control not set Set control to desired temperature
Warmer trips circuit breaker
Wet insulation
Verify flange-to counter seal is sound, or
reseal with food-grade silicone sealant
Pan leaking or other internal damage
Contact your Authorized Wells Service Agency
for repairs
Internal damage
Contact your Authorized Wells Service Agency
for repairs
Warmer slow to heat
Mineral deposits on pan acting as a
insulator
Clean pan(s) with delime cleaner
Wired to wrong voltage
Verify supply voltage - must match voltage on
warmer nameplate
Drain-equipped unit will not hold
water
Drain valve not fully closed Check drain valve for debris and close fully
Drain valve damaged or pan(s) leaking
Contact your Authorized Wells Service Agency
for repairs
Auto-fill unit overflows
Water level sensor dirty Clean water level sensor
Internal damage
Contact your Authorized Wells Service Agency
for repairs
Auto-fill unit does not fill
Water supply turned off or restricted
Be sure water supply is turned on and water
supply hose is not pinched or twisted
Bad Probe or other Internal Damage
Contact your Authorized Wells Service Agency
for repairs
One or more pans of an auto-fill
unit do not fill
Blocked drain manifold Clean drain manifold
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
MAINTENANCE INSTRUCTIONS
CARE OF STAINLESS STEEL
Stainless steel is a marvelous material: strong, lustrous and low maintenance. With
a minimum of care, it will normally retain its beauty and durability for the life of the
equipment. In some applications, however, special care is required in order to maintain
stainless steel’s special properties.
External components, such as cabinets and control panels, are finished with a grain
pattern. This pleasing finish is best maintained by cleaning with a non-abrasive
cleanser applied with a soft cloth. Rub only in the direction of the grain. In the absence
of visible grain, rub only along the longest axis of the appliance.
Restore stainless steel’s luster by applying a polish specifically made for stainless steel.
Spray on, wipe off with a soft cloth, rubbing in the direction of the grain.
Never use metal implements, wire brushes, abrasive scratch pads or steel wool to
clean stainless steel.
Warmer pans, insets and other vessels are subject to a harsher environment. Wells
Manufacturing uses an very high quality stainless steel (#304DDQ) for our food warmer
pans. Even the highest quality stainless steel, however, is mostly iron, and will rust, pit
and corrode under the following conditions:
Poor Water Quality: Hard water (water with a high content of dissolved minerals)
will leave mineral deposits when allowed to dry. Calcium (lime) can buildup on
heated surfaces, even under water. If left unattended, hard water spots and lime
buildup can lead to rusting, corrosion and pitting.
Contact with Chlorides: Chlorides (specific compounds of chlorine) are found in
food, table salt and many cleansers. Chlorides can attack the surface of stainless
steel, resulting in corrosion and pitting.
Keep your stainless steel warmers clean and free from calcium buildup.
Use alkaline, alkaline chlorinated or non-chloride cleanser.
Use citric acid-based cleaners to remove calcium deposits.
For additional information, please read the NAFEM Stainless Steel Equipment and
Cleaning Guide. Contact NAFEM at :
North American Association of Food Equipment Manufacturers
401 N. Michigan Avenue
Chicago, Illinois 60611-4267
(312) 644-6610
•
•
13
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
MODEL NUMBER IDENTIFIER
14
MOD200T, MOD200TD, MOD200TDM
Standard
Drain
Manifold
Auto-Fill
Narrow
Pan Assy w/
Auto-Fill Connection
Auto-Fill
Sensor Assy
Built-In Modular Warmer Identifier
IL2527
M300CTDNMAF6
96” Capillary Tube
Auto-Fill
Manifold
Narrow
Drain
T=Thermostat, E=Digital
Niether = Infinite
00= 20” Pan, 27=27” Pan
Corded
Number of Pans
M or MOD, same
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
EXPLODED VIEW & PARTS LIST
15
3
6
7
8
9
10
5
1
32
4
16
15
21
24
25
17
25
24
23
22
11
12
13
14
18
20
10
19
= AutoFill Units Only
26
See Detail A
Digital Controlled Units
29
27 28
30
34
36
35
“T” units only
33
31
32
BUILT-IN MODULAR WARMERS
SK2615, Rev. -, 8/15/12
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PARTS LIST: M200-227 SERIES
Model: Modular Warmers M200-227T, TD, TDM, TDMAF, TN, M200-227E, CE, ED, EDM, EDMAF, EN
Fig No Part No Description Qty Application
1 P2-31869 SCREEN DRAIN ASSY WARMER 2 DRAIN UNITS
2
P2-Z14636 PAN ASSY 12X20 EAF W/TEE
1
M200 DIGITAL
P2-Z14647 PAN ASSY 12X27 EAF M227 DIGITAL
P2-WL0064 PAN ASSY W/ELBOW MODTDMN M200 T-STAT NARROW
WS-503893 PAN ASSY 200-500TDM A/F M200 T-STAT & INFINITE
WS-504101 PAN ASSY 12X27 AF M227 T-STAT
3
P2-Z14639 PAN ASSY 12X20 E
2
M200 DIGITAL
P2-Z14637 PAN ASSY 12X20 ED w/DRAIN M200 DIGITAL DRAIN
P2-Z14638 PAN ASSY 12X20 EDM M200 DIGITAL DRAIN, MANIFOLD
P2-Z14646 PAN ASSY 12X27 EDM
M227 DIGITAL, DRAIN, MANIFOLD
1
M227 DIGITAL, AUTOFILL
P2-WL0063 PAN ASSY AF MODTDMN 1 M200 T-STAT, AUTOFILL
WS-55741 PAN W/O DRAIN 200-500 / T
2
M200 T-STAT & INFINITE
WS-53201 PAN W/DRAIN 200-500 /TD M200 T-STAT & INFINITE, DRAIN
WS-55742 PAN W/DRAIN 200-500DM/TDM
M200 T-STAT & INFINITE, DRAIN,
MANIFOLD
WS-500700 PAN ASSY 12X27 TDM M227 T-STAT, DRAIN, MANIFOLD
4 2V-35609 VALVE 1 IN GATE BRONZE 1 MANIFOLD UNITS
5 WS-503713 PROBE ASSY, SS AUTOFILL WRMR 1 AUTOFILL UNITS
6 2K-48198 ELBOW 3/8 X 90DEG BRASS 1 AUTOFILL UNITS
7 2K-48197 NIPPLE 3/8 NPT X 2 BRASS 1 AUTOFILL UNITS
8 2V-47650 VALVE ANTISYPHON 3/8 1 AUTOFILL UNITS
9 2K-47662 FTG STR BRS 3/8NPT X3/8IN 1 AUTOFILL UNITS
10 2C-46591 CLAMP HOSE 5/8 2 AUTOFILL UNITS
11 2K-31040 BUSHING HEYCO 7/8 OD 1 THERMOSTAT UNITS
12 WS-50131 TERM BLOCK KIT (RETRO 30131) 1 INFINITE & AUTOFILL UNITS
13 2C-41974 NUT 8-32 HEX 7/8 LONG ALU 2 AUTOFILL UNITS
14
2J-35385 LIGHT SIGNAL GLO DOT RED
2
INFINITE UNITS
2J-35687 LIGHT SIGNAL GLO DOT T-STAT UNITS
15
P2-Z12288 PANEL, CONTROL 1 T-STAT & INFINITE UNITS NON-AF
P2-Z12589 PANEL, CONTROL MOD 200/400 1 AUTOFILL UNITS
16
E7-49046 BOX OUTLET MOD WARM
1
T-STAT & INFINITE UNITS NON-AF
P2-48175 BOX OUTLET MOD200/400TDM AUTOFILL UNITS
17
2T-38968 THERMO K TYPE
2
T-STAT UNITS
2T-46551 THERMO CTRL 96IN CAP T-STAT UNITS w/ 96IN CAPILLARY
2T-45917 THERMO CTRL W/AUX WARMERS T-STAT UNITS, AUTOFILL
2E-30570 SWITCH INFINITE, 120V
2
INFINITE UNITS, 120V
2E-30562 SWITCH INFINITE, 240V INFINITE UNITS, 240V
18
2R-44373 KNOB CONTROL ASSY WARMERS
2
INFINITE UNITS
2R-40498 KNOB ASSY MOD 100DT T-STAT UNITS
20 2E-46529 SOLENOID VALVE 1/4NPT 240 1 AUTOFILL UNITS
16
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PARTS LIST: M200-227 SERIES
Model: Modular Warmers M200-227T, TD, TDM, TDMAF, TN, M200-227E, CE, ED, EDM, EDMAF, EN
Fig No Part No Description Qty Application
21
P2-40843 BRKT MTG THERMO INFINITE
2
T-STAT & INFINITE UNITS
P2-48176 BRKT THERMO MOD200TDM AUT T-STAT AUTOFILL
22 2E-306865 CONTROL LIQ LEVEL 208/240 1 AUTOFILL UNITS
23 2I-40034 GROMMET SCREW T4 4 AUTOFILL UNITS
24 2K-33996X FTG FLEX CONDUIT 90X3/8 2
25 2I-Z12311 GASKET-FIBER WASHER 2
26
P2-300712 COVER BOT M227-427TDM/AM 2 M227
P2-35004 COVER BOTTOM 200 SERIES 1 M200
27
P2-303359 SHROUD SIDE MODS ROHS
2
M200
P2-300593 SHROUD SIDE MOD TDN M200 NARROW
28
P2-Z15948 SHROUD, FRONT UNIVERSAL
1 M200, 227
P2-33909 SHROUD FRONT/REAR MOD200
P2-300592 SHROUD FRT/RR MOD200TDN 2 M200 NARROW
29 2H-36050 INSUL FG .6 MICRO 1/36 SOLD BY FOOT
30 2H-36196 INSUL FG .6 MICRO 1X45 SOLD BY FOOT
31
P2-WL0082 PAN ELEM ASSY
2
M200 DIGITAL
P2-WL0096 PAN ELEM ASSY MOD 227-527 M227 DIGITAL
WS-503843 KIT PAN ELEM W/ELEMENT 208/240 M200 T-STAT & INFINITE
WS-503701 KIT ELEM PAN W/ELEMENT M200 T-STAT NARROW
WS-503840 KIT ELEM PAN W/ELEMENT M227 T-STAT
32
WS-50396 ELEM 120V 1200W
2
M200 INFINITE, 120V
WS-50398 ELEM 240V 1200W M P M200 INFINITE, 240V
2N-46681UL ELEM 120V 1650W M200 T-STAT, 120V
2N-303375UL ELEM HEATING 240V 1650W M200 T-STAT, 240V
2N-300706UL ELEM 240V 1650W 12 X 27 M227
33
WS-55707 COVER ELEM MOD WARMER
2
INFINITE UNITS
WS-503842 KIT ELEM PAN W/O ELEMENT M200, T-STAT & DIGITAL
WS-503370 PAN, ELEMENT MODS M200 NARROW
WS-503841 KIT ELEM PAN W/O ELEMENT M227
34 D8-303352 BRKT THERMO BULB 2 THERMOSTAT UNITS
35 P2-WL0081 PAN ELEM ASSY MOD200-500 2 INFINITE 240V
36 WS-50374 THERMO, HI-LIMIT, SFTY, 550F 2 INFINITE UNITS
NI 2C-30397 CLIP ELEM WRMRS SML
18 VARIOUS OLDER UNITS
NI 2E-200372 CORD SET, 12/3 CORD 6-20 1 M200C
17
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PARTS LIST: M300-327 SERIES
18
Model: Modular Warmers M300-327T, TD, TDM, TDMAF, TN, M300-327E, CE, ED, EDM, EDMAF, EN
Fig No Part No Description Qty Application
1 P2-31869 SCREEN DRAIN ASSY WARMER 3 DRAIN UNITS
2
P2-Z14636 PAN ASSY 12X20 EAF W/TEE
1
M300 DIGITAL
P2-Z14647 PAN ASSY 12X27 EAF M327 DIGITAL
P2-WL0064 PAN ASSY W/ELBOW MODTDMN M300 T-STAT NARROW
WS-503893 PAN ASSY 200-500TDM A/F M300 T-STAT & INFINITE
WS-504101 PAN ASSY 12X27 AF M327 T-STAT
3
P2-Z14639 PAN ASSY 12X20 E
3
M300 DIGITAL
P2-Z14637 PAN ASSY 12X20 ED w/DRAIN M300 DIGITAL DRAIN
P2-Z14638 PAN ASSY 12X20 EDM M300 DIGITAL DRAIN, MANIFOLD
P2-Z14646 PAN ASSY 12X27 EDM
M327 DIGITAL, DRAIN, MANIFOLD
2
M327 DIGITAL, AUTOFILL
P2-WL0063 PAN ASSY AF MODTDMN 2 M300 T-STAT, AUTOFILL
WS-55741 PAN W/O DRAIN 200-500 / T
3
M300 T-STAT & INFINITE
WS-53201 PAN W/DRAIN 200-500 /TD M300 T-STAT & INFINITE, DRAIN
WS-55742 PAN W/DRAIN 200-500DM/TDM M300 T-STAT & INFINITE, DRAIN, MANIFOLD
WS-500700 PAN ASSY 12X27 TDM M327 T-STAT, DRAIN, MANIFOLD
4 2V-35609 VALVE 1 IN GATE BRONZE 1 MANIFOLD UNITS
5 WS-503713 PROBE ASSY, SS AUTOFILL WRMR 1 AUTOFILL UNITS
6 2K-48198 ELBOW 3/8 X 90DEG BRASS 1 AUTOFILL UNITS
7 2K-48197 NIPPLE 3/8 NPT X 2 BRASS 1 AUTOFILL UNITS
8 2V-47650 VALVE ANTISYPHON 3/8 1 AUTOFILL UNITS
9 2K-47662 FTG STR BRS 3/8NPT X3/8IN 1 AUTOFILL UNITS
10 2C-46591 CLAMP HOSE 5/8 2 AUTOFILL UNITS
11 2K-31040 BUSHING HEYCO 7/8 OD 1 THERMOSTAT UNITS
12 WS-50131 TERM BLOCK KIT (RETRO 30131) 1 INFINITE & AUTOFILL UNITS
13 2C-41974 NUT 8-32 HEX 7/8 LONG ALU 2 AUTOFILL UNITS
14
2J-35385 LIGHT SIGNAL GLO DOT RED
3
INFINITE UNITS
2J-35687 LIGHT SIGNAL GLO DOT T-STAT UNITS
15 P2-Z12592 PANEL, CONTROL 1 INFINITE UNITS NON-AF
15 P2-Z15586 PANEL, CONTROL MOD300TDM 1
15 P2-Z12588 PANEL, CONTROL MOD600 TDM 1
M300/327 T-STAT, DRAIN, MANIFOLD
16 P2-46685 BOX OUTLET MOD300, 400, 500
1
T-STAT & INFINITE UNITS NON-AF
16 P2-48178 BOX OUTLET MOD600TDM AUTOFILL UNITS
17
2T-38968 THERMO K TYPE
3
T-STAT UNITS
2T-46551 THERMO CTRL 96IN CAP T-STAT UNITS w/ 96IN CAPILLARY
2T-45917 THERMO CTRL W/AUX WARMERS
T-STAT UNITS, AUTOFILL
2E-30570 SWITCH INFINITE, 120V
3
INFINITE UNITS, 120V
2E-30562 SWITCH INFINITE, 240V INFINITE UNITS, 240V
18
2R-44373 KNOB CONTROL ASSY WARMERS
3
INFINITE UNITS
2R-40498 KNOB ASSY MOD 100DT T-STAT UNITS
20 2E-46529 SOLENOID VALVE 1/4NPT 240 1 AUTOFILL UNITS
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PARTS LIST: M300-327 SERIES
19
Model: Modular Warmers M300-327T, TD, TDM, TDMAF, TN, M300-327E, CE, ED, EDM, EDMAF, EN
Fig No Part No Description Qty Application
21
P2-37809 BRKT CONT MTG MOD 300 400
1
INFINITE UNITS
P2-48586 BRKT THERMO MOD300T T-STAT
P2-47863 BRKT THERMO MOD BMW ROHS T-STAT AUTOFILL
22 2E-306865 CONTROL LIQ LEVEL 208/240 1 AUTOFILL UNITS
23 2I-40034 GROMMET SCREW T4 4 AUTOFILL UNITS
24 2K-33996X FTG FLEX CONDUIT 90X3/8 2
25 2I-Z12311 GASKET-FIBER WASHER 2
26
P2-300702 COVER BOT M327/ 527TDM/A
1
M327
P2-307110 COVER BOTTOM 300 SERIES M300
27
P2-303359 SHROUD SIDE MOD ROHS 2 M300
P2-300593 SHROUD SIDE MOD TDN 2 M300 NARROW
28
P2-303357 SHROUD FRONT MOD300, 327T 1 M300, 327
P2-48193 SHROUD REAR MOD 300 ROHS 1 M300, 327
P2-307128 SHROUD FT/RR MOD300TDMN 2 M300 NARROW
29 2H-36050 INSUL FG .6 MICRO 1/36 SOLD BY FOOT
30 2H-36196 INSUL FG .6 MICRO 1X45 SOLD BY FOOT
31
P2-WL0082 PAN ELEM ASSY
3
M300 DIGITAL
P2-WL0096 PAN ELEM ASSY MOD 227-527 M327 DIGITAL
WS-503843 KIT PAN ELEM W/ELEMENT 208/240 M300 T-STAT & INFINITE
WS-503701 KIT ELEM PAN W/ELEMENT 2
M300 T-STAT NARROW
P2-WL0072 PAN ELEM ASSY MID MOD300T 1
WS-503840 KIT ELEM PAN W/ELEMENT 3 M327 T-STAT
32
WS-50396 ELEM 120V 1200W
3
M300 INFINITE, 120V
WS-50398 ELEM 240V 1200W M P M300 INFINITE, 240V
2N-46681UL ELEM 120V 1650W M300 T-STAT, 120V
2N-303375UL ELEM HEATING 240V 1650W M300 T-STAT & DIGITAL, 240V,
2N-300706UL ELEM 240V 1650W 12 X 27 M327
33
WS-55707 COVER ELEM MOD WARMER
3
INFINITE UNITS
WS-503842 KIT ELEM PAN W/O ELEMENT
M300, T-STAT & DIGITAL
2 M300, NARROW, OUTSIDE
WS-WL0332 KIT ELEM PAN W/O ELEMENT / INSIDE 1 M300, NARROW, INSIDE
WS-503370 PAN, ELEMENT MODS 2
M300 NARROW
67-307041 ASSY-MID-ELEM PAN M300TN 1
WS-503841
KIT ELEM PAN W/O ELEMENT 3 M327
34 D8-303352 BRKT THERMO BULB 3 THERMOSTAT UNITS
35 P2-WL0081 PAN ELEM ASSY MOD200-500 3 INFINITE 240V
36 WS-50374 THERMO, HI-LIMIT, SFTY, 550F 3 INFINITE UNITS
NI 2C-30397 CLIP ELEM WRMRS SML 18 VARIOUS OLDER UNITS
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PARTS LIST: M400-427 SERIES
20
Model: Modular Warmers M400-427T, TD, TDM, TDMAF, M400-427E, CE, ED, EDM, EDMAF
Fig No Part No Description Qty Application
1 P2-31869 SCREEN DRAIN ASSY WARMER 4 DRAIN UNITS
2
P2-Z14636 PAN ASSY 12X20 EAF W/TEE
1
M400 DIGITAL
P2-Z14647 PAN ASSY 12X27 EAF M427 DIGITAL
WS-503893 PAN ASSY 200-500TDM A/F M400 T-STAT & INFINITE
WS-504101 PAN ASSY 12X27 AF M427 T-STAT
3
P2-Z14639 PAN ASSY 12X20 E
4
M400 DIGITAL
P2-Z14637 PAN ASSY 12X20 ED w/DRAIN M400 DIGITAL DRAIN
P2-Z14638 PAN ASSY 12X20 EDM
M400 DIGITAL DRAIN, MANIFOLD
3 M400 DIGITAL DRAIN, MANIFOLD, AUTOFILL
P2-Z14646 PAN ASSY 12X27 EDM
4 M427 DIGITAL, DRAIN, MANIFOLD
3 M427 DIGITAL, DRAIN, MANIFOLD AUTOFILL
WS-55741 PAN W/O DRAIN 200-500 / T
4
M400 T-STAT & INFINITE
WS-53201 PAN W/DRAIN 200-500 /TD M400 T-STAT & INFINITE, DRAIN
WS-55742 PAN W/DRAIN 200-500DM/TDM
M400 T-STAT & INFINITE, DRAIN, MANIFOLD
3 M400 T-STAT & INFINITE, DRAIN, MANIFOLD, AUTOFILL
WS-500700 PAN ASSY 12X27 TDM
4 M427 T-STAT, DRAIN, MANIFOLD
3 M427 T-STAT, DRAIN, MANIFOLD, AUTOFILL
4 2V-35609 VALVE 1 IN GATE BRONZE 1 MANIFOLD UNITS
5 WS-503713
PROBE ASSY, SS AUTOFILL
WRMR
1 AUTOFILL UNITS
6 2K-48198 ELBOW 3/8 X 90DEG BRASS 1 AUTOFILL UNITS
7 2K-48197 NIPPLE 3/8 NPT X 2 BRASS 1 AUTOFILL UNITS
8 2V-47650 VALVE ANTISYPHON 3/8 1 AUTOFILL UNITS
9 2K-47662 FTG STR BRS 3/8NPT X3/8IN 1 AUTOFILL UNITS
10 2C-46591 CLAMP HOSE 5/8 2 AUTOFILL UNITS
11 2K-31040 BUSHING HEYCO 7/8 OD 1 THERMOSTAT UNITS
12 WS-50131
TERM BLOCK KIT (RETRO
30131)
1 INFINITE & AUTOFILL UNITS
13 2C-41974 NUT 8-32 HEX 7/8 LONG ALU 2 AUTOFILL UNITS
14
2J-35385 LIGHT SIGNAL GLO DOT RED
2
INFINITE UNITS
2J-35687 LIGHT SIGNAL GLO DOT T-STAT UNITS
15
P2-Z12288 PANEL, CONTROL, (SPLIT)
1
MOD400TDMAF, MOD400TDMAF6, MOD427TDMAF
P2-Z12589
PANEL, CONTROL, (SPLIT)
P2-Z12591 PANEL, CONTROL MOD 400
1
INFINITE UNITS NON-AF
P2-Z12584 PANEL, CONTROL MOD400TDM M400-427, T-STAT, DRAIN, MANIFOLD, AUTOFILL
16
P2-48290 BOX OUTLET MOD400 DM TDM
1
M400-427, T-STAT, DRAIN, MANIFOLD
E7-49046 BOX OUTLET MOD (SPLIT)
MOD400TDMAF, MOD400TDMAF6, MOD427TDMAF
P2-48175
BOX OUTLET MOD (SPLIT)
P2-46685 BOX OUTLET MOD 400 M400 INFINITE, DRAIN, MANIFOLD
P2-48178 BOX, CONTROL AF MOD400TDMAF1, MOD400TDMAFS, MOD427TDMAF1
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PARTS LIST: M400-427 SERIES
21
Model: Modular Warmers M400-427T, TD, TDM, TDMAF, M400-427E, CE, ED, EDM, EDMAF
Fig No Part No Description Qty Application
17
2T-38968 THERMO K TYPE
4
T-STAT UNITS
2T-46551 THERMO CTRL 96IN CAP T-STAT UNITS w/ 96IN CAPILLARY
2T-45917
THERMO CTRL W/AUX
WARMERS
T-STAT UNITS, AUTOFILL
2E-30570 SWITCH INFINITE, 120V
4
INFINITE UNITS, 120V
2E-30562 SWITCH INFINITE, 240V INFINITE UNITS, 240V
18
2R-44373
KNOB CONTROL ASSY
WARMERS
4
INFINITE UNITS
2R-40498 KNOB ASSY MOD 100DT T-STAT UNITS
20 2E-46529 SOLENOID VALVE 1/4NPT 240 1 AUTOFILL UNITS
21
P2-40843 BRKT MTG THERMO INFINITE 2 T-STAT (SPLIT CONTROL)
P2-48176 BRKT THERO MOD200TDM AUT 1 MOD400TDMAF(6), MOD427TDMAF
P2-48285 BRKT THERMO MOD400 1 M400-427 T-STAT, DRAIN, MANIFOLD, AUTOFILL
22 2E-306865 CONTROL LIQ LEVEL 208/240 1 AUTOFILL UNITS
23 2I-40034 GROMMET SCREW T4 4 AUTOFILL UNITS
24 2K-33996X FTG FLEX CONDUIT 90X3/8 2
25 2I-Z12311 GASKET-FIBER WASHER 2
26
P2-300712 COVER BOT M227-427TDM/AM 2 M427E, MOD427TDM (AF)
P2-35004 COVER BOTTOM 200 SERIES 2 M400
27 P2-303359 SHROUD SIDE MODS ROHS 2 M400
28
P2-Z14627 SHROUD, FRONT M4
1
M400, 427, DIGITAL
P2-48192 SHROUD REAR MOD 420 427 M400
P2-303358 SHROUD FRONT MOD 400 427 M400 INFINITE & T-STAT
29 2H-36050 INSUL FG .6 MICRO 1/36 SOLD BY FOOT
30 2H-36196 INSUL FG .6 MICRO 1X45 SOLD BY FOOT
31
P2-WL0082 PAN ELEM ASSY
4
M400 DIGITAL
P2-WL0096 PAN ELEM ASSY MOD 227-527 M427 DIGITAL
WS-503843
KIT PAN ELEM W/ELEMENT
208/240
M400 T-STAT & INFINITE
WS-503840 KIT ELEM PAN W/ELEMENT M427 T-STAT
32
WS-50398 ELEM 240V 1200W M P
4
M400 INFINITE, 240V
2N-303375UL ELEM HEATING 240V 1650W M400 T-STAT, 240V
2N-300706UL ELEM 240V 1650W 12 X 27 M427
33
WS-55707 COVER ELEM MOD WARMER
4
M400, INFINITE UNITS
WS-503842 KIT ELEM PAN W/O ELEMENT M400, T-STAT & DIGITAL
WS-503841 KIT ELEM PAN W/O ELEMENT M427
34 D8-303352 BRKT THERMO BULB 4 THERMOSTAT UNITS
35 P2-WL0081 PAN ELEM ASSY MOD200-500 4 INFINITE 240V
36 WS-50374 THERMO, HI-LIMIT, SFTY, 550F 4 INFINITE UNITS
NI 2C-30397 CLIP ELEM WRMRS SML 36 VARIOUS OLDER UNITS
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PARTS LIST: M500-527 SERIES
22
Model: Modular Warmers M500-527T, TD, TDM, TDMAF, M500-527E, CE, ED, EDM, EDMAF
Fig No Part No Description Qty Application
1 P2-31869 SCREEN DRAIN ASSY WARMER 5 DRAIN UNITS
2
P2-Z14636 PAN ASSY 12X20 EAF W/TEE
1
M500 DIGITAL
P2-Z14647 PAN ASSY 12X27 EAF M527 DIGITAL
WS-503893 PAN ASSY 200-500TDM A/F M500 T-STAT & INFINITE
WS-504101 PAN ASSY 12X27 AF M527 T-STAT
3
P2-Z14639 PAN ASSY 12X20 E
5
M500 DIGITAL
P2-Z14637 PAN ASSY 12X20 ED w/DRAIN M500 DIGITAL DRAIN
P2-Z14638 PAN ASSY 12X20 EDM
M500 DIGITAL DRAIN, MANIFOLD
4 M500 DIGITAL DRAIN, MANIFOLD, AUTOFILL
P2-Z14646 PAN ASSY 12X27 EDM
5 M527 DIGITAL, DRAIN, MANIFOLD
4 M527 DIGITAL, DRAIN, MANIFOLD AUTOFILL
WS-55741 PAN W/O DRAIN 200-500 / T
5
M500 T-STAT & INFINITE
WS-53201 PAN W/DRAIN 200-500 /TD M500 T-STAT & INFINITE, DRAIN
WS-55742 PAN W/DRAIN 200-500DM/TDM
M500 T-STAT & INFINITE, DRAIN, MANIFOLD
4 M500 T-STAT & INFINITE, DRAIN, MANIFOLD,AUTOFILL
WS-500700 PAN ASSY 12X27 TDM
5 M527 T-STAT, DRAIN, MANIFOLD
4 M527 T-STAT, DRAIN, MANIFOLD, AUTOFILL
4 2V-35609 VALVE 1 IN GATE BRONZE 1 MANIFOLD UNITS
5 WS-503713 PROBE ASSY, SS AUTOFILL 1 AUTOFILL UNITS
6 2K-48198 ELBOW 3/8 X 90DEG BRASS 1 AUTOFILL UNITS
7 2K-48197 NIPPLE 3/8 NPT X 2 BRASS 1 AUTOFILL UNITS
8 2V-47650 VALVE ANTISYPHON 3/8 1 AUTOFILL UNITS
9 2K-47662 FTG STR BRS 3/8NPT X3/8IN 1 AUTOFILL UNITS
10 2C-46591 CLAMP HOSE 5/8 2 AUTOFILL UNITS
11 2K-31040 BUSHING HEYCO 7/8 OD 1 THERMOSTAT UNITS
12 WS-50131 TERM BLOCK KIT (RETRO 30131) 1 INFINITE & AUTOFILL UNITS
13 2C-41974 NUT 8-32 HEX 7/8 LONG ALU 2 AUTOFILL UNITS
14
2J-35385 LIGHT SIGNAL GLO DOT RED
2
INFINITE UNITS
2J-35687 LIGHT SIGNAL GLO DOT T-STAT UNITS
15
P2-Z12594 PANEL, CONTROL MOD500 TDM
1
M500-527, T-STAT
P2-Z12288 PNL, CNTRL/MOD
MOD500TDMFA(6), MOD527TDMAF(6) (SPLTI)
P2-Z12588 PANEL, CONTROL MOD TDM MOD500TDMFA(6), MOD527TDMAF(6) (SPLTI)
P2-Z12590 PANEL, CONTROL MOD500 M500, INFINITE UNITS
16
P2-48290 BOX OUTLET MOD400 DM TDM
1
M500-527, T-STAT
E7-49046 BOX OUTLET MOD WAR
MOD500TDMFA(6), MOD527TDMAF(6) (SPLTI)
P2-48178 BOX CONTROL MOD AF MOD500TDMFA(6), MOD527TDMAF(6) (SPLTI)
P2-46685 BOX OUTLET MOD 500 M500, INFINITE UNITS
17
2T-38968 THERMO K TYPE
5
T-STAT UNITS
2T-46551 THERMO CTRL 96IN CAP T-STAT UNITS w/ 96IN CAPILLARY
2T-45917 THERMO CTRL W/AUX WARMRS T-STAT UNITS, AUTOFILL
2E-30570 SWITCH INFINITE, 120V
5
INFINITE UNITS, 120V
2E-30562 SWITCH INFINITE, 240V INFINITE UNITS, 240V
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PARTS LIST: M500-527 SERIES
23
Model: Modular Warmers M500-527T, TD, TDM, TDMAF, M500-527E, CE, ED, EDM, EDMAF
Fig No Part No Description Qty Application
18
2R-44373
KNOB CONTROL ASSY
WARMERS
5
INFINITE UNITS
2R-40498 KNOB ASSY MOD 100DT T-STAT UNITS
20 2E-46529 SOLENOID VALVE 1/4NPT 240 1 AUTOFILL UNITS
21
P2-48285 BRKT THERMO MOD400 1 M500-527, T-STAT
P2-40843 BRKT MTG THERMO INFINITE 2 MOD500TDMFA(6), MOD527TDMAF(6) (SPLTI)
P2-47863 BRKT THERMO MOD 1 MOD500TDMFA(6), MOD527TDMAF(6) (SPLTI)
P2-37809 BRKT CONT MTG MOD 1 M500 INFINITE
22 2E-306865 CONTROL LIQ LEVEL 208/240 1 AUTOFILL UNITS
23 2I-40034 GROMMET SCREW T4 4 AUTOFILL UNITS
24 2K-33996X FTG FLEX CONDUIT 90X3/8 2
25 2I-Z12311 GASKET-FIBER WASHER 2
26
P2-35004 COVER BOTTOM 200 SERIES
1
M500
P2-307110
COVER BOTTOM MOD300
SERIES
P2-300712 COVER BOT MOD227/427TDM/A
M527
P2-300704 COVER BOT MOD327/527TDM/A
27 P2-303359 SHROUD SIDE MODS ROHS 2 M500
28
P2-Z14627 SHROUD, FRONT M4
1
M500, 427, DIGITAL
P2-48191 SHROUD REAR MOD 500 527 M500
P2-303376 SHROUD FRONT MOD 500 527T M500 INFINITE & T-STAT
29 2H-36050 INSUL FG .6 MICRO 1/36
SOLD BY FOOT
30 2H-36196 INSUL FG .6 MICRO 1X45
SOLD BY FOOT
31
P2-WL0082 PAN ELEM ASSY
5
M500 DIGITAL
P2-WL0096 PAN ELEM ASSY MOD 227-527 M527 DIGITAL
WS-503843
KIT PAN ELEM W/ELEMENT
208/240
M500 T-STAT & INFINITE
WS-503840 KIT ELEM PAN W/ELEMENT M527 T-STAT
32
WS-50398 ELEM 240V 1200W M P
5
M500 INFINITE, 240V
2N-303375UL ELEM HEATING 240V 1650W M500 T-STAT, 240V
2N-300706UL ELEM 240V 1650W 12 X 27 M527
33
WS-55707 COVER ELEM MOD WARMER
5
M500, INFINITE UNITS
WS-503842 KIT ELEM PAN W/O ELEMENT M500, T-STAT & DIGITAL
WS-503841 KIT ELEM PAN W/O ELEMENT M527
34 D8-303352 BRKT THERMO BULB 4 THERMOSTAT UNITS
35 P2-WL0081 PAN ELEM ASSY MOD200-500 4 INFINITE 240V
36 WS-50374 THERMO, HI-LIMIT, SFTY, 550F 4 INFINITE UNITS
NI 2C-30397 CLIP ELEM WRMRS SML 36 VARIOUS OLDER UNITS
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
EXPLODED VIEW: DETAIL A
24
MODE - EAF
Digital Control Fab Warmer
IL2523, Rev. -, 8/21/12
SOME ITEMS ARE A REPRESENTATION
OF THE ACTUAL APPREANCE DUE TO
YOUR SPECIFIC MODEL.
1
2
3
3
18
17
15
Nameplate
14
13
12
11
10
9
8
7
16
4
5
6
3
Detail
A
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PARTS LIST: DETAIL A
25
Detail A: Digital Control Box Assy
Fig No Part No Description Application
1 2A-Z3429 SPACER-NYLON .175X.375X.5 AUTO-FILL
2 2E-306865 CONTROL LIQ LEVEL 208/240 AUTO-FILL
3 2C-31053 NUT 8-32 KEPS MS NICKEL
4 2E-46529 SOLENOID VALV 1/4NPT 240 AUTO-FILL
5 2C-1493 SCREW 8-32X3/8 RHP STL NP AUTO-FILL
6
P2-Z14490 CONTROL BOX WELD - SMALL M200-227E
P2-Z14497 CONTROL BOX WELD - MEDIUM M200-227EAF, M300-327E
P2-Z14493 CONTROL BOX WELD - LARGE
M300-327EAF, M400/427E, M400/427EAF,
M500/527E, M500/527EAF
7 2C-35736 NUT 8-32 HEX KEPS MS GREE ALL
8 2E-37465 TERM BLOCK 3POLE 85AMP ALL
9 2C-1496 SCREW 8-32X3/4 RHP STL NP ALL
10 2C-Z2594 NUT 6-32 HEX W STL NP ALL
11
2E-Z14534 CONTROLLER, TEMP 230V AUTO-FILL
2E-Z14534-1 THERMISTOR, 90”
2E-Z14534-2 THERMISTOR, 126” 6’ LEAD
12 2K-Z1971 SPACER .257X.75X.25 NYLON AUTO-FILL
13 2C-200110 WASHER, #8 FLAT 18-8 SS ALL
14
2M-Z14495 GRAPHIC M200/227EAF M200-227E
2M-Z14498 GRAPHIC M200/227EAF M200-227EAF
2M-Z14499 GRAPHIC M300/327E M300-327E
2M-Z14526 GRAPHIC M300/327EAF M300-327EAF
2M-Z14527 GRAPHIC M400/427E M400/427E, M400/427EAF
2M-Z14529 GRAPHIC M500/527E M500/527E, M500/527EAF
15 2E-Z1858 SWITCH-LIGHTED AUTO-FILL
16 2C-33935 SCREW 6ABX5/16 PH PAN SMS ALL
17
P2-Z14494 CONTROL PANEL M200/227E M200-227E
P2-Z14496 CONTROL PANEL M200/227EAF M200-227EAF
P2-Z14522 CONTROL PANEL M300/327E M300-327E
P2-Z14524 CONTROL PANEL M300/327EAF M300-327EAF
P2-Z14525 CONTROL PANEL M400/427E M400/427E, M400/427EAF
P2-Z14492 CONTROL PANEL M500/527E M500/527E, M500/527EAF
18 2E-130601 WIRE ASSY 14GA GREEN 8” ALL
NI 2K-34136X FTG FLEX CON 90 X 1/2 MOD AUTO-FILL
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers

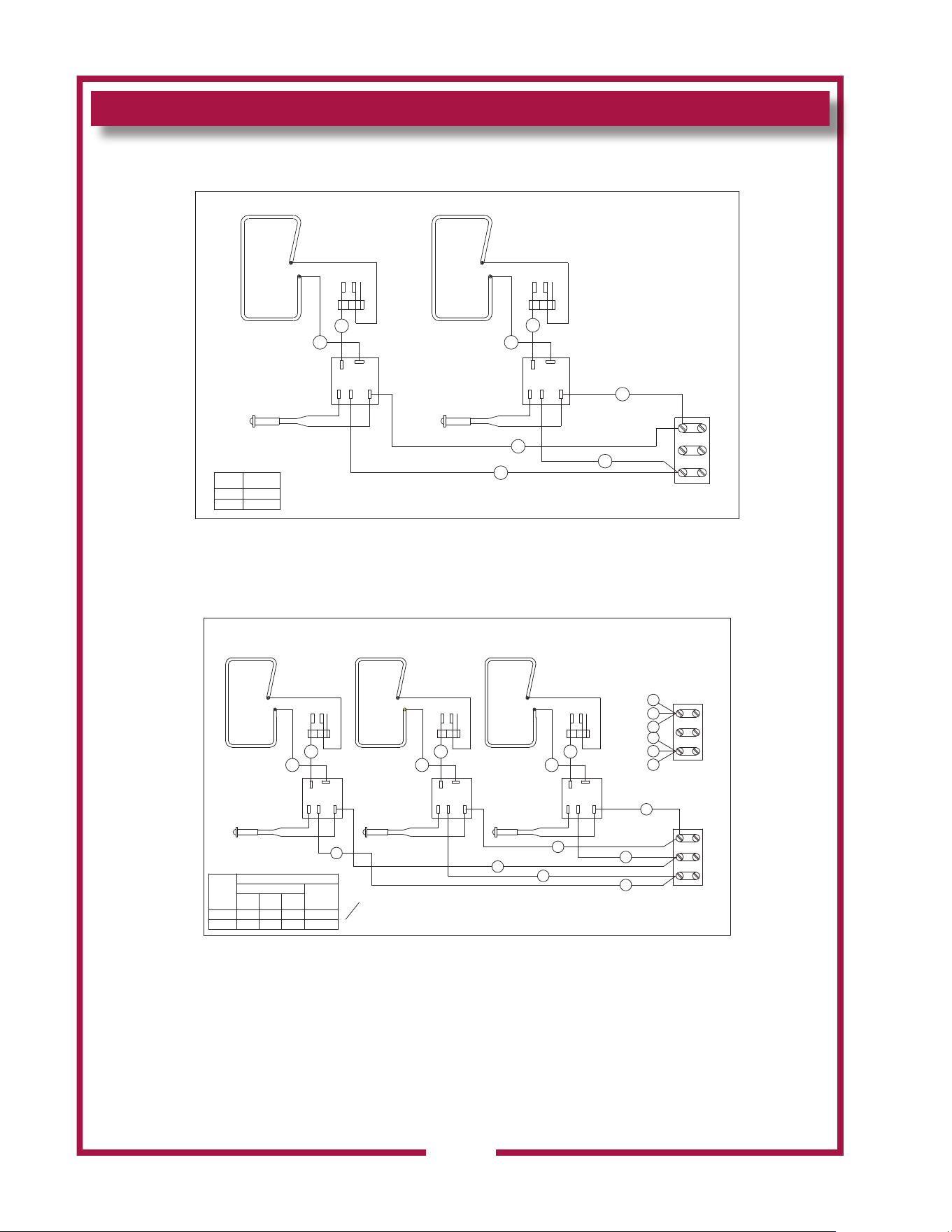

WIRING DIAGRAM: Infinite Control Units
26
L
2
L
3
1
L
5
TERM. BLOCK
SINGLE PHASE
240
10.0
86
7
1
3
2
4
8.7
208
REV. I PN 2M-31222
WIRING DIAGRAM FOR MODULAR 200 WARMER
P L L
1
2
2
H
H
1
INFINITE
SWITCH (2)
PILOT
LIGHT (2)
2
1
LLP
2
1
H
H
AMPS
VOLTS
208/240V SINGLE PHASE
SER. NO. WM 1000 & UP
SAFETY
THERMO (2)
ELEMENT
(2)
Z
H
60
50
SINGLE PHASE
15.0
13.0
8.7
7.5
8.7
7.5
4
2
1
3
1
1614
1513
12
11
TERM. BLOCK
THREE PHASE
240
8.7
7.5
208
REV. H PN 2M-35758
WIRING DIAGRAM FOR MODULAR 300 WARMER
1
L
1
3
L
2
L
L
2
1
L
NOM. AMPS PER LINE
THREE PHASE
L3L2
VOLTS
6
5
ELEMENT
(3)
2
H
2
P L L
1
2
H
1
P L L
1
2
2
H
H
1
INFINITE
SWITCH (3)
PILOT
LIGHT (3)
3
5
4
2
1
LLP
2
1
H
H
6
L1
SINGLE
PHASE
208/240V SINGLE PHASE OR THREE PHASE
SER. NO. MOD-300 MW 1000 & UP
SAFETY
THERMO (3)
MOD200 & MOD227 Series
MOD300E & MOD327E Series
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
27
Z
H
60
50
SINGLE PHASE
20.0
17.3
8.7
7.5
13.0
11.2
4
3
2
1
THREE PHASE
240
13.0
5
4
8
11.2
208
REV. H PN 35759
WIRING DIAGRAM FOR MODULAR 400 WARMER
3
1
3
7
4
2
6
2
1
5
3
L
L
1
2
L
L
2
1
L
NOM. AMPS PER LINE
THREE PHASE
L3L2
VOLTS
6
5
ELEMENT
(4)
1816
1715
P
L
L
1
2
H
1
13
INFINITE
SWITCH (4)
TERM. BLOCK
L1
SINGLE
PHASE
208/240V SINGLE PHASE OR THREE PHASE
SER. NO. MOD-400 MW 1250 & UP
SAFETY
THERMO (4)
PILOT
LIGHT (4)
11
7
8
12 14
2
H
2
1
L
L
P
H
1
H
2
P
L
L
1
2
1
H
H
2
P
2
1
L
L
H
1
H
2
3
1
2
2
1
Z
H
60
50
SINGLE PHASE
25.0
21.6
13.0
11.2
13.0
11.2
4
3
2
1
20
THREE PHASE
240
17.0
7
4
10
15.0
208
REV. H PN 2M-35760
WIRING DIAGRAM FOR MODULAR 500 WARMER
5
3
3
9
6
4
8
2
1
7
12
1
6
5
2
L
L
L
L
L
NOM. AMPS PER LINE
THREE PHASE
L3L2
VOLTS
8
7
ELEMENT
(5)
18
1917
P
L
L
1
2
H
1
15
INFINITE
SWITCH (5)
TERM. BLOCK
L1
SINGLE
PHASE
208/240V SINGLE PHASE OR THREE PHASE
SER. NO. MOD-400 MW 1500 & UP
SAFETY
THERMO (5)
13
9
10
14 16
2
H
2
1
L
L
P
H
1
H
2
P
L
L
1
2
1
H
H
2
P
2
1
L
L
H
1
H
2
H
2
11
PILOT
LIGHT (5)
1
H
2
1
L
L
P
6
5
MOD400E & MOD427E Series
MOD500E & MOD527E Series
WIRING DIAGRAM: Infinite Control Units
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers

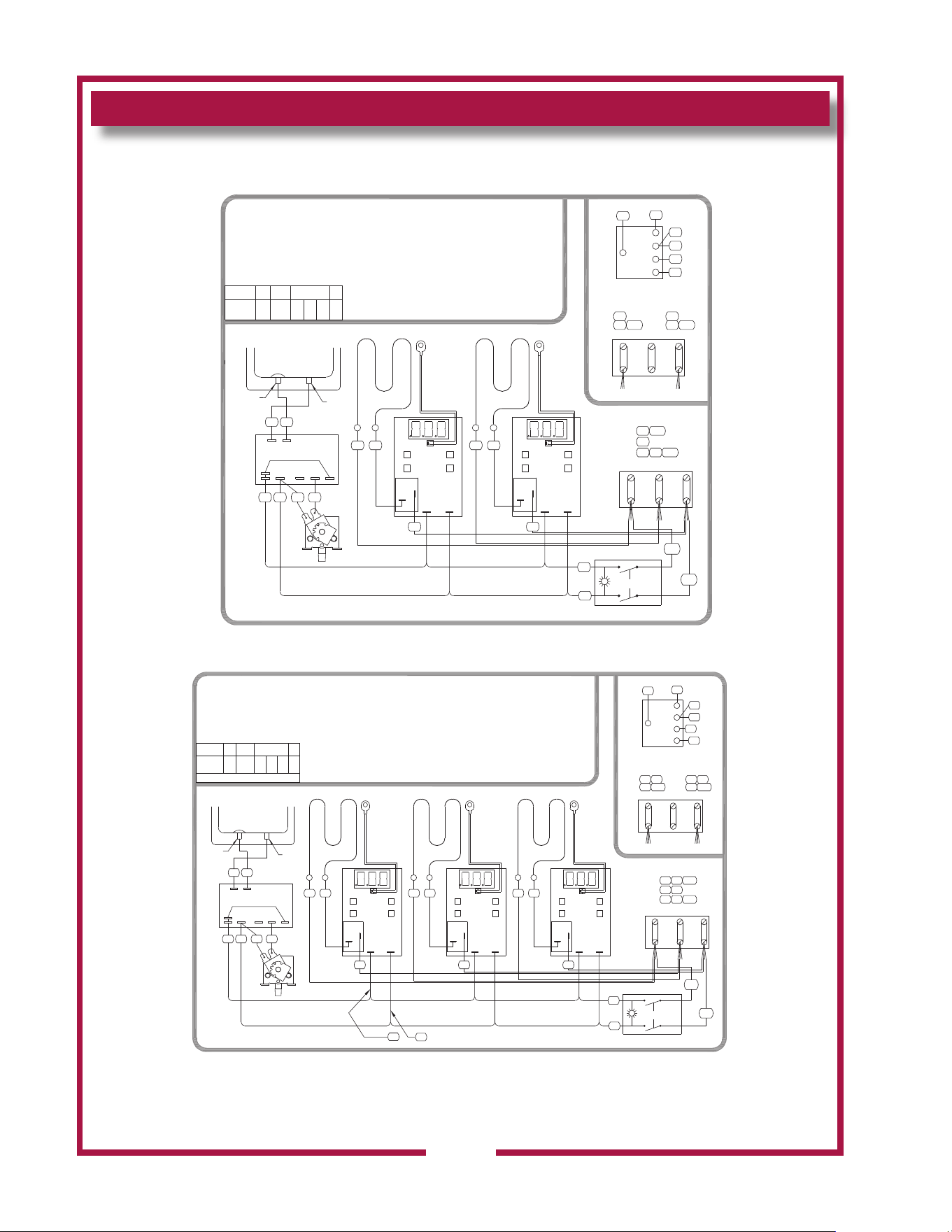

WIRING DIAGRAM: Electronically Control Units
28
13.8
V
240
208
11.9
WATTS
MODEL
MOD400E
WATER FILL
VALVE
1&
LOW WATER CONTROL
6
1
2
3
19
25
14
S1
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
4
5
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
6
L1 L2
L3
INPUT
NO
COMMON
MAX
NC
COM
34
35
36
37
38
WATER PAN
GRN
PROBE
L1=
L3=
L2=
101
102
101
3
1
4
102
6
L1 L2
L3
L1=
4
3 101
1
102
COM
PROBE
1
2
3
4
19
37
34
35
36
38
2M-Z14565 rev~
SINGLE PHASE
POWER INPUT
ALTERNATE WATER
LEVEL CONTROL
NOTES: WIRING DIAGRAM MOD200E
1) TEMPERATURE AND WATER LEVEL SENSOR WIRES
ROUTE SEPARATELY IN SMALLER CONDUIT.
2) GROUND TO EARTH USING SUPPLIED STUD IN CONTROL BOX.
3) OPTIONAL WATER LEVEL CONTROL: WIRES 19 & 35
SHOULD BE CAPPED IF NOT USED.
3300
2480
3
&
6.9
6.0
50/60 Hz
11.9
10.3
6.9
6.0
L2=
21
22
20.6
V
240
208
17.9
WATTS
MODEL
MOD300E
WATER FILL
VALVE
1&
LOW WATER CONTROL
6 9
1
2
3
19
25
14
S1
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
4
5
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
7
8
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
69
L1 L2
L3
INPUT
NO
COMMON
MAX
NC
COM
34
35
36
37
38
WATER PAN
GRN
PROBE
L1=
L3=
L2=
101
102
101
3
7
1
4
102
6 9
L1 L2
L3
L1=
4 7
3 101
1
102
COM
PROBE
1
2
3
4
19
37
34
35
36
38
2M-Z14566rev~
SINGLE PHASE
POWER INPUT
ALTERNATE WATER
LEVEL CONTROL
NOTES: WIRING DIAGRAM MOD300E
1) TEMPERATURE AND WATER LEVEL SENSOR WIRES ROUTE SEPARATELY IN SMALLER CONDUIT.
2) GROUND TO EARTH USING SUPPLIED STUD IN CONTROL BOX.
3) OPTIONAL WATER LEVEL CONTROL: WIRES 19 & 35 SHOULD BE CAPPED IF NOT USED.
4950
3720
3&
11.9
10.3
50/60 Hz
11.9
10.3
11.9
10.3
L2=
21
22
ON NON-AF MODELS
19
35
M200E & M227E Series
M300E & M327E Series
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
WIRING DIAGRAM: Electronically Control Units
29
27.5
V
240
208
23.8
WATTS
MODEL
MOD400E
WATER FILL
VALVE
1&
LOW WATER CONTROL
3 6
12
1
2
3
19
25
14
S1
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
4
5
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
7
8
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
10
11
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
6
12
9
L1 L2
L3
INPUT
NO
COMMON MAX
NC
COM
34
35
36
37
38
WATER PAN
GRN
PROBE
L1=
L3=
L2=
101
102
101
4
9 10
1
7
102
6 9
L1 L2
L3
L1=
L2=
4 7
3
12
101
1
10 102
COM
PROBE
1
2
3
4
19
37
34
35
36
38
2M-Z14567rev~
SINGLE PHASE
POWER INPUT
ALTERNATE WATER
LEVEL CONTROL
NOTES: WIRING DIAGRAM MOD400E
1) TEMPERATURE AND WATER LEVEL SENSOR WIRES ROUTE SEPARATELY IN SMALLER CONDUIT.
2) GROUND TO EARTH USING SUPPLIED STUD IN CONTROL BOX.
3) OPTIONAL WATER LEVEL CONTROL: WIRES 19 & 35 SHOULD BE CAPPED IF NOT USED.
6600
4960
3&
17.8
14.5
11.3
9.8
17.8
14.5
50/60 Hz
21
22
34.4
V
240
208
29.8
WATTS
MODEL
MOD500E
WATER FILL
VALVE
1&
LOW WATER CONTROL
6 9 15
1
2
3
19
25
14
S1
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
4
5
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
7
8
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
10
11
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
13
14
HEATING ELEMENT
TEMP CONTROL
(BACK VIEW)
SENSOR
PROBE
INPUT
RELAY
6
12
15 9
L1 L2
L3
INPUT
NO
COMMON MAX
NC
COM
34
35
36
37
38
WATER PAN
GRN
PROBE
L1=
L3=
L2=
101
102
101
3
7
10
1
4
12
102
13
6 9 15
L1 L2
L3
L1=
L2=
4 7
13
3
12
101
1
10 102
COM
PROBE
1
2
3
4
19
37
34
35
36
38
2M-Z14523rev~
SINGLE PHASE
POWER INPUT
ALTERNATE WATER
LEVEL CONTROL
NOTES: WIRING DIAGRAM MOD500E
1) TEMPERATURE AND WATER LEVEL SENSOR WIRES ROUTE
SEPARATELY IN SMALLER CONDUIT.
2) GROUND TO EARTH USING SUPPLIED STUD IN CONTROL BOX.
3) OPTIONAL WATER LEVEL CONTROL: WIRES 19 & 35 SHOULD BE
CAPPED IF NOT USED.
8250
6196
3&
16.9
14.6
16.9
14.6
22.1
19.5
50/60 Hz
21
22
M400E & M427E Series
M500E & M527E Series
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
WIRING DIAGRAM: MOD200 Thermostat Control Units
30
3300
2480
WATTS
TERM. BLOCK
THERMOSTAT (2)
PILOT LIGHT (2)
L1
L2
L3
REV. C
P/N 2M-40844
240
208
VOLTS
PHASE
SINGLE
50
60
HZ
11.9
13.8
HEATING ELEMENT (2)
WIRE CONNECTOR
3
1
2
3
4
5
6
7
WIRING DIAGRAM FOR MOD 200T, 227T WARMER
208/240V, SINGLE PHASE
7
1
4
6
HEATING ELEMENT (2)
13.8
11.9
11.9
6.9
6.9
10.3
6.0
6.0
HZ
60
50
SINGLE
PHASE
THREE PHASE
L3L2L1
VOLTS
208
240
208/240V, SINGLE & THREE PHASE
WIRING DIAGRAM FOR MOD 200T WARMER W/AUTO WATER FILL
P/N 2M-48109
REV. F
35
36
38
WATER FILL VALVE
PILOT LIGHT
TERM. BLOCK
WATER PAN
GRN
PROBE
INPUT
NO
COMMON
39
35
L3
SINGLE PHASE
4
39
6
21
L2
L1
LOW WATER CONTROL
L3
L2
L1
4
3
2
1
PROBE
COM
1
6
5
4
21
3
2
1
19
19
6
31
3
1
4
35
37
34
WIRE
CONNECTOR
THERMOSTAT
31
21
3
51
50
ALTERNATE LOW
WATER CONTROL
MAX
34
37
35
19
38
36
MALE/FEMALE
CONNECTOR
M200T-AF & M227T-AF Series
M200T & M227T Series
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
WIRING DIAGRAM: MOD300 Thermostat Control Units
31
PILOT LIGHT
TERM. BLOCK
THERMOSTAT (3)
PILOT LIGHT (3)
L1
L2
L3
REV. E
P/N 2M-48589
240
208
VOLTS
L1 L2 L3
THREE PHASE
PHASE
SINGLE
50
60
HZ
10.3
10.3
10.3
11.9
11.9
11.9
17.9
20.6
HEATING ELEMENT (3)
SINGLE PHASE
PL
L1
L2
L3
6
WIRE CONNECTOR
12
7
3
6
1
2
3
4
5
6
7
8
9
WIRING DIAGRAM FOR MOD 300T, 327T WARMER
208/240V, SINGLE & THREE PHASE
TERMINAL
BOARD
12
9
1
4
3
1
4
7
9
12
9
35
L3
4
7
3
33
6
22
L2
L1
HEATING ELEMENT (3)
20.6
17.9
11.9
11.9
11.9
10.3
10.3
10.3
HZ
60
50
SINGLE
PHASE
THREE PHASE
L3L2L1
LOW WATER CONTROL
VOLTS
208
240
208/240V, SINGLE & THREE PHASE
WIRING DIAGRAM FOR MOD300TDM AND 327TDM W/AUTO WATER FILL
4
3
2
1
PROBE
COM
1
9
8
7 6
5
4
19
3
2
1
19
37
34
35
36
38
WATER FILL VALVE
PILOT LIGHT
THERMOSTAT
31
33
31
22
51
50
SINGLE PHASE
WATER PAN
GRNPROBE
INPUT
NO
COMMON
34
37
35
19
38
36
33
P/N 2M-48110
REV. G
L3
L2
L1
1
4
35
WIRE
CONNECTOR
TERM. BLOCK
31
3
7
22
9
6
ALTERNATE LOW
WATER CONTROL
MAX
MALE/FEMALE
CONNECTOR
M300T & M327T Series
M300T-AF & M327T-AF Series
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
32
TERM. BLOCK
THERMOSTAT (4)
PILOT LIGHT (4)
L1
L2
L3
REV. F
P/N 2M-48599
HEATING ELEMENT (4)
SINGLE PHASE
L1
L2
L3
WIRE CONNECTOR
14
10
9
4
15
3
1
2
3
4
5
6
7
8
9
10
11
12
WIRING DIAGRAM FOR MOD 400T, 427T WARMER
208/240V, SINGLE & THREE PHASE
TERMINAL
BOARD
12
6
13
1
7
6
14
3
13
1
4
7
10
15
9
12
13 14
15
240
208
VOLTS
L1 L2 L3
THREE PHASE
PHASE
SINGLE
50
60
HZ
14.5
14.5
9.8
17.8
17.8
11.3
23.8
27.5
WATER FILL SOLENOID
LOW WATER CONTROL
TERM. BLOCK
THERMOSTAT (4)
L1
L2
L3
REV. C
P/N 2M-303564
240
208
VOLTS
L1 L2 L3
THREE PHASE
PHASE
SINGLE
50
60
HZ
14.5
14.5
9.8
17.8
17.8
11.3
23.8
27.5
HEATING ELEMENT (4)
SINGLE PHASE
L1
L2
L3
1
15
35
7
4
15
16
38
36
35
34
37
19
COM
PROBE
1
2
3
4
16
10
9
14
12
1
2
3
4
5
6
7
8
9
10
11
12
WIRING DIAGRAM FOR MOD-400TDM, 427TDM W/AUTO WATER FILL (SINGLE CONTROL PANEL)
208/240V, SINGLE & THREE PHASE
6
13
3
13
14
6
3
1
4
35
7
10
9
12
16
15
13
14
19
32
33
WATER PAN
GRNPROBE
MAX
COMMON
NO
INPUT
36
38
19
35
37
ALTERNATE LOW
WATER CONTROL
38
36
MALE/FEMALE
CONNECTOR
PILOT LIGHT
WIRE
CONNECTOR
34
M400T-AF & M427T-AF Series (Single Control Panel)
M400T & M427T Series
WIRING DIAGRAM: MOD400 Thermostat Control Units
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers

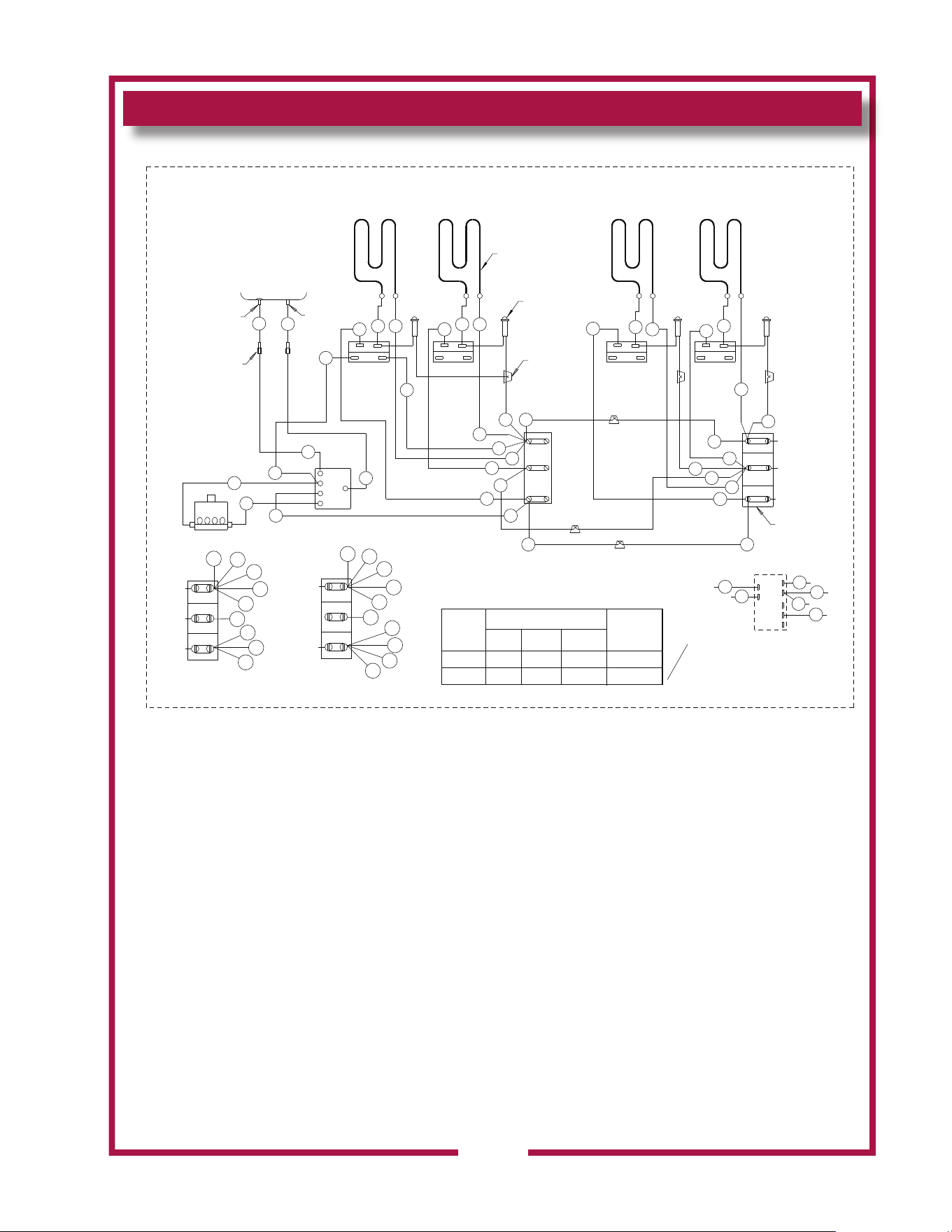

33
30
35
4
7
29
6
9
33
28
L2
L3
L1
30
10
13
29
12
32
28
15
27
L3
L2
L1
SINGLE
PHASE
THREE PHASE
VOLTS
208/240V, SINGLE & THREE PHASE
WIRING DIAGRAM FOR MOD400TDM & 427TDM WARMER W/AUTO WATER FILL
48111 (J)
22
THERMOSTAT
51
50
GRN
PROBE
WATER PAN
MALE/FEMALE
CONNECTOR
TERM. BLOCK
SINGLE PHASE
SINGLE PHASE
HEATING ELEMENT (4)
27.5
23.8
11.3
17.8
17.8
9.8
14.5
14.5
HZ
60
50
L3L2L1
LOW WATER CONTROL
208
240
4
3
2
1
PROBE
COM
WATER FILL VALVE
PILOT LIGHT
THERMOSTAT
ALTERNATE LOW
WATER CONTROL
INPUT
NO
COMMON
MAX
34
37
35
19
38
36
35
36
38
19
37
34
19
22
4
5 6
7
8 9
4
22
9
6
33
7
29
28
35
30
28
30
10
12
29
13
32
15
27
14
13
12
11
10
WIRE
CONNECTOR
L1
L2
L3L3
L2
L1
M400T-AF & M427T-AT Series (Dual Control Panel)
WIRING DIAGRAM: MOD400 Thermostat Control Units
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers

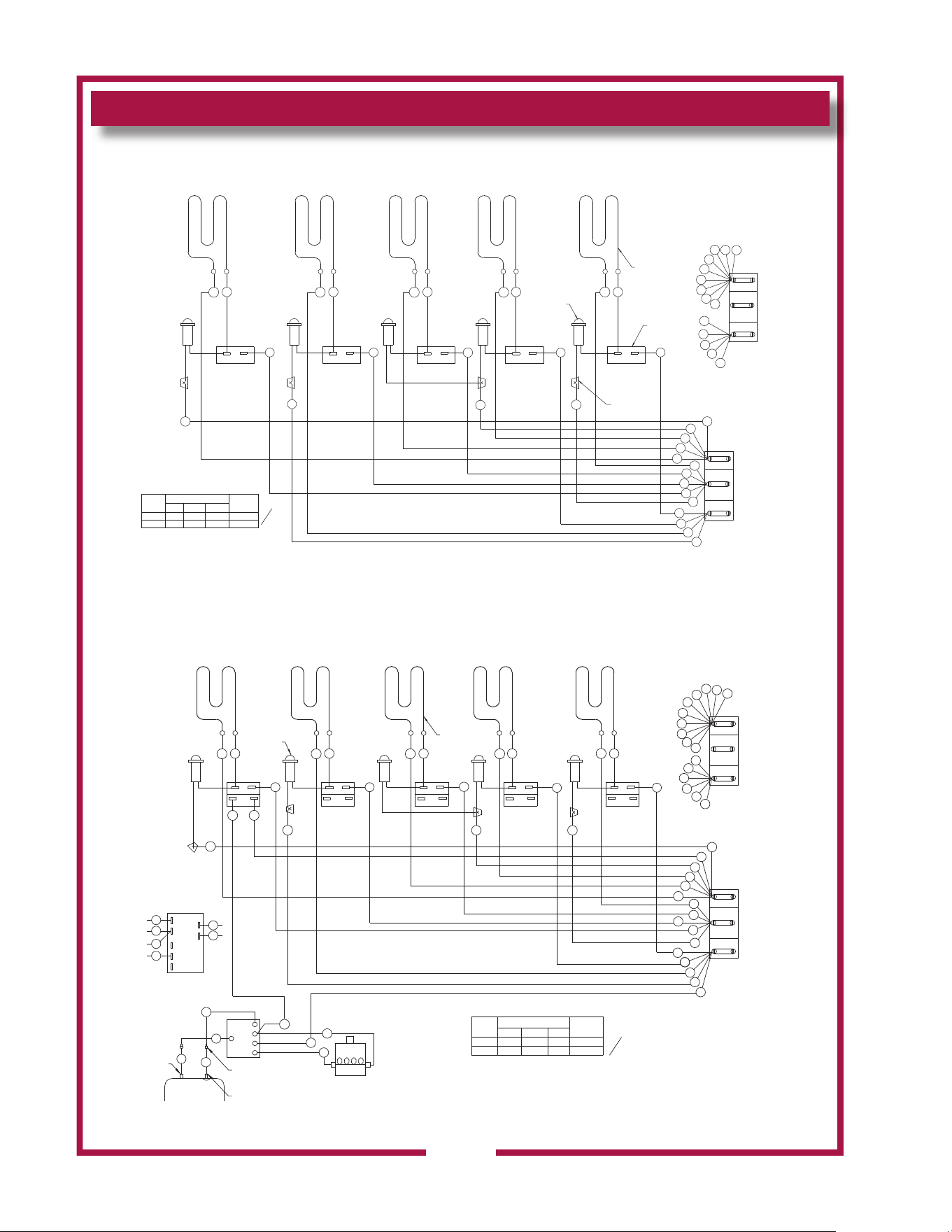

34
TERM. BLOCK
THERMOSTAT (5)
PILOT LIGHT (5)
L1
L2
L3
REV. D
P/N 2M-48604
HEATING ELEMENT (5)
SINGLE PHASE
L1
L2
L3
WIRE CONNECTOR
20
10
20
7
13
3
16
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
WIRING DIAGRAM FOR MOD 500T, 527T WARMER
208/240V, SINGLE & THREE PHASE
240
208
VOLTS
L1 L2 L3
THREE PHASE
PHASE
SINGLE
50
60
HZ
14.6
14.6
19.5
16.9
16.9
22.1
29.8
34.4
TERMINAL
BOARD
18
18
9
15
1
4
12
17
16
20
6
18
3
16
1
4
13
7
10
15
17
9
12
17
34
37
35
19
38
36
INPUT
NO
COMMON
WIRE
CONNECTOR
15
18
35
17
20
3
10
7
13
4
1
9
6
16
L3
L2
L1
12
9
15
6
SINGLE PHASE
34.4
29.8
16.916.922.1
14.614.619.5
HZ
60
50
SINGLE
PHASE
THREE PHASE
L3L2L1
VOLTS
208
240
WIRING DIAGRAM FOR MOD-500TDM, 527TDM W/AUTO WATER FILL (SINGLE CONTROL PANEL)
L3
L2
L1
12
11
10
9
8
7
6
5
4
3
2
1
18
13
PILOT LIGHT
THERMOSTAT
TERM. BLOCK
7
10
18
16
LOW WATER CONTROL
WATER PAN
PROBE
19
51
35
36
38
WATER FILL SOLENOID
GRN
15
14
13
19
16
3
20
1
4
12
17
35
21
21
21
37
ALTERNATE LOW
WATER CONTROL
MAX
HEATING
ELEMENT
208/240V, SINGLE & THREE PHASE
P/N 2M-303567
REV. B
4
3
2
1
PROBE
COM
50
17
20
34
MALE/FEMALE
CONNECTORS
M500T-AF & M527T-AF Series (Single Control Panel)
M500T & M527T Series
WIRING DIAGRAM: MOD500 Thermostat Control Units
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers

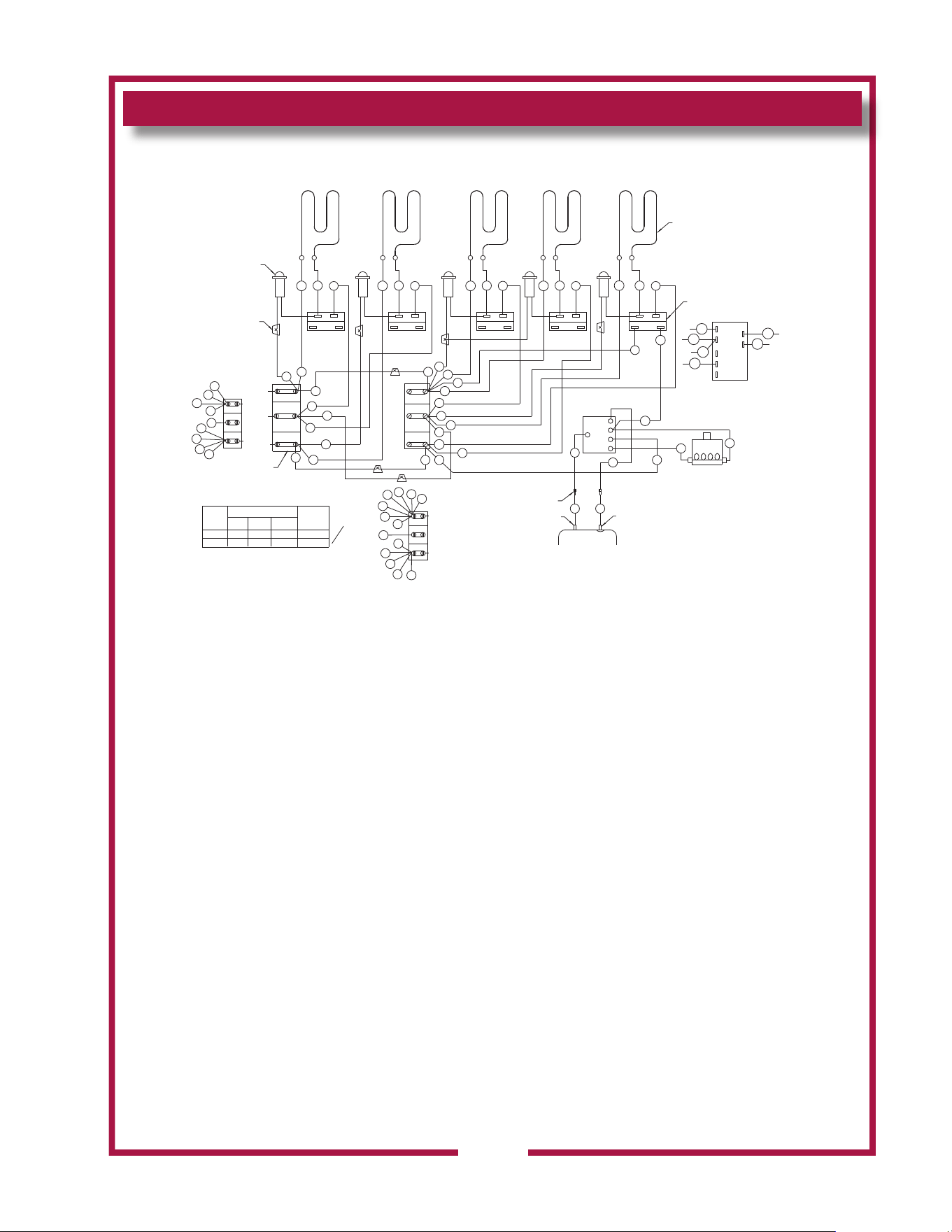

35
MALE/FEMALE
CONNECTOR
51 50
20
SINGLE PHASE
15
13
L3
10
30
32
12
27
28
L2
L1
29
9
9
33
35
L3
SINGLE PHASE
4
30
7
31
3
33
6
28
L2
L1
HEATING ELEMENT (5)
34.4
29.8
16.9
16.9
22.1
14.6
14.6
19.5
HZ
60
50
SINGLE
PHASE
THREE PHASE
L3L2L1
LOW WATER CONTROL
VOLTS
208
240
208/240V, SINGLE & THREE PHASE
WIRING DIAGRAM FOR MOD 500TDM AND 527TDM WARMER W/AUTO WATER FILL
WATER PAN
PROBE
L3
L2
L1
4
3
2
1
PROBE
COM
1
L3
L2
L1
15
14
13
12 11 10 9 8 7 6 5 4 3 2 1
19
19
28
6
7
31
3
29
1
4
35
30
27
15
12
32
28
13
29
10
30
37
34
35
36
38
WATER FILL VALVE
PILOT LIGHT
THERMOSTAT
TERM. BLOCK
29
GRN
20
20
WIRE CONNECTOR
ALTERNATE LOW
WATER CONTROL
INPUT
NO
COMMON
MAX
34
37
35
19
38
36
2M-48112 (H)
M500T-AF & M527T-AT Series (Dual Control Panel)
WIRING DIAGRAM: MOD500 Thermostat Control Units
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
PARTS & SERVICE
DESCRIPTION PART NO.
ADAPTERS & INSETS
ADAPTER TOP, convert 12” x 20” warmer to
hold two 7 qt. insets WS-21502
ADAPTER TOP, convert 12” x 20” warmer to
hold two 4 qt. and two 2½ qt DD-21503
ADAPTER TOP, convert 12” x 20” warmer to
hold three 4 qt. insets DD-21616
ADAPTER TOP, convert 12” x 20” warmer to
hold one 7qt. and one 4 qt. DD-21618
ADAPTER TOP, convert 12” x 20” warmer to
hold four 2½ qt. insets WS-21623
ADAPTER TOP, convert 12” x 27” SMPT-27
to hold three 7 qt. insets DD-21503
4 QT. ROUND INSET w/ lid WS-20774
7 QT. ROUND INSET w/ lid WS-20587
11 QT. ROUND INSET w/ lid WS-20908
11 QT. ROUND INSET w/ hinged lid WS-21057
Always use an inset.
DO NOT place food directly
into the warmer pan.
36
M011C.02 2M-Z16298 Owners Manual for Built-In Well Modular Warmers
CUSTOMER SERVICE DATA
please have this information available if calling for service
RESTAURANT _____________________________ LOCATION _____________
INSTALLATION DATE ________________________ TECHNICIAN ___________
SERVICE COMPANY ________________________________________________
ADDRESS ___________________________ STATE ______ ZIP__________
TELEPHONE NUMBER (_____)_____-_________
EQUIPMENT MODEL NO. _______________
EQUIPMENT SERIAL NO. _______________
VOLTAGE: (check one) 120 208 240
DESCRIPTION PART NO.
ACCESSORIES
WELLSLOK EXTENSION KIT, for UL
LISTED
circular warmers only, adapt to wood counter
up to 1¾” thick WS-22592*
WELLSLOK EXTENSION KIT, for UL LISTED
12” x 20” warmers only, adapt to wood counter
up to 1¾” thick WS-22593*
*Wellslok Extension Kits for UL Listed units approved for
installation in wood counter tops
One well units require one kit / Two and three well units require
two kits / four and five well units require three kits
DRAIN VALVE EXTENSION KIT, extension from
drain to counter front with remote handle, for use
with “D” models only, excluding “DM” models WS-20385
DRAIN SCREEN P2-31869
OPTIONAL 72” WIRING, thermostatically controlled warmers **
** contact factory customer service for availability
DESCRIPTION
PART NO.
PARTS & SERVICE
IMPORTANT: Use only factory
authorized service parts and
replacement filters.
For factory authorized service,
or to order factory authorized
replacement parts, contact
your Wells authorized service
agency, or call:
Wells Bloomfield, LLC
10 Sunnen Dr.
St. Louis MO 63143 USA
Service Dept.
phone: (314) 678-6314
fax: (314) 781-2714
Service Parts Department
can supply you with the name
and telephone number of
the WELLS AUTHORIZED
SERVICE AGENCY nearest
you.
37
WELLS BLOOMFIELD, LLC
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
fax: 314-781-2714
www.wellsbloomfield.com
