EN
www.gorenje.comwww.gorenje.com
DETAILED
INSTRUCTIONS FOR USE
OF UPRIGHT
REFRIGERATOR AND
FREEZER
2
We thank you for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh food and for long-term storage of
frozen food (up to one year, depending on the type of food).
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
http://www.gorenje.com
Important safety warning
!
3
CONTENTS
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 SAFETY AND WARNING INFORMATION
11 INSTALLING YOUR NEW APPLIANCE
14 APPLIANCE DESCRIPTION
15 OPERATING THE APPLIANCE
20 USING YOUR APPLIANCE
29 HELPFUL HINTS AND TIPS
30 CLEANING AND CARE
32 TROUBLESHOOTING
35 DISPOSAL OF THE APPLIANCE
MISCELLANEOUS
4
IMPORTANT NOTES AND
PRECAUTIONS
For your safety and correct usage, before installing and
first using the appliance, read this user manual carefully,
including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to make sure that all
people using the appliance are thoroughly familiar with its
operation and safety features. Save these instructions and
be sure that they remain with the appliance if it is moved
or sold, so that anyone using it throughout its life, will be
properly informed on its usage and safety notices.
For the safety of life and property, keep the precautions of
these user's instructions as the manufacturer is not
responsible for damages caused by omission.
Safety for children and others who are vulnerable people
According to EN standard
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
SAFETY AND WARNING
INFORMATION
!
5
According to IEC standard
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Keep all packaging away from children as there is risk of
suffocation.
• If you are discarding the appliance, pull the plug out of
the socket, cut the connection cable (as close to the
appliance as you can) and remove the door to prevent
children playing from suffering an electric shock or from
closing themselves inside it. I
• f this appliance, featuring a magnetic door seals, is to
replace an older appliance having a spring lock (latch) on
the door or lid, be sure to make the spring lock unusable
before you discard the old appliance. This will prevent it
from becoming a death trap for a child.
General safety
• WARNING —This appliance is intended to be used in
household and similar applications such as
-staff kitchen areas in shops, offices and other working
environments;
-farm houses and by clients in hotels, motels and other
residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
!
6
• WARNING — Do not store explosive substances such
as aerosol cans with a flammable propellant in this
appliance.
• WARNING — If the supply cord is damaged, it must
be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• WARNING — Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
• WARNING — Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• WARNING — Do not damage the refrigerant circuit.
• WARNING — Do not use electrical appliances inside the
food storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
• WARNING — The refrigerant and insulation blowing
gas are flammable. When disposing of the appliance,
do so only at an authorized waste disposal centre. Do
not expose to flame. WARNING —When positioning
the appliance, ensure the supply cord is not trapped or
damaged.
• WARNING —Do not locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
Replacing the LED
• WARNING—The LED light must not be replaced by the
user! If the LED light is damaged, contact the customer
helpline for assistance.
Refrigerant
The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless
7
flammable. During transportation and installation of the
appliance, ensure that none of the components of the
refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
• WARNING — Refrigerators contain refrigerant andgases
in the insulation. Refrigerant and gases must be disposed
of professionally as they may cause eye injuries or
ignition. Ensure that tubing of the refrigerant circuit is
not damage prior to proper disposal.
Caution:risk of fire
If the refrigerant circuit should be damaged:
• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is
situated.
It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a short circuit, fire, and/
or electric shock.
!
Electrical safety
• The power cord must not be lengthened.
• Make sure that the power plug is not crushed or
damaged. A crushed or damaged power plug may
overheat and cause a fire.
• Make sure that you can access the main plug of the
appliance.
• Do not pull the main cable.
• If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.
8
• You must not operate the appliance without the interior
lighting lamp cover.
• The fridge is only applied with power supply of single
phase alternating current of 220~240V/50Hz. If
fluctuation of voltage in the district of user is so large
that the voltage exceeds the above scope, for safety
sake, be sure to apply A.C. Automatic voltage regulator
of more than 350W to the fridge. The fridge must
employ a special power socket instead of common one
with other electric appliances. Its plug must match the
socket with ground wire.
Daily use
• Do not store flammable gass or liquids in the appliance,
There is a risk of an explosion.
• Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
• When unplugging always pull the plug from the mains
socket,do not pull on the cable.
• Do not place hot items near the plastic components of
this appliance.
• Do not place food products directly against the air outlet
on the rear wall.
• Store pre-packed frozen food in accordance with the
frozen food manufacture’s instructions.
• The appliances manufactures storage recommendations
should be strictly adhered to.Refer to relrelevant
instructions for storage.
• Do not place carbonated or fizzy drinks in the
freeze compartment as it creates pressure on the
container,which may cause it to explode,resulting in
damage to the appliance.
• Frozen food can cause frost burns if consumed straight
from the freezer compartment.
• Do not place the appliance in direct sunlight.
9
• Keep buring candles,lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
• The appliance is intended for keeping food stuff and/
or beverages in normal household as explained in this
instruction booklet The appliance is heavy.Care should
be taken when moving it.
• Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could
cause skin abrasions or frost/freezer burns.
• Never use the base,drawers, doors etc. to stand on or as
supports.
• Frozen food must not be refrozen once it has been
thawed out.
• Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
• To avoid items falling and causing injury or damage to
the appliance, do not overload the door racks or put too
much food in the crisper drawers.
• WARNING - Food needs to be packed into bags before
it is put into the refrigerator. Liquids need to be stored in
bottles or capped containers in order to avoid a spill, as
the design structure of the product is not easy to clean.
caution!
Care and cleaning
• Before maintenance, switch off the appliance and
disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive
cleansers.
• Do not use sharp objects to remove frost from the
appliance. Use a plastic scraper.
10
Installation Important!
• For electrical connection carefully, follow the instructions
given in this manual.
• Unpack the appliance and check if there are damages on
it. Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought
it. In this case retain packing.
• It is advisable to wait at least four hours before
connecting the appliance to allow the oil to flow back in
the compressor.
• Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be
too close to a wall to avoid touching or catching warm
parts (compressor, condenser) to prevent the risk of a
fire, follow the instructions relevant to installation.
• The appliance must not be locate close to radiators or
cookers.
• Make sure that the mains plug is accessible after the
installation of the appliance
Service
• Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
• This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1) If the appliance is Frost Free.
2) If the appliance contains freezer compartment.
11
INSTALLING YOUR NEW
APPLIANCE
• Before using the appliance for the first time, you should review the following tips.
Ventilation of appliance
In order to improve eciency of the cooling system and save energy, it is
necessary to maintain good ventilation around the appliance for the dissipation
of heat. For this reason, sucient clear space should be available around the
refrigerator.
Suggest: It is advisable for there to be 75mm of space from the back to the wall,
at least 100mm from its top, at least 100mm from its side to the wall and a clear
space upfront to allow the freezer door to open 130°and refrigerator door to
open 135°. See in follow diagrams. Please refer to the diagrams below.
Space required (mm)
W W1 W2 D D1
908 372 252 600 1142.5
Note:
• This appliance performs well in the climate class from SN to T. It may not work
properly if being left at a temperature above or below the indicated range for
a long period.
W
e
e
D
ı
W
D
ı
ı
W2
12
Class Temperature
SN (subnormal) from +10 °C to +32 °C
N (normal) from +16 °C to +32 °C
ST (subtropical) from +16 °C to +38 °C
T (tropical) from +16 °C to +43 °C
• Stand you appliance in a dry place to avoid damage moisure.
• Keep the appliance out of direct sunlight, rain or frost. Stand the appliance
away from heat sources such as stoves, fires or heaters.
Leveling of appliance
• For sucient leveling and air circulating in the lower rear section of the
appliance, the bottom feet may need to be adjusted, You can adjust them by
your fingers or a suitable spanner.
• To allow the doors to self-close, tilt back the top backwards for abaut 15 mm
or 0.5° by turning the adjustable feet.
• Whenever you want to move the appliance, remember to turn the feet back up
so that the appliance can roll freely. Reinstall the appliance when relocating.
15mm
13
Warning!
For proper installation, this refrigerator must be placed on a level surface of
hard material that is the same height as the rest of the flooring. This surface
should be strong enough to support a fully loaded refrigerator. The rollers,
which are not castors, should be only used for forward or backward movement.
Moving the refrigerator sideways may damage your floor and the rollers.
14
APPLIANCE DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
15
1. Freezer zone LED light
2. Ice-Maker Front Cover Assembly
3. Ice Bucket Assembly
4. Wind channel cover in freezer
5. Freezer shelf
6. Freezer door Rack
7. Freezer upper drawer
8. Freezer lower drawer
9. Left adjustable bottom feet
10. Fridge zone LED light
11. Fridge door Rack
12. Wind channel cover in fridge
13. Fresh shelf
14. Bottle Rack
15. Water storage box part
16. Fresh upper drawer
17. Fresh lower drawer
18. Right adjustable bottom feet
Note: Due to unceasing modification of our products, your refrigerator may
be slightly dierent from this Instruction Manual, but its functions and using
methods remain the same.
15
OPERATING THE APPLIANCE
Use your appliance according to the following control guidelines, your product
has a control panel as shown in the diagram below.
When the appliance is powered on for the first time, the backlighting of the
icons on the display panel starts working. If no buttons have been touched and
the doors are closed, the backlighting will turn o after 60 seconds. Caution!
When you set a temperature, you set an average temperature for the whole
refrigerator cabinet. Temperatures inside each compartment may vary from the
temperatures displayed on the panel, depending on how much food you store
and where you place it. High or low room temperature may also aect the actual
temperature inside the appliance. The control panel consists of two areas about
temperature, and one area about dierent modes.
Caution! When you set a temperature, you set an average temperature for the
whole refrigerator cabinet. Temperatures inside each compartment may vary
from the temperatures displayed on the panel, depending on how much food
you store and where you place it. High or low room temperature may also aect
the actual temperature inside the appliance.
16
“Child Lock and Door Alarm”
This button serves two purposes:
1.Child Lock
Press and hold “Alarm” for 3 seconds to lock the all the Control Panel including
dispenser function. If Control panel is locked, the icon “ ” will be illuminated,
and none of the buttons on the Control panel work. To unlock the Control panel,
please press and hold “Alarm” for 3 seconds again.
2.Door Alarm
In case of alarm, “ ” icon will be on and a buzzing sound will be heard. Touch
“Alarm” key to clear alarm then the “ ” icon will turn o and the buzzing will
stop.
When the door of fridge or freezer is open over 2 minutes, the door alarm will
come on. In case of alarm, “ ” icon will be on and will be buzzing sound. The
buzzer will sound 3 times per minute and will stop after 10 minutes. Also it can
be stoped by closing the door.
When Child Lock is o, and the doors are open, you can turn alarm o by
touching “Alarm” .
To save energy, please avoid keeping doors open for along time when using
refrigerator.
“Ice Control”
This button controls the ice maker. You can touch “Ice Off” button to control the
ice maker. When the Child Lock is off, and the ice function is on, you can touch
the “Ice Off” icon to close the ice maker, and the icon “ ” will be illuminated. If
you want to open the ice maker, please touch the “Ice Off” icon again, and the
icon “ ” will be off.
Note: When the close the ice maker not the dispenser. “Ice Off” is on, it only.
17
“Holiday”
If you are going to be away for a long period of time such as a long holiday or
business trip, you can activate this function by touching the “Holiday” button,
and the icon “ ” will be illuminated. When the holiday function is activated,
the temperature of the fridge is automatically switched to 15°C and the freezer
to -18°C to minimize the energy consumption. The fridge temperature seting
displays “—” and the freezer compartment remains on. When the holiday
function is on, you can switch off it by touching “Holiday” again, and the
icon “ ” will be off. When the holiday function is on, the ice maker will
automatically turn off. The refrigerator will retain the setting when powered off.
Child Lock 3"
Note: Do not store any food in the fridge during the “Holiday” time, or it will
quickly deteriorate.
“Fridge temperature control”
You can touch the “Fridge” icon to activate the mode to control the fridge
temperature. When you touch the button continuously, the temperature will be
set in the following sequence.
If you want to decrease the time needed to cool products in the Fridge,
please touch and hold this button for 3 seconds, the super cool icon “
” will be illuminated, the fridge temperature setting displays 2°C. Super cool
automatically switches off after 3 hours, and the refrigerator temperature
setting will revert back to the previous setting. When super cool function is
on, you can touch the “Fridge” to switch it off and it will revert to previous
temperature setting. The fridge will not retain the Super Cool function when
power off.
Note: On the Super Cool function, when you touch the “Holiday” or “Eco”
button, “Holiday” or “Eco” function will be activated, and “Super Cool” mode will
be off.
18
“Freezer temperature control”
You can touch the “Freezer” button to activate the mode to control the freezer
temperature. When you press the button continuously, the temperature will be
set in the following sequence.
Press and hold the “Freezer” button for 3 seconds, the icon “ ”will be
illuminated, the freezer temperature setting displays -24°C. Super Freezer can
quickly lower the temperature and freeze your food faster than usual. This
can retain more of the vitamins and nutrition in fresh food and keep your food
longer.
The super freeze option allows you to freeze the maximum amount of possible.
We recommend that you let the appliance operates for 6 hours first. Super
freeze automatically switches off after 26 hours, and the freezer temperature
setting will revert back to the previous setting. When the super freeze function
is on, you can touch “Freezer” for to switch off the Super Freeze function, and it
will revert to previous temperature setting. And it will not retain the Super
Freeze function when power off.
Note: On the function, Super Freezer when you touch the “Holiday” or “Eco”
button, “Holiday” or “Eco” function will be activated, and “Super Freezer” mode
will be off.

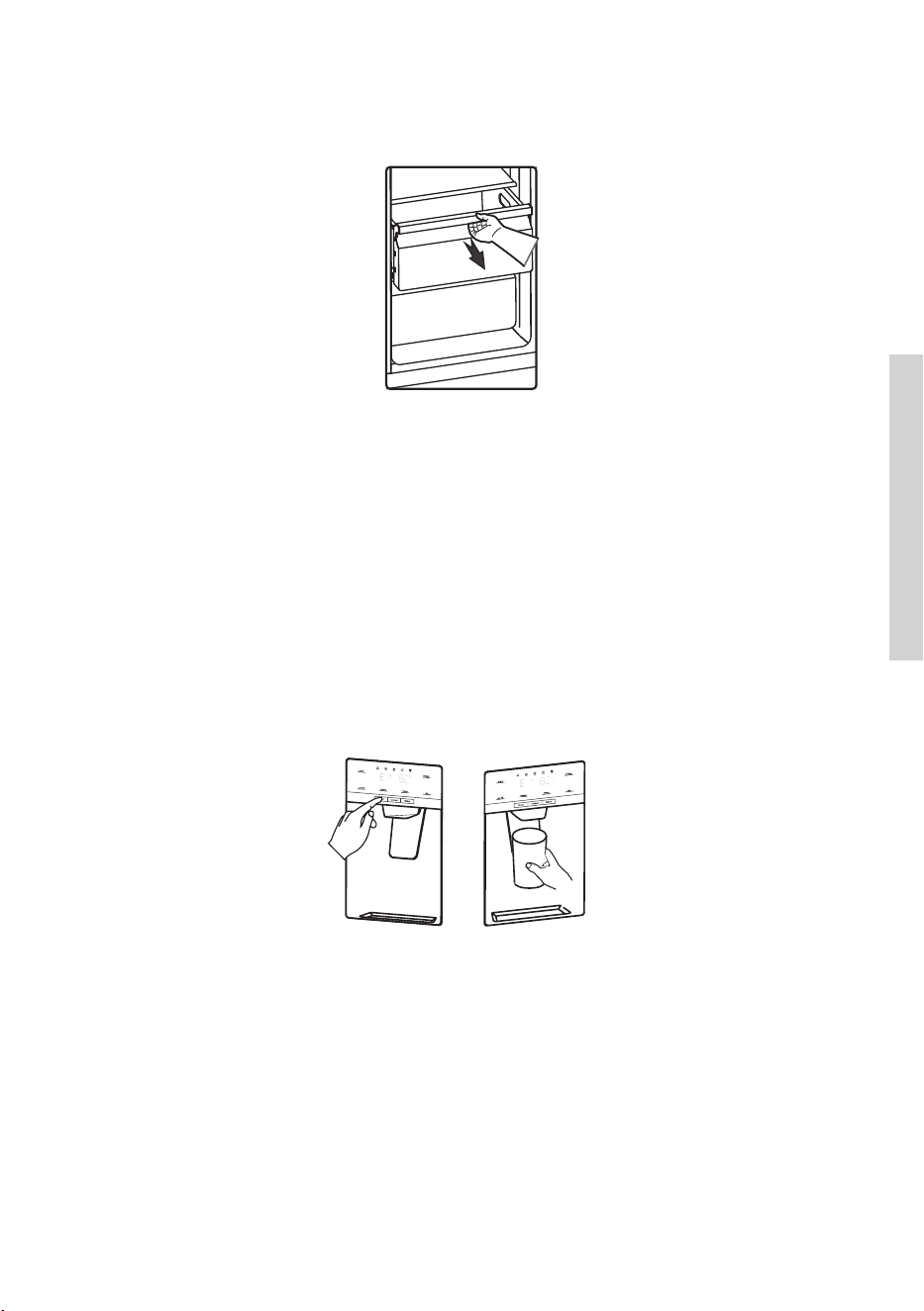

“Dispenser control”
When the freezer door is opened or the Child Lock is on, the dispenser will not
work. The Ice Type button includes “Cubed” and “Crushed” options.
You can the "Cubed" or "Crushed" option to choose the type of Ice to be
dispensed. You can touch the "Water" button to activate the water mode.
When you touch the Ice Type button, the cubed or crushed ice mode which you
choose will be activated, and the Cubed “ ” or Crushed “ ” ice icon lights up.
If you don’t need ice, turn the function off to save on water and energy
consumption (See Ice Off above.). If you need water, please touch the “Water”
button, and the water icon “ ” will light up. The mode is then set.
19
“Water storage box Alarm”
If the water storage box part is not correctly installed or not installed, the water
storage box alarm will come on for reminding users. You can clear the alarm by
holding "Eco" button for 3 seconds.
“Energy Save”
You can touch this button to turn Energy Saver mode on and off . When you
turn Energy Saver on, the Energy Saver icon “ ” lights. If Energy Saver is off
and the icon goes off. The temperature of the fridge is automatically switched
to 6°C and the freezer to -17°C.
Note!
• The control panel will light up when the door is open or you touch any button.
• The light will go o without touching any button or the doors have been
closed for one minutes.
• When the refrigerator is powered on, all the icons of the control panel will
light up for 3 seconds, and a buzzer sounds. The Child Lock is o. And the
temperature setting reverts back to the previous setting.
20
USING YOUR APPLIANCE
This section tells you how to use most of the useful features. We recommend
that you read through them carefully besfore using the appliance.
1. Adjust the door
When you find the doors are not at the same level, you can use the screwdriver
to adjust the door. Only the fridge door can be adjusted. When the freezer door
is higher than the fridge door. First, you can use the spanner to turn the bolt
anticlockwise on the lower hinge that can raise the fridge door. Once in position
use the spanner to lock the nut. When the freezer door is lower than the fridge
door. You should use the spanner to turn the bolt clockwise to make the fridge
door go down. Once in position lock in place.
2. Using your refrigerator compartment
The refrigerator compartment is suitable for storage of vegetables and fruit.
Food inside shall be pasked to store in order to avoid losing muisture or flavor
permeating into the foods.
Caution! Never close the refrigerator door while the shelves, crisper and/or
telescopic slides are extended. It may damage both them and the refrigerator.
21

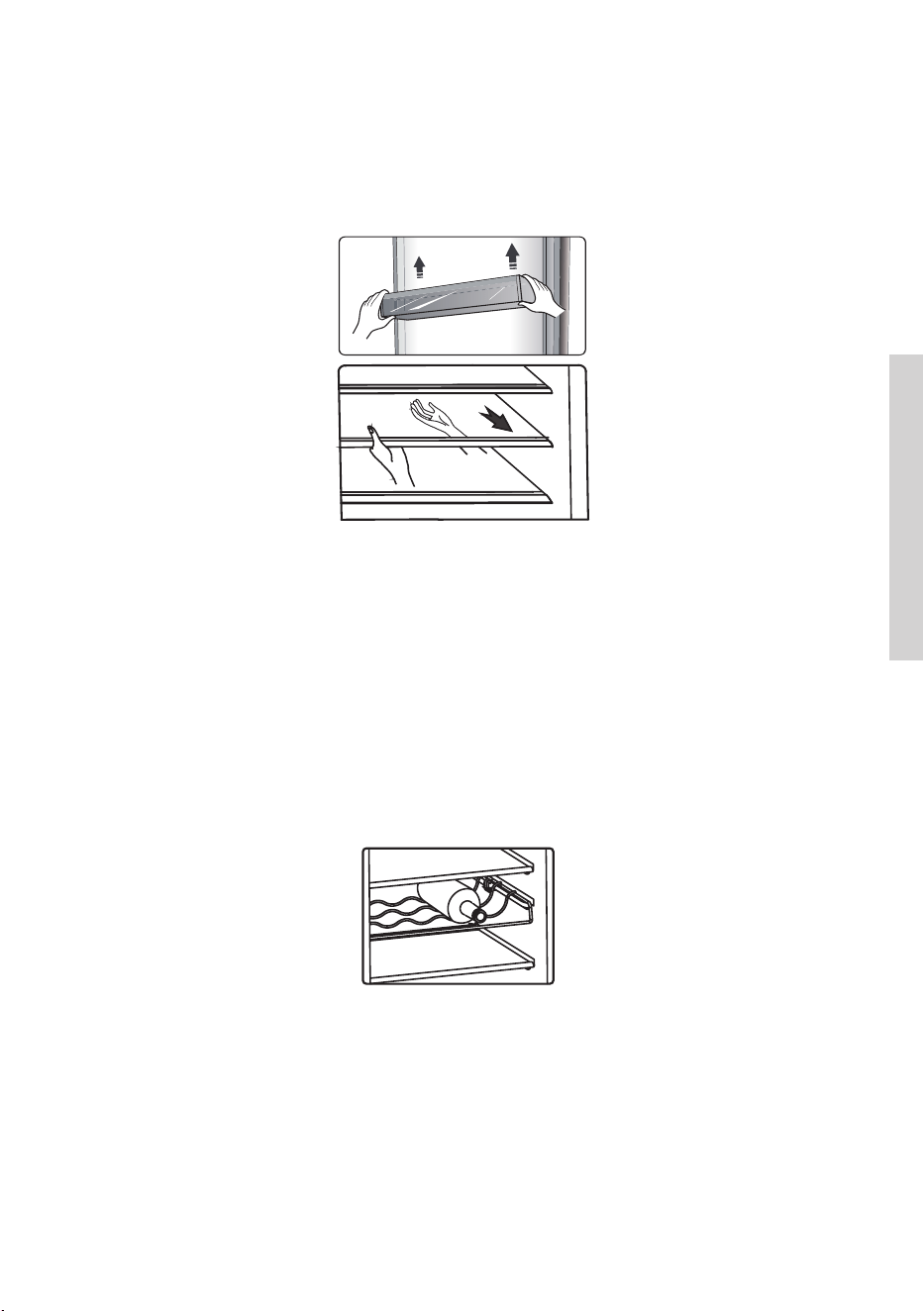

Glass shelves and Door racks
The refrigerator compartment is provided with 4 glass shelves and several
dierent door racks, which are suitable for the storage of eggs, canned liguid,
bottled drinks and packed food... They can be placed at dierent heights
according to your need. Befor you lift up the door shelf vertically, please take the
food out.
Note: All the door racks and shelves can be taken out to be cleaned.
• When you remove the shelves, gently pull them forward until the shelf comes
clear of the shelf guides
• When you return the shelves, make sure there is no obstacie behind and gently
push the shelf back into the position.
Note: All the door racks are completely removable for cleaning.
Bottle rack
It is for storing bottled wine or drinks. Note: Please use gently when you
removed the bottled wine or drinks. The shelf can be taken out to be cleared or
you can adjust to save the shelf space.
22

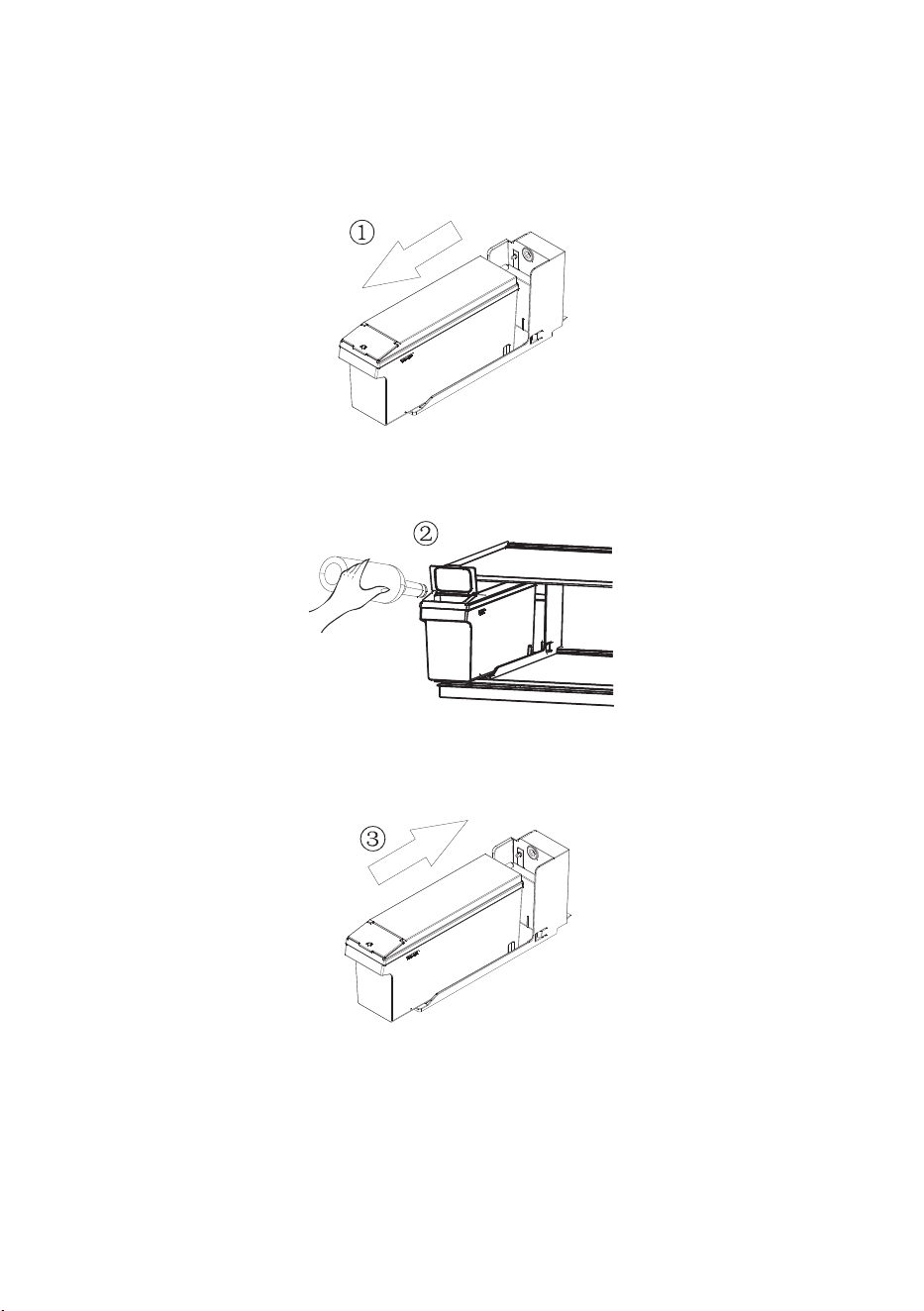

Water storage box
It is for providing water for ice maker and water dispenser. You can inpouring
water into the water storage box by following steps:
1. Pull out the water storage box
2. Lift the front small cover,and then inpouring directly
3. Refiting the water storage box on the fridge shelf
Warning: fill with potable water only.
23
Drawers
These are suitable for storage of fruits and vegetable. And it can be taken out to
be cleaned.
3. Using your freezer compartment
The freezer compartment is suitable for storage of foods required to be frozen,
such as meat, fish, ice cream and other perishable items.
Caution! Ensure that bottles are not left in the freezer for longer than needed as
freezing may cause the bootles to break.
Bottled or canned liquid are at risk of exploding caused by volume expansion
and so should not be stored in the freezer compartment.
4. Using the dispenser
You can choose the type of ice or water by touching the “Cubed” or “Crushed”
or “Water” button. When you choose ice type, push the dispenser gently with
your cup. Ice will be released from the dispenser. Make sure the cup is in line
with the dispenser, and the ice exactly fall into the cup.
Supe
r
Freeze
3
"
Super Co
ol
3
"
Fi
lte
r
R
eset
3
"
Ch
ild Lo
ck
3
"
Sup
er
F
r
eeze
3
"
S
upe
r
Coo
l
3
"
Filt
er Res
et
3
"
Child Loc
k 3
"
Note:
• If you select Cubed Ice after using the Crushed Ice feature, a small amount of
residual crushed ice might fall into your cup.
• Do not immediately removing your cup or glass from under the dispenser after
dispensing water or ice you need. You should be wait for 2 or 3 seconds to
prevent spills.
• Do not pull the lever out as this could damage or break the lever’s spring.
• Do not dispense ice continually more than one minute during normal use to
avoid the excessive temperature on the ice crusher motor.
• The dispensed water is cool, not icy cold. When you want colder water with
ice, dispense ice to your glass first, then fill with water from the dispenser.
24

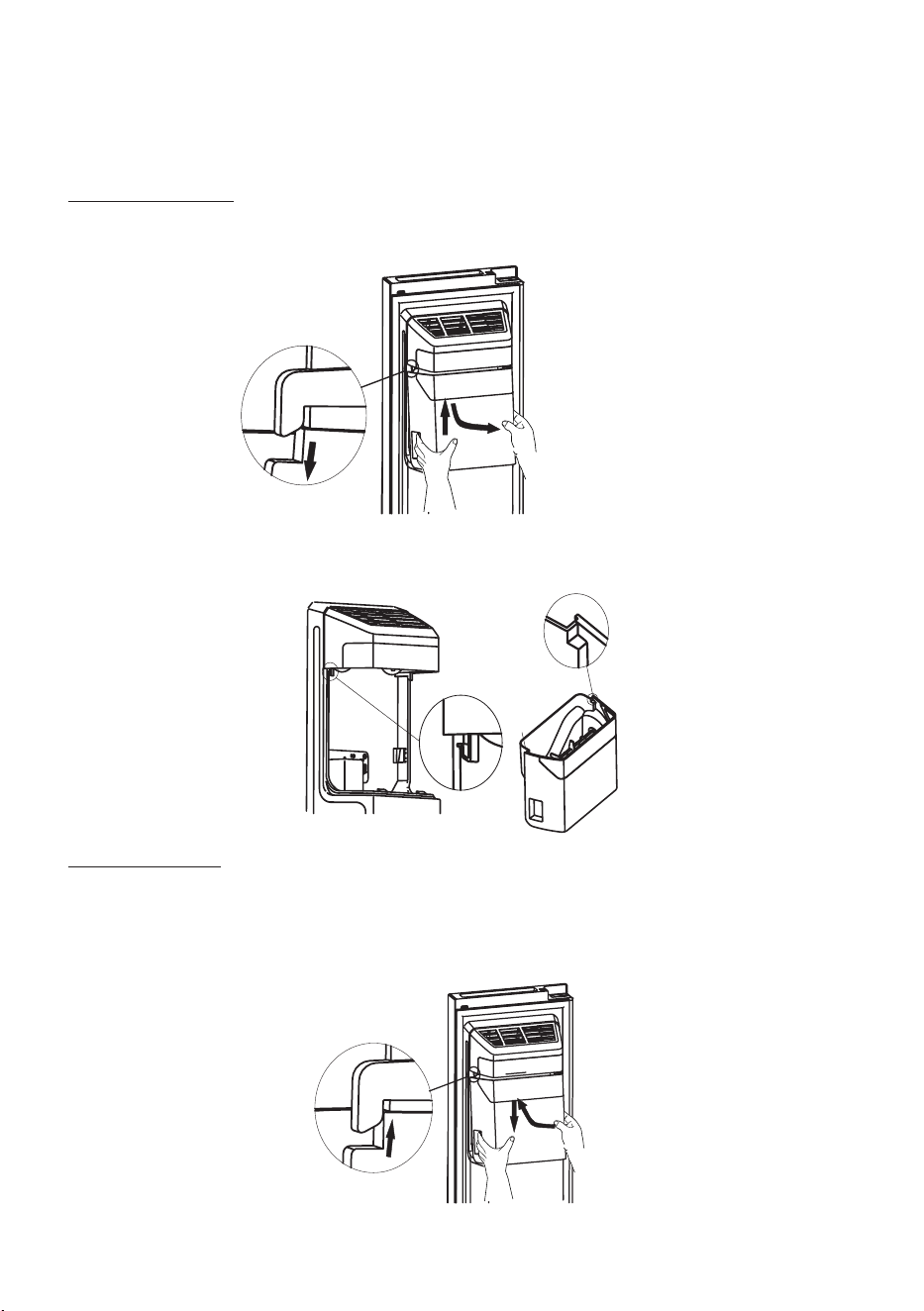

5. Using the Ice Bucket
If you want to remove the Ice Bucket: Please hold the handle as shown in the
figure below. Then lift up and pull the Ice Bucket out slowly to prevent damage.
Removing Steps:
1. Lift up the Ice Bucket
2. Pull the Ice Bucket out slowly
ķ
ĸ
A
B
When you put it back, please make sure the two side(B&B’) of Ice Bucket is
wedged into the buckles(A&A’).
B
B’
A
A’
Installing Steps:
1. Push the Ice Bucket up, and make the two side(B&B’) of Ice Bucket wedge
into the buckles(A&A’).
2. Pull the Ice Bucket down, and make sure the Ice Bucket is held the bracket
firmly.
ķ
ĸ
A
B
25

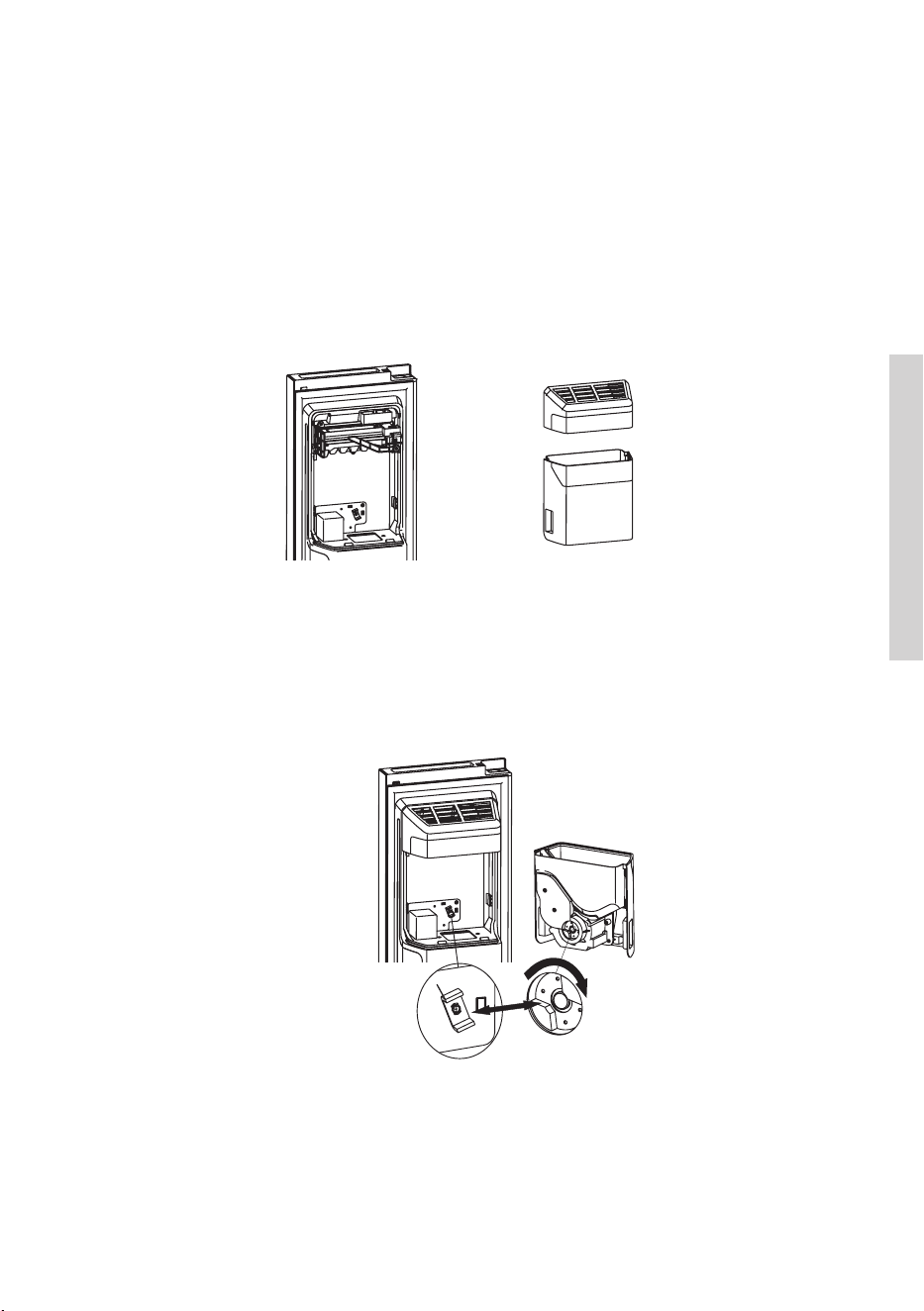

Note!
• When the ice maker dumps ice into the bucket, any sounds you hear are part
of normal operation.
• If you do not dispense ice for a long periods of time, Ice may clump in the Ice
Bucket. If this occurs, please remove all the ice and empty the bucket.
• If the refrigerator has been powero too long,the ice in the bucket will melt
,and the water will flow out of the refrigerator to the floor. To avoid this,you
should remove all the ice in the bucket.
• If ice doesn’t come out, please check for any ice stuck in the chute and remove
it. Or pull out the Ice Bucket and check for any ice cubes clump, then remove
them.
• The first batch of ice cubes after installation may be small, because air has
entered the water line. Any air will be purged during normal use.
• To clean the Ice Bucket, wash with a mild detergent, rinse well, and dry
thoroughly it. Do not use harsh or abrasive cleaners or solvents.
• Before replacing back the Ice Bucket, please check the two couplers are at a
suitable angle to connect correctly. If not, please turn the Ice bucket coupler to
the right angle to match the motor coupler.

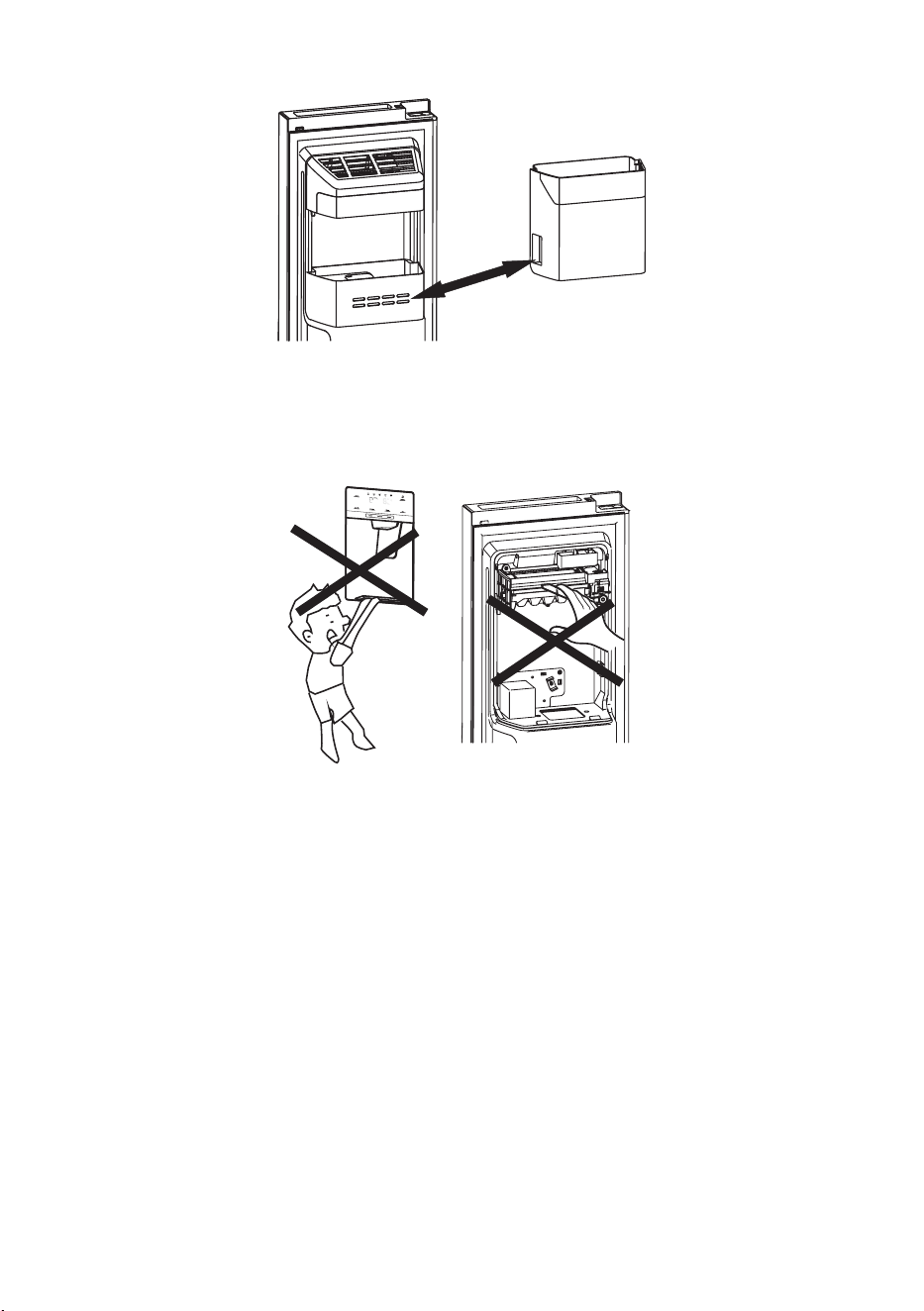

• If you want more space to store foods, you can replace the Ice Bucket with
storage box. The “Ice O” should be set on to make sure that the ice maker is
o.
26
Warning!
• Do not put your fingers, hands, or any other unsuitable objects in the ice chute
or ice bucket. This can cause personal injury or material damage.
• Do not allow your children to hang o the dispenser or pluck the ice storage
bin. This could cause injury.
S
upe
r
F
re
eze
3
"
S
up
er
Cool
3
"
F
i
l
t
e
r
R
ese
t
3
"
Chi
l
d
Lo
ck 3
"
• There is a water line connection between ice maker and water storage
box, don't disassemble the whole water supply system by yourself. It is
recommended that suitably qualified person to do this.
• Do not use excessive force to open or close the door, or the water may spill
out o the ice maker.
To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is
not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of
fresh food.
27
Order Compartments
TYPE
Target storage
temp.[°C]
Appropriate food
1 Fridge +2 ≤ +8 Eggs, cooked food, packaged
food, fruits and vegetables, dairy
products, cakes, Drinks and other
foods which are not suitable for
freezing.
2 (***)* –
Freezer
≤ –18 Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended
time is 3 months – nutrition values
and taste decrease with time),
suitable for frozen fresh food.
3 *** –
Freezer
≤ –18 Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended
time is 3 months – nutrition values
and taste decrease with time). Not
suitable for freeing fresh food.
4 ** –
Freezer
≤ –12 Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended
time is 2 months – nutrition values
and taste decrease with time). Not
suitable for freeing fresh food.
5 * –
Freezer
≤ –6 Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended
time is 1 month – nutrition values
and taste decrease with time). Not
suitable for freeing fresh food.
6 0 star –6 ≤ 0 Fresh pork, beef, fish, chicken,
some packaged processed foods,
etc. (Recommended to eat within
the same day, preferably not later
than 3 days) .
Partially packed/wrapped up
encapsulated processed foods
(non-freezable foods)
28
7 Chill –2 ≤ +3 Fresh/frozen pork, beef, chicken,
freshwater aquatic products, etc.
(7 days below 0 °C and above 0 °C
is recommended for consumption
within that day, preferably no more
than 2 days). Seafood (less than 0
for 15 days, it is not recommended
to store above 0 °C)
8 Fresh Food 0 ≤ +4 Fresh pork, beef, fish, chicken,
cooked food, etc. (Recommended
to eat within the same day,
preferably no more than 3 days)
9 Wine +5 ≤ +20 Red wine,white wine,sparkling
wine etc.
Note: please store different foods according to the compartments or target
storage temperature of your purchased products.
• If the refrigerating appliance is left empty for long periods, switch o, defrost,
clean, dry, and leave the door open to prevent mould developing within the
appliance.
Water dispenser cleaning (special for water dispenser products):
• Clean water tanks if they have not been used for 48 h; flush the water system.
29
HELPFUL HINTS AND TIPS
Energy saving tips
We recommend that you follow the tips below to save energy.
• Try to avoid keeping the door open for long periods.
• Ensure the appliance is away from any sources of heat (Direct sunlight, electric
oven or cooker etc.)
• Don`t set the temperature colder than necessary.
• Don`t store warm food or evaporating liguid in the appliance.
• Place the appliance in a well ventilated, humidity free room. Please refer to
Instaling your new appliance chapter
• If the diagram shows the correct combination for the drawers, crisper and
shelves, do not adjust the combination as this designed to be the most energy
ecient configuration.
Hints for refrigeration
• Do not place hot food directly into the refrigerator or freezer, the internal
temperature will increase resulting in the compressor having to work harder
and will consume more energy.
• Do cover or wrap the food, particularly if it has a strong flavor.
• Place food properly so that air can circulate freely around it.
• Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf
above the vegetable drawer. Always follow food storage times and use by
dates suggested by manufacturers.
• Cooked food, cold dishes, etc.: They should be covered and may be placed on
any shelf.
• Fruit and vegetables: They should be stored in the special drawer provided.
• Butter and cheese: Should be wrapped in airtight foil or plastic film wrap.
• Milk bottles: Should have a lid and be stored in the door racks.
• It is recomended to label and date each froozen package in order to keep
track of the storage times.
Hints for the storage of frozen food
• Ensure that frozen food has been stored correctly by the food retailer.
• Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do
not exceed the storage period indicated by the food manufacturer.
Switching o your appliance
If the appliance needs to be switched o for an extended period, the following
steps should be taken to prevent mould on the appliance.
1. Remove all food.
2. Remove the power plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.
30
CLEANING AND CARE
For hygienic reasons the appliance (including exterior and interior accessories)
should be cleaned regularly (at least every two months).
Warning!
The appliance must not be connected to the mains during cleaning. Danger of
electrical shock! Before cleaning switch the appliance o and remove the plug
from the mains socket.
Exterior cleaning
To maintain good appearance of your appliance, you should clean it regularly.
• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface
of the appliance. This helps ensure an even distribution of moisture to the
surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then
wiped dry with a soft cloth.
Warning!
• Do not use sharp objects as they are likely to scratch the surface.
• Do not use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or
organic solvent such as Benzene for cleaning. They may damage the surface
of the appliance and may cause fire.
Interior cleaning
You should clean the appliance interior regularly. It will be easier to clean
when food stocks are low. You can remove the drawers and shelves for a
more thorough clean. Wipe the inside of the freezer with a weak solution
of bicarbonate of soda, and then rinse with warm water using a wrung-out
31
sponge or cloth. Wipe completely dry before replacing the shelves and baskets.
Thoroughly dry all surfaces and removable parts before putting them back into
place.
Although this appliance automatically defrosts, a layer of frost may occur on the
freezer compartment’s interior walls if the freezer door is opened frequently or
kept open too long. If the frost is too thick, choose a time when the freezer is
nearly empty and proceed as follow:
1. Remove existing food and accessories baskets, unplug the appliance from
the mains power and leave the doors open. Ventilate the room thoroughly to
accelerate the process.
2. When defrosting is completed, clean your freezer as described above.
Warning!
Do not use sharp objects to remove frost from the freezer compartment. Only
after the interior is completely dry should the appliance be switched back on
and plugged back into the mains socket.
Door seals cleaning
Take care to keep door seals clean. Sticky food and drinks can cause seals to
stick to the cabinet and tear when you open the door. Wash the seals with a mild
detergent and warm water. Rinse and dry them thoroughly after cleaning.
Warning! Only after the door seals are completely dry should the appliance be
powered on.
Replacing the LED light
Warning: The LED light must be replaced by a competent person. If the LED
light is damaged, follow the steps below:
1. Unplug your appliance.
2. Remove light cover by rising up and puling out the LED light.
3. Hold the LED light with one hand and pull it with the other hand while
pressing the connector latch.
4. Replace LED light and snap it correctly in place and recover the light cover.
32
TROUBLESHOOTING
Problem: Possible cause & Solution
Appliance is not
working correctly
• Check whether the power cord is plugged into the
power outlet properly.
• Check the fuse or circuit of your power supply,
replace if necessary.
• The ambient temperature is too low. Try setting
the chamber temperature to a colder level to solve
this problem.
• It is normal that the freezer is not operating during
the automatic defrost cycle, or for a short time
after the appliance is switched on to protect the
compressor.
Odours from the
compartments
• The interior may need to be cleaned.
• Some food, containers or wrapping cause odours.
Noise from the
appliance
The sounds below are quite normal:
• Compressor running noises.
• Air movement noise from the small fan motor in
the freezer compartment or other compartments.
• Gurgling sound similar to water boiling.
• Popping noise during automatic defrosting.
• Clicking noise before the compressor starts.
Other unusual noises are due to the reasons below
and may need you to check and take action:
• The cabinet is not level.
• The back of appliance touches the wall.
• Bottles or containers knocking against each other.
If you experience a problem with your appliance or are concerned that the
appliance is not functioning correctly, you can carry out some easy checks
before calling for service, please see below. You can carry out some easy
checks according to this section before calling for service.
Warning! Don't try to repair the appliance yourself. If the problem persists after
you have made the checks mentioned below, contact a qualified electrician,
authorized service engineer or the shop where you purchased the product.
33
Problem: Possible cause & Solution
The motor runs
continuously
It is normal to frequently hear the sound of the
motor, it will need to run more during following
circumstances:
• Temperature setting is set colder than necessary.
• Large quantity of warm food has recently been
stored within the appliance.
• The temperature outside the appliance is too high.
• Doors are kept open too long or too often.
• After your installing the appliance or it has been
switched off for a long time.
A layer of frost
occurs in the
compartment
• Check that the air outlets are not blocked by food
and ensure food is placed within the appliance to
allow sufficient ventilation. Ensure the door can be
fully closed. To remove the frost, please refer to
the cleaning and care chapter..
Temperature
inside is too warm
• You may have left the doors open too long or
too frequently; or the doors are kept open by
some obstacle; or the appliance is located with
insufficient clearance at the sides, back and top.
Temperature
inside is too cold
• Increase the temperature by following the”Display
controls” chapter.
Doors can’t be
closed easily
• Check whether the top of the refrigerator is tilted
back by 10-15mm to allow the doors to self close,
or if something inside is preventing the doors from
closing.
Water drips on
the floor
The water pan (located at the rear bottom of
the cabinet) may not be properly leveled, or
the draining spout underneath the top of the
compressor depot may not be properly positioned
to direct water into this pan, or the water spout is
blocked. You may need to pull the refrigerator away
from the wall to check the pan and spout. Check
if the refrigerator is power-off for a long time, this
may cause the ice in the bucket to melt into water,
and flow to the floor..
34
Problem: Possible cause & Solution
The light is not
working
• The LED light may be damaged. Refer to replace
LED lights in cleaning and care chapter.
• The control system has disabled the lights due
to the door being kept open too long, close and
reopen the door to reactivate the lights.
Ice is not
dispensing
• Did you wait for 10 hours after installation of the
water supply line before making ice? if it is not
sufficiently cool, it may take longer to make ice,
such as when first installed.
• Is the water storage box installed accurately? Make
sure there is enough water in the water storage
box.
• Did you manually stop the ice making function?
Make sure you have set the Cubed or Crushed
mode on.
• Is there any ice blocked within the ice maker
bucket or ice chute?
• Is the freezer temperature too warm? Try setting
the freezer temperature lower.
Water dispenser
is not functioning
• Is the water storage box installed accurately? Make
sure there is enough water in the water storage
box.
• Is water line broke or bent? Make sure the water
line is unblocked and clear of any obstruction.
• Is the water storage box frozen for the refrigerator
temperature is too low? Try selecting a warmer
setting on the display panel.
• Is the water pump working?
You can hear
water bubbling in
the refrigerator
• This is normal. The bubbling comes from the
refrigerant coolant liquid circulating through the
refrigerator.
DISPOSAL OF THE APPLIANCE
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the
packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug
Warning! Refrigerators contain refrigerant and gases in the insulation.
Refrigerant and gases must be disposed of professionally as they may cause
eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not
damage prior to proper disposal.
CORRECT DISPOSAL OF THIS PRODUCT
The symbol on the product or its packaging indicates that the
product should not be treated as normal household waste. The
product should be taken to an authorized collection centre for
waste electric and electronic equipment processing. Correct
disposal of the product will help prevent any negative effects
on the environment and health of people which could occur
in case of incorrect product removal. For detailed information
on removal and processing of the product, please contact the
relevant municipal body in charge of waste management, your
waste disposal service, or the store where you bought the
product.
Gorenje, d.o.o.
Partizanska 12
SI - 3320 Velenje, Slovenija
info@gorenje.com
www.gorenje.com
