Please read this manual carefully before using, and keep it for future reference.
User Manual
60 cm Built-in Electric Oven, Model Code: BRO605M
P age |
2
web: brohn.com.au
INSTRUCTION MANUAL
60cm Built-in Electric Oven
BRO605M
NOTE: This oven has a large cavity.
Preheating for about 10 minutes is recommended before cooking.
P age |
3
web: brohn.com.au
CONTENTS
1
2
IMPORTANT SAFETY INSTRUCTIONS .........................................................................................
PRODUCT INSTALLATION .........................................................................................................
4
6
3 PRODUCT INTRODUCTION .....................................................................................................
2.1
2.2
2.3
2.4
6
7
8
9
10
Cupboard Diagram (Standing Cupboard) ....................................................................
Cupboard Diagram (Ground Cupboard) .....................................................................
Installation Important Instructions ....................................................................................
Installation steps ................................................................................................................
3.1
3.2
3.3
3.4
3.5
3.6
10
10
11
12
13
13
Oven ..................................................................................................................................
Accessories .......................................................................................................................
Accessories ues ................................................................................................................

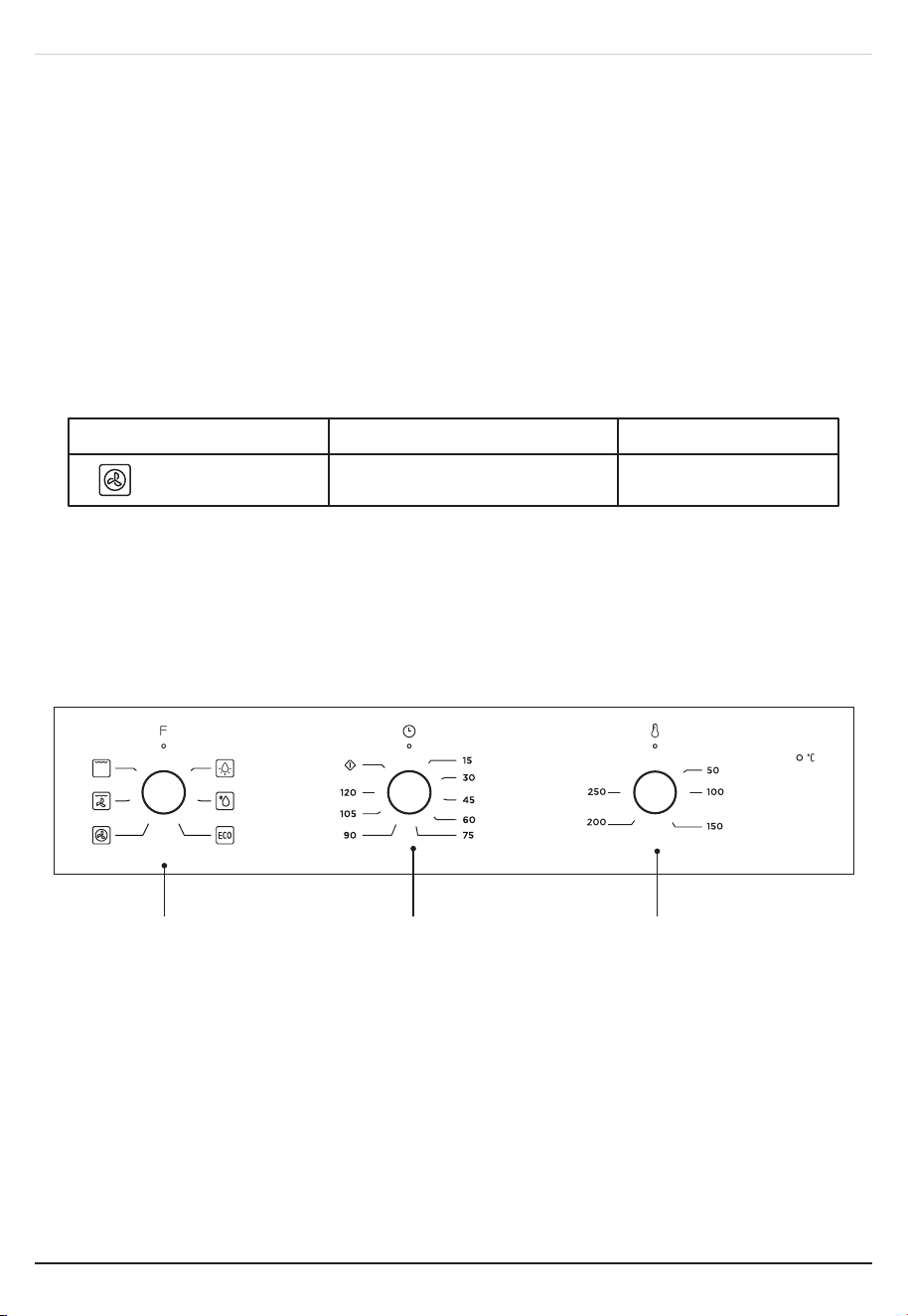

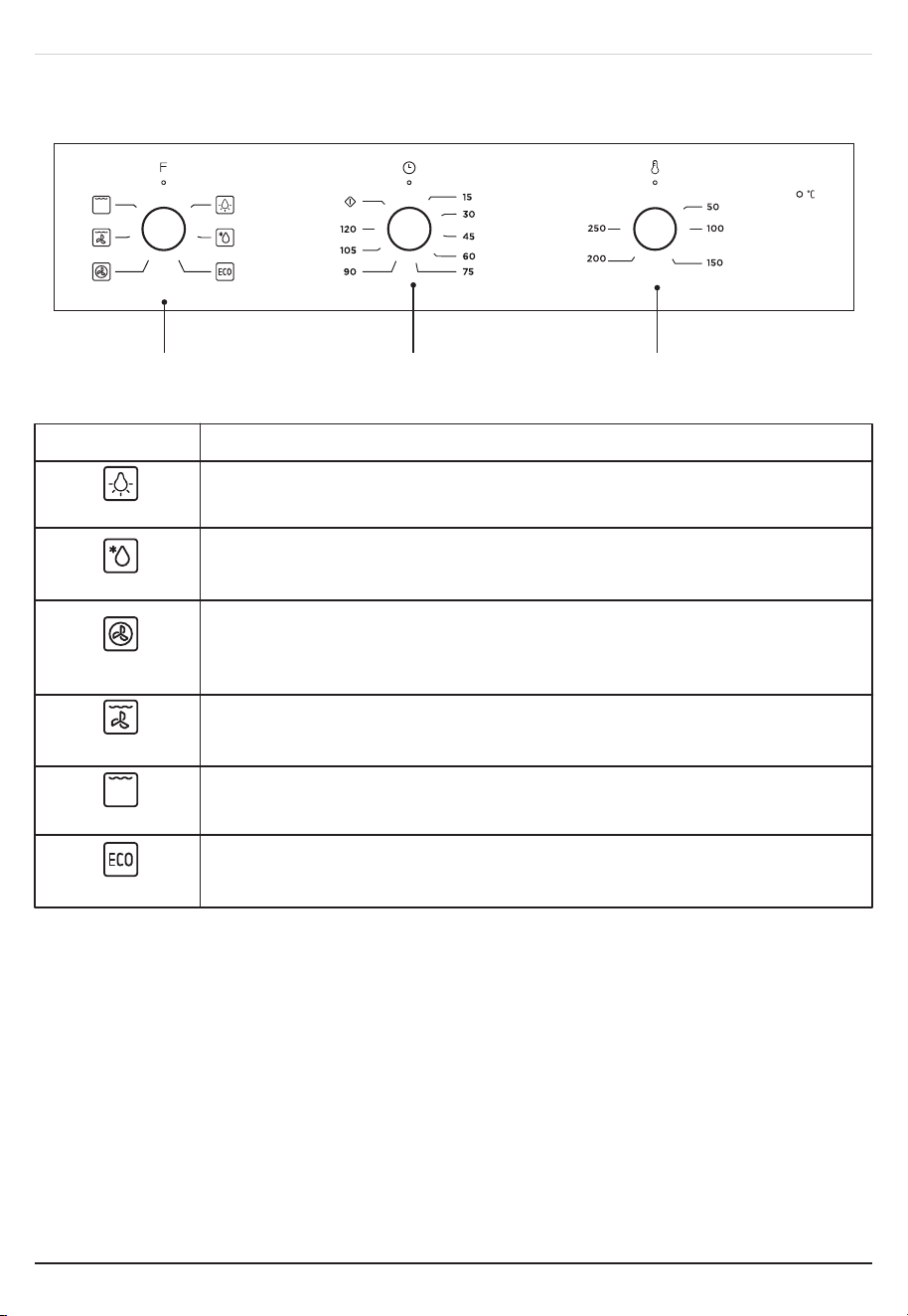

Control Panel ...................................................................................................................
Before using for the first time ..........................................................................................
Regular operation ...........................................................................................................
4 CLEANING AND MAINTENANCE ...........................................................................................14
4.1
4.2
14
14
15
16
17
18
Cleaning ...........................................................................................................................

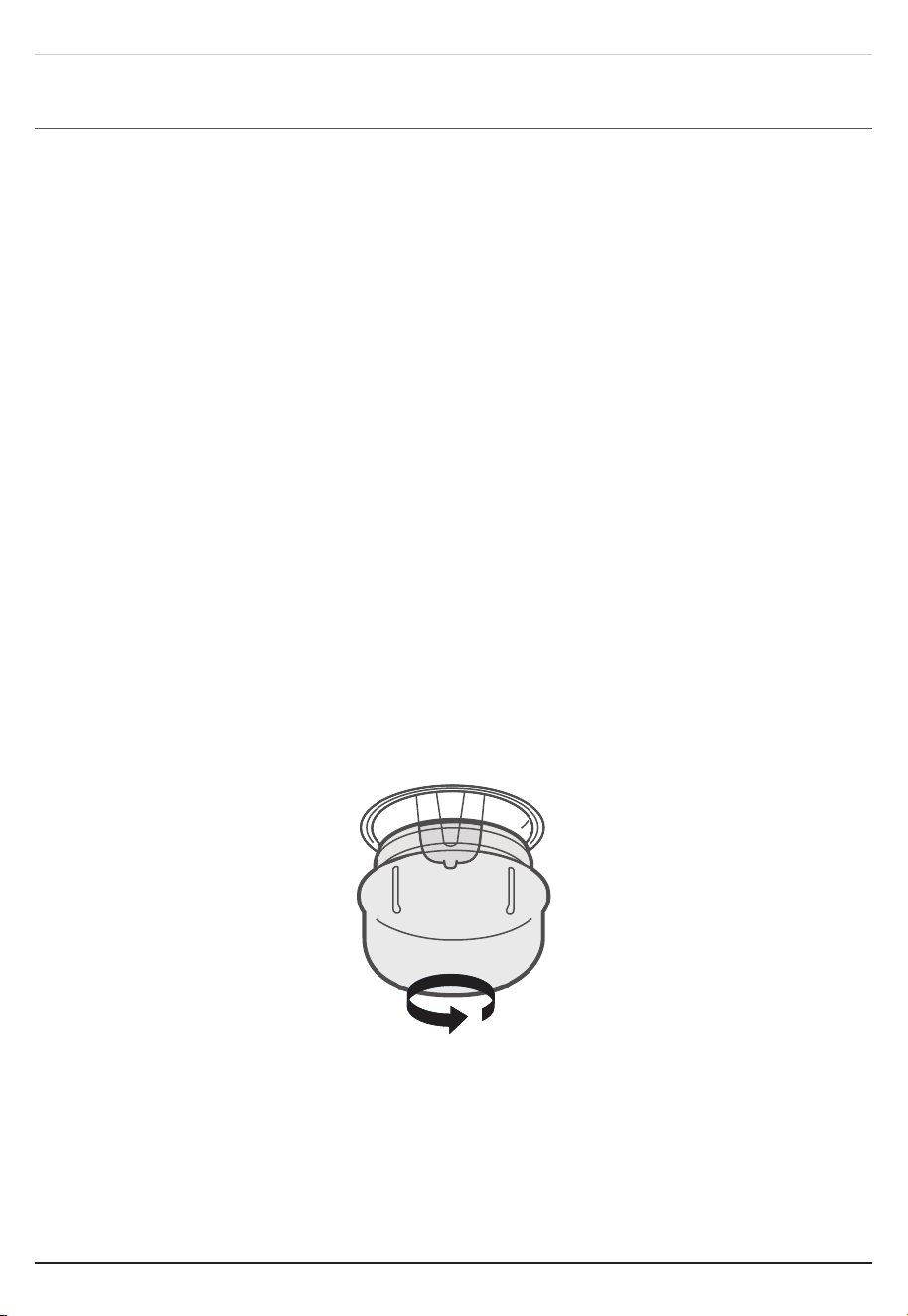

Lamp Replacement ........................................................................................................
5
6
7
8
TROUBLESHOOTING ................................................................................................................
SPECIFICATIONS ......................................................................................................................

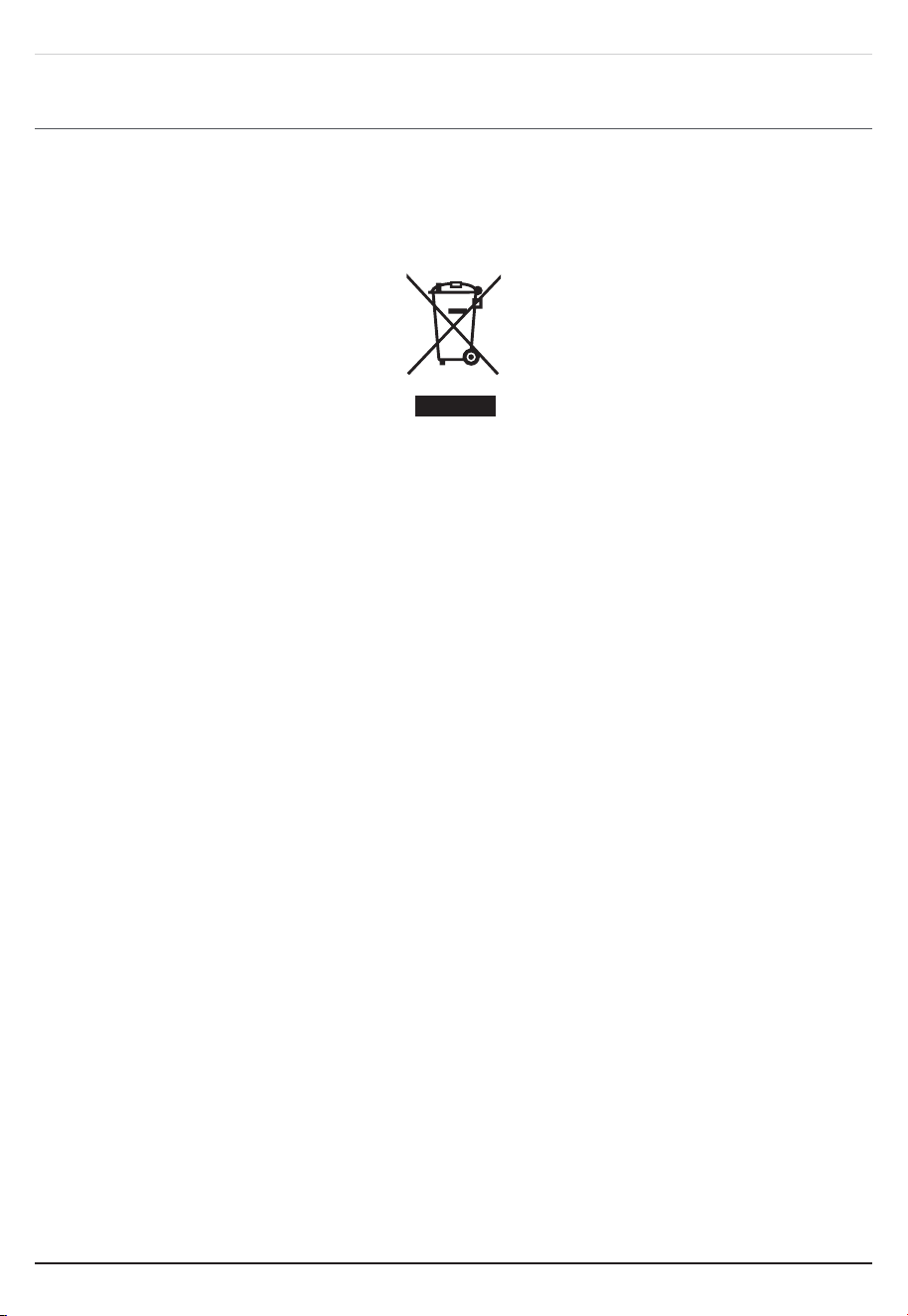

PRODUCT RECYCLING ...........................................................................................................
CUSTOMER CARE ....................................................................................................................
P age |
4
web: brohn.com.au
1 IMPORTANT SAFETY INSTRUCTIONS
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. PLEASE READ THEM CAREFULLY
BEFORE INSTALLING OR USING THE APPLIANCE.
To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
• Call only the Service Centers authorized by store where you buy the cooker
• Always use original Spare Parts
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
When the oven is first switched on, it may give off an unpleasant smell. This is due to
the bonding agent used for the insulating panels within the oven. Please run the
new empty product with the conventional cooking function, 250°C, 90 minutes to
clean oil impurities inside the cavity.
During the first use, it is completely normal that there will be slight smoke and door.
If it does occur, you should wait for the smell to be cleared before putting food into
the oven.
Please use the product under an open environment.
The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously supervised.
If the surface is cracked, switch o� the appliance to avoid the possibility of electric
shock.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
During use, the appliance becomes very hot. Care should be taken to avoid
touching heating elements inside the oven.
Do not allow children to go near the oven when it is operating, especially when the
grill is on.
Ensure that the appliance is switched o� before replacing the oven lamp to avoid
the possibility of electric shock.
The means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring specifications.
Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by person responsible for their safety.
Accessible parts may become hot during use. Young children should be kept away.
An all-pole disconnection means must be incorporated in the fixed wiring in
accordance with the wiring rules.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
P age |
5
web: brohn.com.au
•
•
•
•
•
•
•
•
•
•
•
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door
glass since they can scratch the surface, which may result in shattering of the glass.
Only use the temperature probe recommended for this oven.
A steam cleaner is not to be used.
The appliance is not intended to be operated by means of an external timer or a
separate remote control system.
The instructions for ovens that have shelves shall include details indicating the
correct installations of the shelves.
Do not use the oven unless you are wearing something on your feet. Do not touch
the oven with wet or damp hands or feet.
For oven: Oven door should not be opened often during the cooking period.
The appliance must be installed by an authorized technician and put into use.
The producer is not responsible for any damage that might be caused by defective
placement, and installation by unauthorized personnel.
When the door or drawer of oven is open do not leave anything on it, or you may
unbalance your appliance or break the door.
Some parts of appliance may keep its heat for a long time; it is required to wait for it
to cool down before touching onto the points that are exposed to the heat directly.
If you will not use the appliance for a long time, it is advised to plug it off.
DECLARATION OF COMPLIANCE
When you have unpacked the oven, make sure that it has not been damaged in any
way. If you have any doubts at all, do not use it: contact a professionally qualified person.
Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of
children because these are dangerous to children.
P age |
6
web: brohn.com.au
2 PRODUCT INSTALLATION
If there is any discrepancy between the illustration and the actual product, please refer to
the actual product.
1. The thickness of the cupboard board is 20 mm.
2. If the power socket is installed on the back of the appliance, the depth of the
cupboard opening shall be increased from a minimum of 590 mm to 620 mm.
3. The dimensions in the figures are in mm.

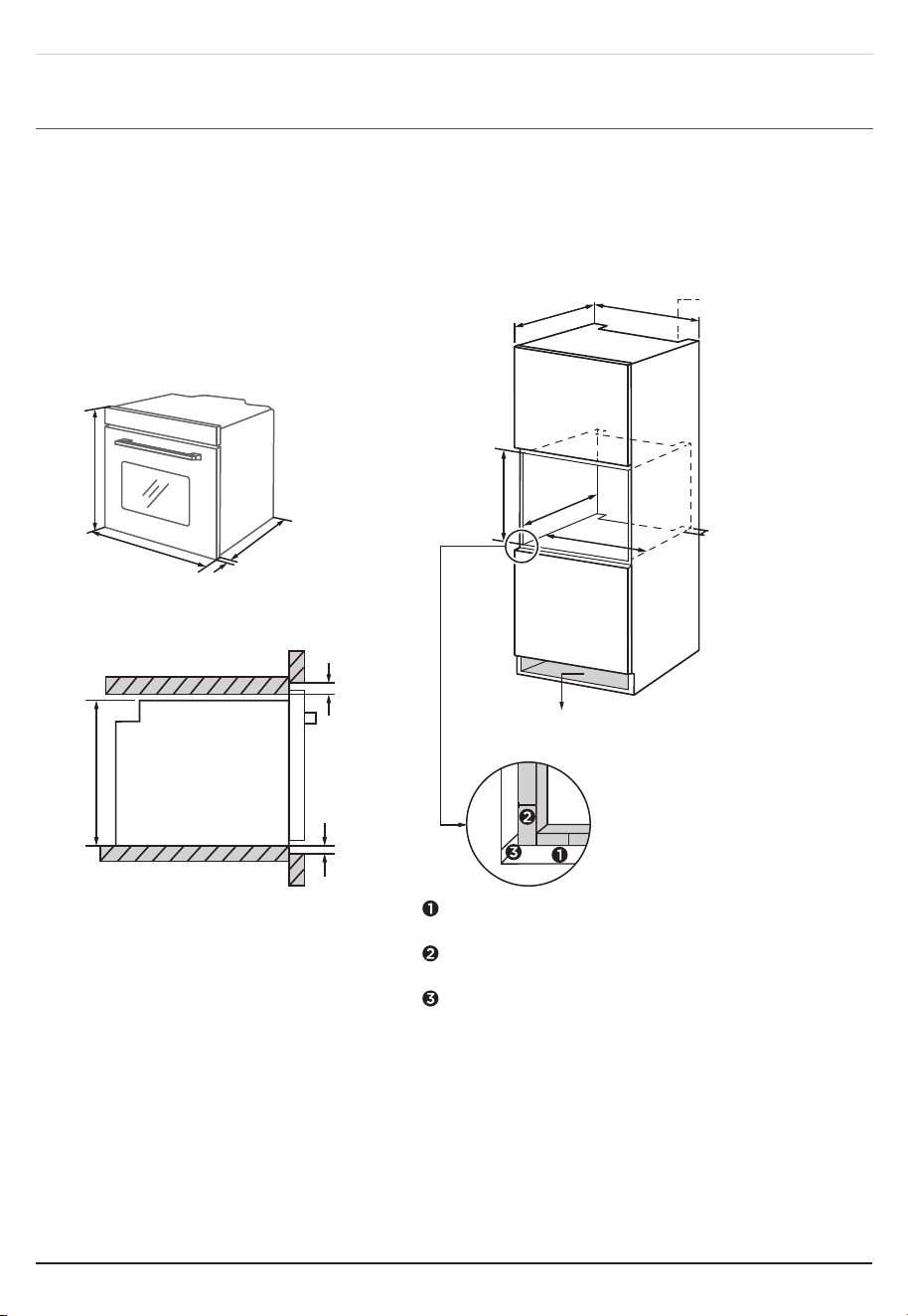

2.1 Cupboard Diagram (Standing Cupboard)
600
Min. 590
Min. 50
Air vents
+8
560
*
590
5
20
20
Min. 570
Minimum bottom ventilation area: 250 cm
2
≥
10
583
≥
5
595
595
20
555
Native appliance
Reserve 5 mm for the door panel at the top and
bottom respectively.
Reserve 20 mm for the door panel on the left
and right respectively.
Reserve 20 mm for the door panel in thickness.
P age |
7
web: brohn.com.au

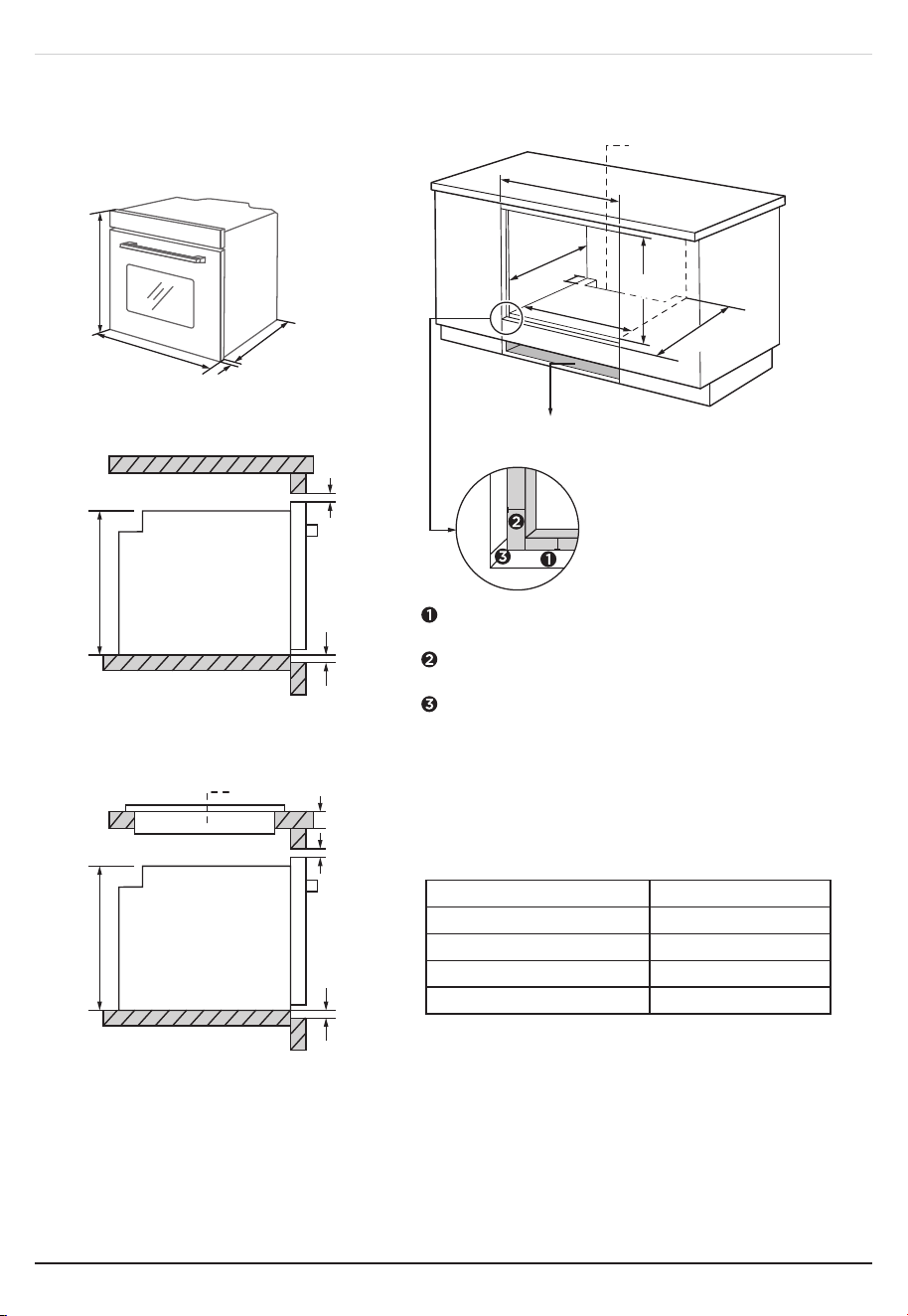

2.2 Cupboard Diagram (Ground Cupboard)
Minimum bottom ventilation area: 250 cm
2
*
Min. 570
If the appliance is installed under the hob, the minimum
thickness of worktop A is shown below:
≥
5
Native appliance
Without hob
583
≥
5
595
595
20
555
600
Min. 50
600
+2
Min. 590
+8
560
Air vents
Hob type
Induction hob 37 mm
worktop A
Full-surface induction hob 47 mm
Gas hob
Electric hob
30 mm
27 mm
5
20
20
Reserve 5 mm for the door panel at the top and
bottom respectively.
Reserve 20 mm for the door panel on the left
and right respectively.
Reserve 20 mm for the door panel in thickness.
Hob
≥
5
A
With hob
≥
5
Native appliance
583
1. The thickness of the cupboard board is 20 mm.
2. If the power socket is installed on the back of the appliance, the depth of the
cupboard opening shall be increased from a minimum of 590 mm to 620 mm.
3. The dimensions in the figures are in mm.
P age |
8
web: brohn.com.au
2.3 Installation Important Instructions
Content that means [note]
Content that means [mandatory]
Content that means [prohibit ]
1. The safe operation of this appliance can only be guaranteed if it has been installed to a
professional standard in accordance with these installation instructions. The installer shall
be liable for any damage resulting from incorrect installation.
2. The entire installation process requires two professional installers. Wear dry protective
gloves during installation to avoid scratch or electric shock.
3. Fitted units must be heat-resistant up to 90°C, and adjacent unit fronts up to 70°C.
4. Please use a 16A socket.
1. Do not install the appliance behind a decorative door or the door of a kitchen unit, as
this may cause the appliance to overheat.
2. Check the appliance for damage after unpacking it. Do not connect the appliance if it
has been damaged in transit.
3. Do not block the vent of the appliance and the gap between the cupboard and the
appliance.
4. Use extreme caution when moving or installing the appliance. It is very heavy, do not lift
the appliance by the door handle.
5. If the power cord or power plug is damaged, stop using the appliance immediately, to
avoid fire, electric shock or other injuries.
1. Be very careful when moving or installing the appliance to avoid damage to the
appliance or damage to the cupboards.
2. Before starting up the appliance, remove all packaging materials and accessories from
the cavity.
3. The power socket shall be accessible to users (such as next to the cupboard) for easy
power-off.
4. After installation is complete, make sure that the power plug is firmly inserted into the
socket.
5. Please refer to the "Cupboard Diagram" for the requirements of net depth of the
cupboard. The clearance between the cupboard bottom board and the rear board
(or wall) shall not be less than 50 mm.
P age |
9
web: brohn.com.au
2.4 Installation steps
1. Please customize the cupboard according to the "Cupboard Diagram".
2. Before installation, please check for normal power sockets and appropriate grounding,
and check whether the cupboard dimension meets the installation requirements.
3. Place the appliance in designated locations in the kitchen, install it in a vertical
cupboard, and connect the power supply.

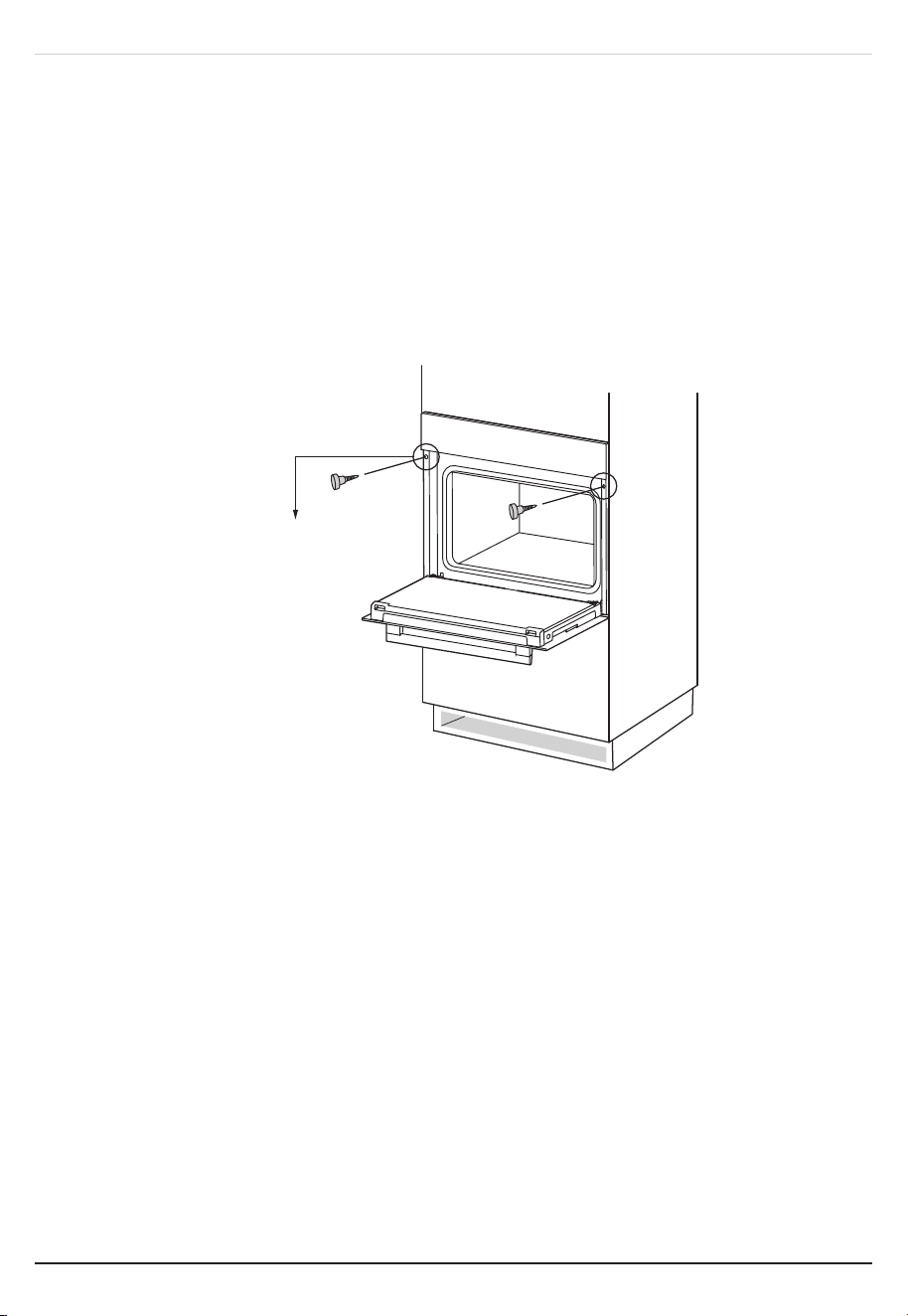

4. To locate the mounting fixing holes, open the appliance door and look at the side
frame of the appliance (position shown below).
5. Fix the appliance on the Cupboard with two screws.
Mounting fixing hole
P age |
10
web: brohn.com.au

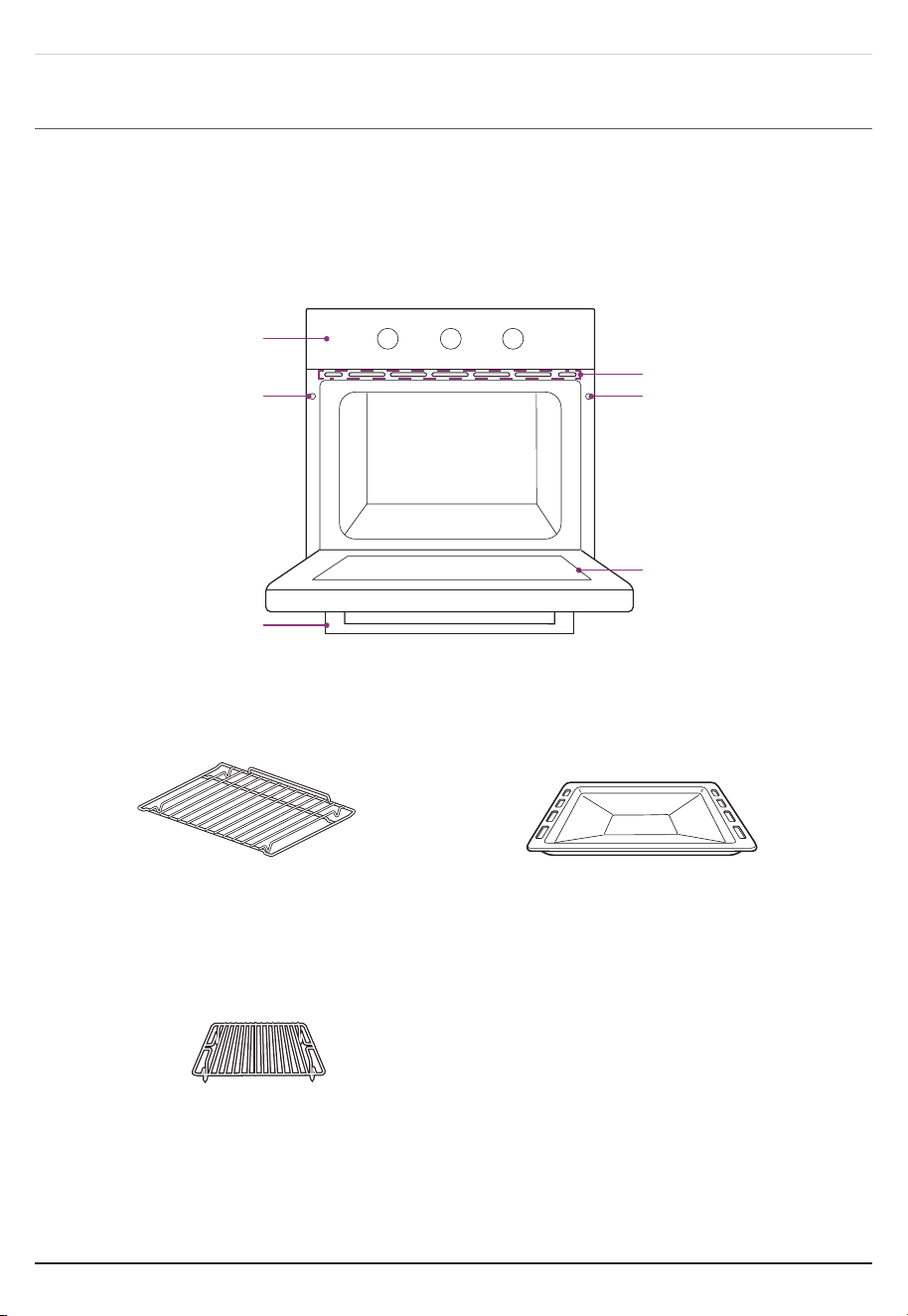

3 PRODUCT INTRODUCTION

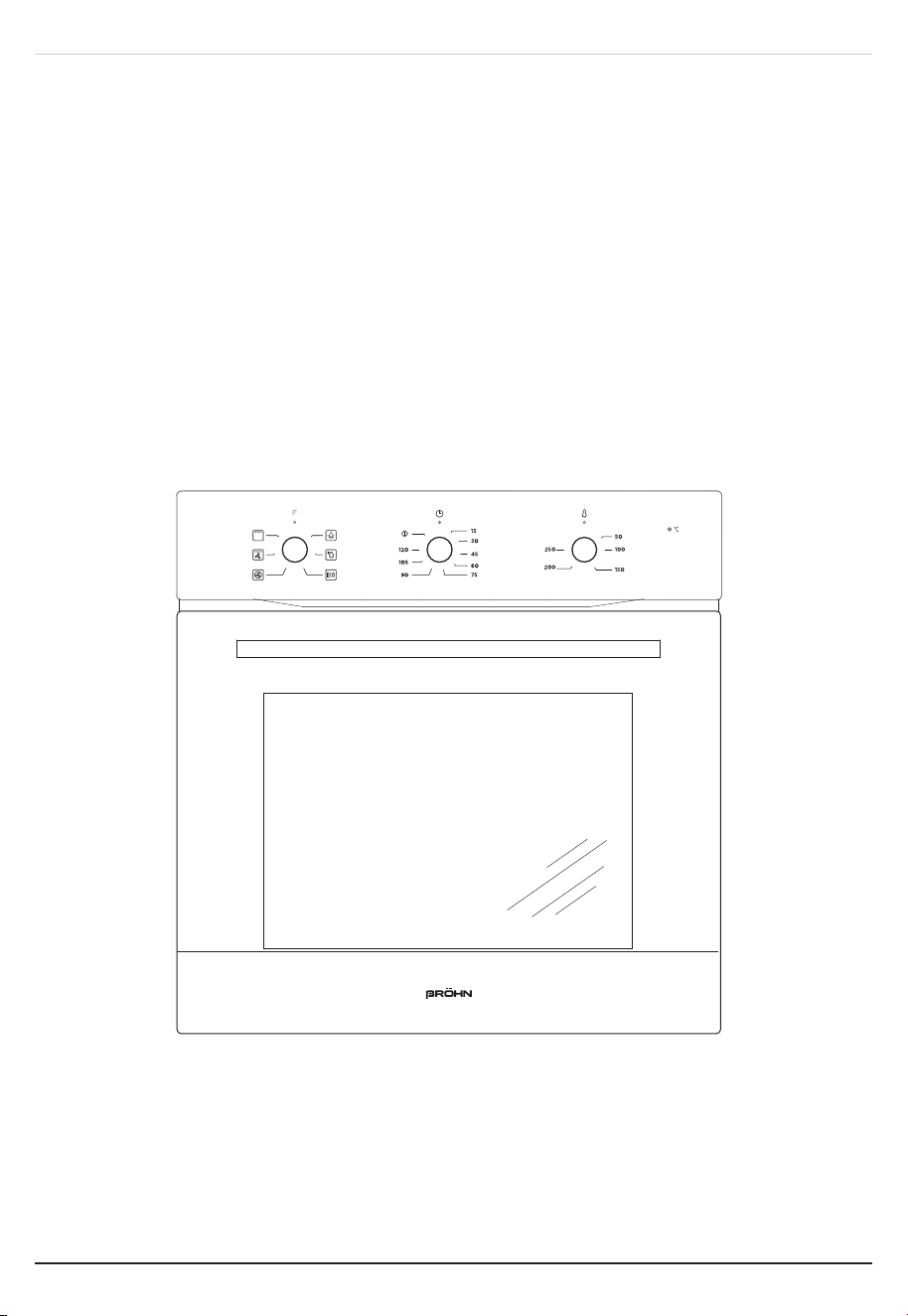

3.1 Oven
3.2 Accessories
When removing food, please wear heat insulating gloves to prevent burns!
At the moment of opening the door of the furnace, pay attention to the steam.
Please open the door at a small Angle to avoid the steam on your face.
Control panel
Mounting fixing hole Mounting fixing hole
Handle
Glass door
Ventilating openings
Grill rack Grill tray
Cook large portions of food or catch
food scraps
Grill food or place heat-resistant
cooking containers
Small grill rack
Cook smaller portions of food
P age |
11
web: brohn.com.au

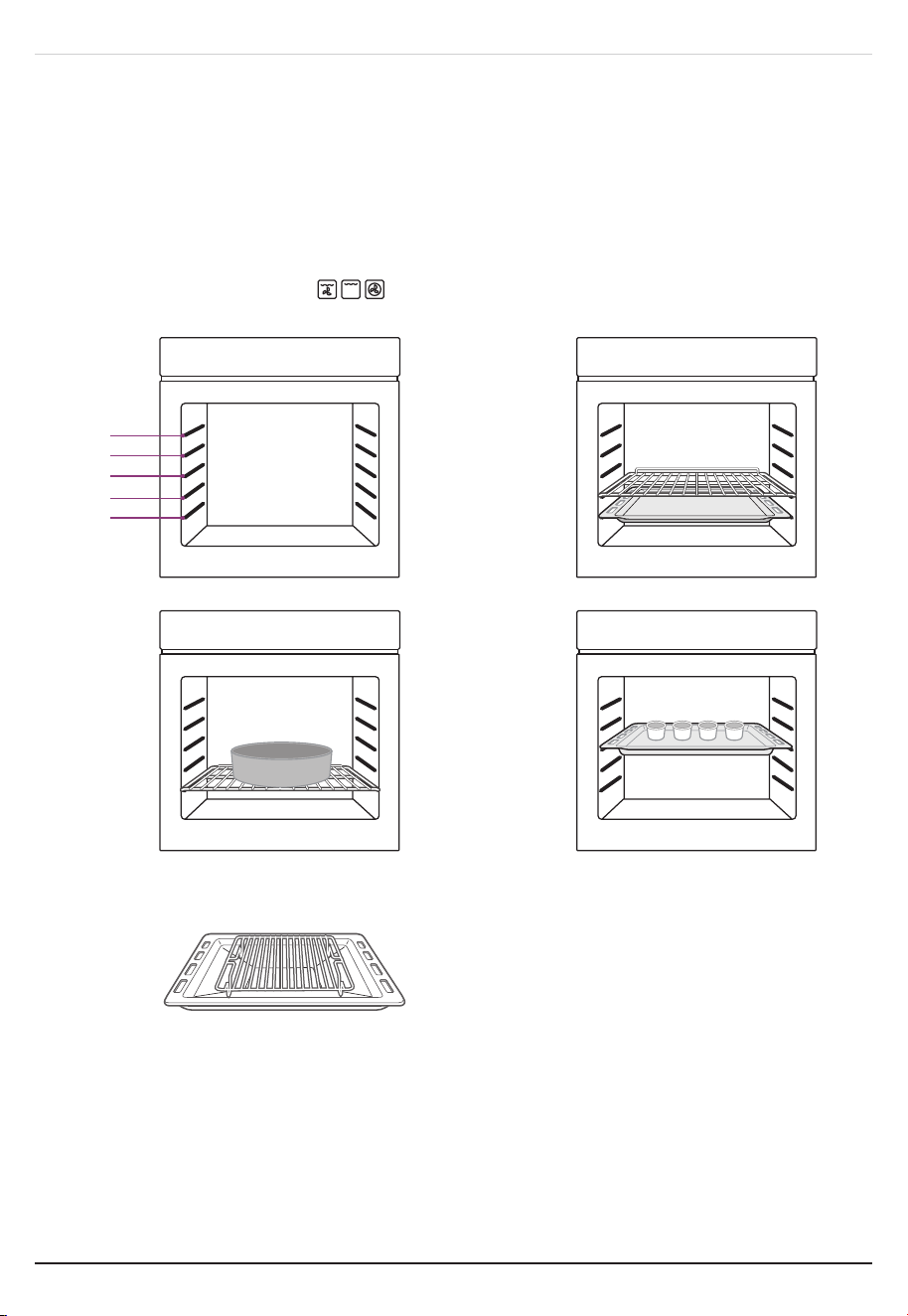

3.3 Accessories use (Only for some models)
For the oven to work properly, the grill rack and grill tray should only be placed between
the first and fifth levels. When used together, place the grill tray under the grill rack.
When cooking large food, you can remove the brackets on both sides of the cavity
(only for some models) and put the food and baking tray at the bottom of the cavity.
In order to prevent heat accumulation at the bottom of the cavity, do not use the
function of the bottom heating tube combination for heating and cooking. The following
functions are recommended: .
1
2
3
4
5
P age |
12
web: brohn.com.au
3.4 Control Panel
K1 K2 K3
The cooking process can be observed under illuminated conditions.
Except ECO function.
The circulation of air at room temperature enables quicker thawing
of frozen food (without the use of any heat).
In convection mode, the fan turns on automatically to provide even
heat for single or multi-layer baking. This is particularly suitable for
baking foods that require even coloring.
The radiant heating element and are working with fan.
The inner grill element switchs on and off to maintain temperature.
Can be used to grill a small number of food.
Energy-saving baking, suitable for baking smaller and thinner
portions of food.
Function Function introduction
Lamp
Single grill
Single grill with fan
Defrost
ECO
Convection
P age |
13
web: brohn.com.au
3.5 Before using for the first time
1. The oven must not be operated until it has been correctly installed.
2. To avoid fire, remove all transport protection materials and ensure that the oven is free
of residual packaging items and accessories (e.g. foam, cardboard, grill tray, grill rack,
etc.).
3. Clean the oven cavity and accessories with soapy water and a soft cloth.
4. Open kitchen windows and cooker hoods to maintain high ventilation.
5. Do not let children or pets into the kitchen and close the doors of adjacent rooms.
6. After connecting the power, activate the oven mode, time, and temperature in the
table below to remove odors in the cavity.
7. After the first use, please open the oven door at a small angle and wait for the cooling
to complete.
3.6 Regular operation
1. Turn knob K1 to select the oven functions.
2. Turn knob K2 to adjust the time.
3. Turn knob K3 to adjust the temperature.
4. When cooking is finished, turn all knobs to the " O " position.
Note
As a separate function, Oven light is used by consumers to actively choose to observe
food or clean the cavity. After the user opens it, they need to actively close it before
exiting and returning to standby mode.
Function Temperature Time
Convection 250
O
C 0.5 Hour
K1 K2 K3
P age |
14
web: brohn.com.au
4 CLEANING AND MAINTENANCE
4.1 Cleaning
Disconnect the power supply before cleaning and maintenance.
In order to ensure the life of the oven, it should be thoroughly cleaned frequently.
The cleaning steps are as follows:
4.2 Lamp Replacement
1. Switch off and disconnect the power from the oven. Ensure that the internal parts are
cool before touching internal parts.
2. Remove the lamp cover by turning it counter-clockwise (note, it may be stiff), replace
the bulb with a new one of the same type.
3. Insert the new bulb, which should be resistant to 300°C. For replacement bulbs contact
your local service centre.
4. If in any doubt, consult a qualified electrician for help.
5. The product contains a light source of energy efficiency class: G.
1. After cooking, wait for the oven to cool completely.
2. Remove oven accessories, rinse with warm water and dry.
3. Clean up food debris from the oven chamber.
4. Wipe the oven with a soft cloth stained with detergent, then dry with a dry soft cloth.
Notes
1. Do not use sharp cleaning tools, hard brush and corrosive cleaning products, so as not
to damage the oven and its accessories.
2. Do not use rough scrubbing agent or sharp metal spatula to clean the door glass.
Warning
To avoid electric shocks-please ensure that the electricity supply to the appliance is
switched off and the appliance is fully cold. before removing the lamp lens.
P age |
15
web: brohn.com.au
5 TROUBLESHOOTING
If the problem cannot be solved or other problems occur, please contact the aftersales
service.
Unable to start
Food is not cooked
Burnt or uneven food
lamp does not come
on
It's broken Contact after-sales service
The fan did not stop
working after stopping
the heating
Fan delays blowing for
heat dissipation
No processing required
The temperature is set too
high or the heating time is
too long
Adjust the cooking
temperature or time
Has a pungent odor or
smoke
First use No processing required
Temperature is too low Use a higher temperature
The food is too close to
the heating tube
Adjust the placement layers
of accessories
Food portion is too large
Cook food in smaller pieces
or extend the cooking time.
Power is not connected
Oven door not closed
The main power switch is
not turned on
Connect power supply
Close the oven door
Turn on the power switch
Problem Possible reason Solution
P age |
16
web: brohn.com.au
6 SPECIFICATIONS
Product Information and Product Information Sheet according to EU and UK Ecodesign
and Energy Labelling Regulations
94.0
A
----kWh/cycle
Number of cavities
Heat source
Volume
Type of oven
Energy consumption with a
Energy Efficiency Index
Energy Efficiency class
standard load, conventional mode
Energy consumption with a
standard load, fan-forced mode
0.79kWh/cycle
1
Electricity
70L
Built-in Oven
Power Supply 220-240V ~, 50Hz-60Hz
Electric Power
2.1kW
P age |
17
web: brohn.com.au
7 PRODUCT RECYCLING
This symbol on the product or instruction manual indicates that your device should be
disposed of separately from your household waste at the end of its useful life.
There is a separate recycling system locally for recycling. For more information, please
contact the local authority or retailer where you purchased the product.
When you have unpacked the oven, make sure that it has not been damaged in any
way. If you have any doubts at all, do not use it: contact a professionally qualified person.
Keep packing materials such as plastic bags, polys tyren, or nails out of the reach of
children because these are dangerous to children.
P age |
18
web: brohn.com.au
8 CUSTOMER CARE
Please be advised that without the proof of purchase, your warranty may not be
valid, keep the receipt.
For your convenience, please record:
STORE NAME/CONTACT DETAILS: ...............................................
PURCHASE DATE: ..........................................................................
PRODUCT MODEL N: ….................................................................
PRODUCT SERIAL N: ............................
...........................................
The warranty will be voided, if not installed by a licensed professional.
For your own protection, please record installer’s details:
Installer’s Trade Name: ..................................................................
Trade Licence N: ............................................................................
Date of Installation: …..............................................
......................
Installation Receipt: .......................................................................
For further information on the appliance, service, spare parts or to obtain dimension and
installation information, please contact our customer service or visit website.
Please have above information and documents on hands before contacting customer
service
Email: info@brohn.com.au
Web: brohn.com.au
•
•
