Preface
About This Product User Manual
This product user manual provides detailed information about the components and
functions of the S5 product. All content, including text, images, and graphics, is the
property of Shenzhen Streamax Technologies Co., Ltd. No part of this document may be
reproduced, extracted, or modified without prior written consent from the company.
Unless otherwise stated, this manual does not offer any form of warranty.
This document is intended solely for authorized users and technical support personnel.
Product images and screen content are for reference only. The actual product (including
appearance, color, and size) may differ. Please refer to the physical product for
accuracy.
Streamax Technology may update or modify the specifications from time to time to
reflect changes in product performance, functionality, or components without prior
notice.
Trademark Statement
is a registered trademark of Shenzhen Streamax Technology Co., Ltd.
All other trademarks are the property of their respective owners.
Disclaimer
4
The product described in this document is provided “as is” without any express or
implied warranties, including but not limited to warranties of merchantability or
fitness for a particular purpose. Streamax Technology shall not be liable for any
damages resulting from the use of the product or the specifications, including but not
limited to loss of profits, data, or documentation.
When the product is connected to the Internet, Streamax Technology is not responsible
for network security risks such as cyberattacks, hacking, or virus infections. However,
we will provide technical support as necessary.
By using this product, you agree to comply with all applicable laws. Streamax
Technology is not responsible for any misuse of the product or any infringement of
third-party rights.
If there is any conflict between this specification and applicable laws, the laws shall
prevail.
Copyright © 2025 Shenzhen Streamax Technology Co., Ltd. All rights reserved.
Symbol Explanation
The following symbols are used to categorize and explain potential hazards that may
arise from improper operation
Symbol
Explanation
Warning: Conditions that could jeopardize the safety of the user or
cause injury
Important: Conditions that may lead to data corruption or damage to
the device’s firmware or hardware
Note: Additional information, explanations of terms, and other
relevant details
5
Product Overview
Product Introduction
The S5 is an AI-powered intelligent sentinel camera engineered to ensure comprehensive
asset protection. Designed for continuous 24/7 operation, it provides uninterrupted
high-definition monitoring to capture every critical moment. Featuring ultra-low power
consumption and AOV standby mode, the S5 remains active even when the vehicle is turned
off, maintaining constant security coverage. Integrated 4G, Wi-Fi, and GNSS modules
enable real-time transmission of vehicle location, status, and operational data to the
platform, supporting remote communication and video playback for precise asset
management and control.
Product Features
⚫ Built-In one ultra-wide-angle lens with up to 2 Megapixels HD video recording,
supporting black light technology
⚫ Supports human posture detection for accurate identification of theft.
⚫ Supports H.264/H.265 encoding
⚫ Supports 1*Micro SD storage ,up to 1TB
⚫ Built-in Wi-Fi, 4G Cat1 communication module, and inertial navigation module
⚫ Video data supports AES256 encryption
⚫ Supports 1 channels of IO input, 1 channels of IO output and 1 RS232 channel
⚫ Supports normal mode and AOV ultra-low power consumption mode
⚫ Built-in 6-axis gravity sensor, supports detection of rapid acceleration, rapid
deceleration, sharp turns, and collisions
⚫ Built-in battery and can keep working for 5 minutes in case of a power outage
(optional)
6
AI Features
Vehicle contact
inspection
Suspicious target
detection

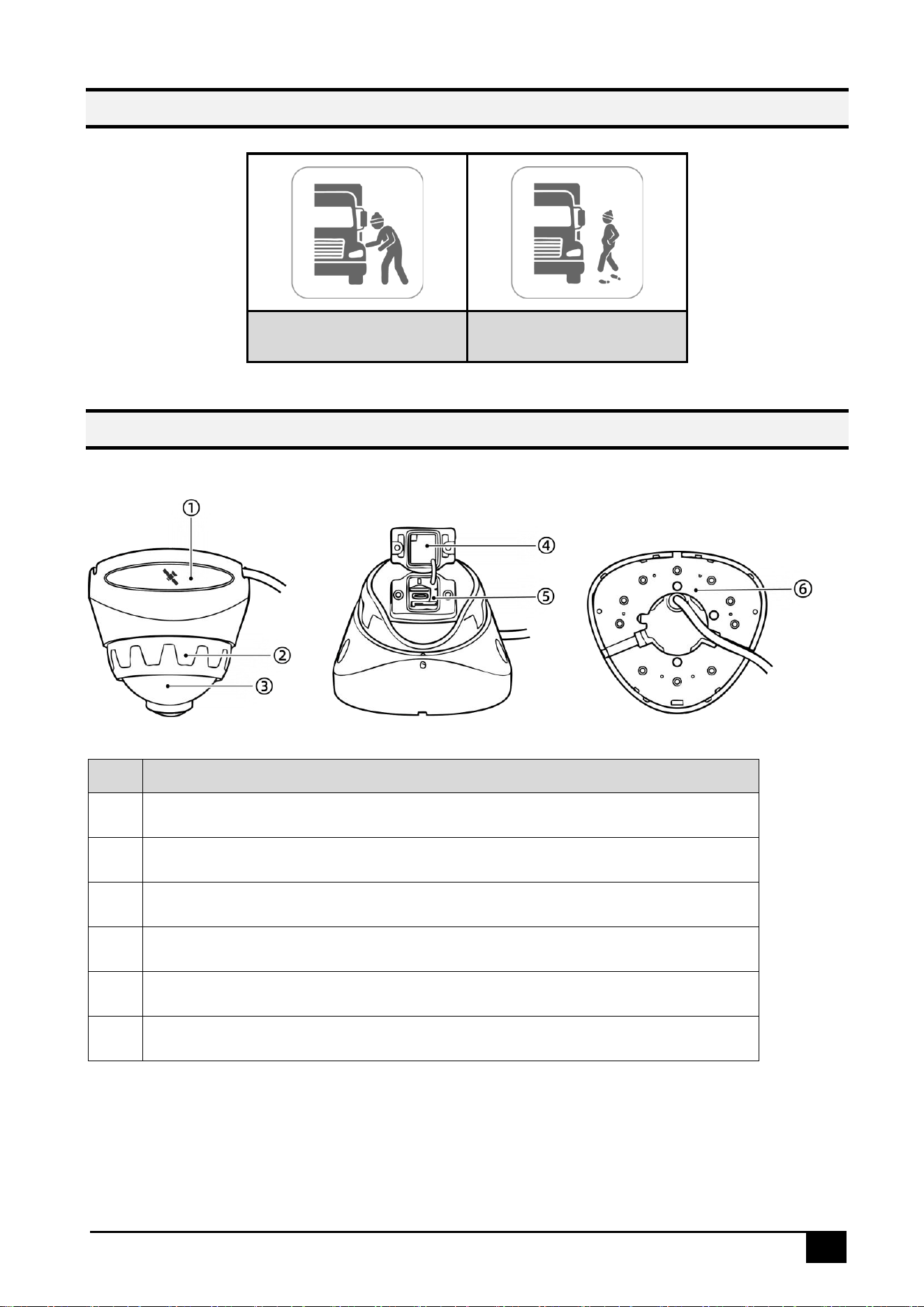

Product Appearance and Component Names
No.
Components
1
GPS positioning module
2
Horizontal Angle Adjustment Disc
3
Vertical angle adjustment sphere
4
TF card, SIM card cover
5
TF card slot, SIM card slot, USB 3.0
6
Rigid mounting base
7

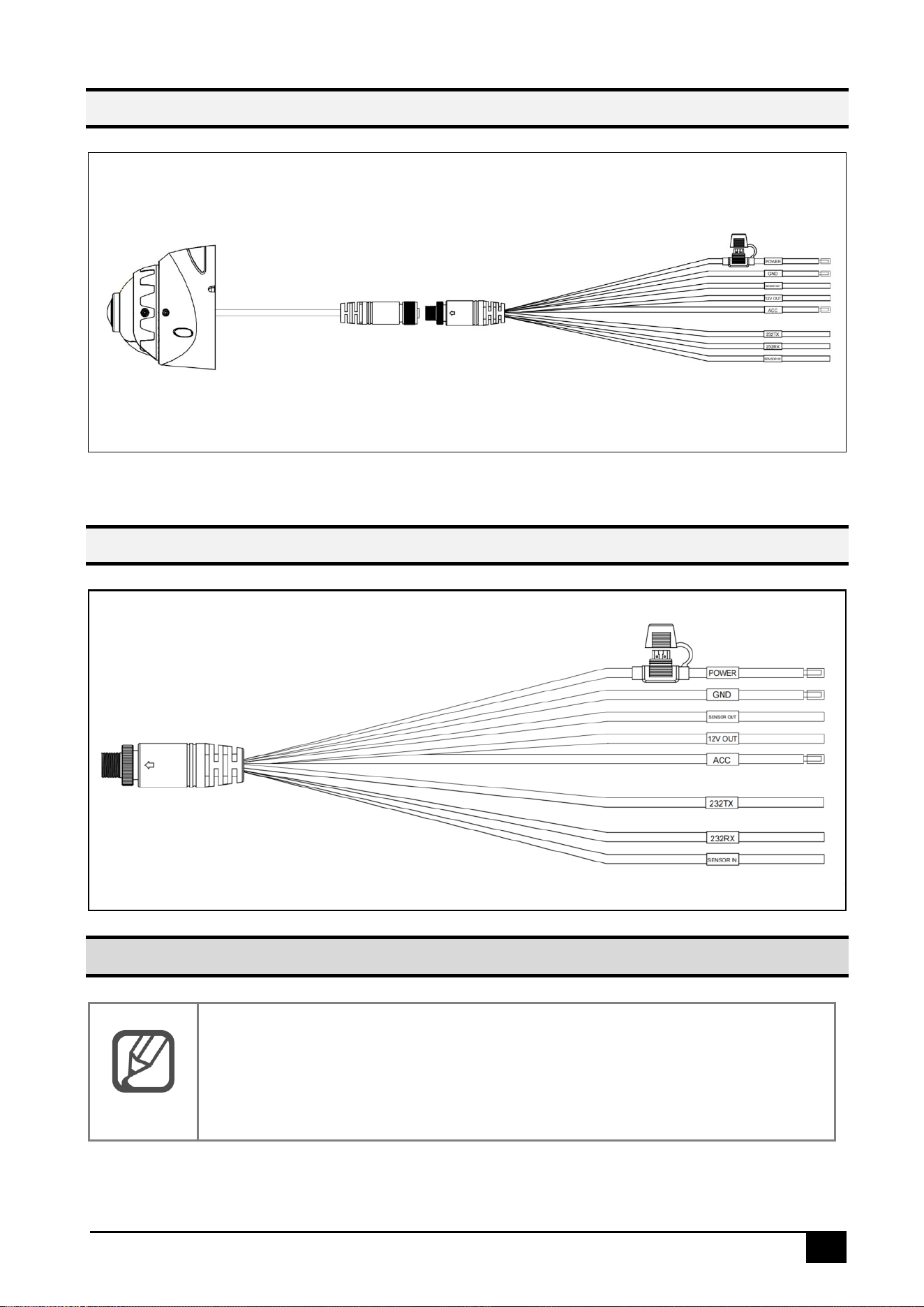

System Connection Diagram
Cables
Device Login
Note

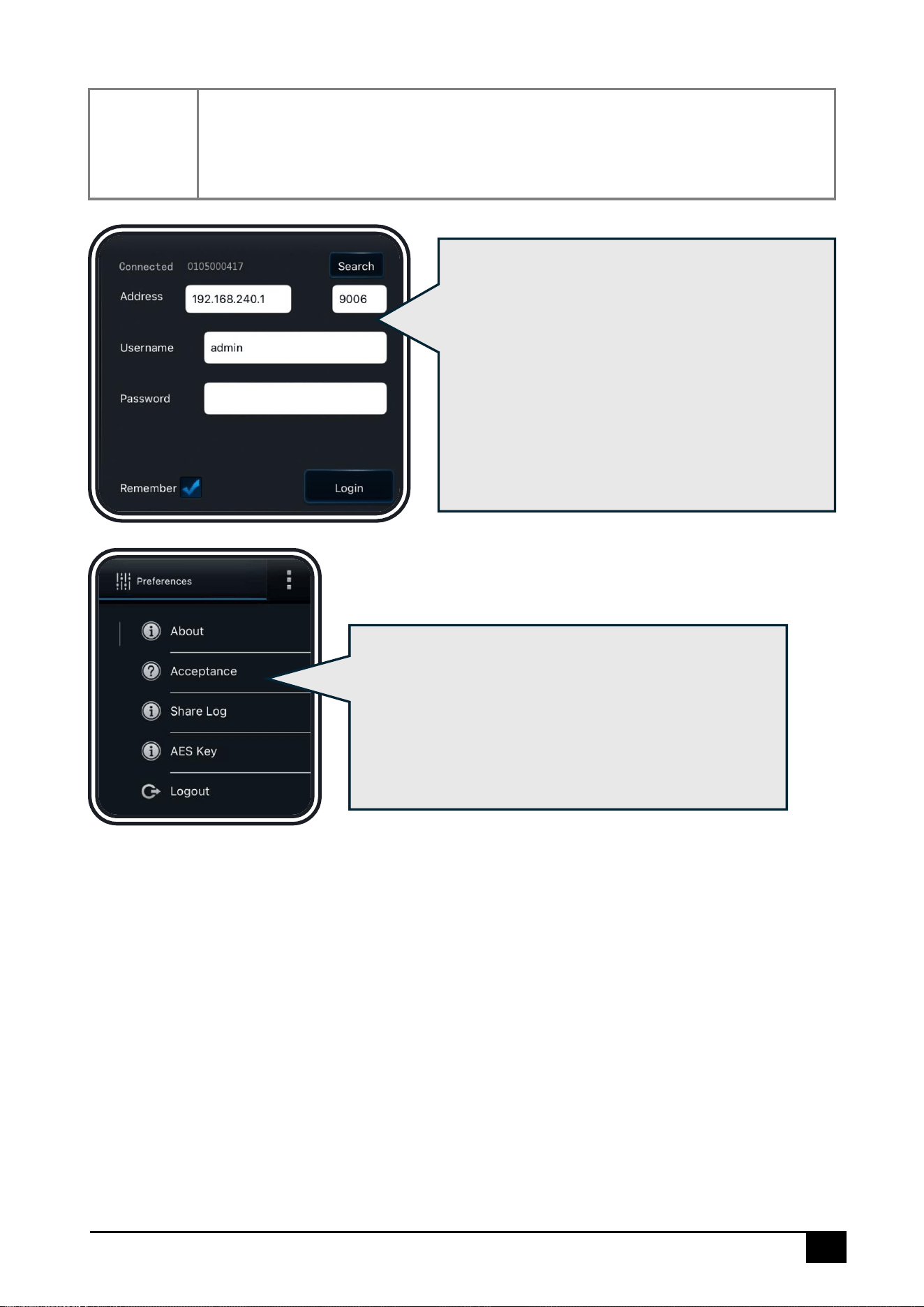

AP Mode: To connect to the device's Wi-Fi hotspot, the device must be in
AP mode. The device will be in AP mode for the first 3 minutes after
startup. You can also switch to the AP mode by changing the Wi-Fi mode on
your device.
8
Mobile App Installation:
⚫ For Android users, search for Veyes in Google Play to download
⚫ For iPhone users, search for Veyes in the App Store to download
1. Click [Search] to enter the Wi-Fi settings.
Select the corresponding device hotspot and
connect. The initial hotspot name will be
the device’s Serial Number, which can be
found on the label on the device
2. Enter the username and password，The
default credentials are: admin/admin
3. Click [Log in]
to access the operation
interface
1. Click the top-right corner
to view information
such as the APP version and other details
2. [Acceptance]: Acceptance Mode. This mode is used
for testing or accepting the device in a static
environment. It triggers AI alerts based on a
preset vehicle speed
9
General Information Viewing

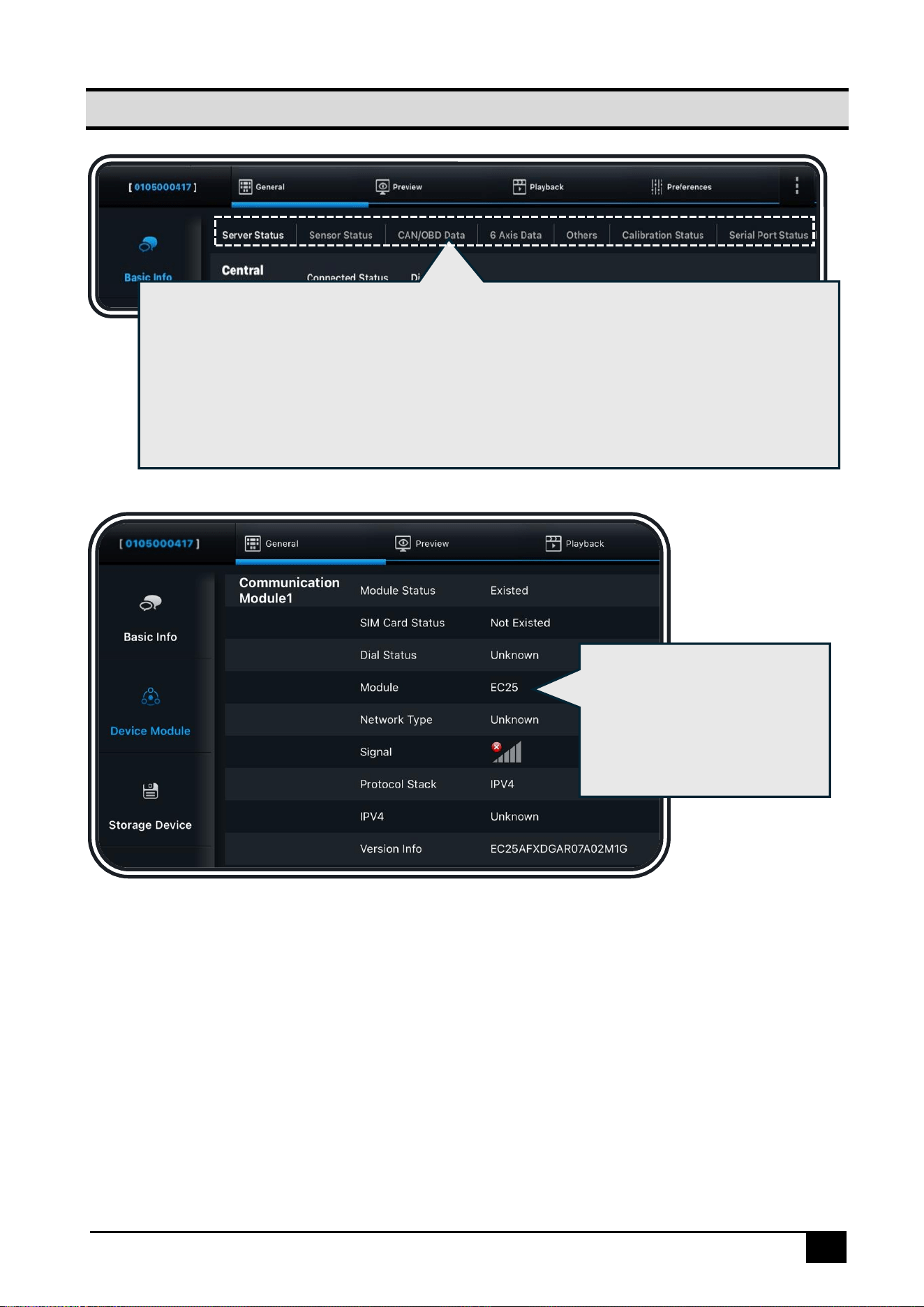

Click [General] → [Basic Info] to view the device’s basic information:
1. [Server Status]：View the server connection status
2. [Sensor Status]：View the high/low voltage status and usage of the I/O
3. [OBD Data]：View the vehicle data read by the device from the OBD port（Not
supported）
4. [6 Axis Data]：View the G-Sensor's six-axis data
5. [Others]：View the ACC status, pulse status, device status, and iButton status
6. [Calibration Status]：View the AI algorithm calibration status
7. [Serial Port Status]：View the status of the connected peripherals
Click [General] → [Device
Module]: View information
about the device's Wi-Fi,
3/4G, eSIM, Positioning, and
Bluetooth modules
10
Upgrade Steps
Image Explanation
1. Prepare a USB flash drive
and create a folder named
upgrade in the root
directory. Then place the
upgrade package into the
folder
2. Connect the USB flash drive
to the device via the
maintenance cable
3. Click Upgrade

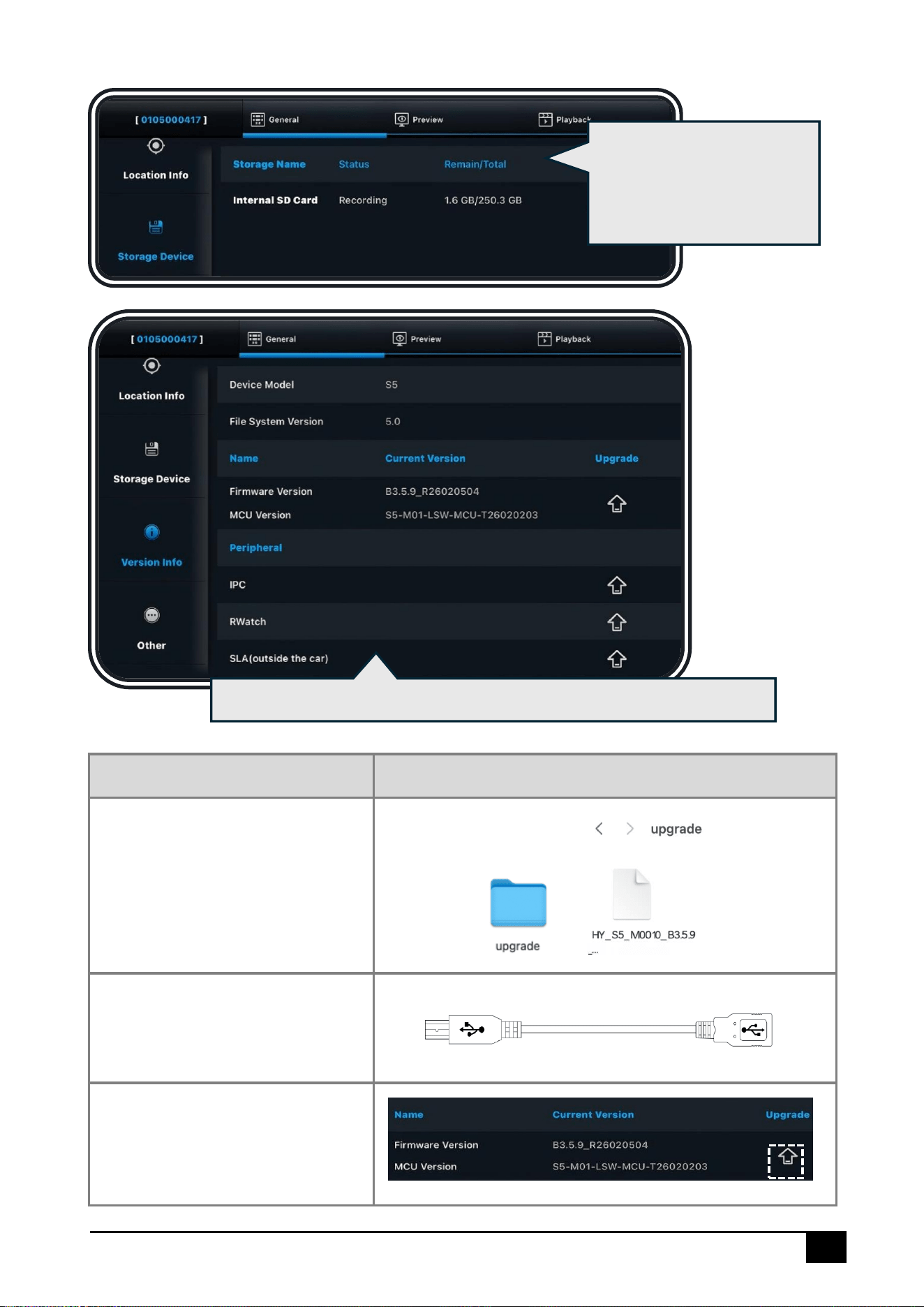

Click [General] → [Version Info]: View or upgrade the software
version
Click [General] → [Storage
Device]: View the storage
status and perform
formatting operations
11
Note
The above steps outline the local upgrade process via Veyes. The device
also supports online upgrades through the FT platform. For details,
please refer to the platform documentation or consult relevant
personnel.
Video Preview

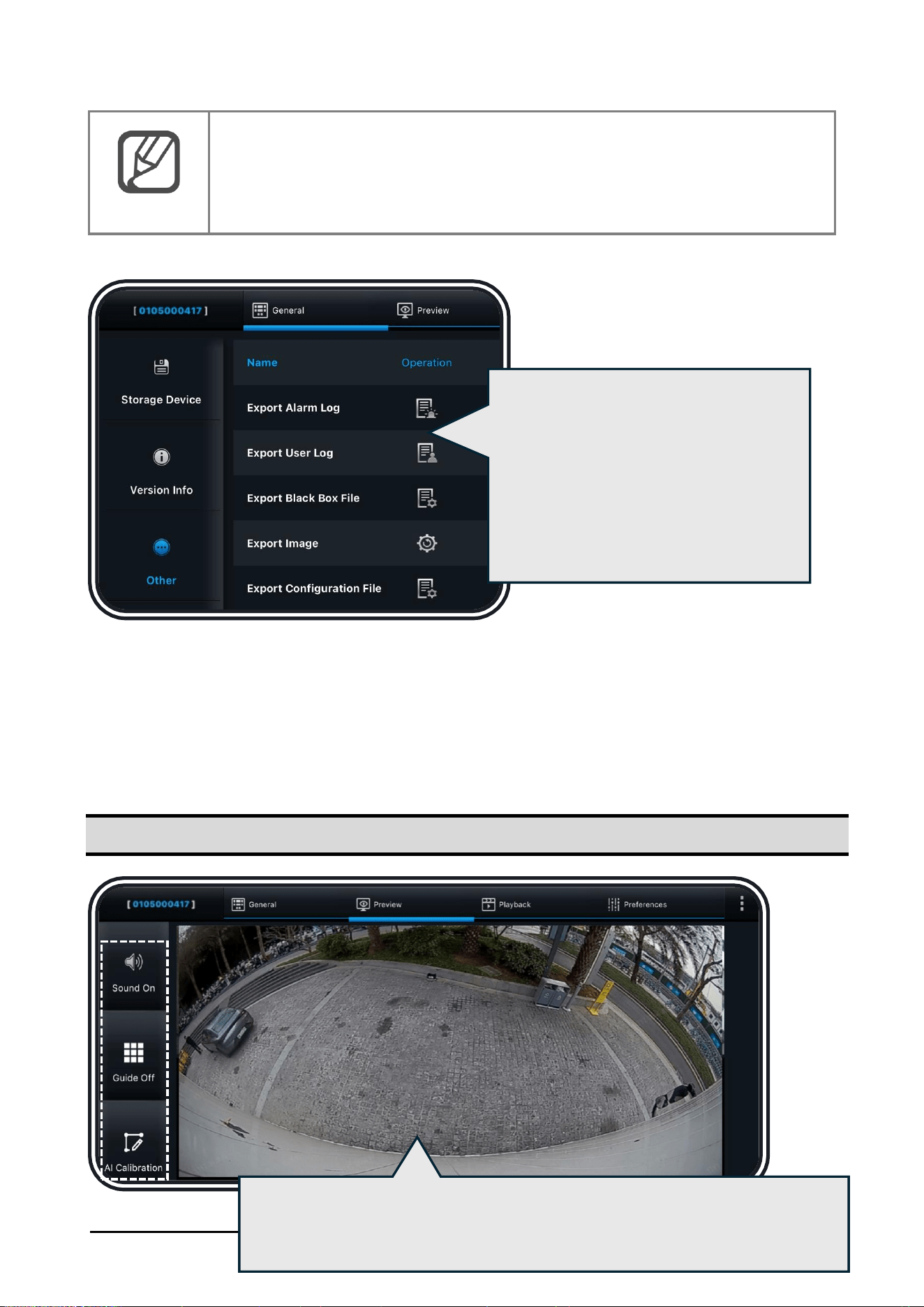

Click [General] → [Other]: Supports
operations such as importing/exporting
data and configuration parameters,
restoring factory settings, and
restarting the device
*Import/Export operations require an
external USB drive
Click [Preview]: View the real-time feed of each channel. Double-click to
enlarge the preview. If no camera is connected or the camera channel is
damaged, "Video Loss" and “No Device” will be displayed. It supports the
operation of turning grid on/off, and AI calibration(Sentinel has no
external microphone).
12
AI Calibration
Sentry Calibration

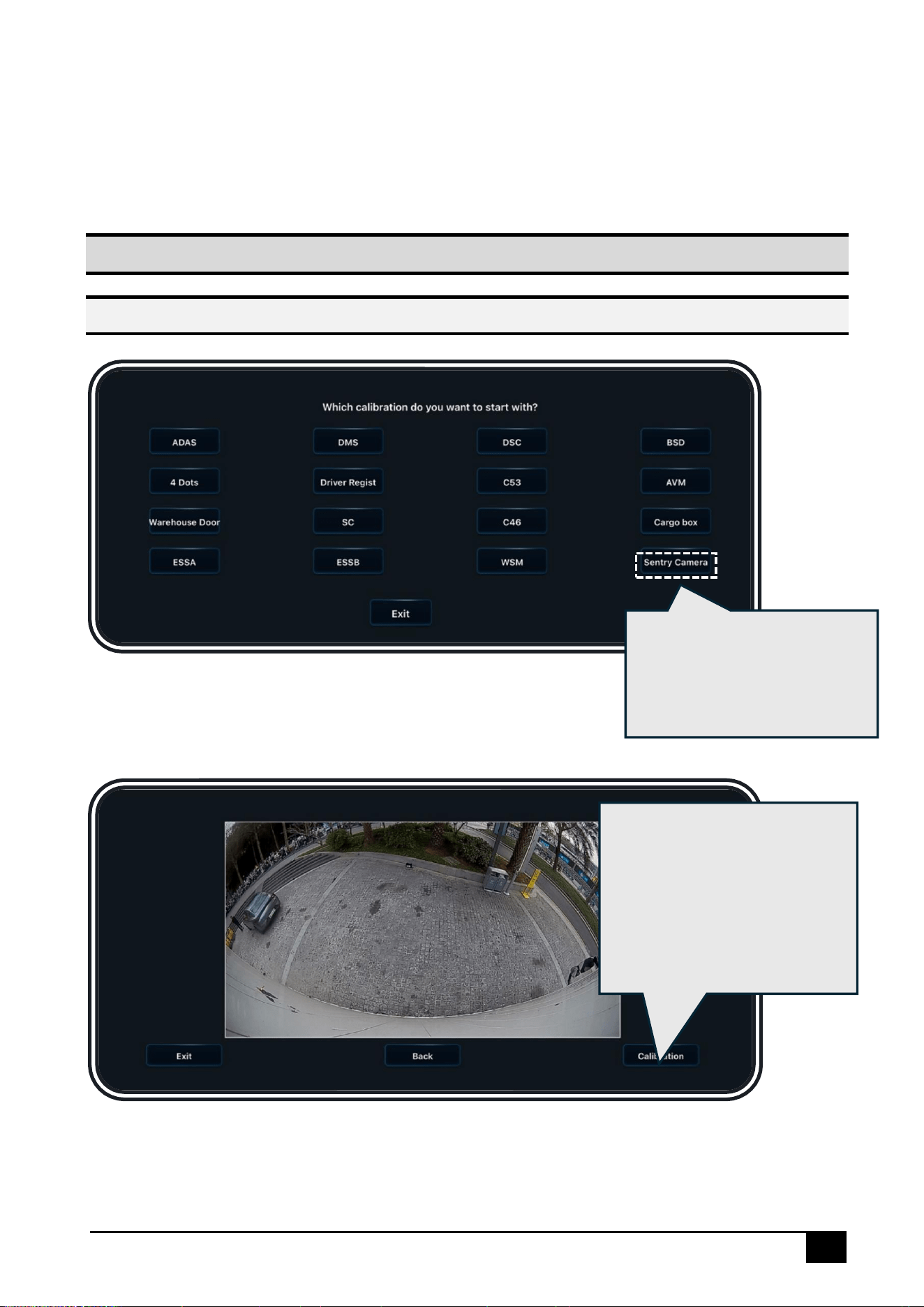

Click the [AI Calibration]
in the preview interface →
[Sentry Camera], to enter
the Sentry calibration
interface
click [Calibration]
Enter the calibration interface
and proceed with the
calibration in the order of
"Vehicle Body Area" to
"Suspicious Area".
13
Warning

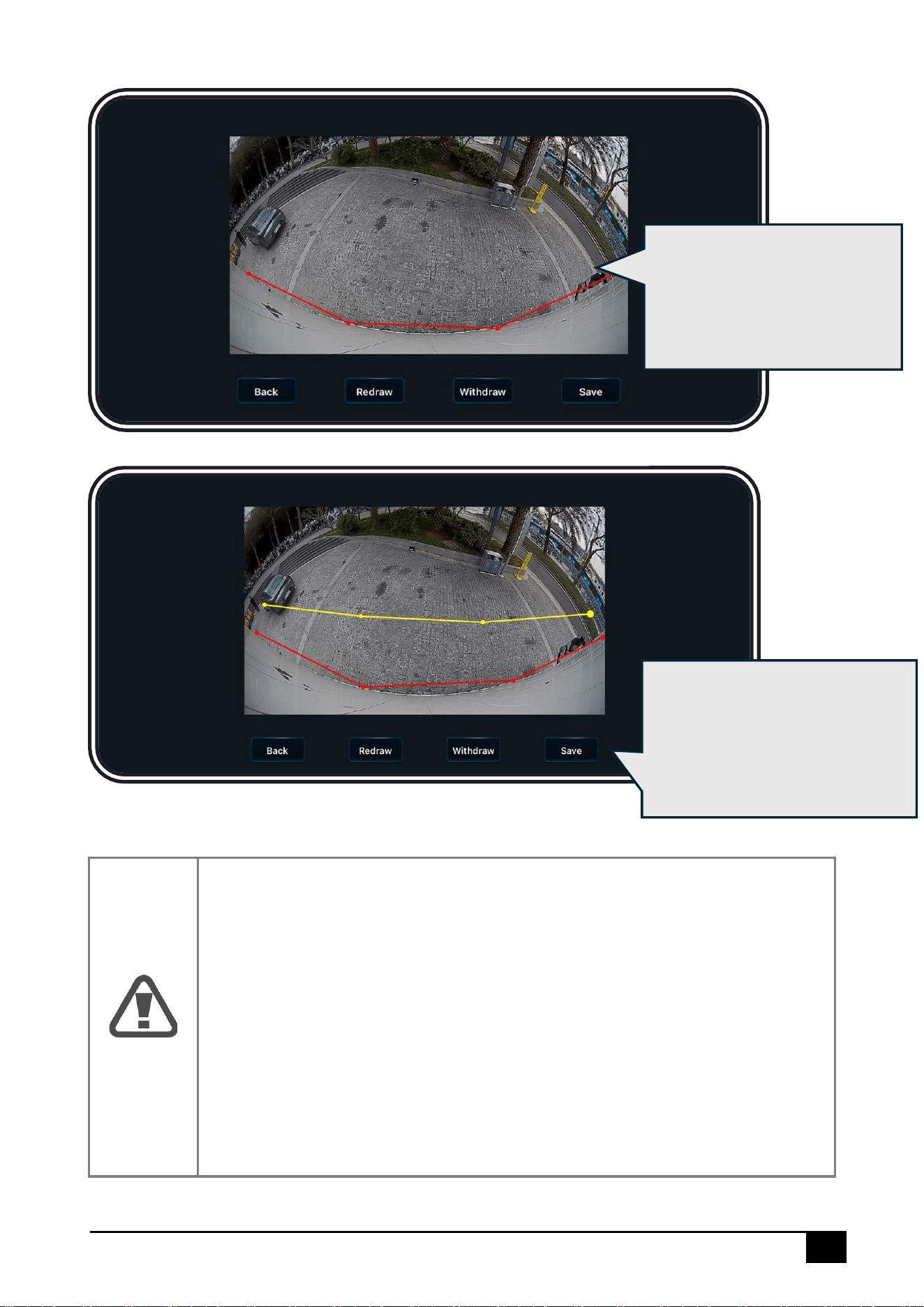

⚫ Sentry camera calibration must be performed strictly according to the
requirements:Perform point marking and calibration on the vehicle body
area first, followed by point marking and calibration on the
suspicious area. Within each calibration range, the selected points
will form a line segment, with both ends of the segment perpendicular
to the vehicle body, thereby defining a range interval.
⚫ Failure to follow the required procedureswill prevent the sentinel
system from accurately obtaining the image information, which may
affect its judgment ability, thereby possibly reducing the accuracy of
the alarm or causing the system to malfunction.
⚫ The company does not assume responsibility for any functional issues
caused by improper installation or calibration
① Click on each of the four
points in sequence to determine
the calibration range of the
"body area" (Red).
② Click on each of the four
points in sequence to determine
the calibration range of the
"suspicious area" (yellow).
then click [Save]
14
Video Playback

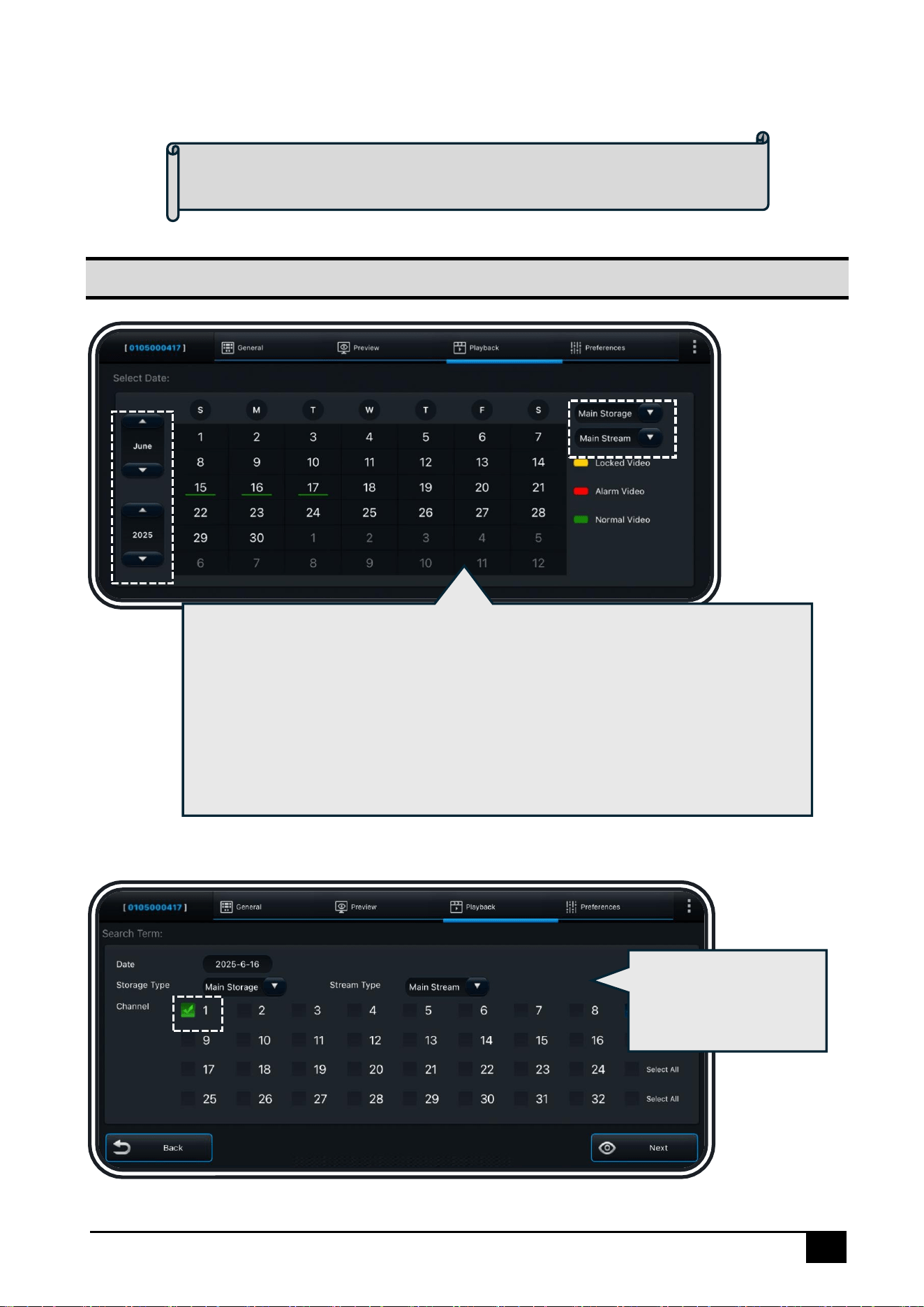

1. Click [Playback], and you can select the year and date
on the left side
of the screen. In the calendar, the color bar under each date indicates
that there is video recorded on that day, with different colors
representing different types of videos
2. On the right side of the screen, you can select the Main/Sub storage
(The S5 only supports one Micro SD cards). In the storage, you can choose
Main streams:
⚫ Main Stream: HD quality, primarily used for video recording
storage, providing video evidence
Select the channel you
want to playback, then
click [Next]
At this point, the Sentry calibration is complete
15

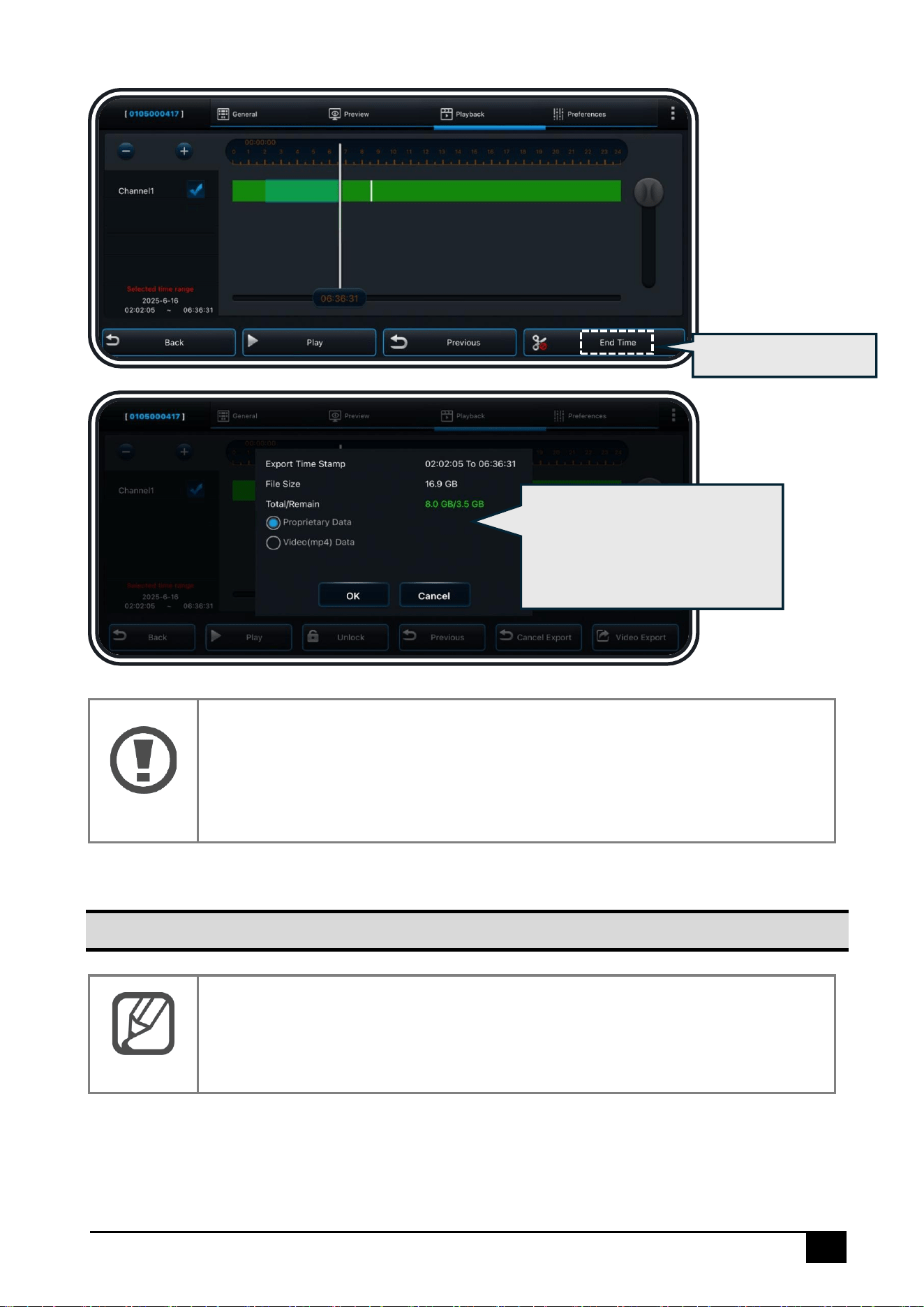

Video Export
Refer to the last page of the previous section's diagram, then click [Video Export]:
1. The top section shows the timeline. You can zoom in/out the timeline by
clicking the button in the top-left corner
2. Check the box for the channel you want to playback
3. The color bar on each channel represents the type of video recorded
during a specific period
4. Drag the timeline to start the playback from a specific time point
5. Click [Play] to start the playback
Select the start time
16
Warning
Exporting in MP4 format allows playback on regular media players.
Exporting in H264/H265 format requires a dedicated player (CEIBA2/FT
client). The H264/H265 format contains more raw data, which is helpful
for troubleshooting. If you require after-sales support, please choose to
export in H264/H265 format
Basic Configurations
Note
In all configuration parameter interfaces, after modifying the
parameters, click the [Save] button at the bottom of the screen to save
the changes. Click [Default] to restore all the default parameters on
that interface
Select the end time
Choose the export data format,
then click [OK] to export the
video (the device must be
connected to a USB flash
drive)
17
Warning
Due to the wide range of features of this product, this user manual only
covers the most used settings. If you have any other questions, please
feel free to contact us

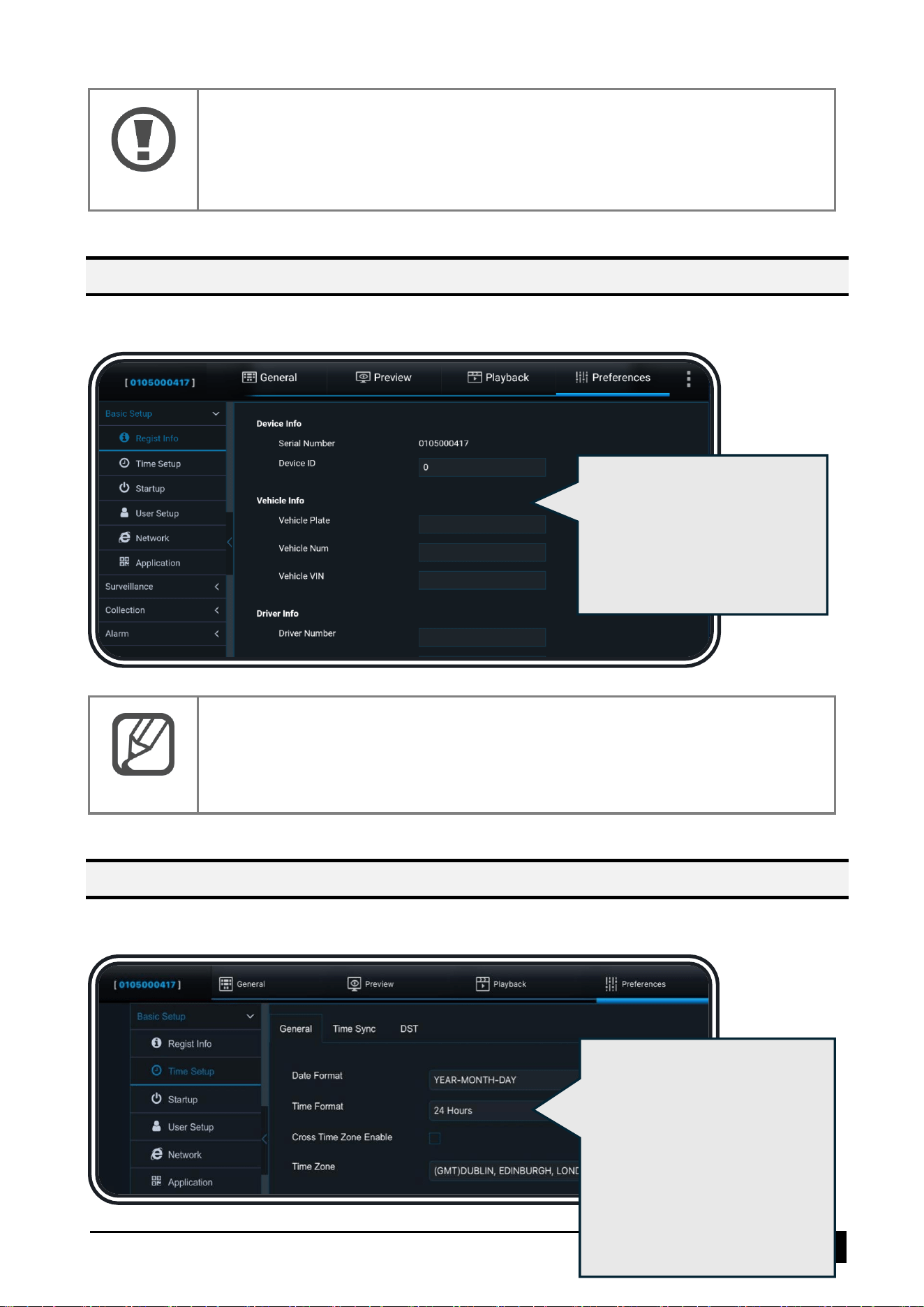

Registration Information
Click [Preferences] – [Basic Setup] – [Regist Info]:
Note
Once you enter the license plate number, the Wi-Fi hotspot name will be
renamed to the license plate number. You will then need to reconnect to
the Wi-Fi and log in to Veyes again
Time Setup
Click [Preferences] – [Basic Setup] – [Time Setup]:
In this interface, you can
fill in the basic
information: Device ID,
License Plate Number, Vehicle
Number, Vehicle VIN, Driver's
Employee ID, and Name
Click [General] to set the
time display format and the
device's time zone. Enabling
[Cross Time Zone Enable] will
make the time zone parameter
unmodifiable, and an option
to set the local time zone
will be added
18
Note
Cross Time Zone Enable: When the vehicle and platform are in different
time zones, enable this option to maintain proper communication between
the device and the platform. Once enabled, the [Time Zone] setting
becomes unmodifiable, and both the platform and the device will use the
UTC (Zero) time zone for data exchange. A [Local TimeZone] setting is
added to be used for overlaying time zones on the video recordings

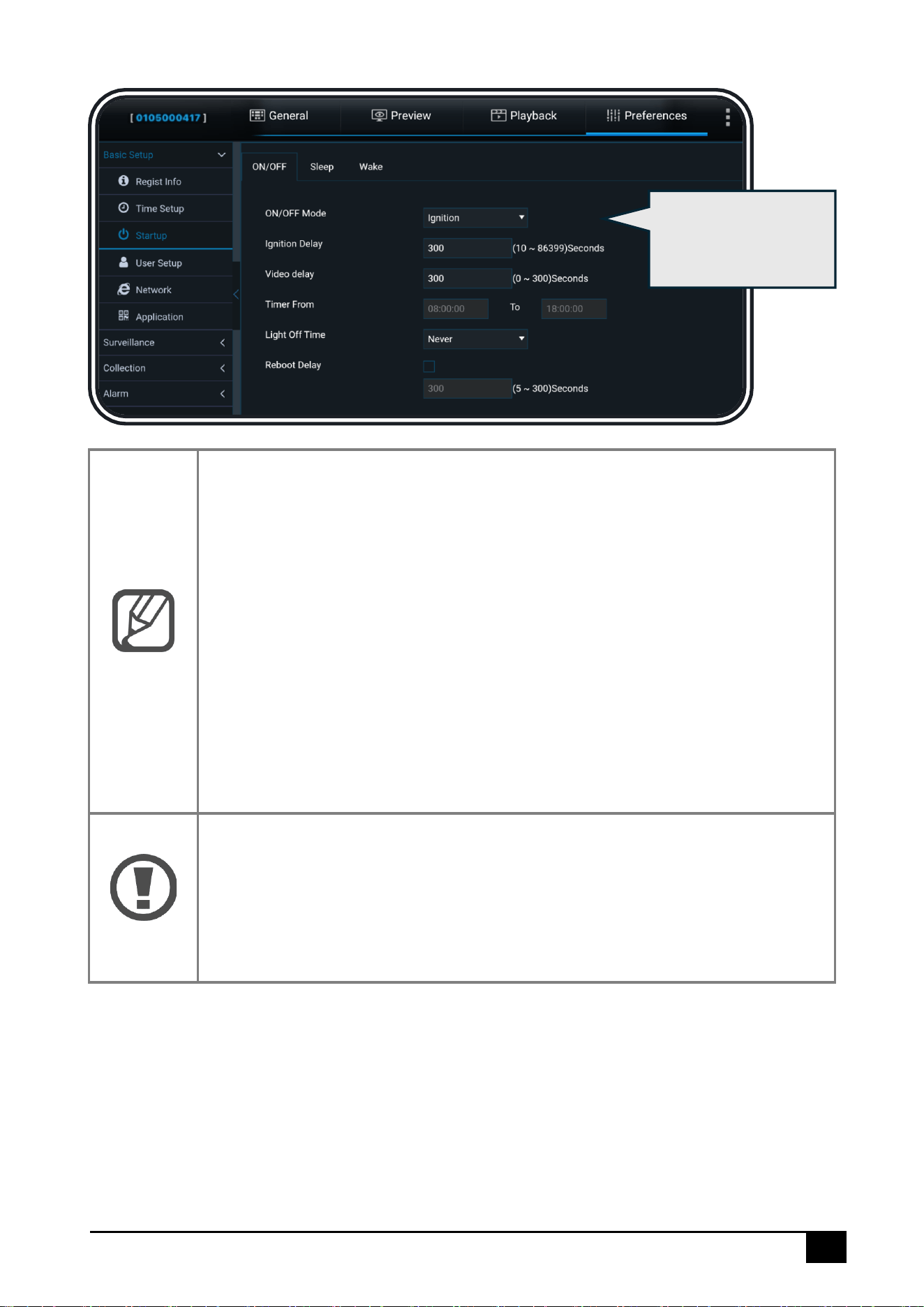

Startup Setup
Click [Preferences] – [Basic Setup] – [Startup]:

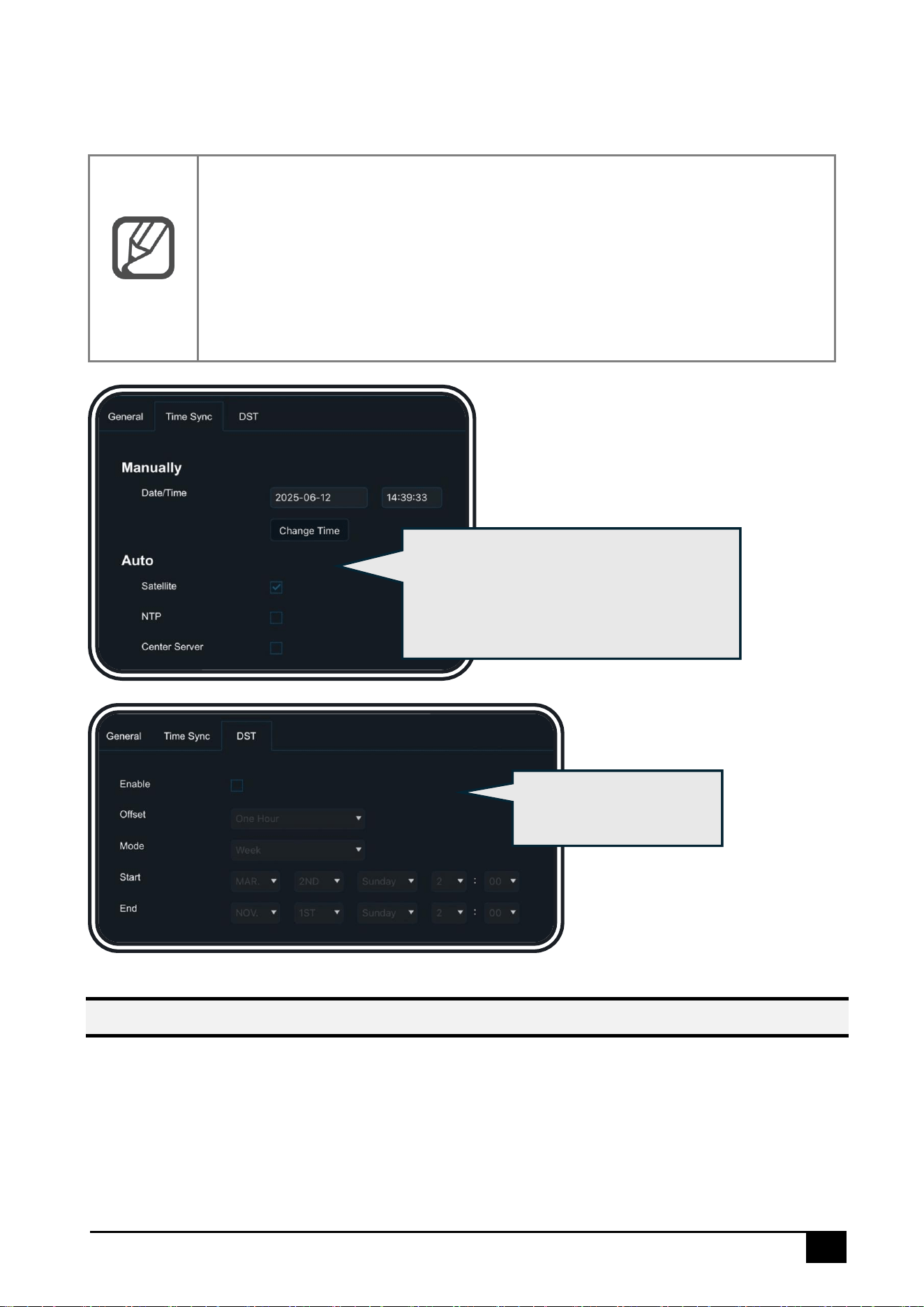

Click [Time Sync] to manually or
automatically set the date and time.
The automatic setting option allows
you to choose the time synchronization
method
Click [DST] to set
Daylight Saving Time
19
Note
⚫ [ON/OFF Mode]: Select the [Ignition] for power on/off (that is, start
the device by turning on the car key).
⚫ [Ignition Delay]: Set the time for delayed shutdown after the car key
is turned off. It can be set from 0 to 86399 seconds, with the default
being 300 seconds.
⚫ [Video Delay]: Set the time for delayed video recording after ignition
shutdown. The video recording delay time ≤ the ignition shutdown
delay time.
⚫ [Timer From]: Select the period for timed power-on.
⚫ [Light Off Time]: When an external display screen is connected, you
can configure the time for the screen backlight to turn off.
⚫ [Robot Delay]: When enabled, the device will automatically restart
once after the set time, and then start the shutdown countdown again.
Warning
⚫ The function will only take effect when AOV is disabled.
Click [ON/OFF] to set
the device status
after ACC OFF
20
Note
⚫ [Battery low voltage protect]: When the battery voltage falls below
the set value, the device will enter low power standby mode when ACC
ON and zero power standby mode when ACC OFF
⚫ [Voltage Startup]: In low power standby mode, when the battery voltage
exceeds the set value, the device will return to normal startup mode
⚫ [Low Volt Upload]: When enabled, the device will report to the
platform when the low voltage protection is triggered

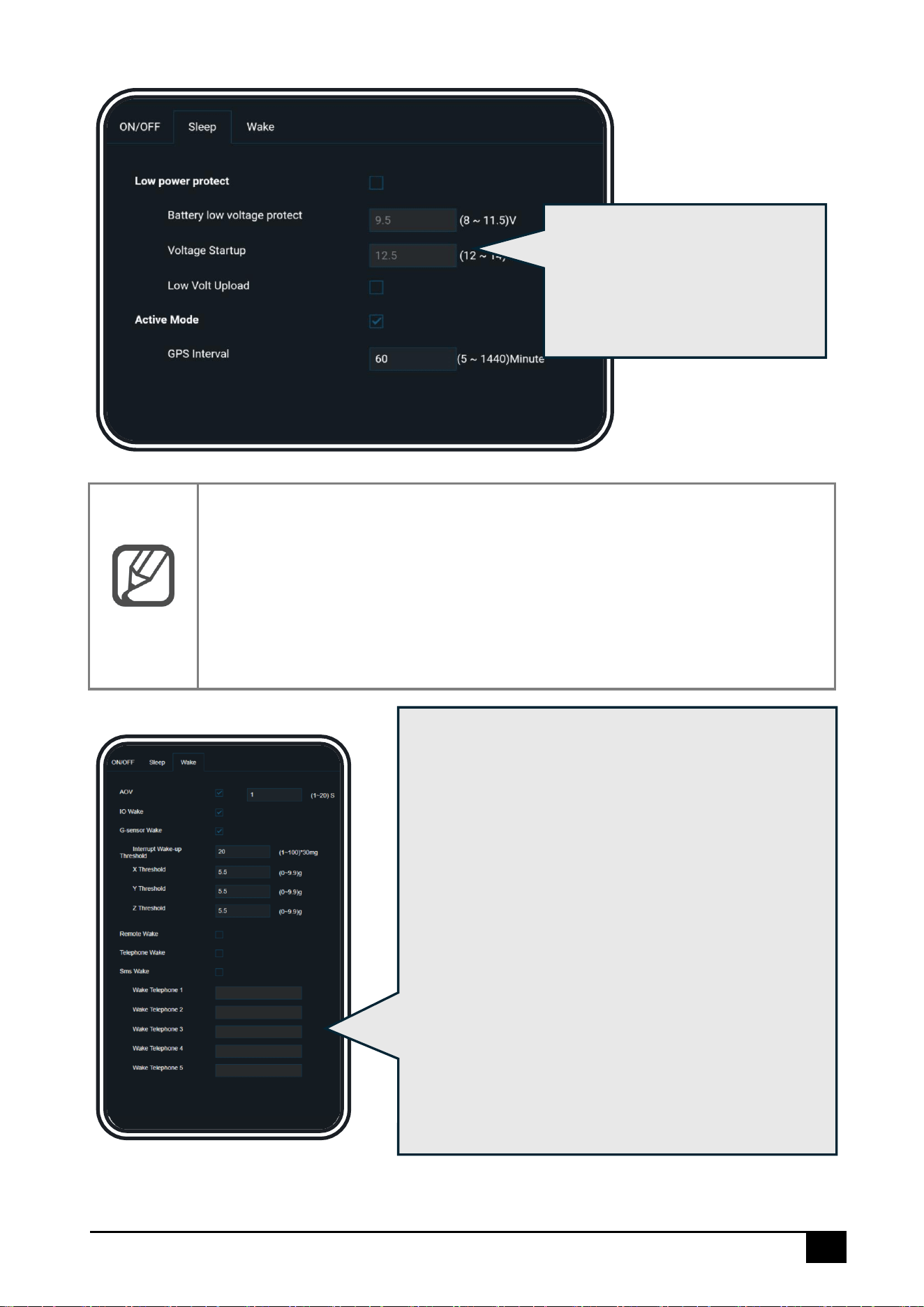

Click [Sleep] to select the
device's sleep mode. You can
modify the sleep time, low voltage
protection parameters, and the GPS
reporting interval during sleep
Click [Wake] to select the device's wake-up method:
⚫ AOV:After activation, the device will enter the
AOV mode. It will periodically wake up at the
time intervals set here, conduct environmental
detection and record videos frame by frame.
⚫ IO Wake: The device will be awakened after an IO
alarm is triggered
⚫ G-Sensor Wake: The device will be awakened when
its motion exceeds the threshold
⚫ Remote Wake: The device will be remotely awakened
by issuing a command from the platform
⚫ Call Wake: The device will be awakened by a phone
call, requiring a pre-configured phone number
that supports wake-up
⚫ SMS Wake: The device will be awakened by sending
a text message to the device, with the message
content as "WAKEUP". The phone number that
supports wake-up must be pre-configured
* The Call Wake and SMS Wake functions require the
SIM card in the device to support SMS and voice call
services
21

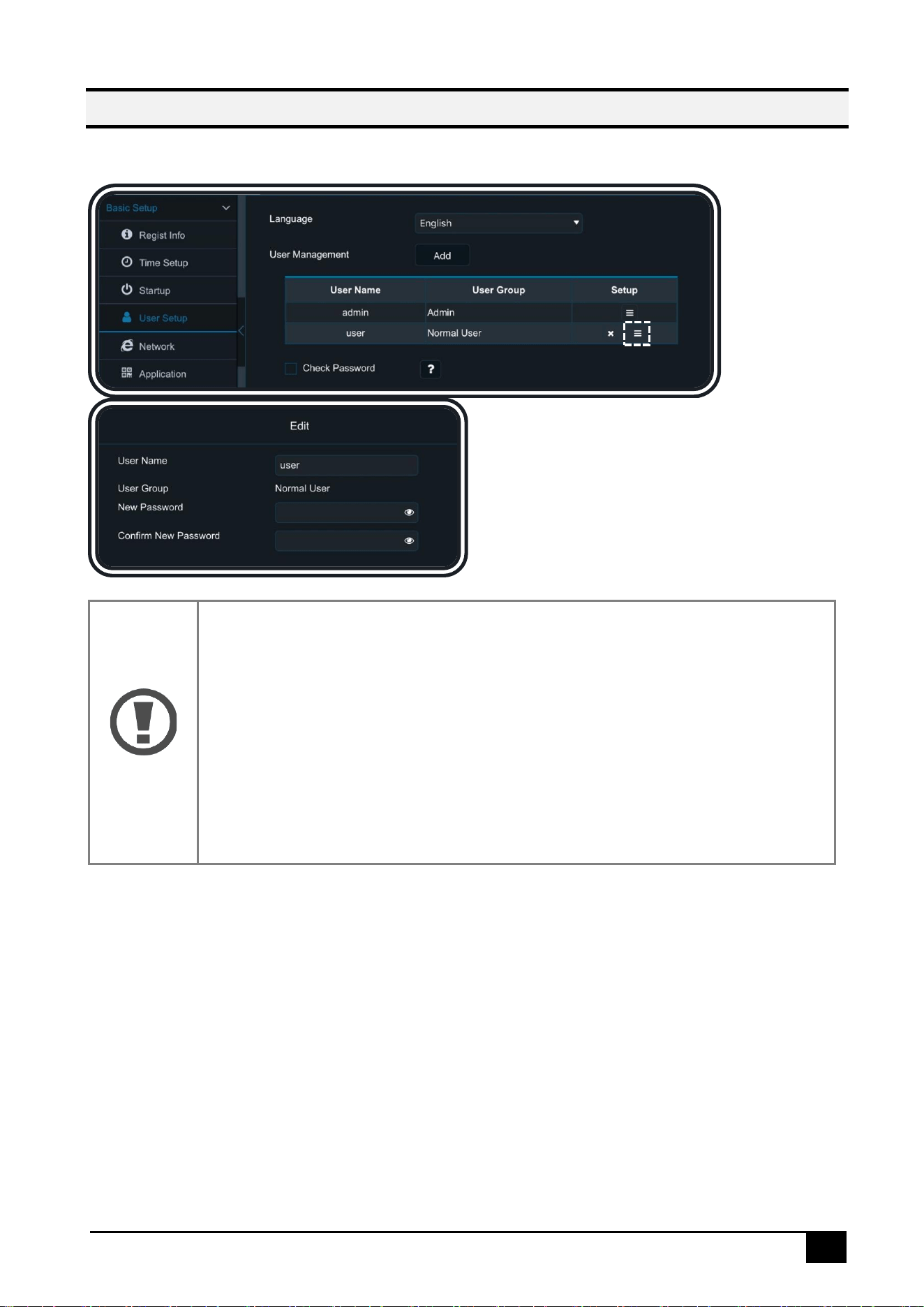

User Setup
Click [Preferences] – [Basic Setup] – [User Setup]:
Warning
⚫ Admin: There is only one admin account, which has the permission to
add/delete normal users and set parameters. A maximum of two normal
users can be added
⚫ Normal User: A default normal user account is created, which only has
permission to view settings
22
Network Setup

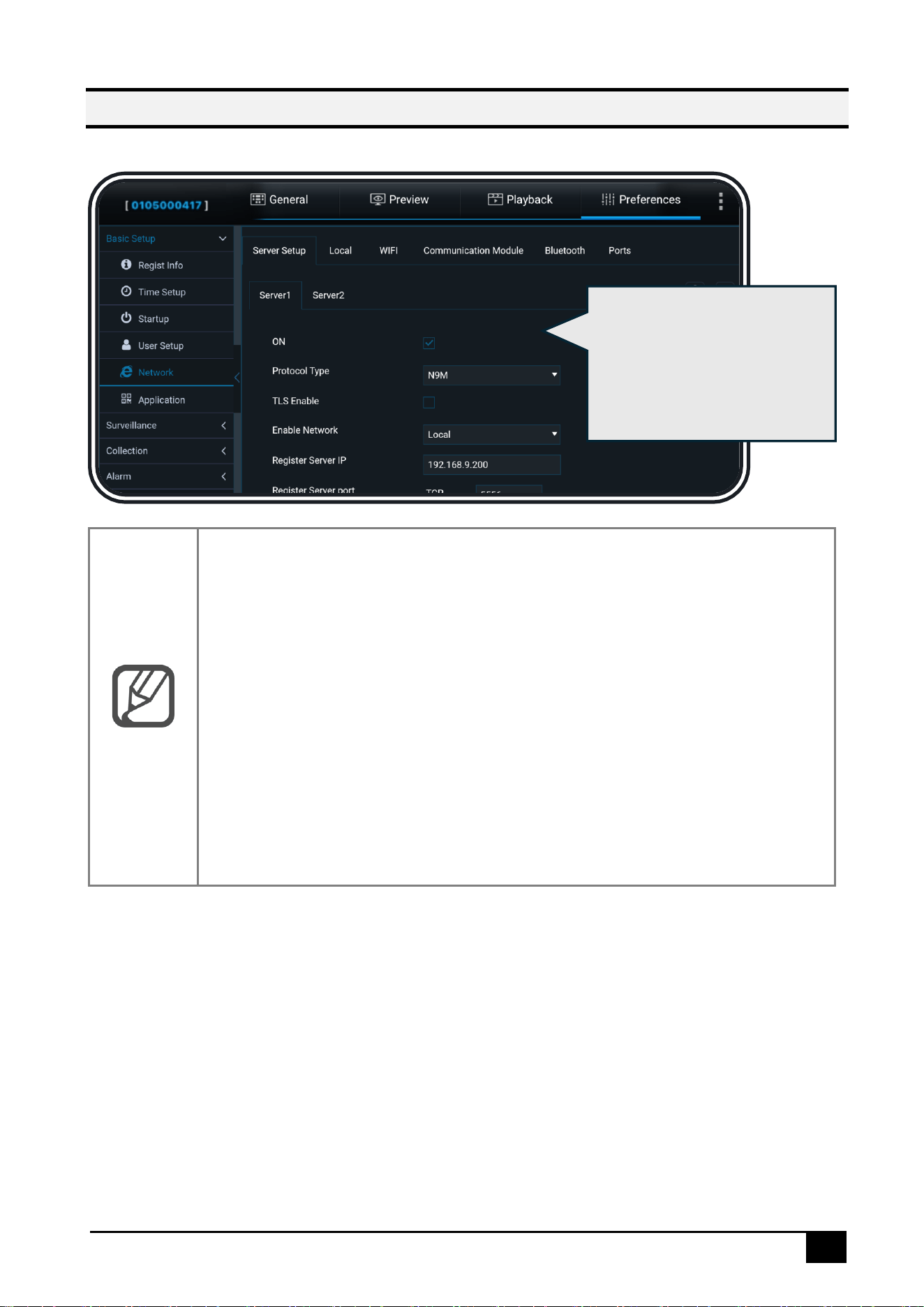

Click [Preferences] – [Basic Setup] – [Network]:
Note
⚫ [Enable Network]: You can choose between wired network, Wi-Fi,
communication module, or adaptive. Adaptive means the system will
automatically select the available network for platform connection,
with priority given to Wi-Fi > Wired Network > Communication Module
⚫ During normal device operation, data between the device and the
platform can be transmitted via TLS encryption to ensure the security
of the interaction. (TLS encryption is unavailable in sleep mode.)
⚫ The registration server and media server addresses and ports must be
the same
⚫ SMS commands can be used to modify the server parameters. For
specific usage, please consult the relevant personnel
Click [Server Setup] to
add/remove servers and
configure their parameters. A
maximum of 4 servers can be
enabled simultaneously
23

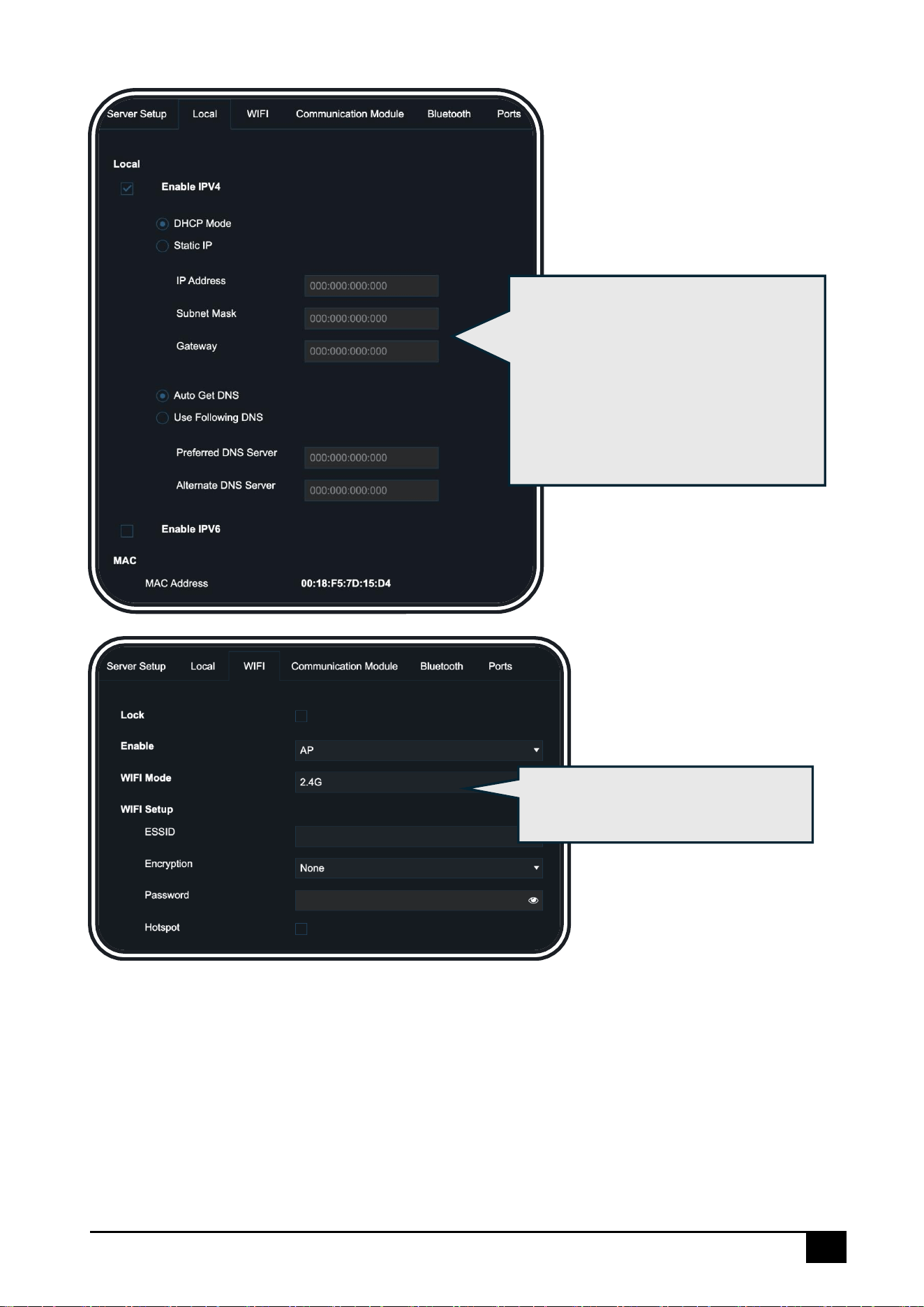

Click [WIFI] to select the Wi-Fi
mode and configure the related
settings
Click [Local] to configure both IPv4
and IPv6 network protocols. Users can
select automatic IP (DHCP mode) and DNS
retrieval or manually set the IP
address, gateway, and DNS.
The MAC address info is also displayed
here
24
Note
⚫ [Lock]: When enabled, the Wi-Fi parameters cannot be imported or
modified, and will not be affected by factory reset
⚫ [Enable]:
Disable
Wi-Fi is disabled. The device defaults to AP mode within
3 minutes (configurable) after power on. If no Veyes
connection is made within 3 minutes, the device will exit
AP mode, and the module will enter sleep mode
AP
[WIFI Mode]: Choose between Auto, 2.4G, or 5G；
[ESSID]: The name of the device's hotspot (defaults to
the serial number)
[Hotspot]: After enabling the hotspot, mobile devices can
connect to the device's hotspot for internet access. You
can configure the encryption method
[Whitelist]: Only mobile devices with IP addresses in the
list are allowed to connect. You can add up to 5 IP
addresses
Client
[ESSID]: The ID and password of an available external Wi-
Fi network. The device will automatically search for
nearby valid Wi-Fi networks and report to the platform
through that network. You can configure the encryption
method
25

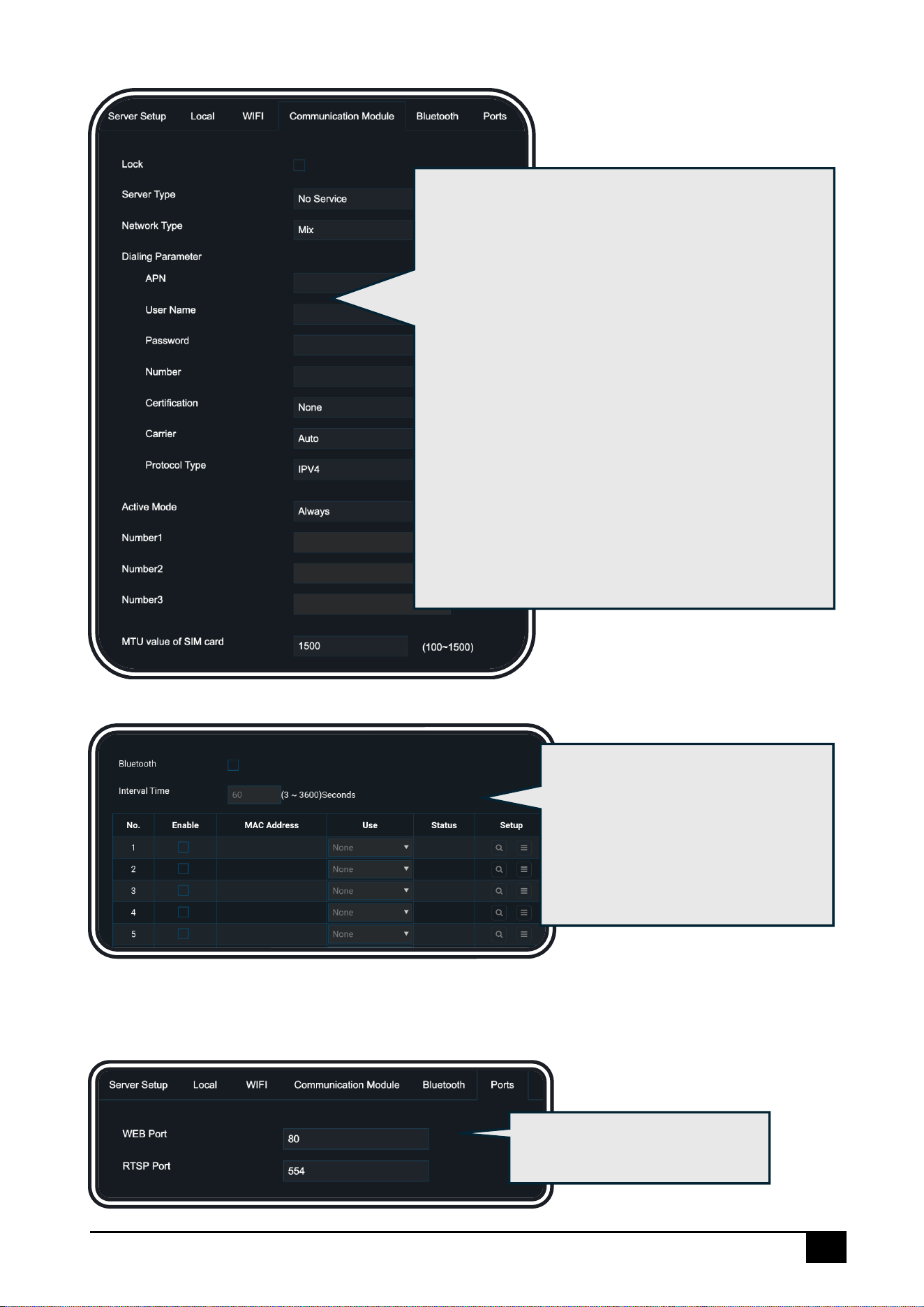

Click [Communication Module] to configure the
communication module settings:
⚫ [Lock]: Same as above, see [WIFI] – [Lock]
⚫ [Dialing Parameter]: Enter the parameters
provided by the SIM card manufacturer. By
default, this field is empty, and if left
empty, the device will use the default
dialing parameters
⚫ [Active Mode]: Select [Always] for constant
connection mode; select activation via phone
call/SMS, with a maximum of 3 available phone
numbers; also select [Sensor] switch
activation, where the network module will
only be activated to dial after triggering
the IO sensor
⚫ [MTU value of SIM card]: Default is 1500; the
data is configurable
Click [Bluetooth] to search for
and connect to Bluetooth sensors.
Bluetooth 2.1 and Bluetooth 4.2
are supported. Currently, this
function is under development
Click [Ports]:This interface
can change the port number.
26
Note
WEB Port: The default is 80, which is used for access via IE.
RTSP Port: The default is 554, supporting real-time preview and playback
through RTSP with a fixed IP.
⚫ RTSP Streaming Format: rtsp://user:pwd@IP:554/mainstreamX (X is the
channel number, starting from 0, such as mainstream0)
⚫ Example: rtsp://admin:[email protected]:554/mainstream0
Application Setup

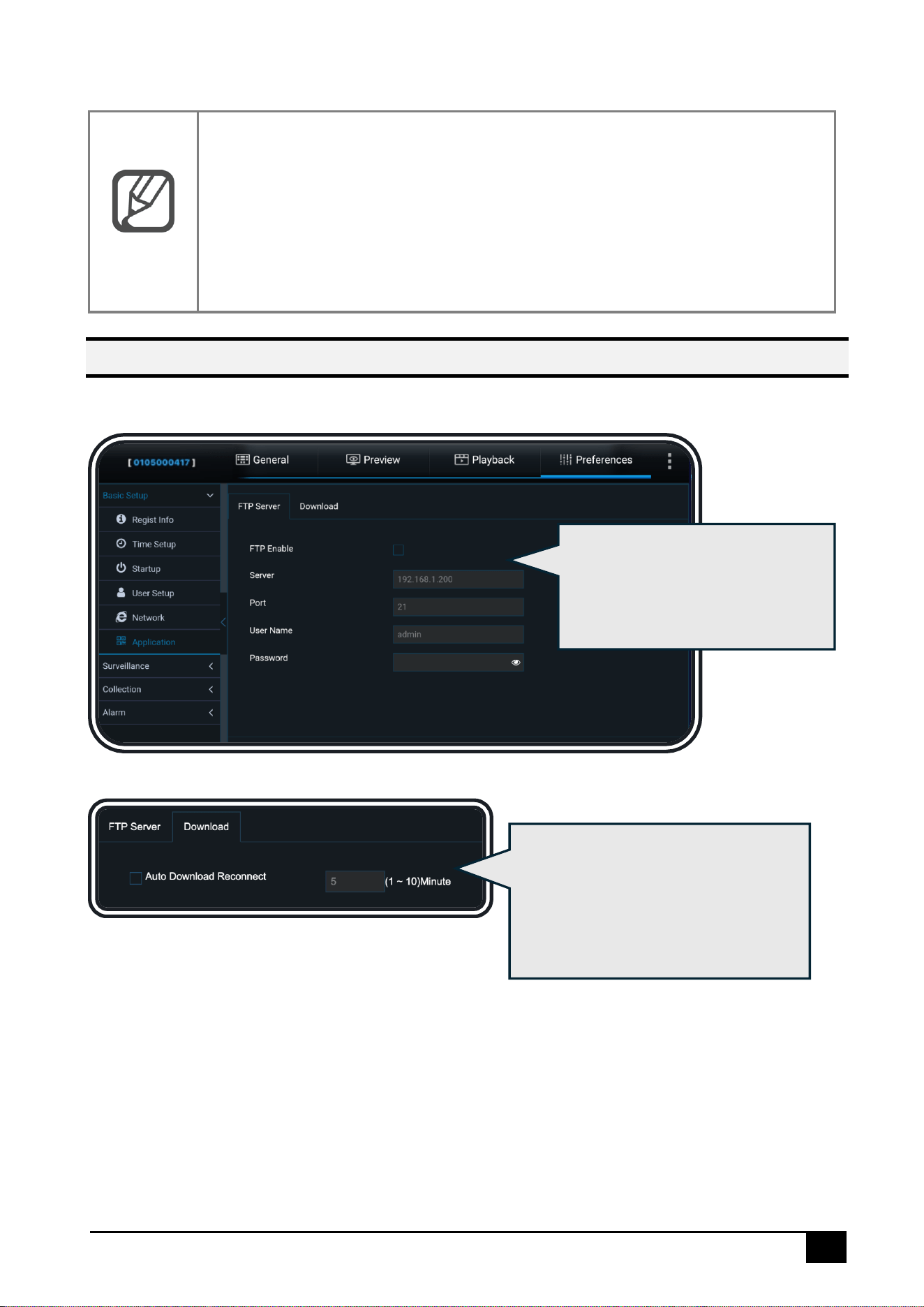

Click [Preferences] – [Basic Setup] – [Application]:
Click [FTP Server], which
supports configuring the FTP
server for uploading or
downloading files and images

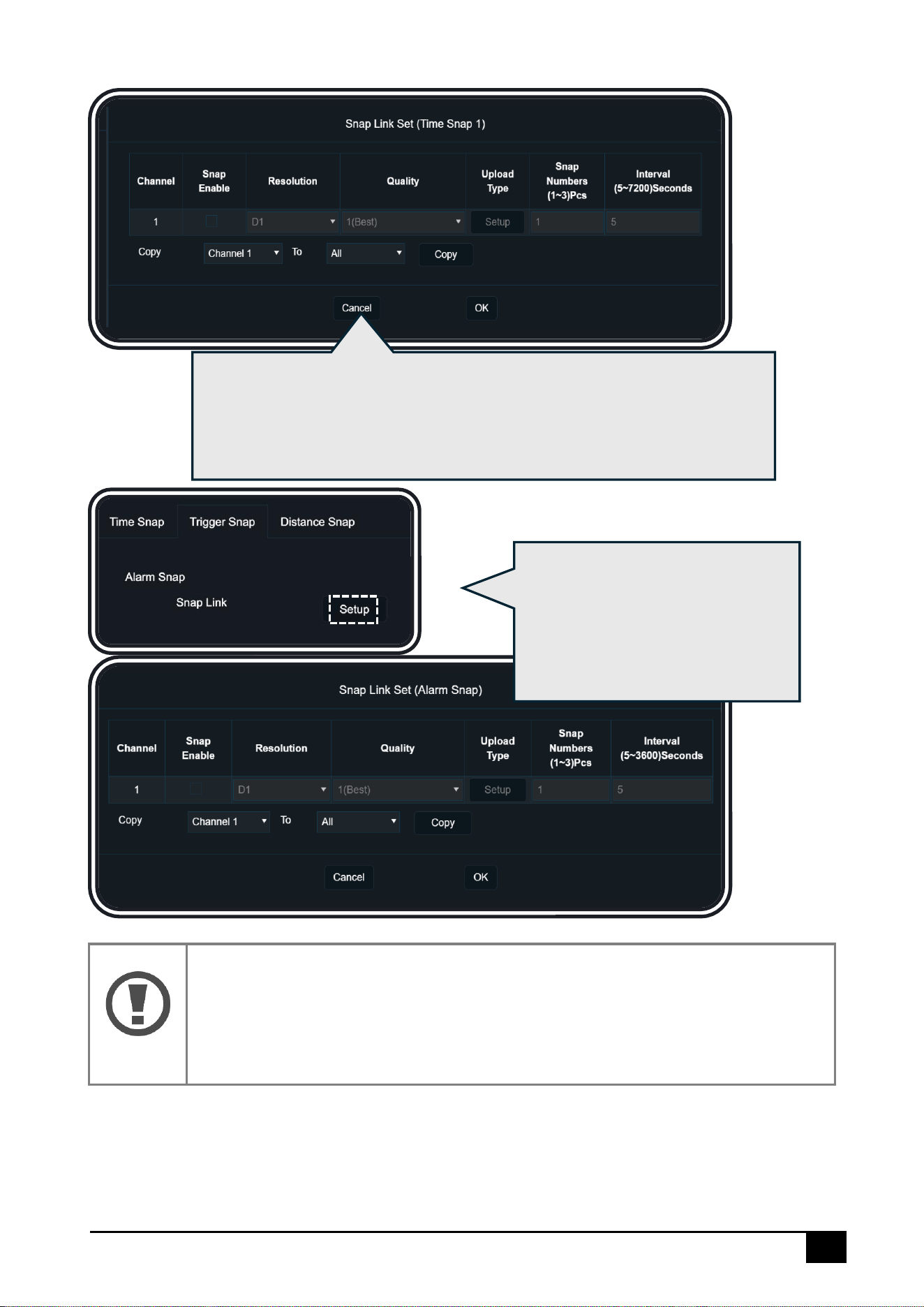

Click [Download]: to set the
automatic download reconnection
time, which can be selected between
1 and 10 minutes, with the default
being 5 minutes.
27

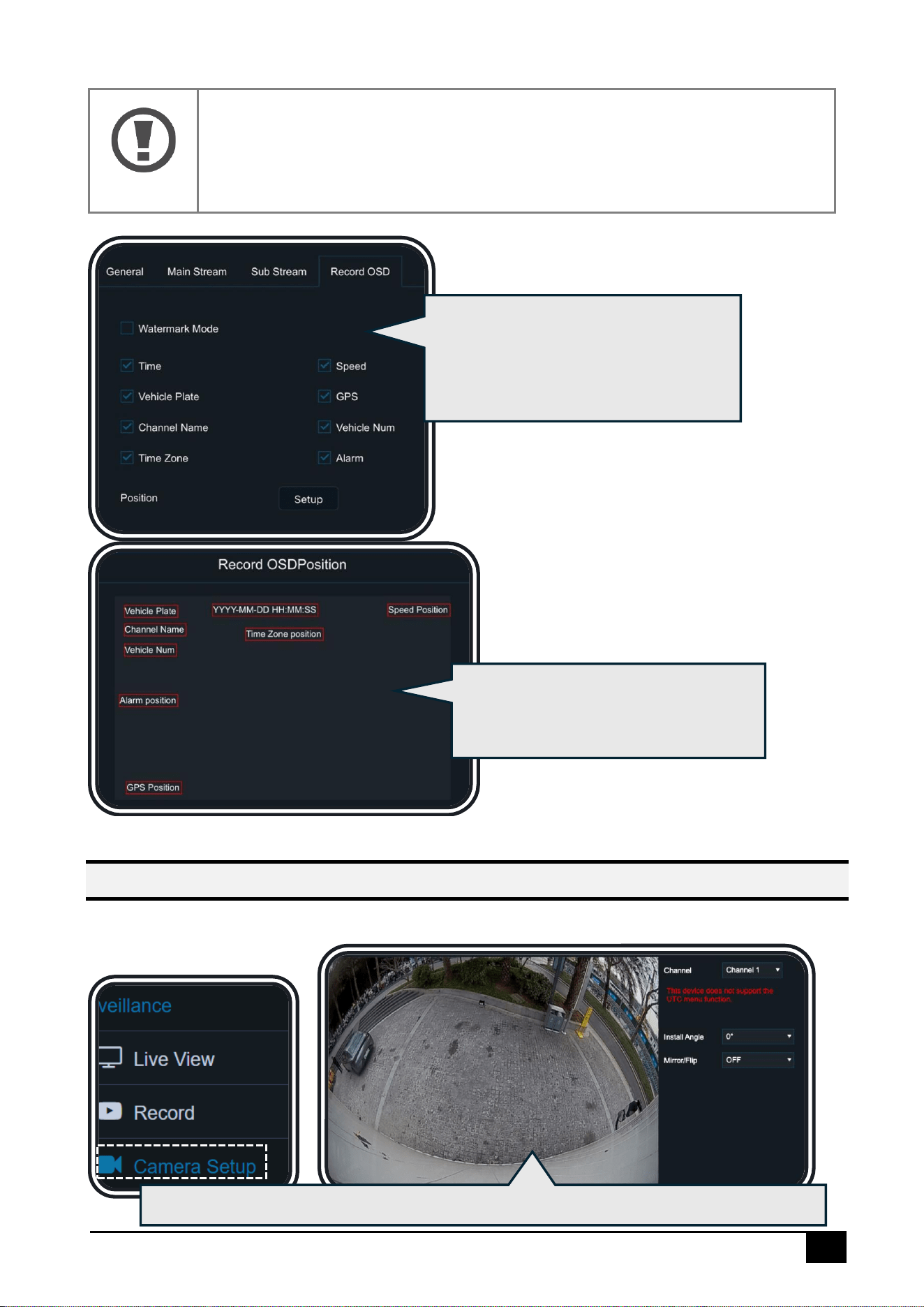

Video Surveillance
Record
Click [Preferences] – [Surveillance] – [Record]:
Warning

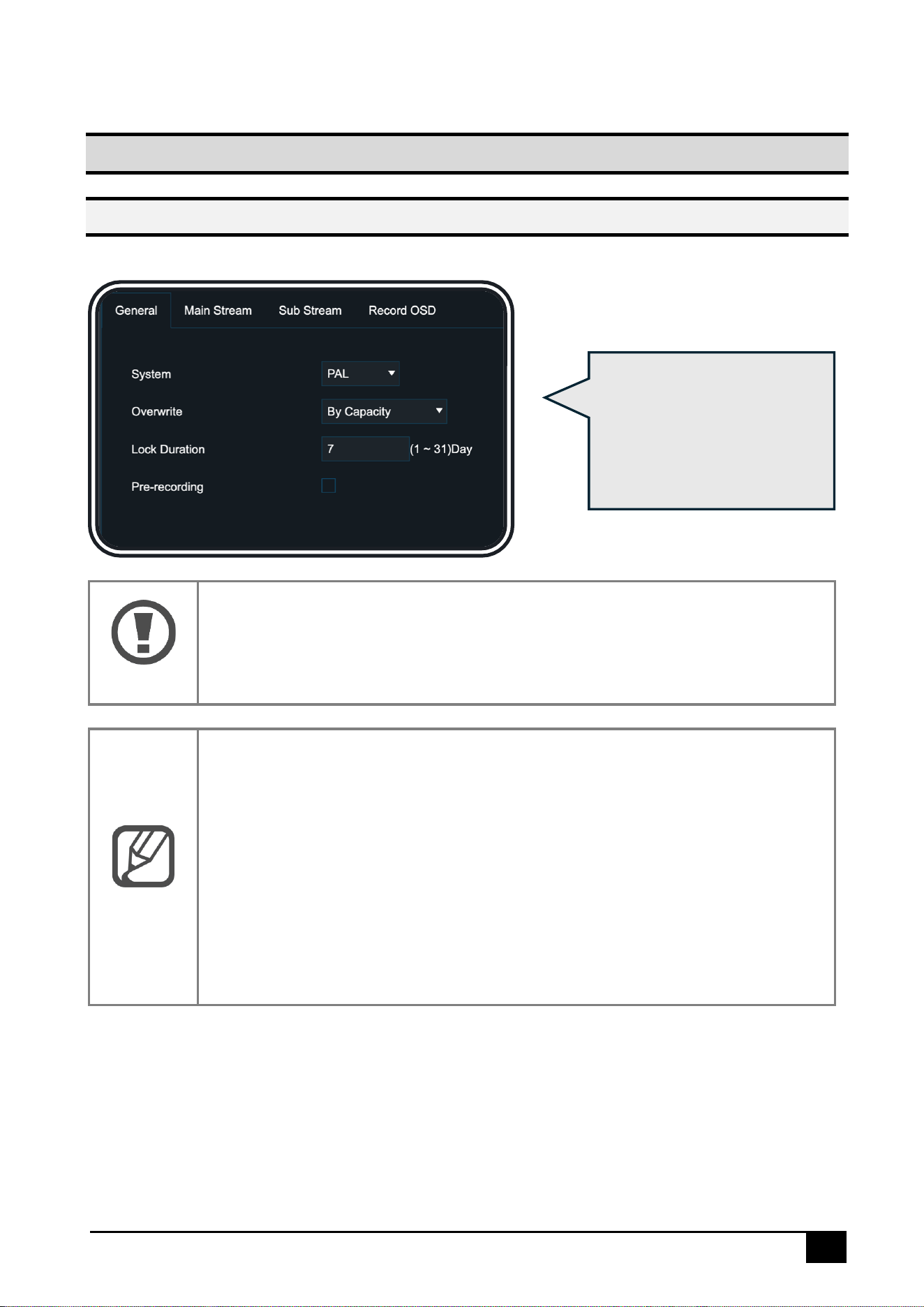

[System]: The system format includes PAL and NTSC. The system format must
match the external camera format, otherwise, the device will not
recognize it
Note
[Overwrite]:
⚫ [By Days]: Overwrite by days, storing recordings for n days. If the
SD card is full before n days, overwriting will occur in advance
⚫ [By Capacity]: Overwrite by capacity, automatically overwriting old
recordings when the remaining capacity is less than 1%
⚫ [Never]: No overwriting, recording will stop when the storage is full
⚫ [By Minutes]: The logic is the same as [By Days]
[Pre-recording]: When in alarm recording, it will link the recordings
from a specified time before the alarm trigger (configurable) for event
analysis
Click [General], which
supports configuring system
standards, coverage
strategy, pre-recording
logic, and recording mode
28
Note
⚫ [Resolution]: Selectable video resolution
⚫ [Frame Rate]: Selectable video frame rate
⚫ [Quality]: Selectable video quality, 1-8
⚫ [Encode Standard]: Selectable video compression standard, H264/H265
⚫ [Channel Name]: Modifiable channel name
⚫ [Record Mode]: Selectable recording mode, startup recording/timed
recording/alarm recording
⚫ [Alarm Quality]: Selectable alarm video quality, 1-8
⚫ [Encode Mode]: Selectable video encoding mode, CBR/VBR

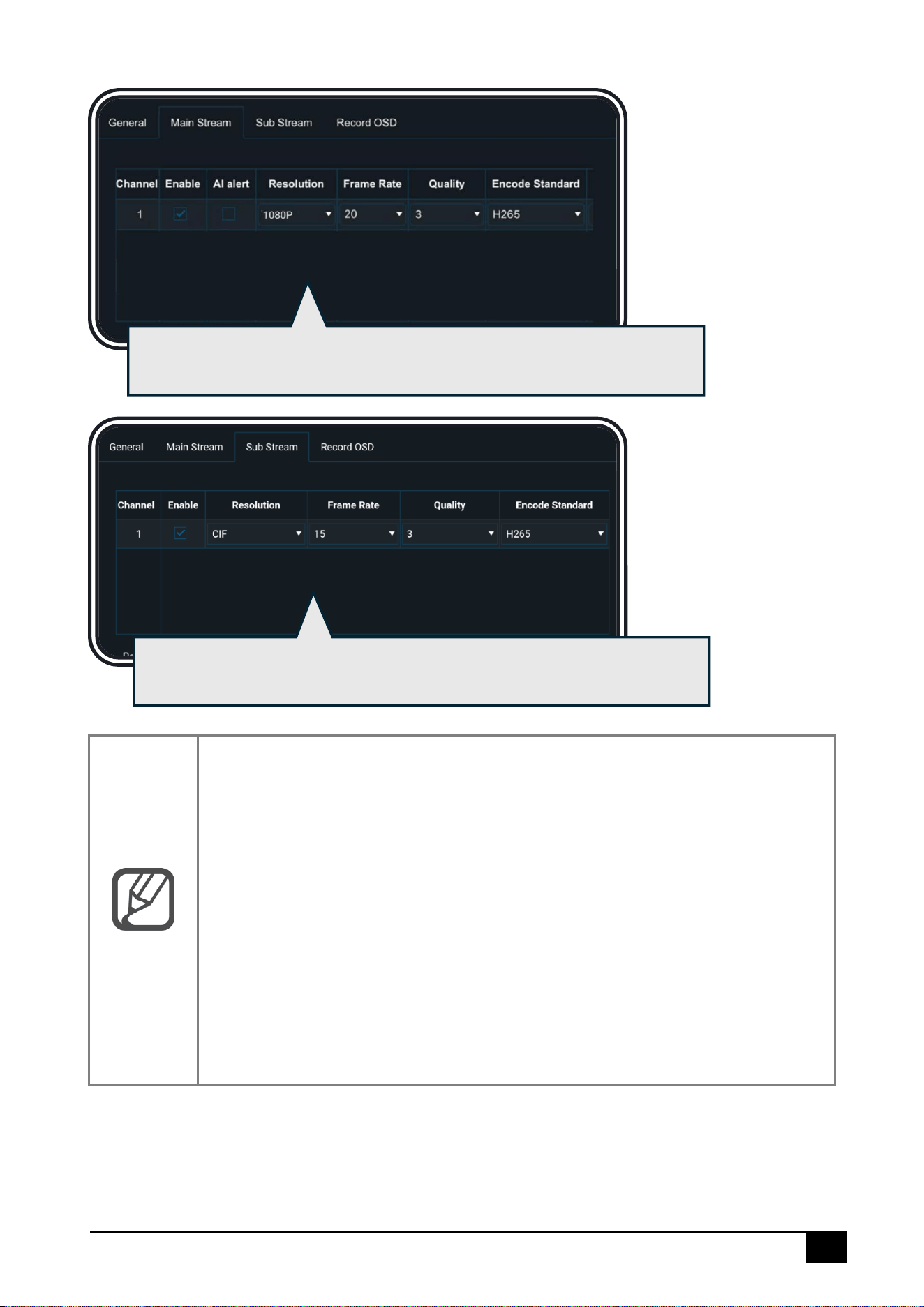

Click [Main Stream], which supports configuring the following
parameters for each channel in main stream recording
Click [Sub Stream], which supports configuring the following parameters
for each channel in sub stream recording
29
Warning
When the main stream is disabled, the whole video input will be shut
down. At this time, even if the sub-stream is enabled, it won't record
the sub-stream.
Camera Setup
Click [Preferences] – [Surveillance] – [Camera Setup]:
Click [Record OSD], which supports
overlaying the selected information
onto the recording screen, and it can
be displayed in the platform preview
Click [Setup], which supports
dragging to set the overlay position
of each piece of information
You can set the rotation angle, mirroring, and (vertical) flipping for each channel's
screen
30
Warning
Under normal circumstances, the device's default screen angle is set to
the optimal (best) angle at the factory. Please do not modify the angle
or perform any mirror flipping operations. If intentional modifications
lead to abnormal video display or AI detection functionality, the
company is not responsible
Data Collection
General Setup
Click [Preferences] – [Collection] – [General]:

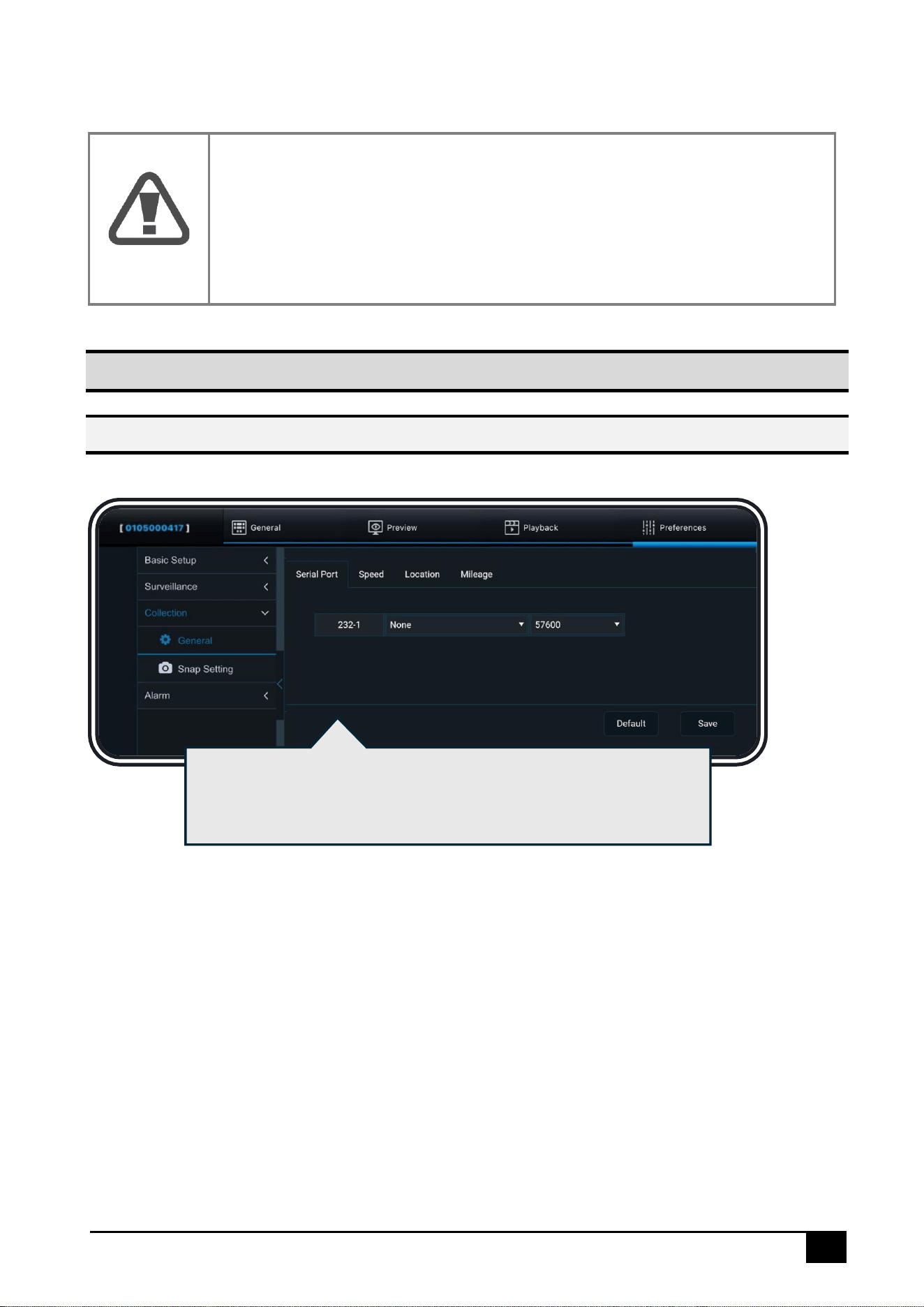

Click [Serial Port], it supports configuring the RS232 serial
port's purpose and baud rate (the baud rate will be automatically
set, but If there is an error, you can also adjust it manually)
31
ACC Status
Fixed Reporting
Conditional Reporting
ACC ON
⚫ Timed Reporting: The reporting
interval can be configured
⚫ Distance-Based Reporting: The
reporting distance can be configured.
Both of the above options can be
selected at the same time
Configure [Moving Start]
and [Moving Stop], as
described below
ACC OFF
Sleep Reporting: For more details, please refer to the [Startup Setup]

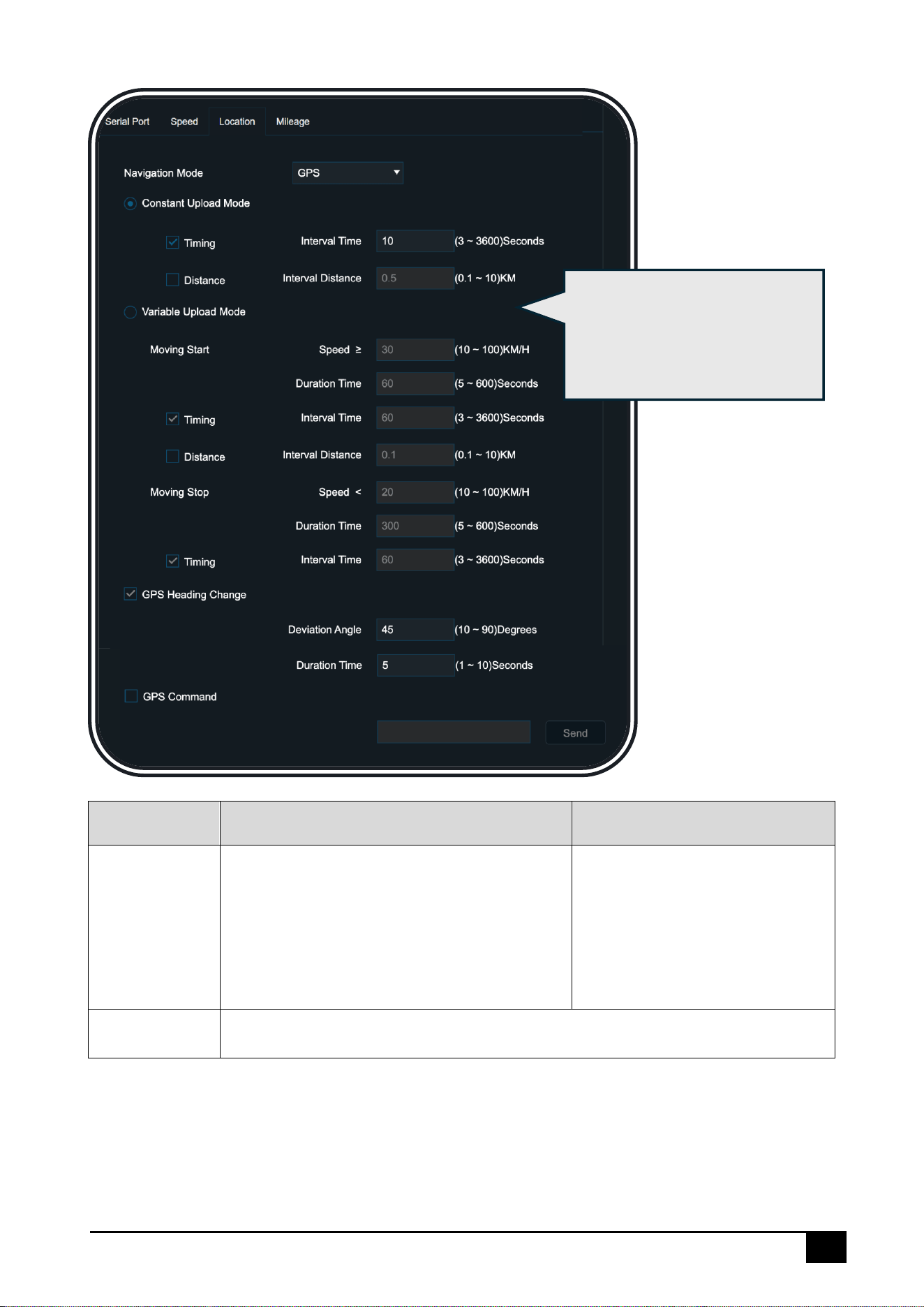

Click [Location], which
supports configuring GPS
positioning mode, reporting
mode, and related parameters
32
Note
⚫ [Moving Start]: When the vehicle speed exceeds a certain value and
stays above it for a specific period, the vehicle is considered to
have started, and reporting will follow the configured time or
distance logic under this option.
⚫ [Moving Stop]: When the vehicle speed drops below a certain value and
stays below it for a specific period, the vehicle is considered to
have stopped, and reporting will follow the configured time logic
under this option.
⚫ [GPS Heading Change]: Reporting will occur when a significant change
in vehicle heading is detected. The angle and reporting interval can
be configured.
⚫ The vehicle's ACC status will be reported along with the GPS
information.
Snap Setup
Click [Preferences] – [Collection] – [Snap Setting]:

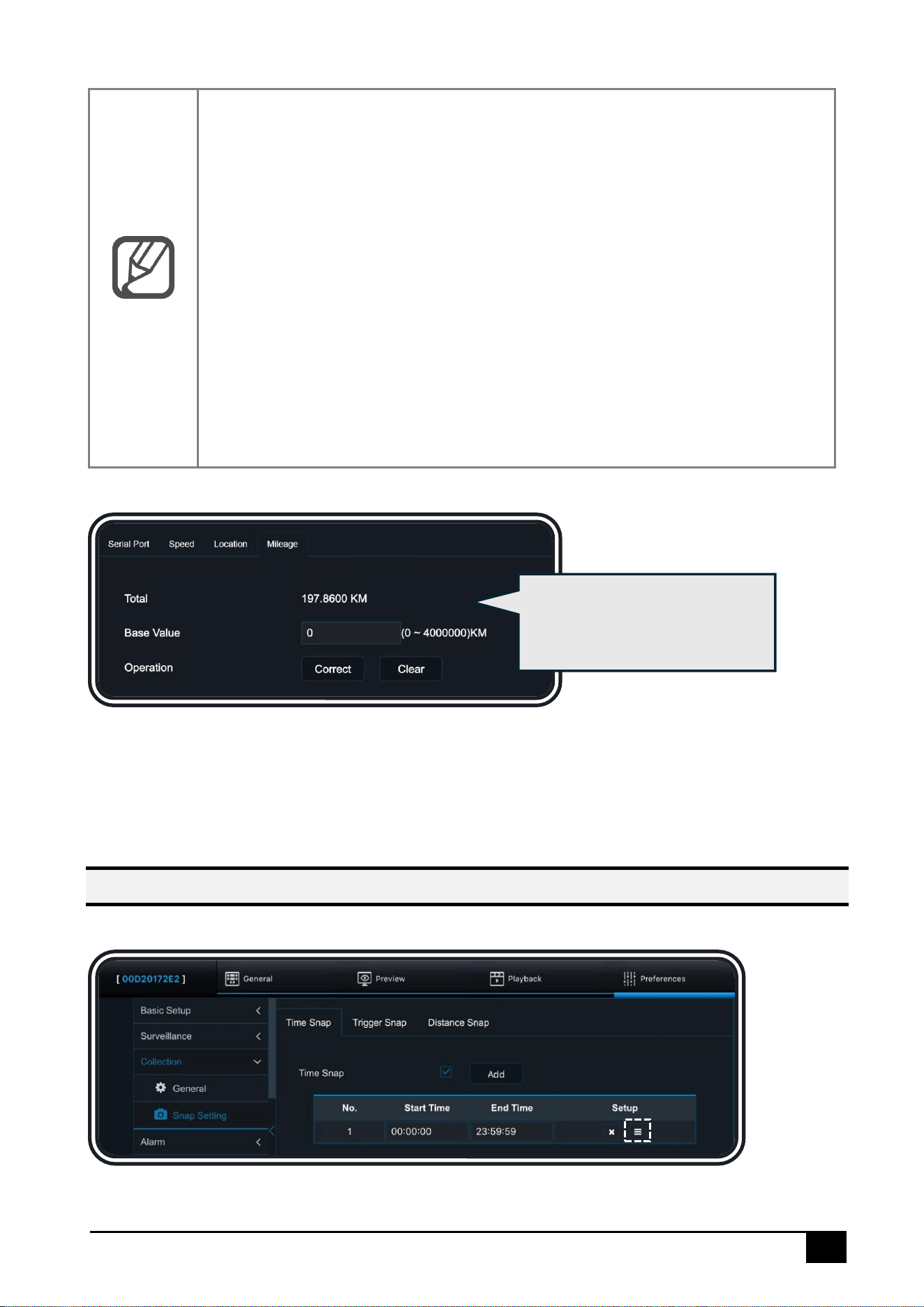

Click [Mileage], which
supports calibrating and
resetting the mileage value
33
Note
This interface is only related to general(non-AI) alarms, such as IO
alarms, GPS loss alarms, etc. Snapshots will be taken after the alarm is
triggered. AI alarms have a separate snapshot logic and interface, which
is unrelated to this configuration interface.
Click [Trigger Snap], which
supports configuring ordinary
alarm snapshots. The configuration
parameters are the same as those
in [Time Snap]
Click [Time Snap], which supports configuring a timed switch strategy.
Each time period can be configured with its own snap parameters:
channel, resolution, image quality, upload method, number of snapshots,
and snapshot interval. A maximum of 8 time periods is supported
34
Warning
The snapshot function consumes system resources. The average snapshot
frequency of all channels is limited to a maximum of 3 snapshots within
5 seconds. Streamax will not be held responsible for any system resource
issues caused by frequent snapshotting that exceeds this limit.
Alarm Setup
Explanation of General Items for Alarms
All alarms can be configured with two [Alarm Type] options. To avoid
repetitive information, the explanation is provided here:
Alarm Type
Explanation
Alarm
When the type is set to Alarm, the device will record the alarm
data and report it to the platform.
Event
When the type is set to Event, the device will record the alarm data
but will not report it to the platform.

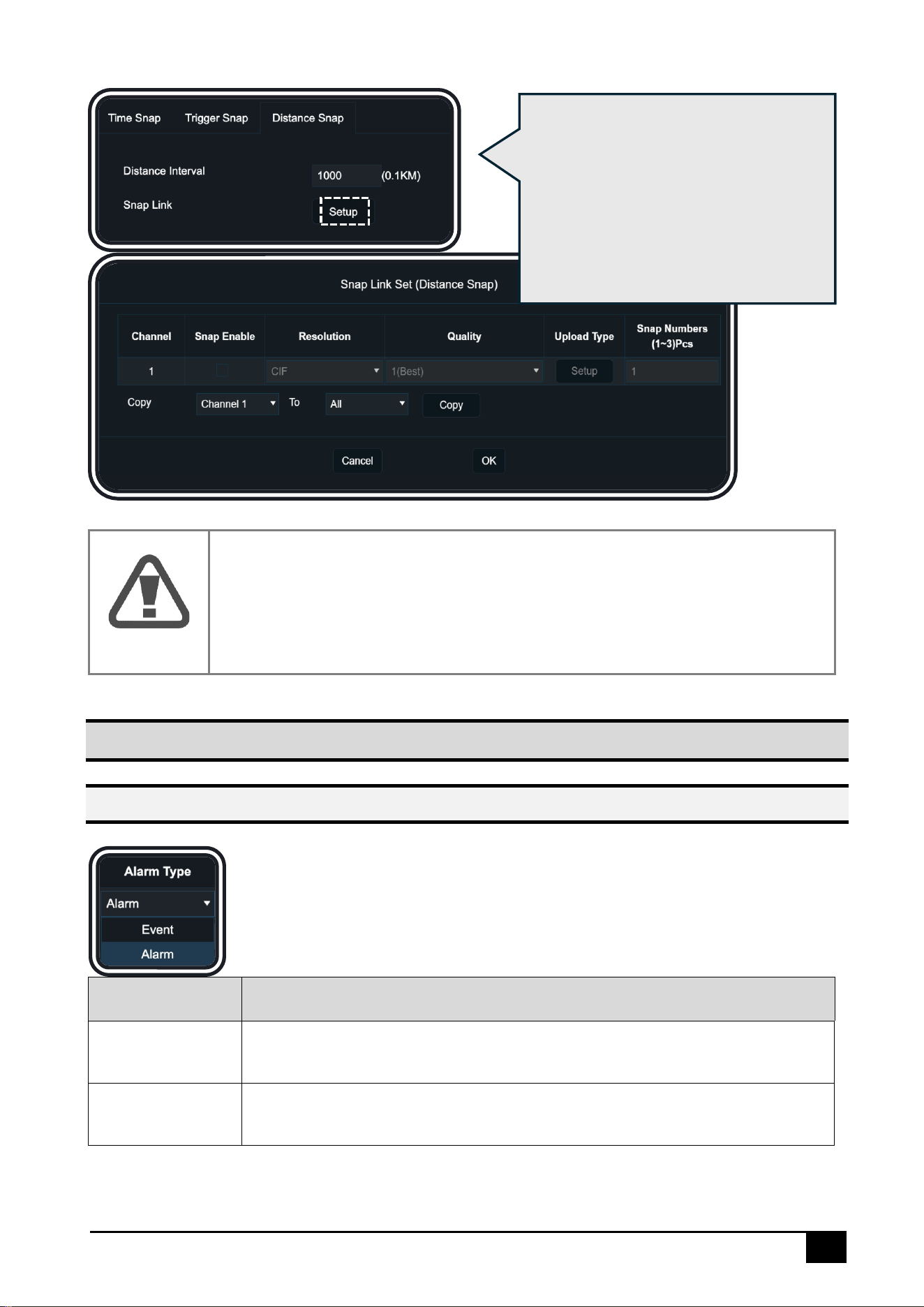

Click [Distance Snap], which supports
configuring distance-based snapshots.
The configuration parameters are
basically the same as those in [Time
Snap], with the only difference being
that distance-based snapshots do not
have a time interval setting
35

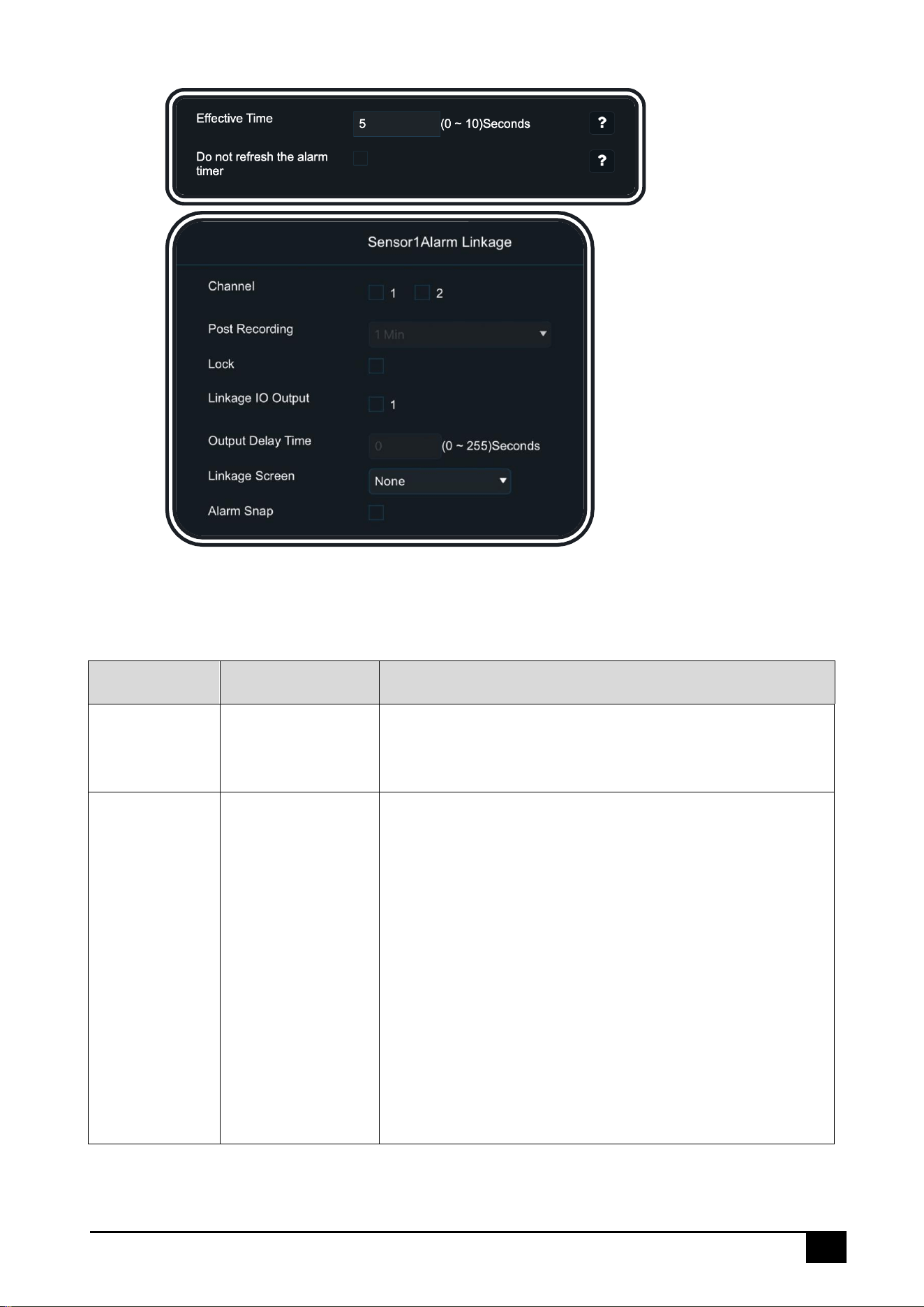

Trigger:
Linkage:
All alarms (including both non-AI alarms and AI alarms) can be configured with [Trigger] and
[Linkage]. Some options are common configurations. To avoid repetitive information, the
explanation is provided here:
Configuration
Common Options
Explanation
Trigger
Effective Time
Select a time range. Multiple alarms of the same type
triggered within this time range will be considered
as a single alarm
Trigger
Do not refresh
the alarm timer
By default, this option is unchecked, meaning that
multiple alarms of the same type occurring within a
certain time range (Effective Time) will be
considered as a single alarm, and the Effective Time
will reset accordingly
When checked, multiple alarms of the same type
occurring within the same time range will still be
considered as a single alarm. However, the Effective
Time will not reset. This means that if the total
duration of the alarm exceeds the Effective Time, the
alarm will end, and the total duration will be
recorded as the Effective Time. After the Effective
Time has passed, a new alarm entry will be recorded,
starting from the end of the previous alarm
36
Linkage
Channel
After an alarm ends, one or more channels can be
selected, and these channels will be marked as alarm
recordings
Linkage
Post Recording
After an alarm ends, the selected channel’s video
will be delayed for a certain period and marked as an
alarm recording
Linkage
Lock
Locked alarm recordings cannot be overwritten until
the recording protection period ends or until
manually unlocked. Even if the storage space is full,
they will not be overwritten
Linkage
Linkage IO Output
The IO out tail line of the equipment will generate a
high level when the alarm occurs.
Linkage
Output Delay Time
Set the duration of the high level of IO Output when
an alarm occurs
Linkage
Alarm Snap
This option is only available for non-AI alarms. When
checked, it will trigger image capture based on the
previously configured [Snap] settings. For details,
refer to the [Snap] section
Basic Alarms
Click [Preferences] – [Alarm] – [Base]:
IO Alarm

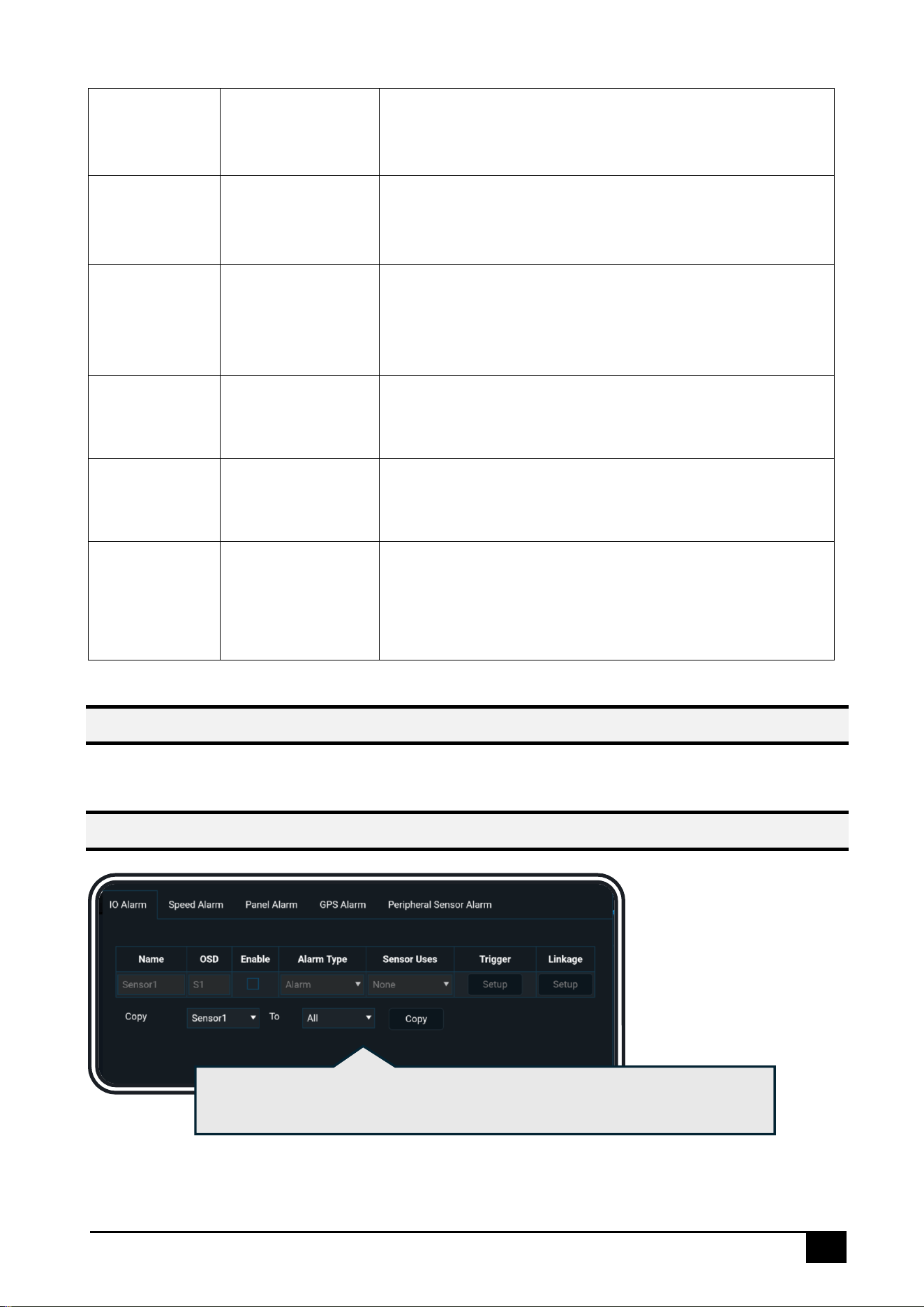

Please select the appropriate [Sensor Uses] based on the specific
wiring method, such as left/right turn signals, reverse signal, etc.
37
High Voltage
Normally low level, triggered by high level
Low Voltage
Normally high level, triggered by low level
Speeding Alarm
Note
This alarm is different from the [Overspeed Alarm] (also known as Speed
Limit Sign Alarm)

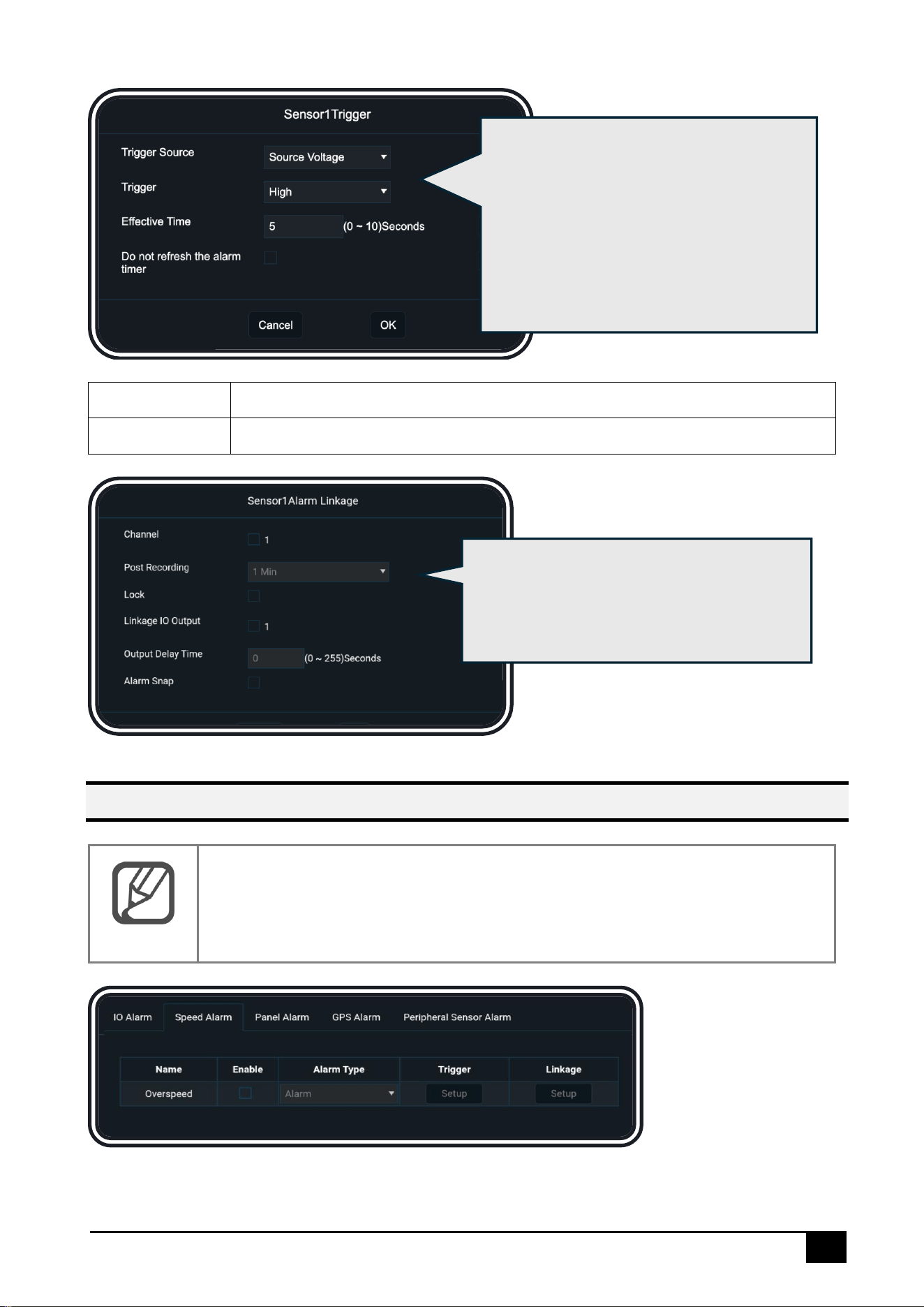

Click [Trigger], which supports
configuring the input source of the IO
signal. You can choose between Voltage
or Pulse, as described in the table
below. The options for Effective Time
and Do Not Refresh Alarm Timer are
explained in the general configuration
section
Click [Linkage] to configure the linkage
function for the IO signal. For other
options, please refer to the General
Configuration section.
38
Panel Button Alarm
GPS Alarm

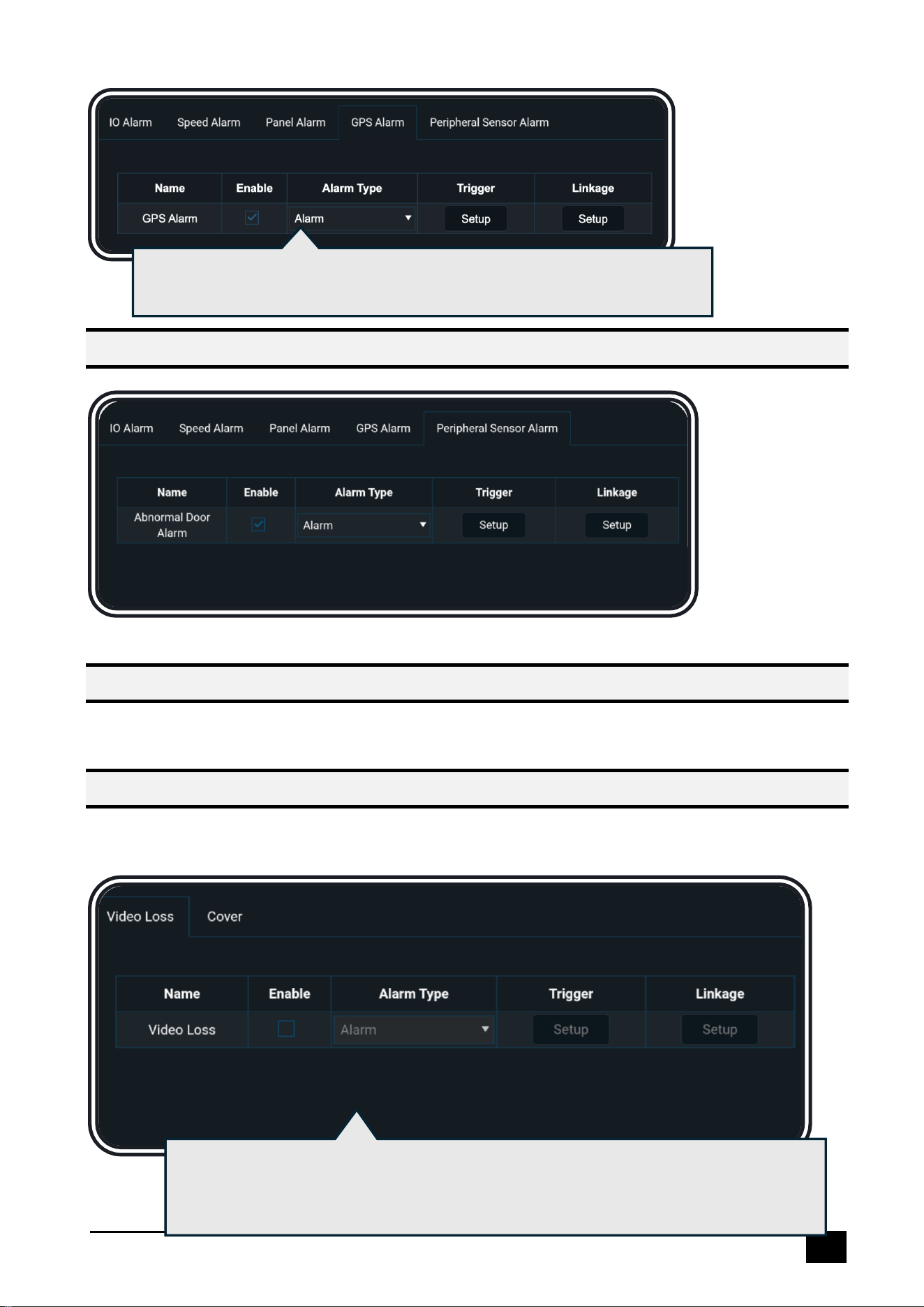

A GPS alarm will be triggered when the GPS signal is lost

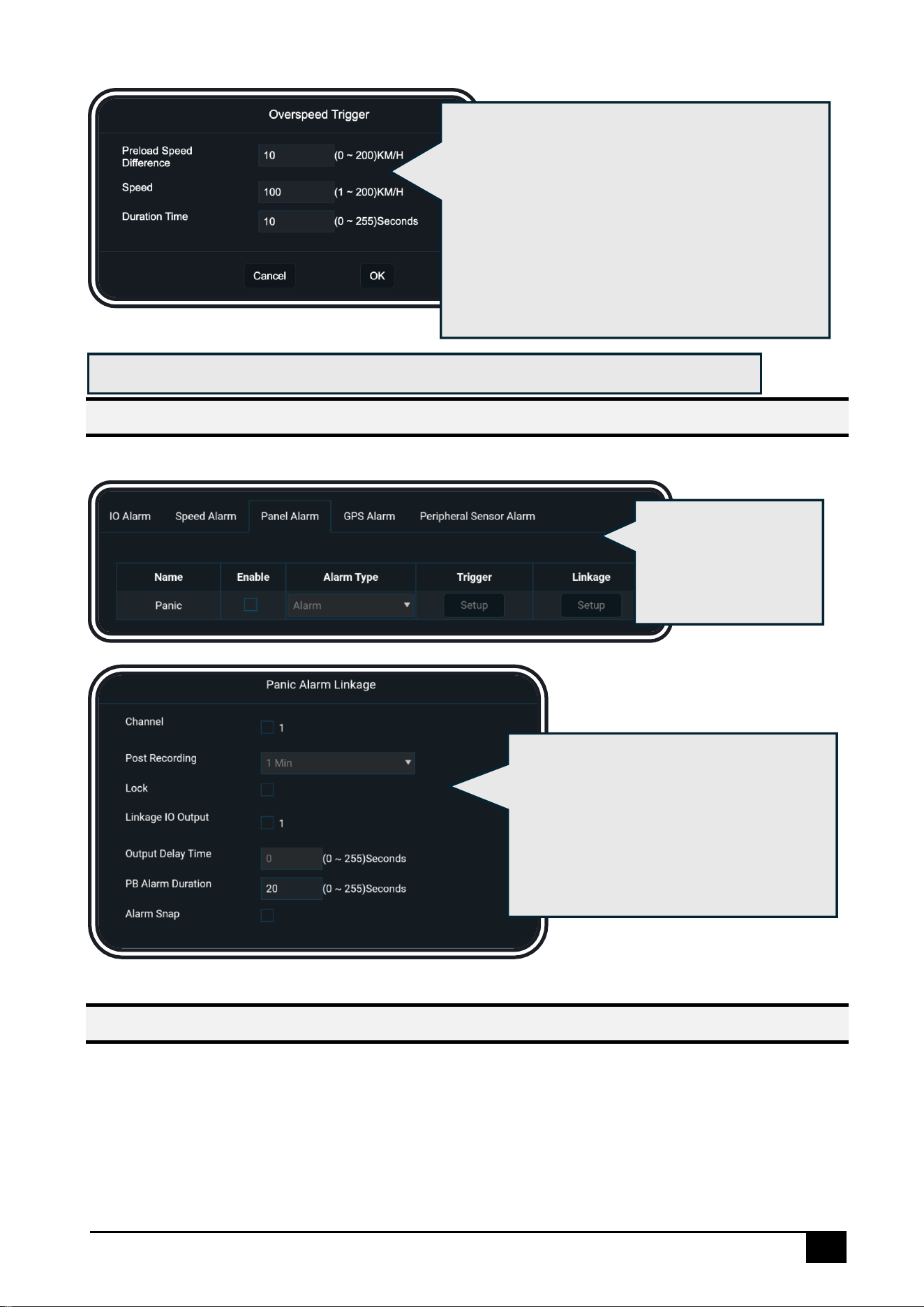

Click [Trigger], when the vehicle speed exceeds
the configured [Speed] - [Preload Speed
Difference], a pre-warning and voice alert will
be triggered. If the vehicle speed exceeds the
configured [Speed], a voice alert will be
triggered. If the driver does not slow down
within the configured [Duration Time], the
alarm will be reported to the platform
Click [Linkage], for option details, please refer to the general configuration
description
Click [Linkage], you can set the panel
button alarm duration using [PB Alarm
Duration].
Click [Trigger], for
option details,
please refer to the
general configuration
description
39
Peripheral Sensor Alarm
Video Alarms
Click [Preferences] – [Alarm] – [Video]:
Video Loss Alarm
A Video Loss Alarm will be triggered when the camera experiences a malfunction or is
physically disconnected
Click [Trigger] and [Linkage], for option details, please refer to the
general configuration description
Click [Trigger], select the channels for which the Video Loss Alarm should be
enabled. For other options, please refer to the general configuration description.
Click [Linkage], for option details, please refer to the general configuration
description
40

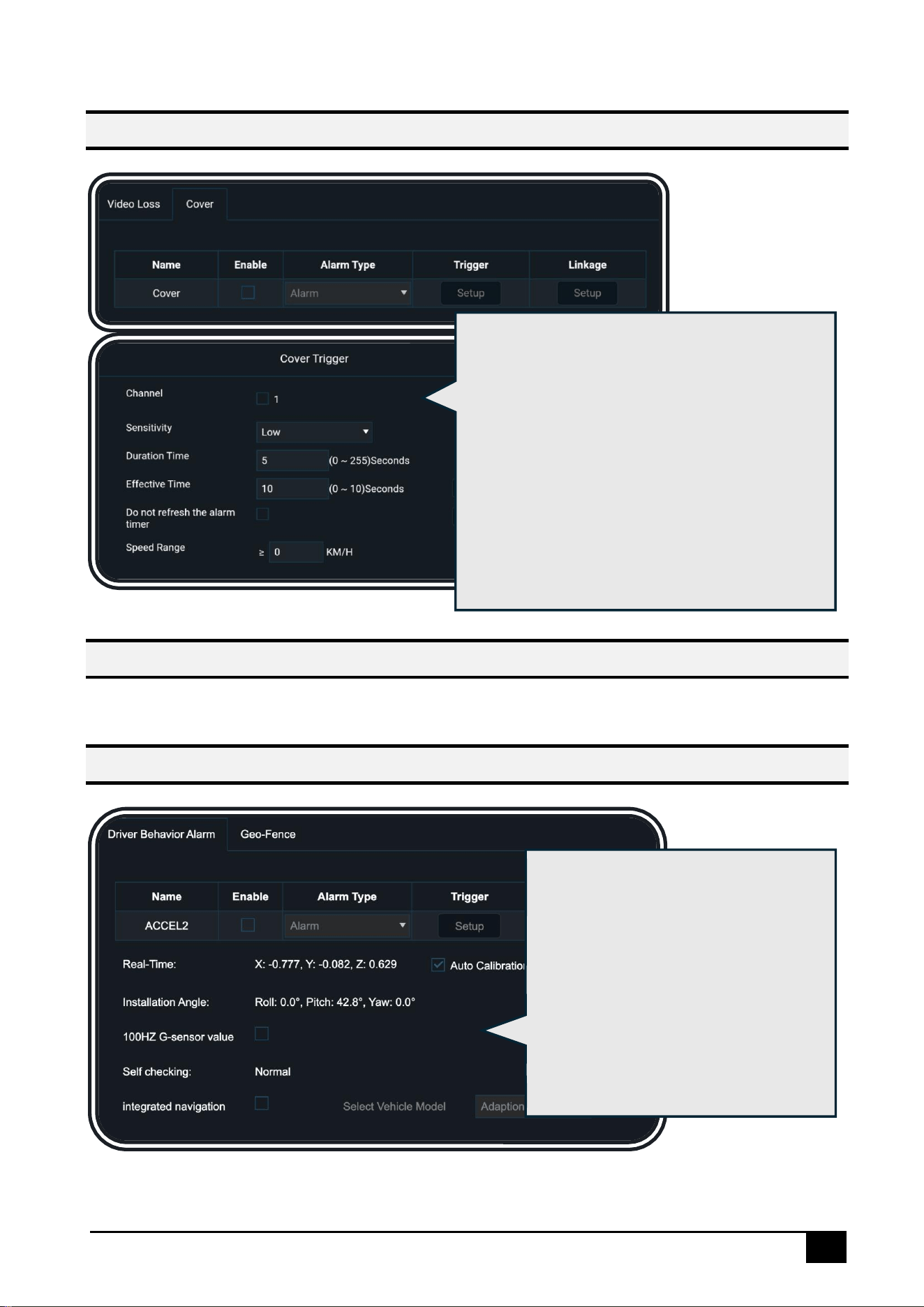

Camera Cover Alarm
Advanced Alarms
Click [Preferences] – [Alarm] – [Advanced]:
Harsh Driving Alarm
Click [Trigger], select the channels for which
the Camera Cover Alarm should be enabled. It
supports configuring the sensitivity of the
alarm trigger; it also supports setting the
alarm trigger based on [Duration Time] and
[Speed Range], meaning that when the vehicle
speed exceeds a certain value and the device
detects camera obstruction for a specified
duration, the alarm will be triggered. For
other options, please refer to the general
configuration description

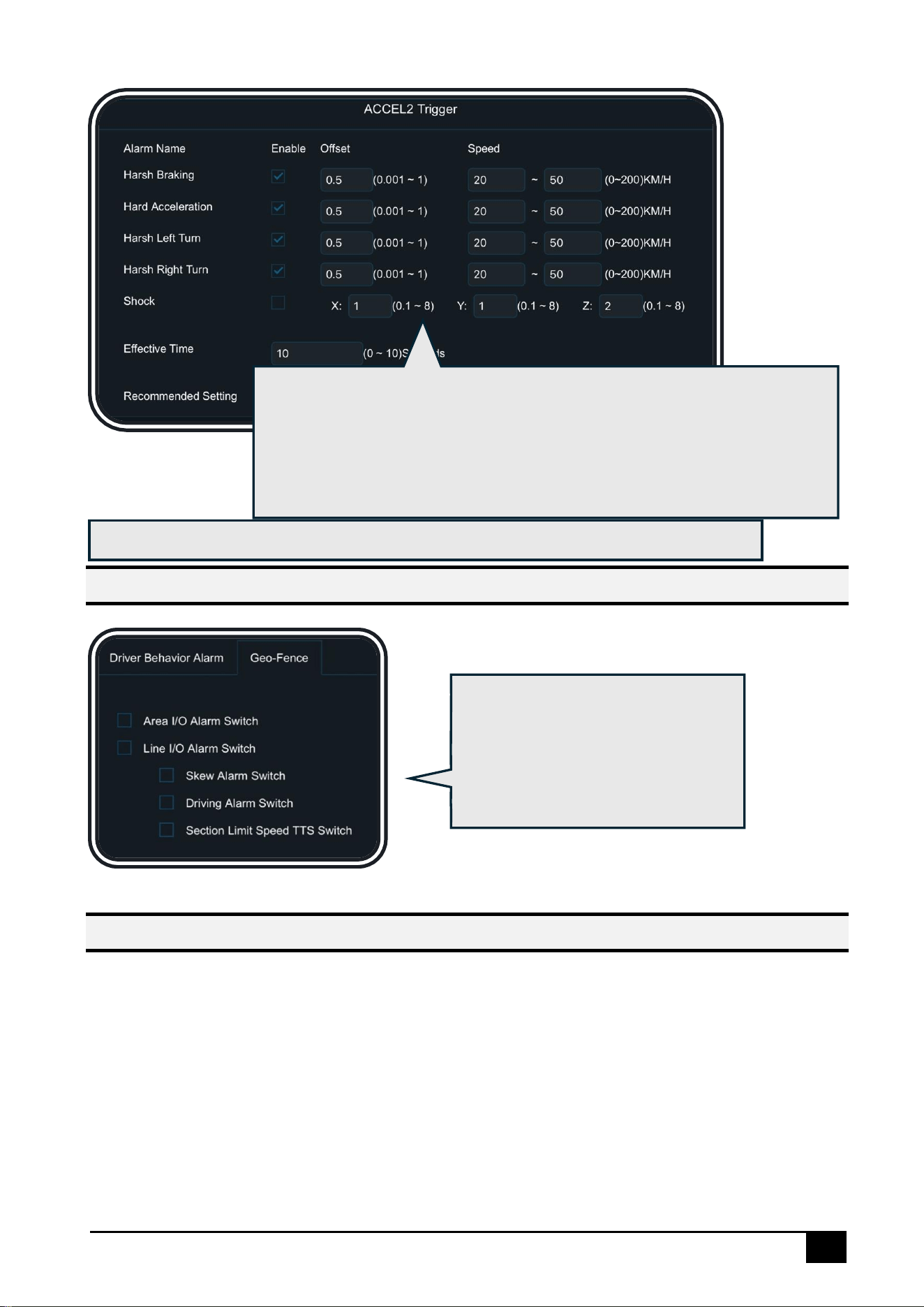

ACCEL2 (Aggressive Driving Alarm) is
triggered by the G-Sensor which
supports automatic or manual
calibration for optimal sensitivity.
For improved accuracy, enable the
[Integrated Navigation] button to
select the vehicle type, allowing the
system to assess alerts more
precisely based on combined sensor
data
41
Geo-Fence Alarm
AI Alarms
Click [Preferences] – [Alarm] – [AI App]：

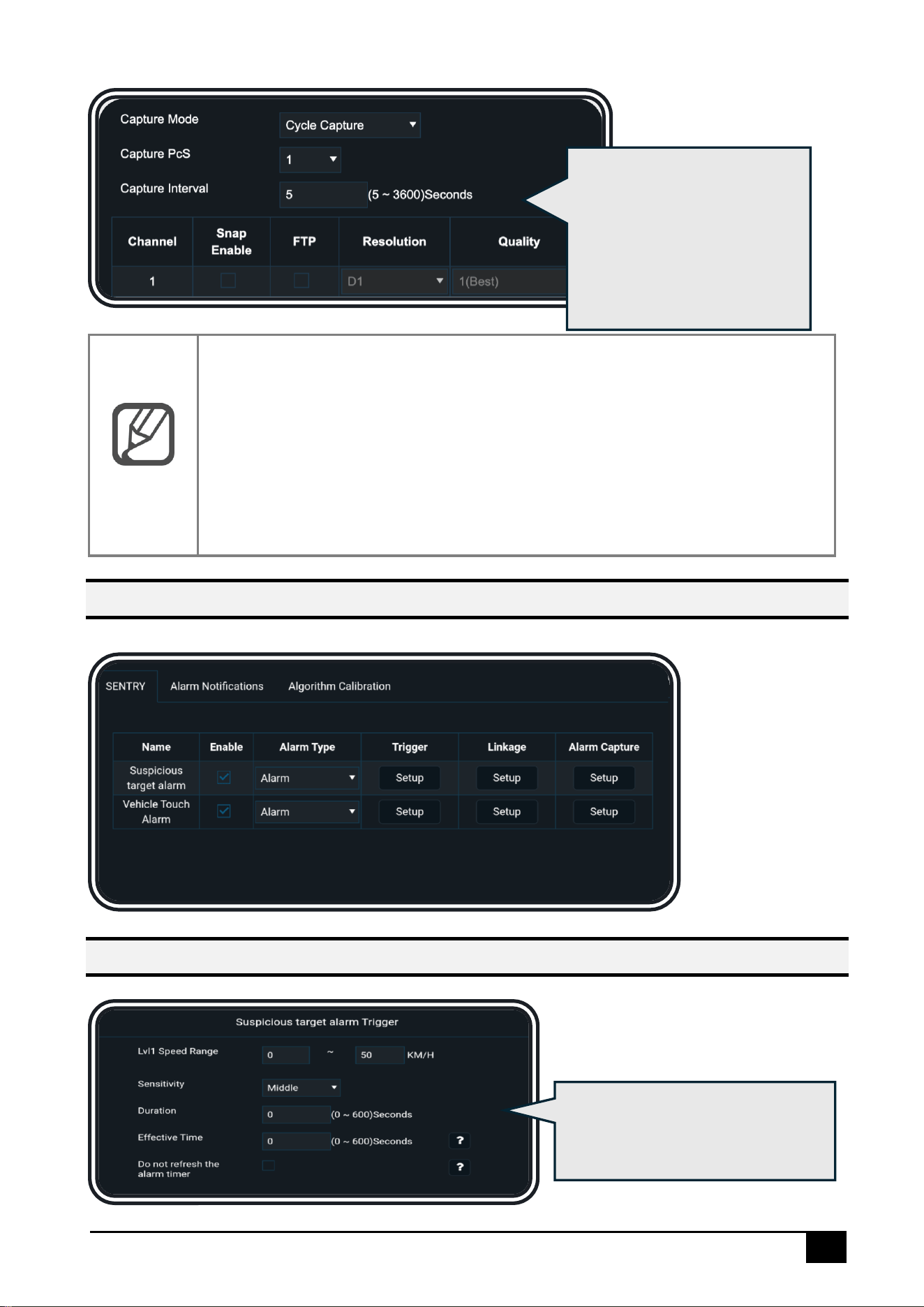

You can set the snapshot logic when an AI alarm is triggered. AI alarms have their own
snapshot logic, which is independent of the Snap Setting section. For each AI alarm, click
[Alarm Capture] → [Setup]:
Click [Trigger], you can adjust the [Offset] value to modify the
sensitivity of each alarm: the smaller the offset value, the more
sensitive the alarm detection. You can also select the vehicle type to
use the corresponding inertial sensor model for optimal detection
performance. For other options, please refer to the general
configuration description
Click [Linkage], for option details, please refer to the general configuration
description
Click [Geo-Fence], in this
interface, you can select the
entry/exit fence or route handling
strategy. This feature requires
integration with the CEIBA2
platform or FT Cloud platform
42
Note
Capture Mode:
⚫ Single Capture: Only one snapshot will be taken each time, and the
total number of snapshots is determined by [Capture PcS], while the
interval between each snapshot is determined by [Capture Interval]
⚫ Cycle Capture: The number of snapshots taken each time is determined
by [Capture PcS], and the interval between each snapshot is
determined by [Capture Interval], until the alarm ends
SENTRY Alarms
Click [Preferences] – [Alarm] – [AI App] – [SENTRY]：
Suspicious Target Alarm
In this interface, you can
set the snapshot mode,
number of snapshots,
snapshot interval, snapshot
channel, and the resolution
and quality of the snapshot
images
Click [Trigger], option details,
please refer to the general
configuration description
43

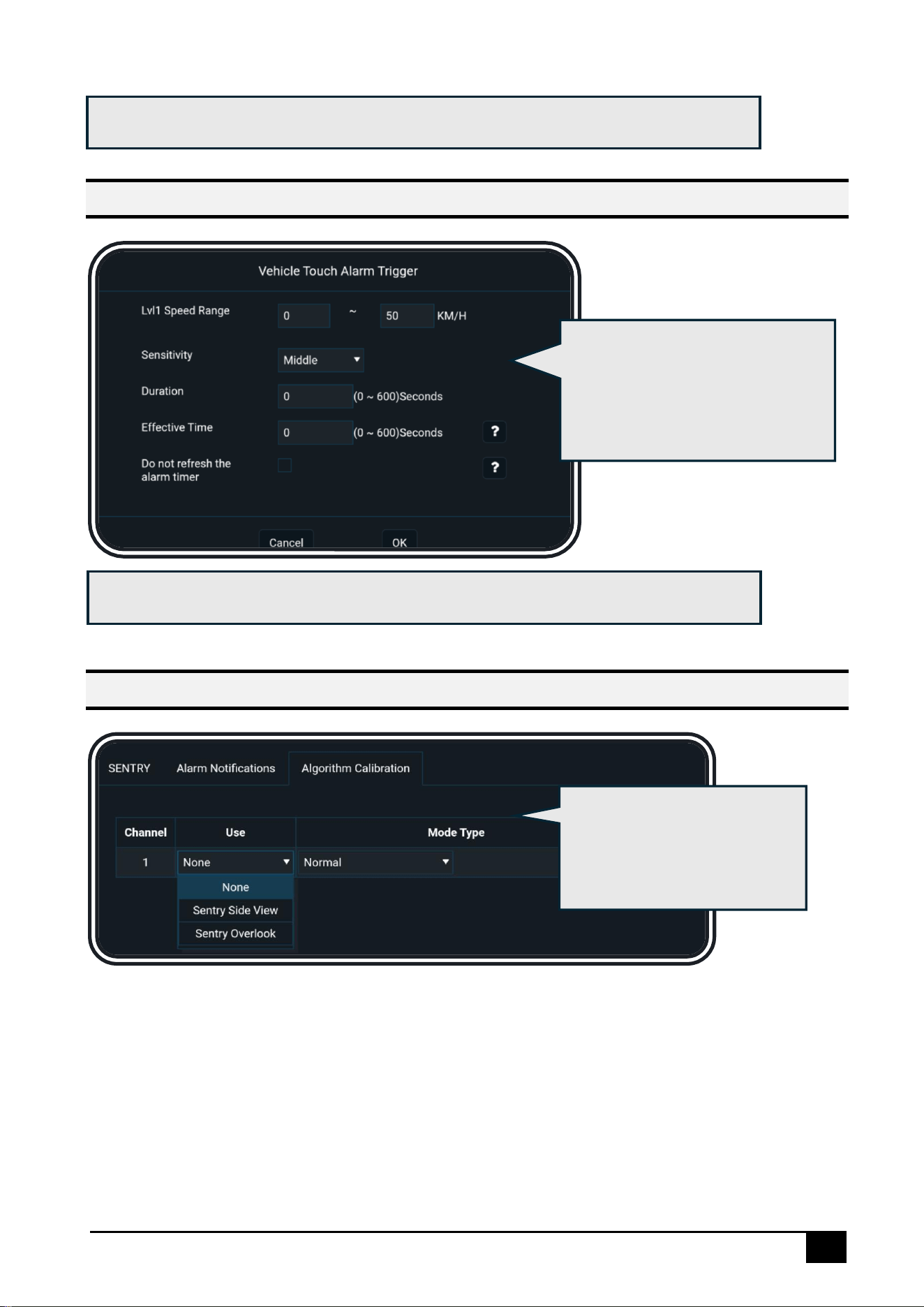

Vehicle Touch Alarm
Algorithm Calibration
Click [Suspicious targe alarm]-[Trigger]]-[Linkage], for option details, please
refer to the general configuration description
Click [Trigger], option details,
please refer to the general
configuration description
Click [Linkage], for option details, please refer to the general configuration
description
In this interface, you need
to select the algorithm usage
for each channel according to
the actual situation
44
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
