Model CompanionCart-2
Operator’s Manual
513722 Rev.0
2 COMPANIONCART-2 OPERATOR’S MANUAL 513722 REV.0
Section 1: Introduction
MAINTENANCEPARTS TROUBLESHOOTING OPERATION
INTRODUCTION
This manual provides basic information about the cart. Instructions and suggestions are given covering its operation and
care.
The illustrations and specifi cations are not binding in detail. We reserve the right to make changes to the cart without
notice, and without incurring any obligation to modify or provide new parts for carts built prior to date of change.
DO NOT ATTEMPT to operate the cart until instructions and safety precautions in this manual are read completely and are
thoroughly understood. If problems develop or questions arise in connection with installation, operation, or servicing of
the cart, contact Stoelting.
Stoelting Foodservice Equipment
502 Highway 67
Kiel, WI 53042-1600
U.S.A.
White Glove Service Network
Phone: 888.319.9549
© 2018 Stoelting
stoeltingfoodservice.com
513722 REV.0 COMPANIONCART-2 OPERATOR’S MANUAL 3
Section 1: Introduction
MAINTENANCE PARTSTROUBLESHOOTINGOPERATION
INTRODUCTION
This manual is divided into the following fi ve sections:
A. Sanitizing Fresh Water Tank and Pump
B. Clean Gray Water Tank
C. Battery Replacement
MAINTENANCE
A. CompanionCart Replacement Parts
PARTS
A. Troubleshooting Table
TROUBLESHOOTING
A. Setup Cart
B. Cleaning Process
C. Drain Cart
OPERATION
A. Parts of the Cart
B. Specifi cations
C. Assembly
INTRODUCTION
4 COMPANIONCART-2 OPERATOR’S MANUAL 513722 REV.0
Section 1: Introduction
MAINTENANCEPARTS TROUBLESHOOTING OPERATION
INTRODUCTION
Spray Wand
Drain
Battery Charger
Drain Board
Hose Holder
Electrical Box
Faucet
Pump Power
Switch
Spray Wand
Selector Switch
Spray Wand
Drain
Battery Charger
Drain Board
Hose Holder
Electrical Box
Faucet
Pump Power
Switch
Spray Wand
Selector Switch

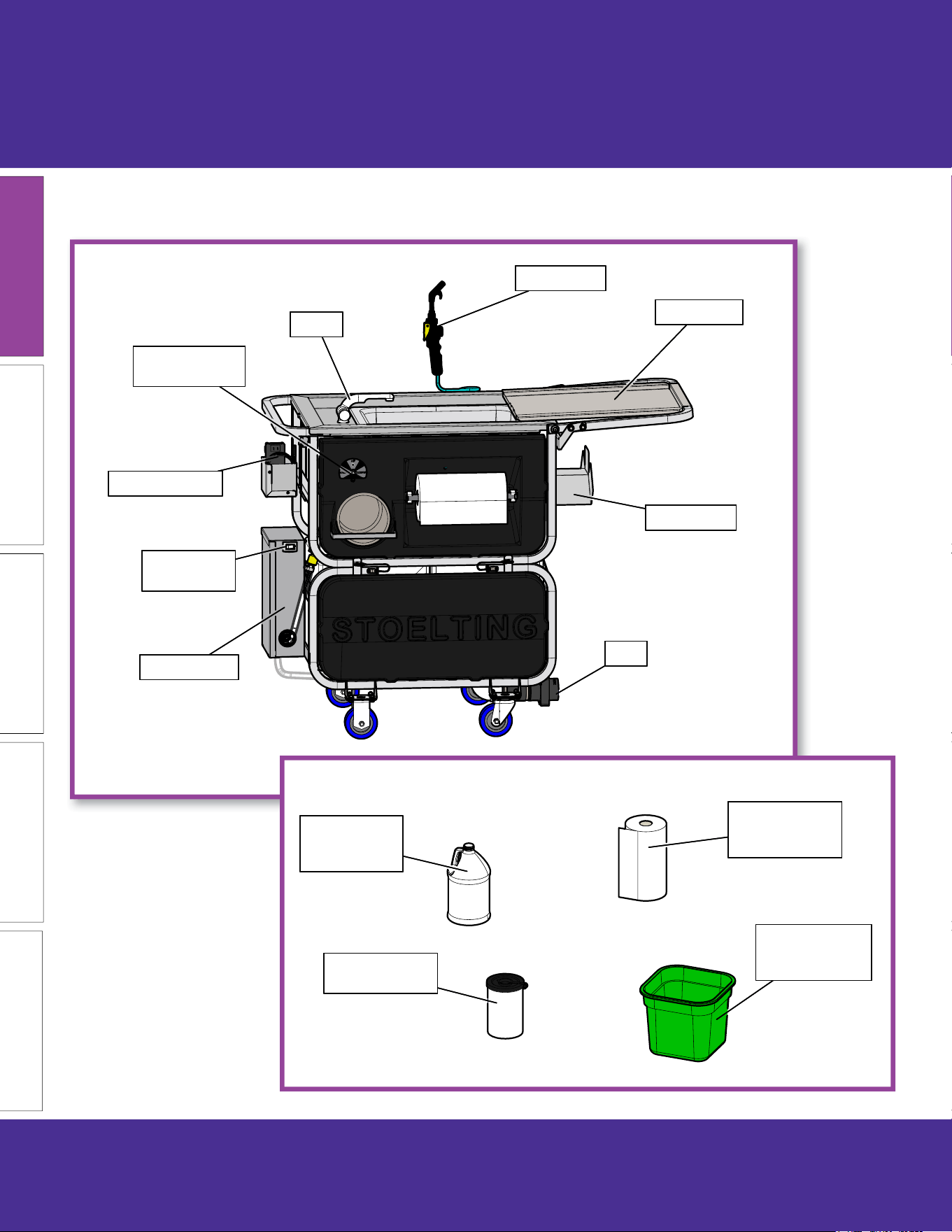

A. Parts of the Cart
Part 552002
2.5 gallon
Pail with Handle
Part 265003
1 gallon LEXX
Concentrate
Part 265002
Cleaning Wipes
Part 558203
Standard Paper
Towel Roll
Part 552002
2.5 gallon
Pail with Handle
Part 265003
1 gallon LEXX
Concentrate
Part 265002
Cleaning Wipes
Part 558203
Standard Paper
Towel Roll
Additional Supplies
513722 REV.0 COMPANIONCART-2 OPERATOR’S MANUAL 5
Section 1: Introduction
MAINTENANCE PARTSTROUBLESHOOTINGOPERATION
INTRODUCTION

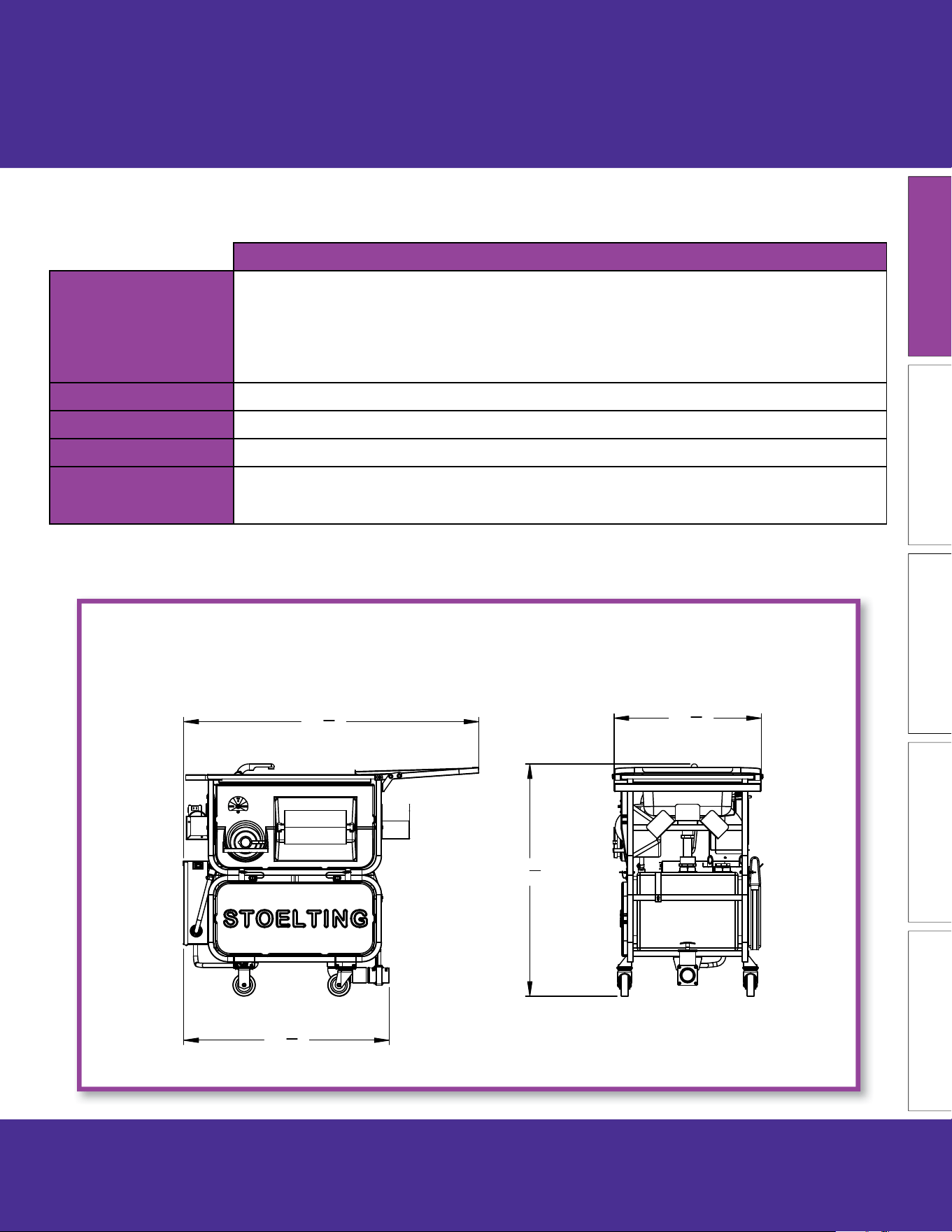

B. Specifi cations
" 26
1
4
41
1
2
"
52 "
5
8
36
5
8
"
Model CompanionCart
Dimensions
width 31’’ (78,7 cm)
height 53-1/2’’ (135,9 cm)
depth 26-3/8’’ (67,0 cm)
Weight (dry) 180 lbs (81,6 kg)
Fresh Water Tank 15 gallon (56.78 liters)
Gray Water Tank 15 gallon (56.78 liters)
Gray Water Tank
Outlet
2” N.P.T.
6 COMPANIONCART-2 OPERATOR’S MANUAL 513722 REV.0
Section 1: Introduction
MAINTENANCEPARTS TROUBLESHOOTING OPERATION
INTRODUCTION

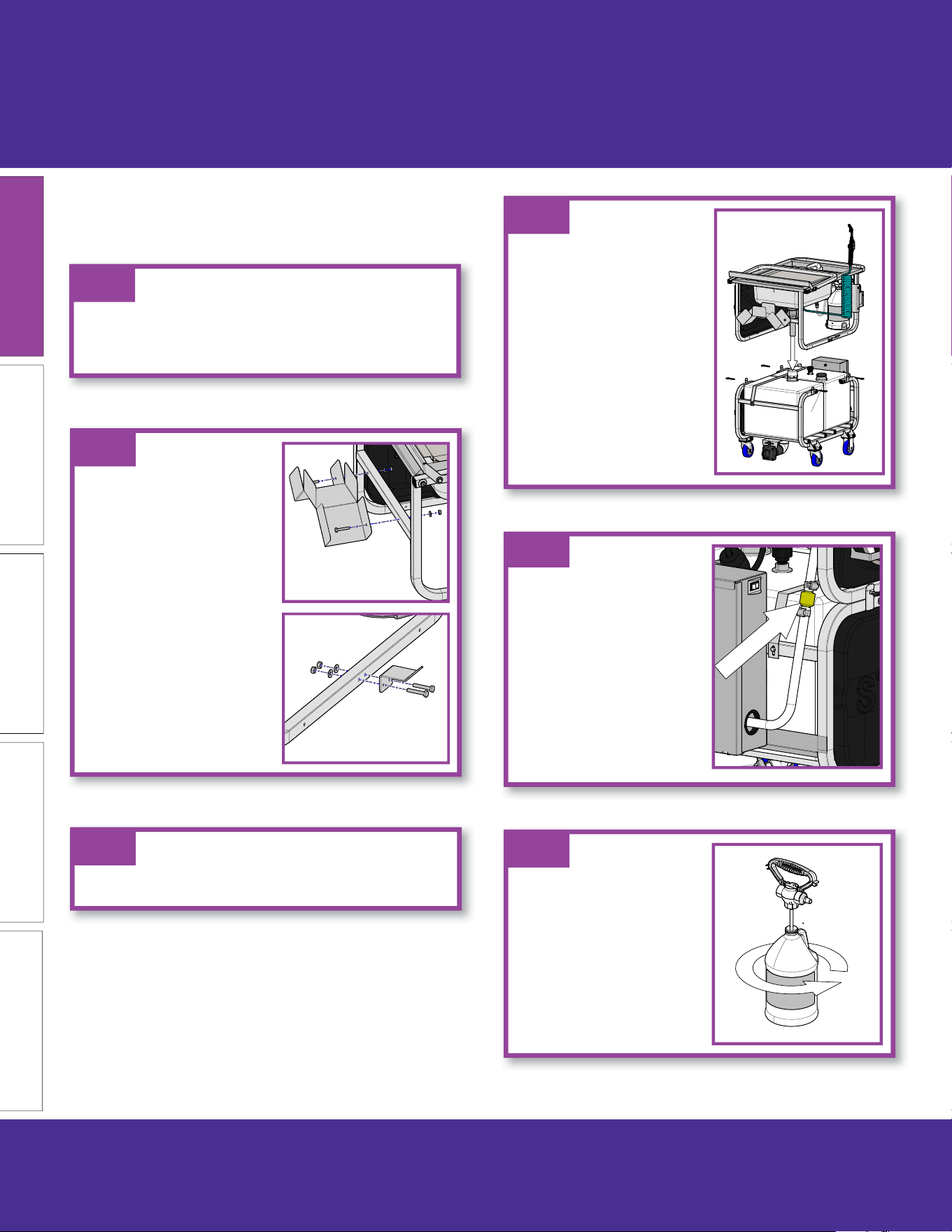

C. Assembly
The upper and lower sections of the cart are shipped
separately. Unbox both sections and remove all packing
materials.
C.1
Place the lower section on a fl at surface.
C.3
The hose holder bracket and
the stool bracket are installed
for compact shipping.
The brackets need to
be repositioned to face
outwards.
Unscrew the nuts holding the
brackets to the frame, move
the brackets, and tighten
the nuts.
C.2
Place the upper section onto
the lower section making
sure the sink’s drain pipe
aligns with the gray water
tank opening.
Secure the sections together
using the four attached pins.
C.4
Connect the fresh water
hose from the pump to
the faucet at the threaded
fi tting. Tighten by hand.
C.5
Connect the 1 gallon
container of LEXX sanitizing
concentrate (not included)
to the mixing valve.
C.6
513722 REV.0 COMPANIONCART-2 OPERATOR’S MANUAL 7
Section 1: Introduction
MAINTENANCE PARTSTROUBLESHOOTINGOPERATION
INTRODUCTION

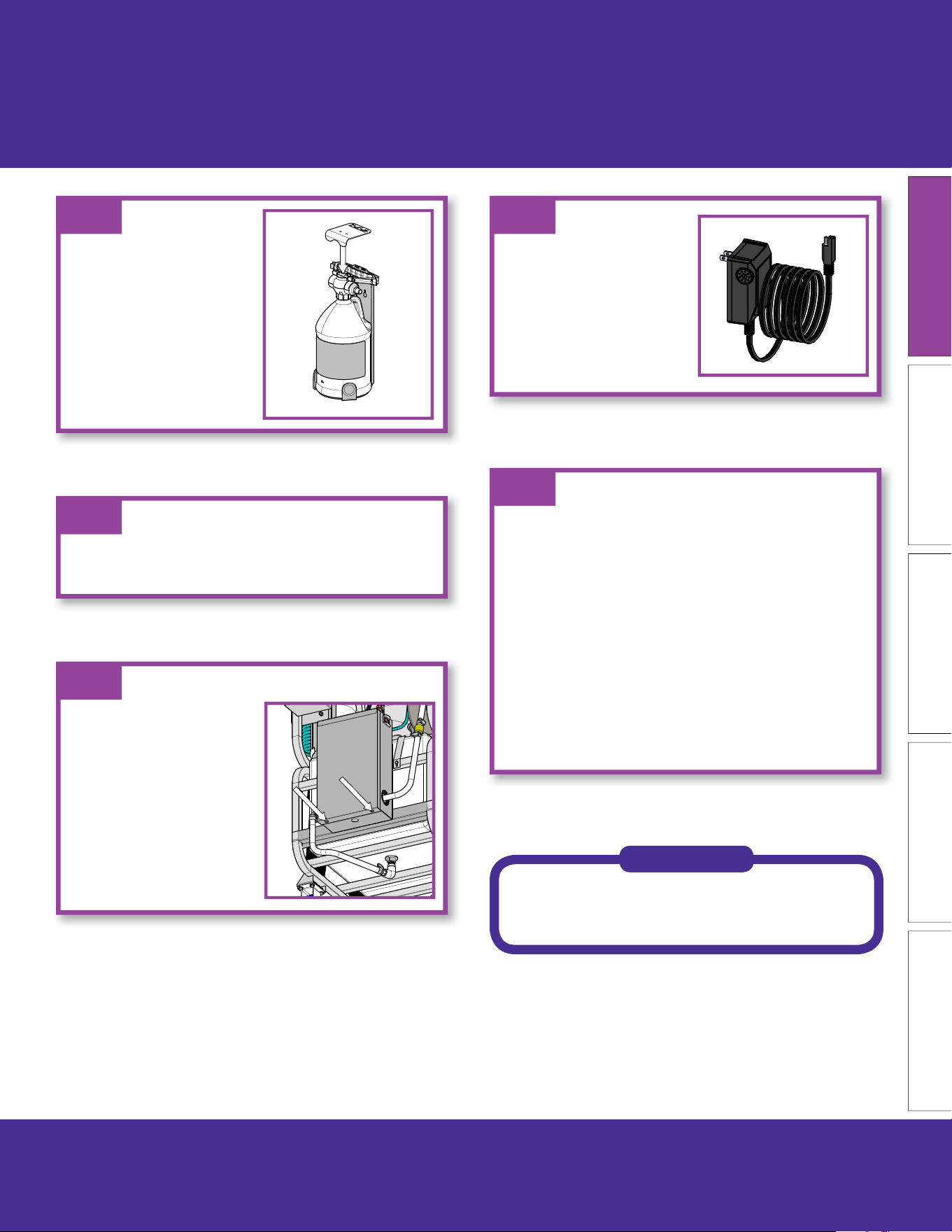

Prior to the fi rst use, the fresh water tank
and pump must be sanitized. Refer to the
Maintenance Section for details.
NOTE
Install the cleaning wipes and paper towels (not
included).
C.8
The charger has green and red status LEDs.
Green LED Flashing: battery is 80% charged
Green LED Steady: battery is fully charged and can be
disconnected. It may also stay connected to maintain
the battery indefi nitely.
Red LED Flashing: battery voltage is too low or there
is not a good connection to the charger. Reconnect
the charging cables or replace the battery if the red
LED continues to fl ash.
Red LED Steady: battery is charging properly.
C.11
Install the container into the
bracket.
C.7
Charge the pump battery.
1. Connect the charger wire
to the plug exiting the
electrical box.
2. Plug the charger into a
wall outlet.
C.10
Connect the battery.
1. Remove the battery
compartment screws to
access the battery.
2. Connect the spade
terminals to the battery.
3. Install the compartment
cover.
C.9
8 COMPANIONCART-2 OPERATOR’S MANUAL 513722 REV.0
Section 2: Operation
MAINTENANCEPARTS TROUBLESHOOTING
OPERATION INTRODUCTION

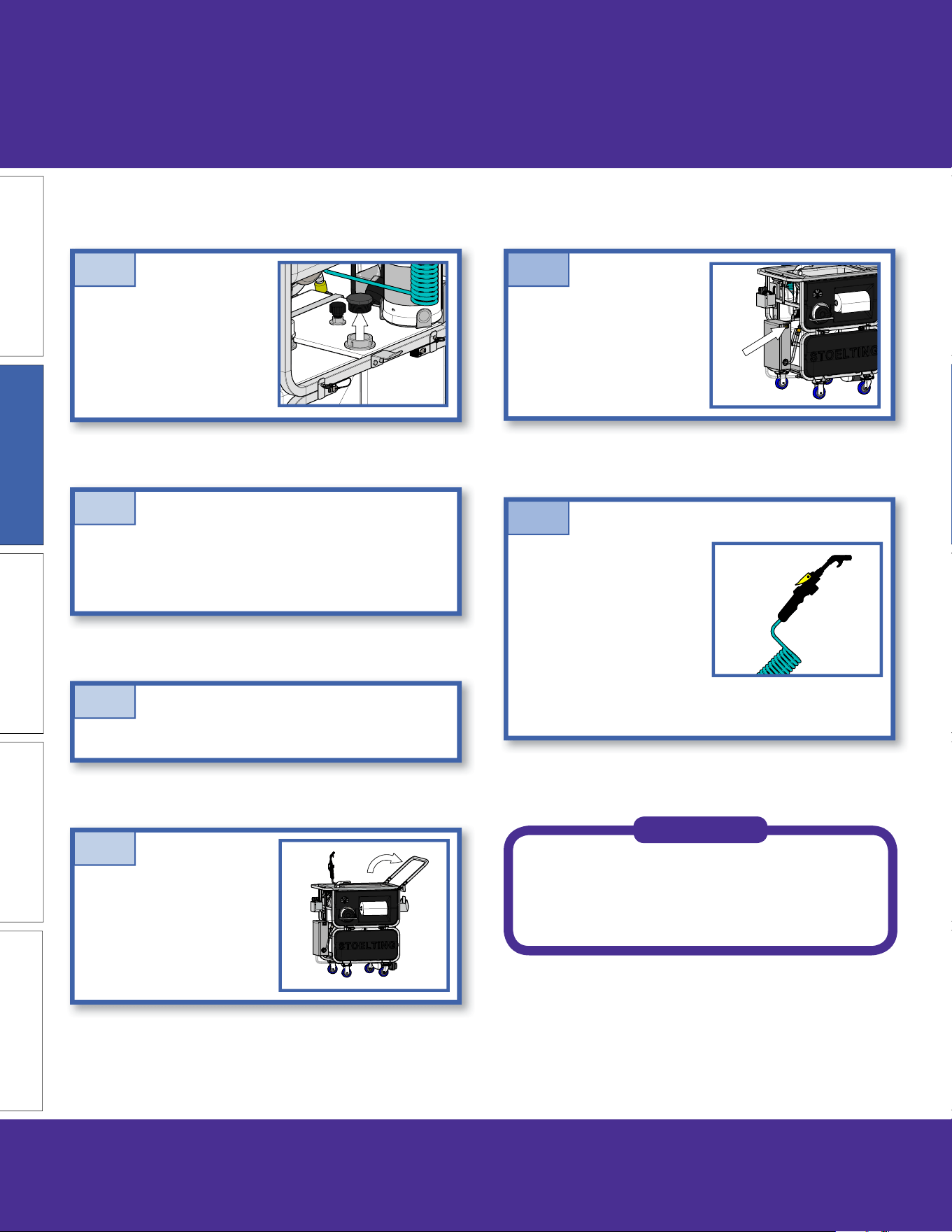

A. Prepare Cart B. Cleaning Process
Connect the 50’ hose to the water source and fi ll the
fresh water tank with 115°F to 120°F potable water. Then
install the 2” plug into the fresh water tank.
A.2
Wheel the cart into place by the machine.
A.3
Remove the 2” plug from
the fresh water tank
A.1
Open the drain board
support and slide the drain
board onto the support.
A.4
Turn the pump on.
B.1
Drain the hopper(s) and
freezing cylinder(s) into a
bucket. Rinse them using
the spray wand. Set the
selector switch to “Water”
when rinsing.
The drained product can
be discarded directly into
the sink.
B.2
The gray water tank holds a maximum of
15 gallons of liquid. Note the amount of mix
poured into the sink so as not to overfi ll the
gray water tank.
NOTE
513722 REV.0 COMPANIONCART-2 OPERATOR’S MANUAL 9
Section 2: Operation
MAINTENANCE PARTSTROUBLESHOOTING
OPERATIONINTRODUCTION

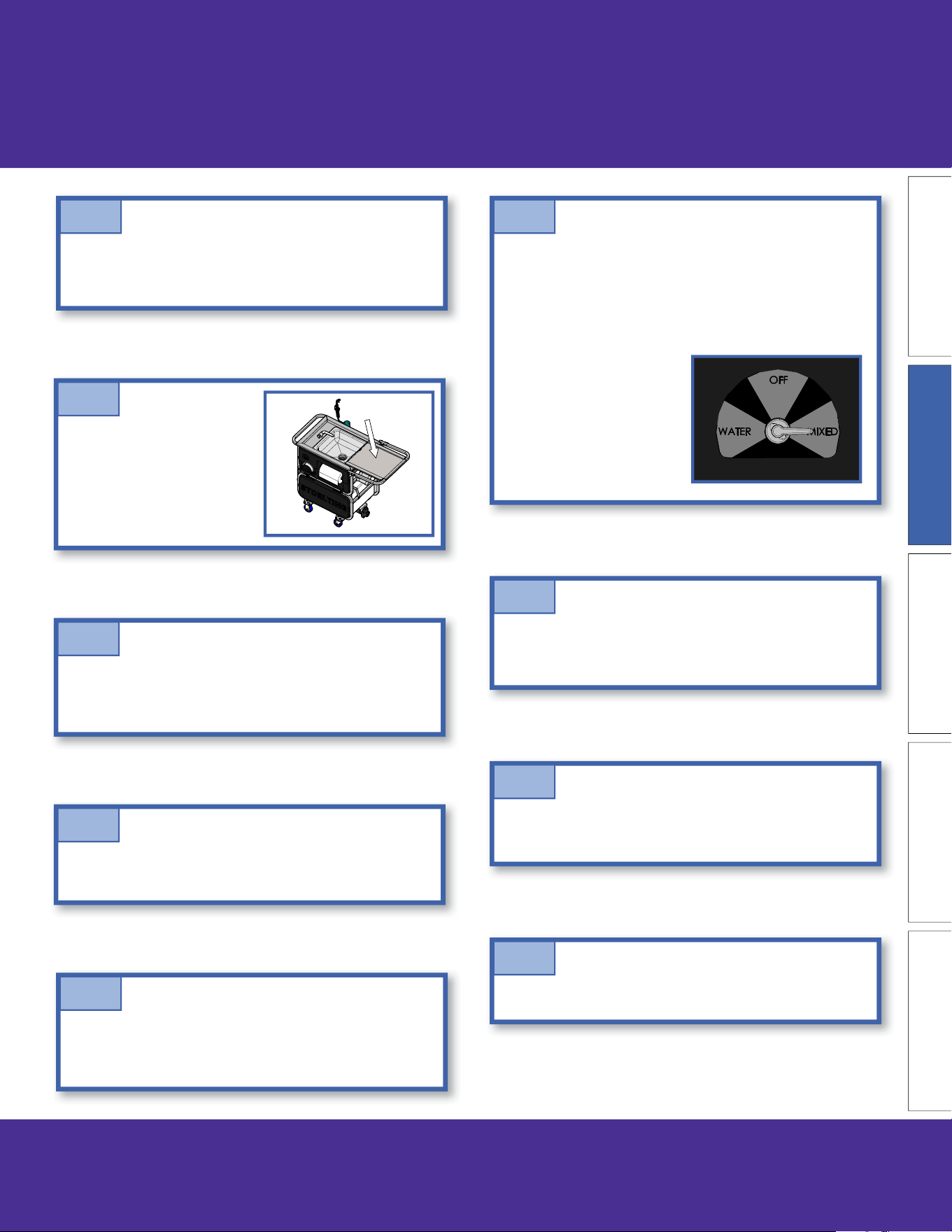

Thoroughly wash all parts then place them on the
drain board.
B.6
Disassemble the parts in the freezing cylinder(s) and
rinse them in the sink using the faucet and the spray
wand
B.3
Drain the sink and fi ll with water for rinsing. Place the
parts in the sink to remove any remaining washing
solution.
B.7
Plug the sink with the sink strainer and fi ll it with water.
Add a mild detergent per manufacturer’s instructions.
B.5
While parts are in the sanitizing solution, wash and
sanitize the drain board, machine hopper, and barrel(s).
B.9
Clean the drain board with
a cleaning wipe.
B.4
Drain the sink and fi ll with sanitizing solution. Do one
of the following:
1. Use Stera Sheen or equivalent. Follow the sanitizer
manufacturer’s instructions for preparing the
sanitizing solution.
2. Use the spray wand to
fi ll the sink. Make sure
the selector switch
is set to the “Mixed”
position.
B.8
After 5 minutes in the sanitizing solution, remove all
parts and let them air dry on the drain board.
B.10
Drain the sink.
B.11
10 COMPANIONCART-2 OPERATOR’S MANUAL 513722 REV.0
Section 2: Operation
MAINTENANCEPARTS TROUBLESHOOTING
OPERATION INTRODUCTION

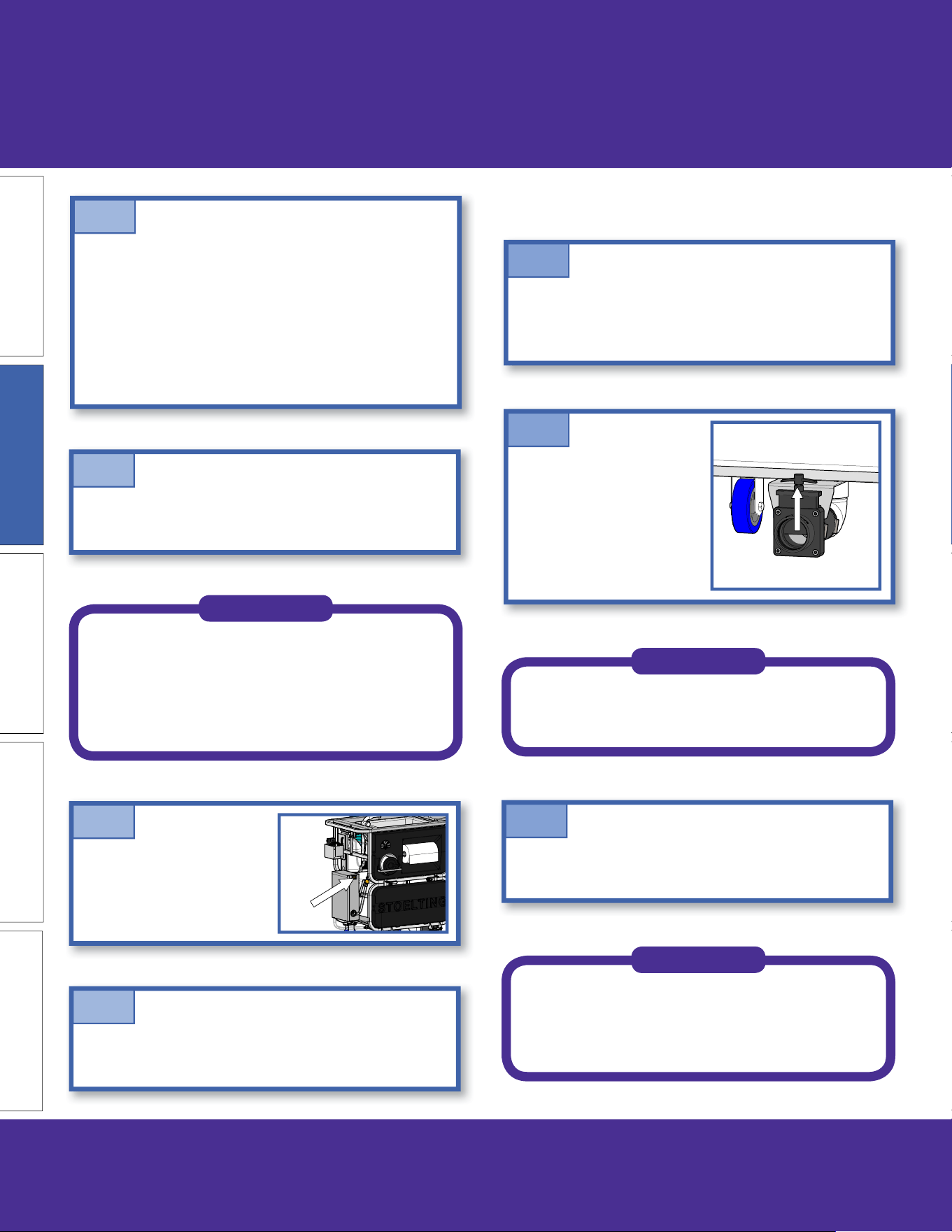

C. Drain Cart
Position cart so the gray water outlet is over a fl oor
drain and connect the 2” elbow to the drain fi tting if
desired.
C.1
Connect the battery charger to a power source until
the next use.
C.4
Pull the drain gate upwards
to drain the gray water.
C.3
To prevent splashing, do not fully open the
gate when the tank is full.
NOTE
The battery charger automatically maintains
proper battery charge. Battery life will be
increased if it is stored while connected to
the charger.
NOTE
Sanitize the machine then empty the used sanitizing
solution into the sink drain.
B.13
Assemble the machine and make at least 2 gallons of
sanitizing solution for each freezing cylinder.
To make the sanitizing solution do one of the following:
1. Set the selector switch on the cart to “Mixed” and
use the spray wand
2. Use the faucet and add Stera Sheen
B.12
Turn the pump off .
B.15
The machine is now ready to make product. Add mix
and start the machine per the machine instructions.
B.14
The gray water tank holds a maximum of
15 gallons of liquid. The tank may be nearly
full if a large amount of mix was drained
when emptying the machine. To prevent
spillage, do not overfi ll the gray water tank.
NOTE
513722 REV.0 COMPANIONCART-2 OPERATOR’S MANUAL 11
Section 3: Maintenance
MAINTENANCE PARTSTROUBLESHOOTINGOPERATIONINTRODUCTION
A. Sanitizing Fresh Water Tank
and Pump
B. Clean Gray Water Tank

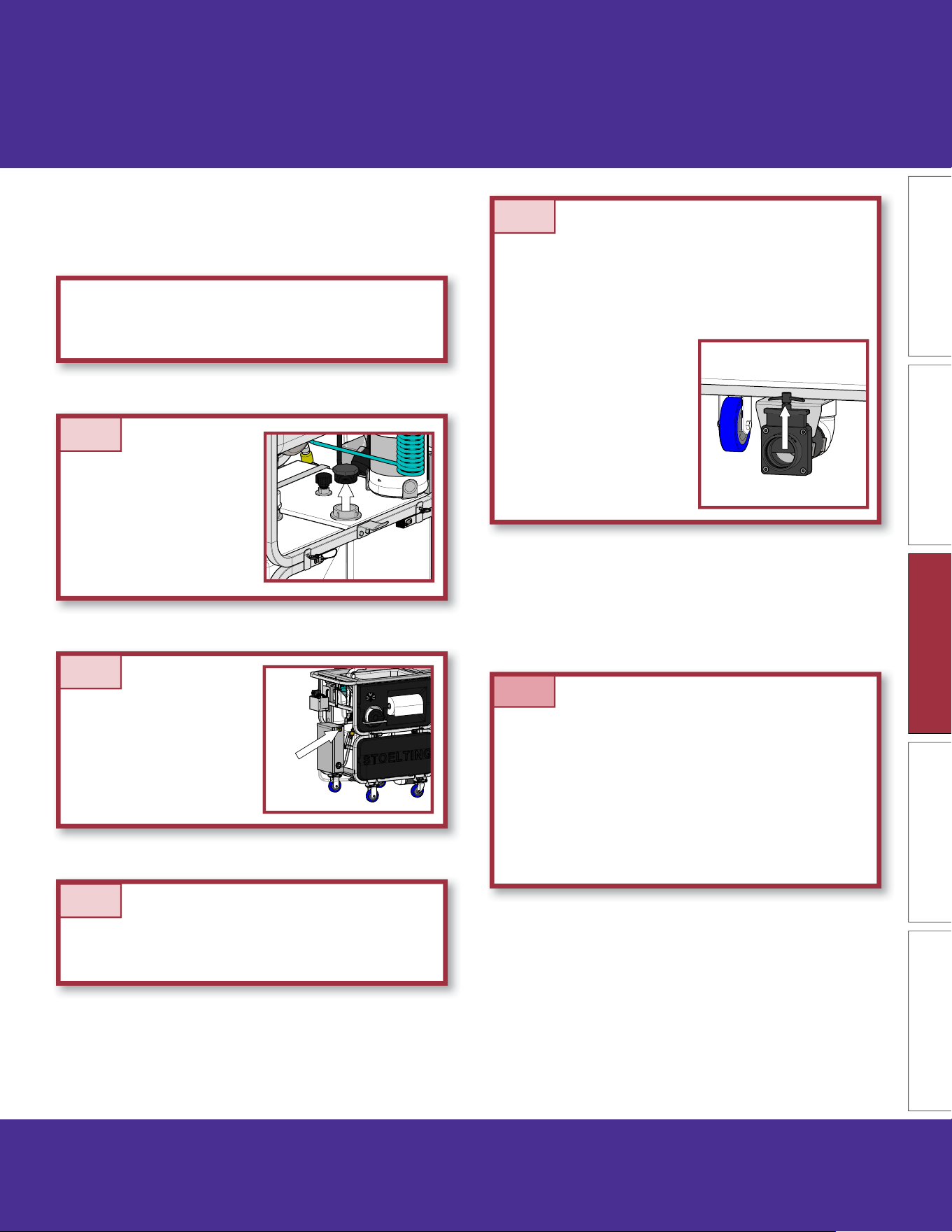

Open the faucet and allow all of the solution to fl ow
through the pump.
A.3
The gray water tank must be cleaned regularly. Prior
to cleaning, complete the following:
1. Empty the gray water tank
2. Fill the fresh water tank with at least 2 gallons of
potable water
3. Charge the pump battery
B.1
Prior to the fi rst use, the fresh water tank and pump
must be sanitized.
Fill the fresh water tank
with 15 gallons of sanitizing
solution. Mix sanitizer
according to manufacturer’s
instructions to provide a 100
parts per million strength
solution.
A.1
Turn on the pump.
A.2
Once drained, close the faucet and turn the pump off
and drain the gray water tank:
1. Position cart so the gray water outlet is over a fl oor
drain.
2. Connect the 2” elbow to
the drain fi tting if desired.
3. Pull the drain gate
upwards to drain the gray
water. Note: To prevent
splashing, do not fully
open the gate when the
tank is full.
A.4
12 COMPANIONCART-2 OPERATOR’S MANUAL 513722 REV.0
Section 3: Maintenance
MAINTENANCEPARTS TROUBLESHOOTING OPERATION INTRODUCTION

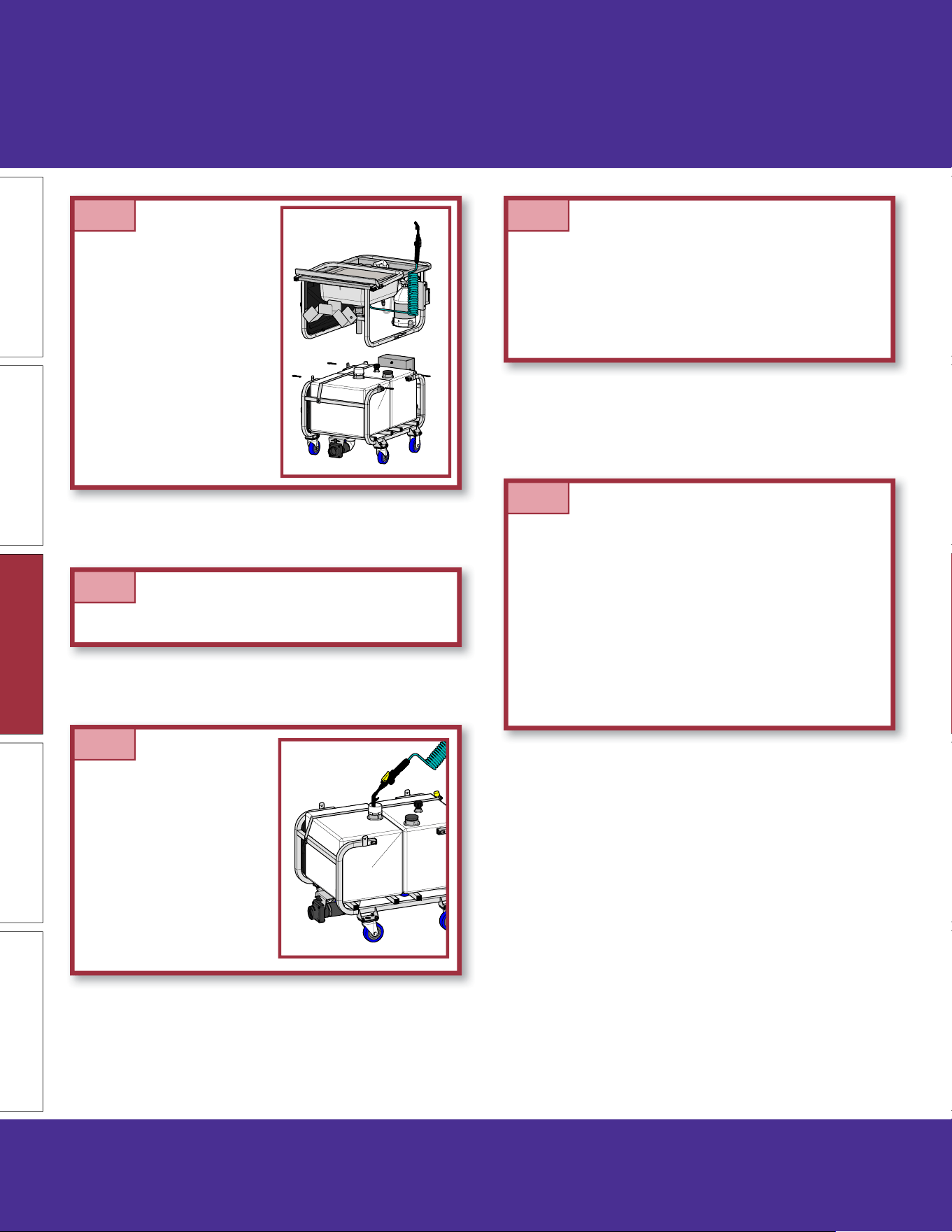

Reconnect the water line then turn the pump on.
B.3
Drain the gray water tank:
1. Position cart so the gray water outlet is over a fl oor
drain.
2. Connect the 2” elbow to the drain fi tting if desired.
3. Pull the drain gate upwards to drain the gray water.
Note: To prevent splashing, do not fully open the
gate when the tank is full.
B.7
Turn the pump off .
Place the upper section of the cart onto the lower
section and secure it with the four pins.
Connect the water line.
B.5
Use the spray wand to
thoroughly wash the inside
surface of the gray water
tank.
B.4
Disconnect the water line.
Disconnect the upper
section of the cart by pulling
out the four pins and remove
the upper section.
Set the upper section down
close enough for the wand
to reach the gray water tank.
B.2
513722 REV.0 COMPANIONCART-2 OPERATOR’S MANUAL 13
Section 3: Maintenance
MAINTENANCE PARTSTROUBLESHOOTINGOPERATIONINTRODUCTION
Recycle or dispose of the old battery properly. Refer
to local laws for proper disposal of sealed lead acid
batteries.
C.7
Pull the spade connectors off the battery.
C.3
Charge the new battery.
C.6

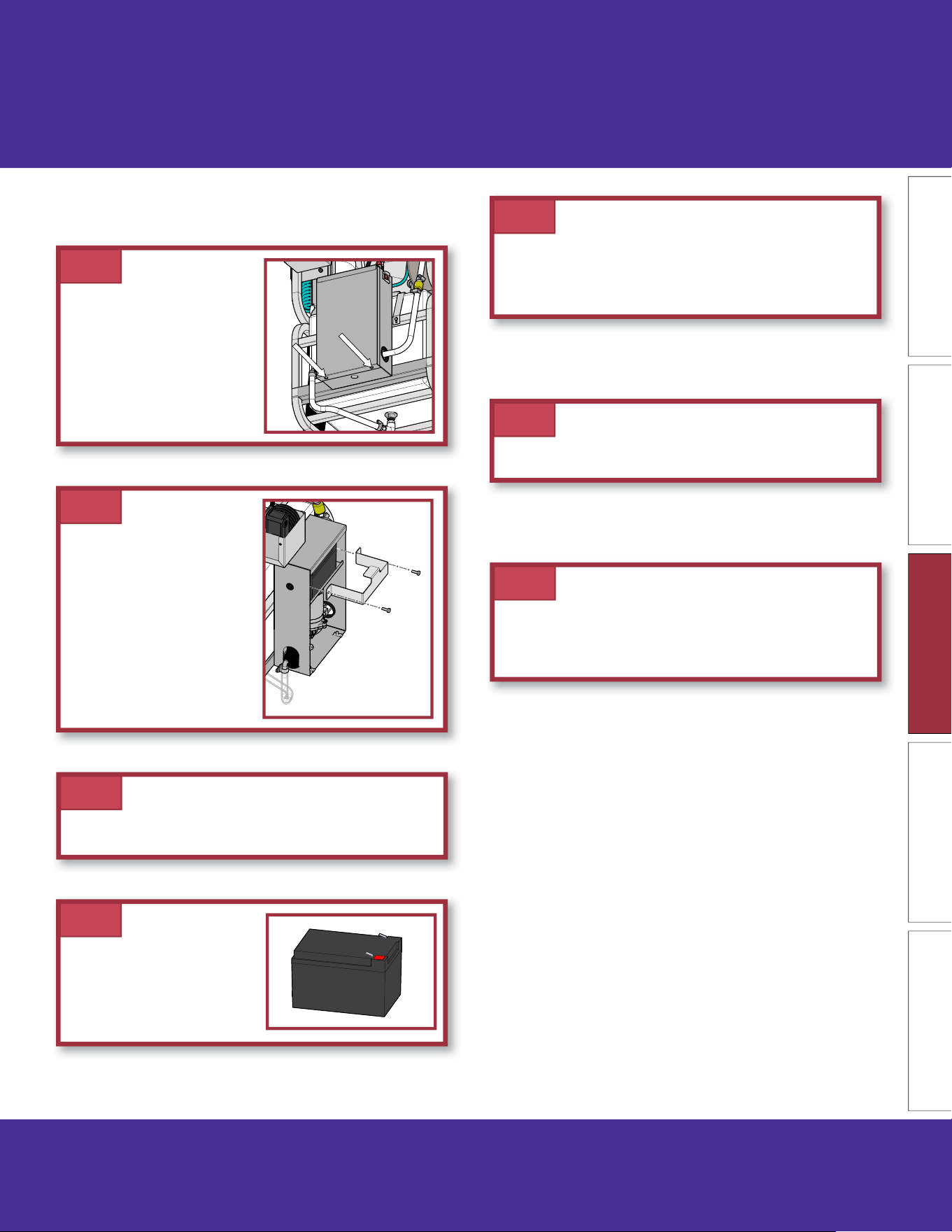

C. Battery Replacement
Install the strap and connect the battery making sure
to connect the positive connector to the ‘+’ and the
negative connector to the ‘-’.
C.5
Open the battery cover.
The cover is secured by
two screws located at the
bottom of the compartment.
C.1
Remove the stainless steel
strap
C.2
Remove the old battery and
insert a new battery onto
the shelf.
C.4
14 COMPANIONCART-2 OPERATOR’S MANUAL 513722 REV.0
Section 4: Troubleshooting
MAINTENANCEPARTS TROUBLESHOOTING
OPERATION INTRODUCTION
Following are the most common issues with the CompanionCart. Refer to the following table before contacting Stoelting
White Glove Service.
Problem Possible Cause Remedy
Pump not working
1. Battery not charged 1. Charge battery. Note: if the battery is
fully discharged, it may take 12 hours
to fully charge.
2. Charger not connected properly 2. Disconnect the charger and reconnect
it.
3. Blown fuse 3. Replace the fuse.
4. Bad battery 4. Replace the battery.
Battery charger shows
red blinking status LED
1. Battery voltage is too low 1. Replace the battery.
2. Charger not connected properly 2. Disconnect the charger and reconnect
it.
Hoses are leaking
1. Loose hose connection 1. Check all hose connections and make
sure they are installed correctly.
513722 REV.0 COMPANIONCART-2 OPERATOR’S MANUAL 15
Section 5: Replacement Parts
MAINTENANCE PARTSTROUBLESHOOTINGOPERATIONINTRODUCTION
A.1

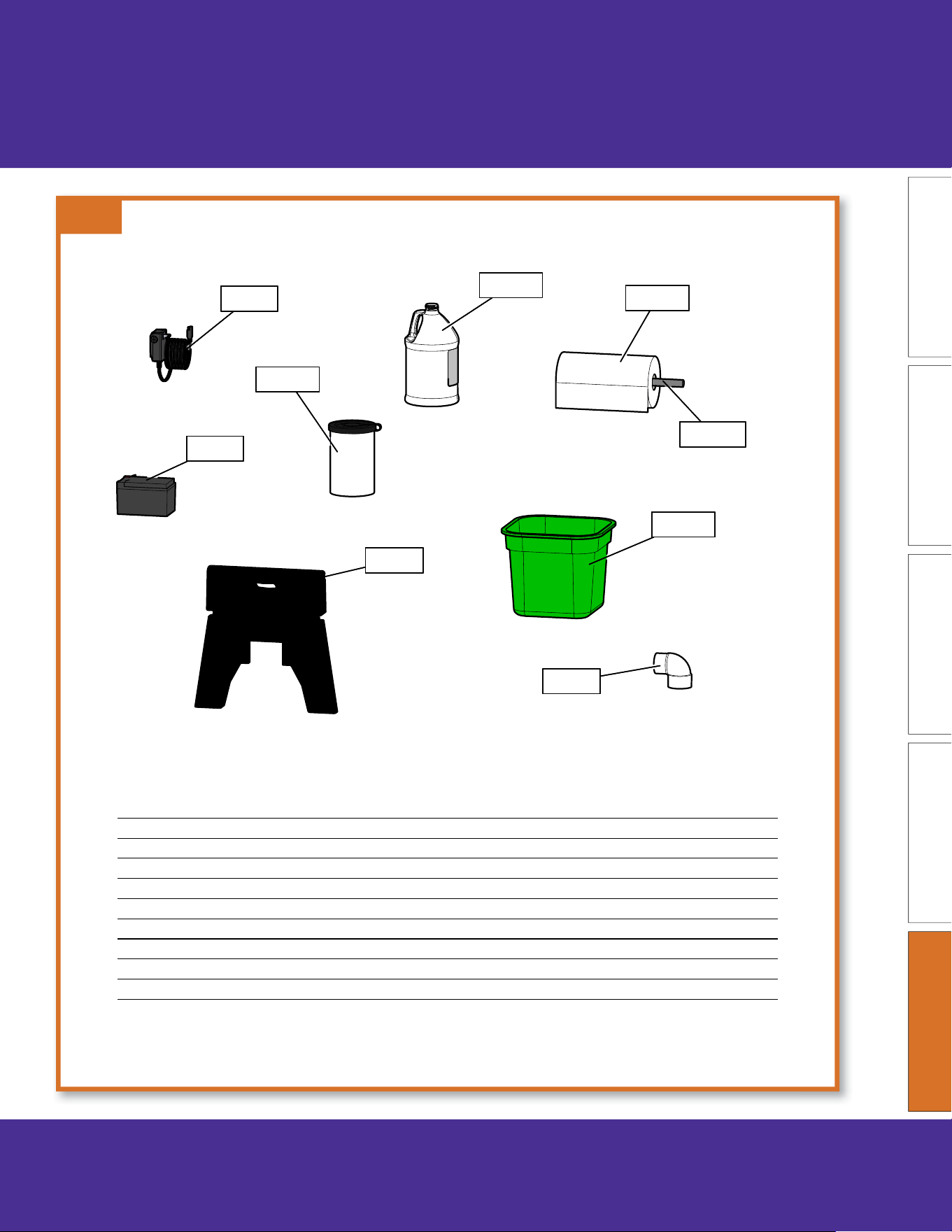

CompanionCart Replacement Parts
265003*
487005
144005
144004
552002*
344526
265002*
2208877
558203*
265003*
487005
144005
144004
552002*
344526
265002*
2208877
558203*
Part Description Quantity
144004 Battery - 12V 12Ah SLA 1
144005 Battery Charger - 12VDC 1
265002 Cleaning Wipes *
265003 LEXX Concentrate - 1 gallon *
344526 Drain Fitting - 2” 90° 1
487005 Stool - Collapsible 1
552002 Pail - 2.5 Gallon w/Handle *
558203 Paper Towel Roll *
2208877 Paper Towel Bar 1
* Part does not ship with CompanionCart and can be purchased separately.
16 COMPANIONCART-2 OPERATOR’S MANUAL 513722 REV.0
513722 REV.0 COMPANIONCART-2 OPERATOR’S MANUAL 17
18 COMPANIONCART-2 OPERATOR’S MANUAL 513722 REV.0
513722 REV.0 COMPANIONCART-2 OPERATOR’S MANUAL 19
COMPANIONCART WARRANTY
Page 1 of 1
1. Scope:
Stoelting, A Vollrath Company (“Stoelting”) warrants to the first user (the “Buyer”) that the Stoelting-branded CompanionCart
will be free from defects in materials and workmanship under normal use and proper maintenance for a period of one (1) year
from the purchase date. This warranty is subject to all conditions, exceptions, and limitations contained herein.
2. Disclaimer of Other Warranties:
THIS WARRANTY IS EXCLUSIVE; AND STOELTING HEREBY DISCLAIMS ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE.
3. Remedies:
Stoelting’s sole obligations, and Buyer’s sole remedies, for any breach of this warranty shall be, at Stoelting’s option, one of
the following: repair or replacement of the affected component at Stoelting’s plant in Kiel, Wisconsin, or refund of the purchase
price of the affected component. These obligations/remedies are subject to the conditions that Buyer (a) gives Stoelting prompt
written notice of any claimed breach of warranty within the applicable warranty period, and (b) delivers the affected component
to Stoelting or its designated service location, in its original packaging/crating, also within that period. Buyer shall bear the
cost and risk of shipping to and from Stoelting’s plant or designated service location.
4. Conditions:
a) Stoelting shall not be responsible to provide any remedy under this warranty with respect to any component that fails by
reason of negligence, abnormal use, misuse or abuse, faulty repair made by others, use with parts or equipment not
manufactured or supplied by Stoelting, any modification or alteration of any parts or equipment, or damage in transit.
b) The Authorized Stoelting Provider must return defective parts, at Stoelting’s discretion, for credit.
5. Exceptions:
This warranty does NOT cover any of the following
a) Costs associated with installation labor, disposal of equipment being replaced, and shipping costs of replacement parts
or CompanionCart.
b) This warranty does not extend to parts, sometimes called “wear parts”, which are generally expected to deteriorate and
to require replacement as the CompanionCart is used, including but limited to o-rings and batteries. All such parts are
sold AS IS.
c) External components including but not limited to hoses, piping, or electrical equipment.
d) Labor and travel charges.
e) Failure, damage, or repairs due to faulty installation, misapplication, abuse, lack of service, or improper service,
unauthorized alteration, improper operation as indicated in the Stoelting operators manual, including but not limited to
failure to properly assemble and/or clean, improper tool usage, or use of unapproved lubrication, or cleaning and sanitizing
supplies.
f) Any costs associated with electricity, including utility increases, from any reason whatsoever.
g) Any special, indirect or consequential property or commercial damage of any nature whatsoever, if the jurisdiction allows
this exclusion.
7. Limitations:
THE REMEDIES SET FORTH IN THIS WARRANTY SHALL BE THE SOLE LIABILITY STOELTING AND THE
EXCLUSIVE REMEDY OF BUYER WITH RESPECT TO EQUIPMENT SUPPLIED BY STOELTING; AND IN
NO EVENT SHALL STOELTING BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES,
INCLUDING AS EXAMPLES BUT NOT INTENDED TO BE LIMITED TO DOWNTIME, OVERHEAD,
MATERIALS, PERFORMANCE PENALTIES, LOST SALES, LOST PROFITS, PRODUCT LOSS, OR
PROPERTY DAMAGES, WHETHER FOR BREACH OF WARRANTY OR OTHER CONTRACT BREACH,
NEGLIGENCE OR OTHER TORT, OR ON ANY STRICT LIABILITY THEORY.
