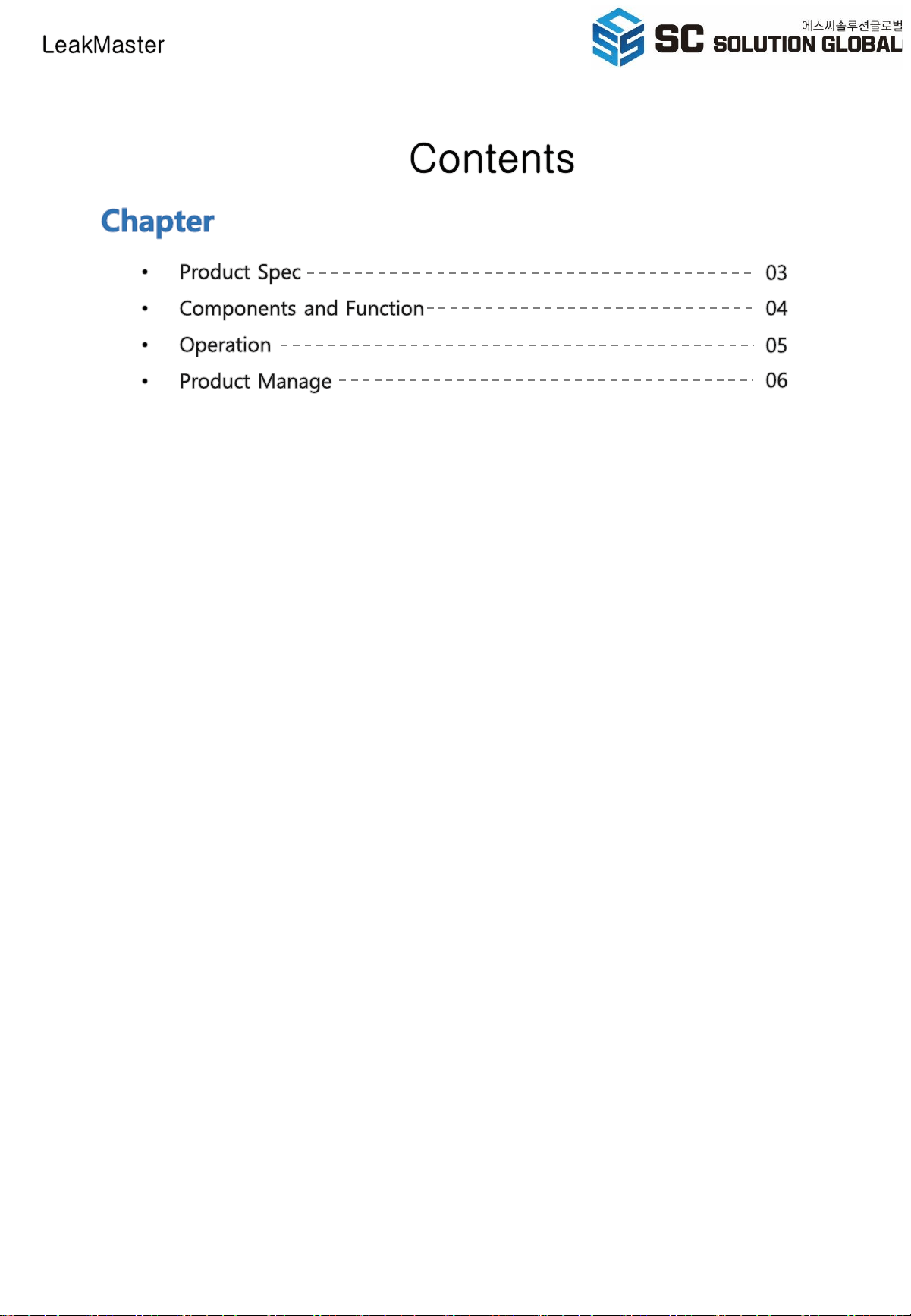

Contents
Chapter
Product Spec
Components and Function
Operation
Product Manage
2
03
04
05
06
LeakMaster
3
1. 1
Product Operation
Spec
(Fixed)
Product Spec
LeakMaster
Fixed
Communication mode LTE
Operating Temperature -10°C ~ +75°C
Charging Temperature 0°C ~ 45°C
Battery 10,050mAh(Recharge)/ 5 years of use
Sensor Piezoelectric Sound Components
Memory 4M-bit Serial Flash Memory
Frequency 4KHz
Standby Current 80uA
Size ø66mm x 106mm
WEIGHT 607g
1. 2
PC Requirements
PC
CPU/memory
PC
equipped with a CPU of 500M or more
and
1G RAM or more
Operating System
Windows
7 or more, Operating system supported bv
the
browser
Like Android, iPhone
Browser
Google
Chrome
Resolution
1920
*1024 Resolution Recommend
1. 3 Product
Function(Role)
✓ Installed in the pipeline, it collects vibration signals from the relevant pipeline and
transmits the data to the server
LeakMaster
Antenna
Leak Detection
Sensor
4
2. 1 Components
Components and Function
2. 2

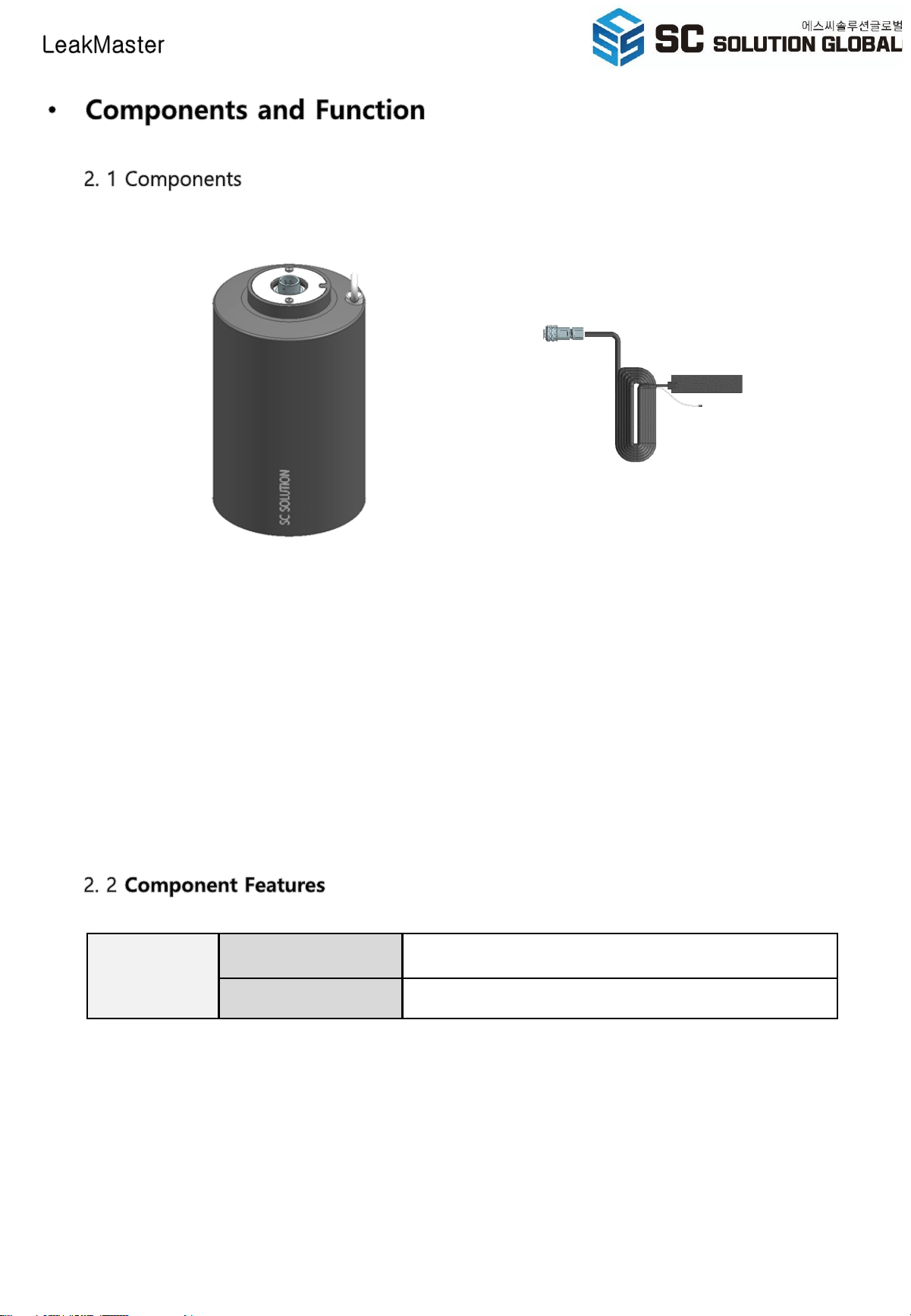

Component
Features
LeakMaster
Leak Detection Sensor
Measure
Water Leak Sound, Detection
Correlation
Leak
Sound
Antenna
LTE
Communication
LeakMaster
1. Connect the antenna to the leak sensor.
2. Verify that the Vibration is operating normally.
3. Go to Web(http://global.thingsware.co.kr/)
4. Verify that the data is collected normally.
5. Install the sensor.
6. (A charger is required for charging and is not included)
※ Caution: Please be careful when handling the leak sensor operation if the antenna cable is not installed correctly.
※ For web access, see the Operations Guide – leakmaster_app.
5
3. 1
Product Operation
Operation

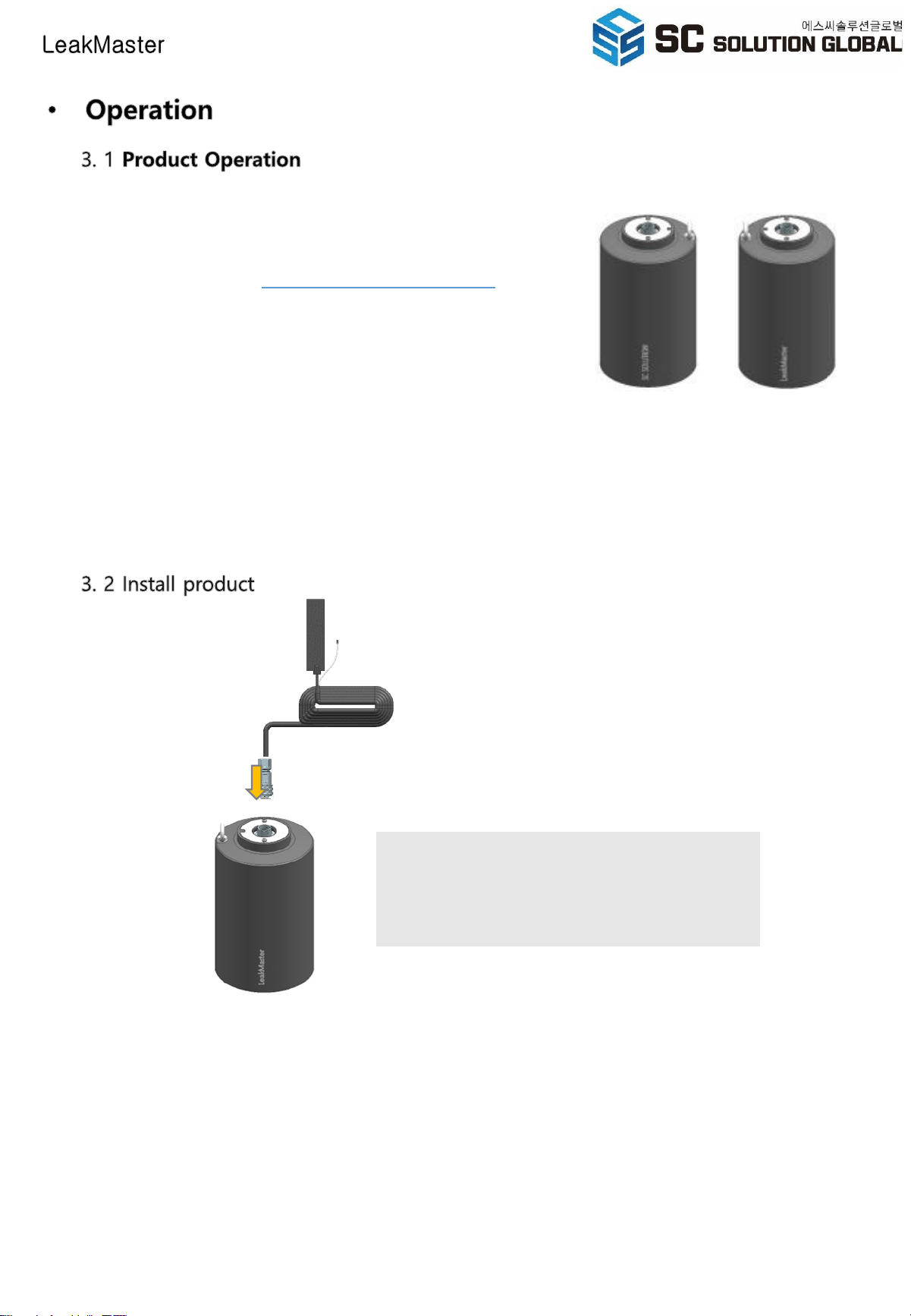

3. 2 Install product
✓ sensors are installed in water pipes and accessories (fertilizers, fire hydrants, valves).
✓ The sensors can be mutually coupled, and It should be placed so that the location of the leak can be calculated
through correlation analysis.
✓ When installing on a water supply pipe, the installation point is determined by analyzing the GIS (Geographic
Information System) data of the area in advance.
2. Installing a Sensor
※ buzzer sound
Normal connect : Zing-Zing-Zing
Register sensor information : Zing ~ Zing ~ Zing
Charging: Zing
Error: Zing Zing Zing Zing Zing Zing
1. Connect the connector to the antenna at the top of the sensor.
2. Power is turned on immediately after antenna connection.
3. When connected normally, the Vibration motor operates.
1. Connect Sensor
Sensor
LeakMaster
6
Product Manage
4. 1 Precautions
Precautions
• Follow the instructions in the user manual.
• Inadvertent use leads to malfunction or failure.
• Failure to follow the usage instructions or precautions may affect the safety of people and facilities.
• Use in an environment that meets the requirements.
• We do not take responsibility or warrant the consequences of your inadvertent use.
• There is a risk of injury due to the strong magnetic force of the magnets used in the product,
so be careful with handling.
• If a strong impact is applied to the product, it can cause product deformation and breakage.
• If you are not using the product, detach it and put it in a case.
• If the antenna cable connector is damaged, be careful to handle it as it may cause problems
with the waterproof function..
• If you have any questions about using the product or A/S service, please use the customer center.
• Risk of fire or explosion if the battery is disposal into fire or hot oven, mechanically crushing or cutting.
• Risk of explosion or the leakage of flammable liquid or gas
if the battery is leaving in an extremely high temperature surrounding environment.
• Risk of explosion or the leakage of flammable liquid or gas
if the battery is subjected to extremely low air pressure.
Customer Center (A/S)
All services related to LeakMaster are provided by SC Solutions Global Co., Ltd.
If you want to consult and after-sales service, please use the technical support below.
The maintenance and maintenance period of the LeakMaster product is indicated in the product contract
Technical support
