INSTRUCTIONS FOR USE
Cooker hood
CC4525SEU
CC4525SAU
3Pictograms used ........................................
4Safety ..........................................................
8Operation ....................................................
10Maintenance ...............................................
10Cleaning .......................................................
12Installation ..................................................
12Safety instructions .....................................
23Environmental aspects ..............................
23
Tips for energy-efficient cooking with
hoods ...........................................................
23Disposal of the appliance and packaging ....
Contents
The following symbols are used throughout the manual, and they have the following meanings:
INFORMATION!
Information, advice, tip or recommendation
WARNING!
Warning – general danger
ELECTRIC SHOCK!
Warning – danger of electric shock
HOT SURFACE!
Warning – danger of hot surface
DANGER OF FIRE!
Warning – danger of fire
It is important that you carefully read the instructions.
3
Pictograms used
WARNING!
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE!
Safe use
• The manufacturer cannot be held liable for any damage resulting
from failure to follow the safety instructions and warnings.
• Damage caused by incorrect connection, incorrect fitting, or
incorrect use is not covered by the warranty.
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• This appliance is only designed for household use.
• Always provide adequate ventilation!
• There shall be adequate ventilation of the room when the range
hood is used at the same time as appliances burning gas or other
fuels.
• When the range hood and appliances supplied with energy other
than electricity are simultaneously in operation, the negative
pressure in the room must not exceed 4 Pa (4 × 10
-5
bar).
• Local regulations concerning the discharge of air have to be
fulfilled.
• Never use a steam cleaner for cleaning the appliance. Only clean
the appliance when switched off. The steam of a steam cleaner
could reach the conducting parts and cause an electrical short.
4
Safety
WARNING!
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• This appliance and the accessible parts will become hot during
use. Do not touch hot parts. Keep children younger than 8 away
from the appliance unless they are under continuous
supervision.
For AU/NZ
WARNING!
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Accessible parts may become hot during use. Young children
should be kept away.
• Children should be supervised to ensure that they do not play
with the appliance.
Do not modify this appliance.
• Children are not to be allowed near the device unsupervised.
• Do not flambé under the range hood.
ELECTRIC SHOCK!
Avoid the risk of electric shock; make sure the appliance is
switched off before cleaning the appliance.
• Only use the appliance inside the home.
5
Safety
• Do not use the cooker hood if the grease filter has not been fitted
properly!
• Do not lean against the cooker hood.
• Never use the cooker hood as a working surface unless this is
indicated explicitly.
• Grease and oil are inflammable when overheated. Remain in the
cooking area when preparing meals.
• To prevent hot fat from catching fire, you should only deep-fry
under continuous supervision.
• The cooker hood should be cleaned regularly both on the outside
as well as the inside (at least 1 x per month). Insufficient cleaning
or a delay in the replacement of filters can cause a fire hazard.
• Clean the filters on time.
• The grease filters can become hot during use. After cooking wait
at least 30 minutes before cleaning.
• Please note! Intensive use can lead to condensation on the
cooker hood. Condensation is simple to remove with a dry cloth.
• Follow the instructions in the manual for cleaning or replacing the
grease filters and/or carbon filters!
DANGER OF FIRE!
• There is a risk of fire if the instructions for cleaning or replacing
grease filters and/or carbon filters are not followed.
• Through grease deposits in the metal grease filter. Never work
with open flame under the appliance (eg. flambéing).
Always use the appliance with the metal grease filter. Clean the
grease filter regularly.
• Through overheated fat or oil. Never extinguish a fire with water;
always use a fire blanket, lid or plate.
• The appliance may have sharp edges; please be careful during
cleaning.
6
Safety
• The light emitted by LED lights is very dazzling and can damage
the eyes. Do not look directly into the switched on LED lights for
longer than 100 seconds.
• When washing grease filters in the dishwasher it is recommended
to use a short, non-intensive programme. Check the grease filter
after washing in the dishwasher for wear (loose material). Wear
can occur as a result of frequent washing. If loose material is
visible, replace the filters in order to prevent this loose material
from ending up in the food that is cooked.
• Do not use the appliance in temperatures below 5 °C.
• Keep a 20 cm separation distance to the appliance.
7
Safety
LEDFunctionOperateButton
-Switches the lights on or off at maximum
brightness.
SHORT PRESSL
-Switches the lights on or off at the average
brightness.
LONG PRESSL
Lights up
continuously
The extraction starts at the lowest setting.SHORT PRESST1
FlashingSwitching the Clean Air function on or offLONG PRESS
• The Clean Air function ensures that the air in
the kitchen is refreshed every hour for 10
minutes.
• The Clean Air function works for a maximum of
24 hours.
• The Clean Air function cannot be activated
when the intensive setting or the timer is
switched on.
Lights up
continuously
The extraction starts on the second setting.SHORT PRESST2
The LED T1, T2 or T3
flashes
Switching the timer on or off.LONG PRESS
• The timer automatically switches off extraction
and lighting after 30 minutes.
• The timer cannot be used when the intensive
mode or Clean Air function is active.
Lights up
continuously
The extraction starts on the third setting.SHORT PRESST3
LED S1 flashes 3
times.
Reset the Activated Charcoal filter replacement
indicator
LONG PRESS
with motor and
lighting switched
off
• The ‘Activated Charcoal filter replacement
indicator’ is reset.
FlashingSwitch on the intensive mode timerLONG PRESST4
with the motor or
lights switched on
• ‘Intensive mode with timer’ activates extraction
for 6 minutes at the highest setting.
8
Operation
LEDFunctionOperateButton
• After this period, the extraction switches off
automatically.
The LED flashes
twice:
Switching on ‘Activated Charcoal filter
replacement indicator’
LONG PRESS
with motor and
lighting switched
off
Filter indication is on.
The LED flashes
once:
• Turns on or off the Activated Charcoal filter
replacement indicator.
Filter indication is off.
Lights up
continuously
Grease filter cleaning indication-S1
• After 100 hours of operation, the filter indicator
lights up. Then, clean the metal grease filters.
FlashingActivated Charcoal filter replacement indicator-
• After 200 operating hours, the filter indicator
begins to flash. Then, replace the Activated
Charcoal filter.
Table continued from last page
9
Operation
Cleaning
WARNING!
Important! For all maintenance, first, switch off the mains power to the cooker hood by pulling
the plug out of the socket or by turning off the home's master switch. The hood needs to be
cleaned regularly, both inside as well as outside (at least as often as the grease filter).
Do not use abrasive cleaning products. Do not use alcohol!
If the instructions regarding cleaning the appliance or replacing the filters are not followed, this
can cause a fire. These instructions must be followed! The manufacturer is not liable for damage
to the hood or fire damage resulting from incompetent maintenance or from non-adherence to
the safety instruction above.
Cooker hood
Clean the cooker hood with soapy water and a soft cloth.
Then rinse with clean water. Do not use aggressive cleaning agents such as caustic soda. The cooker
hood finish stays in good condition if it is buffed periodically following the application of wax.
NOTE!
Stainless steel cooker hoods
Do not use scouring pads or other abrasive cleaners on stainless steel cooker hoods. Finish with
a non-abrasive, non-polishing agent and buff the stainless steel in the direction of the grain.
Metal grease filters
Metal grease filters should be cleaned once a month (or when indicated by the filter cleaning indicator
– if present on the model) using a neutral cleaning agent, either by hand or in the dishwasher on a
short, low-temperature programme. Place the grease filters with the openings facing downwards in
the dishwasher so the water can drain out of the filter. Aluminium grease filters become dull as a
result of dishwasher cleaning agents. This is normal and does not effect the working.
Cleaning grease filters
1. Open the panel.
2. Remove the grease filters from the hood by pulling the special
handle.
10
Maintenance

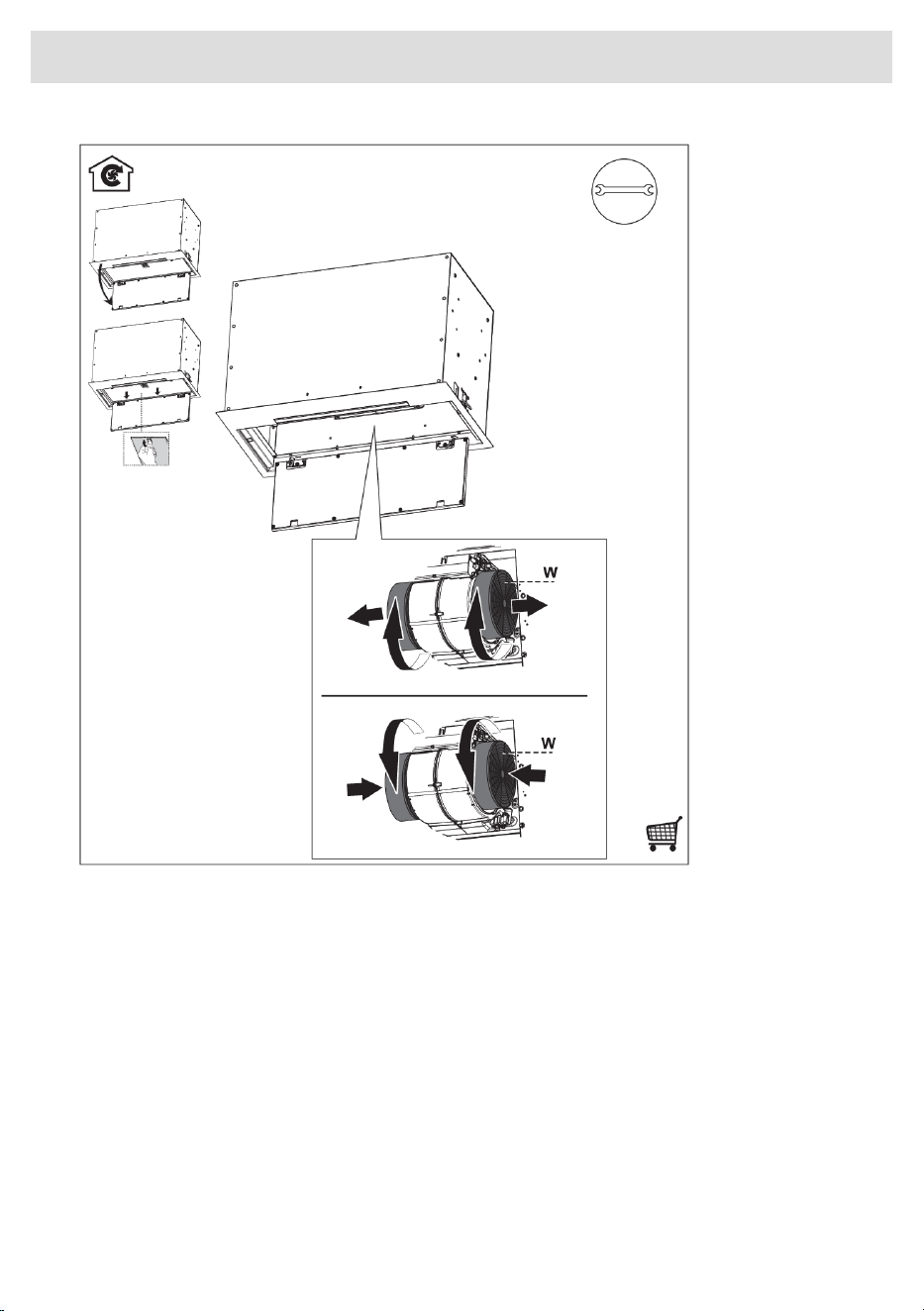

Replacing the carbon filter
NOTE!
The carbon filter must always be used if the cooker hood does not have an outlet.
Using a carbon filter creates more sound than when using the cooker hood with an outlet.
The carbon filter’s operation is optimal at a lower motor speed. You should, therefore, avoid using
the boost function.
Saturation of the carbon filter will eventually occur after more or less prolonged use, depending
on the type of cooking and how frequently the grease filter is cleaned.
It is necessary to replace the carbon filter when indicated by the filter indicator.
Do not wash or reuse the Activated Charcoal filter. Saturated Activated Charcoal is not
environmentally friendly. Instead, replace it regularly, every four months.
Lighting
WARNING!
The hood is fitted with LED lights. An authorized technician must replace these. Do not attempt
to replace the LED lights yourself.
11
Maintenance
Safety instructions
Faulty parts may only be replaced by original parts. The manufacturer
can only guarantee that original parts meet safety requirements.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
WARNING!
This appliance should only be connected by a registered installer.
• Check the appliance for transport damage. Do not connect a damaged appliance.
• Always use the original Supply cord to connect the appliance.
• The electrical connection must comply with national and local regulations.
• The wall plug socket and plug should always be accessible.
• If a stationary appliance is not fitted with a supply cord and a plug, or with other means for
disconnection from the supply mains having a contact separation in all poles that provide full
disconnection under overvoltage category III conditions, the means for disconnection must be
incorporated in the fixed wiring in accordance with the wiring rules. This is also applicable for
appliances with a supply cord and plug when the plug is not accessible after installing the
appliance. Using an omnipolar switch with a contact separation of at least 3 mm fitted in the
fixed wiring will fulfil this requirement.
• For AU/NZ: Means providing full disconnection under overvoltage category III conditions must
be incorporated in the fixed wiring in accordance with AS/NZS 3000.
• The appliance should not be connected to the mains via a multi-plug adapter or extension cable,
as the safe use of the equipment cannot be guaranteed.
• For AU/NZ: The air must not be discharged into a flue that is used for exhausting fumes from
appliances burning gas or other fuels.
• Disconnect the appliance from the mains supply before starting any repair work.

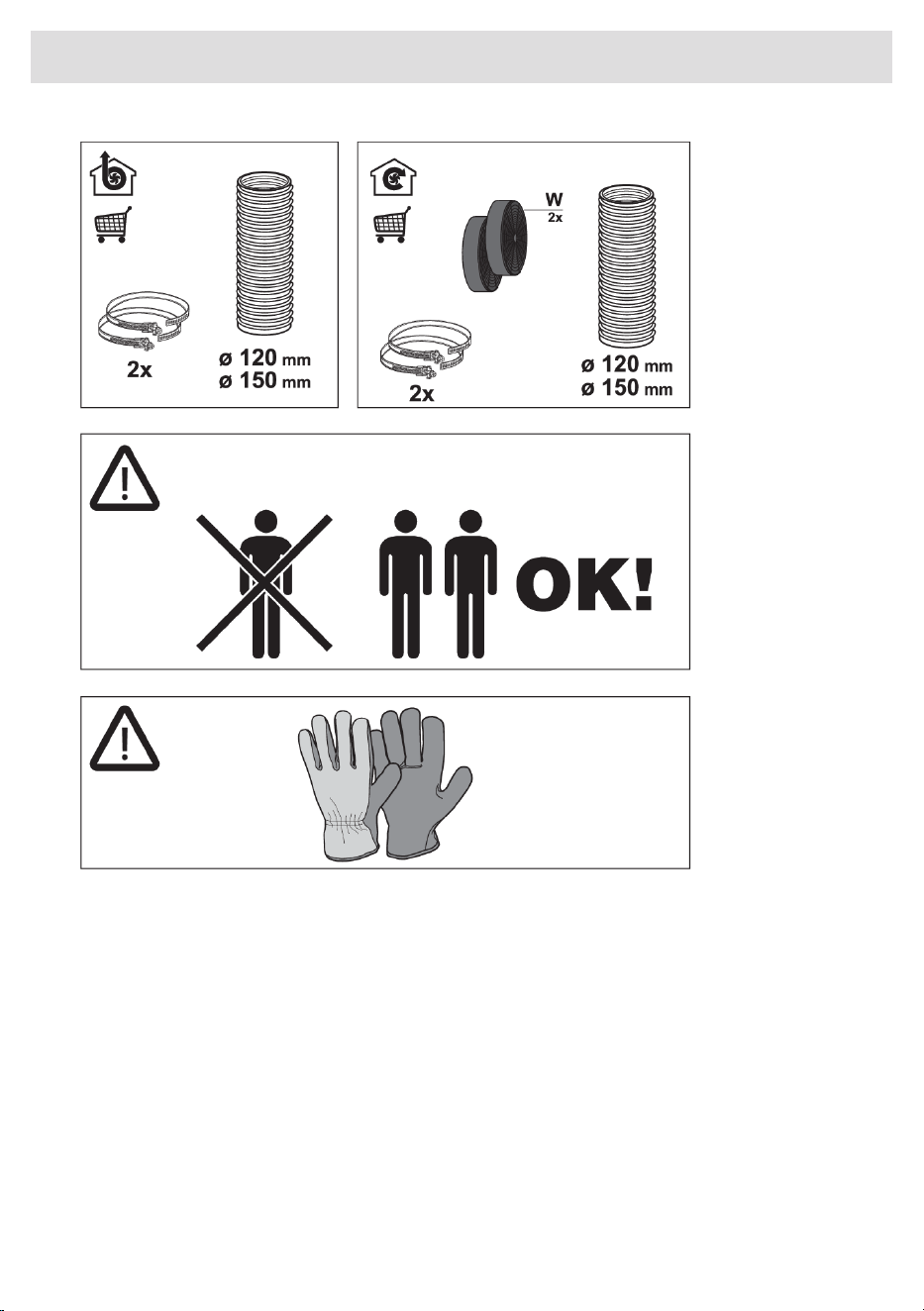

• We advise you to wear protective gloves when assembling the cooker hood because of the
possible sharp edges.

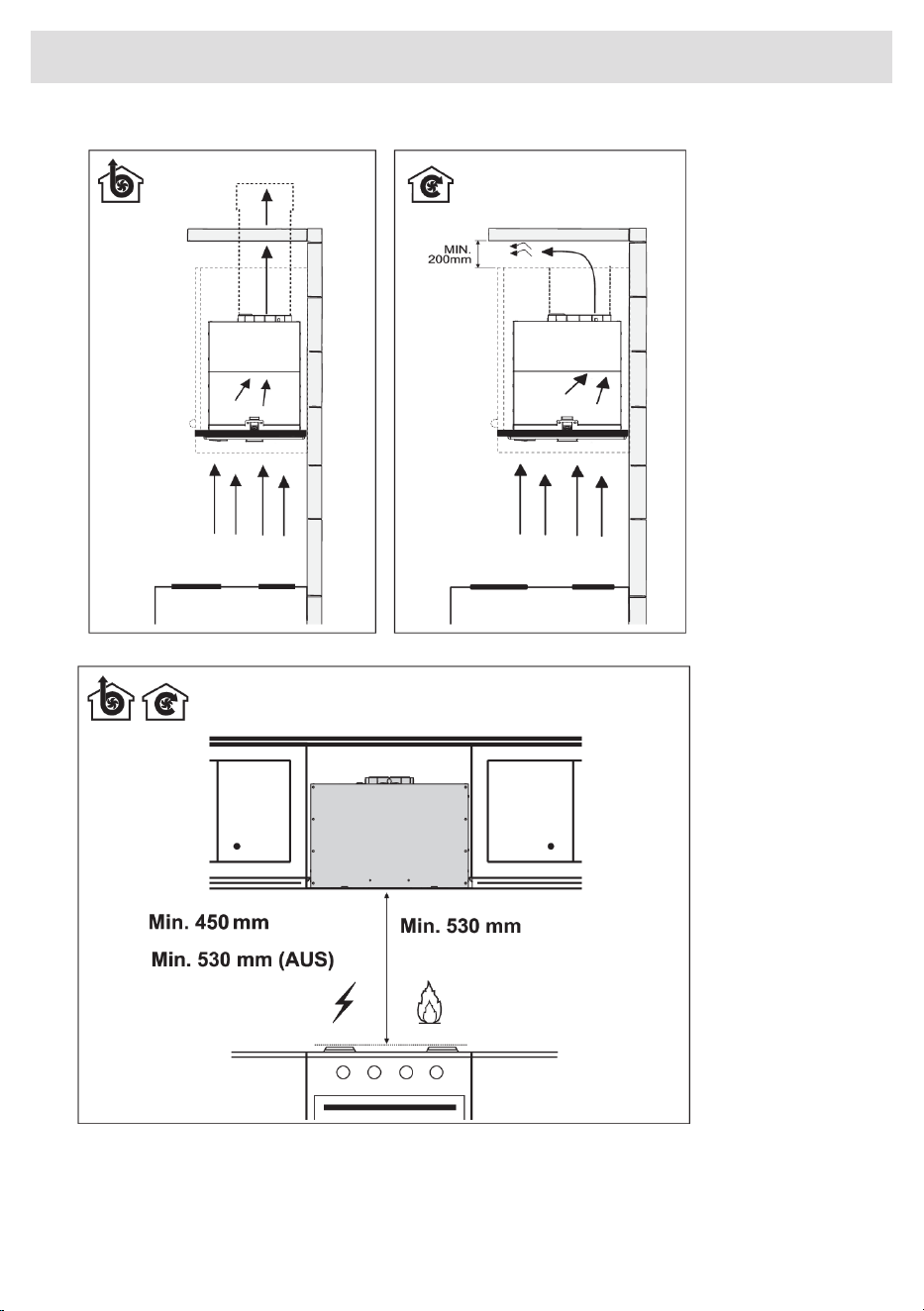

• For AU/NZ: The distance between the lowest point of the cooker hood and the supporting surface
for the cooking vessels gas hob should be at least 60 cm.
• If the instructions of the gas hob specify a greater distance, this has to be taken into account.
WARNING!
Extraction hoods and other appliances that extract cooking vapours can affect the safe operation
of appliances that burn gas or other fuel (including those in other rooms) by backflowing
combustion gases. These gases can potentially lead to carbon monoxide poisoning. After installing
an extraction hood or other vapour extractor, the operation of appliances with flue gas extraction
must be tested by a competent person to ensure that the combustion gases do not flow back.
Never open the casing of the appliance.
12
Installation
WARNING!
Failure to install screws or fixing devices in accordance with these instructions may result in an
electrical hazard.
If the safety instructions and warnings are not followed, the manufacturer cannot be held responsible
for any resulting damage.
If you decide to discontinue using the appliance because of a fault, we recommend you cut off the
cable after removing the plug from the plug socket. Take the appliance to your municipality’s waste
disposal site.
Place the appliance in an environment that meets the following conditions:
• Ambiant temperature range: +5….+40 °C;
• Humidity: 30….70% RH;
• Maximum altitude: 2000 meters above sea level.
13

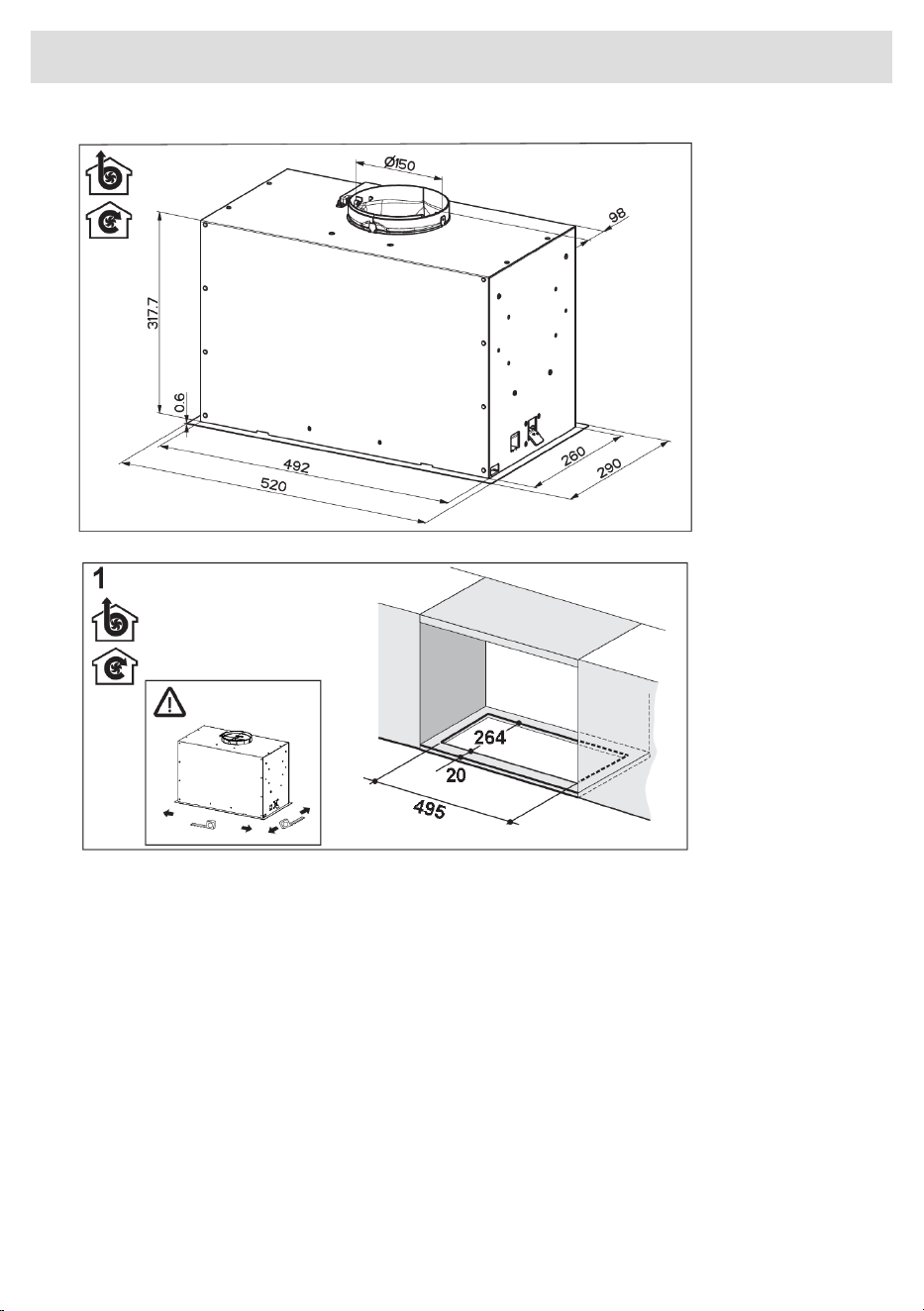

Installation
14
Installation
15
Installation
16
Installation
17
Installation
18
Installation
19
Installation
20
Installation
21
Installation
22
Installation
Tips for energy-efficient cooking with hoods
• Use a low extractor setting and use the highest setting (boost) only if necessary.
• A well-ventilated kitchen makes the range hood more efficient.
• Clean filters regularly and replace filters when needed to keep the filter efficiency high, as a
saturated filter cannot perform and leads to longer usage times.
Disposal of the appliance and packaging
Sustainable materials have been used during the manufacture of this appliance. This appliance must
be disposed of responsibly at the end of its service life. Ask your local authorities for more information
about how to do this.
The appliance packaging is recyclable. The following may have been used:
• cardboard;
• polyethylene film (PE);
• CFC-free polystyrene (PS rigid foam).
Dispose of these materials in a responsible manner and in accordance with government regulations.
The product has been marked with a crossed-out dustbin symbol to
remind you of the obligation to dispose of electrical household
appliances separately. This means that the appliance may not be
included with normal domestic refuse at the end of its service life.
The appliance must be taken to a special municipal centre for separated
waste collection or to a dealer providing this service.
A separate collection of household appliances helps to prevent any
potential negative impact on the environment and on human health
caused by improper disposal. It ensures that the materials of which the
appliance is composed can be recovered to obtain significant savings
in energy and raw materials.
Declaration of conformity
We hereby declare that our products satisfy the applicable European
directives, orders and regulations, as well as the requirements stated
in the referenced standards.
23
Environmental aspects
956344
www.asko.com
We reserve the right to make changes.
-a1
