10-24
Warewashing, Handling & Dispensers
{
Example
Red rack is Code 3
Gray top is Code 6
5 2 7 1 6
Basic 36
Compartment
X-Tall Rack
Also available in Spanish.
{Wording in parenthesis will not imprint
|
Additional symbols available. Contact your Vollrath representative
Begin by selecting the type of basic rack you need by the standard
five-digit item number found on pages 10-5 to 10-14.
See page 10-23 for Traex® order guide
Vollrath gives you the option for additional identification by imprinting
the glass symbol and name on each rack. Letters will appear in white
ink only,
1
⁄2" high. There is a nominal charge for each rack imprinted
with the symbol and name. To order symbol imprinting, simply identify
the symbol code after the seven-digit rack model number.
All racks will be shipped within three working days from receipt of order.
Custom racks, or personalized racks will be shipped within 7 working
days from receipt of order. Contact the Vollrath office or your district
sales manager regarding lead times on initial personalization orders.
Select the color of the basic
rack. Add the sixth digit
to the basic rack number.
(Full-size racks are available
in all eight colors — shown
on page 10-9. One-half size
racks are available in light
green or cocoa only.)
To indicate the style of glass/stemware or the facility where
the rack is used, you can color code the top riser of Vollrath
compartment racks. Just code the seventh digit of the item
number with the desired color number listed above. A perfect
system for resorts, hotels, clubs, and institutions. Optional
methods of color coding are available upon request.
Color Sixth Digit
Light Green......... 1
Cocoa............. 2
Red............... 3
Light Blue .......... 4
Gold .............. 5
Gray .............. 6
Royal Blue ......... 7
Burgundy .......... 9
Step 2. Color Selection
Step 1. Select Your Rack

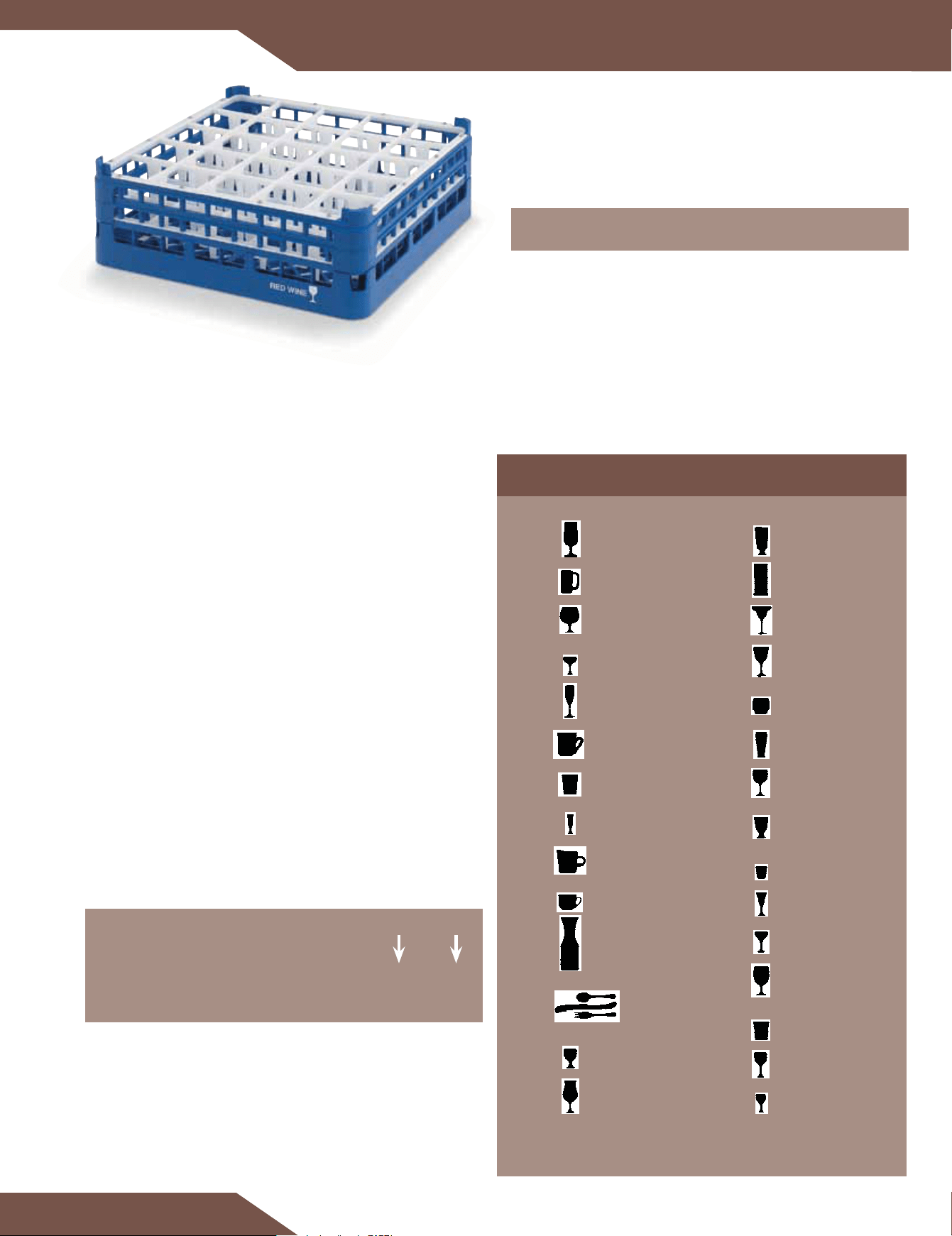

How to Order the
Right Signature Rack
Step 4. Standard Imprinting
Step 3. Color-Coded Top Riser
3 6
Red Gray
Base Top
Riser
52711-11 AB = Beer Mug
52715-66 BE = White Wine
Delivery
The above number represents the rack ordered, the color selected,
the top riser color, and the symbol imprinting. If both a custom logo
and a glass symbol are specified, the logo will appear on one side
and the glass symbol on the other.
Example
You can have your racks personalized with your company name, logo
or any other text. Maximum size of imprint is 6" (15.2 cm) wide by 1"
(2.5 cm) high in white ink only. Camera-ready art required. There is a
one-time charge for preparation of the screen plus a nominal charge
per rack personalized. Allow 10 working days for screen preparation.
Step 5. Custom Imprinting
AA
AB
AC
AD
AE
AF
AG
AH
AJ
AK
AL
AM
AN
AP
Code
AQ
AR
AS
AT
AU
AV
AW
AX
AZ
BA
BB
BC
BE
BF
BD
Code
Available Symbols
|
Wine
Beer
Beer Mug
Brandy
Champagne
Champagne
Flute
Coffee
Mug
Collins
Cordial
Creamer
Cup
Decanter
Flatware
Goblet
Grande
Hi-Ball
Iced Tea
Margarita
Martini
Old
Fashioned
Pilsner
Red
Wine
Rocks
(footed style){
Rocks
(tumbler style){
Sherry
Sorbet
Water
(footed style){
Water
(tumbler style){
White Wine
Note: Imprinted racks cannot be returned or cancelled
The Vollrath Company, LLC
10-25
Warewashing, Handling & Dispensers

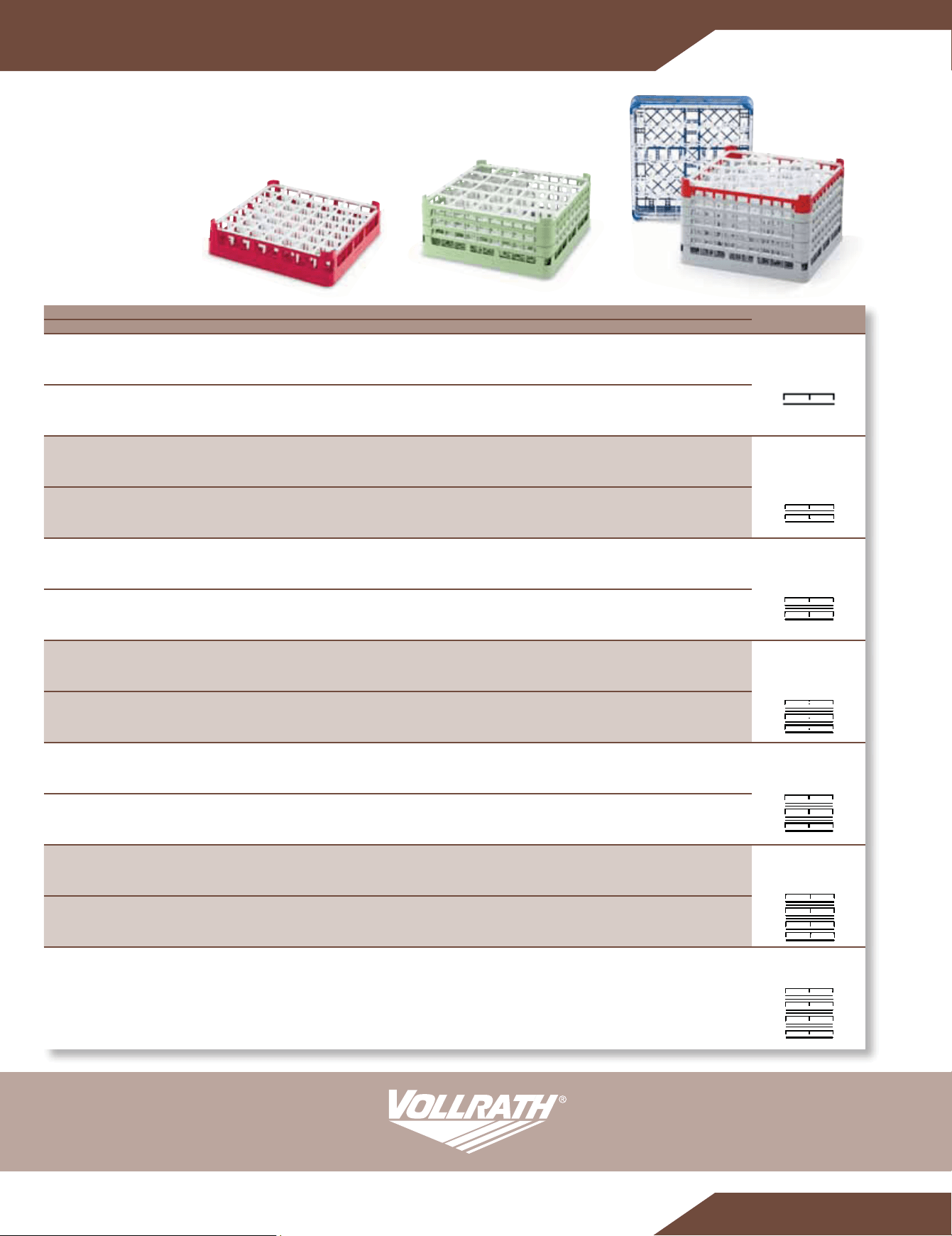

Signature Full-Size
Compartment
Racks
NUMBER OF COMPARTMENTS 9 16 20 25 30 36 49
RACK
COMPONENTS
COMPARTMENT SIZE: IN (CM) 5
7
⁄8" (14.9) 4
3
⁄8" (10.0) 3
15
⁄16" (11.1) 3
1
⁄2" (8.9) 3
3
⁄16" (8.1) 2
7
⁄8" (7.3) 2
7
⁄16" (6.2)
SHORT
Overall Ht. 4
1
⁄8 (10.5)
Inside Ht. 2
13
⁄16 (7.1)
52726 52694 52691 52684 52790 52689 52699
SHORT PLUS
Overall Ht. 4
7
⁄8 (12.4)
Inside Ht. 3
1
⁄4 (8.3)
52760 52766 52692 52772 52811 52778 52784
MEDIUM{
Overall Ht. 5
5
⁄8 (14.3)
Inside Ht. 4
5
⁄16 (11)
52727 52718 52693 52710 52812 52714 52722
MEDIUM PLUS{
Overall Ht. 6
3
⁄8 (16.2)
Inside Ht. 4
13
⁄16 (12.2)
52761 52767 52702 52773 52813 52779 52785
TALL
Overall Ht. 7 (17.8)
Inside Ht. 5
11
⁄16 (14.4)
52728 52719 52703 52711 52816 52715 52723
TALL PLUS
Overall Ht. 7
3
⁄4 (19.7)
Inside Ht. 6
1
⁄4 (15.9)
52762 52768 52704 52774 52817 52780 52786
X TALL{
Overall Ht. 8
1
⁄2 (21.6)
Inside Ht. 7
1
⁄8 (18.1)
52730 52720 52706 52712 52832 52716 52724
X TALL PLUS{
Overall Ht. 9
1
⁄4 (23.5)
Inside Ht. 7
11
⁄16 (19.5)
52763 52769 52707 52775 52844 52781 52787
XX TALL
Overall Ht. 9
7
⁄8 (25.1)
Inside Ht. 8
1
⁄2 (21.6)
52729 52721 52708 52713 52845 52717 52725
XX TALL PLUS
Overall Ht. 10
9
⁄16 (26.8)
Inside Ht. 9
1
⁄16 (23)
52764 52770 52709 52776 52846 52782 52788
XXX TALL{
Overall Ht. 11
5
⁄16 (28.7)
Inside Ht. 9
15
⁄16 (25.2)
52731 52732 52754 52733 52847 52734 52735
XXX TALL PLUS{
Overall Ht. 12
1
⁄8 (30.8)
Inside Ht. 10
9
⁄16 (26.8)
52765 52771 52755 52777 52848 52783 52789
XXXX TALL
Overall Ht. 12
3
⁄4 (32.4)
Inside Ht. 11
3
⁄8 (28.9)
52736 52737 52757 52738 52849 52739 52740
No Risers
One Divider
One Riser
One Full Divider
One Trim Divider
Two Risers
Two Dividers
Four Risers
Three Full Dividers
Three Risers
Two Full Dividers
One Trim Divider
Five Risers
Three Full Dividers
One Trim Divider
Six Risers
Four Full Dividers
{Requires trimmed divider
Note: Trim dividers are used with one riser. Full dividers are used with two risers.
52784
52712
52812
52757
vollrathco.com
10-26
Warewashing, Handling & Dispensers

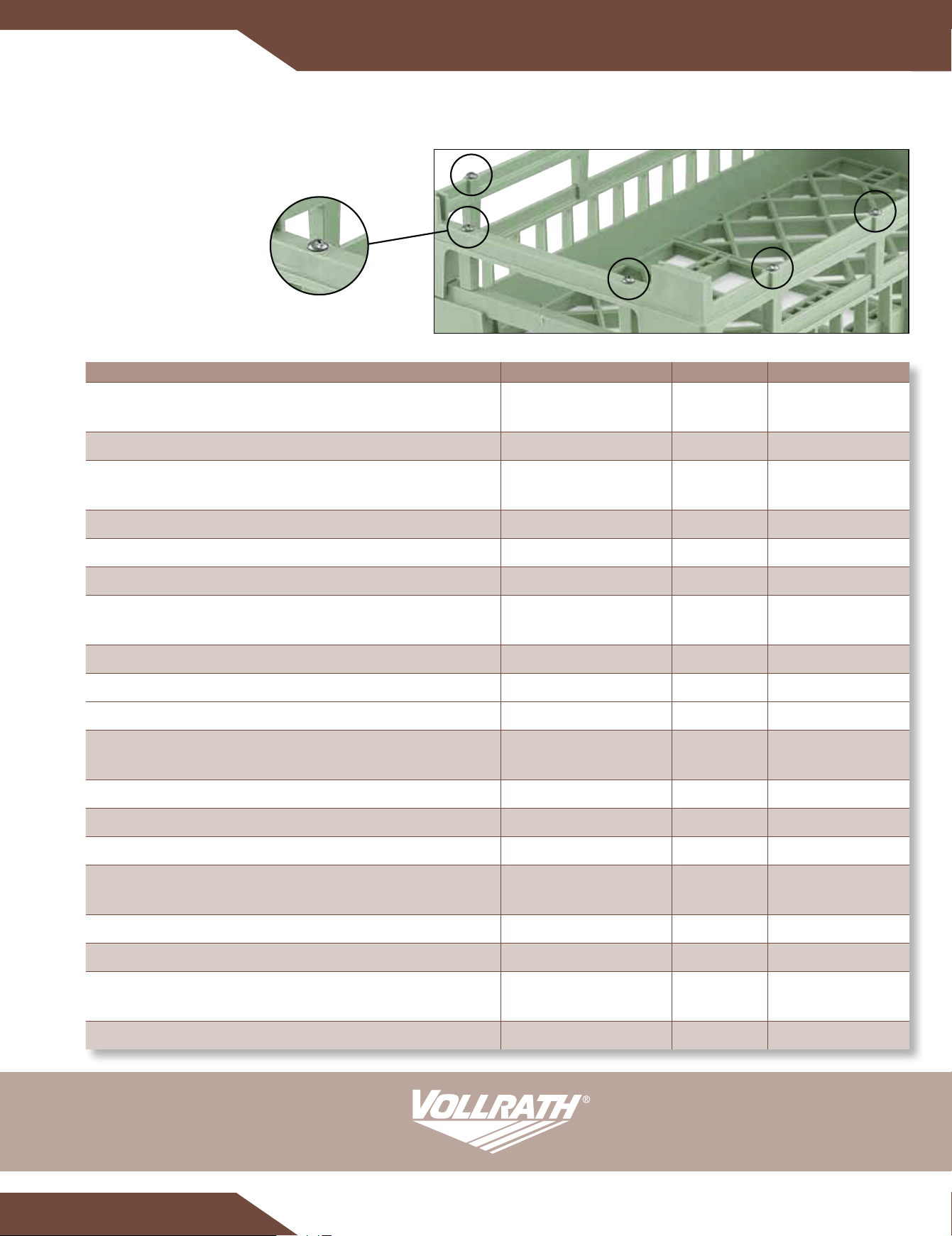

Rack Assembly Screws
Q
Set of sixteen screws in
various lengths to fit all
sizes of Vollrath racks
Ordering Signature Rack Component Parts
FOR USE WITH RACK PART NUMBERS SCREW LENGTH: IN (CM) SCREW ITEM STYLE
52684, 52689, 52691, 52692, 52694, 52699, 52726, 52760, 52766,
52772, 52778, 52784, 52790, 52810, 52811, 52814
1
⁄2" (1.3) 52355 Short Compt.
52676, 52677, 52680 1
7
⁄8" (4.8) 52356 Medium Open
52693, 52702, 52727, 52718, 52710, 52714, 52722, 52761, 52767,
52773, 52779, 52785, 52798, 52812, 52813
2" (5.1) 52357 Medium Compt.
52801 Med. Open
52820, 52823 2
1
⁄4" (5.7) 52358 Medium Compt.
52681 3
1
⁄4" (8.3) 52359 Tall, No Compt.
52703, 52704, 52711, 52715, 52719, 52728, 52723, 52762, 52768,
52774, 52780, 52786, 52794, 52816, 52817
3
1
⁄2" (8.9) 52360 Tall Compt.
52802 Tall Open, No Compt.
52821, 52824 3
3
⁄4" (9.5) 52367 Tall Compt.
52682 4
5
⁄8" (11.8) 52362 X-Tall
52706, 52707, 52730, 52720, 52712, 52716, 52724, 52763, 52769,
52775, 52781, 52787 52832, 52844
4
7
⁄8" (12.4) 52368 X-Tall Compt.
52803 X-Tall Open
52822, 52825 5
3
⁄8" (13.7) 52366 X-Tall Compt.
52683 5
7
⁄8" (14.9) 52369 XX-Tall Open
52708, 52709, 52713, 52717, 52721, 52725, 52729,
52764, 52770, 52776, 52782, 52788, 52844, 52846
6
3
⁄8" (16.2) 52363 XX-Tall
52818, 52826 6
3
⁄4" (17.1) 52371 XX-Tall Compt.
52807 XX-Tall Open
52731, 52732, 52733, 52734, 52735, 52754, 52755, 52765,
52771, 52777, 52783, 52789, 52844, 52846, 52847, 52848
7
13
⁄16" (19.8) 52370 XXX-Tall
52736, 52737, 52738, 52739, 52740, 52757, 52849 9
1
⁄4" (23.5) 52372 XXXX-Tall
The Vollrath Company, LLC
10-27
Warewashing, Handling & Dispensers

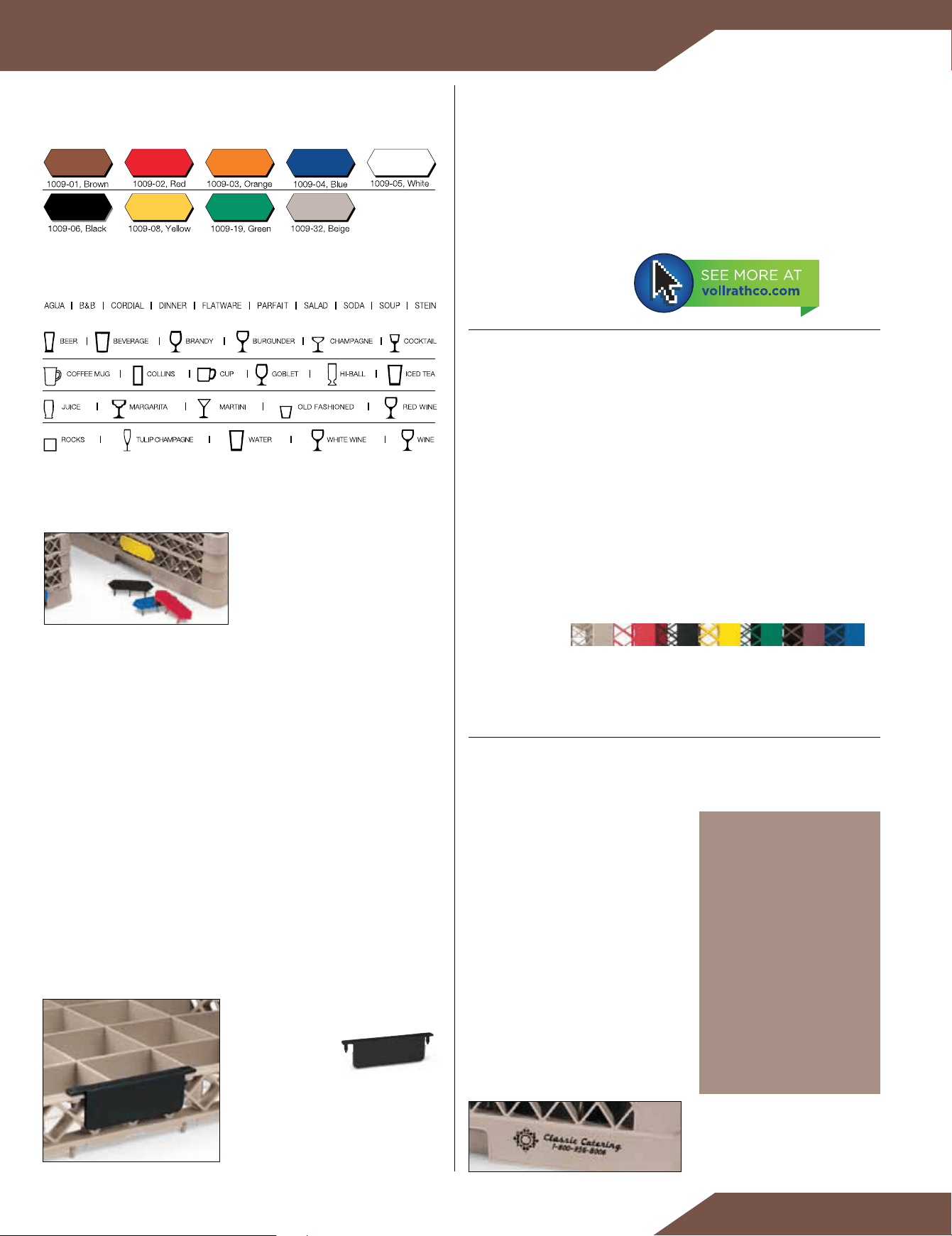

Full-Size Code-A-Clips™
-Plain
No. 1009-(clip color suffix)
L4
3
⁄8 W1
5
⁄8
12 pcs.
Full-Size Code-A-Clips™
-Imprinted Stock
No. 1009-(imprinted clip color no.)-
(color foil color suffix)
L4
3
⁄8 W1
5
⁄8
12 pcs. (Packed 12 pcs./bag)
(Minimum order of 3 dozen on custom
orders only. Imprint area 3.6" x 1.41")
Half-Size Code-A-Clips™
No. 1006
L2
3
⁄4 W
3
⁄4
96 pcs./17#
(Minimum order of 40 dozen on custom
imprinted orders only and a 4 week
lead time.)
Extender Code-A-Clips
™
Extender Code-A-Clips™
-Plain
No. 1007-(clip color suffix)
L4
3
⁄8 W1
5
⁄8
12 pcs.
Extender Code-A-Clips™
-Imprinted Stock
No. 1007-(imprinted clip color no.)-
(foil color suffix)
L4
3
⁄8 W1
5
⁄8
12 pcs.
(Minimum order of 3 dozen
on custom orders.)
Traex
®
Code-A-Clips
™
All Full-Size Code-A-Clips™ pictured here
are stock and require no minimum order.
Stock Code-A-Clips™ are white with
black foil and plain colors as shown and
have a die already available.
Additional stock Code-A-Clips™ dies
available in white with black foil: Liquor,
Soup Cup, Whiskey, Parfait, Sherry, Cava,
Cordial, Wine Decant, Soda, Creamer,
Sugar, Tubos, Milk, Stein, Tea Pot, Child,
Bouillon. Ask your Sales Representative
for more information.
How to Order Custom Clips
Let us customize a Code-A-Clips™ for
your particular needs. Custom descrip-
tions and silhouettes are available. Setup
charge based on quote. When ordering
custom clips, specify from the following:
Clip Colors: Brown (01), Red (02), Orange
(03), Blue (04), White (05), Black (06),
Yellow (08), Green (19), and Beige (32).
3 dozen minimum required for custom
Code-A-Clips™.
Custom Foil Imprint Color Options: Red
(02), Blue (04), White (05), Black (06),
Gold (14), Green (19), and Silver (28).
1. Select the appropriate
Rack-Master
®
Rack for
your equipment.
2. Determine the artwork
you would like imprinted:
company name, company
logo, phone number, glass
name and/or silhouette.
3. Specify the rack color:
Red (02), Black (06),
Yellow (08), Green (19),
Burgundy (21), Blue (44),
and Standard Beige.
4. Specify the imprint color:
White (05), Black (06)
Custom Imprinted Racks
Imprinted Rack — 36 pcs.
Can be an assortment of racks as long
as imprint is the same.
Available Colors:
Imprint: White (05), Black (06)
Rack Colors: Red (02), Black (06), Yellow (08),
Green (19), Burgundy (21), Royal Blue (44)
Customizing Information:
Custom imprinted or privately labeled prod-
ucts cannot be exchanged or returned.
For your protection, imprints that are regis-
tered trademarks (®) must have a letter of
authorization prior to imprinting on products.
Camera-ready artwork is required
for all imprinting.
Lead time of 10 days after approval
of artwork.
Stock Code-A-Clips™ color —white clip with black foil for above imprints.
Additional dies available. Allow 4 weeks for custom imprinting.
How to Order
Traex
®
Imprinted Racks:
Rack-Master
®
racks
and extenders
are available in 5
vibrant colors plus
black and standard
beige. To specify
a color, add the
color number (-02,
-06, etc.) after the
product number.
▼
How to Order
Traex
®
Color Racks
1. Entire Rack in one color –
To order an entire rack (base and extenders) in one color such as Red(02), add the
suffix to the end of the rack part number such as rack no. (TR6BBB) - color suffix
(02): TR6BBB-02.
2. Single Extender in one color –
To order a beige rack with only the top extender in one color such as Red(02), add
a "9" plus the color suffix to the rack part number such as rack no. (TR6BBB) - (9)
and color suffix (02):TR6BBB-32902.
3. All Extenders in one color –
To order a green base rack with all extenders in one color such as Red(02), add a
"8" plus the color suffix to the rack part number such as rack no. (TR6BBB) - (8)
and color suffix (02):TR6BBB-19802.
Note: You can customize racks with color base
and extenders in any combination. Ask your sales
representative for assistance when placing your order.
1. Measure
The maximum diameter of your glass should be smaller than the rack compartment
size and will determine the proper rack to use. The height will determine the number
of extenders needed and should be shorter than the rack’s compartment height.
2. Cross-Reference
Cross-reference guides are available for top glass manufacturers from your
Vollrath representative.
Two Ways to Order
Traex
®
Glass Racks
Code-A-Clips
™
or Imprints
32-Beige
(Standard)
02-Red 06-Black 08-Yellow 19-Green 21-Burgundy 44-Royal
Blue
vollrathco.com
10-28
Warewashing, Handling & Dispensers
ITEM DESCRIPTION DIMENSIONS
H X W X L: IN (CM)
COMP SIZE
IN (CM)
MAX HEIGHT
IN (CM)
CASE
LOT
RACK MAX
®
FULL-SIZE GLASS AND CUP EXTENDERS
TRG 20 compartment extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 3
5
⁄16 (10) hexagon 1
9
⁄16 (4) 12
TRH 30 compartment extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 3
5
⁄16 (8) hexagon 1
9
⁄16 (4) 12
TRJ 12 compartment extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 4
13
⁄16 (12.2 hexagon 1
9
⁄16 (4) 12
TRK 5 compartment extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 7
1
⁄2 (19) 1
9
⁄16 (4) 12
TRM 42 compartment extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 2
3
⁄4 (7) hexagon 1
9
⁄16 (4) 12
RACK-MASTER
®
FULL-SIZE GLASS AND CUP EXTENDERS
TRB 25 compartment extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 3
17
⁄32 (9) square 1
9
⁄16 (4) 12
TRC 36 compartment extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 2
15
⁄16 (7.5) square 1
9
⁄16 (4) 12
TRD 16 compartment extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 4
7
⁄16 (11.3) square 1
9
⁄16 (4) 12
TRE 49 compartment extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 2
1
⁄2 (6.4) square 1
9
⁄16 (4) 12
TRF 9 compartment extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 6" (15.3) square 1
9
⁄16 (4) 12
TRA Open extender 1
9
⁄16 x 19
3
⁄4 x 19
3
⁄4 (4 x 50 x 50) 18
1
⁄16 (45.9) square 1
9
⁄16 (4) 12
ITEM DESCRIPTION DIMENSIONS
H X W X L: IN (CM)
COMP SIZE
IN (CM)
MAX HEIGHT
IN (CM)
CASE
LOT
HRA Open extender 2 x 10 x 19
3
⁄4 (5.1 x 25.4 x 50) 8
3
⁄8 x 18
1
⁄4 (21.3 x 46.5) 1
3
⁄4 (4.4) 12
HRB 8 compartment extender 2 x 10 x 19
3
⁄4 (5.1 x 25.4 x 50) 4
1
⁄8 X 4
7
⁄16 (10.5 X 11.3) 1
3
⁄4 (4.4) 12
HRB1 8 comp dropped extender 3
1
⁄8 x 10 x 19
3
⁄4 (7.9 x 25.4 x 50) 4
1
⁄8 X 4
7
⁄16 (10.5 X 11.3) 1
3
⁄4 (4.4) 12
HRC 10 compartment extender 2 x 10 x 19
3
⁄4 (5.1 x 25.4 x 50) 3
5
⁄8 x 4
1
⁄4 (9.2 x 10.8) 1
3
⁄4 (4.4) 12
HRC1 10 comp dropped extender 3
1
⁄8 x 10 x 19
3
⁄4 (7.9 x 25.4 x 50) 3
5
⁄8 x 4
1
⁄4 (9.2 x 10.8) 1
3
⁄4 (4.4) 12
HRD 17 compartment extender 2 x 10 x 19
3
⁄4 (5.1 x 25.4 x 50) 2
15
⁄16 (7.5) Hexagon 1
3
⁄4 (4.4) 12
HRD1 17 comp dropped extender 3
1
⁄8 x 10 x 19
3
⁄4 (7.9 x 25.4 x 50) 2
15
⁄16 (7.5) Hexagon 1
3
⁄4 (4.4) 12
HRF 17 compartment extender 2 x 10 x 19
3
⁄4 (5.1 x 25.4 x 50) 3 (7.6) Hexagon 1
3
⁄4 (4.4) 12

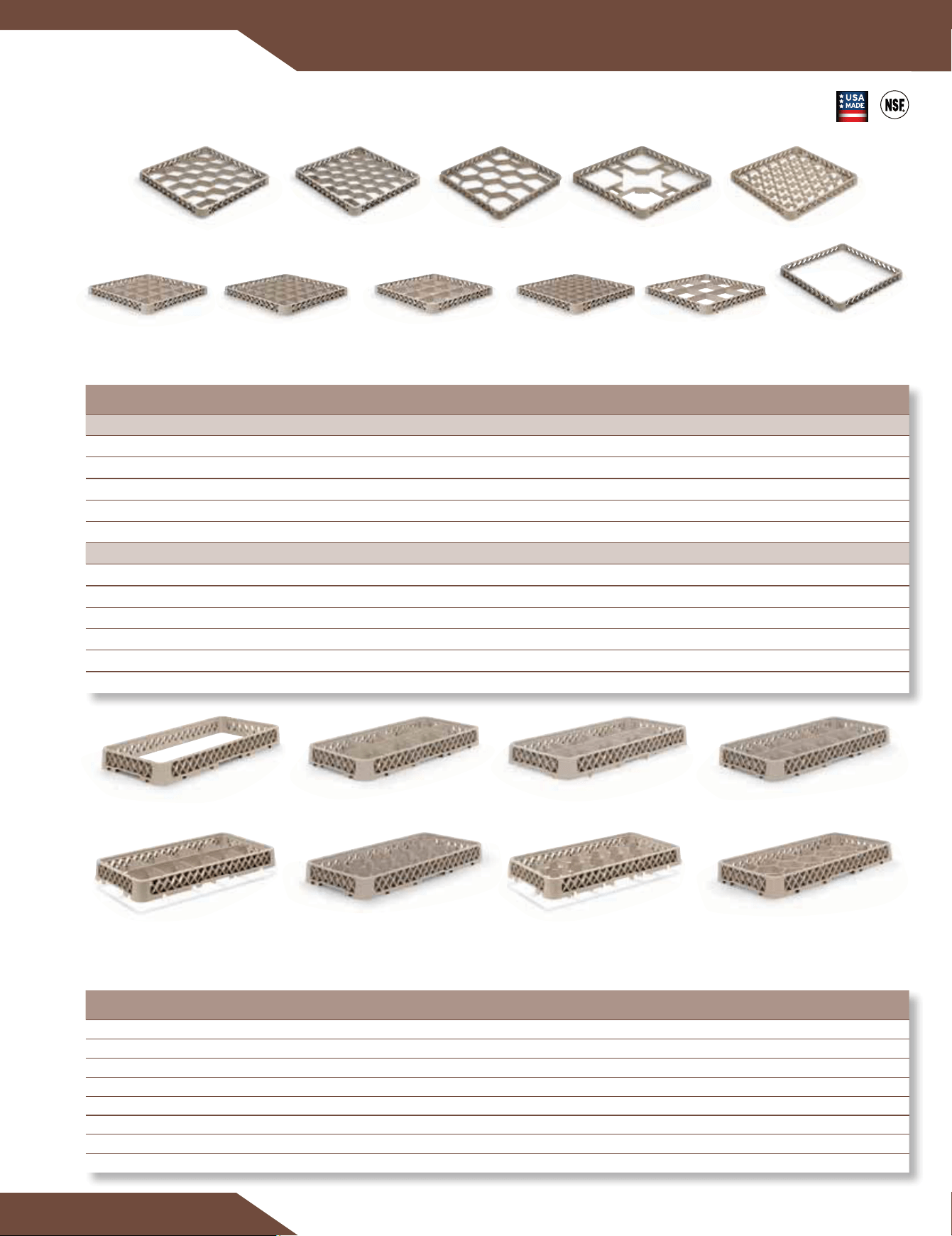

Half-Size Glass and Cup Extenders
Full-Size Glass and Cup Extenders
Traex
®
Glass & Cup Extenders
TRG
TRB
TRH
TRC
TRJ
TRD
TRK
TRE
TRM
TRF TRA
HRA HRB HRB1 HRC
HRC1 HRD HRD1 HRF
Q
All Traex
®
half racks are only available in standard beige
