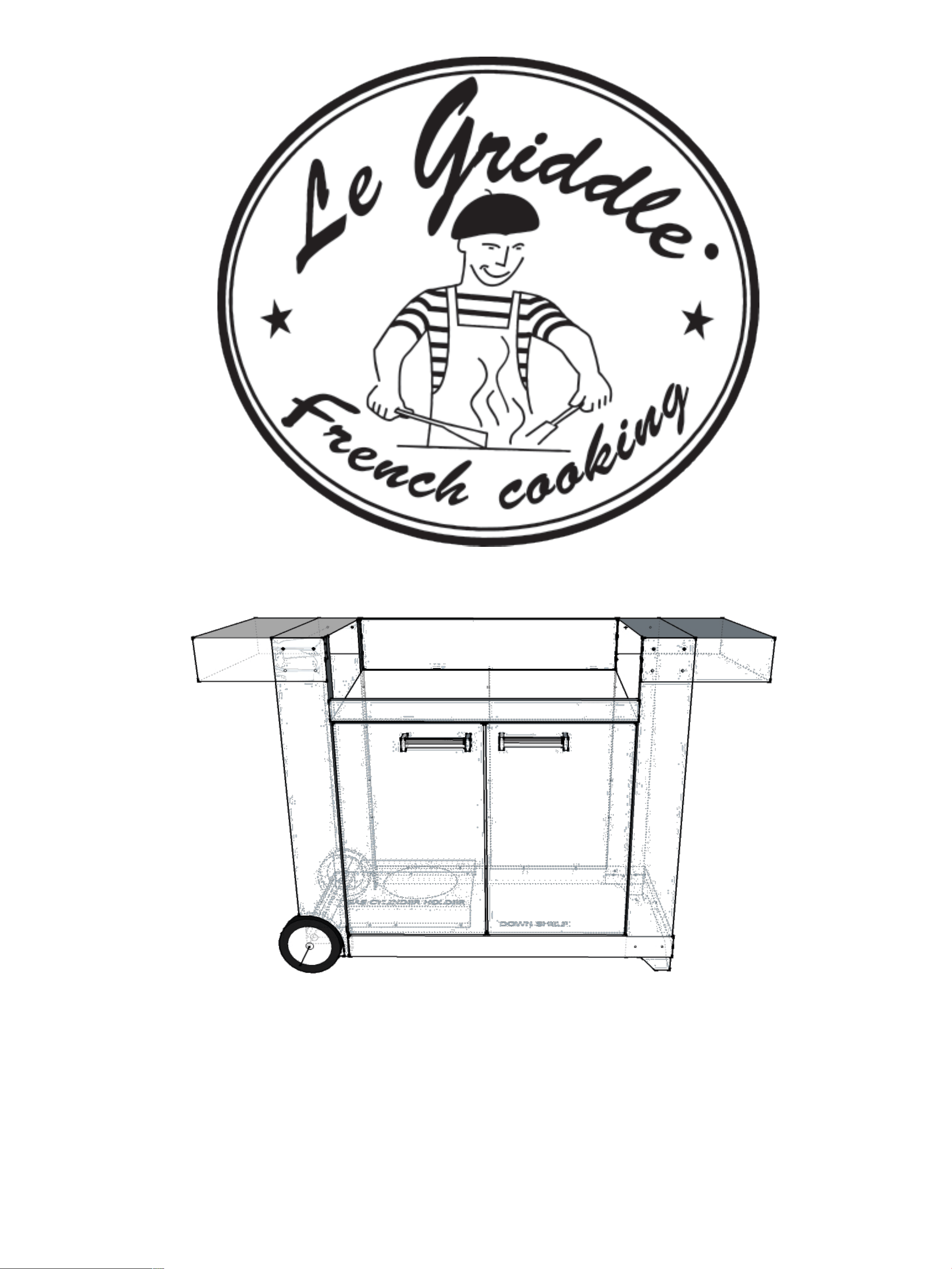

GF- CART
Installation0Instructions

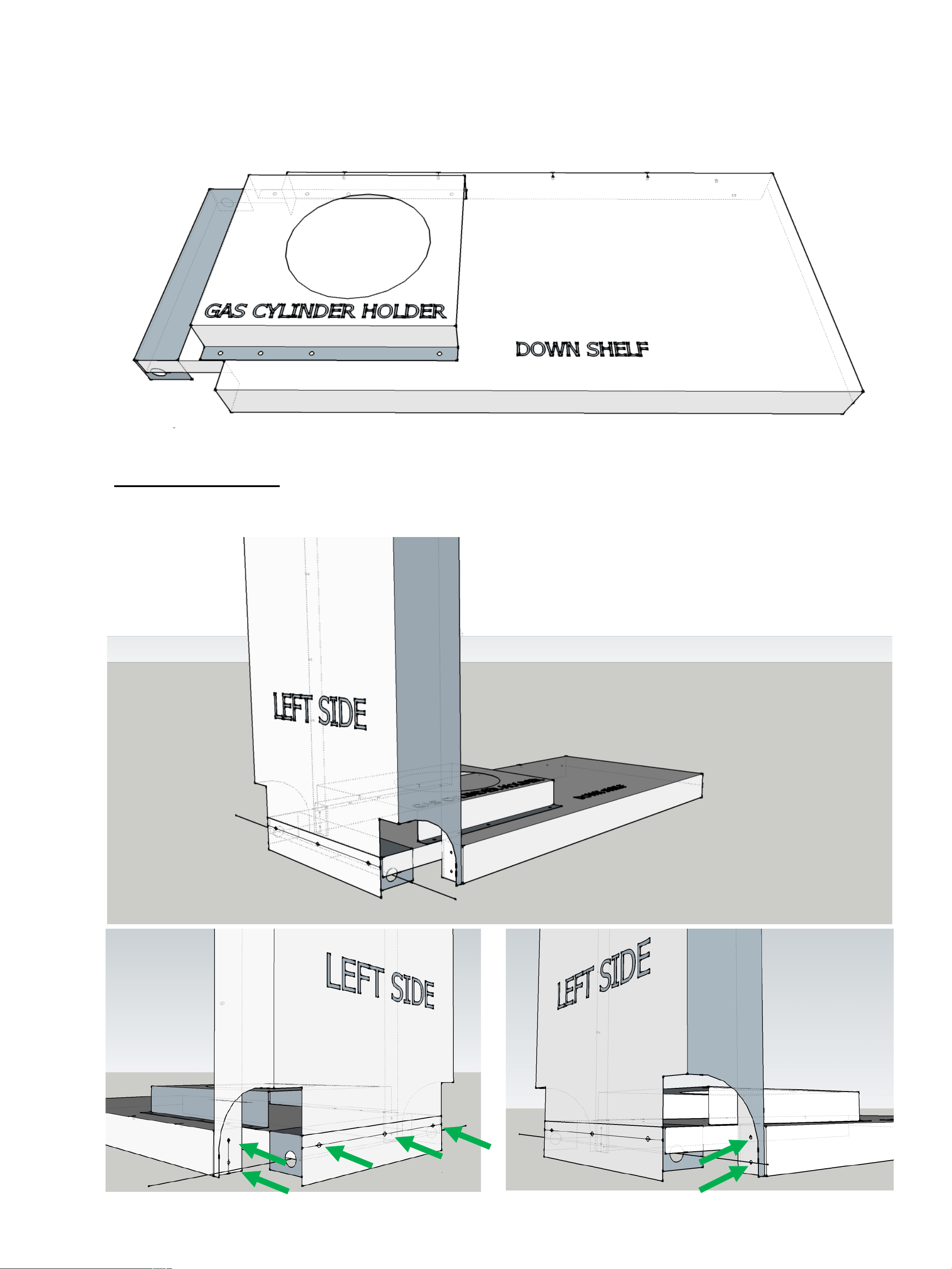

1- Join the*Gas Cylinder holder on*down*shelf with 8*M4*
screw
2- LEFT'SIDE':use*the*7*M4*screw

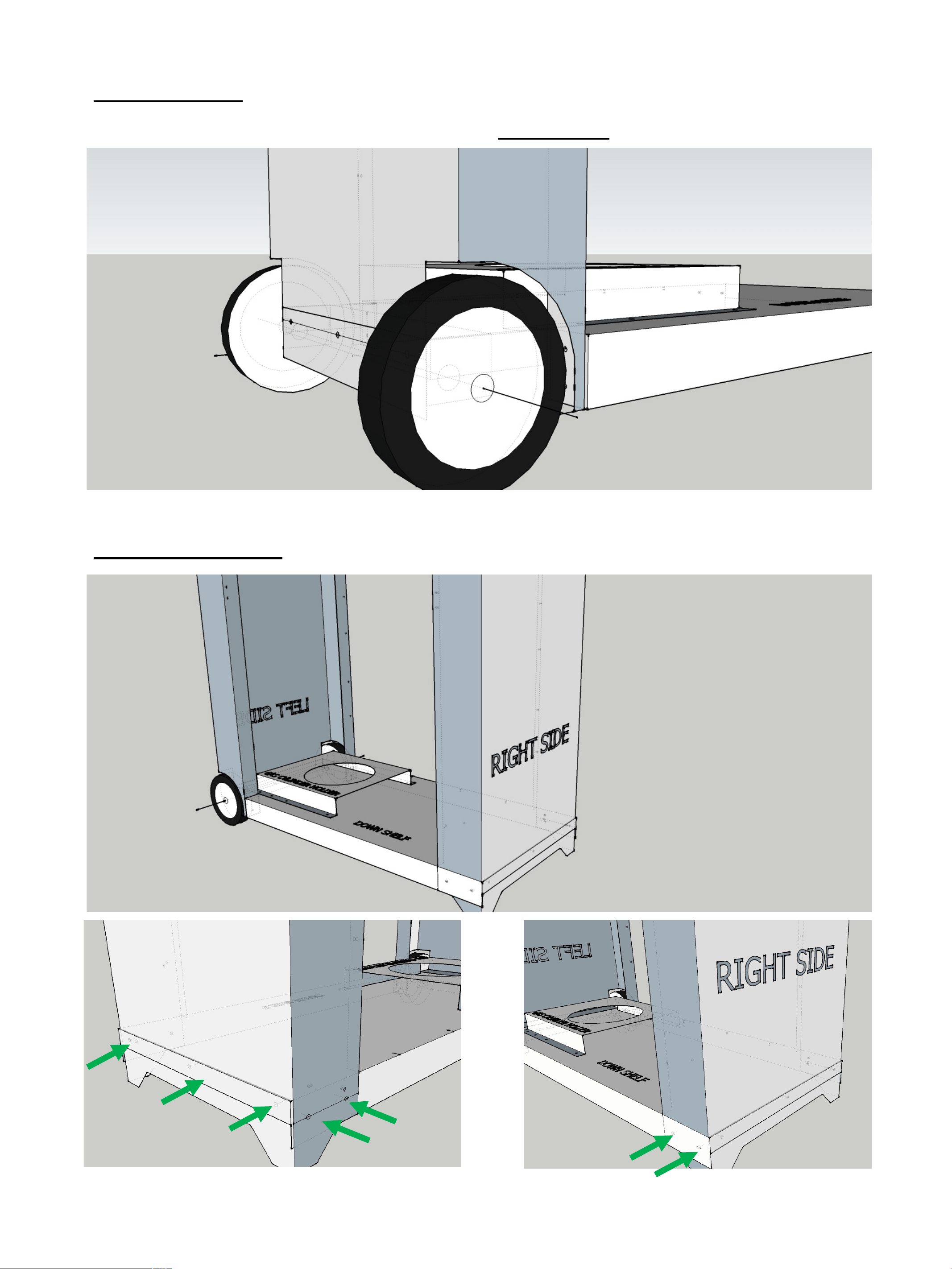

4- WHEELS':fix them with 2**M12x80*screws +*Nut
Be*carrefull :*Tighten the*faster STRONG
5- RIGHT'SIDE':use*7*M4*screws

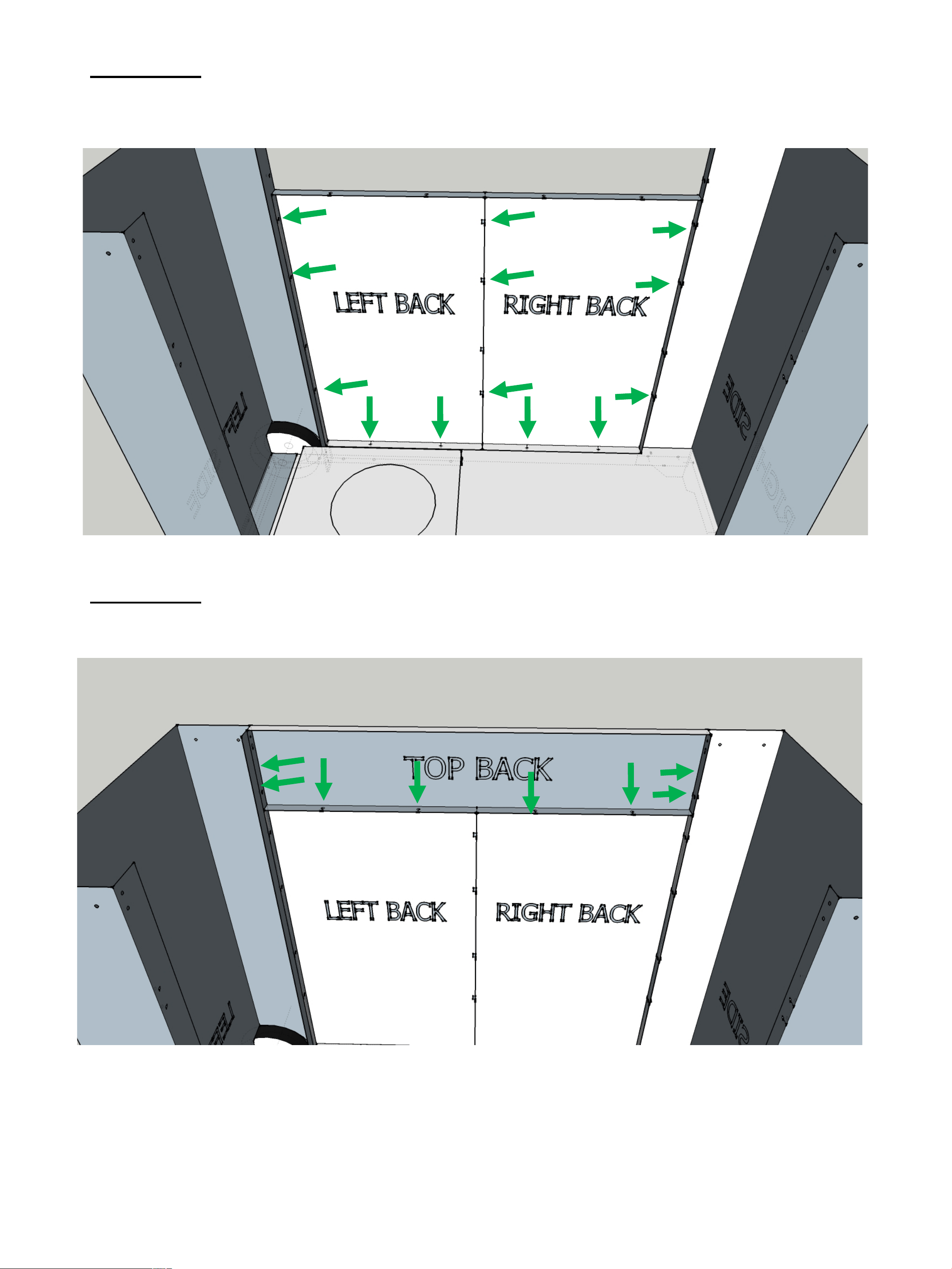

6- BACK':Add left and*right*back*fix them with 13**M4*
screws
7- BACK':Add the*top*back,*fix it with 8**M4*screws

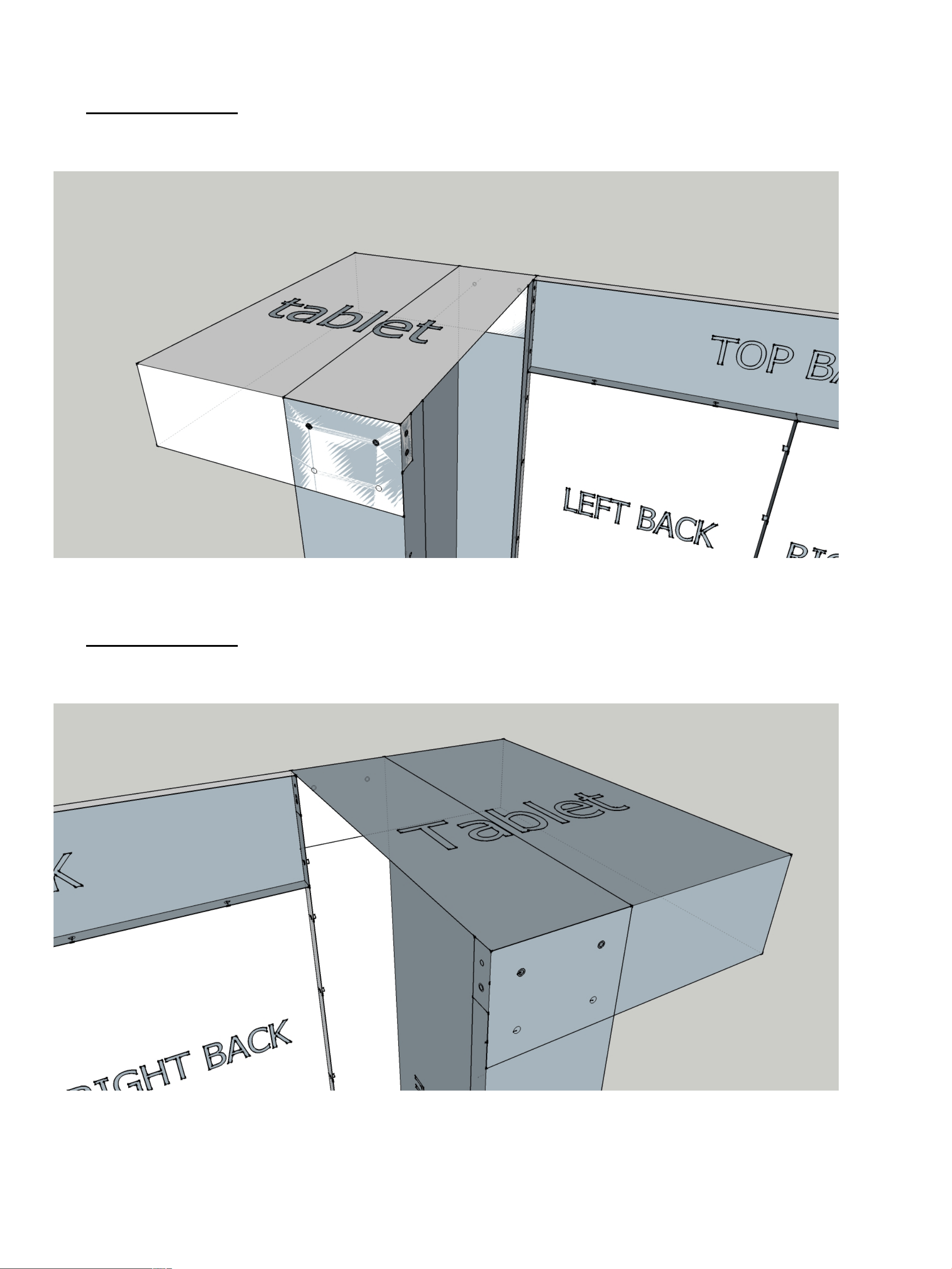

8-1'TABLET':Add the*left tablet,*fi x it with 10**M4*screws
8-2'TABLET':Add the*right*tablet,*fix it with 10**M4*screws

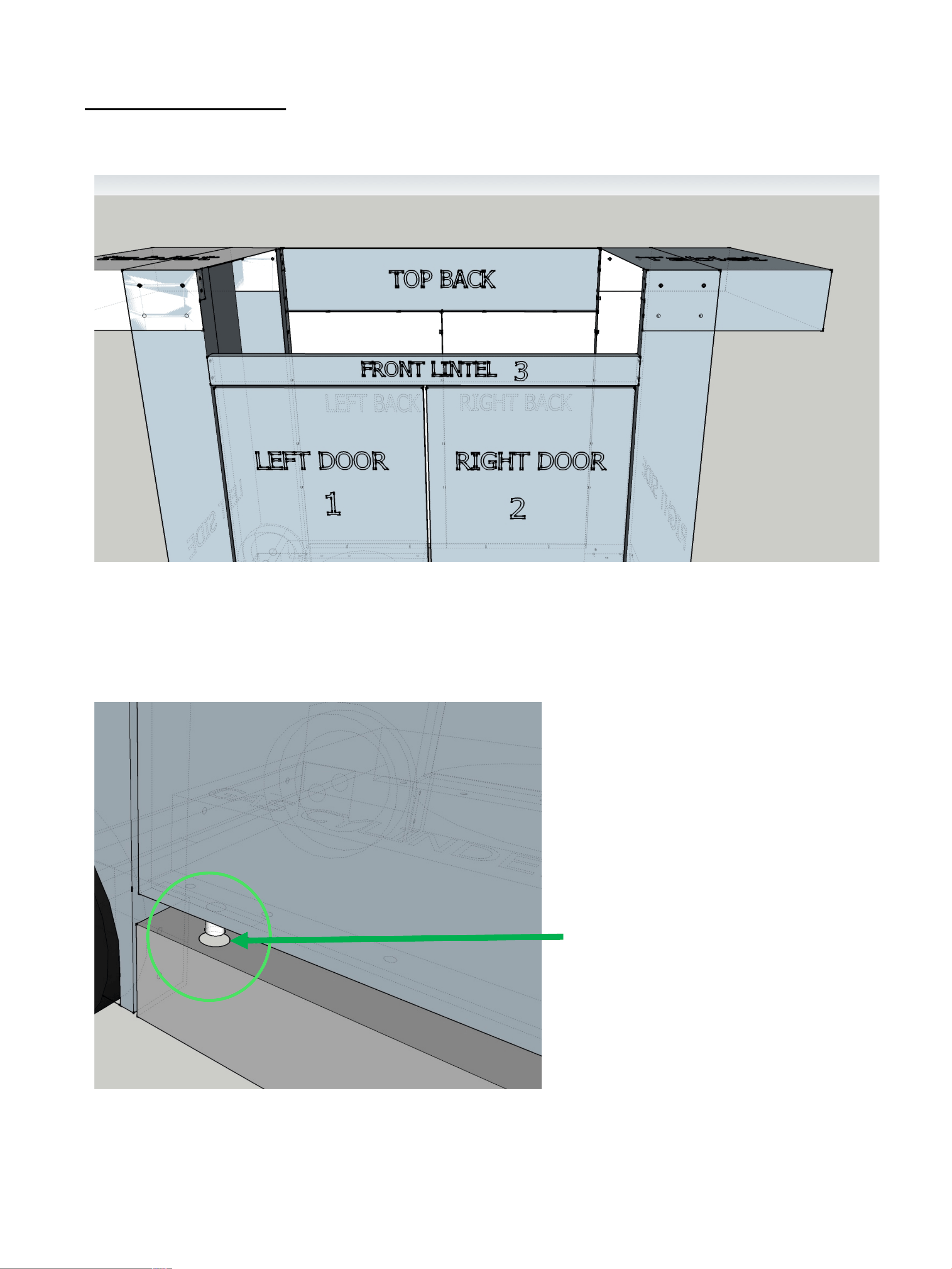

9'FRONT'FACE':Add the*left door,*the*right*door them front*
lintel.
9-1*Put*axis*in*down*shelf and*lintel holes
ADD*AN*5*mm*
diameter washer
9-2*Fix the*front*lintel wi th the*2*top*M4*screws

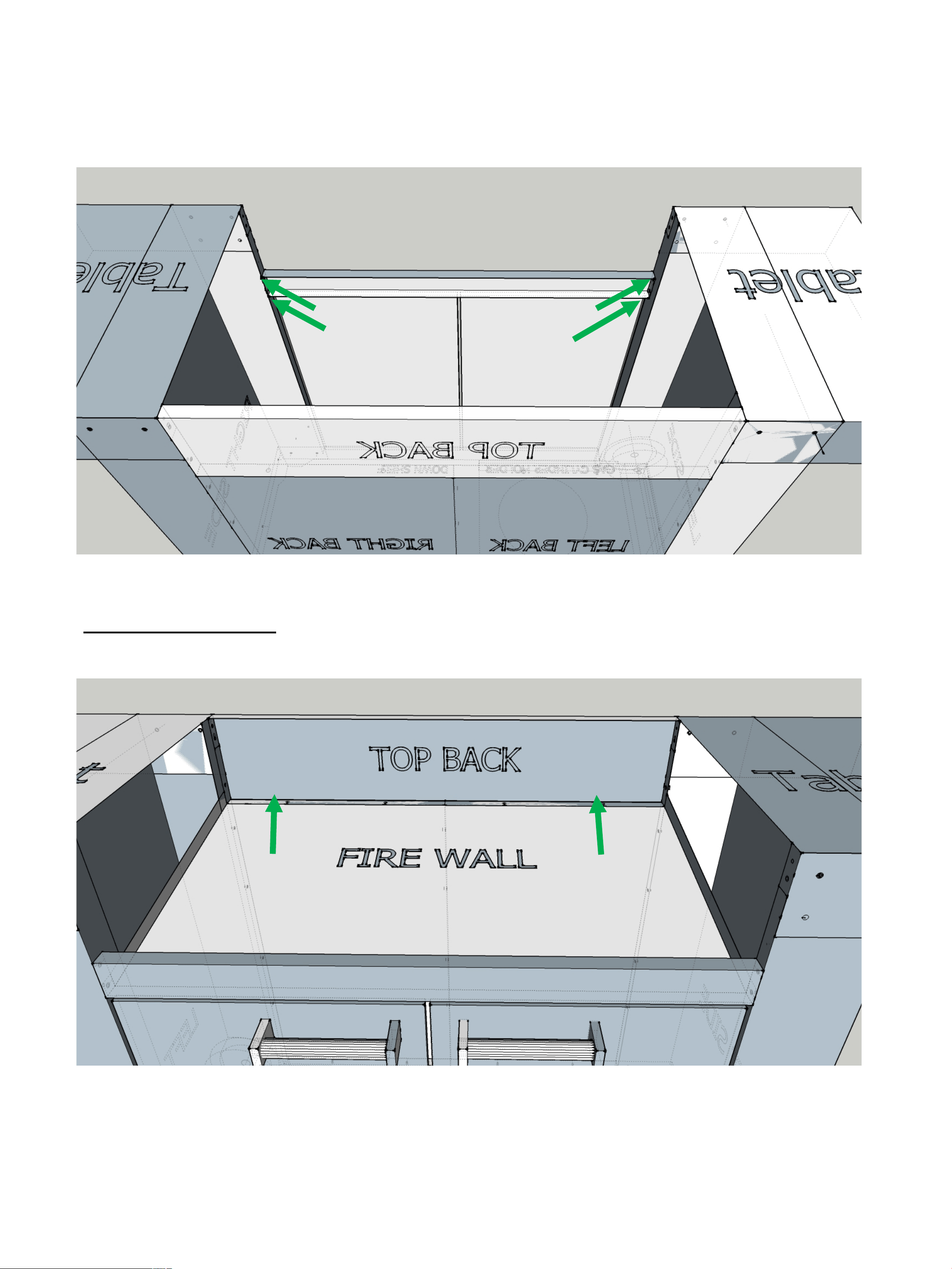

10'FIRE'WALL:'Fix the*fire wallwith the*2*M4*nuts
11'HANDLES'AND'MAGNET'BRACKET:*fix th e*handles on*
doors wi t h 2x2*M4*screws,fix th e*Magn et Bracket with 2*
M4*screw
Your LeGriddle CART*is ready to*use!
