Product Name: VAXEE NP-01 Ergo Wireless Mouse
Main Model: VXERP101
Series Model: VXERP102/ VXERP103
Series Model Difference: Different sensors switch
VXERP101: Mechanical switch
VXERP102: SPDT switch
VXERP103: Optical switch
Manufacturer: VAXEE
Type: Wireless Gaming Mouse with HS USB Interface
1. Interface
HS USB Type-C
6 Buttons: Right click, Left click, Scroll wheel middle click, Front side butt
on, Rear side button, Power switch
1 Encoder: TTC Gold (Dustproof Type)
1 RGB LED: Charging indicator LED
2. Wireless Transmission Information
Operating Frequency: 2402 MHz ~ 2480 MHz
Modulation: GFSK
Antenna: PCB onboard antenna
3. Device Identification Information
VID: 0x3057
PID: 0x1012
String Description: "VAXEE NP-01 Ergo Wireless"
4. Hardware Information
Mouse MCU: Wireless MCU, PixArt 2862
Receiver MCU: Model (VXD02), PixArt 2454
5. Functional Specifications
Operation Modes: Supports wired and wireless operation, up to 4KHz pol
ling rate
Main Buttons (Left/Right): Huano 80M mechanical switches, 60g actuation
force (Blue shell, Pink dot)
Scroll Wheel Button: Huano WK-02B
Side Buttons: Huano WK-03B
Sensor: PixArt PAW3950
Encoder: TTC Gold Dustproof
Battery: 500mAh / 3.85V Li-ion (ZX472627)
Competitive Mode: Supported
Low Battery Warning: Supported
Driver Software: Supports Web-based Driver

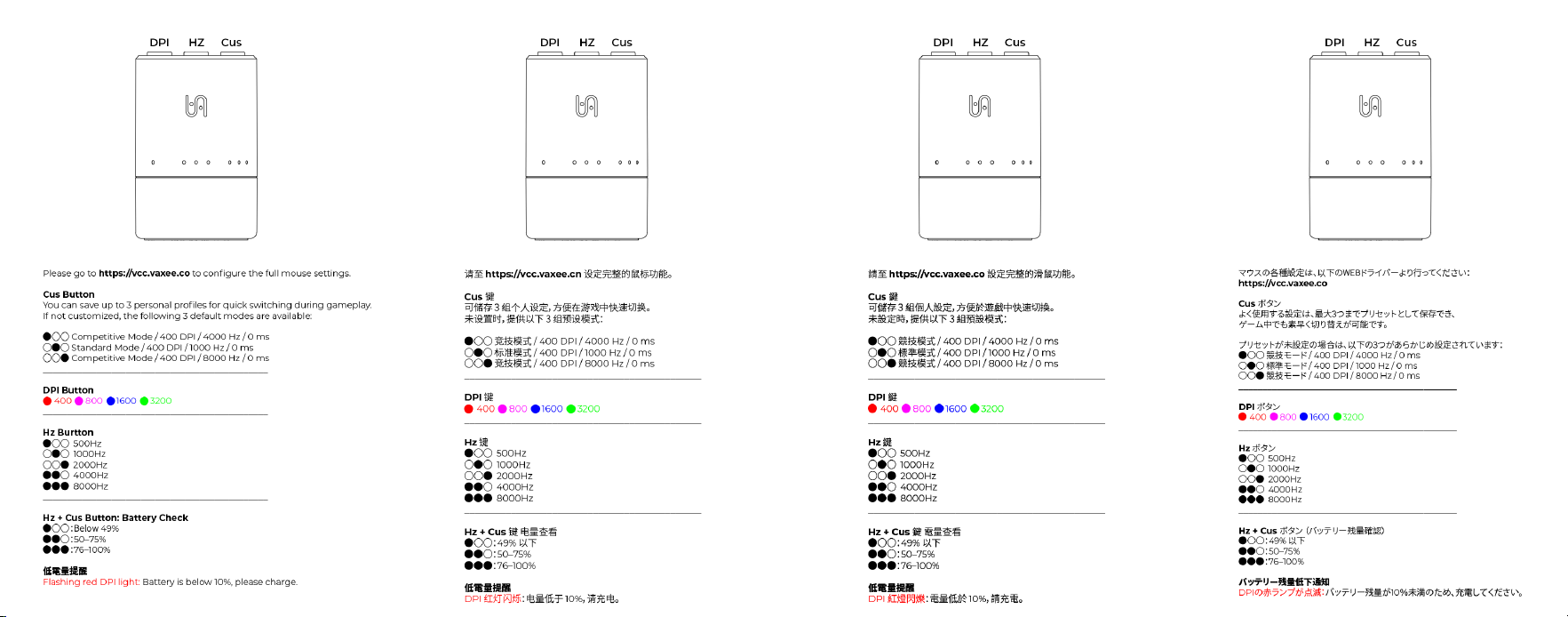

6. LED Indicator ColorSpecifications
Charging (Wired): Flashing blue
Fully
Charged: Solidgreen
Low Battery Warning (<10%): Flashing red
DPI HZ Cus
VXERP101/VXERP102/VXERP103
