Installation Manual
Model: 52582 Matte Black
52767 Fresh White
Fan weight ±2 lbs: 17.6 lbs (8.0 kg)
©2023 Hunter Fan Co.
PG4168 r1011
23
Lakeway
Download now
for a speedy
set up and a
seamless install.
3D INTERActive GUIDE
1886
Ladder Screwdriver
Pliers
Wire Strippers
9/64” Drill BitDrill
OPTIONAL
If mounting to a support structure, you will also need these tools.

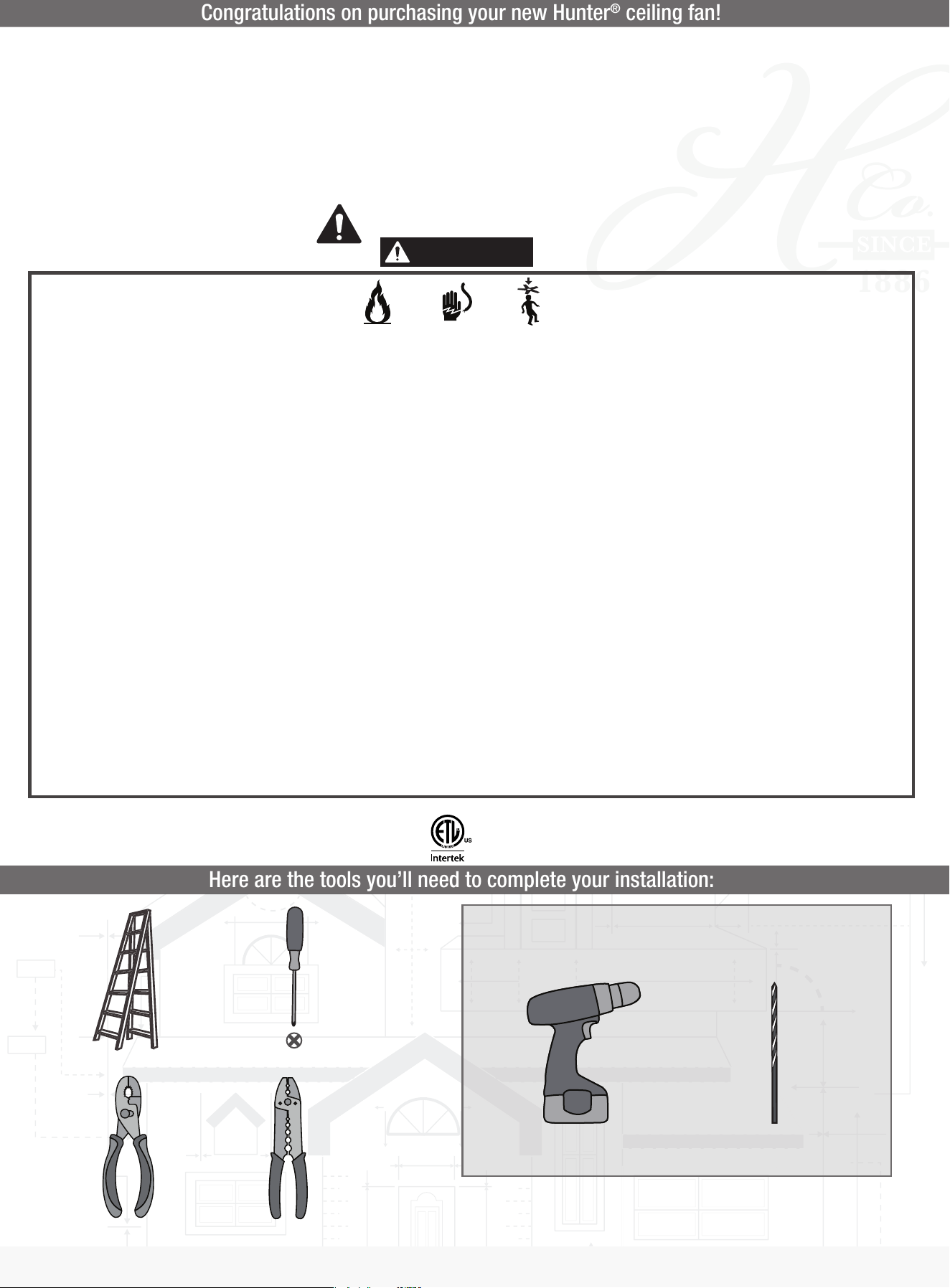

Congratulations on purchasing your new Hunter
®
ceiling fan!
Here are the tools you’ll need to complete your installation:
1
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual contains
complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the
best ceiling fan available anywhere in the world.
We are here to help!
This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction Manual, keep
your smartphone or tablet nearby. We have added video links to help you through the more technical sections. If you are unfamiliar or
uncomfortable with wiring, contact a qualied electrician. We also provide telephone support at 1.888.830.1326 or visit us
at HunterFan.com.
WARNING
READ and SAVE These Instructions
Warning
w.
1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the
mounting screws provided with the outlet box.
w.
2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.
4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
w.5 - Chemical burn hazard. Keep batteries away from children. This remote contains a lithium button cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body,
it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using
the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
Dispose of cells properly and keep away from children. Even used cells may cause injury.
w.
6 - Non-rechargeable batteries are not to be recharged. Exhausted batteries are to be removed from the product.
w.7 - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision. It is recommended that children be supervised to ensure that they are not using the appliance improperly.
w.8 - To reduce the risk of fire or electric shock or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using
a 3D printer).
w.9 - Do not dispose of batteries in fire. Batteries may explode or leak.
Caution
c.1 - All wiring must be in acco
rdance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications.
How
ever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This product conforms to UL Standard 507.
© 2023 Hunter Fan Company
7130 Goodlett Farms Pkwy, Suite 400
Memphis TN 38016
2
1886
1886
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
x2
x2
x2
For installing the hanger bracket and wiring the fan
For installing the blades
For installing the canopy
For installing the light kit
Motor
Blade
Downrod
Canopy
Canopy Screw
Ceiling Bracket
Wood Screw
Washer
bag
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

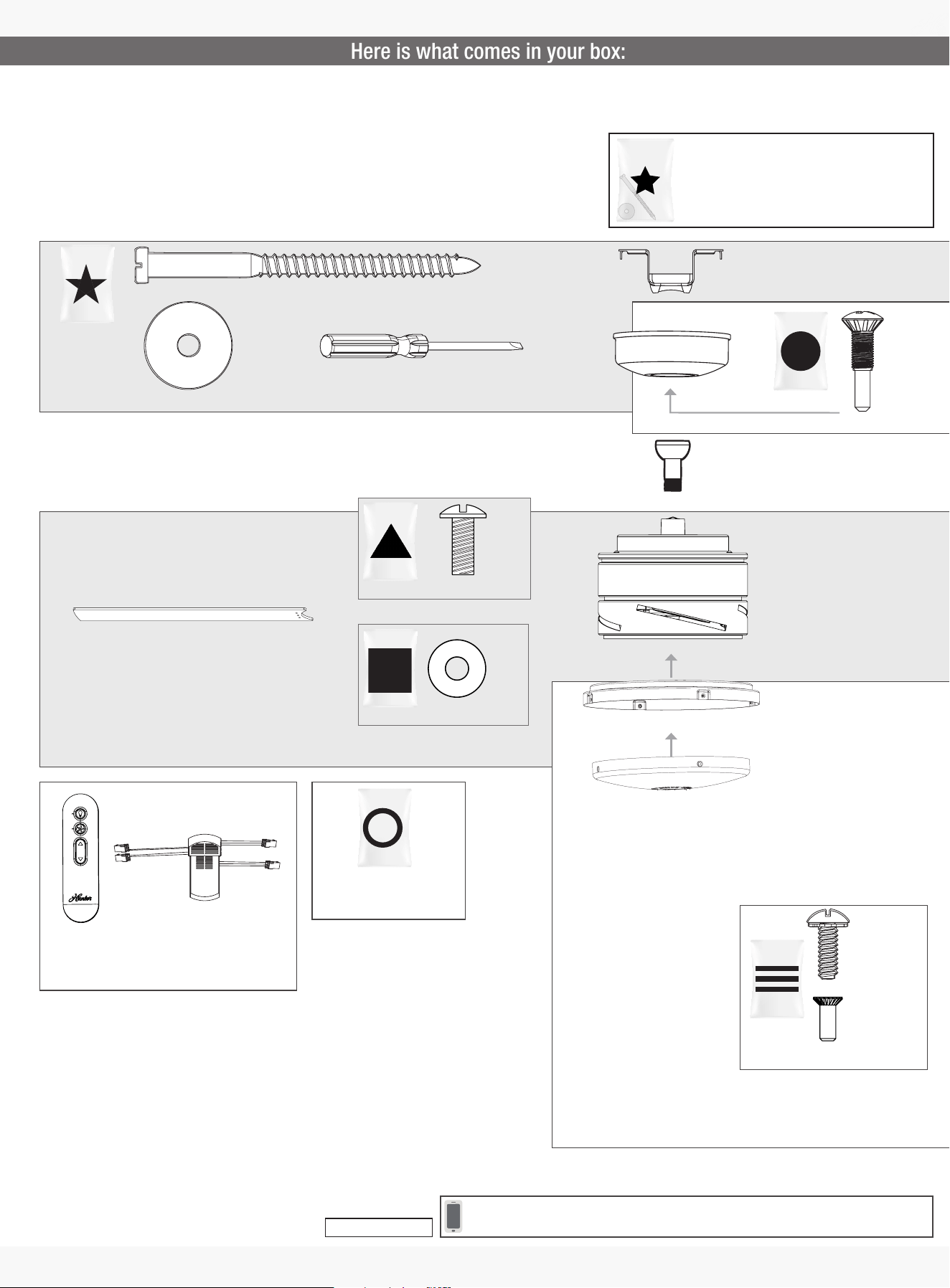

Here is what comes in your box:
bag
x6
x18
bag
Blade Screw
x18
bag
Blade Washers
M4045-01 r092823
Fan style may vary.
Note:
For your convenience,
you may receive extra fasteners.
bag
Lower Switch Housing Cap
Upper Switch Housing
x3
x4
Housing
Screw
Cap Screw
bag
Remote Components
Remote Receiver
Remote Control
Small Flat Head Screwdriver
3
1886
1886

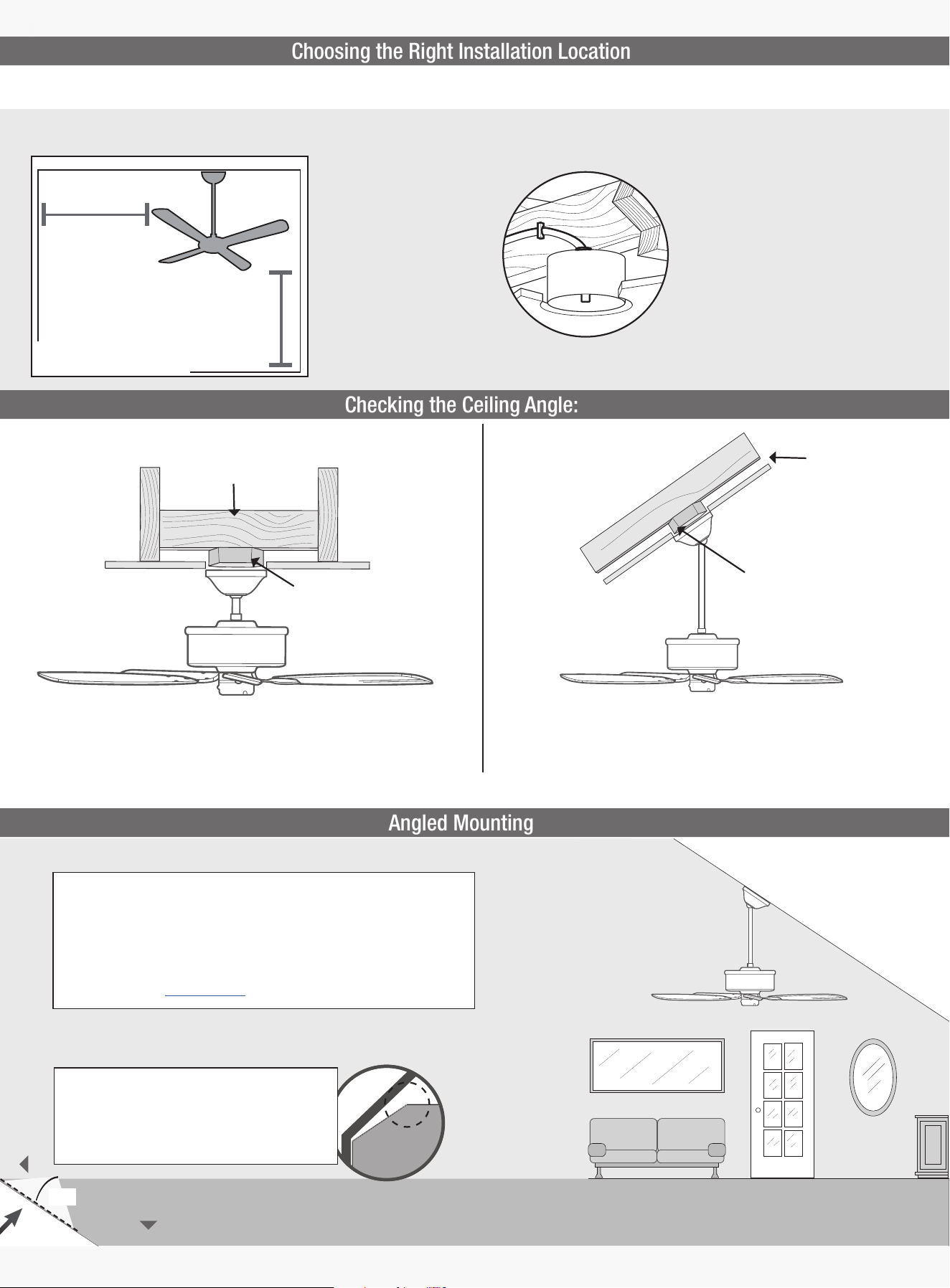

Choosing the Right Installation Location
Checking the Ceiling Angle:
Angled Mounting
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
If you have an angled or vaulted ceiling:
1. You will need a longer downrod. (sold separately at HunterFan.com)
2. If your ceiling angle is greater than 34°, you will also need an
Angled Mounting Kit. (Sold separately at HunterFan.com)
Check the room dimensions: Check the outlet box:
You must be able to
secure the fan to building
structure or fan-rated
outlet box.
30 inches
from blade tip to
nearest wall or
obstruction
7 feet
from bottom edge
of blade to the
oor
Support
Structure
Ceiling
Outlet Box
(required)
Angled Mounting
If you have a at ceiling:
Hang your fan by a standard downrod. Some fans come
with a shorter downrod for a Low Prole installation.
Support Structure
Ceiling
Outlet Box
(required)
Standard Mounting
A little more information on Angled Mounting:
For optimum performance and appearance, a longer downrod should
be used with your Hunter ceiling fan when installing on high or angled
ceiling. If your ceiling is angled greater than 34° you will also need an
Angled Mounting Kit. Longer downrods and the Angled Mounting Kit are
sold separately at HunterFan.com.
Determining if you need an Angled Mounting Kit:
Fold on the dotted line. Place against edge againts
the wall. Slide towards the ceiling.
If the guide touches the wall but not the ceiling, you
need an angled mounting kit.
Hunter Pro Tip:
CEILING
WALL
34°
Installing the Ceiling Bracket
4
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Control
Check the outlet box:

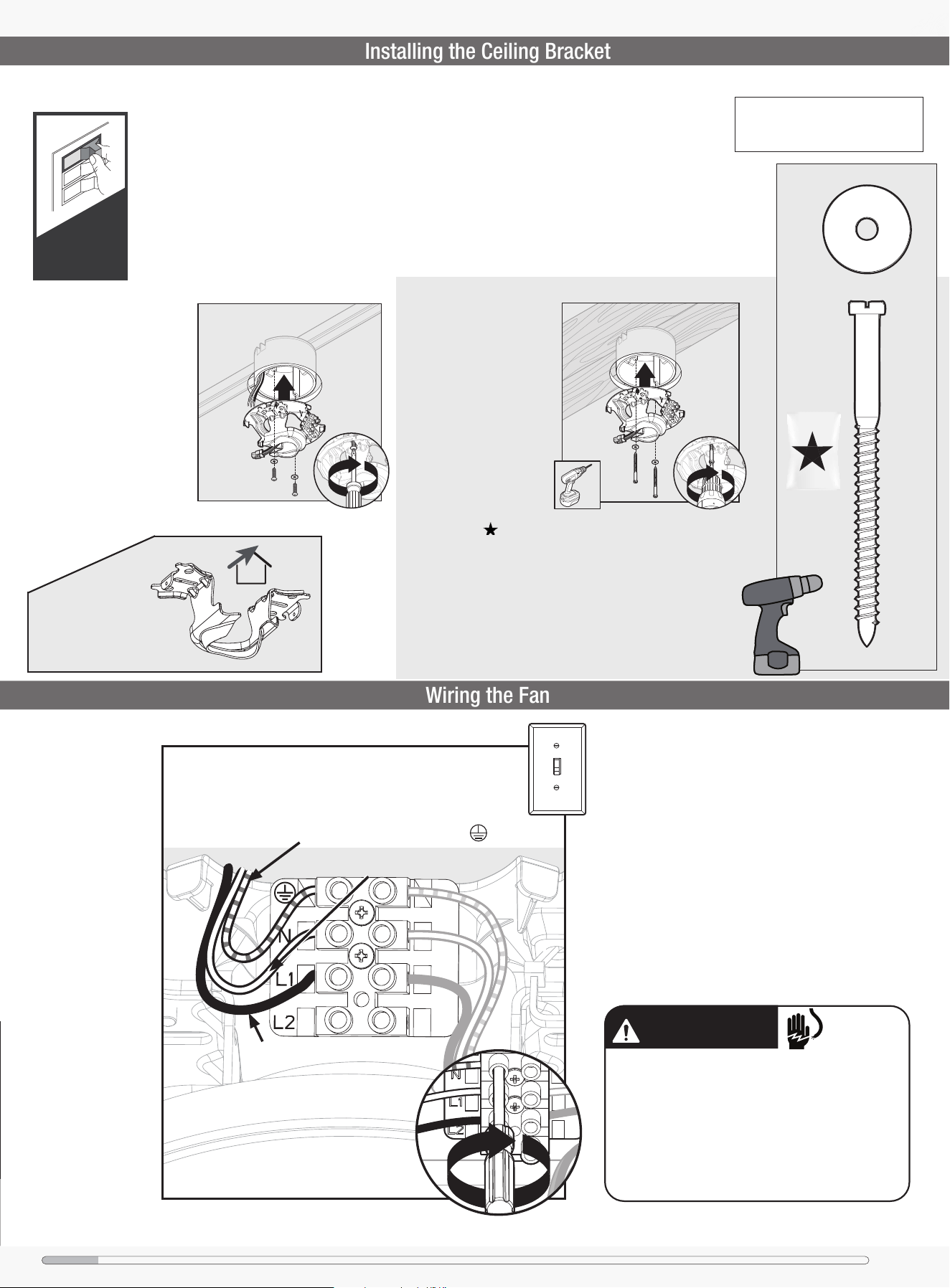

Installing the Ceiling Bracket
Use wood screws and
washers (included)
when securing to
support structure with
approved electrical
outlet box. Drill 9/64”
pilot holes in support
structure to aid in
securing ceiling
bracket with hardware
found in the
hardware bag.
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg (70 lbs) or less.
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
Turn Power
Do this rst!
Box Outlet Mount
Building Structure Mount
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
For angled ceilings,
point opening
toward peak.
ANGLED
MOUNTING TIP
bag
Wood Screw
Washer
x2
x2
You have two options for installation. Pick which one works best for your location. Remove any existing
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
WARNING
•To avoid possible electrical shock, before installing
your fan, disconnect the power by turning off the circuit
breakers to the outlet box associated with the wall switch
location.
•All wiring must be in accordance with national and local
electrical codes ANSI/NFPA 70. If you are unfamiliar with
wiring or in doubt, consult a qualied electrician.
•The ceiling fan must be grounded. If the ground wire for
the installation site is not present, immediately STOP
installation and consult a qualied electrician.
2
1
1
2
Wiring the Fan
Connect wiring from ceiling to terminal block (on
side of canopy mount) and tighten using athead
screwdriver (included).
Single Switch Wiring
Green, Green Yellow Stripe, or Bare (grounding)
Black (ungrounded) L1
White (grounded) N
5
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Control

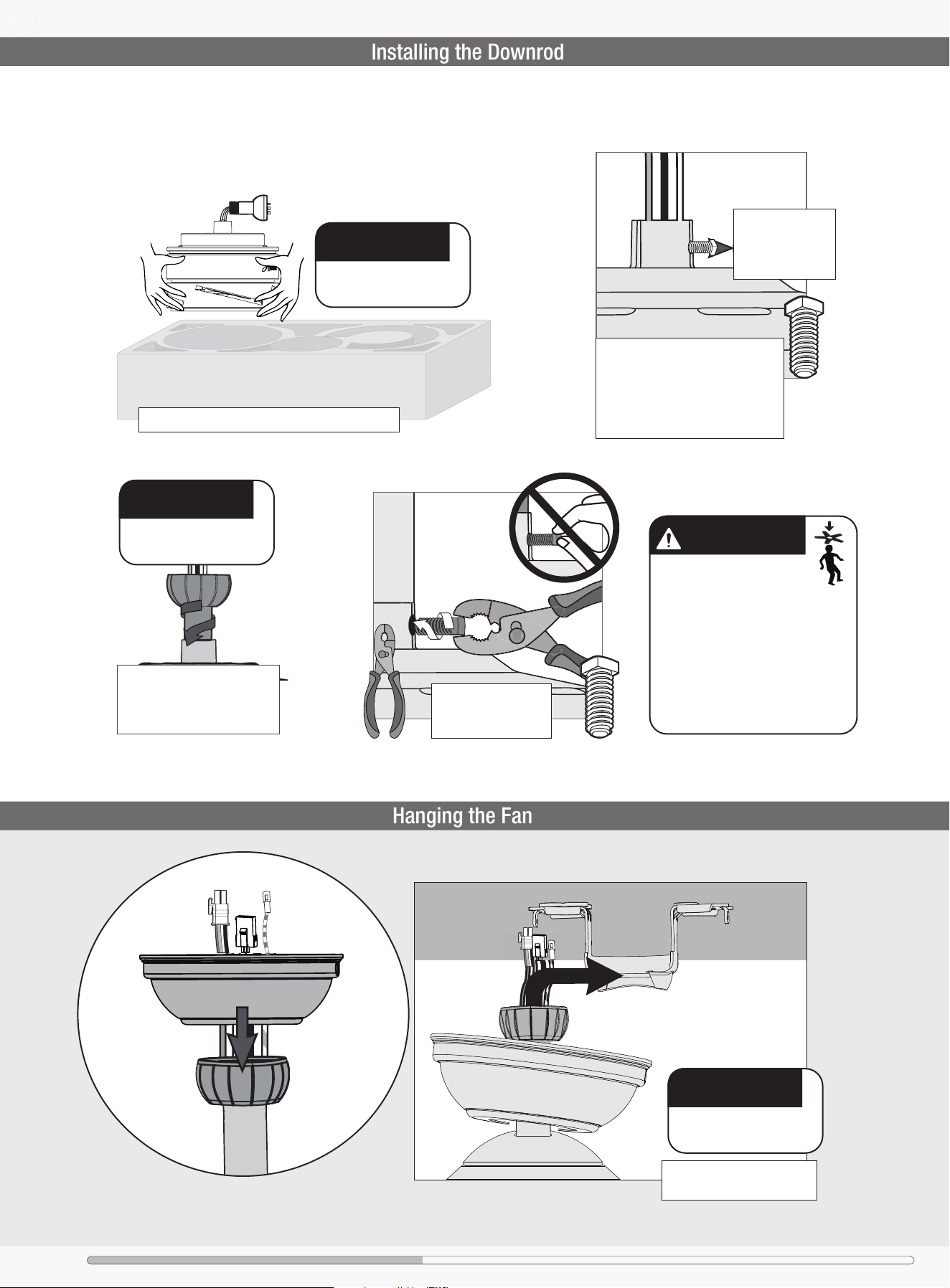

Installing the Downrod
Hand tighten the downrod
(at least 4-5 full turns)
until it stops.
Hanging the Fan
S
l
i
d
e
c
a
n
o
p
y
o
v
e
r
d
o
w
n
r
o
d
a
n
d
w
i
r
e
s
.
Place the downrod ball into
the slot in the ceiling bracket.
NOTICE
To prevent damage to fan,
ALWAYS lift holding either the
fan housing or the downrod.
NOTICE
To prevent damage to fan,
ALWAYS lift holding either the
fan housing.
NOTICE
Make sure wires are not being
tangled while twisting.
K
E
E
P
!
Back out the pre-installed
setscrew so that the setscrew’s
threads are still engaged while
the shank does not protrude
and obstruct the insertion of the
downrod.
DO NOT
REMOVE
SETSCREW
COMPLETELY
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.

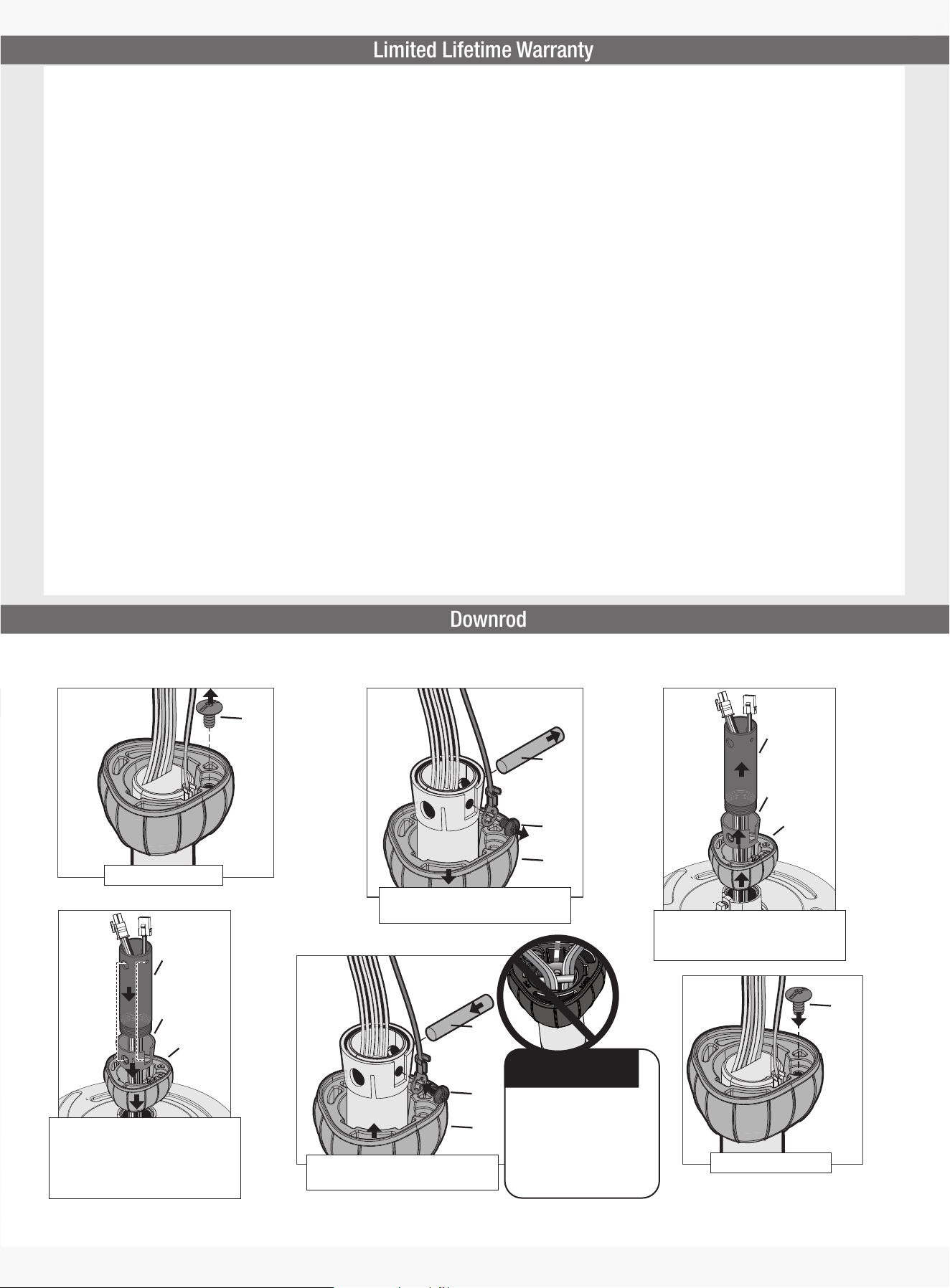

Follow below if you are using the downrod that came pre-assembled in your box. Need to install a longer or shorter downrod? Check out the
guide at the end of this manual.
WARNING
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• ALWAYS tighten setscrew with pliers.
• DO NOT hand tighten setscrew.
• CHECK the setscrew is tight using pliers
each time you change fan direction.
• Pin must be reinserted to secure
downrod assembly
Making Connections for the Receiver and the Fan
Remove product from packaging.
6
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Control
Hanging the Fan
From bracket
From bracket
From receiver
From receiver (not needed)
From fan
From receiver
From fan

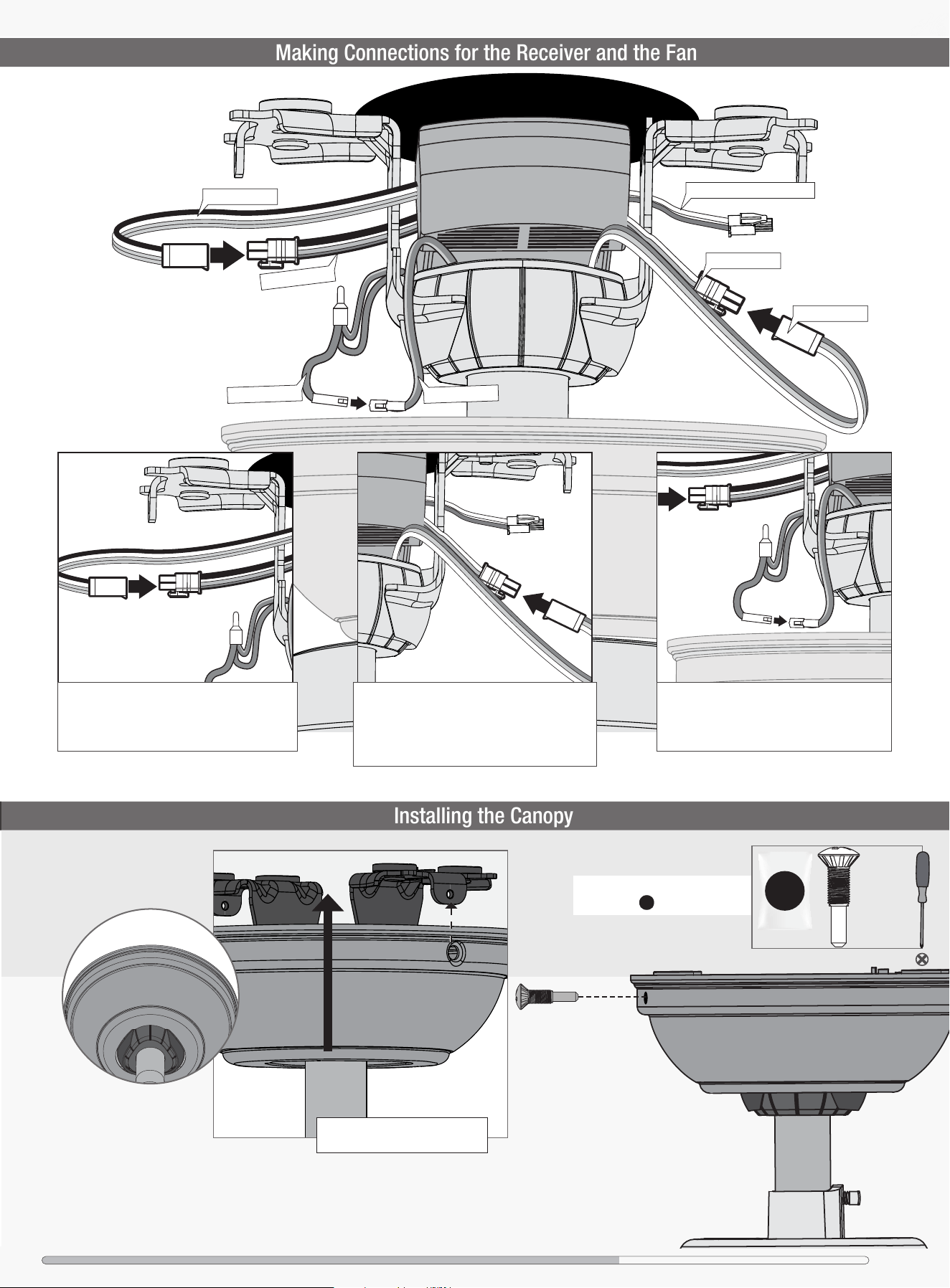

Making Connections for the Receiver and the Fan
Connect wiring harness from ceiling
bracket to the wiring harness from the
receiver. Match up the colored wires.
Connect the wiring harness from fan to the
wiring harness from the receiver. Match
up the colored wires. The blue and white
wiring harness will not be needed.
Connect the grounding wire plug from the
downrod to the grounding wire plug from
the ceiling bracket.
Installing the Canopy
x2
Lift the canopy into place so that
the screw holes are aligned.
Insert the two canopy screws
found in the hardware bag.
F
i
t
t
h
e
c
a
n
o
p
y
i
n
p
l
a
c
e
a
s
s
h
o
w
n
.
bag
Canopy
Screw
7
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Control

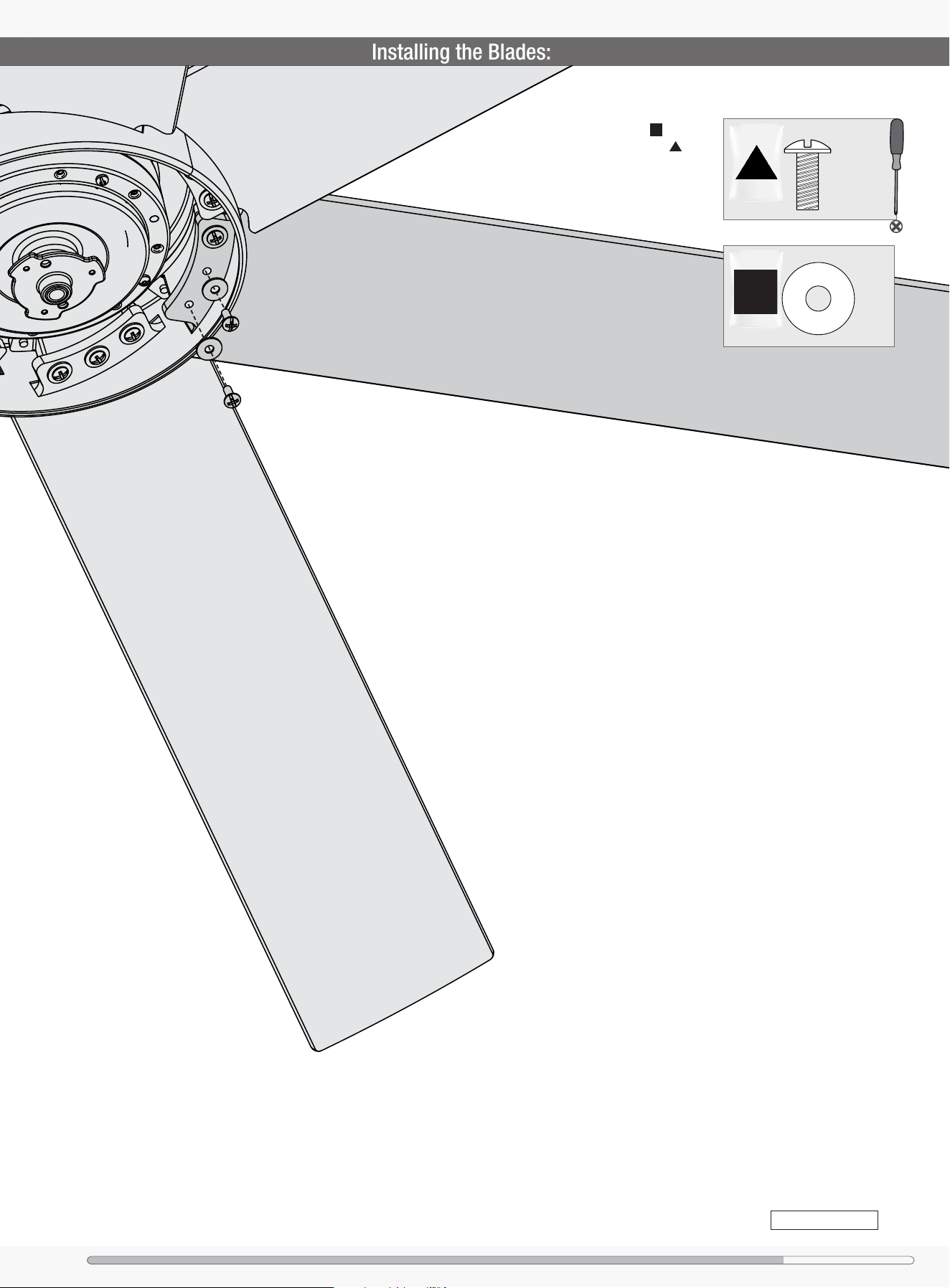

Installing the Blades:
Fan style may vary.
Note:
Repeat x6
x18
bag
Blade
Screw
x18
bag
Blade
Washer
Put the blade washers found in the hardware
bag onto the blade screws found in the
hardware bag. Then install the blade screws to
secure each blade to the fan.
8
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Control
Installing the Blades:

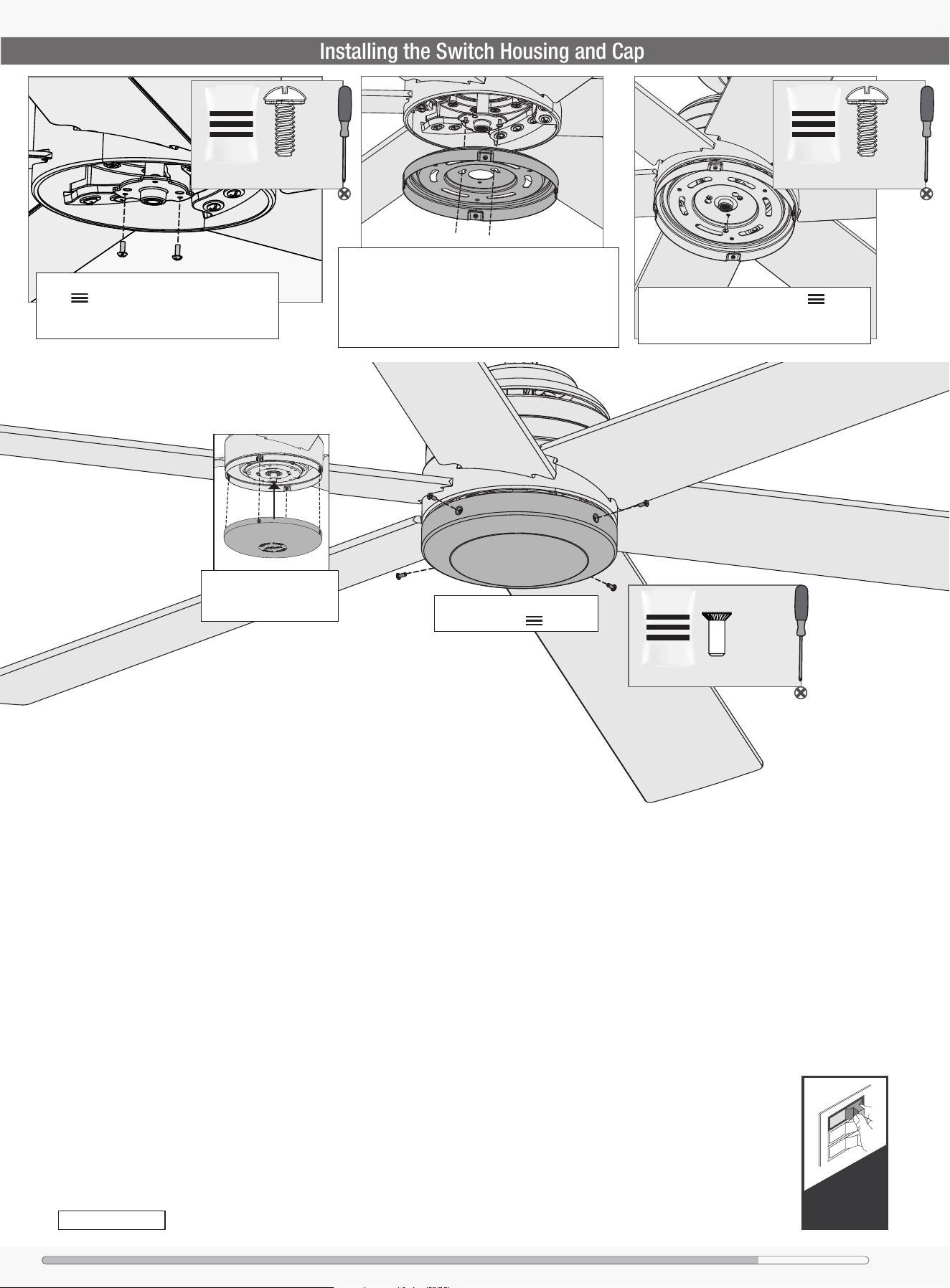

Installing the Switch Housing and Cap
ON
Turn Power
Lift the cap and align cap
holes with the extend tabs
of the fan housing.
Insert the cap screws found in
the hardware bag
Partially install two switch housing screws, found
in the hardware bag, halfway into the motor
housing as shown. It does not matter which two
screw holes you choose.
2 of 3 1 of 3
Switch Housing
Screw
Switch Housing
Screw
bag bag
Align the keyhole slots in the upper switch housing
with the two screws you just installed. Lift the upper
switch housing so that the keyhole slots engage the two
screws, and twist counterclockwise to lock the upper
switch housning into place.
Insert the third screw found in the
hardware bag, into place and then tighten all
three screws.
4 of 4
Cap Screw
bag
Fan style may vary.
Note:
9
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Control
Troubleshooting
Cleaning the Fan
Use soft brushes or cloths to prevent scratching.
Cleaning products may damage the nishes.
Hunter Pro Tip:
Fan Doesn’t Work
• Make sure power switch is on.
• Check the circuit breaker to ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit breaker, then loosen the canopy
and check all the connections according to the wiring diagram.
Excessive Wobbling
• Make sure the blades are properly installed on the blade iron
posts.
• Turn the power off, support the fan carefully, and check that the
hanger ball is properly seated.
Noisy Operation
• Make sure the blades are properly installed.
• Check to see if any of the blades are cracked. If so, replace all of
the blades.
Remote Control of Fan is Erratic
• Make sure the battery is installed correctly.
• Install a fresh battery.
Multiple Remote Issues
• If you have multiple remotes or multiple remote-controlled fans
installed on the same circuit breaker and you are experiencing
interference or faulty operation of your remote controls, please
go to
www.HunterFan.com/FAQs and click “How do I properly install
multiple remote-controlled fans?” for information on how to
correct this issue.

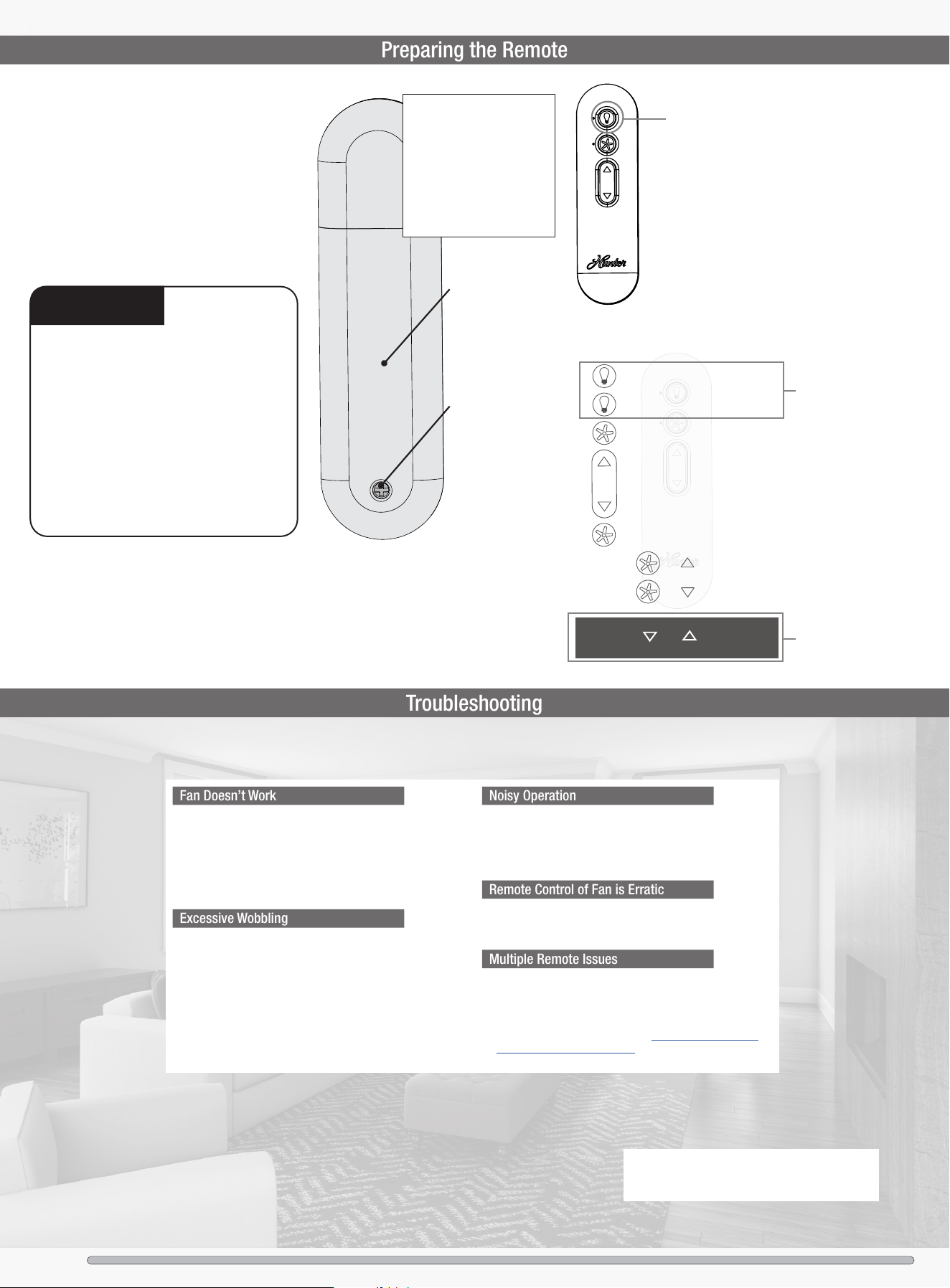

Preparing the Remote
Phillips
Head
Screw
Battery
Door
The remote control is
already paired for use. For
your convenience, a remote
function card is packed in
with your remote.
NOTICE
• Always purchase the correct size and grade of
battery most suitable for the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the
device prior to battery installation.
• Ensure the batteries are installed correctly with
regard to polarity (+ and -).
• Remove batteries from equipment which is not to
be used for an extended period of time.
• Remove used batteries promptly.
To close the battery
compartment, secure
the battery door to the
transmitter assembly with
the small Phillips head screw.
Replace with a CR2032
battery when necessary. The
battery should be installed
with the positive (+) side up.
Remote Function Guide
Fan On/Off+ Quick Press
Light Dimming+ Long Press
Light On/Off+ Quick Press
Key Press Function
Dimming Mode
On/Off
+
Long Press
MA092-01
Raise Fan
Speed
Lower Fan
Speed
+ Quick Press
+ Quick Press
Fan Reverse+ Long Press
+
Long Press
Fan Updraft
+ Long Press
Fan Downdraft
Light Function
(DOES NOT WORK)
(Does not work)
(Does not work)
10
1886
1886
Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter
ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!
How Can Warranty Service Be Obtained?
Proof of purchase is required when requesting warranty service. The original
purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.
www.HunterFan.com/Support/Contact-Us/
1-888-830-1326
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.
What Does This Warranty Cover?
Motor — Limited Lifetime Warranty
If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the Three-year limited warranty
below.
Other — Three-Year Limited Warranty
Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within three years of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*
* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.
What Does This Warranty NOT Cover?
Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs; remote control batteries; fans purchased or installed
outside the United States; fans owned by someone other than the original purchaser;
fans for which proof of purchase has not been established; fans purchased from an
unauthorized dealer; ordinary wear and tear; minor cosmetic blemishes; refurbished
fans; and fans that are damaged due to any of the following: improper installation,
misuse, abuse, improper care, failure to follow Hunter instructions, accidental damage
caused by the fan owner or related parties, modications to the fan, improper or
incorrectly performed maintenance or repair, improper voltage supply or power surge,
use of improper parts or accessories, failure to provide maintenance to the fan, or acts of
God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
How Does State Law Affect Warranty Coverage?
This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.
Limited Lifetime Warranty
Troubleshooting
Downrod
If you need a different downrod length follow these steps:
A
A
A
A
A
A
B
B
C
C
B
B
C
C
Remove ball screw (A).
Reinstall ball screw (A).
Slide ball down (A), remove small
metal pin (B) and ground screw (C).
Reinstall small metal pin (B) and
ground screw (C). Slide ball up (C).
Remove ball (A), inner sleeve (B) and
downrod (C) from fan body and wiring
harnesses.
Route wiring harnesses from the fan
through the accessory downrod (C).
Slide inner sleeve (B) and ball (A) over
downrod. Make sure to align the holes
for the sleeve (B) and downrod (C).
NOTICE
Make sure all wiring from the
wiring harnesses are on one
side of the downrod pin to
avoid wire entanglement when
engaging the dowrod. Do not
have wiring on the same side
as the grounding screw to
avoid damage to the wiring.
Light Function
(DOES NOT WORK)
