Refrigerators, Freezers, Refrigerator-Freezers & Beverage
Centers (15" & 24" Wide)
User Manual
MODELS:
Refrigerators:
AL54PNR | ALR15BSS | ASDS1523 | ASDS2413 | DBAR1522 | DBAR1523ASD | DBAR1525SD
DBAR1526 | DBAR2421ADA | DBAR2424ASD | DBAR2426SD | DBAR2427 | DBAR2430
DBAROS2428ASD | DBAROS2429 | FF1532BSS | FF64BSS | SCR610BLSD | SDHR1534
SDHR2444 | SPR618OSADA | SPR627OSPNR
Freezers:
ALFZ53 | ALFZ53IM | DBFZ1556 | DBFZ2451ADA | DBFZ2457 | DBFZIM2452ADA
DBFZIM2453 | LFZ24A | SCFF1533BSS | SCFF53BSS | SCFF53BSSADA | SCFF53BSSIM
Refrigerator/Freezers:
DBFDRF2497 | DBFDRF3098 | FFRF24SS | FFRF3070BPNR
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Models:
Serial Number:
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com
TABLE OF CONTENTS
Appliance Safety 3
Important Safeguards 3-5
Disposal 6
Location of Parts 7-9
Installation Instructions 10
Before Using Your Appliance 10
Installation of Your Appliance 10
Connecting to the Water Supply 11
Anti-tip Bracket Installation 11
Securing the Appliance 12
Reversing the Door Swing of Your Appliance 12
Adjusting the Height of the Unit 13
Adjusting the Kick Plate 13
Installing the Stainless Steel Handle 13
Built-In Under-Counter Instructions 14
Full Overlay Panel Installation Instructions 15-17
Operating Your Appliance 18-26
Control Panel 18-24
Interior Light 25
Sabbath Mode 25
Temperature Memory Function 25
Defrosting 25
Using the Freezer 25
Ice Maker 25
Temperature Alarm / Door Alarm 26
Door Lock 26
Shelves 26
Door Racks 26
Care and Maintenance 27
Cleaning Your Appliance 27
Power Failure 27
Vacations 27
Moving Your Appliance 27
Energy-Saving Tips 27
Troubleshooting 28-29
Limited Warranty 31
3
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure
you and others. All safety messages will follow the Safety Alert Symbol and either the word
DANGER or WARNING.
DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.
WARNING means that failure to heed this safety
statement may result in extensive product damage,
serious personal injury, or death.
All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury, and let you
know what can happen if the instructions are not followed.
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as described in this
manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when
using the appliance, follow basic precautions, including the following:
•
Plug into a grounded 3-prong outlet, do not remove the grounding prong, do not use an adapter, and do
not use an extension cord.
•
Replace all panels before operating.
•
It is recommended that a separate circuit serving only your appliance be provided. Use receptacles that
cannot be turned off by a switch or pull chain.
•
WARNING: Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids or explosive substances
such as aerosol cans with a flammable propellant in this appliance or in the vicinity of this or any other
appliance. The fumes can create a fire hazard or explosion.
•
Do not connect or disconnect the electric plug when your hands are wet.
•
Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
•
Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this
manual. All other servicing should be referred to a qualified technician.
•
If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified
person in order to avoid a hazard.
A3 Warning: Risk of Fire / Flammable Materials. R600a
4
•
This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the
greenhouse effect. Care must be taken during transportation and setting up of the appliance so that no parts
of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes.
•
In the event of any damage:
-
Avoid open flames and anything which creates a spark.
-
Disconnect from the power supply,
-
Air the room in which the appliance is located for several minutes and contact the Service Department
for advice.
•
The more coolant there is in an appliance, the larger the room it should be installed in. In the event of a
leakage, if the appliance is in a small room, there is the danger of combustible gases building up. For every
ounce of coolant, at least 325 cubic feet of room space is required. The amount of coolant in the appliance is
stated on the data plate inside the appliance. It is hazardous for anyone other than an Authorized Service
Person to carry out servicing or repairs to this appliance.
•
Take serious care when handling, moving, and using the appliance to avoid either damaging the refrigerant
tubing or increasing the risk of a leak.
•
Replacing component parts and servicing shall be done by factory-authorized service personnel, so as to
minimize the risk of possible ignition due to incorrect parts or improper service.
•
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
•
Children should be supervised to ensure that they do not play with the appliance.
FOLLOW THE WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
•
Use two or more people to move and install the appliance. Failure to do so can result in back or other
injuries.
•
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
•
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process or to clean,
other than those recommended by the manufacturer.
•
WARNING: The appliance shall be stored in a room without continuously operating ignition sources (for
example: open flames, an operating gas appliance or an operating electric heater.
•
WARNING: Do not pierce or burn. Do not damage the refrigerant circuit.
•
WARNING: Be aware that refrigerants may not contain an odor.
•
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
•
WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the
instructions.
•
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
•
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the
appliance.
•
WARNING: Danger of injury from LED lamp. If the cover is defective: do not look directly into the illumination
with optical lenses from close proximity. The eyes can be injured.
•
CAUTION: Use this appliance only for its intended purpose. This equipment is intended for the storage
and display of packaged products only.
•
To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 44°F (7°C) and below 90°F (32°C).
•
The appliance should not be located next to ovens, grills, or other sources of high heat.
•
The appliance must be installed with all electrical, water, and drain connections in accordance with state and
local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the
National Electrical Code and local codes and ordinances, is required.
•
Do not kink or pinch the power supply cord of the appliance.
•
The size of the fuse (or circuit breaker) should be 15 amperes.
•
It is important that the appliance be leveled in order to work properly. You may need to make several
adjustments to level it.
•
All installations must be in accordance with local plumbing code requirements.
•
Make certain that the pipes are not pinched, kinked, or damaged during installation.
•
Check for leaks after connection.
5
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged,
have it replaced by a qualified electrician or an authorized service center.
•
Never allow children to operate, play with or crawl inside the appliance.
•
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage
or discolor the interior.
•
Use this appliance only for its intended purpose as described in this Instruction Manual.
•
Keep fingers out of the “pinch point” areas. Clearances between the door and cabinet are
necessarily small. Be careful closing the door when children are in the area.
•
This appliance is intended to be used in household and similar applications such as:
–
staff kitchen areas in shops, offices and other working environments
–
farmhouses and by clients in hotels, motels, and other residential type of environments
–
bed and breakfast type environments
–
catering and similar non-retail applications
- SAVE THESE INSTRUCTIONS –
Electrical Connection
This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a
three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third (grounded) prong from the power cord supplied. For personal
safety, this appliance must be properly grounded. Any questions concerning power and/or grounding should be
directed toward a certified electrician or an authorized service center.
This appliance requires a standard 115/120 Volt AC ~ 60Hz three-prong grounded electrical outlet. Have the wall
outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-
prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-
prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that
matches the rating label on the appliance. This provides the best performance and also prevents overloading house
wiring circuits that could cause a fire hazard from overheating. Never unplug the appliance by pulling on the power
cord. Always grip the plug firmly and pull it straight out from the receptacle. Repair or replace immediately all power
cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage
along its length or at either end. When moving the appliance, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an
extension cord with this appliance. However, if you must use an extension cord, it is absolutely necessary that it be a
UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the
electrical rating of the cord is 115 volts and at least 10 amperes.
6
DISPOSAL
Dispose of your appliance packaging properly. Ensure that any plastic wrappings, bags, etc., are disposed of
safely and kept out of the reach of babies and young children. Danger of suffocation!
Refrigeration equipment must be properly disposed of in a professional and appropriate way, in accordance with
the current local regulations and laws which protect the environment. This applies to your old appliance and to your
new unit once it has reached the end of its service life.
WARNING: Please ensure that old, worn appliances are rendered unusable before disposal by removing the
doors, removing the plug, cutting the network cable, and removing or destroying any snap fastenings or bolts.
Leave shelving in place. You will thus prevent children from locking themselves in the appliance during play (risk of
suffocation) or endangering their lives in any other way. DO NOT dispose of the appliance in landfill as the
insulation (Cyclopentane) and refrigerant gas (R600a) contained in these appliances are flammable.
Disposal instructions:
• The appliance must not be disposed of in the dustbin or with normal household rubbish.
•
The coolant circuit, particularly the heat exchanger at the back/bottom of the unit, must not be damaged.
•
The appliance is not to be handled as normal household waste but is to be taken to a recycling collection point
for electrical and electronic goods. By correctly disposing of this product, you are contributing to the protection
of the environment and to the health of your fellow human beings. Improper disposal endangers health and the
environment. Further information about the recycling of the product may be obtained from your town hall, refuse
collection department or the store where you purchased the product.
Risk of Child Entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still
dangerous, even if they will “just sit for a few days.”
Before you throw away your old refrigerator or freezer:
•
Take off the doors
•
Leave the shelves in place so that children may not easily climb inside.
7

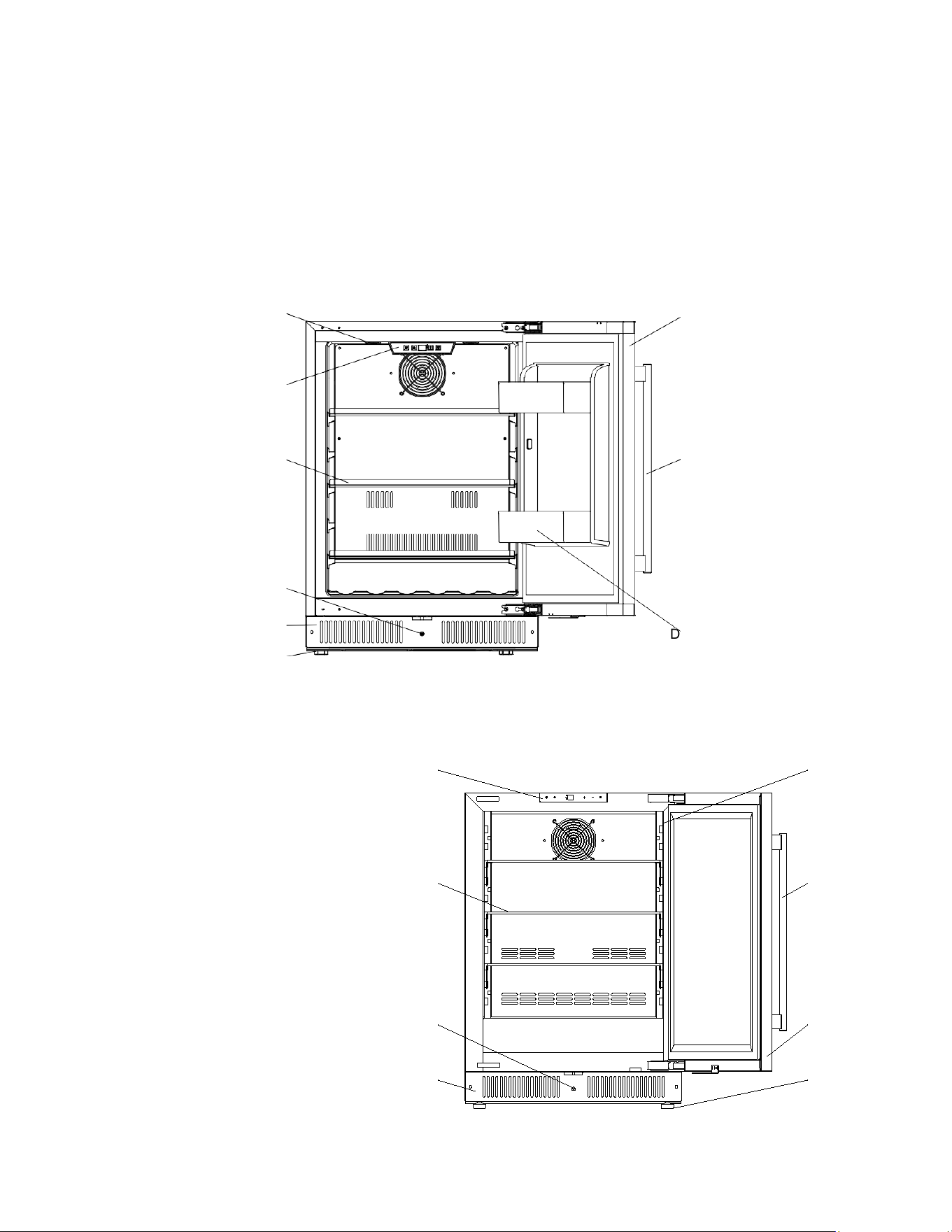

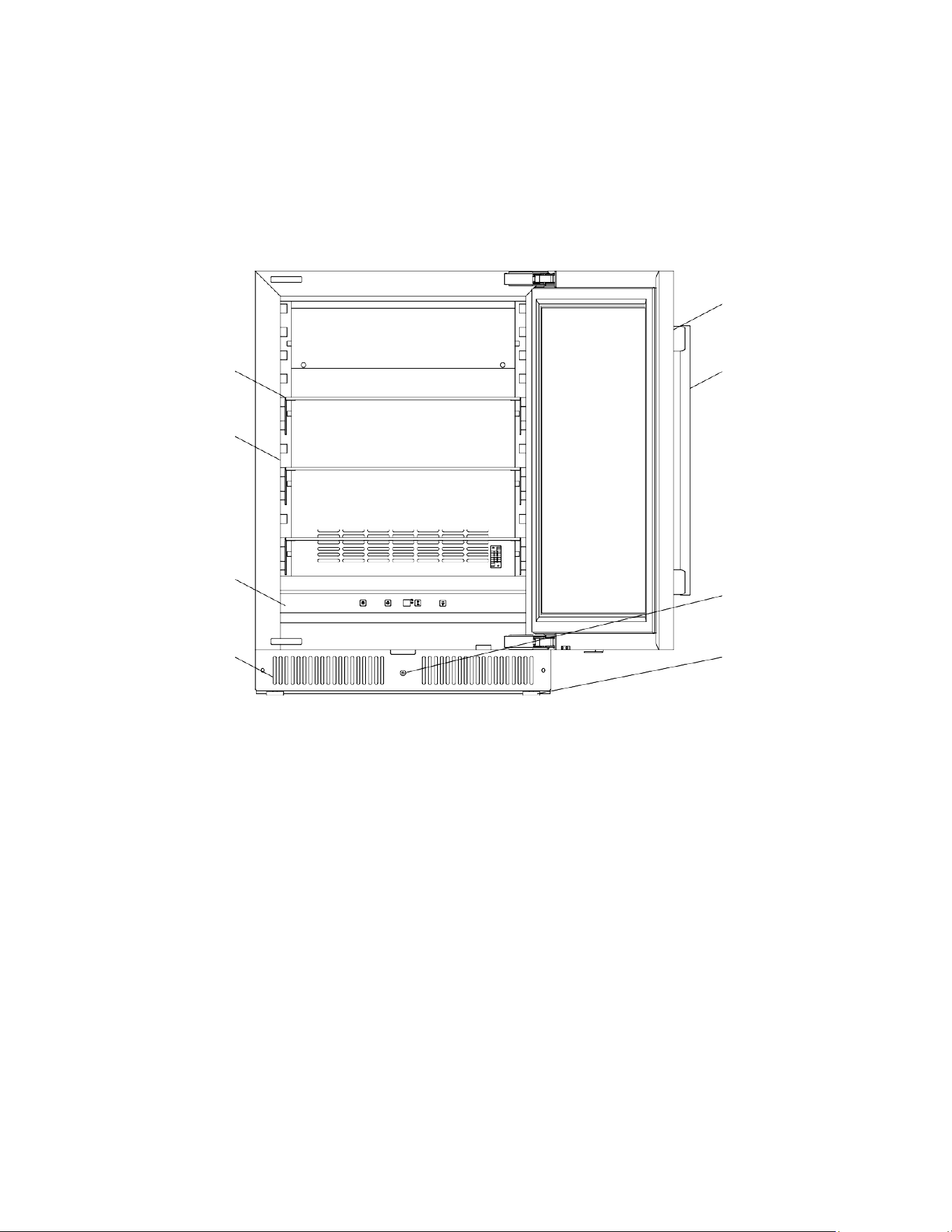

LOCATION OF PARTS
Refrigerators:
AL54PNR | ALR15BSS | DBAR1522 | DBAR1526 | DBAR2421ADA | DBAR2427
DBAROS2429 | FF1532BSS | FF64BSS | SPR627OSPNR
LED Light
Digital Control
Panel
Shelves (3)
Security Lock
Ventilation Grille
Adjustable Legs
Door
Handle
Door Racks (2)

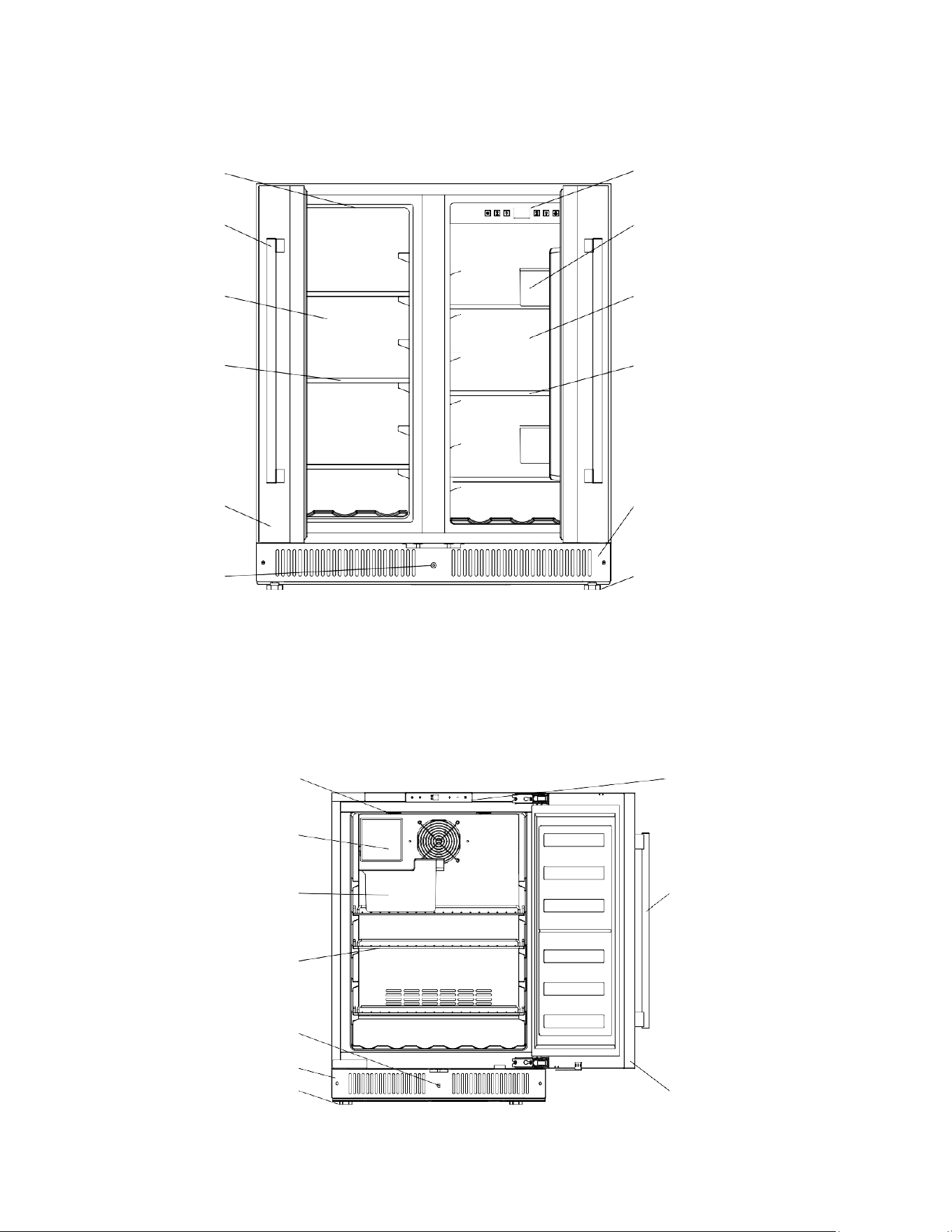

DBAR2430 | SCR610BLSD
Handle
Adjustable Legs
Shelves (3)
Di
gital Control
Panel
Security Lock
Ventilation Grille
LED Light
Door
Features are subject to change by model**
8
Refrigerators:
ASDS1523 | ASDS2413 | DBAR1523ASD | DBAR1525SD | DBAR2424ASD
DBAR2426SD | DBAROS2428ASD | SDHR1534 | SDHR2444 | SPR618OSADA
Door
Shelves (3)
LED Light
Digital Control
Panel
Ventilation
Grille
Handle
Security
Lock
Adjustable
Legs
9
Refrigerator/Freezers:
DBFDRF2497 | DBFDRF3098 | FFRF24SS | FFRF3070BPNR
LED Light
Handle
Left Zone
(Freezer)
Wire Shelves (3)
Door
Security Lock
Digital Control Panel
Door Racks (2) (*)
Right Zone
(Refrigerator)
Glass Shelves (3)
Ventilation Grille
Adjustable Legs
(*) Only available for certain models.
Freezers:
ALFZ53 | ALFZ53IM | DBFZ1556 | DBFZ2451ADA | DBFZ2457 | DBFZIM2452ADA
DBFZIM2453 | LFZ24A SCFF1533BSS | SCFF53BSS | SCFF53BSSADA | SCFF53BSSIM
LED Light
Ice Maker (*)
Digital Control
Panel
Ice Bucket (*)
Handle
Shelves (3)
Security Lock
Ventilation Grille
Adjustable Legs
Door
(*) Only available for models with ice maker.
10
INSTALLATION INSTRUCTIONS
Before Using your Appliance
• Remove the exterior and interior packing.
• Clean the interior surface with lukewarm water using a soft cloth.
• Install the handle on the door. (See Installing the Stainless Steel Handle.)
Installation of your Appliance
•
The appliance is designed for built-in, recessed, or free-standing installation for indoor use only except of models that
can be outdoor use.
•
The appliance is designed for built-in, recessed, or freestanding installation.
•
For models: SPR618OSADA, DBAROS2428ASD and SPR627OSPNR installation is suitable for both indoor and
outdoor use.
•
All other models are intended for indoor use only.
•
Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level the unit, adjust
the front leveling legs.
•
For freestanding installation, leaving 5” (127mm) of space at the back and sides of the unit and 4” (102mm) at
the top is suggested, which allows the proper air circulation to cool the compressor and condenser to save
energy. For built-in installation, it is better to leave at least
¼" (5mm) of space on each side, 2" (50mm) at the
back, and
⅛" (3mm) at the top to ensure proper service access and ventilation. And the air vent at the front of
the appliance must never be covered or blocked in any way.
•
Avoid placing the unit in moist areas.
•
Plug the appliance into an exclusive, properly grounded wall outlet. Do not under any circumstances cut
or remove the third (ground) prong from the power cord. Any questions concerning power and/or
grounding should be directed toward a certified electrician or an authorized service center.
CAUTION:
After unpacking you MUST allow this appliance to stand upright for at least 2 hours to allow the lubricant and
refrigerant to drain back into the compressor and stabilize. Failure to do so may adversely affect performance
and the lifetime of this unit.
CAUTION:
This appliance is designed for storing and cooling fresh food, beverages, and drinks. Do not store perishable
food, medicine, or other medical products.
NOTE: Do not store or install the appliance outdoors for indoor use only models.
CAUTION:
Make sure that the socket and ON/OFF switch are easily accessible after the appliance has been installed.
NOTE: It is recommended that you do not install the appliance near an oven, radiator, or other heating sources.
Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Do not install
in a location where the temperature will fall below 60°F (16°C). For best performance, do not install the appliance
behind a cabinet door or block the base grille.
11
WARNING
Improper water line connection may result in flooding. You must use a licensed plumber. Review state and local
plumbing codes before installation.
Connecting to the Water Supply
Prepare water supply line before installation for models with ice maker. Installation requires a 1/4" ID copper cold
water line and compression fitting (not supplied).
All the necessary hardware is not provided so it is necessary to hire a professional licensed plumber to complete the
installation.
Connect the water line to the nearest cold water source. Leave sufficient coiled copper tubing to the unit to allow the
unit to be pulled out of the cabinet or away from the wall for cleaning and service. Also make sure that the tubing is
not pinched or damaged during the transportation.

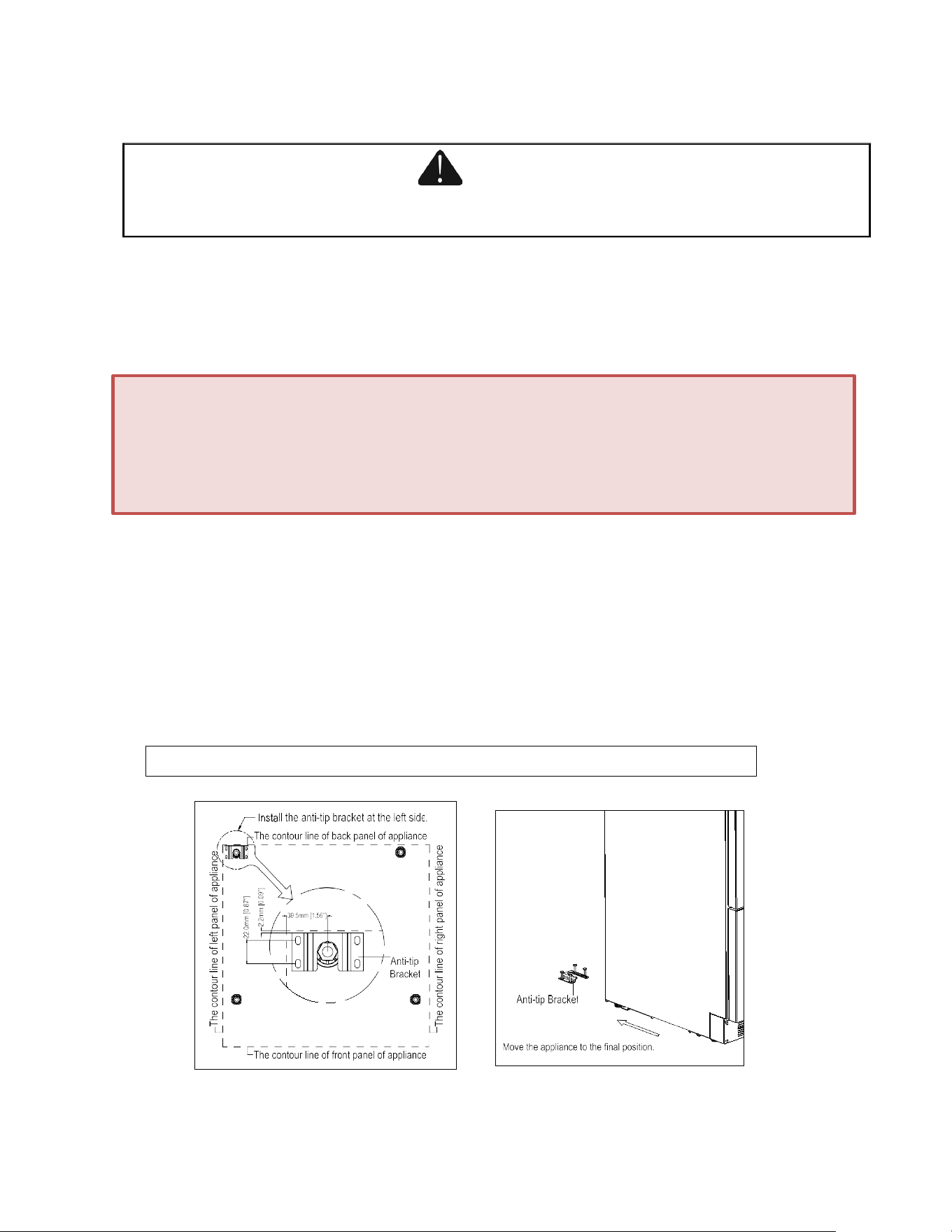

Anti-tip Bracket Installation
To reduce the risk of tipping the unit by abnormal usage or improper loading, the appliance must be secured by
properly installing the anti-tip device packed with the appliance.
1.
Place the anti-tip bracket on the floor as shown in the figure. An anti-tip bracket must be installed on the
left side.
2.
Mark the locations of the 4 holes of the anti-tip bracket on the floor.
3.
Use a 5/16” masonry drill bit and insert plastic anchors.
4.
Secure the bracket onto the floor using screws.
5.
Slide the appliance into position and make sure the leg engages the anti-tip bracket.
NOTE: If the unit is relocated, the bracket must be removed and reinstalled in the new location.
WARNING: Connect to potable water supply only.
IMPORTANT NOTE:
•
Water lines cannot be exposed to freezing temperatures.
•
This appliance is intended to be permanently connected to the water mains and not connected by a hose-set.
•
The water temperature must be between 41°F(5°C) and 90°F(32°C).
•
The water pressure must be between 20 psig (138 kPA) and 80 psig (552 kPA).
12
Securing the Appliance
(If available)
Pop out the cover cap on the opposite side of hinge and secure the
appliance in the niche by tightening the screws through the
attachment bracket if the unit is provided with an attachment bracket.

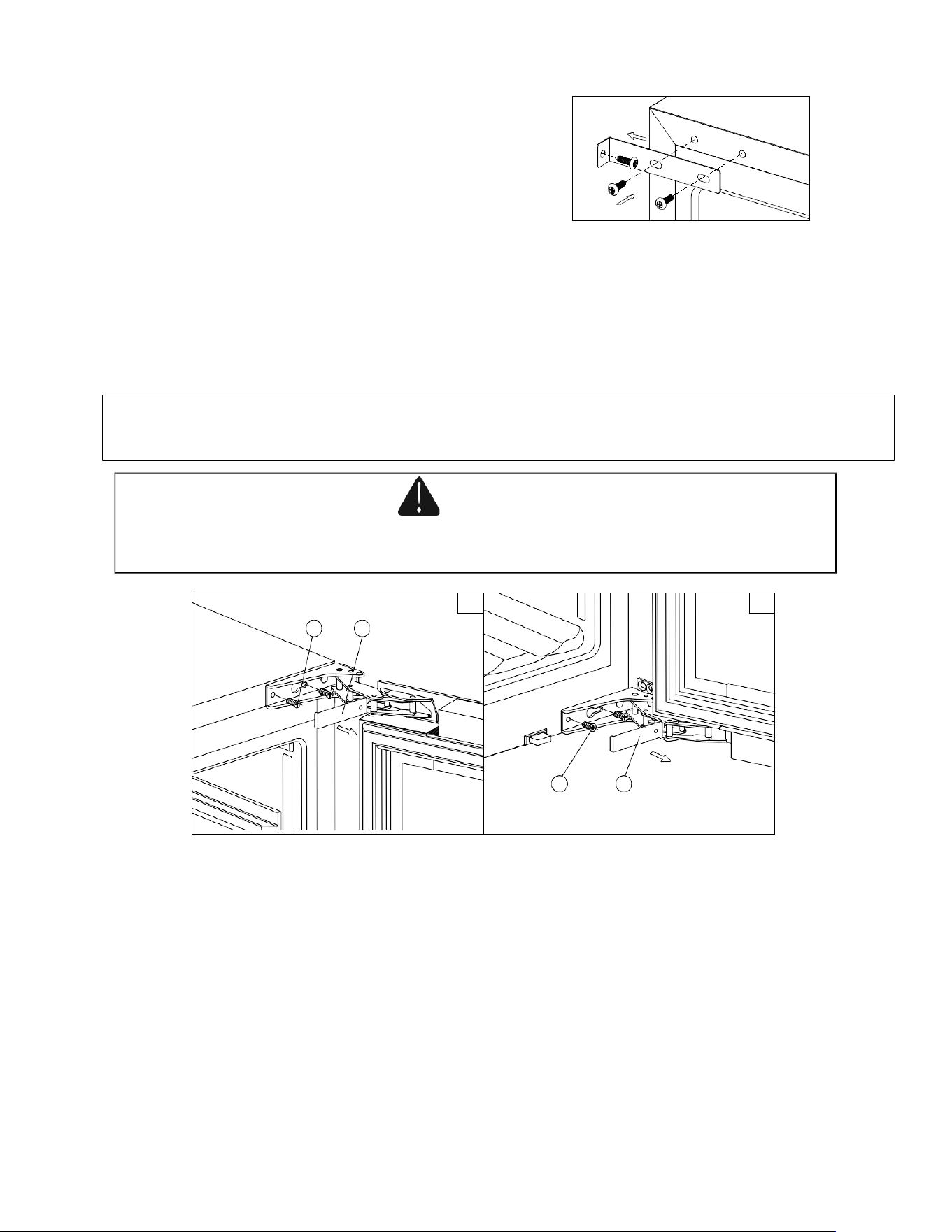

Reversing the Door Swing of your Appliance
This unit has the capability of the door opening from either the left or right side. The unit is delivered to you with the
door opening from the left side. Should you desire to reverse the opening direction, please follow the reversal
instructions shown below.
1.
Remove the cover caps (3) and then remove the door by unscrewing the four screws (1) and (2). Be careful to
hold the door firmly after removing the screws and place it on a padded surface to avoid the risk of damage.
2.
Pop out the cover caps on the left side of the cabinet and use them to cover the screw holes on the right-hand
side.
3.
Unscrew and transfer the holes plug and lock bracket to the opposite side of the door.
4.
Rotate the door 180° and refit the door to the opposite side. Then screw and tighten it after the door is leveled.
5.
For models with door racks, remove the door racks. Then replace the door racks by rotating them 180° and
repeating the steps in reverse.
1
2
1 3
2 3
WARNING
Use extreme caution with the articulated hinges. The hinge is self-closing, and many pinch points exist prior to
built-in installation.
NOTE: All parts removed must be saved to allow the door swing to be reversed.
NOTE: Some variations of these items may only be reversible in Summit facilities before being shipped. Consult our website
for more information.
13
Adjusting the Height of the Unit
The height of the ADA refrigerators can be increased by up to 3” by turning the adjustable legs. Once the desired
height has been achieved, the gap between the kick-plate and the floor can be covered by lowering a hidden section
of the kick-plate. See the next section for instructions.
Adjusting the Kick Plate
(Only for ADA Models)
The pre-fitted kick plate of the appliance includes an adjustable
kick plate section that is initially seated behind the upper section. In
order to adjust the kick plate height, follow the instructions below:
1.
Remove the screws (1) from both the top left- and top right-
hand sides of the kick plate.
2.
Loosen or remove the screws (2) from both the bottom left and
bottom right-hand sides of the kick plate. Failure to loosen the
bottom screws sufficiently may cause damage to the lower trim
when adjusting it.
3.
Carefully guide the lower trim down until the desired height is
achieved.
4.
Reinsert screws and tighten them.
Installing the Stainless Steel Handle
This appliance includes a stainless steel handle that is not
required to operate the unit. To install the handle, follow the
instructions below:
Place the handle (1) over the mounting stub (3) of the door and
using the supplied Allen key, tighten the securing grub screws (2)
to affix the handle.
1
2
14

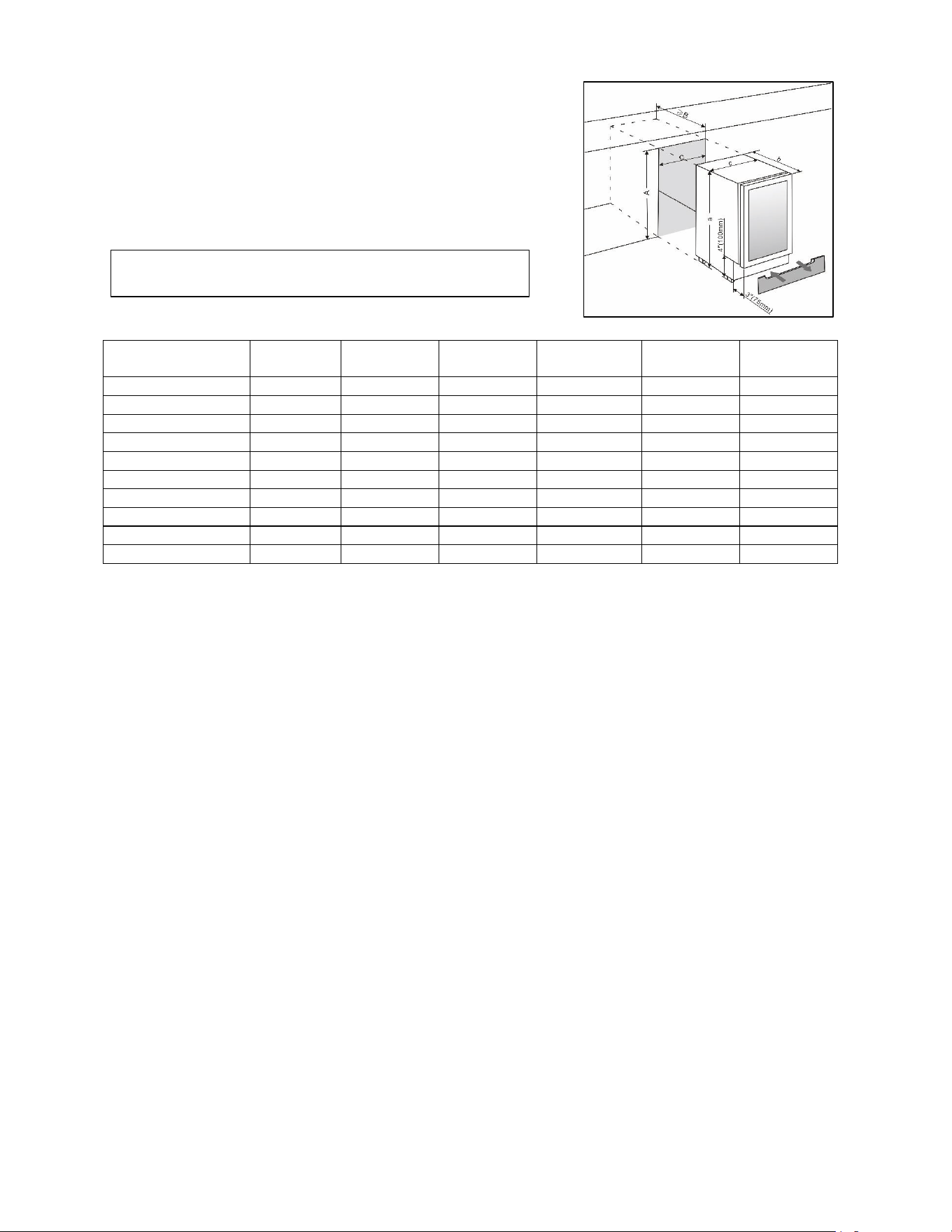

Built-In Under-Counter Instructions
Make sure your installation does not block the front ventilation grille.
The unit is designed to fit under worktops. If the fully integrated unit is
to be installed to fit the kitchen plinth, make sure that the ventilation
gaps in the plinth are at least 46in
2
(300cm
2
) and remove the
ventilation grilles, so that warm air can disperse unhindered.
Otherwise, the appliance has to work harder, resulting in an increase
in electricity consumption.
Model No.
a
(Inch/mm)
b
(Inch/mm)
c
(Inch/mm)
A
(Inch/mm)
B
(Inch/mm)
C
(Inch/mm)
FF1532BSS
34" / 864
22¾" / 575
14⅞" / 377
34⅛" / 866
22¾" / 575
15" / 381
ALR15BSS
32" / 813
22¾" / 575
14⅞" / 377
32⅛" / 816
22¾" / 575
15" / 381
FF64BSS
34" / 864
23½" / 596
23½" / 596
34⅛" / 866
23⅝" / 600
23⅝" / 600
SPR627OSPNR
34" / 864
22¾" / 575
23½" / 596
34⅛" / 866
22¾" / 575
23⅝" / 600
AL54PNR
32" / 813
22¾" / 575
23½" / 596
32⅛" / 816
22¾" / 575
23⅝" / 600
ASDS1523
32" / 813
18" / 455
14⅞" / 377
32⅛" / 816
18" / 455
15" / 381
SDHR1534
34" / 864
18" / 455
14⅞" / 377
34⅛" / 866
18" / 455
15" / 381
ASDS2413
32" / 813
18" / 455
23½" / 596
32⅛" / 816
18" / 455
23⅝" / 600
SDHR2444
34" / 864
18" / 455
23½" / 596
34⅛" / 866
18" / 455
23⅝" / 600
FFRF3070BPNR
34" / 864
23½" / 596
29½" / 750
34⅛" / 866
23⅝" / 600
29¾" / 755
NOTE:
1. FF1532BSS same as
DBAR1522 | DBFZ1556 | SCFF1533BSS
2. ALR15BSS same as
DBAR1526
3. FF64BSS same as
DBAR2427 | DBAR2430 | DBAROS2429 | DBFDRF2497 | DBFZ2457 | DBFZIM2453 | FFRF24SS |
SCFF53BSS | SCFF53BSSIM | SCR610BLSD
4. AL54PNR same as
ALFZ53 | ALFZ53IM | DBAR2421ADA | DBFZ2451ADA | DBFZIM2452ADA | LFZ24A | SCFF53BSSADA
5. ASDS1523 same as
DBAR1523ASD
6. SDHR1534 same as
DBAR1525SD
7. ASDS2413 same size as
DBAR2424ASD | DBAROS2428ASD | SPR618OSADA
8. SDHR2444 same as
DBAR2426SD
9. FFRF3070BPNR same as
DBFDRF3098
NOTE: When pushing the appliance into the niche, make sure
that the mains cable does not get trapped.
15
Full Overlay Panel Installation Instructions
An overlay panel covers the stainless steel to give an integrated appearance. The overlay panel and appropriate
hardware are not included with the unit and the end user needs to provide it. We are providing two installation
methods, choose the one you feel is the most appropriate to your needs.
Please follow the instructions below for installation:
Door Panel Preparation
Prepare the overlay panel to the dimensions as per the descriptions given below. Then attach the handle to the
overlay panel by using the flat head screws and drive the screws flush with the panel.
NOTE:
1.
H = Height of door + 1mm [3/80”], W = Width of door + 4mm [5/32”]
For models FFRF24SS / FFRF3070BPNR / DBFDRF2497 / DBFDRF3098: W = Width of door + 2mm [5/64”]
2.
The weight of the overlay panel should not exceed 15 lbs. (7 kg)
3.
It is important to ensure that all drilled holes are drilled to the correct depth to avoid splits in the wood when the
hardware is installed.
4.
Drill the handle installation holes in the overlay panel according to the handle you are planning to use. If reusing
the handles that came with the unit, drill two holes with a distance of 490mm [19- 9/32”] and a diameter of 5mm
[3/16”] in the overlay panel.
W
19mm [3/4"]
54mm [2 1/8"]
54mm [2 1/8"]
6-Ф2.5mm [Ф1/10'']
6mm[15/64''] DEEP
14.5mm [37/64"]
16

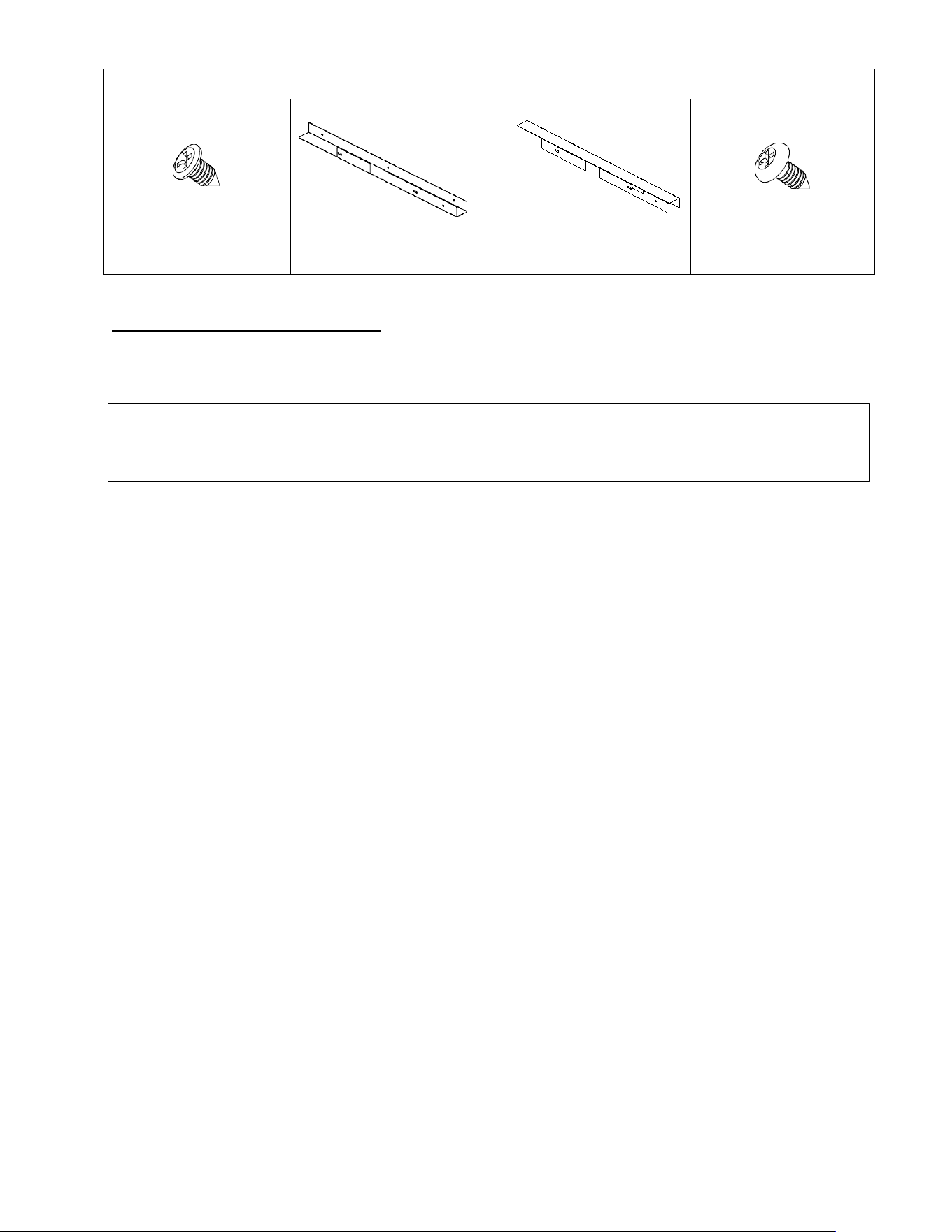

Included in the Bracket Kit
①
②
④
⑨
Phillips self-tapping
screw (6)
Bottom bracket (1) Top brackets (1)
Phillips self-tapping
screw (4)

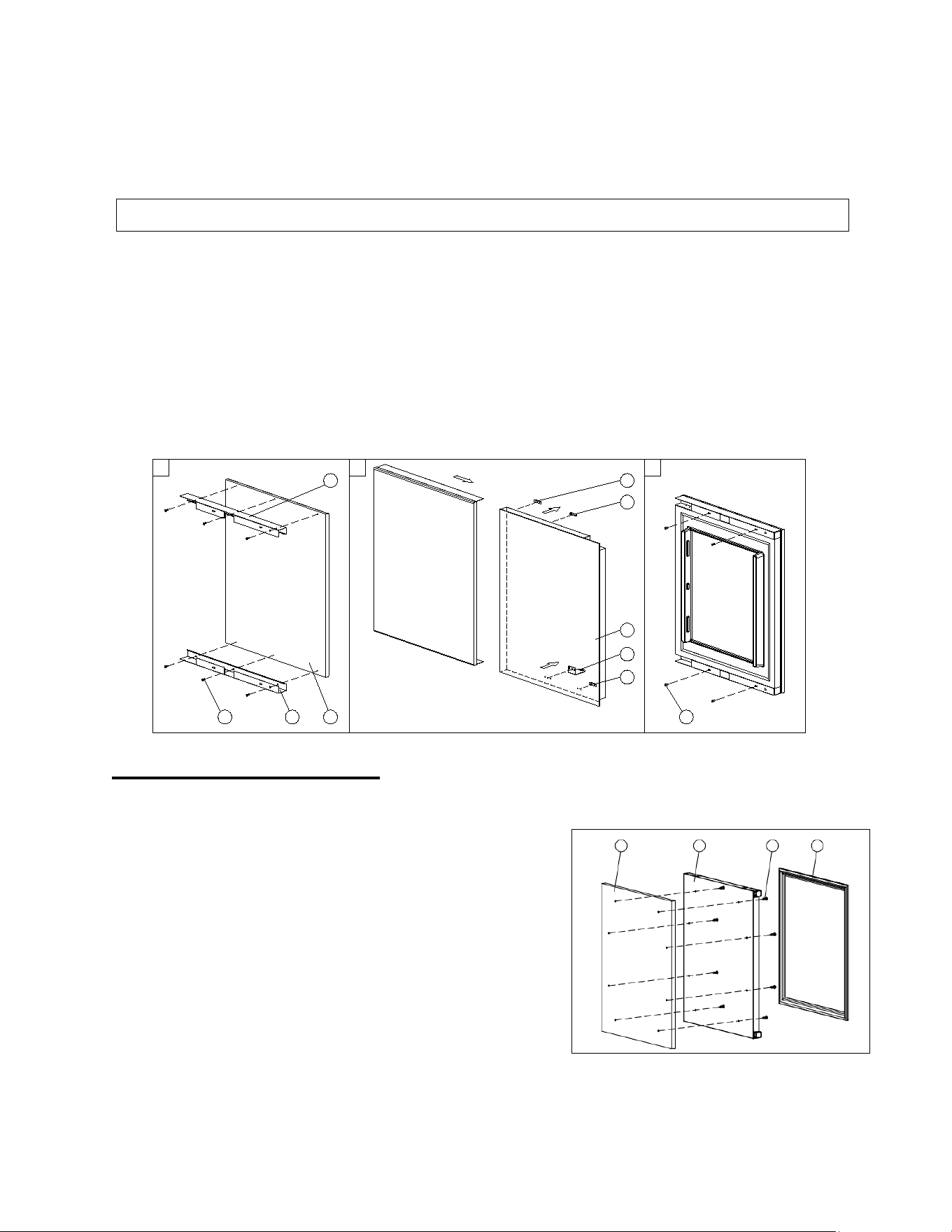

Door Panel Installation Method 1: (With included brackets)
This method is designed to be an easily convenient installation method and does not require drilling into the unit’s
door.
Installing the Handle on the Overlay Panel
If reusing the handle that came with the unit:
1.
Unscrew the studs located on the front face of the door and set them aside for later use.
2.
Remove the screws from the door and proceed to mark their positions on the overlay panel by using the
handle as a guide.
3.
Use a 3/16” (5mm) drill bit to the make the holes on the overlay panel for the screws.
4.
Insert the screws, making sure to leave the head of the screw flush with the surface of the panel (countersink
screws if necessary).
5.
Take the studs you saved in Step 1 and screw them back. They are now projecting from the face of the panel.
6.
Place the handle over the mounting studs and, using the supplied Allen key, tighten the securing grub screws
to fix the handle. Refer to “Installing a Stainless Steel Handle”.
If using a customer supplied handle(s):
1.
Attach the handle to the overlay panel by using flat head or countersunk screws.
2.
Unscrew the studs located on the front face of the door and save them for later possible use.
NOTE: This design will leave a 3mm gap between the panel and the unit door.
If you do not want the 3mm gap, you will have the option to route the wood according to the bracket’s dimensions.
Then proceed to install the bracket following the instructions below.
17
Installing the Bracket
1.
Lay the wooden panel (3) on a flat surface.
2.
Place the top bracket (4) along the edge of the panel.
3.
Attach the bracket (4) to the wooden panel by using three ½” Phillips self-tapping screws (1).
4.
Repeat steps 2-3 for the bottom bracket (2) .To prepare the unit for panel installation, remove the lock
bracket (8) and magnetic activator (5) from the bottom of the door and remove the magnetic activator (5) &
hole plugs (6) from the top of the door. This is done by removing the screws that attach the lock bracket and
magnetic activators to the door.
5.
We recommend you leave the factory-installed protective film to protect the door and prevent
scratching while installing the panel.
6.
Open the unit’s door all the way. Then, carefully slide the bracketed wooden panel onto the unit’s door (7).
7.
To complete the installation, attach the bracket to the door by inserting two ½” Phillips self-tapping screws (9)
through the bracket and into the unit’s door, one on each end of the bracket.
8.
Reinstall the lock bracket, hole plugs, and magnetic activators.
1 2
3
1 2
3 9
5
6
7
8
5
4
Door Panel Installation Method 2:
This method will leave the panel flush with the door but will require some drilling into the unit’s door.
1.
Peel off the gasket (4) and remove the handle by removing
the two screws that attach the handle to the door.
2.
Drill the 8 holes shown by using a 3/16” drill bit inside the
door groove on the four sides of the door front (2).
3.
Cut the overlay panel (1) to a thickness of 3/4” to the
dimensions corresponding to your model. The height of the
panel should be 3/80” [1mm] greater than the height of the
door and the width of the panel should be 5/32” [4mm] wider
than the door, except for models FFRF24SS,
FFRF3070BPNR, DBFDRF2497, and DBFDRF3098, where
the width should be 5/64” [2mm] more than the door width.
4.
Attach the handle to the overlay panel by using the flat
head screws and drive the screws flush with the panel.
5.
Then attach the overlay panel to the door face using the 8 wood screws #10x1½ (ST4x38) (3) and
through the 8 existing holes inside the door groove.
6.
Reinstall the gasket.
1 2 3 4
NOTE: The two brackets must be horizontally spaced according to the specific dimensions of your unit’s door.
18
OPERATING YOUR APPLIANCE
It is recommended you install the appliance in a place where the ambient temperature is between 44ºF and 90ºF (7ºC
to 32ºC). If the ambient temperature is above or below the recommended temperatures, the performance of the unit
may be affected. For example, placing your unit in extremely cold or hot conditions may cause interior temperatures
to fluctuate. The optimal temperature range may not be reached.

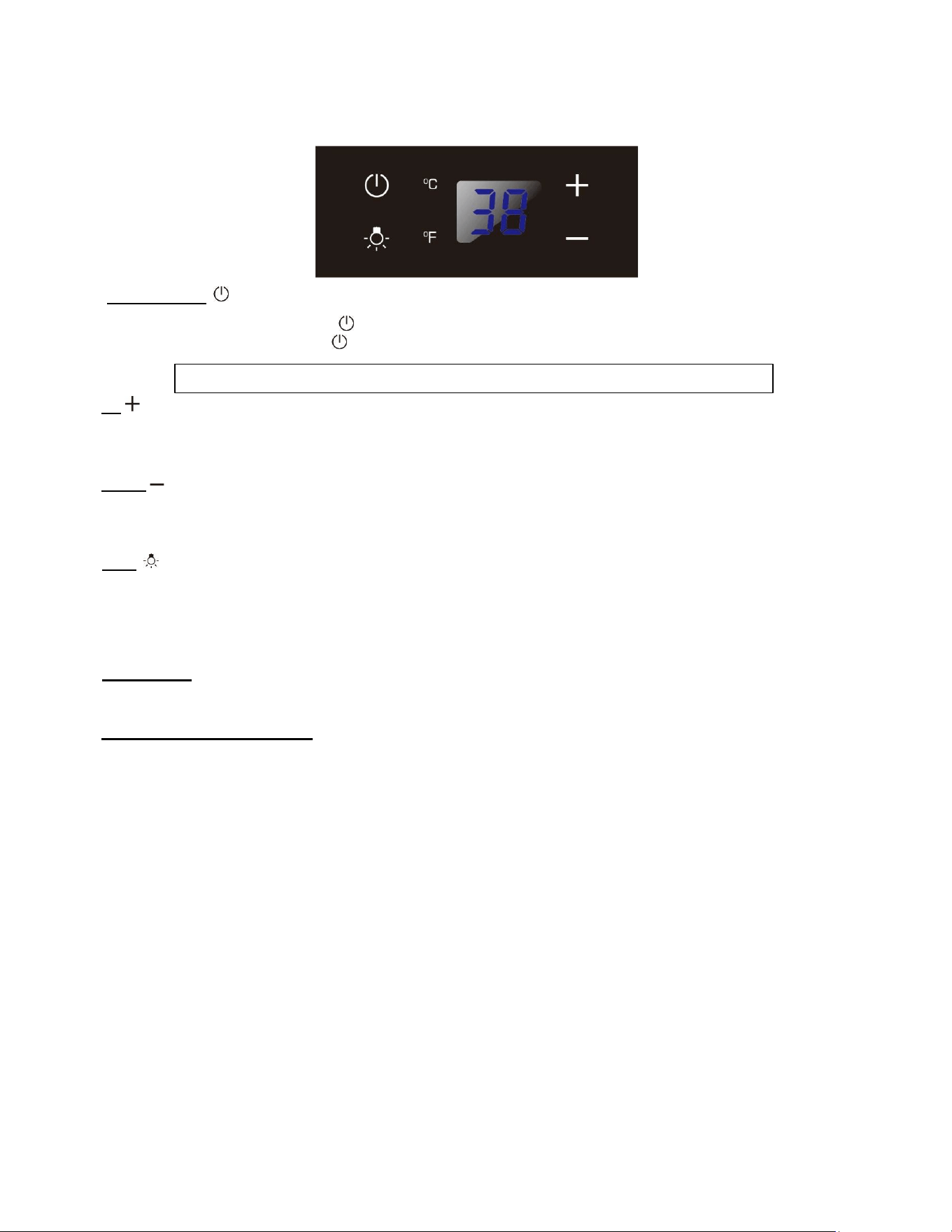

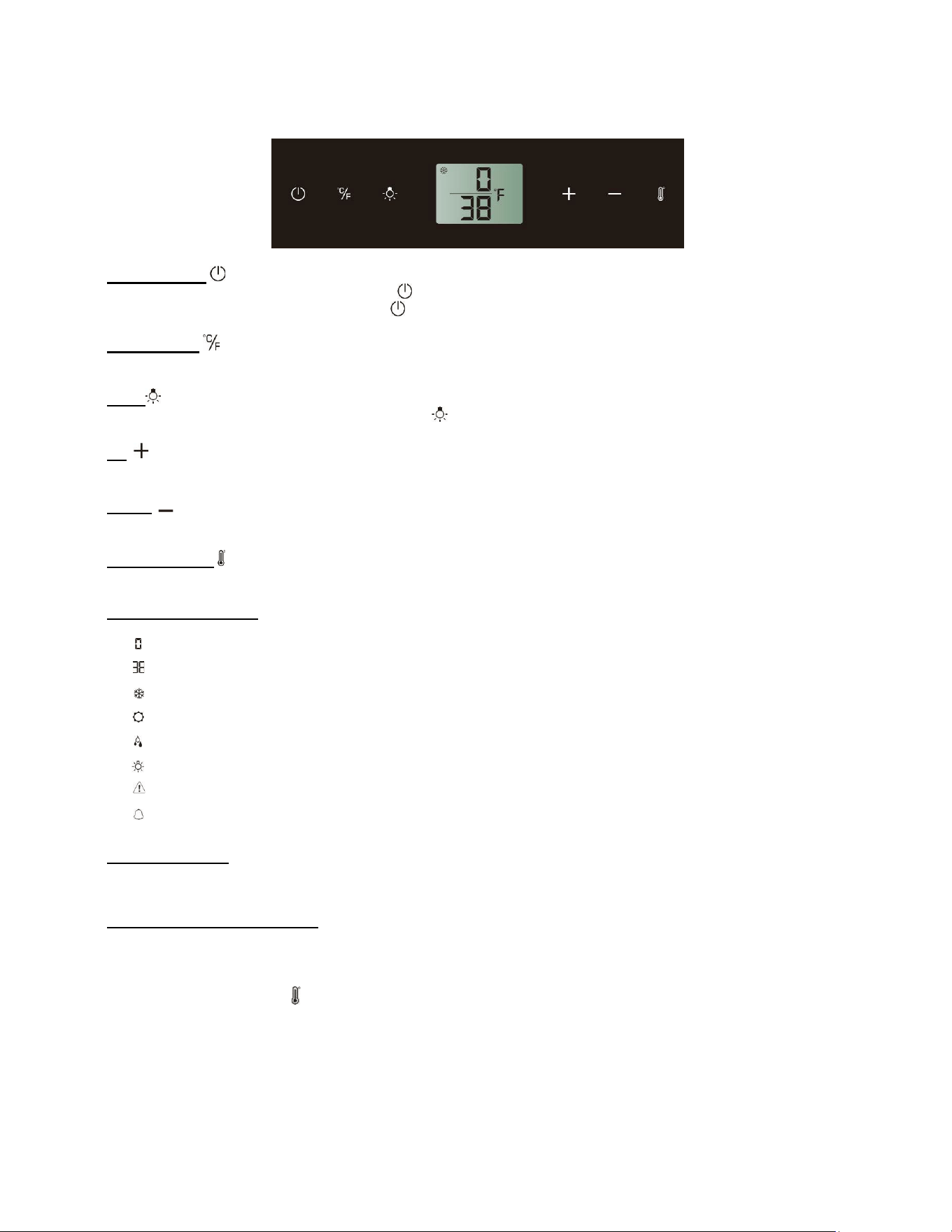

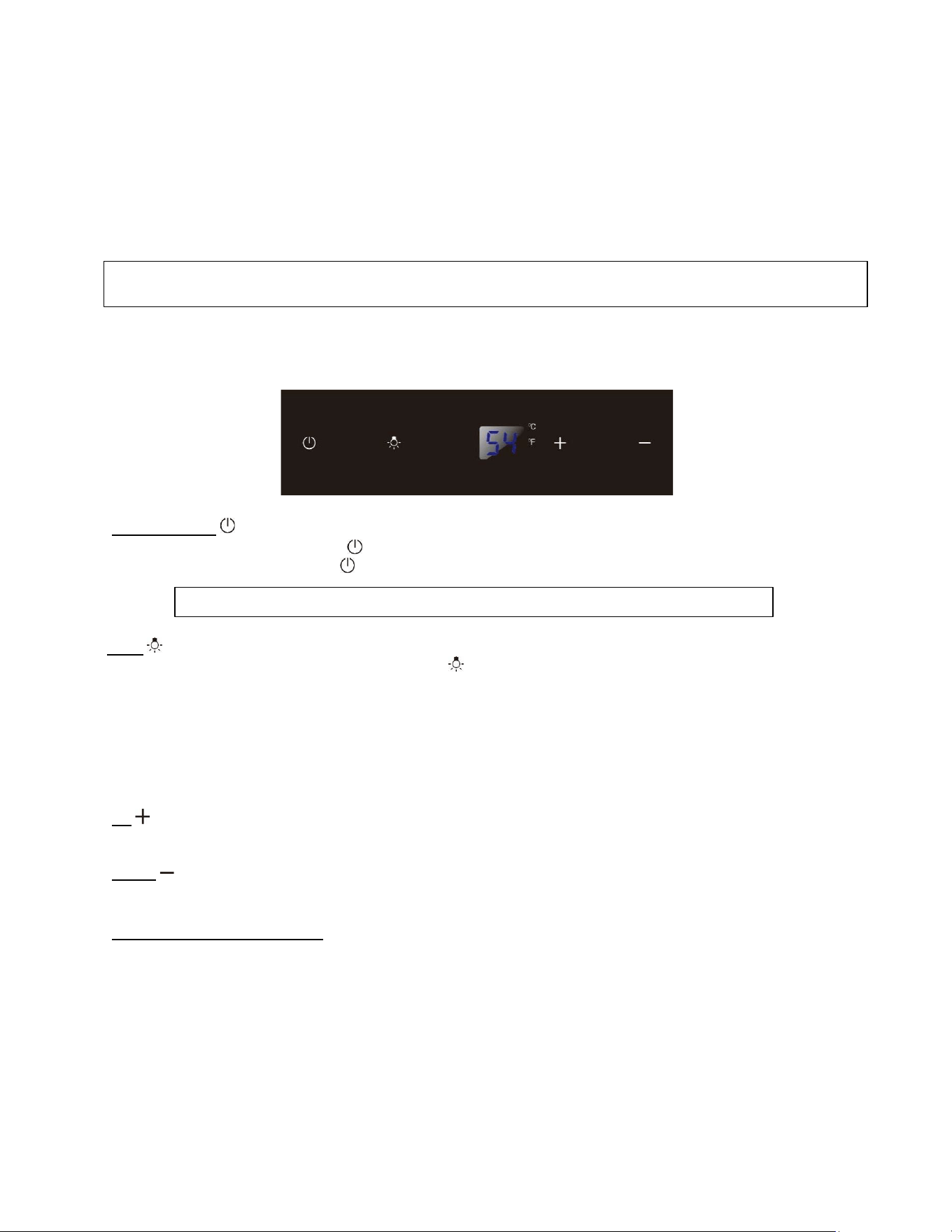

Control Panel
(Refrigerator)
ON/OFF Power
To turn the appliance OFF, press the symbol and hold for 5 seconds.
To turn the appliance ON, press the symbol and hold for 1 second.
Light
To turn the interior light ON/OFF, press and hold the key for 5 seconds. The interior light indicator at the bottom
right of the display will light up or go out to confirm the selection.
The interior light makes it easy to view your items. Press and hold the LIGHT symbol for 5 seconds to toggle between
2 modes of operation for the internal lights, Functional Mode (default) and Showcase Mode.
• Functional Mode (default): The light will turn on when the door is open.
• Showcase Mode: The light will remain on if the door is closed.
UP
Used to increase (warm) the set temperature by 1ºF/1°C.
DOWN
Used to decrease (cool) the set temperature by 1ºF/1°C.
Setting the Temperature Control
• Set the temperature by pressing the UP and DOWN keys. Pressing either key for the first time, the LED readout will display
the last temperature setting. (The temperature is preset to 38°F / 3°C).
• To set the temperature, press the UP key to increase by 1°F / 1°C with each press. Press the DOWN key to decrease by 1°F
/ 1°C with each press.
• The range of the temperature control is from 36°F to 43°F (2°C to 6°C).
• To view the set temperature at any time, press the UP or DOWN key. The set temperature will flash in the display window for
5 seconds. After 5 seconds, the temperature inside the unit will reappear on the display window.
NOTE: Control panels may vary by model. Please compare the design of the control panel shown on the following
pages with your unit to find the corresponding instructions for your specific model.
NOTE: Pressing the POWER key once will switch off the audible alarm when the alarm is on.
19
Control Panel
(Refrigerator)
ON/OFF Power
To turn the appliance OFF, press the symbol and hold for 5 seconds.
To turn the appliance ON, press the symbol and hold for 1 second.
UP
Used to increase (warm) the set temperature by 1°F/1ºC.
Silent Mode: Press and hold the UP key for 5 seconds. Three beeps will confirm the selection.
DOWN
Used to decrease (cool) the set temperature by 1°F/1ºC.
Dynamic Cooling Mode: Press and hold the DOWN key for about 5 seconds. Five beeps will confirm the selection.
Light
Pressing the LIGHT key toggles between 2 modes of operation for the internal lights, Functional Mode (default) and Showcase
Mode.
• Functional Mode (default): The light will turn on when the door is open.
• Showcase Mode: The light will remain on if the door is closed.
ºF/ºC Selector
To toggle the temperature display between Fahrenheit (ºF) and Celsius (ºC), press and hold the LIGHT key for 5 seconds.
Setting the Temperature Control
• Set the temperature by pressing the UP and DOWN keys. Pressing either key for the first time, the LED readout will display the
last temperature setting. (The temperature is preset to 38°F / 3°C).
• To set the temperature, press the UP key to increase by 1°F / 1°C with each press. Press the DOWN key to decrease by 1°F / 1°C
with each press.
• The range of the temperature control is from 36°F to 43°F (2°C to 6°C).
• To view the set temperature at any time, press the UP or DOWN key. The set temperature will flash in the display window for 5
seconds. After 5 seconds, the temperature inside the unit will reappear on the display window.
NOTE: Pressing the POWER key once will switch off the audible alarm when the alarm is on.
20
Control Panel
(Refrigerator)
ON/OFF Power
To turn the appliance OFF, press and hold the key for 5 seconds until the temperature display goes off.
To turn the appliance ON, press and hold the key for 1 second until the temperature display lights up.
UP +
Used to increase (warm) the set temperature by 1°C/1ºF.
DOWN -
Used to decrease (cool) the set temperature by 1°C/1ºF.
ºF/ºC Selector
Select the temperature display in Fahrenheit or Celsius.
Indicator Light
The indicator light is the dot located at the bottom right corner of the display. The indicator light will be on when a
multi-key function is selected. To perform a multi-key function, press and hold the first key, then touch the second
key for at least 5 seconds and then release both keys.
Setting the Temperature Control
• You can set the temperature by pressing the UP and DOWN symbols. Pressing either key for the first time, the LED readout
will display the last temperature setting. (The temperature is preset to 38°F / 3°C).
• To set the temperature, press the UP key to increase by 1°F / 1°C with each press. Press the DOWN key to decrease by 1°F /
1°C with each press.
• The range of the temperature control is from 36°F to 43°F (2°C to 6°C).
• To view the set temperature at any time, press the UP or DOWN key. The set temperature will flash in the display window for
5 seconds. After 5 seconds, the temperature inside the unit will reappear on the display window.
NOTE: Pressing the POWER key once will switch off the audible alarm when the alarm is on.
21

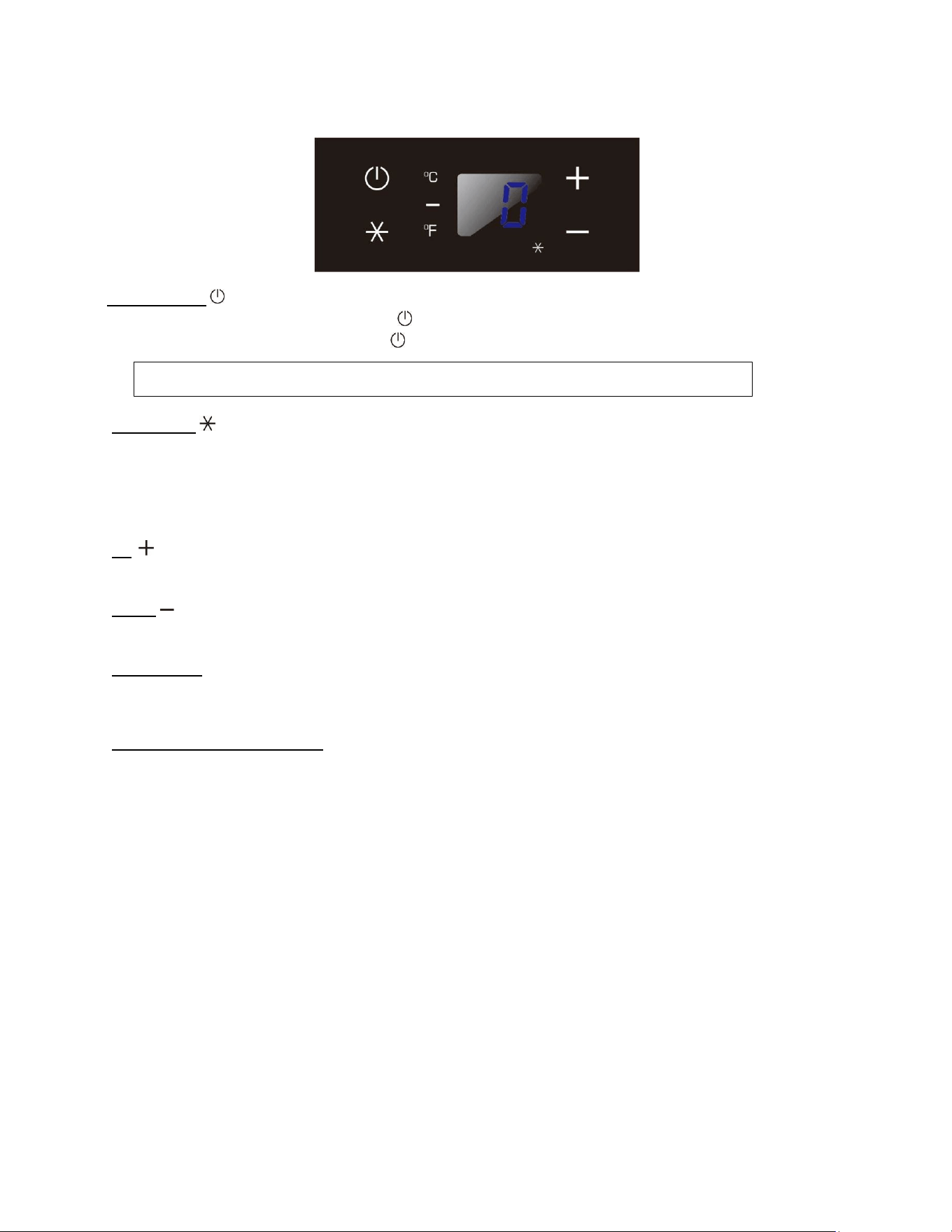

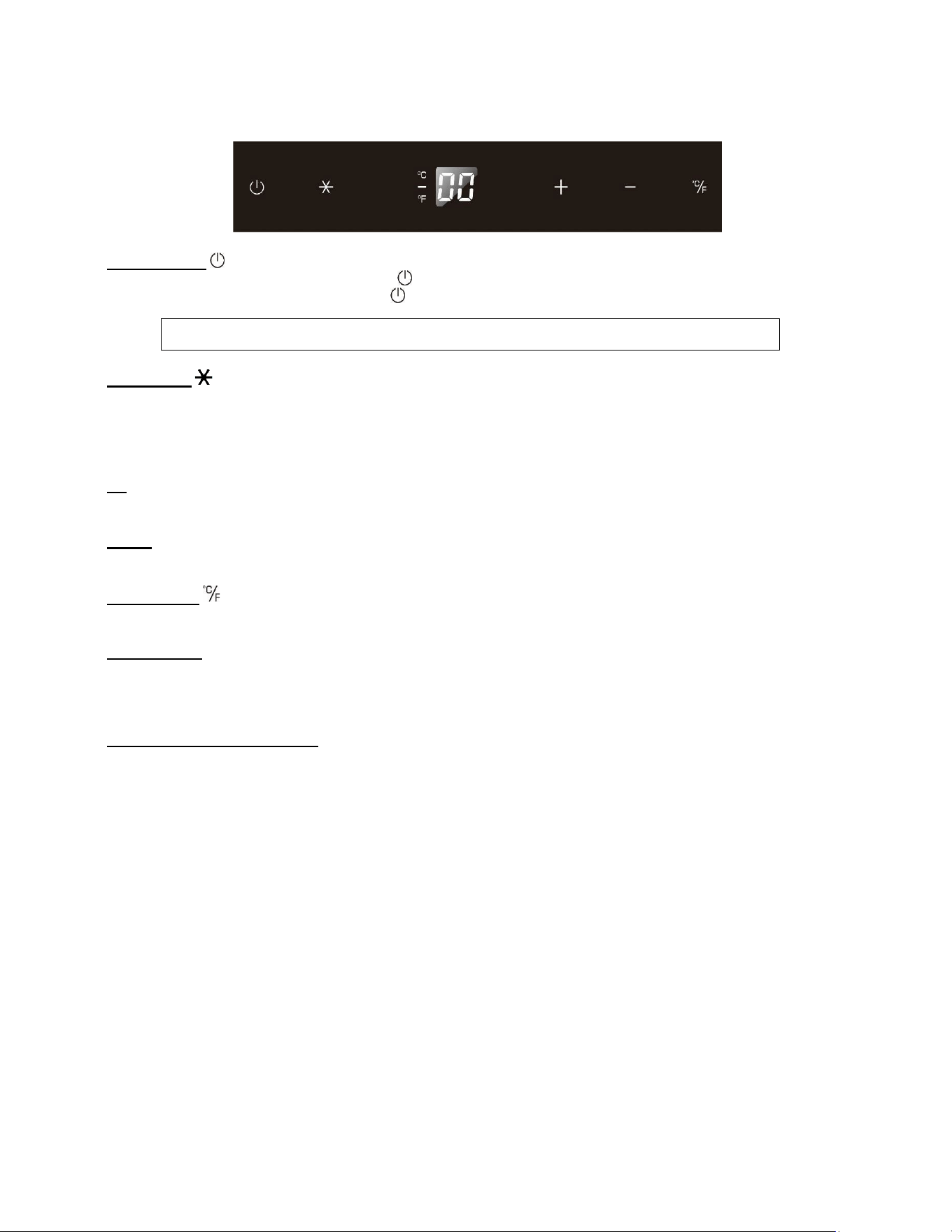

Control Panel
(Freezer)
ON/OFF Power
To turn the appliance OFF, press and hold the key for 5 seconds until the temperature display goes off.
To turn the appliance ON, press and hold the key for 1 second until the temperature display lights up.
SuperFreeze
The SuperFreeze function quickly freezes fresh food by overriding the thermostat control, allowing the compressor to
run continuously. It is not necessary to adjust the thermostat when using this function.
When activated, the SuperFreeze indicator (light at the bottom right of the display) will light up. Press the
SuperFreeze key again to cancel; the indicator will turn off. SuperFreeze turns off automatically after 8 hours.
UP
Used to increase (warm) the set temperature by 1°F/1ºC.
DOWN
Used to decrease (cool) the set temperature by 1°F/1ºC.
ºF/ºC Selector
Select the temperature display setting in Fahrenheit or Celsius degree. To change the temperature from Fahrenheit
to Celsius or from Celsius to Fahrenheit, press and hold the SUPERFREEZE key for 5 seconds.
Setting the Temperature Control
• Set the temperature by pressing the UP and DOWN keys. Pressing either key for the first time, the LED readout will display
the last temperature setting. (The temperature is preset to 0°F / -18°C).
• To set the temperature, press the UP key to increase by 1°F / 1°C with each press. Press the DOWN key to decrease by 1°F
/ 1°C with each press.
• The range of the temperature control is from -11°F to 11°F (-24°C to -12°C).
• To view the set temperature at any time, press the UP or DOWN key. The set temperature will flash in the display window for
5 seconds. After 5 seconds, the temperature inside the unit will reappear on the display window.
NOTE: Pressing the POWER key once will switch off the audible alarm when the alarm is on.
22
Control Panel
(Freezer)
ON/OFF Power
To turn the appliance OFF, press and hold the key for 5 seconds until the temperature display goes off.
To turn the appliance ON, press and hold the key for 1 second until the temperature display lights up.
SuperFreeze
The SuperFreeze function quickly freezes fresh food by overriding the thermostat control, allowing the compressor to
run continuously. It is not necessary to adjust the thermostat when using this function.
When activated, the SuperFreeze indicator (light at the bottom right of the display) will light up. Press the SuperFreeze
key again to cancel; the indicator will turn off. SuperFreeze turns off automatically after 8 hours.
UP +
Used to increase (warm) the set temperature by 1°C/1ºF.
DOWN -
Used to decrease (cool) the set temperature by 1°C/1ºF.
ºF/ºC Selector
Select the temperature display in Fahrenheit or Celsius.
Indicator Light
The indicator light is the dot located at the bottom right corner of the display. The indicator light will be on when a
multi-key function is selected. To perform a multi-key function, touch and hold the first key, then touch the second
key for at least 5 seconds and then release both keys.
Setting the Temperature Control
• Set the temperature by pressing the UP and DOWN keys. Pressing either key for the first time, the LED readout will display
the last temperature setting. (The temperature is preset to 0°F / -18°C).
• To set the temperature, press the UP key to increase by 1°F / 1°C with each press. Press the DOWN key to decrease by 1°F /
1°C with each press.
• The range of the temperature control is from -11°F to 11°F (-24°C to -12°C).
• To view the set temperature at any time, press the UP or DOWN key. The set temperature will flash in the display window for
5 seconds. After 5 seconds, the temperature inside the unit will reappear on the display window.
NOTE: Pressing the POWER key once will switch off the audible alarm when the alarm is on.
23
Control Panel
(Refrigerator/Freezer)
ON/OFF Power
To turn the appliance OFF, press and hold the key for 5 seconds until the temperature display goes off.
To turn the appliance ON, press and hold the key for 1 second until the temperature display lights up.
ºF/ºC Selector
Set the temperature to be displayed in Fahrenheit or Celsius.
Light
To turn the interior light ON/OFF, press and hold the key for 5 seconds.
UP
To increase (warm) the set temperature by 1°C or 1ºF.
DOWN
To decrease (cool) the set temperature by 1°C or 1ºF.
Setting Selector
Select the temperature you want to set.
Symbols in the Display
Left Zone – Freezer Compartment: Temperature or Error code
Right Zone – Refrigerator Compartment: Temperature or Error code display for
Compressor is ON.
Heater is ON.
Defrosting Mode.
The interior light is in Showcase Mode.
Warning
Audible tones signal
Multi-key Function
To perform the multi-key function, lightly touch and hold the first key, then touch the rest key for at least 5 seconds and
then release all the keys.
Setting the Temperature Control
The unit has two separate temperature compartments. The left compartment is a freezer, and the right compartment is a
refrigerator. When the unit is plugged in for the first time, the unit will power up automatically to the preset defaults. The preset
temperature at the factory is 38°F/3°C for refrigerator compartment and 0°F/-18°C for freezer compartment.
•
Tap the Setting Selector until the temperature you want to set is flashing. Then you can use the UP and DOWN
keys to set the internal temperature as required. Pressing either key for the first time, will display the last
temperature setting.
•
To set the temperature, press the UP key to increase by 1°F / 1°C with each press. Press the DOWN key to
decrease by 1°F / 1°C with each press.
•
The set temperature will temporarily flash in the display for 5 seconds after the temperature has been set.
Then the display shows the current inner temperature again.
•
The range of the temperature control for refrigerator compartment is from 36°F to 43°F (2°C to 6°C).
24
•
The range of the temperature control for freezer compartment is from -11°F to 11°F (-24°C to -12°C).
•
To view the set temperature at any time, touch the Setting Selector key, the set temperature will temporarily
flash in the display for 5 seconds. Then the display shows the current inner temperature again.
Settings Mode
Certain settings on the refrigerators can only be selected in Settings Mode.
Press and hold the UP key for 5 seconds to enter and leave Settings Mode. The appliance will leave Settings Mode
automatically after approximately one minute.
ºF/ºC Selection
1.
Press and hold the UP key for 5 seconds to enter Settings Mode.
2.
Use the UP and DOWN keys to select the temperature display setting in Fahrenheit or Celsius.
3.
Press and hold the UP key for 5 seconds to confirm the selection.
Display Brightness
1.
Press and hold the UP key for 5 seconds to enter Settings Mode and then touch the POWER key once.
2.
Use the UP and DOWN keys to select the brightness of the display when the door is closed. When the door
is open, the display brightness returns to its normal level.
•
d0: off
•
d1: dimmest setting (default)
•
d2: medium setting
•
d3: brightest setting
3.
Press and hold the UP key for 5 seconds to confirm the selection.
Interior Lighting Brightness
1.
Press and hold the UP key for 5 seconds to enter Settings Mode and then press the POWER key twice.
2.
Use the UP and DOWN keys to select the brightness of the interior lighting when the door is closed. When the
door is open, the interior lighting returns to its normal level.
•
L0: off when the door is close or open
•
L1: dimmest setting
•
L2: medium setting
•
L3: brightest setting (default)
3.
Press and hold the UP key for 5 seconds to confirm the selection.
Fan Mode
1.
Press and hold the UP key for 5 seconds to enter Settings Mode and then touch the POWER key three (3) times.
2.
Use the UP and DOWN keys to select the Fan Mode.
•
F0: Silent mode - Energy saving mode (default)
•
F1: DynaClima mode - half time
•
F2: DynaClima mode - full time
3.
Press and hold the UP key for 5 seconds to confirm the selection.
Audible Tones
1.
Press and hold the UP key for 5 seconds to enter Settings Mode and then press the POWER key four (4) times.
2.
Use the UP and DOWN keys to select the audible tones.
•
S0: sensor tone ON, alarm tone OFF
•
S1: sensor tone ON, alarm tone ON (default)
•
S2: sensor tone OFF, alarm tone OFF
•
S3: sensor tone OFF, alarm tone ON
3.
Press and hold the UP key for 5 seconds to confirm the selection.
25
Interior Light
The unit is equipped with interior LED lights which will turn ON when a door is opened. The interior LED lights are
designed for long life and are not user replaceable. For replacement assistance, please contact our service
department.
Sabbath Mode
Sabbath Mode is available for the observance of certain religious holidays. This mode turns off the displays, interior
light, and audible alarms and prevents them from turning on again. Normal cooling operations will still take place.
To initiate Sabbath Mode, press the POWER and LIGHT or SUPERFREEZE or ºC/F keys at the same time for at
least 5 seconds. The temperature display will go out to confirm that the Sabbath Mode is ON.
Sabbath Mode can be canceled by repeating the above process. The Sabbath Mode will automatically turn OFF after
96 hours.
Temperature Memory Function
In the event of a power interruption the unit can remember the previous temperature settings, and when the power is recovered,
the cabinet temperature will return to the same setting temperature as before the power went off.
Defrosting
•
The unit defrosts automatically in normal operating conditions.
•
The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in the drainage
channel behind the rear wall of the unit and flows through the drainage hole into the drip tray by/above the
compressor where it evaporates.
•
However, frost may accumulate on the evaporator if the unit is repeatedly opened in a high heat or high humidity
location. If this frost pattern does not clear within 24 hours, your unit will require manual defrosting.
Using the Freezer (if available)
•
These freezers are designed for the long-term storage of frozen food. Storage time is up to three months.
•
The storage life of frozen foods varies, and the recommended storage time should not be exceeded.
•
Pre-packaged commercially frozen food should be stored in accordance with the frozen foods manufacturer’s
instructions for a three-star frozen food storage compartment or home freezer.
•
Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet,
carefully follow these instructions regarding storage times.
Ice Maker (if available)
Make sure the water supply is ON and lower the metal arm on the ice maker to its ON position. As soon as the inner
mechanism reaches the proper temperature, the ice maker will fill the mold with water.
The first cubes may be small because of air in the water line. Later cubes will be of standard crescent moon type
size.
For the first time to use:
• Let the ice maker make ice for 1-2 days.
• Discard the first 2-3 batches of ice to remove the impurities in the water supply system. When the ice bucket is full, the ice
making mechanism will automatically shut off.
Ice production may be interrupted by raising the metal arm to the OFF position.
If the ice maker is not used regularly, it is recommended that the ice bucket be emptied periodically to insure fresh
ice.
CAUTION: For models with ice maker, switch the ice maker off when initiating the Sabbath mode.
NOTE: Only use the original LED light fittings provided by the manufacturer.
26
Temperature Alarm / Door Alarm
•
An audible alarm sounds if the storage temperature is not cold enough. The temperature display flashes at the
same time.
•
The cause of the temperature being too high may be:
–
Warm fresh food was placed inside
–
Too much warm ambient air flowed in when rearranging and removing food
–
Power failure for some time
–
The appliance is faulty
•
The audible alarm is automatically silenced, and the temperature display stops flashing when the temperature is
sufficiently cold again.
•
If the door has been left open for more than 60 seconds, the alarm will sound. Pressing the POWER key
once can switch off the audible alarm.
Door Lock
Your unit provided a lock and key combination.
The keys are located inside the plastic bag that contains the User Manual.
Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door, do the reverse operation, ensure the
metal pin is engaged completely. Remove the key and put it in a secure place for safekeeping.

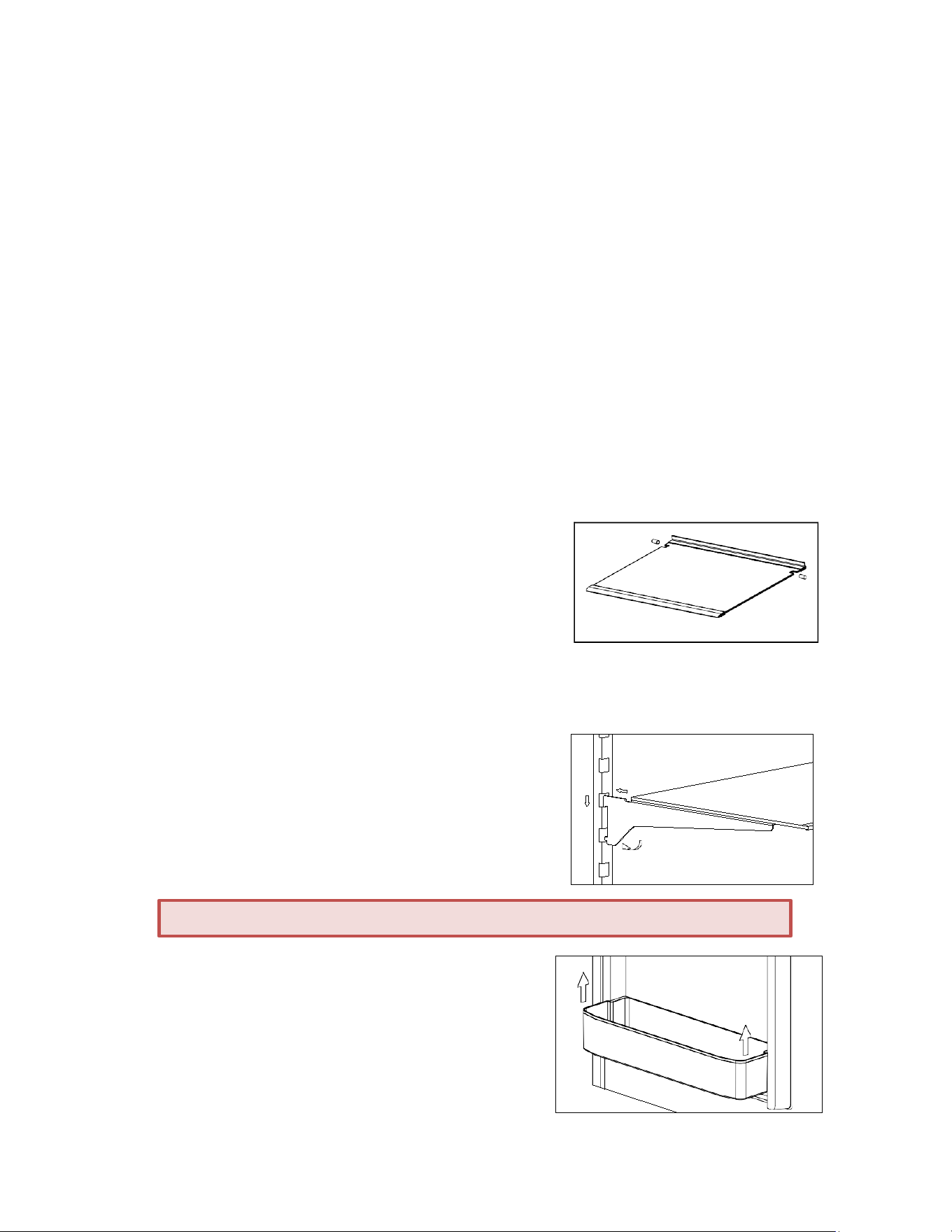

Shelves
(Only for Models FF1532BSS / SCFF1533BSS / AL54PNR / FF64BSS / SCFF53BSS / FFRF24SS)
To prevent damaging the door gasket, make sure to have the door all the way open when pulling the shelves out of the
rail compartment.
•
Any of the shelves can be removed to store larger items.
•
When removing the shelf from the rail compartment, make sure
to remove all items first. Then move the shelf to the position
where the notch of the shelf is exactly under the plastic post and
lift the shelf. In order to replace the shelf, repeat the steps
described above in reverse.
Cantilevered Shelves
(Only for Models ASDS1523 / SDHR1534 / ASDS2413 / SDHR2444 / SPR618OSADA / DBAR1523ASD / DBAR1525SD /
DBAR2424ASD / DBAR2426SD / DBAROS2428ASD / SCR610BLSD)
Any of the shelves can be removed to store larger items.
•
When removing the shelf, make sure to have the door all the
way open and remove all items first. Hold the front of the shelf,
and then gently lift up and move out toward you.
•
In order to replace the shelf, hold the shelf at an angle so the
front is higher than the back, and then insert the top hook into
the notch of clip-in strip. Then, lower the shelf and insert the
bottom shelf hook into the notch of clip-in strip.
Door Racks
To remove, lift it up and then pull out straight.
CAUTION: When removing or replacing the shelf, use caution not to scratch the sides of the unit.
27
CARE AND MAINTENANCE
Cleaning your Appliance
•
Turn off the power, unplug the appliance, and remove all items, including shelves.
•
Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of baking soda to
a quart of water).
•
Wash the shelves with a mild detergent solution.
•
Wring excess water out of the sponge or cloth when cleaning the area where the controls are located, or any
electrical parts.
•
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean,
soft cloth.
•
Use an approved stainless steel cleaner to clean the doors and handles. Do not use steel wool or a steel brush
on the stainless steel.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you
minimize the number of times the doors are opened. If the power is going to be off for a longer period of time, you
need to take the proper steps to protect the contents.
Vacation
•
Short vacations: Leave the appliance operating during vacations of less than three weeks.
•
Long vacations: If the appliance will not be used for several months, remove all items and turn off the
appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the doors open
slightly, blocking them open if necessary.
Moving your Appliance
1.
Remove all items.
2.
Securely tape down all loose items (shelves) inside the appliance.
3.
Turn the adjustable legs up to the base to avoid damage.
4.
Tape the doors shut.
5.
Be sure the appliance stays secure in the upright position during transportation. Also, protect the outside of the
appliance with a blanket or similar item.
Energy-Saving Tips
•
The appliance should be located in the coolest area of the room or outdoor location, away from heat-producing
appliances and out of direct sunlight.
•
Ensure that the unit is adequately ventilated. Never cover air vents.
•
Do not keep the doors open any longer than necessary.
•
Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the compressor to
run longer.
•
Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts down on
frost build-up inside the unit.
•
Unit shelves and storage bins should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making the unit less efficient.
•
Organize and label food to reduce door openings and extended searches. Remove as many items as needed at
one time and close the door as soon as possible.
CAUTION: Failure to unplug the appliance during cleaning could result in electrical shock or other personal injuries.
28
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if
you can solve the problem before calling the servicer.
PROBLEM
POSSIBLE CAUSE
REMEDY
Appliance
does not
operate.
Appliance is not connected to a power supply.
The appliance is turned off.
Tripped circuit breaker or blown fuse
Connect the appliance.
Switch on the appliance.
Switch on circuit breaker or replace fuse.
Appliance is
not cold
enough.
The temperature is not set correctly.
The ambient temperature could require a lower
temperature setting.
Drawers were opened too often.
A drawer was not closed completely.
Drawer is not hermetically sealed.
The condenser is too dirty.
The ventilation opening is blocked or too
dusty.
Check the set temperature. Set a
lower temperature.
Do not open drawers more often than
necessary.
Close drawer properly.
Check the seal and clean or replace. Clean
the condenser when necessary.
Clear the obstructions and clean off the dust.
Appliance turns
itself on and off
frequently.
The room temperature is higher than average.
A large amount of food has been added to the
unit.
Drawers are opened too often.
A drawer is not closed completely.
A drawer gasket does not seal properly.
Put the appliance in a cooler place.
Leave the appliance to work for a while until
the set temperature has been reached.
Do not open the drawers more often than
necessary.
Close drawer properly.
Check the drawer seal and clean or replace it.
The light
does not
work.
Appliance is not connected to a power supply.
Tripped circuit breaker or a blown fuse.
The light was switched off on the control panel.
Connect the appliance.
Switch on circuit breaker or replace fuse.
Switch on the light.
Vibrations
The appliance is not properly leveled.
Level the appliance with the adjustable feet.
The appliance
seems to make
too much
noise.
The rattling noise may come from the flow of the refrigerant, which is normal. As each cycle
ends, you may hear gurgling sounds caused by the flow of refrigerant in your appliance.
If temperature fluctuations occur, the contraction and expansion of the inner walls may cause
popping and crackling noises.
The appliance is not properly leveled.
Level the appliance with the adjustable feet.
One or more of the following sounds is heard:
-
Buzzing
-
Trickling water
-
Thud (clatter of ice)
The water valve is operating.
Water is entering the icemaker to fill cup.
Ice is being dumped into the ice bin.
Drawers
will not close
properly.
The appliance is not properly leveled.
The gaskets are dirty.
The racks or bins are out of position.
Level the appliance with the adjustable feet.
Clean the drawer gaskets.
Check the racks and bins and refit correctly.
29
Display “E0”,
“E1”. “E2”,
“E3”, “E4”,
“E5” or “E7”.
“E0” indicates a communication error for 3 zone
models.
“E1” or “E2” indicates that the air temperature
sensor has failed.
“E3” or “E4” indicates that the defrost
sensor in the evaporator has failed.
“E5” indicates defrost heater failure. “E7”
indicates door switch failure.
Call for service.
The alarm
sounds and
the
temperature
display
flashes.
Has a drawer been open for longer than 60
seconds? If not, then the temperature has
risen higher or fallen lower than the
temperature that has been set. This could be
due to:
The appliance drawers being opened too often.
The ventilation opening being covered or too
dusty.
A lengthy interruption in the power supply.
A large amount of food has been added to the
unit.
If yes, close the drawer.
Do not open drawers more often than
necessary.
Clear the obstructions and clean off the dust.
Leave the appliance to work for a while until
the set temperature has been
reached.
The icon “--” is lit
and flashing in
the temperature
display.
The display temperature is out of range.
Only temperatures within the range
16~99°F/-9~37°C for refrigerators and the
range -99~99°F/-73~37°C
for freezers can be displayed. If the
temperature is not within this range,
the icon “--” will be displayed
instead. This is
normal.
Ice tastes
stale.
The ice is old.
Make a new batch.
Water in
icemaker
overflows
Refrigerator or icemaker is not level.
If the icemaker still overflows after leveling.
Level the appliance with the adjustable feet.
Water pressure must be 20-80 psi. Turn off
the icemaker’s water supply at the shut-off
valve and raise the icemaker’s bail arm to
the “off” position (see previous page); then
contact your
local service center.
Not enough
ice.
It will take 48 hours to fill the ice bucket. The
icemaker will make ice every 2 to 3 hours.
For more ice, adjust the freezer control to a
colder setting.
Ice making
has stopped.
Be sure that the bail arm is lowered to its ON
position. Make sure that the water
shut-off valve is open. The water shut-off valve
or the water valve screen is clogged.
Contact your local service center.
If you have checked the information above and you still need help with your appliance, call our Customer Service
facility at 800-932-4267 (Ext. 513) between 9:00 AM and 5:00 PM ET or visit our website
summitappliance.com/support at any time. We will do our best to answer your questions.
To order replacement parts, visit our website: summitapplianceparts.com
30
NOTES
31
WARNING: This product can expose you to chemicals including Nickel
(Metallic) which is known to the State of California to cause cancer.
For
more information go to www.P65Warnings.ca.gov
Note: Nickel is a component in all stainless steel and some other metallic compositions.
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Warranty coverage is available within the 48 contiguous United States, along with select areas of Alaska, Hawaii, and Canada.
For locations not covered, consumers can either contact a local provider or coordinate with Felix Storch, Inc. to find nearby
service options, which may qualify for partial reimbursement.
The warranty for this appliance is valid for one year from the date of purchase, provided the appliance is operated and
maintained according to the instructions included with the product. The warrantor will cover the cost of factory-specified parts
and repair labor needed to correct defects in materials or workmanship. Service must be performed by a designated service
company.
All parts, except the compressor, are warranted for one year against manufacturing defects. Plastic parts, shelves, and cabinets
are produced to commercially acceptable standards but are not covered for damages incurred during handling or for breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or
repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are
excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not
in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the 48 contiguous United States, along with select
areas of Alaska, Hawaii, and Canada.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in
accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED
HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS
ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS
MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS,
WHICH VARY FROM STATE TO STATE.
CALIFORNIA CARB/SNAP DISCLOSURE
This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB regulations.
However, we are required by California Law to provide the following disclosure statement in every product sold in California.
"This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances' for that specific
end-use, in accordance with California Code of Regulations, title 17, section 95374. This disclosure statement has been
reviewed and approved by Felix Storch, Inc. and Felix Storch, Inc. attests, under penalty of perjury, that these statements are
true and accurate."
This product does not use any refrigerants on the 'List of Prohibited Substances’
32
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com
Revised: 2026-01-21
