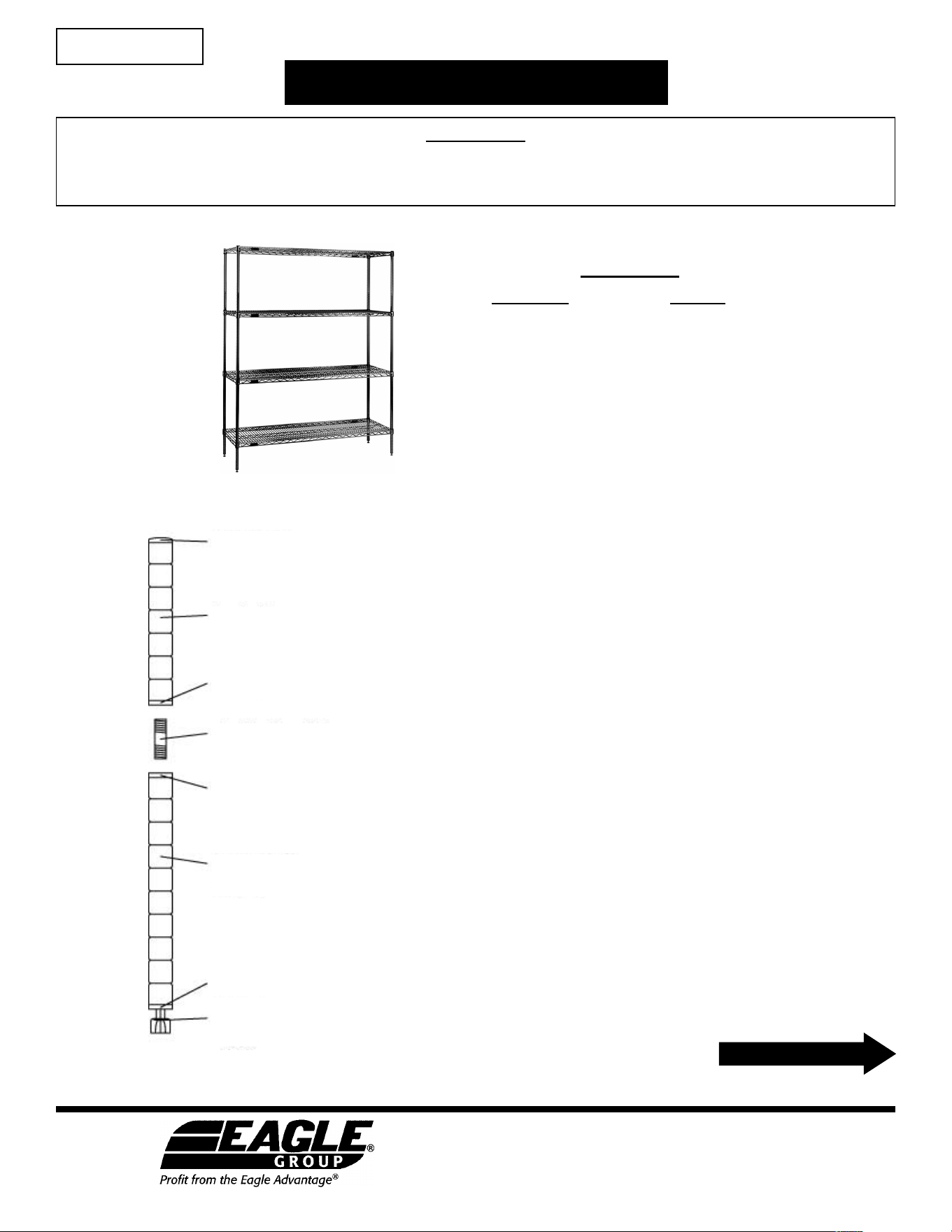

RediPak
®
post w/ components shown
Post Assembly
1. Unpack carton to confirm amount and identity of
components.
2. Lower post
Take the lower post half (lower post half has a casting
assembled to both ends) and screw one threaded rod into the
top and one leveling bolt into the bottom.
3. Upper post
Take the upper post and screw it into the threaded rod of the
lower post half. Ensure there is a secure fit between the two
posts.
4. Repeat Steps 2 and 3 for the remaining posts. When all
posts are assembled, follow the shelving assembly
instructions to assemble the shelving unit.
4 shelf unit shown assembled
plastic cap
top half
of post
casting
casting
double threaded
bolt
casting
bottom half
of post
leveling
bolt
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
EG9832 Revised 06/23
ASSEMBLY INSTRUCTIONS
RediPak
®
Shelving
INSTRUCTION SHEET
#A203656
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
Parts List
description quantity
• shelf............................... *
• split sleeves pack.......... *
• hardware pack containing:
leveling bolts ..............four (4) per pack
threaded bolts............four (4) per pack
• upper post half..............four (4)
• lower post half...............four (4)
* quantity of 4 or 5, dependent on kit ordered
(continued on back page)
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
ASSEMBLY INSTRUCTIONS
RediPak
®
Shelving
fig. 2
fig. 3
fig. 4
fig. 5
fig. 1
(
End
)

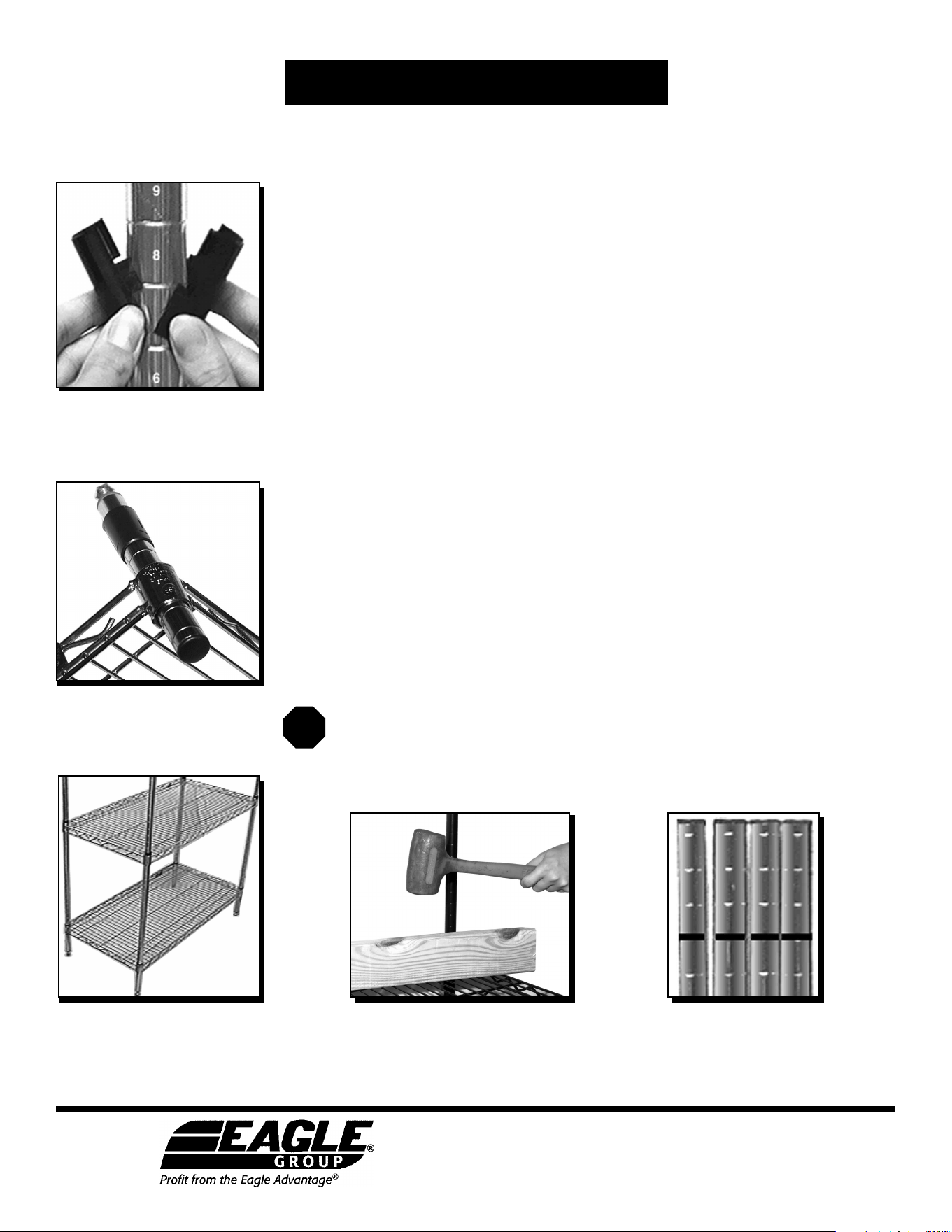

Shelving Assembly
1. Mount first shelf.
• Referencing numbers on posts, snap plastic tapered split sleeves onto each post
at desired location of bottom shelf. The thicker part of the taper goes toward the
bottom (fig. 1). Make sure rib on split sleeve is seated into a groove on the post.
Note: The number covered by the split sleeve indicates approximate height of shelf.
• Holding the first shelf on its side, insert the posts through the corner collars until
split sleeves are seated snugly with collars (fig. 2).
• Stand the unit upright.
2. Mount additional shelves.
• Snap split sleeves onto post at the location for the second shelf.
• Lower shelf onto the post until the split sleeves are snugly seated within corner
collars (fig. 3).
• Repeat for each additional shelf working from the bottom to the top.
3. Securely seat all shelves by placing a board across the corners and tapping
with a hammer (fig. 4). Caution: Do not hammer directly on wire or corner.
Helpful hint: Large installations are easier if all posts are marked first.
Lay posts on floor with leveling bolts against a wall or straight edge.
Mark all posts using a magic marker or grease pencil (fig. 5).
4. Move the unit to the desired location, and level. The leveling bolts allow
approximately
1
⁄2-inch adjustment.
