Features:
• 1080p HD Quality
• All View Angle IPS TFT LCD Panel
• 2.4G Digital Wireless Transmit Solution
• Wireless Transmit Range at About 300M
• Camera With Microphone for Sound Wireless Transmit
• Monitor Have Sound Mute Operation Button
• Camera With License Plate, Easy Operation & Installation on Vehicles
• Single Cam View: Displays Picture from (1) Camera
Monitor Specs:
• Panel: 7-inch Digital Panel Screen (IPS panel, Full Angle of View)
• Resolution: 800*480
• Power： DC12V & DC24V（MAX. to 36V）
• Power Consumption: Less than 5W
• Max. Current: Less 450mA
• Storage temperature: -30°C~80°C (22°F~176°F)
• Working temperature: -20°C~70°C (-4°F~158°F)
• With Sound control button
• With Speaker Built-in
• Monitor Wireless Receiver spec.
• Operating frequency range Cover: 2.4GHz~2.4835GHz
• Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
• Modulation Type: FSK/GFSK
• RX Sensitivity: -89dBm (Typ.) @4MHz BER<1E-3
• RF Bit Rate: 4MHz BER<1E-3
• Spread Spectrum: FHSS
• Distance: Over 984 ft.
• Monitor Dimensions: 70'' x 46.85'' x 20'' -inches
www.PyleUSA.com 3
What's in the Box:
• 7'' Display Monitor
• Waterproof Camera
• Power & Wiring Harness
• Sun Visor Monitor Hood
Camera Specs:
• Image Sensor:1/3 sensor
• Eective Pixels: 720x576 pixel
• System: AHD
• Night vision visible distance: about 3 meters
• IR Night Vision: with IR
• Night vision visible distance: about 3 meters
• Power: DC 12V & 24V
• Power Consumption: Less than 5W
• Max. Current: Less 450mA
• Storage temperature: -30°C~80°C (22°F~176°F)
• Working temperature: -20°C~70°C (-4°F~158°F)
• Sound: With Microphone Built-in
• Camera Wireless Transmit spec.
• Operating frequency range Cover: 2.4GHz~2.4835GHz
• Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
• Modulation Type: FSK/GFSK
• RX Sensitivity: -89dBm (Typ.) @4MHz BER<1E-3
• RF Bit Rate: 4MHz BER<1E-3
• Spread Spectrum: FHSS
• Distance: Over 984 ft.
• Camera Dimension: 98.5'' x 30'' x 18.9'' -inches
www.PyleUSA.com4

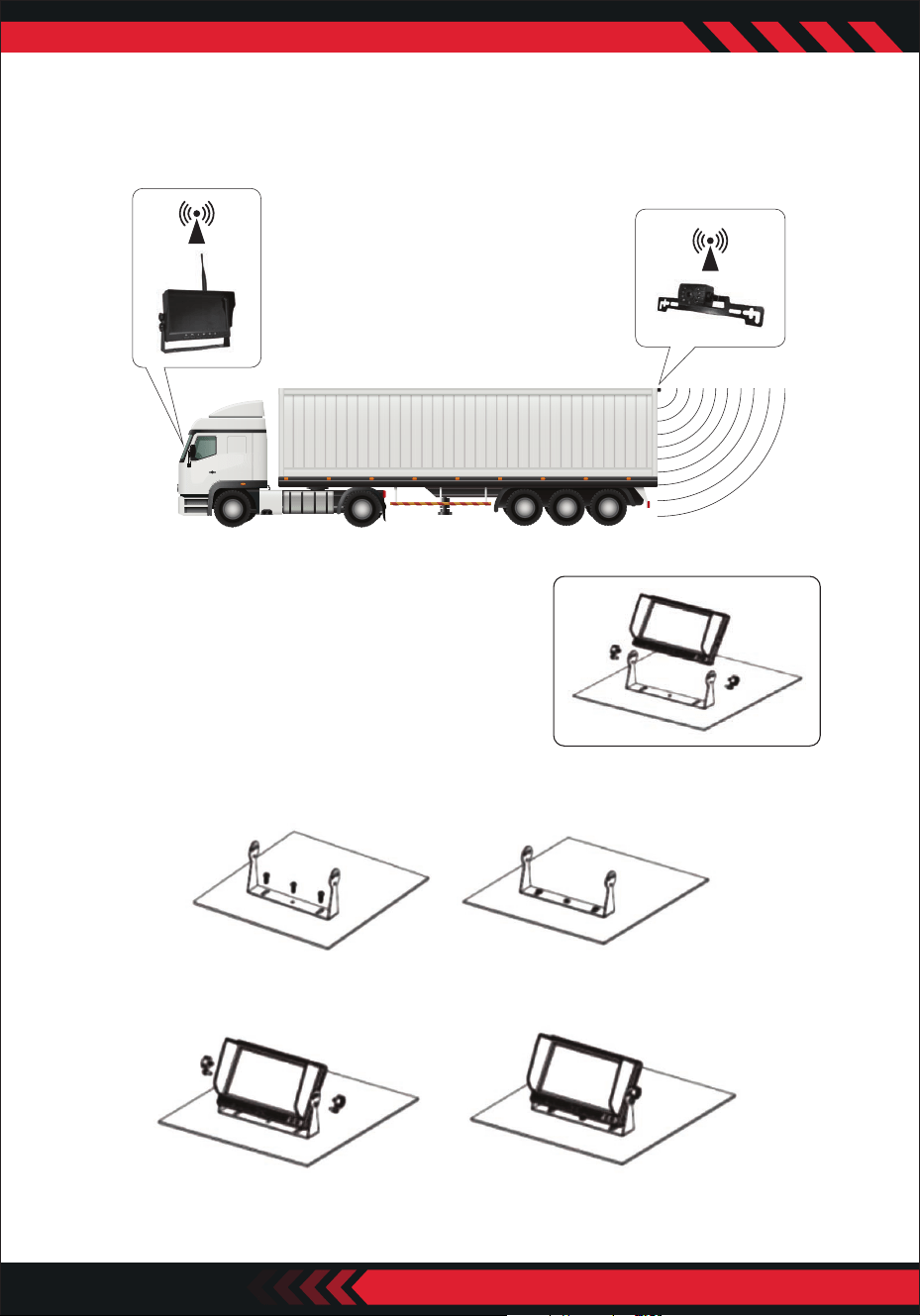

Mounting Guide
A. Installing Position
*Please test the monitor and camera before installation.
B. Monitor U Shape Bracket Mount
Step.1: Find and take out the U shape bracket
and Monitor from the box.
Step 2: Install the U shape Bracket on the dashboard of the vehicle.
Step 3: Put the Monitor onto the U shape Bracket and and install the screws.
Step 4: Adjust the best angle to allow optimum driver viewing comfort.
Before After
www.PyleUSA.com 5

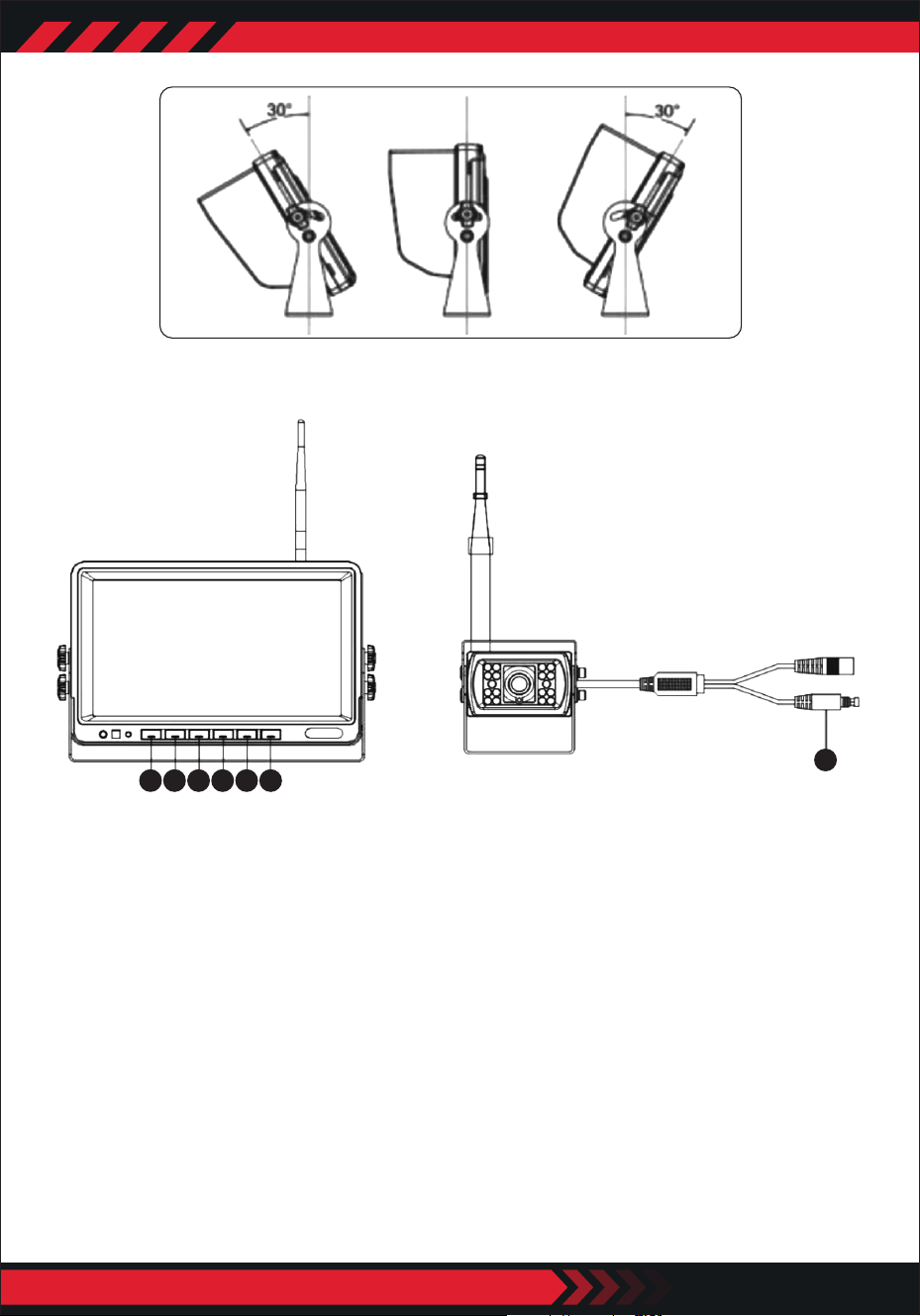

Monitor & Camera Button Functions
1. Pair Button (Press and hold to mute sound)
2. Distance Scale Line On/O
3. Picture Reverse
4. Brightness +
5. Brightness –
6. Power
7. Camera Pair Button
Normally, the monitor ispaired withabackupcamerabeforeleavingthe factory,
if it’s not paired, just press the monitor and camera pair button to match it.
The wireless Camera with Microphone can transmit sound, if you want to mute
the sound, just press and hold the monitor pair button.
1 2 3 4 5 6
7
