MANUAL 10063 REV 5 (07/22)
$21.00
ELECTRIC CABINET BASE
CONVECTION STEAMERS
MANUAL SECTION CO
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #:
___________________________
Serial #:
___________________________
Date Purchased:
_____________________
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before installing or
servicing this equipment.
Model ECX-16
CROWN FOOD SERVICE EQUIPMENT
A Middleby Company
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000 www.crownsteamgroup.com
Electric Cabinet Base
Convection Steamers
ECX-16 & ECX-24
Installation & Operation Manual
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
2
OF 20
Electric Cabinet Base Convection Steamers
SAFETY PRECAUTIONS
Before installing and operating this equipment, be sure everyone involved in its operation is fully trained and aware of
precautions. Accidents and problems can be caused by failure to follow fundamental rules and precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the operator,
service personnel, or to the equipment.
CAUTION
WARNING
NOTICE
This symbol warns of immediate hazards that will result in severe injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury, product
damage, or property damage.
This symbol refers to information that needs special attention or must be fully
understood, even though not dangerous.
DANGER
WARNING
Improper installation, operation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read
the installation, operating and maintenance instructions thoroughly before installing, operating or servicing this equipment.
NOTICE
Contact the factory, the factory representative or local service company to perform maintenance and repairs.
Copyright © 2022 by Crown. All rights reserved. Published in the United States of America.
SPECIFICATIONS
IMPORTANT NOTES FOR INSTALLATION AND OPERATION
WARNING
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
CAUTION
Operating, testing, and servicing should only be performed by qualied personnel.
NOTICE
This manual should be retained for future reference.
It is recommended that this manual be read thoroughly and that all instructions be followed carefully.
NOTICE
Do Not attempt to operate this unit in the event of power failure.
NOTICE
This product is intended for commercial use only. NOT FOR HOUSEHOLD USE.
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
3
OF 20
Electric Cabinet Base Convection Steamers
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Table of Contents
Important Notes For Installation and Operation .................................................................... 2
Service Connections ............................................................................................................. 4
Introduction ........................................................................................................................... 7
Installation Instructions ......................................................................................................... 8
Operation .............................................................................................................................. 9
Periodic Maintenance ........................................................................................................... 12
Cleaning ................................................................................................................................ 14

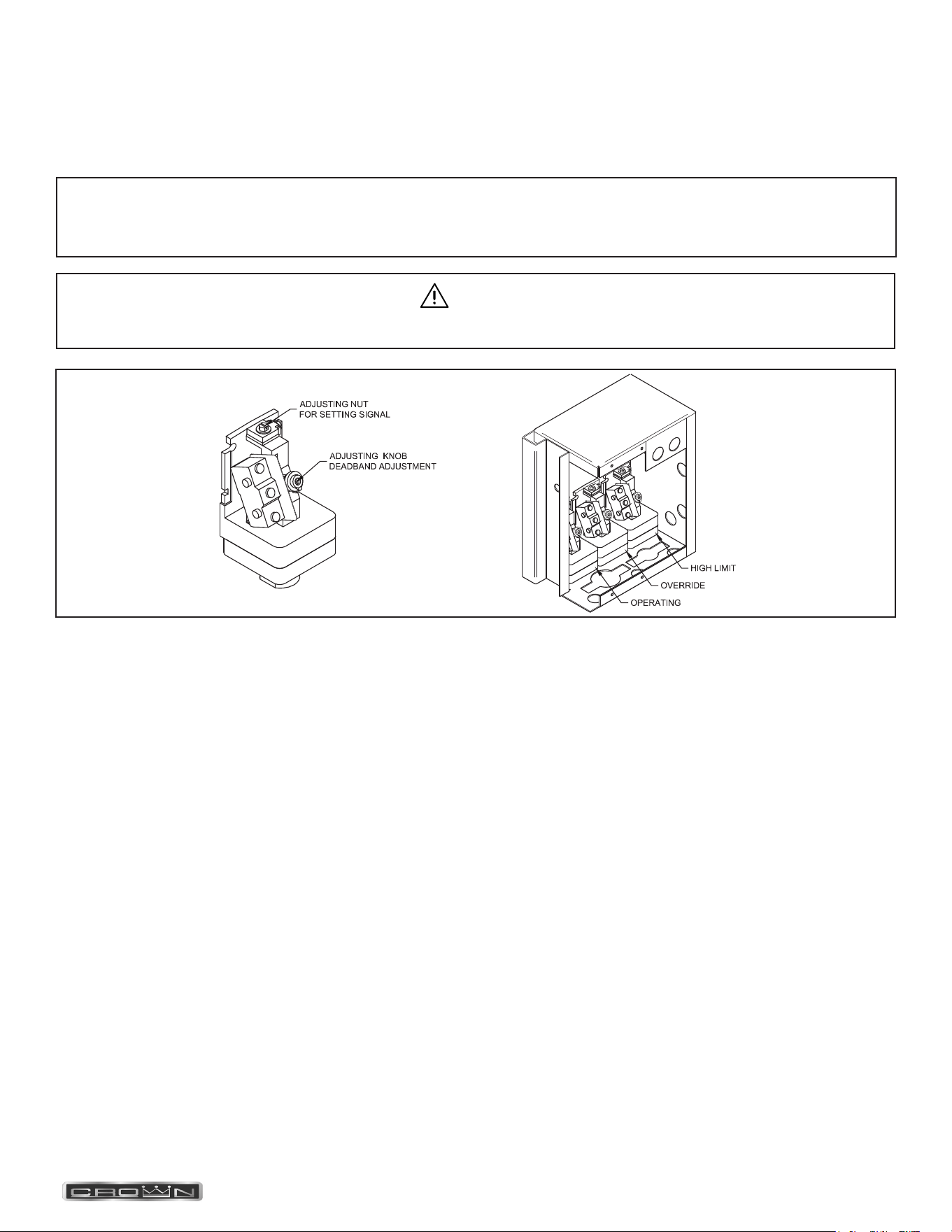

Adjustments .......................................................................................................................... 15
Troubleshooting .................................................................................................................... 16
Table of Contents
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
4
OF 20
Electric Cabinet Base Convection Steamers

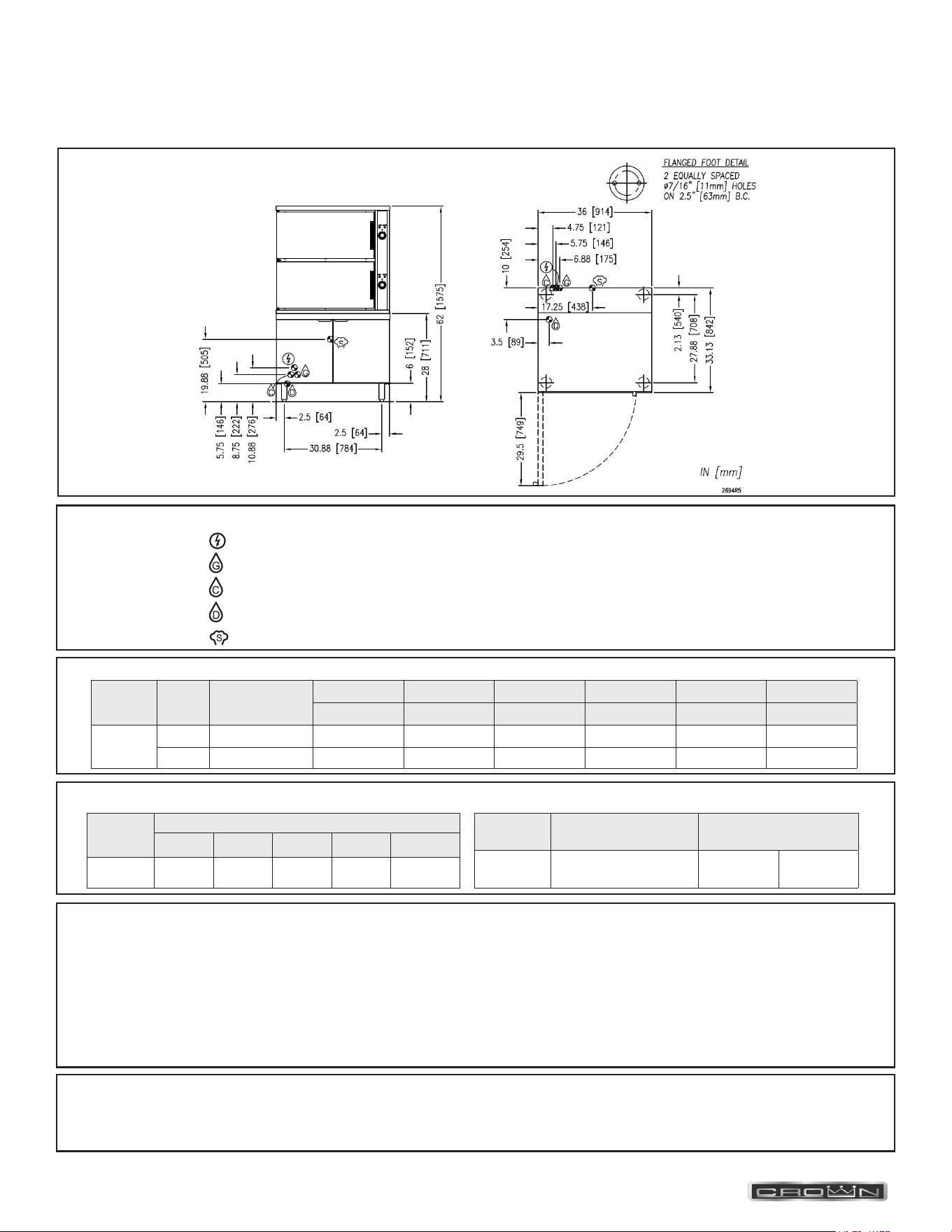

SERVICE CONNECTIONS
SERVICE CONNECTIONS
COMPARTMANT PAN CAPACITY, WEIGHT AND CLEARANCE
DISCLAIMER
WATER QUALITY STATEMENT
Water is the essential ingredient in steam equipment, water quality is the major factor aecting the performance of your appliance. Crown Steam Group oers a
Comprehensive Water Treatment System which exceeds our minimum water requirements. Proof of installation and proper cartridges replacement is required for
warranty coverage. Water supply to Crown Steam Group steamers must be within these guidelines.
Total dissolved solids.......................Less than 60 PPM Chlorine ............................Less than 1.5 PPM
Total alkalinity ........................................ Less than 20 PPM pH Factor .........................6.8 - 7.3
Silica ....................................................... Less than 13 PPM
Water which does not meet these standards should be treated with the installation of Middleby’s Water Treatment System. Call 919-762-1000 if you have questions
concerning your water meeting these parameters.
*Failure or malfunction of this appliance due to poor water quality is not covered under warranty.
Reference www.crownsteamgroup.com for complete warranty details and instructions.
As continued product improvement is a policy of Crown, specications are subject to changge without notice.
ELECTRICAL CHARACTERISTICS
SERVICE CONNECTIONS
– ELECTRICAL CONNECTION: Field wiring electrical connection to be as specied on data plate.
– GENERATOR: COLD WATER: 3/8” (10 mm) O.D. tubing at 25-50 psi (170-345 kPa).
– CONDENSATE: COLD WATER: 3/8” (10 mm) O.D. tubing at 25-50 psi (170-345 kPa).
– DRAIN: 2” (51 mm) IPS piped to open oor drain. No solid connection.
– STEAM TAKE-OFF CONNECTION: 3/4” (19 mm) IPS optional to operate adjacent equipment.
Model Phase kW
208V 220V 240V 380V 415V 480V
Amps Amps Amps Amps Amps Amps
ECX-16
3 42 (Standard) 116.6 110.2 101 63.8 58.4 50.5
3 48 (Optional) - - 115.8 72.9 66.8 57.8
Model
Shipping Weight
(36” Cabinet)
Minimum Clearance
ECX-16 900 lbs. [408 kg]
SIDES
BACK
0
0
Model
Pan Depth
1” 2-1/2” 4” 4” & 1” 4” & 2-1/2”
ECX-16 16 8 4
2 x 4”
2 x 1”
2 x 4”
1 x 2-1/2”
Terry System Cartridge Changes / Installation – “2-3 gallons of water MUST be purged at each cartridge change or new installation prior to
water supply being fed to the steamer. Failure to do so can result in component damage within the steamer which is not covered under warranty.
For additional guidance on proper installation, refer to install documentation provided with each Terry System and Replacement Cartridge Set.”
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
5
OF 20

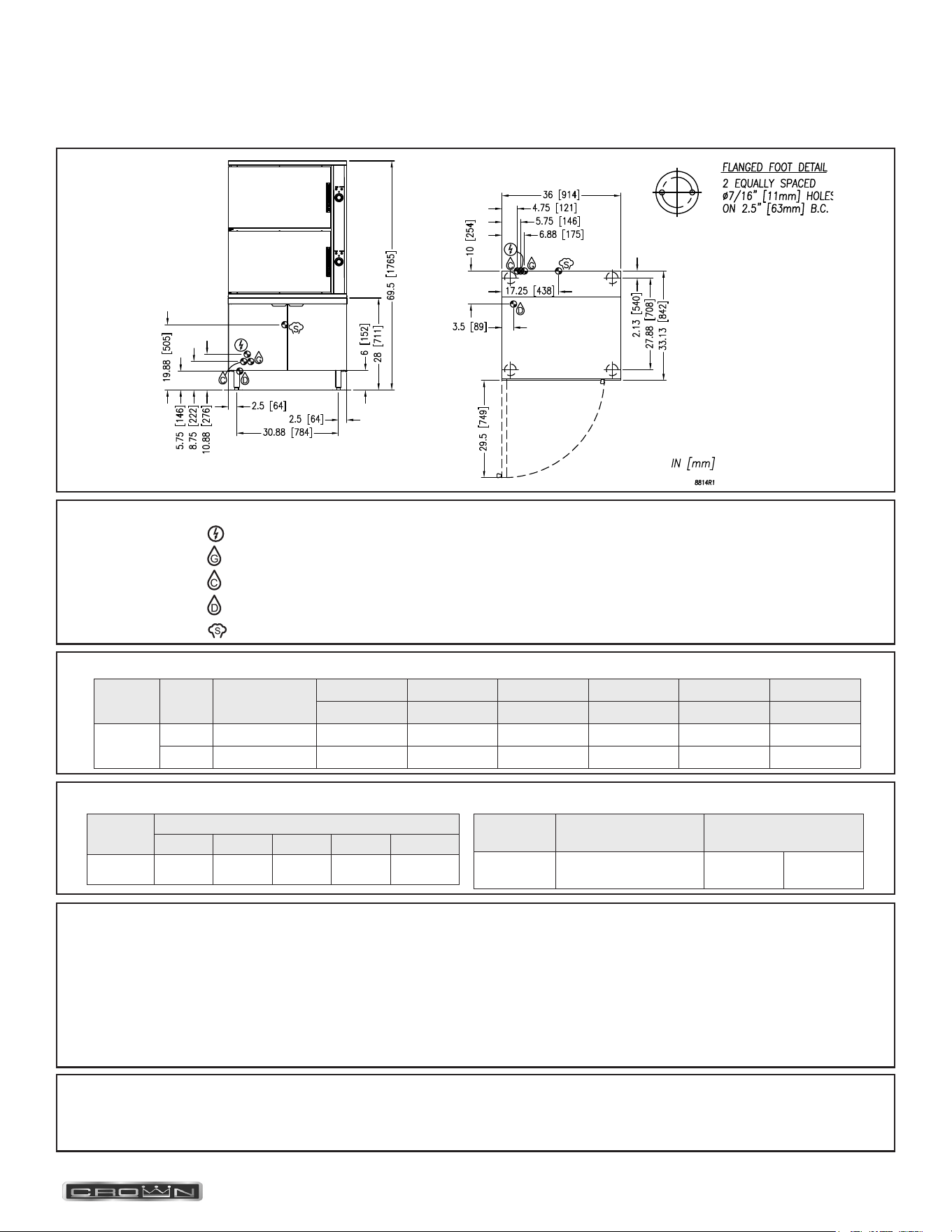

Electric Cabinet Base Convection Steamers SERVICE CONNECTIONS
As continued product improvement is a policy of Crown, specications are subject to changge without notice.
ELECTRICAL CHARACTERISTICS
COMPARTMENT PAN CAPACITY, WEIGHT AND CLEARANCE
Model Phase kW
208V 220V 240V 380V 415V 480V
Amps Amps Amps Amps Amps Amps
ECX-24
3 42 (Standard) 116.6 110.2 101 63.8 58.4 50.5
3 48 (Optional) - - 115.8 72.9 66.8 57.8
Model
Shipping Weight
(36” Cabinet)
Minimum Clearance
ECX-24 950 lbs. [408 kg]
SIDES
BACK
0
0
SERVICE CONNECTIONS
– ELECTRICAL CONNECTION: Field wiring electrical connection to be as specied on data plate.
– GENERATOR: COLD WATER: 1/2” NPT, 25-50 psi (170-345 kPa).
– CONDENSATE: COLD WATER: 1/2” NPT, 25-50 psi (170-345 kPa).
– DRAIN: 2” (51 mm) IPS piped to open oor drain. No solid connection.
– STEAM TAKE-OFF CONNECTION: 3/4” (19 mm) IPS optional to operate adjacent equipment.
Model
Pan Depth
1” 2-1/2” 4” 4” & 1” 4” & 2-1/2”
ECX-24 24 12 8
4 x 4”
12 x 1”
4 x 4”
2 x 2-1/2”
ELECTRICAL CHARACTERISTICS
600V480V380V 415V208V 220V
MODEL
PHASEkW
ECX-24
AMPS PER LINE
240V
SERVICE CONNECTIONS
Reference www.crownsteamgroup.com for complete warranty details and instructions.
WATER QUALITY STATEMENT
ELECTRICAL CHARACTERISTICS
600V480V380V 415V208V 220V
MODEL
PHASEkW
ECX-24
AMPS PER LINE
240V
SERVICE CONNECTIONS
Reference www.crownsteamgroup.com for complete warranty details and instructions.
WATER QUALITY STATEMENT
Terry System Cartridge Changes / Installation – “2-3 gallons of water MUST be purged at each cartridge change or new installation prior to
water supply being fed to the steamer. Failure to do so can result in component damage within the steamer which is not covered under warranty.
For additional guidance on proper installation, refer to install documentation provided with each Terry System and Replacement Cartridge Set.”
DISCLAIMER
WATER QUALITY STATEMENT
Water is the essential ingredient in steam equipment, water quality is the major factor aecting the performance of your appliance. Crown Steam Group oers a
Comprehensive Water Treatment System which exceeds our minimum water requirements. Proof of installation and proper cartridges replacement is required for
warranty coverage. Water supply to Crown Steam Group steamers must be within these guidelines.
Total dissolved solids.......................Less than 60 PPM Chlorine ............................Less than 1.5 PPM
Total alkalinity ........................................ Less than 20 PPM pH Factor .........................6.8 - 7.3
Silica ....................................................... Less than 13 PPM
Water which does not meet these standards should be treated with the installation of Middleby’s Water Treatment System. Call 919-762-1000 if you have questions
concerning your water meeting these parameters.
*Failure or malfunction of this appliance due to poor water quality is not covered under warranty.
Reference www.crownsteamgroup.com for complete warranty details and instructions.
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
6
OF 20
Electric Cabinet Base Convection Steamers
Description
Models ECX-16 and ECX-24 are convection steamers mounted on cabinet base and an electric steam boiler. ECX-16
steamer has a pan capacity of 16 (2 1/2”) pans. ECX-24 steamer has a pan capacity of 24 (2 1/2”) pans.
Basic Function
The sequence of operation is as follows:
1. Turn on the main power switch. A green pilot light will indicate main power is on and steam generating will begin. In
approximately 20 minutes, sucient amount of pressurized steam will have been generated in the heat exchanger
and the READY pilot light will come on. OFF shuts o the power supply to the boiler and opens the automatic
blowdown valve, if so equipped, emptying the boiler and releasing water and steam to the drain. The manual
blowdown valve will have to be opened to drain if not equipped with automatic blowdown valve.
2. Boiler pressure gauge should read 9 - 11 psi during operation, 0 psi during shutdown.
3. The compartment cooker is ready for use when the READY light is on. Place pans of food to be cooked into
compartment(s) and close door(s).
4. Set timer(s) to cook time desired. Cooking will commence and cooking time may be interrupted at any time by
opening door(s) and resumed again by closing door(s).
5. The buzzer will sound indicating the end of the cooking cycle and that steam has stopped entering the
compartment(s). The COOKING pilot will go o and the READY light will come on. Turn the timer(s) to the OFF
position to stop the buzzer.
INTRODUCTION
Introduction
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
7
OF 20
Electric Cabinet Base Convection Steamers Installation
Unpacking
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
Immediately after unpacking, check for possible shipping damage. If the appliance is found to be damaged, save the
packaging material and contact the carrier within 15 days of delivery.
We cannot assume responsibility for damage or loss incurred in transit.
Before installing, verify the electrical rating agrees with the specication on the rating plate.
INSTALLATION INSTRUCTIONS
Location
Position the appliance in its installation location. Check that there are sucient clearances to service the controls, door
swing, etc. Also adequate clearance must be left for making the required supply and drain connections.
Allow enough space between any other piece of equipment or wall for service access. Service to the controls may be
required on the left and/or right side panels of the cabinet
Installation Codes and Standards
The appliance must be installed in accordance with:
In Canada:
Provincial and local codes, or in the absence of local codes, with the Canadian Electric Code, CSA C22.1 (latest edition).
Copies may be obtained from the Canadian Standards Association, 178 Rexdale Blvd., Etobicoke, Ontario, Canada, M9W 1R3.
In the U.S.A.:
State and local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA-70 (latest edition).
Copies may be obtained from The National Fire Protection Association, Batterymarch Park, Quincy, MA, USA, 02269.
Levelling and Anchoring the Cabinet
1. Place appliance in the installation position.
2. Place a carpenter’s level on top of the appliance and turn the adjustable feet to level side-to-side and front-to-back.
3. Mark hole locations on the oor through the anchoring holes provided in the anged adjustable feet.
4. Remove appliance from installation position and drill holes in locations marked on the oor. (See Installation Diagram
on page 4.) Insert proper anchoring devices (not supplied).
5. Place appliance back in the installation position.
6. Place carpenter’s level on top appliance and re-level side-to-side and front-to-back.
7. Bolt and anchor appliance securely to the oor.
8. Seal bolts and anged feet with silastic or equivalent compound.
General
The electric boiler is designed to ASME Code and approved as a steam heating boiler restricted to operation at pressure
not to exceed 15 psi. Boilers are electrically rated as shown on page 4. Boiler may have optional CSD-1 controls.
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
8
OF 20
Electric Cabinet Base Convection SteamersInstallation
ELECTRICAL CONNECTIONS
WARNING
Electrical and grounding connections must comply with the applicable portions of the
National Electrical Code and/or other local electrical codes.
WARNING
Disconnect electrical power supply and place a tag at the disconnect switch to indicate you are
working on the circuit.
When making electrical connections, use copper wire suitable for at least 200 °F (90 °C). The steamer must be grounded
in accordance with the National Electrical Code or applicable local codes. The wiring diagram is located on the inside of
the right panel.
Exhaust Hood
An exhaust system should be located directly above the boiler to exhaust steam and heat generated by the appliance.
Plumbimg Connections (See Service Connections Section)
WARNING
Plumbing connections must comply with applicable sanitary, safety, and plumbing codes.
WARNING
If your equipment was supplied with split water lines and a water treatment system, connect the system
to the connection marked “FILTERED WATER IN” only (Use cold water). Make a second connection to
the “CONDENSER WATER IN” from a cold and unfiltered water supply.
NOTICE
FAILURE OR MALFUNCTION OF THIS APPLIANCE DUE TO POOR WATER QUALITY IS NOT COVERED UNDER
WARRANTY. SEE WATER QUALITY STATEMENT (PAGE 4, 5).
Water Supply Connection
The incoming cold water supply connection, at the rear of the boiler cabinet, requires 3/8” tubing and water pressure of
25 - 50 psig. A manual shut-o valve must be provided convenient to the appliance This valve should be open when the
boiler is in operation.
Drain Connection
The boiler drain (2” IPS) should be piped to a oor drain near the steamer (NOT directly under the steamer). There should
be no solid drain connection; an “open gap” between the boiler and the oor drain is required.
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
9
OF 20
Electric Cabinet Base Convection Steamers Operation
OPERATION
CAUTION
Live steam and accumulated hot water in the compartment may be released when the door is opened.
For CSD-1 equipped boilers, see this section for Operation Instructions for CSD-1 Equipped Boilers.
Boiler Controls (Inside Cabinet)
Main Power Switch - ON lls the boiler tank and turns the boiler heaters on. You should allow 20 minutes to ll
the tank and generate steam.
- OFF shuts o the boiler heaters and opens the Automatic Blowdown Valve, emptying
the boiler tank and releasing water and steam to the drain. This should be done daily to
remove sediment, lime, or scale.
Pilot Light - Indicates main power is ON.
Boiler Pressure Gauge - Should read 9 -11 psi during operation; 0 psi during shutdown.
Water Level Sight Glass - Observe level of water and water quality in the boiler. Murkiness in the water indicates
inadequate water quality; the owner must supply proper water to the boiler (see Water
Quality Statement on page 4).
Water Level Control - While boiler is ON, briey open the water level control daily to remove any sediment that
might accumulate. (See Preventive Maintenance Section for detailed instructions.)
Safety Valve - This valve will release (pop off) if the boiler has too much pressure. Once a week,
this valve should be tripped during operation to make sure it functions properly.
Operation of the Boiler
Turn on water and power supply to appliance.
Open cabinet door and turn main power switch ON. Pilot light ignites and water begins to fill boiler - observe
water gauge sight glass to verify that proper water level is reached.
Once the proper water level is reached, the heaters begin to heat the water. Heaters require about 15 minutes
to begin steam generation. The boiler pressure gauge in the cabinet should indicate steam pressure in a range
of 9 to 11 psig.
Shut Down
Turn the Main Power Switch OFF. Open manual drain valve. If unit is supplied with Automatic Blowdown Valve, it
will open, draining the boiler and releasing hot water and steam to the drain.
Cooker Section
Start-up procedures for your steamer must be completed once daily prior to operation (see instruction plate or above for
boiler start up procedures).
If appliance is equipped with optional - “Load Compensating Timer” a pre-heat thermostat is installed in each
compartment. This allows the compartment to pre-heat to 185 °F before the cooking time starts. Set timer for one
minute. Ready light will go out and cook light will come on; steam will enter compartment. Once compartment has
reached the pre-heat temperature (185 °F) the timer will start. After the time selected has elapsed, buzzer will
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
10
OF 20
Electric Cabinet Base Convection Steamers
CAUTION
An obstructed drain can cause personal injury or property damage.
Operation
sound indicating the end of the cooking cycle. Steam generation will cease, Cook light will go out and Ready light
will come on. To silence buzzer turn timer to its off position.
With ready pilot light on, preheat steamer compartment for one minute when the steamer is to be first used for the
day or whenever the compartment is cold.
1. Close compartment doors and set timer to “1 minute”.
2. When buzzer sounds, set timer to the “OFF” position.
3. Steamer is now ready for cooking.
4. With cooking compartment preheated and ready pilot light on, place pans of food to be cooked into
compartment and shut door.
5. Set timer to cooking time desired. Cooking cycle may be interrupted at any time by opening door and resumed
again by closing door.
6. When buzzer sounds, it indicates the end of the cooking cycle and that no more steam is entering the
compartment. Cooking pilot light will go off and ready pilot light will come on. Buzzer must be shut off by
turning the timer to its off position.
IMPORTANT
Each compartment is equipped with a removable drain screen. Frequently check the drain screen for
accumulation of food particles. Should food particles accumulate against, or clog the drain screen, remove
it, clean it thoroughly and then replace it in its original position.
Frequently check that the compartment drain and plumbing is free of all obstructions. Never place food containers, food or
food portion bags in the cooking compartment in such a way that the compartment drain becomes obstructed.
CAUTION
If steam supply does not shut o during blowdown, immediately discontinue use of appliance and call for service.
Shut Down
1. To shut down cooking compartment, set timers to their OFF position and leave doors slightly open.
2. At the end of the day, the steam supply must be shut o. Open the door of cabinet base and turn o power switch.
Open manual drain valve. If unit is equipped with automatic blowdown valve, it will open and drain the boiler.
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
11
OF 20
Electric Cabinet Base Convection Steamers
Operation Instructions for Boilers with CSD-1 Controls
START-UP PROCEDURE
1. Close the manual blowdown valve, if so equipped.
2. Open cabinet door and turn “ON” power switch.
The green pilot light will come “ON.” Water will begin to enter the boiler. When enough water has entered the boiler,
the (amber) “STANDBY” pilot light will come on.
3. Press the “RESET” switch to begin boiler operation. The “STANDBY” pilot light will go o and the boiler will begin
operation.
Normal Boiler Operating Cycle
Water Fill Cycle
On the initial lling of the boiler, the reset switch must be activated to initialize the safety lockout circuit. Once the water in
the boiler has reached the proper level, the level control will stop the ow of water to the boiler. As water is consumed in
the production of steam, the level control will supply additional water to the boiler.
Firing Cycle
The elements are operated by pressure sensing devices. On initial operation, the boiler should reach 14 psi in
approximately 15 minutes. At this point, the operating pressure switch will open, de-energizing the elements. Thereafter
the operating pressure switch will cycle the elements between 9 and 11 psi boiler pressure.
Condensing Drain
A thermostat is located in the drain assembly and is activated by the temperature of steam. The thermostat operates the
cooling solenoid, supplying water to the drain to condense the steam.
Automatic Blowdown Valve
If the unit has an automatic blowdown valve, it is activated when the main power switch is activated. The boiler will be
drained should the main power switch be turned “OFF.”
Safety Lockout Conditions
High Temperature Condition
A high temperature safety device is installed on the boiler. Should the temperature exceed the limit of this device, the
boiler will be shut down and put in a state of lockout. The “TEMPERATURE” pilot light (red), and the “STANDBY” pilot light
(amber), will come on.
High Pressure Condition
A high pressure safety switch is installed on the boiler. Should the pressure exceed the limit of this device, the boiler will
be shut down and put into a state of lockout. The “PRESSURE” pilot light (red), and the “STANDBY” pilot light (amber),
will come on. Should this device fail to operate, the safety relief valve will open.
Low Water Condition
A second low water safety cut o is supplied with the boiler. Should the water level fall below normal operating levels, the
boiler will be shut down and put into a state of lockout. The “LOW WATER” pilot light (red), and the “STANDBY” pilot light
(amber) will come on.
Operation
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
12
OF 20
Electric Cabinet Base Convection Steamers
Periodic Maintenance
WARNING
Disconnect the unit from the power supply before cleaning or servicing appliance.
IMPORTANT INSTRUCTIONS
Be sure to ush your boiler water level control daily. Failure to follow this procedure can cause the control to malfunction
resulting in serious boiler damage.
The Boiler Water Level Control installed on your boiler requires periodic maintenance. As boiler water circulates into
the oat chamber, sand, scale and other sediment may be deposited in the oat chamber. While the chamber has been
designed with a large accumulation bowl, it is necessary to ush the sediment from the chamber by blowing down the
control so that the accumulation of sediment does not interfere with the movement of the oat in the control.
Control must be ushed at least once a day.
CAUTION
Protect yourself. When ushing control, hot water and steam will ow out of the drain.

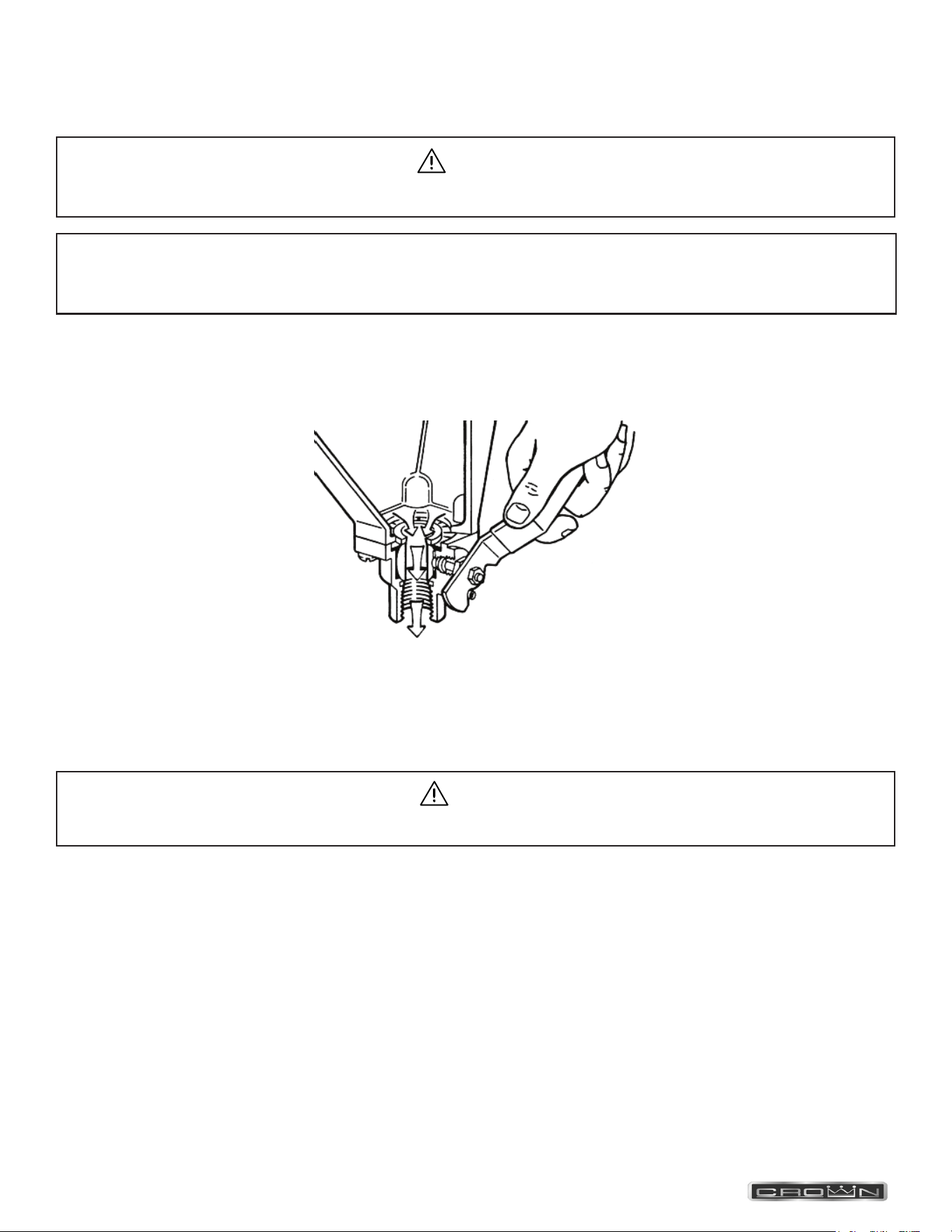

When flushing control, note water level in gauge glass, allow the boiler to fill if necessary, and also to come up to
temperature.
Before flushing control, note that water level in gauge glass is within operating range and the boiler pressure is
at least 6 psi. While the boiler is being operated, open blowdown valve at bottom of control by rotating the handle
counterclockwise about 1/4 turn to fully open the valve.
Opening the blowdown valve also checks the cut-off operation. Float should drop shutting steam off, hot water and
steam will flow out the drain flushing away sediment.
NOTICE
Contact the factory, the factory representative or a local service company to perform maintenance and repairs should
the appliance malfunction. Refer to warranty terms.
Periodic Maintenance
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
13
OF 20
Electric Cabinet Base Convection Steamers Periodic Maintenance
CAUTION
If heater does not shut o during blowdown, immediately discontinue use of appliance and call for service.
Continue draining water for about fteen (15) seconds, from control until water is clean. Manually close valve. Recheck gauge
glass. If water level has dropped signicantly, wait for the boiler to restore water level and pressure and repeat if necessary.
1. Water level control should be opened daily to blow down sediment and scalant.
2. Observe that the water in gauge glass is clean and clear. Extreme murkiness in water indicates inadequate water quality.
3. Safety valve should be tripped during operation once a week to assure that it functions properly.
4. De-scaling is based on water quality and usage.
CAUTION
Take extra caution when blowing down water level control or tripping safety valve as extreme hot water and live
steam are present.
Removal of Scale Deposits
This equipment should be installed with the Middleby TruH20 water treatment system which, when properly maintained
can provide a scale-free environment for your steamer. However, because water quality can vary it is recommended that
the steamer be checked every 90 to 120 days for scale build up. Regular maintenance should be carried out at this time.
Descaling Boiler
CAUTION
Improper use of this procedure may damage your appliance!
If the boiler has been descaled, a new Anode should be installed in the boiler.
1. With boiler empty, close manual blowdown valve. If appliance is equipped with Automatic Blowdown, turn water supply
to appliance OFF. Turn power switch ON. This will energize and close blowdown valve.
2. Remove 3/4” pipe plug from Brass Tee on front top of boiler.
3. Insert appropriate hose or tube through tting and pour in (1/2) half gallon (U.S.) of CLR Descaling Solution or use the
Optional Deliming assembly DPA-1 available from your dealer.
4. Replace 3/4” pipe plug securely.
5. Open water supply to appliance allowing water to ll boiler to required level.
6. Let appliance cycle, allow two hours for descaling and cleaning. DO NOT TURN ON STEAM to attached appliances
or to upper compartment.
7. Open both the blowdown and low water level control valves for complete drainage. After boiler drains, close both
valves.
Appliance equipped with automatic blowdown - turn OFF power switch and open low water control valve. This will
allow complete drainage. Once drained close water level control valve.
8. Turn appliance switch ON. When boiler is completely lled turn power switch OFF. This will rinse and drain boiler.
Appliances with manual blowdown valve must be opened to drain.
9. Complete Step 8 twice to assure boiler is completely rinsed.
10. Appliance is now ready for use.
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
14
OF 20
Electric Cabinet Base Convection SteamersCleaning
Cleaning
CAUTION
Do not use cleaning agents that are corrosive.
1. Keep exposed cleanable areas of unit clean at all times.
2. Thoroughly wash steamer cavities, door liners, and pan racks at the end of each day or as required with a mild
detergent and water to prevent bacterial growth and odors.
3. Remove drain screens from inside compartment drains. Using a plastic bottle brush and mild detergent, clean
inside the drain opening ensuring there is no food residue or blockage. Clean the drain screen and replace in
its original position.
4. Wash gasket sealing surface with mild detergent to remove harmful food acids and rinse.
5. Rinse entire unit and dry. DO NOT GET WATER in electrical box or any electrical component.
WARNING
Never spray water into electric controls.
CAUTION
Live steam and accumulated hot water in the compartment may be released when the door is opened.
CAUTION
Disconnect the power supply during cleaning or servicing.
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
15
OF 20
Electric Cabinet Base Convection Steamers Adjustments
Calibrate Pressure Switches
Adjustments
NOTICE
Pressure switches are factory set.
Calibration is only required if pressure switches are replaced or if adjustment is required.
1. Turn the adjusting knob clockwise to the deadband to maximum.
2. Turn the adjusting nut clockwise to maximum.
3. Adjust in the following sequence:
- High limit pressure switch.
- Override pressure switch (if equipped).
- Operating pressure switch.
- Use relief valve to release pressure from boiler for setting adjustments.
High Limit Pressure Switches
Allow pressure to build until unit shuts o. This should occur at 15 PSI. Set the adjusting nut to switch o at 14.5 PSI
on the gauge.
Override Pressure Switches
Set the adjusting nut to switch o at 13 PSI on the gauge.
Operating Pressure Switches
Set the high signal to switch o at 11 PSI on the gauge.
4. Release pressure in boiler below 9 PSI. The boiler should re and once the pressure has reached 11 PSI, the boiler
should shut o. Repeat this process several times to make sure boiler operates between 9 and 11 PSI.
Once completed, pressure switches have been calibrated.
CAUTION
Adjusting knob and nut will turn easily until they hit a stop. Do not over torque. Over torquing may cause damage.
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
16
OF 20
Electric Cabinet Base Convection SteamersTROUBLESHOOTING
Troubleshooting
NOTICE
At least twice a year have an authorized service person clean and adjust the unit for maximum performance.
NOTICE
Contact the factory, the factory representative or local service company to perform maintenance and repairs.
Refer to warranty terms.
Door Leaks
1. Check for damage to door gasket.
2. Compartment drain opening or associated piping may be blocked.
Water Accumulates in the Compartment
1. Compartment drain screen clogged. Remove and clean thoroughly and replace.
Water Not Being Supplied to Boiler
1. Water supply is “OFF”.
2. Defective water ll solenoid.
3. Water level control clogged or defective, unable to operate ll valve.
4. Check drain valve is closed.
5. Supply water pressure too low.
Automatic Blowdown Valve Does Not Drain
1. Defective Blowdown valve.
2. Boiler build up of scalant clogging drain lines and valve.
Boiler Achieves Pressure Slower Than Normal
1. Heavy build up of lime on elements.
2. Loose element connections.
Safety Valve Blows
1. Defective safety valve.
2. Pressure too high. Pressure switch requires adjustment (lower) or may be defective.
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
17
OF 20
Electric Cabinet Base Convection Steamers
Notes
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
18
OF 20
Electric Cabinet Base Convection Steamers
Notes
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
19
OF 20
Electric Cabinet Base Convection Steamers
Notes
INSTALLATION & OPERATION MANUAL 10063 REV 5 (07/22)
PAGE
20
OF 20
Electric Cabinet Base Convection Steamers
ECX-16 & ECX-24
Electric Cabinet Base
Convection Steamers
A product with the Crown name incorporates the best in durability and low maintenance. We all recognize, however,
that replacement parts and occasional professional service may be necessary to extend the useful life of this appliance.
When service is needed, contact a Crown Authorized Service Agency, or your dealer. To avoid confusion, always refer
to the model number, serial number, and type of your appliance.
CROWN FOOD SERVICE EQUIPMENT
A Middleby Company
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000 www.crownsteamgroup.com
