IMPACT SOCKET SET
MODEL:69300002/69300003/69300004/69300005/
69300006/69300007/69300008/69300009
- 1 -
MODEL:69300002/69300003/69300004/69300005/69300006/69300007/6
9300008/69300009

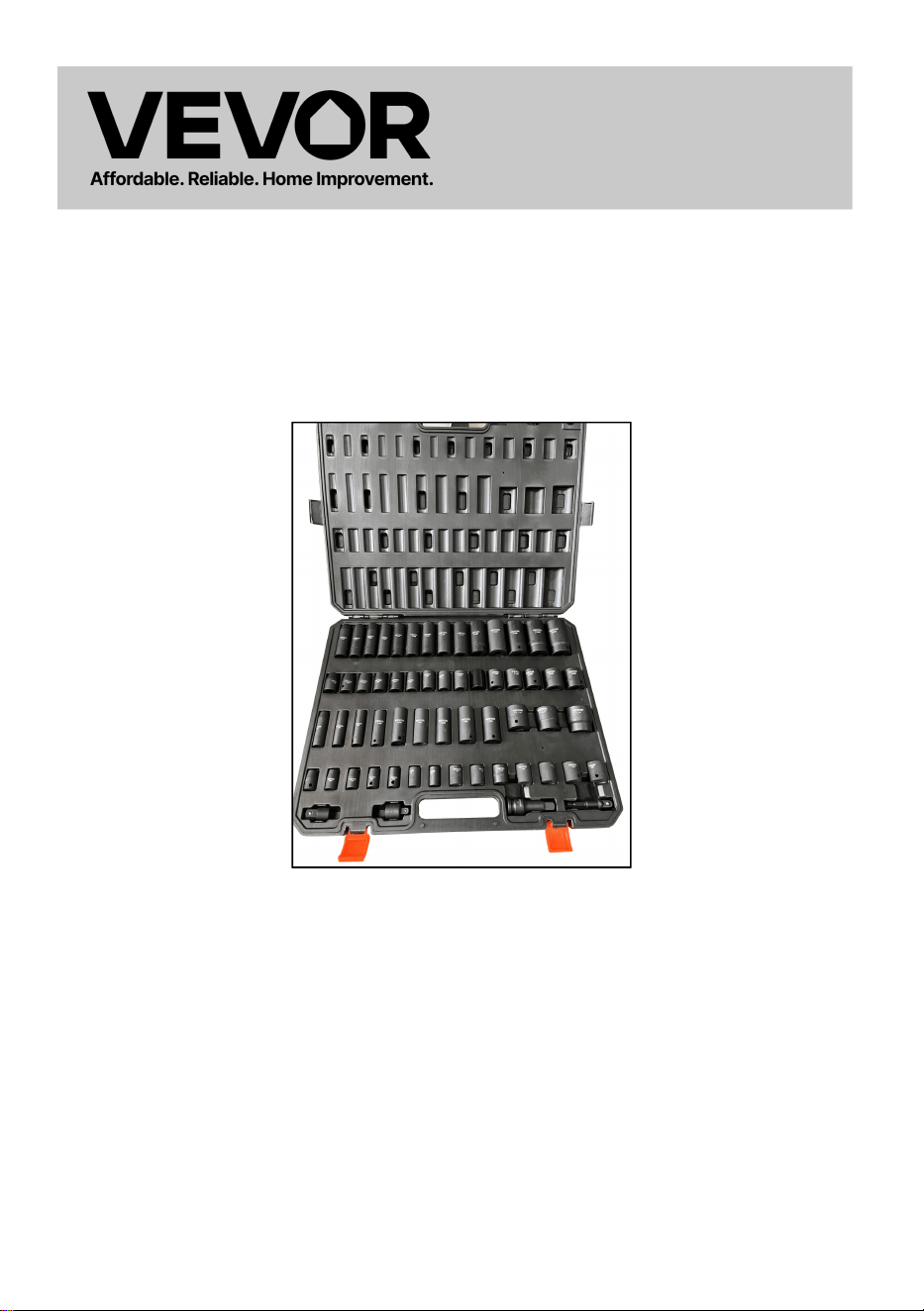

(The picture is for reference only; please refer to the actual object)
This is the original instruction, please read all manual instructions carefully
before operating. VEVOR reserves a clear interpretation of our user
manual. The appearance of the product shall be subject to the product you
received. Please forgive us that we won't inform you again if there are any
technology or software updates on our product.
IMPACT SOCKET SET
- 2 -
GENERAL SAFETY RULES
WARNING:
1.Comply with safety operating procedures: Before use, thoroughly
understand the usage methods and safety precautions of the tool to
prevent accidents.
2. Regular inspection and maintenance: Regularly check the wear and tear
of tools, replace damaged parts in a timely manner, and ensure stable tool
performance.
3. Storage method: Place the tools in a dry, ventilated, and dark
environment to avoid factors such as moisture, high temperature, and
collision that may affect the tool's lifespan.
4. Classified storage: Classify and store various tools for easy and quick
access during use.
Select and Use
1. Choose a sleeve that is suitable for your own use. Different work
purposes and working conditions require the selection of different sleeves.
2. Choose standardized sleeves as much as possible for easy replacement
and maintenance.
3. Before using the sleeve, check whether the axis of the sleeve and the
tool are consistent to ensure correct application.
4. When using the sleeve, it is important to follow the correct operating
method and avoid excessive twisting to avoid damaging the tool.
5. When using a socket, an appropriate wrench should be used instead of
other tools.
6. When using a sleeve, the correct torque and speed should be selected
according to the work needs.
- 3 -
Model list
SN
Model
Qty
Type
Socket List
1
69300002
39
1/2”Metric
Universal joint
Metric deep: 9, 10, 11, 12, 13, 14, 15,
16, 17, 18, 19, 20, 21, 22, 23, 24, 26,
27, 30mm
Metric shallow: 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
26, 27, 30mm
2
69300003
29
1/2”Metric
/SAE
Extension rod: 3, 5, 10 inch
SAE deep: 10, 11, 12, 13, 14, 15, 16,
17, 18, 19, 20, 21, 22, 23, 24 mm
Metric deep: 3/8, 7/16, 1/2, 9/16, 5/8,
11/16, 3/4, 13/16, 7/8, 15/16, 1 inch
3
69300004
91
1/2”Metric
/SAE
Impact extension rod: 3, 5, 10 inch
Universal joint, 1/2” wrench, 1/2”
hexagonal shank adapter, 3/8” (F) to
1/2” (M) adapter
SAE Shallow: 5/16, 11/32, 3/8, 7/16,
1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8,
15/16, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4
inch
SAE deep: 5/16, 11/32, 3/8, 7/16, 1/2,
9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16,
1, 1-1/16, 1-1/8, 1-3/16, 1-1/4 inch
Metric Shallow: 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 31, 32 mm
Metric deep: 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 31, 32 mm
- 4 -
4
69300005
50
3/8”Metric
/SAE
3” drive impact extension rod, 6” drive
impact extension rod, 3/8” universal
joint, 1/2” to 3/8” adapter, 3/8” drive
ratchet handle, hexagonal handle
adapter
SAE deep: 5/16, 3/8, 7/16, 1/2, 9/16,
5/8, 11/16, 3/4 inch
SAE Shallow: 5/16, 3/8, 7/16, 1/2,
9/16, 5/8, 11/16, 3/4 inch
Metric deep: 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 21, 22 mm
Metric Shallow: 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 21, 22mm
5
69300006
64
3/8”Metric
/SAE
3” drive impact extension rod, 6” drive
impact extension rod, 3/8” universal
joint, 1/2” to 3/8” adapter, 3/8” drive
ratchet handle, hexagonal handle
adapter
SAE deep: 5/16, 3/8, 7/16, 1/2, 9/16,
5/8, 11/16, 3/4, 15/16, 1 inch
SAE Shallow: 5/16, 3/8, 7/16, 1/2,
9/16, 5/8, 11/16, 3/4, 15/16, 1 inch
Metric deep: 6, 7, 8, 9, 10, 11, 12, 13,
14, 15, 16, 17, 18, 19, 20, 21, 22, 23,
24 mm
Metric Shallow: 6, 7, 8, 9, 10, 11, 12,
13, 14, 15, 16, 17, 18, 19, 20, 21, 22,
23, 24 mm
6
69300007
96
3/8”Metric
/SAE
spark plug sockets:13/16”, 5/8”,14mm;
drive impact extension rods: 3,6 inch;
T-bar adapter, 3/8” universal joint, 3/8
"(F) -1/4" (M) adapter, 3/8” drive
ratchet handle, hexagonal handle
adapter, screwdriver rotation handle,
- 5 -
spring sleeve screwdriver head
adapter, 40*drill bits
SAE deep: 5/16, 3/8, 7/16, 1/2, 9/16,
5/8, 11/16, 3/4 inch
SAE Shallow: 5/16, 3/8, 7/16, 1/2,
9/16, 5/8, 11/16, 3/4 inch
Metric deep: 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 21, 22 mm
Metric Shallow: 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 21, 22mm
7
69300008
210
1/4“
，
3/8”
，
1/2“ Metric
/SAE
1/4” drive impact extension pieces: 4,6
inch;3/8” drive extension:3,6,10 inch;
1/2” drive impact extension pieces:
3,10 inch; impact universal joints: 1/4,
3/8, 1/2inch;
48 pieces 1/4 inch:
Metric Shallow: 4, 4.5, 5, 5.5, 6, 7, 8, 9,
10, 11, 12, 13, 14, 15mm
Metric Deep: 4, 4.5, 5, 5.5, 6, 7, 8, 9,
10, 11, 12, 13, 14, 15mm
SAE Shallow: 3/16, 7/32, 1/4, 9/32,
5/16, 11/32, 3/8, 7/16, 1/2, 9/16 inch
SAE Deep: 3/16, 7/32, 1/4, 9/32, 5/16,
11/32, 3/8, 7/16, 1/2, 9/16 inch
68 pieces 3/8 inch:
Metric Shallow: 6, 7, 8, 9, 10, 11, 12,
13, 14, 15, 16, 17, 18, 19, 20, 21, 22,
23, 24mm
Metric Deep: 6, 7, 8, 9, 10, 11, 12, 13,
14, 15, 16, 17, 18, 19, 20, 21, 22, 23,
24mm
SAE Shallow: 1/4, 9/32, 5/16, 11/32,
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4,
13/16, 7/8, 15/16, 1 inch
- 6 -
SAE Deep: 1/4, 9/32, 5/16, 11/32, 3/8,
7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16,
7/8, 15/16, 1 inch
84 pieces 1/2 inch:
Metric Shallow: 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 31, 32mm
Metric Deep: 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 31, 32mm
SAE Shallow: 5/16, 11/32, 3/8, 7/16,
1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8,
15/16, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4
inch
SAE Deep: 5/16, 11/32, 3/8, 7/16, 1/2,
9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16,
1, 1-1/16, 1-1/8, 1-3/16, 1-1/4 inch
8
69300009
67
3/8 "Metric
/SAE
1-3/8” universal joint; 1-3/8” M * 1/2” F
adapter; 3/8” ratchet handle;drive
impact extension rod:3,6,10 inch;
Hexagonal shank adapter
SAE Rotating Sleeve: 5/16, 3/8, 7/16,
1/2, 9/16, 5/8, 11/16, 3/4 inch
Metric rotary sleeves: 8, 9, 10, 11, 12,
13, 14, 15, 16, 17, 18, 19 mm
SAE deep: 5/16, 3/8, 7/16, 1/2, 9/16,
5/8, 11/16, 3/4 inch
SAE Shallow: 5/16, 3/8, 7/16, 1/2,
9/16, 5/8, 11/16, 3/4 inch
Metric deep: 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19 mm
Metric Shallow: 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19 mm
- 7 -
Maintenance
1.After using the sleeve, it should be cleaned in a timely manner and coated
with an appropriate amount of lubricating oil to extend the service life of the
sleeve.
2. After not using the sleeve for a long time, it should be placed in a dry and
ventilated place to avoid rusting and affecting its use.
3. Regularly check the wear and damage of the sleeve, and replace damaged
components in a timely manner.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu,
shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim
Place, Rancho Cucamonga, CA 91730
REP
UK
YH CONSULTING LIMITED. C/O YH Consulting
Limited Office 147, Centurion House, London
Road, Staines-upon-Thames, Surrey, TW18 4AX
REP
EC
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
JUEGO DE VASOS DE IMPACTO
MODELO: 69300002 /69300003/69300004/69300005/
69300006/69300007/69300008/69300009
- 1 -
MODELO: 69300002
/69300003/69300004/69300005/69300006/69300007/69300008/6930000
9

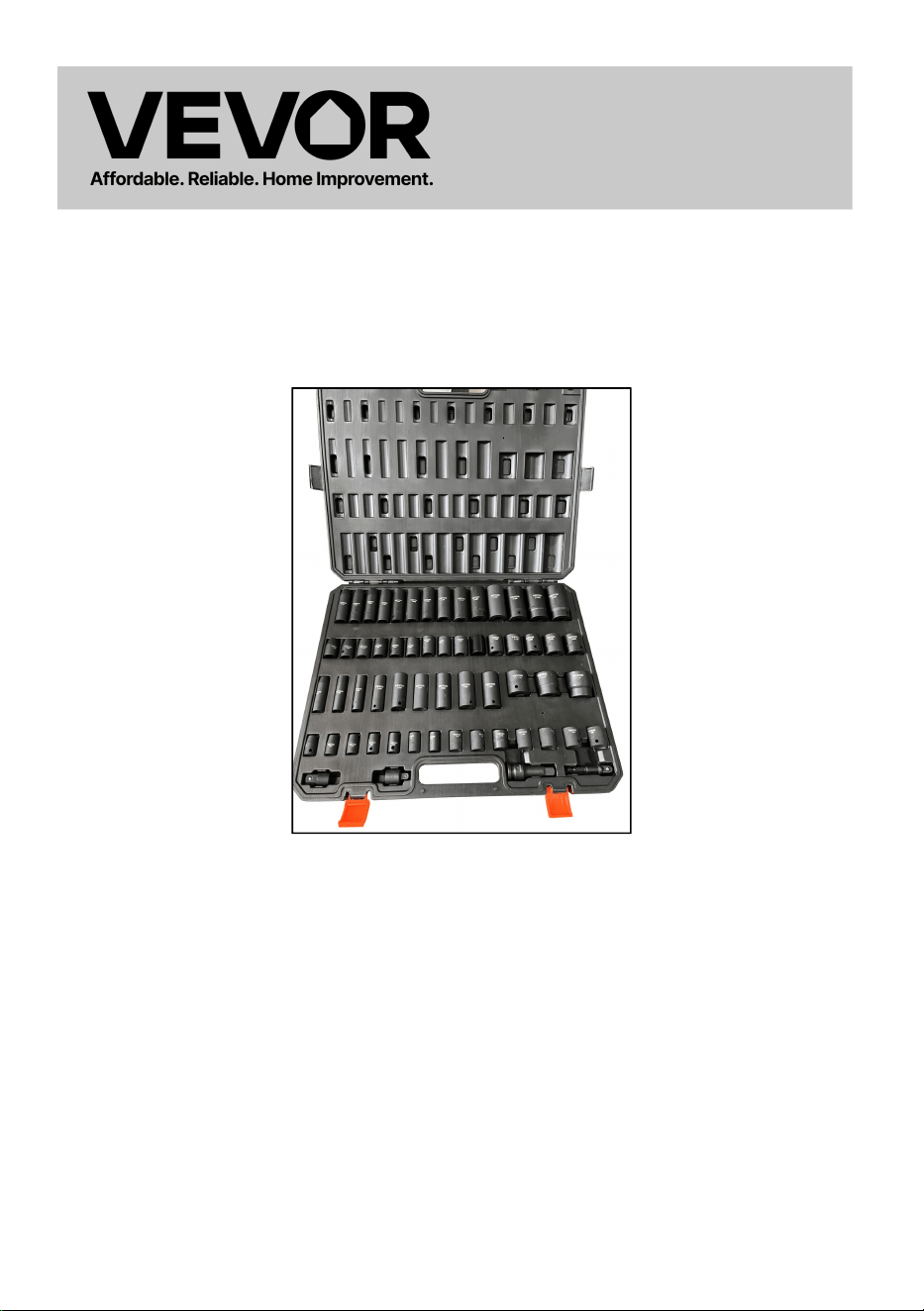

(La imagen es solo de referencia; consulte el objeto real)
