PerformaBe Architectural Installation Guide
W126Be – W226Be – W228Be – C128Be
PerformaBe Architectural Quick Start Guide
| rev
1.1
20230822
Pg 1 of 6
©
2023
Harman International | Features, Specifications, and Appearance subject to change without notice.
Introduction
Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. The PerformaBe Architectural
Series was conceived to create high-end architectural loudspeakers that share the same caliber of components and acoustic signature as the award winning
PerformaBe floor-standing and bookshelf loudspeakers. Utilizing Beryllium tweeters these architectural speakers bring unparalleled detail and accuracy along
with a sense of air and spaciousness, and a cohesive soundstage that is hard to find in any architectural loudspeakers. The Revel Be Architectural series
consists of three in-wall models and one in-ceiling model that can be used as a complete architectural system solution or combined in a mix and match
solution with the floor-standing and bookshelf PerformaBe loudspeakers.
For more information on the set-up and operation of this product refer to the specific loudspeaker’s product page on the revelspeakers.com website. Should
further assistance be required feel free to contact customer support at the numbers below:
Inside the US and Canada:
+
1 888.691.4171
Outside the US and Canada:
+44 1707 668 012
Box Contents
1x PerformaBe Architectural Loudspeaker
1x Zero Bezel Grille
1x White Replacement Grille Scrim
1x Black Replacement Grille Scrim
1x Cutout Template
1x Quick Start Guide (This Document)
Wire Gauge by Distance Guide
Distance/Length
Min. Recommended
Wire Gauge
< 50ft (15m)
1
4
-
gauge
50ft (15m) ~ 100ft (30m) 12-gauge
>100ft (30m)
10
-
gauge
Note:
If you suspect that there has been shipping damage or if you are missing any of the referenced above Box Contents for your model, report it
immediately to your dealer or contact our Customer Support at the telephone numbers referenced in the opening of this document.
This document covers the installation of the speakers only. Refer to the Revel PerformaBe Backbox OR Pre-Construction Bracket Installation
Guide for details on installing the backboxes.
IMPORTANT!! Safety Information
IMPORTANT!
HARMAN International assumes no responsibility for improper installation of hardware or for any personal injuries or product
damages resulting from improper installation or a fallen loudspeaker.
Read through this document and other documents associated with this product in their entirety and heed all warning before proceeding with the
installation of these product(s).
IMPORTANT!
Installation Precautions
1. Allow sufficient clearance between the speaker and any insulation that may be in the wall cavity to avoid ignition should overheating occur.
1” (26mm) for Non-Flammable Materials
3” (78mm) for Flammable Materials
2. Ensure that all wire used inside of walls and ceiling meets or exceeds local fire codes for hidden wiring.
3. Determine wire lengths and select the proper gauge speaker wire to use based on the table above titled “Wire Guage by Distance Guide”.
4. Do NOT overtighten the mounting “Cat Claws” when securing the speaker to surfaces as this may cause the speaker to come loose. If using a
power screwdriver set it to the lowest torque settings.
5. Do NOT connect the speakers to an amplifier rated above the recommended amplifier power. Overdriving the speaker can cause an overheating
condition increasing the risk of injury.
6. Do NOT connect the amplifier end of the wire until all speakers are wired and installed.
7. Determine and purchase any accessories such as pre-construction brackets or backboxes before beginning the installation process. Refer to the
Specification Table at the end of this installation guide for a list of available accessories associated for each model.
8. Ensure that wall and ceiling wallboard material is between 0.4-inch (10mm) and 1.0-inch (25mm) thick and capable of supporting the weight of the
speaker.
Installation Considerations
Revel architectural speakers are extremely easy to install. However, if you are unable to understand and follow the instructions in this manual clearly and fully,
or if you are unsure of your ability to install these loudspeakers properly, please contact your dealer or a qualified installer.
Your new Revel PerformaBe Architectural loudspeakers have been engineered to provide extremely accurate performance. However, any speaker’s ultimate
performance will be affected by the speaker’s placement in the listening room and the acoustics of the room. Not all listening spaces can accommodate the
ideal conditions of these two factors. Therefore, careful attention to the placement of your Revel PerformaBe Architectural loudspeakers will have a significant
impact on the general performance of the loudspeakers.
Although the Revel PerformaBe Architectural W226Be and W228Be are designed for use primarily as front left, center and front right speakers in a home
theater system, the high-order crossover networks employed in all Revel PerformaBe Architectural loudspeakers provide very smooth response over a wide
listening area, allowing you to use any model in any application with excellent results.
Note: The Revel PerformaBe Architectural in-wall speakers W226Be and W228Be can be used in either horizontal or vertical orientation.
PerformaBe Architectural Quick Start Guide | rev1.1 20230822 | Features, Specifications, and Appearance subject to change without notice. Pg 2 of 6

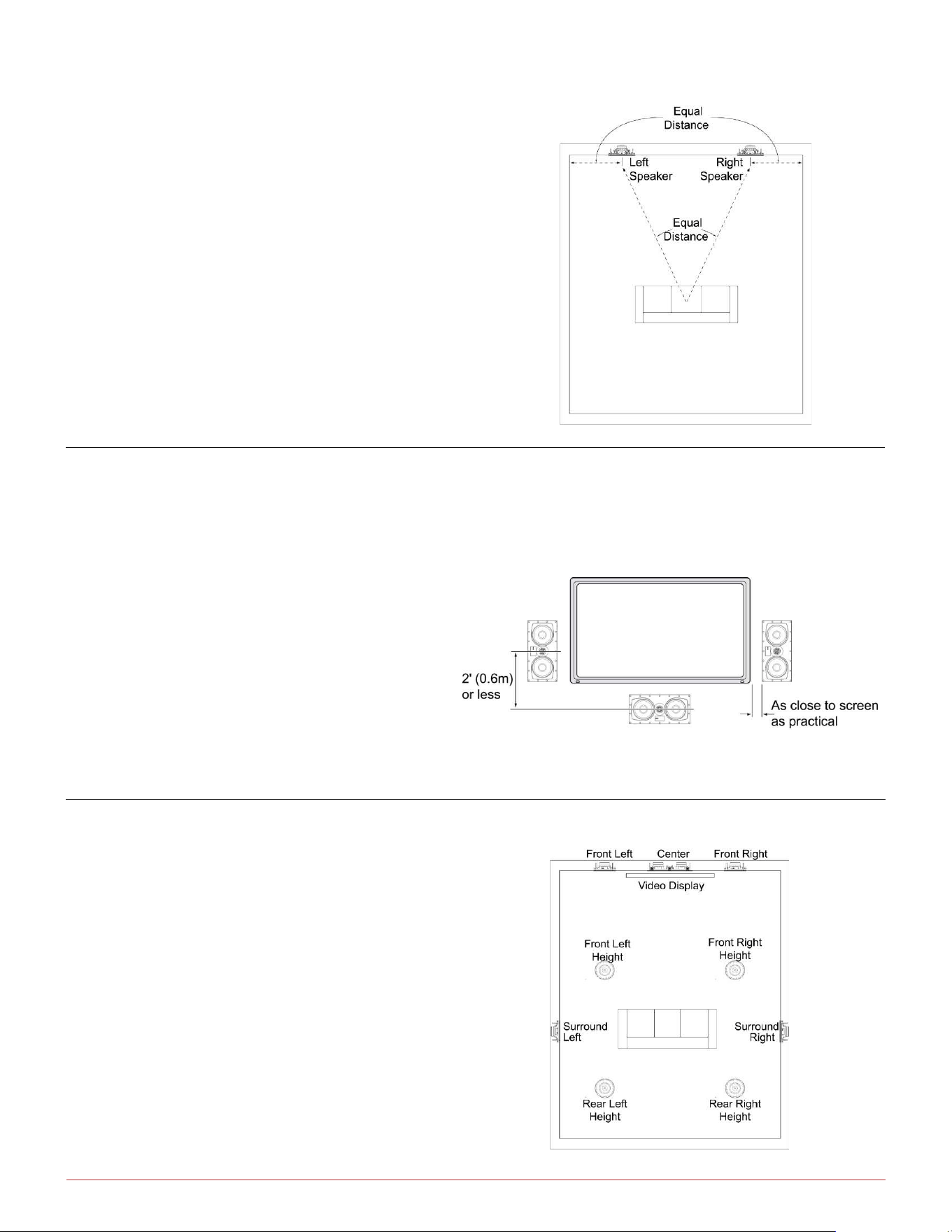

Loudspeaker placement for Two-Channel Stereo
Place the left and right loudspeakers the same distance from the
primary listening area (or as close to the same distance as possible).
The distance from each speaker to its nearest side wall should also be
as close to the same distance as possible.
Ideally, the distance between the left and right loudspeakers should be
slightly less than their distance from the primary listening area.
Loudspeaker Placement for LCR Television Sound
The front left and front right loudspeakers should be located on either
side of the video display, with their tweeters as close to ear level as
possible.
The front left and front right loudspeakers should be relatively close to
the sides of the video display. For example, front left and front right
loudspeakers used with a 50-inch (1.3m) video display should
generally not be more than 80-ichn (2m) apart.
The center loudspeaker should be aligned with the center of the video
display. Its tweeter should be no more than 2 ft (0.6m) above or below
the tweeters of the front left and front right speakers.
Loudspeaker Placement for 5.1.4 Channel Surround
In a 5.1.4-channel system, the surround left and surround right
loudspeakers should be located to the sides of the main listening area,
5 ft – 7 ft (1.5m – 2.1m) from the floor.
The Front Left Height and Front Right Height loudspeakers should be
located on the ceiling, to the outsides of, and in-front of the main
listening area.
The Rear Left Height and Rear Right Height loudspeakers should be
located on the ceiling, to the outside of, and behind the main listening
area.
PerformaBe Architectural Quick Start Guide | rev1.1 20230822 | Features, Specifications, and Appearance subject to change without notice. Pg 3 of 6
Installing the Speakers
Note: If using the optional backbox or pre-construction bracket for installation, refer to the Revel PerformaBe Backbox Installation Guide for details on
installing the backboxes before continuing with the installation of the speaker.
Connecting to the Amplifier
CAUTION: REMOVE POWER
You must connect the speaker wires before the speaker is fully installed. To protect the audio system from damage and yourself from injury through accidental
electrical shorting and surges during installation, turn all audio system power OFF before beginning the speaker installation.
Speaker Wire
Use high-quality speaker wire to obtain the best performance from your Revel PerformaBe Architectural loudspeakers. Determine wire lengths and select the
proper gauge speaker wire to use based on the table under Wire Gauge by Distance Guide at the beginning of this guide.
Note: All speaker wires must comply with all local building and safety codes for use in in-wall / in-ceiling applications.
Making Connections

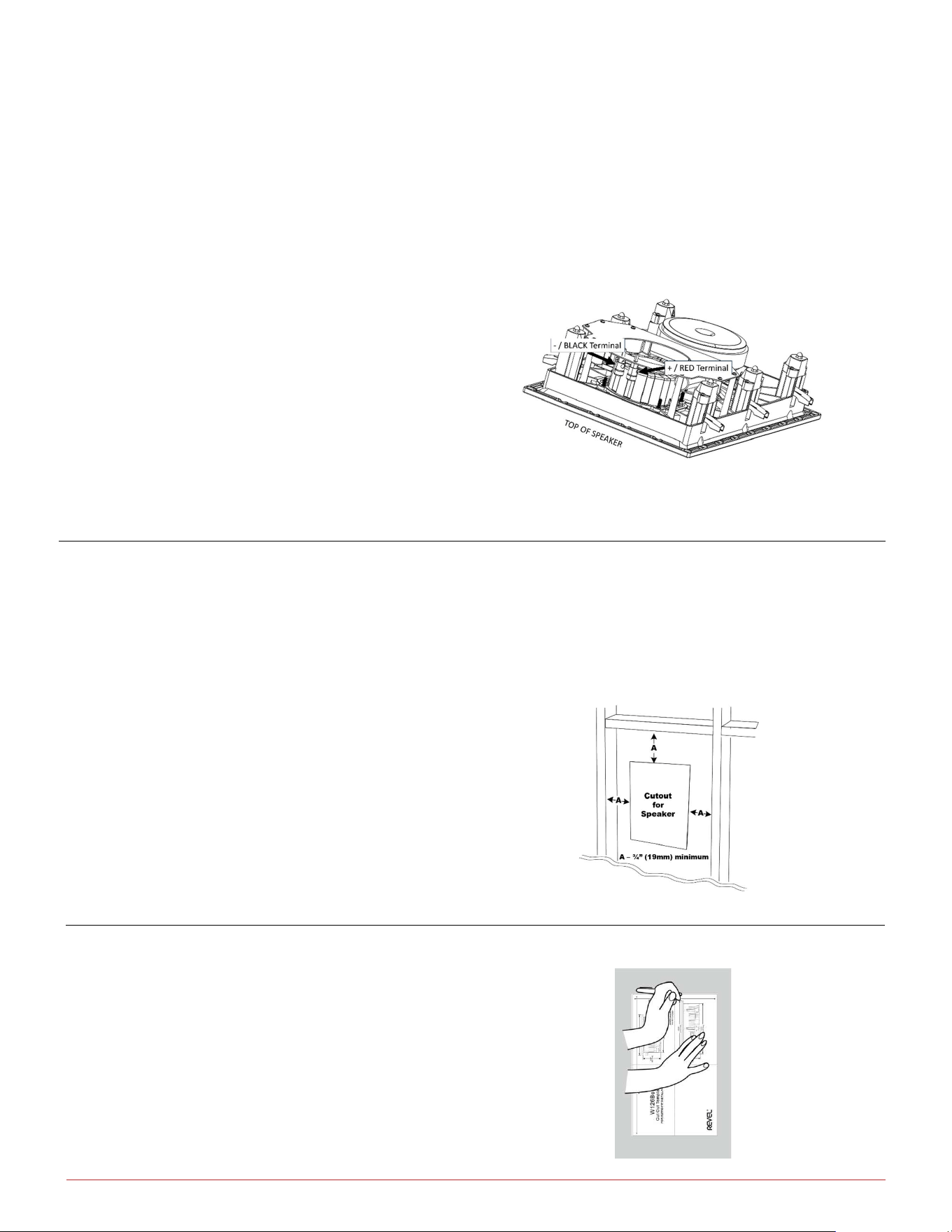

Connect each channel’s positive (+) terminal on the back of the amplifier or
receiver to the positive (“IN+” / Red) terminal on the corresponding speaker.
Connect each channel’s negative (–) terminal on the back of the amplifier or
receiver to the negative (“IN–” / Black) terminal on the corresponding
speaker.
Do not reverse polarities (that is, do not connect + to –, or – to +) when
making connections. Doing so will cause poor imaging and diminished bass
response.
Press down on the top of the terminal to open the hole; insert the bare end of
the wire into the hole; and release the terminal to secure the wire.
CAUTION: To avoid short circuits that may damage your equipment, be
certain that positive and negative wire strands do not touch each other and
do not touch metal parts such as the speaker frame.
Mounting the Speakers
For New Construction
If you wish to install a pre-construction bracket for the speakers before the drywall is installed in a new construction project, you will need to purchase the
correct pre-construction bracket kit for your loudspeaker model from your authorized Revel dealer. Pre-construction bracket model numbers for these specific
loudspeakers can be found at the end of this document in the Specification Table. Detailed mounting instructions are supplied with the pre-construction
bracket kit. After the drywall is installed, follow the installation instructions in For Existing Construction, below.
For Existing Construction
Note: The installation procedure is the same for all models covered by this manual.
1. Ensure that the wallboard, plywood, or other wall material is between
0.4-inch (10mm) minimum and 1.0-inch (25mm) maximum thickness
and capable of withstanding the weight of the speaker being installed.
NOTE: If using the Revel Backbox in the installation the wallboard
maximum thickness is 0.6-inch (16mm),
2. Make sure to allow at least 3/4" (19mm) between the edge of the
supplied installation template and any studs or other obstructions
behind the wall, so the speaker’s locking mechanism (Cat Claws) will
have room to engage fully. Perform an obstruction survey to be sure
that there are no studs, lengths of conduit, pipes, heating ducts or air
returns in the stud bay that could interfere with the speaker.
3. Determine the correct speaker location and use the template included
with the speaker to mark the wall / ceiling material
PerformaBe Architectural Quick Start Guide | rev1.1 20230822 | Features, Specifications, and Appearance subject to change without notice. Pg 4 of 6

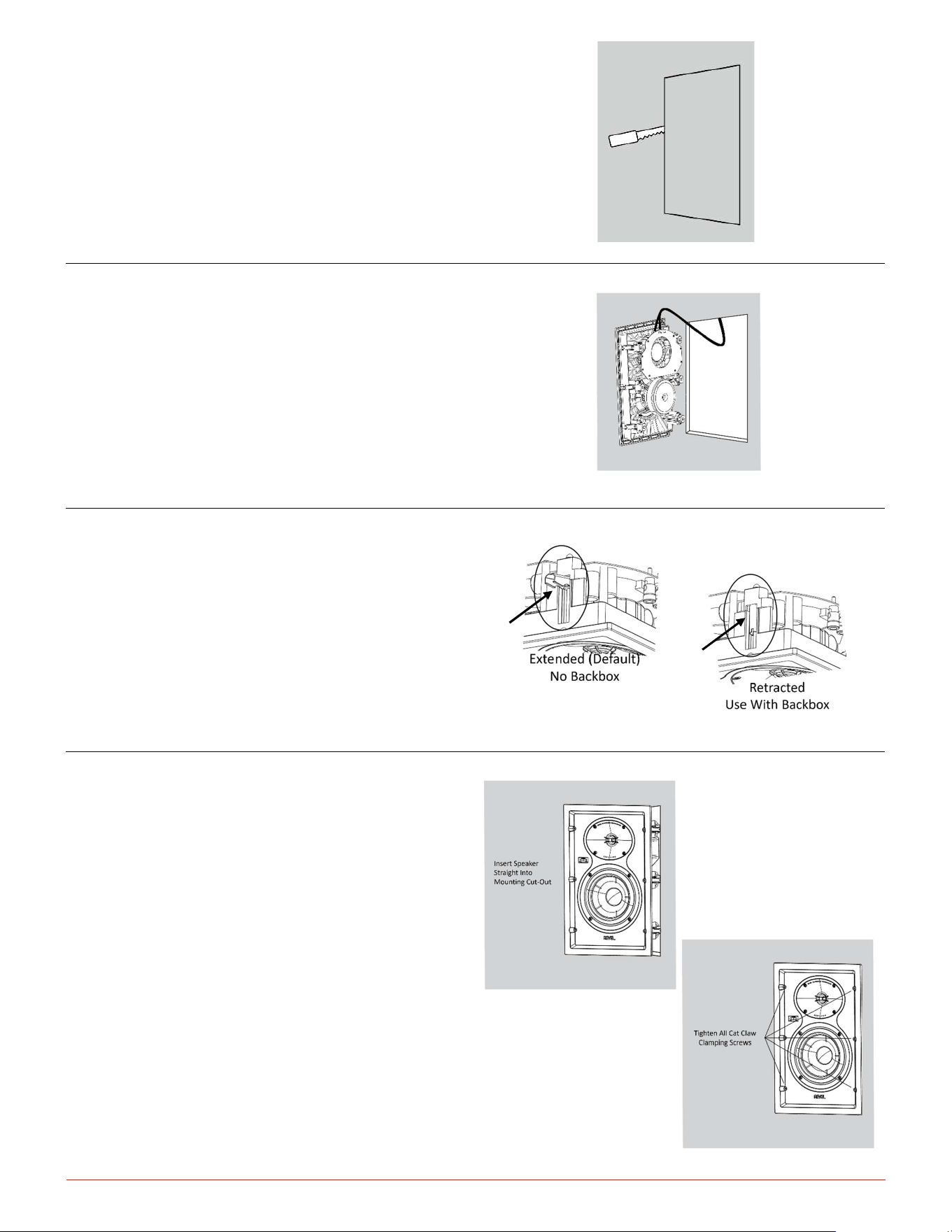

4. Cut the wallboard along the mark you made in Step 3 to create the
mounting opening.
5. Connect the speaker wire from the amplifier to the speaker as
explained in “Making Connects”.
6. Set “Cat Claw” clamps into “ready-to-mount” position depending on
mounting application type:
A. Wallboard Mounting: “Cat Claw” clamps in EXTENDED
(Default) position.
When the speaker is inserted into wallboard opening, the Cat
Claw clamps will compress and then spring back to extended
position to ease installation.
B. Backbox Mounting: “Cat Claw” clamps MUST be in
RETRACTED position.
To RETRACT “Cat Claw” clamps, turn each mounting screw on
speaker baffle counterclockwise until Cat Claw has been fully
captured at top of mounting tower
7. Insert the speaker straight into the mounting opening. Square up the
speaker in the opening and begin tightening the Cat Claw screws on
the front of the speaker baffle.
NOTE:
a. Turn screws clockwise to clamp / install.
b. Turn screws counterclockwise to retract / remove.
i. Cat Claw must be fully retracted to top of
mounting tower to remove speaker.
IMPORTANT: When using power screwdriver – Always use lowest
torque setting to avoid over-tightening the Cat Claw screws.
A
B
PerformaBe Architectural Quick Start Guide | rev1.1 20230822 | Features, Specifications, and Appearance subject to change without notice. Pg 5 of 6
8. Attach the supplied grille. Powerful magnets in the speaker frame will
securely hold the grille in place. Be sure that the grille is attached
evenly and that the edges of the grille extend over the speaker baffle
on all sides.
If needed, adjust the tension of the speaker’s Cat Claw clamps so that the
speaker frame is flat with the wallboard. This will help ensure that the grille
contacts the wall all the way around the speaker for a proper finished fit.
Adjustments (Select Models)

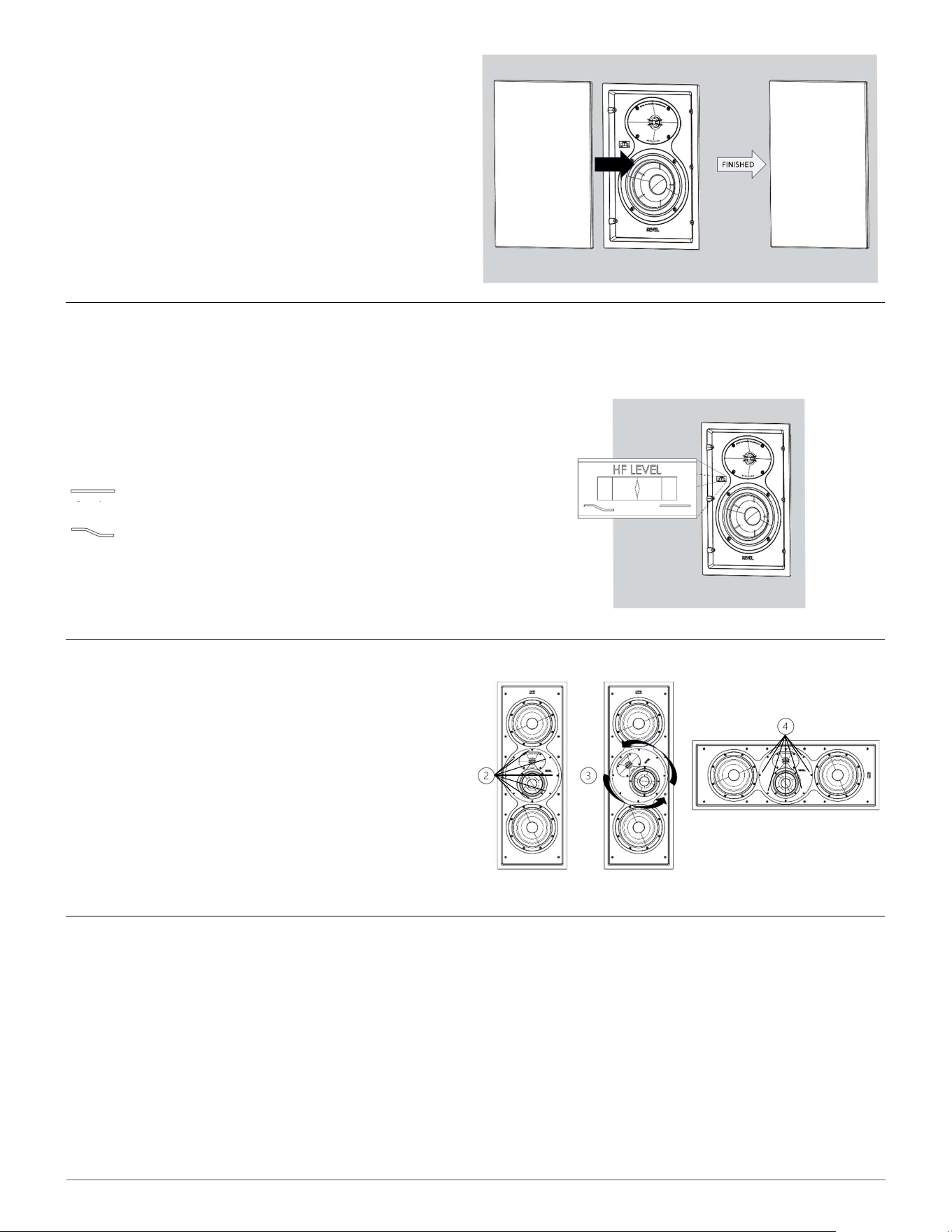

HF (High-Frequency) Level Control (W126Be – W226Be – W228Be)
The High-Frequency Level control lets you fine-tune the speaker’s high-
frequency output to compensate for various acoustical environments.
The control has two settings:
: Normal high-frequency output.
Set the switch to this position for most installations.
: Decrease high-frequency output.
Set the switch to this position if the room has many features that reflect
high-frequency sound energy, such as large, uncovered windows, bare tile /
wood flooring, large expanses of bare walls, or if the speakers are used
without grilles.
Rotatable Mid/High Frequency Module (W228Be)
If the installation requires the W228Be loudspeaker to be mounted
horizontally, we recommend that the midrange / tweeter module be rotated
to properly orient the tweeter above the midrange for proper imaging. The
midrange and tweeter drivers are mounted in a separated sealed cabinet
mounted to the front baffle.
To adjust the midrange / tweeter module position:
1. Position the loudspeaker on flat level surface.
2. Remove all screws surrounding the midrange / tweeter module.
3. Rotate midrange / tweeter module to new position.
4. Replace screws removed in step #2.
Painting the Grille (All Models)
Revel architectural loudspeaker grilles can be painted to match any décor. If you wish to change the grille’s color, its satin original finish will function as a
primer coat. For the best results follow the following procedure:
1. Gently remove the scrim cloths from the back side of the grille before painting.
2. Use high-quality spray paint and apply a thin coat of color. Ensure that the grille perforations remain free of paint. Filling them with paint will diminish the
speaker’s sound quality. If any perforations in the grille become plugged with paint, use compressed air to blow the paint out of the perforations while the
paint is still wet.
Note: If you find any grille perforations that are plugged with paint after drying, carefully use a straight pin or sewing needle to remove the paint.
We have included replacement scrim cloths in case of damage during removal. Additional scrim cloths and replacement grilles are available and sold
separately directly through our Customer Support team. Contact information can be found in the introduction of this document.
After the painted grille has dried, apply a light coat of spray adhesive to the inside of the perforated grille and either re-attach original scrim cloths or replace
with new scrim cloths included.
PerformaBe Architectural Quick Start Guide | rev1.1 20230822 | Features, Specifications, and Appearance subject to change without notice. Pg 6 of 6
Excessive Output Levels
Your Revel loudspeakers feature custom-designed transducers and high-quality network components featuring high-order filters with steep cutoffs that reduce
the potential of damage to individual speaker drivers and help the loudspeakers maintain their performance even under extreme operating conditions.
However, all loudspeakers have limits when it comes to continuous playback. To extend these limits, avoid playback at volume levels that result in distorted or
strained sound.
Beryllium Tweeter Caution
Beryllium dust is a hazardous material. The Revel PerformaBe Architectural Beryllium dome tweeter will not emit any dust under normal circumstances and is
perfectly safe unless it is damaged. The tweeter dome is protected by the acoustic lens and waveguide. As long as the waveguide remains intact there is no
cause for concern.
In the unlikely event that the dome is damaged in any way, cover the tweeter with adhesive plastic tape and contact Revel for further instructions.
Do not play the speaker if it has a damaged tweeter dome.
At the end of the speaker’s life do not dispose of it in a landfill or incinerator. Bring the speaker to an appropriate recycling or hazardous waste disposal site.
Please contact Revel customer service for more information about proper disposal.
Specifications
ATTRIBUTE SPEAKER
Model
W126Be
W226Be
W228Be
C128Be
Description
6.5" (165mm) 2-way In-wall
Loudspeaker
Dual 6.5" (165mm) 2-way In-wall
Loudspeaker
Dual 8" (200mm) 3-way In-wall
Loudspeaker
8" (200mm) 2-way In-ceiling
Loudspeaker
High Frequency Transducer
1" (25mm) Beryllium dome with dual
ceramic-magnets and acoustic lens
waveguide
1" (25mm) Beryllium dome with dual
ceramic-magnets and acoustic lens
waveguide
1" (25mm) Beryllium dome with dual
ceramic-magnets and acoustic lens
waveguide
1" (25mm) Beryllium dome with dual
neodymium-magnets and acoustic lens
waveguide
Midrange Frequency Transducer N/A N/A
5.25" (130mm) Deep Ceramic
Composite (DCC) Aluminum Cone Mid-
range
N/A
Low Frequency Transducer
6.5" (165mm) Deep Ceramic Composite
(DCC) Aluminum Cone Woofer
2x 6.5" (165mm) Deep Ceramic
Composite (DCC) Aluminum Cone
Woofers
2x 8" (200mm) Deep Ceramic
Composite (DCC) Aluminum Cone
Woofers
8" (200mm) Deep Ceramic Composite
(DCC) Aluminum Cone Woofer
Recommended Amplifier Power (RMS)
50
-
150 Watts@ 4 ohms
50
-
200 Watts @ 4 ohms
50
-
400 Watts @ 4 ohms
50
-
150 Watts @ 4 ohms
Frequency Response (
-
6dB on
-
axis)
55
-
40 kHz
43
-
40 kHz
35
-
40 kHz
46
-
40 kHz
Sensitivity (2.83V@1m)
89 dB
90 dB
90 dB
88 dB
Maximum SPL 105 dB 110 dB 115 dB 107 dB
Impedance (Nominal / Minimum)
6 Ohms / 4 ohms
6 Ohms /4 Ohms
6 Ohms / 4 Ohms
6 Ohms / 4 ohms
Crossover Frequency
2100 Hz
2000 Hz
220 Hz,2500 Hz
2100 Hz
Crossover Type / Slope
3rd order
3rd order
4th order and 3rd order
3rd order
Controls
High Frequency Level - Flat /
Attenuated
High Frequency Level - Flat / Attenuated High Frequency Level - Flat / Attenuated N/A
Input Type
Gold-plated Spring-Loaded Binding
Posts
Gold-plated Spring-Loaded Binding
Posts
Gold-plated Spring-Loaded Binding
Posts
Gold-plated Spring-Loaded Binding
Posts
Mounting Type Revel Cat Claw Mounting System Revel Cat Claw Mounting System Revel Cat Claw Mounting System Revel Cat Claw Mounting System
Compatible Wall Thickness Range
Min 0.4" (10mm) / Max 1.0"
(25mm)
Min 0.4" (10mm) / Max 1.0" (25mm)
Min 0.4" (10mm) / Max 1.0" (25mm)
Min 0.4" (10mm) / Max 1.0" (25mm)
Cutout Dimension(s)
14.1" x 8.9" (357mm x 226mm)
21.6" x 8.9" (549mm x 226mm)
35.3" x 12.2" (896mm x 309mm)
Ø 9.5" (242mm)
Mounting Depth
3.5" (88.7mm)
3.5" (87.9mm)
3.8" (96.4mm)
5.1" (129.6mm)
Enclosure Volume Range
550 in
3
(9L) to 1100 in
3
(18L)
1100 in
3
(18L) to 2200 in
3
(36L)
1650 in
3
(27L) to 3300 in
3
(54L)
672 in
3
(11L) to 1345 in
3
(22L)
Net Dimensions with grille (HxWxD)
15.6" x 10.2" x 3.8"
(395.2mm x 260.2mm x 96.7mm)
22.9" x 10.2" x 3.8"
(582.8mm x 259.4mm x 95.9mm)
37.0" x 13.9" x 4.1"
(938.6mm x 352.9mm x 104.5mm)
Ø 10.8" x 5.3"
(Ø 274.5mm x 134.7mm)
Net Weight (Speaker + Grille)
10.4 lb (4.7kg)
15.7 lb (7.1kg)
31.5 lb
(14.3kg)
8.6 lb (3.9kg)
Shipping Dimensions (HxWxD)
22.4" x 14.1" x 9.7"
(570mm x 357mm x 245mm)
26.9" x 14.1" x 10.0"
(684mm x 357mm x 255mm)
45.0" x 17.3" x 10.0"
(1142mm x 440mm x 255mm)
15.2" x 15.2" x 9.3"
(385mm x 385mm x 237mm)
Shipping
Weight
14.1 lb (6.4kg)
19.7 lb (8.9kg)
40.6 lb (18.4kg)
12.1 lb (5.5kg)
Packed As (Each / Pair)
Each
Each
Each
Each
UPC Code
050667380120
050667380137
050667380144
050667380151
EAN Code 1200130003585 1200130003592 1200130003608 1200130003615
OPTIONAL ACCESSORIES
(SOLD SEPARATELY)
BACKBOX
Model
W126BEBB
W226BEBB
W228BEBB
C128BEBB
Description W126Be In-Wall Back-box W226Be In-Wall Back-box W228Be In-Wall Back-box C128Be In-ceiling Back-box
Input Type
Gold-plated Spring-Loaded Binding
Posts
Gold-plated Spring-Loaded Binding
Posts
Gold-plated Spring-Loaded Binding
Posts
Gold-plated Spring-Loaded Binding
Posts
Compatible Wall Thickness Range
Min 0.4" (10mm) / Max 0.6" (16mm)
Min 0.4" (10mm) / Max
0.6" (16mm)
Min 0.4" (10mm) / Max 0.6" (16mm)
Min 0.4" (10mm) / Max 0.6" (16mm)
Enclosure Volume (Cubic Inch / Liters) 556.6 in
3
(9.1L) 1113.1 in
3
(18.2L) 1664.1 in
3
(27.3L) 695.1 in
3
(11.4L)
Net Dimensions (HxWxD)
19.7" x 14.0" x 3.5"
(500mm x
355mm x 87.9mm)
37.8" x 14.0" x 3.5"
(960mm x 355mm x 87.9mm)
55.1" x 14.0" x 3.5"
(1400mm x 355mm x 87.9mm)
14.2" x 14.2" x 5.4"
(360mm x 360mm x 138mm)
Net Weight
9 lb (4.1kg)
16.8 lb (7.6kg)
20.9 lb (9.5kg)
8.8 lb (4.0kg)
Shipping Dimensions (HxWxD)
25.6" x 20.3" x 10.6"
(650mm x 515mm x 270mm)
44.0" x 20.3" x 10.6"
(1117mm x 515mm x 270mm)
61.4" x 20.3" x 10.6"
(1560mm x 515mm x 270mm)
19.7" x 19.6" x 11.6"
(501mm x 497mm x 295mm)
Shipping Weight
16.5 lb (7.5kg)
27.3 lb (12.4kg)
34.4 lb
(15.6kg)
15.1 lb (6.8kg)
Packed As (Each / Pair)
Each
Each
Each
Each
UPC Code 050667380168 050667380175 050667380182 050667380199
EAN Code
1200130003622
1200130003639
1200130003646
1200130003653
PRE-CONSTRUCTION BRACKET
Model
WB81
WB62
WB82
CB8
Description
W126Be Pre
-
Construction Bracket
W226Be Pre
-
Construction Bracket
W228Be Pre
-
Construction Bracket
C128Be Pre
-
Construction Bracket
Packed As (Each / Pair)
Each
Each
Each
Each
Harman International Industries, Incorporated.
8500 Balboa Blvd, Northridge CA 91329 United States.
European Representative: Harman International Industries, Incorporated.
EMEA Liaison Office, Danzigerkade 16G, 1013 AP Amsterdam, The Netherlands.
UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire, HP3 9TD, United Kingdom.
Atenção: conforme lei brasileira n° 11.291, a exposição prolongada a ruídos superiores a 85dB pode causar danos ao sistema auditivo.
© 2023 Harman International Industries, Incorporated. All Rights Reserved.
Revel is a trademark of Harman International Industries, Incorporated registered
in the United States and other countries.
