VISUAL EXPERIENCE SERIES
VX62R TL | VX62R SST TL | VX66R TL | VX66 TL
INSTALLATION AND SUPPORT MANUAL
2
VISUAL EXPERIENCE SPEAKERS
VX62R TL | VX62R SST TL | VX66R TL | VX66
TL
6. The speaker’s connector posts are spring-loaded.
Push the top of each connector post down to open
the connector and insert the exposed wires into the
holes in the posts (see Figure 1).
TABLE OF CONTENTS
2 Box Contents
2 Introduction
2 Important Safety Information
2 Installation
3 Grille Painting
4 Technical Specifications
5 Warranty

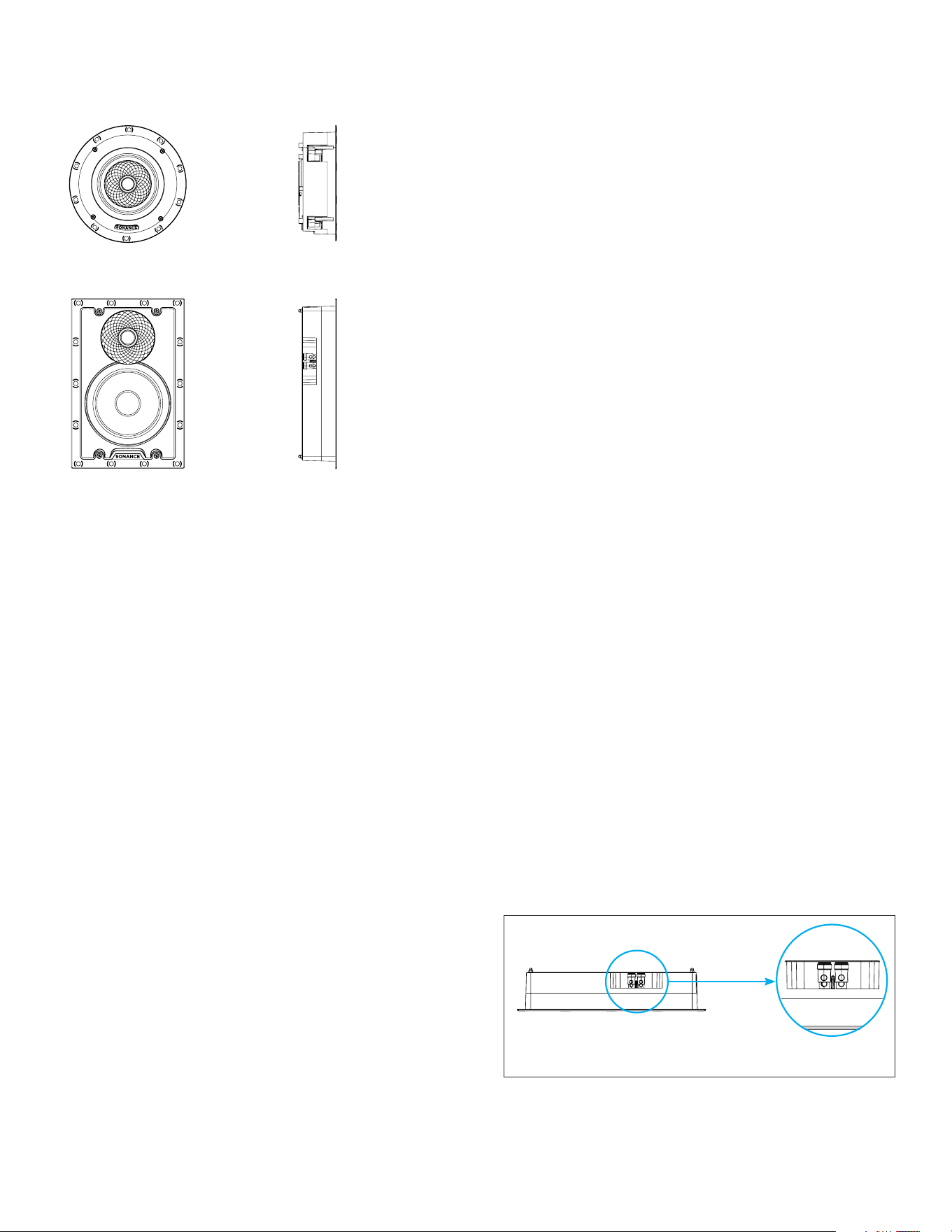

IN-CEILING
FRONT VIEW
BOX CONTENTS
(1)Cutout Template/Quickstart Guide
(2)VX TL Model Speakers
(VX62R SST TL sold as EACH, QTY 1)
(2)Paintable Micro Trim Grilles
INTRODUCTION
Thank you for selecting Sonance Visual Experience Thin-
Line Speakers. Please take the time to carefully read
through the manual and study the illustrations. This extra
time can lead to trouble-free operation and continued
musical enjoyment.
IMPORTANT: Read this section in its entirety before
attempting use of speaker.
IMPORTANT SAFETY INSTRUCTIONS
Always follow these basic safety precautions when using
your speakers to reduce the risk of fire, electric shock,
and injury to prople or objects.
1. Read all the safety and operating instructions before
operating the speaker and retain them for future
reference.
2. Adhere to all warnings and precautions listed on the
speaker and in the operating instructions.
3. Follow all operating instructions.
INSTALLATION
1. Determine the location for the speaker.
2. Perform an obstruction survey to be certain that
there are no studs, conduit, pipes, heating ducts,
pocket doors, or air returns in the wall cavity that
will interfere with the speaker.
3. Position the included cutout template where the
speaker is to be located and pencil an outline on the
wall or ceiling. If you are unsure about obstructions,
drill a small hole in the center of the outline and
insert a coat hanger wire into the hole to feel-around
for possible obstructions.
4. Cut the mounting hole using tools appropriate for
the construction, and run the speaker wires from the
mounting hole to the amplifier location.
IMPORTANT: Consult local building codes before
running speaker wires through walls.
5. Strip 1/4” – 1/2” (6mm – 13mm) of insulation from
each speaker lead. Twist the strands or tin the
exposed wire with solder to ensure that there are no
stray strands.
IMPORTANT: Stray strands that touch each other can
cause a short-circuit that can damage the amplifier.
Figure 1: Connection Terminals
IN-CEILING
SIDE VIEW
IN-WALL
FRONT VIEW
IN-WALL
SIDE VIEW
3
10. Insert the speaker into the mounting hole (see Fig-
ure 4) and tighten the four screws on the front of
the speaker bae (see Figure 5).
11. The Roto-Lock clamps will automatically rotate into
position and begin clamping the speaker.
IMPORTANT: Always use low-torque settings when
using a screw gun and go slowly; never over tighten.

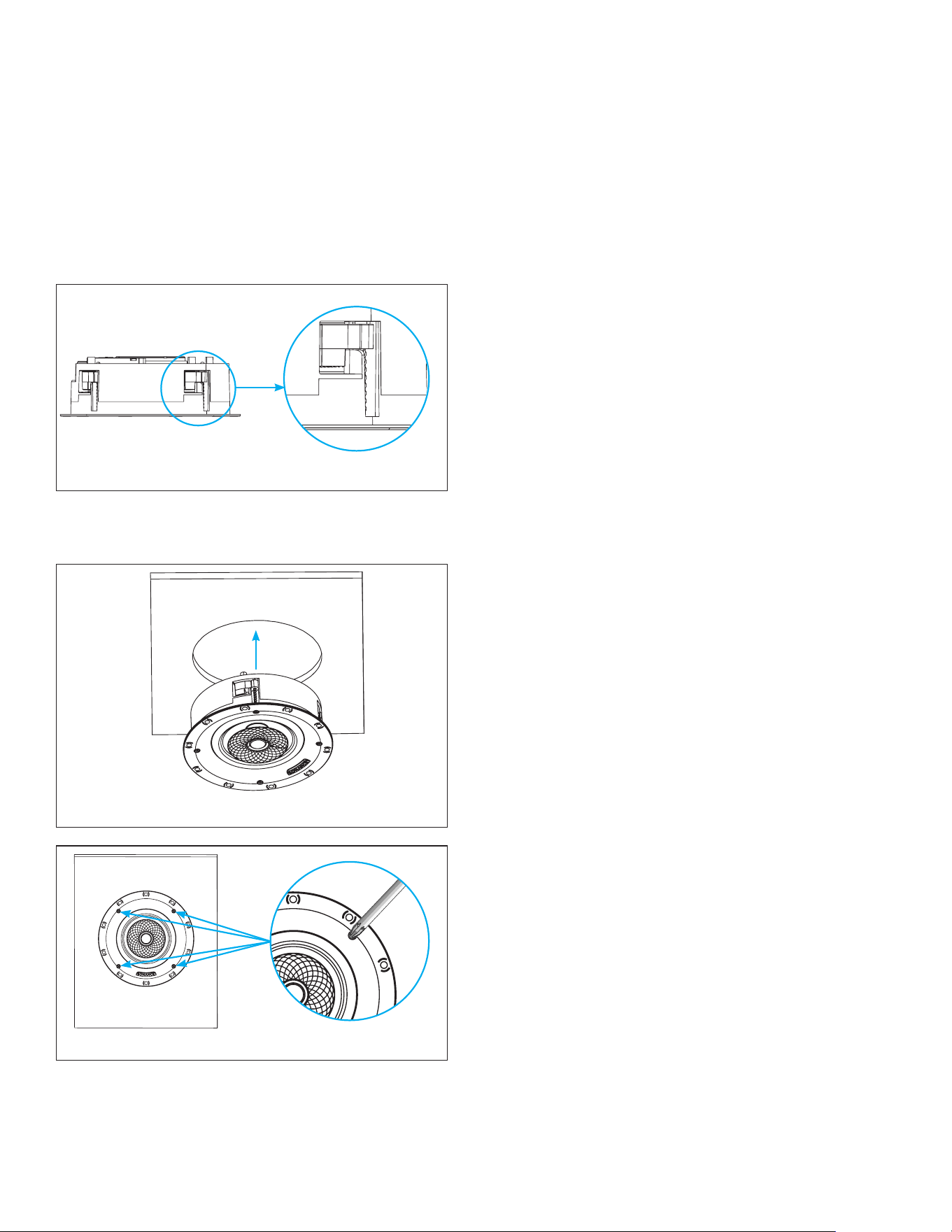

Figure 5: Tightening the Roto-Lock Screws
Figure 4: Inserting the Speaker into the Mounting Hole
IMPORTANT: Adjusting the tension of the Roto-Lock
Clamps to help the speaker sit flat with the surface will
help ensure proper grille contact all the way around
the speaker.
12. Test audio playback by turning on the amplifier and
source to play a signal to the speakers.
13. The VX grille is held in place by several small,
powerful magnets on the speaker frame. Place the
grille against the speaker and the magnets will hold
it firmly in place. When properly installed, the grille
flange should make contact with the surface all the
way around the speaker.
PAINTING THE GRILLES
Sonance Visual Experience Series speaker grilles
completely cover the exposed speaker frame, so only the
grilles (not the speakers themselves) require painting.
1. Remove and save the scrim cloth from the back of
the grille.
2. Prime the grille with a metal primer/bonder in a
spray can. Carefully follow the manufacturerʼs
directions on the can.
3. We recommend using water-based latex paint on
the grilles. Thin the paint with a proper thinning
agent to a ratio of 1:1 paint-to-thinner, and strain it
through a standard mesh strainer to remove any
lumps.
4. Use a small touch-up gun or cap-spray gun with a
#3 tip for painting.
• Set the nozzle with a medium to wide fan.
• Set the pressure regulator to 60psi.
• Lightly spray the front of the grille in three
quick strokes from approximately 10” away.
• Let the paint set for a minute, then turn the
grille 90º and lightly spray the grille again in
three quick strokes.
• Repeat this step until all four sides of the
grille have been evenly painted.
5. While the paint is still wet, inspect the grille and
make sure that excess paint has not collected
underneath the grille frame, and that none of the
grille perforations are filled with paint. If any are,
use compressed air to blow the paint out of the
perforations.
IMPORTANT: If you find any grille perforations that
are plugged with paint after the paint has dried, use a
straight pin or sewing needle to carefully remove the
paint.
6. Optional step. Reattach the scrim cloth to the back
of the grille once the paint has dried. You may need
to use an extremely light single pass coating of 3M
Super 76 spray adhesive.
7. Once the paint has thoroughly dried, mount the
grille on the speaker.
7. The speaker’s positive post is labeled with a red dot;
the negative post is labeled with a black dot.
8. After making all connections, double-check that you
connected amplifier “+” to speaker “+” and amplifier
“–” to speaker “–”.
Sonance Visual Experience Series Speakers feature an
exclusive integral RotoLock® mounting system for quick
mounting directly into existing walls and ceilings.
9. Make sure all the Roto-Lock toggle feet are retract-
ed so that the speaker can fit within the mounting
hole (see Figure 2).
Figure 2: Roto-Lock Toggle Feet Retracted
4
VX66 TL
SKU 93652
UOM Pair
Tweeter 1” (25mm) powder coated aluminum dome, Ferrofluid-cooled, pivoting,
acoustic back chamber
Woofer 6.5” (165mm) Kevlar/Nomex laminated cone, rubber surround
Frequency Response 43Hz - 20kHz +/-3dB
Impedance 8 ohms nominal; 6 ohms minimum
Power Handling 5 watts minimum; 140 watts maximum
Sensitivity 90dB SPL
Product Dimensions(W x H x D) 7.77” x 11.66” x 2.53” (197.3mm x 296.1mm x 64.2mm)
Speaker Mounting Depth (D) 2.53” (64.2mm)
Mounting Depth + Encl. 3.07” (78mm)
Cut-Out Dims (W x H) 6.9375” x 10.75” (176mm x 273mm)
Dims + Micro Trim Grille (WxH) 8.23” x 12.12” (208.9mm x 307.7mm)
Shipping Weight 9.68 lbs (4.39kg)
TECHNICAL SPECIFICATIONS
VX66R TL
SKU 93651
UOM Pair
Tweeter 1” (25mm) powder coated aluminum dome, Ferrofluid-cooled,
pivoting, acoustic back chamber
Woofer 6.5” (165mm) Kevlar/Nomex laminated cone, rubber surround
Frequency Response 43Hz - 20kHz +/-3dB
Impedance 8 ohms nominal; 6 ohms minimum
Power Handling 5 watts minimum; 140 watts maximum
Sensitivity 90dB SPL
Product Dimensions(Dia. x D) 9.17” x 5.21” (232.8mm x 132.4mm)
Speaker Mounting Depth (D) 2.93” (74.5mm)
Mounting Depth + Encl. 5.21” (132.4mm)
Cut-Out Dims (Dia) 8.25” (210mm)
Dims + Micro Trim Square (WxH) 9.62” x 9.62” (244.4mm x 244.4mm)
Dims + Micro Trim Round (Dia.) 9.62” (244.4mm)
Shipping Weight 12.61 lbs (5.72kg)
5
VX62R TL
SKU 93650
UOM Pair
Tweeter 1” (25mm) cloth dome, Ferrofluid-cooled, pivoting, acousticback chamber
Woofer 6.5” (165mm) textured polypropylene cone, rubber surround
Frequency Response 45Hz - 20kHz +/-3dB
Impedance 8 ohms nominal; 6 ohms minimum
Power Handling 5 watts minimum; 125 watts maximum
Sensitivity 89dB SPL
Product Dimensions(Dia. x D) 9.17” x 2.91” (232.8mm x 74mm)
Speaker Mounting Depth (D) 2.91” (74mm)
Mounting Depth + Encl. 5.21” (132.4mm)
Cut-Out Dims(Dia.) 8.10” (205.7mm)
Dims + Micro Trim Square (WxH) 9.62” x 9.62” (244.4mm x 244.4mm)
Dims + Micro Trim Round (Dia.) 9.62” (244.4mm)
Shipping Weight 12.61 lbs (5.72kg)
TECHNICAL SPECIFICATIONS
VX62R SST TL
SKU
93653
UOM Each
Tweeter 1” (25mm) cloth dome, Ferrofluid-cooled, pivoting, acousticback chamber
Woofer 6.5” (165mm) textured polypropylene cone, rubber surround
Frequency Response 45Hz - 20kHz +/-3dB
Impedance 8 ohms nominal; 6 ohms minimum
Power Handling 5 watts minimum; 125 watts maximum
Sensitivity 89dB SPL
Product Dimensions(Dia. x D) 9.17” x 2.91” (232.8mm x 74mm)
Speaker Mounting Depth (D) 2.87” (73mm)
Mounting Depth + Encl. 5.21” (132.4mm)
Cut-Out Dims(Dia.) 8.10” (205.7mm)
Dims + Micro Trim Square (WxH) 9.62” x 9.62” (244.4mm x 244.4mm)
Dims + Micro Trim Round (Dia.) 9.62” (244.4mm)
Shipping Weight 6.88 lbs (3.12 kg)
6
©2025 Sonance. All rights reserved. Sonance is a registered trademarks of Dana Innovations. Due to continuous product improvement, all features and
specifications are subject to change without notice. For the latest Sonance product specification information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA • PHONE: (949) 492-7777
03,21.2025
LIMITED LIFETIME WARRANTY
Sonance warrants to the first end-user purchaser that this Sonance-brand product (Sonance Visual Experience Speaker) when purchased
from an authorized Sonance Dealer/Distributor, will be free from defective workmanship and materials for the life of the speaker, except
for the grille, which is warranted for FIVE (5) YEARS. Sonance will at its option and expense during the warranty period, either repair the
defect or replace the Product with a new or remanufactured Product or a reasonable equivalent.
EXCLUSIONS: TO THE EXTENT PERMITTED BY LAW, THE WARRANTY SET FORTH ABOVE IS IN LIEU OF, AND EXCLUSIVE OF, ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, AND IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED BY SONANCE. ALL OTHER
EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, IMPLIED WARRANTY OF
FITNESS FOR USE, AND IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED.
No one is authorized to make or modify any warranties on behalf of Sonance. The warranty stated above is the sole and exclusive remedy
and Sonance’s performance shall constitute full and final satisfaction of all obligations, liabilities and claims with respect to the Product.
IN ANY EVENT, SONANCE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, ECONOMIC, PROPERTY, BODILY INJURY, OR
PERSONAL INJURY DAMAGES ARISING FROM THE PRODUCT, ANY BREACH OF THIS WARRANTY OR OTHERWISE.
This warranty statement gives you specific legal rights, and you may have other rights which vary from state to state. Some states do
not allow the exclusion of implied warranties or limitations of remedies, so the above exclusions and limitations may not apply. If your
state does not allow disclaimer of implied warranties, the duration of such implied warranties is limited to period of Sonance’s express
warranty. Your Product Model and Description: Sonance Visual Experience Speaker. Warranty Period for this Product: Limited Lifetime
from the date on the original sales receipt or invoice or other satisfactory proof of purchase.
Additional Limitations and Exclusions from Warranty Coverage: The warranty described above is non-transferable, applies only to the
initial installation of the Product, does not include installation of any repaired or replaced Product, does not include damage to allied
or associated equipment which may result for any reason from use with this Product, and does not include labor or parts caused by
accident, disaster, negligence, improper installation, misuse (e.g., overdriving the amplifier or speaker, excessive heat, cold or humidity), or
from service or repair which has not been authorized by Sonance.
Obtaining Authorized Service: To qualify for the warranty, you must contact your authorized Sonance Dealer/Installer or call Sonance
Customer Service at (949) 492-7777 within the warranty period, must obtain a return merchandise number (RMA), and must deliver the
Product to Sonance shipping prepaid during the warranty period, together with the original sales receipt, or invoice or other satisfactory
proof of purchase.
Warranty Process: Please work with your Sonance dealer to determine the exact nature of the fault. Sonance provides a Limited Lifetime
Warranty to the original owner with proof of purchase from an authorized Sonance dealer. The warranty does not cover shipping charges
back to Sonance or the use of the product in an environment or application not approved by Sonance.
In order to initiate a warranty claim:
1. Contact Sonance Technical Support with a description of the fault, the amplifier’s serial number and the date of purchase from an
authorized Sonance dealer at: [email protected]
2. Sonance Technical Support will follow-up and may request additional troubleshooting.
3. Once a determination has been made on the fault, Sonance Customer Service will follow-up by email. Please have a scanned copy of
your sales invoice ready to send upon request to document the amplifier’s warranty status.
4. Sonance Customer Service will provide an RMA number to be included on the shipping label of the packaging. Please send the
product back in its original factory carton, which has been specifically designed to protect the product during transit.
Contact us at: https://www.sonance.com/company/contact
