2
SUSSEX
INFO & INSTALL GUIDES
CONCEPTS
sussextaps.com.au
5.0
litres per
minute
Licence No. 0124
In accordance with AS/NZS 6400
Sussex Taps Pty Ltd
WATER RATING
www.waterrating.gov.au
The more
stars the more
water efcient
AS/NZS 3718:2005
LIC. 20081
Calibre
INFORMATION SHEET
Calibre Basin Mixer
Product code: CBM
160
80
100
40
35
48
sussextaps.com.au
5.0
litres per
minute
Licence No. 0124
In accordance with AS/NZS 6400
Sussex Taps Pty Ltd
WATER RATING
www.waterrating.gov.au
The more
stars the more
water efcient
AS/NZS 3718:2005
LIC. 20081
Calibre
Calibre Basin Mixer
Product code: Available options:
CBM Basin Mixer
CEBM Extended Basin Mixer
INSTALLATION GUIDE
PLUMBER NOTE
- On-site testing using higher water pressures must be
conducted with the Mixer in the closed position.
(STATIC TEST )
- Under no circumstances is the Mixer to be opened
when exceeding the maximum stated water pressure.
- At the completion of testing, do not relieve any high
water pressure by operating the Mixer.
- Exposing the internals of the Mixer Cartridge to higher
than specified water pressures will void the
manufacturers warranty.
INSTALLATION GUIDELINES
- The Mixer is supplied assembled, only the Fixing nut
and the Clamp need to be removed.
- After removing the mentioned parts, lower the Mixer
on to the mounting surface and fit the Flexible Hoses.
- In some cases the Flexible Hoses may need to be fed
through from under the mounting surface and then
attached. (Tighten using appropriate spanner)
- After securing the Flexible Hoses, fit Clamp and attach
the Fixing Nut from underneath.
- Before fully securing the Mixer ensure that the Base O
Ring is intact and the Mixer is properly centered over
the mounting surface hole.
- The Mixer mounting surface must be completely sealed
and water-tight.
- The 1/2” Fittings of the Flexible Hoses have a conical
seal, ensure that the matching threads are cut square
and burr free.
- Prior to connecting the Flexible Hoses, ensure all
pipework is thoroughly flushed and ensure pipework is
free of any dirt or debri.
- Isolating Stop Valves are recommended with all
installations. (not supplied)
- Connect the Flexible Hoses to Hot and Cold pipework
fittings, ensure the Hoses do not kink or become
twisted when tightening.
- Check all fittings and connections are secure and
water-tight.
BASE
O-RING
CLAMP
Hole Size
32-35mm
50mm Max.
Bench thickness
1/2" BSP Fittings
with conical Seals
FLEXIBLE HOSES
FIXING
NUT
CONCEPT One
6.5
litres per
minute
Licence No. 0124
In accordance with AS/NZS 6400
Sussex Taps Pty Ltd
WATER RATING
www.waterrating.gov.au
The more
stars the more
water efcient

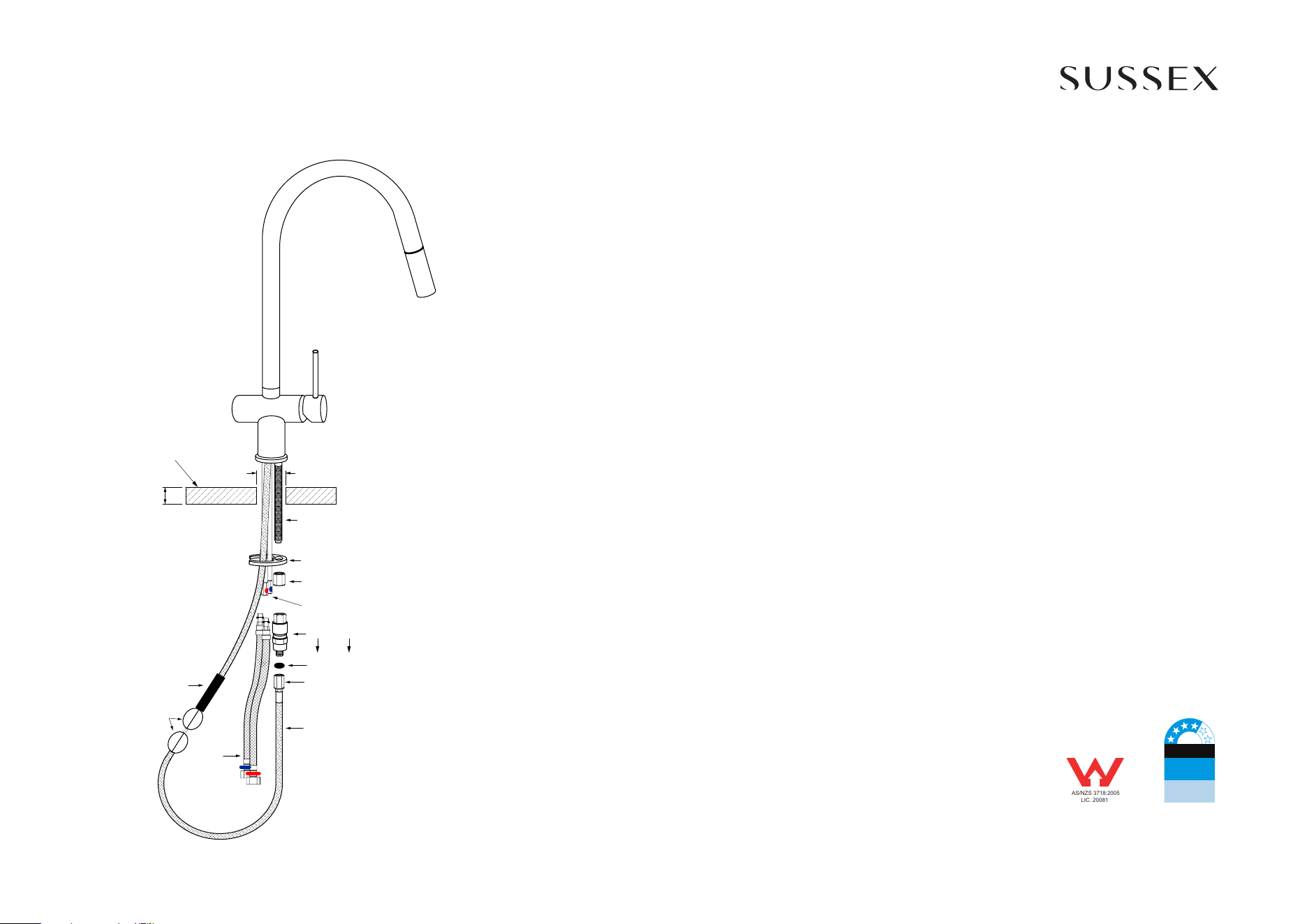

35 - 38mm
32mm
Max
FIXING NUT
CLAMP
THREAD BAR
FLEXIBLE TAIL
EXTENSION
DCV
ASSEMBLY
FLEXIBLE
TAILS
PULL OUT
HOSE
WEIGHTS
RUBBER
STOP
180° OUTLET SWIVEL
FLOW
MOUNTING SURFACE
(FLAT/LEVEL)
HOSE ADAPTER
FITTING
O RING
Product code
Installation guidelines
Voda
Plumber note
- 60mm clearance is required at rear of mixer.
- Ensure a 35 - 38mm clearance hole is provided through the mounting surface.
- Ensure adequate cupboard space has been provided to allow the Pull-out hose to move freely.
- Mounting surface must be flat and level.
- Prior to installing the mixer, remove the Clamp and Fixing Nut from the assembly and the weights from the hose.
- Pass the pull-out Hose through the mounting surface hole lowering the Mixer onto the mounting surface.
- Working from underneath, fit the Clamp and Fixing Nut.
- Gently bend the Flexible Tail Extensions away from the Thread Bar and Pull-out Hose.
- Use the provided Tube Spanner to tighten and secure the Mixer to the mounting surface.
- Attach the DCV Assembly to the Thread Bar (note the arrow direction).
- DCV has an O-ring seals. No need for thread tape.
- Connect the Pull-out Hose to the DCV Assembly and tighten well.
Note: Do not remove the Hose adapter fitting from the Pull-out Hose.
- Attach the Weights (2) to the Hose, ensure the Rubber stop is between the Clamp and the Weights.
- The maximum recommended length of Nozzle pull-out is approximately 400mm.
- Connect the provided Hot and Cold Flexible tails to the Mixer.
- Connect the Hot and Cold Flexible tails to the corresponding 1/2”BSP water feed lines.
- The 1/2” connection of the Flexible tails have a conical seal, ensure the mating threads are cut square and burr
free.
- Isolating stop valves are recommended with all installations. (Not supplied).
- Ensure all fittings and connections are watertight.
- Check Mixer functions correctly with a smooth action.
- Ensure the Pull-out Hose operates freely with minimal contact to other parts.
- On-site testing using higher water pressures must be conducted with the
Mixer in the closedposition. (STATIC TEST)
- Under no circumstances is the Mixer to be opened when exceeding the
maximum stated water pressure.
- At the completion of testing, do not relieve any high water pressure by
operating the Mixer.
- Exposing the internals of the Mixer Car tridge to higher than specified
water pressures will void the manufacturers warranty.
VSMPO Sink mixer pull out
Sink mixer pull out
sussextaps.com.au
Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003
Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c
