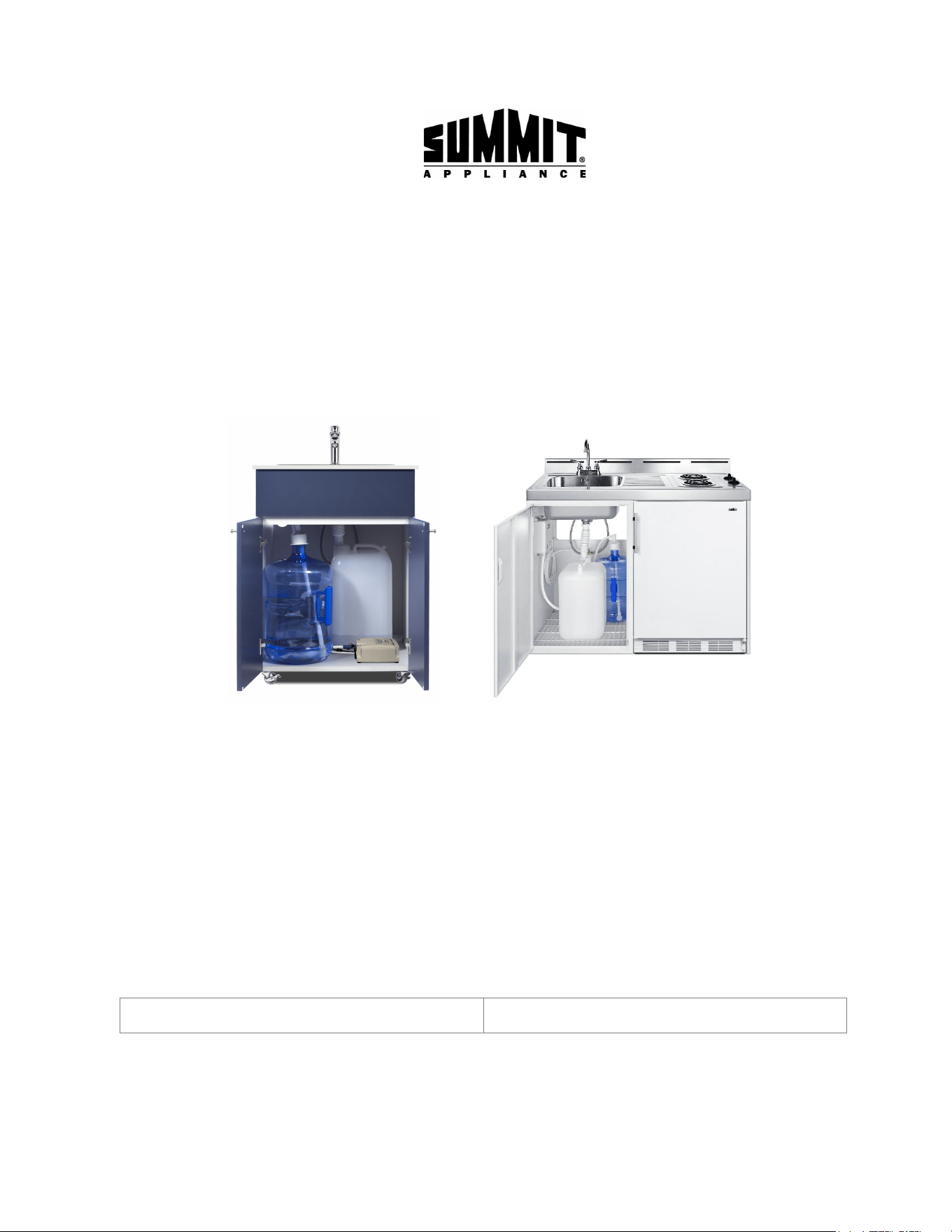

Water Pump Kit
Assembly Instructions
Model:
CKPUMPKIT

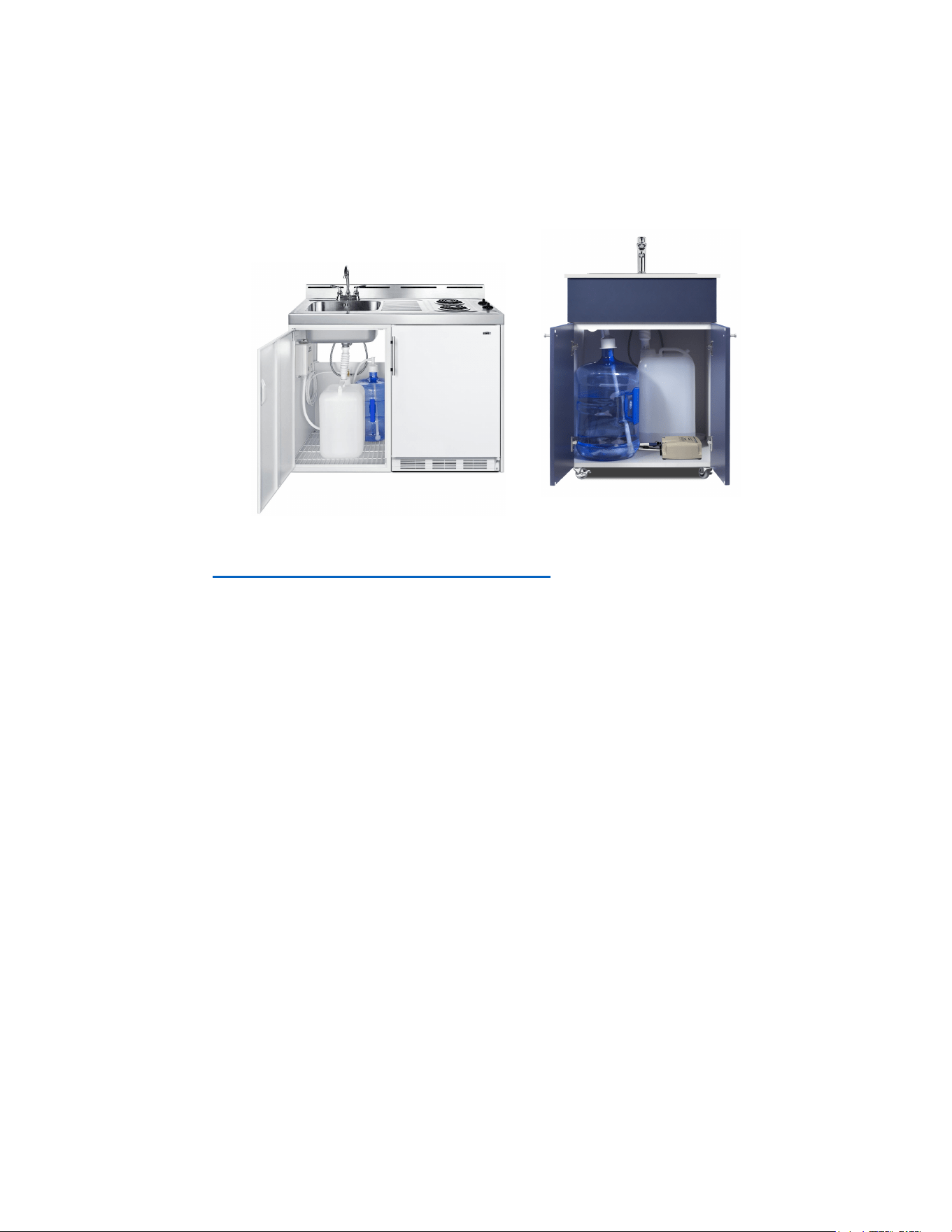

Compatible with:
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
Handwash Station
PWS25MN
PWS25WH
Kitchenette
C48ELPUMP
C48ELGLASSPUMP
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Model:
Serial Number:
Component
Quantity
Bottled Water Dispenser Pump System,
20ft 110V AC US Plug Water Dispensing
Pump
1
5 Gallon Freshwater Container
1
6 Gallon Waste Container
1
3/8 in. Brass Water Cut-off Valve
1
1/4" Acetal Copolymer Compression
Sleeve
1
20 in. Length Braided Stainless Steel
Faucet Connector
2
1-1/2-in Flexible Plastic Drainage Pipe
1
2

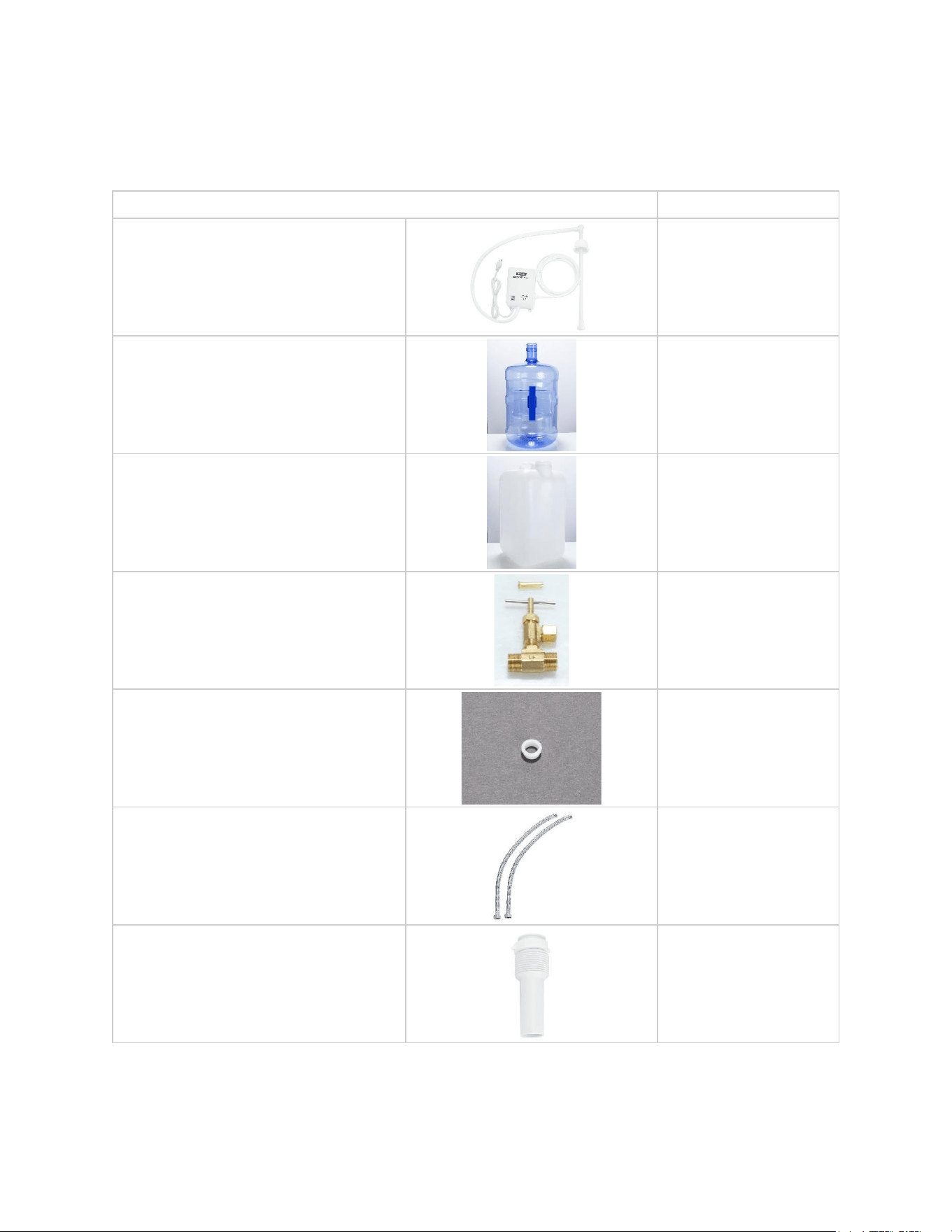

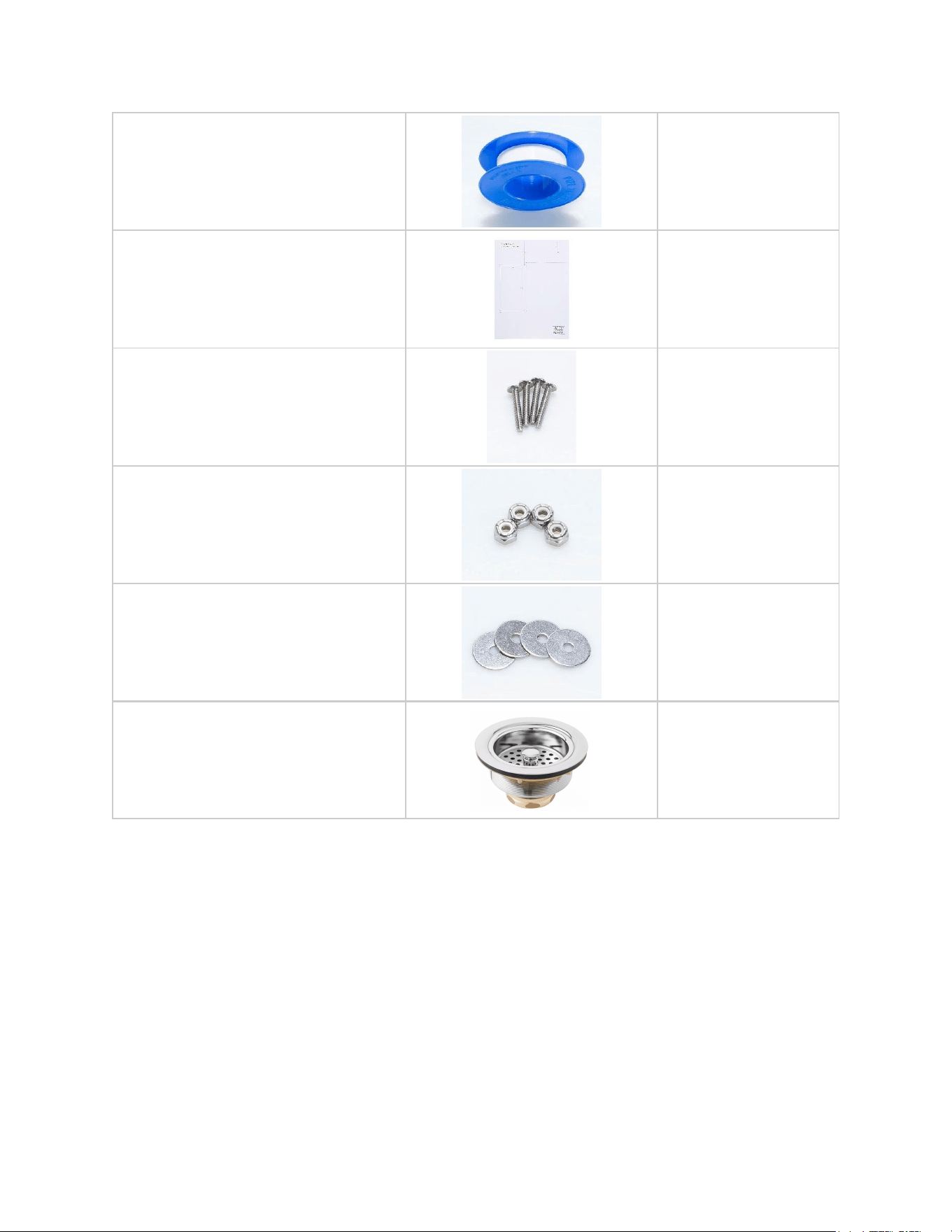

List of Pump Kit Components
1/2 in. x 520 in. White Teflon Tape
1
Mounting Template (18x12)
1
10-32 x 1 1/4" Phillips Head Truss Screw
Stainless Steel
4
10-32 Nylon Lock Nut Stainless Steel
4
10 x 5/8" Fender Washer Stainless Steel
4
To order replacement parts, visit our website: summitapplianceparts.com
3
Sink Basket Strainer
1
For models: C48ELPUMP&
C48ELGLASSPUMP
Installing the Pump Kit to the Handwash Station
Applicable for Models: PWS25MN & PWS25WH
1) Open the handwash station cabinet.
2) To install the faucet, set the gasket on top
of the pre-drilled holes of the sink.
3) Insert the water faucet thought the gasket
and secure the faucet to the pump line
with the provided nuts on the underside
of the sink.
4) Secure the pump to the interior wall of the
cabinet, using the four provided screws,
washers, and nuts. Be sure the screw
heads are on the outside of the cabinet.
Ensure nothing sits directly on the floor,
keeping any cords or wires dry.
5) To connect the pump to the valve, place
the valve nut over t
he water line.
6) The plastic sleeve has a wider and
narrower side. Place the plastic sleeve
onto the water line through the wider
side.
7) Insert the metal flange into the end of the
water line as far as it will go.
8) Wrap the threading of the valve, then
secure the water line to the cut off valve.
Tighten the nut as much as you can.
9) Now that the water intake line is
attached, wrap the other two threads of
the cut-off valve in Teflon tape, then
connect the small ends of the two faucet
connector lines to the cut off valve.
10) Wrap the threads of the faucet
underneath the sink, then attach the
wider ends of the connector lines to the
faucet.
11) Set the freshwater jug in the rear right-
hand corner. Uncap the freshwater jug
and insert the water pull into the
freshwater jug. Be careful, as some water
may overflow when the device is first
inserted.
12) Apply plumber's putty (not supplied) to
top flange of strainer basket. Insert
strainer basket into sink drain. Place
rubber gasket and tighten with nut. Attach
the drainage pipe to the underside of the
sink drain, then set the end into the waste
water jug.
13) Open the water cut-off valve.
NOTE: If mounting the pump is not
possible for your set-up, the pump can
be placed on the floor of the cabinet. It
is recommended to place it, so the
ON/OFF switch is accessible.
NOTE: The pump has two tubes, a
thinner tube which runs to the metal
water cut-off valve and a thicker water
pull tube, which
pulls water from the
freshwater jug.
freshwater jug.
Tip: Place pump on rubber feet to
reduce noise.
4
Important: It is recommended that the pump kit be installed by a qualified professional or licensed
plumber experienced in plumbing installations.
Installing the Pump Kit to the Kitchenette
Applicable for Models: C48ELPUMP & C48ELGLASSPUMP
1) Open the cabinet of your combo kitchen.
Move the wire shelf to the floor of the cabinet.
This is to ensure nothing sits directly on the
floor, keeping any cords or wires dry.
2) To install the faucet, set the gasket on top of
the pre-drilled holes of the combo kitchen.
3) Insert the water faucet thought the gasket
and secure the faucet with the provided nuts
on the underside of the sink.
4) The pump will be secured to the inner wall of
the combo kitchen, using four machine
screws and nuts.
5) Place the provided template on the left side
of the combo kitchen, in the top-right corner.
It should align to the front edge and along the
bottom edge of the stainless-steel top.
6) Using a ¼” drill bit, drill the four template
holes.
7) Secure the pump to the interior wall of the
cabinet, using the four provided screws,
washers, and nuts. Be sure the screw heads
are on the outside of the cabinet.
8) The pump has two tubes, a thinner tube
which runs to the metal water cut-off valve
and a thicker water pull tube, which pulls
water from your freshwater jug.
9) To connect the pump to the valve, place the
valve nut over the water line.
10) The plastic sleeve has a wider and narrower
side. Place the plastic sleeve onto the water
line through the wider side.
11) Insert the metal flange into the end of the
water line as far as it will go.
12) Wrap the threading of the valve, then secure
the water line to the cut off valve. Tighten the
nut as much as you can.
13) Now that the water intake line is attached,
wrap the other two threads of the cut-off valve
in Teflon tape, then connect the small ends of
the two faucet connector lines to the cut off
valve.
14) Wrap the threads of the faucet underneath
the sink, then attach the wider ends of the
connector lines to the faucet.
15) Set the freshwater jug in the rear right-hand
corner. Uncap the freshwater jug and insert
the water pull into the freshwater jug. Be
careful, as some water may overflow when
the device is first inserted.
16) Attach the drainage pipe to the underside of
the sink drain, then set the end into the
wastewater jug.
17) Open the water cut-off valve.
NOTE: If mounting the pump is not
possible for your set-up, the pump can be
placed on the floor of the cabinet. It is
recommended to place it, so the ON/OFF
switch is accessible.
5
Important: It is recommended that the pump kit be installed by a qualified professional or licensed
plumber experienced in plumbing installations.
Tip: Place pump on rubber feet to reduce
noise.
