Desktop Fan
User's manual
2014 06/2014
SFE 2320WH
Prior to using this appliance, please read the user's manual thoroughly, even in cases, when one has
already familiarised themselves with previous use of similar types of products. Use the appliance only as
described in this manual. Keep this manual for later use.
We recommend saving the original shipping cardboard box, packaging material, receipt and warranty
card for the duration of warranty. In the event of shipping, pack the appliance using the original
packaging materials only.
EN-2
EN
Desktop Fan
SFE 2320WH
2014 06/2014
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
DESCRIPTION OF THE FAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLING THE FAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERATING THE FAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CLEANING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS . . . 8
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Desktop Fan
SFE 2320WH
EN
EN-3
2014 06/2014
IMPORTANT SAFETY INSTRUCTIONS
This appliance may be used by children
8 years of age and older and by persons
with physical or mental impairments or by
inexperienced persons if they are properly
supervised or have been informed about
how to use of the product in a safe manner
and understand the potential dangers.
Do not allow children to play with the
appliance.
Cleaning and maintenance performed
by the user must not be performed by
unsupervised children.
EN-4
EN
Desktop Fan
SFE 2320WH
2014 06/2014
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND STORE THESE INSTRUCTIONS FOR FUTURE USE.
Before connecting the appliance to a power socket, check that the technical details on the rating
label of the appliance match the electrical voltage in the socket.
To prevent the appliance from overheating, do not cover it with any items.
The appliance is designed for use in households, offi ces and similar types of areas.
Do not use the appliance in very dusty or humid rooms such as laundries or bathrooms, in areas
where chemicals are stored, in industrial surroundings or outdoors!
Do not place the appliance in the vicinity of an open fl ame or appliances that are sources of heat.
Always place the appliance on an even, dry and stable surface.
Do not submerge the appliance in water or in any other liquid.
Do not insert any items though the protective grill. An electrical short circuit could occur, a fi re
might start or the appliance may be damaged.
Always turn off the appliance and disconnect it from the power socket if you will not be using it
and before moving, cleaning, disassembling or assembling it.
Do not disconnect the appliance from the power socket by pulling on the power cord. This could
damage the power cord or the socket. Disconnect the cord from the power socket by gently pulling
the plug of the power cord.
Make sure the power cord does not hang over the edge of a table and that it is not touching
a hot surface.
It is forbidden to use the appliance if it has a damaged power cord or plug. If the power cord is
damaged, have it replaced at a professional service centre.
Do not use the appliance if it is not working correctly, if it has been damaged or has been
submerged in water. To avoid the danger of injury by electrical shock, do not repair the appliance
yourself or make any adjustments to it. Have all repairs or adjustments of the appliance performed
at an authorised service centre. Tampering with the appliance during the warranty period may void
the warranty policy.
Desktop Fan
SFE 2320WH
EN
EN-5
2014 06/2014

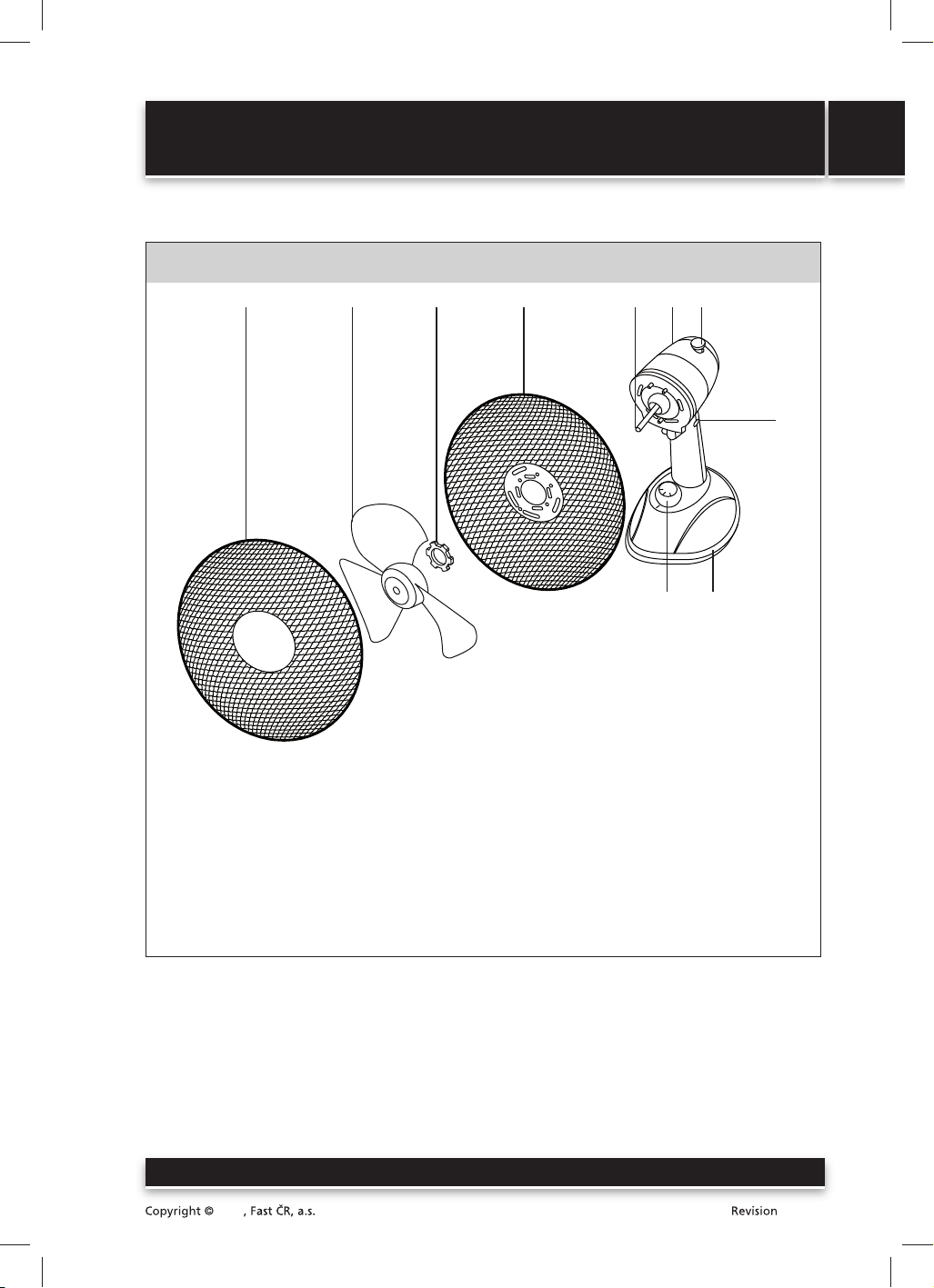

DESCRIPTION OF THE FAN
A
1 2 3 4 5 6 7
8
9 q;
1 Front protective grill
2 Fan blades
3 Nut for fastening the rear protective grill
4 Rear protective grill
5 Motor shaft
6 Motor unit
7 Switch for activating and deactivating oscillation
8 Locking nut for securing the set tilt angle of the motor unit
9 Power off and fan speed dial
(0 – off, 1 – low speed, 2 – high speed)
q; Stand
EN-6
EN
Desktop Fan
SFE 2320WH
2014 06/2014
ASSEMBLING THE FAN
Place the stand Aq; on an level, dry and stable surface. Screw the nut A3 out of the motor unit
A6.
Seat the rear protective grill A4 on to the motor shaft A5 in such a way that the fan carrying
handle attached to the rear grill A4 points upwards. Push the rear grill A4 towards the motor unit
A6 ensuring the lugs on the front part of the motor unit A6 pass through the holes in the central
part of the rear grill A4. Use the nut A3 to secure the grill A4 to the motor unit A6.
On to the motor shaft A5 place the fan blades A2 and push them fully in the direction of the
motor unit A6.
On the outer band of the protective grill A1 there are three fastening clamps, a hook and a screw
hole. Release the clamps and hold the grill A1 in such a way that the hook is located on the top
part of the grill A1. Place the front grill A1 against the back grill A4 in such a way that the outer
band of the grill A4 fi ts into the hooks on the outer band of grill A1. Check that the outer bands
and the screw holes overlap. Fold down the clamps to fasten the outer bands together. For safety
reasons secure the outer band connection using the supplied screw and nut. If during the assembly
of the fan you proceeded according to the above instructions, the screw holes are found in the
bottom part of the outer band.
The fan is now assembled and ready for use.
OPERATING THE FAN
Connect the fan to a power socket.
1) Setting the speed and turning off the fan
Turn the dial A9 to position 1 to set the fan to low speed. Turn the dial A9 to position 2 to set the
fan to high speed. Turn the dial A9 to position 0 to turn off the fan.
2) Activating and deactivating oscillation
If the fan is running, push switch A7 downwards to activate the oscillation of the motor unit A6.
The motor unit A6 will oscillate horizontally. To deactivate the oscillation pull switch A7 upwards.
3) Setting the vertical tilt of the motor unit
Before setting the vertical tilt of the motor unit A6, fi rst turn off the fan by turning the dial A9 to
position 0 (off). Release the fastening screw A8 by turning it anticlockwise. Set the motor unit A6
at the desired vertical tilt angle. Secure the set tilt of the motor unit A6 by turning the fastening
screw A8 in the clockwise direction.
Note:
The motor unit A6 may only be tilted in a limited range. Do not use force to set the tilt angle
of the motor unit A6.
If you will not be using the fan, turn it off according to the instructions contained in paragraph
"Setting the speed and turning off the fan" and disconnect it from the power socket.
Desktop Fan
SFE 2320WH
EN
EN-7
2014 06/2014
CLEANING AND MAINTENANCE
Before cleaning, turn of the fan and disconnect the power cord from the power socket.
Wipe the surface of the fan using a clean and dry wiping cloth. In the event that it is more dirty,
disassemble the fan and wipe the individual parts (not the power plug) with a wiping cloth slightly
dampened in a solution of warm water and neutral detergent. Then thoroughly wipe all parts until
dry. Take care not to allow water to enter the motor unit A6 or the control unit on the stand Aq;
when cleaning.
Do not use abrasive cleaning products, petrol, solvents, etc. for cleaning.
If you will not be using the fan for a longer period of time, store it in a clean, dry location that is
out of reach of children.
TECHNICAL SPECIFICATIONS
Nominal voltage range ...................................................................................................................220–240 V
Nominal frequency ..................................................................................................................................50 Hz
Rated power input ...................................................................................................................................30 W
Safety class (for electric shock protection) ................................................................................................... II
Noise level ...........................................................................................................................................50 dB(A)
Fan blade diameter ................................................................................................................................ 23 cm
Maximum fan fl ow rate .............................................................................................................. 15.5 m³/min
Service value .......................................................................................................................... 0.68 (m³/min)/W
Maximum air velocity ..........................................................................................................................2.86 m/s
Measurement standard
for service value .............................IEC 60879:1986, EN 50564:2011, EN 60704-2-7:1998, EN 60704-1:2010
Contact details for obtaining
more information .............................FAST ČR, a. s., Černokostelecká 1621, 251 01 Říčany, Czech Republic
The declared noise emission level of the appliance is 50 dB(A), which represents a level A of acoustic
power with respect to a reference acoustic power of 1 pW.
Glossary of technical terms
Safety class for electric shock protection:
Class II – Electric shock protection is provided by double or heavy-duty insulation.
We reserve the right to change the text and technical specifi cations.
EN-8
EN
Desktop Fan
SFE 2320WH
2014 06/2014
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED
PACKAGING MATERIALS
Dispose of packaging material at a public waste disposal site.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES
The meaning of the symbol on the product, its accessory or packaging indicates that
this product shall not be treated as household waste. Please, dispose of this product at
your applicable collection point for the recycling of electrical & electronic equipment
waste. Alternatively in some states of the European Union or other European states
you may return your products to your local retailer when buying an equivalent new
product. The correct disposal of this product will help save valuable natural resources
and help in preventing the potential negative impact on the environment and human
health, which could be caused as a result of improper liquidation of waste. Please ask
your local authorities or the nearest waste collection centre for further details. The im-
proper disposal of this type of waste may fall subject to national regulations for fi nes.
For business entities in the European Union
If you wish to dispose of an electrical or electronic device, request the necessary infor-
mation from your seller or supplier.
Disposal in other countries outside the European Union
If you wish to dispose of this product, request the necessary information about the cor-
rect disposal method from local government departments or from your seller.
This product meets all the basic EU regulation requirements that relate to it.
