MechMaxx BB96 96" Box Blade Scraper 8 Shanks 3 Point Hitch Tractor Attachment

Product's Documents

Below are documents related to this product, you can read online or download:
Main documentSpecificationQuestions and answersRelateds Products
BB96 photo

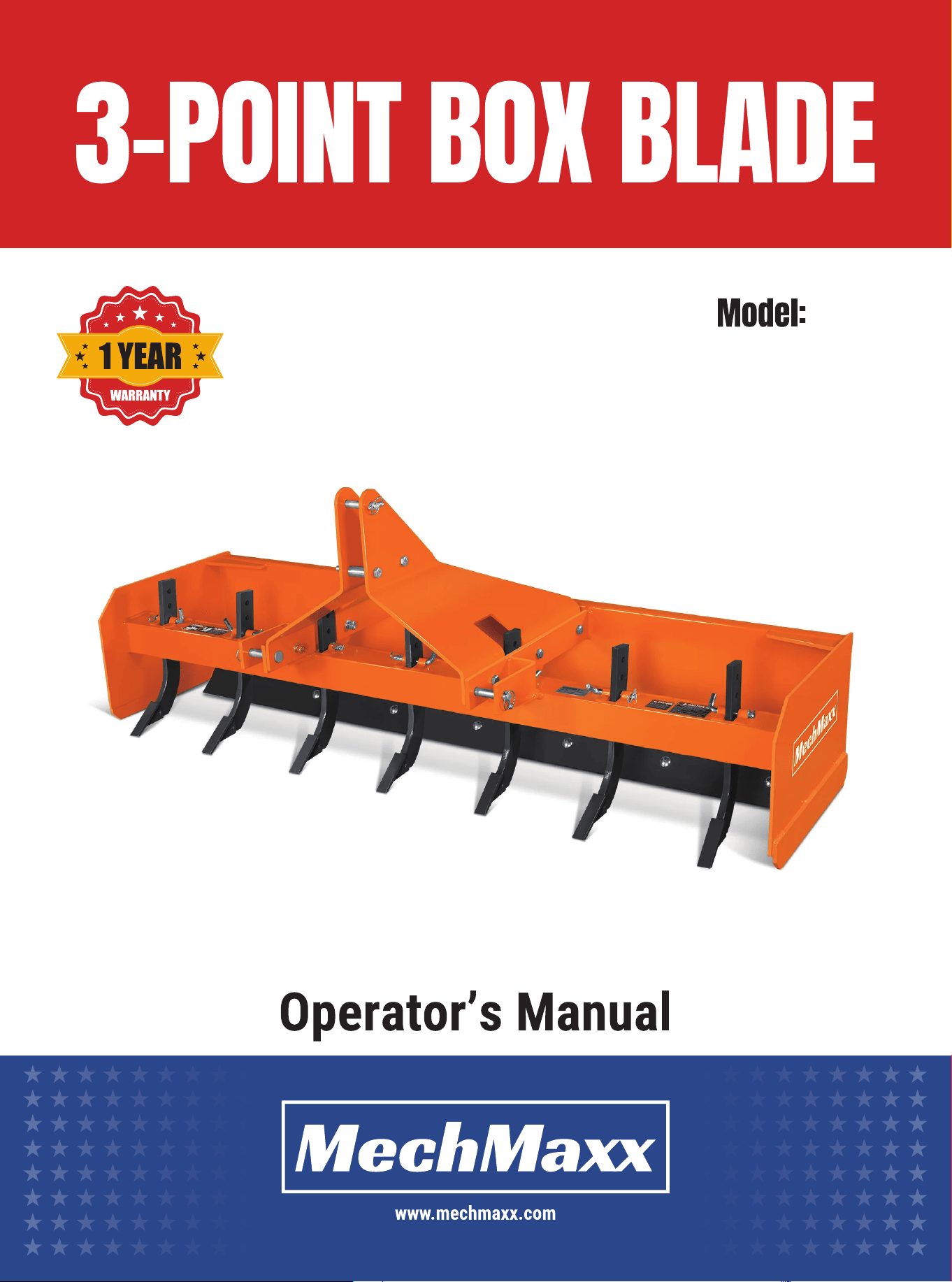

3 Point Box Blade Product Manual.

This is the main product document for model BB96. Additionally, the document applies to other MechMaxx models: 201045

The file format is pdf, 12 pages, you can download this manual here .

background
BB60
BB72
BB84
BB96
background
9
10

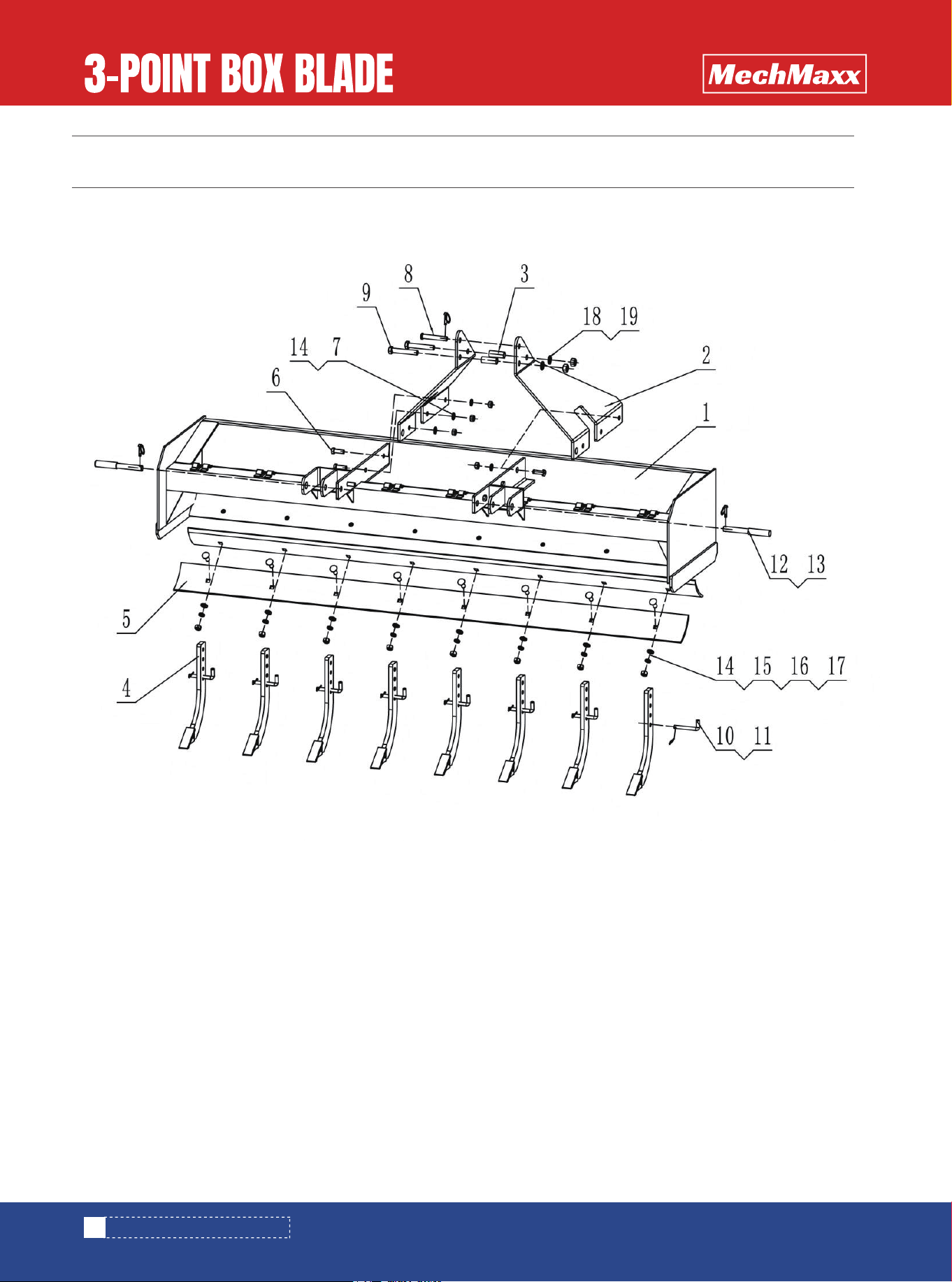

BOX BLADE PARTS ASSEMBLY (BB96)
PARTS LIST (BB96)
1
TABLE OF CONTENTS
background
2

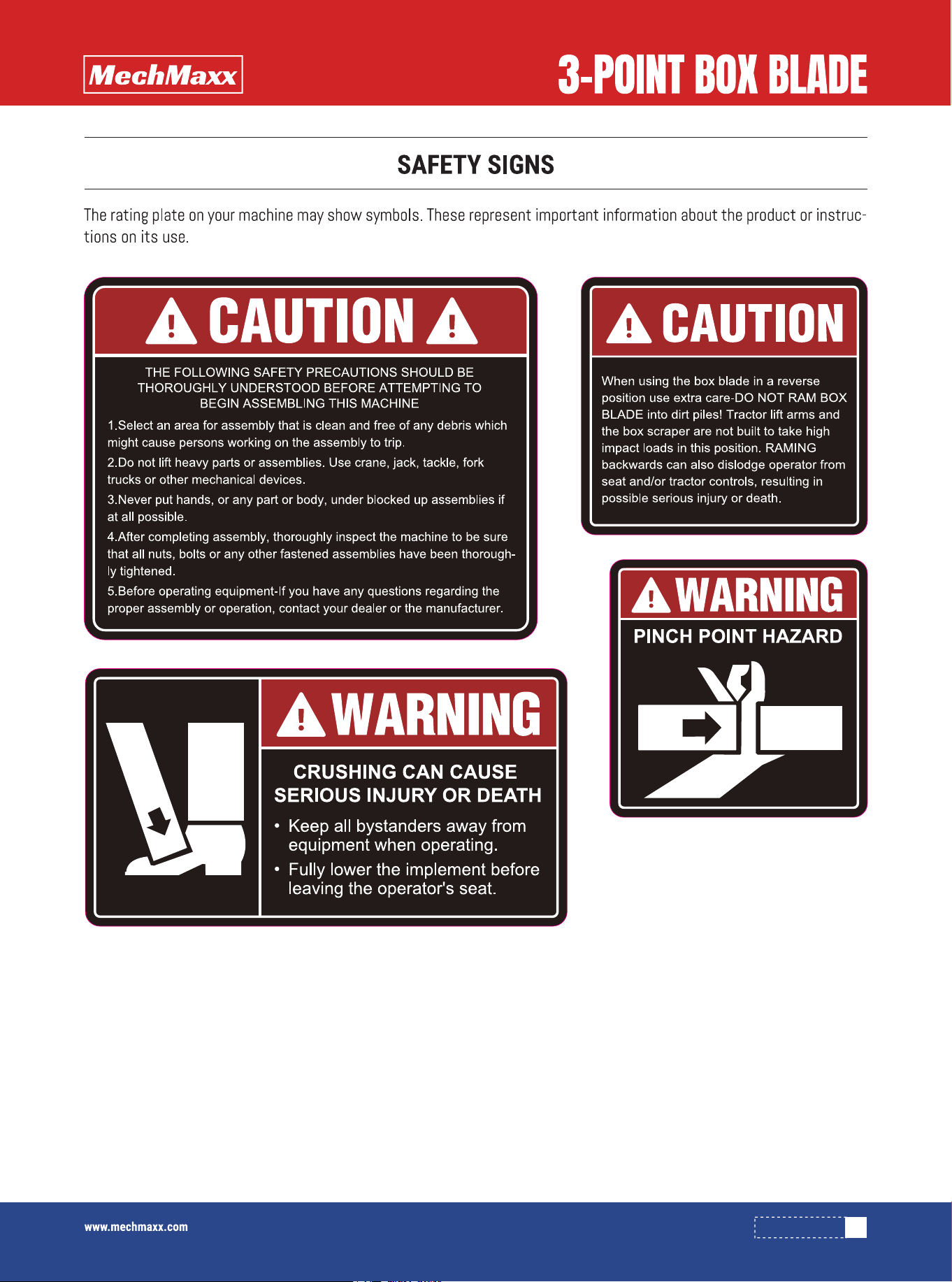

SAFETY SIGNS
background

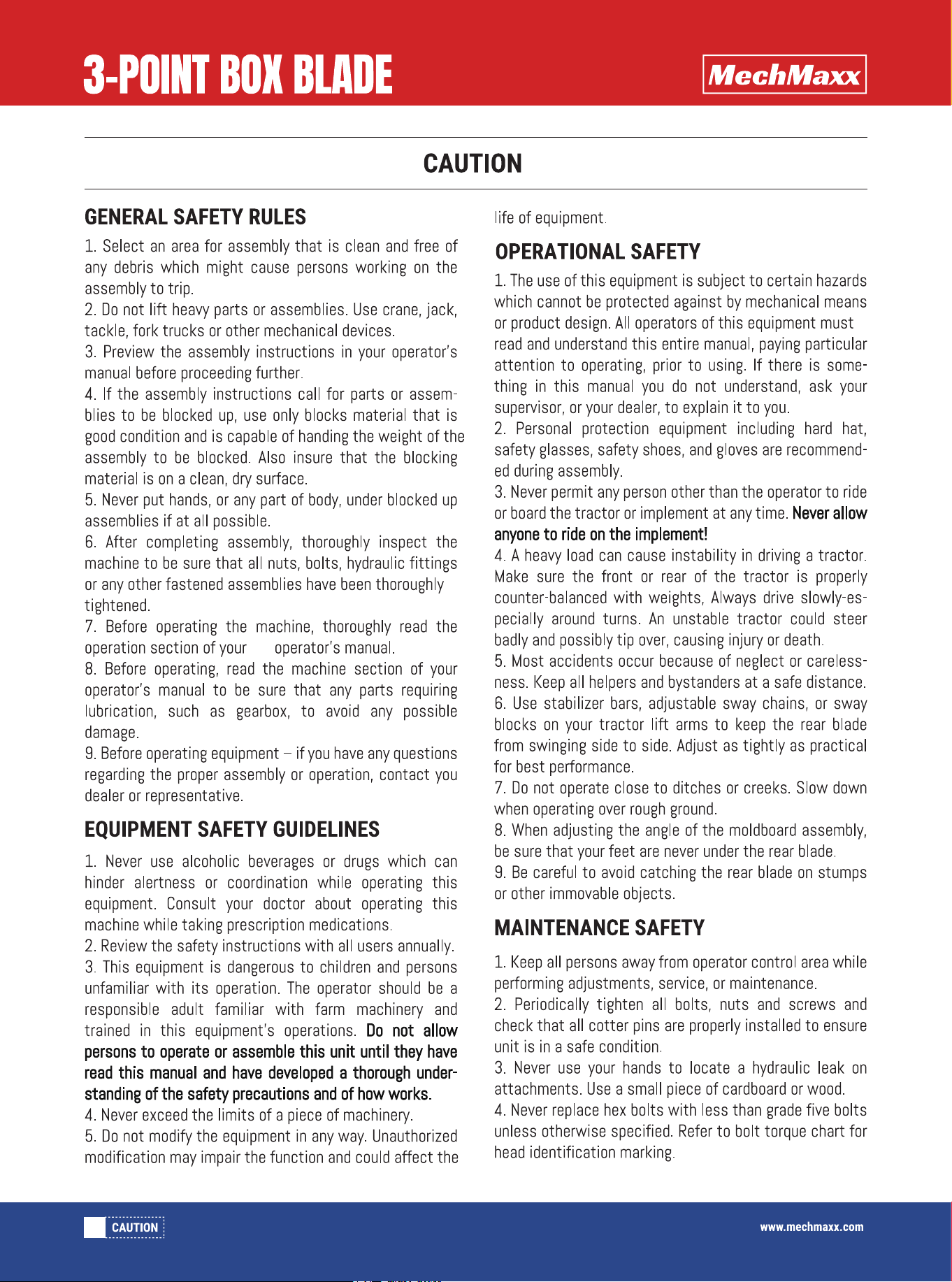

3
background

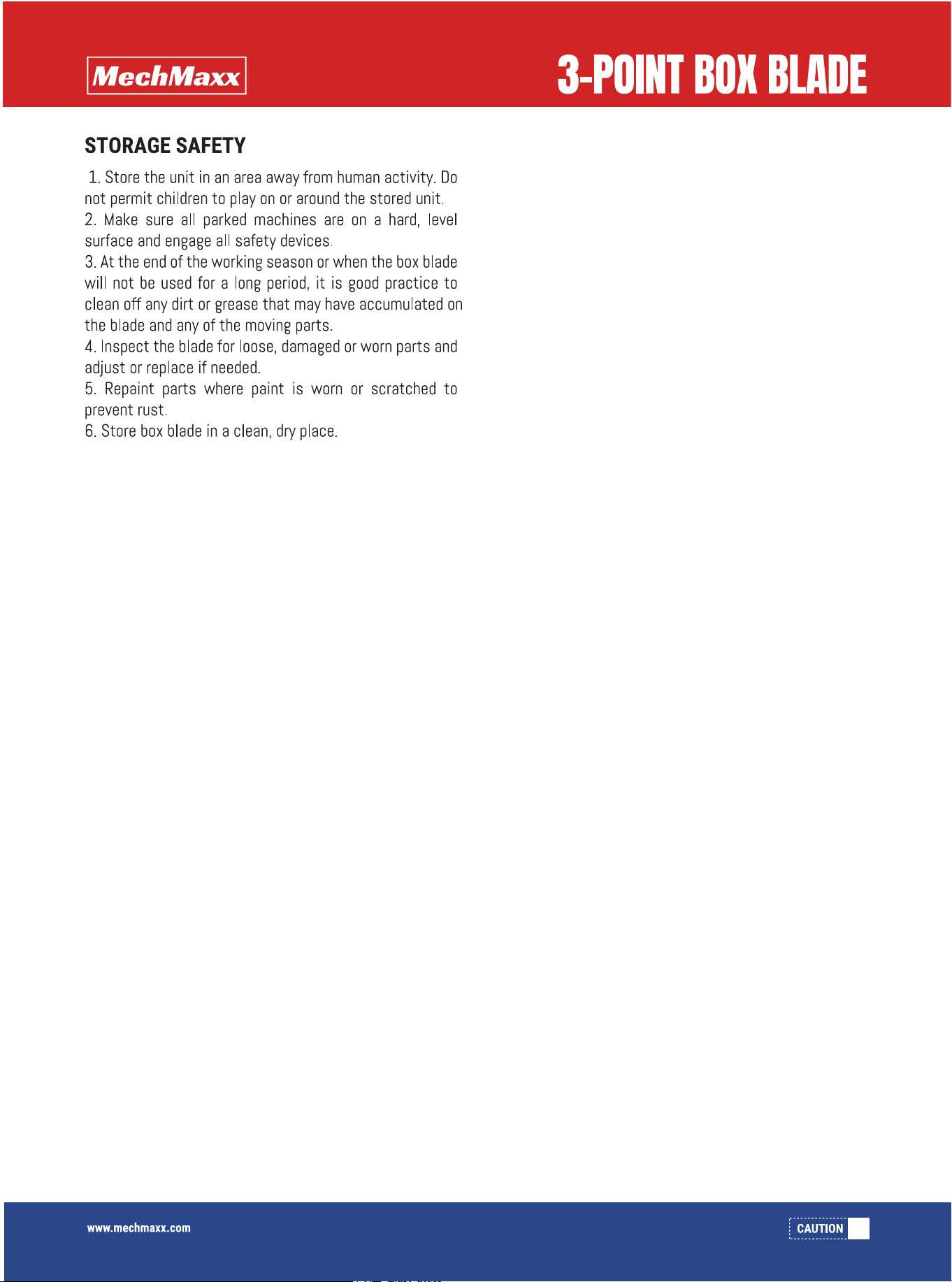

4
background
5
background

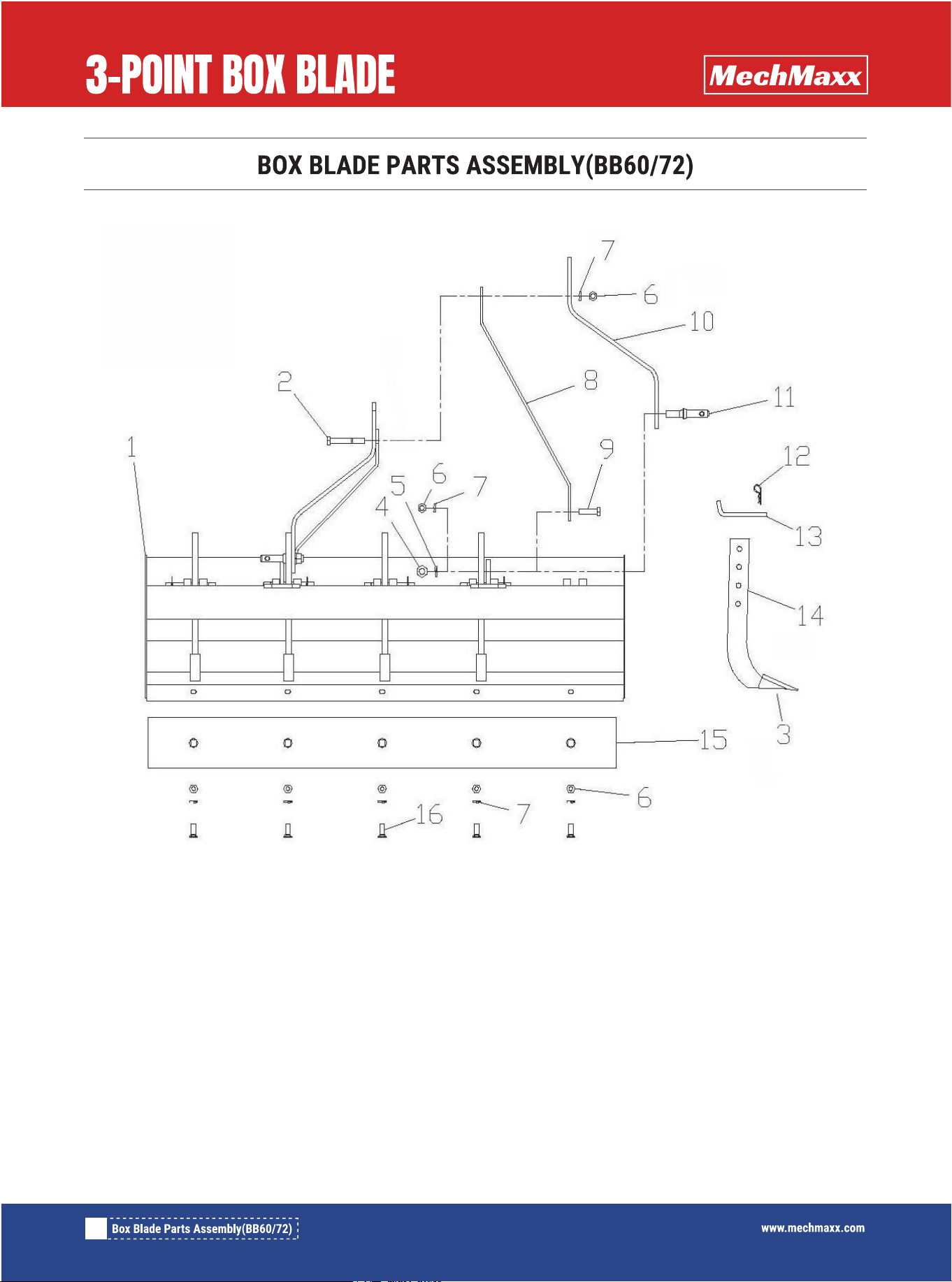

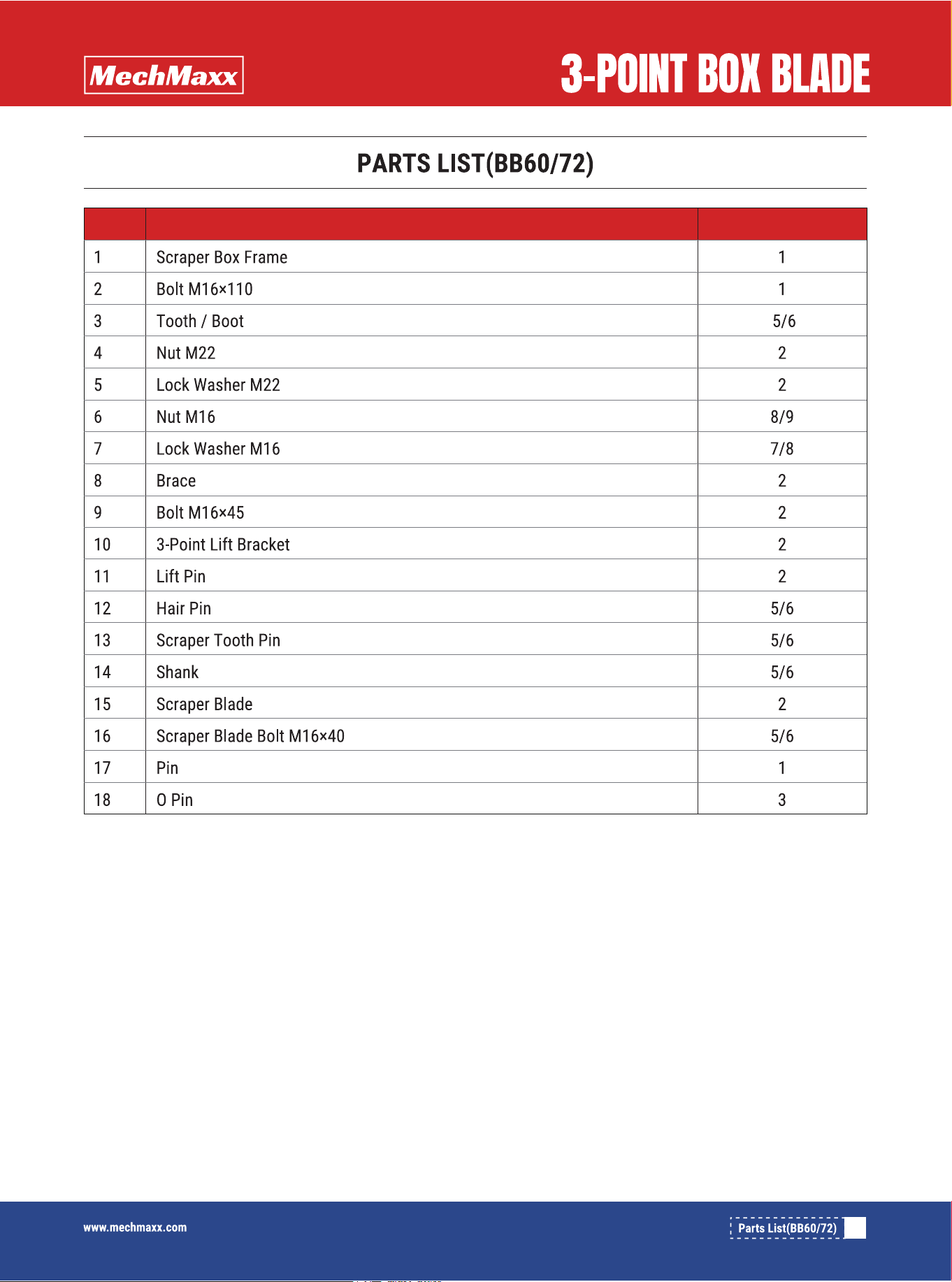

Parts# Description Quantity (BB60/BB72)
6
background

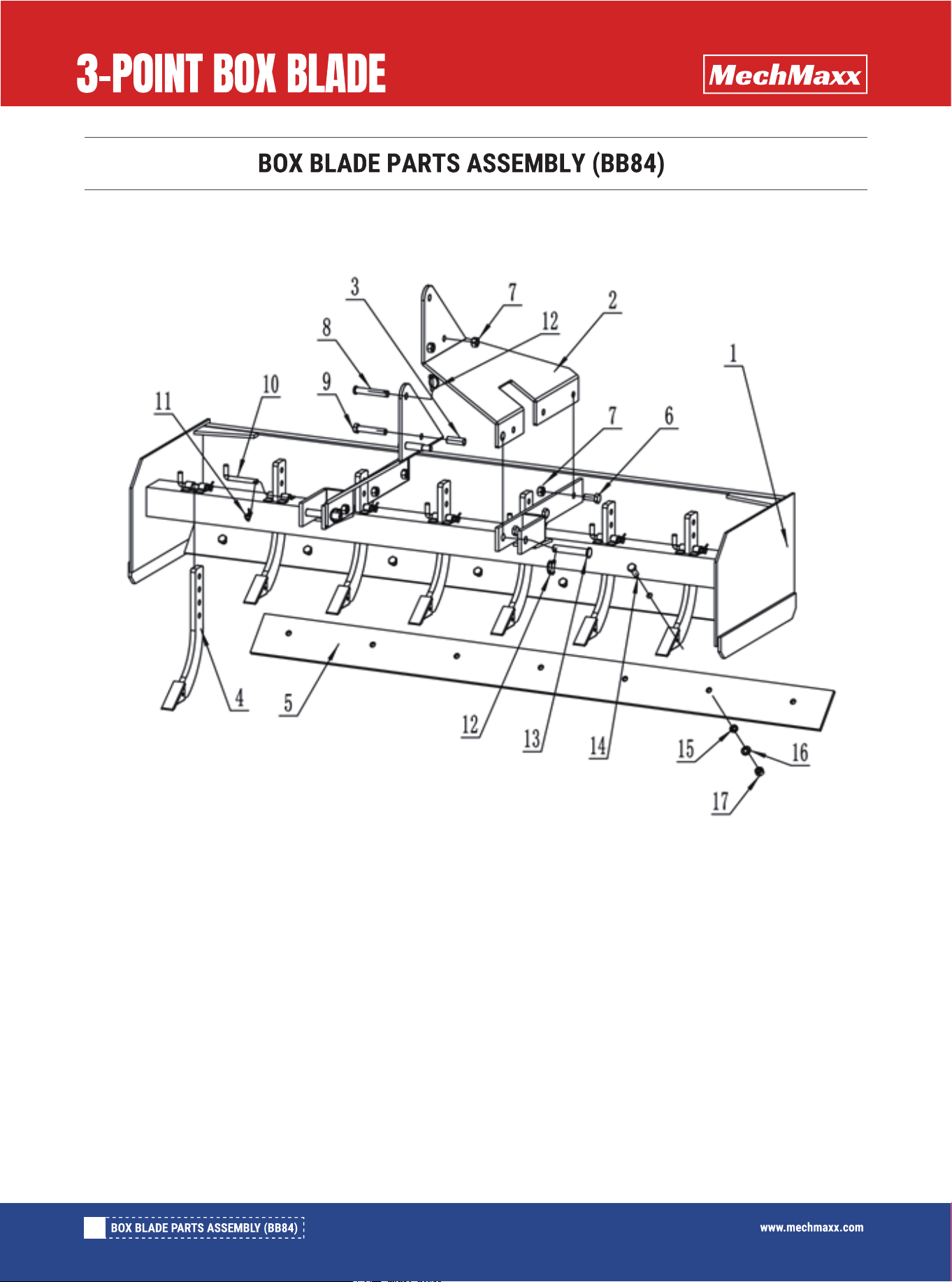

7
background

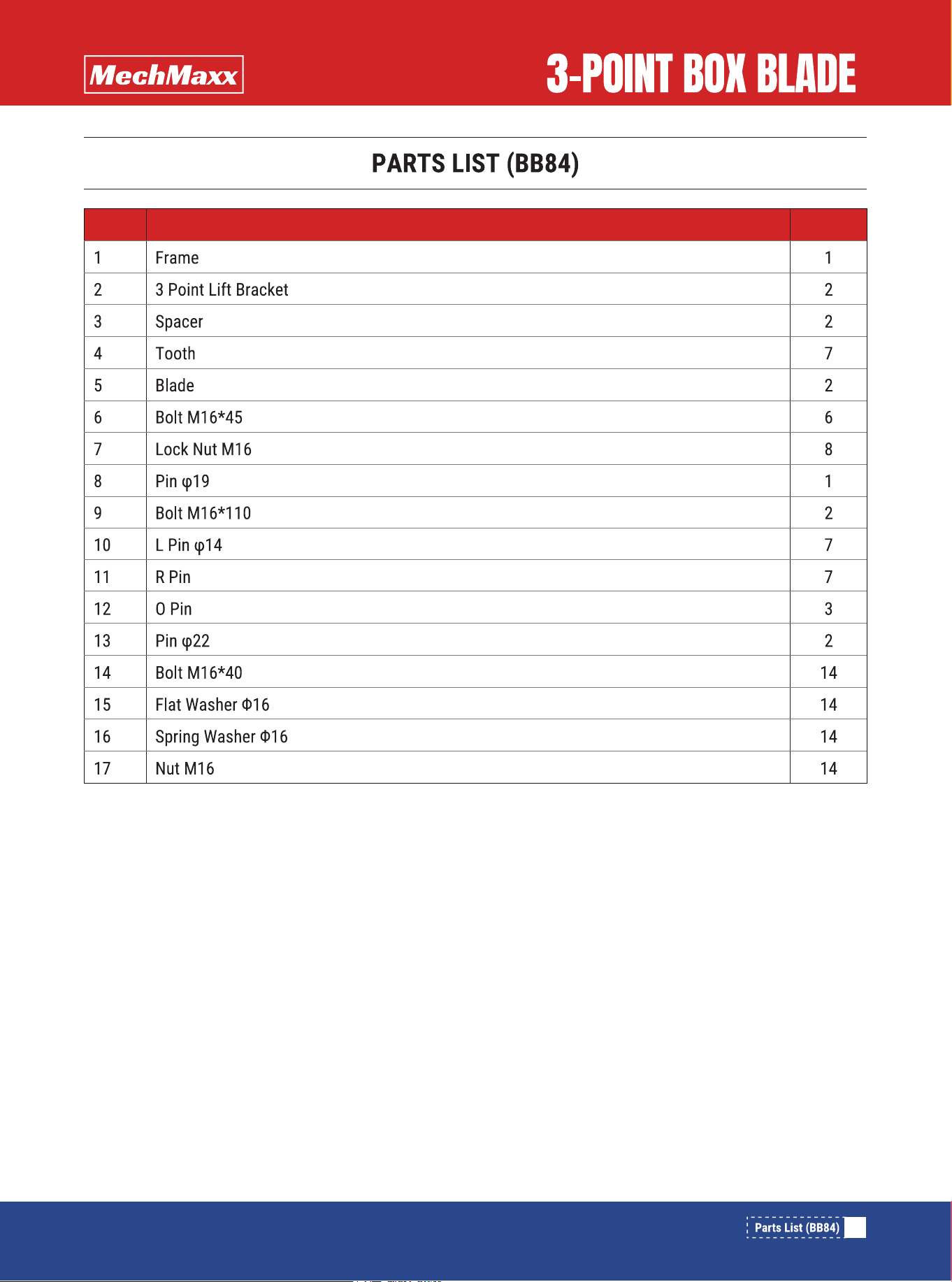

8
www.mechmaxx.com
Parts# Description Quantity
background
9
www.mechmaxx.com
BOX BLADE PARTS ASSEMBLY (BB96)
Box Blade Parts Assembly (BB96)
background
PARTS LIST (BB96)
Parts# Description Quantity
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Frame
3 Point Lift Bracket
Spacer
Tooth
Blade
Bolt M16*45
Lock Nut M16
Top Pin
Bolt M20*110
L Pin
R Pin
O Pin
Lift Pin
Bolt M16*40
Flat Washer φ16
Spring Washer φ16
Nut M16
Flat Washer φ20
Lock Nut M20
1
2
2
8
2
6
6
1
2
8
8
3
2
16
22
16
16
2
2
10
www.mechmaxx.com
Parts List (BB96)
background

Specifications
