Operating and installation
instructions
Refrigerators
To avoid the risk of accidents or damage to the appliance it is essen-
tial to read these instructions before it is installed and used for the
first time.
en-GB M.-Nr. 12 995 710
Contents
Warnings and safety notes ......................................................................................... 5
Sustainability and environmental protection.......................................................... 13
Caring for the environment ...........................................................................................
13
How to save energy.......................................................................................................
14
Familiarisation................................................................................................................ 15

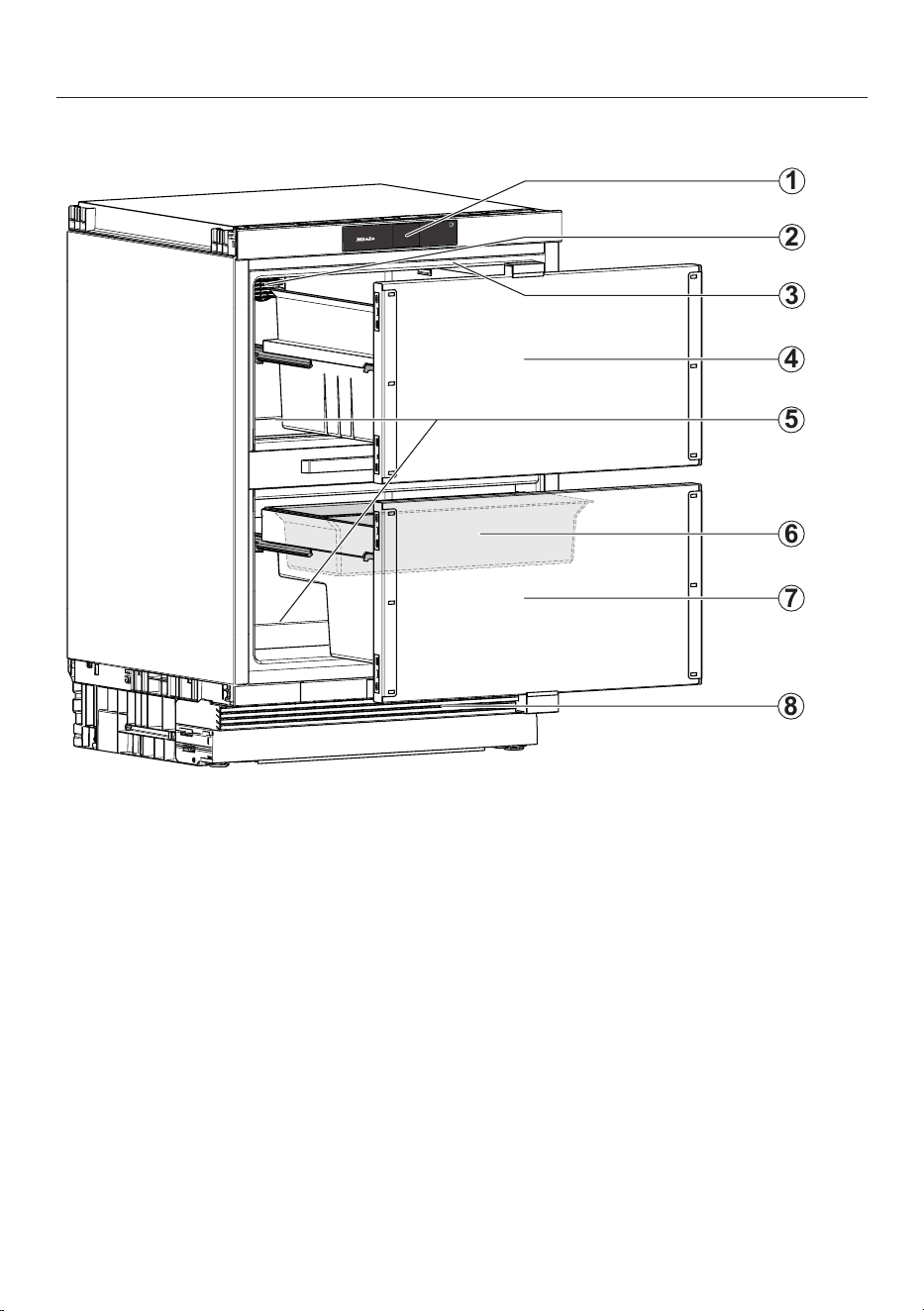

Guide to the appliance ..................................................................................................
15
Start display............................................................................................................... 16
Settings mode ...........................................................................................................
17
Holiday mode ...................................................................................................... 17
Lock function/.................................................................................................. 17
Switching the refrigeration appliance off .......................................................... 17
Sabbath mode....................................................................................................... 17
Information on Sabbath mode............................................................................. 17
Time before door alarm is triggered...................................................................
17
Networking ........................................................................................................... 17
Keypad tone /................................................................................................... 17
Alarms and buzzers / ...................................................................................... 17
Display brightness............................................................................................... 18
Temperature unit °C/°F............................................................................................ 18
Demo mode............................................................................................................ 18
Factory defaults .................................................................................................. 18
Information on the refrigeration appliance ........................................................ 18
Safety ...............................................................................................................................
18
Door alarm ................................................................................................................. 18
Networking......................................................................................................................
19
Appliance functions .......................................................................................................
19
SuperCool ............................................................................................................. 19
Adjusting the interior fittings ........................................................................................
19
Adjusting the divider rods in the top built-under cooling drawer ...................... 20
Removing and inserting built-under cooling drawers.......................................... 20
Optional accessories .....................................................................................................
21
Commissioning.............................................................................................................. 22
Before using for the first time.......................................................................................
22
Connecting the refrigeration appliance ................................................................. 22
Switching the refrigeration appliance on ....................................................................
22
Switching the refrigeration appliance off ....................................................................
22
Switching off the upper drawer separately........................................................... 22
Switching off for longer periods of time ................................................................ 23
Requirements for networking ......................................................................................
23
Setting up networking for the first time ................................................................ 23
2
Contents
Operation........................................................................................................................ 24
Setting the temperature ................................................................................................
24
Temperature range.................................................................................................... 24
Temperature display ................................................................................................. 24
Storing food in the fridge zone .....................................................................................
25
Different storage zones............................................................................................ 25
Food which is not suitable for storage in the fridge zone ................................... 26
Storing food correctly............................................................................................... 26
Storing food in the fruit and vegetable drawer (VeggieBox) ....................................
26
Adjusting settings ......................................................................................................... 29
Cleaning and care ......................................................................................................... 33
Cleaning agents ..............................................................................................................
33
Preparing the refrigeration appliance for cleaning.....................................................
33
Cleaning the interior of the appliance .........................................................................
33
Cleaning accessories by hand or in the dishwasher .................................................
34
Cleaning the door seal...................................................................................................
34
Cleaning the ventilation gaps .......................................................................................
34
After cleaning ..................................................................................................................
35
Automatic defrosting .....................................................................................................
35
Troubleshooting............................................................................................................. 36
Noises ..............................................................................................................................
42
Customer Service Department.................................................................................. 44
Contact in the event of a fault......................................................................................
44
EPREL database .............................................................................................................
44
Warranty ..........................................................................................................................
44
Installation...................................................................................................................... 45
Installation site ...............................................................................................................
45
Climate range ............................................................................................................ 46
Ventilation........................................................................................................................
46
Side-by-side installation................................................................................................
46
Weight of the furniture door .........................................................................................
47
Building-in dimensions .................................................................................................
48
Niche/side view ........................................................................................................ 48
Connections .............................................................................................................. 49
Installing the appliance..................................................................................................
50
To install the refrigeration appliance, you will need the following tools: .......... 50
Preparing the refrigeration appliance..................................................................... 50
Positioning the refrigeration appliance.................................................................. 51
Aligning the refrigeration appliance........................................................................ 52
Securing the refrigeration appliance in the niche................................................. 53
Fitting the furniture doors .............................................................................................
54
3
Contents
Electrical connection .....................................................................................................
58
EU Conformity declaration.......................................................................................... 59
UK Conformity declaration ......................................................................................... 60
Copyrights and licences .............................................................................................. 61
4
Warnings and safety notes
This refrigeration appliance complies with current safety require-
ments. Inappropriate use can, however, lead to personal injury and
material damage.
Please read the operating and installation instructions carefully be-
fore using the refrigeration appliance for the first time. They contain
important information on installation, safety, use and maintenance.
This is to protect yourself from injury, and from damaging your refri-
geration appliance.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow all information provided
on installing the refrigeration appliance, as well as the warning and
safety notes.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these operating and installation instructions in a safe place
and pass them on to any future owner.
Correct application
This refrigeration appliance is intended for use in the home and in
similar environments; for example:
–In shops, offices and similar work settings
–On agricultural estates
–By the guests in hotels, motels, bed and breakfasts, and other typ-
ical home settings.
This refrigeration appliance is not intended for outdoor use.
The refrigeration appliance is intended for domestic use only for
cooling and storing food and drink.
The refrigeration appliance is not suitable for freezing food.
The refrigeration appliance is suitable for integrated under-counter in-
stallation.
Any other usage is not permitted.
This refrigeration appliance is not suitable for storing and keeping
cool medicines, blood plasma, laboratory preparations or similar sub-
stances or products that are subject to the Medical Device Directive.
Incorrect use of the refrigeration appliance for such purposes may
cause deterioration of the items stored. The refrigeration appliance is
also not suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage caused by improper or incor-
rect use or operation of the appliance.
5
Warnings and safety notes
The appliance can only be used by people with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge,
if they are supervised whilst using it, or have been shown how to use
it in a safe way and recognise and understand the consequences of
incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the refriger-
ation appliance unless they are constantly supervised.
Children 8 years and older may only use the appliance unsuper-
vised if they have been shown how to use it in a safe way and recog-
nise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the appliance
unsupervised.
Please supervise children in the vicinity of the appliance and do
not let them play with it.
Danger of suffocation. Whilst playing, children may become en-
tangled in packaging material (such as plastic wrapping) or pull the
packaging material over their head, presenting the risk of suffocation.
Keep packaging material away from children.
Technical safety
The coolant circuit has been checked for leaks. The refrigeration
appliance complies with statutory safety requirements and the ap-
propriate EU directives.
If the cooling circuit is damaged, refrigerant and oil can escape and ignite.
Warning: fire hazard/flammable materials. This symbol is on the
compressor and indicates flammable materials. Do not remove this
sticker.
6
Warnings and safety notes
The refrigerant inside the appliance (details on the data plate) is en-
vironmentally friendly but flammable.
The use of this refrigerant does, however, sometimes lead to a slight
increase in the noise level of the appliance. In addition to the noise of
the compressor, you might be able to hear the refrigerant flowing
around the cooling circuit. Unfortunately, this cannot be avoided, but
it does not affect the performance of the refrigeration appliance.
When transporting and installing the refrigeration appliance, ensure
that no parts of the cooling circuit are damaged. Splashes of refriger-
ant can damage the eyes and leaking refrigerant can ignite.
In the event of damage:
- Avoid naked flames or anything which creates a spark.
- Disconnect the refrigeration appliance from the mains electricity
supply.
- Ventilate the room where the refrigeration appliance is located for
several minutes.
- Contact the Miele Customer Service Department.
The more refrigerant there is in a refrigeration appliance, the larger
the room it should be installed in. In the event of a leakage, if the ap-
pliance is in a small room, there is the danger of a combustible gas/
air mixture building up. For every 8g of refrigerant at least 1m
3
of
room space is required. The amount of refrigerant in the refrigeration
appliance is stated on the data plate inside the appliance.
If the ventilation cross-sections are covered or blocked, a com-
bustible gas/air mixture can form if the cooling circuit is damaged. It
is essential to observe the required ventilation cross-sections. The
ventilation cross-sections must not be covered or blocked in any way.
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data plate
corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult
a qualified electrician if in any doubt.
The electrical safety of this appliance can only be guaranteed when
correctly earthed. It is essential that this standard safety requirement
is met. If in any doubt please have the electrical installation tested by
a qualified electrician.
7
Warnings and safety notes
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronised with
the mains power supply (e.g. island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply system
complies with the specifications of EN50160 or an equivalent stand-
ard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
If the electrical connection cable supplied is damaged, it must only
be replaced by an original spare part to prevent a hazard for the user.
Miele can only guarantee the safety of the appliance when original
Miele spare parts are used. For safety reasons, such replacement
may only be carried out by a qualified specialist or the Miele Cus-
tomer Service Department.
Do not connect the appliance to the mains electrical supply by a
multi-socket adapter or extension lead. These are a fire hazard and do
not guarantee the required safety of the appliance.
If moisture gets into electrical components or into the mains con-
nection cable, it could cause a short circuit. Therefore, do not operate
this refrigeration appliance in areas which are exposed to moisture
(e.g in a garage or utility room).
This appliance must not be used in a non-stationary location (e.g.
on a ship).
Do not use a damaged appliance. It could be dangerous. Check the
appliance for visible signs of damage.
For safety reasons, this appliance may only be used after it has
been built in.
The appliance must be isolated from the electricity supply during
installation, maintenance and repair work. It is only completely isol-
ated from the power supply when:
- the mains fuses are switched off, or
- the screw-out fuse is removed (where applicable), or
- the mains cable has been unplugged. Pull on the plug and not the
cable when disconnecting it from the power supply.
8
Warnings and safety notes
Unauthorised installation, maintenance and repairs can cause con-
siderable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
While the appliance is under warranty, repairs should only be un-
dertaken by a Miele authorised service technician. Otherwise the
warranty is invalidated.
Faulty components must only be replaced with genuine Miele ori-
ginal spare parts. Miele can only guarantee the safety standards of
the appliance when Miele replacement parts are used.
This refrigeration appliance is supplied with a special lamp to cope
with particular conditions (e.g. temperature, moisture, chemical res-
istance, abrasion resistance and vibration). This lamp must only be
used for the purpose for which it is intended. The lamp is not suitable
for room lighting. Replacement lamps may only be fitted by a Miele
authorised technician or by the Miele Customer Service Department.
This refrigeration appliance contains several light sources with at
least energy efficiency classG.
Proper installation
Install the refrigeration appliance in accordance with the installa-
tion instructions.
Always wear protective gloves when transporting and installing the
refrigeration appliance.
Two people are required to install the refrigeration appliance.
Correct use
This refrigeration appliance is designed for use within specific am-
bient temperatures (climate range). Do not use in ambient temperat-
ures for which it is not designed. The climate range is stated on the
data plate in the interior cabinet of the refrigeration appliance. A
lower ambient temperature will cause the compressor to switch off
for longer periods, meaning that the refrigeration appliance is unable
to maintain the required temperature.
The ventilation cross-sections must not be covered or blocked in
any way. This can impair the proper ventilation of the appliance, in-
crease the energy consumption and cause damage to the compon-
ents.
9
Warnings and safety notes
Risk of damage due to greasy or oily foods. If the refrigeration ap-
pliance or the appliance door is used for storing food which contains
fat or oil, make sure that it does not come into contact with plastic
components. Any spillages of oil or fat could cause stress cracks to
the plastic and cause it to break or split.
Risk of fire and explosion due to flammable mixes of gases. Do not
store explosive materials in the refrigeration appliance or any
products containing propellants (e.g. spray cans). Electrical compon-
ents can cause flammable mixes of gases to ignite. The spray cans in
question can be identified by the contents printed on the can or by a
flame symbol. Electrical components can cause escaping gases to ig-
nite.
Danger of explosion. Do not operate any electrical equipment (e.g.
an electric ice-cream maker) inside the refrigeration appliance. This
can cause sparking and explosion.
Observe the manufacturer's “use-by” dates and storage instruc-
tions given on food to avoid the risk of food poisoning. Storage times
will depend on several factors, including the freshness and quality of
the food, as well as the temperature at which it is stored.
Accessories and spare parts
Only use original Miele accessories. If other parts are used, war-
ranty, performance and product liability claims will be invalidated.
Miele will guarantee to supply functional spare parts for a min-
imum of 10years and up to 15years following the discontinuation of
your refrigeration appliance.
Cleaning and care
Do not use any oils or grease on the door seals, as these will cause
the seals to deteriorate and become porous with time.
Do not use a steam cleaning appliance to clean or defrost this ap-
pliance.
Steam could reach electrical components and cause a short circuit.
Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the appliance. Do not use sharp edged or
pointed objects to
- remove frost and ice,
- separate frozen food or remove ice trays.
10
Warnings and safety notes
Do not place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers. Defrosting sprays and
de-icers can contain substances which could damage the plastic
parts or which might cause a build-up of explosive gases and pose a
danger to health.
Transporting the appliance
To avoid damage to the refrigeration appliance, always transport it
upright and in its packaging.
Danger of injury and damage to the appliance. The refrigeration ap-
pliance is very heavy and must be transported by two people.
Disposal of your old appliance
Children playing could become trapped in the refrigeration appli-
ance and could suffocate.
- Remove the appliance door(s).
- Remove the drawers.
- Leave the shelves in the refrigeration appliance so that children
cannot climb inside.
- If your old refrigeration appliance has a door lock, destroy it. This
will prevent the risk of children playing accidentally locking them-
selves in the appliance and endangering their lives.
Risk of electric shock!
- Cut the plug off the mains connection cable.
- Cut the mains connection cable off the old appliance.
Dispose of the plug and mains connection cable separately from the
old appliance.
During and after disposal, make sure that the refrigeration appli-
ance is not placed near petrol or other flammable gases and liquids.
Risk of fire due to escaping oil or refrigerant.
The refrigerant and oil inside the appliance are flammable. In high
enough concentrations, escaping refrigerant or oil can ignite if they
come into contact with an external heat source.
During disposal, make sure that the cooling circuit is not damaged.
This prevents refrigerant and oil escaping in an uncontrolled manner
(see the data plate for details of the refrigerant).
11
Warnings and safety notes
Splashes of coolant can damage the eyes. Be careful not to dam-
age any part of the pipework whilst awaiting disposal, e.g. by
- puncturing the coolant channels in the condenser,
- bending any pipework, or
- scratching the surface coating.
Symbol on the compressor (depending on model)
This information is only relevant for recycling. There is no risk during normal opera-
tion.
The oil in the compressor can be fatal if swallowed or if it penet-
rates the airways.
12
Sustainability and environmental protection
Caring for the environment
Disposing of the packaging material
The packaging material is used for hand-
ling and protects the appliance from
transport damage. The packaging ma-
terial used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material re-
duces the use of raw materials. Use ma-
terial-specific collection points for valu-
able materials and take advantage of re-
turn options. Your Miele dealer will take
the packaging material away.
Disposing of your old appliance
Electrical and electronic appliances con-
tain many valuable materials. They also
contain certain materials, compounds
and components which were essential
for their correct functioning and safety.
These could be hazardous to human
health and to the environment if dis-
posed of with household waste or if
handled incorrectly. Please do not,
therefore, dispose of your old appliance
with household waste.
Take care not to damage your refrigera-
tion appliance before or during disposal
in an authorised, environmentally
friendly manner.
This is to ensure that refrigerant in the
cooling circuit and oil in the compressor
is contained, and will not leak into the
environment.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle elec-
trical and electronic appliances in your
local community, with your dealer or
with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without des-
troying them, where this is possible.
These must be taken to a suitable col-
lection point where they can be handed
in free of charge. Please ensure that
your old appliance poses no risk to chil-
dren while being stored for disposal.
13
Sustainability and environmental protection
How to save energy...
Installation site The refrigeration appliance has to cool more often at higher ambi-
ent temperatures and consumes more energy in the process.
Therefore:
- Install the refrigeration appliance in a well-ventilated room.
- Do not install the refrigeration appliance near to a heat source
(heater element, cooker).
- Protect the refrigeration appliance from direct sunlight.
- Ensure an ideal ambient temperature of 20°C.
- Clean the ventilation openings on a regular basis to remove any
dust.
Temperature
setting
The colder the temperature, the higher the energy consumption.
The following settings are recommended:
- 4 to 5°C in the refrigerator section.
Use Energy consumption is increased by heat input and impeded air
circulation. Therefore:
- Only open the appliance door/appliance doors when necessary
and for as short a time as possible. Arrange the food in such a
way that makes it easy to find in the appliance.
- Always close the appliance door/appliance doors properly after
opening.
- Allow hot food and drinks to cool down before placing them in
the refrigeration appliance.
- Store food well packaged or covered.
- Do not overfill the compartments to allow air to circulate.
- Keep drawers and shelves arranged as they were when the ap-
pliance was delivered.
- Place frozen food in the fridge zone to defrost.
14
Familiarisation
Guide to the appliance
1
2
3
4
5
7
8
6
a
Display
b
Fan
c
Interior lighting
d
Top built-under cooling drawer with adjustable divider rods
e
Condensate channel and condensate drain hole:
Precipitated condensate runs off and evaporates automatically.
f
Fruit and vegetable drawer (VeggieBox)
g
Bottom built-under cooling drawer with VeggieBox
h
Ventilation grille
15
Familiarisation
Start display
The display can be scratched by pointed or sharp objects, e.g. pens.
Only touch the display with your fingertips.
It is possible that the display will not react to finger contact if your fingers are
cold.
°C
5
°C
1
2
3
4
5
5
a
Demo mode display
(only visible when the Demo mode function has been switched on)
b
Temperature display for the upper drawer and sensor button for setting the tem-
perature
c
Temperature display for the lower drawer and sensor button for setting the tem-
perature.
d
Settings mode
sensor control for adjusting various settings in Settings mode
e
Display for connection status
(only visible if the network has been set up)
Operating the refrigeration appliance via the display
Touch the area/symbol you want on the start display.
Swipe left or right across the display until the value/symbol you want is shown in
the middle.
Tap on the option you want on the display to confirm.
The selected value/symbol will light up orange (except for a few exceptions).
To leave the Settings level, tap on or OK.
16
Familiarisation
Settings mode
Holiday mode
The Holiday mode function is useful
when you go on holiday and, for ex-
ample, you do not wish to switch off the
fridge zone completely or do not need a
high degree of cooling.
When Holiday mode is switched on,
the fridge zone is regulated to a tem-
perature of 15°C. In this way, the
fridge zone remains in operation whilst
saving energy.
Food which does not go off quickly can
be stored in the refrigeration appliance
for some time at this moderate fridge
zone temperature. Energy consump-
tion is lower than in normal operation.
This also prevents the build-up of
odours and mould, which can occur if
the fridge zone is switched off and the
appliance door is closed.
Lock function/
When the lock function is switched on,
it protects the refrigeration appliance
from being switched off unintentionally
and being adjusted unintentionally by
unauthorised persons, e.g. children.
If you just want to quickly adjust the
temperature, for example, you can deac-
tivate the lock function temporarily.
Switching the refrigeration appliance
off
See “Commissioning – Switching off
the refrigeration appliance”.
Sabbath mode
The refrigeration appliance offers a Sab-
bath mode for the purposes of religious
observance (see “Adjusting settings”).
When Sabbath mode is switched on,
the following are deactivated temporar-
ily:
- Interior lighting when the appliance
door is opened
- All visual and audible signals
- The display
- An active WiFi connection
All other functions switched on previ-
ously remain activated.
When Sabbath mode is switched on,
you cannot make any settings on your
refrigeration appliance.
Information on Sabbath mode
You can call up the Sabbath mode ver-
sion here.
Time before door alarm
is triggered
You can set the time before the appli-
ance door alarm is triggered here.
Networking
Here you can set up networking for the
first time, deactivate and activate the
WiFi or reset the network configuration
(see “Adjusting settings”).
Keypad tone
/
You can switch the keypad tone on or
off here (see “Adjusting settings”).
Alarms and buzzers /
You can change the volume of the
alarms and buzzers (e.g. in the event of
a door alarm or a fault message) here.
Alternatively, you can switch the alarms
and buzzers off completely if you find
them annoying (see “Adjusting set-
tings”).
17
Familiarisation
Display brightness
You can adjust the display brightness to
the lighting conditions in the room here.
Temperature unit °C/°F
You can set the required temperature
unit (°Celsius or °Fahrenheit) here.
Demo mode
You can switch off demo mode here if it
has been switched on as a default set-
ting ( will appear on the display).
Demo mode allows the refrigeration
appliance to be presented in the dealer
showroom without the cooling system
being switched on. This setting is not
needed for domestic use.
Factory defaults
You can reset the refrigeration appli-
ance‘s settings to the default settings.
Tip: Reset the refrigeration appliance’s
settings to the default settings when
disposing of your refrigeration appli-
ance, selling it or putting a used refriger-
ation appliance into operation. This will
reset the network configuration so that
your personal data is deleted from the
refrigeration appliance. This will also en-
sure that a previous owner is no longer
able to access the refrigeration appli-
ance.
Information on the refrigeration appli-
ance
You can call up the model identifier and
serial number of your refrigeration appli-
ance here.
Keep this appliance data to hand:
- For integrating the refrigeration appli-
ance into your WiFi network
- When reporting an appliance fault to
the Miele Customer Service Depart-
ment
- When retrieving information from the
EPREL database
Safety
Door alarm
The refrigeration appliance is fitted
with a door alarm to avoid increased
energy consumption and food becom-
ing warm if the door is left open.
If the appliance door is left open for an
extended period,
will light up yellow
in the temperature display. An alarm will
also sound and the interior lighting will
flash.
The amount of time until the door alarm
is triggered can be changed (see “Ad-
justing settings – Changing the time be-
fore the door alarm is triggered”).
The door alarm’s buzzer can also be
switched off (see “Adjusting settings –
Changing the volume of the alarms and
buzzers”).
The alarm will stop and
will go out
on the display as soon as the appliance
door is closed.
Switching the door alarm off early
Tap
.
The alarm will stop,
will go out and
the interior lighting will light up again
constantly.
If the appliance door is not closed, the
door alarm will sound again after a
short time.
18
Familiarisation
Networking
Your refrigeration appliance is equipped
with an integrated WiFi module. The
WiFi module makes it possible to con-
nect to your home network and to use
the Mieleapp on a mobile device.
Once your refrigeration appliance has
been connected via WiFi, the connec-
tion is automatically re-established
every time it is switched on.
Make sure that your WiFi network sig-
nal is strong enough in the place where
you intend to install your refrigeration
appliance.
Connecting your refrigeration appli-
ance to your WiFi network will in-
crease energy consumption, even
when the appliance is switched off.
Smart Extras via the Miele app*
Networking via the Miele app gives you
access to numerous Smart Extras, in-
cluding:
- Access status information.
- Use additional helpful functions.
- Keep your refrigeration appliance up
to date with the latest Miele develop-
ments via software updates.
You can find more detailed information
about Smart Extras on the Miele web-
site, in the Apple App Store
®
or in the
Google Play Store™.
*This is a separate digital offer from
Miele & Cie. KG. The range of func-
tions can vary depending on the model
and the country. Acceptance of the
Terms and Conditions and Privacy
Policy for Miele digital products & ser-
vices in the Miele app required. Miele
reserves the right to change or discon-
tinue the digital offer at any time.
Appliance functions
SuperCool
When switched on, the SuperCool func-
tion can be used to rapidly reduce the
temperature in the fridge zone to its
lowest setting (depending on the ambi-
ent temperature). The refrigeration ap-
pliance will work at full power and lower
the temperature. Select this function for
the rapid chilling of large amounts of
fresh food or drink.
When the SuperCool function is
switched on, the appliance may make
more noise than usual.
The SuperCool function should be
switched on 4hours before placing
food or drinks in the refrigerator sec-
tion.
The SuperCool function will switch
itself off automatically after approx.
18hours. The refrigeration appliance
will then run at normal power again.
Tip: To save energy, you can switch the
SuperCool function off yourself once
food and drinks are sufficiently chilled.
Adjusting the interior fittings
Risk of damage caused by load-
ing too much food.
Loading food which is too heavy can
damage the built-under drawer
fridge.
Do not exceed the maximum load
size of 20kg in the top drawer and
14.5kg in the bottom drawer.
19
Familiarisation
Adjusting the divider rods in the top
built-under cooling drawer
You can adjust the divider rods in the
center of the unit to divide the built-un-
der cooling drawer into compartments
of various sizes.
Holding the divider rods on the right
and left, and pull them carefully up
and off to remove them.
You can bring the divider rods for-
wards or move them back.
Removing and inserting built-under
cooling drawers
The built-under cooling drawers can be
removed for cleaning purposes.
Pull the empty built-under cooling
drawer out as far as it will go.
Take hold of the sides of the built-un-
der cooling drawer and pull it up at
the front and back.
Lift the front of the built-under cooling
drawer slightly and pull it towards you
at an angle to remove it.
To insert the built-under cooling
drawer, push it in and back at a slight
angle and lower it until you hear it
click into place.
20
Familiarisation
Optional accessories
A range of useful Miele accessories and
care products are available for your ap-
pliance.
Products specially tailored to your refri-
geration appliance – such as appliance
care products and accessories – are
available from the Miele online shop,
from Miele Customer Service or from
your Miele specialist dealer.
You can access the Miele online shop
via the following QR code:
21
Commissioning
Before using for the first time
Remove all packaging material and
protective film.
Clean the inside of the appliance and
the accessories (see “Cleaning and
care”).
Connecting the refrigeration appliance
Connect the refrigeration appliance to
the electricity supply as described in
“Electrical connection”.
Miele will then appear on the appliance
display, followed by .
Switching the refrigeration ap-
pliance on
Open the appliance door.
Tap on the display.
The refrigeration appliance will start to
cool and the interior lighting will come
on when the appliance door is opened.
The refrigeration appliance will adjust to
the preset temperature.
To enable the temperature to get suf-
ficiently cold inside the refrigeration
appliance, allow the appliance to run
for a few hours before placing food in
it. Do not place food in the refrigera-
tion appliance until it has reached the
preset temperature.
Switching the refrigeration ap-
pliance off
You can only switch the entire refrigera-
tion appliance off in Settings mode.
Tap .
Swipe left or right until is shown in
the middle.
Tap .
The cooling system and the interior
lighting are switched off.
will appear in the display.
Please note: The refrigeration appli-
ance is not disconnected from the
mains power supply when it is
switched off.
Switching off the upper drawer separ-
ately
The upper drawer can be switched off
without having to switch off the lower
drawer. This is useful, e.g. whilst on holi-
day.
Touch the temperature display for the
upper drawer.
Swipe right until is shown in the
middle.
Tap.
The temperature display for the upper
drawer will go out. will appear in the
display.
The upper drawer is switched off.
The temperature display for the lower
drawer remains lit up.
Switching the upper drawer back on
again separately
Tap in the temperature display for
the upper drawer.
Tap.
The upper drawer switches back on.
22
Commissioning
Switching off for longer periods of
time
If, during a long absence, the refriger-
ation appliance is switched off but
not cleaned and the door is left shut,
there is a danger of mould building up
inside the appliance.
It is essential to clean the refrigera-
tion appliance before a long period of
absence.
If the refrigeration appliance is not going
to be used for a longer period of time,
observe the following:
Switch the refrigeration appliance off.
Switch off at the wall and disconnect
the plug from the socket, or discon-
nect the fuse.
Clean the refrigeration appliance and
leave the door ajar to air the appliance
and avoid odours building up inside.
Requirements for networking
Note the following requirements for net-
working:
1. A home network is available at the
installation site.
Have the WiFi password ready.
2. The Miele app is available on a mo-
bile device.
3. You have a user account in the Miele
app.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Setting up networking for the first time
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
Tap the connection method you wish
to use (app or WPS).
After you have successfully logged in,
the symbol will appear on the display.
If a connection could not be estab-
lished, the symbol will appear.
In this case, start the process again.
To leave the Settings level, tap the
symbol.
23
Operation
Setting the temperature
We recommend a temperature of 4°C
in the fridge zone.
Touch the temperature display on the
display.
Swipe left or right until the temperat-
ure you want is shown in the middle.
Tap on the temperature you want to
confirm.
The temperature display will then
change back to the current temperature
in the refrigeration appliance.
The temperature in the fridge zone in-
creases:
- The more often the appliance door is
opened and the longer it is kept open
- The more food is stored in it
- The warmer the food is which is being
put into it
- The higher the ambient temperature
surrounding the refrigeration appli-
ance This refrigeration appliance is de-
signed for use within specific ambient
temperatures (climate range). Do not
use in ambient temperatures for
which it is not designed.
Temperature range
The temperature can be set separately
for each built-under cooling drawer from
0 to 14°C. The built-under drawer fridge
therefore has two independent temper-
ature zones.
Temperature display
In normal operation, the temperature
display shows the current average re-
frigerator section temperature inside
the refrigeration appliance.
Depending on the ambient temperature
and the temperature setting, it can take
the appliance a few hours to reach the
temperature required and for this tem-
perature to then be shown as a constant
temperature on the display.
Switching on SuperCool
The SuperCool function should be
switched on 4hours before placing
food or drinks in the appliance.
When the SuperCool function is
switched on, the appliance may make
more noise than usual.
Touch the temperature display for the
fridge zone.
Tap.
will light up orange.
Tap on the temperature display to
leave the Settings level.
Switching off SuperCool
The SuperCool function will switch
itself off automatically after approx.
18hours. The refrigeration appliance
will then run at normal power again.
Tip: To save energy, you can switch the
SuperCool function off yourself once
food and drinks are sufficiently chilled.
Touch the temperature display for the
fridge zone.
Tap.
no longer lights up orange.
Tap on the temperature display to
leave the Settings level.
24
Operation
Storing food in the fridge zone
Risk of explosion due to flam-
mable mixes of gases.
Electrical components can cause
flammable mixes of gases to ignite.
Do not store explosive materials in
the refrigeration appliance or any
products containing propellants (e.g.
spray cans). The spray cans in ques-
tion can be identified by the contents
printed on the can or by a flame sym-
bol. Electrical components can cause
escaping gases to ignite.
Risk of damage due to greasy or
oily foods.
If storing food which contains a lot of
fat or oil in the refrigeration appliance
or the appliance door, make sure that
it does not come into contact with
plastic components as this could
cause stress cracks or break the
plastic.
Make sure that no fat or oil leaks onto
the plastic parts of the refrigeration
appliance.
If there is insufficient air circulation,
the cooling performance will de-
crease and energy consumption will
increase.
To allow air to circulate efficiently, do
not store the food too close together
or in direct contact with the rear
panel.
Different storage zones
Due to natural air circulation, there are
different temperature regions in the re-
frigerator section.
Cold, heavy air sinks to the lowest sec-
tion of the refrigeration section. Make
use of the different zones when placing
food in the appliance.
This is a refrigeration appliance with
automatic temperature distribution
(DynaCool). The refrigeration appli-
ance switches the fan on automatically
when the cooling system for the fridge
zone switches on. This means that the
cold is distributed evenly in the fridge
zone and the difference between the
various temperature zones is less pro-
nounced. All stored food is thus cooled
to approximately the same temperat-
ure.
Warmest area
The warmest area in the refrigerator
section is at the top in the front area
and in the door. Use this for storing but-
ter and cheese.
Coldest area
The coldest area in the fridge zone is
directly above the fruit and vegetable
drawer and at the back of the appliance.
A temperature setting of 4°C com-
bined with appropriate hygiene
measures delays the propagation of
bacteria, e.g. salmonella and listeria,
which can lead to serious food pois-
oning.
Therefore, you should use this area to
store all delicate and highly perishable
food, including:
- Fish, meat, poultry
- Cold cuts, ready meals
- Dishes or baked goods containing
eggs or cream
25
Operation
- Fresh dough, cake mixtures, pizza or
quiche dough
- Raw milk cheese and other raw milk
products
- Hummus, vegetable spreads, plant-
based cream cheese substitutes
- Pre-packed vegetables
- Other fresh food (with a label stating it
should be kept at a temperature of ap-
prox. 4°C)
Tip: Store food in such a way that it
does not touch the rear wall of the
fridge zone. Otherwise it could freeze to
the rear wall.
Food which is not suitable for storage
in the fridge zone
Not all food is suitable for refrigeration
at temperatures below 5°C, because it
may be sensitive to cold.
Food which is sensitive to cold includes:
- Pineapples, avocados, bananas,
pomegranates, mangoes, melons,
papayas, passion fruit, citrus fruit such
as lemons, oranges, mandarins,
grapefruit
- Fruit which is not yet ripe
- Aubergines, cucumbers, potatoes,
peppers, tomatoes, courgettes
- Hard cheeses (e.g. Parmesan, moun-
tain cheese)
Tip: The adjustable temperature range
up to 14°C provides the option to store
food that is sensitive to cold.
Storing food correctly
Ensure that food stored in the fridge
zone is covered or wrapped properly.
This will prevent food odours from af-
fecting other foods, stop food from dry-
ing out and also prevent any cross-con-
tamination of bacteria. This is particu-
larly important when storing meat
products. Make sure that food such as
raw meat and fish in particular does not
come into contact with other food.
By ensuring that the temperature set-
tings are correct and by taking appropri-
ate hygiene measures you can prolong
the storage life of your food consider-
ably and avoid food waste.
Fruit and vegetables
Store fresh fruit and vegetables
wrapped in the fruit and vegetable
drawer (VeggieBox). Store cut fruit and
vegetables covered or wrapped in an
airtight container.
Protein-rich food
Please note that food rich in protein de-
teriorates faster than other types of
food. Shellfish, for example, deteriorates
faster than fish, and fish deteriorates
faster than meat.
Storing food in the fruit and ve-
getable drawer
(VeggieBox)
The VeggieBox provides good storage
conditions for fruit and vegetables.
Food retains its own moisture if stored
at a higher humidity and so does not dry
out as quickly. The temperature is ap-
proximately equivalent to the temperat-
ure in the fridge zone.
Remember that the fresher the food
when placed in the appliance, the
longer it will stay fresh.
26
Operation
Changing the humidity in the Veg-
gieBox
The moisture level in the VeggieBox
greatly depends on the type and
quantity of food being stored, if stored
unwrapped.
If the quantity of food being stored in
this compartment is small, the humid-
ity level may be too low.
If you are only storing a small amount
of food, wrap it in airtight packaging.
27
Operation
Observe the following tips if you find that food you have stored does not keep
well (e.g. food becomes limp or wilts after only being stored for a short time):
Only place fresh food in the appliance. The initial condition of the food is crucial
to maintaining freshness.
Clean the VeggieBox before storing food in it.
Very wet food should be dried off before storing it.
Do not store food which is sensitive to cold in the VeggieBox (see “Storing food
in the fridge zone – Food which is not suitable for storage in the fridge zone”).
An increased humidity level in the humidity-controlled compartment is achieved
with the moisture present in the food being stored if it is stored unwrapped. The
more food stored in the compartment, the higher the humidity.
Always store cut fruit and vegetables covered or wrapped in an airtight container.
If too much moisture collects in the compartment and the food is affected, dry
the floor and place a rack or similar item in the compartment so that excess
moisture can drip down.
If the humidity is too low when you are only storing a small amount of food, wrap
the food in airtight packaging.
28
Adjusting settings
The door alarm and other warnings are
automatically disabled when the appli-
ance is in Settings mode .
Switching on Holiday mode
When Holiday mode is switched
on, the fridge zone is regulated to a
temperature of 15°C. In this way, the
fridge zone remains in operation whilst
saving energy.
Tap.
Swipe left or right until is shown in
the middle.
Tap.
When Holiday mode is switched on,
lights up orange.
To leave this Settings level, tap.
Health risk caused by decompos-
ing food.
The usability and quality of food in
the fridge zone may deteriorate if the
temperature remains above 4°C for
an extended period.
Only ever switch on the Holiday
mode function for a limited
period.
Do not store any temperature-sensit-
ive food which goes off easily, such
as fruit, vegetables, fish, meat and
dairy products, during this time.
Switching Holiday mode off
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
When Holiday mode is switched off, the
symbol will light up white.
To leave the Settings level, tap the
symbol.
Switching the lock function/ on
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
When the lock function is switched on,
the symbol will light up orange.
To leave the Settings level, tap the
symbol.
Close the appliance door. Only then
will the lock function be active.
Deactivating the lock function/
temporarily
If you want to adjust the temperature,
for example, you can deactivate the lock
function temporarily:
Touch the temperature display for the
temperature zone you want to adjust.
Touch for approx. 6seconds.
The display switches to the temperature
controls.
Now select the required settings.
Closing the appliance door will reactiv-
ate the lock function.
Switching the lock function/ off
completely
Tap the symbol.
Touch the symbol for approx.
6seconds.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
When the lock function is switched off,
the symbol will light up white.
29
Adjusting settings
To leave the Settings level, tap the
symbol.
Switching Sabbath mode on
When Sabbath mode is switched on,
you cannot change any settings.
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
The symbol will light up orange.
To leave the Settings level, tap the
symbol.
If Sabbath mode is switched on, this
is indicated on the display for approx.
3seconds.
The display then switches off.
Ensure that the appliance door is prop-
erly closed, as visual and audible
alarms are switched off.
Switching Sabbath mode off
The Sabbath mode function will
switch off automatically after approx.
80hours.
However, you can switch the Sabbath
mode function off early.
Tap the black display.
The symbol appears.
Tap the symbol.
The symbol will light up orange.
Tap the symbol again.
When Sabbath mode is switched off,
the symbol will light up white.
To leave the Settings level, tap .
Changing the time before the door
alarm
is triggered
Tap the symbol.
Swipe left or right until the
symbol
is shown in the middle.
Tap the
symbol.
Swipe left or right until the time you
want between 30seconds and
3minutes 30seconds is shown in the
middle.
Tap to confirm the setting.
To leave the Settings level, tap the
symbol.
Deactivating the WiFi connection
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
Tap the symbol to deactivate the
WiFi connection.
The symbol appears.
To leave the Settings level, tap the
symbol.
Activating the WiFi connection
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
Tap the symbol to activate the WiFi
connection.
The symbol appears.
To leave the Settings level, tap the
symbol.
When the WiFi connection is active, the
symbol will light up on the display.
30
Adjusting settings
Resetting the network configuration
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
Swipe right until the symbol is
shown in the middle.
Tap the symbol.
Tap the symbol.
To leave the Settings level, tap the
symbol.
All entered settings and values are reset
to the default settings.
The WiFi connection has been deactiv-
ated. The symbol will go out on the
start display.
Reset the network configuration if
you are disposing of or selling your
refrigeration appliance, or if you are
putting a used refrigeration appliance
into operation. All personal data is re-
moved from the refrigeration appli-
ance. This will also ensure that a pre-
vious owner is no longer able to ac-
cess the refrigeration appliance.
Switching off the keypad tone
Tap the symbol.
Swipe left or right until the
sym-
bol is shown in the middle.
Tap the
symbol.
If the keypad tone is switched off, the
symbol will light up white.
To leave the Settings level, tap the
symbol.
Switching on the keypad tone
Tap the symbol.
Swipe left or right until the
sym-
bol is shown in the middle.
Tap the
symbol.
If the keypad tone is switched on, the
symbol will light up orange.
To leave the Settings level, tap the
symbol.
Changing the volume of the alarms
and buzzers/
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
Select the volume you want by swip-
ing the segment bar to the left or right
(level 1–7).
If you want to switch the alarms and
buzzers off completely, swipe to the
left until the segment bar goes out
completely.
Confirm the setting you want by tap-
ping the segment bar.
When the alarms and buzzers are
switched off, the symbol will light up
white.
When the alarms and buzzers are
switched on, the symbol will light up
orange.
To leave the Settings level, tap the
symbol.
Changing the display brightness
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
Select the brightness you want by
swiping the segment bar to the left or
right (level 1–7).
31
Adjusting settings
Confirm the setting you want by tap-
ping the segment bar.
To leave the Settings level, tap the
symbol.
Changing the temperature unit °C/°F
Tap the symbol.
Swipe left or right until °C or °F is
shown in the middle.
Tap °C or °F to change the temperat-
ure unit.
°C or °F will appear on the display.
To leave the Settings level, tap the
symbol.
Switching off demo mode
Tap the symbol.
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
After demo mode has been switched
off, the refrigeration appliance shuts
down and must be switched on again.
Resetting the settings to their factory
defaults
Tap the symbol.
Swipe left or right until the symbol
is shown in the middle.
Tap the symbol.
The symbol appears.
Tap the symbol.
The refrigeration appliance shuts down
and must be switched on again.
32
Cleaning and care
The data plate located inside the in-
terior cabinet of the refrigeration appli-
ance must not be removed. It contains
information which is required in the
event of a service call.
Do not let water get into the elec-
tronic unit or the lighting.
Risk of damage due to moisture
ingress.
The steam from a steam cleaner can
damage plastic and electrical com-
ponents.
Do not use a steam cleaner to clean
the refrigeration appliance.
Cleaning water must not get into the
drain hole.
Cleaning agents
Cleaning and conditioning agents
used in the interior cabinet of the re-
frigeration appliance must be food
safe.
To avoid damaging the surfaces of the
appliance, do not use the following:
- Cleaning agents containing soda, am-
monia, acids or chlorides
- Cleaning agents containing descaling
agents
- Abrasive cleaning agents (e.g. scour-
ing powder, scouring liquid or pumice
stones)
- Cleaning agents containing solvents
- Stainless steel cleaners
- Dishwasher cleaner
- Oven sprays
- Glass cleaning agents
- Hard, abrasive sponges and brushes
(e.g. pot scourers)
- Eraser stain remover blocks
- Sharp metal scrapers
We recommend using a clean sponge
and lukewarm water with a little wash-
ing-up liquid to clean the surfaces of the
appliance.
Preparing the refrigeration ap-
pliance for cleaning
Tip: Switch Cleaning mode on. The
cooling in the fridge zone is switched
off, but the interior lighting remains
switched on.
Tap.
Swipe left or right until is shown in
the middle.
Tap.
To leave this Settings level, tap.
If Cleaning mode is switched on,
this will be indicated on the start dis-
play.
Take any food out of the appliance
and store it in a cool place.
Take out any removable accessories
for cleaning (see “Familiarisation –
Adjusting the interior fittings”).
Cleaning the interior of the ap-
pliance
Clean the refrigeration appliance reg-
ularly, or at least once a month.
33
Cleaning and care
If soiling is left on for any length of
time, it may become impossible to
remove under certain circumstances.
Surfaces may suffer discolouration or
damage.
It is therefore best to remove any
soiling immediately.
Clean the interior with a clean sponge
cloth, lukewarm water and a little
washing-up liquid.
After cleaning, wipe with clean water
and dry with a cleaning cloth.
Clean the condensate channel and
drain hole using a cotton swab or sim-
ilar item.
Leave the door open to air the refri-
geration appliance sufficiently for a
short while and to prevent odour
build-up.
Cleaning accessories by hand
or in the dishwasher
The following components must be
cleaned by hand only:
- The stainless steel trim
- Protective strips at the back of the ad-
justable shelves
- Adjustable shelf with printing
- the fruit and vegetable drawer
(VeggieBox)
- All drawers and compartment lids
(these vary depending on model)
The following components are dish-
washer-safe:
Risk of damage due to high dish-
washer temperatures.
Parts of the refrigeration appliance
may become unusable, e.g. deform, if
they are washed in the dishwasher at
more than 55°C.
For dishwasher-safe components, al-
ways select dishwasher programmes
with a maximum temperature of
55°C.
Contact with natural dyes from car-
rots, tomatoes and ketchup, etc., may
discolour the plastic parts in the dish-
washer. This discolouration does not
affect the stability of the parts.
- The holder for the charcoal filter (avail-
able as an optional accessory)
Cleaning the door seal
Risk of damage as a result of in-
correct cleaning.
If you treat the door seal with oils or
grease, it can become porous.
Do not use any oils or grease on the
door seal.
The door seal should be cleaned regu-
larly with clean water, and then wiped
dry with a soft cloth.
Cleaning the ventilation gaps
A build-up of dust will increase the en-
ergy consumption of the appliance.
The ventilation gaps should be
cleaned on a regular basis with a
brush or vacuum cleaner (you could
use a Miele vacuum cleaner dusting
brush, for example).
34
Cleaning and care
After cleaning
Switch the Cleaning mode function
off again by tapping on on the
start display.
Tap again.
When Cleaning mode is switched off,
the symbol will light up white.
The refrigeration appliance will start
cooling again.
Replace all shelves and accessories in
the refrigeration appliance.
Switch on the SuperCool function
for a while so that the temperature in-
side the refrigeration appliance will
drop quickly.
Place food in the refrigeration appli-
ance as soon as it reaches the re-
quired coldness.
Close the appliance door(s).
Automatic defrosting
This refrigeration appliance defrosts
automatically.
35
Troubleshooting
Many malfunctions and faults can be easily remedied. You can save time and
money in many cases, as you do not need to contact Customer Service.
More information to help you remedy faults yourself can be found at
www.miele.co.uk/support/customer-assistance.
To prevent unnecessary loss of temperature it is advisable not to open the door
while waiting for the appliance to be serviced.
Problem Cause and remedy
The refrigeration appli-
ance is not cooling.
The refrigeration appliance has not been switched on.
Switch the refrigeration appliance on.
The mains plug is not inserted in the socket correctly
or the plug connector is not inserted into the socket at
the back of the appliance correctly.
Insert the mains plug into the mains socket and the
plug connector into the appliance socket correctly
and switch on.
The mains fuse has tripped. There could be a fault
with the refrigeration appliance, the household elec-
trical wiring or another electrical appliance.
Contact a qualified electrician or the Miele Cus-
tomer Service Department.
The compressor runs
continuously.
This is not a fault. To save energy, the compressor
runs at a lower speed when less cooling is required.
This increases the compressor running time.
The compressor is
switching on more fre-
quently and for longer
periods of time. The
temperature in the refri-
geration appliance is too
low.
The ventilation openings are covered or dusty.
Do not block the ventilation openings.
Dust the ventilation openings regularly.
The appliance door has been opened frequently. A
large amount of fresh food has been placed in the ap-
pliance.
Only open the appliance door when necessary and
for as short a time as possible.
After a while, the temperature will return to normal by
itself.
The appliance door is not properly closed.
Close the appliance door.
36
Troubleshooting
Problem Cause and remedy
After a while, the temperature will return to normal by
itself.
The ambient temperature is too high. The higher the
ambient temperature, the longer the compressor runs.
See the information in “Installation – Installation
site”.
The refrigeration appliance was not properly installed
in the niche.
Install the refrigeration appliance in the niche as de-
scribed in the installation instructions.
The temperature setting in the refrigeration appliance
is too low.
Correct the temperature setting.
The SuperCool function is still switched on.
Switch off the SuperCool function earlier to save
energy.
Ice or condensation has
built up inside the refri-
geration appliance. The
appliance door may not
close correctly.
The door seal has come out of its groove.
Check that the door seal is correctly positioned in
the groove.
The door seal is damaged.
Check whether the door seal is damaged.
The door seal is dam-
aged or needs to be re-
placed.
No tools are required to change the door seal.
Change the door seal. A replacement is available
from Miele or from specialist retailers.
37
Troubleshooting
Other problems
Problem Cause and remedy
There is no audible alarm
even though the appli-
ance door has been
open for a long time.
This is not a fault. The alarm has been switched off in
Settings mode. If you want to switch the audible alarm
back on again:
Tap the symbol.
Swipe left or right until the symbol is shown in
the middle.
Tap the symbol.
Select the volume you want by swiping the segment
bar to the right.
Confirm the setting you want by tapping the seg-
ment bar.
When the alarms and buzzers are switched on, the
orangesymbol will light up.
The pull-out will not ex-
tend fully.
The telescopic runners are blocked.
Pull firmly on the pull-out once so that it comes all
the way out.
This will unblock the runners and the pull-out will push
all the way back in again.
Display warnings
Message Cause and remedy
The symbol lights up
on the start display; the
refrigeration appliance
does not get cold even
though the controls and
the interior lighting are
working.
Demo mode has been switched on.
Tap the symbol.
Tap the symbol.
Swipe left or right until the symbol is shown in the
middle.
Tap the symbol.
After demo mode has been switched off, the refri-
geration appliance shuts down and must be switched
on again.
38
Troubleshooting
Message Cause and remedy
is lit up on the dis-
play and the appliance
cannot be used.
The Cleaning mode function is still switched on.
Switch the Cleaning mode function off again by tap-
ping on on the start display.
Tap again.
When Cleaning mode is switched off, the symbol
will light up white.
The refrigeration appliance will start cooling again.
Nothing is visible in the
display. The display is
completely blank.
Sabbath mode is switched on. The interior lighting is
switched off and the refrigeration appliance is cooling.
Tap the black display.
The symbol will appear in the display.
Tap the symbol.
The symbol will light up orange.
Tap the symbol again.
When Sabbath mode is switched off, the symbol
will light up white.
The symbol is lit up on
the display and the refri-
geration appliance can-
not be used.
The lock function has been activated.
Unlock the refrigeration appliance temporarily or
switch the lock function off completely.
will light up yellow in
the display, an alarm will
also sound and the in-
terior lighting will flash.
The door alarm has been activated.
Tap
.
The alarm will stop,
will go out and the interior
lighting will light up again constantly.
39
Troubleshooting
Message Cause and remedy
The symbol lights up
red in the display and a
fault code F with num-
bers may appear. An
alarm also sounds.
There is a fault.
Tap the symbol on the display to switch the
alarm off.
Contact the Miele Customer Service Department.
To report the fault, you need the fault code and also
the model identifier and serial number of your refriger-
ation appliance. You can access this information on
the display:
Tap the symbol on the display.
The appliance data required will be shown on the dis-
play.
Confirm with the symbol to exit the information
display and the fault code will be shown again on the
display.
The refrigeration appliance can be switched off dir-
ectly from the fault message display.
Interior lighting
Problem Cause and remedy
Risk of electric shock due to exposed, live electrical components.
When removing the lighting cover, there is a risk of coming into contact with
live electrical components.
Do not remove the lighting cover. The LED lighting may only be repaired or re-
placed by the Miele Customer Service Department.
Risk of injury from LED lighting.
This lighting corresponds to risk group RG2. If the cover is defective, there is a
risk of eye injury.
If the lighting cover is defective, do not look from a close range directly into the
lighting with optical instruments (e.g. magnifying glass or similar).
40
Troubleshooting
Problem Cause and remedy
The interior lighting is
not working.
The refrigeration appliance has not been switched on.
Switch the refrigeration appliance on.
Sabbath mode is switched on: the display is dark
and the refrigeration appliance is cooling.
Tap the black display.
The symbol will appear in the display.
Tap the symbol.
The symbol will light up orange.
Tap the symbol in Settings mode.
When Sabbath mode is switched off, the symbol
will light up white.
To avoid overheating, the interior lighting switches it-
self off automatically after approx. 15minutes if the
appliance door is left open. If this is not the case, then
there is a fault.
Contact the Miele Customer Service Department.
The interior lighting is
pulsating.
This is not a fault. The door alarm has been activated.
41
Troubleshooting
Noises
The refrigeration appliance is producing various noises during operation.
If the cooling performance is low, the refrigeration appliance will conserve energy
but operate for longer. The volume will be lower.
Food will be chilled faster if the cooling performance is high.
The volume will be higher.
Normal
noises
What is causing them?
Hissing Refrigerant is being injected into the cooling circuit.
Bubbling, gurgling,
splashing
Refrigerant is circulating through the pipes.
Humming The refrigeration appliance is cooling.
Clicking The thermostat is switching the compressor on or off.
Humming, whirring The fan is running.
Automatic door opening is opening or closing the appli-
ance door.
Cracking Materials are expanding inside the refrigeration appli-
ance.
Rattling Valves or flaps are active.
Buzzing (refrigeration
appliances with water
container)
Water is being pumped out of the water container.
Slurping (refrigeration
appliances with soft-
close mechanism)
The appliance door with soft-close mechanism is being
opened or closed.
Please bear in mind that a certain amount of noise is unavoidable (from the com-
pressor and the refrigerant circulating through the cooling circuit).
42
Troubleshooting
Noises Cause and remedy
Vibrating, rat-
tling, clinking
The refrigeration appliance is uneven. Use a level to check and
adjust the alignment of the refrigeration appliance. The refrigera-
tion appliance is aligned by raising or lowering the adjustable feet
(depending on the model) underneath it.
For niches of 140cm and more: place the stabilising rods sup-
plied underneath the appliance base.
Drawers, baskets or shelves are jiggling or are stuck. Check all
removable items and refit them correctly.
Bottles or containers are touching. Separate bottles or contain-
ers slightly.
The transport cable clips (depending on the model) are hanging
loose at the back of the appliance. Remove the transport cable
clips.
43
Customer Service Department
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/ser-
vice.
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Customer Ser-
vice call-out online at www.miele.com/
service.
Contact information for Miele Cus-
tomer Service can be found at the end
of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer Ser-
vice. Both numbers can be found on the
data plate inside the refrigeration appli-
ance or, depending on the model, in
Settings mode under Information.
EPREL database
Since 1 March 2021, information on en-
ergy labelling and ecodesign require-
ments has been available in the
European Product Database (EPREL).
You can find the product database at
the following link https://
eprel.ec.europa.eu/. You will be asked to
enter the model identifier.
The model identifier can be found on the
data plate inside the refrigeration appli-
ance or, depending on the model, in
Settings mode under Information.
SN-ST
R600a:
XXXXXX
Nr. XX/ XXXXXXXXX.
XXX l
XXg
Warranty
For information on the appliance war-
ranty specific to your country please
contact Miele. See back cover for ad-
dress.
In the UK, your appliance warranty is
valid for 2 years from the date of pur-
chase. However, you must activate your
cover by calling 0330 160 6640 or re-
gistering online at www.miele.co.uk.
44
Installation
Installation site
Risk of damage and danger of in-
jury due to the refrigeration appliance
tipping over.
This refrigeration appliance is very
heavy and can tip forwards when the
appliance door is open.
Keep the appliance door(s) closed
until the refrigeration appliance has
been built in. The refrigeration appli-
ance must be secured in its building-
in niche in accordance with the oper-
ating and installation instructions.
Fire risk and risk of damage from
appliances which give off heat.
Appliances which give off heat can
catch fire and set fire to the refrigera-
tion appliance.
The mains connection cable must not
come into contact with heat sources.
This refrigeration appliance must not
be installed underneath a hob.
Fire risk and danger of damage
from open flames.
Open flames can set fire to the refri-
geration appliance.
Keep open flames (e.g. a candle)
away from the refrigeration appli-
ance.
Risk of damage caused by appli-
ances discharging vapours.
Installing appliances that discharge
vapours behind the refrigeration ap-
pliance will put it at risk of damage.
Do not install appliances that dis-
charge air or vapours behind the refri-
geration appliance. Provide a separ-
ate air guide or install a partition wall
between the appliances.
This appliance should be installed in a
dry, well-ventilated room.
Risk of damage due to high hu-
midity.
In environments with high humidity,
condensation can build up on ex-
ternal refrigeration appliance panels.
This condensation can cause corro-
sion on external appliance panels.
Install the refrigeration appliance in a
dry and/or air-conditioned room with
sufficient ventilation.
After installation, please make sure
that the appliance door/appliance
doors closes/close properly and the
refrigeration appliance is installed in
accordance with these installation in-
structions. It is essential to comply
with the specified ventilation cross-
sections.
When deciding on the installation site,
please bear in mind that your refrigera-
tion appliance will use more energy if in-
stalled near to a heater, a cooker or an-
other appliance that gives off heat.
Avoid direct sunlight.
The higher the ambient temperature, the
longer the compressor runs and the
higher the energy consumption is.
When installing the refrigeration appli-
ance, please note the following:
- The socket must be easily accessible
in an emergency, not concealed be-
hind the appliance.
- The mains plug and mains connection
cable must not touch the rear of the
refrigeration appliance as they could
be damaged by vibrations from the
appliance.
- Other appliances must also not be
plugged into a socket located directly
behind the refrigeration appliance.
45
Installation
- When installing the refrigeration appli-
ance, make sure that the mains con-
nection cable does not get trapped or
damaged.
- Do not position or operate multi-
socket adapters, distributor strips or
other electronic devices (e.g. halogen
transformers) at the rear of the appli-
ance.
- The floor at the installation site must
be horizontal and level and must be as
high as the surrounding floor.
Climate range
This refrigeration appliance is designed
for use within specific ambient temper-
atures (climate range). Do not use in
ambient temperatures for which it is not
designed.
A lower ambient temperature leads to
the compressor switching off for longer
periods. This can cause the internal
temperature in the refrigeration appli-
ance to rise with the risk of food deteri-
orating and going off.
The climate range is stated on the data
plate in the interior cabinet of the refri-
geration appliance.
Climate range Ambient temper-
ature
SN 10to32°C
N 16to32°C
ST 16to38°C
T 16to43°C
SN-ST 10to38°C
SN-T 10to43°C
Ventilation
Ventilation takes place through a vent-
ilation grille in the refrigeration appli-
ance plinth.
Fire risk and risk of damage due
to inadequate ventilation.
If the refrigeration appliance is not
ventilated sufficiently, the com-
pressor will run more frequently and
for longer periods. This causes in-
creased energy consumption and an
increased compressor operating tem-
perature, which can result in damage
to the refrigeration appliance.
Please ensure that there is adequate
ventilation around the refrigeration
appliance:
It is essential to observe the required
ventilation cross-sections.
The ventilation cross-sections must
not be covered or blocked in any way.
Clean the ventilation areas regularly
to remove dust and dirt.
Side-by-side installation
Risk of damage due to condensa-
tion on external appliance panels.
In environments with high humidity,
condensation can build up on ex-
ternal appliance panels, which can
cause corrosion.
Do not place different refrigeration
appliance models directly next to or
on top of one other.
Your refrigeration appliance must not be
installed “side-by-side” because it is not
equipped with built-in heating units in
the side panels.
46
Installation
This refrigeration appliance can, how-
ever, be installed next to certain models
that are equipped with integrated heat-
ing in their side panel, as long as they
are installed in separate building-in
niches.
Please contact your dealer for specific
information about which combinations
will work with your appliance.
Weight of the furniture door
Risk of damage from furniture
doors that are too heavy.
Fitting a furniture door which is heav-
ier than the maximum permitted
weight could damage the built-under
drawer fridge. This damage can affect
various factors, such as operation of
the appliance.
Before fitting furniture doors, check
that the weight of the furniture door
does not exceed the maximum per-
mitted weight.
The maximum permissible weight of the
furniture door is 5kg.
47
Installation
*INSTALLATION*
Building-in dimensions
Niche/side view
All dimensions are given in mm.
The refrigeration appliance will function correctly if the specified ventilation open-
ings are kept clear.
Example
+60
860
600
≥560
≥150cm²
+4
≤5kg
≤5kg
≤19
≥560 400
≥150cm²
+60
860
+60
860
[mm]
≤18
21
+54
55
+54
55
+60
100
+60
100
+60
114
+60
114
354 19
40
≤386
98
≥370
≥3
≥3
114
≥370
≥3
≥3
≥370
≥150cm²
860
48
Installation
*INSTALLATION*
Connections
All dimensions are given in mm.
145
2
1
3
224
[mm]
≥150cm²
+60
a
Front view
b
Mains connection cable, length = 2200mm
A longer mains connection cable is available to order from the Miele Customer
Service Department.
c
No connection sockets in this area
49
Installation
*INSTALLATION*
Installing the appliance
To install the refrigeration appliance,
you will need the following tools:
Tip: Store the enclosed metal rod in a
safe place. It is required for adjusting
the rear appliance feet.
Preparing the refrigeration appliance
Position the refrigeration appliance in
front of the niche.
Hold the plinth panel at the side and
pull it forwards and off.
You have a choice of two different
ways of securing your refrigeration ap-
pliance:
1. Secured at the top
This method is suitable for securing
the appliance underneath a plastic
worktop, e.g., laminate. The worktop
must be suitable for screwing a fixing
bracket onto.
With the appliance feet fully exten-
ded the appliance should sit lightly
tensioned between the floor and the
worktop.
2. Secured at the side
This method is suitable for securing
the appliance underneath a solid
worktop, e.g. granite. The furniture
side walls to the right and left of the
refrigeration appliance must be suit-
able for screwing fixing brackets to.
With the feet fully extended the refri-
geration appliance will sit lower than
the worktop.
1.Secured at the top
Fit the bracket in the opening in the
appliance lid.
Bend the bracket at the perforated
position.
50
Installation
*INSTALLATION*
2.Secured at the side
Both ends of the bracket must be
bent.
Fit the bracket in the opening in the
appliance lid.
Bend the bracket at the perforated
position.
Remove the bracket from the opening
and insert the straight end of the
bracket.
Now bend this end of the bracket at
the perforated position.
Positioning the refrigeration appliance
Risk of damaging the mains con-
nection cable.
When pushing the refrigeration appli-
ance into its niche, the mains con-
nection cable can get trapped and
damaged.
Carefully push the refrigeration appli-
ance into the niche.
Risk of damaging the floor.
Moving the refrigeration appliance
can cause damage to the floor.
Move the refrigeration appliance
carefully on floors that are sensitive
to scratching.
Risk of damaging the appliance
feet.
The appliance feet can break off.
The feet should be almost fully
screwed in when you push the refri-
geration appliance into the niche.
Tip: Before pushing the appliance into
the niche the two rear feet should be
loosened by half a turn. After pushing it
into the niche, the feet will be easier to
adjust from the front (see “Aligning the
refrigeration appliance”).
Position the mains connection cable
so that the refrigeration appliance can
be connected easily once installed.
Tip: To help you push it into position, tie
a piece of string around the plug to
“lengthen” the mains connection cable.
Then pull the mains connection cable by
the end of the string through the hous-
ing unit.
51
Installation
*INSTALLATION*
If the refrigeration appliance is
pushed too far into the niche, the ap-
pliance door may not close properly
once the furniture panel has been fit-
ted. This can cause ice to build up,
condensate to accumulate and lead
to faults in the appliance. These can
all lead to increased energy con-
sumption.
Push the refrigeration appliance into
the niche, making sure a gap of
42mm is maintained all round
between the appliance carcase and
the front of the housing unit side
walls.
Push the refrigeration appliance into
the niche until the front edges of the
hinges at the top and bottom are flush
with the front edge of the housing unit
side wall.
This will create a gap all round of
42mm to the front edges of the hous-
ing unit side walls.
On furniture with door fittings (e.g.
stubs, seals, etc.), the dimension of
these must be taken into account to
ensure there is a gap all round of
42mm.
Pull the refrigeration appliance for-
wards by the appropriate dimension.
Check again to make sure there is a
gap of 42mm to the front edges of
the door fittings.
Tip: If possible, remove the door fittings
and push the refrigeration appliance into
the niche until all fixing brackets at the
top and bottom are touching the front
edge of the housing unit side wall.
Aligning the refrigeration appliance
When securing the refrigeration appli-
ance in the niche at the top, it should
sit lightly tensioned between the floor
and the worktop.
Adjust the front and rear feet altern-
ately according to the niche height
and make sure the refrigeration appli-
ance is correctly aligned.
Proceed as follows:
Adjust both rear feet with appropriate
screws at the front right and left in the
appliance plinth using the rod sup-
plied and a flat-head screwdriver.
Unscrew the two front levelling feet
alternately with the rear ones. The
maximum adjustment range is 6cm.
Tip: As soon as the feet have been un-
screwed slightly, you can adjust them
with a screwdriver at the bottom of the
foot (see small illustration).
The foam attached to the ventila-
tion grille ensures the airflow is sep-
arated to prevent malfunctioning of
the appliance.
52
Installation
*INSTALLATION*
Replace the plinth panel with the
ventilation grille, but do not fix it in
place yet.
Without a continuous plinth facing:
Pull the plinth panel forwards until
the ventilation slots are in alignment
with adjacent cabinet plinth panels.
Hold the plinth panel securely and at-
tach it to the right and left using the
bolts supplied.
With the plinth panel attached, the
rear feet can only be adjusted when
the plinth panel is fully inserted. Other-
wise, the bar is not long enough.
With a continuous plinth facing:
Push the plinth panel with the ventila-
tion grille right up against the refri-
geration appliance, and attach it to
the right and left using bolts.
If a continuous plinth facing is to be fit-
ted, a suitable ventilation gap will need
to be made in it for the ventilation grille
of the refrigeration appliance.
Trim the furniture plinth facing (U) to
the correct height.
Adjust the height (V) along the niche
width (W) underneath the appliance
plinth facing.
Securing the refrigeration appliance in
the niche
1.Secured at the top
Screw the refrigeration appliance in
place underneath the worktop with
two screws in each case.
53
Installation
*INSTALLATION*
2.Secured at the side
Screw the refrigeration appliance into
the niche on the right and left with
one screw in each case.
Fitting the furniture doors
If fitted in a run of units, make sure
that the top edge of the top furniture
door is at the same height as the fur-
niture doors of adjoining units.
The furniture doors must be mounted
free of tension.
The next section provides instructions
for fitting a furniture door with a fur-
niture front that is at least 16–19mm
thick.
Ensure that the plinth panel is refitted
correctly.
Fit the handles on both furniture
doors first, as it will not be possible to
fit them later.
So that the built-under cooling draw-
ers will pull out evenly, be sure to fit
the handles centrally.
Fitting the top furniture door
Determine the dimension Y from the
bottom edge of the furniture front to
the fixing bracket.
Determine the dimension S from the
bottom edge of the furniture front to
the top edge of the furniture door.
Transfer the dimension Y–S to the fur-
niture door.
54
Installation
*INSTALLATION*
Determine the distance X between
the outer edges of the fixing brackets.
Transfer dimension X to the furniture
door.
Remove the two fixing brackets.
Fit the fixing brackets to the furniture
door.
Attach the furniture door to the top
built-under cooling drawer.
You can use the different screw posi-
tions to align the furniture door by
moving the screws to the top or bot-
tom position.
The top furniture door is fitted.
55
Installation
*INSTALLATION*
Fitting the bottom furniture door
Determine the dimension Y from the
bottom edge of the furniture door to
the fixing bracket.
Transfer the dimension Y–S to the fur-
niture door.
Determine the distance X between
the outer edges of the fixing brackets.
Transfer dimension X to the furniture
door.
Remove the two fixing brackets.
Fit the fixing brackets to the furniture
door.
56
Installation
*INSTALLATION*
Attach the furniture door to the bot-
tom built-under cooling drawer.
You can use the different screw posi-
tions to align the furniture door by
moving the screws to the top or bot-
tom position.
The bottom furniture door is fitted.
57
Installation
*INSTALLATION*
Electrical connection
The refrigeration appliance must only be
connected to an earthed socket using
the mains connection cable supplied.
The socket must be easily accessible
after the refrigeration appliance has
been installed. If the socket is not easily
accessible, ensure that a suitable
means of disconnection is provided on
the installation side for each pole.
Risk of fire from overheating.
Connecting the refrigeration appli-
ance to a multi-socket plug adapter
or to an extension lead can overload
the cable.
For safety reasons, do not use an ex-
tension lead or multi-socket adapter.
The electrical installation must comply
with VDE0100 requirements.
For safety reasons, we recommend us-
ing a type residual current device
(RCD) in the assigned electrical installa-
tion for connecting the refrigeration ap-
pliance.
If the mains connection cable is dam-
aged, it must only be replaced with a
specific mains connection cable of the
same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified spe-
cialist or the Miele Customer Service
Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical con-
nection. If in any doubt, consult a quali-
fied electrician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not syn-
chronised with the mains power supply
(e.g. island networks, back-up systems)
is possible. A prerequisite for operation
is that the power supply system com-
plies with the specifications of
EN50160 or an equivalent standard.
The function and operation of the pro-
tective measures provided in the do-
mestic electrical installation and in this
Miele product must also be maintained
in isolated operation or in operation that
is not synchronised with the mains
power supply, or these measures must
be replaced by equivalent measures in
the installation. As described, for ex-
ample, in the current version of VDE-
AR-E2510-2.
Connecting the refrigeration appliance
Insert the plug connector into the
socket at the back of the refrigeration
appliance.
Make sure that the plug connector has
clicked into position correctly.
Insert the plug of the refrigeration ap-
pliance into the socket.
The refrigeration appliance is now con-
nected to the electricity supply.
58
EU Conformity declaration
Miele hereby declares that this refriger-
ator complies with Directive 2014/53/
EU.
The complete text of the EU declaration
of conformity is available from one of
the following internet addresses:
- Products, Download from
www.miele.ie
- For service, information, operating in-
structions etc: go to
https://miele.co.uk/manuals and enter
the name of the product or the serial
number
Frequency range
of the WiFi mod-
ule
2.4000–
2.4835GHz
Maximum trans-
mission power of
the WiFi module
<100mW
59
UK Conformity declaration
Miele hereby declares that this refrigerator complies with UK Radio Equipment
Regulations 2017, as amended.
The complete text of the UK declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.co.uk
- For service, information, operating instructions etc: go to https://miele.co.uk/
manuals and enter the name of the product or the serial number
Frequency band of the WiFi module 2.4000GHz – 2.4835GHz
Maximum transmitting power of the
WiFi module
<100mW
ThisStatement of Compliance confirms this Miele product fully complies with the
Product Security and Telecommunications Infrastructure (Security Requirements
for Relevant Connectable Products) Regulations 2023.
1) Household Appliance –
2)
Manufactured by: Miele & Cie KG,
Carl Miele Street 29, 33332 Gutersloh Germany
Imported by and contact point: Miele Company Ltd, Fairacres, Marcham Road,
Abingdon, Oxon, OX14 ITW Great Britain
The defined support period at the time of first supply is 10 years
3)
To report vulnerabilities and cybersecurity issues please contact: [email protected]4)
5) Signature
Name: Paul Wright
Company Position: Head of Technical Management
Date of signature: 19th March 2024
Place of signature:
Abingdon, Oxfordshire
Freezer - 120002, 120003, 220009, 320001, 320002
Refrigerator - 110001, 110002, 210010, 310001, 310002,
310003
Fridge-freezer - 130001, 130002, 130003, 130004,
330001, 330002
Wine unit - 210007, 210011, 310004, 330004
60
Copyrights and licences
For the purpose of operating and controlling the communication module, Miele
uses proprietary or third-party software that is not covered by open source licens-
ing terms. This software/these software components are protected by copyright.
The copyrights held by Miele and third parties must be respected.
Furthermore, the communication module integrated in the appliance contains soft-
ware components which are distributed under open source licence conditions. The
open source components contained in the appliance along with the corresponding
copyright notices, copies of the licensing terms valid at the time and any further in-
formation can be accessed locally by IP via a web browser (http[s]://<IP address>/
Licenses). The liability and warranty arrangements for the open source licences dis-
played in this location only apply in relation to the respective rights holders.
61
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
E-mail: [email protected]
Internet: www.miele.com.au
Miele Electrical Appliances Co. Ltd.
No. 82, Shimenyi Road, JingAn District
Shanghai, China, P.R.C
Post Code: 200040
Phone: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: info@miele.cn
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
E-mail:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9, Mathura Road,
Jasola, New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place, Bryanston 2194
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
E-mail: customercare@miele.co.nz
P.O. Box 69434, Bryanston 2021
M.-Nr. 12 995 710 / 00en-GB
KU 7175 ...
