MAD40F8APK
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
T ations are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
AIR FRYER
CONTENTS
0
02
1
07
05
06
1 2
1 3
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLESHOOTING
01
1 5
1 6
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE
1 7
WARRANTY / SERVICE
1 8
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance oers in a safe way.
02
Danger
This symbol indicates that there are dangers to the life and health of
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If y ny
damage, please contact the retailer or dealer. Please not ations or alterations to
the appliance are not allowed for your safety concern. Unintended use may cause
hazards and loss of warranty claims.
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them in the immediate vicinity of the installation site or unit for later use!
Intended Use
Explanation of Symbols
SAFETY INSTRUCTIONS
CAUTION
This appliance is for household use only. Do not use
outdoors.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning
Children should be supervised to ensure that they do
not play with the appliance
This appliance is intended to be used in household and
similar applications such as:
- Sta kitchen areas in shops, oce and other working
environments;
- Farm houses;
- By clients in hotels, motels and other residential type
environments;
- In bed and breakfast type environments;
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agentor similarly qualified
persons in order to avoid a hazard.
●
●
●
●
●
WARNING
●
●
●
●
●
Read Rules for Safe Operation and Instructions Carefully.
Do not immerse any part of the appliance in water or
other liquid.
Do not let any water or other liquid enter the appliance
to prevent electric shock.
Do not cover the air inlet and the air outlet openings
while the appliance is operating.
Do not fill the pan with oil as this may cause a fire hazard.
03
Please turn o and unplug the appliance before
cleaning, maintenance or relocation and whenever it is
not in use.
The surfaces are liable to get hot during use.
After being used for a long time, the corresponding
heating zone of the induction hotplate is till hot. Never
touch the ceramic surface to avoid burning.
Never immerse the housing, which contains electrical
components and the heating elements, in water nor
rinse under the tap.
Always put the ingredients to be fried in the basket, to
prevent it from coming into contact with the heating
elements.
Never touch the inside of the appliance while it is
operating.
Keep the mains cord away from hot surfaces.
Never connect this appliance to an external timer
switch or separate remote-control system in order to
avoid a hazardous situation.
During hot air frying, hot steam is released through the
air outlet openings. Keep your hands and face at a safe
distance from the steam and from the air outlet
openings.
Also becareful of hot steam and air when you remove
the pan from the appliance.
Immediately unplug the appliance if you see dark
smoke coming out of the appliance. Wait for the smoke
emission to stop before you remove the pan from the
appliance.
Please pay attention to scald where there is a high
temperature symbol.
●
●
●
●
●
●
●
●
●
●
●
04
05
SPECIFICATIONS
MAD40F8APKProduct Model
Voltage
Frequency
Power
220-240V~
50/60Hz
1500W
• The first use requires 10 minutes of dry burning. A small amount of white smoke or
odor may appear during the dry burning process, which is normal. Do not panic.
PRODUCT OVERVIEW
06

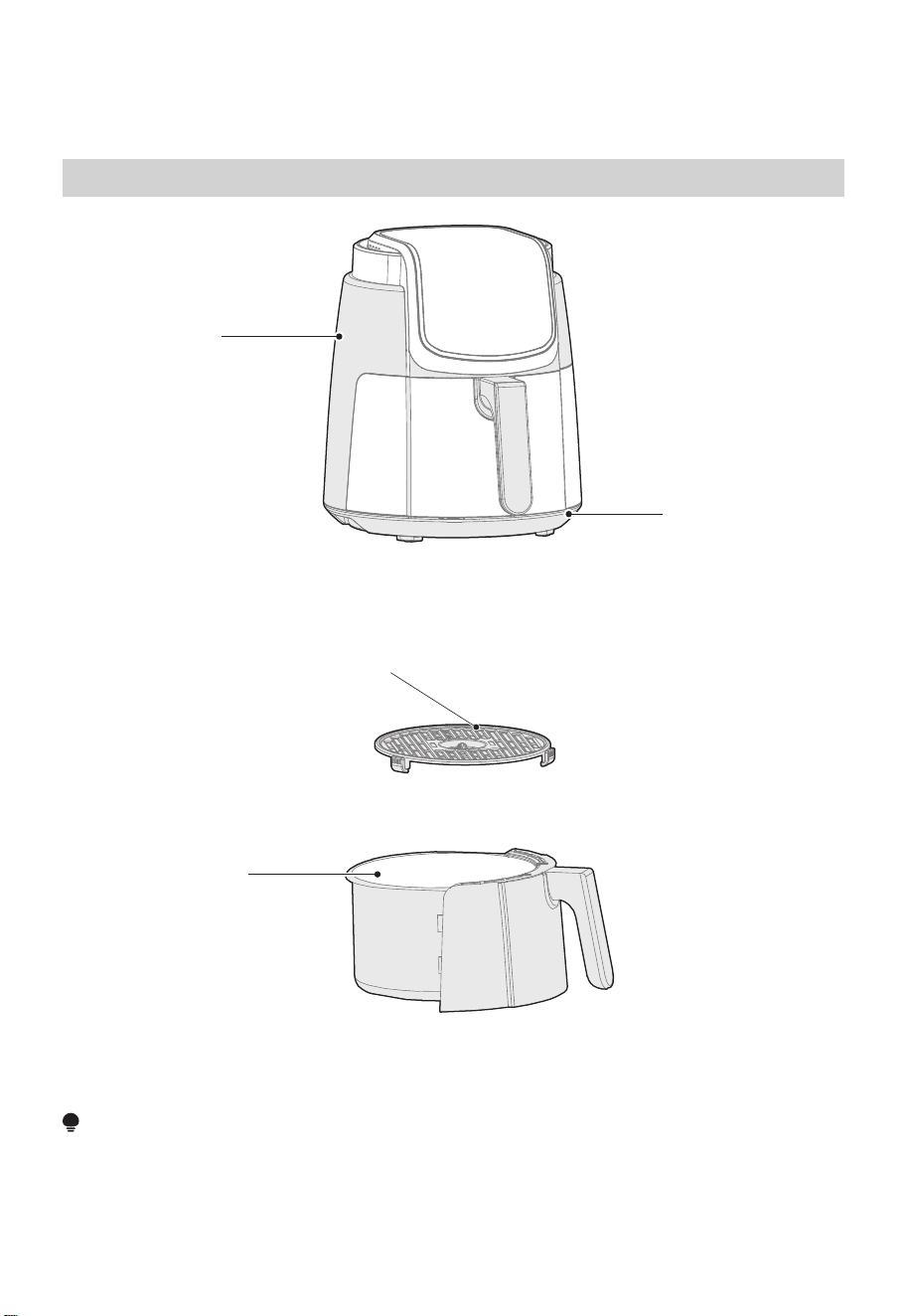

Product Components
NOTE
All the pictures in this manual are for explanation purpose only. Any discrepancy between
the real object and the illustration in the drawing shall be subject to the real subject.
The product is subject to the actual product and configuration.
Base
assembly
Main
unit
Fried barrel
Bakeware
OPERATION INSTRUCTIONS
07

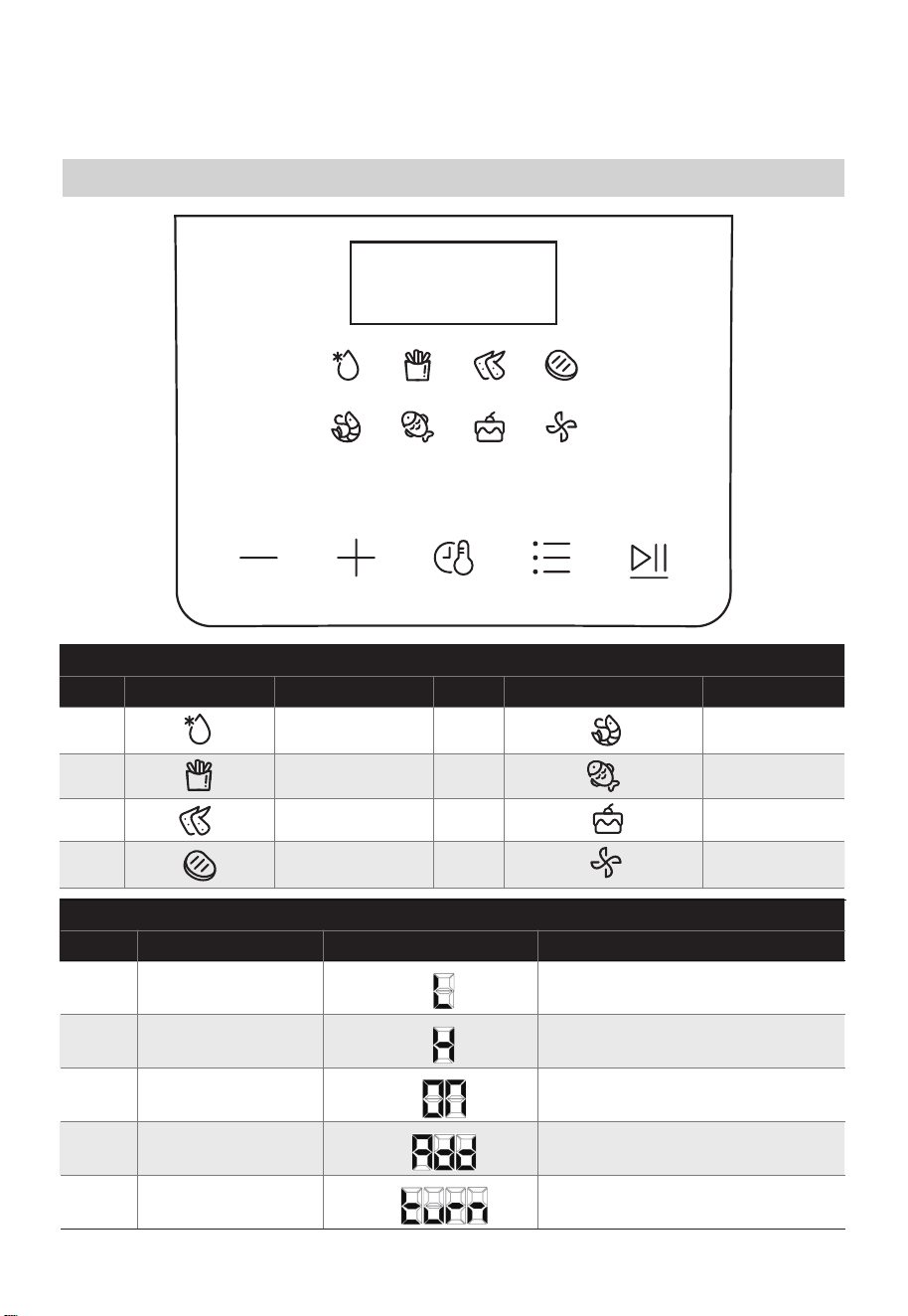

Operation Process Of The Panel
4
3
1
2
8
7
5
6
Defrost
French fries
Beef steak
Chicken wing
Shrimp
Fish
Cupcake
Dehydrate
No. ICON Function No. ICON Function
1
2
3
4
5
L
H
On
Add
turn
Low oven temperature (<100°C)
High oven temperature (>100°C)
Preheating
Please add food
Turn the food over
No. Information UI Display Meaning
Function icon description
UI Display description
1. Power on the machine, touch “ ” button (the machine enters the state of function
selection mode)
2. Touch “ ” button to select functions (after select menu, touch “ ” button to
select if enter time or temperature setting, press the “ / ” key to DIY time and
temperature)
3. Touch “ ” button, the product go into the working state - touch the “ ” button
again, the product pause working. Touch and hold “ ” button to return to the
energy saving interface.
The Default Menu Pre-sets The Heating Temperature And Time
08
Temperature (°C) Time (Min)
Menu
function
Defrost
French fries
Chicken wings
Steak
Shrimp
Fish
Cupcake
Dehydrate
Pre-setting
6
15
15
9
10
13
9
4h
Adjustment
range
1-60
1-60
1-60
1-60
1-60
1-60
1-60
1-24h
Pre-setting
80
180
180
200
180
180
170
70
Adjustment
range
35-90
80-200
80-200
80-200
80-200
80-200
80-200
35-90
Operation process of the panel:
NOTE
• Function selection Status: function indicator light and key indicator light are on, only
the selected function light blinking, and the screen displays the default
temperature. If there is no operation for 2 minutes in the o state, it will return to the
energy saving state.
• Setting status: The selected function indicator start blinking, while other function lights
will be on. The setting parameters displayed in the screen will be blinking, if doesn’t
operate within 5s, buzzer will call 2 times to remind.
• Working status: The selected function indicator light is on, while other function lights
are o. The buttons indicator lights up. Screen displays countdown.
6
OPEN
No. Information UI Display Meaning
UI Display description
Barrel is not installed properly or
removed.
Note: no operation can be made
if this message appears.

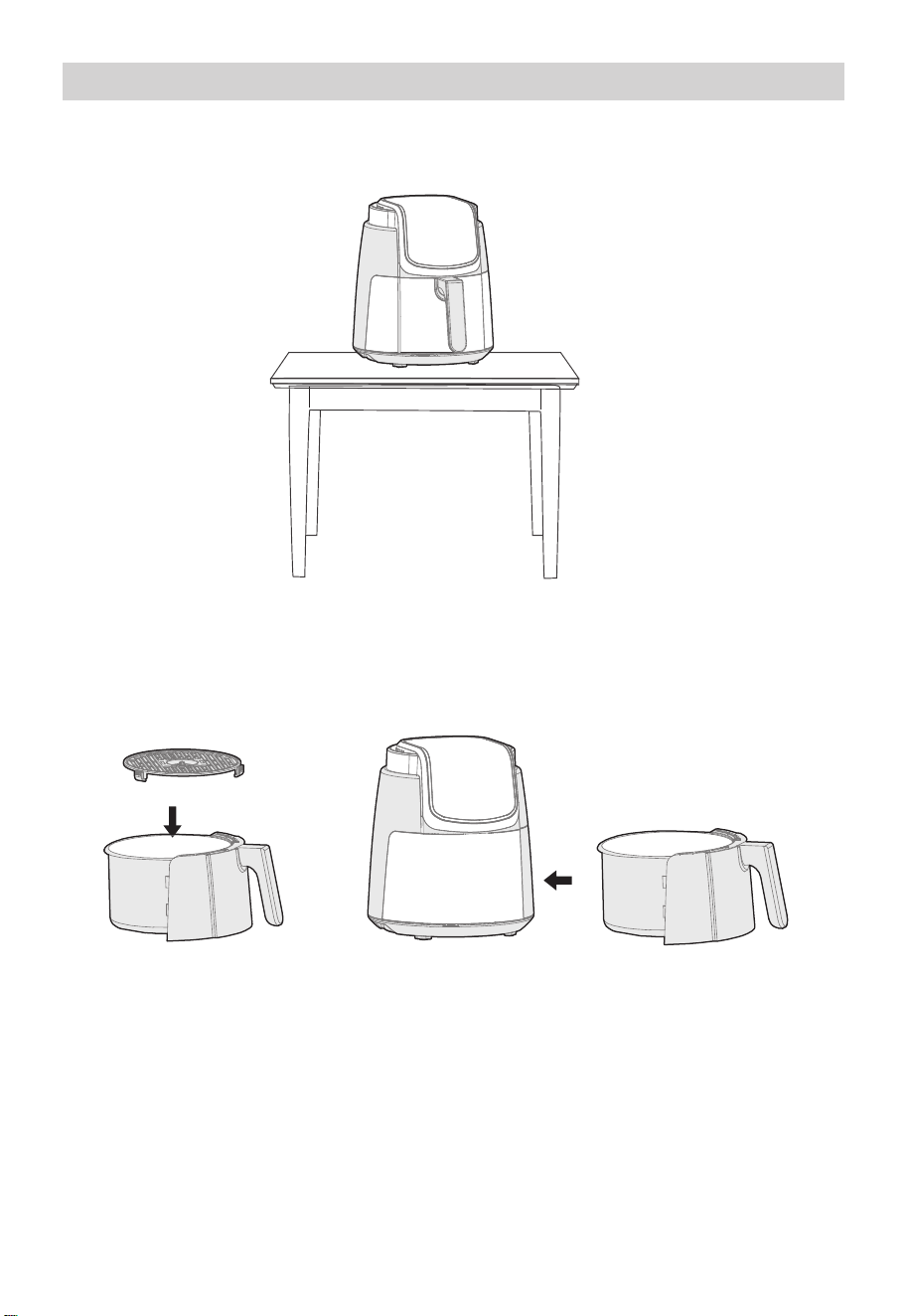

Preparation
09
1
The product should be stably placed on a flat table (Figure 1), so that the power cord
has a sucient length to be plugged into the socket, and the air around the product
should be kept in circulation, and should not be close to flammable items.
2
According to dierent configurations install the barrel assembly (Figure 2), then push
it into the Main unit (Figure 3).
3
Before placing ingredients, preheat the machine for 3-5 minutes, the cooking eect
will be better.
Figure 1
Figure 3Figure 2

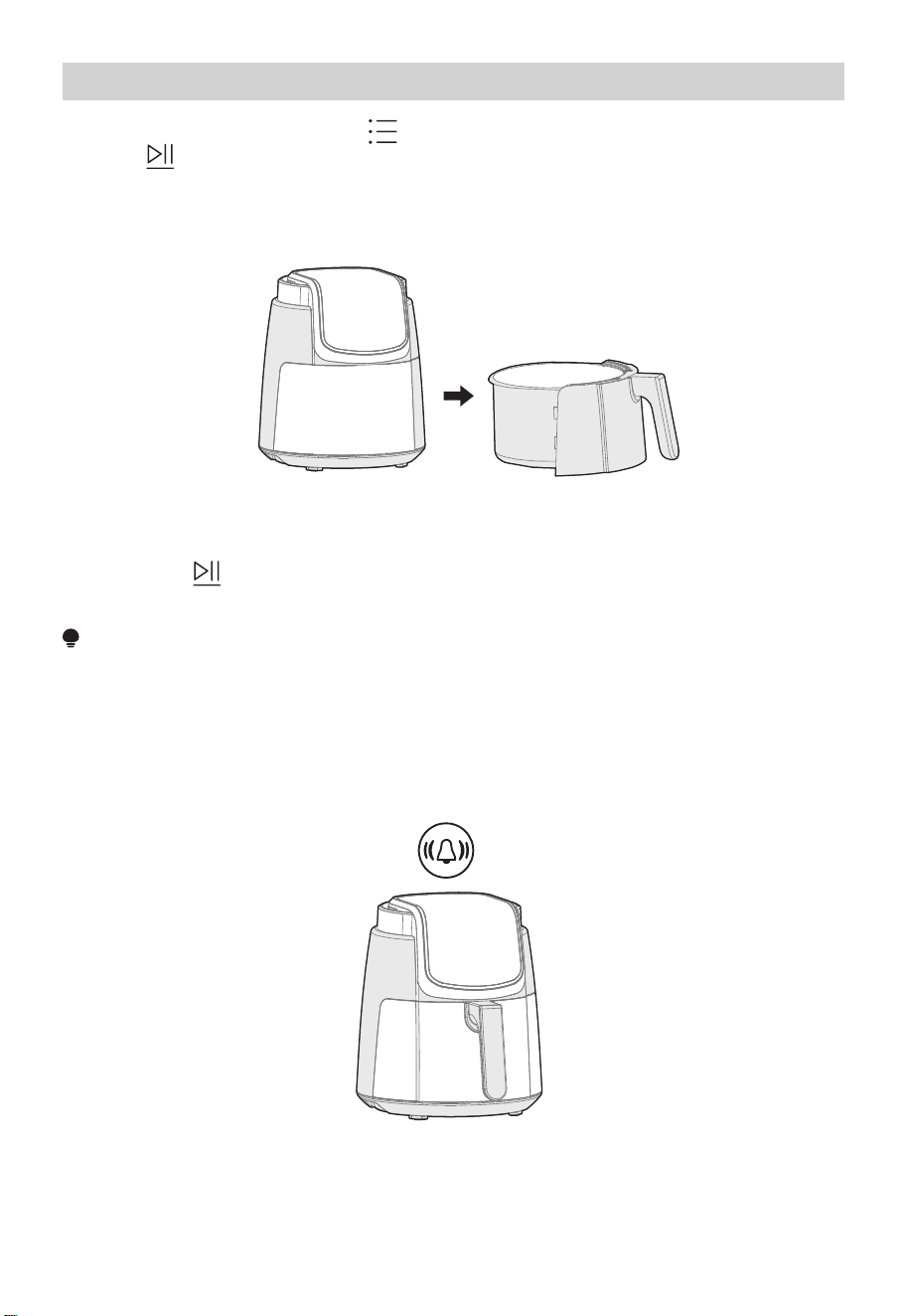

Instructions
10
1
Turn on the power, then touch “ ” button to select the corresponding function and
touch “ ” button to let the machine run for preheating.
2
After the preheating is completed, the machine will beep and dispaly shows "Add",
hold the top of the machine with one hand, and pull the barrel out by holding the
handle of the barrel with the other hand. The display shows “OPEN”. The barrel must
be placed on a stable table.
3
Put the ingredients on the bakware or basket in the fried barrel.
4
Push the frying barrel into the machine, it will continue to work and the interface shows
the set time or DIY through the control panel to set the certain temperature and time,
then touch “ ” button to start. Then the machine enters the heating work state,
cooks and heats the food material.
NOTE
• When the frying barrel is not thoroughly pushed in the micro switch is not triggered;
the display still shows “OPEN” At that time, The machine has the fuction of
10 minutes power o memory. You need to push the frying barrel into the machine
within 10 minutes , otherwise it will return to the energy saving state.
Warm Reminder
11
• Before the product works, please check whether the bakeware or fried basket is in
place to avoid malfunction.
• If you find that the product is malfunctioning, please stop using it and contact our
service department immediately.
• Please use the bakeware or fried basket and fried barrel together in the whole machine,
and avoid using them separately.
• After using, unplug the power plug and allow the air fryer to cool completely before
moving.
5
6
The machine beeps after cooked, unplug the power plug. Unplug the socket put it on
the desk flatwise and take out the cooked food with the auxiliary tool (such as
chopsticks and clamp).
Please carefully take it out. Do put it on the desk flatwise so as to avoid being
scalded by steam or topping over the frying barrel which may lead to scalding by
oil or high temperature food. In addition, the auxiliary tools (such as chopsticks)
are suggested to be used in the process of taking out food.
After reaching half of the heating time, the machine beeps 3 times,the display
shows “ ”, you can put out the barrel, flip sides of the food . if the barrel is
not detected to be withdrawn within 10 seconds , cooking will continue .
We recommend flipping sides of your food during the cooking cycle for best
results. Defrost and Dehydrate don’t need to “ ”.
12
• Please clean the air fryer to prevent it from being burned.
• After using, please clean the bakeware or fried basket and fried barrel in time to avoid
the damage of the coating due to the erosion of food residue oil.
• Do not use strong abrasive cleaners to prevent damage to the machine and your
health.
• Use a soft, clean cloth to wipe the air fryer. Please do not use an over-wet cloth to
clean the air fryer, to prevent water from entering the air fryer, which may cause short
circuit and fire.
• Please do not use other cleaning equipment such as a dishwasher to clean the air fryer,
otherwise it may cause damage and aect the use.
• Use neutral detergent or clean water to clean the frying pans and drums.
• Please do not use hard and sharp items (such as wire balls, blades, etc.) to clean the
bakeware or fried basket and fried barrel to prevent scratching.
CLEANING AND MAINTENANCE
TROUBLESHOOTING
Cause SolutionProblem
The appliance is not plugged
in.
Put the mains plug in an
earthed wall socket.
Slide the pan into the appliance
properly.
●
The pan is not put into the
appliance properly.
●
The air fryer does
not work
see section
“OPERATION INSTRUCTIONS”
see section
“OPERATION INSTRUCTIONS”
see section
“OPERATION INSTRUCTIONS”
see section
“OPERATION INSTRUCTIONS”
see section
“OPERATION INSTRUCTIONS”
Use oven snacks or lightly
brush some oil onto the snacks
for a crispier result.
Push the basket down into the
pan until you hear a click.
The amount of ingredients
in the basket is too big.
●
The set temperature is too
low.
●
The preparation time is too
short.
●
Certain types of ingredients
need to be shaken halfway
through the preparation
time.
●
There are too much
ingredients in the basket.
●
You used a type of snacks
meant to be prepared in a
traditional deep fryer.
●
The basket is not placed, in
the pan correctly.
●
The ingredients
fried with the air
fryer are not done.
The ingredients
are fried unevenly
in the air fryer.
Fried snacks are
not crispy when
they come out of
the air fryer.
I cannot slide the
pan into the
appliance properly.
Operation of your appliance can lead to errors and malfunctions. The following tables
contain possible causes and notes for resolving an error message or malfunction. It is
recommended to read the tables carefully below in order to save your time and money
that may cost for calling to the service center.
13
Cause SolutionProblem
Cause SolutionProblem
When you fry greasy ingredi-
ents in the air fryer, a large
amount of oil will leak into the
pan. The oil produces white
smoke and the pan may heat
up more than usual. This does
not aect the applianceor the
end result.
Use fresh potatoes and make
sure they stay firm, during
frying.
Make sure you dry the potato
sticks properly before you add
the oil.
Cut the potato sticks smaller
for a crispier result.
Add slightly more oil for a
crispier result.
Rinse the potato sticks
properly to remove starch
from the outside of the sticks.
White smoke is caused by
grease heating up in•the pan.
Make sure you clean the pan
properly after each use.
You are preparing greasy
ingredients.
●
You did not use the right
potato type.
●
The crispiness of the fries
depends on the amount of oil
and water in the fries.
●
●
●
You did not rinse the potato
sticks properlybefore you fried
them.
●
The pan still contains grease
residues from previous use.
●
White smoke
comes out of the
appliance.
Fresh fries are
fried unevenly
in the air fryer.
Fresh fries are
not crispy when
they come out
of the air fryer.
14
Cause SolutionProblem
El alarm
E2 alarm
Sensor open-circuit protection
Sensor short-circuit protection
Send the product to the
designated service
department for repair
Send the product to the
designated service
department for repair
15
logo, word marks, trade name, trade dress and all versions there of are
trademarks, copyrights and other intellectual property rights, and all goodwill derived
valuable assets of Midea Group and/or its aliates (“Midea”), to which Midea owns
from using any part of an Midea trademark. Use of Midea trademark for commercial
purposes without the prior written consent of Midea may constitute trademark
infringement or unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
16
device must be returned to ocial collection point for

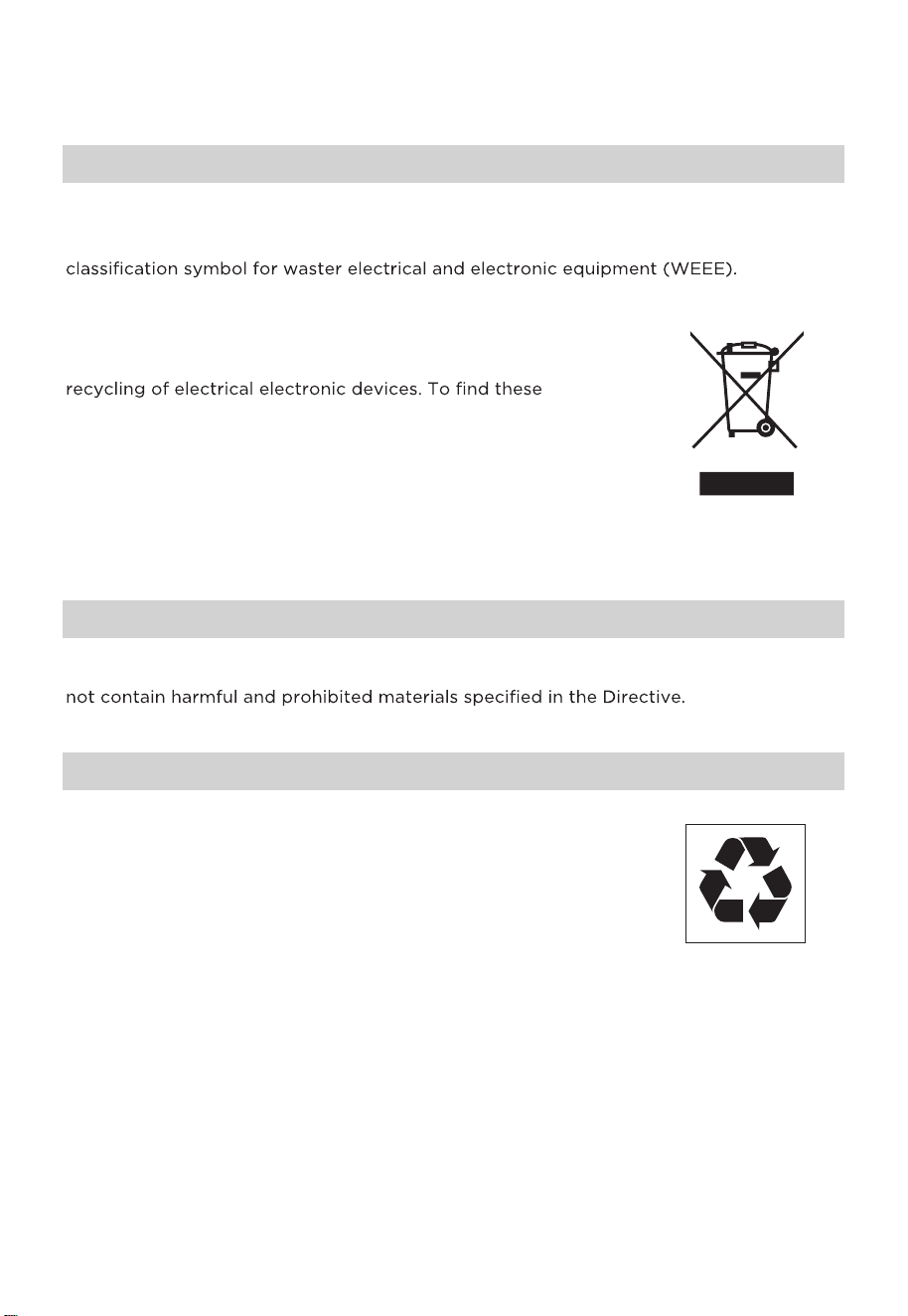

DISPOSAL AND RECYCLING
Important Instructions for Environment
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
This symbol indicates that this product shall not be disposed
with other household wastes at the end of its service life. Used
collection systems please contact to your local authorities or
retailer where the product was purchased. Each household
performs important role in recovering and recycling of old
appliance. Appropriate disposal of used appliance helps
prevent potential negative consequences for the environment
and human health.
Compliance with RoHS Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does
Package Information
Packaging materials of the product are manufactured from
recyclable materials in accordance with our National Environ-
ment Regulations. Do not dispose of the packaging materials
together with the domestic or other wastes. Take them to the
packaging material collection points designated by the local
authorities.
17
DATA PROTECTION NOTICE
For the provision of the services agreed with the customer,
we agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered,
as well as, where applicable, the EU General Data Protection Regulation (GDPR).
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
Ocer via [email protected]. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
18
WARRANTY / SERVICE
- The power plug is connected
- The power plug may be
damaged
- Electricity is available
We congratulate you to your new device and are convinced that you will be satisfied and
have your joy with this modern appliance.
If you have any question or concerns, please email us
Email:
customer_services@midea.com
In case of a technical fault, enter your exact address, telephone number, sales contract number and
Device type (from the type plate of the device).
A precise fault description saves you time and money. For special questions, please contact the
customer service center.
Before calling for service:
Please check whether there is an operating error or a cause that has nothing to do with the
function of your device.
Please observe the note in the user manual and check whether:
Warranty terms
This device has been manufactured and tested according to the most modern methods. The seller
warrants for faultless material and proper manufacture for a period of 24 months from the date of
sale to the end user. The unit is not suitable for commercial use.
The claim under guarantee lapses in the event of intervention by the Buyer or by a third party.
Damage caused as a result of improper handling or operation, incorrect installation or storage,
improper connection or installation as well as an act [...] of God or other external factors shall not
be covered by this warranty.
When claims are submitted, the manufacturer reserves the right to make
improvements to
defective parts or to replace or exchange the device.
Only if it is not possible to achieve the intended use of the device by repairing or replacing the
device, the buyer can demand a reduction of the purchase price or the cancellation of the purchase
contract within 6 months from the date of purchase.
Claims for damages, including consequential damages, are excluded unless they are based on
intent or gross negligence.
The guarantee claim exists only with submission of the product and the purchase receipt.
Midea Electrics Netherlands B.V.
Johan Cruij Boulevard 65,
1101 DL Amsterdam
