MICROBOX AMPLIFIED
LOADED ENCLOSURE
MICROBOX AMPLIFIED
LOADED ENCLOSURE
© 2024 Diamond Audio. All rights reserved.
( A division of CV & DA Holdings, Inc.)
DESMB8A/DESMB8DA
DESMB10A/DESMB10DA
DESMB12A
DESMB8A/DESMB8DA
DESMB10A/DESMB10DA
DESMB12A
DES
SERIES
DES Microbox Manual 2023 | Spread 1 of 2 - Pages (6,1)
Diamond Audio (a division of CV & DA Holdings, Inc.) warrants this product to be free from defects in
material for a period of one (1) year from the original date of purchase provided it was purchased from
an authorized DAT retailer within the United States. However, if this product was installed by authorized
DA retailer, the warranty period will be extended to two (2) years.
THIS WARRANTY IS NOT TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASE OF THIS
PRODUCT IN ITS ORIGINAL INSTALLATION. Original purchaser must reside in the United States and be
able to provide proof of purchase and installation with the sales from the authorized DAT retailer and
completion of online registration that sold and installed the product.
Should a manufacturing defect occur during above said warranty period, DA will replace or repair the
defective product with a product of the same or equivalent value and performance.
Damage or failure caused by any of the following is not covered under this warranty policy: negligence,
improper use, abuse, product modification, unauthorized repair attempts, accident, acts of God,
misrepresentations by DA retailers, and improper/inadequate packaging during return shipping.
Warranty is void if serial numbers have been removed, altered or defaced.
In the event a DA product should require service, you should visit the authorized DA retailer you
purchased the product from and they can expedite your claim. All claims must fall into the guidelines
listed above and be accompanied by a copy of the original sales and installation receipt from that
authorized DA retailer.
Product returned for warranty service must be freight-prepaid, properly packaged and clearly marked
with the Return Authorization (RA) number issued by DA. Any product returned to DAT that is improperly
packaged, does not have a RA number clearly marked on the package, or never received a RA number
may be refused upon delivery. DA does not assume responsibility for lost or misdirected product.
Repair or replacement under this warranty is the exclusive remedy of the consumer. DA shall not be
liable for any incidental or consequential damages for breach of any expressed or implied warranty on
this product. Some states do not allow the exclusion or limitation of incidental or consequential damages,
or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights and you may also have other rights that may
vary from state to state.
Customer outside the United States should contact their local sales office to obtain information on
pricing, exchange unit availability, instructions, service and warranty/non-warranty replacement
or repair.
3761 South Hill St.
Los Angeles, CA 90717
Tel: 213-261-4161
Fax: 213-947-4767
Web: diamondaudio.com
Facebook.com/DiamondAudio
213-261-4161
© 2024 Diamond Audio. All rights reserved.
( A division of CV & DA Holdings, Inc.)
© 2024 Diamond Audio. All rights reserved.
( A division of CV & DA Holdings, Inc.)
A
B
C
B
C
A
SINGLE
DUAL
DES Microbox Manual 2024 | Spread 2 of 2 - Pages (2,3)

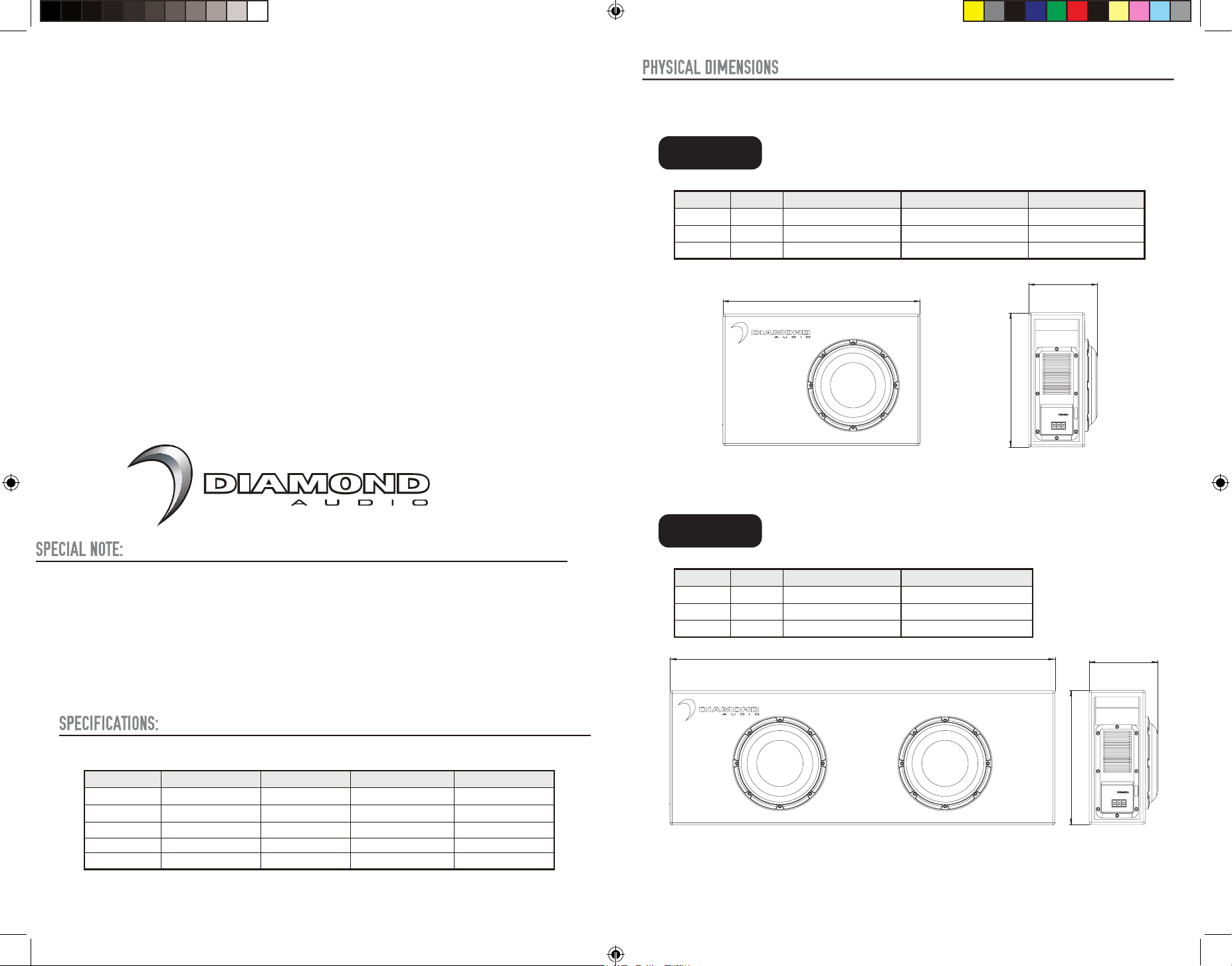

Dimension
Length (A)
Height (C)
Depth (B)
in. (mm)
in. (mm)
in. (mm)
Unit
DESMB8A DESMB10A
18” (457.2)
6.4” (156.2)
12” (305)
20.9” (533)
7.8” (200)
12.9” (330)
DESMB12A
24” (609)
11” (277)
14.4” (368)
Dimension
Length (A)
Height (C)
Depth (B)
in. (mm)
in. (mm)
in. (mm)
Unit
DESMB8DA DESMB10DA
34.4” (875.5)
6.4” (156.2)
12” (305)
40.3” (1024)
7.8” (200)
12.9” (330)
Model
DESMB8A
DESMB10A
DESMB8DA
2Ω
Nominal Impedance
RMS Power MAX Power
250W
500W
Grille
OD187.2, H29
DESMB10DA
DESMB12A
2Ω
2Ω
2Ω
2Ω
250W
500W
OD187.2, H29
350W
700W
OD238.6, H29.5
500W
1000W
OD238.6, H29.5
500W
1000W
OD287.2, H29.5
About the Diamond Audio Experience:
Congratulations, you have just purchased the finest mobile audio products on the market to date.
At Diamond Audio, our products represent the latest advances in acoustic technology in sound
reproduction for your vehicle. Diamond Audio products are designed, developed, and engineered using the
latest innovative materials and components to provide the finest sound reproduction possible. Every
Diamond Audio product has been verified and tested by Klippel equipment to ensure the best sound and
most reliable product on the market today. If installed correctly, Diamond Audio products will provide
many years of the ultimate listening experience.
Please note that prolonged exposure to sound pressure levels in excess of 100dB can cause permanent
hearing loss. Using Diamond audio products can exceed that level, so please exercise restraint in its
operation to preserve your ability to enjoy its high-fidelity sound for
years to come.
Diamond Audio recommends an authorized Diamond Audio dealer professionally install our products to
achieve the best possible system performance and longevity. Installation by a professional will ensure an
authentic Diamond Audio listening experience and the sound you would expect from Diamond Audio
products. Also, doing this will extend your warranty from one year to two years.
Diamond Audio’s Microbox Enclosure system delivers impressive bass output in a small package! These
Microbox Enclosures come preloaded with a single or dual pair option of true DES Series subwoofers and
powerful internal amplifiers for the perfect match up. After many hours of fine-tuning this subwoofer and
developing the perfect slot-port application, these Microbox subs outperform even larger systems.
Constructed with high-strength MDF, extensive bracing, and lock-tight fastening, it means no leaks and
distortion-free bass response. - Go ahead, Hear the Music!
These MICROBox subwoofer systems pack a punch. We highly recommend bolting the enclosures down
with L brackets or some restraint to keep them from moving around when the vehicle is in motion. The
amplifiers are equipped with quick disconnects if the enclosure needs to be removed or replaced for
space considerations.
We recommend a minimum of 8GA copper power wire for all models for the best amplifier
performance.
NO CCA wire. CCA wire will void your warranty, reduce the performance of your system, and could
cause harm to your system or vehicle.
© 2024 Diamond Audio. All rights reserved.
( A division of CV & DA Holdings, Inc.)
© 2024 Diamond Audio. All rights reserved.
( A division of CV & DA Holdings, Inc.)
DES Microbox Manual 2024 | Spread 3 of 3 - Pages (4,5)

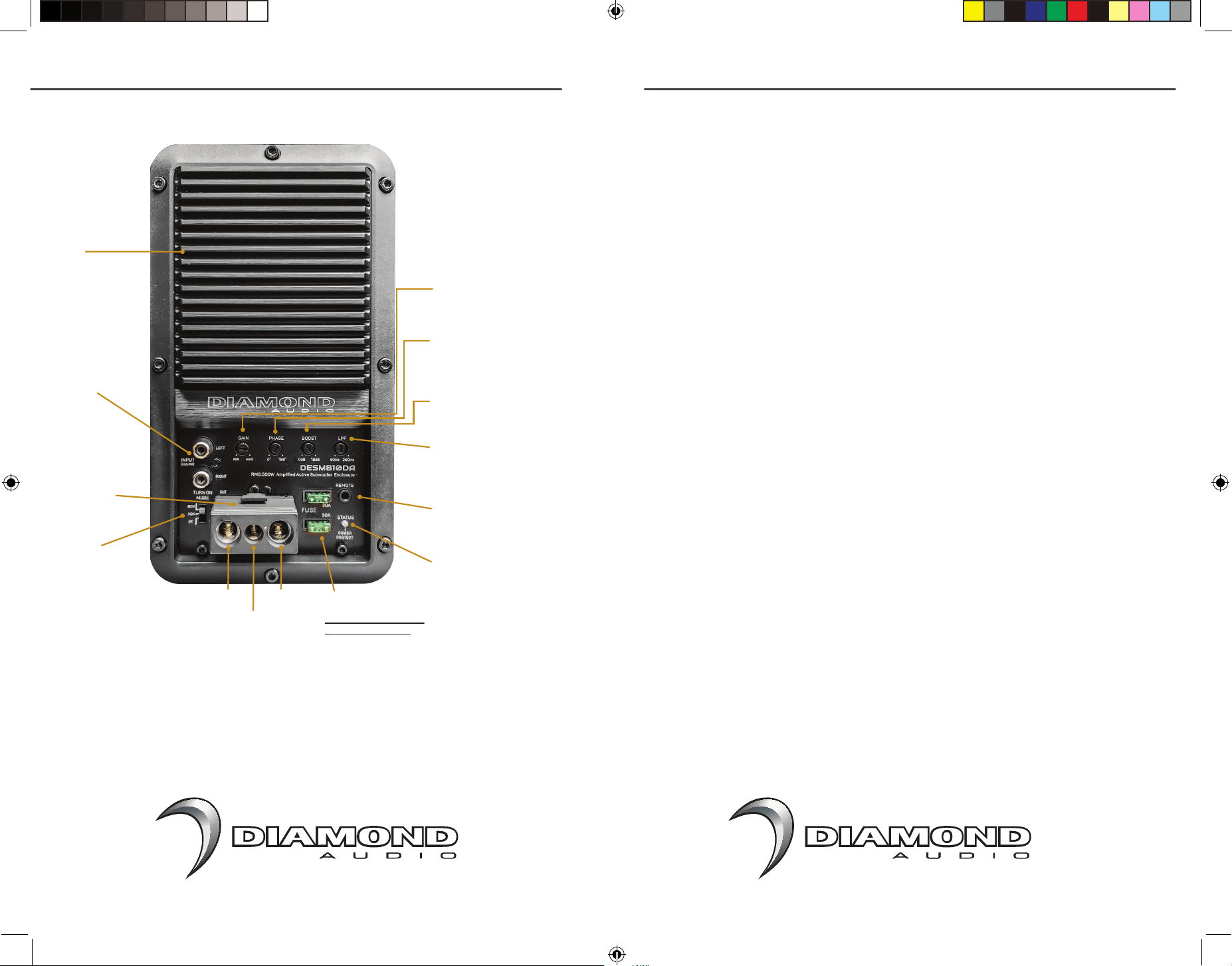

AMPLIFIER
TURN-ON MODE
(SELECTABLE)
REM- Remote 12V
VOX - Voltage Sensing
DC - DC Offset Sensing
HEAT SINK
Thermally optimized for
excellent heat dissipation
REMOTE TURN-ON
(OPTIONAL)
POWER INPUT CONNECTOR
GROUND POWER
POWER BLOCK
Removable power
connector
GAIN
Input level adjustment
FUSE
Protection fuse
ONLY REPLACE WITH
SAME VALUE FUSE
STATUS MODE
Power - Blue
Protect - Red
REMOTE
Remote level controller input
(optional)
PHASE
Adjust phase of system to match
output of other speakers in vehicle
BOOST
Bass enhancement adjustment
0-18dB of boost
LPF
Low Pass Filter adjusts frequency
that system plays up to. Adjusted
to middle setting is a good all
around frequency @ 120Hz.
INPUT
High or Low Level
input support
AMPLIFIER
INPUT
Connect preamp signal cables from the head unit or speaker level to these terminals.
GAIN
Input level adjustment. The gain is a level-matching control used to reach maximum amplifier power with a wide variety of
head units and input sources. This is not a volume control; setting it higher than needed puts unnecessary strain on the
amplifier and subwoofers, causing high distortion, excess heat, and under performance. Our amplifier's power is grossly
underrated; you will easily get more power than we advertise so don't get greedy or I'll come to confiscate that
screwdriver!! JC
LPF
Controls the low pass crossover point for the subwoofer. Adjusted to middle setting is a good all around frequency @
120Hz. The crossover frequency can be adjusted between 50- 250Hz.
BOOST
Variable bass boost from 0 to +18dB @ 45Hz.
REMOTE BASS LEVEL CONTROL
This port is for connecting the remote subwoofer level control. This allows up to 20dB of volume adjustment. This is not a
bass boost, it controls the level of the low pass signal. Can be mounted in a convenient location in the front of the vehicle.
POWER BLOCK INPUT CONNECTOR
The POWER BLOCK is removable for easier wiring and to allow the enclosure to be removed is additional space is needed.
Connect 4GA Pure Copper Power and Ground Leads to this connector. NO CCA or ALUMINUM WIRE.
12V
This must be connected to the fused positive terminal (+12V) of the car’s battery. The fuse must be located within 18
inches of the battery for safety.
GROUND
Ground should be connected to a paint free, heavy gauge clean metal surface preferably with a nut and bolt.
REMOTE TURN-ON
This must be connected to switched +12V, usually a trigger wire coming from the head unit or ignition. This connection is
optional and not needed if using either the VOX or DC setting for turn-on.
TURN-ON MODE (SELECTABLE)
REM- Remote 12V - If using a switched 12V to turn-on the amplifier.
VOX - Voltage Sensing- If using speaker level input signal, this setting will look for audio on the input to turn-on the amplifier.
DC - If using speaker level input signal, this setting will look for DC offset (BTL <1V DC) on the input to turn-on the amplifier.
REMOTE (CONTROL)
This port is for connecting the remote subwoofer level control. This allows up to 20dB of volume adjustment. This is not a
bass boost, it controls the level of the low pass signal.
BASS BOOST
Bass Boost is a variable bass enhancement from 0 to +18dB @ 45Hz. Adjust to restore low end in systems that lack
sufficient low frequency signal. Please use sparingly.
PHASE
This controls the Phase from 0-180° from the listening position. Properly adjusting phase will allow enhanced bass
response, dynamics and impact at any volume. To set the Phase control we suggest using a 50Hz test tone at a moderate
volume while one person listens in the vehicle and another slowly adjusts the Phase control until there is a noticable
increase in the bass response.
STATUS MODE
The status mode LED will alert you of the status of the amplifier, BLUE for all systems go and RED for thermal, voltage or
internal fault.
FUSE
The fusing in the amplifer is there as a last line of defense if there is a problem with the amplifier. This can blow if there is an
over current situaition such as driving the amplifier into clipping for an extended period (see GAIN and don’t forget I’ll take
that screwdriver), or a internal fault in the amplifier. If the fuse instantly blows when replacing, the amplifier will require
service.
If any issues arise please call our technical support line 213-261-4161or email us at helpdesk@dat-cvm.com
