Legend
Warning - Important Safety information
General information and tips
Environmental information
NOTE:FOR U.K. ONLY
On receipt of your appliance please check it carefully for damage. Any damage found
must be reported to the delivery driver immediately. Alternatively damage found must be
reported to the retailer within 2 days of receipt.
Environmental conditions
This appliance is marked according to the European directive
2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE).
WEEE contains both polluting substances (which can cause negative
consequences for the environment) and basic components (which can be re-
used). It is important to have WEEE subjected to speci c treatments, in order
to remove and dispose properly all pollutants, and recover and recycle all
materials. Individuals can play an important role in ensuring that WEEE does
not become an environmental issue; it is essential to follow some basic rules:
WEEE should not be treated as household waste;
WEEE should be handed over to the relevant collection points managed by
the municipality or by registered companies. In many countries, for large
WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be returned
to the retailer who has to collect it free of charge on a one-to-one basis, as
long as the equipment is of equivalent type and has the same functions as the
supplied equipment.
WARNING!
Risk of injury tion!
Disconnect the appliance from the mains supply. Cut o the mains cable and dispose of
it. Remove the door catch to prevent children and pets to get closed in the appliance.
Thank you for purchasing a Candy Product.
Please read these instructions carefully before using this appliance. The instructions
contain important information which will help you get the best out of the appliance and
ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass on this manual so that the new owner can become familiar with the applian-
ce and safety warnings
.
3
Content
EN
1- Safety information ......................................................................................................................... 4
2- Installation ........................................................................................................................................ 7
3- Practical hints ...........................................................................................................
..................... 11
4- Product description ..................................................................................................................... 13
5- Control panel ................................................................................................................................. 14
6- Programmes ...........................................................................................................
...................... 17
7- Consumption .......................................................................................................... 20
8- ............................................................................................................... 21
9- ......................................................................................... 26
10-
................................
........................................................................................ 27
11-
................................
............................................................................................ 32
12-
.............................
...................................................................................... 33
Customer service
Technical data
Troubleshooting
Care and cleaning
Daily use
................................
....................
...............
............
4
1-Safety information
EN
1-Safety information
Before switching on the appliance for the first time read the following
safety hints!
WARNING!
Daily use
►
This appliance is intended to be used in household and similar applica-
tions such as:
- Staff kitchen areas in shops,offices and other working environmen-
ts;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.
A different use of this appliance from household environment or from
typical housekeeping functions, as commercial use by expert or trained
users, is excluded even in the above applications. If the appliance is
used in a manner inconsistent with this it may reduce the life of the
appliance and may void the manufacturer’s warranty. Any damage to
the appliance or other damage or loss arising through use that is not
consistent with domestic or household use (even if located in a
domestic or household environment) shall not be accepted by the
manufacturer to the fullest extent permitted by law.
►
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.Cleaning and user maintena-
nce shall not be made by children without supervision.
►
Children should be supervised to ensure that they do not play with the
appliance.
►
Children of less than 3 years should be kept away unless continuously
supervised.
►
If the supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
5
1-Safety information
EN
►
Only use the hose-sets supplied with the appliance for the water supply
connection (do not reuse old hose-sets).
►
Water pressure must be between 0.03 MPa and 1 MPa.
►
Make sure carpets or rugs do not obstruct the base or any of the
ventilation openings.
►
After installation, the appliance must be positioned so that the plug is
accessible.
►
The maximum load capacity of dry clothes depends on the model used
(see control panel).
►
To consult the product technical specification please refer to the
manufacturer website.
Electrical connections and safety instructions
►
The technical details (supply voltage and power input) are indicated on
the product rating plate.
►
Make sure that the electrical system is earthed, complies with all
applicable law and that the (electricity) socket is compatible with the
plug of the appliance.Otherwise,seek qualified professional assistance.
►
The use of converters,multiple sockets or extension cords is strongly
advised against.
►
Before cleaning or maintaining the washing machine,unplug the appli-
ance and turn off the water tap.
►
Do not pull on the power cord or appliance to unplug the machine.
►
Make sure there is no water in the drum before opening the door.
WARNING!
Water may reach very high temperatures during the wash cycle.
►
Do not expose the washing machine to rain, direct sunlight or other
weather elements. Protect from possible freezing.
►
When moving,do not lift the washing maching by the knobs or deterg-
ent drawer;during transport,never rest the door on the trolley.
We recommend two people lift the washing machine.
►
In the event of fault and/or malfunction, turn off the washing machine,
close the water tap and do not tamper with the appliance.
Immediately contact the customer service centre and only use original
spare parts.Failure to observe these instruction may jeopardise applia-
nce safety.
6
1-Safety information
EN
Intended use
This appliance is intended for washing machine-washable laundry only.
Anytime follow the instructions given on the label of each garment label. It
is designed exclusively for domestic use inside the house. It is not intended
for commercial or industrial use.
Changes or modifications to the device are not allowed. Unintended use
may cause hazards and loss of all warranty and liability claims.
7
2-Installation
EN
2-Installation
2.1 Preparation
Take the appliance out of the packaging.
Remove all packaging material including protecting film on cabinet, polystyrene
base, keep them out of children reach. While opening the package, water drops may
be seen on plastic bag and porthole. This normal phenomenon results from water
tests in the factory.
Note: Packaging disposal
2.2 OPTIONAL: Install noise reduction pads

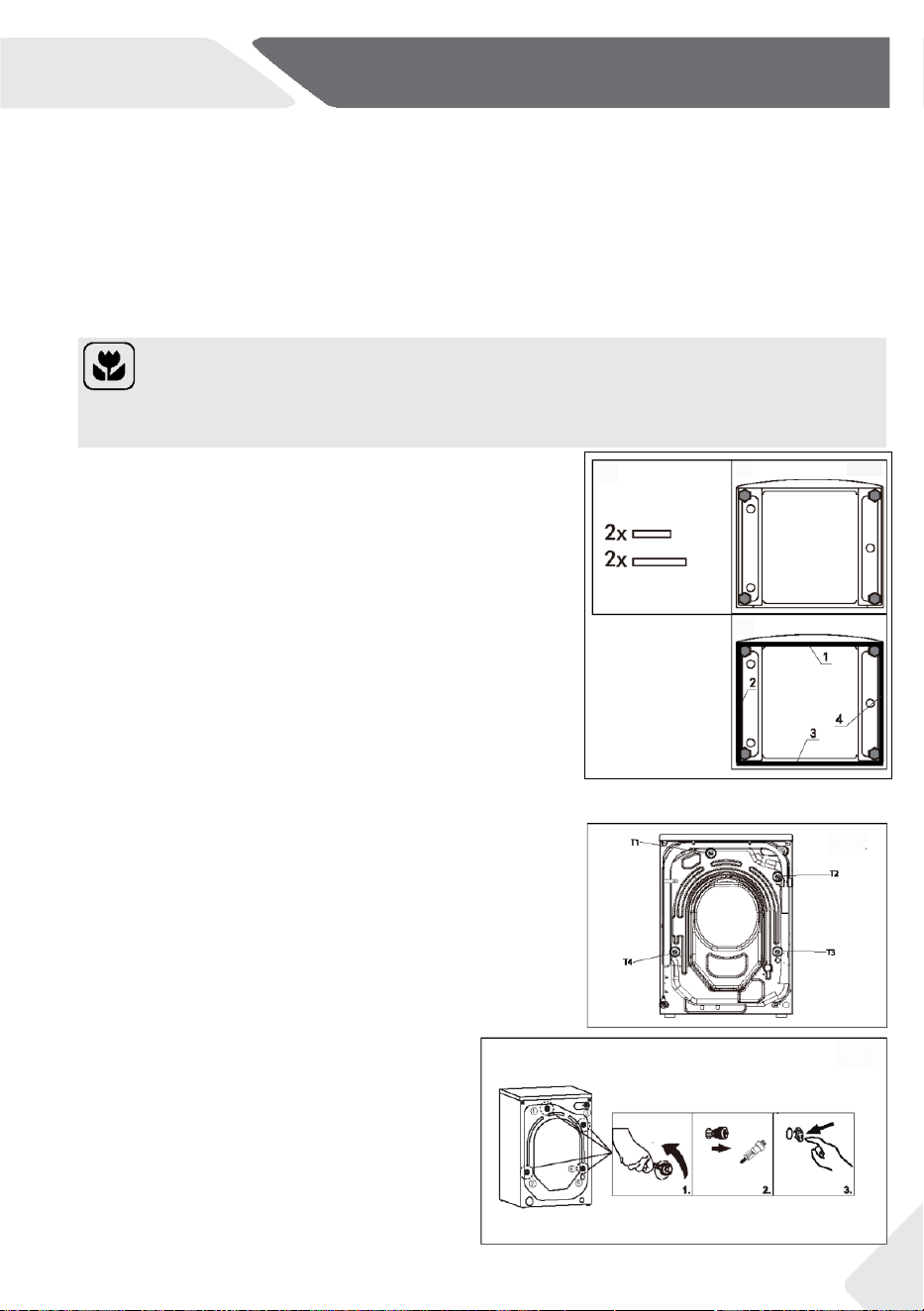

1. When opening the shrink package, you will find four
noise reduction pads. These are used for reducing
noise (Fig. 2-1).
2. Lay the washing machine down to its side, porthole
pointing upwards, bottom side towards operator.
3. Take out the noise reduction pads and remove the
double-sided adhesive protective film; paste arou-
nd the bottom; the noise reduction pads under the
washing machine cabinet as shown in Figure 3 (two
longer pads in position 1 and 3, two shorter pads in
position 2 and 4). Finally set the machine upright
again.
2.3 Dismantle the transportation bolts
The transport protection on the rear side is designed
for clamping anti-vibration components inside the a-
ppliance during transportation to prevent inner dam-
age. All elements (T1,T2,T3 and T4, Fig 2-2) must be
removed before use.
1. Remove all 4 packing bolts (T1-T4)
(Fig.2-3).
2.
Fill the 5 holes with blanking plugs.
Packing bolts(1234) Hole wall(12345)
Remove the four Plug the five hole walls
packing bolts
l
Keep all packaging materials out of children’s reach and dispose them in an
environmentally friendly manner.
Make sure there is no transport damage.
Make sure all transport bolts are removed.
Handle the appliance always with at least two persons because it is heavy.
1 2
3
2-2
2-1
2-3
8
2-Installation
EN
Note: Keep in safe place
Keep all parts of the transport protection in a safe place for later use. Whenever the
appliance is to be moved at first reinstall the protection parts.
2.4 Moving the appliance
If the machine is to be moved to a distant location, replace the transportation bolts
removed before installation to prevent damage: The assembly takes place in reverse
order.
2.5 Aligning the appliance

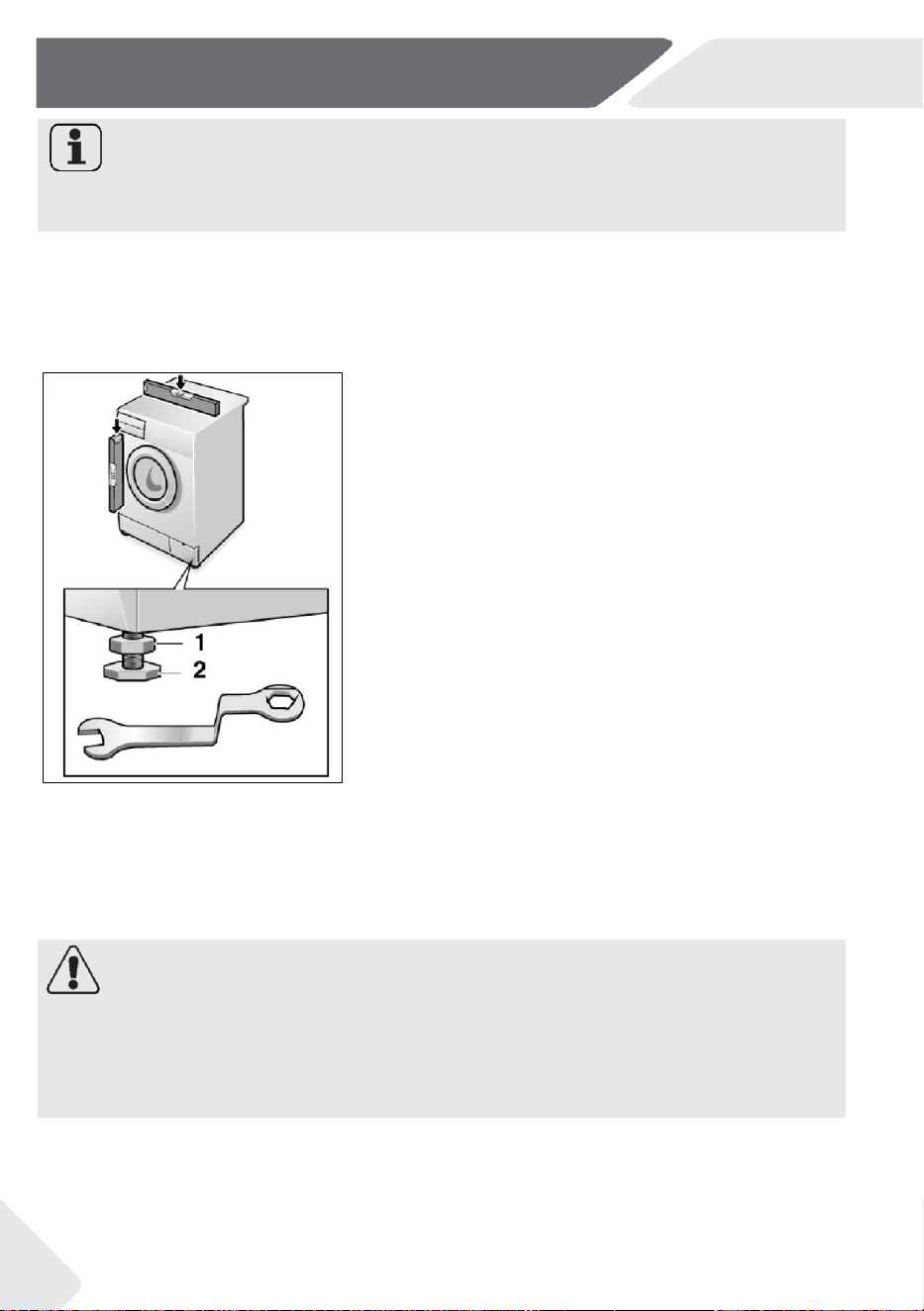

Adjust all feet (Fig.2-4) to achieve a complete level
position. This will minimize vibrations and thus noise
during use. It will also reduce wear and tear. We
recommend to use a spirit level for adjustment.
Floor should be as stable and flat as possible.
1. Loose the locknut (1) by using a wrench.
2. Adjust the height by turning the feets.(2).
3. Tighten locknut (1) against the housing.
2.6 Aligning the appliance
Fix the water drain hose properly to the piping. The hose has to reach at one point a height
between 80 and 100 cm above the appliance bottom line! if possible keep always drain
hose fixed to the clip at the appliance back.
WARNING!
Use only the supplied hose set for the connection.
Never reuse old hose sets!
Only connect to cold water supply.
Before connection, check whether the water is clean and clear.
2-4
2
-
Installation
EN
9
Following connections are possible:

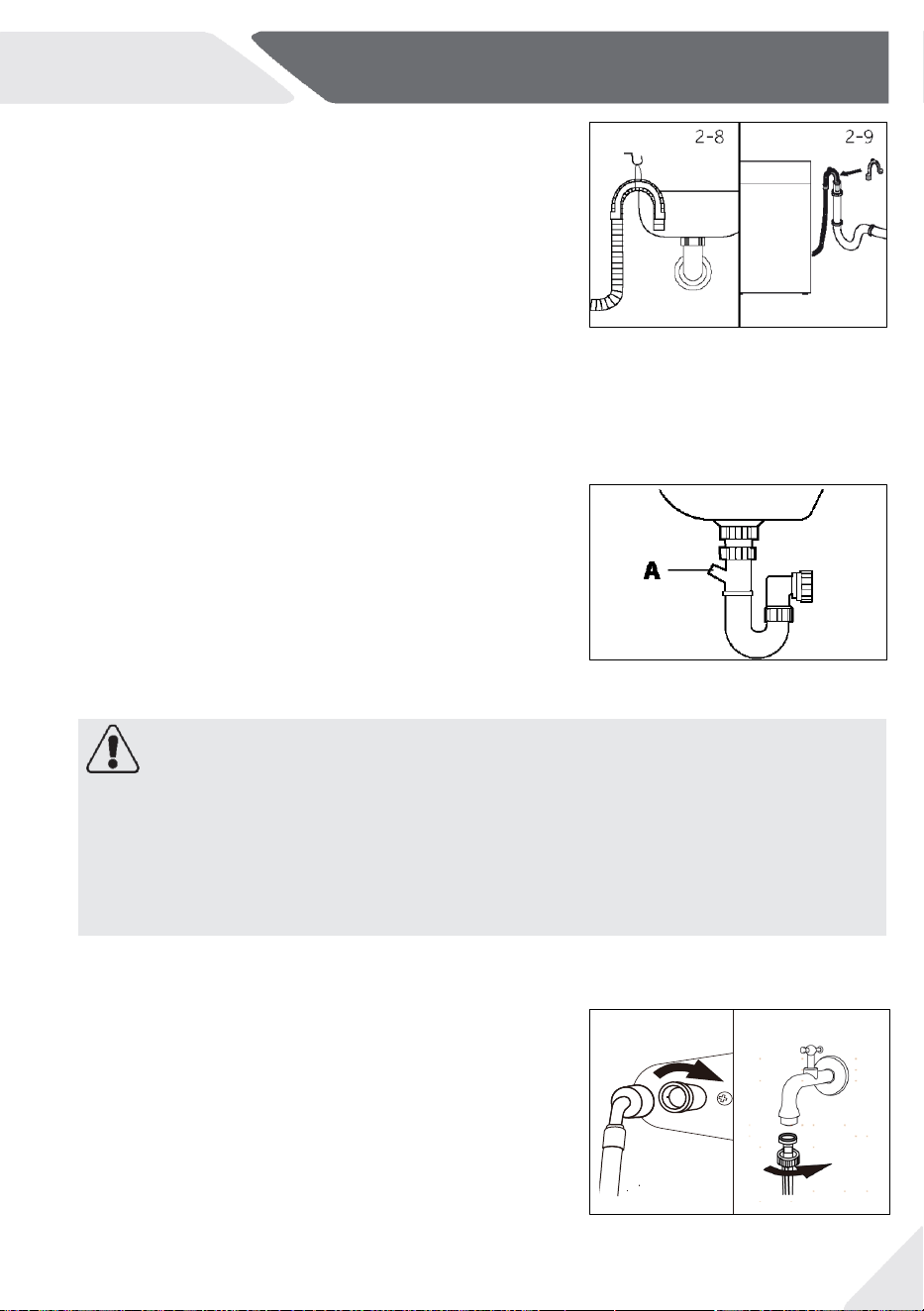

2.6.1 Drain hose to sink
Hang the drain hose with the U-support over
the edge of a sink with adequate size (Fig. 2-5).
Protect the U-support sufficiently against slip-
ping.
2.6.2 Drain hose to waste water connection
The internal diameter of the stand pipe with
vent-hole must be minimum 40 mm.
Put the drain hose for 80-100 mm in the wast-
ewater pipe.
Attach the U-support and secure it sufficiently
(Fig. 2-6).
2.6.3 Drain hose to sink connection
The junction must lie above the siphon.
A spigot connection is usually closed by a pad
(A). That must be removed to prevent any
disfunction (Fig. 2-7) .
Secure the drain hose with a clamp.
CAUTION!
The drain hose should not be submerged in water and should be securely fixed and
leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less
than 80 cm, the washing machine will continuously drain while being filled (self-
siphoning).
Drain hose is not to be extended. If necessary contact after sales service.
2-5
2-6
Do not remove the drainage pipe clamp.

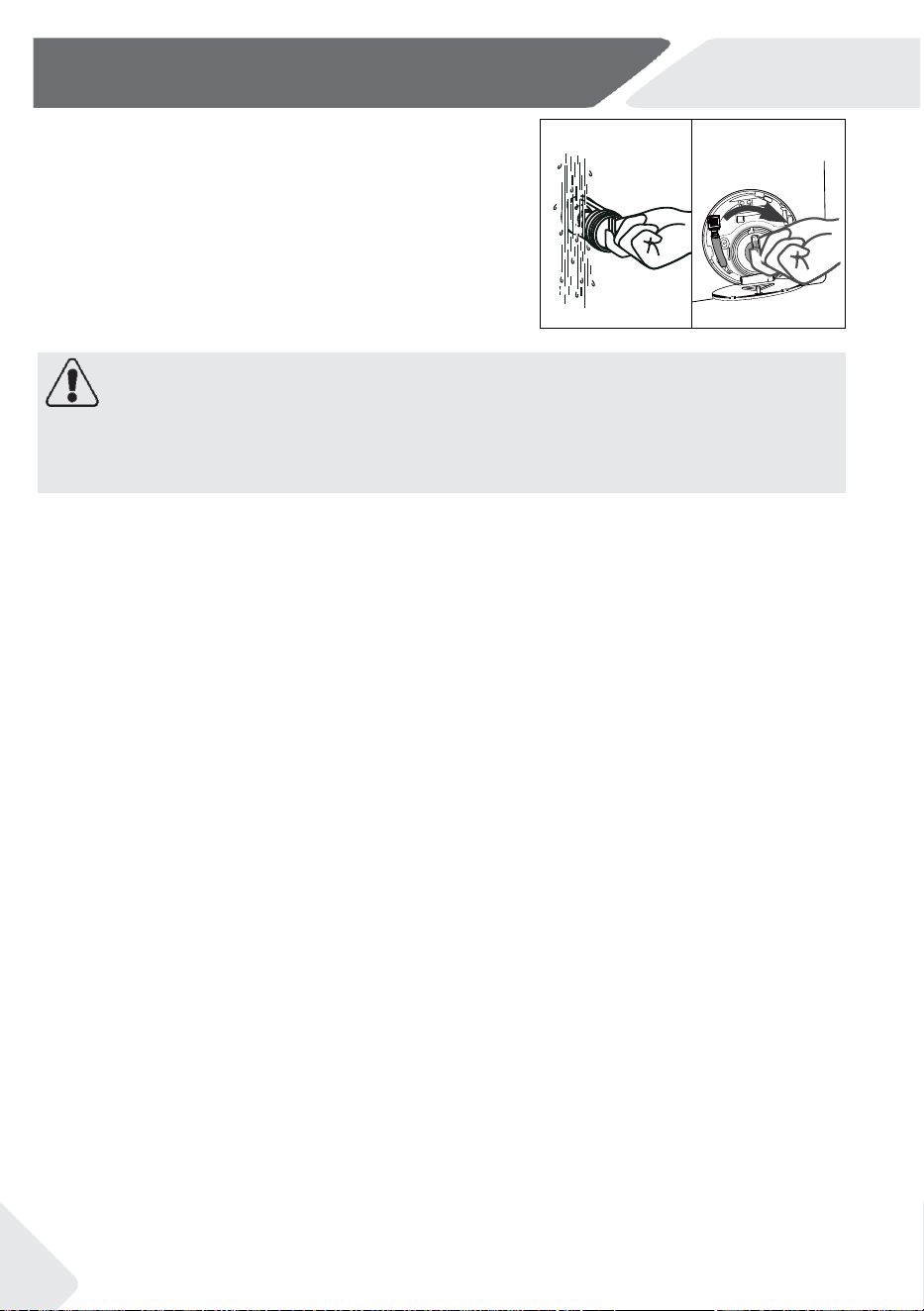

2.7 Drain hose to sink connection
Make sure that the gaskets are inserted.
1. Connect the water inlet hose with the angled end
to the appliance (Fig.2-8 ).Tighten the screw
2. The other end connects to a water tap with a 3/4
thread (Fig.2-9).
2-8 2-9
Joint by hand.
2-7
10
2-Installation
EN
2.8 Electrical Connection
Before each connection check if:
power supply, socket and fusing are appropriate
to the rating plate.
the power socket is earthed and no multi-plug or
extension are used.
the power plug and socket are strictly according.
Only UK: The UK plug meets BS1363A standard.
Put the plug into the socket (Fig. 2-10).
WARNING!
Ensure always that all connections (power supply, drain and fresh water hose) are
film, dry and leack free!
Take care these parts are never to be crushed, kinked, or twisted.
If the supply cord is damaged, it must be replaced by the service agent (see
warranty card) in order to avoid a hazard.
2-10
11
3-Practical hints
EN
3-Practical hints
3.1 Load tips
When sorting laundry, make sure:
- have eliminated metallic objects such as hair clips, pins, coins, from laundry;
- to have buttoned pillow cases, closed zips, tied loose belts and long robe ribbons;
- to have removed rollers, hooks or clips from curtains;
- to have carefully read clothing washing labels;
- to have removed any persistent stains using specific detergents.
When washing rugs, bedcovers or other heavy clothing, we recommend you avoid the
spinning cycle.
To wash wool, make sure the item can be machine washed. Check the fabric label.
Leave the appliance’s door slightly open between washes, to prevent possible bad
smells develo
ping inside the machine.
3.2 Useful advice for saving
Tips on how to save money and not damage the environment when using your appliance.
Load the machine with suggested capacity shown in the programme table for each
programme - this will allow you to save energy and water.
Noise and residual laundry moisture are affected by spin speed: a faster spin is
associated with greater noise and lower residual moisture in the laundry.
The most efficient programmes in terms of combined use of water and energy are
usually the longer-lasting ones with lower temperature.
Scan QR code on energy label for energy consumption information. The actual energy
consumption may differ from the declared one according to local conditions.
Maximise the load
size
Achieve the best use of energy,water,detergent and time by using the recommended
mximum load size.
Save up to 50
% energy by washing a full load instead of 2 half loads.
Do you need to pre-wash?
For heavily soiled laundry only!
Save detergent, time, water and energy consumption by not selecting prewash for
slight to normally soiled laundry.
Is a hot wash required?
Pretreat stains with stain remover or soak dried in stains in water before washing to
3.3
Dosing the detergent
Below is a
short guide
with tips and advice on the use of detergent
Only use detergents suitable for washing machine.
Select
your detergent according to the type of fabric (cotton, delicates, synthetics,
wool, silk, etc.), the colour, the type and level of soiling and the programmed washing
temperature.
To use the right amount of detergent, softener or any other additives, carefully follow
reduce the necessity of a hot wash programme.Save energy by using a low temper-
ature wash programme.
12
3-Practical hints
EN
the
manufac
turer’s instructions every time: correctly using the appliance with the
When washing heavily soiled whites , we recommend using cotton programs
of 60°C or above and a normal washing powder (heavy duty) that contains
bleaching agents that at medium/high temperatures provide excellent results.
For washes between 40°C and 60°C the type of detergent used needs to be
appropriate for the type of fabric and level of soiling. Normal powders are
suitable for “white” or colour fast fabrics with high soiling, while liquid detergents
or “colour protecting” powders are suitable for coloured fabrics with light levels
of soiling.
For washing at temperatures below 40°C, we recommend the use of liquid
detergents or detergents specifically labeled as suitable for low temperature
washing.
For washing wool or silk, only use detergents specifically formulated for these
fabrics.
Too much detergent leads to excessive foam, which prevents the cycle being carried
out correctly. It could also affect the quality of the washing and rinsing.
The use of ecological detergents without phosphates may cause the following effects:
- cloudier rinse drain water: This effect is tied to the suspended zeolites which do not
have negative effects on rinse efficiency.
- white powder (zeolites) on laundry at the end of the wash: this is normal, the
powder is not absorbed by fabric and does not change its colour.
To remove the zeolites, select a rinse programme. In the future consider using slightly
less detergent.
- foam in the water at last rinse: this does not necessary indicate poor rinsing.
Consider using less detergent in futur
e washes.
- abundant foam: This is often due to the anionic surfactants found in the detergents
which are hard to eliminate from laundry.
In this case, do not re-rinse to eliminate these effects. It is invalid.
We suggest conducting a maintenance wash using a proprietary cleaner.
If the problem persists or if you suspect a malfunction, immediately contact an
Authorised Customer Service Centre.
right dose allow you to avoid waste and to reduce the environmental impact.
13
4-Product description
EN
4-Product description
Note:
4.1

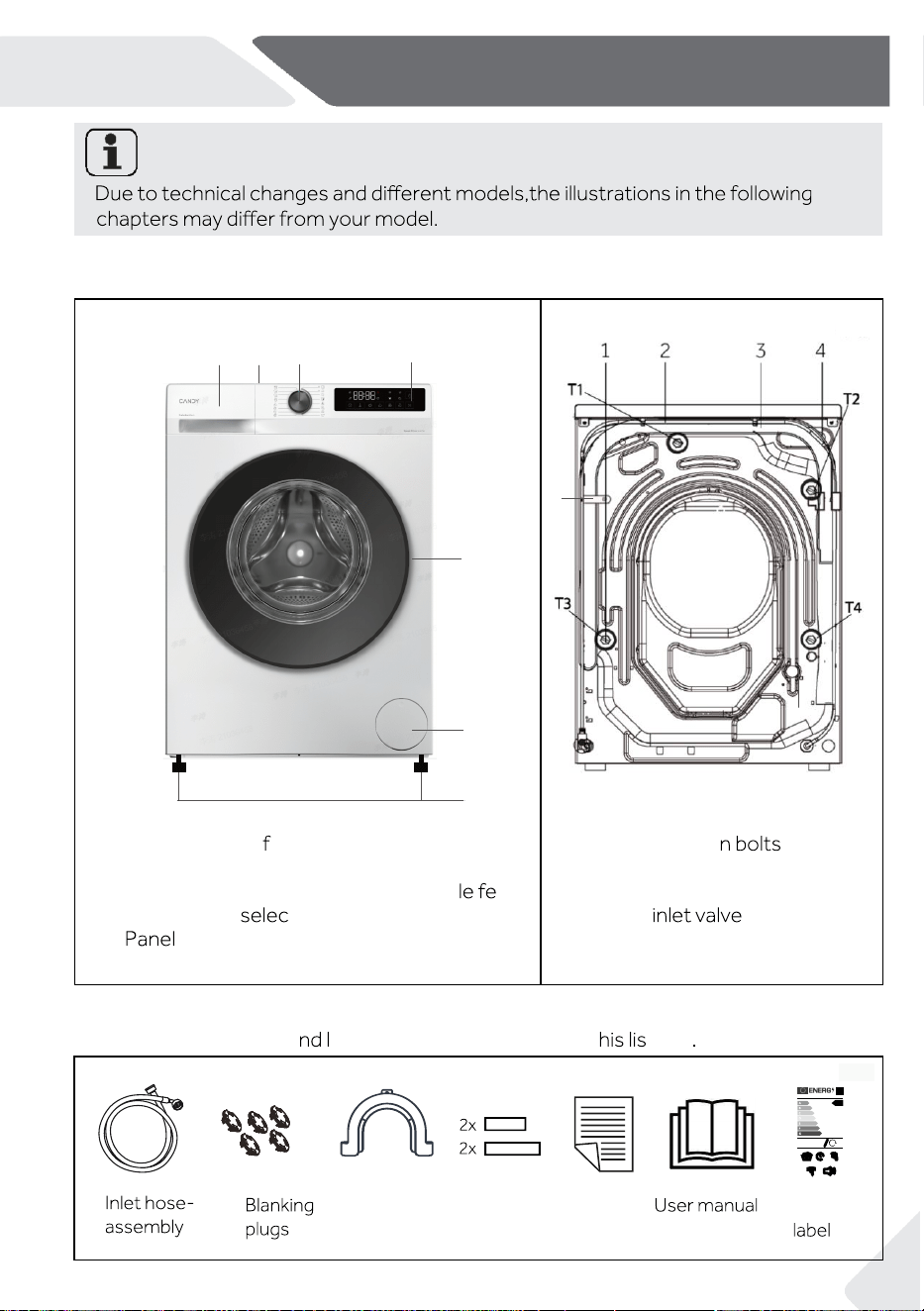

Picture of appliance
Front (Fig. 4-1): Rear side (Fig. 4-2):
1 Detergent / So tener
drawer
2 Work top
3 Programme tor
4
5 Washer door
6 Filter door
7 Adjustab
et
1 Transportatio (T1-T4)
2 Power cord
3 Drain hose
4 Water
4.2 Accessories
Check the accessories a iterature in accordance with t t (Fig 4-3):
5
Drain hose
bracket
Noise
reduction
pads
Warranty
card
4-1 4-2
4-3
Energy
1 2 3 4
6
7
H7W4 48MBC-S
Hoover
A
47
kWh
100
8,0
kg
3:38 44
L
A
B
CDEFG
76
dB
A
B
CD
2
0
19/2014
5
5
Drainage hose clamp
5
14
5-Control panel
EN

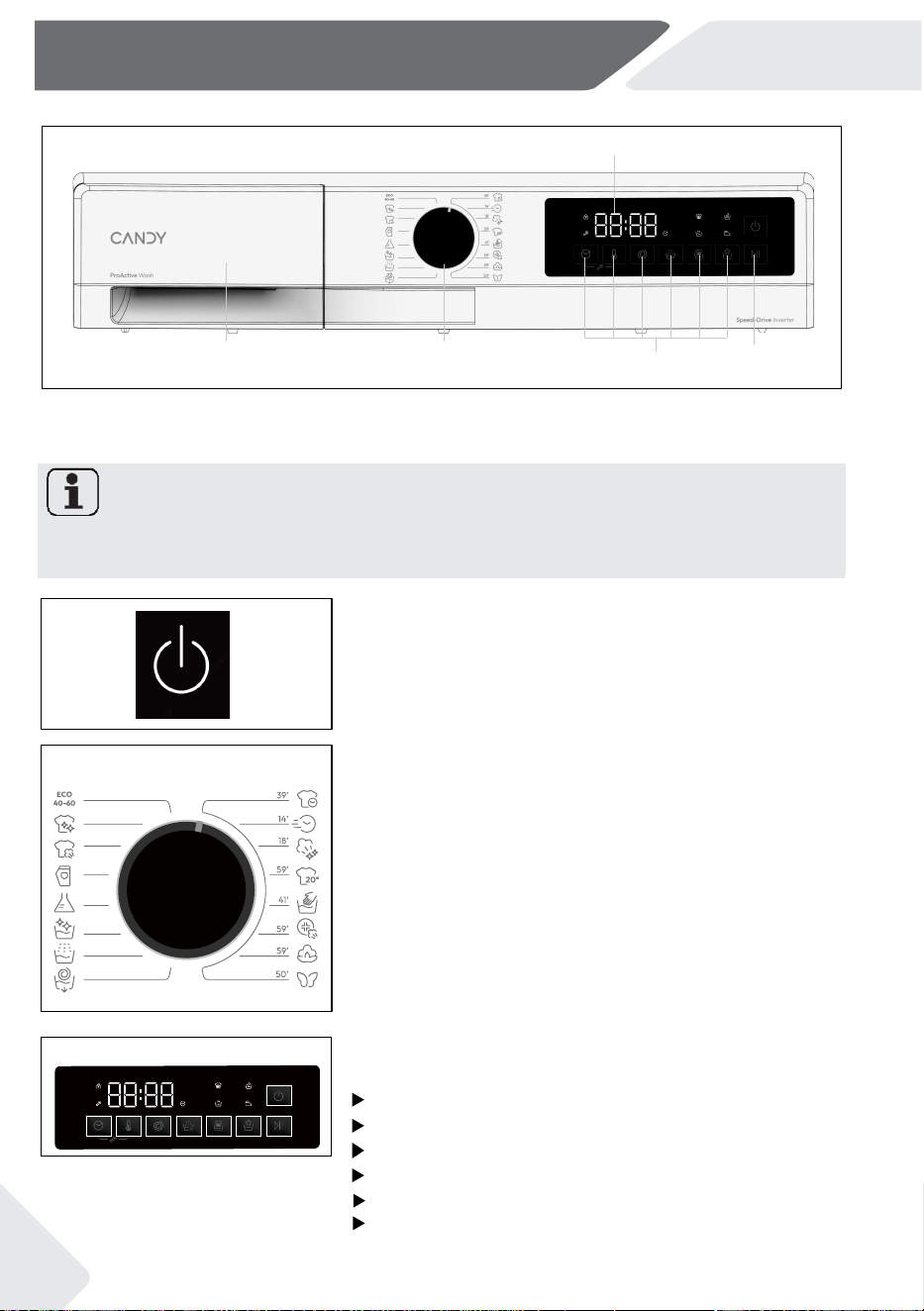

5-Control panel
1
Programme selector
2 Display
3 Detergent /Softener drawer
4
Function buttons
5 "Start/Pause" button
Note: Acoustic signal
The acoustic signal can be selected or canceled if necessary;see DAILY USE
(see P27 8.12).
5.1
Turn on/ off the machine through this power
button (Fig.5-2).
5.2
Programme selector
By turning the knob (Fig.5-3) one of 16 programmes
can be selected,its default settings will be displayed.
Display
The display (Fig.5-4) shows following information:
Program name
Remaining time
Reservation remaining time
Alarm information and prompt information
Pause end information
5-1
5-2
5-3
Delay time
1
2
3
4
5
5-4
Power button
5.3
5-Control panel
15
5
-
Control panel
EN

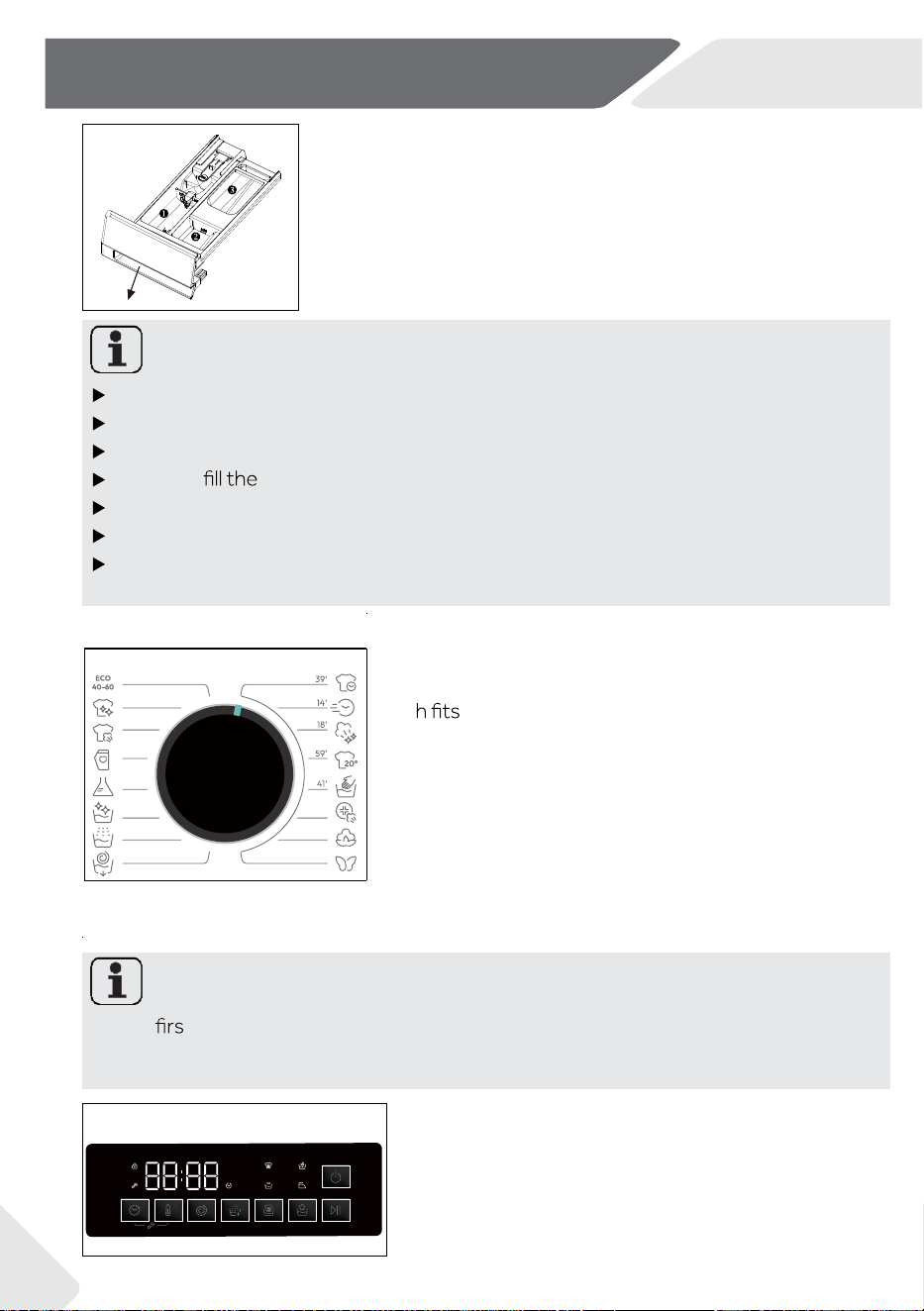

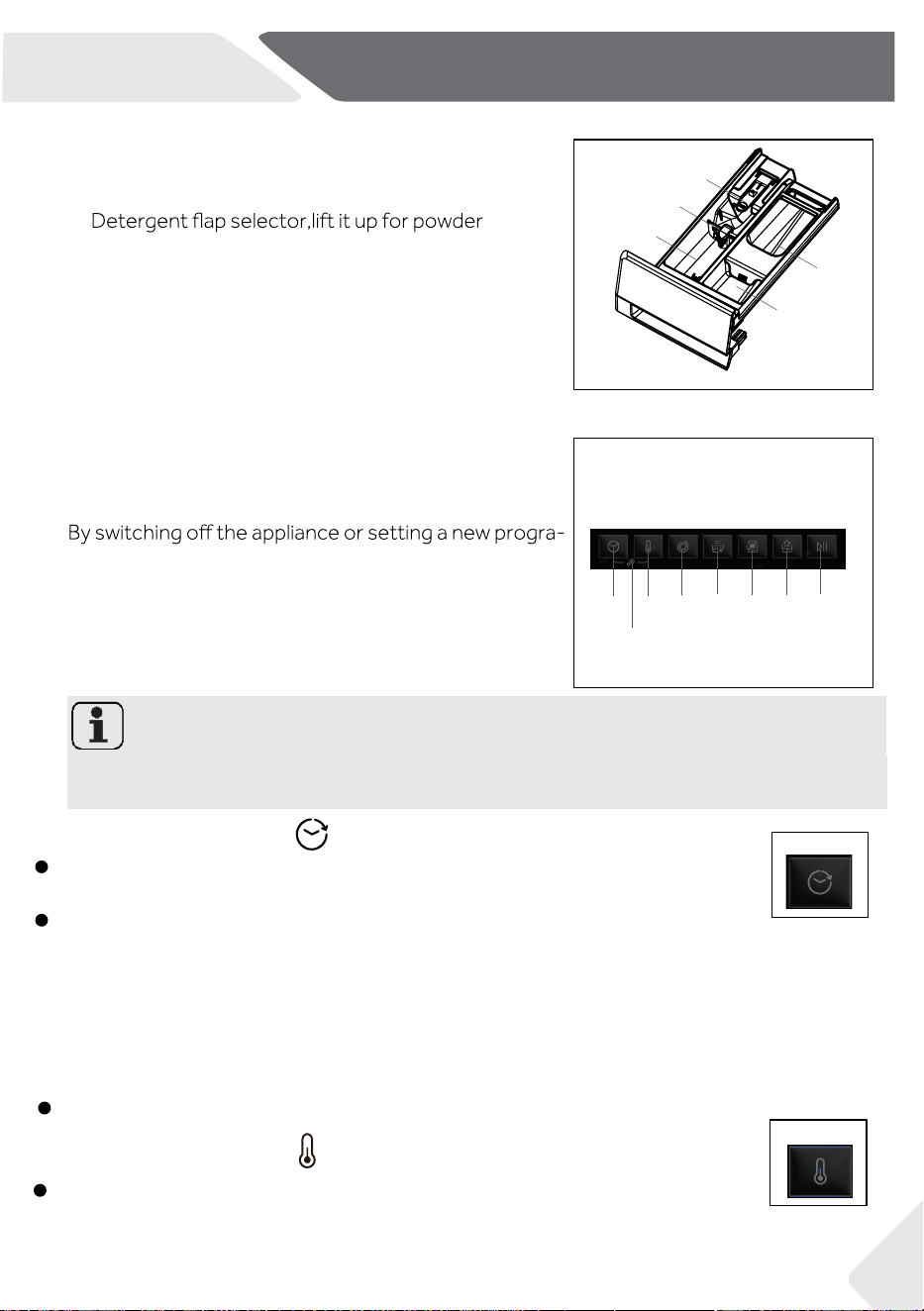

5.4 Detergent drawer
Open dispenser drawer, the following components can
be seen (Fig. 5-5):
1: Compartment for powder or liquid detergent.
2:
detergent, keep it down for liquid detergent.
3: Put a small amount of washing powder.
4: Compartment for softener.
5: Lock tab, press it down to pull out dispenser drawer.
The recommendation on the type of detergents is
suitable for the various washing temperatures, please
refer to the manual of detergent (see P25).
5.5 Function buttons
The function buttons (Fig. 5-6) enable additional options
in the selected programme before programme starts.
The related indicators are displayed.
mme,all options are displayed.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
By touching the buttons, when it is in dull light, the
function is unselected; when it is in bright light, the
function is selected.
Note: Factory settings
To get best results in each programme
If there is no special requirement , default setting are recommended.
5-6
5-5
5.5.1
5.5.2
5.5.3
5.5.4
5.5.5
5.5.1
5-7
5.5.2
5-8
Function button
"
It is possible to cancel the delay start by turning the programme selector.
Touch this temperature button(Fig.5-8) to display the corresponding temp-
erature.
If “--℃” is selected, the water will not be heated.
"
This delay button allows you to preprogramme the wash cycle to with a
maximum of 24 hours delay.(Fig.5-7)
Function button
To delay the start using the following procedures:
- Select the required programme.
- Press the button once to activated the delay start and then press it again
to set the desired delay.The delay increases in steps of 30 minutes,with a
maximum of 24 hours delay.
- Confirm by pressing the “Start/Pause” button. The delay countdown
begin and when it has finished, the programme will start automatically.
5.5.8
,Candy has defined specific default settings.
¹
²
⁴
³
⁵
5.5.6
5.5.7
"
"

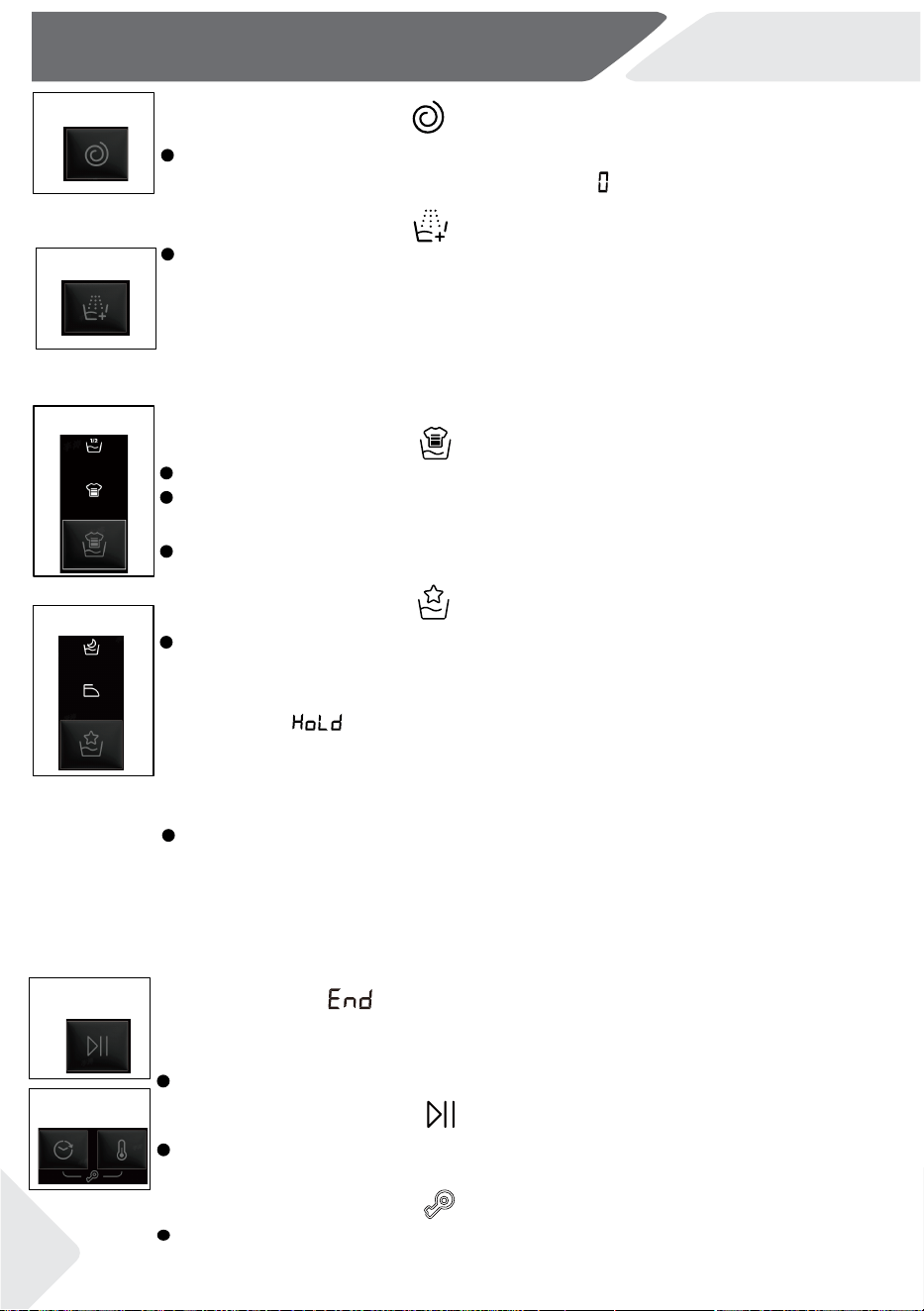

5
-
Control panel
EN
5.5.5
5-10
5-11
end of washing cycle.(Some programmes do not have this function.) It is useful
for people with delicate and sensitive skin, for which a small amount of residue
may cause allergies. It is advisable to use this program for children clothes
and for the washing of heavily soiled items, which require a
large amount of detergent or for the washing of toweling items, have the
whose fibre
tendency to hold the detergent.
This button is extra rinse(Fig.5-10). It allows you to add at least one rinse at the
Function button
Function button
"
Touch this speed button (Fig.5-9 ) to change or deselect the spin speed of the
program. If no light is illuminated and display " ", the appliance will not spin.
5.5.3
5-9
"
Function button5.5.6
5-12
16
"
"
"
"
Function button
"
5.5.4
"
The first icon is half load, which used for situations with less load or dirt.
The second icon is intensive wash, which used for situations with high loads
or dirty conditions, and the washing time will be longer.
Quick wash and intensive wash can not run simutaneously.
The second icon is anti-crease, when the anti-crease function is effective,
the program does not enter the shutdown mode after the end of this fun-,
ction, and the anti-crease shaking program is entered. The maximum speed
is reduced, and the anti-crease logic is executed. The screen displays
anti-crease, and the remaining time is displayed ”- -- --- ----”. If the start/
pause button is pressed, the shaking will end, the program will end, and the
screen shows " ". If no operation is performed, the longest anti-crease
shaking time is 12 hours. After the time is up, the anti-crease function will be
released and the machine shutdown normally.
The first icon is night wash. When the night wash function is effective,
the buzzer sound is blocked, the maximum speed is reduced, no drainage
after the last rinse, and the anti-crease soaking stage is entered. The scr-
een shows " ". If the user presses the start/pause button, the soaking
stage is ended. If no operation is performed, the longest anti-crease soak-
ing time is 12 hours, and the normal drainage and spining are performed
after the time is up.
Night wash and anti-crease can not run simutaneously.
5.5.7 Function button
5-13
Touch this button (Fig.5-13) gently to start or interrupt the currently
displayed programme.
"
"
5-14
5.5.8 Function button
Press the “Delay” and “Temperature” button (Fig.5-14) simultaneously to
activate the child lock mode.
" "
6
17
1)This button also for selecting duration of rapid care and different steam intensities as explained in the
delicated paragraphs, but the light is not illuminated.
EN
1
NIGHT WASH
2
WASH
MAX KG
7
10
7
7
10
2.5
10
2
10
5
2
30
40
-
60
30
30
40
30
40
40
STD TEMP
60
-
90
60
60
30
90
60
MAX TEMP
1000
1000
1000
600
1000
1400
1200
PRESET SPIN
1000
1400
800
1000
1400
1200
MAX SPIN
Yes
Optional
No
10 KG
Detergent compartment for:
Detegent
Prewash
1)
ECO 40-60
2.5
30 30
800
8
5
5
8
5
2
8
2
1
8
4
1
8
2
8
10
WHITES
SMART WASH
JEANS
SYNTHETICS
HAND WASH
DRUM CLEAN
DRAIN&SPIN
SPECIAL 39’
20℃
FRESH
VAPOR
HYGIENE
PLUS 59’
COTTON
DELICATE
RINSE
RAPID
3
QUICK WASH
60
1000
800
800
1400
1000
1000
1400 1400
60
90
1400
1400
90
1400
1400
20
20
30
40
400
400
-
-
1000
1000
6-Programmes
-
-
10
1
90
90
600
1400
ANT- CREASE
EXTRA RINSE
8 KG
Softener or care product
×
—
√
DELAY
√ √
√ √
√
√
√ √
√
√
√
×
√ √
√
√
√ √
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×× ×
√
×
× ×
×
√
√
× × ××
×
×
√
√
√
√
×
×
√
√ √
√
√
√
√
√ √
√ √
√
√
√
×
×
× ×
√√√
×
×
√
√ √ √
√
√
√
√ √
√
× ×
√ √√
√
×
×
COLD WASH
INFORMATION FOR THE TEST LABORATORIES
STANDARD PROGRAMME ACCODING TO
(EU)No 2019/2023:WCO 40-60 PROGRAMME
√
2 )
2)Not selectable at the default temperature, but selectable after altering the temperature.
9 KG
9
6
6
9
5
2.5
9
2.5
1
9
4.5
1.5
9
9
-
1.5
INTENSIVE
6-Programmes
Description of programmes
To clean di erent types of fabrics and various levels of dirt, the washing machine has
speci
c programs to meet every need of washing (see table of programmes).
Choose programme in accordance with the laundry instructions appearing on
labels, especially the maximum recommended temperature.
WARNING!
IMPORTANT WASH PERFORMANCE ADVICE.
New, coloured garments should be washed separately for at least 5 or 6 washes.
Certain large dark items such as jeans and towels should always be washed
separately.
Never mix NON COLOURFAST fabrics.
ECO 40-60
WHITES
SMART WASH
The new power care technology, through a perfect mix of water and detergent, guarantees
the maximum care of your clothes, at a 40°C temperature with a perfect washing perform-
mance. This innovative programme is capable to automatically the cleaning action to the
capacity
and typology of the load for the best results without any worries.This program can
wash lightly soiled mixed laundry of cotton and synthetics.
JEANS
SYNTHETICS
RINSE
The ECO 40-60 programme is able to clean normally dirty cotton laundry declared to be
washable at 40°C to 60°C, together in the same cycle. This programme is used to assess
the compliance with the EU Ecodesign legislation(environmentally friendly products design).
6-Programmes EN
18
DRUM CLEAN
This programme is suitable for washing large clothes that are not too dirty, which can help
wash more clothes.
This program can carry out the self-cleaning of the washing machine. We recommend a
bucket self-cleaning after using the washing machine for 50 times. When using this program,
please do not use any clothes detergent or machine cleaner.
This program performs 2 rinses with an intermediate spin (which can be reduced or
excluded by using the appropriate button). It is used for rinsing any type of fabric, for
example after a wash carried out by hand.
The programme is suitable for jeans or some mechine washable denim garments . The
maximum washing temperature is 60°C.
This programme allows you to wash different fabrics and different colours all together.The
rotation movement of the drum and the water levels are optimized, both during the washing
rinsing phase. The accurate spin action ensures a reduced formation of creases in the fabrics.
19
6-Programmes
EN
RAPID
This new programme may be used to obtain excellent results while saving water, energy,
detergent and time. This option washes at a medium temperature suitable for lightly
dirty mixed laundry of cotton and synthetic. Recommended for small loads and lightly
dirty items.
20℃
COLD WASH
FRESH VAPOR
This programme uses a steam treatment to relax creases. It is designed for dry graments
and depending on the type of fabrics.
This programme is suitable for washing coloured cotton garments at 40°C or for ensuring
the highest degree of cleanliness for cotton resistant laundry washing at 90°C. The final
spin is at maximum speed that ensures excellent dehydration effect.
HYGIENE PLUS 59’
This washing programme is capable of reaching a temperature of 60°C for an extended
period of time, combining the steam action with a powerful rinsing action for thoroughly
clean and hygienic clothing. Recommended for cotton fabrics.
COTTON
DELICATE
Developed to take good care of delicate items, this programme washes at a low temper-
rature in short time. An extended, in - depth rinse nourishes fabric fibres.
HAND WASH
Note: The procedure to check the number of cycle that the
machine has run.
SPECIAL 39’
DRAIN&SPIN
This programme allows you to wash different fabrics together suc h as cuttons, synthetics
and mixed fabrics in only 39 minutes at 30°C (or less) temperature. This programme is
particularly suited to slightly dirty fabrics, up to half of nominal load.
The program completes the drain and a maximum spin. It is possible to delete or reduce
the spin through the spin selection button.
Procedure: under “COTTON”programme, press “TEMPERATURE” and “SPEED” simutaneously,
it will display the number of running cycle for 2 seconds, and then back to “COTTON” programme.
The cumulativer running cycles will add after the programme ending. The running cycle will be
displayed in hexademical. It is over 9999.
This innovative programme, allows you to wash different fabrics and colours together,
such as cottons, synthetics and mixed fabrics at only 20°C and provides an excellent
cleaning performance.
This programme performs a wash cycle dedicated to the delicate fabrics that can be
washed by the washing machine, the articles to be washed by hand.
7-Daily use

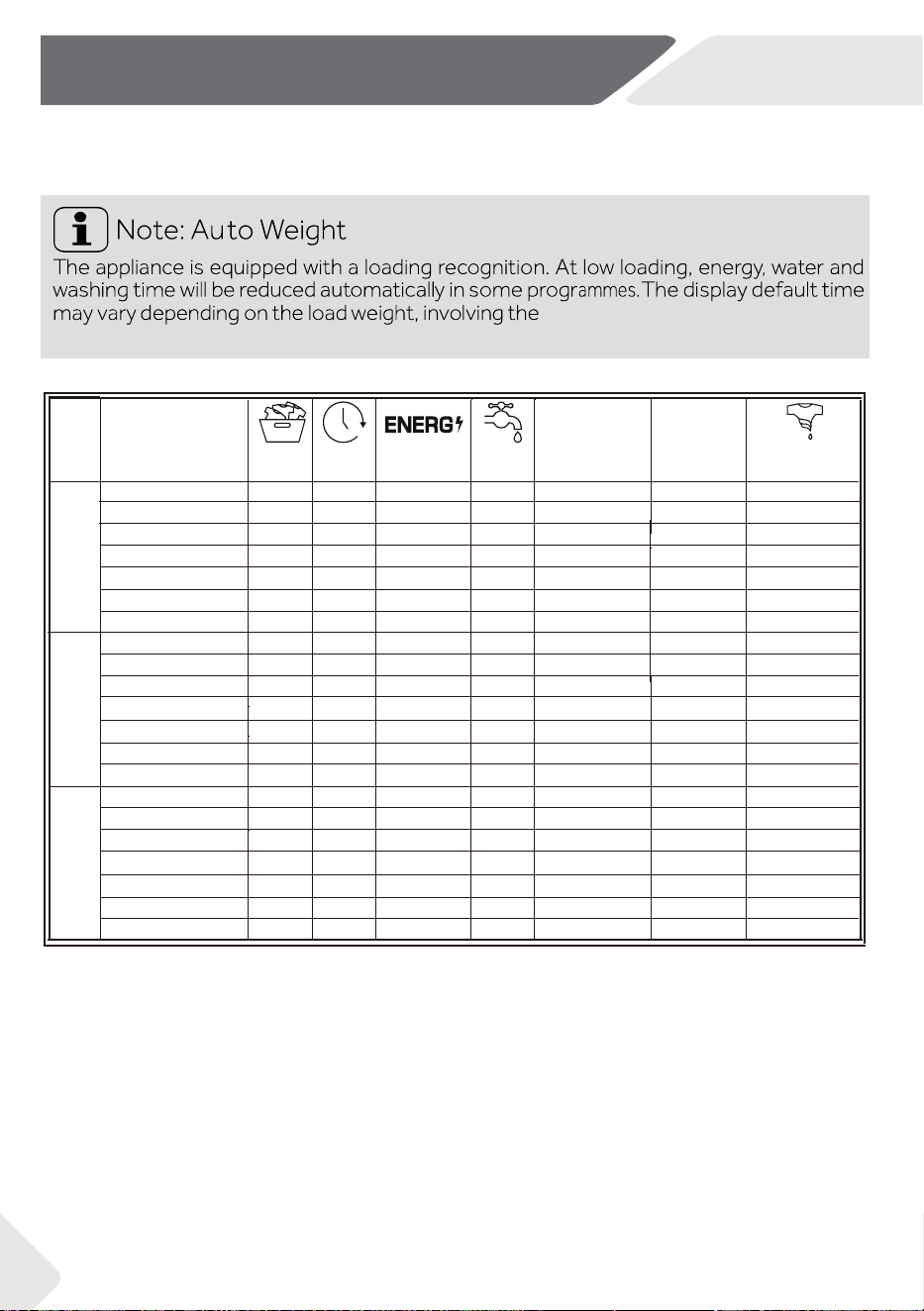

Indicative information(as per Commission Regulation (EU) 2019/2023):
EN
20
Rated
Capacity
Programme
)elcyc/hWk(
Max
Tem perature
(°C )
Max
Speed
(RPM)
Residual
Moisture (%)
) )MM:HH( )gk(
L/cycle
(
kg
0.56030.83053.01
5
2.5
1:59
0:14
(1400r)
ECO 40-60
Rapid’30
ECO 40-60
ECO 40-60
ECO 40-60
Cotton
60
°
C
Synthetics40
°C
8
kg
(1400r)
8
4
2
8
8
4
3:38
1:49
1: 5
1:13
2:48
2:38
0.650
0.215
0.320
1.800
0.800
0.380
60.0
42.0
32.0
75.0
75.0
55.0
30
26
25
20
57
40
1330
1330
1330
1000
1400
1200
53.0
52.0
56.0
65.0
55.0
37.0
1000
Scan QR code on energy label for energy consumption information.
The actual energy consumption may differ from the declared one
according to the local conditions.
The values given for programmes other than the ECO 40-60 programme
and the wash and dry cycle are indicative only.
20°
C Cold Wash
°C
ECO 40-60
ECO 40-60
20°C Cold Wash
Cotton
60°C
Synthetics 40°
C
Rapid’30
1 0:14
“ ECO 40-60, Whites, Smart wash,
Jeans, Synthetics, 20℃ Cold wash, Hand wash, Hygiene Plus59’, Cotton and Delicate”.
7-Consumption
10
kg
0.25030.47007.001
5 0.400 48.0
26
0.25
0.65520.63522.05.2
0.56020.58053.001
0.55750.58001.295:101
3:58
2:58
2:38
1:18
(1400r)
ECO 40-60
1330
1330
1330
1000
1400
ECO 40-60
ECO 40-60
20°C Cold Wash
Cotton
60
°C
Synthetics 40°
C
Rapid’30
5
1.000
65.0
40
1200
37.0
1 0:14 0.400 40.0
30
1000
65.0
4
4
.
5
.
4
1:18
1:45
3:48
2:52
2:38
1:45
0.600 62.0 30 1330 53.0
0.380 43.0 26 1330 52.0
0.230 33.0 25 1330 56.0
0.350 85.0 20 1000 65.0
2.100 85.0 57 1400 55.0
1.000 65.0 40 1200 37.0
0.400 40.0 30 1000 65.0
°C
°C
9
9
9
9
7-Daily use
8.1 Power supply
Connect the washing machine to a power supply
(220V to 240V~/50Hz; Fig. 8-1). Please
also refer
to
section INSTALLATION (see P10).
8.2 Water connection

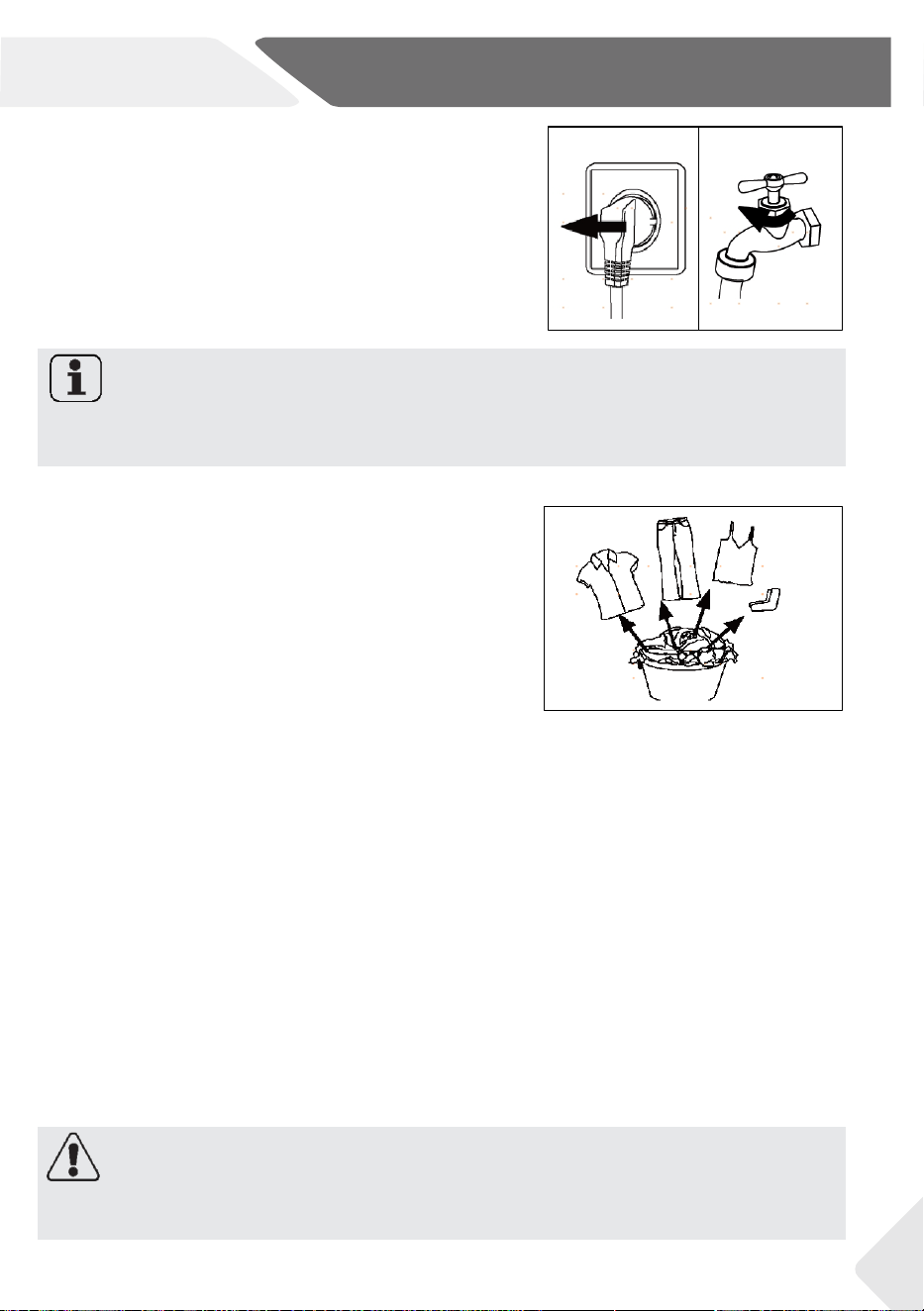

Before connecting check the cleanliness and cla-
rity of the water inlet.
Turn on the tap (Fig.8-2).
Note: Tightness
Before using, check for leakage in the joints between the tap and the inlet hose by
turning on the tap.
8.3 Preparing laundry
washing labels.
Separate white clothes from coloured ones.
Wash coloured textiles first by hand to check
if
they fade or run.
Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
Garments without hems, delicates and finely
woven textile such as fine curtains are to be put
into a wash bag to care for this delicate laundry
(hand or dry cleaning would be better).
Close zippers, velco fastener and hooks, make
sure the buttons are sewn on tightly.
Place sensitive items like laundry without firm
hem, delicate underwear (Dessous) and small
items such as socks, belts, bras, etc. in a wash
bag.
Unfold large pieces of fabric such as bed sheets,
bedspreads etc.
Turn jeans and printed, decorated or color inten-
sive textiles inside out; wash separately as much
as possible.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and
damage of clothes and appliance.
8-1 8-2
EN
8-Daily use
21
8-3
Sort out clothes according to fabric (cotton,syn-
thetics, wool or silk etc.) and how dirty they are
(Fig.8-3). Pay attention to the care labelling of

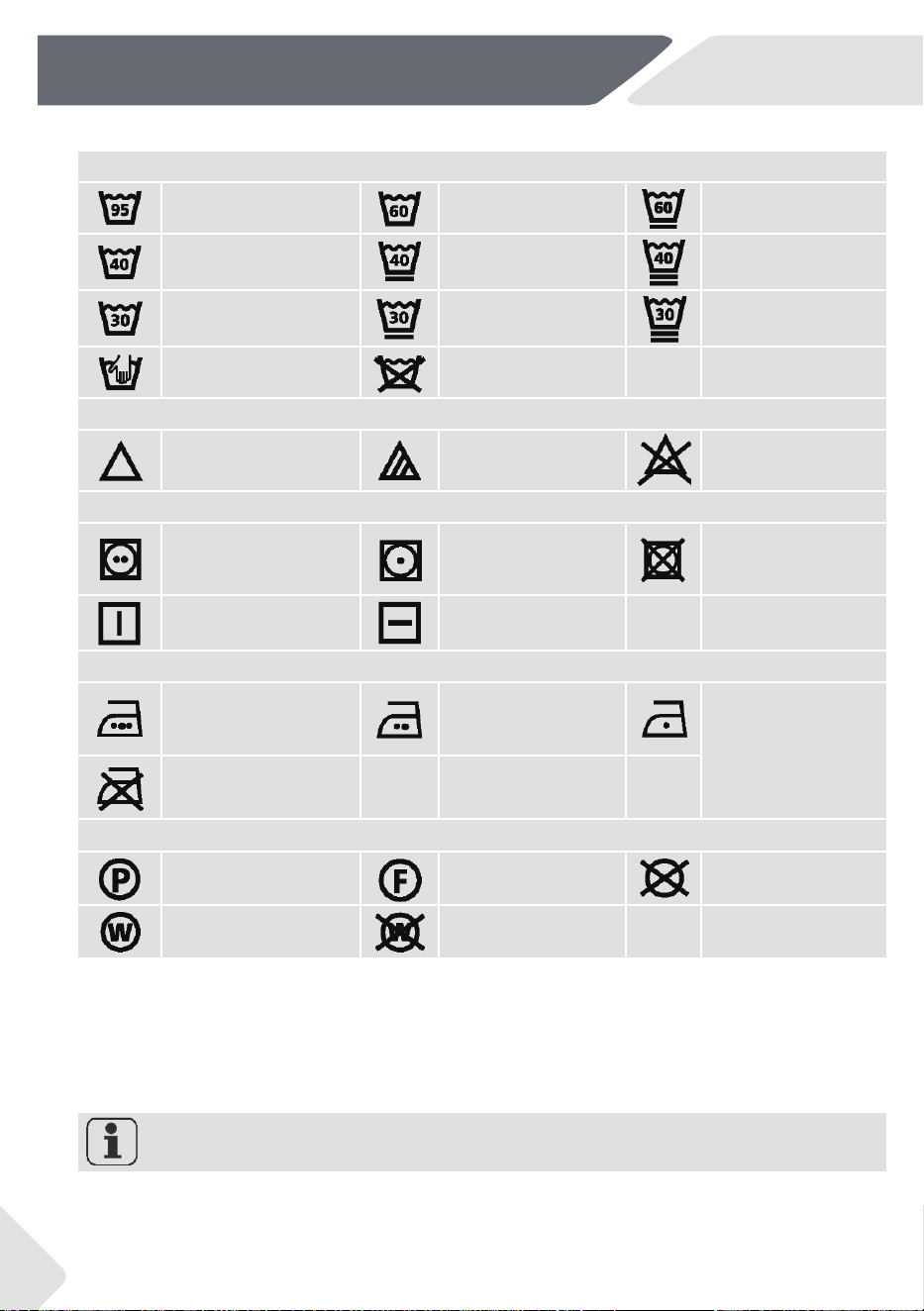

Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand max.
40°C
Do not wash
Bleaching
Any bleaching allowed
Only oxygen/ non-
chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying
possible lower
temperature
Do not tumble dry
Line drying
Flat drying
Ironing
Iron at a maximum
temperature up to 200
°C
Iron at a medial
temperature up to
150°C
Iron at a low
temperature up to
110 °C; without
steam (steam ironing
may cause
irreversible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in
hydrocarbons
Do not dry clean
Professional wet clean
Do not professional
wet clean
8.4 Loading the appliance
Put in the laundry piece by piece.
Don’t overload. Note the different maximum load according to programmes! Rule
of thumb for maximum load: Keep six inches between load and drum top.
Close the door carefully. Make sure that no pieces of laundry are pinched.
Note: Auto Weight
The display default time may vary depending on the load weight, involving the
“ ECO 40-60,
Whites, Smart wash,
Jeans, Synthetics, 20℃ Cold wash, Hand wash, Hygiene Plus59’,
Cotton and Delicate”.
EN
22
8-Daily use
8.5 Selecting detergent
Washing e
ciency and performance is determined by used detergent quality.
Use only machine wash approved detergent.
If needed use speci
c detergents, e.g for synthetic and woolen fabric.
Do not use dry cleaning agents such as trichloroethylene and similar products.
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
SMART WASH
RINSE
COTTON
ECO 40-60
HAND WASH
20°C COLD WASH
SYNTHETICS
DRAIN&SPIN
WHITES
DRUM CLEAN

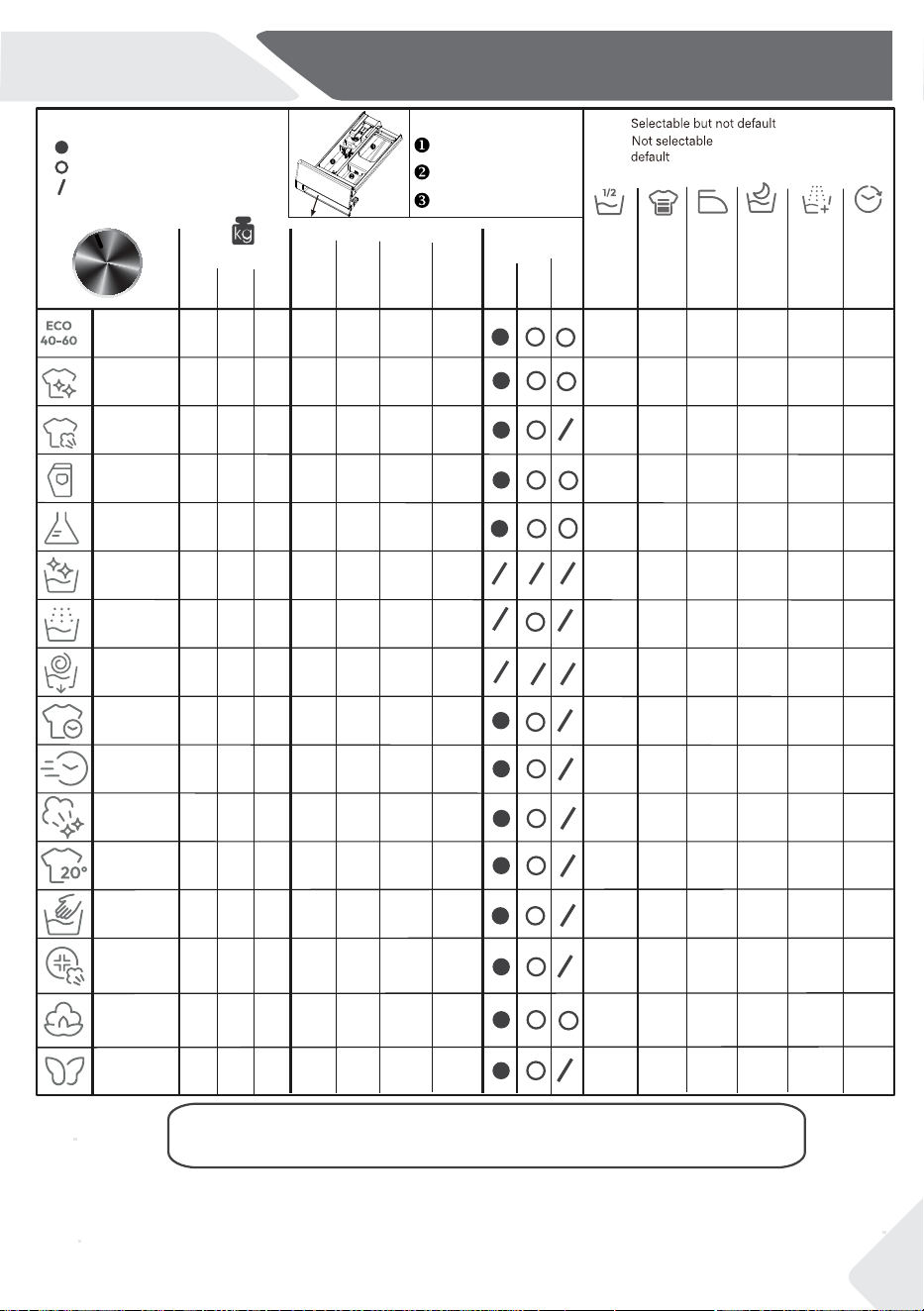

L = gel-/liquid detergent P = powder detergent O = optional - = no
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
Laundry powder:
20°C to 90°C* (best use: 40-60°C)
Color detergent:
20°C to 60°C (best use: 30-60°C)
Wool/delicate detergent:
20°C to 30°C (best use: 20-30°C)
*
Choose 90 °C wash temperature only for special hygienic requirements.
*
If you choose the water temperature 60°C or above, we would like to advise you to use
less detergent.
*
It is better to use less or free detergent powder.
L/P L/P
_ _
O
L/P L/P
_ _
O
L/P L/P
_ _
O
O
_ _
_
_
O
_ _
L/P L/P O
_
_ _
O
_ _ _ _
_
EN
8-Daily use
23
*
Suggested detergent type on remote control depends on the program choosen on
APP.
RAPID
FRESH VAPOR
SPECIAL 39’
DELICATE
L
_
_
O
_ _
_ _
_ _
O
L
_ _
L
O
_ _
O
L/P L/P
_ _
O
P L/P
_
_
O
L
_
L/P
O
HYGIENE PLUS 59’
JEANS
L/P
L/P
L/P
L/P
L/P
O
L/P L/P
_
_
_
L/P
8.6 Adding detergent

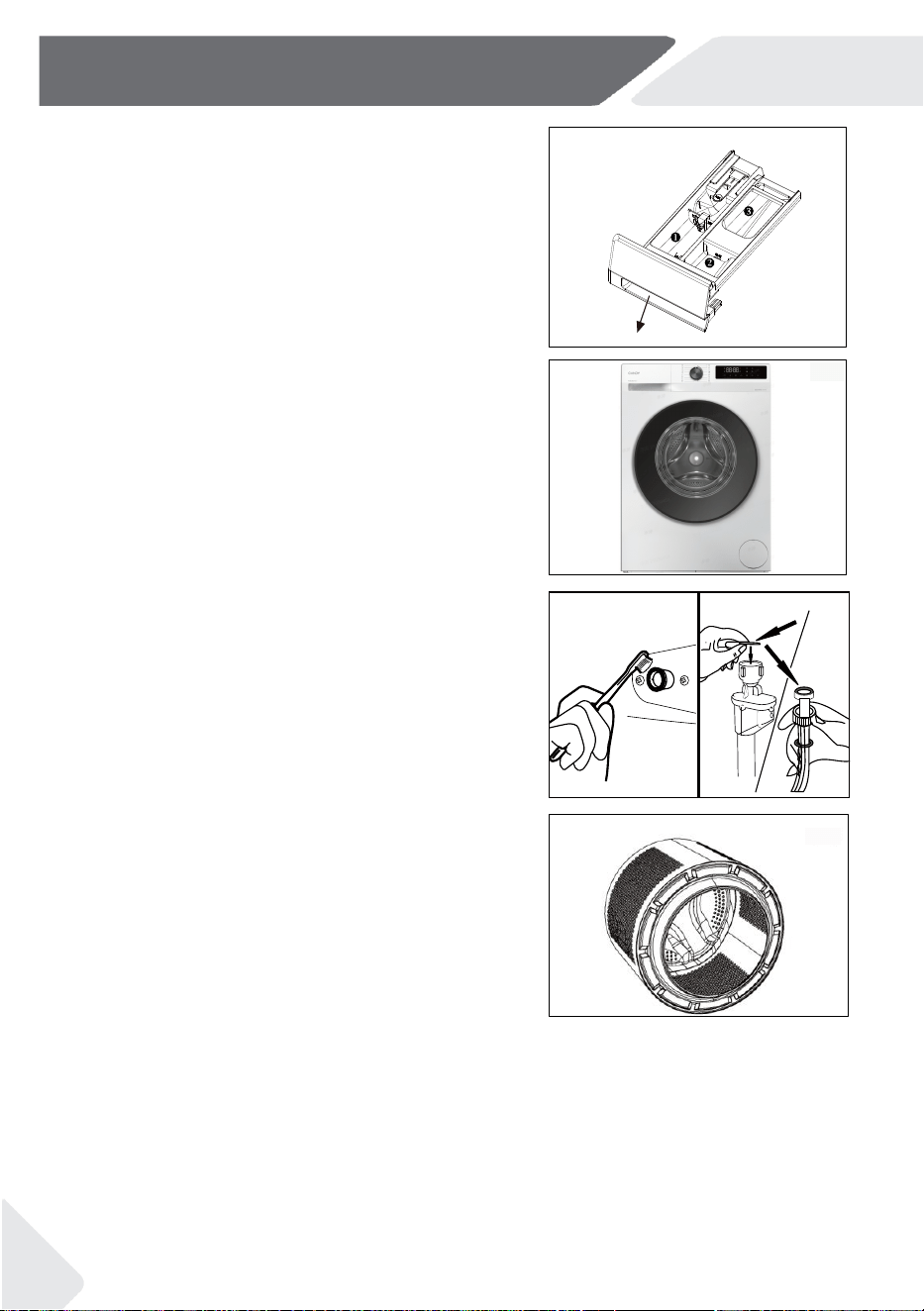

1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments (Fig. 8-4).
3. Push back the drawer gently.
Note:
Remove detergent residues before next wash cycle from the detergent drawer.
Do not overuse detergent or softener.
Please follow the instruction on the detergent package.
Always
detergent just before the beginning of the wash cycle.
Concentrated liquid detergent should be diluted before adding.
Do not use liquid detergent if function "Delay" is selected.
Carefully choose the programme settings according to the care symbols on all
laundry labels and according to the programme table.
8.7 Select a programme
To get the best washing results, select a programme
whic
the degree of dirty
and laundry type.
Turn the programme knob (Fig. 8-5) to select the right
programme. The display will show the selected
programme name.
Note: Odour removal
Before t use we recommend to run the programme " Drum Clean "
possible corruptive residues.Please don't put any detergent or
cleaner in washing detergent compartment (2).
special machine
8.8 Add individual selections
Select required options and settings (Fig. 8-6); refer to
Control Panel.
8-5
8-6
8-4
EN
24
8.
8-Daily use
to remove
8.10
Start wash programme
Touch "Start/Pause” button (Fig. 8-7) to start.
Appliance operates according to present settings.
8.11
Interrupt / cancel wash programme
To interrupt a running programme, press
"Start/Pause
"
, the
LED above the button
is
ashing. Press it again to resume operation.
To cancel a running programme and all its individual settings:
1. Touch
button to interrupt the running programme.
2. Turn the knob to the programme DRAIN & SPIN and select" " to drain the water.
3. After closing the programm to restart the appliance, select a new programme and
start it.
8.12
After washing
Note: Door lock
For safety reasons the door is locked partially during the washing cycle. It is only
possible to open the door at the end of the programme or after the programme was
cancelled correctly (see description above).
In case of high water level, high water temperature and during spinning. it is not
possible to open the door; Lock is displayed.
1. At programme cycle” “ is displayed.
2. The appliance switches
automatically.
3.
to prevent more wrinkling.
4. Turn
water supply.
5. Unplug the power cord.
6. Open the door to prevent formation of moisture and odours. Let it open while not
used.
Note: Standby-mode / energy-saving mode
The switches on appliance will go into standby-mode if it will not be activated within 2
minutes before starting the programme or at the end of programme. The display
switches off. This save energy.
Activate or deactivate the buzzer
The acoustic signal can be deselected if necessary:
1.
8-7
Changes are only possible by cancelling the programme.
EN
25
8.9
"Start/Pause”
8-Daily use
In standby-mode, under any program, press the "Speed+ "Extra Rinse" buttons at the
same time for 5S, the buzzer will be activated, the screen shows “ ”. Press the
two button simutaneously again for 5S, the screen shows” ”.
Take it out carefully
26
9-Care and cleaning
EN
9-Care and cleaning
9.1 Cleaning the detergent drawer
Take care and check there are no detergent residues.
Clean the drawer regularly (Fig. 9-1) :
1. Pull out the drawer until it stops.
2. Press the release button and remove the drawer.
3. Flush the drawer with water until it is clean and
insert the drawer back in the appliance.
9.2 Cleaning the machine
Unplug the machine during cleaning and
maintenance.
Use a soft cloth with soap liquid to clean the
machine case (Fig.9-2) and rubber components.
Do not use organic chemicals or corrosive
solvents.
9.3 Water inlet valve and inlet valve filter
To prevent blockage of water supply by solid substan-
ces like lime clean regularly the inlet valve filter.
Unplug the power cord and turn off the wate
supply.
Unscrew the water inlet hose at the back (Fig. 9-3)
of the appliance as well as on the tap.
Flush the filters with water and a brush (Fig. 9-4).
Insert the filter and install the inlet hose.
9.4 Cleaning the drum
Remove accidental washed items, especially
metal parts such as pins, coins, etc. from the drum
(Fig. 9 -5) because they cause rust stains and
damage.
Use a non-chloride cleaner for removing rust
stains. Observe the warnings on the cleaning
agent manufacturer.
Do not use any hard objects or steel wool for
cleaning.
9-1
9-2
9-4
9-5
9-3
Turn on the tap to see if it leaks.
27
10-Care and cleaning
EN
9.5 Long periods of disuse
If the appliance is left idle for a longer period:

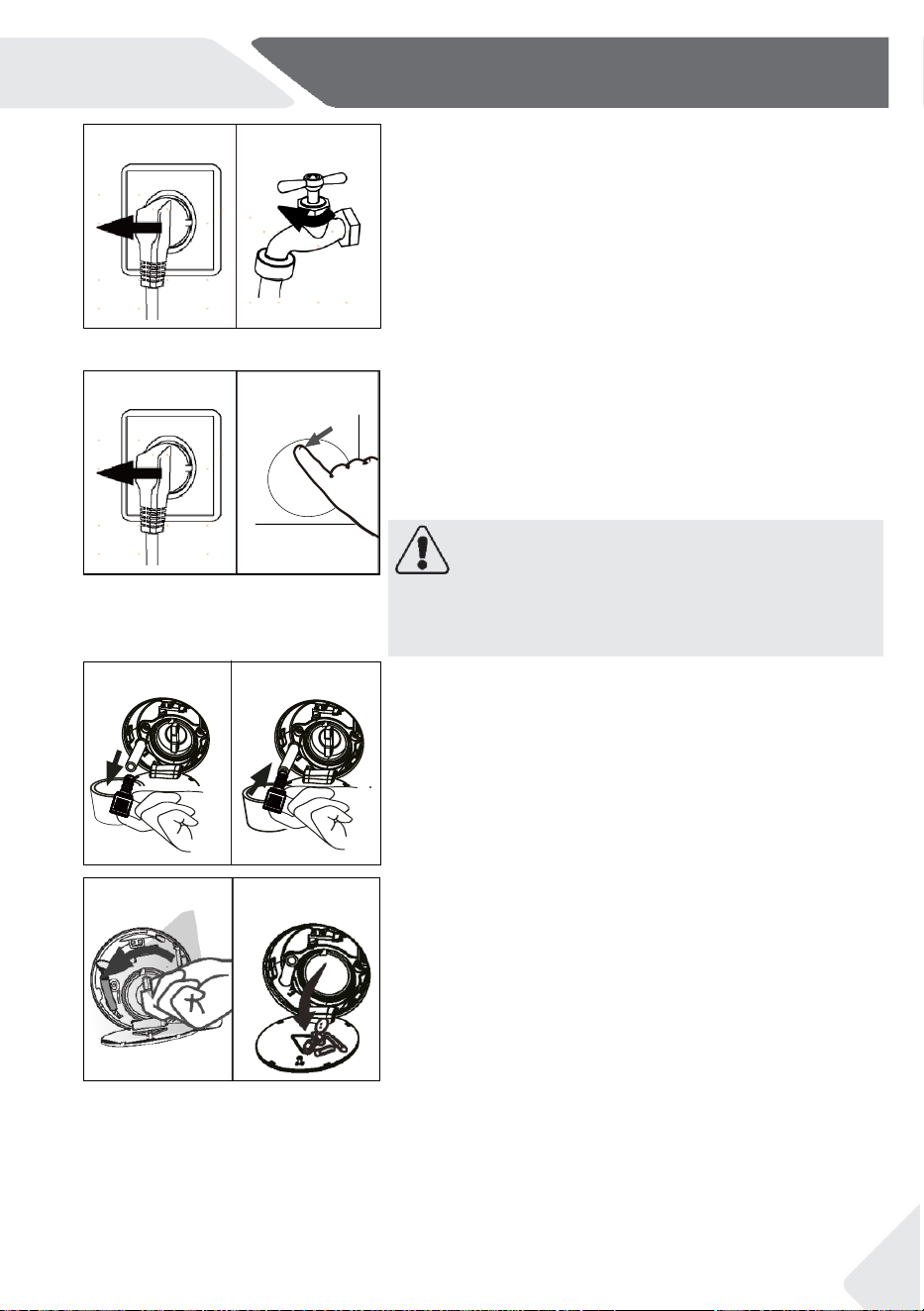

1. Pull out the electrical plug (Fig. 9-6).
2. Turn off water supply (Fig. 9-7).
3. Open the door to prevent formation of moisture
and odours. Leave the door open when not in use.
9.6 Pump filter
Clean the filter once a month and check the pump
filter for instance if the appliance:
Doesn't drain water.
Doesn't spin.
Creates
unusual noise while running.
WARNING!
Scalding Risk! Water in the pump filter can be very
hot! Before any action please ensure water has
cooled down.
1.
Turn off and unplug the machine (Fig.9-8).
2. Push and open the filter door(Fig.9-9).
9-6
9-7
9-8
9-9
9-10
9-11
water inlet and drain hose carefully. Make sure that
everything is properly installed and without leakage.
3. Provide a flat container to catch the overflowing
water (Fig.9-10).There could be big amounts.
4. Pull the drainhose out and hold its end above the
container(Fig.9-10).
5. Taking the sealing plug out of the drainhose.
(Fig.9-10).
6. After completing drainage, close the drainhose
and push it back to the machine(Fig.9-11).
7. Unscrew and remove counter clockwise to the
pump filter (Fig.9-12).
8. Remove contaminants and dirt(Fig.9-13).
9-12
9-13
Before the next usage, carefully check the power cord,
28
9 -Care and cleaning
EN
9. Clean carefully pump filter, e.g. using running water
(Fig. 9-14).
10. Refix it thoroughly (Fig. 9-15).
11. Close the filter door.
CAUTION!
Pump filter sealing has to be clean and undamaged. If the lid is not fully tightened,
water can escape.
The filter must be in place, or it may lead to leakage.
9-14
9-15
29
10
-
Troubleshooting
EN
10-Troubleshooting
Many occuring problems could be solved by yourself without specific expertise. In case of
a problem please check all shown possibilities and follow below Instructions before you
contact an after sales service. See CUSTOMER SERVICE.
WARNING!
Before maintenance, deactivate the appliance and disconnect the mains plug from
the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because
improper repairs can cause considerable consequential damages.
A damaged power cable should only be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
10.1 Information codes
Following codes are displayed only for information referring to the washing cycle. No
measures must be performed.
Code Message
The remaining wash cycle time will be 1 hour and 25 minutes.
The remaining delay time will be 6 hours and 30 minutes.
Function child lock is activated.
10.2 Troubleshooting with display code
Problem Cause Solution
CLR FLTR
• Drainage error, water is not fully
drained within 6 minutes.
• Clean pump filter
• Check drain hose installation.
E2
• Lock error.
• Shut the door properly.
E4
• Water level not reached, drain
hose is self-syphoning.
• Make sure that tap is fully opened and
water pressure is normal.
• Check the inlet hose installation.
E8
• Water protective level error.
• Contact the After sales service.
Door is closed because of high water level,high water temperature or spinning cycle.
The washing cycle is finished.The appliance shuts off automatically.
30
10-Troubleshooting
EN
Problem Cause Solution
F3
• Temperature sensor error.
• Contact the After sales service.
F4
• Heating error.
• Contact the After sales service.
F7
• Motor error.
• Contact the After sales service.
Contact the After sales service
FA
• Water level sensor error.
• Contact the After sales service.
• Abnormal communication error.
• Contact the After sales service.
•
•
10.3 Troubleshooting without display code
Problem Cause Solution
Washing machine
fails to operate.
• Programme is not yet started.
• Door is not properly closed.
• Machine has not been switched on.
• Power failure.
• Child lock is activated.
• Check programme and start it.
• Close the door properly.
• Switch the machine on.
• Check power supply.
• Deactivate child lock.
Washing machine
will not be filled with
water.
• No water.
• Inlet hose is kinked.
• Inlet hose filter is blocked.
• Water pressure is less than 0.03
MPa.
• Door is not properly closed.
• Water supply failure.
• Check water tap.
• Check inlet hose.
• Unblock inlet hose filter.
• Check water pressure.
• Close the door properly.
• Ensure the water supply.
Machine is draining
while being filled.
• Height of drain hose is below 80 cm.
• Drain hose end could reach into
water.
• Make sure that drain hose is
properly installed.
• Make sure the drain hose is not in
water.
Drainage failure.
• Drain hose is blocked.
• Pump filter is blocked.
• Drain hose end is higher than 100 cm
above floor level.
• Unblock drain hose.
• Clean pump filter.
• Make sure that drain hose is
properly installed.
Strong vibration
while spinning.
• Not all transportation bolts have
been removed.
• Appliance has no solid position.
• Machine load is not correct.
• Remove all transportation bolts.
• Ensure solid ground and a levelled
position.
• Check load weight and balance.
Operation stops
before completing
wash cycle.
• Water or electric failure.
• Check power and water supply.
Operation stops for
a period of time.
• Appliance displays error code.
• Problem due to load pattern.
• Programme performs soaking cycle.
• Consider display codes.
• Reduce or adjust load.
• Cancel programme and restart.
Drainage error.
Water is not fully drained in set time.
FC0,FC1 or
FC2
Eb
E5
Clothes jamming alarm.
•
•
Pause operating, open the door and place
garments again before restarting.
31
10-Troubleshooting
EN

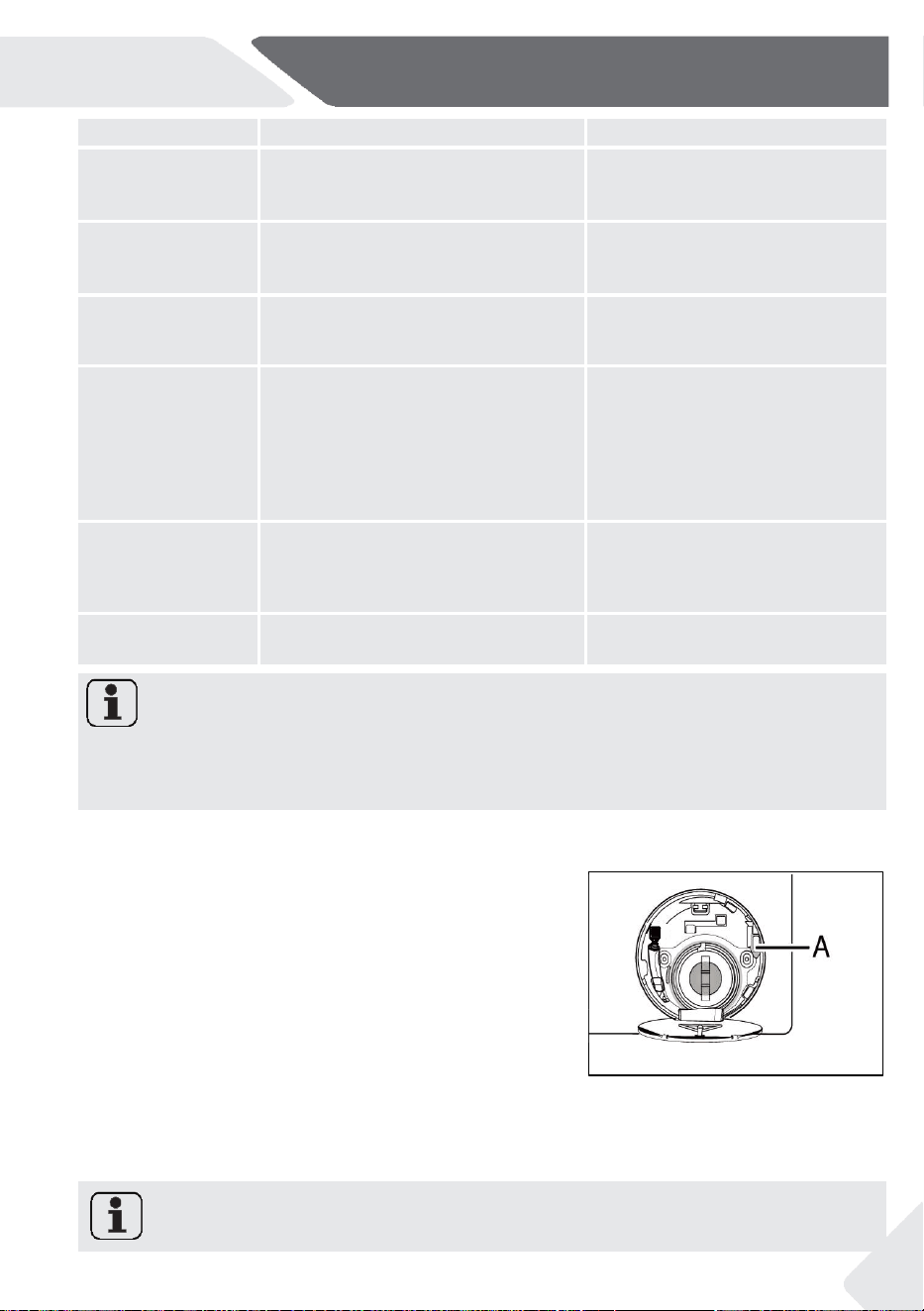

Problem Cause Solution
Excessive foam
floats drum and/or
detergent drawer.
• Detergent is not appropriate.
• Excessive use of detergent.
• Check detergent recommendat-
• Reduce amount of detergent.
Automatic
adjustment of
washing time.
• Washing programme duration will be
adjusted.
• This is normal and doesn’t affect
functionality.
Spinning fails.
• Unbalance of laundry.
• Check machine load and laundry
and run a spinning programme
again.
Unsatisfactory
washing result.
• Degree of pollution does not agree
with selected programme
• Detergent quantity was not sufficie-
nt.
• Maximum load has been exceeded.
• Laundry was unevenly distributed in
the drum.
• Select an other programme.
• Choose the detergent acc. to the
degree of pollution and according
to manufacture
• Reduce loading.
• Loose the laundry.
Washing powder
residues are on the
laundry.
• Insoluble particles of detergent can
remain as white spots on the laundry.
• Perform extra rinse.
• Try to brush the points from the
dry laundry.
• Choose an other detergent.
Laundry has grey
patches.
• Caused by fats such as oils, creams
or ointments.
• Pretreat the laundry with a special
cleaner.
Note: Foam formation
If too much foam is inspected during spin cycle, motor stops and drain pump will be
activated for 90 seconds. If that elimination of foam fails up to 3 times, programme ends
without spinning.
Should the error messages reappear even after the taken measures, switch off the
appliance, disconnect the power supply and contact the customer service.
10.4 In case of power failure
The current programme and its setting will be saved.
When power supply is restored, operation will be
resumed.
If a power failure cuts an operating wash programme,
door opening is mechanically blocked. To get out any
laundry water level should not be seen in the glassy
porthole of the door. - Danger of burns! Water level
has to be lowered as described in "Pump filter". Not till
then pull lever (A) beneath service flap (Fig. 10-1) until
door is unlocked by a gentle click. Afterwards refix all
par
ts.
When the washing machine in a safe state (under the water level below the window along
a certain distance, barrel temperature below 55 , the inner barrel did not turn), may
unlock the doors of the machine operation.
°C
ions.
10-1
32

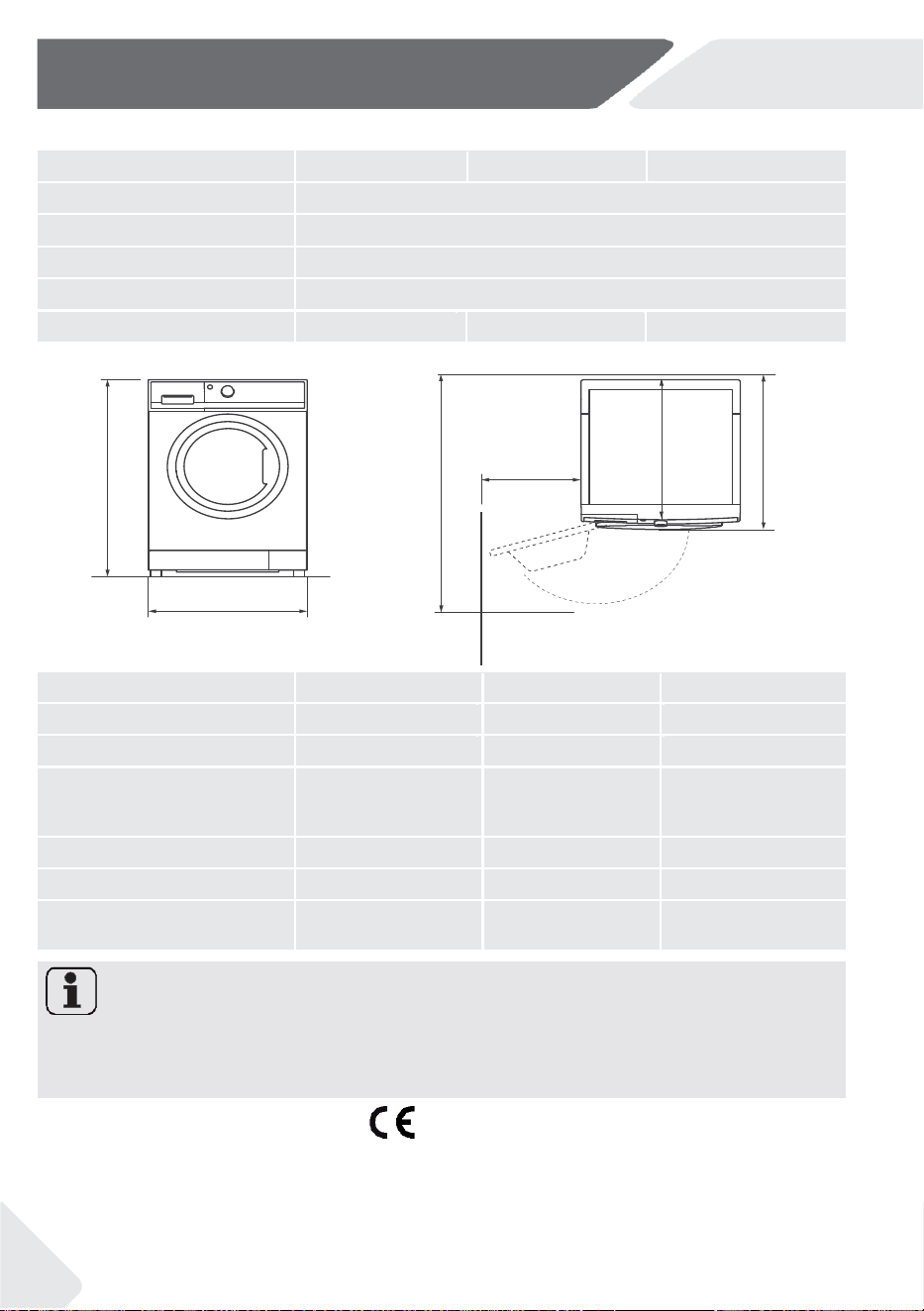

11-Technical data
EN
11-Technical data
11.1 Additional technical data
Voltage in V 220-240 V~/50Hz
Current in A 10
Max power in W 1950
Water pressure in MPa 0.03≤P <1
Net weight in kg
11.2 Product dimensions
PRODUCT DIMENSIONS
H Overall height of product mm
W Overall width of product mm
D5 overall depth of product
(To main control board size)
mm
D1 Overall depth of product mm
D2 Depth of door open mm
D4 Minimum door clearance to
adjacent wall mm
11.3
Standards and Directives
This product meets the requirements of applicable EC directives with the corresponding
harmonised standards, which provide for CE marking.
WALL
TOP VIEW
FRONT VIEW
62
Note:
The exact height of your washer is dependent on how far the feet are extended from
the base of the machine. The space where you install your washer needs to be at least
40mm wider and 20mm deeper than its dimensions.
58
850
595
491
533
1015
300
GD 48SB6-S
GD 410B8-S
850
595
559
601
1084
300
GD 410B8-S GD 48SB6-S
62
GD 49B8-S
850
595
559
601
1084
300
GD 49B8-S
H
W
D2
D4
D5
D1
33
12-Customer service
EN
12-Customer service
We recommend our Hoover Customer Service and the use of original spare parts.
If you have a problem with your appliance, please first check section 10-Troubleshooting.
If you cannot find a solution there, please contact:
your local dealer.
the Assistence Area on the Hoover website where you can find information on
Warranties, Accessories and Spare Parts and Contact numbers.
To contact our Service, ensure that you have the following data available.
Each product is identified by a unique code, also called the “serial number”, printed on a
sticker. This can be found inside the door opening.
Model Serial No.
Also check the Warranty Card supplied with the product in case of warranty.
It is always recommended to use original spare parts, that are available at our Authorised
Customer Service Centres.
Warranty
The product is guaranteed under the terms and conditions stated on the certificate
included with the product. The certificate has to be stored so as to be shown to the
Authorized Customer Service Centre in case of need. You can also check the warranty
conditions on our web site. To obtain assistance, please fill in the form online or contact
us at the number indicated on the support page of our website.
The standard manufacturer warranty covers faults caused by electrical or
mechanical faults in the product due to an act or omission
of the manufacturer.
If a
fault is found to be caused by factors outside the product supplied, missuse or as a
result of the instructions on use not being followed, a charge may be applied.
The manufacturer declines all responsibility for any printing errors in the booklet included
with this product. Moreover, it also reserves the right to make any changes deemed
useful to its products without changing their essential characteristics.
*For more information please refer to www.haier-europe.com
- GD -
