Product Installation & User Manual
Rangaire: 24” Gas Range | RRG
241TS
PRODUCT INSTALLATION
RANGE SAFETY ......................................................................................... 1
Anti-Tip Device ...........................................................................................3
INSTALLATION REQUIREMENTS .................................................................... 4
Tools and Parts ........................................................................................... 4
Location Requirements .................................................................................. 5
Product Dimensions ...................................................................................... 6
Clearances ................................................................................................7
Venting Requirements ................................................................................... 8
Electrical Requirements .................................................................................. 9
Gas Supply Requirements ...............................................................................12
INSTALLATION INSTRUCTIONS ....................................................................15
Unpack Range ...........................................................................................15

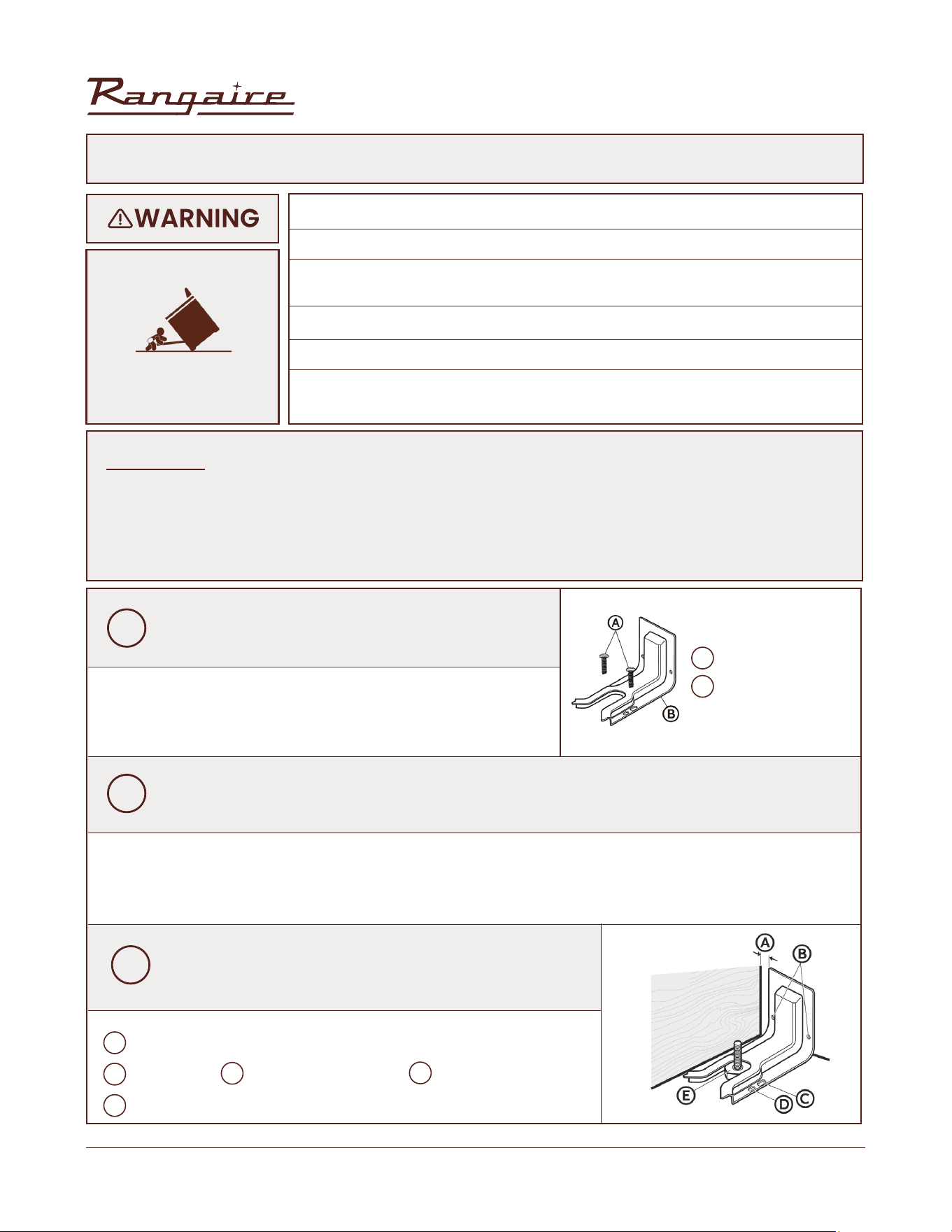

Install Anti-tip Device ....................................................................................16
Install Backsplash ....................................................................................... 17
Gas Connection .........................................................................................18
Complete Connection .................................................................................. 20
Adjust Flame Height .....................................................................................21
Level Range ............................................................................................. 22
GAS CONVERSION ................................................................................... 24
Convert Gas Pressure Regulator ........................................................................ 25

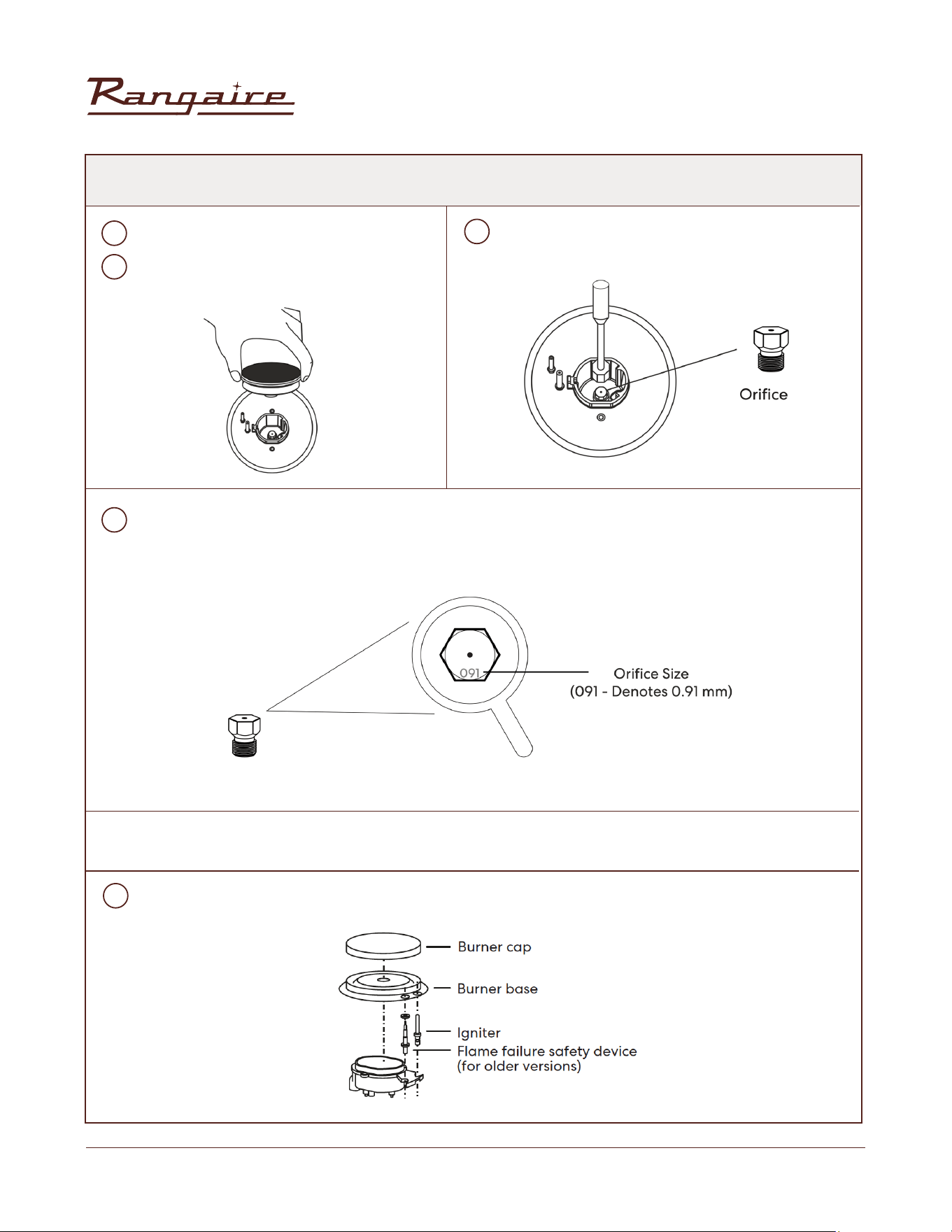

Convert Surface Burners ................................................................................ 26
Convert Oven Bake Burner .............................................................................. 28

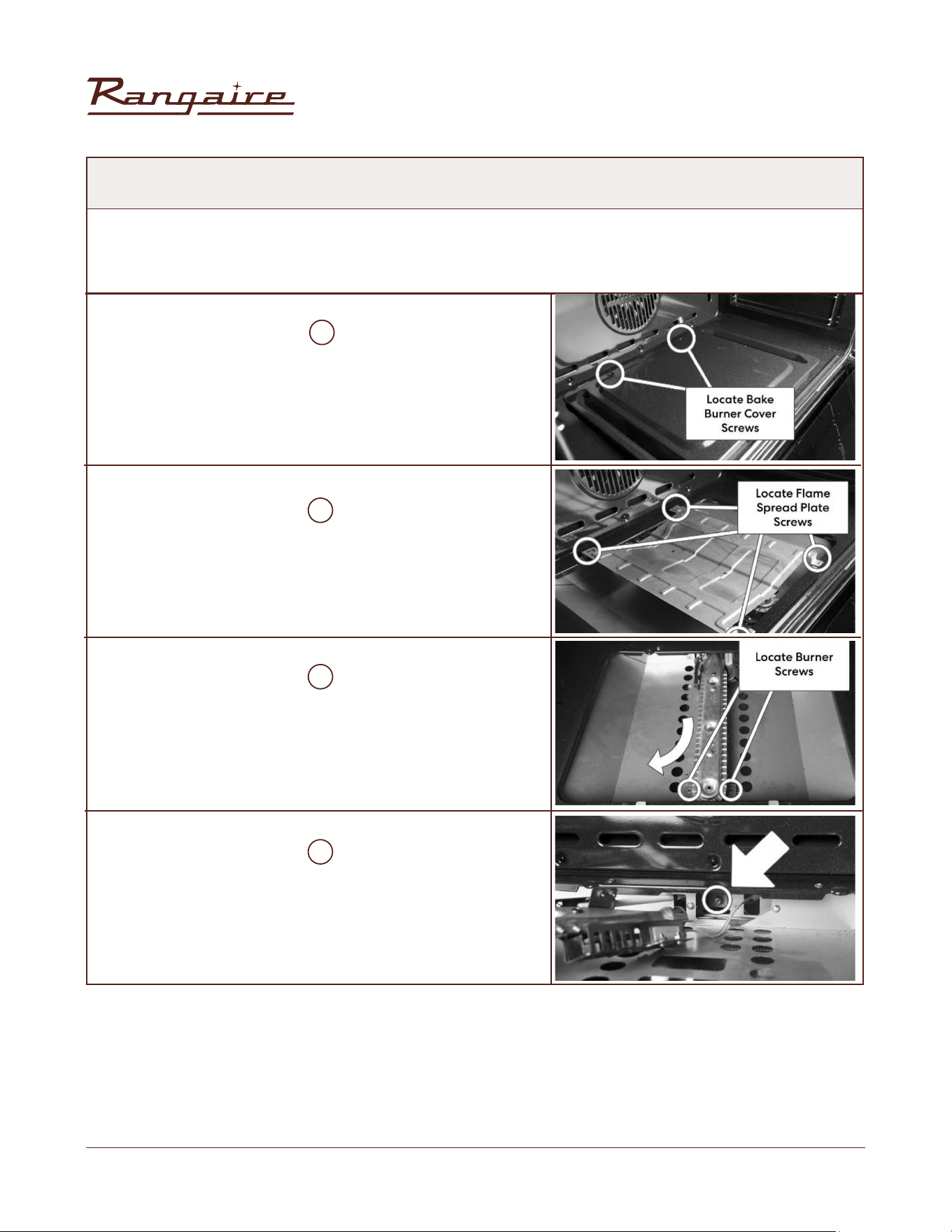

Convert Oven Broil Burner ............................................................................... 29
Complete Gas Conversion .............................................................................. 29
Rangaire: 24`” Gas Range | RRG
241TS
RANGE SAFETY .........................................................................................31
Important Safety Instructions ...............................................................................31
OVERVIEW .............................................................................................. 35

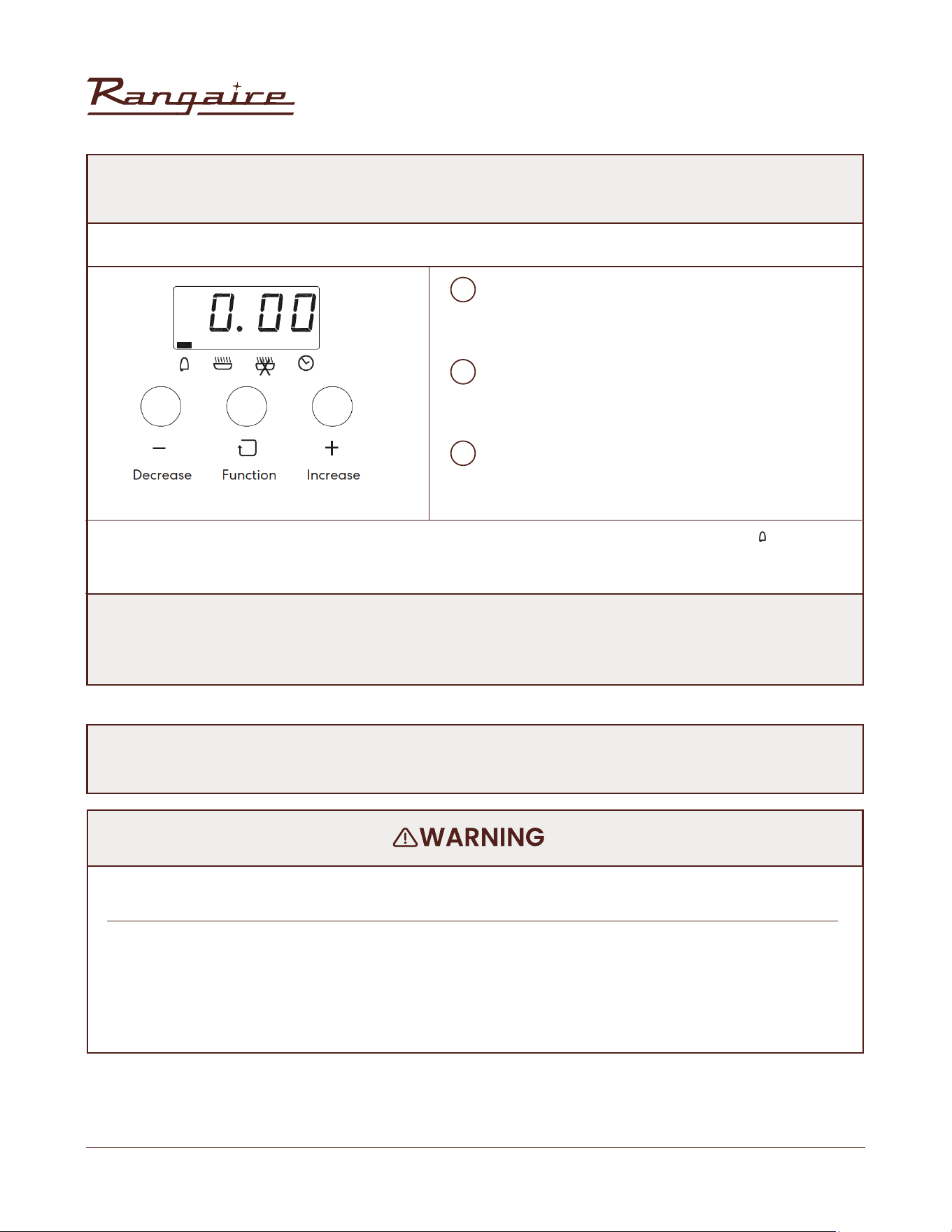

Control Panel ............................................................................................. 37
Clock and Timer ........................................................................................... 37
COOKTOP USE ......................................................................................... 40
Power Failure ............................................................................................. 40
Cookware .................................................................................................41
OVEN USE ............................................................................................... 42
RANGE CARE ........................................................................................... 45
Cleaning ................................................................................................. 45
TROUBLESHOOTING ................................................................................... 48
Baking Problems .......................................................................................... 48
Cooktop Problems ........................................................................................ 49
Oven Problems ........................................................................................... 50
CORRECT DISPOSAL .................................................................................. 52
PRODUCT USAGE & MAINTENANCE
24” Gas Range | RRG
241TS
1
Rangaire: Product Installation
In the State of Massachusetts, the following installation instructions apply:
California Proposition 65 Warnings:
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others. All
safety messages will follow the safety alert symbol and either the word “DANGER”,
“WARNING” or “CAUTION”.
All safety messages will tell you what the potential hazard is, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not followed.
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth
defects or other reproductive harm.
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
An imminently hazardous situation. You could be killed or seriously
injured if you don’t immediately follow instructions.
A potentially hazardous situation which, if not avoided, could result in
death or serious bodily injury.
A potentially hazardous situation which, if not avoided, may result in
moderate or minor injury.
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT.
DANGER
WARNING
CAUTION
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
• Installations and repairs must be performed by a qualied or licensed contractor, plumber, or gas tter
qualied or licensed by the State of Massachusetts.
• If using a ball valve, it shall be a T-handle type.
• A exible gas connector, when used, must not exceed 3 feet.
Important Safety Guidelines
24” Gas Range | RRG
241TS
2
Rangaire: Product Installation
RANGE SAFETY
If the information in this manual is not followed exactly, a re or explosion
may result causing property damage, personal injury or death.
Do not store or use gasoline or other ammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re department.
• Installation and service must be performed by a qualied installer, service agency or the gas supplier.
Failure to follow this warning statement could result in re, explosion, or burn hazard that could cause
property damage, personal injury, or death.
If a re should occur, keep away from the appliance and immediately call your re department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
Never Operate the Top Surface Cooking Section of this Appliance Unattended
Important Safety Guidelines
24” Gas Range | RRG
241TS
3
Rangaire: Product Installation

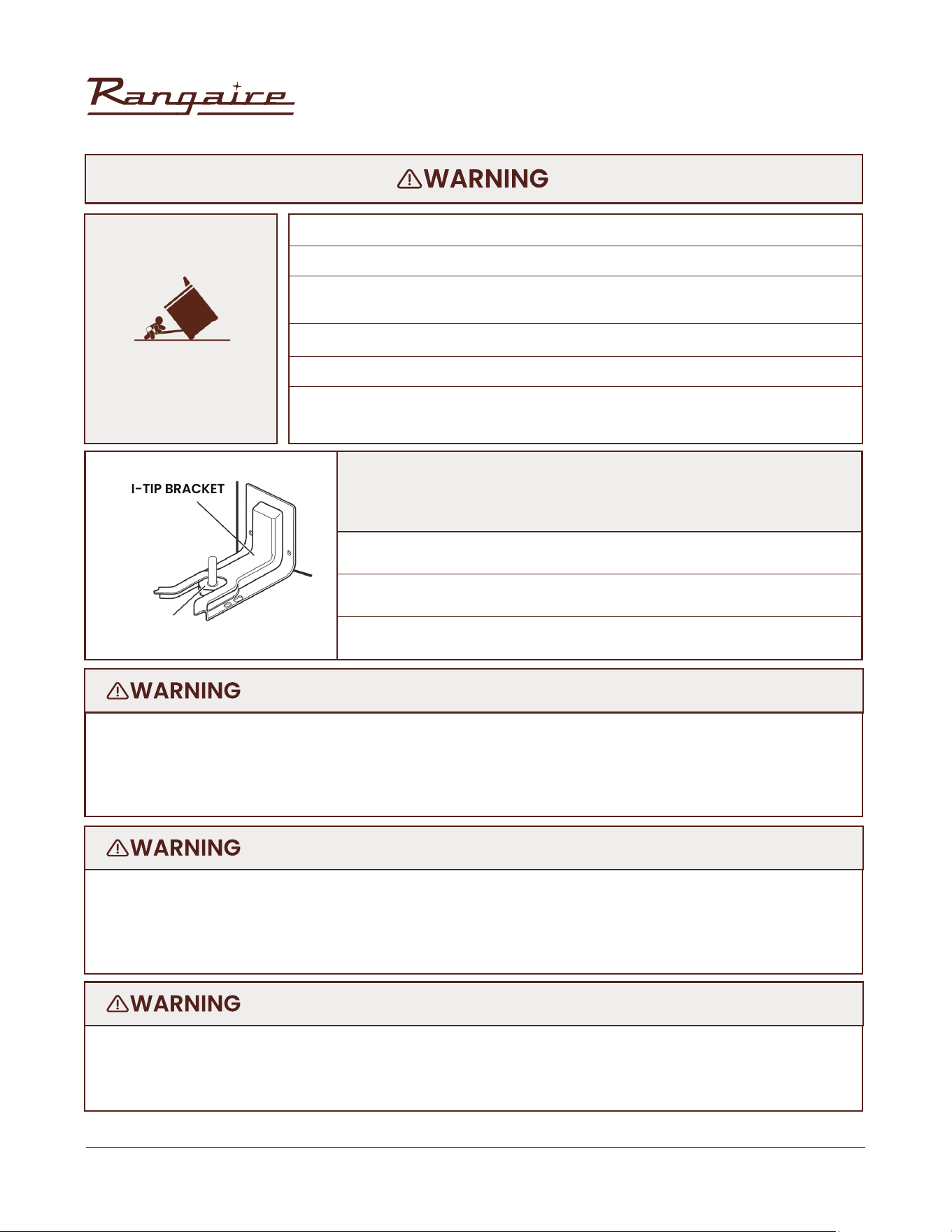

ANTI-TIP BRACKET
RANGE FOOT
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
Do not install a ventilation system that blows air downward toward this cooking appliance. This type of
ventilation system may cause ignition and combustion problems with this cooking appliance resulting in
personal injury or unintended operation.
This appliance is intended for normal residential use. It is not approved for commercial use, outdoor
installation, or any other application not specically allowed by this manual.
Gas leaks cannot always be detected by smell.
• A child or adult can tip the range and be killed.
• Install anti-tip bracket to oor or wall per installation instructions.
• Slide range back so rear range foot is engaged in the slot of the anti-tip
bracket.
• Re-engage the anti-tip bracket if range is moved.
• Do not operate the range without anti-tip bracket installed and engaged.
• Failure to follow these instructions can result in death or serious burns to
children and adults
• Slide range forward.
• Look for the anti-tip bracket securely attached to oor and wall.
• Slide range back so rear range foot is under anti-tip bracket.
Making sure the anti-tip bracket is installed:
TIP-OVER HAZARD
Important Safety Guidelines
24” Gas Range | RRG
241TS
4
Rangaire: Product Installation
INSTALLATION REQUIREMENTS
• Tape Measure
• Flat-Blade Screwdriver
• Phillips Screwdriver
• Level
• Drill
• Wrench or Pliers
• Pipe Wrench
• 1/2” (1.3 cm) Combination Wrench
• 1/4” (6 mm) Nut Drive
For Propane/Natural Gas Conversions
Tools Needed:
• 15/16” (2.4 cm) Combination Wrench
• 1/8” (3.2 mm) Drill Bit (for wood oors)
• Marker or Pencil
• Pipe-Joint Compound Resistant to Propane Gas
• 3/16” (4.8 mm) Carbide-Tipped Masonry Drill Bit (for concrete/
ceramic oors)
• Non-Corrosive Leak-Detection Solution

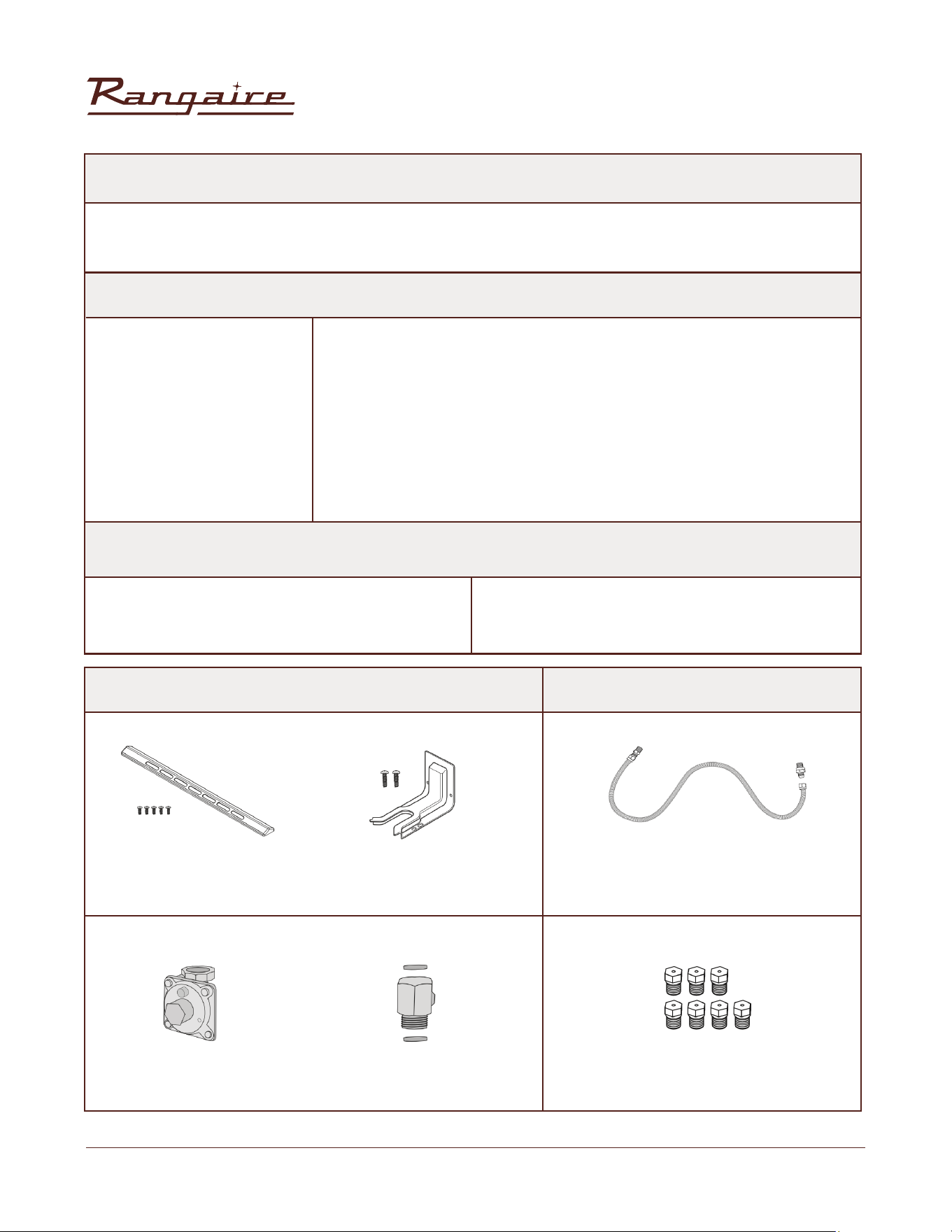

Parts Supplied: Parts Needed:
Backsplash + screws
Gas supply line kit
(supply line and 2 adapters)
LP conversion kitsGas pipe adapter + washers
Anti-tip bracket + screws
Gas pressure regulator
Gather the required tools and parts before starting installation. Read and follow the
instructions provided with any tools listed here.
• 9/32”(7 mm) Nut Drive
• Maskingtape
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
5
Rangaire: Product Installation

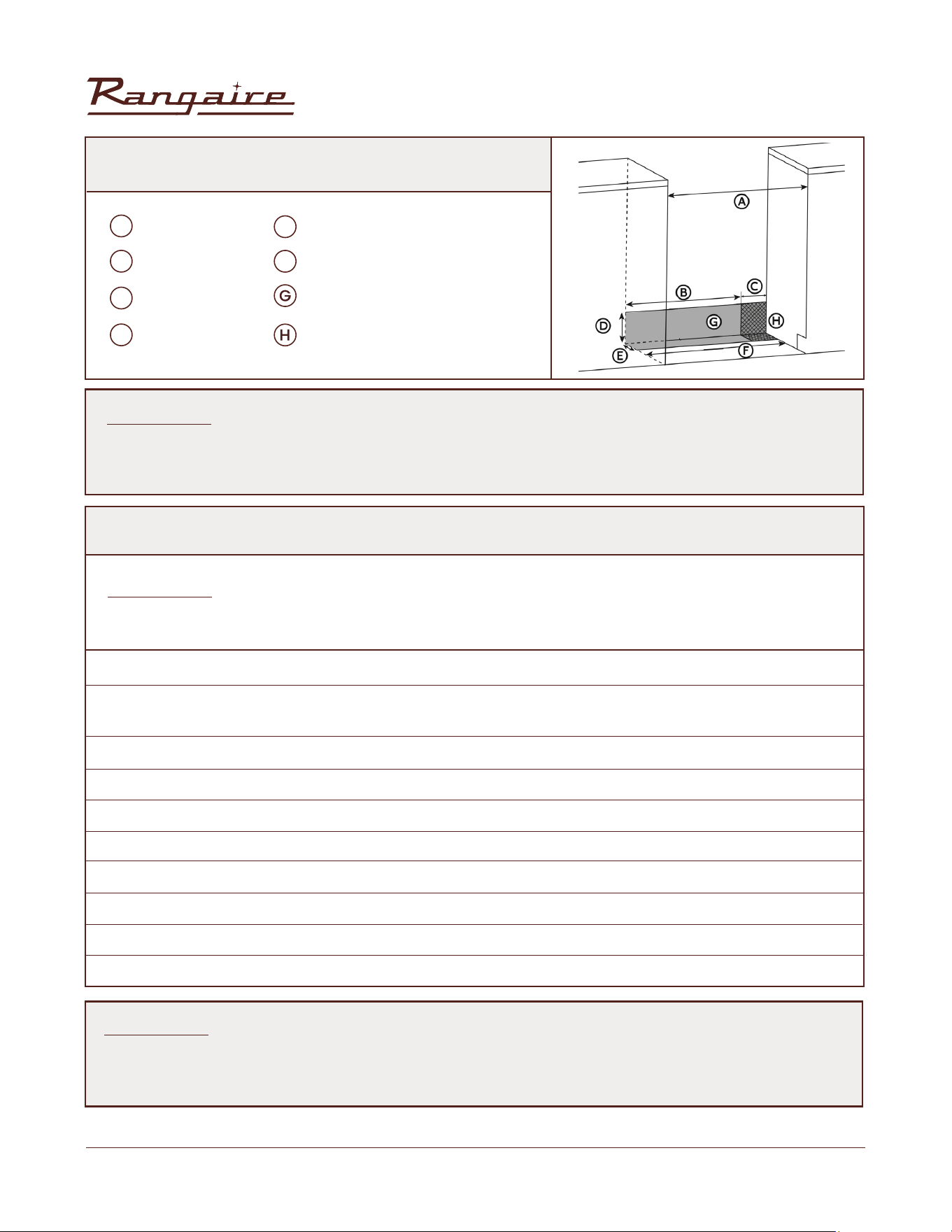

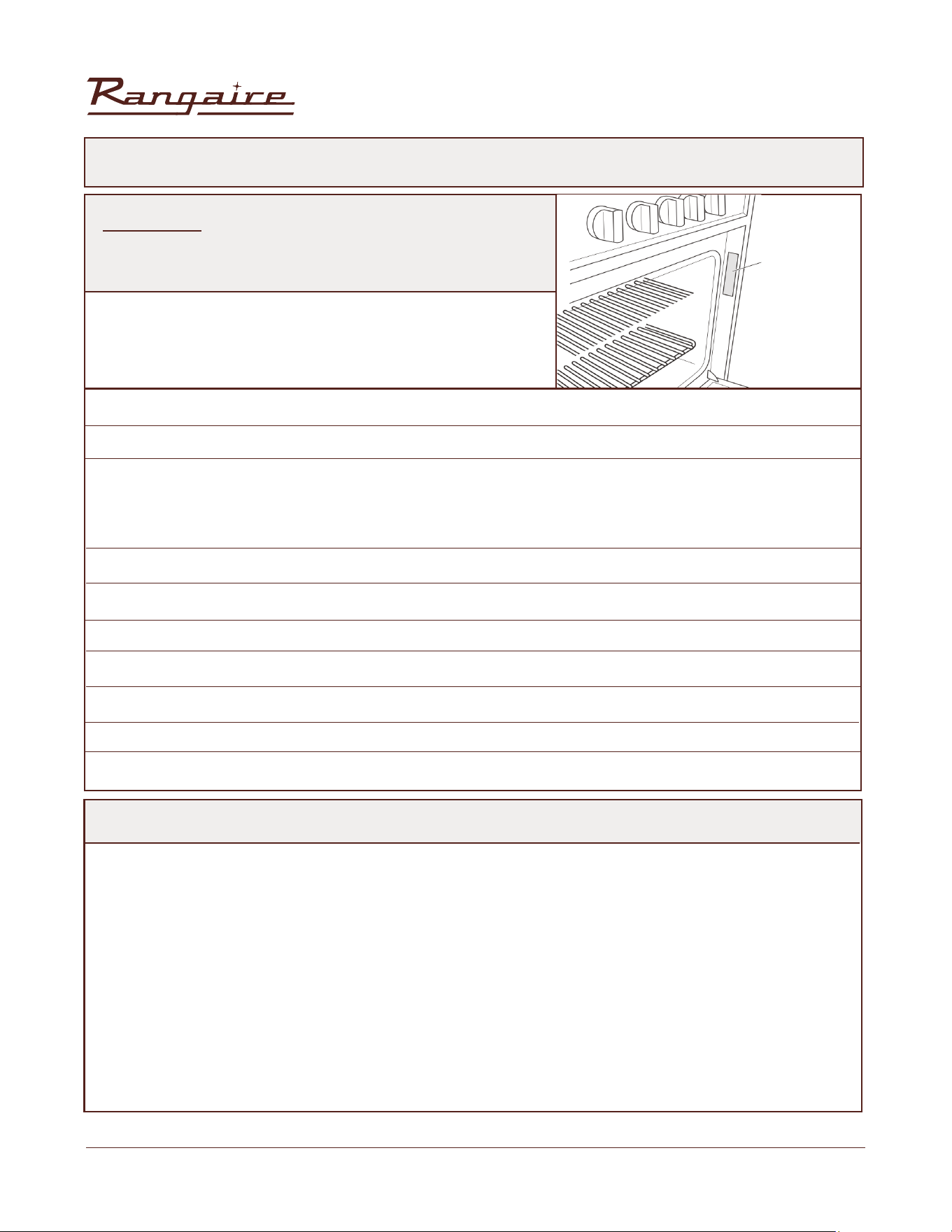

Rating plate
IMPORTANT
Observe all governing codes and ordinances. Do not obstruct
ow of combustion and ventilation air.
• The range should be located for convenient use in the kitchen.
• Recessed installations must provide complete enclosure of the sides and rear of the range.
• To eliminate the risk of burns or re by reaching over heated surface units, cabinet storage space located
above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by
installing a range hood or microwave hood combination that projects horizontally a minimum of 5” (12.7
cm) beyond the bottom of the cabinets.
• All openings in the wall or oor where range is to be installed must be sealed.
• Do not seal the range to the side cabinets.
• Cabinet opening dimensions that are shown must be used.
• Grounded electrical supply is required. See “Electrical Requirements” section.
• Proper gas supply connection must be available. See “Gas Supply Requirements” section.
• Contact a qualied oor covering installer to check that the oor covering can withstand at least 200°F (93°C).
• Use an insulated pad or 1/4” (0.64 cm) plywood under range if installing range over carpeting.
Mobile Home Installations Require:
• When this range is installed in a mobile home, it must be secured to the oor during transit. Any method
of securing the range is adequate as long as it conforms to the standards listed above.
• Four-wire power supply cord or cable must be used in a mobile home installation. The appliance wiring
will need to be revised. See “Electrical Connection” section.
• The installation of this range must conform to the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety,
Title 24, HUD Part 280). When such standard is not applicable, use the Standard for Manufactured Home
Installations, ANSI A225.1/NFPA 501A or with local codes.
• In Canada, the installation of this range must conform with the current standards CAN/CSA-A240-latest
edition, or with local codes.
It is the installer’s responsbility to comply with installation
clearances specied on the model/serial rating plate. The
model/serial rating plate is located behind the oven door on
the oven frame.
INSTALLATION REQUIREMENTS
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
6
Rangaire: Product Installation
This manual covers several models. Your model may appear

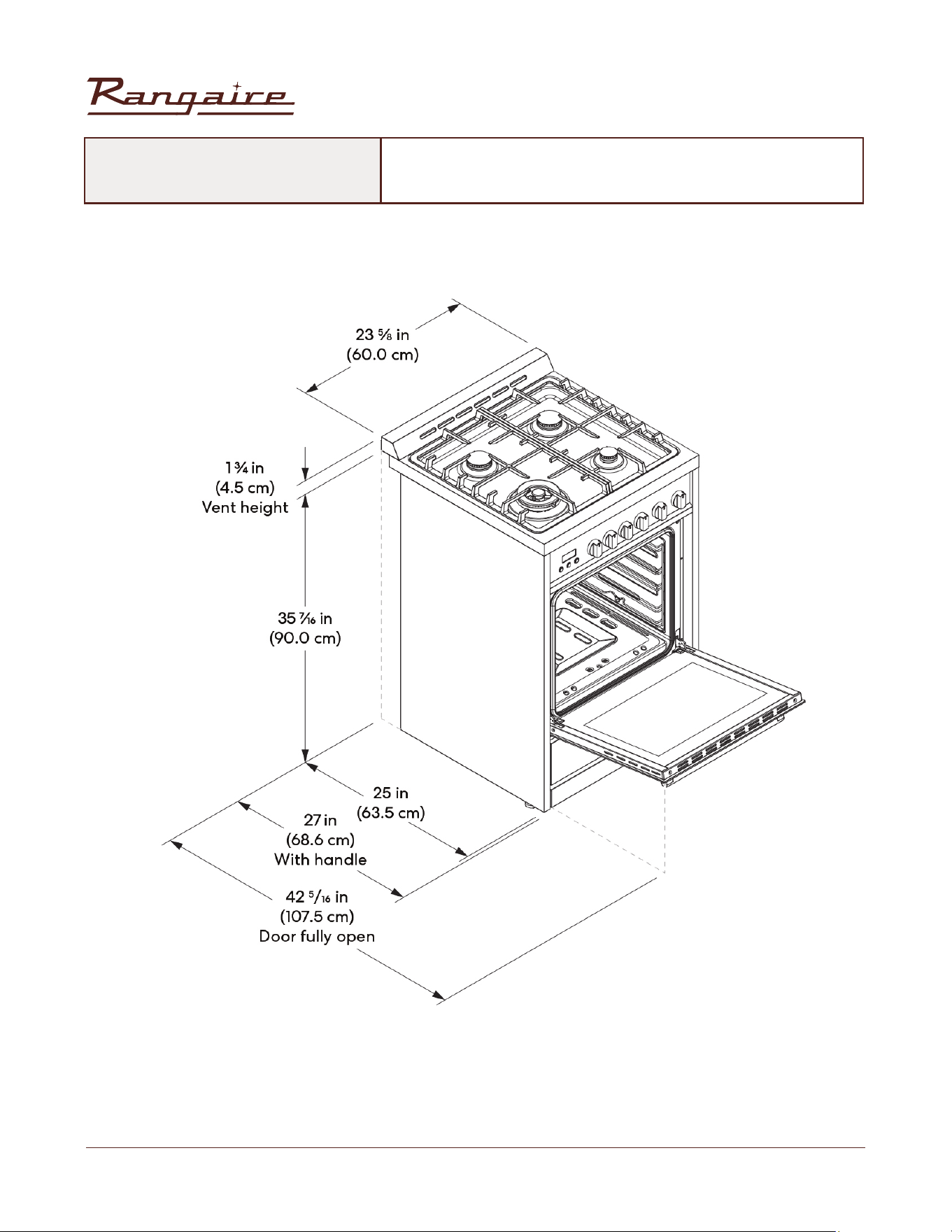

different from the models depicted. Dimensions given are
maximum dimensions across all models.
PRODUCT DIMENSIONS
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
7
Rangaire: Product Installation
GIVEN DIMENSIONS ARE MINIMUM CLEARANCES.
IMPORTANT
Some cabinet and building materials are not designed to withstand the heat produced by the oven for
baking and self-cleaning. Check with your builder or cabinet supplier to make sure that the materials
used will not discolor, delaminate or sustain other damage.
NOTE:

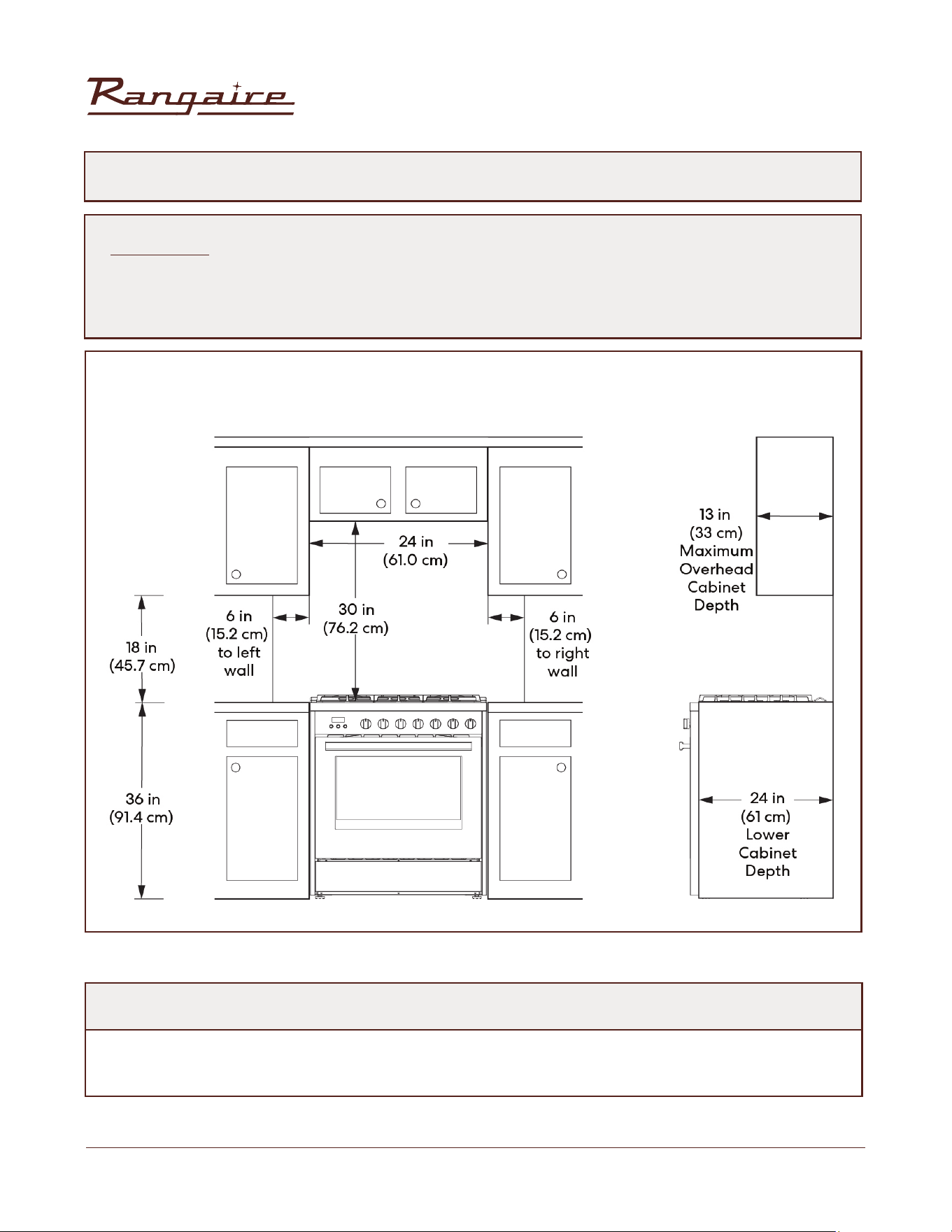

• 30“ (76.2 cm) minimum clearance between cooking surface and bottom of the overhead cabinet.
• 18“ (45.7 cm) minimum clearance from upper cabinet to countertop on either side of unit.
CLEARANCES
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
8
Rangaire: Product Installation
VENTING REQUIREMENTS
POWER SUPPLY LOCATION
E
F
A
24“ (61.0 cm)
3“ (7.6 cm)
C
6“ (15.2 cm)
Recommended Location for
Electrical Outlet
Recommended Location for Gas
Supply Connection
B
11 1/2“ (29.2 cm)
17 1/2“ (44 cm)
D
7 1⁄4“ (18.4 cm)
IMPORTANT
An electrical outlet in the oor, may be either recessed or surface mounted, but an electrical outlet
in the wall must be recessed to make the connection. For Direct Wiring, the electrical box should be
mounted to the wall.
MAKEUP AIR
Local building codes may require the use of makeup air systems when using ventilation systems
greater than specied CFM of air movement. The specied CFM varies from locale to locale. Consult
your HVAC professional for specic requirements in your area.
IMPORTANT
This range must be exhausted outdoors unless you are using ductless venting. Observe all governing
codes and ordinances. Do not obstruct ow of combustion and ventilation air.
• Do not terminate the vent system in an attic or other enclosed area.
• Use an approved vent cap for proper performance. If an alternate wall or roof cap is used, be certain
the cap size is not reduced and that it has a backdraft damper.
• Vent system must terminate to the outside unless you are using a ductless vent kit.
• Rigid metal vent is recommended. For best performance, do not use plastic or metal foil vent.
• If a joist or stud must be cut, then a supporting frame must be constructed.
• The size of the vent should be uniform.
• The vent system must have a damper.
• Seal all joints in the vent system.
• Use caulking to seal exterior wall or roof opening around the cap.
• Determine which venting method is best for your application.
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
9
Rangaire: Product Installation
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualied electrician or service technician if you are in doubt as to whether the appliance is properly
grounded. Do not modify the power supply cord plug. If it will not t the outlet, have a proper outlet installed
by a qualied electrician.
This appliance is equipped with a three-prong grounding plug for your
protection against shock hazard and should be plugged directly into
a properly grounded receptacle. Do not cut or remove the grounding
prong from this plug.
This range is equipped with an electronic ignition system that will not operate if plugged into an outlet that
is not properly polarized.
If codes permit and a separate ground wire is used, it is recommended that a qualied electrical installer
determine that the ground path is adequate and wire gauge is in accordance with local codes.
Do not use an extension cord.
ELECTRICAL SHOCK
HAZARD
Electrically ground range.
Failure to do so can result in death, re or electrical shock.
Electrical Grounding Instructions
ELECTRICAL REQUIREMENTS
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
10
Rangaire: Product Installation
ELECTRICAL REQUIREMENTS - U.S.A. ONLY
Be sure that the electrical connection and wire size are adequate and in conformance with the National
Electrical Code, ANSI/ NFPA No. 70-latest edition and all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169
ELECTRICAL REQUIREMENTS - CANADA ONLY
Be sure that the electrical connection and wire size are adequate and in conformance with the CSA
Standard C22.1, Canadian Electrical Code, Part 1 - latest edition and all local codes and ordinances.
A copy of the above code standards can be obtained from:
Canadian Standards Association
178 Rexdale Blvd.
Toronto, ON M9W 1R3 CANADA
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
11
Rangaire: Product Installation
• The receptacle of this range is to be connected to a properly grounded dedicated circuit providing 120
VAC/60 Hz power and protected by a 15- or 20-Amp circuit breaker or slow blow fuse. It is recommended
that a separate circuit serving only this range be provided.
• Where a standard two-prong wall receptacle is encountered, contact a qualied electrician to have it
replaced with a properly grounded three- prong wall receptacle.
• Range must be connected to the proper electrical voltage and frequency as specied on the model/serial
rating plate. The plate is located behind the oven door on the oven frame. Refer to the illustrations in the
“Location Requirements” section.
• Do not use an extension cord or an adapter plug.
• Check local codes and consult gas supplier. Check existing electrical supply and gas supply. It is
recommended that all electrical connections be made by a licensed, qualied electrical installer.
• Range must be connected to the proper electrical voltage and frequency as specied on the model/serial/
rating plate. The plate is located inside the storage drawer on either the left or right side panel. Refer to the
illustrations in the “Location Requirements” section.
• Electronic ignition systems operate within wide voltage limits, but proper grounding and polarity are
necessary. Check that the outlet provides 120- volt power and is correctly grounded.nuisance tripping of the
GFCI breaker is possible due to the normal operating nature of electronic gas ranges.
• It is the personal responsibility of the range owner to provide the correct electrical service for this range.
• This gas range is not required or recommended to be plugged into a GFCI (Ground-Fault Circuit Interrupter)
outlet. It is recommended that you not plug an electric spark ignition gas range or any other major appliance
into a GFCI wall outlet as it may cause the GFCI to trip during normal cycling.
• Performance of this range will not be affected if operated on a GFCI- protected circuit. However, occasional
nuisance tripping of the GFCI breaker is possible due to the normal operating nature of electronic gas ranges.
• The wiring diagram is located on the back of the range.
The metal chassis of the range must be grounded in order for the control panel to work. If the metal chassis
of the range is not grounded, no keypads will operate. Check with a qualied electrician if you are in doubt
as to whether the metal chassis of the range is grounded.
ELECTRICAL CONNECTION
NOTICE:
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
12
Rangaire: Product Installation
Observe all governing codes and ordinances.
IMPORTANT: This installation must conform with all local codes and ordinances. In the absence of local
codes, installation must conform with American National Standard, National Fuel Gas Code ANSI Z223.1 -
latest edition or CAN/CGA B149 - latest edition.
IMPORTANT: Leak testing of the range must be conducted according to the manufacturer’s instructions.
Natural Gas:
This range is design-certied by CSA International for use with natural gas or, after proper conversion, for
use with LP gas.
• This range is factory-set for use with Natural gas. The model/serial rating plate located on the right side
oven door trim has information on the types of gas that can be used. If the types of gas listed do not include
the type of gas available, check with the local gas supplier.

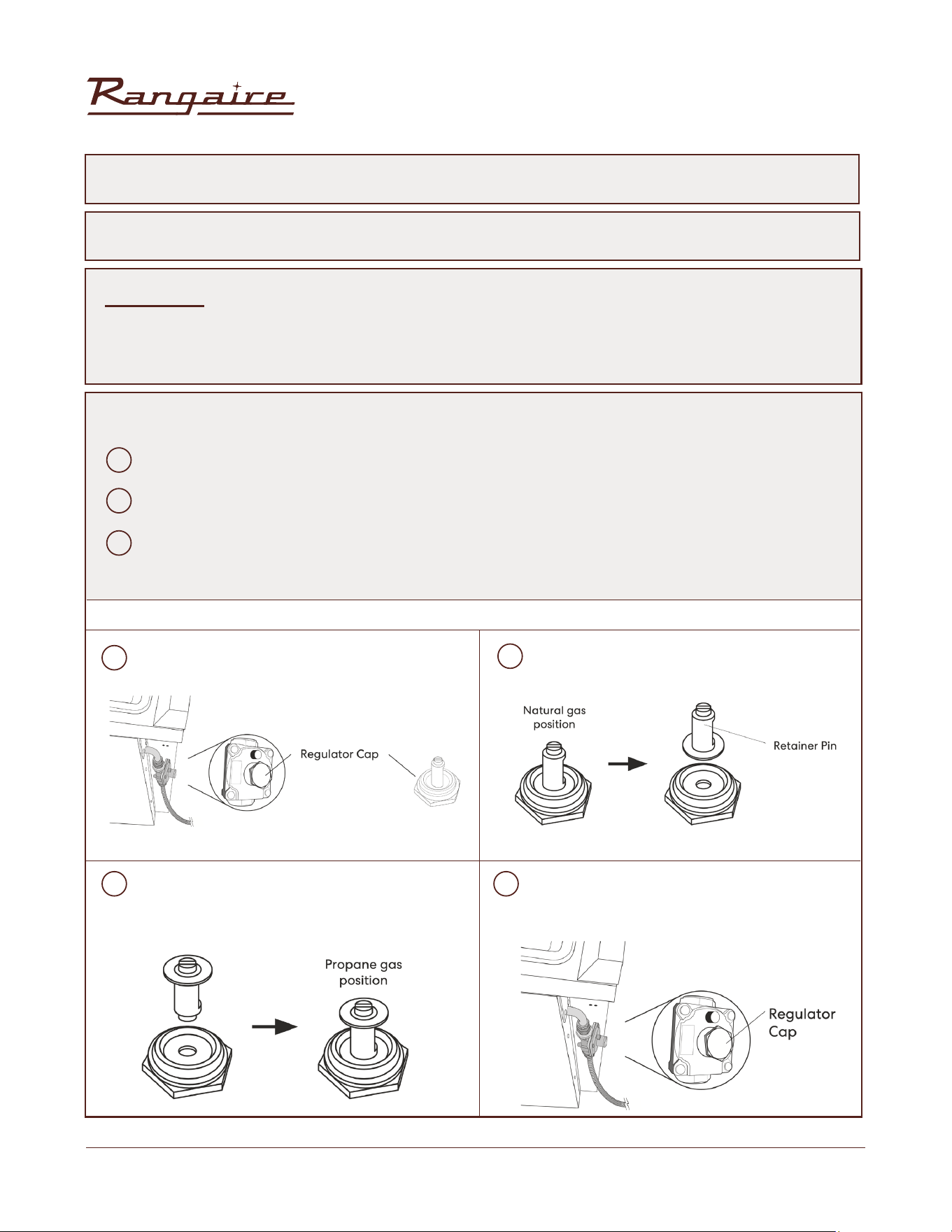

LP Gas Conversion:
Conversion must be performed by a qualied service technician. The qualied agency performing this work
assumes the gas conversion responsibility.
No attempt shall be made to convert the appliance from the gas specied on the model/serial rating plate
for use with a different gas without consulting the serving gas supplier. See “GAS CONVERSION” section.
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
NOTICE:
If connected to LP, have a qualied person make sure gas pressure does
not exceed 14” (36 cm) water column.
Examples of a qualied person include:
• Licensed heating personnel
• Authorized gas company personnel
• Authorized service personnel
Failure to do so can result in death, explosion or re.
GAS SUPPLY REQUIREMENTS
TYPE OF GAS
FIRE AND
EXPLOSION HAZARD
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
13
Rangaire: Product Installation
Flexible metal appliance connector:
• If local codes permit, a new CSA design-certied, 4 - 5 ft (122
- 152.4 cm) long, 1/2” (1.3 cm) or 3/4” (1.9 cm) I.D., exible metal
appliance connector may be used for connecting range to the
gas supply line.
Rigid pipe connection:

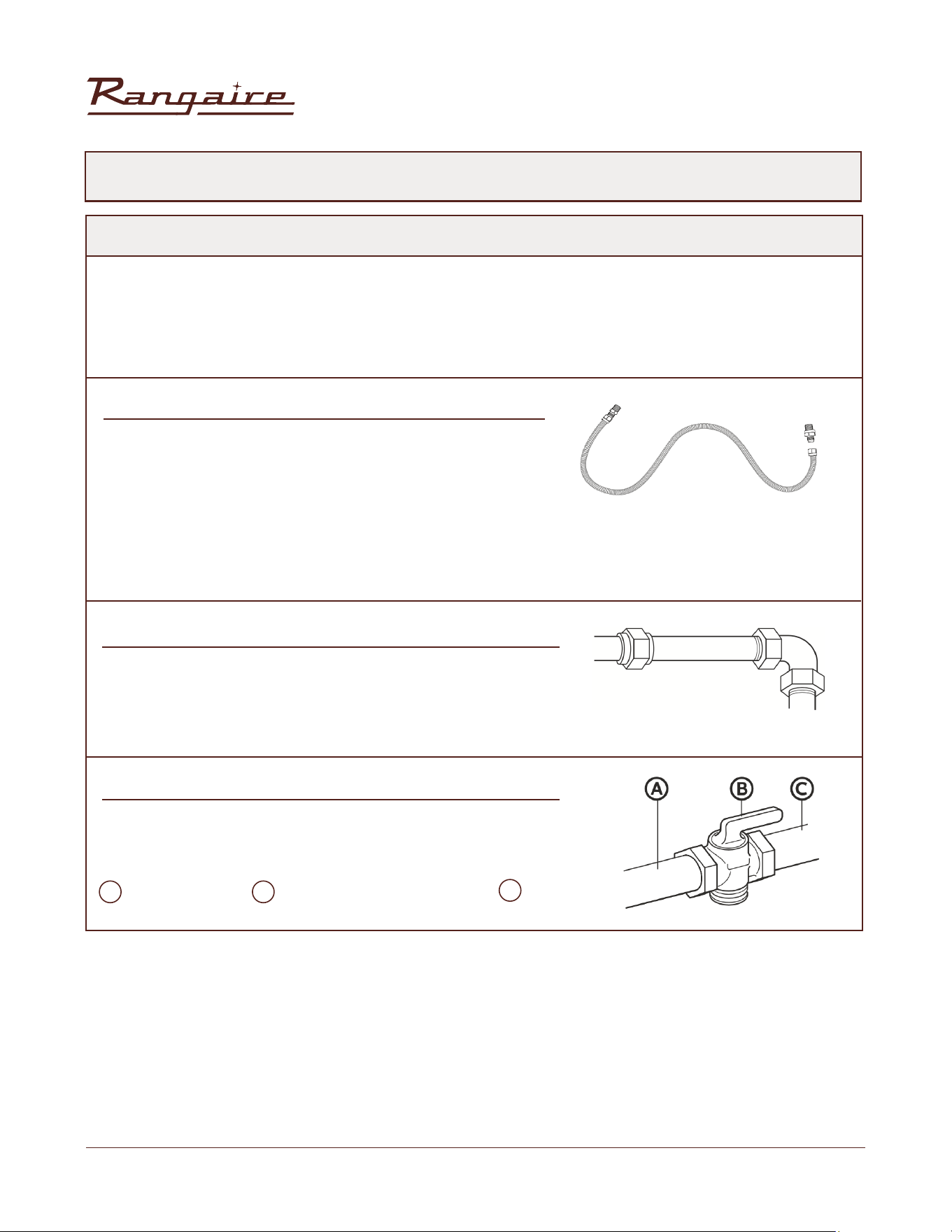

The rigid pipe connection requires a combination of pipe ttings
to obtain an in-line connection to the range. The rigid pipe must
be level with the range connection. All strains must be removed
from the supply and fuel lines so range will be level and in line.
Gas shutoff valve:
A manual gas line shut-off valve must be installed in an easily
accessible location. Do not block access to shut-off valve. The
valve is for turning on or shutting off gas to the range.
GAS SUPPLY REQUIREMENTS
GAS SUPPLY LINE
• A 1/2” (1.3 cm) male pipe thread is needed for connection to the female pipe threads of the inlet to the
appliance pressure regulator.
• Do not kink or damage the exible metal tubing when moving the range.
Provide a gas supply line of 3/4” (1.9 cm) rigid pipe to the range location. A smaller size pipe on longer runs
may result in insufcient gas supply. Pipe-joint compounds that resist the action of LP gas must be used.
With LP gas, piping or tubing size can be 1/2” (1.3 cm) minimum. Usually, LP gas suppliers determine the size
and materials used in the system.
A
Gas Supply Line
Shutoff Valve “Open” Position
C
B
To Range
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
14
Rangaire: Product Installation
GAS SUPPLY REQUIREMENTS
GAS PRESSURE REGULATOR
GAS SUPPLY PRESSURE TESTING
The gas pressure regulator supplied with this range must be used. The inlet pressure to
the regulator should be as follows for proper operation:
Burner Input Requirements
Input ratings shown on the model/serial rating plate are for elevations up to 2,000 ft (609.6 m).
For elevations above 2,000 ft (609.6 m), ratings are reduced at a rate of 4% for each 1,000 ft (304.8 m)
above sea level (not applicable for Canada).
Contact local gas supplier if you are not sure about the inlet pressure.
Minimum Pressure
Natural Gas
4” WCP
7” WCP
4” WCP
11” WCP
LP Gas
Maximum Pressure
Gas supply pressure for testing regulator must be at least 1” (2.5 cm) water column pressure above the
manifold pressure shown on the model/serial rating plate.
Line pressure testing above 0.5 psi gauge (14” WCP)
The range and its individual shutoff valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 0.5 psi (3.5 kPa).
Line pressure testing at 0.5 psi gauge (14” WCP) or lower
The range must be isolated from the gas supply piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply piping system at test pressures equal to or less than
1/2 psi (3.5 kPa).
INSTALLATION REQUIREMENTS
24” Gas Range | RRG
241TS
15
Rangaire: Product Installation
IMPORTANT
This appliance shall be installed only by authorized
persons and in accordance with the manufacturer’s
installation instructions, local gas tting regulations,
municipal building codes, electrical wiring regulations,
local water supply regulations.
1. Remove shipping materials, tape and lm from the range. Keep cardboard bottom under
range. Do not dispose of anything until the installation is complete.
2. Remove oven racks and parts package from oven and shipping materials.
3. To remove cardboard bottom, rst take 4 cardboard corners from the carton. Stack one
cardboard corner on top of another. Repeat with the other 2 corners. Place them lengthwise on
the oor behind the range to support the range when it is laid on its back.
4. Using two or more people, rmly grasp the range and gently lay it on its back on the cardboard
corners.
5. Remove cardboard bottom.
UNPACK RANGE:
INSTALLATION INSTRUCTIONS
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install range.
Failure to do so can result in back or other injury.
• The leveling legs can be adjusted while the range is on its back.
• To place range back up into a standing position, put a sheet of cardboard or hardboard on the oor in
front of range to protect the ooring. Using two or more people, stand range back up onto the cardboard or
hardboard.
NOTE:
INSTALLATION INSTRUCTIONS
24” Gas Range | RRG
241TS
16
Rangaire: Product Installation
• A child or adult can tip the range and be killed.
• Install anti-tip bracket to oor or wall per installation instructions.
• Slide range back so rear range foot is engaged in the slot of the anti-tip
bracket.
• Re-engage the anti-tip bracket if range is moved.
• Do not operate the range without anti-tip bracket installed and engaged.
• Failure to follow these instructions can result in death or serious burns to
children and adults
TIP-OVER HAZARD
IMPORTANT
• An anti-tip bracket is provided with the range. The anti-tip bracket uses a rear range foot to secure the
range to the oor or wall.
• Attach the anti-tip bracket to the oor or wall so that the rear range foot will be centered within the
bracket when the range is pushed into its nal position.

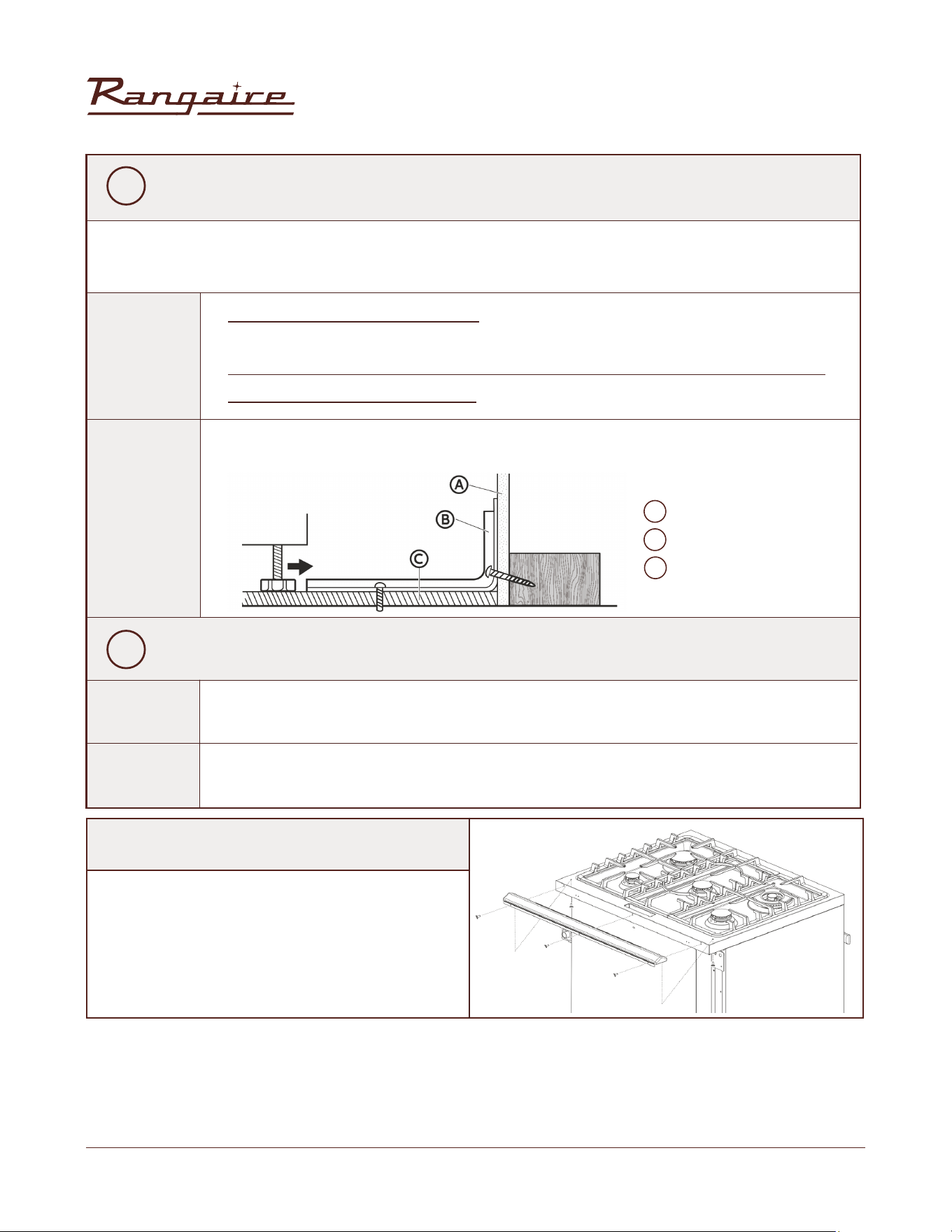

INSTALL ANTI-TIP DEVICE
NOTE: The anti-tip bracket must be securely mounted to the
suboor or wall. The ooring’s thickness may require longer
screws to anchor bracket to suboor.
Place the bracket so that the back of the bracket is against the rear wall and the side edge
of the bracket is 3/8” to 1/2” from the adjacent cabinet.
A
16 x 1
5/8
”
Screws (2)
Anti-tip Bracket
B
1
Remove the anti-tip bracket and screws from the
parts bag.
2
NOTE: If there is no adjacent cabinet, place the bracket so that the edge of the bracket is 3/8” to 1/2” in from
the range side panel. If the countertop overhangs the cabinet, offset the bracket from the cabinet by the
depth of the overhang plus an additional 3/8” to 1/2”.
3
Using the anti-tip bracket as a template, mark the two
holes for either a Floor Wood, Floor Concrete, or Wall
installation, as shown.
A
Distance from Adjacent Cabinet (3/8“ to 1/2“ [0.95 cm to 1.27 cm])
Wall Holes
C
D
E
B
Concrete Floor Holes
Wood Floor Holes
Rear Range Foot
INSTALLATION INSTRUCTIONS
24” Gas Range | RRG
241TS
17
Rangaire: Product Installation
Drill two pilot holes where marked. Follow the instructions specic to your construction.
Install the anti-tip bracket.
Wood
Wood
Concrete
Concrete
4
5
NOTE: A nail or awl may be used to create a pilot hole, if a drill is not available. For concrete construction
1/4” x 1 1⁄2” Lag Bolts and 1/2” O.D. Sleeve Anchors are required.
Floor: Drill a 1/8” pilot hole, as shown.
NOTE: Contact a qualied oor covering installer for the best procedure for drilling
mounting holes through your type of oor covering.
Wall: Drill a 1/8” pilot hole, as shown.
Drill the size hole recommended for the anchors into the concrete at the center of the
holes identied as Floor Concrete or Wall.
Insert the sleeve anchor into the drilled holes and then insert the lag bolts through the anti-tip
bracket and into the oor or wall. The bolts must be properly tightened as recommended for
the hardware.
Using the two screws (provided) fasten the anti-tip bracket to the oor or wall.
NOTE: The screw must enter wood or metal.
A
Wall
Anti-tip Bracket
C
B
Floor
Install the backsplash to rear of range
with the screws provided.
INSTALL BACKSPLASH
INSTALLATION INSTRUCTIONS
24” Gas Range | RRG
241TS
18
Rangaire: Product Installation
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualied person make sure gas pressure does not exceed 14” (36 cm) water
column.
Examples of a qualied person include:
• Licensed heating personnel
• Authorized gas company personnel
• Authorized service personnel
Failure to do so can result in death, explosion or re.
FIRE AND
EXPLOSION HAZARD
This appliance shall be installed only by authorized persons and in accordance with the manufacturer’s
installation instructions, local gas tting regulations, municipal building codes, electrical wiring regulations,
local water supply regulations.
This range is factory-set for use with Natural gas. To use this range with Propane gas, see the “GAS
CONVERSION section before connecting this range to the gas supply. Gas conversions from Natural gas to
Propane gas or from Propane gas to Natural gas must be done by a qualied installer.

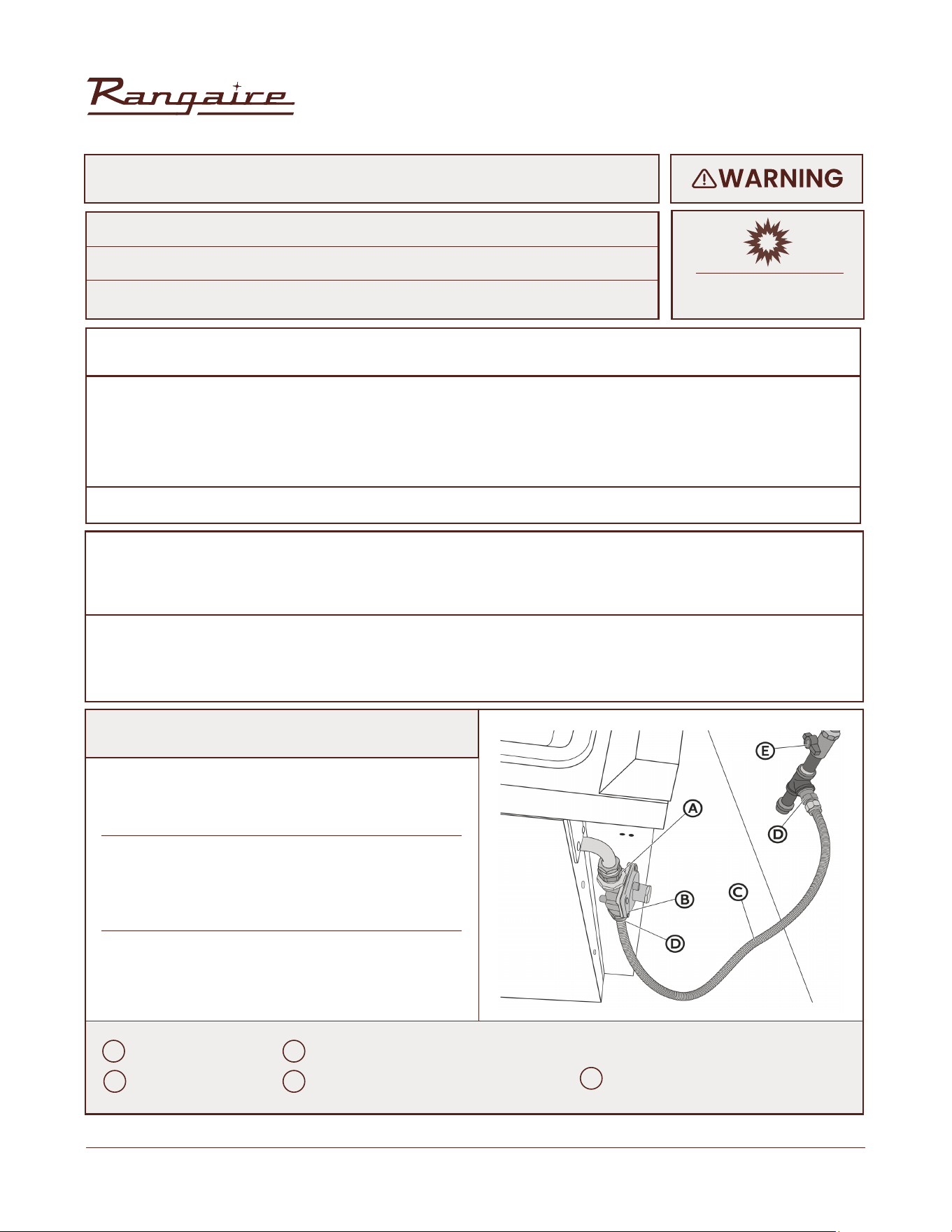

TYPICAL FLEXIBLE CONNECTION
1. Apply pipe-joint compound made for use with
LP gas to the smaller thread ends of the exible
connector adapters.
2. Attach one adapter to the gas pressure regulator
and the other adapter to the gas shutoff valve.
Tighten both adapters, being certain not to move or
turn the gas pressure regulator.
3. Use a 15/16” (2.4 cm) combination wrench and
channel lock pliers to attach the exible connector
to the adapters. Check that connector is not kinked.
A
Adapter (provided)
Gas Pressure Regulator
Adapters (From Gas Supply Line Kit)
C
E
B
D
Gas Supply Line
Gas Shutoff Valve
GAS CONNECTION
INSTALLATION INSTRUCTIONS
24” Gas Range | RRG
241TS
19
Rangaire: Product Installation

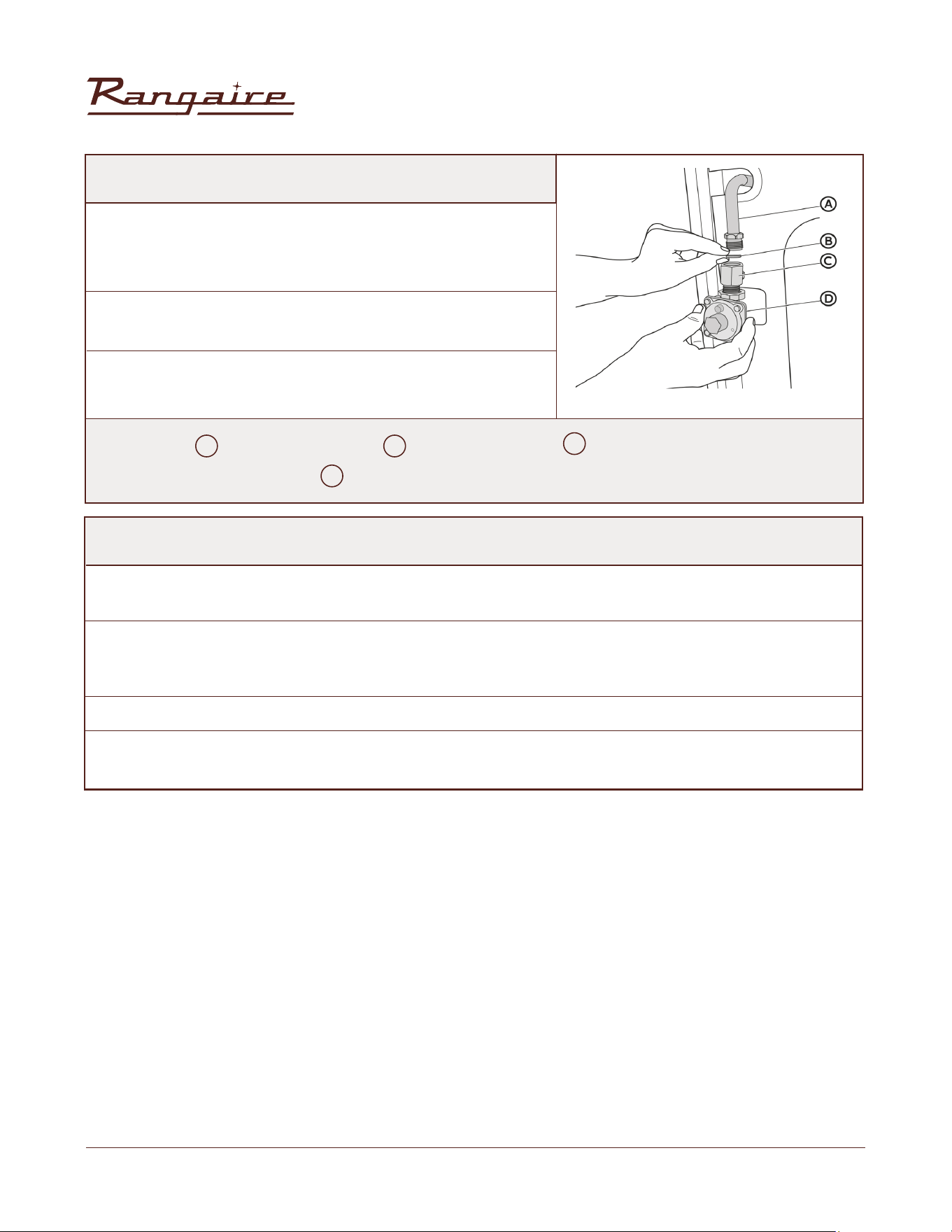

TYPICAL RIGID PIPE CONNECTION
CONVERT TO LP GAS (OPTIONAL)
A combination of pipe ttings must be used to connect the
range to the existing gas line. Your connections may be different,
according to the supply line type, size and location.
This range is shipped from the factory set up to use natural gas. It can be converted to use LP gas by a
qualied service technician.
The LP conversion kit is packed in the oven. The conversion to LP requires all surface burner orices and, if
applicable, gas oven orices to be changed. In addition, the nozzle on the gas pressure regulator needs to
be reversed.
See “GAS CONVERSION” section for detailed instructions.
1. Apply pipe-joint compound made for use with LP
gas to all pipe thread connections.
2. Using a pipe wrench to tighten, connect the gas
supply to the range.
A
Gas Line from Range
Washer (provided)
Gas Pressure Regulator (provided)
C
B
D
Adapter (provided)
NOTE: All replaced orices must be left with the consumer, including the instructions and retrot sizes and
orice indication.
INSTALLATION INSTRUCTIONS
24” Gas Range | RRG
241TS
20
Rangaire: Product Installation
Disconnect power before servicing.
Plug into a grounded 3-prong outlet.
Do not use an adapter or an extension cord.
Failure to do so can result in death, re, or electrical shock
COMPLETE CONNECTION
Test all connections by brushing on an approved noncorrosive leak-detection solution. If
bubbles appear, a leak is indicated. Correct any leak found.
Remove, if any, packaging tapes securing the burners on the surface. If the cooktop burner
bases and caps are not pre-installed, remove them from package containing parts, align
and place the burner bases and caps accordingly.
1

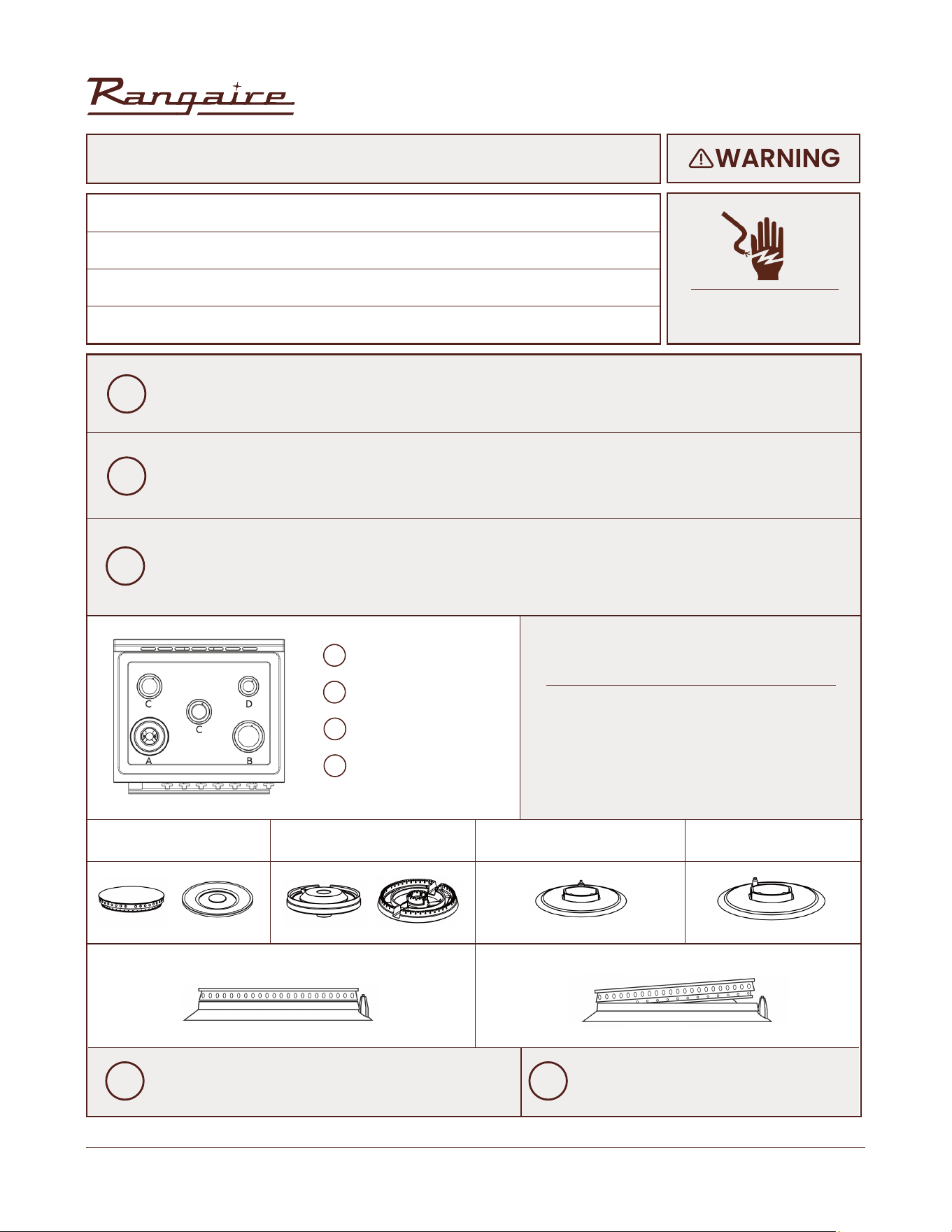

Open the manual shutoff valve in the gas supply line.The valve is open when the handle
is parallel to the gas pipe.
Cap Base
Incorrectly Positioned
Triple Ring Burner
Auxiliary Burner Semi Rapid
Burner Rapid Burner
2
3
Place burner grates over burners and caps.
4
Plug in range or reconnect power.
5
ELECTRICAL SHOCK
HAZARD
Correctly Positioned
A
Triple Ring (X-Large)
Rapid (Large)
C
D
B
Semi Rapid (Medium)
Auxiliary (Small
NOTE:
Align notches in burner caps with pins
in burner base. Burner caps should be
level when properly positioned. If burner
caps are not properly positioned, surface
burners will not light.
INSTALLATION INSTRUCTIONS
24” Gas Range | RRG
241TS
21
Rangaire: Product Installation

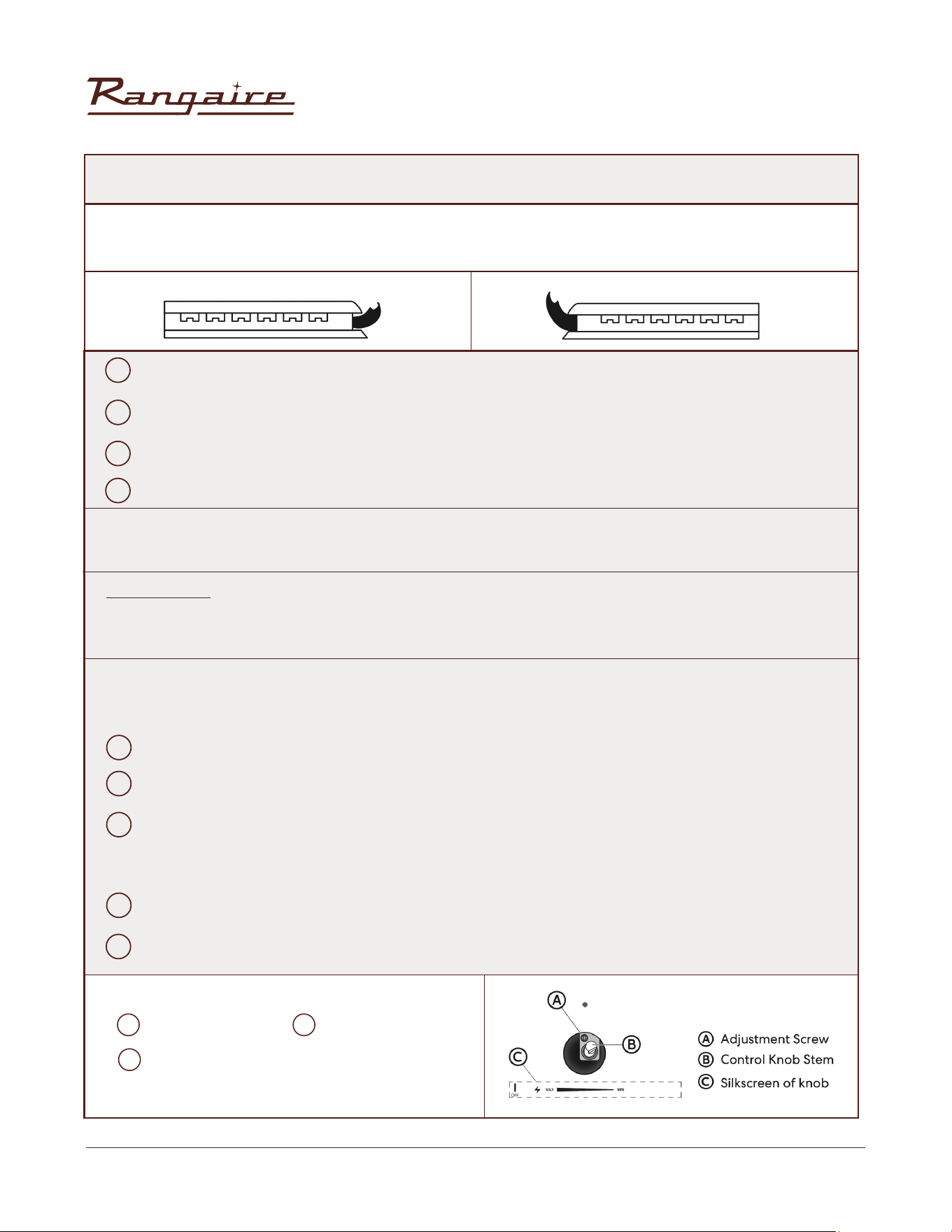

Check and adjust the height of top burner ames. The cooktop “low” burner ame should be a steady
blue ame approximately 1/4” (6 mm) high. Propane gas ames have a slightly yellow tip.
Low Flame
High Flame
ADJUST FLAME HEIGHT
1
2
3
4
Turn burner control knob to the “OFF” position.
Check that the range is plugged in. Check that the circuit breaker has not
tripped or the household fuse has not blown.
Check that the gas shutoff valves are set to the “open” position.
Check that burner caps are properly positioned on burner bases.
IMPORTANT
Adjustments must be made with two other burners in operation on a medium setting. This prevents
the upper row of ames from being set too low, resulting in the ame being extinguished when other
burners are turned on.
TO ADJUST STANDARD BURNER:
The ame can be adjusted using the adjustment screw in the center of the valve stem. The
valve stem is located directly behind the control knob.
1
4
5
2
3
Light the burner and turn the knob to the lowest setting (MIN).
Pull and remove the control knob.
Insert a small, at-blade screwdriver into the adjustment screw, and slowly turn the
screw until the ame appearance is correct.
• Open the valve more if the ames are too small or uttered.
• Close the valve more if the ames are too large.
Replace the control knob.
Test and check the ame by turning the control knob from the lowest to the
highest settings.
A
Adjustment Screw
Control Knob Stem
C
B
Silkscreen of knob
Repeat start-up. If a burner does not light at this point, turn the control knobs to the off position and
contact your dealer or authorized service company for assistance. Please reference the “Limited
Warranty” section to contact service.
INSTALLATION INSTRUCTIONS
24” Gas Range | RRG
241TS
22
Rangaire: Product Installation
LEVEL RANGE
For burners (on some models) with safety valve, make sure that the regulation obtained is sufcient to
maintain heating of the thermocouple. If it is not, increase the minimum ame.
For burners (on some models) with safety valve, make sure that the regulation obtained is sufcient to
maintain heating of the thermocouple. If it is not, increase the minimum ame.
NOTE:
NOTE:
ABNORMAL OPERATION
• Yellow tipping of the hob burner ame.
ANY OF THE FOLLOWING ARE CONSIDERED TO BE ANBORMAL OPERATION
AND MAY REQUIRE SERVICING:
IN CASE THE APPLIANCE FAILS TO OPERATE CORRECTLY, CONTACT THE
AUTHORIZED SERVICE PROVIDE IN YOUR AREA.
THE BURNERS REQUIRE NO REGULATION OF THE PRIMARY AIR.
• Sooting up of cooking utensils. • Burners not igniting properly.
• Burners failing to remain lit. • Burners extinguished by oven door.• Gas valves, which are difcult to turn.
IMPORTANT
Do not operate the range if its rear foot is not completely engaged in the anti-tip bracket. Never completely
remove the leveling legs or the range will not be secured to the anti-tip device properly.
1
2
Slide range into nal location, making sure rear leveling leg slides into the anti- tip
bracket. Leave a 1” (2.5 cm) gap between the back of the range and the back wall.
Check that the range is level by placing a level on the oven bottom. If needed, use a
wrench to adjust the height of the leveling legs until the range is level from side to side
and from front to back.
INSTALLATION INSTRUCTIONS
24” Gas Range | RRG
241TS
23
Rangaire: Product Installation
For burners (on some models) with safety valve, make sure that the regulation obtained is sufcient to
maintain heating of the thermocouple. If it is not, increase the minimum ame.
The range must be level for optimum cooking and baking performance.
NOTE:

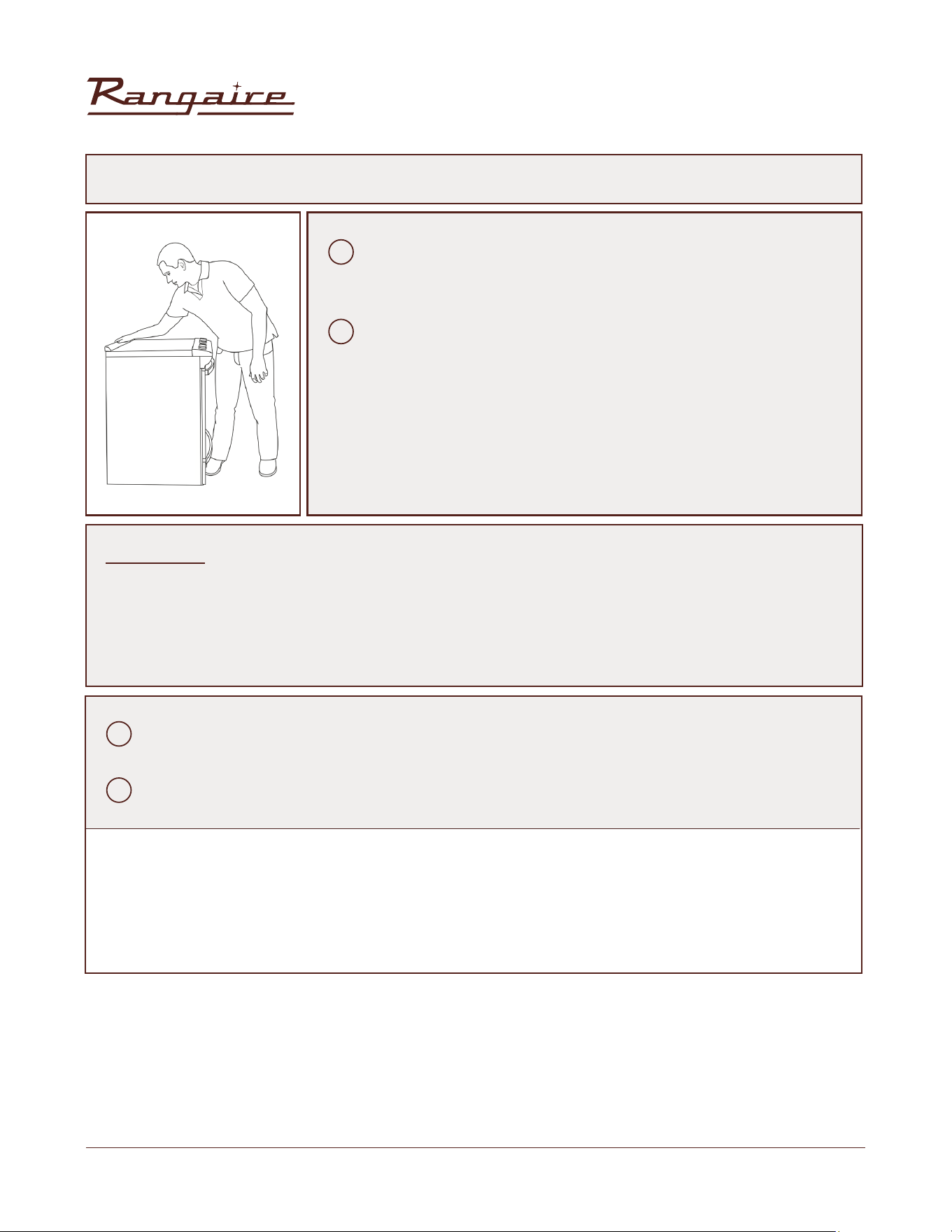

VERIFY ANTI-TIP BRACKET ENGAGEMENT
IMPORTANT
If the range is pulled away from the wall for any reason, always verify anti-tip bracket engagement again.
If there is a snapping or popping sound when tilting the range, the range may not be fully engaged in the
bracket. Check to see if there are obstructions keeping the range from sliding to the wall or keeping the range
foot from sliding into the bracket. Verify that the bracket is held securely in place by the mounting screws.
1
2
Place the outside of your foot against the bottom of the front
panel to keep the range from moving, and then grasp the
back of the range, as shown.
Slowly attempt to tilt the range forward.
• If you encounter immediate resistance, the range foot is
engaged in the anti-tip bracket. Range installation is completed.
• If the rear of the range lifts more than 1/2” (1.3 cm) off the
oor without resistance, stop tilting the range and lower it
gently back to the oor. The range foot is not engaged in the
anti-tip bracket. Proceed to Steps 3 and 4.
3
4
Slide the range forward, and verify that the anti-tip bracket is securely attached to the oor
or wall.
Slide range back so the rear range foot is inserted into the slot of the antitip bracket.
INSTALLATION INSTRUCTIONS
24” Gas Range | RRG
241TS
24
Rangaire: Product Installation
GAS CONVERSION
• A child or adult can tip the range and be killed.
• Install anti-tip bracket to oor or wall per installation instructions.
• Slide range back so rear range foot is engaged in the slot of the anti-tip
bracket.
• Re-engage the anti-tip bracket if range is moved.
• Do not operate the range without anti-tip bracket installed and engaged.
• Failure to follow these instructions can result in death or serious burns to
children and adults
TIP-OVER HAZARD
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualied person make sure gas pressure does not exceed pressure listed in
the “Gas Supply Requirement”
EXPLOSION HAZARD
GAS CONNECTION
Examples of a qualied person include:
• Licensed heating personnel
• Authorized gas company personnel
• Authorized service personnel
Failure to do so can result in death, explosion or re.
GAS CONVERSION
24” Gas Range | RRG
241TS
25
Rangaire: Product Installation
GAS CONVERSION
LP/PROPANE GAS CONVERSION
IMPORTANT
Gas conversions must be done by a qualied service technician in accordance with the manufacturer’s
instructions and all codes and requirements of the authority having jurisdiction. The qualied agency
performing this work assumes the gas conversion responsibility.
1
4
6
7
5
2
3
Turn manual shutoff valve to the closed position.
Unplug range or disconnect power.
Move the range out from the wall or installation space. Locate the gas pressure regulator on
the back of the range.
Unscrew the regulator cap with the wrench.
Turn the retainer pin upside down and place
it back into the regular cap. The regular cap
is now positioned for use with LP gas.
Screw and tighten the regulator cap
back into the gas pressure regulator with
the wrench.
Remove the retainer pin that is currently
positioned for use with natural gas.
Convert Gas Pressure Regulator
IMPORTANT: Do not remove the gas pressure regulator.
GAS CONVERSION
24” Gas Range | RRG
241TS
26
Rangaire: Product Installation
1
4
5
2
3
If installed, remove the burner grates.
Replace the natural gas orices with the correct LP gas orices from the LP conversion kits. LP
gas orices are stamped with a size. Refer to the following chart for correct LP gas orice ratings
and sizes for proper placement.
Replace the burner base, the burner caps, and the burner grates.
Remove the burner grates, burner caps,
and the burner base.
Remove the natural gas orices with a 9/32”
(7 mm) nut driver.
Convert Surface Burners
IMPORTANT: Keep and store the orices that have just been replaced in case of
re-installation with another gas.
GAS CONVERSION
24” Gas Range | RRG
241TS
27
Rangaire: Product Installation

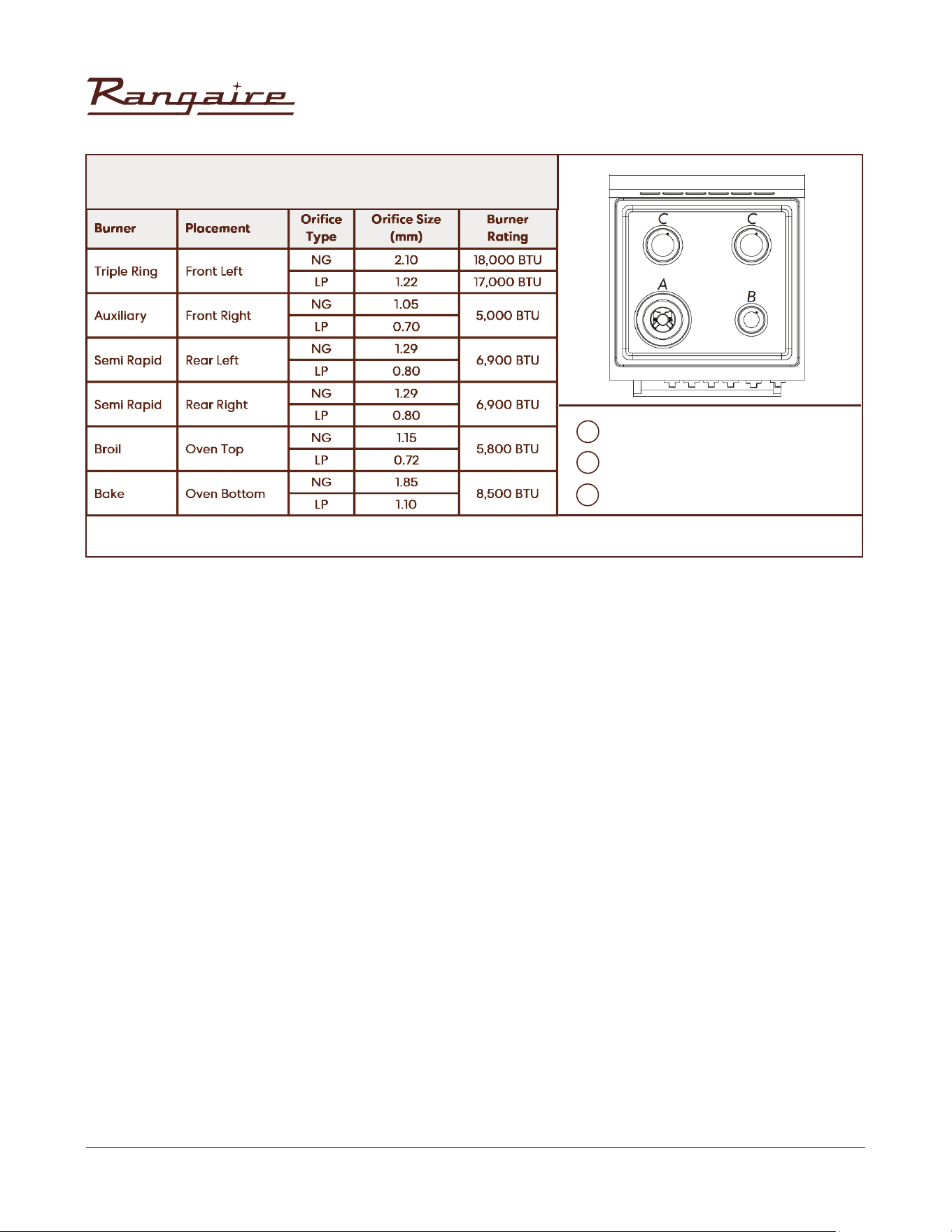

Orice Chart for Surface and Oven Burners
A
Triple Ring (X-Large)
Auxiliary (Small)
C
B
Semi Rapid (Medium)
Keep and store natural gas orices in case of re-installation with natural gas.
GAS CONVERSION
24” Gas Range | RRG
241TS
28
Rangaire: Product Installation
1
2
3
4
Remove Bake Burner Cover
Open your oven door and unscrew the back two screws of
bake burner cover. Remove the bake burner cover.
Remove Flame Spread Plate
Unscrew the four screws of the ame spread plate. Remove
the ame spread plate.
Slide Out Burner
Unscrew the front two screws holding the burner in place.
Slide out the burner up and towards oven door out of the
socket, careful not to sever or pull on the wire.
Change the Burner Orice
Move the burner carefully to gain access to the burner
orice, careful not to sever or pull on the wire. Proceed with
changing the orice.
Convert Oven Bake Burner
This product cannot be converted to Natural gas or LP gas by adjusting or tightening the oven
orices. The orices must be replaced.
GAS CONVERSION
24” Gas Range | RRG
241TS
29
Rangaire: Product Installation
1
2
3

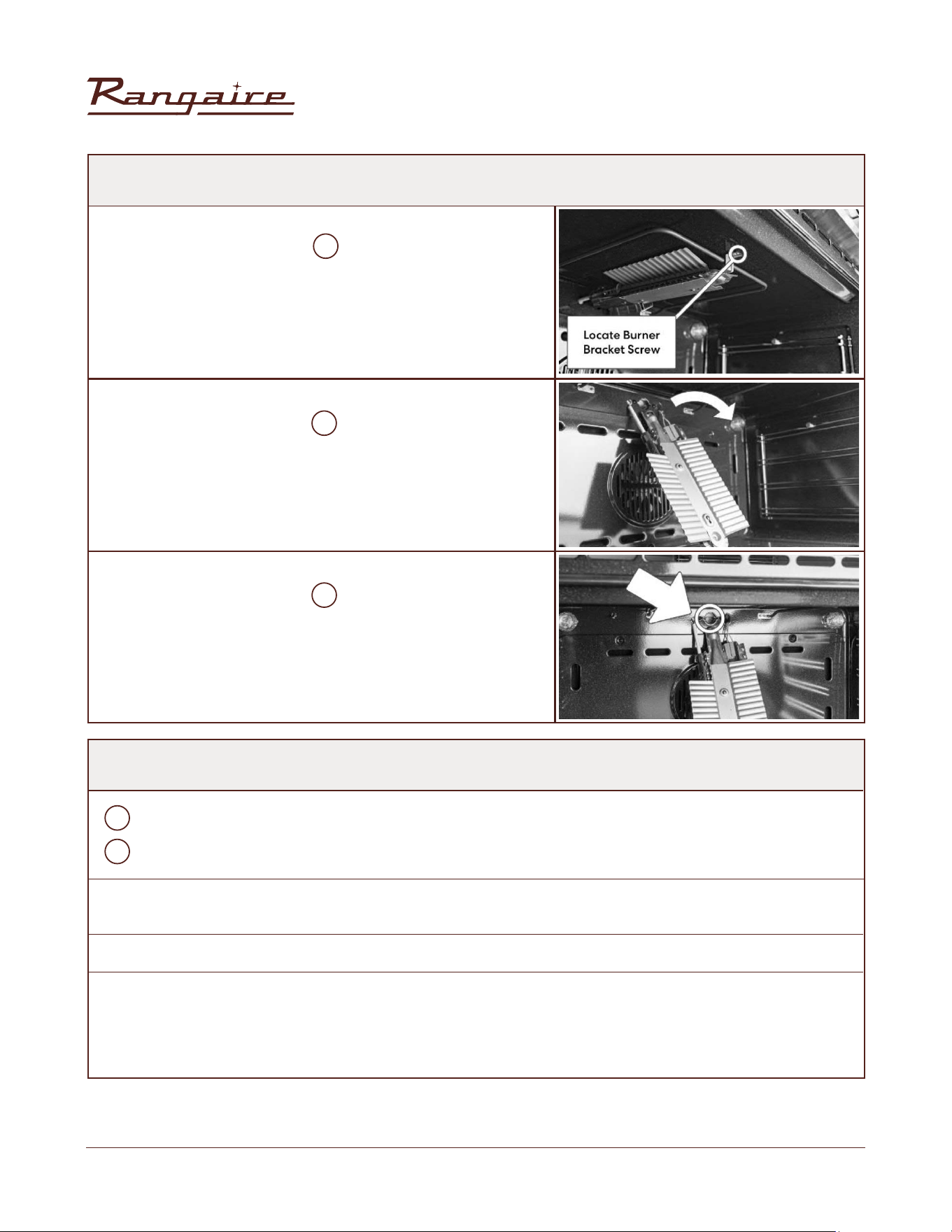

Unscrew Front Bracket
Locate the bracket at the front of the broiler.
Remove the screw.
Remove the Burner
Carefully slide the burner forward and out of the socket,
without severing or damaging the wire attached. Carefully
lay the burner down as shown in the image to the right.
Change the Burner Orice
With the burner out of the way look for the orice as shown.
Continue with changing the orice.
Convert Oven Broil Burner
1
2
Open shutoff valve in the gas supply line.
Plug in cooktop or reconnect power.
Complete Gas Conversion
• Refer to “Gas Connection” section in the “Installation Instructions” section for proper connection of the
range to the gas supply.
• Refer to “Complete Connection” section to complete this procedure.
• Refer to the “Adjust Flame Height” section for burner ame adjustments.
IMPORTANT: Do not remove the gas pressure regulator.
You may have to adjust the low setting for each cooktop burner.
GAS CONVERSION
24” Gas Range | RRG
241TS
30
Rangaire: Product Installation
Correct Disposal of this Product
This marking indicates that this appliance should not
be disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable resuse of material resources.
24” Gas Range | RRG
241TS
31
Rangaire: Product Installation
To reduce the risk of re, electrical shock, injury to persons, or damage when using the range, follow basic
precautions, including the following:
• WARNING: TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST
BE SECURED BY PROPERLY INSTALLED ANTI-
TIP DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, SLIDE RANGE
COMPLETELY FORWARD, LOOK FOR ANTI-
TIP BRACKET SECURELY ATTACHED TO
THE FLOOR OR WALL, AND SLIDE RANGE
BACK SO THE REAR RANGE FOOT IS UNDER
ANTITIP BRACKET.
• WARNING: NEVER use this appliance as a
space heater to heat or warm the room.
Doing so may result in carbon monoxide
poisoning and overheating of the oven.
• WARNING: NEVER cover any slots, holes
or passages in the oven bottom or cover
an entire rack with materials such as
aluminum foil. Doing so blocks airow
through the oven and may cause
carbon monoxide poisoning. Aluminum
foil linings may also trap heat, causing a
re hazard.
• CAUTION: Do not store items of interest
to children in cabinets above a range or
on the back guard of a range – children
climbing on the range to reach items
could be seriously injured.
• Do Not Leave Children Alone – Children
should not be left alone or unattended in
area where range is in use. They should
never be allowed to sit or stand on any
part of the range.
• Wear Proper Apparel – Loosetting or
hanging garments should never be worn
while using the range.
• User Servicing – Do not repair or replace
any part of the range unless specically
recommended in the manual. All
other servicing should be referred to a
qualied technician.
• Storage in or on Range – Flammable
materials should not be stored in an
oven or near surface units.
• This appliance is not intended for
storage.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
24” Gas Range | RRG
241TS
32
Rangaire: Product Installation
• Do Not Use Water on Grease Fires
– Smother re or ame or use dry
chemical or foam-type extinguisher.
• Use Only Dry Potholders – Moist or damp
potholders on hot surfaces may result in
burns from steam. Do not let potholder
touch hot heating elements. Do not use
a towel or other bulky cloth.
• Never Leave Surface Units Unattended
at High Heat Settings – Boilover causes
smoking and greasy spillovers that may
ignite.
• Glazed Cooking Utensils – Only certain
types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils
are suitable for rangetop service without
breaking due to the sudden change in
temperature.
• Utensil Handles Should Be Turned Inward
and Not Extend Over Adjacent Surface
Units – To reduce the risk of burns,
ignition of ammable materials, and
spillage due to unintentional contact
with the utensil, the handle of a utensil
should be positioned so that it is turned
inward, and does not extend over
adjacent surface units.
• Disconnect power before servicing.
• Proper Installation – The appliance,
when installed, must be electrically
grounded in accordance with local
codes, or in the absence of local codes,
with the National Electrical Code, ANSI/
NFPA 70 or the Canadian Electrical
Code, CSA C22.1-02. In Canada, the
appliance must be electrically grounded
in accordance with Canadian Electrical
Code. Be sure your appliance is properly
installed and grounded by a qualied
technician.
• Injuries may result from misuse of
appliance doors or drawers such as
stepping, leaning, or sitting on the doors
or drawers.
• Maintenance – Keep range area clear
and free from combustible materials,
gasoline, and other ammable vapors
and liquids.
• Do not let cooking grease or other
ammable materials accumulate in or
near the range. Grease in the oven or on
the cooktop may ignite.
• Top burner ame size should be
adjusted so it does not extend beyond
the edge of the cooking utensil.
This instruction is based on safety
considerations.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
24” Gas Range | RRG
241TS
33
Rangaire: Product Installation
• Do not use replacement parts that
have not been recommended by the
manufacturer (e.g. parts made at home
using a 3D printer).
• Clean Cooktop With Caution – If a wet
sponge or cloth is used to wipe spills
on a hot cooking area, be careful to
avoid steam burn. Some cleaners can
produce noxious fumes if applied to a
hot surface.
• Use Care When Opening Door – Let hot
air or steam escape before removing or
replacing food.
• Do Not Heat Unopened Food Containers
– Build-up of pressure may cause
container to burst and result in injury.
• Keep Oven Vent Ducts Unobstructed.
• Never broil with door open. Open-
door broiling is not permitted due to
overheating of control knobs.
• Placement of Oven Racks – Always
place oven racks in desired location
while oven is cool. If rack must be moved
while oven is hot, do not let potholder
contact hot heating element in oven.
• Care must be taken to prevent
aluminum foil and meat probes from
contacting heating elements.
• DO NOT TOUCH HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN – Heating
elements may be hot even though they
are dark in color. Interior surfaces of
an oven become hot enough to cause
burns. During and after use, do not
touch, or let clothing or other ammable
materials contact heating elements
or interior surfaces of oven until they
have had sufcient time to cool. Other
surfaces of the appliance may become
hot enough to cause burns – among
these surfaces are cooktop, burners,
grates, oven vent openings and surfaces
near these openings, oven doors,
windows of oven doors, and crevices
around the oven doors.
• Top burner ame size should be
adjusted so it does not extend beyond
the edge of the cooking utensil.
• Have the installer show you the location
of the range gas shutoff valve and how
to turn it off if necessary.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
24” Gas Range | RRG
241TS
34
Rangaire: Product Installation
• Proper Disposal of Your Appliance –
Dispose of or recycle your appliance
in accordance with Federal and
Local Regulations. Contact your local
authorities for the environmentally safe
disposal or recycling of your appliance.
For units with ventilating hood
• Clean Ventilating Hoods Frequently
– Grease should not be allowed to
accumulate on hood or lter.
• When ambé cooking or cooking with
high heat, always turn the fan on.
For self-cleaning ranges
• Do Not Clean Door Gasket – The door
gasket is essential for a good seal. Care
should be taken not to rub, damage, or
move the gasket.
• Do Not Use Oven Cleaners – No
commercial oven cleaner or oven liner
protective coating of any kind should be
used in or around any part of the oven.
• Clean Only Parts Listed in Manual.
• Before Self-Cleaning the Oven – Remove
broiler pan and other utensils. Wipe off
all excessive spillage before initiating the
cleaning cycle.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
24” Gas Range | RRG
241TS
35
Rangaire: Product Installation

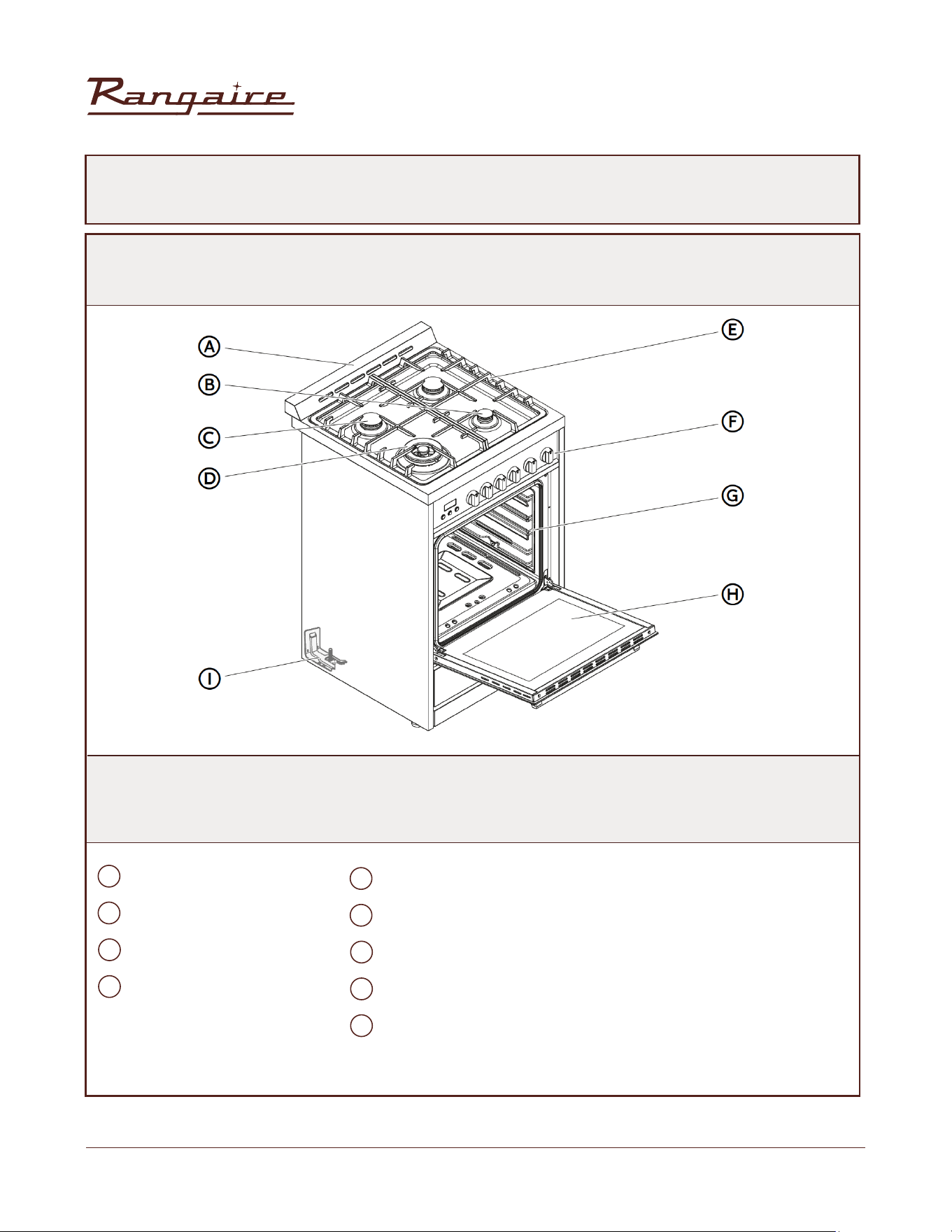

OVERVIEW
This illustration covers several different models. The range you have purchased may
have some or all of the items listed. The locations and appearances of the features
shown here may not match those of your model.
A
E
C
G
D
H
I
B
F
RANGE LAYOUT
Backsplash
Surface burner grate
Auxiliary burner
Control panel
Semi-rapid burner
Oven rack positions
Triple ring burner
Oven door window
Anti-tip bracket
24” Gas Range | RRG
241TS
36
Rangaire: Product Installation

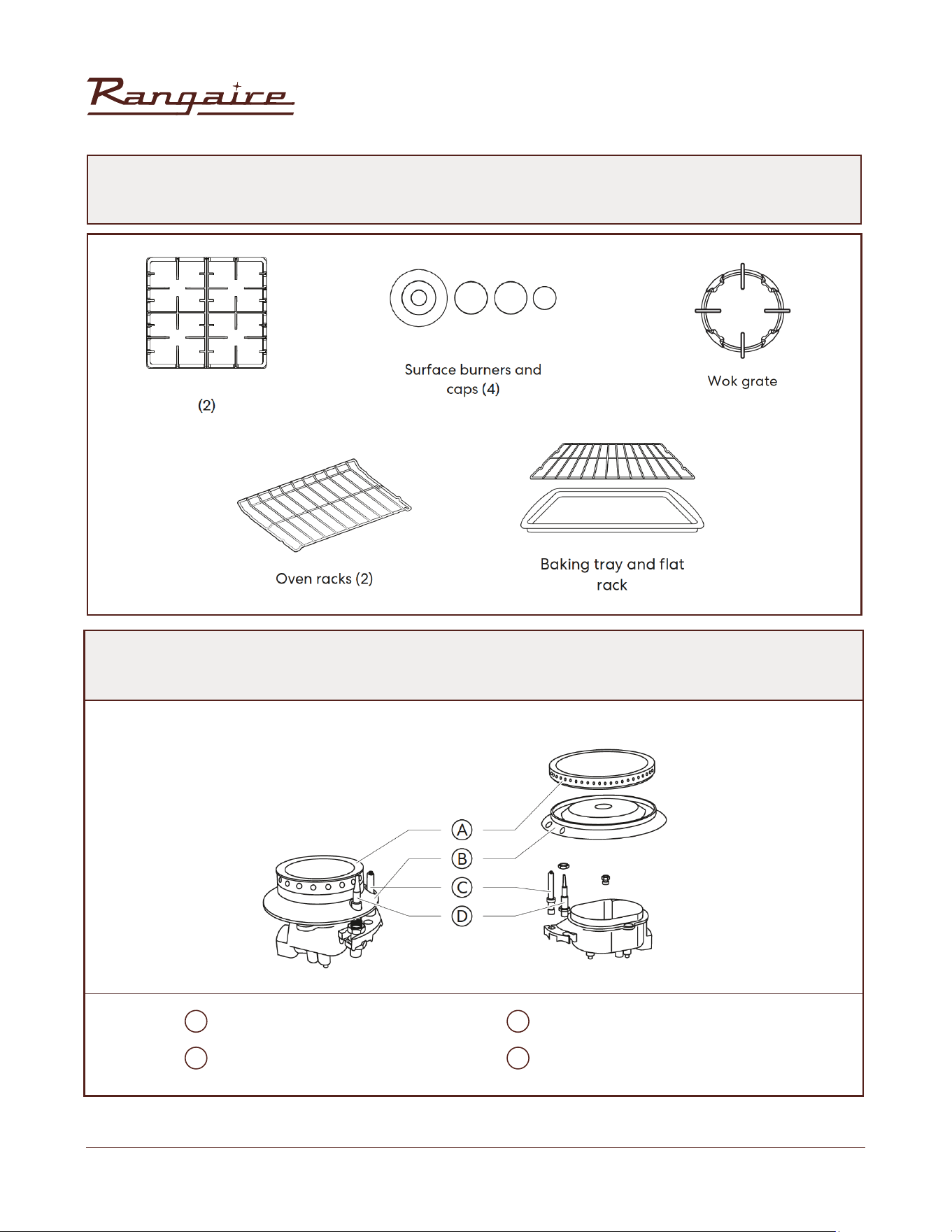

BURNER LAYOUT
WHAT’S INCLUDED
A C
B D
Burner cap Electrode
Burner head Flame failure safety device
(on older models)
24” Gas Range | RRG
241TS
37
Rangaire: Product Installation

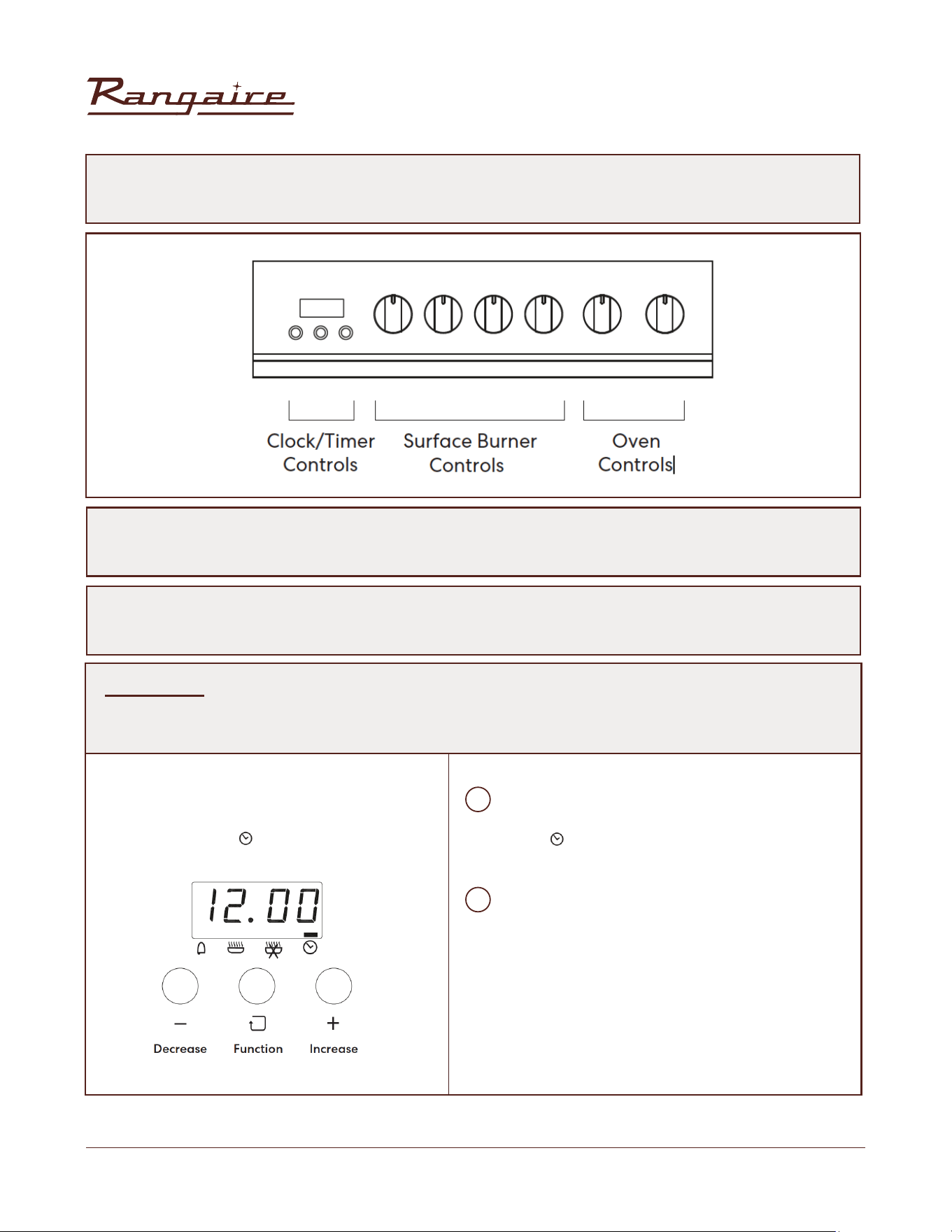

TO SET THE TIME OF DAY
When the power is connected or after a power
outage, the screen will display 12.00 and the
indicator bar above “Set Clock” will blink.
If the clock was previously set, press the function
button repeatedly until the indicator bar blinks
above “Set Clock”.
Press or hold the + or - button to adjust the
clock. The clock will be conrmed automatically
if you leave the correct time there for 5 seconds
without pressing any buttons, and the indicator
bar will become solid. You may also press the
function button to conrm the clock manually
while the indicator bar is blinking.
IMPORTANT
Clock must be set in order for the timed oven functions to work.
Your model has a digital display clock with 3 control buttons.
CONTROL PANEL
CLOCK & TIMER
SETTING THE CLOCK AND TIMER
1
2
24” Gas Range | RRG
241TS
38
Rangaire: Product Installation
NOTE:
When adjusting the time, idling for 5 seconds without pressing any buttons will automatically conrm the
current time on the display.
The digital countdown timer can be set up to 11 hours and 59 minutes maximum.
To view and modify the countdown time remaining, press the function button once to select “Timer Set”
again and use the + or - button to adjust the current timer as needed; To cancel the timer, follow the steps
above to set the length of time to 0.00.
TO SET THE TIMER
Press the function button repeatedly until the
indicator bar blinks above “Timer Set”.
Press or hold the + or – button to set the length of
time, then press the function button or wait for 5
seconds to conrm.
Once conrmed, the current time will be shown and
the countdown will begin. When the countdown is
nished, press any button to stop the beeping.
1
2
3
TIMED COOKING
• Do not let food sit in oven more than one hour before or after cooking.
• Doing so can result in food poisoning or sickness.
• Foods that can easily spoil such as milk, eggs, sh, meat or poultry, should be chilled in the
refrigerator rst. Even when chilled, they should not stand in the oven for more than 1 hour before
cooking begins, and should be removed promptly when nished cooking.
FOOD POISONING HAZARD
24” Gas Range | RRG
241TS
39
Rangaire: Product Installation

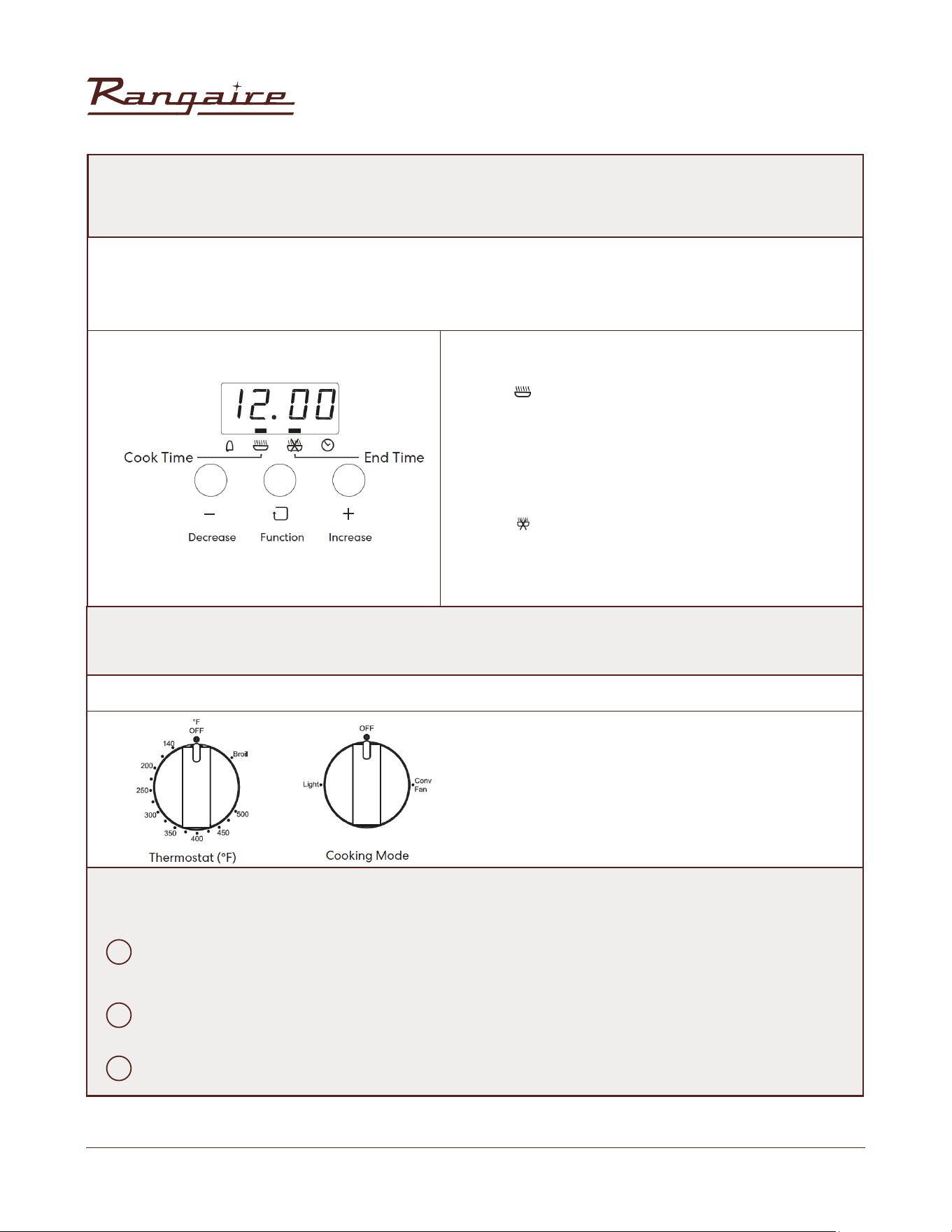

• TO SET THE END TIME:
Press the function button until the bar ashes
above “End Time”. Then use the + or – button to set
the shut off time of day, and press the function button
or wait for 5 seconds to conrm.
Set Cook Time Only:
Cook for the set length of time from
now, then shut off the oven automatically.
NOTE:
• Clock must be set in order for the timed oven functions to work.
• Only one of Cook Time and End Time can be used at a time.
• TO SET THE COOK TIME:
Press the function button until the bar ashes
above “Cook Time”. Then use the + or – button to
set the length of cooking time (maximum of 10 hours),
and press the function button or wait for 5 seconds to
conrm.
Start/Continue baking at 350°F for 50 minutes and nish cooking at 6:00.
Press the function button repeatedly until the indicator bar blink above “Cook Time”, then set the
length of cooking time to 0.50 and conrm. OR Press the function button repeatedly until the indicator
bar blink above “End Time”, then set the shut off time of day to 6.00 and conrm.
Turn/Keep the thermostat knob at 350°. Once the clock time is returned on the display, the indicator
bar above “Cook Time” or “End Time” will be blinking, indicating a schedule is set.
At 6:00 when the cooking is nished, the oven will shut down automatically. Press any button to stop
the beeping, and turn the oven knobs to the OFF position.
The appearance of the knobs may vary from what is shown in the manual.
Turn the oven Thermostat knob and Cooking-Mode
knobs to set the temperature and oven mode. The oven
will turn on, and will automatically shut off according to
the time set. When the shut off time is reached, press
any button to stop the beeping and return the oven
knobs to the OFF position.
SETTING THE COOKING METHODS
Set End Time Only:
Shut off the oven automatically at the set
time of day.
EXAMPLE:
1
2
3
24” Gas Range | RRG
241TS
40
Rangaire: Product Installation
NOTE:
For models with a ame failure safety device - Once the ame is lit, hold the knob depressed for about 3-4
seconds until the device keeps the burner automatically lit. If the burner fails to ignite, wait one minute for the
gas to dissipate before attempting to reignite.
Read the instructions before installing or using this appliance.
• In case of prolonged power failure, the surface burners can be lit manually. Hold a lit match near a burner
and turn knob counterclockwise until the indicator is aligned with MAX. After the burner is lit, turn knob to
desired setting.
• The electric igniter must not be actuated for longer than 15 seconds. Should the burner not light, or should
the burner be unintentionally turned off, immediately close the burner, and wait at least 1 minute before
repeating. Once ignited, adjust the ame as desired.
• In the case of unintentional ame extinguishing, the safety valve intervenes by shutting off the gas to
the burners. For lower gas consumption and a better result, use saucepans with a diameter matching
the diameter of the burner, to avoid the ame coming up around the sides of the saucepan. See the
Container Table. Use only atbottomed pans.
• As soon as liquid starts to boil, turn the ame down to a level sufcient to maintain boiling.
• This appliance shall be installed in accordance with the regulations in force and only used in a well-
ventilated space.
• The use of a gas-cooking appliance results in the production of heat and moisture in the room in which it is
installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical
ventilation device (mechanical extractor hood).
• Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a
window, or more effective ventilation, for example increasing the level of mechanical ventilation
where present.
To ignite a burner, push down on the burner knob and rotate it counterclockwise until the knob indicator is
aligned with the ignite icon. Release the knob and adjust the ame intensity by further rotating the knob
counterclockwise from MAX (maximum) to MIN (minimum).
To turn off the burner, rotate the knob clockwise until the indicator on the knob is aligned with OFF.
COOKTOP USE
IGNITION AND OPERATION OF THE BURNERS
POWER FAILURE
24” Gas Range | RRG
241TS
41
Rangaire: Product Installation

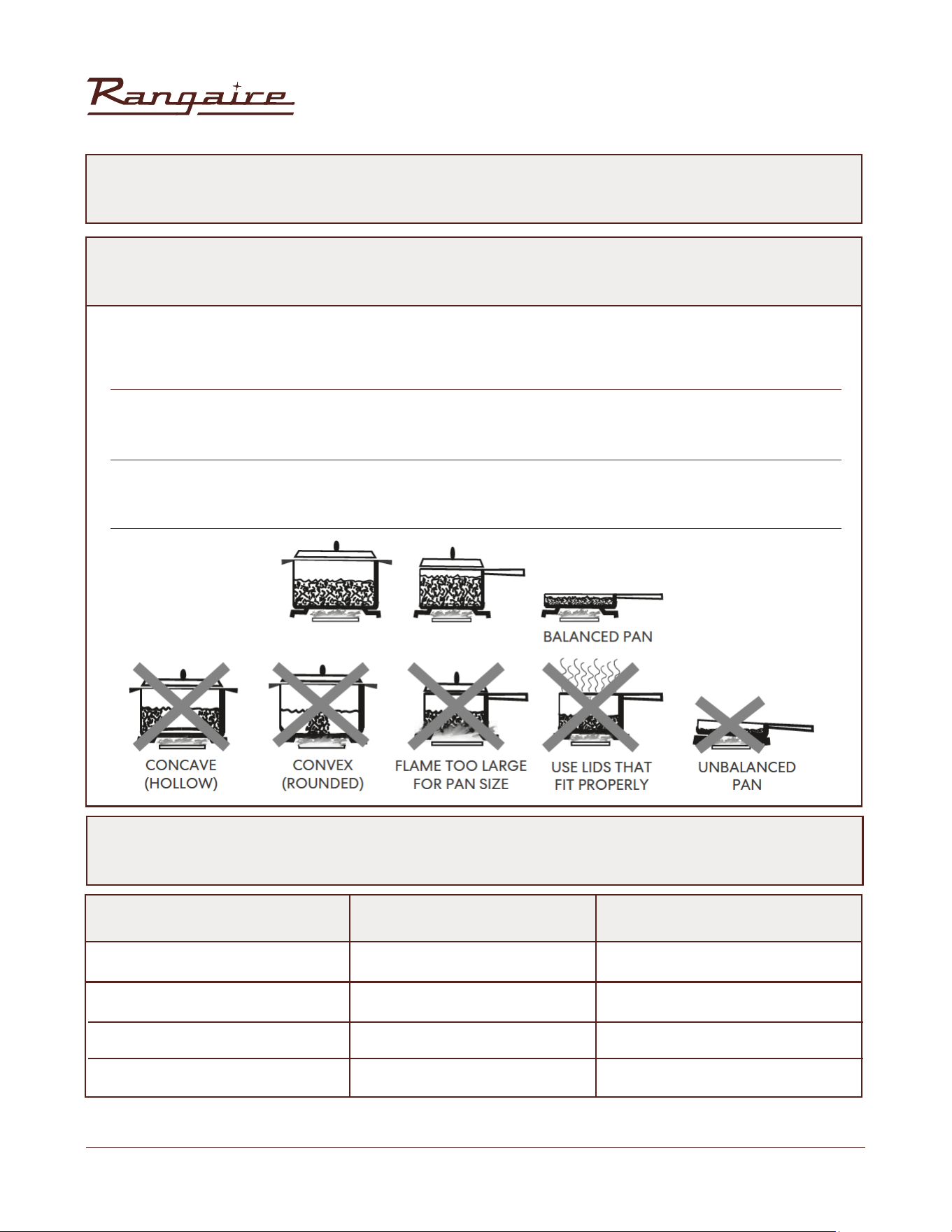

COOKWARE
MATCH PAN DIAMETER TO FLAME SIZE
CONTAINER TABLE
The ame should be the same size as the bottom of the pan or smaller. Do not use small pans with high ame
settings as the ames can lick up the sides of the pan. Oversized pans that span two burners are placed front
to rear, not side to side.
USE BALANCED PANS -
Pans must sit level on the cooktop grate without rocking. Center the pan over the burner.
USE A LID THAT FITS PROPERLY -
A well-tting lid helps shorten the cooking time. Flat, heavy bottom pans provide even heat and stability.
BURNER MIN SAUCEPAN MAX SAUCEPAN
3.5” (9.0cm)
5.1” (13cm)
5.9” (15cm)
8.3” (21cm)
6.3” (16cm)
7.1” (18cm)
10.2” (26cm)
10.2” (26cm)
Auxiliary
Semi-rapid
Rapid
Triple Ring
24” Gas Range | RRG
241TS
42
Rangaire: Product Installation

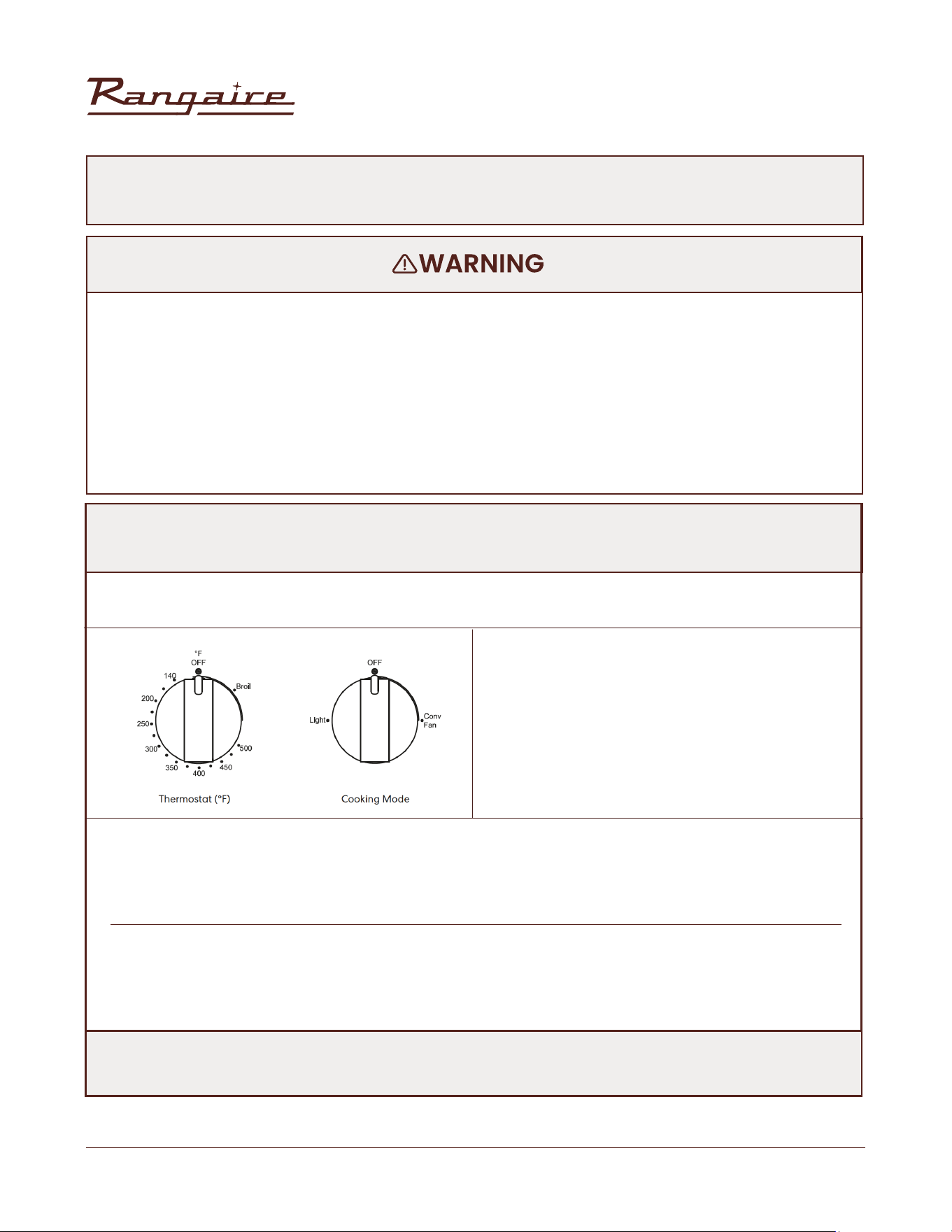

OVEN USE
OVEN CONTROLS
NEVER cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such
as aluminum foil. Doing so blocks airow through the oven and may cause carbon monoxide poisoning.
Aluminum foil linings may also trap heat, causing a re hazard.
Reset all controls to the OFF position after using a programmable timing operation. No attempt should
be made to operate the appliance during power failure.
An air curtain or other overhead range hood, which operates by blowing a downward airow onto a
range shall not be used in conjunction with a gas range.
The Thermostat knob and Cooking-mode knobs are used together to select Oven Modes. The
appearance of the knobs may vary from what is shown in the manual.
Bake
THERMOSTAT RANGE: 140°F (60°C) TO MAX 500°F (260°C)
The Bake mode uses heat from the lower element to cook food. When using this mode to prepare baked
goods such as cakes, cookies and pastries, always preheat the oven rst and place food centrally near
the middle racks.
Broil
THERMOSTAT RANGE: Broil
The Broil mode uses intense heat from the upper element to sear foods. Ideal for toasting, melting
cheese, browning and searing surface. Food should be placed near the upper racks, and should not be
cooked for too long on each side of the food. It is not necessary to preheat when using this mode.
PUSH IN THERMOSTAT KNOB
Push in on the Thermostat knob, and then turn
the knob to any baking temperature or broil to
automatically ignite the bake burner or the broil
burner.
NOTE:
Except for timed cooking, the oven will remain on until the Thermostat knob is returned to the OFF position.
24” Gas Range | RRG
241TS
43
Rangaire: Product Installation
COOKING MODE KNOBS
TIPS AND TECHNIQUES
Light
The Light mode turns on oven light inside the oven.
Conv Fan (Convection Fan)
The Convection Fan mode uses air movement from the fan to improve heat distribution and enhance
cooking evenness within the oven. Cooking times may be slightly longer for multiple racks than what
would be expected for a single rack.
Bake
Baking is cooking with heated air. Both upper and lower elements in the oven are used to heat the air
but no fan is used to circulate the heat. Follow the recipe or convenience food directions for baking
temperature, time and rack position. Baking time will vary with the temperature of ingredients and the
size, shape and nish of the baking utensil.
General Guidelines
• For best results, bake food on a single rack with at least 1” - 1½” (2.5 - 3 cm) space between utensils
and oven walls.
• Use one rack when selecting the bake mode.
• Check for doneness at the minimum time.
• Use metal bake ware (with or without a non-stick nish), heatproof glass, glass-ceramic, pottery or
other utensils suitable for the oven.
• When using heatproof glass, reduce temperature by 25°F (15°C) from recommended temperature.
• Use baking sheets with or without sides or jelly roll pans.
• Dark metal pans or nonstick coatings will cook faster with more browning. Insulated bake ware will
slightly lengthen the cooking time for most foods.
• Do not use aluminum foil or disposable aluminum trays to line any part of the oven. Foil is an
excellent heat insulator and heat will be trapped beneath it. This will alter the cooking performance
and can damage the nish of the oven.
• Avoid using the opened door as a shelf to place pans.
• See Troubleshooting for tips to Solving Baking and Roasting Problems.
NOTE:
The convection fan turns on for Bake mode only.
24” Gas Range | RRG
241TS
44
Rangaire: Product Installation
BAKE CHART
FOOD ITEM
TEMP. °F (°C)
(PREHEATED OVEN)
RACK POSITION TIME (MIN)
2
2
2
2
2
2
2
1
2
2
1
2
2
2
350 (175)
350-375 (175-190)
375 (190)
400-450 (205-235)
375-400 (190-205)
350 (175)
350-375 (175-190)
375-400 (190-205)
475 (246)
375 (190)
350 (175)
350 (175)
375-400 (190-205)
425 (220)
19-22
8-10
18-22
23-26
45-50
40-45
8-13
12-15
15-18
68-78
35-39
29-36
7-9
15-19
Cake
Cookies
Breads
Pizza
Pie
Cupcakes
Sugar
Yeast bread loaf, 9x5
Frozen
2 crust, fresh, 9"
Bundt Cake
Bundt Cake
Yeast rolls
Fresh
2 crust, frozen fruit, 9"
Angel Food
Angel Food
Biscuits
Mufns
24” Gas Range | RRG
241TS
45
Rangaire: Product Installation
RANGE CARE
CLEANING
EXTERIOR PORCELAIN ENAMEL SURFACES
Food spills containing acids, such as vinegar and tomato, should be cleaned as soon as the entire
appliance is cool. These spills may affect the nish.
Cleaning Method:
• Glass cleaner, mild liquid cleaner or nonabrasive scrubbing pad: Gently clean around the model and
serial number plate because scrubbing may remove numbers.
EXTERIOR STAINLESS STEEL
Rub in direction of grain to avoid damaging.
Cleaning Methods:
• Liquid detergent or all-purpose cleaner: Rinse well with clean water and dry with soft, lint-free cloth.
• Stainless Steel Cleaner and Polish. Vinegar for hard water spots.
OVEN DOOR EXTERIOR
Cleaning Method:
• Glass cleaner and paper towels or nonabrasive plastic scrubbing pad: Apply glass cleaner to soft
cloth or sponge, not directly on panel.
IMPORTANT
Before cleaning, make sure all controls are off and the oven and cooktop are cool. Always follow label
instructions on cleaning products. Soap, water and a soft cloth or sponge are suggested rst unless otherwise
noted. Do not use abrasive cleaning products.
NOTE:
Do not use soap-lled scouring pads, abrasive cleaners, Cooktop Polishing Cream, steel-wool pads, gritty
washcloths or some paper towels. Damage may occur, even with one-time or limited use.
24” Gas Range | RRG
241TS
46
Rangaire: Product Installation
PORCELAIN-COATED GRATES AND CAPS
• Clean as soon as cooktop, grates and caps are cool.
• Food spills containing acids, such as vinegar and tomato, should be cleaned as soon as the cooktop
grates and caps are cool. These spills may affect the nish.
• To avoid chipping, do not bang grates and caps against each other or hard surfaces such as cast
iron cookware.
• Do not reassemble caps on burners while wet.
Cleaning Method:
• Nonabrasive plastic scrubbing pad and mildly abrasive cleanser.
PORCELAIN-COATED GRATES AND CAPS
• Pull knobs straight away from control panel to remove.
• When replacing knobs, make sure knobs are in the Off position.
Cleaning Method:
• Soap and water or dishwasher.
BURNER SPREADER
Cleaning Methods:
• Wash the burner spreader frequently with boiling water and detergent to remove any deposits which
could block the ame outlet.
• Before reinstalling, dry the burner spreader thoroughly so the burner will ignite properly.
CONTROL PANEL
Cleaning Methods:
• Glass cleaner and soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on
panel.
NOTE:
Do not use steel wool, abrasive cleansers or oven cleaner. Do not soak knobs.
NOTE:
Do not use abrasive cleaners, steel-wool pads, gritty washcloths or some paper towels. Damage may occur.
24” Gas Range | RRG
241TS
47
Rangaire: Product Installation
OPEN CAVITY
• Food spills should be cleaned when oven cools. At high temperatures, foods react with porcelain, so
staining, etching, pitting or faint white spots can result.
Cleaning Method:
• Mild detergent and warm water.
2-PIECE BAKING TRAY OR BROILER PAN
• Mildly abrasive cleanser: Scrub with wet scouring pad.
• Solution of ½ cup (125 mL) ammonia to 1 gal. (3.75 L) water: Soak for 20 minutes, and then scrub with
scouring or steel-wool pad.
• Oven cleaner: Follow product label instructions.
Cleaning Method Porcelain enamel only, not chrome:
• Dishwasher.
OVEN RACKS AND ROASTING RACKS
Cleaning Methods:
• Steel-wool pad
NOTE:
Do not use oven cleaners.
24” Gas Range | RRG
241TS
48
Rangaire: Product Installation
TROUBLESHOOTING
BAKING PROBLEMS
First try the solutions suggested here to possibly avoid the
cost of a service call.
With any oven setting poor results can occur for many reasons other than a malfunction of the oven.
Check the chart below for causes of the most common problems. Since the size, shape and material of
baking utensils directly affect the baking results, the best solution may be to replace old baking utensils
that have darkened and warped with age and use.
PROBLEM CAUSE
Food browns unevenly
Food too brown on
bottom
Food is dry or has
shrunk excessively
Food is baking or
roasting too slowly
Pie crusts do not
brown on bottom or
crust is soggy
Cakes pale, at and
may not be done
inside
Cakes high in middle
with crack on top
Pie crust edges too
brown
• Oven not preheated
• Aluminum foil on oven rack or oven bottom
• Baking utensil too large for recipe
• Pans touching each other or oven walls
• Oven not preheated
• Using glass, dull or darkened metal pans
• Incorrect rack position
• Pans touching each other or oven walls
• Oven temperature too high
• Baking time too long
• Oven door opened frequently
• Pan size too large
• Oven temperature too low
• Oven not preheated
• Oven door opened frequently
• Tightly sealed with aluminum foil
• Pan size too small
• Baking time not long enough
• Using shiny steel pans
• Incorrect rack position
• Oven temperature is too low
• Oven temperature too low
• Incorrect baking time
• Cake tested too soon
• Oven door opened too often
• Pan size may be too large
• Oven temperature too high
• Baking time too long
• Pans touching each other or oven walls
• Incorrect rack position
• Pan size too small
• Pan size may be too large
• Oven temperature too high
• Edges of crust too thin
24” Gas Range | RRG
241TS
49
Rangaire: Product Installation
COOKTOP PROBLEMS
PROBLEM POSSIBLE CAUSE SOLUTION
Burner will not ignite
Burner will not operate
Burner Flames
are uneven, yellow
and/ or noisy
Burner ame is too
high or too low
Burner makes popping
noises
Excessive heat
around cookware
on cooktop
Cooking results
are not what expected
There is no power to
the range.
Make sure electrical plug is plugged into a live,
properly grounded outlet. Replace the fuse or reset
the circuit breaker.
Turn on any one of the surface burner knobs to
release air from the gas lines.
Push in knob before turning to a setting.
Clean burner port opening using a stiff, nylon
toothbrush or a straightened paper clip.
Clean burner port opening using a stiff, nylon
toothbrush or a straightened paper clip.
Place burner caps so that the alignment pins are
properly aligned with the slots.
The range should be converted to LP gas by a
qualied technician.
Ensure the range is set for the correct gas type. It is
factory set for natural gas. If connecting to LP gas,
the burners should be converted to LP gas with the
orice kit supplied and the pressure regulator
converted to the LP gas setting by a qualied
technician.
Allow the burner to dry before using.
Make sure the pressure regulator is installed
correctly and the gas line pressure is correct. See
Installation Instructions.
Place burner caps so that the alignment pins are
properly aligned with the slots.
Use cookware with a bottom surface approximately
the same size as the cooking area and burner.
Cookware should not extend more than 1” (2.5 cm)
outside the cooking area. Adjust the ame so that it
does not come up around the cookware.
See the “Cookware” section.
See the “Controls” section.
First time use. Air still in
the gas line.
Control knob is not set
correctly.
The burner port is
clogged.
Burner port(s) are
clogged.
Burner caps are not
positioned properly.
Propane gas is being
used.
Cooktop gas supply
is not correct.
The gas pressure is not
correct.
The burner is wet.
The burner cap or
gas spreader is not
positioned correctly.
The cookware is not
the proper size for the
burner.
Using incorrect
cookware.
The control knob is not
set to the proper heat
level.
24” Gas Range | RRG
241TS
50
Rangaire: Product Installation
OVEN PROBLEMS
PROBLEM POSSIBLE CAUSE SOLUTION
Oven is not heating
Oven is not cooking
evenly
Oven display stays off
Cooling fan continues
to run after oven is
turned off
Oven light is not
working properly
Oven light stays on
Cannot remove lens
cover
Clock and timer are
not working properly
Excessive Moisture
Porcelain Chips
No power to the range.
Check the circuit breaker or fuse box to your house.
Make sure there is proper electrical power to the
oven.
Refer to cook charts for recommended rack position.
Always reduce recipe temperature by 25 °F (15 °C)
when baking with Convention Bake mode.
Turn off power at the main power supply (fuse or
breaker box). Turn breaker back on. If condition
persists, call for service.
The fan will turn off automatically when the
electronic components have cooled sufciently.
Reinsert or replace the light bulb. Touching the bulb
with ngers may cause the bulb to burn out.
Check for obstruction in oven door. Check to see if
hinge is bent or door switch broken.
Wipe lens cover area with a clean, dry towel prior to
attempting to remove the lens cover.
Check the circuit breaker or fuse box to your house.
Make sure there is proper electrical power to the
oven.
When using bake mode, preheat the oven rst.
Convection Bake and Convection Roast will
eliminate any moisture in the oven.
When removing and replacing oven racks, always
tilt racks upward and do not force them to avoid
chipping the porcelain.
Make sure the oven temperature has
been selected.
Oven control not
turned on.
Not using the correct
bake ware or oven
rack position.
Power interruption.
The electronic
components have not
yet cooled sufciently.
Light bulb loose or
burned-out.
Door is not closing
completely.
Soil build-up around
the lens cover.
No power to the range.
Porcelain interior is
chipped by oven racks
24” Gas Range | RRG
241TS
51
Rangaire: Product Installation
24” Gas Range | RRG
241TS
52
Rangaire: Product Installation
Correct Disposal of this Product
This marking indicates that this appliance should not
be disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable resuse of material resources.
