FSE1630u - FSE1654IU
User Manual
Fully Integrated Freezer
57 0193 0000 / AO
EN /
Please read these instructions first before using your appliance
Thank you for choosing a Blomberg appliance.
Please take some time to read this user manual before using your appliance, to
ensure you know how to safely operate the controls and functions.
Carefully follow all unpacking and installation instructions to ensure the appliance
is correctly connected and fitted prior to use.
Please write your product model and serial number on the last page of this user
manual, and store in a safe location close to the appliance for easy future reference.
This user manual may also be applicable for several other models. Differences
between models will be listed.
If you have any questions or concerns, please call our contact centre or find help
and information online at www.blomberguk.com
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
A
A
A
C
SUPPLIER’S NAME
MODEL IDENTIFIER
(*)
INFORMATION
C
The model information as stored in the product data base
can be reached by entering following website and searching
for your model identifier (*) found on energy label.
https://eprel.ec.europa.eu/
EN
3
1 Your refrigerator 4
2 Warnings 5
For models with water dispenser .......6
Electrical Requirements .....................6
Warning! This Appliance Must Be
Earthed .............................................7
Energy Saving Tips ............................7
Compliance with WEEE Directive and
Disposing of the Waste Product: .......8
Compliance with RoHS Directive: ......8
Package information ..........................8
3 Installation 9
Points to be considered when re-
transporting your refrigerator .............9
Before operating your refrigerator ......9
Electric connection ............................9
Disposing of the packaging .............10
Disposing of your old refrigerator .....10

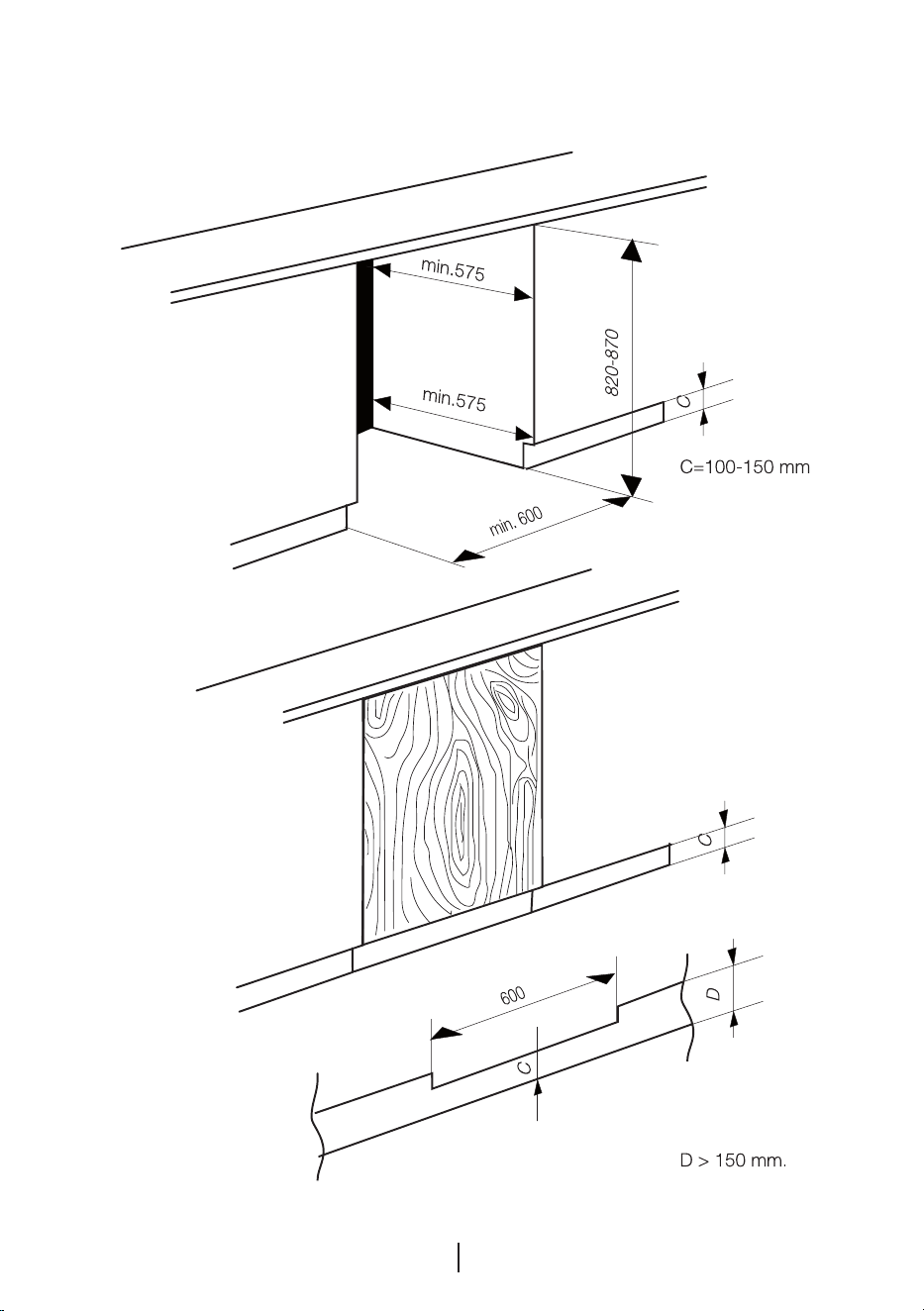

Placing and Installation ....................10
Important .........................................11
Installation Instructions ....................11

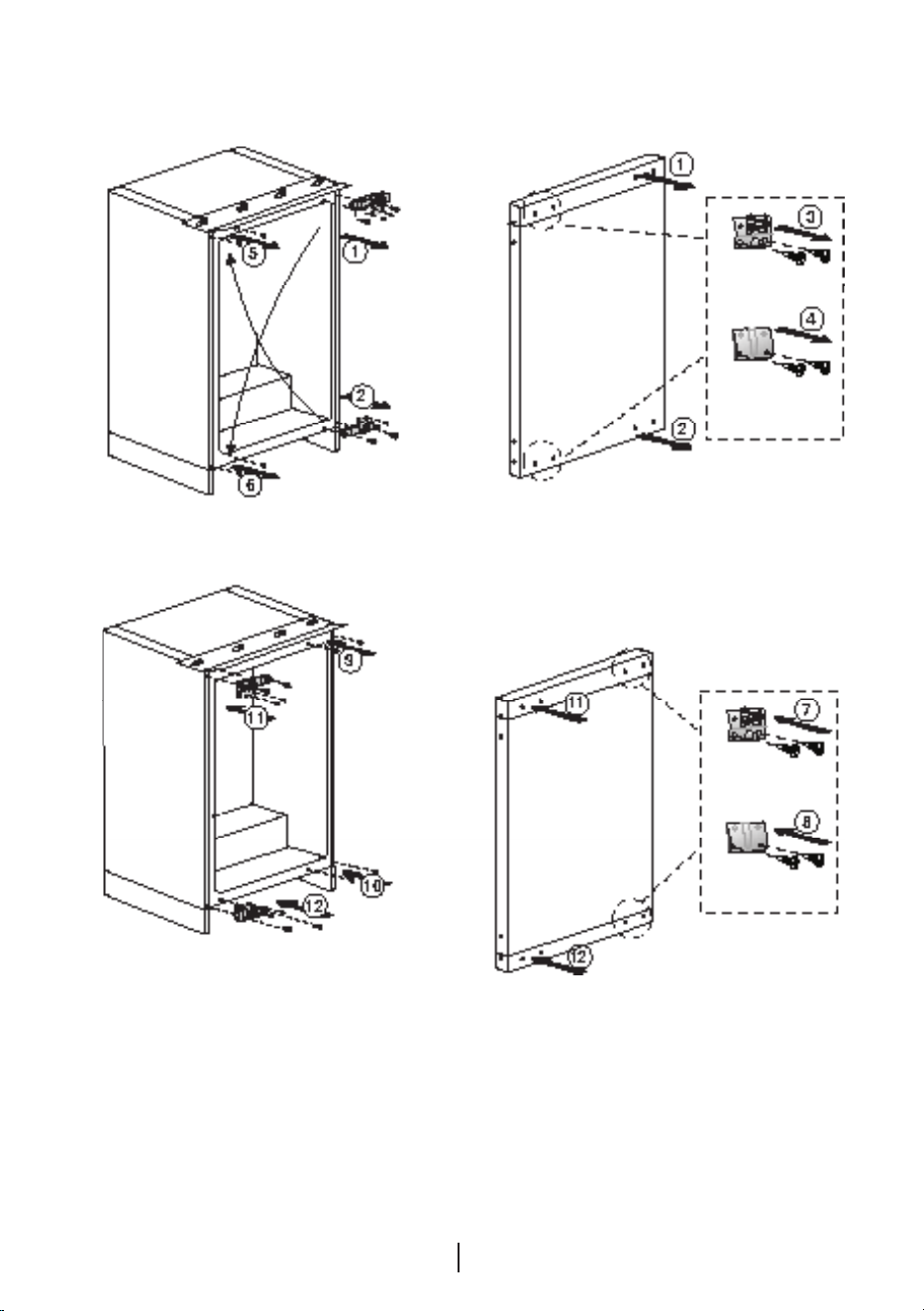

Reversing The Doors .......................13
Installation Instructions - Detailed Step
By Step ...........................................15
4 Before operating 21
5 Using your refrigerator 22
Temperature setting button ..............22
Storing the frozen food ....................22
Defrosting ........................................22
LED indicators and control panel .....23
How to Freeze Fresh Foods ...........24
Recommendations for Preservation
of .....................................................25
Deep Freezer Information .................25
Defrosting the frozen foods ..............25
Recommended Temperature
Settings ...........................................26
6 Maintenance and cleaning 29
7 Do's and Don'ts 30
CONTENTS
EN
4
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
2
2
1
1 Your refrigerator
1. Fast freeze compartment
2. Frozen food compartments
Congratulations on your choice of a BLOMBERG quality Appliance which has
been designed to give you service for many years.
EN
5
2 Warnings
• DO NOT connect your
appliance to the electricity
supply until all packing and
transit protectors have been
removed.
• Leave to stand for at least 4
hours before switching on to
allow compressor oil to settle if
transported horizontally.
• If you are discarding an old
refrigerator with a lock or latch
fitted to the door, disable the
lock/latch, ensure that it is left
in a safe condition to prevent
the entrapment of young
children.
• This appliance must only be
used for its intended purpose
i.e the storing of edible
foodstuff.
• Do not dispose of the
appliance on a fire. At
BLOMBERG, the care and
protection of our environment
is an ongoing commitment.
This appliance which is among
the latest range introduced is
particularly environment friendly.
Your appliance contains non
CFC / HFC natural substances
in the cooling system (Called
R600a) and in the insulation
(Called cyclopentane) which
are potentially flammable if
exposed to fire. Therefore,
take care not to damage, the
cooling circuit / pipes of the
appliance in transportation and
in use. In case of damage do
not expose the appliance to fire
or potential ignition source and
immediately ventilate the room
where the appliance is situated.
• We suggest you contact your
local authority for disposal
information and facilities
available.
• To obtain the best possible
performance and trouble free
operation from your appliance
it is very important to carefully
read these instructions.
• On delivery, check to make
sure that the product is not
damaged and that all the parts
and accessories are in perfect
condition.
• Ensure that the plug remains
readily accessible. Do not use
multiple adapter or extension
cable.
• Failure to observe these
instructions may invalidate your
right to free service during the
guarantee period.
• Keep ventilation openings, in
the appliance enclosure or in
the built-in structure, clear of
obstruction.
• Do not use mechanical devices
or other means to accelerate
the defrosting process, other
than those recommended by
the manufacturer.
• Do not damage the refrigerant
circuit.
• Do not use electrical
appliances inside the food
storage compartments of the
EN
6
appliance, unless they are of
the type recommended by the
manufacturer.
• We suggest you keep these
instructions in a safe place for
easy reference.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
• Children should be supervised
to ensure that they do not play
with the appliance.
For models with water
dispenser
• Pressure for cold water inlet
shall be maximum 90 psi (6.2
bar). If your water pressure
exceeds 80 psi (5.5 bar), use a
pressure limiting valve in your
mains system. If you do not
know how to check your water
pressure, ask for the help of a
professional plumber.
• If there is risk of water hammer
effect in your installation,
always use a water hammer
prevention equipment in
your installation. Consult
Professional plumbers is
you are not sure that there is
water hammer effect in your
installation.
• Do not install on the hot water
inlet. Take precautions against
of the risk of freezing of the
hoses. Water temperature
operating interval shall be 33°F
(0.6°C) minimum and 100°F
(38°C) maximum.
• Use drinking water only.
Electrical Requirements
Before you insert the plug into
the wall socket make sure that
the voltage and the frequency
shown on the rating plate inside
the appliance corresponds to
your electricity supply.
Rating label is on the left hand
side of inner liner.
We recommend that this
appliance be connected to the
mains supply via a
suitable switched and fused
socket. The appliance must be
positioned so that the plug is
accessible.
Should the mains lead of the
appliance become damaged or
should it need
replacing at any time, it must be
replaced by a special purpose
made mains lead which can only
be obtained from a BLOMBERG
Authorised Service Agent.
EN
7
Warning! This Appliance
Must Be Earthed
If the fitted moulded plug is not
suitable for your socket, then the
plug should be cut off and an
appropriate plug fitted. Destroy
the old plug which is cut off as a
plug with bared cord could cause
a shock hazard if inserted into a
socket elsewhere in the house.
The moulded plug on this
appliance incorporates a 13
A fuse. Should the fuse need
to be replaced an ASTABEAB
approved BS 1362 fuse of the
same rating must be used. Do
not forget to refit the fuse cover.
In the event of losing the fuse
cover the plug must not be used
until a replacement fuse cover
has been fitted. Colour of the
replacement fuse cover must be
the same colour as that visible
on the pin face of the plug. Fuse
covers are available from any
good electrical store.
Important! Fitting A Different
Plug
As the colours of the wires in
the mains lead of this appliance
may not correspond with the
coloured markings identifying the
terminals in your plug proceed
as follows: (See diagram).
1. Connect the green-yellow
or green (Earth) wire to the
terminal in the plug marked
‘E’ or with the symbol or
coloured green and yellow or
green.
2. Connect the blue (Neutral)
wire to the terminal in the plug
marked ‘N’ or coloured black.
3. Connect the brown (Live)
wire to the terminal in the plug
marked ‘L’ or coloured red.
4. With alternative plugs a 13 A
fuse must be fitted either in the
plug or adaptor or in the main
fuse box. If in doubt contact a
qualified electrician.
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm.
32mm.
12mm.
FUSE
CORD GRIP
Energy Saving Tips
1. Ensure your appliance is
installed in a well ventilated
area.
2. Ensure the time between
buying chilled/frozen food and
placing them in your appliance
is kept at minimum, particularly
in summer. We recommend
you use a cool bag or a special
carrier bag to carry perishable
food.
3. Do not leave the door (s) of
your appliance open longer
than necessary and ensure
they are closed properly after
each opening.
4. Defrost frozen food in the
fridge, so that frozen food acts
as an ice pack to assist cooling
in fridge.
EN
8
Compliance with WEEE
Directive and Disposing of
the Waste Product:
Thisproduct complies
with EU WEEE
Directive (2012/19/
EU). This product
bears a classification
symbol for waste
electrical and electronic
equipment (WEEE).This product
has been manufactured with
high quality parts and materials
which can be reused and are
suitable for recycling. Do not
dispose of the waste product
with normal domestic and other
wastes at the end of its service
life. Take it to the collection center
for the recycling of electrical and
electronic equipment. Please
consult your local authorities to
learn about these collection
centers.
Compliance with RoHS
Directive:
The product you have
purchased complies with EU
RoHS Directive (2011/65/EU).
It does not contain harmful and
prohibited materials specified in
the Directive.
Package information
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by
the local authorities.
EN
9
3 Installation
BPlease remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and etc.
in your refrigerator must be fastened
securely by adhesive tape against any
jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
Please do not forget…
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?
2. Please install the 2 plastic wedges
as illustrated in the figure. Plastic
wedges will provide the required
distance between your refrigerator
and the wall in order to allow the air
circulation. (The illustrated figure is
only an example and does not match
exactly with your product.)
3. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
4. Plug the refrigerator into the wall
outlet. When the fridge door is open,
the fridge compartment interior light
will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation
Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
• The connection must be in compliance
with national regulations.
• The power cable plug must be easily
accessible after installation.
• The specified voltage must be equal to
your mains voltage.
• Extension cables and multiway plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is danger of
electric shock!
EN
10
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions. Do not dispose of
them along with the normal household
waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorised
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator, cut
out the electric plug and, if there are
any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
A If the entrance door of the room
where the refrigerator will be
installed is not wide enough for the
refrigerator to pass through, then call
the authorised service to have them
remove the doors of your refrigerator
and pass it sideways through the
door.
1. Install your refrigerator to a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with
the wall. If the floor is covered with
a carpet, your product must be
elevated 2.5 cm from the floor.
4. Place your refrigerator on an even
floor surface to prevent jolts.
EN
11
Important
Installation Instructions
1. To avoid a hazard due to instability
of the appliance, it must be fixed in
accordance with the instructions.
2. Do not operate this applliance unless
installed to furniture.
3. The appliance should be located
on a smooth surface. The four front
and back feet can be adjusted
as required. To ensure that, your
appliance is standing upright adjust
the four front and back feet by turning
clockwise or anti-clockwise, until
the product is in firm contact with
the floor. Correct adjustment of feet
avoids excessive vibration and noise.
4. Refer to «Cleaning and Care» section
to prepare your appliance for use.
To avoid any loss in performance,
air suction channels should not be
obstructed. (140 cm2) Minimum
distance between the wall and the
appliance must be at least 10 mm.
5. The appliance must be protected
against rain, moisture and other
atmospheric influences.
Important: Care must be taken“
while cleaning / carrying the appliance
to avoid touching the bottom of the
condenser metal wires at the back of
theappliance as you might injure your
fingers and hands.
Important: This appliance is“
not designed for stacking with any
otherappliance.When positioning your
appliance, take care not to damage
your flooring, pipes,wall coverings etc.
EN
12
30 mm
40 mm 40 mm
Wall
30 mm
Appliance
To avoid any loss in performance, air suction channels should not be obstructed.
(140 cm2)
Minimum distance between the wall and the appliance must be at least 30 mm.
EN
13
Reversing The Doors
Follow the step by step instructions
and the diagram below. Numbers in
brackets refer to diagrams.
1. Switch off at the socket outlet and
pull out the mains plug.
2. Remove all food, loose items and
fittings from inside the appliance and
door shelves.
3. Unscrew the bolts and remove the
upper and bottom hinges from the
cabinet and door. (1) (2)
4. Remove stoppers. (3) (4)
5. Fit the stoppers on the opposite side.
(5) (6)
6. Reposition the upper hinge on the
opposite side as bottom hinge (7)
7. Reposition the bottom hinge on the
opposite side as upper hinge. (8)
Locate the door and tighten the bolts
fixing the door.
EN
14
EN
15
Installation Instructions - Detailed Step By Step
A
545
595
598
A (mm) 813 - 863 mm
B (mm) 820 - 870 mm
C (mm) 100 - 150 mm
NOTE
1) Height of the product can be adjusted by the help of adjustable feet (front and back) to fit the furniture niche
height (B).
2) Do not operate this appliance until it has been installed in the furniture.
EN
16
EN
17
1
4
2
3
EN
18
40 + A
505
B
6
5
min. 4 mm
E = 3 mm is recommended.
Note:
1. These dimensions are valid for products,which are hinged on right hand side.
2. When door opening direction is reversed, mirror image of this instruction should be
considered. That is, dimensions should be considered for opposite sides.
B
E E
Top view
Front view
A
EN
19
7
8
7
10 11
12 13
EN
20
16
14
15
EN
21
4 Before operating
Final Check
Before you start using the freezer
check that:
1. The feet have been adjusted and the
product is level.
2. The interior is dry and air can circulate
freely at the rear.
3. Clean the interior as recommended
under "CLEANING AND CARE."
4. Insert the plug into the wall socket
and switch on the electricity supply.
Avoid accidental disconnection by
taping over the switch.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
whether the compressor is running
or not which is quite normal.
6. Front edges of the cabinet may feel
warm. This is normal. These areas
aredesigned to be warm to avoid
condensation.
7. Do not load the appliance
immediately it is switched on. Wait
until the correct storage temperature
has been reached. We recommend
that you check the temperature
with an accurate thermometer
(see; Temperature Control and
Adjustment).
EN
22
5 Using your refrigerator
Temperature setting button
The interior temperature of your
refrigerator changes for the following
reasons;
• Seasonal temperatures,
• Frequent opening of the door and
leaving the door open for long
periods,
• Food put into the refrigerator
without cooling down to the room
temperature,
• The location of the refrigerator in the
room (e.g. exposing to sunlight).
You may adjust the varying interior
temperature due to such reasons by
using the thermostat. If the ambient
temperature is higher than 32°C, turn
the thermostat button to maximum
position.
Storing the frozen food
Prepacked commercially frozen
food should be stored in accordance
with the frozen food manufacturer's
instructions for a frozen food
storage compartment.
The freezing area is marked with
symbol on the door liner.
To ensure that the high quality achieved
by the frozen food manufacturer and the
food retailer is maintained the following
should be remembered:
1. Put packets in the freezer as quickly
as possible after purchase.
2. Do not exceed "Use By", "Best
Before" dates on the packaging.
3. Please note that drawers, baskets,
flaps, trays are all removable.
Defrosting
Defrost twice a year or when a frost
layer of around 7 mm (1/4") has formed.
To start defrosting procedure turn the
thermostat knob to zero position
(Alternatively you may switch off the
freezer at the socket outlet and pull out
the mains plug.)
All food should be wrapped in several
layers of newspaper and stored in a
cool place (e.g. fridge or larder).
Remove all freezer drawers.The
special defrost collection basin collects
the defrost water. Therefore defrosting
can be conducted without mess.
Containers full of warm water may be
placed carefully in the freezer to speed
up the defrosting.
Do not use pointed or sharp edged
objects such as knives, forks to remove
the frost.
Never use hairdryers, electrical heaters
and other similar electrical
appliances for defrosting.
When defrosting has finished, sponge
out any defrost water which collects at
the bottom of the freezer and dry the
interior thoroughly. Turn the thermostat
knob to mid point. Close the freezer
door. Insert the plug into the wall socket
and switch on the electricity supply.
Don't forget to tape over the switch to
avoid accidental disconnection.
EN
23
LED indicators and control
panel
LED indicators in the front section of
your refrigerator are intended to help
you in monitoring the operation of your
appliance.
Keep your food in the refrigerator in a
safe manner by monitoring and using
these LEDs and controls as explained
below:
Fast Freeze Button (1):
Used to freeze the food fastly.
Compressor may not operate
immediately but after some time when
the button is pressed and this is quite
normal.
Thermostat Setting Button (2):
Used to set your refrigerator between
minimum and maximum values.
Orange LED (3):
Lights up when the fast freeze
button on the LED panel is pressed.
In this case, your refrigerator operates
continuously.
Press the button again when the food
you would like to fast freeze comes to
the desired temperature and the orange
LED will turn off.
Green LED (4):
Lights up continuously after plugging
in your refrigerator.
Red LED (5):
It warns you by lighting up continuously
when your refrigerators start to
operates, if not enough cooling effect is
obtained, when the door remains open
for a long time and when excessive
food is loaded.
If the red LED lights up continuously
when the conditions stated in the
adjacent column do not exist, then call
our Authorized Service.
12 543
How to Freeze Fresh Foods
• Foods to be frozen must be divided
into portions according to a size to
be consumed, and frozen in separate
packages. In this way, all the food
should be prevented from being re-
frozen by thawing.
• In order to protect the nutritional
value, the aroma and the color of
the foods as much as possible,
vegetables should be boiled for a
short period of time before freezing.
(Boiling is not necessary for foods
such as cucumber, parsley.) Cooking
time of the vegetables frozen in this
way is shortened by 1/3 than that of
the fresh vegetables.
• To extend the storage times of frozen
foods, boiled vegetables must first
be filtered and then hermetically
packaged as in the all types of foods.
• Foods should not be placed in
the freezer compartment without
package.
• The packaging material of the food
to be stored should be air-tight, thick
and durable and should not deform
with cold and humidity. Otherwise,
the food that is hardened by freezing
might pierce the package. Sealing
the package well is also important in
terms of securely storing the food.
The following packaging types are
suitable for use to freeze the food:
Polyethylene bag, aluminum foil,
plastic foil, vacuum bags and cold-
resistant storage containers with caps.
The use of the following types of
packaging is not recommended to
freeze the food;
Packaging paper, parchment
paper,cellophane (gelatin paper),
garbage bag, used bags and shopping
bags.
• Hot foods should not be placed in the
freezer compartment without cooling.
• When placing unfrozen fresh foods in
the freezer compartment, please note
that it does not contact with frozen
foods. Cool-pack (PCM) (if any) can
be placed to the rack immediately
below the quick freezer rack for
preventing them from being getting
warm.
• During the freezing time (24 hours) do
not place other food to the freezer.
• Place your foods to the freezing
shelves or racks by spreading them
so that they will not be cramped (it
is recommended that the packaging
does not come into contact with
each other).
• Frozen foods must be immediately
consumed in a short period of time
after defrosting and must never be
frozen again.
• We recommend you to attach a label
onto the package and write the name
of the foods in the package and the
freezing time.
Foods suitable for freezing:
• Fish and seafood, red and white
meat, poultry, vegetables, fruit,
herbaceous spices, dairy products
(such as cheese, butter and strained
yoghurt), pastries, ready or cooked
meals, potato dishes, souffle and
desserts.
Foods not suitable for freezing:
• Yoghurt, sour milk, cream,
mayonnaise, leaved salad, red radish,
grapes, all fruits (such as apple, pears
and peaches).
• For foods to be frozen quickly and
thoroughly, the following specified
amounts per package should not be
exceeded.
-Fruits and vegetables, 0.5-1 kg
-Meat, 1-1.5 kg
• A small amount of foods (maximum
2 kg) can also be frozen without the
use of the quick freezing function.
To obtain the best result, apply the
following instructions:
1. Switch the adjusting knob to MAX.
position 24 hours before placing your
fresh foods.
2. 24 hours after turning the thermostat
knob, place your food that you want
to freeze to the bottom shelf with
higher freezing capacity, starting from
left to the middle of the drawer.
3. Do not forget to turn the thermostat
knob to its previous position, after
placing your food.
4. Do not try to freeze a large quantity
of food at a time. Within 24 hours,
this product can freeze the maximum
food quantity specified as «Freezing
Capacity … kg/24 hours» on its type
label. It is not convenient to put more
unfrozen/fresh foods to the freezer
compartment than the quantity
specified on the label.
• You can review the Meat and Fish,
Vegetables and Fruits, Dairy Products
tables for placing and storing your
foods in the deep-freezer.
Recommendations for
Preservation of
Frozen Foods
• While purchasing your frozen foods,
make sure that they are frozen at
appropriate temperatures and their
packages are not broken.
• Put the packages on the freezer
compartment as soon as possible
after purchasing them.
• Make sure that the expiration
date indicated on the packaging
is not expired before consuming
the packaged ready meals that
you remove from the freezer
compartment.
Deep Freezer Information
The EN 62552 standard requires
(according to specific measurement
conditions) that at least 4.5 kg of food for
each 100 liter of freezer compartment
volume can be frozen
at a room temperature of 25°C in 24
hours.
Defrosting the frozen foods
Depending on the food diversity and
the purpose of use, a selection can be
made between the following options for
defrosting:
• At room temperature (it is not very
suitable to defrost the food by leaving
it at room temperature for a long
time in terms of maintaining the food
quality)
• In the refrigerator
• In the electrical oven (in models with
or without fan)
• In the microwave oven
CAUTION:
• Never put acidic beverages in glass
bottles and cans into your freezer due
to the risk of explosion.
• If there is moisture and abnormal
swelling in the packaging of frozen
foods, it is likely that they were
previously stored in an improper
storage condition and their contents
deteriorated. Do not consume these
foods without checking.
• Since some spices in cooked
meals may change their taste when
exposed to long-term storage
conditions, your frozen foods should
be less seasoned or the desired
spices should be added to the foods
after the thawing process.
Recommended Temperature Settings
Freezer compartment
setting
Remarks
Min This is the default recommended temperature
setting.
Min.-Max. range These settings are recommended when the
ambient temperature is higher than 30°C or when
you think the refrigerator is not cool enough due to
frequent opening and closing of the door.
Quick freezing (Max) Use when you want to freeze your food in a short
time.It is recommended to be applied to preserve
the quality of your fresh food. You do not need
to use the quick freezing function when putting
your frozen food.You do not need to use the quick
freezing function to freeze a small amount of fresh
food, up to 2 kg per day.
Meat and Fish Preparation
Longest
storage
time
(month)
Meat
products
Veal
Steak By cutting them 2 cm thick and placing foil between them or
wrapping tightly with stretch
6 – 8
Roast By packing the pieces of meat in a refrigerator bag or wrapping
them tightly with stretch
6 – 8
Cubes In small pieces 6 – 8
Schnitzel,
chops
By placing foil between cut slices or wrapping individually with
stretch
6 – 8
Mutton
Chops By placing foil between meat pieces or wrapping individually with
stretch
4 - 8
Roast By packing the pieces of meat in a refrigerator bag or wrapping
them tightly with stretch
4 - 8
Cubes By packing the shredded meats in a refrigerator bag or wrapping
them tightly with stretch
4 - 8
Beef
Roast By packing the pieces of meat in a refrigerator bag or wrapping
them tightly with stretch
8-12
Steak By cutting them 2 cm thick and placing foil between them or
wrapping tightly with stretch
8-12
Cubes In small pieces 8-12
Boiled meat By packaging in small pieces in a refrigerator bag 8-12
Mince Without seasoning, in flat bags 1 - 3
Offal (piece) In pieces 1 - 3
Fermented sausage - Salami It should be packaged even if it has casing. 1-2
Jambon By placing foil between cut slices 2-3
Poultry
and
hunting
animals
Chicken and Turkey By wrapping in foil 4 – 6
Goose By wrapping in foil (portions should not exceed 2.5 kg) 4 – 6
Duck By wrapping in foil (portions should not exceed 2.5 kg) 4-6
Deer, Rabbit, Roe Deer By wrapping in foil (portions should not exceed 2.5 kg, and their
bones should be separated)
6 – 8
Fish and
seafood
Freshwater fish (Trout, Carp,
Crane, Catfish)
After thoroughly cleaning the inside and scales, it should be
washed and dried, and the tail and head parts should be cut when
necessary.
2
Lean fish (Sea bass, Turbot,
Sole)
4-6
Fatty fish (Bonito, Mackerel,
Bluefish, Red Mullet, Anchovy)
2 - 4
Shellfish Cleaned and in bags 4 - 6
Caviar In its packaging, in an aluminum or plastic container 2 - 3
Fruits and
Vegetables
Preparation
Longest
storage
time
(month)
String bean and Pole
bean
By shock boiling for 3 minutes after washing and cutting into small pieces 10 - 13
Green pea By shock boiling for 2 minutes after shelling and washing 10-12
Cabbage By shock boiling for 1-2 minute(s) after cleaning 6 - 8
Carrot By shock boiling for 3-4 minutes after cleaning and cutting into slices 12
Pepper By boiling for 2-3 minutes after cutting the stem, dividing into two and separating
the seeds
8 - 10
Spinach By shock boiling for 2 minutes after washing and cleaning 6 - 9
Leek By shock boiling for 5 minutes after chopping 6-8
Cauliflower By shock boiling in a little lemon water for 3-5 minutes after separating the leaves,
cutting the core into pieces
10 – 12
Eggplant By shock boiling for 4 minutes after washing and cutting into 2cm pieces 10 – 12
Squash By shock boiling for 2- 3 minutes after washing and cutting into 2cm pieces 8-10
Mushroom By lightly sauteing in oil and squeezing lemon on it 2-3
Corn By cleaning and packing in cob or granular 12
Apple and Pear By shock boiling for 2-3 minutes after peeling and slicing 8 - 10
Apricot and Peach Divide in half and extract the seeds 4 - 6
Strawberry and
Raspberry
By washing and shelling 8 - 12
Baked fruit By adding 10% sugar in the container 12
Plum, Cherry, Sour
Cherry
By washing and shelling the stalks 8 - 12
Dairy Products Preparation
Longest Storage Time (Month)
Storage Conditions
Cheese (except feta
(cheese
By placing foil
therebetween, in slices
6 - 8 It can be left in its original
packaging for short term
storage. For long-term storage
it should also be wrapped in
.aluminum or plastic foil
Butter, margarine In its own packaging 6 In its own packaging or in
plastic containers
EN
29
6 Maintenance and cleaning
• We recommend that you switch off
the appliance at the socket outlet
and pull out the mains plug before
cleaning.
• Never use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish for
cleaning.
• Use luke warm water to clean the
cabinet of the appliance and wipe it
dry.
• Use a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe
it dry.
• Excess deposit of ice should be
removed on a regular basis using
the handle of a spoon. Large
accumulation of ice will impair the
performance of the freezer.
• If the freezer is not going to be used
for a long period of time switch it
off,remove all food, clean it and leave
the door ajar.
• To remove a drawer, pull it as far as
possible, and then tilt it upwards, and
then pull it out completely.
• Any dust that gathers on the
condenser, which is located at
the back of the freezer, should be
removed once a year with a vacuum
cleaner.
• Check door seals regularly to ensure
they are clean and free from food
particles..
• Never :
• Clean the worktop with unsuitable
material; eg petroleum based
products.
• Subject it to hot temperatures in any
way, Scour, rub etc., with abrasive
material.
ANever use cleaning agents or water
that contain chlorine to clean the
outer surfaces and chromium coated
parts of the product. Chlorine causes
corrosion on such metal surfaces.
EN
30
7 Do's and Don'ts
Do- Clean your appliance regularly
(See “Cleaning and Care”)
Do- Keep raw meat and poultry below
cooked food and dairy products.
Do- Take off any unusable leaves on
vegetables and wipe off any soil.
Do- Leave lettuce, cabbage, parsley
and cauliflower on the stem.
Do- Wrap cheese firstly in greaseproof
paper and then in a polythene bag
excluding as much air as possible.
For best results take out of the fridge
compartment an hour before eating.
Do- Wrap raw meat and poultry
loosely in polythene or aluminium foil.
This prevents drying.
Do- Wrap fish and offal in polythene
bags.
Do- Wrap food which have a strong
odour or can dry out in polythene bags,
aluminium foil or place in an airtight
container.
Do- Wrap bread well to keep it fresh.
Do- Chill white wines, beer, lager and
mineral water before serving.
Do- Check contents of the freezer
every so often.
Do- Keep food for as short a time as
possible and adhere to “Best Before”,
“Use by” etc. dates.
Do- Store commercially frozen food in
accordance with the instructions given
on the packets that you buy.
Do- Always choose high quality fresh
food and be sure it is thoroughly clean
before you freeze it.
Do- Prepare fresh food for freezing in
small portions to ensure rapid freezing.
Do- Wrap all food in aluminium foil
or freezer quality polythene bags and
make sure any air is excluded.
Do- Wrap frozen food when you buy
it and put it in to the freezer as soon as
possible.
Do- Defrost food in the fridge
compartment.
Do- Remove ice cream from the
freezer 10-20 minutes before serving.
Don’t- Store bananas in your fridge
compartment.
Don’t- Store melon in your fridge. It
can be chilled for short periods as long
as it is wrapped to avoid it flavouring
other food.
Don’t- Store poisonous or any
dangerous substances in your
appliance. It has been designed for the
storage of edible foodstuffs only.
Don’t- Consume food which has been
stored for an excessive time in the
fridge.
Don’t- Store cooked and fresh food
together in the same container. They
should be packaged and stored
seperately.
Don’t- Let defrosting food or food
juices drip onto food.
Don’t- Leave the door open for long
periods as this will make the appliance
more costly to run and cause excessive
ice formation.
Don’t- Put hot food into the appliance.
Let it cool down first.
Don’t- Put liquid-filled bottles or sealed
cans containing carbonated liquids into
the freezer as they may burst.
Don’t- Exceed the maximum freezing
loads (6 kg in any 24 hours) when
freezing fresh food.
Don’t- Give children ice-cream and
water ices direct from the freezer. The
low temperature may cause ‘freezer
burns’ on lips.
EN
31
Don’t- Freeze fizzy drinks.
Don’t- Try to keep frozen food which
has thawed, it should be eaten within
24 hours or cooked and refrozen.
Don’t- Remove items from the freezer
with wet hands.
Don’t- Close the freezer door before
placing the compartment cover in its
place.
Don’t- Leave frozen food at room
temperature to thaw; the best way to
defrost food is to put it in the fridge
to thaw slowly. Make sure you avoid
defrosting food or food juices drip onto
other food.
Problem Solvıng
If the appliance does not operate
when switched on, check whether:
• The plug is inserted properly in the
socket and that the power supply is
on. (To check the power supply to
the socket, plug in another appliance)
• The fuse has blown/circuit breaker
has tripped/main distribution switch
has been turned off.
• The temperature control has been set
correctly and not to “0” (OFF)
• New plug is wired correctly if you
have changed the fitted moulded
plug.
If the appliance is still not operating
after the above checks, please refer to
the section on “How To Obtain Service”.
Please ensure that above checks have
been made as a charge will be made if
no fault is found.
EN
32
BLOMBERG UK AND IRELAND STANDARD MANUFACTURER
GUARANTEE TERMS AND CONDITIONS
Your new Blomberg product is guaranteed against faulty materials, defective
components or manufacturing defects.
The standard guarantee starts from the date of original purchase of the
product, and lasts for a period of thirty six (36) months unless Beko plc
(the “Manufacturer“) agrees to extend the guarantee for the product in
writing.
If you have any questions about the guarantee on your product (including how
long it is valid), please contact your retailer or our contact centre on 0333 207
9870 (UK and Northern Ireland) or 01 691 0160 (Republic of Ireland)
This guarantee does not in any way diminish or affect your statutory rights in
connection with the product. This guarantee is in addition to your statutory rights
as a consumer. If you have any questions about these rights, please contact the
retailer from which you purchased the product. In certain circumstances, it is
possible that your statutory rights may offer additional or higher levels of protection
than those offered under the terms of this guarantee.
What is covered by this guarantee?
• Repairs to the product required as a result of faulty materials, defective
components or manufacturing defects.
• Functional replacement parts to repair a product.
• The costs of a Blomberg Approved Engineer to carry out the repair.
What is not covered?
• Transit and delivery damage.
• Cabinet or appearance parts, including but not limited to control knobs, flaps and
handles.
• Accessories and/or consumable items including but not limited to ice trays,
scrapers, cutlery baskets, filters and light bulbs.
• Repairs necessary as a direct or indirect result of:
Accidental damage, misuse or abuse of a product.
An attempted repair of a product by anyone other than a Blomberg
Approved Engineer (the “Engineer”).
Installation or use of a product where such installation or use fails to meet
the requirements contained in this guarantee or the User Instructions Booklet.
• Repairs to a product operated at any time on commercial or non-residential
household premises (unless we have previously agreed to the installation
environment).
EN
33
This guarantee is limited to the cost of repairing the product. To the extent
permitted by law, the Manufacturer does not accept and will not be held liable for
any financial loss incurred in connection with the failure of any product to operate
in accordance with the expected standards. Such financial loss includes but is not
limited to loss arising from:
• Time taken off work.
• Damaged food, clothing or other items.
• Meals taken at restaurants or from takeaways.
• General compensation for inconvenience.
Important Notes
1. Your product is designed and built for domestic household use only.
2. The guarantee will automatically be void if the product is installed or is used in
commercial or non-residential domestic household premises, unless we have
previously agreed to the installation environment.
3. The product must be correctly installed, located and operated in accordance with
the instructions contained in the User Instructions Booklet provided with your
product.
4. Professional installation by a qualified Electrical Domestic Appliance Installer is
recommended for all Washing Machines, Dishwashers and Electric Cookers (as
incorrect installation may result in you having to pay for the cost of repairing the
product).
5. Gas Cookers must be professionally installed by a Gas Safe (or Gas Networks
Ireland for Republic of Ireland) registered gas installer.
6. This guarantee is given in respect of products purchased and used within the
United Kingdom and the Republic of Ireland.
7. This guarantee is effective from the initial date of purchase of a new product from
an authorised retailer and will be void if the product is resold.
8. This guarantee does not apply to graded sales (where the product is purchased
as a “second”).
9. Possession of a copy of these terms and conditions does not necessarily mean
that a product has the benefit of this guarantee. If you have any questions, please
call our Call Centre on the number set out above.
10. The Manufacturer reserves the right to terminate the guarantee if its staff or
representatives are subjected to physical or verbal abuse in the course of carrying
out their duties.
11. Optional extras, where available (i.e. extendable feet) are supplied on a chargeable
basis only.
EN
34
Does Blomberg offer replacements?
This is a repair-only guarantee. On occasion, the Manufacturer may at its sole
discretion, replace your product with a new product instead of carrying out a
repair. Where a replacement is offered, this would normally be an identical model
but when this is not possible, a model of similar specification will be provided.
The Manufacturer will cover the costs and arrange for the delivery of the new
product and for the return of the old product. Any costs related to disconnecting
the faulty product and installing the replacement product will not be borne by the
Manufacturer unless previously agreed to in writing. The original guarantee will
continue to apply to the replacement product; the new product will not come with
a new guarantee.
When will the repair take place?
Our Engineers work Monday to Friday 9.00am to 5.00pm. Appointments outside
these hours may be possible at the sole discretion of the Manufacturer but cannot
be guaranteed. Whilst our Engineers will endeavour to minimize inconvenience
and to meet requests for specific timed appointments, this cannot be guaranteed.
We will not be liable for delays or if it is unable to carry out a repair because a
convenient appointment cannot be arranged.
Will there be any charge for the repairs?
It is your responsibility to provide evidence to the Engineer that your product is
covered by this guarantee with a proof of purchase. The Manufacturer reserves
the right to charge for the reasonable cost of any service call if:
• You cannot provide evidence that your product is covered by this guarantee.
• Where a service call has been made and the engineer finds that there is no fault
with your product.
• That your product has not been installed or operated in accordance with the User
Instructions Booklet.
• That the fault was caused by something other than faulty materials, defective
components or manufacturing defects.
• For missed appointments.
Payment of these costs are due immediately upon the Engineer providing you
with an invoice. The Manufacturer reserves the right to terminate the guarantee if
you fail to pay the costs for the service call in a timely manner.
If you are a resident of the United Kingdom, this guarantee will be governed by
English law and subject to the English Courts, save where you live in another part
of the United Kingdom, in which case the law and courts of that location will apply.
If you are resident in the Republic of Ireland, this guarantee will be governed by
Irish law and the Irish courts will have jurisdiction.
EN
35
This guarantee is provided by Beko plc. Beko House, 1 Greenhill Crescent,
Watford, Hertfordshire. WD18 8QU.
Beko plc is registered in England and Wales with company registration number
02415578.
HOW TO OBTAIN SERVICE FOR YOUR APPLIANCE
Please keep your purchase receipt or other proof of purchase details in a safe
place; you will need to have this documentation available should the product
require attention under guarantee.
Please take a few moments to complete the details below, as you will need this
information when you call us, or to use our online services. When you call us you
may be required to input your serial number into your telephone keypad. For help
please visit Blomberguk.com/support/model-finder
• The product model number is printed on the Operating Instruction Booklet / User
guide
• The product model and serial number is printed on the Rating Label affixed to the
appliance.
• The Retailer (Purchased from) and Date of purchase will be printed on your
purchase receipt or other proof of purchase paperwork
Recording of these details alone will not count as proof of purchase. A valid proof
of purchase is required for requesting service under guarantee.
Model number Serial number Purchased from Date of purchase
For service under guarantee or for product advice please call our
Contact centre
Before requesting service please check the troubleshooting guide in the Operating
Instructions booklet, as a charge may be levied where no fault is found, and even
though your product may still be under guarantee.
After arranging service the area around the product must be easily accessible to
the Engineer, without the need for cabinets or furniture to be removed or moved.
It is your responsibility to ensure our Engineers have a clean and safe environment
to carry out any repairs.
EN
36
Please have your Model number and Serial number available when you call us,
as you may be required to input your serial number into your telephone keypad
during your call.
UK Mainland & Northern Ireland:
0333 207 9870
Landline or mobile calls to 0333 numbers cost no more than calls to geographic numbers 01 or
02, and are charged at the basic rate. Calls from landlines and mobiles are included in free call
packages but please check with your telephone service provider for exact call charges.
Republic of Ireland:
01 691 0160
Service once the manufacturers guarantee has expired
If you have purchased an extended guarantee please refer to the instructions contained within the
extended guarantee agreement document, otherwise please call us using the appropriate number
above, where service can be obtained at a charge.
Should you experience any difficulty in obtaining service please call us on
0333 207 9870 or 01 691 0160
Contact us though our website
Send us a secure message through our online contact us form. Please visit our
website, click Contact Us and choose a product support topic from the list of
options. Complete the required details and click send message.
Product registrations
For UK and Republic of Ireland product registrations please visit blomberguk.
com/register
EN
37
DISCLAIMER / WARNING
Some (simple) failures can be adequately handled by the end-user
without any safety issue or unsafe use arising, provided that they
are carried out within the limits and in accordance with the following
instructions (see the “Self-Repair” section).
Therefore, unless otherwise authorized in the “Self-Repair” section
below, repairs shall be addressed to registered professional repairers
in order to avoid safety issues. A registered professional repairer is a
professional repairer that has been granted access to the instructions
and spare parts list of this product by the manufacturer according to the
methods described in legislative acts pursuant to Directive 2009/125/EC.
However, only the service agent (i.e. authorized professional repairers) that you
can reach through the phone number given in the user manual/warranty card or
through your authorized dealer may provide service under the guarantee terms.
Therefore, please be advised that repairs by professional repairers (who are not
.authorized by Blomberg) shall void the guarantee
Self-Repair
Self-repair can be done by the end-user with regard to the following
spare parts: door handles,door hinges, trays, baskets and door gaskets
(an updated list is also available in support.blombergappliances.com as
of 1st March 2021).
Moreover, to ensure product safety and to prevent risk of serious
injury, the mentioned self-repair shall be done following the instructions
in the user manual for self-repair or which are available in support.
blombergappliances.com. For your safety, unplug the product before
attempting any self-repair.
Repair and repair attempts by end-users for parts not included in such
list and/or not following the instructions in the user manuals for self-
repair or which are available in support.blombergappliances.com, might
give raise to safety issues not attributable to Blomberg, and will void the
warranty of the product.
Therefore, it is highly recommended that end-users refrain from the
attempt to carry out repairs falling outside the mentioned list of spare
parts, contacting in such cases authorized professional repairers or
registered professional repairers. On the contrary, such attempts by
end-users may cause safety issues and damage the product and
subsequently cause fire, flood, electrocution and serious personal injury
to occur.
By way of example, but not limited to, the following repairs must be
addressed to authorized professional repairers or registered professional
repairers: compressor, cooling circuit, main board,inverter board, display
board, etc.
The manufacturer/seller cannot be held liable in any case where end-
users do not comply with the above.
The spare part availability of the refrigerator that you purchased is 10
years.
During this period, original spare parts will be available to operate the
refrigerator properly
The minimum duration of guarantee of the refrigerator that you
purchased is 36 months.
