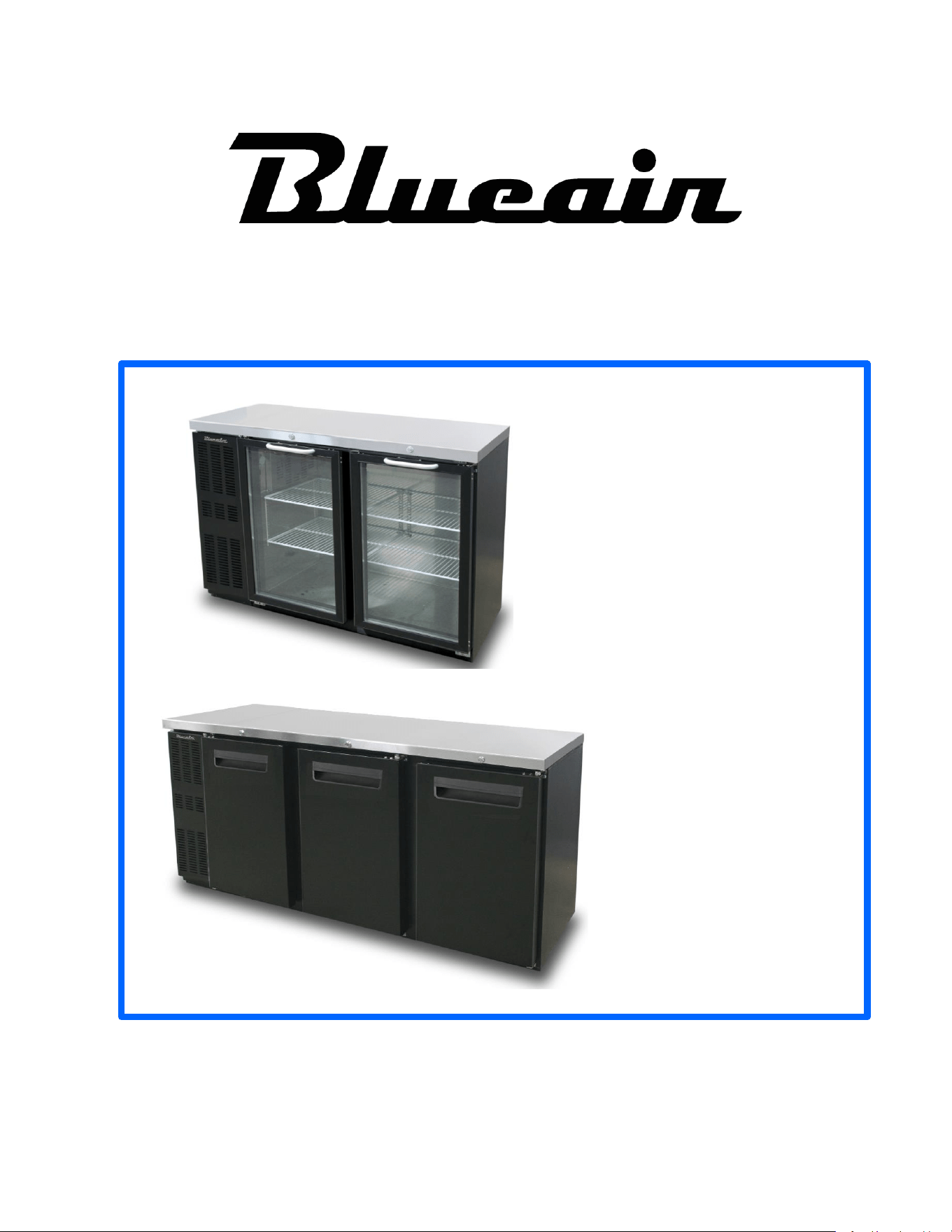

Installation & Operation Manual
Narrow Back bar (R290)
Please read this manual completely before installing or operating this unit!
Blueair FSE reserves the right to make product modification at any time.
Specifications and Designs are subject to change without notice.
IMPORTANT SAFETY INSTRUCTION (SAVE THESE INSTRUCTIONS)
Visit our website at
www.blueairfse.com
BNB-48BT/48ST-HC
BNB-60BT/60ST-HC
BNB-72BT/72ST-HC
BNB-48BTG/48STG-HC
BNB-60BTG/60STG-HC
BNB-72BTG/72STG-HC
2
________________
Service Contack
______________
Blueair FSE has a Nationwide Service Network
To provide timely service to our customer’s needs.
Please call or fax us at the following numbers.
Blueair FSE Nationwide Sevice Network
Toll Free, 1-866-677-8500
TEL, (310) 808-0102
FAX, (310) 808-0242
Visit our website at www.blueairfse.com
◆ Specifications _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
◆ Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
◆ Maintenance & Cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ 4
◆ Operation & Troubleshooting _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
3
CAUTION – Risk of Fire or Explosion. Flammable Refrigerant Used. Consult instruction
manual/repair manual/owner’s guide before attempting to install or service this product.
Dispose of properly in accordance with federal or local regulations.
CAUTION – Risk of fire or explosion due to flammable refrigerant used. Follow handling
instructions carefully in compliance with U.S. and Canadian government.
◆ Specifications and Designs are subject to change without notice.
◆ The name plate (including Serial No.) is located on the upper left side of the cabinet interior.
Product Narrow Back bar Refrigeration
Model
BNB-48BT
/48ST-HC
BNB-60BT
/60ST-HC
BNB-72BT
/72ST-HC
BNB-48BTG
/48STG-HC
BNB-60BTG
/60STG-HC
BNB-72BTG
/72STG-HC
Capacity (cu.ft) 11.6 15.6 19.6 11.6 15.6 19.6
Exterior
Dimen-
sions
(W) 48 1/4” 60 1/4” 72 1/4” 48 1/4” 60 1/4” 72 1/4”
(D) 23 7/8”
(H)* 35 3/8”
Doors 1 2 3 1 2 3
Shelves 4 4 6 4 4 6
Condensing
Unit Size
3/8 HP 3/8 HP 3/8 HP 3/8 HP 3/8 HP 3/8 HP
Electrical
Characteristics
115V/60Hz
NEMA Plug
Configuration
NEMA 5-15P
Amps 3.5 3.5 3.5 3.5 3.5 3.5
Range of
Temperature
+32˚Ｆ to +41˚Ｆ
Refrigerant R290
12oz. Can
Capacity
714 966 1,218 714 966 1,218
Net Weight (lbs) 181 231 271 212 245 284
4
DANGER – Risk of fire or explosion. Flammable refrigerant used. To be repaired only
by trained service personnel. Do not use mechanical devices to defrost refrigerator.
Do not puncture refrigerant tubing. Risk of Fire or Explosion due to puncture of
refrigerant tubing; Follow handling instructions carefully.
1. To maintain proper refrigeration performance, the condenser fins should be checked
monthly and clean with a soft brush or vacuum cleaner as needed.
2. Wait at least 6 minutes after unplugging the unit before plugging in.
3. The interior and exterior of the unit can be cleaned using plugging in water.
1) Do not use an abrasive cleaners to avoid scratches on the surfaces.
4. The door gasket should be cleaned to avoid maintain proper sealing.
1. INDOOR USE ONLY
1) This unit is intended for indoor use only.
2. FOR LOCATION
1) Be sure that the location is strong enough to support the total weights of unit and the
content.
2) Keep the unit away from sunlight and other heat generating equipment.
3) The minimum clearance between the back of the unit and wall should be 7 inches at least
3. INSTALLING CASTERS
1) Be sure that casters with brake should be installed in front.
4. LEVELING
1) The unit should be leveled to provide adequate drainage.
5. ELECTRICAL CONNECTION
1) The unit should be plugged into a 115V/60Hz, grouned wall receptacle to prevent
electrical shock and fire hazards.
2) Do not plug other electrical units into same wall receptacle this unit is plugged into.
3) Do not use an extension cord.
4) Compressor warranties are void if the compressor bums out due to low voltage.
5

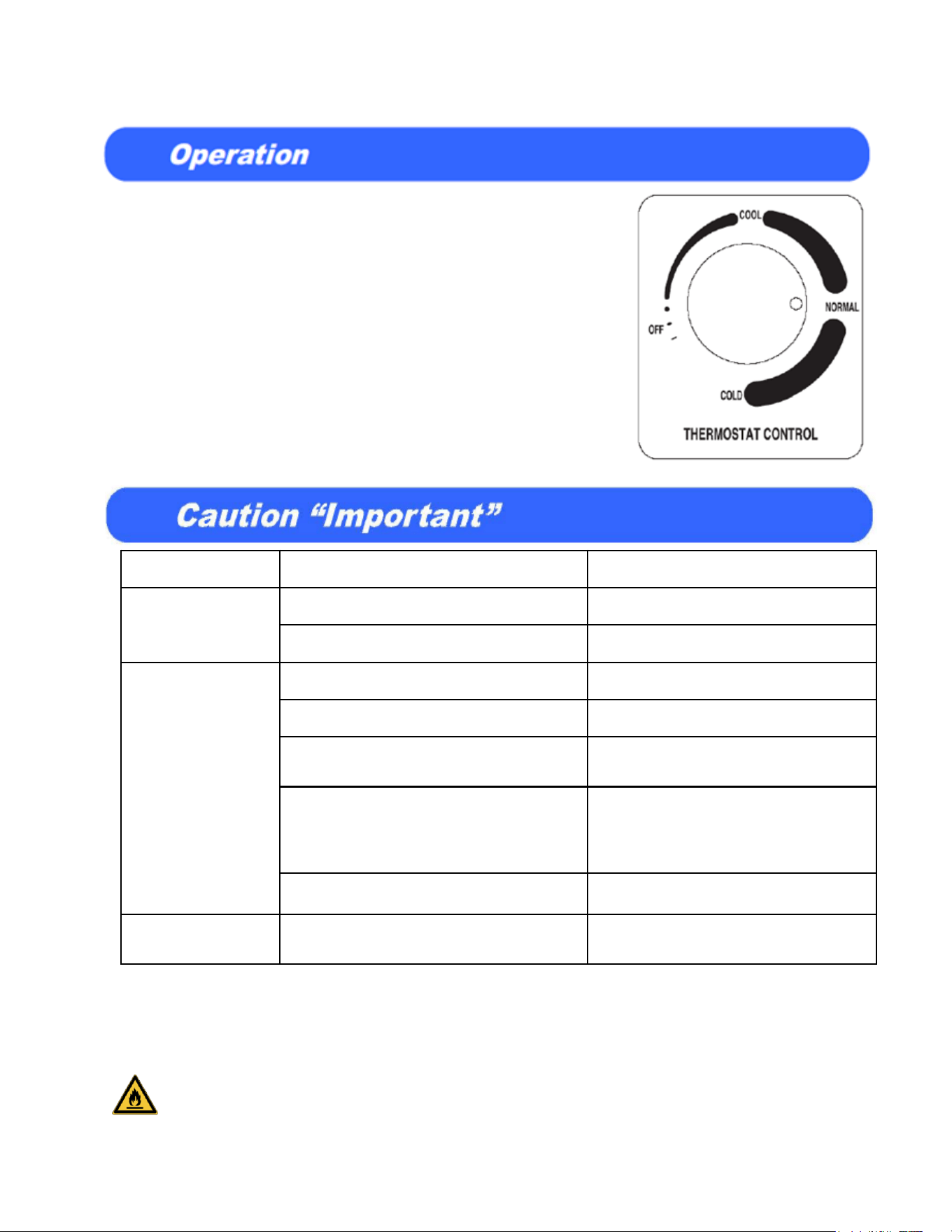

1. The temperature controller (thermostat) is located on the
upper left of the back side of the cabinet interior.
2. The controller has been preset “NORMAL” position at the
factory.
3. Set the control knob toward “COOL” for higher temperature
and “COLD” for lower temperature.
4. The thermostat controls compressor’s “ON/OFF” by sensing
inside temperatures of cabinet.
5. The unit is equipped with an off-cycle defrost.
Problem Possible Cause Action
Compressor
will not start
Power connection failure. Check Power Cord and plug it in.
Power switch is in off position. Change it on position.
The unit does not
refrigerate well
Temperature set point is too high. Correct temperature set point.
The door is opened too frequently. Do not open the door frequently.
Loading of too much warm or moist
product.
Do not load warm or moist product.
Not enough ventilation.
Move the unit in a well ventilated
place with at least 7inches
of clearance on all sides.
Condenser is clogged. Clean it.
Condensation
on cabinet exterior
High moisture air can produce
dews during the rainy season.
Wipe with cloth.
※ The following is not an indication of problem or malfunction.
A water-flowing sound can be heard when the unit in operating.
This is the sound of refrigerant flowing.
DANGER – Risk of fire or explosion. Flammable refrigerant used. To be repaired only
by trained service personnel. Do not use mechanical devices to defrost refrigerator.
Do not puncture refrigerant tubing. Risk of Fire or Explosion due to puncture of
refrigerant tubing; Follow handling instructions carefully.
