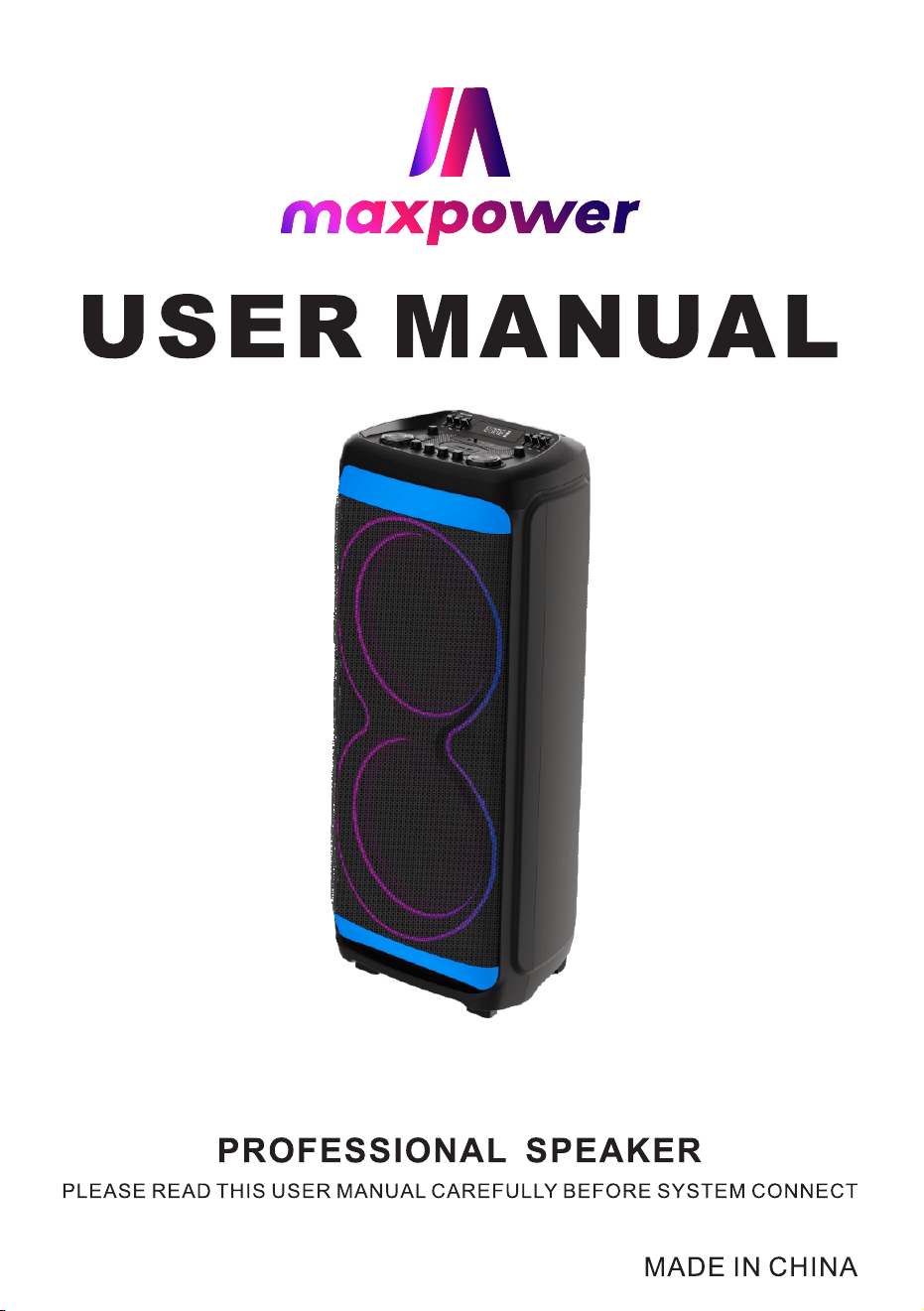

MPD158XB

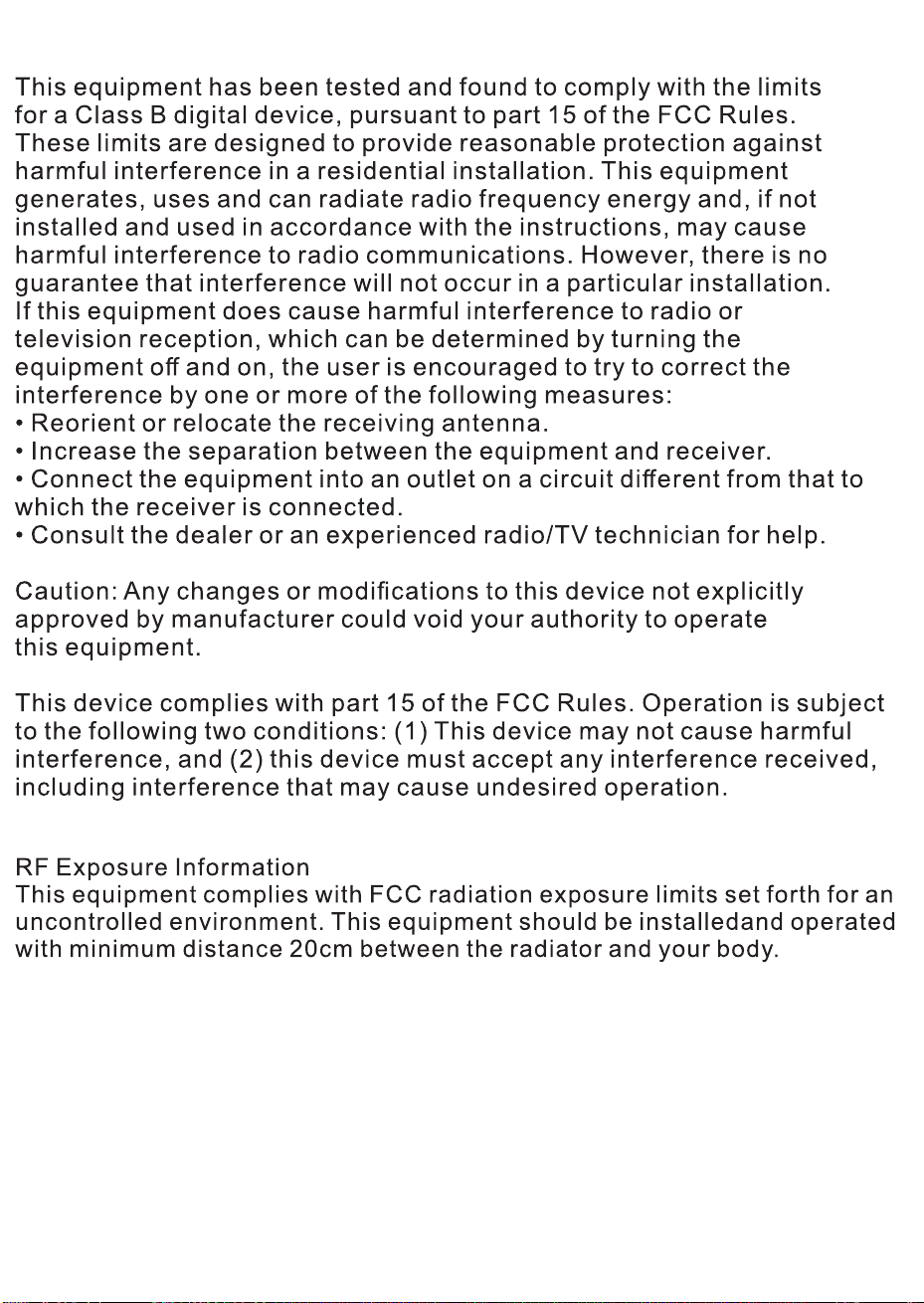

FCC ID: 2BBFBMPD158XB
MPD158XB
MPD158XB
DI SC
MIC.VOL: MICROPHONE VOLUME ADJUST
M.TREBLE MICROPHONE TREBLE ADJUST
M.BASS MICROPHONE BASS ADJUST
ECHO ECHO ADJUST
DELAY DELAY ADJUST
VOLUME MASTER VOLUME ADJUST
REC: RECORDING;INSERT CARD PRESS THIS BUTTON FOR
RECORDING,PRESS AGAIN TO STOP AND PLAY RECORDING SOUND
REPEAT
X-BASS ADJUST
AUDIO INPUT
MIC PRI: MICROPHONE PRIORITY ON/OFF SWITCH
GT IN: GUITAR INPUT JACK
MIC: MICROPHONE INPUT JACK
EQUALIZER
POWER: ON/OFF SWITCH
DISPLAY SCREEN
GT.VOL: GUITAR VOLUME ADJUST
LED MODE ADJUSTMENT
DISC DISCONNECTED
TWS/SCAN: PLAY/PAUSE/TWS/FM STATION AUTOMATIC SEARCH
CARD SLOT
MODE: MODE SELECT
PREV: PREVIOUS SONG
NEXT: NEXT SONG

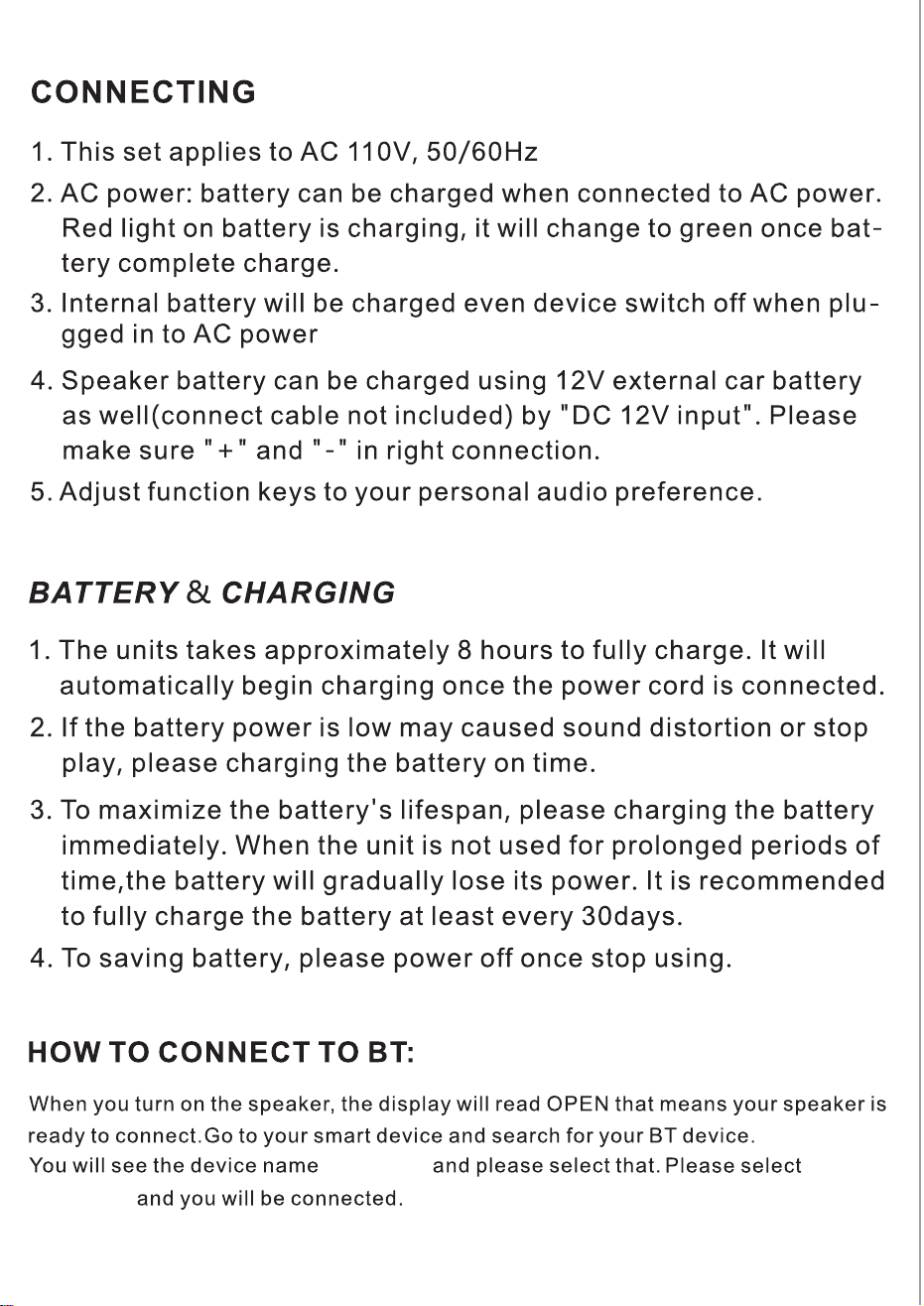

POWER INPUT(AC 110V-240V)
