AUTO EXHAUST SHUTTER FAN
INSTRUCTION >>
HIFANXEXHAUST8 HIFANXEXHAUST10 HIFANXEXHAUST12
Model:
Windigaga
Safety Precautions
Installation Method
General Specifications
Operation Panel Instructions
Remote Control Usage Instructions
Q&A
Warranty
01
04
05
06
07
08
09
CONTENTS
SAFETY PRECAUTIONS
WARNING
Disconnect the fan when moving from one location to another.
Do not use a power supply that does not meet the rated voltage.
The use of non compliant power supplies can cause fire or electric shock.
If the supply cord isdamaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons inorder to avoid a hazard.
If the machine emits smoke, odor, motor noise and other abnormal conditions,Please do
not use it. It may cause fire or electric shock.
Do not damage or arbitrarily change the original
power cord, and do not bend, forcibly pull, bind or press the power cord under heavy
objects.This will damage the power cord, causing electric leakage fire or electric shock.
If the machine is not used for a long time, please unplug the power cord from the sock-
et.
The connection socket must be installed with leakage protection switch device.
Read all safety warnings, instructions, illustrations and specifications provided with this
electrical appliances. Failure to follow all instructions listed below may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Improper operation may cause personal injury.
Improper operation may cause damage to the machine.
Improper operation may cause others object damage.
- 01 -
The symbol indicates that the user should pay high attention to and pay attention to the
drawing shows the situation to be noted, and the left figure shows "Be careful of electric
shock"
Do not disassemble, repair or rectify the machine during use. Doing so may result in fire
or electric shock and personal injury.
Never insert fingers, pencils, or any other object through the guard when fan is running.
When the power cord is unplugged from the socket, the plug should be unplugged. Do
not pull the power cord to forcibly pull the wire, which may cause damage to the wire -
and lead to leakage or electric shock.
This product is to be used in doors.
This appliance is not intended for use by persons(including children) with reduced phys-
ical.sensory or mental capabilities,or lack of experience and knowledge,unless they have
been given supervision or instruction concerning use of the appliance by a person resp-
onsible for their safety.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment. This equipment has been tested and found
to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC Warning Statement:
- 02 -
INSTALLATION
Unit: Inch, Tolerance: ±0.5 Inch
- 03 -
Note: Before commencing assembly familiarize your self with all the assembly components
and dimensions. Opening hole reference size of A2xB2.
NO
Description
A1(in)
1
8”
10.95
12.52
14.2
9.06
10.63
12.3
5.83
7.4
9.1
10.55
12.2
14
8.78
10.43
12.2
5.83
7.48
9.25
1.46
1.4
1.46
3.6
3.6
4
10”
12”
2
3
A2(in) A3(in) B1(in) B2(in) B3(in) L1(in) L2(in)
Installation Method

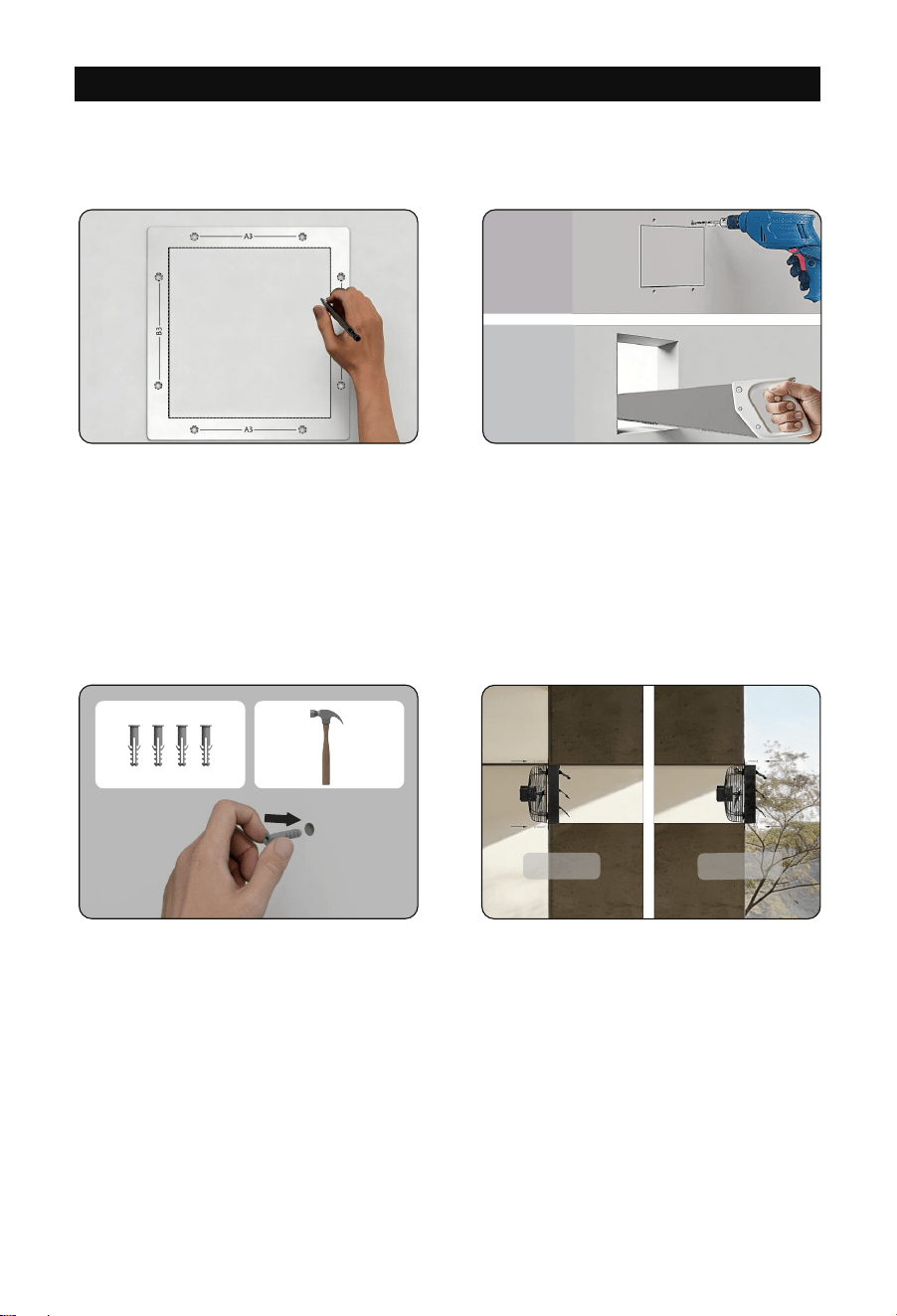

Drill the mounting holes into the wall. Cut
the outline to create the opening.
Step 2
Insert the included anchors into the mount-
ing holes.
Step 3
Position the fan into the cutout, please
ensuring the mounting holes does not
squeeze the outer frame, which may cause
the shutter to open poorly.
Step 4
Step 1
Mark the positions of screw holes and
mounting holes(You can choose four screw
holes with the size of Chart A3 or four
holes with the size of B3).
- 04 -
For better ventilation, it is recommended to open windows, doors, or shutters on the opposite
side of the area to be ventilated to introduce fresh air.
Indoor
Outdoor
GENERAL SPECIFICATIONS

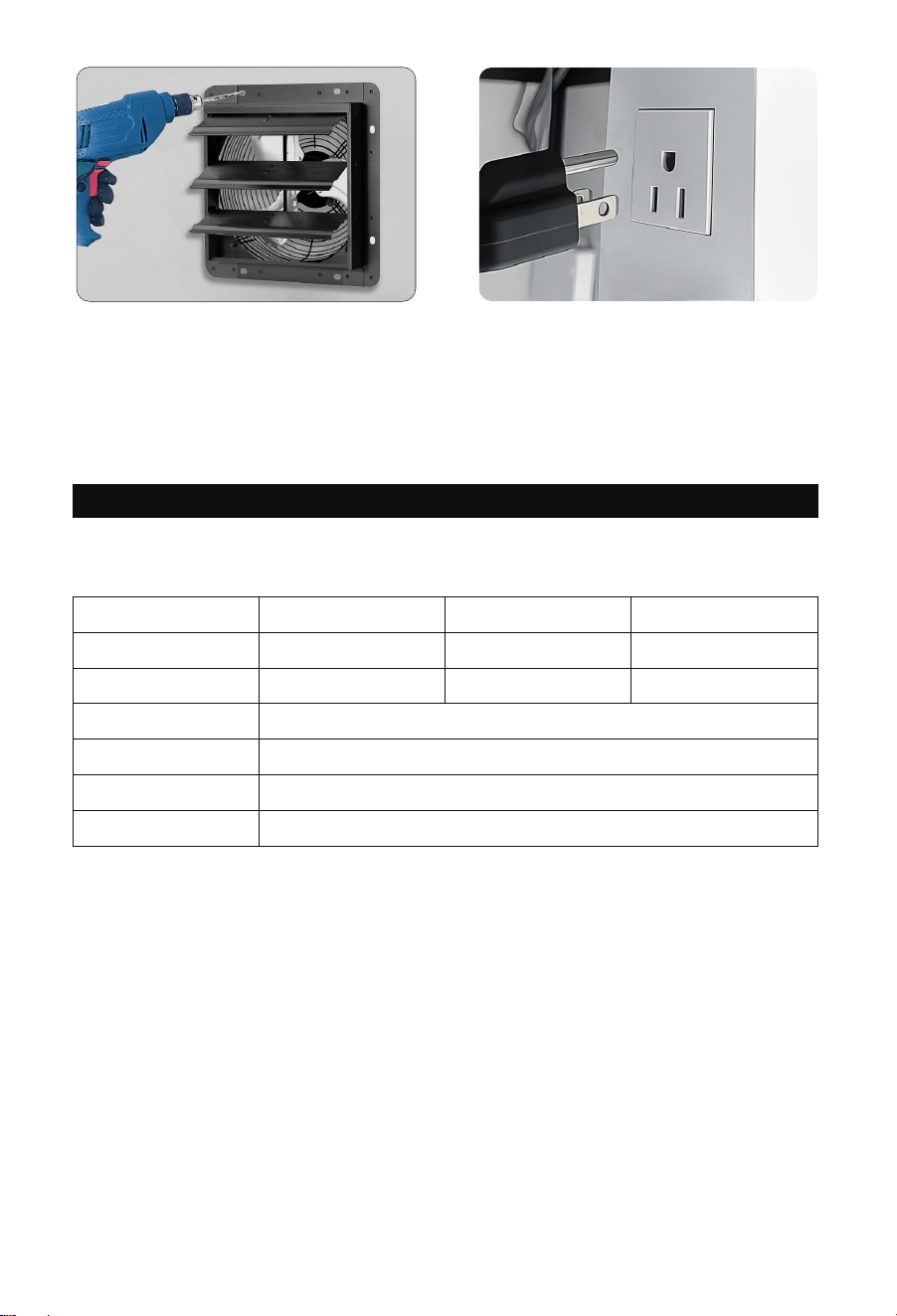

Step 5
Secure the fan by drilling the screws into
the anchors.
Step 6
Plug the AC power cord into a wall outlet to
power the fan.
- 05 -
Model HIFANXEXHAUST8 HIFANXEXHAUST10 HIFANXEXHAUST12
Power source 120VAC /60Hz
26W 36W
Vertical
Gavanized Steel
Aluminum Alloy
Aluminum Alloy and Galvanized Steel
40W
120VAC /60Hz 120VAC /60Hz
Power
Mounting Position
Frame Material
Shutter Blade Material
Propeller Material
Operation Panel Instructions

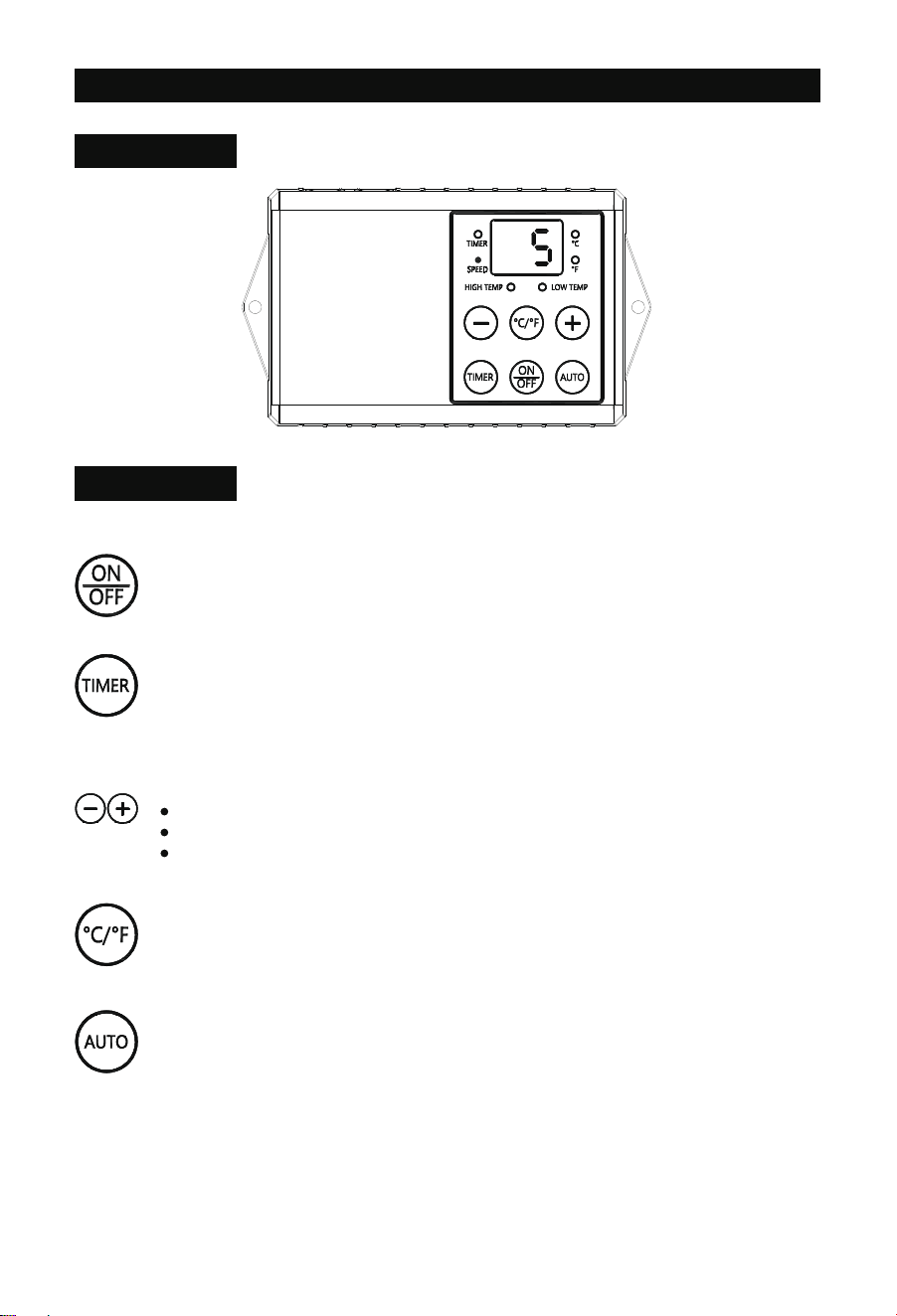

PROGRAMMING
BUTTON DESCRIPTION
- 06 -
ON/OFF BUTTON
Press the button to set power ON/OFF.
TIMER BUTTON
Press the button to set the fan's shutdown time. Maximum setting: 18 hours.
Adjust the temperature in Auto mode.
+- BUTTON
Press the button to add or reduce the setting parameters.
Adjust the fan speed in any mode.
Adjust the time in timer mode.
°C/°F BUTTON
Press the button to set the temperature conversion between degrees Celsius and
Fahrenhei.
Press the button to set modes: Speed(Normal) — Environmental Temp — LowTemp
— High Temp — Speed(Normal).
AUTO BUTTON
Remote Control Usage Instructions
NOTE
Batteries are not included. Install 2 AAA batteries before
using the remote.
- 07 -
Press Mode
Normal: Continue running at setting speed Speed display
Speed display
Speed and Environmental
Temp alternate display
Speed and Environmental Temp
alternate display
Speed and Environmental Temp
alternate display
Return to Normal mode
Display
①
②
③
④
⑤
Environmental Temp: Reference for High/Low
TEMP Setting, Running at Normal setting
Low Temp: Set Auto running TEMP, If Environ-
mental Temp≤ Setting Temp, Running
High Temp: Set Auto running TEMP, If Environ-
mental Temp≥Setting Temp, Running
Press to Low/High Temp Setting, Low or High indicator light remains constantly on, and the dis-
play screenfiashes, then press the + or - button to set the desire temperature .
Adjusting timer settings and auto settings will be automatically confirmed after 5 seconds.
Note:
AUTO
press the power on button for more than 5 seconds. There
will be a beep sound, and the remote control will be success-
fully paired.
Press to turn ON/OFF.
°C/°F
Press the button to add or reduce setting parameters.
Adjust the temperature in Auto mode.
Adjust the fan speed in any mode.
Adjust the time in timer mode.
Press the button to set modes: Speed(Normal)—Environmen-
tal Temp—Low Temp—High Temp-Speed(Normal)
AUTO
°C/°F
Press the " °C/°F " button to set the Celsius and Fahrenheit.
Press the button to set the fan's shutdown time, The timing
range is from 1 to 18 hours.
Press to turn on/off the screen brightness.
Long Press to turn on/off the sound.
Q&A
- 08 -
Questions
Why isn't the remote
control working?
Why does the fan
frequently turn on and
off in AUTO mode?
How to cancel the high
and low temperature
mode?
Does the product
retain settings after
power off?
How do I turn off
the display on the
control box?
How do I perform
maintenance on
this fan?
Answers
a.The remote may not have been paired successfully.Press and hold ON button
on the remote for 5 seconds until you hear a beep, indicating successful pairing.
b.The remote requires 2 AAA batteries (not included). Avoid using rechargeable
batteries. It works up to about 65 feet (20 meters), but walls or obstacles may s-
horten the range. For best results, please use the remote within this distance or
closer.
c.Ensure that the device’s plug is securely connected to the outlet. If the issue p-
ersists, try using a different power outlet.
When the set high or low temperature trigger points are close to the actual
room temperature, especially when used together with an air conditioning
system, temperature fluctuations are common. We recommend setting the
AUTO mode triggers at least ±6℉ away from the current room temperature.
Press Auto button until to Speed(Normal) mode.
The power supply box retains its settings as long as it remains powered. If the
power supply box is completely disconnected from power, it will not retain the
settings.
Step 1 Disconnect the power supply before cleaning or servicing the fan.
Step 2 Wipe the exterior with a dry cloth or use a light vacuum to remove dust.
Press the remote control button briefly to turn off.
WARRANTY
Ehiair warrants this product to be free of defects in material and workmanship for the applica-
tions specified in the Owner's Manual for a period of 24 months from date of purchase.This
warranty only applies to the original purchaser of this product.
Emial: [email protected]
※ Please have your order ID ready before contacting Customer Support
If you have any questions, you are welcome to contact us ! We will get back to you within
24 hours.
- 09 -
