EN
TUMBLE DRYER
Dryer
MODEL:
MDV3EH90D
THANK YOU LETTER
CONTENTS
01
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
QUICK START GUIDE
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLE SHOOTING
PRODUCT INFORMATION SHEET
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE
WARRANTY CARD
01
02
10
11
12
14
17
27
29
31
32
33
34
35
Read all instructions and explanations before use. Follow the instructions
carefully. Keep the operation instructions handy for later use. if the
appliance is sold or passed on then ensure that the new owner always
receives these operation instructions.
Intended Use
SAFETY INSTRUCTIONS
02
• This appliance is intended to be used in domestic household and similar
household installation environments.
• This appliance is intended to dry textiles in household amounts suitable for
domestic appliances, which have been washed with water and which are
marked on the manufacturer's care label as being suitable for tumble
drying.
• This appliance is intended for indoor usage only, not intended for outdoor,
built in or commercial usage or shared use, i.e. by several families in an
apartment building.
• This appliance is not intended for use by persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge unless
they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
All other types of usage are not permitted. Manufacturer is not liable for
damage caused by improper usage or incorrect operation.
Safety with children
•
continuously supervised.Children should be supervised that they do not
play with the appliance.
• Children from the age of 8 can use the appliance safely after they
have been given appropriate supervision or instruction concerning
use of appliance.
• Cleaning and maintenance shall not be made by children without
supervision.
• Children as well as pets may climb onto or into the appliance. Always
close the door after use.
• Children may hide things in the appliance. Check the appliance
before every operation.
• Surfaces of appliance may become very hot during operation. Keep
children and pets far away from the appliance while it is operating.
Children under 3 years shall be kept away from the appliance or
NOTE
Please read the user manual carefully before using the appliance. It
provides important information on safety, installation, operation and
maintenance. This will protect you and prevent damage to the
appliance. An improper usage can cause personal injuries and damage
to properties. Failing to follow these instructions shall void any
warranty.
Keep the user manual for future reference. If the appliance is sold or
passed on, make sure that the new owner always receives these safety
instructions.
DANGER
WARNING OF ELECTRICAL VOLTAGE
WARNING
CAUTION
NOTE
OBSERVE INSTRUCTIONS
Refrigerant Safety
• In the appliance enclosure or in the built-in structure, keep ventilation
openings clear of obstruction.
• Do not damage the refrigerant circuit.
WARNING
Explanation of Symbols
This symbol indicates that a service technician should only operate
and maintain this appliance in accordance with the operating
instructions.
The signal word indicates important information (e.g. damage to
property), but not danger.
The signal word indicates a hazard with a low degree of risk which,
if not avoided, may result in minor or moderate injury.
The signal word indicates a hazard with a medium level of risk
which, if not avoided, may result in death or serious injury.
This symbol indicates that there is a danger to life and health of
persons due to voltage.
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
03
The appliance contains an environmentally friendly but flammable R290
refrigerant. Keep away from open flame and other sources of ignition.
04
This warning only covers products which contain a UV-C lamp and which
have a germs reduction function with UV-C lamp. Always read the product
guide before using the device and use the product according to the
instructions!
UV Radiation Safety
• WARNING-This appliance contains a UV emitter. Do not stare at the light
source.
• UV-C Lamp is used to provide germs reduction in textile products.
• Do not take the UV-C Lamp out of the product and do not operate it
outside!
• Do not touch the lamp!
• Use of the product except for its purpose or damage to the UV-C lamp
protection glass or surrounding may cause dangerous UV-C radiation to
occur. UV-C radiation can damage the eyes and skin even in low doses. Do
not operate any product which is damaged!
• Do not remove the UV-C lamp protection glass. Do not operate the product
without the UV-C lamp protection glass!
• After the appliance stops due to various reasons (power outage, fuse
problem, machine door opening, etc.) while UV Hygiene programs are in
progress, the program will resume to germs reduction from where it left.
• In cases where UV-C lamp and related parts need to be replaced (expiration
of lamp life, break of lamp glass, etc.), call the customer service. Do not try
to replace the parts by yourself. When waiting for customer service, make
sure the machine is closed and the plug is disconnected!
• Keep children away while using any programs with activated UV-C Lamp!
• Hygiene program incorporating UV is effective for removing Escherichia
coli, Staphylococcus aureus bacteria.
• This product contains light sources that emits light stream. Do not look at
light source of light while the light source is operating. These light sources
are available as a spare part and must only be replaced by trained specialist
staff.
Risk of fire and explosion due to damage to the tumble dryer.
Refrigerant R290 (propane) is a flammable and explosive gas if it leaks in the
event of damage.
Take measures to protect the tumble dryer against damage. Do not make any
alterations to the tumble dryer.
05
Installation Location and Surrounding
•
not accumulate. Air must be able to circulate freely around the appliance.
Do not obstruct the front air inlet or the air intake grilles at the back of the
appliance.
• Do not install the appliance on a carpet floor. Because an obstruction of the
openings by a carpet can damage the appliance.
• Keep the appliance clear from heating sources and direct sunlight to avoid
plastic and rubber parts to corrode.
• Do not operate the appliance in rooms with a temperature of below 2°C.
This can cause damages by frost to components, like hoses, which may
burst orsplit. If it is unavoidable, make sure to pour out the condensate
water completely after every use. (see “Cleaning and Maintenance”)
• Do not use the appliance in humid and drenching environments or rooms
containing explosive or caustic gas.
• Never use flammable sprays or substances in the immediate proximity of
the appliance.
• The appliance must not be installed behind a lockable door, a sliding door
or a door with a hinge on the opposite side to that of the appliance, in such
a way that a full opening of door is restricted.
• Must not be installed in a non-stationary location like on a ship.
• This appliance is intended for use at altitudes of up to 4000m above sea
level.
• Keep the area around the tumble dryer clean. Coal dust or flour may cause
an explosion.
• Do not restrict the floor clearance through deep pile carpets, strips of wood
or similar. This might cause heat built-up which would interfere with the
operation of the appliance. Risk of Fire!
The appliance must be installed in a clean place, where dirt, dust or fluffs do
WARNING
06
Installation
• Pay attention to the chapter “Product Installation”.
• Remove all packaging material before operating the appliance. Otherwise,
serious damage may result.
• Before setting up the appliance, check it for any externally visible damage.
• Do not install or use a damaged appliance.
• Do not disassemble or install the dryer without any instruction or
supervision.
• Lint must not to be allowed to accumulate around the tumble dryer.
• After installation, leave the appliance to stand for 2 hours.
• Before drying laundry for the first time, the appliance shall be operated
once a machine cleaning program. (see “Operation Instructions”)
• The new hose-sets supplied with the appliance are to be used and that old
hose-sets should not be reused.
Electrical Connection
• The appliance corresponds to protection class I and may only be
connected to mains plug with a protective conductor protected by a fuse
complying with the data in the “Technical specifications” table or by the
rating plate (fuse rating, voltage and frequency).
• If needed, the grounding installation has to be made by a qualified
electrician. Ensure that the appliance is installed in accordance with the
local regulations.
• Don´t use multiple plugs, extension cords or similar. Risk of overheating!
• The electrical socket must be easily accessible after installation so that the
appliance can be disconnected from the electricity supply if needed.
• Always pull at the plug, not at the cable.
• Do not bend, clamp or damage the power cord and the power plug.
• Make sure the power cord is not trapped by the appliance, or it can get
damaged.
• Always unplug the appliance if it is not being used.
• Do not pull the plug out of the mains outlet if there is flammable gas
around. Risk of explosion!
• If the appliance appears high temperature abnormally, please unplug the
mains plug immediately. Call the Customer Service!
07
Electric shock hazard
WARNING：
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• WARNING: The appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by a utility.
• If the appliance is damaged, it must not be operated unless repaired by the
manufacturer, its service agent or similarly qualified persons. Never try to
repair an appliance which is defective or presumed to defective.
• Never pour water over the appliance for cleaning purpose.
• Do not make any technical alterations to the appliance.
• Do not climb or sit on the appliance.
• Never pull out power plug with wet hands.
Operation
• Pay attention to the maximum load quantity of this appliance and the
reduced load quantity of the single programs. The load quantity is
expressed in kilogram dry laundry. (see “Program Description”)
• Do not dry unwashed and uncleaned items in the tumble dryer.
• Do not dry laundry before being spun in a washing machine or spin
extractor.
• Items that have been soiled with substances such as vegetables or cooking
oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, hair care
products, nail vanish remover, wax and wax removers should be washed
manual in hot water with an extra amount of detergent before being dried
in the appliance. Risk of Fire! Risk of Explosion!
• Fabric softeners, or similar products, should be used as specified by the
fabric softener instructions. Risk of Fire!
• Oil-affected items can ignite spontaneously, especially when exposed to
heat sources such as in a tumble dryer. The items become warm, causing
an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot
escape, the items can become hot enough to catch fire. Piling, stacking or
storing oil-affected items can prevent heat from escaping and so create a
fire hazard.
• Make sure that all pockets are emptied. Sharp and rigid items such as
coins, brooches, nails, screws, stones etc. may cause serious damages to
appliance components, which can therefore cause damage to the laundry.
• Remove all objects from pockets such as lighters and matches.
08
• Items containing foam rubber (latex foam), shower caps, water proof
textiles, rubber backed articles and clothes or pillows fitted with foam
rubber pads should not be dried in the appliance. Risk of Fire!
• Do not dry any textiles that contain padding or fillings that are damaged
(e.g. pillows, jackets). The filling may fall out and cause a fire hazard. Risk
of Fire!
• Please do not close the door with excessive force. If it is found difficult to
close the door, please check if the laundry is properly inserted and
distributed.
• Do not operate the dryer without the door lint filter and without the water
container.
• Take care when opening the door after using the steam function. Take a
step back and wait until the steam has evaporated. Risk of scalding!
(Suitable for the dryer with steam function)
• Do not lean on the opened door of the appliances.
• Condensed water is not drinking water. It can cause health problems in
both people and animals if consumed.
• If it is unavoidable that fabrics containing vegetable or cooking oil or which
have been contaminated by hair care products be placed in a tumble dryer,
they should first be washed in hot water with extra detergent (this will
reduce, but not eliminate, the hazard).
• Never stop a tumble dryer before the end of the drying program unless all
items are quickly removed and spread out so that the heat is dissipated.
WARNING
Maintenance
• Pay attention to the chapter “Cleaning and Maintenance”.
Always unplug the appliance before cleaning and maintenance and after
each use.
• The lint filters have to be cleaned and the water container have to emptied
after each drying program.
• Clean the appliance with a damp rag moistened with clean water and do
not spray it directly with water.
• Never use any industrial chemicals as cleaning solvents, which are
flammable, explosive or toxic. Do not use gasoline and alcohol for cleaning
the appliance. Only select cleaning solvents, that are suitable for machine
cleaning. Risk of fire and explosion!
• Do not use solvents, abrasive cleaners, glass cleaners or all-purpose
cleaners. These could damage plastic surfaces and other parts.
• The tumble dryer is not to be used if industrial chemicals have been used
for cleaning. Risk of fire and explosion!
09
• Fill steam generators only with liquids specified by the manufacturer.
(Suitable for the dryer with steam function)
• Do not touch the heat exchanger with your hand, which may cause an
injury. Please wear gloves when cleaning. (Suitable for the dryer with
access to the heat exchanger)
• The appliance should not be overturned during normal use or maintenance.
• For repairs it is recommended to consult a qualified repair service (e.g., a
professional repairer, certified dealer or an authorized customer service
center) in order to avoid a hazard. Manufacturer will not be responsible for
damages caused by the intervention of not authorized persons. Failing to
follow these instructions shall void any warranty.
Before transporting the appliance prepare it to following instructions:
• Disconnect the appliance from the power supply and pull the mains plug
out of the socket.
• Remove the external drain hose from the house installations (see “Product
Installation”)
• Empty the water container of the appliance. (see “Cleaning and
Maintenance”)
• Check if the door and the water container are closed properly.
• This appliance is heavy. Never transport or carry the appliance alone,
always with the assistance of another person.
• Never hold any protruding part of the machine when lifting. The machine
door cannot be used as a handle.
• Transport with care. If the dryer can't be transported erectly, the dryer can
be tilted to right less than 30°.
• Remove all obstacles on the transport route and from the installation
location, e.g. open doors and clear away objects lying on the floor.
• Before reinstallation of appliances check it for any externally visible
damage.
• After transportation, leave the appliance to stand for 2 hours.
• Incorrect transportation can cause personal injuries and damage to
properties. Ensure that the appliance is properly secured during
transportation.
• When lifting the machine, there is a risk of cuts in the lower area.
Protective gloves must be worn.
Transport
CAUTION
OBSERVE INSTRUCTIONS

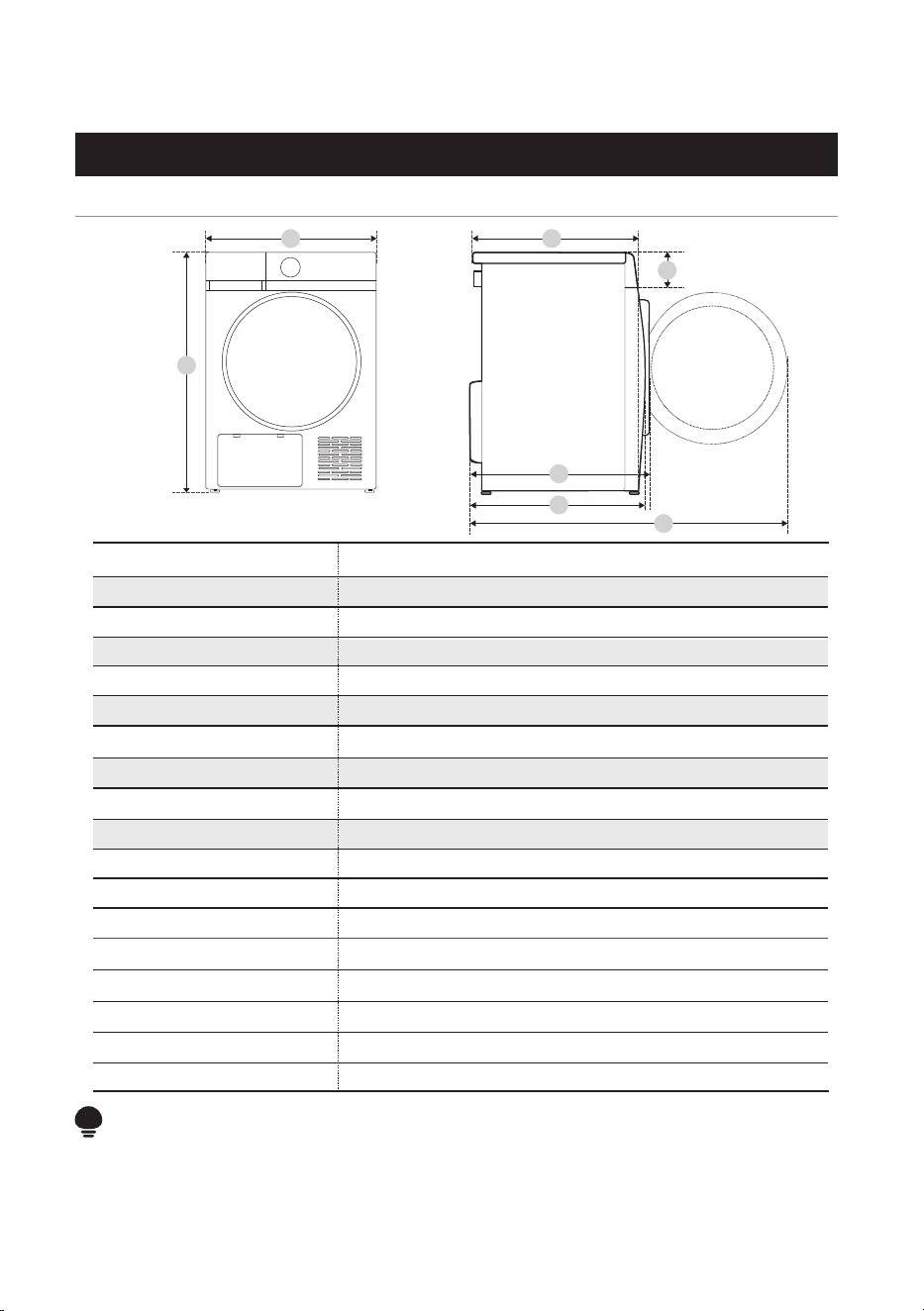

SPECIFICATIONS
E
F
D
G
C
• The rated capacity is the maximum load quantity in kg dry weight that can
be dried at one time. Make sure that the laundry loaded into the appliance
does not exceed the rated capacity.
NOTE
10
A
B
CO e
2
MDV3EH90D
220-240V~,50Hz
Model
Power Supply
Rated input power
800W
Refrigerant
R290
Rated capacity
9.0kg
3
0.00t
120g
+ 2°C ~ +35°C
595mm
850mm
GWP
Ambient temperature
Dimension
A
B
C
D
G
Quantity of refrigerant
E
F
600mm
675mm
646mm
1137mm
135mm
Weight
47kg
MDV3EH90D
9.0kg dry load
Model
Rated capacity

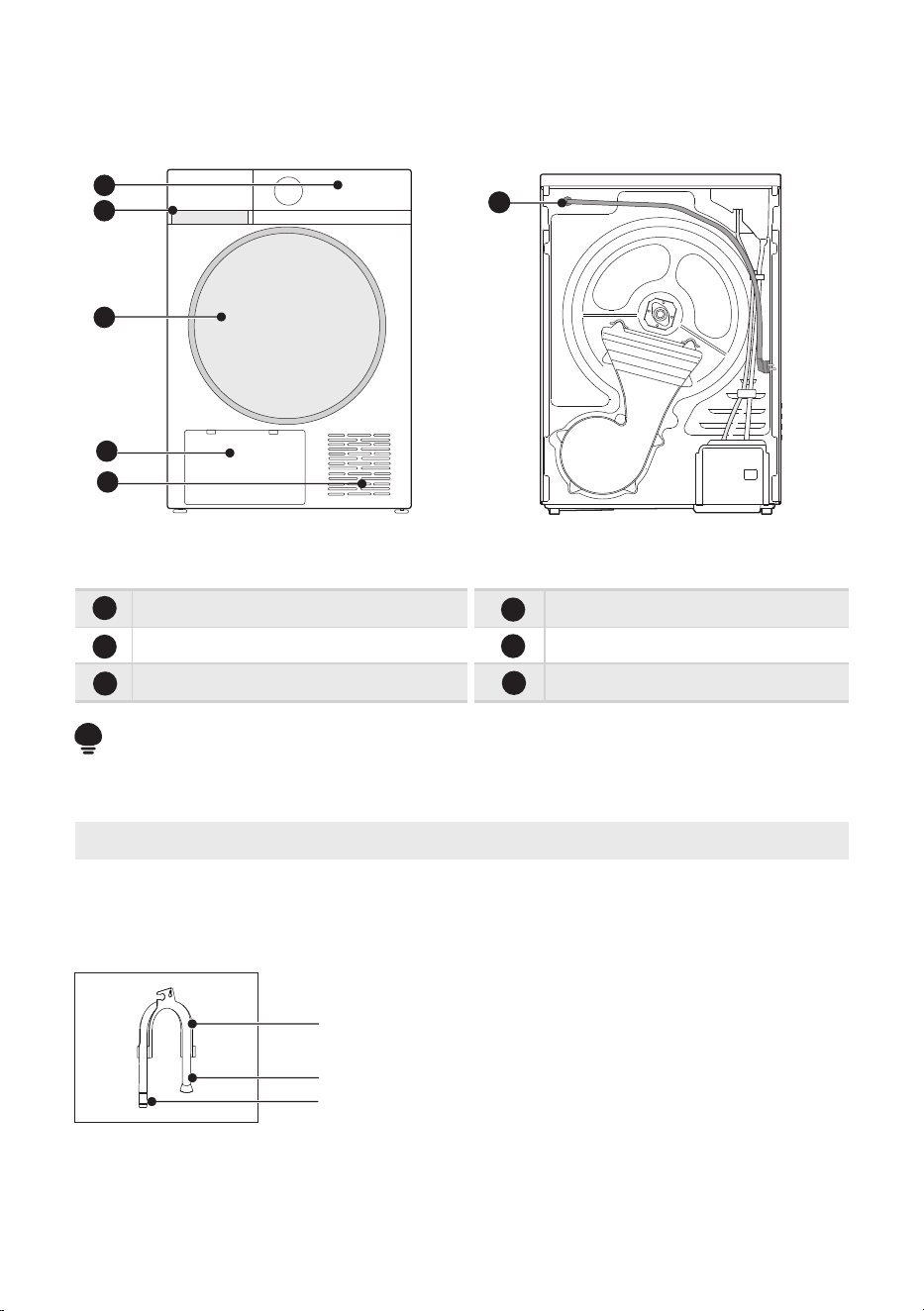

PRODUCT OVERVIEW
1
2
3
4
5
6
Accessories
11
• The following parts are optional for specific models.
• install as per the
instruction below .
If your dryer has following parts, please wear gloves to them
Hose holder
Condensing drain hose
Connector
Water container
Control panel
Door
Maintenance cover
Air inlet
Power cord
• The illustration above is for reference only. Please take the appearance of the
actual product as reference.
NOTE
4
3
2
1
5
6
12

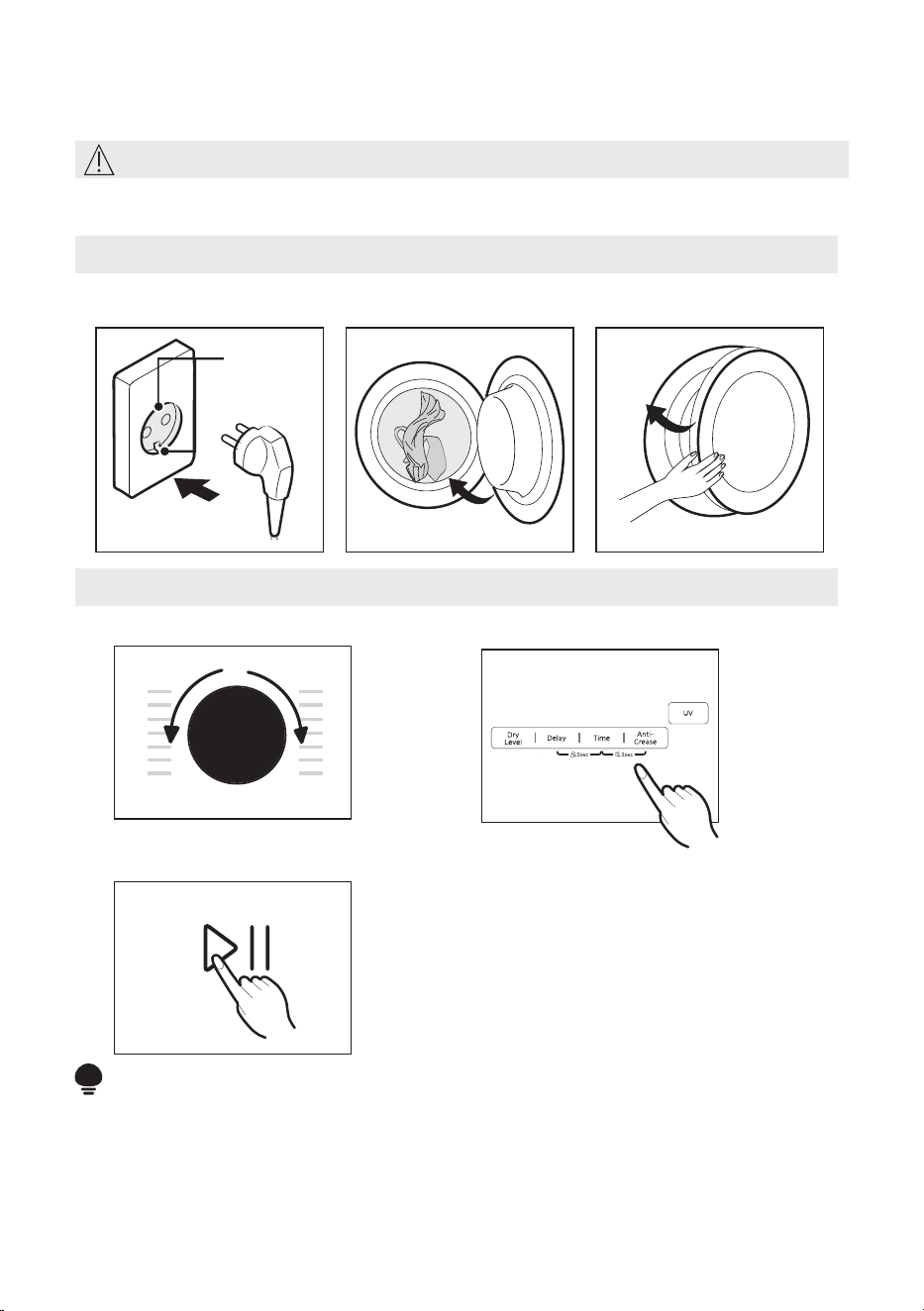

QUICK START GUIDE
3. Close the door
earth
terminal
CAUTION
1. Before drying
1. Insert the mains plug 2. Load the laundry
2. Drying
• The illustration above is for reference only. Please take the appearance of
the actual product as reference.
NOTE
1. Power on and select program
• Before operation, please make sure the machine is installed properly. See chapter
"Product Installation".
2. Select program
3. Select options or remain
default settings
3. After Drying
13

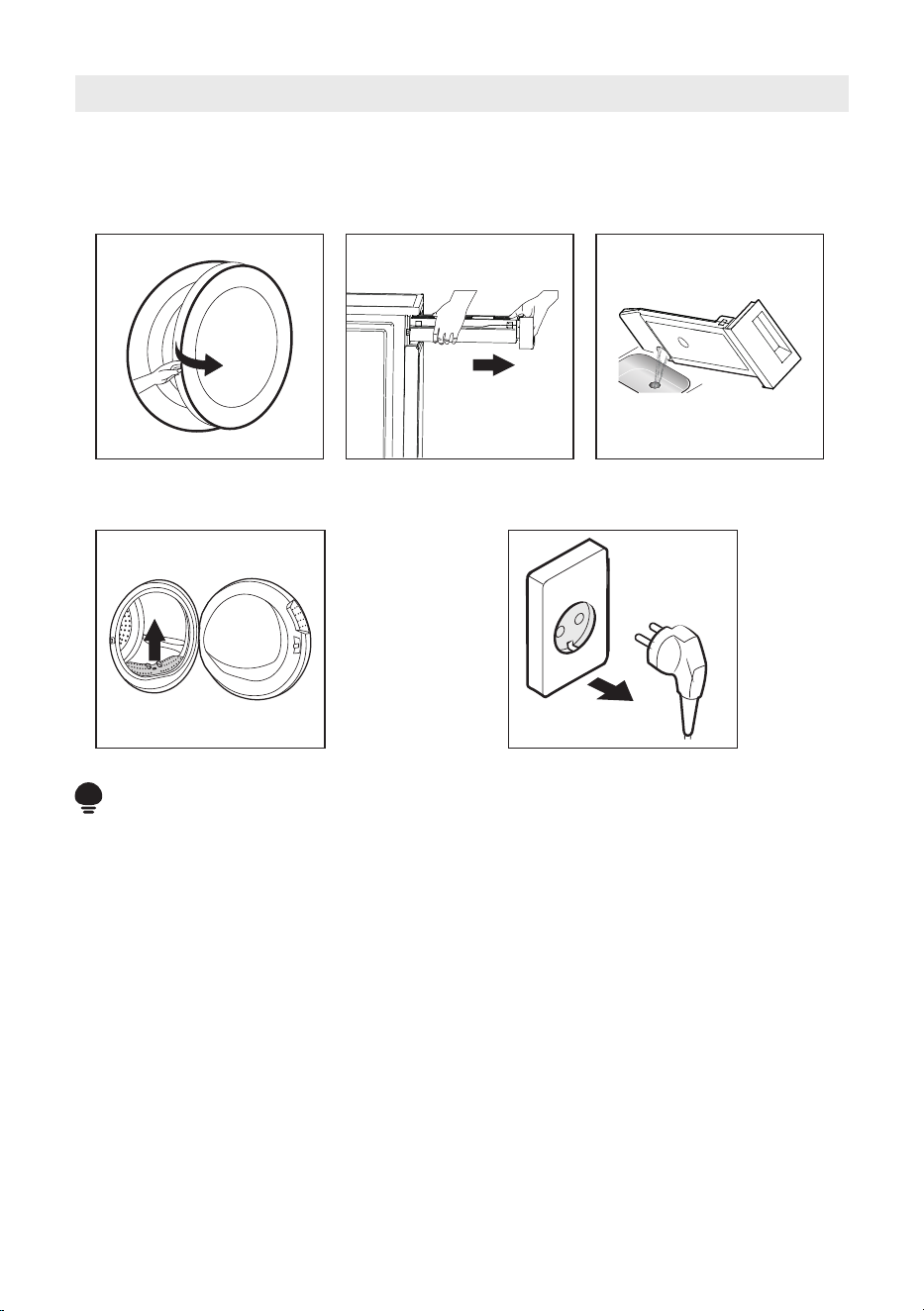

1.
take out laundry
Open the door and
A acoustic signal is given and “End” will be displayed.
5. Unplug the mains plug
• If the socket with a switch is used, please press the switch to turn off the power
directly.
NOTE

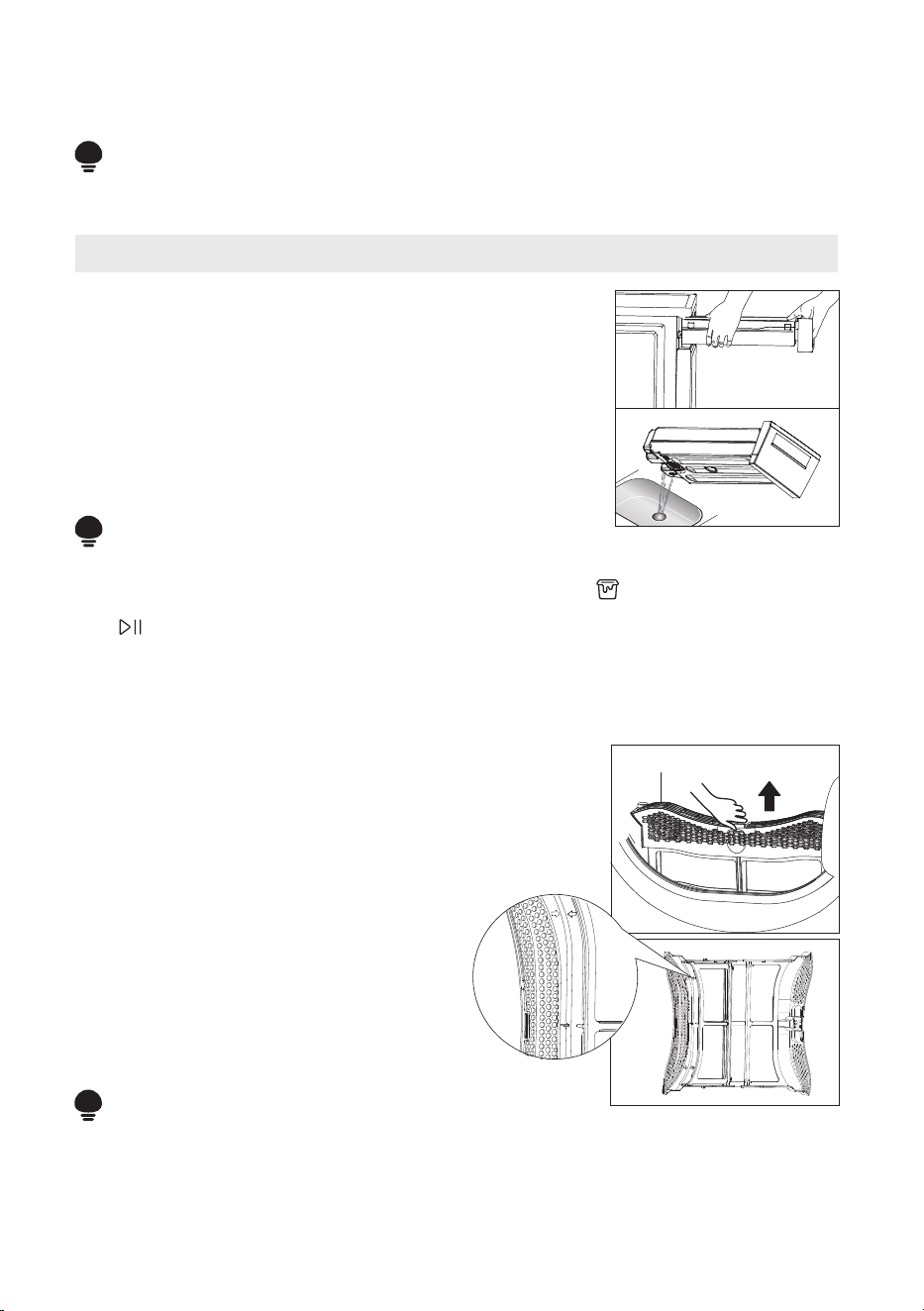

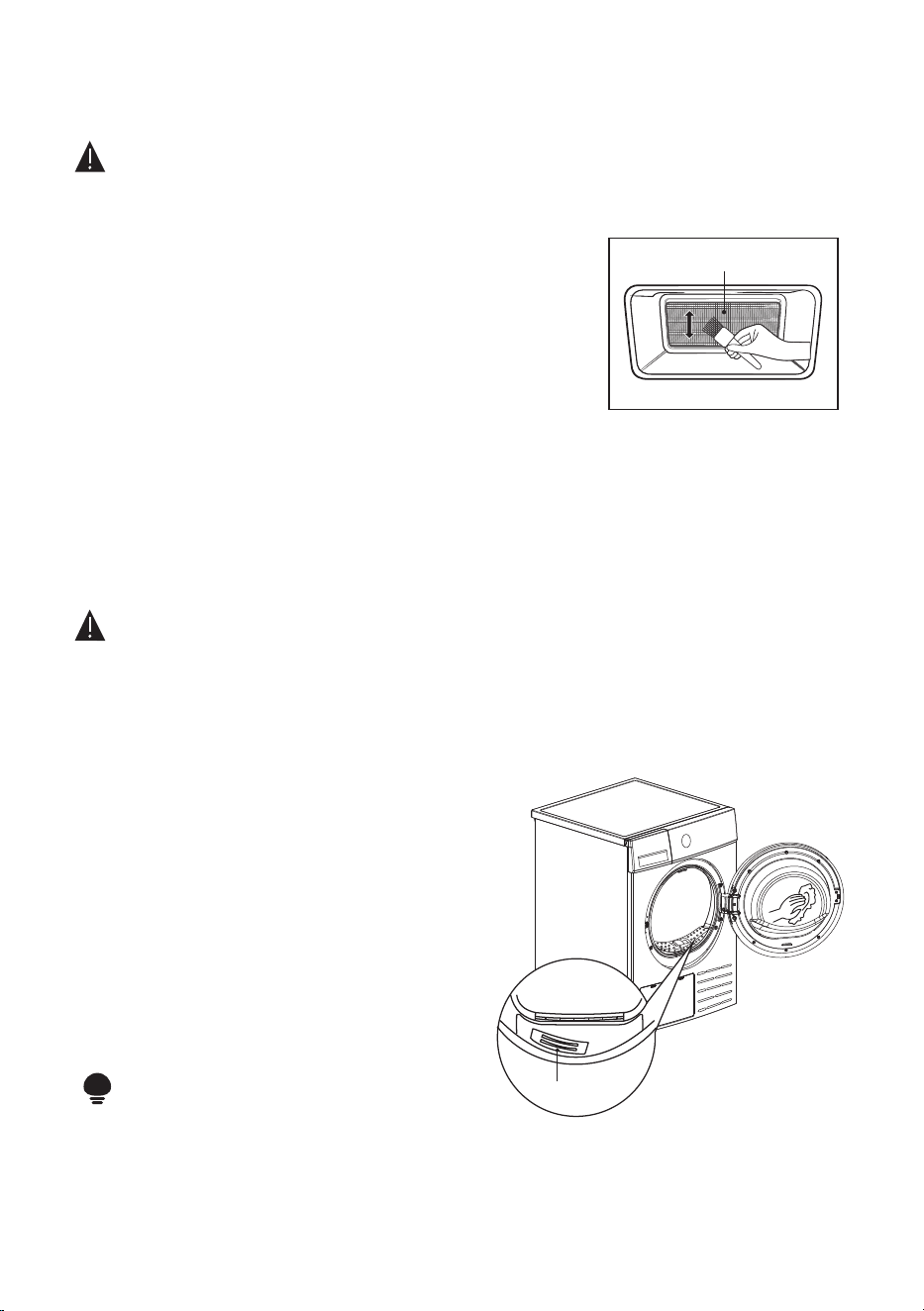

2. Pull out the water
container
4. Clean the lint filter
3. Pour out condensation water
14
PRODUCT INSTALLATION

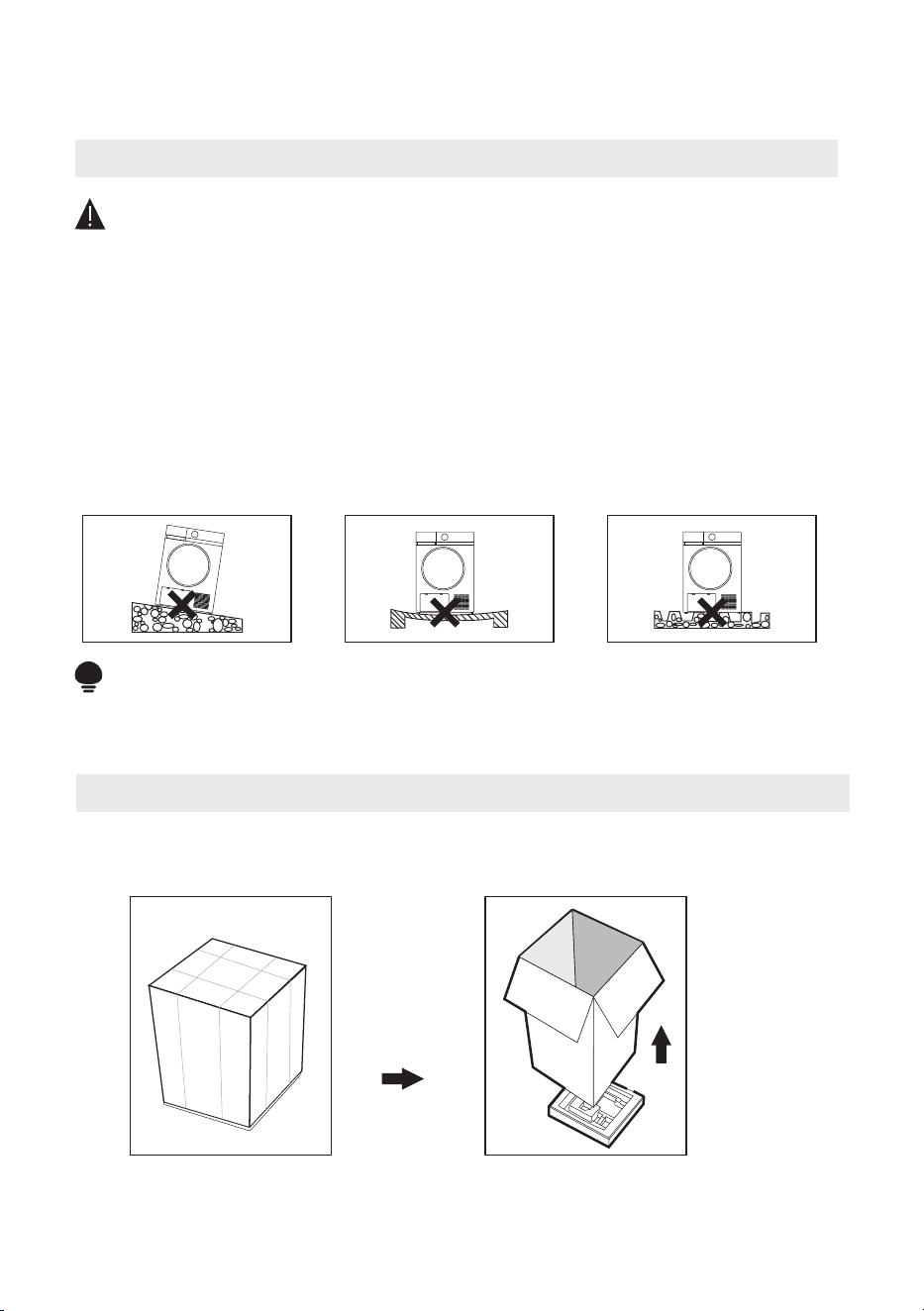

Installation Area
• Do not install the tumble dryer in a room when there is a risk of frost occurring. At
temperatures around freezing point the tumble dryer may not be able to operate
properly.
Before installing the machine, the location characterized as follows shall be
selected:
1. Rigid, dry, firm and level surface.
2.Avoid direct sunlight.
3.Sufficient ventilation.
4.Room temperature is above 5 °C .
5.Keep far away from the heat sources such as coal or gas burning appliances.
It is recommended that, for your convenience, the machine is positioned close to your
washing machine.
To keep vibration and noise within minimum level when the dryer is in use, it must be
placed on a firm and level surface.
WARNING
NOTE
Unpacking the Tumble Dryer
1. Remove the cardboard box and styrofoam packing.
2. Lift the appliance and remove the base packaging.
3. Remove the tape securing of the power supply cord.
15
Level Adjusting
Once in its permanent operating position, check that the dryer is absolutely level with
the aid of a spirit level. If it is not, adjust the feet by hand or using a tool.
• The feet must never be removed.
NOTE
• Packaging material (e.g. foils, styrofoam) can be dangerous for children.
• There is a risk of suffocation ! Keep all packaging well away from children.
• Children can become entangled in the packaging film or swallow small parts and
suffocate. Do not allow children to play with the packaging.
Disposal of packaging material
The packaging is designed to protect the appliance from damage during
transportation. The packaging materials are environmentally friendly and
should be recycled. Recycling the packaging can reduce the use of raw
materials in the manufacturing process and the amount of waste in landfill
sites.
•
WARNING
16

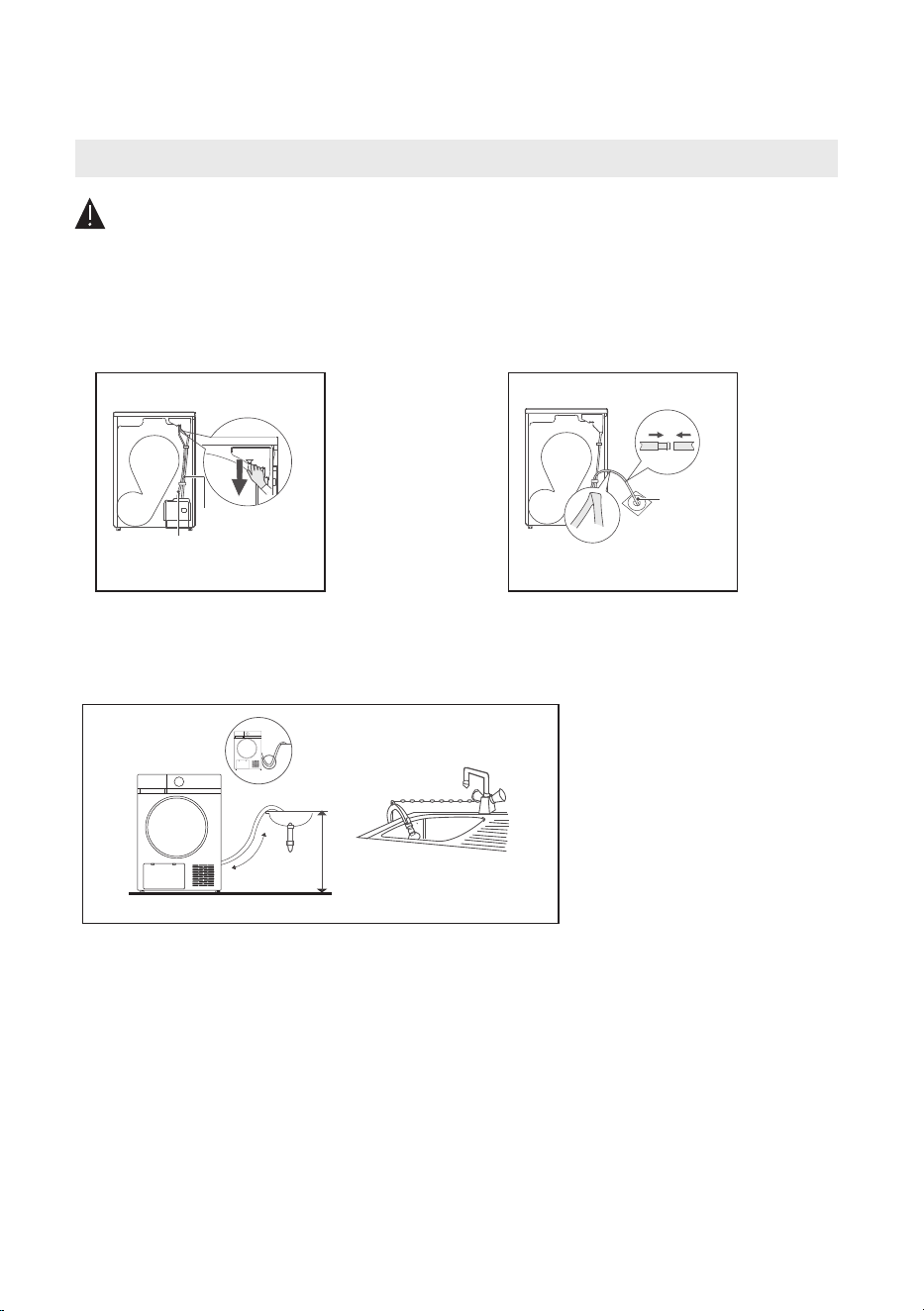

Install external drain hose
1. Pull out the upper drain hose
2.
floor drain
Put the external drain hose into the
3.
basin or any other sink.
Put the hose holder in the washing
Drain hose
Overflow hose
X
Drain hose
WARNING
x
Max.80cm
20
0cm
•
• Position drain hose properly.
Do not kink, crush or protract the drain hose.
OPERATION INSTRUCTIONS
Before Each Drying
17
• Leave it to stand for 2 hours after transporting. Before first use, please use the soft
fabric to clean the inside drum.
1. Put some clean rags into the drum.
2.Insert the mains plug, turn the program selector.
3. Select the [TIME DRY] Programme, press [ ] button.
4. After finishing this programme, please follow the “Cleaning and Maintenance ” to
clean the door filter.
• During drying, the compressor and the water will generate some noise
which is entirely normal.
1.Before drying, thoroughly spin the laundry in washing machine. High spin speed
shortens the drying time and saves energy.
2.Do not dry dripping wet laundry. The dryer may be damaged.
3.For uniform drying result, sort the laundry according to fabric type and select the
appropriate drying program.
4.Before drying, please close zips, hooks and eyelets, button, tie fabric belts, etc.
5.Remove all objects from pockets such as lighters and matches.
6.Remove underwires from bras that are not sewn in or protect bras in a laundry bag.
7.Close duvet covers and pillow cases to prevent small items from being rolled up
inside them.
8.Leave jackets open and undo any long zips so that textiles dry evenly.
9.Do not over dry the clothes, because over dried clothes can easily get creases.
10.Do not dry the textiles containing rubber or similar elastic materials.
11.The door shall be opened only after the program of the tumble dryer is finished
to avoid being scalded by hot steam or overheating of the tumble dryer..
12.Clean the lint filter and empty water container after each use to avoid extension of
drying time and increase of energy consumption.
13.Do not dry clothes after dry-clean process.
NOTE

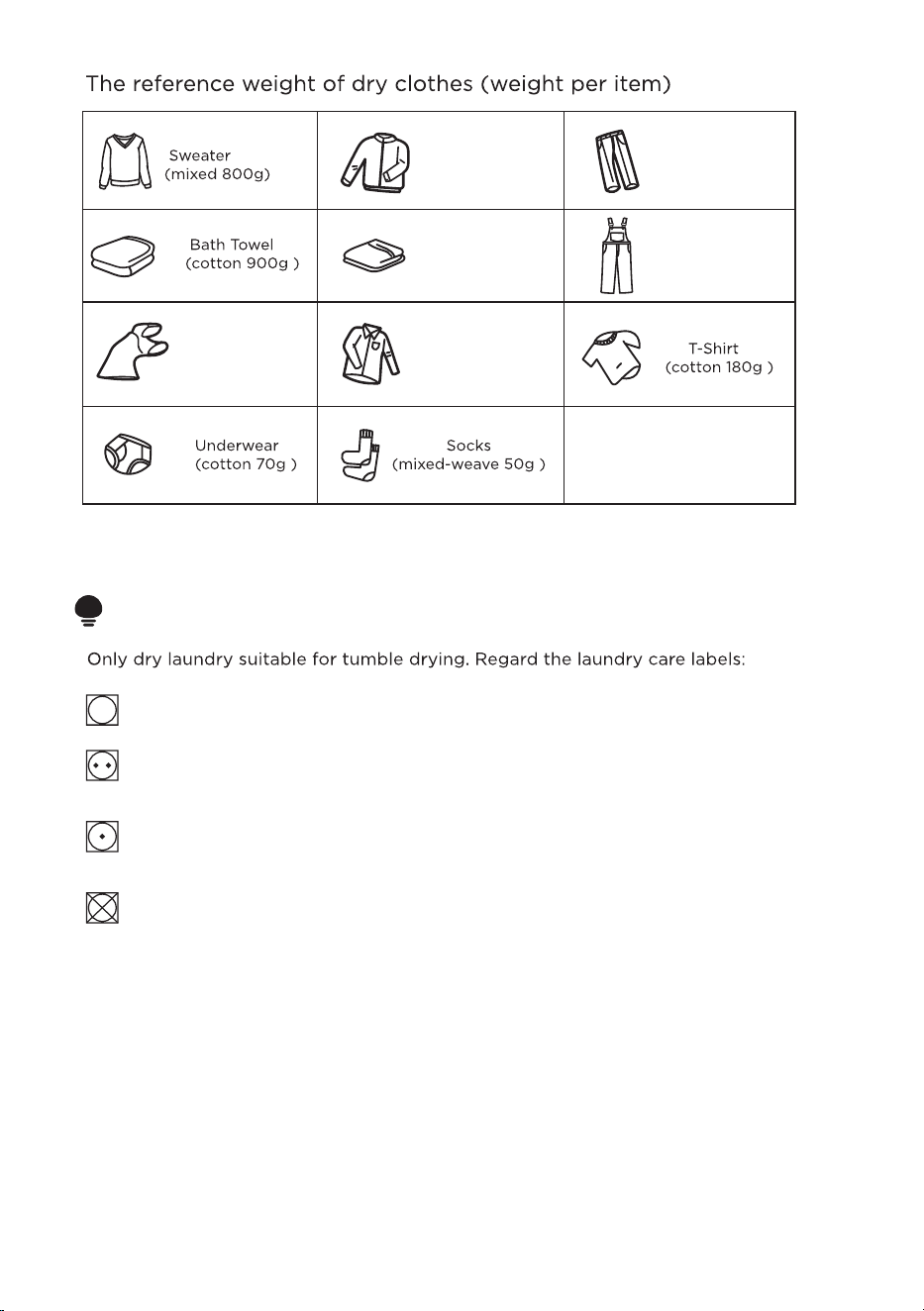

Jacket
( cotton 800g )
Jeans
(800g)
Single bedsheet
(cotton 600g )
Work clothes
( 1120g)
Pyjamas
( 200g)
Shirt
(cotton 300g )
18
NOTE
Symbol for tumble dryer
Do not tumble dry: The laundry is not suitable for tumble drying.
Normal drying: Laundry items can be safely dried at a medium temperature.
Gentle drying: Items can be dried at a low temperature. Select a short drying
time.
19
Switch the tumble dryer off.
Press the button to start or interrupt the drying program.
1
1
Off
1
2
Start/Pause
By selecting the options, you can change the program settings
or select additional functions.
1
3
Options
1
4
Display
The display shows you the settings, the estimated remaining time and status
messages.
1
5
Programs
Various drying programs can be selected depending on your needs
and the type of laundry to be dried.
2
3
3
4
5

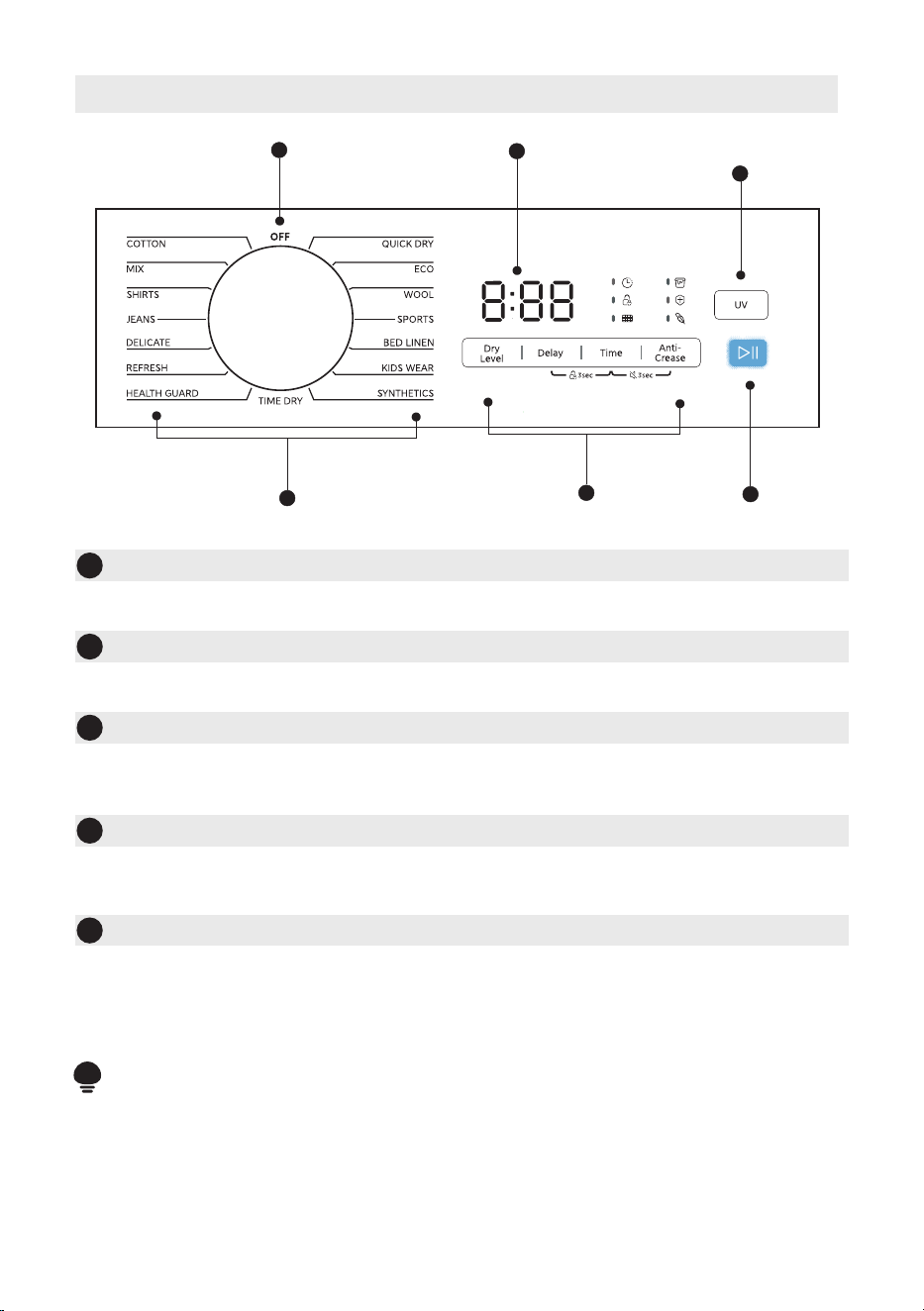

Control Panel
1
• The illustration above is for reference only. Please take the appearance of the
actual product as reference.
NOTE
20
Delay
UV
Child lock
Empty water container (warning)
No Signal
Anti-Crease
Remaining Time indicator/Error message
Display
Clean lint filter warning
21
Program selector
1.When the LED display screen brightens up, rotate the program knob to select the
desired program.
2.Select the [Dry Level], [Delay], [Anti-Crease] , [Time] functions for additional options.
3.Press the [ ] button.
4.Turn the program selector to [ Off ] after the program has completed.
Program start
Program end
1.Insert the mains plug into the socket.
2.Put your laundry loosely inside the drum.
3.Close the door. Take care not to trap any items.
4.Switch on the appliance.
Before starting the appliance
1.The drum will stop rotating after the program ends. The display will show
"End". The dryer will start [Anti-Crease] function if user doesn't remove the
load. Turn the program selector to [ Off ] after unloading the tumble dryer to
disconnect from the power and draw the mains plug.
2.Deal with the problems according to “Trouble Shooting” chapter. If there is an
unexpected stop during the drying process or the dryer shows an Error
Code refer to list of "Error Codes".
Do not switch the dryer off before the drying program has finished. If this is done,
the laundry must be hung up or spread out to cool it down for avoiding risk of the
laundry igniting itself.
WARNING
The drum will rotate after the program starts. The estimated remaining time will
be displayed.
For drying mixed loads made of cotton, synthetics
including mixed fabrics.
22
Max
Load
4.0kg
Cotton
Mix
9.0kg
This program is suitable for drying heavy-duty cotton
items.
Note:
Use Bed Linen program to dry large, bulky items made
from cotton like bed sheets.
Use Mix program to dry small size mixed loads type made
of cotton and synthetics.
1.0kg
Shirts
The program is dedicated to shirts and blouses. To avoid
creases hang laundry on hanger for final dry-off or iron
immediately after end of program.
Note:
Do not exceed the maximum loading quantity.
Special program for jeans trousers and jeans jackets as
well as casual clothing made from denim.
Note:
Dry inside out.
Jeans
5.0kg
Suitable for drying delicate fabrics.
Note:
Do not exceed the maximum loading quantity.
Delicate
1.0kg
Refresh
1.0kg
To refresh clothes kept at closet for a long time or to
remove odors. Min. 20 min to max. 180 min.(in 10 min.
steps)
Health Guard
4.0kg
For drying heavy-duty and heat-resistant laundry made
of cotton.
Particularly suitable for increased hygiene requirements.
Time Dry
The Time Dry program is suitable for pre-dried or slightly
damp laundry. Also recomended for individual items or
for drying thin fabrics. The program can be set between
10 and 150 minutes.
Quick Dry
0.6kg
For quick drying of individual items or small quantities of
laundry. Suitable for textiles made of cotton, synthetics
and mixed fabrics. Do not exceed the maximum load
quantity for this program.
Note:
For textiles like towels, bathrobes or bathroom rugs
please use the program Bed Linen.
ECO
9.0kg
The eco programme is suitable to dry wet cotton laundry.
It's the most efficient programme in terms of energy
consumption.
1.0kg
Wool
Suitable for woollen textiles and textiles made from wool
blends that are labelled as suitable for tumble drying.
Program
Description
Program Description
1
Max
Load
23
Sports
3.0kg
Special program for iron-free sportswear and functional
textiles, made from thin polyester fabrics.
Bed Linen
5.0kg
Suitable for a typical bed linen load (bed sheets,
pillowcases, duvet covers). Do not exceed the maximum
load quantity for this program.
Note:
In addition this program can be used for duvets, also
oversized, which are suitable for tumble drying. Always
dry duvets individually.
Kids Wear
To dry small amount of baby clothing.
1.0kg
4.0kg
Synthetics
Suitable for easy-care textiles made of synthetics or
mixed fabrics that do not need to be ironed after drying,
such as leisure wear, baby clothes or socks.
Note:
Do not exceed the maximum loading quantity.
Program
Description
*The Eco program is the energy saving program and is suitable for drying normal wet
cotton laundry. It's the most efficient program in terms of energy consumption for
cotton laundry.
• The max load is the maximum load quantity in kg dry weight that can be dried
at one time. Make sure that the laundry loaded into the appliance does not
exceed the rated capacity.
• Time drying programs do not automatically detect the residual moisture of
the laundry to be dried. If the laundry is still damp after drying program, it's
advisable to repeat the program if necessary and adjust the program duration.
The duration of program can be adjusted by usage of Time button.
NOTE
Options
24
Dry Level
Dry
Level
Delay
This function can be used to delay the start of the drying programme by up to
24 hours. When the delayed program starts, the time on the display starts to
count down and the " " symbol lights up.
1. Place the laundry in the drum and make sure that the appliance door is
closed.
2. Turn the program selector to choose the desired program.
3. Press the [Dealy] button to set the desired time. Press it repeatedly to
change the delay time.
4. After the [ ]button has been pressed, the tumble dryer is in operating
mode. The drying process is starting automatically when the delay time has
elapsed.
5. If you press the [ ] button again, the program pauses.
Time
The duration of time controlled program can be adjusted individually by the
[Time] option. The drying time can be set in 10 minute steps. Once the preset
time has elapsed, the program ends automatically.
You can set the degree of dryness of the laundry using the button.
There are three different drying level L1-L2-L3: Iron dry, Cupboard dry and
Extra dry.
1. The drying level function can only be selected before the programme starts.
2. Press the [Dry Level] button repeatedly to change the dryness level.
Note:
This option is available for various programs.
[Dry Level]
Time
Anti-Crease
At the end of the drying cycle, this function prevents the laundry from creases，
and the time for the function can be adjusted to 30-60-90-120minutes. Except
[Wool], all the other programs have this function.
The laundry can be removed during the anti-crease function.
25
Child Lock
This tumble dryer is equipped with a special child lock function that prevents
children from pressing buttons carelessly or operating the appliance
incorrectly.
1. To activate the child lock, press the [Delay] and [Time] buttons while the
tumble dryer is running, paused or in standby mode.
2. When the child lock is activated, the display shows the child lock symbol
and all buttons are locked except when the [Delay] and [Time]
buttons is pressed at the same time for 3 seconds.
3. To deactivate the child lock, press the [Delay] and [Time] buttons again for
3 seconds.
No Signal
Press the for 3 seconds to activate the
signal. Switch the signal tone on or off. The signal tone is switched on by
default.
[Time] and [Anti-Crease] buttons
UV
The UV function helps to reduce germs that may still be present in the
laundry after washing. Particularly suitable for increased hygiene
requirements.
1. Select special program.
2. Press the [UV] button and the " "symbol appears on the display.
3. To deactivate the UV function, press the [UV] button again.
Note:
This option is only available for special programs.
HEALTH GUARD program has this function activated automatically.
26
•Thick or multi-layered fabrics, e.g. jackets etc., are not easy to dry.
You had better choose Cotton Extra program.
•Please follow instructions “Dry Level” at page 24 to change dryness
level.
•As uneven material, thick and multi-layered clothes are not easy to
dry, it is better to choose the appropriate time drying program to
completely dry them if some parts of the clothes are still damp after
program finishes.
•Loading the household tumble dryer up to the maximum capacity for
the respective programs will contribute to energy savings.
NOTE
ECO*
Cotton
Cotton Extra
Cotton Iron
9.0kg
9.0kg
4.5kg
4.5kg
1.0kg
1.0kg
0%
0%
-3%
12%
3:40
4:00
4:10
3:00
2:15
2:30
2:40
1:40
1:20
0:25
1.93kWh
2.10kWh
2.20kWh
1.60Wh
1.08kWh
1.20kWh
1.30kWh
0.80kWh
0.60kWh
0.20kWh
MDV3EH90D
0%
0%
-3%
12%
Delicate
Wool
1000rpm
1000rpm
1000rpm
1000rpm
1000rpm
1000rpm
1000rpm
1000rpm
4.0kg
4.0kg
1:40
1:30
0.80kWh
0.70kWh
0%
2%
800rpm
800rpm
4.0kg
1:20
0.60kWh
12%
800rpm
/
Model
Program
Capacity
Final
moisture
content
Drying
Time
[h:min]
Energy
Consumption
Spin
Speed
0%
/
(Cotton+Dry Level L3)
Synthetics
Extra
Synthetics
Synthetics
Iron
9.0kg
4.5kg
9.0kg
4.5kg
800rpm
(Cotton+Dry Level L1)
(Synthetics+Dry
Level L3 )
(Synthetics+Dry
Level L1 )
The listed consumption data are measured in accordance with EN 61121 and
refer to the residual moisture of the textiles spun in the washing machine at the
indicated speed. The actual consumption data may vary from the given data.
The load quantity, type of fabric, composition of the laundry, residual moisture
in the fabric, selected level of drying and options as well as ambient conditions
can influence the consumption data.
The Eco program is used to assess the compliance with the Delegated
Regulation of the EU Commission 2023/2533 Ecodesign and 2023/2534 Energy
Labeling, measured in accordance with EN 61121.
*Acoustic airborne noise emission of the ECO program at full load is 66dB.
*
CLEANING AND MAINTENANCE
Cleaning and Care
27
Empty the water container
Clean the lint filters
Clean the door filter
• To ensure the double-layer filter can be closed smoothly , the arrows at both ends
need to be aligned, and the middle slot and the rib need to be aligned.
• Take notice of the correct orientation before to insert the door filter.
Door Filter
• Empty the water container after each use. Once the water container is filled
completely, the programme will be paused and the " " will light on the
display. After the container is emptied, the dryer can be restarted by pressing
[ ]button.
NOTE
NOTE
This dryer has a primary door lint filter for additional protection.
Make sure you clean the lint filter after each program to avoid increased energy
consumption and program time.
1. Pull out and hold the water container
with two hands.
2. Tilt the water container, pour out the
condensation water into the basin.
3. Install the water container.
1. Open the door.
2. Take out the door lint filter.
3. Open the lint filter and remove the fluff on the
filter screen. You can use a vacuum cleaner to
remove the lint or clean it by hand.
4. Throw lint in the garbage bin and do not
wash it down the drain to avoid micro
plastics in the used water system.
• The first notification that appears on the display after the dryer is powered on to
clean the door filter or empty the water container is only a general reminder.
NOTE
28
Clean the heat exchanger
• Do not touch the heat exchanger with your hand, which may cause an injury.
As necessary, approx. once every 3 months,
remove the fluff from the heat exchanger
using a vacuum cleaner with a dusting brush
attached.
• Clean the heat exchanger without applying
any pressure. Otherwise the heat exchanger
could be damaged. The dryer will not dry if
the cooling fins are damaged or bent.
•
Heat Exchanger
Foreign objects removal
•
filter, open the heat exchanger area compartment and remove the foreign
object making sure not to touch the heat exchanger with bare hands to avoid
injuries.
In case of foreign objects fall inside below the filter compartment, remove the
Clean Tumble dryer
WARNING
WARNING
• Disconnect the power cord before cleaning!
• Do not spray directly with water.
• Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners.
These could damage plastic surfaces and other parts.
• Please wear gloves when cleaning.
After each use:
• Prepare a damp rag moistened with clean
water.
• Clean the door, especially the inner window.
• Clean the sealing around the door opening.
• Clean the humidity sensor inside the drum.
• Take out the door lint filter, clean the sealing
and air flow openings. Before starting the ‘
dryer, make sure that all parts are dried.
• The illustration above is for reference only. Please take the appearance of
the actual product as reference.
NOTE
Humidity
Sensor
29
Problem
Display is not on
Solution
TROUBLE SHOOTING
Check if the power supply works.
Check if the mains plug is inserted.
Check the selected program.
Dryer does not start
Turn on the tumble dryer.
Check the the door is closed.
Check the program is set.
Press the[ ]button.
Connect the tumble dryer to the mains plug.
Degree of dryness
was not reached or
drying time too long
Clean and .
Empty the water container.
Check the drain hose.
Check installation place is appropriate.
Keep the air inlet clean.
Use higher drying intensity level program or
time program.
lint filters heat exchanger
There are humming
noises
The compressor is operating. These noises are
quite normal and do not indicate a fault.
The dryer switches
off at the end of the
program
The dryer switches off automatically for energy
saving. This is not a malfunction but a normal
function.
Whenever there is a problem with the appliance, check if you can solve it
following the tables below. If the problem persists, please draw the mains plug
and call the customer service.
out the water and restart the dryer.
If the container is not full, please restart the dryer
directly.
If the “ ” icon is still lighting or blinking after you
have finished the first two steps, please call the
customer service.
When the dryer is powered on standby, the“ ” icon
will always on only as a reminder. After startup, the
“ ” icon will disappear. Please perform maintenance
after each cycle.
Check the water container. If it's full, please pour
condensation
“ ”is lighting or
blinking
Clean the lint filter.
When the dryer is powered on standby, the" "icon
will flash to remind the user to clean the filter . After
startup, the" " icon will disappear.Please perform
maintenance after each cycle
“ ”is ing
blinking
light or
30
Description
Possible Cause
Solution
Temperature sensor error
Communication error
Error Codes
Container is full
Water pump failure or
waterlevel sensor
failure
Empty water container
Please contact customer
service if the problem occurs.
• Self-repair or non-professional repair may create safety risk and will void the
warranty.
• If the LED displays other prompt and the dryer does not work, please call
the customer service.
WARNING
How to find Energy related information on the public database of European
Commission EPREL:
1.Open the EPREL database hompage
https://eprel.ec.europa.eu/screen/product/tumbledriers
2.Search for the model
Model ID: MDV3EH90D
NOTE
Weighted energy consumption in kWh per drying cycle. Actual energy
consumption will depend on how the appliance is used.
Rated capacity(kg)
Programme duration
(hours:minutes)
Acoustic airborne noise emission
(dB(A) re 1 pW)
Off-mode (if applicable) (W)
Delay start (W) (if applicable)
For household tumble dryers equipped with a heat pump, the chemical name or
the accepted industry designation of the refrigerant gas used, without prejudice
to Regulation (EU) No 517/2014 on fluorinated greenhouse gases
Rated
capacity
Half
Trademark:
Model identifier:
Technology of tumble dryer: Electric condenser
General product parameters:
MDV3EH90D
Value
Parameter
Value
Height
Width
Depth
Parameter
Dimensions (cm)
Condensation efficiency (%)
(if applicable)
Energy Efficiency Index (EEI)
Energy efficiency
class
Condensation
efficiency class
(if applicable)
85
60
68
D
D
69.6
80
1.28
3:40
2:15
Type
Free-standing
66
Acoustic airborne
noise emission class
Standby mode
(if applicable) (W)
Networked standby
(W) (if applicable)
C
N/A
N/A
R290
0.50
4.00
9.0
Repairability information:
Repairability Class (based on the index below)
Repairability Index
Repair information score (S )
Disassembly Depth (S ) score
DD
RI
A
9.10
9.00
Fasteners type score (S )
F
9.00
Tools type score (S )
T
9.00
Link to the supplier’s website, where the information in point 6 of Annex II to Commission Regulation
(EU) 2023/2533 is found: https://www.midea.com
Additional information
Weblink to information on spare parts availability for professional repairers and
end users
Weblink to repair instructions for end-users
Weblink to indicative pre-tax prices
Minimum duration of the commercial guarantee offered by the supplier (months)
10.00
PRODUCT INFORMATION SHEET
31
https://www.midea.com
https://www.midea.com
https://www.midea.com
needs to fill in
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
logo, word marks, trade name, trade dress and all versions thereof are valuable
assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks,
copyrights and other intellectual property rights, and all good will derived from using
any part of an Midea trademark. Use of Midea trademark for commercial purposes
without the prior written consent of Midea may constitute trademark infringement or
unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
32
33
DISPOSAL AND RECYCLING
Important Instructions for Environment
The symbol with the crossed-out wheeled bin means that
electrical and electronic equipment must not be disposed of with
household waste. Consumers are legally obliged to collect
electrical and electronic equipment separately from unsorted
municipal waste at the end of their useful life. In this way, an
environmentally friendly and resource-saving recycling is
ensured. Batteries and accumulators that are not firmly enclosed
by the electrical or electronic device and can be removed without
being destroyed must be separated from the device before it is
handed over to a collection point and taken to a designated
disposal facility. The same applies to lamps that can be removed from the device
without destroying them. Owners of electrical and electronic devices from private
households can hand them in at the collection points of the public waste disposal
authorities or at the collection points set up by the manufacturers or distributors
within the meaning of the ElektroG. The disposal of old devices is free of charge.
Dealers with a sales area of at least 400m² are obliged to take back electrical and
electronic equipment. The same applies to grocers with a total sales area of at least
800 m², provided they offer electrical and electronic equipment permanently or at
least several times a year. Distance sellers with a storage area of at least 400 m² for
electrical and electronic equipment or a total storage area of at least 800 m² are
also obliged to take them back. In general, distributors are obliged to ensure that
old devices are taken back free of charge by providing suitable return options
within a reasonable distance. Consumers have the option of handing in an old
device free of charge to a distributor who is obliged to take it back if they purchase
a new device of the same value with essentially the same function. This possibility
also exists for deliveries to a private household. In distance selling, the possibility
of free collection when purchasing a new device is limited to heat exchangers,
display devices and large devices that have at least one outer edge with a length of
more than 50 cm. The distributor must ask the consumer when concluding the
purchase contract whether they intend to return the goods. Apart from that,
consumers can hand in up to three old devices of a device type to a distributor's
collection point free of charge, without this being linked to the purchase of a new
device. However, the edge lengths of the respective devices must not exceed 25 cm
Dispose of the appliance in accordance with local requirements for the disposal of
Waste Electrical and Electronic Equipment. The appliance maybe contain
flammable gas (R290), refer to the refrigerant type listed on the rating plate.
Contact your municipal authority for information on how to discard the appliance
correctly.
Compliance with RoHS Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It
does not contain harmful and prohibited materials specified in the Directive.
Package Information
Packaging materials of the product are manufactured from recyclable
materials in accordance with our National Environment Regulations. Do not
dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated
by the local authorities.
DATA PROTECTION NOTICE
For the provision of the services agreed with the customer,
we agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered,
as well as, where applicable, the EU General Data Protection Regulation (GDPR).
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
Officer via [email protected]. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
[email protected]. To find further information, please follow the QR Code.
34
Your device / serial number
Purchase date:
Place of purchase:
We provide a guarantee for this appliance in accordance with the
following conditions: You have a manufacturer’s warranty of
years from the date of purchase (proof of purchase must be
provided). Our General Terms and Conditions apply.
WARRANTY CARD
NOTES
Do you have any questions ?
We are happy to support you !
http://www.midea.com
35
36
In case of questions, please contact our local customer service center.
•
put your own and future users' lives in danger.
• Improper repair will void the warranty and subsequent damages can't be recognized!
Risk of electric shock
Never try to repair an appliance which is defective or presumed to defective. You may
Customer Service
WARNING
Spare parts for your appliance are available for a minimum of 10 years
.
following
Delegated Regulation of the EU Commission 2023/2533 Annex 2 requirements
For repairs, especially those involving electrical or mechanically complex
components, it is recommended to consult a qualified repair service (e.g., a
professional repairer, certified dealer or an authorized customer service
center). Spare parts and information on repair and maintenance may be
intended for professional repair services only.
xxx
