Outdoor Network
PTZ Cameras
Quick Guide
V1.00
1
Preface
The content of this section is designed to ensure that users use the product correctly to prevent dangers
or property loss caused by improper operation. Before using this product, be sure to read this manual
carefully. Please keep this manual properly for future reference.
About This Manual
⚫ We recommend that you use this manual under the guidance of a professional.
⚫ This manual is designed for use with multiple product models, and it is not possible to list the
appearance and functions of each product individually. Please refer to the actual product for use.
⚫ This manual is intended for multiple software versions, and the illustrations and descriptions in this
manual may be different from the actual GUI and functions of the software.
⚫ Despite our best efforts, technical or typographical errors may exist in this manual. Our company
cannot be held responsible for any such errors and reserves the right to change the manual without
prior notice.
⚫ Users are fully responsible for the damages and losses that arise due to improper operation.
⚫ Our company reserves the right to change any information in this manual without any prior notice or
indication. Due to such reasons as product version upgrade or regulatory requirement of relevant
regions, this manual will be periodically updated.
⚫ This manual will be updated in real time according to the laws and regulations of the relevant regions.
For specific details, please refer to the product's paper copy, QR code, or official website. In case of
any discrepancy between the paper copy and the electronic version, the electronic version shall
prevail.
About This Product
If the product you have chosen is a video product, please strictly adhere to the applicable laws and
regulations. You can visit our official website to inquire about the relevant content.
Instructions for Use
⚫ This document serves as a guide for use only. All statements, information, and suggestions contained
in this document do not constitute any express or implied warranty.
⚫ We assume no responsibility for any special, incidental, consequential, or indirect damages resulting
from the use of this manual or the use of our products, including but not limited to losses due to loss
of business profits, data or document loss, and product malfunction or information leakage caused
by cyber-attack, hacker attack, and virus infections.
⚫ Due to uncertain factors such as the physical environment, there may be discrepancies between the
actual values of some data and the reference values provided in the manual. In case of any questions
or disputes, the company's final interpretation shall prevail.
Formatting Conventions
The UI formatting conventions used in this document are as follows:
Format
Meaning
Bold
Bold means UI elements (button names, menu names, window names, etc.),
e.g., Click Save.
>
Indicate a sequence of actions, e.g., click Device Management > Add Device,
which means first click Device Management, and then click Add Device.
Symbol Conventions
This document uses various distinctive symbols to highlight areas that require special attention during
the operation process. The meanings of these symbols are as follows:
2
Symbol
Meaning
NOTE: Provides tips and additional information related to the operation and
use of the product.
CAUTION: Alerts to matters that requires attention during operation, as
improper handling may lead to product damage, data loss, or functional
abnormalities.
WARNING: The annotations following this symbol demand extra attention, as
improper handling could potentially cause personal injury.
Legal Statement
Copyright Statement
All parts of this document, including but not limited to text, images, and graphics, are copyrighted and
belong to our company (hereinafter referred to as "we" “us”). Without our written permission, no
organization or individual may excerpt, copy, translate, modify, or disseminate any part or all of the
content of this manual in any form.
The products described in this manual may contain software copyrighted by us and any potential
licensors. Without the permission of the relevant rights holders, no one may copy, distribute, modify,
excerpt, decompile, disassemble, decrypt, reverse engineer, rent, transfer, sublicense, or engage in any
other actions that infringe upon the software copyright in any form.
Export Compliance Statement
Our company complies with applicable export control laws and regulations worldwide, including that of
the People's Republic of China and the United States, and abides by relevant regulations relating to the
export, re-export and transfer of hardware, software and technology. Regarding the product described
in this manual, our company asks you to fully understand and strictly abide by the applicable export
laws and regulations worldwide.
Disclaimer of Liability
⚫ We assume no responsibility and offer no compensation for any special, incidental, consequential, or
indirect damages resulting from the use of this manual or our products, including but not limited to
losses related to lost business profits, data, or document loss.
⚫ The product described in this manual is provided on an "as is" basis. Unless required by applicable
law, this manual is only for informational purpose, and all statements, information, and
recommendations in this manual are presented without warranty of any kind, expressed or implied,
including, but not limited to, merchantability, satisfaction with quality, fitness for a particular purpose,
and noninfringement.
⚫ Users must assume total responsibility and all risks for connecting the product to the Internet,
including, but not limited to, network attack, hacking, and virus. We strongly recommend that users
take all necessary measures to enhance the protection of network, device, data and personal
information. Our company disclaims any liability related thereto but will readily provide necessary
security related support.
⚫ To the extent not prohibited by applicable law, in no event will our company and its employees,
licensors, subsidiary, affiliates be liable for results arising out of using or inability to use the product
or service, including, not limited to, loss of profits and any other commercial damages or losses, loss
of data, procurement of substitute goods or services; property damage, personal injury, business
interruption, loss of business information, or any special, direct, indirect, incidental, consequential,
pecuniary, coverage, exemplary, subsidiary losses, however caused and on any theory of liability,
whether in contract, strict liability or tort (including negligence or otherwise) in any way out of the
3
use of the product, even if our company has been advised of the possibility of such damages (other
than as may be required by applicable law in cases involving personal injury, incidental or subsidiary
damage).
⚫ To the extent allowed by applicable law, in no event shall our total liability to you for all damages for
the product described in this manual (other than as may be required by applicable law in cases
involving personal injury) exceed the amount of money that you have paid for the product.
⚫ When using this product, please strictly adhere to the applicable laws and regulations to avoid
infringing upon the rights of third parties, including but not limited to intellectual property rights, data
rights, or other privacy rights. You must also not use this product for the purposes of developing or
facilitating the use of weapons of mass destruction, biological or chemical weapons, nuclear weapons,
or for any other purposes that violate international norms and regulations.
Privacy Protection Reminder
Our company complies with appropriate privacy protection laws and is committed to protecting user
privacy. You may want to read our full privacy policy at our website and get to know the ways we process
your personal information. Please be aware, using the product described in this manual may involve the
collection of personal information such as face, fingerprint, license plate number, email, phone number,
GPS. Please abide by your local laws and regulations while using the product.
Safety Precautions
The device must be installed, serviced and maintained by a trained professional with necessary safety
knowledge and skills. Before you start using the device, please read through this guide carefully and
make sure all applicable requirements are met to avoid danger and loss of property.
Storage, Transportation, and Use
⚫ Store or use the device in a proper environment that meets environmental requirements, including
and not limited to, temperature, humidity, dust, corrosive gases, electromagnetic radiation, etc.
⚫ Make sure the device is securely installed or placed on a flat surface to prevent falling.
⚫ Unless otherwise specified, do not stack devices.
⚫ Ensure good ventilation in the operating environment. Do not cover the vents on the device. Allow
adequate space for ventilation.
⚫ Protect the device from liquid of any kind.
⚫ Make sure the power supply provides a stable voltage that meets the power requirements of the
device. Make sure the power supply's output power exceeds the total maximum power of all the
connected devices.
⚫ Verify that the device is properly installed before connecting it to power.
⚫ Do not remove the seal from the device body without consulting our company first. Do not attempt
to service the product yourself. Contact a trained professional for maintenance.
⚫ Always disconnect the device from power before attempting to move the device.
⚫ Take proper waterproof measures in accordance with requirements before using the device outdoors.
Power Requirements
⚫ Install and use the device in strict accordance with your local electrical safety regulations.
⚫ Use a UL certified power supply that meets LPS requirements if an adapter is used.
⚫ Use the recommended cordset (power cord) in accordance with the specified ratings.
⚫ Only use the power adapter supplied with your device.
⚫ Use a mains socket outlet with a protective earthing (grounding) connection.
⚫ Ground your device properly if the device is intended to be grounded.
Battery Safety
Please use batteries properly; otherwise, there is a risk of fire or explosion.
⚫ Warning: Using incorrect battery models can lead to explosion.
4
⚫ If you need to replace the battery, it is recommended that you go to an authorized service center or
have it replaced under professional supervision. We shall not be held responsible for any issues
arising from unauthorized battery replacement.
⚫ When replacing the battery, be sure to use a battery of the same type as the original! Using the wrong
model for replacement (such as certain types of lithium batteries) may cause safety protection to fail.
⚫ Batteries must not be exposed to overheat environments such as sunlight, fire, as this may lead to fire,
explosion, or combustion.
⚫ Do not dispose of batteries in fire or heating appliances. Do not squeeze, bend, or cut batteries, as it
may cause explosion.
⚫ Do not expose batteries to extremely high or low temperatures, or to very low-pressure environments,
as this may cause explosion or leakage of flammable liquid/gas.
⚫ Dispose of the used battery according to your local regulations or the battery manufacturer's
instructions.
⚫ For products or the included remote control containing a button cell battery: Do not ingest the battery
- chemical burn hazard! If swallowed, a button cell battery can cause severe internal burns within 2
hours and may be fatal. Precautions (including but not limited to):
➢ Keep new and used batteries away from children.
➢ Stop using the product and keep it away from children if the battery compartment is not securely
closed.
➢ If you suspect that a battery may have been swallowed or inserted inside any part of the body,
seek immediate medical attention.
Network Security
Please take all necessary measures to enhance network security for your device.
The following are necessary measures for the network security of your device:
⚫ Change default password and set strong password: You are strongly recommended to change the
default password after your first login and set a strong password of at least nine characters including
all three elements: digits, letters and special characters.
➢ Do not include the account name or the reverse of the account name.
➢ Avoid using consecutive characters, such as 123, abc, etc.
➢ Do not use overlapping characters, such as 111, aaa, etc.
⚫ Keep firmware up to date: It is recommended that your device is always upgraded to the latest version
for the latest functions and better security. Visit our official website or contact your local dealer for the
latest firmware.
The following are recommendations for enhancing network security of your device:
⚫ Change password regularly: Change your device password on a regular basis and keep the password
safe. Make sure only the authorized user can log in to the device.
⚫ Enable HTTPS/SSL: Use SSL certificate to encrypt HTTP communications and ensure data security.
⚫ Enable IP address filtering: Allow access only from the specified IP addresses.
⚫ Minimum port mapping: Configure your router or firewall to open a minimum set of ports to the WAN
and keep only the necessary port mappings. Never set the device as the DMZ host or configure a full
cone NAT.
⚫ Disable the automatic login and save password features: If multiple users have access to your
computer, it is recommended that you disable these features to prevent unauthorized access.
⚫ Choose username and password discretely: Avoid using the username and password of your social
media, bank, email account, etc., as the username and password of your device, in case your social
media, bank and email account information is leaked.
⚫ Restrict user permissions: If more than one user needs access to your system, make sure each user is
granted only the necessary permissions.
⚫ Disable UPnP: When UPnP is enabled, the router will automatically map internal ports, and the
system will automatically forward port data, which results in the risks of data leakage. Therefore, it is
5
recommended to disable UPnP if HTTP and TCP port mapping have been enabled manually on your
router.
⚫ Multicast: Multicast is intended to transmit video to multiple devices. If you do not use this function,
it is recommended you disable multicast on your network.
⚫ Check logs: Check your device logs regularly to detect unauthorized access or abnormal operations.
⚫ Isolate video surveillance network: Isolating your video surveillance network with other service
networks helps prevent unauthorized access to devices in your security system from other service
networks.
⚫ Physical protection: Keep the device in a locked room or cabinet to prevent unauthorized physical
access.
⚫ SNMP: Disable SNMP if you do not use it. If you do use it, then SNMPv3 is recommended.
Avertissement de l’utilisation de la batterie
⚫ Lorsque utiliser la batterie, évitez:
➢ Température et pression d'air extrêmement élevées ou basses pendant l'utilisation, le
stockage et le transport.
➢ Remplacement de la batterie.
⚫ Utilisez la batterie correctement. Mauvaise utilisation de la batterie comme celles mentionnées ici,
peut entraîner des risques d’incendie, d’explosion ou de fuite liquide de gaz inflammables.
➢ Remplacer la batterie par un type incorrect;
➢ Disposer d’une batterie dans le feu ou un four chaud, écraser mécaniquement ou couper la
batterie;
⚫ Disposer la batterie utilisée conformément à vos règlements locaux ou aux instructions du fabricant
de la batterie.
⚫ Personal safety warnings:
➢ Chemical Burn Hazard. This product contains a coin cell battery. Do NOT ingest the battery.
It can cause severe internal burns and lead to death.
➢ Keep new and used batteries away from children.
➢ If the battery compartment does not close securely, stop using the product and keep it away
from children.
➢ If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
⚫ Avertissements de sécurité personnelle:
➢ Risque de brûlure chimique. Ce produit contient une batterie de cellules. N’ingérer pas la
batterie. Si la batterie de cellule est avalée, elle peut causer de graves brûlures internes en
seulement 2 heures et peut entraîner la mort.
➢ Gardez les batteries nouvelles ou utilisées à l’écart des enfants.
➢ Si le compartiment de la batterie ne se ferme pas en toute sécurité, cessez d’utiliser le
produit et gardez-le à l’écart des enfants.
➢ Si vous pensez que des piles ont pu être avalées ou placées à l’intérieur d’une partie du
corps, consultez immédiatement un médecin.
Regulatory Compliance
FCC Statements
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
6
equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
LVD/EMC Directive
This product complies with the European Low Voltage Directive 2014/35/EU and EMC
Directive 2014/30/EU.
WEEE Directive–2012/19/EU
The product this manual refers to is covered by the Waste Electrical & Electronic
Equipment (WEEE) Directive and must be disposed of in a responsible manner.
Battery Regulation- (EU) 2023/1542
Battery in the product complies with the European Battery Regulation (EU) 2023/1542.
For proper recycling, return the battery to your supplier or to a designated collection
point.
7
Waterproof Requirements
To effectively protect the device from water ingress, please ensure waterproof treatment is
applied to all cables and interfaces. The following steps are for reference only. Actual
construction should be flexibly adjusted according to the on-site environment.
Device failures caused by inadequate waterproofing measures are not covered under the
warranty. Thank you for your understanding and cooperation.

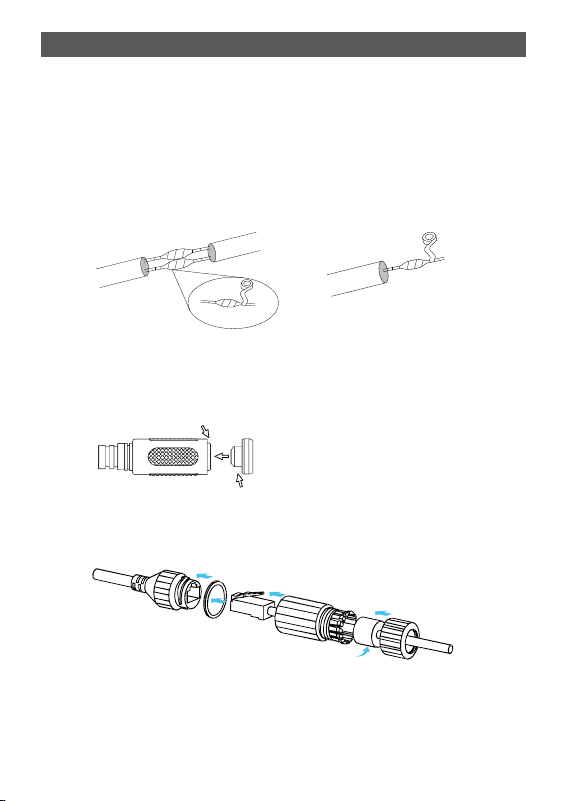

1 Pre-processing
1. Before applying waterproofing, ensure all necessary cables are connected, and trim off the
exposed copper wires from any unused cables.
2. Wrap the cables with insulation tape (purchased separately).
Connection part
Insulation tape
Not connected
Insulation tape
3. Use a DC plug to waterproof any unused DC interfaces. Ignore this step if the device does
not have this interface.
DC interface
DC plug
2 Waterproofing
1. Use the waterproof components included in the box to waterproof the network cable. Slide
the waterproof components onto the cable in the order shown in the diagram.
2. Use waterproof tape (purchased separately) to waterproof the cables and interfaces.
(1) Fully stretch the waterproof tape towards both ends.
(2) Wrap the stretched tape tightly around the cable connection part or cable ends. Make
sure the tape is fully stretched during the process.
(3) Tighten the tape at both ends to prevent water ingress.
8

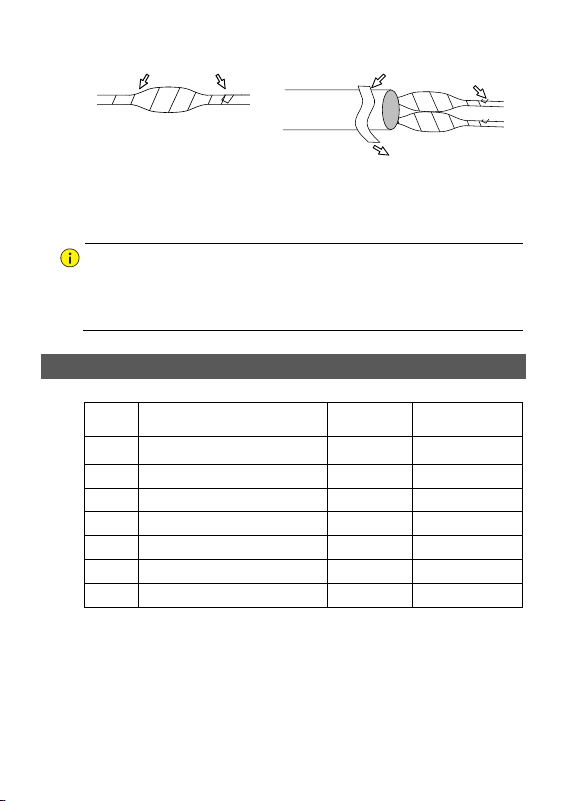

Wrap the cables separately first.
Tighten
Wrap all cables together.
Tighten
Waterproof tape
3. (Optional) Place the waterproofed cable into a waterproof junction box (purchased
separately).
CAUTION!
• All cable connections must not be exposed and must not come into contact with liquid water.
• Opened devices must be restored and securely fastened.
• Place the power adapter inside the power distribution box.
1 Packing List
The package contents may vary with device model.
No.
Name
Qty
Unit
1
Camera
1
PCS
2
Power adapter
1
PCS
3
Waterproof components
1
Set
4*
Bracket adapter ring
1
PCS
5*
Tail cable adapter and sunshield
(1)
1
Set
6*
Anti-static gloves
(2)
1
Set
7
Product documents
1
Set
Remarks:
* means optional and supplied with certain models only.
(1) Supplied with 8-inch dome cameras and standard dome cameras only.
(2) Supplied with standard dome cameras only.
9
2 Safety Instructions
2.1 Precautions
⚫ Avoid environments with extremely low and high temperatures, humidity, dust, vibration,
etc. during installation and use. Keep away from heating, stoves, underside of bridges, etc.
See the latest product datasheet for the detailed temperature and humidity requirements.
⚫ Do not install the device in environments with strong electromagnetic interference, such
as the circuit breaker area of a substation, near area of the power transmission lines, main
transmission direction of the broadcast tower antenna, and near area of track pantograph,
radar, and base station antenna. Otherwise, the device may be damaged.
⚫ Do not use the device in environments with strong corrosiveness, strong acids, and high
salinity and alkalinity, such as offshore islands, offshore platforms, chemical industry work
areas, and nearshore area within 5 kilometers of the coast. Ensure that appropriate
corrosion protection measures are taken if installation in special environments is required.
⚫ If the device is installed on a wall or ceiling, make sure the device is securely installed; use
the safety rope during installation to prevent the device from falling.
⚫ During the process of transportation, special attention is required for the protection of the
transparent dome cover to prevent friction, scratch and contamination. In order to keep
the cover clean, do not remove the protective film on the cover during mounting. After
mounting is finished, remove the film before the device is powered on.
⚫ Do not overbend or drag cables during installation; otherwise, poor cable contact may
cause malfunction.
⚫ When connecting to an external interface, use an existing connection terminal, and ensure
that the cable terminal (latch or clamp) is in good condition and properly fastened.
⚫ When connecting the alarm input interface, make sure the high level signal of the alarm
input does not exceed 5V DC.
⚫ Protect the power cord from being trampled or crushed, especially at the plug, outlet, and
the connection points between the cable and the device. A separate ground terminal must
always be connected to ground.
⚫ Make sure that the power has been disconnected before you maintain or move the device.
⚫ When moving the device, do not use the tail cable to lift the device.
⚫ Make sure the length of the power cable between the power adapter and the camera is not
too long, otherwise the voltage of the camera is lowered, causing the camera to work
abnormally. If it is required to lengthen the power cable, lengthen the cable between the
power adapter and the mains.
⚫ Do not aim the lens to any strong light source such as the sun or an incandescent lamp. It
may cause permanent damage to the lens.
⚫ Handle the device with care during transportation, storage and installation. Avoid
excessive pressure and vibration. Keep the device away from vibration sources. Protect the
cables and connectors from damage. Make sure the device is always properly grounded.
⚫ Static electricity on the dome is a common phenomenon in the industry. To prevent static
electricity from attracting dust, it is recommended to wipe the dome surface with anti-
static gloves after removing the transparent protective film.
⚫ Do not place the laser where it can be accessed by non-professionals.
2.2 Maintenance
⚫ If there is grease or a dust stain on the front glass surface, clean the glass surface gently
from the center outward using anti-static gloves or an oil-free cloth. If the grease or the
stain still remains, use anti-static gloves or an oil-free cloth dipped with detergent and
clean the glass surface gently until it is clean.
10
⚫ If there is dust on the front glass surface, remove the dust gently using an oil-free brush or
a rubber dust blowing ball.
⚫ Do not use organic solvents (benzene, alcohol, etc) to clean the camera.
3 Appearance

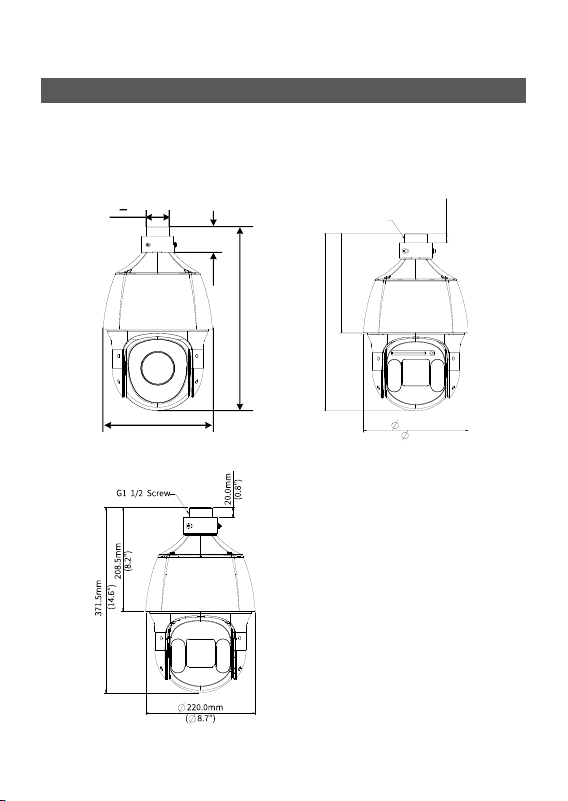

3.1 Dimensions
The appearance may vary with device model. Please refer to the actual product. Three typical
models are illustrated here.
• Model A
• Model C
• Model B
52.5mm
2.1"
369mm
14.5"
220mm
8.7"
G1 screw
1
2
G1 1/2 Screw
208.5mm
20.0mm
220.0mm
371.5mm
( 8.7”)
(14.6”)
(8.2”)
(0.8”)
11

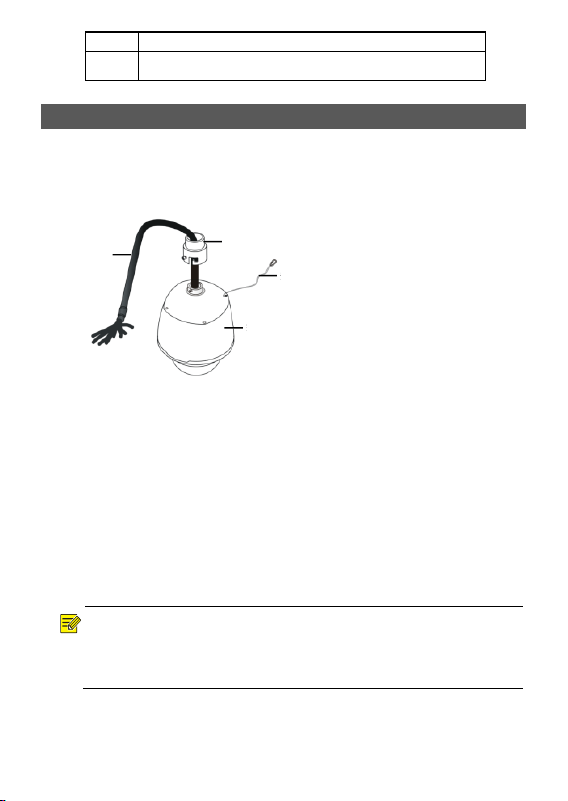

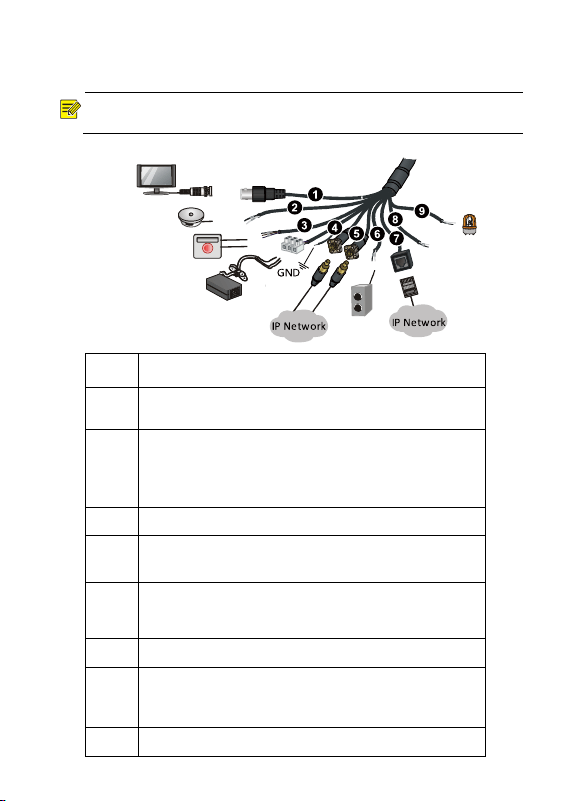

3.2 Cable Connection
The tail cable may vary with device model. Please refer to the actual product. The figure below
shows the full tail cable.
NOTE!
For detailed specifications, please refer to the latest datasheet.
No.
Description
VIDEO OUT: Video output interface.
Outputs analog video signals to display devices such as monitors.
AUDIO IN: Audio input interface for inputting audio signals or audio
intercom.
NOTE：Audio input and audio intercom share this interface but cannot
be used simultaneously.
ALARM IN: Alarm input interface. Inputs alarm signals.
Connects the power adapter.
CAUTION：When using this device, ensure that it is properly grounded.
Optical interface: FC (with adapter), 100M/1000M Base-FX adaptive
SFP optical interface. Connects to an optical network.
NOTE：See (Optional) Install Optical Module.
AUDIO OUT: Audio output interface, outputs audio signals.
Electrical interface: RJ45, 1000M Base-TX adaptive Ethernet interface.
Connects to network.
NOTE：For detailed specifications, please refer to the latest datasheet.
RS485: For interfacing with and controlling external devices, such as
（RS485）
Sound-activated switch
Audio pickup
AUDIO IN
ALARM IN
Display device
power adapter
Optical interface connects to
network access device
AUDIO OUT
Electrical interface
connects to network
access device
Connects to third-party
device
ALARM OUT
12
controlling a third-party device.
ALARM OUT: Alarm output interface. Outputs alarm signals.
4 Mount Your Camera
4.1 Check Before Installation
1 Check package contents
Before installing the device, verify the type and quantity of components included in the package
against the packing list to ensure all parts are present.
2 Check the strength of the installation site
The strength requirements for the installation site may vary depending on the installation
method. Ensure the strength of the installation site meets the load-bearing requirements.
Reinforce it before installation if necessary.
3 Lightning protection and grounding requirements
Choose appropriate lightning protection equipment for the power, audio, video, and RS485
signal cables of the device.
4 ccessories
For the needed brackets and accessories (such as wall mount bracket), please refer to our
recommended accessory list for detailed models.

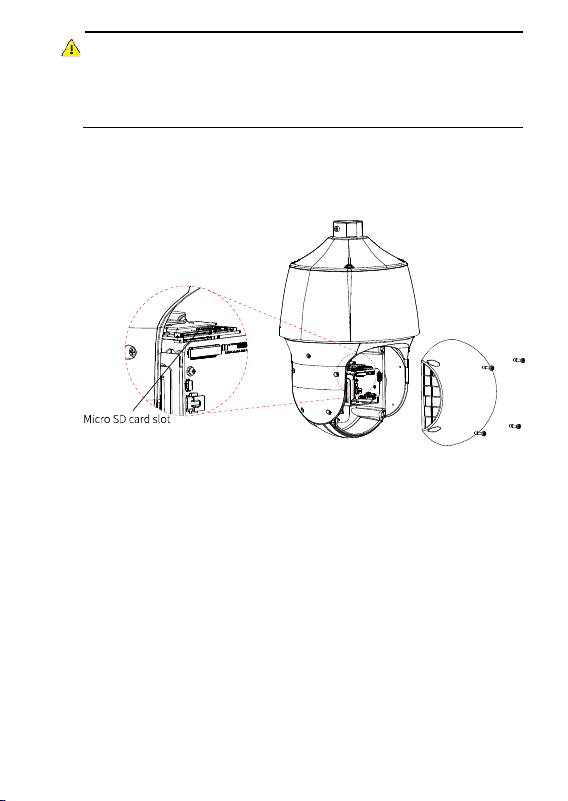

4.2 (Optional) Insert Micro SD Card
To use the local storage function, you need to install a Micro SD card into the camera.
NOTE!
• The Micro SD card must be formatted before use. This can be done through the device’s web
interface.
• Please consult your dealer or technical support for the recommended SD card specifications.
The figures below are for illustrative purposes only. The actual location of the Micro SD card slot
may vary. Please refer to the actual product.
尾线
转接环
安全绳
球机本体
Tail cable
Adapter ring
Safety rope
Camera body
13
WARNING!
• Before you insert or remove the Micro SD card, be sure to disconnect power and wait till the
camera stops operation; otherwise, the camera or the Micro SD card may be damaged.
• Do not disassemble the device in a humid environment as the humidity inside the device will
cause fogging.
1. Remove the four screws on the rear cover.
2. Insert the micro SD card into the card slot.
3. Check the sealing ring to ensure it is intact and properly seated.
4. Reinstall the rear cover and tighten the screws until they are fully screwed in and cannot be
turned further.
4.3 (Optional) Install Optical Module
Only certain models support the optical module. Please operate according to your actual
situation.
4.3.1 Precautions for Using Optical Module
⚫ The transmission line must use single-mode optical fiber; multi-mode optical fiber is not
allowed.
⚫ The optical module used by the device must match that of the opposite end switch,
including mode, transmit/receive wavelength. The transmit distance of the optical module
must be greater than the actual transmission distance.
⚫ Please use high-quality fiber optic connectors. Non-standard connectors without
chamfered edges may damage internal ceramic sleeves such as those in optical modules,
adapters, or optical splitters.
⚫ You can switch interfaces and connect to the corresponding network without shutting
down, but optical and electrical ports cannot be used simultaneously.
⚫ Before connecting the optical fiber, ensure there is no visible contamination, scratches,
dents, or pits. If the fiber connector, adapter, or optical module is contaminated, clean it
using Isopropyl alcohol and a lint-free wipe (or lint-free swab).
14
⚫ When connecting the SFP optical module, the fiber bend radius must not be less than 90°.
If the fiber is too long, it may be coiled. Ensure the coil diameter is greater than 60 mm and
that all bends maintain an angle greater than 90°.
⚫ When installing the tail cable adapter, ensure the optical fiber is not pinched by the device,
as this may cause damage to the optical fiber.
⚫ Ensure the fiber connector is in good condition. The latch must not be broken or have lost
its spring tension, guaranteeing a secure connection with the port.
⚫ When mating the fiber connector to the adapter, align the connector key with the slot on
the adapter to ensure it is fully seated and engaged.
4.3.2 Install Optical Module
Optical modules are categorized into single-channel optical modules and dual-channel optical
modules. The following takes a dual-channel optical module as an example. Please refer to the
actual product.
1. Remove the four screws on the tail cable
adapter.
2. Remove the dustproof cover inside the
tail cable adapter.
3. Insert the recommended optical module.
4. Connect the fiber optic connector and
optical module, and then install the tail
cable adapter.
CAUTION!
Dustproof
cover
15
When using a single-channel optical
module, please use the same fiber cable
to connect the optical module to the
external switch. For example, if you are
using a "FIBER, 0" fiber cable to connect
the optical module, make sure to use a
fiber cable labeled "FIBER, 0" to connect
to the switch.
4.4 (Optional) Install 4G/SIM Card
If you need to use the 4G network, please install a 4G SIM card first.

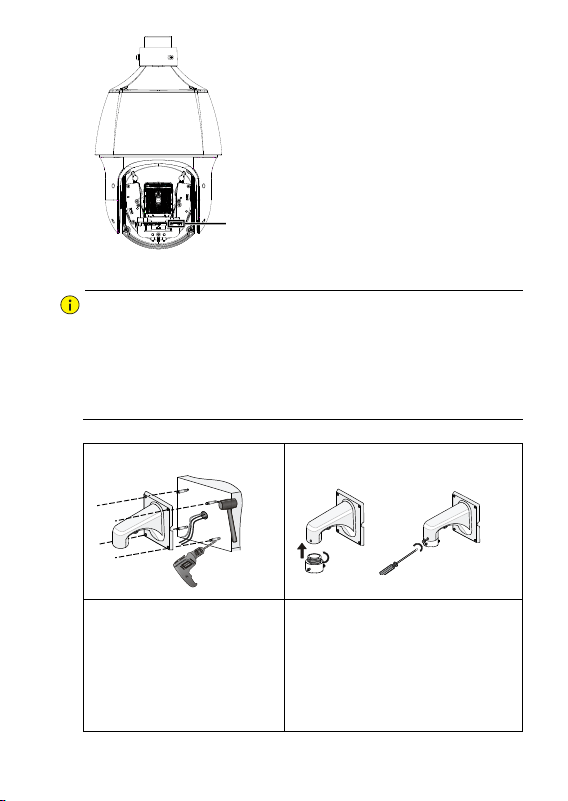

The 4G card slot is located inside the device, as shown in the figure below. The actual position of
the card slot may vary with device model.
NOTE!
• This function is only available to 4G series devices.
• Please consult your dealer or technical support for the recommended 4G card specifications.
WARNING!
• Do not disassemble the device in a humid environment as the humidity inside the device will
cause fogging.
• The 4G card is automatically bound to the device upon initial installation. If you install the bound
card in another device, it will deactivate the 4G service. To restore the service, you need to
contact our technical support to perform device-card unbinding.
16
4.5 Wall Mount
CAUTION!
• The screws at all connection points, including those for the bracket and the bracket adapter ring,
must be tightly fastened and must not be missing.
• Ensure proper waterproof sealing at the gap between the camera and the bracket, as well as at
the gaps on the wall surface and the cable outlet hole.
• The following image shows the concealed wiring method. For surface wiring, please route the
cable directly through the outlet on the side of the bracket.
1. Locate the drilling positions and drill
the holes.
2. Screw in the bracket adapter ring and secure
it with the screw.
3. Attach the safety rope to the bracket
and thread the tail cable through the
bracket.
4. Align the two screws on the top of the camera
with the positioning notches on the adapter
ring. Push the dome camera upward into the
bottom of the adapter ring, then rotate the
camera to the right until it reaches the
positioning screw to secure it onto the
adapter ring.
4G卡插槽
4G card slot
17

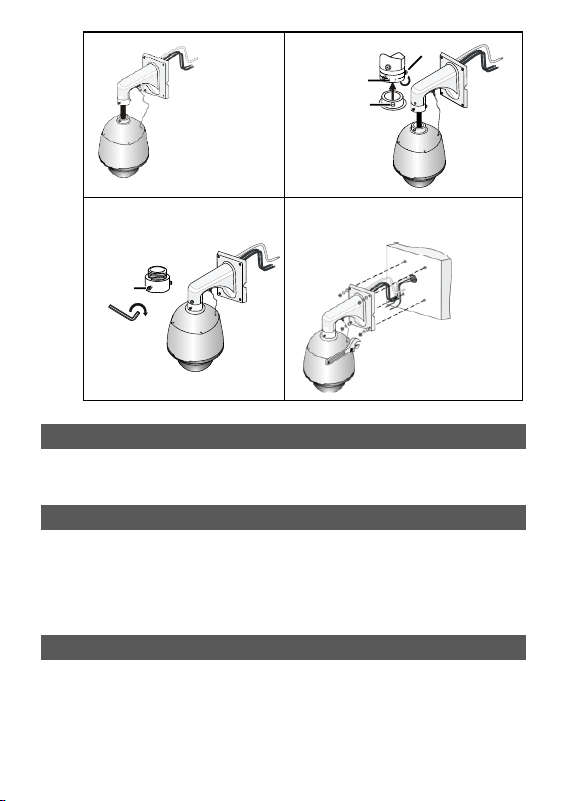

5. Tighten the two M5 screws on the
adapter ring.
6. Secure the bracket to the wall and connect all
cables.
5 Startup
After the cable connection is complete, connect the device to the mains supply to start it up.
Each time the device is powered on, it will perform a self-check to test the basic functions such
as pan, tilt, and zoom. You can operate the device only when the self-check is complete.
6 Web Login
Default IP address:
192.168.1.13
Default
username/password:
admin / 123456
Note:
For security, please set a strong password of at least nine
characters including uppercase and lowercase letters, digits,
and special characters. You are strongly recommended to
regularly change the device password and keep it secure to
ensure that only authorized users can log in.
7 FAQ
1. Unable to view live video after the first login?
Answer: Please turn off the firewall on your computer and then log in again.
2. How to restore factory defaults?
Answer: To restore factory default settings, use the following method within 10 minutes of
powering on the device (this method is ineffective after 10 minutes).
Adapter ring positioning screw
Adapter ring
positioning notch
Camera screw
M5 screw
18

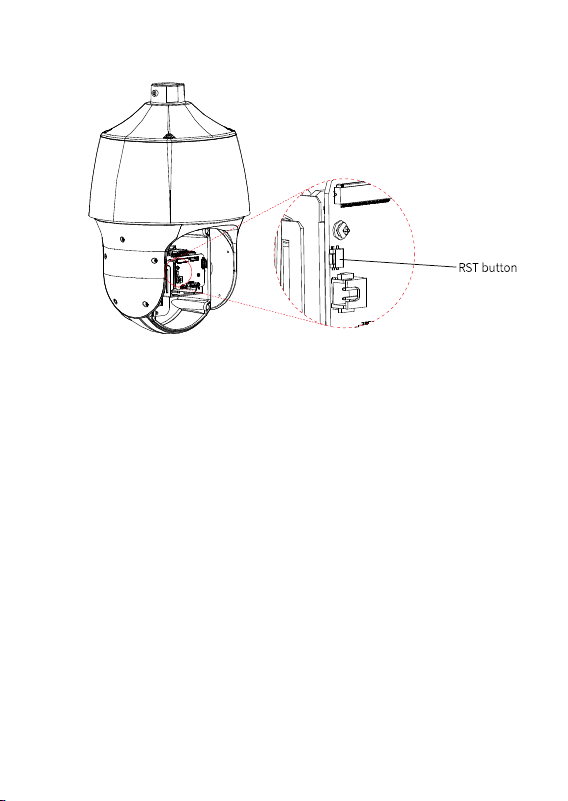

(1) Remove the rear cover of the camera.
(2) Press and hold the protruding reset button for at least 10 seconds. The location of the
reset button may vary. Please refer to the actual product.
