Douk Audio P5 HiFi Vaccum Tube Headphone Amplifier Stereo Audio Preamp with 4.4/6.35mm Jack

Product's Documents

Below are documents related to this product, you can read online or download:

User Manual of Douk Audio P5 - (English) Read Online | Download pdf

Main document Specification Questions and answers Relateds Products

P5 photo

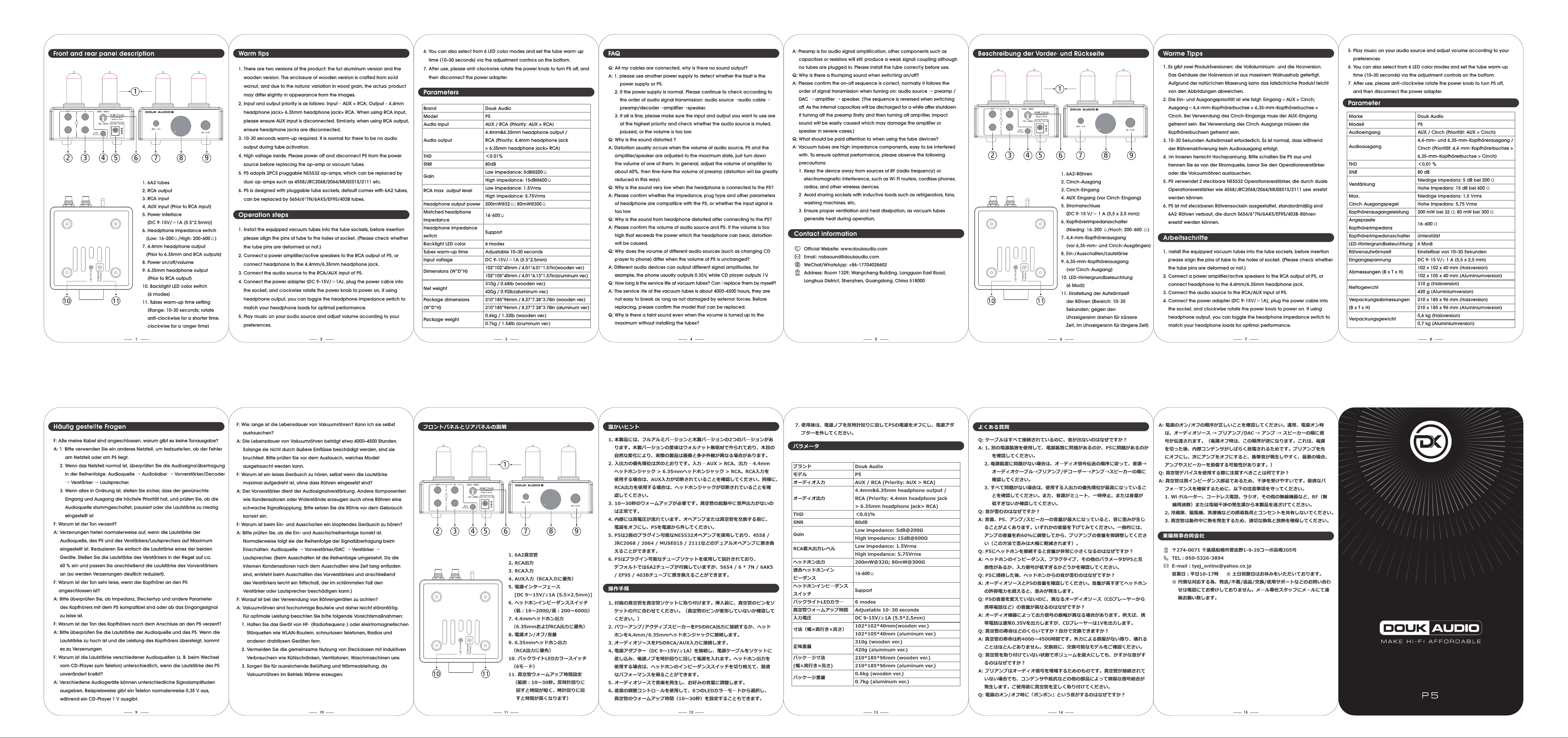

User Manual of Douk Audio P5

This is the main product document for model P5. Additionally, the document applies to other Douk Audio models: XX-P5-M-US

The file format is pdf, 1 pages, you can download this manual here .

background

File type: PDF

File name: 47368774_p5.pdf

File Language: English

Pages: 1

Author: Douk Audio

Published: 2026-05-27

Updated: 2026-05-27

Source: Directly manufacturer

Download: Save file

Specifications

Brand: Douk Audio

Model: P5

Audio input: AUX / RCA Priority: AUX > RCA

Audio output: 4.4mm&6.35mm headphone output / RCA Priority: 4.4mm headphone jack> 6.35mm headphone jack> RCA

Matched headphone impedance: 16-600Ω

Headphone impedance switch: Support

RCA max. output level: Low impedance: 1.5Vrms High impedance: 5.75Vrms

Headphone output power: 200mW@32Ω; 80mW@300Ω

Input voltage: DC 9-15V/≥1A 5.5*2.5mm

Tubes warm-up time: Adjustable 10–30 seconds

Dimensions W*D*H: 102*102*40mm / 4.01*4.01*1.57in wooden version; 102*102*40mm / 4.01*4.01*1.57in aluminum version

Package dimensions W*D*H: 210*185*96mm / 8.27*7.28*3.78in wooden version; 210*185*96mm / 8.27*7.28*3.78in aluminum version

Net weight: 310g / 0.68lb wooden version; 420g / 0.92lb aluminum version

Package weight: 0.6kg / 1.32lb wooden version;0.7kg / 1.54lb aluminum version

Indexed Terms: Headphone Amplifier
