USER MANUAL
Cooker Hood
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
CONTENTS
0
02
1
07
09
11
12
12
13
THANK YOU LETTER
SAFETY INSTRUCTIONS
04
SPECIFICATIONS
05
PRODUCT OVERVIEW
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
09
CLEANING AND MAINTENANCE
TROUBLE SHOOTING
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE
01
Danger
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them in the immediate vicinity of the installation site or unit for later use!
Intended Use
Explanation of Symbols
SAFETY INSTRUCTIONS
02
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If you find any
damage, please contact the retailer or dealer. Please note modifications or alterations to
the appliance are not allowed for your safety concern. Unintended use may cause
hazards and loss of warranty claims.
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
03
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. （EN 60335-1 & EN 60335-2-31）
Children shall not play with the appliance. （EN 60335-1 & EN 60335-2-31）
Cleaning and user maintenance shall not be made by children without supervision.
（EN 60335-1 & EN 60335-2-31）
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
This appliance incorporates an earth connection for functional purposes only.
There shall be adequate ventilation of the room when the range hood is used at the
same time as appliances burning gas or other fuels (not applicable to appliances that
only discharge the air back into the room).
There is a fire risk if cleaning is not carried out in accordance with the instructions;
Do not flambé under the range hood.
CAUTION: Accessible parts may become hot when used with cooking appliances.
The air must not be discharged into a flue that is used for exhausting fumes from
appliances burning gas or other fuels (not applicable to appliances that only discharge
the air back into the room).
The minimum distance between the supporting surface for the cooking vessels on the
hob and the lowest part of the range hood is 650 mm.
Regulations concerning the discharge of air have to be fulfilled.
The appliance uses 4 hob elements at most.
The manufacturer will not be held liable for any damages resulting from incorrect or
improper installation.
Check that the mains voltage corresponds to that indicated on the rating plate fixed
to the hood.
For Class I appliances,check that the domestic power supply guarantees adequate
earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter
120mm.
The route of the flue must be as short as possible.
Do not connect the extractor hood to exhaust ducts carrying combustion flumes
(boilers, fireplaces, etc.).
If the instructions for installation for the gas hob specify a greater distance specified
above, this has to be taken into account.
The instructions for Use apply to several versions of this appliance. Accordingly,
you may find descriptions of individual features that do not apply to your
specific appliance.
WARNING
04
SPECIFICATIONS
MH60M21ET33SG-UK/MH90M21ET33SG-UKProduct Model
Voltage
Rated Power
Lighting Power
Motor Power
Diameter of air tube
Air flow
Noise
220V-240V~/60Hz
≤59 dB(A)
The extractor hood has been designed exclusively for domestic use to eliminate
kitchen smells.
Never use the hood for purposes other than for which it has been designed.
Never leave high naked flames under the hood when it is in operation.
Adjust the flame intensity to direct it onto the bottom of the pan only, making sure
that it does not engulf the sides.
Deep fat fryers must be continuously monitored during use: overheated oil can burst
into flames.
The cooker hood and its filter should be cleaned regularly according to the instruction.
Switch off or unplug the appliance from the mains supply before carrying out any
maintenance work.
Clean the hood using a damp cloth and a neutral liquid detergent.
●
●
●
●
●
●
●
●
82 W
1 W x 2
80 W
150 mm
650m
3
/h
PRODUCT OVERVIEW

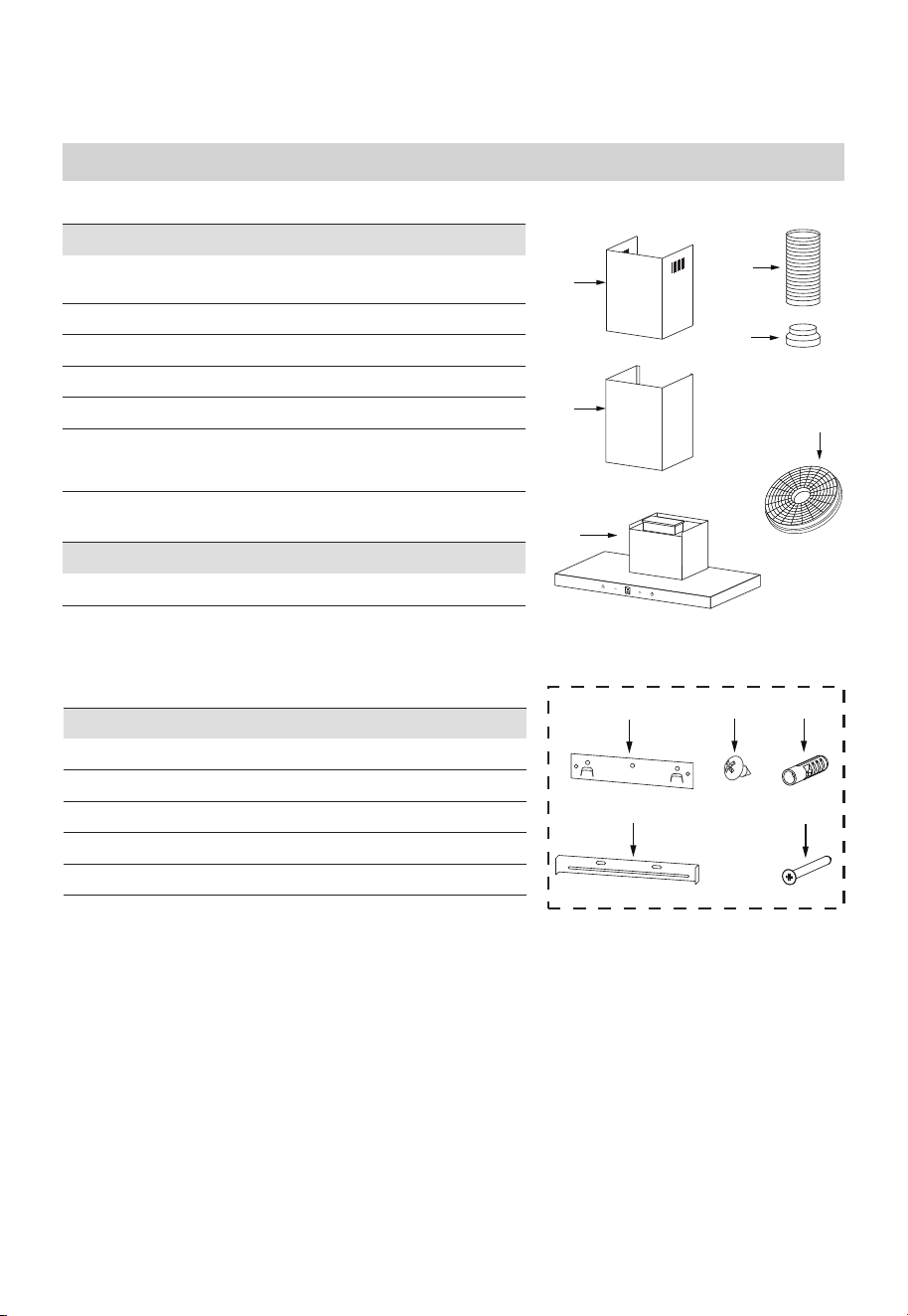

Components
1
Ref. Qty.
1
2.1
Light, Blower,Filter.
Hood Body,complete with: Controls,
1 Lower Decorative Chimney
2.2 1 Upper Decorative Chimney
3 1
4
Flange ( optional )
1 Exhaust Pipe ( optional )
5 2 The Activated Charcoal filter
( optional )
1
2.1
2.2
3
4
5
1 Instruction Manual
11
12
10
20
21
Product Components
Qty. Documentation
10
7
11
Screws 5 x 50
Hood fixing bracket
7
Wall Plugs
12
6
Screws 4,2 x 9,5
20
1
21 1 Chimney fixing bracket
Ref. Qty. Optional Installation Components
05

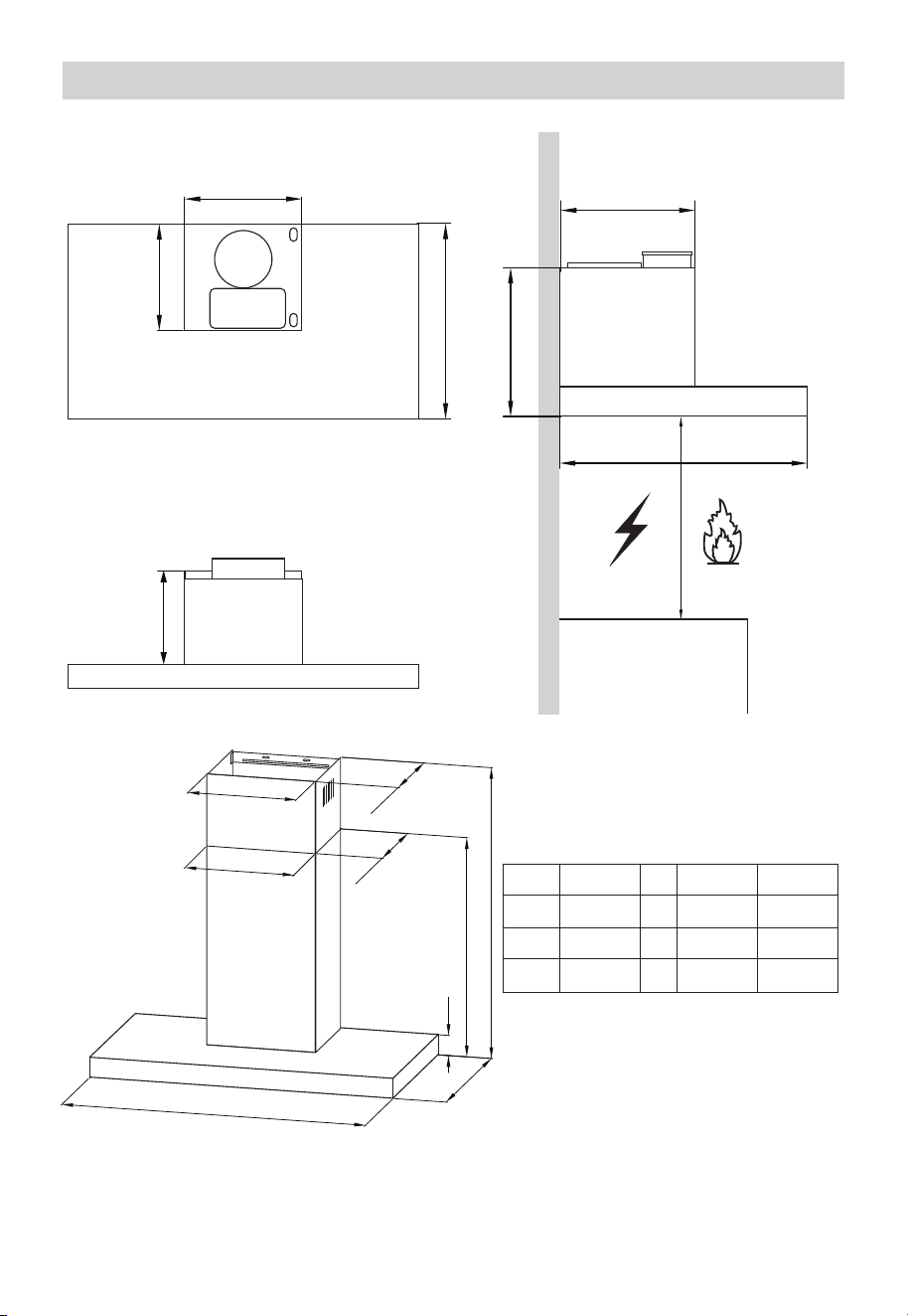

Dimensions
06
unit：mm
300
286
500
Min.
650mm
Min.
650mm
240
286
40
500
A
B
280
304
306
598/898
287
289
500
Option A B
1
430 465-800 430-800
2
3
530
630
565-1000
665-1200
530-1000
630-1200
Chimney Height
400+390
500+490
600+590
60
B
A
60
80
243
X970-1070
100 100
80
Option X
1
160-500
2
3
260-700
Chimney
400+390
500+490
360-900600+590
Wall Drilling And Bracket Fixing
(3)
C
As a first step, proceed with the following drawings:
●
●
●
●
l line up to the ceiling or up to the upper limit, at the center of the area in which the
hood is to be fitted.
A horizontal line A at 970 – 1070 mm above the cooker top.
A horizontal line B at a X mm above the horizontal line A.
A horizontal line C at a 243 mm below the horizontal line A .
Mark Points:
●
●
●
●
●
●
Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
Repeat this operation on the other side and on the vertical reference line, checking
that the three marks are leveled.
Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
Repeat this operation on the other side, checking that the two marks are on the same
horizontal line.
Mark a point (3) on the horizontal line C, 100 mm to the vertical reference line .
Repeat this operation on the other side , checking that the two marks are leveled.
07
●
●
●
●
Fix the brackets :
Drill holes at the marked points with a Φ10 mm drill bit.
Insert the Wall Plugs 11 into the holes.
Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.
Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.
PRODUCT INSTALLATION
●
●
●

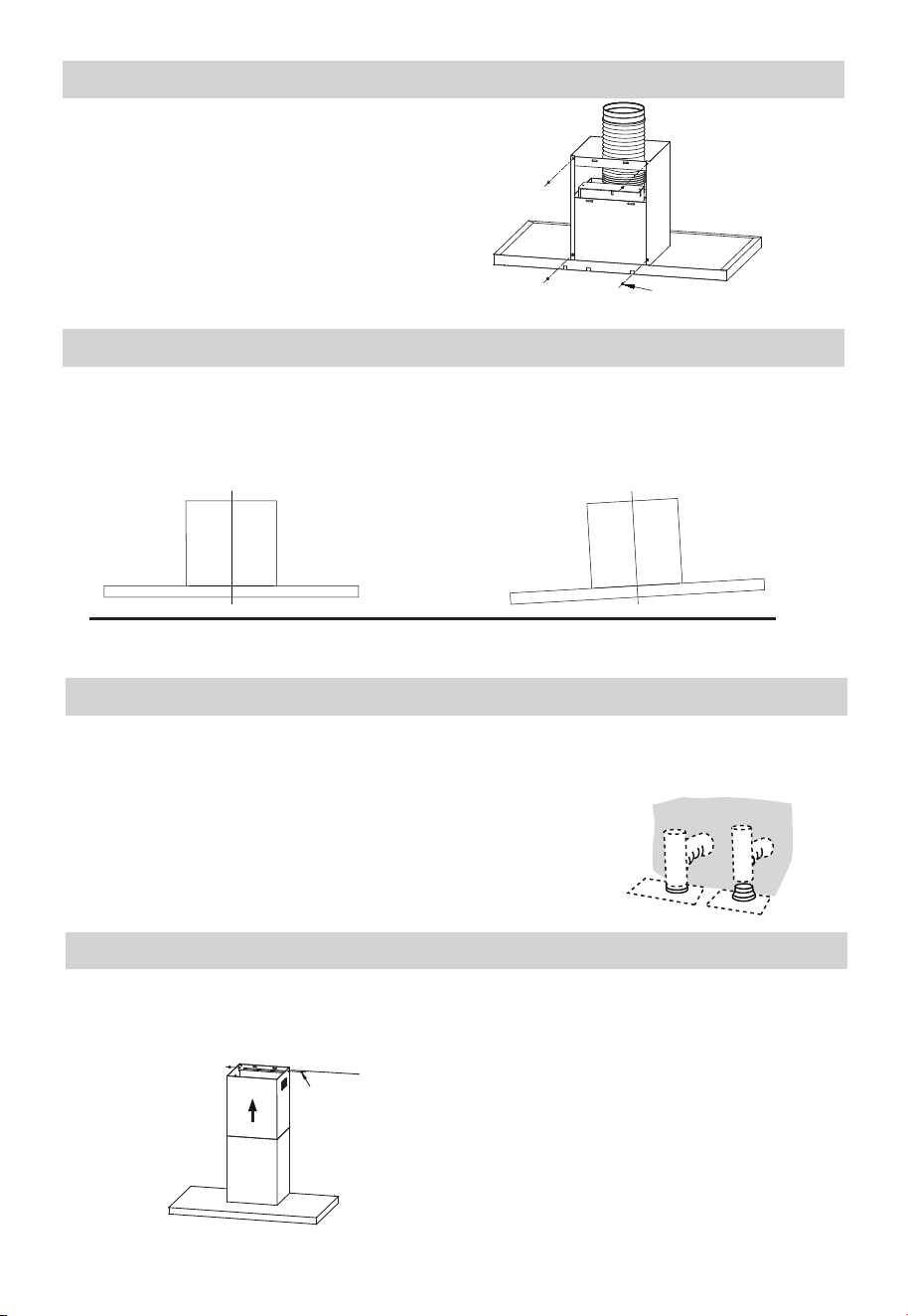

Hook The Hood Body
Right Wrong
Hook the hood body to the bracket 20.
Level the hood body itself.
Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11
at the points (3).
●
Lower Decorative Chimney
4Screws(ST4.2*9.5)
Fix the exhaust pipe on the hood body,
connect chimney and hood body with 2
screws 12. connect chimney fixing bracket
and chimney with 2 screws 12.
●
●
Insert the upper decorative chimney 2.2 into the lower decorative chimney 2.1 and
drag it up to the horizontal line B.
Connect upper decorative chimney 2.2 and chimney fixing bracket 21 with 2 screws 12.
●
●
●
Connections
Upper Decorative Chimney
If to install a Φ120 mm air exhaust connection, insert
the reducer flange 3 on the hood body outlet.
Fix the pipe 4 in position using sufficient pipe clamps
(not supplied).
Remove possible charcoal filters.
When installing the ducted version, connect the hood to the chimney using either a
flexible or rigid pipe ɸ150 or ɸ120 mm, the choice of which is left to the installer.
2Screws(ST4.2*9.5)
B
ɸ120
ɸ150
08
09
Speed Adjustment. (For Some Models)
OPERATION INSTRUCTIONS
Turns the lighting system on or off.
Decrease the motor speed.
Button on.
When is off.
When is off.
When is on.
When is on.
When is on.
When is flashing.
When is flashing.
When + are on.
Turn the Motor ON.
Turn the Motor and Lights ON.
Turn the Motor and Lights OFF.
Change the motor speed circularly
(1—2—3—b—1—2—3).
Enter delayed shutdown mode(Au-
tomatic shutdown after 3 minutes).
Automatic shutdown after 3 minutes.
Turn the Motor OFF.
When the fan is running.
Delayed shutdown mode,
or standby mode.
Display fan gear “1、2、3、b”.
Display "0".
Increase the motor speed.
When + are on.
Button Function Remarks
10
●
●
●
●

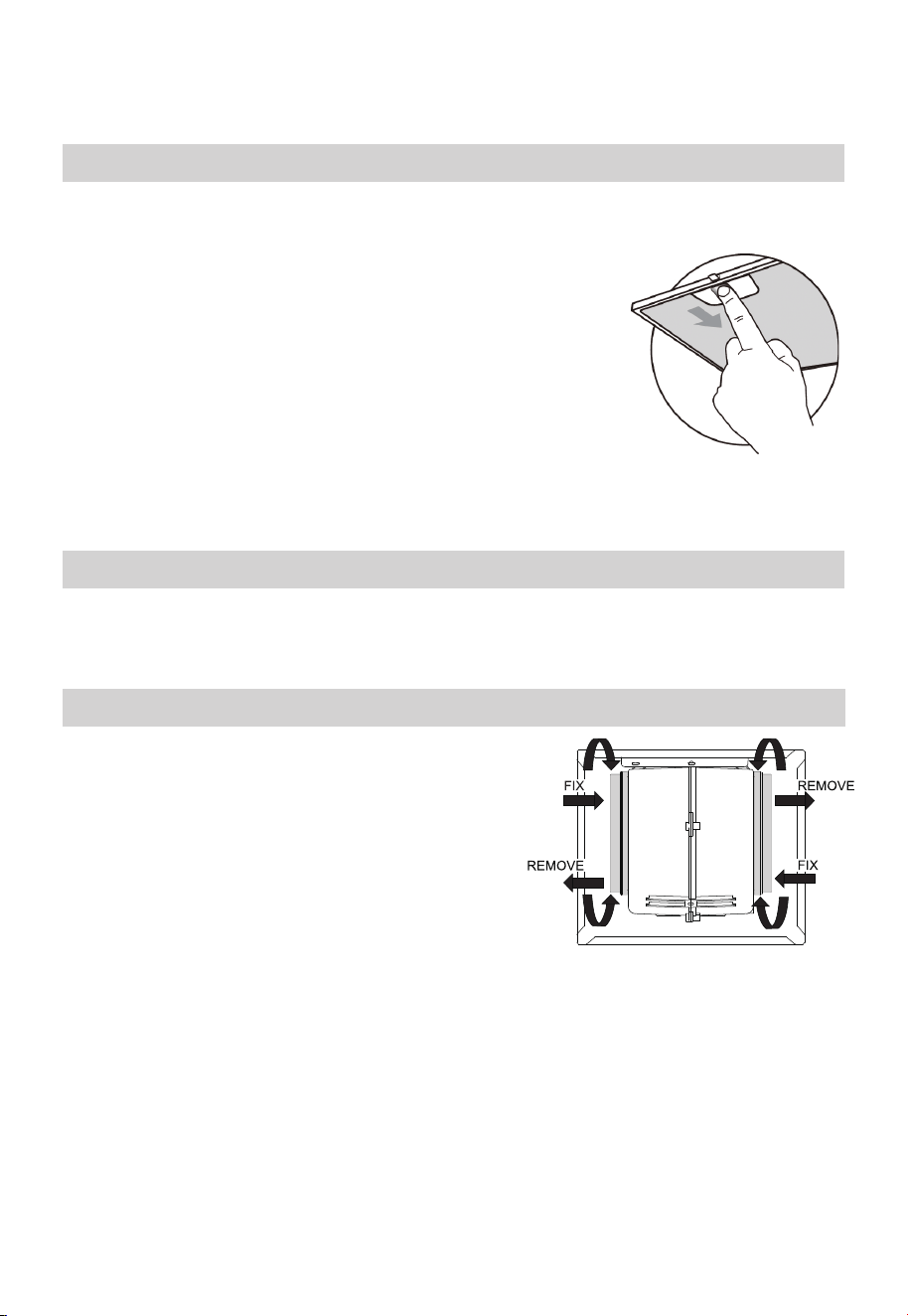

Replacing The Activated Charcoal Filter
Remove the metal grease filters.
Remove the saturated activated charcoal filter.
Fit the new filters.
Replace the metal grease filters.
●
●
●
●
Grease Filters
CLEANING METAL SELF-SUPPORTING GREASE FILTERS
The filters must be cleaned every 2 months of operation, or
more frequently for particularly heavy usage, and can be
washed in a dishwasher.
Remove the filters one by one pushing them towards the back
side of the hood unit and simultaneously pulling downwards.
Any kind of bending of the filters has to be avoided when
washing them. Before fitting them again into the hood make
sure that they are completely dry. (The color of the filter
surface may change throughout the time but this has no
influence to the filter efficiency).
When fitting the filters into the hood pay attention that they
are mounted in correct position the handle facing outwards.
●
These filters are not washable and cannot be regenerated, and must be replaced
approximately every 4 months of operation, or more frequently with heavy usage.
Activated Charcoal Filter (Recirculation Version)
CLEANING AND MAINTENANCE
11
●
●
●
●
●
●
●

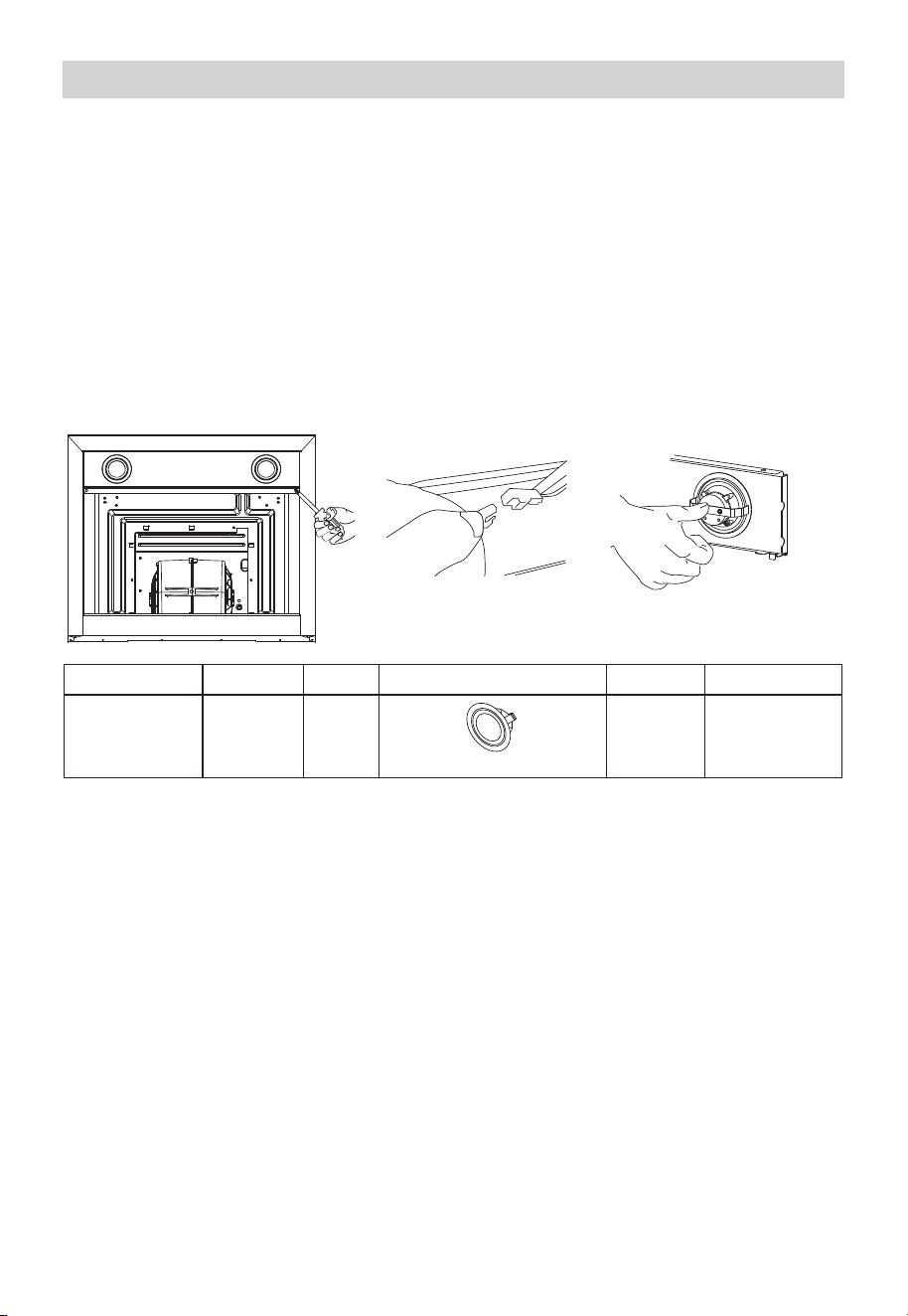

Remove the grease filter and carefully remove the 2 screws from the front plate (a
cross headed screwdriver will be needed to remove the screws).
Disconnect the terminal of LED light.
Press LED light on the back of the front plate, take the LED light out.
Replace the lamp(commercially available LED lamp (max.1.5W).
●
●
●
Cannot replaced the light bulbs, the entire light module has to be replaced.
When changing the light modules, the contacts are live.
Before changing the light module(s), unplug the appliance from the mains or switch off
the circuit breaker in the fuse box.
Lighting
LIGHT REPLACEMENT(Completed by professionals)
Replacing the light modules
Max PowerLamp type Voltage Picture Lamp Cap ILCOS D code
LED modules,
separate ballast
1.5W DC 12 V
——
DSR-1.5-S-70
Square/Diameter: 70mm
Press LED light on the front of front plate, install the LED light on the front plate.
Connect the terminal of LED light and light leads.
Carefully fasten the 2 screws on the front plate ,reinstall the grease filter.
12
TROUBLESHOOTING
Possible reason SolutionProblem
Light on, but motor
does not work
Both light andmotor
do notwork
●
●
●
●
●
●
●
The internal wiring of motor
is cut off/disconnected. An
unpleasant smell may be
produced.
The blades are blocked.
The capacitor is damaged.
The motor is damaged.
Replace capacitor.
Replace motor.
Replace motor.
Check the blades
Apart from the above mentioned, check the following:
Light damaged. Replace lights.
Power cord loose. Connect the wires as the
electric diagram.
Oil leakage
Outlet and the air ventilation
entrance are not tightly
sealed.
Take down the outlet and seal
with glue.
●
●
●
●
●
●
●
Vibration
The blade, if damaged, can
cause vibrating.
Replace the blade.
Fasten the motor tightly.
Fixed the cooker hood tightly.
The motor is not tightly
fastened.
The cooker hood is not tightly
fixed.
Insufficient suction
The distance between the
cooker hood and the cooker top
is too large.
Readjust the distance.
Too much ventilation from
open doors or windows.
Choose a new place to install
the appliance or close some
doors / windows.
The machine inclines
The fixing screws are not tight
enough.
Tighten the fixing screw and
make it horizontal.
The hanging screws are not
tightenough
Tighten the hanging screw
and make it horizontal.
13
logo, word marks, trade name, trade dress and all versions thereof are
trademarks, copyrights and other intellectual property rights, and all goodwill derived
from using any part of an Midea trademark. Use of Midea trademark for commercial
purposes without the prior written consent of Midea may constitute trademark
infringement or unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
Important instructions for environment
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
classification symbol for waster electrical and electronic equipment (WEEE).
This symbol indicates that this product shall not be disposed
with other household wastes at the end of its service life. Used
recycling of electrical electronic devices. To find these
collection systems please contact to your local authorities or
retailer where the product was purchased. Each household
performs important role in recovering and recycling of old
appliance. Appropriate disposal of used appliance helps
prevent potential negative consequences for the environment
and human health.
Compliance with RoHS Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does
not contain harmful and prohibited materials specified in the Directive.
Package information
Packaging materials of the product are manufactured from
recyclable materials in accordance with our National Environ-
ment Regulations. Do not dispose of the packaging materials
together with the domestic or other wastes. Take them to the
packaging material collection points designated by the local
authorities.
DATA PROTECTION NOTICE
For the provision of the services agreed with the customer,
we agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered,
as well as, where applicable, the EU General Data Protection Regulation (GDPR).
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
[email protected]. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
[email protected]. To find further information, please follow the QR Code.
14
