50-1/2˝
from floor
to bottom
of bracket
three screws per
side, 6 total
34˝ from floor
to top flanges
of skirt
top flange
of skirt
nut
skirt
z-bracket
sink
sink

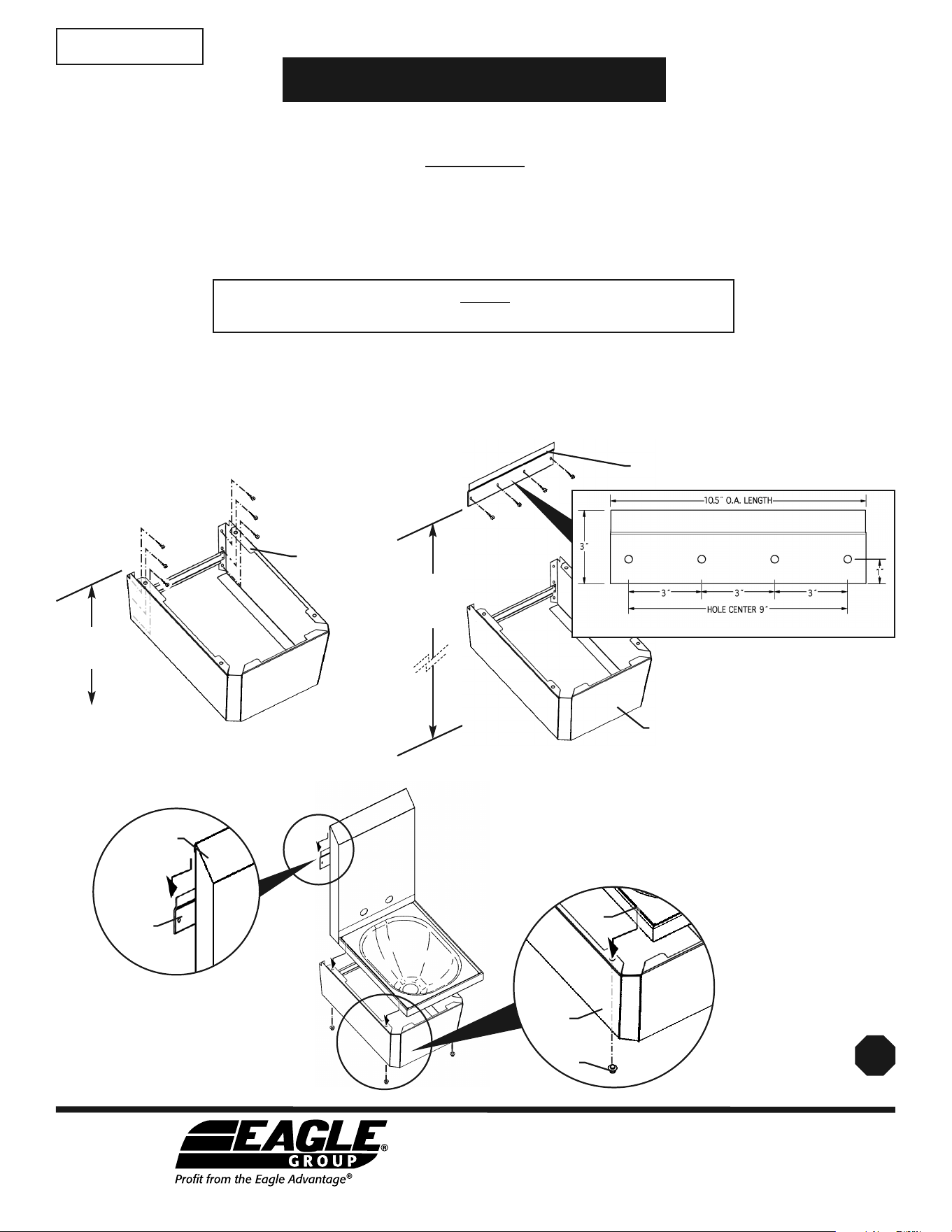

Step 3 - Hang sink off z-bracket.
Step 4 - Mount sink to skirt.
• Align holes in top flanges of skirt with threaded studs
underneath sink, and assemble.
• Fasten with nuts provided.
ASSEMBLY INSTRUCTIONS
#HSANT Hand Sink with Tall Backsplash
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG9949 Revised 01/24
(End)
INSTRUCTION SHEET
#377244
Please note before assembly:
Remove the locking nuts from underside of hand sink and set aside.
Step 2 - Mount skirt to wall.
• Measure and mark 34˝ from floor to
top flanges of skirt, using a level for
straightness.
• Fasten skirt to wall (mounting
hardware not included.)
Step 2 - Mount z-bracket onto wall, centered above skirt.
• Measure and mark 50-1/2˝ from floor to bottom of bracket.
• Fasten z-bracket to wall (mounting hardware not included.)
Z-BRACKET DIMENSIONS (FRONT VIEW)
skirt
z-bracket
