MODEL NUMBER
OWNER’S MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
WALL/WINDOW TYPE ROOM AIR CONDITIONER
MAT08R1YWT MAT08H1ZWT
MAT10R1YWT MAT10R2YWT
MAT10H2ZWT MAT12R1YWT
MAT12R2YWT MAT12H2ZWT
MAT14R2ZWT MAT14H2ZWT
CONTENTS
02
12
13
16
28
29
41
42
SAFETY PRECAUTIONS
WHAT IS IN THE BOX.
BEFORE YOU GET START.
INSTALL YOUR PRODUCT.
GET TO KNOW YOUR AC.
GET TO KNOW THE FEATURES.
CLEANING & MAINTENANCE
TROUBLESHOOTING
01
It is really important you read Safety Precautions Before Operation and Installation
Incorrect installation due to ignoring instructions can cause serious damage or injury.
The seriousness of potential damage or injuries is classified as either a WARNING
or CAUTION.
WARNING
CAUTION
Explanation of Symbols
This symbol indicates the possibility of personal injury or loss of
life.
This symbol indicates the possibility of property damage or serious
consequences.
WARNING
Plug in power plug properly. Otherwise, it may cause electric shock or fire due to
excess heat generation. Do not operate or stop the unit by inserting or pulling out
the power plug.It may cause electric shock or fire due to heat generation. Do not
damage or use an unspecified power cord.It may cause electric shock or fire. If
the power cord is damaged, it must be replaced by the manufacturer or an
authorised service centre or a similarly qualified person in order to avoid a hazard.
Always install circuit breaker and a dedicated power circuit. Incorrect installation
may cause fire and electric shock. Do not operate with wet hands or in damp
environment. It may cause electric shock. Do not direct airflow at room
occupants only. This could damage your health.
Do not allow water to run into electric parts.It may cause failure of machine of
electric shock. Do not modify power cord length or share the outlet with other
appliances. It may cause electric shock or fire due to heat generation.
Unplug the unit if strange sounds, smell, or smoke comes from it. It may cause fire
and electric shock. Do not use the socket if it is loose or damaged. It may cause
fire and electric shock. Do not open the unit during operation. It may cause
electric shock.
●
●
●
●
ALWAYS DO THIS
This signal means that the operation can be performed.
NEVER DO THIS
This signal indicates the prompt operation is prohibited, if not
avoided, may result in Product damaged or injury.
SAFETY PRECAUTIONS
02
Keep firearms away. It may cause fire. Do not use the power cord close to heating
appliances.It may cause fire and electric shock. Do not use the power cord near
flammable gas or combustibles, such as gasoline, benzene, thinner, etc. It may
cause an explosion or fire.
Ventilate room before operating air conditioner if there is a gas leakage from
another appliance. It may cause explosion, fire and, burns. Do not disassemble
or modify unit. It may cause failure and electric shock.
●
●
When the air filter is to be removed, do not touch the metal parts of the unit. It
may cause an injury. Ventilate the room well when used together with a stove, etc.
An oxygen shortage may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth.
Appearance may be deteriorated due to change of product color or scratching of
its surface. Do not clean the air conditioner with water. Water may enter the unit
and degrade the insulation. It may cause an electric shock. Do not use for special
purposes. Do not use this air conditioner to preserve precision devices, food, pets,
plants, and art objects.lt may cause deterioration of quality, etc.
Stop operation and close the window in storm or hurricane. Operation with
windows opened may cause wetting of indoor and soaking of household furniture.
Do not clean unit when power is on as it may cause fire and electric shock, it may
cause an injury.
Always insert the filters securely. It can be caused failure if operated without
filters. Please clean filter once every two weeks.
Hold the plug by the head of the power plug when taking it out. It may cause
unit for a long time. It may cause failure of product or fire.
Do not place obstacles around air-inlets or inside of air-outlet. It may cause failure
of appliance or accident. Do not place heavy object on the power cord and ensure
that the cord is not compressed. There is danger of fire or electric shock. Don’t
drink water drained from air conditioner. It contains contaminants and could make
you sick.
Use caution when unpacking and installing. Sharp edges could cause injury.
circuit breaker. Isolate supply by taking the power-plug out and contact a qualified
service technician.
This appliance is not intended for use by persons(including children) with reduced
physical ,sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
●
●
●
●
●
●
●
●
●
●
●
●
●
CAUTION
03
Installation must be performed in accordance with the requirement of NEC and
CEC by authorized personnel only.
Do not operate your air conditioner in a wet room such as a bathroom or laundry
room.
The appliance with electric heater shall have at least 1 meter space to the
combustible materials.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
●
●
●
●
●
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
Indoor temp:
64-109°F/18-43°C(64-125°F/18-52°C
for special tropical models)
62-90°F/17-32°C
23-76°F/5-24°C
32-80°F/0-27°C
NOTE
Note: Performance may be reduced outside of these operating temperatures.
This air conditioner is designed to be operated under the following conditions:
Operation of Current Device

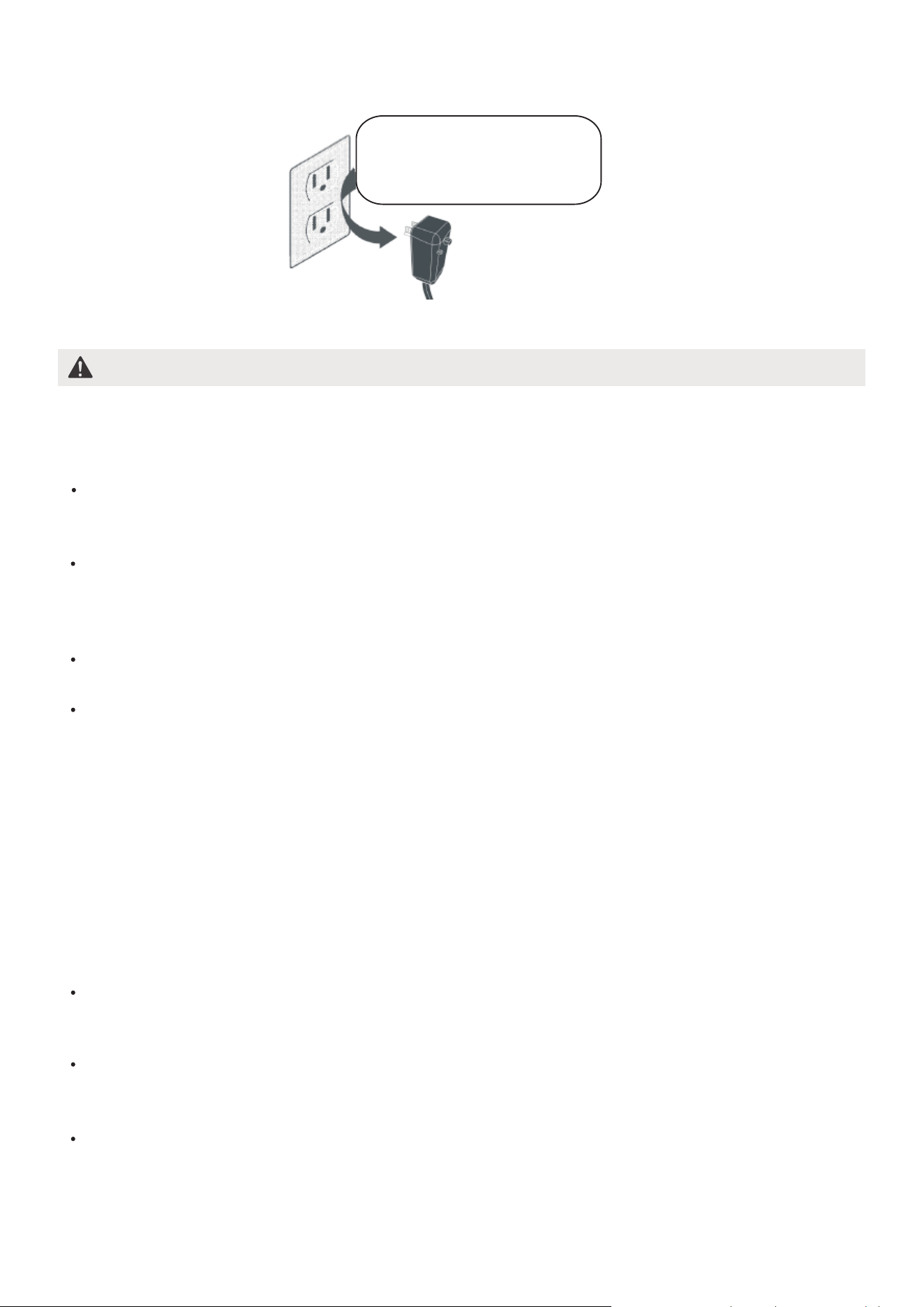

The power supply cord contains a current device that senses damage to the power
cord. To test your power supply cord do the following:
Plug in the Air Conditioner.
The power supply cord will have TWO buttons on the plug head. Press the TEST
button, you will notice a click as the
RESET button pops out.
Press the RESET button again, you will notice a click as the button engages.
The power supply cord is now supplying electricity to the unit. (On some products
this is also indicated by a light on the plug head).
NOTE
The power supply cord with this air conditioner contains a current detection
device designed to reduce the risk of fire.
In the event that the power cord is damaged, it cannot be repaired – it must be
replaced with a cord from the product manufacturer.
Always make sure the RESET button is pushed in for correct operation.
The power supply cord must be replaced if it fails to reset when either the TEST
button is pushed or if it cannot be reset. A new one can be obtained from the
product manufacturer.
04
Do not, under any
circumstances, cut, remove,
or bypass the grounding
prongs.
Grounding type wall receptacle
Power supply cord with 3-prong grounding plug and current detection device.
WARNING
The complete electical rating of your new room air conditioner is stated on the
serial plate. Refer to the rating when checking the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize shock and fire
hazards, proper grounding is important. The power cord is equipped with a
three-prong grounding plug for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the
wall receptacle you intend to use is not adequately grounded or protected by a
time delay fuse or circuit breaker, have a qualified electrician install the proper
receptacle. Ensure the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective co
ver in place. This could result
in mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
Avoid fire hazard or electric shock. Do not use an extension cord or an adapter
plug. Do not remove any prongs from the power cord.
For Your Safety
Do not store or use gasoline or other flammable vapors and iquids in the vicinity of
this or any other appliance.
Prevent Accidents
To reduce the risk of fire, electrical shock, or injury to persons when using your air
conditioner, follow basic precautions, including the following:
Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plate, which is located on the side of the
the cabinet and behind the grille.
If the
air conditioner is to be installed in a window, you will probably want to clean
both sides of the glass first. If the window is a triple-trackty pew it has creen
panel included, remove the screen completely before installation.
Be sure the air conditioner has been securely and correctly installed according to
the installation instructions in this manual. Save this manual for possible future
use in removing or installing this unit. When handling the air conditioner, be
careful to avoid cuts from sharp metal fins on front and rear coils.
Electrical Information
05
Electronic Work
WARNING:

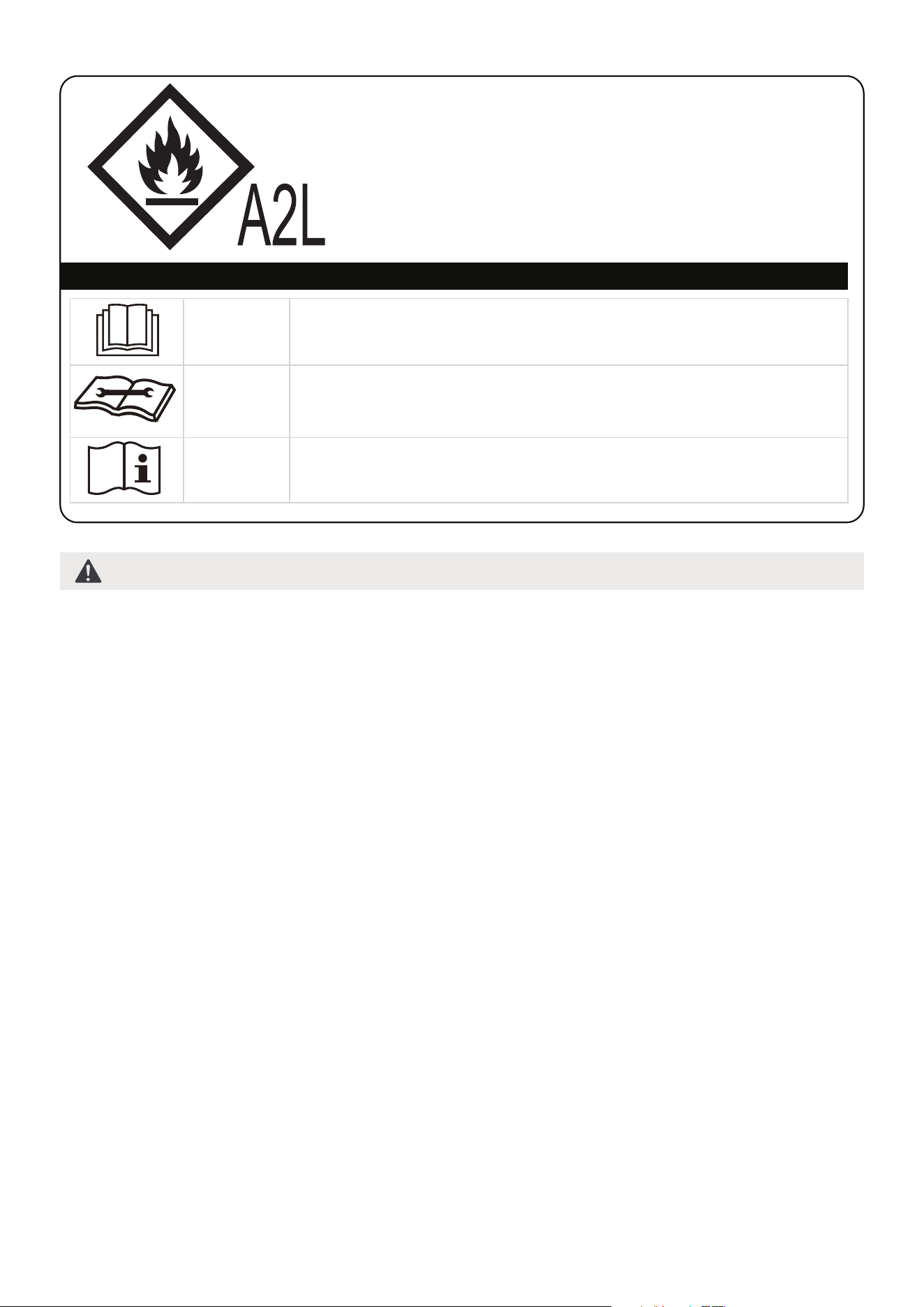

WARNING for Using R32 Refrigerant
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating
electric heater).
Do not pierce or burn.
Be aware that the refrigerants may not contain an odour.
Appliance should be installed, operated and stored in a room with a floor area
according to the amount of refrigerant to be charged. For specific information on
the type of gas and the amount, please refer to the relevant label on the unit itself.
When there are differences between the lable and the manual on the Min. room area
description, the description on label shall prevail.
Appliance shall be installed, operated and stored in a room with a floor area larger
than 4 m
2
.
Appliance shall not be installed in an unvertilated space, if that space is smaller
than 4 m
2
.
No open fire or device like switch which may generate spark/arcing shall be around
appliance to avoid causing ignition of the flammable refrigerant used.
Please follow the instructions carefully when storing or maintaining the appliance
to prevent mechanical damage from occurring.
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN
OFF THE MAIN POWER TO THE SYSTEM.
Main Control
Compressor
Fan Motor
Display
Power
Supply
L/AC L/L1/L-IN
N/AC N/L2/N-IN
Other
Electronic Type
NOTICE:
Please strictly follow the wiring label attached to the machine for all wiring connections.
The wiring diagram may vary for different unit. Please refer to the wiring diagram on
the machine you have purchased. The above wiring diagram is a simplified version for
preliminary illustration purposes only.
06
WARNING for Using R32 Refrigerant
- Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be
carried out under the supervision of the person competent in the use of flammable
refrigerants.
- DO NOT modify the length of the power cord or use an extension cord to power the
unit.
- DO NOT share a single outlet with other electrical appliances. Improper power
supply can cause fire or electrical shock.
- Please follow the instruction carefully to handle, install, clear, service the appliance
to avoid any damage or hazard.
- When maintaining or disposing the appliance, the refrigerant shall be recovered
properly, shall not discharge to air directly.
- Compliance with national gas regulations shall be observed.
- Keep ventilation openings clear of obstruction.
- The appliance shall be stored so as to prevent mechanical damage from occurring.
- A warning that the appliance shall be stored in a well-ventilated area where the
room size corresponds to the room area as specified for operation.
- Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certificate from an industry-accredited assessment
authority, which authorises their competence to handle refrigerants safely in
accordance with an industry recognised assessment specification. All training shall
follow the ANNEX HH requirements of UL 60335-2-40 4th Edition.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
• opening of ventilated enclosures.
CAUTION:
Risk of fire
flammable materials
Explanation of symbols displayed on the unit
CAUTION
This symbol shows that the operation manual should be
read carefully.
CAUTION
This symbol shows that a service personnel should be
handling this equipment with reference to the
installation manual.
CAUTION
This symbol shows that information is available such as
the operating manual or installation manual.
07
See transport regulations.
1. Transport of equipment containing flammable refrigerants
See local regulations.
2. Marking of equipment using signs
See national regulations.
3. Disposal of equipment using flammable refrigerants
4. Storage of equipment/appliances
Storage package protection should be constructed such that mechanical
damage to the equipment inside the package will not cause a leak of the
refrigerant charge. The maximum number of pieces of equipment permitted to
be stored together will be determined by local regulations.
5. Storage of packed (unsold) equipment
1) Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety
checks are necessary to ensure that the risk of ignition is minimised. For repair
to the refrigerating system, the following precautions shall be complied with
prior to conducting work on the system.
2) Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk
of a flammable gas or vapour being present while the work is being performed.
3) General work area
All maintenance staff and others working in the local area shall be instructed on
the nature of work being carried out. Work in confined spaces shall be avoided.
The area around the workspace shall be sectioned off. Ensure that the conditions
within the area have been made safe by control of flammable material.
4) Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerating detector prior to and
during work, to ensure the technician is aware of potentially flammable
atmospheres. Ensure that the leak detection equipment being used is suitable
for use with flammable refrigerants, i.e. non-sparking, adequately sealed or
intrinsically safe.
5) Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any
associated parts, appropriate fire extinguishing equipment shall be available to
hand. Have a dry powder or CO
2
fire extinguisher adjacent to the charging area.
6) No ignition sources
No person carrying out work in relation to a refrigerating system which involves
exposing any pipe work that contains or has contained flammable refrigerant
shall use any sources of ignition in such a manner that it may lead to the risk of
fire or explosion. All possible ignition sources, including cigarette smoking,
should be kept sufficiently far away from the site of installation, repairing,
removing and disposal, during which flammable refrigerant can possibly be
released to the surrounding space. Prior to work taking place, the area around
the equipment is to be surveyed to make sure that there are no flammable
hazards or ignition risks. No Smoking signs shall be displayed.
6. Information on servicing
The storage of the appliance should be in accordance with the applicable
regulations or instructions, whichever is more stringent.
08
09
7. Sealed electrical components shall be replaced.
8. Intrinsically safe components must be replaced.
7)ventilated area
Ensure that the area is in the open or that it is adequately ventilated before
breaking into the system or conducting any hot work. A degree of ventilation
shall continue during the period that the work is carried out. The ventilation
should safely disperse any released refrigerant and preferably expel it externally
into the atmosphere.
8)Checks to the refrigerating equipment
Where electrical components are being changed, they shall be fit for the purpose
and to the correct specifications. At all times the manufacturer's maintenance
and service guidelines shall be followed. If in doubt consult the manufacturer's
technical department for assistance. The following checks shall be applied to
installations using flammable refrigerants: the actual refrigerant charge is in
accordance with the room size within which the refrigerant containing parts are
installed; the ventilation machinery and outlets are operating adequately and are
not obstructed; if an indirect refrigerating circuit is being used, the secondary
circuit shall be checked for the presence of refrigerant; marking to the
equipment continues to be visible and legible.
Markings and signs that are illegible shall be corrected; and refrigerating pipe or
components are installed in a position where they are unlikely to be exposed to
any substance which may corrode refrigerant containing components, unless the
components are constructed of materials which are inherently resistant to being
corroded or are suitably protected against being so corroded.
9)Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety
checks and component inspection procedures. If a fault exists that could
compromise safety, then no electrical supply shall be connected to the circuit
until it is satisfactorily dealt with. If the fault cannot be corrected immediately
but it is necessary to continue operation, an adequate temporary solution shall
be used.
This shall be reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include: That capacitors are discharged: this shall be
done in a safe manner to avoid possibility of sparking; that there no live electrical
components and wiring are exposed while charging, recovering or purging the
system; that there is continuity of earth bonding.
Check that cabling will not be subject to wear, corrosion, excessive pressure,
vibration, sharp edges or any other adverse environmental effects. The check
shall also take into account the effects of aging or continual vibration from
sources such as compressors or fans.
9. Cabling
Under no circumstances shall potential sources of ignition be used in the
searching for or detection of refrigerant leaks. A halide torch (or any other
detector using a naked flame) shall not be used.
The following leak detection methods are deemed acceptable for systems
containing flammable refrigerants. Electronic leak detectors shall be used to
detect flammable refrigerants, but the sensitivity may not be adequate, or may
need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free
area.) Ensure that the detector is not a potential source of ignition and is suitable
for the refrigerant used. Leak detection equipment shall be set at a percentage
of the LFL of the refrigerant and shall be calibrated to the refrigerant employed
10. Detection of flammable refrigerants
10
Before carrying out this procedure, it is essential that the technician is completely
familiar with the equipment and all its detail. It is recommended good practice
that all refrigerants are recovered safely.
and the appropriate percentage of gas (25 % maximum) is confirmed. Leak
detection fluids are suitable for use with most refrigerants but the use of
detergents containing chlorine shall be avoided as the chlorine may react with
the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked
flames shall be removed/ extinguished. If a leakage of refrigerant is found which
requires brazing, all of the refrigerant shall be recovered from the system, or
isolated (by means of shut off valves) in a part of the system remote from the
leak. Removal of refrigerant shall be according to Removal and evacuation.
When breaking into the refrigerant circuit to make repairs—or for any other
purpose - conventional procedures shall be used. However, for flammable
refrigerants it is important that best practice be followed, since flammability is
a consideration. The following procedure shall be adhered to:
-Safely remove refrigerant following local and national regulations;
-Evacuate;
-Purge the circuit with inert gas (optional for A2L);
-Evacuate (optional for A2L);
-continuously flush or purge with inert gas when using flame to open circuit; and
-open the circuit.
The refrigerant charge shall be recovered into the correct recovery cylinders if
venting is not allowed by local and national codes. For appliances containing
flammable refrigerants, the system shall be purged with oxygen-free nitrogen to
render the appliance safe for flammable refrigerants. This process might need to
be repeated several times.compressed air or oxygen shall not be used for
purging refrigerant systems.
For appliances containing flammable refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the system with oxygen-free nitrogen and
continuing to fill until the working pressure is achieved, then venting to
atmosphere, and finally pulling down to a vacuum (optional for A2L).
This process shall be repeated until no refrigerant is within the system (optional
for A2L). When the final oxygen-free nitrogen charge is used. the system shall be
vented down to atmospheric pressure to enable work to take place. The outlet
for the vacuum pump shall not be close to any potential ignition sources, and
ventilation shall be available.
11. Removal and evacuation
In addition to conventional charging procedures, the following requirements shall
be followed.
Ensure that contamination of different refrigerants does not occur when using
charging equipment.
Hoses or lines shall be as short as possible to minimise the amount of refrigerant
contained in them.
Cylinders shall be kept in an appropriate position according to the instructions.
Ensure that the refrigeration system is earthed prior to charging the system with
refrigerant. Label the system when charging is complete (if not already). Extreme
care shall be taken not to overfill the refrigeration system. Prior to recharging the
system it shall be pressure tested with OFN. The system shall be leak tested on
completion of charging but prior to commissioning. A follow up leak test shall be
carried out prior to leaving the site.
12. Charging procedures
13. Decommissioning
11
Prior to the task being carried out, an oil and refrigerant sample shall be taken in
case analysis is required prior to re-use of reclaimed refrigerant. It is essential
that electrical power is available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that: Mechanical handling equipment
is available, if required, for handling refrigerant cylinders;all personal protective
equipment is available and being used correctly; the recovery process is
supervised at all times by a competent person; recovery equipment and
cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be
removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's
instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make
sure that the cylinders and the equipment are removed from site promptly and
all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system
unless it has been cleaned and checked.
Equipment shall be labelled stating that it has been de-commissioned and
emptied of refrigerant. The label shall be dated and signed. Ensure that there are
labels on the equipment stating the equipment contains flammable refrigerant.
14. Labelling
When removing refrigerant from a system, either for servicing or decommissioning,
it is recommended good practice that all refrigerants are removed safely. When
transferring refrigerant into cylinders, ensure that only appropriate refrigerant
recovery cylinders are employed. Ensure that the correct number of cylinders for
holding the total system charge is available. All cylinders to be used are designated
for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders
for the recovery of refrigerant). Cylinders shall be complete with pressure relief
valve and associated shut-off valves in good working order. Empty recovery
cylinders are evacuated and, if possible, cooled before recovery occurs. The
recovery equipment shall be in good working order with a set of instructions
concerning the equipment that is at hand and shall be suitable for the recovery of
the flammable refrigerant. If in doubt, the manufacturer should be consulted. In
addition, a set of calibrated weighing scales shall be available and in good working
order. Hoses shall be complete with leak-free disconnect couplings and in good
condition.
The recovered refrigerant shall be processed according to local legislation in the
correct recovery cylinder, and the relevant waste transfer note arranged. Do not
mix refrigerants in recovery units and especially not in cylinders. If compressors or
compressor oils are to be removed, ensure that they have been evacuated to an
acceptable level to make certain that flammable refrigerant does not remain within
the lubricant. The compressor body shall not be heated by an open flame or other
ignition sources to accelerate this process. When oil is drained from a system, it
shall be carried out safely.
15.Recovery
12
WHAT IS IN THE BOX.

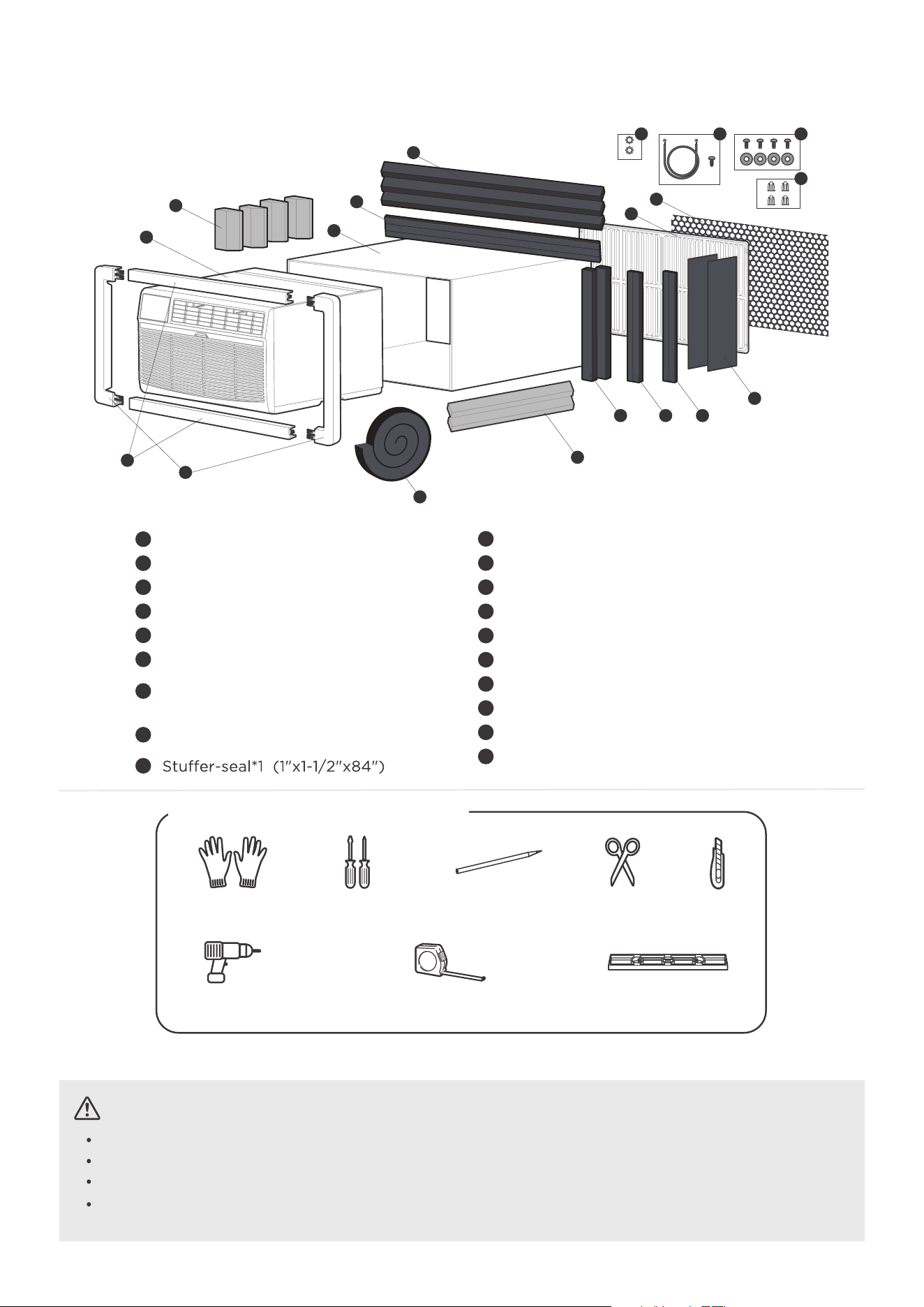

Package content
1
4
7
5
6
3
2
8
9
10 11 12
15
13
14
16
17
18
19
Seal*2 (1"x3/8"x14")
Seal*2 (1"x1-1/2"x14")
Tapered Spacer Block(Blue)*2
(7/8"x1-1/8"x17")
Centering/Support Blocks(Blue)*4
(4-1/2"x3-1/2"x1-1/2")
Seal*2 (1"x3/8"x25")
Seal*3 (1"x1-1/2"x25")
Plastic Divider*2 (1/8"x4-1/2"x14-1/2")
Seal*2 (1"x3/4"x14")
1
3
2
5
4
7
6
8
10
11
12
13
14
15
16
17
18
19
9
Air Conditioner Unit
Trim Frame (top & bottom legs)*2
Trim Frame (side legs)*2
Wall Sleeve (purchase separately)
Aluminum Grille
Plastic Grille (1/8"x4-1/2"x14-1/2")
Screw*4 and Screw Washer*4
Nuts(plastic)*4
Ground Wire and Grounding Screw
Toothed Washer for Grounding Screw
Level
Ruler or tape measure
Drill
*Not Included
PencilGloves Screwdriver Scissors&Knife
Prepare the following tools
CAUTION
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Aluminum house wiring may present special problems- consult a qualified electircian.
When handling unit, be careful to avoid cuts from sharp metal edges and aluminum fins on front
and rear coils.
Do not change the plug on the power cord of the air conditioner.
13

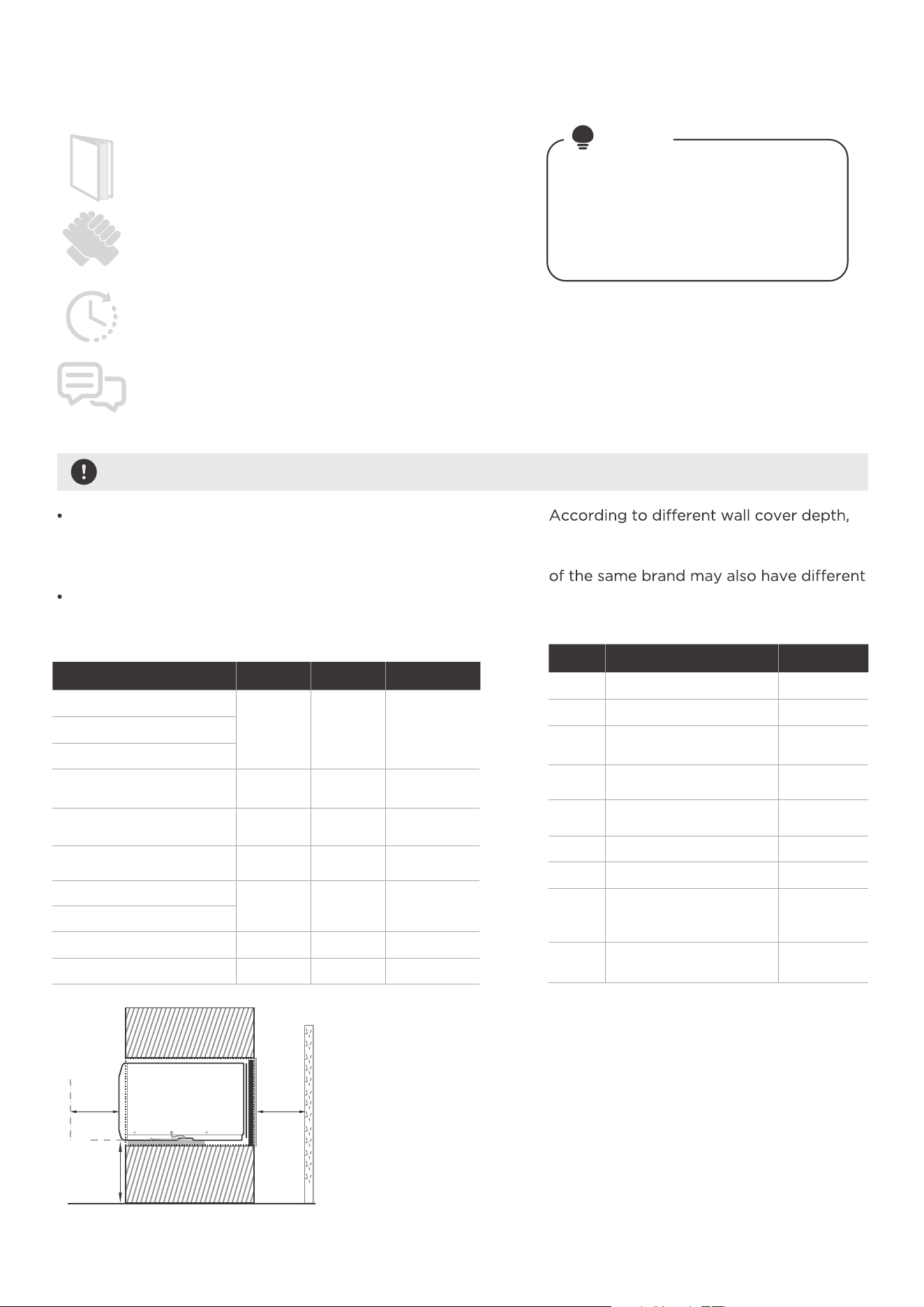

BEFORE YOU GET START.
Preparations before installation
NOTE
Installing your AC should take about
60 minutes.
The installation must be carried out
in strict accordance with the instructions
in this manual.
Manual
We recommend doing this with a helper.
We’re here if you need us, please contact
your local distributor for assistance.
Save Carton and these Installation
Instructions for future reference.
The carton is the best way to
store unit during winter, or when
not in use.
Confirm your installation location requirements and Wall Sleeve Dimensions.
The Air Conditioner dimensions are: 24" wide, 1 4" high,
and 18" deep (without front panel). Install Air
Conditioner according to these installation instructions
to achieve the best performance.
Confirm the size of the wall sleeve according to your
hole in the wall, identify the wall-sleeve brand for your
installation, from the chart below.
25-1/2"
26"
25-7/8"
27"
25-3/4"
26-3/4"
27"
15-1/4"
15-5/8"
16-1/2"
16-3/4"
16-7/8"
15-3/4"
16-3/4"
16",17-1/2"
or 22"
15-7/8"
17-1/8"
or 23"
16-3/4"
or 19-3/4"
18-5/8"
15"
16-3/4"
WidthBrand Height Depth
White-Westinghouse
Frigidaire
Friedrich
Carrier(52F Series)
Carrier(51S Series)
General Electric/
Hotpoint
Whirlpool
Sears/Kenmore
Fedders/Emerson
Emerson/Fedders
15"
19-3/4"
16-3/4"
16-7/8"
18-5/8"
17-1/8"
23"
16/17-1/2"
22"
Brand DepthType
Emerson#1
#2
#3
#4
#5
#6
#7
#8
#9
Fedders
Fedders/
Friedrich
White-Westinghouse/
Frigidaire/
Carrier(52F Series)
White-Westinghouse/
Frigidaire
General Electric/
Hotpoint
Sears/
Carrier(51S Series)
Whirlpool
Whirlpool
we have divided the installation into 9
categories. Please note that the wall cover
depths. Please install according to
the depth.
To make the appliance work better,
please do not place a barrier in the air
outlet, and select the installation location
of the product according to the
requirements in the following figure.
Over
51cm
(20")
Over
51cm
(20")
Over
12.2 to 16cm
(4-13/16"
to 6-5/16")
Side View
14
Complete the installation of Wall Sleeve.
Preparations before unit installation
Install the wall sleeve and make grounding connection
Remove old Air Conditioner from wall sleeve and prepare wall sleeve(if any). Clean interior (do not disturb
seals).

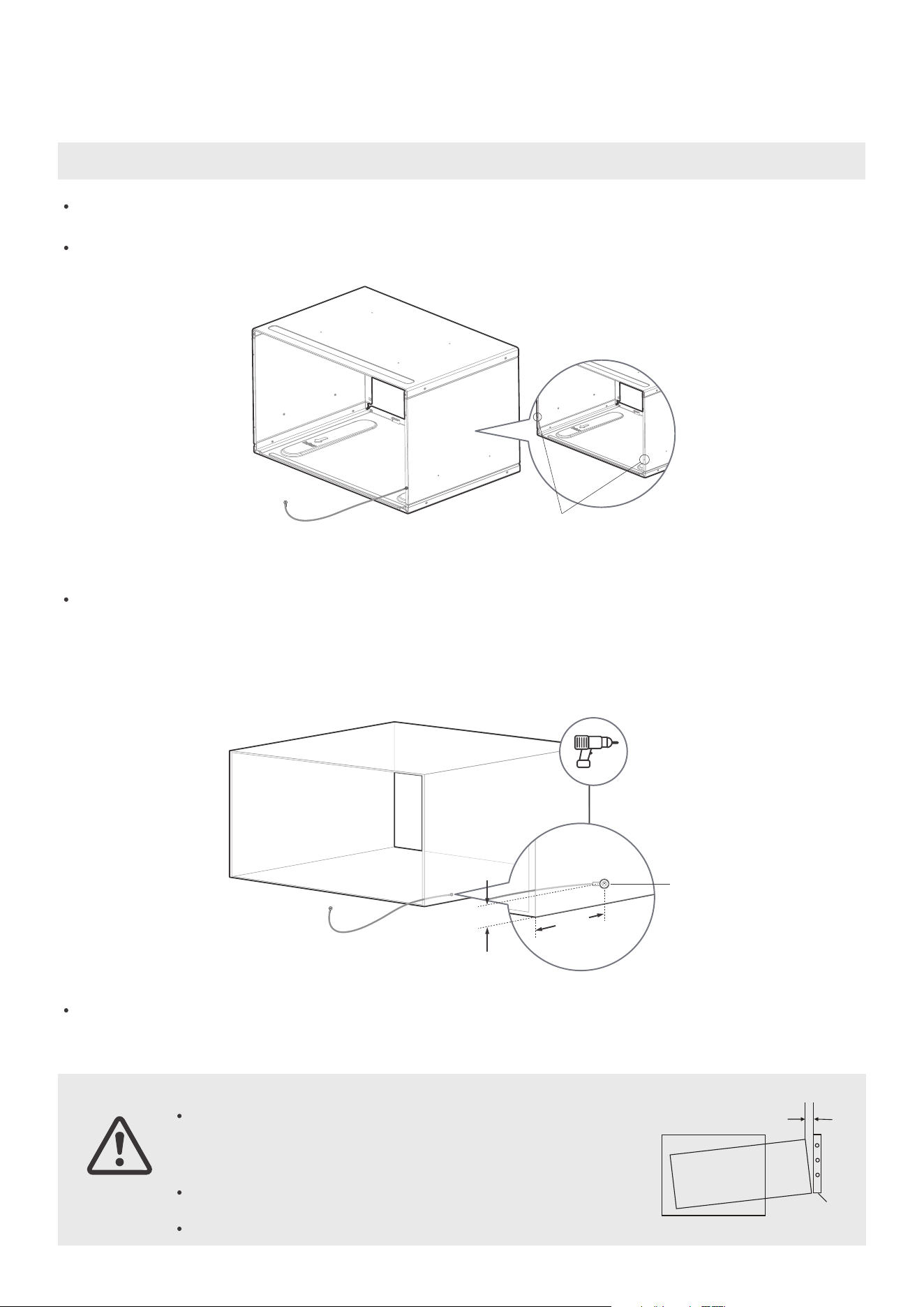

Under the front of the wall cover, there are two 1/8" holes for ground operation. Use the Ground Wire and
Ground Screw(No. 18), and Toothed Washerin(No. 19) the fitting bag for ground installation.
If there is no ground wire installation hole, please drill a 1/8 clearance hole for grounding screw through left
side of wall sleeve, in a clear area about 3" maximum back from front edge of sleeve, using grounding
screw and toothed washer. Pull loose end of ground wire out front of sleeve, and temporarily bend it down
and around lower edge of sleeve.
This ground wire will later be attached to frame of air conditioner once it is installed.
Wall sleeve must be securely fastened in wall before installing Air Conditioner. Drive more nails or screws
through sleeve, into wall, if needed(Repair paint if needed).
Normal grounding operation
You can choose the left side or
the right side for grounding.
CAUTION:
All wall sleeves used to mount the new Air Conditioner
must be in sound structural condition and have a rear
grille that securely attaches to sleeve, or rear flange
that serves as a stop for the Air Conditioner.
When installation is complete, replacement unit MUST
have a rearward slope as shown.
Do not use any screws other than those specified here.
Angle：3-4°
Rear
Level
Front
UNIT
Wall Sleeve
Unconventional grounding wire
operation (hole drilling required)
1/8"
hole
1"
3"Max
15

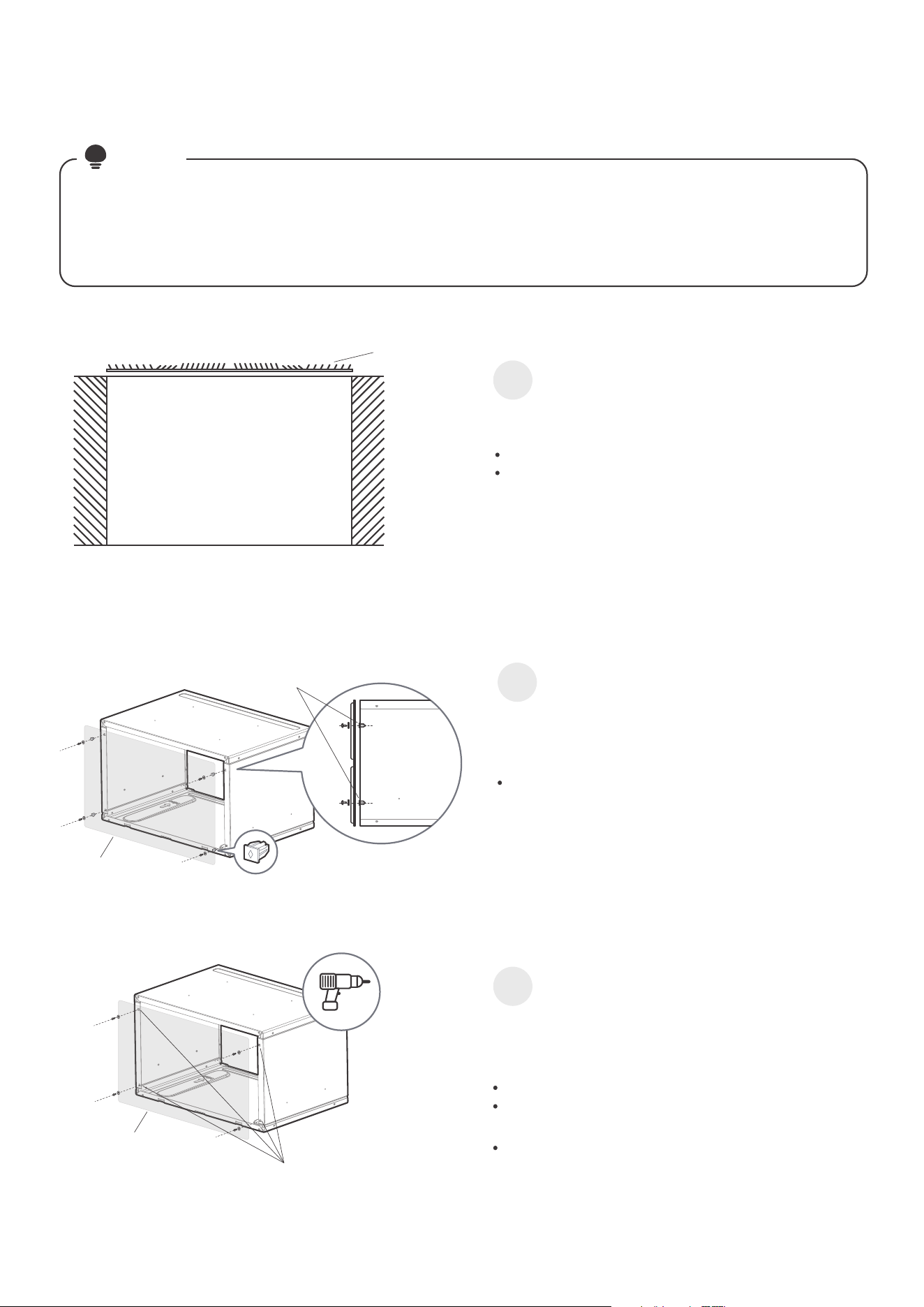

Installation of new grille provided with unit
Installation of Aluminum Grille.
We have a new design for the rear grille (two rear air intakes) to improve the performance of the
product. Please be sure to use the aluminum grille we provide for installation to achieve the best
performance of the product.
Most decorative exterior grilles may be left in place as long as the proper interior air direction
grille is installed.
NOTE
Top View
Wall Sleeve
Rear
grille
Outdoor side
Indoor side
Simple diagram
of the rear grille
With four
washers(No.17)
Rear
side
Please press the four washers into
the hole of the wall sleeve before
installing the aluminum grille and
tightening the screws.
Simple diagram
of the rear grille
Drill through the
sleeves flanges
with a 1/8"drill bit.
Remove the existing grille.
Place the grille included with the new air
conditioner towards the rear of the sleeve.
Mark through the hole positions.
Drill through the sleeves flanges with a 1/8"
drill bit.
Attached the new grille with self-threading
screws and washers.
ttached the new grille with self-threading
screws and washers.
(with Normal Wall Sleeve)
Confirmation of installation position.
1
Install Aluminum Grille.
2
(with Unconventional Wall Sleeve)
Install Aluminum Grille.
3
16
INSTALL YOUR PRODUCT.

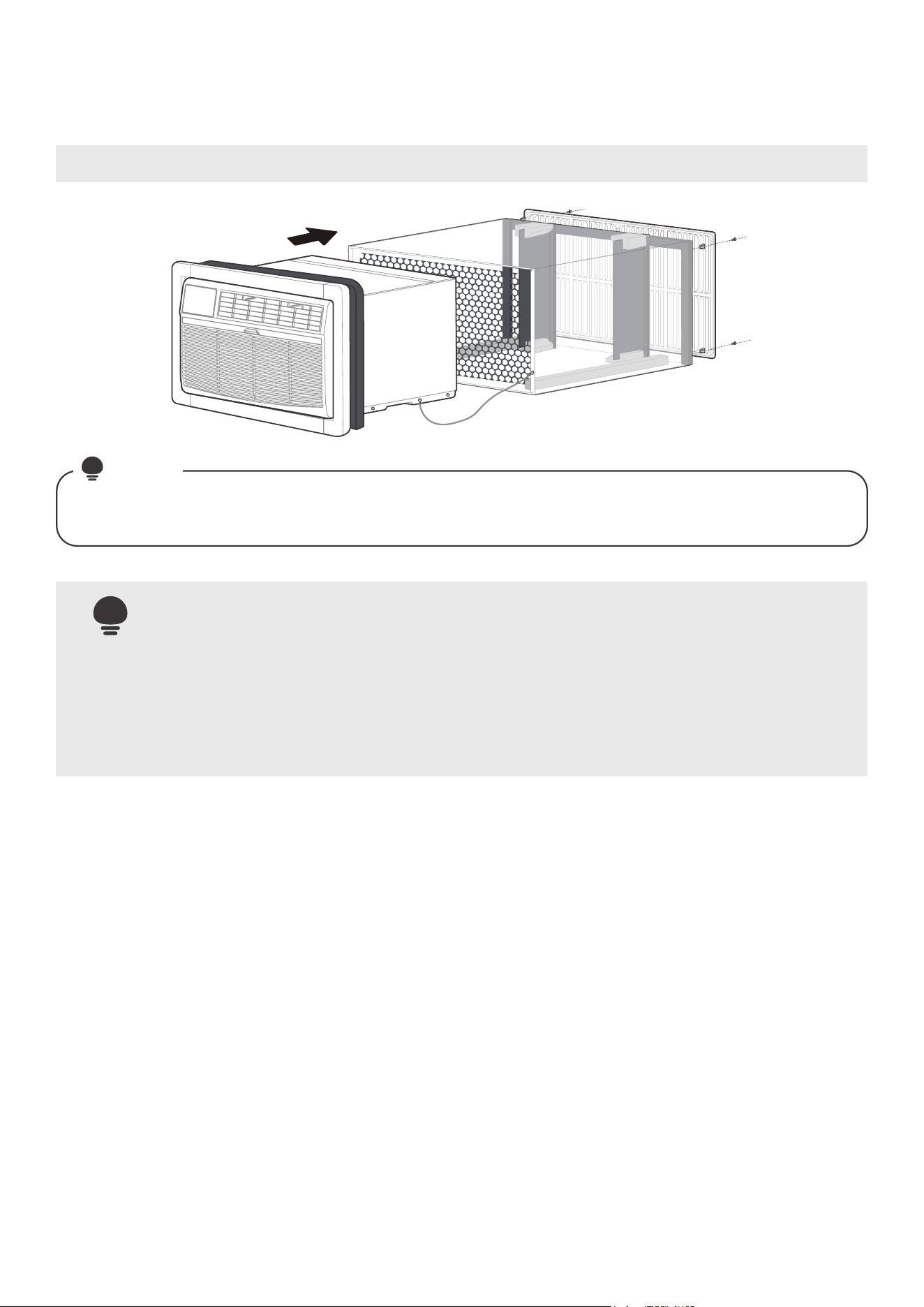

Installation overview
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit
may be slightly different. The actual shape shall prevail.
NOTE
#9 White Westinghouse or Frigidaire for example
IMPORTANT
Save these instructions for local inspectors use. Observe all governing codes and ordianaces.
Proper installation is the responsibility of the installer. Product failure due to improper
installation is not covered under the Warranty.
Nine installation methods we will provide, please choose one of the corresponding installation
method (follow the instructions on page 7 to determine the type) to finish the installation.
If you have difficulty with mounting the grill to the sleeve, follow the instructions for direct
mounting on Page 20.
17
#1 Emerson(15" Deep)
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and
aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall

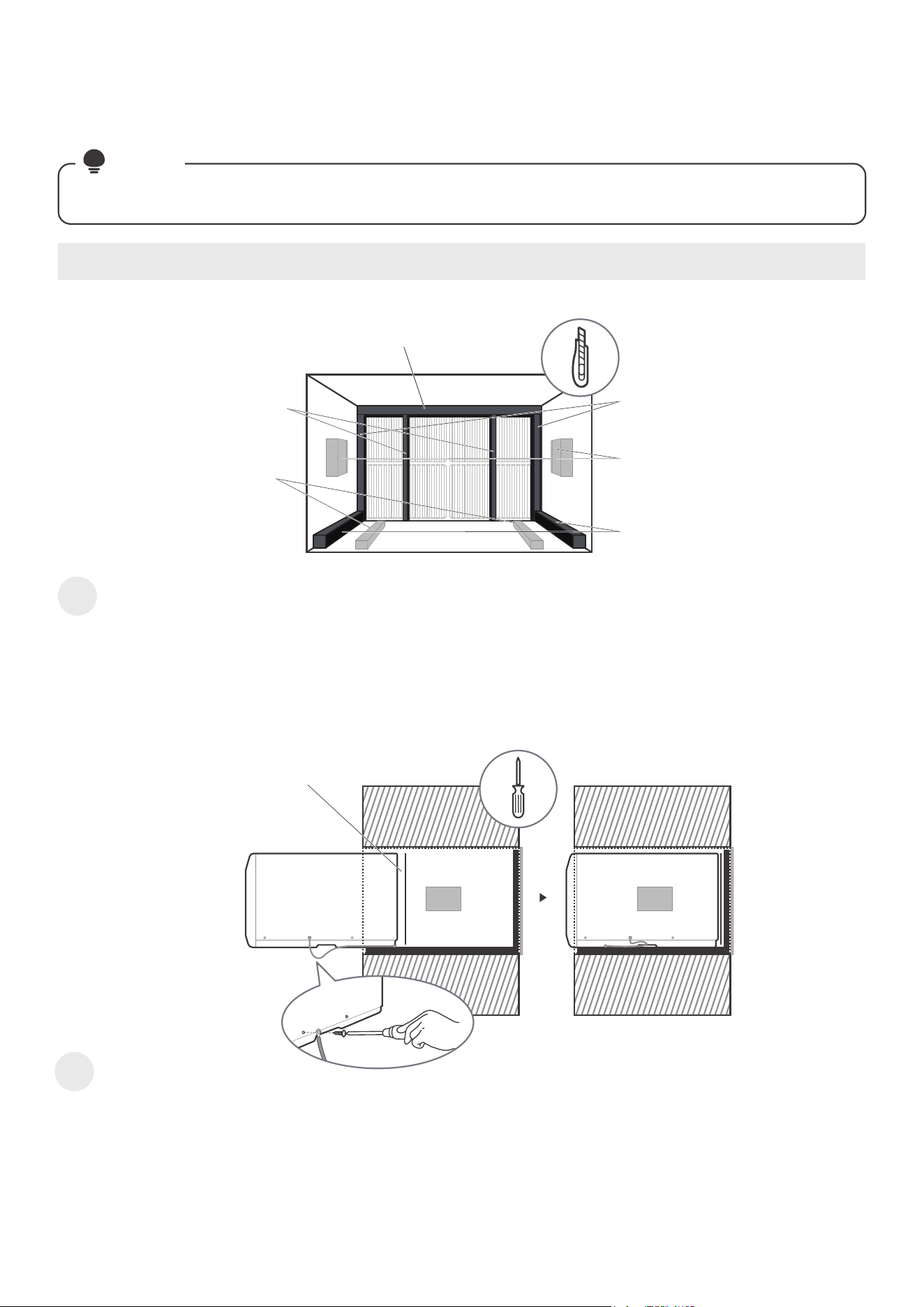

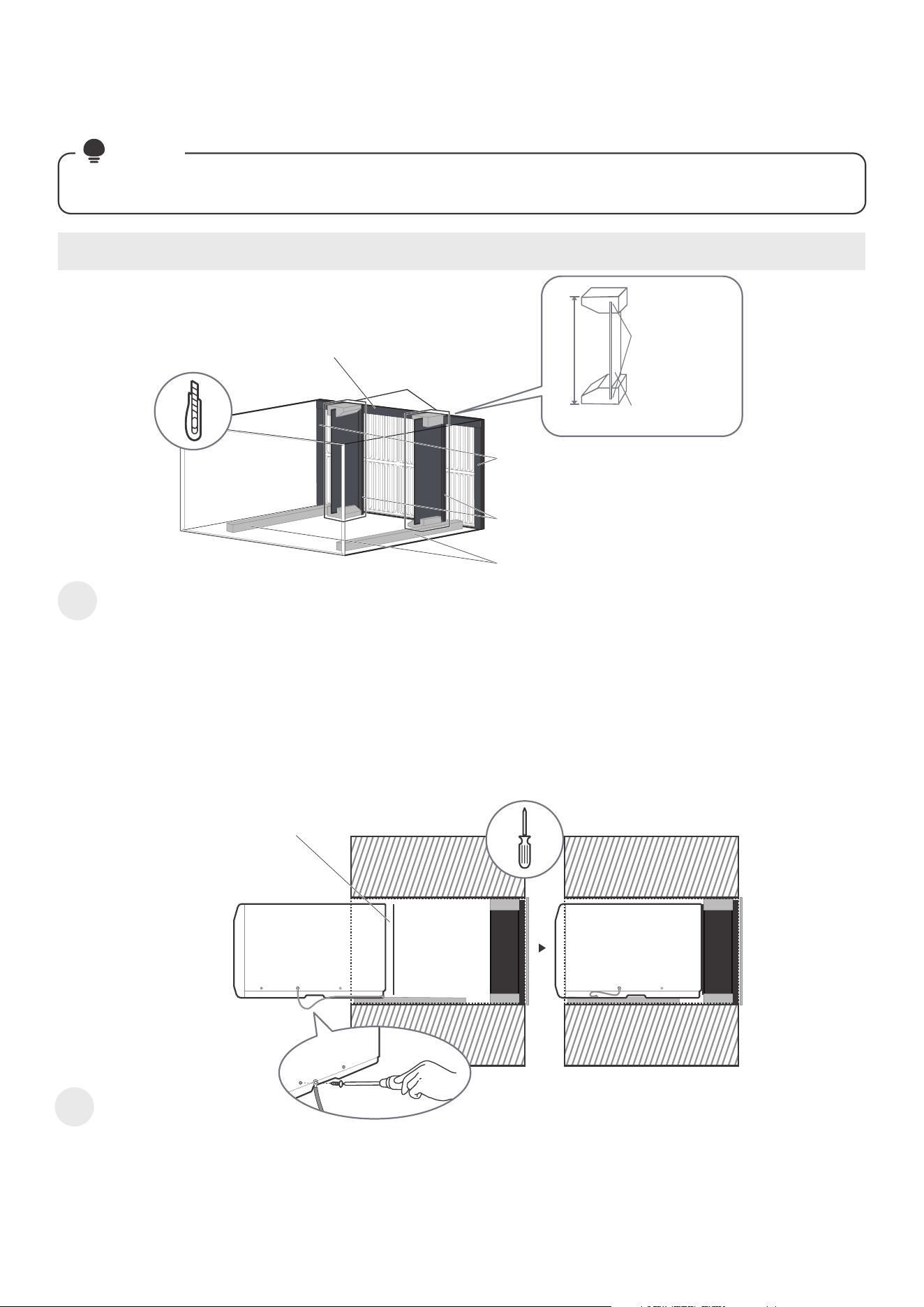

1

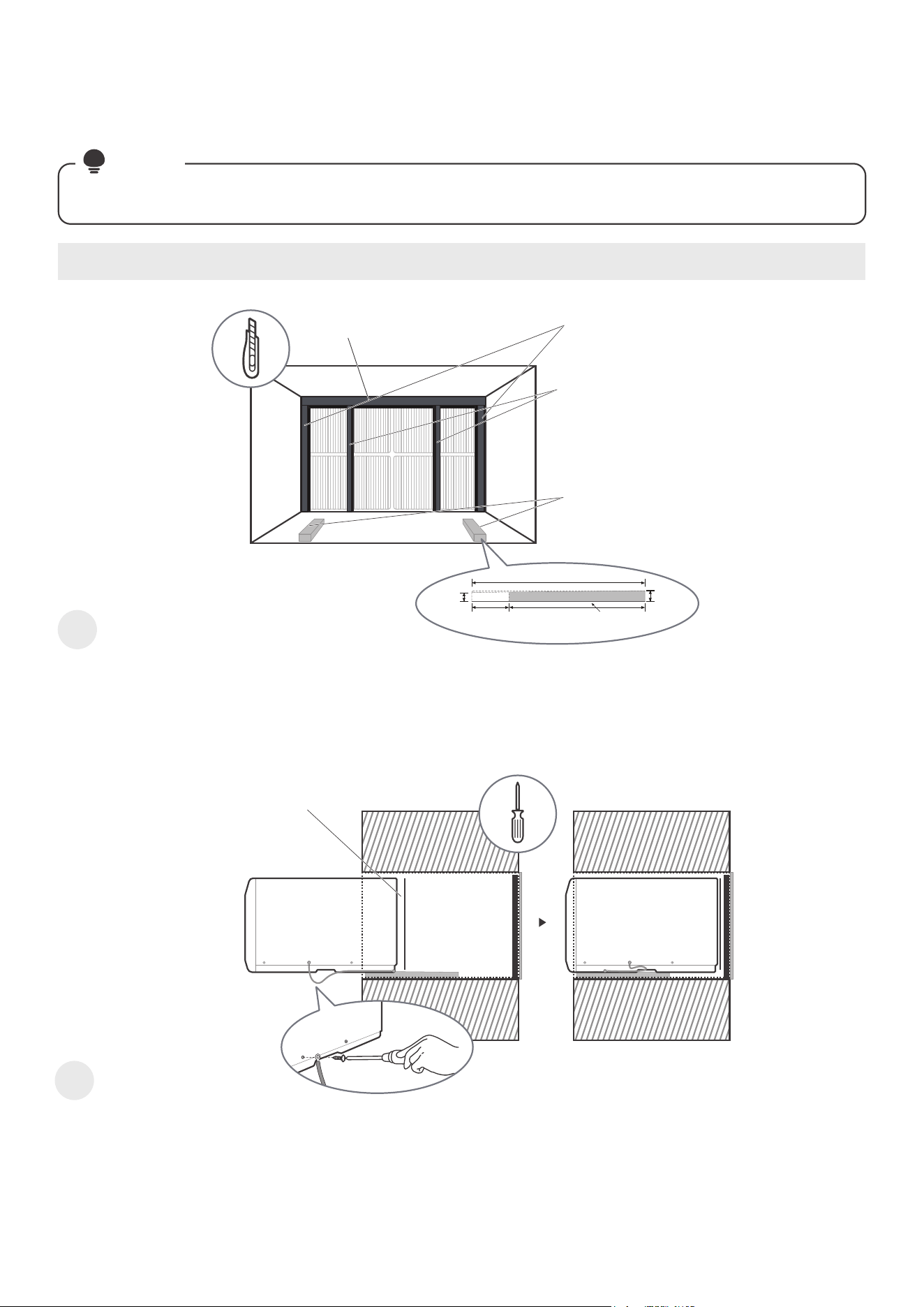

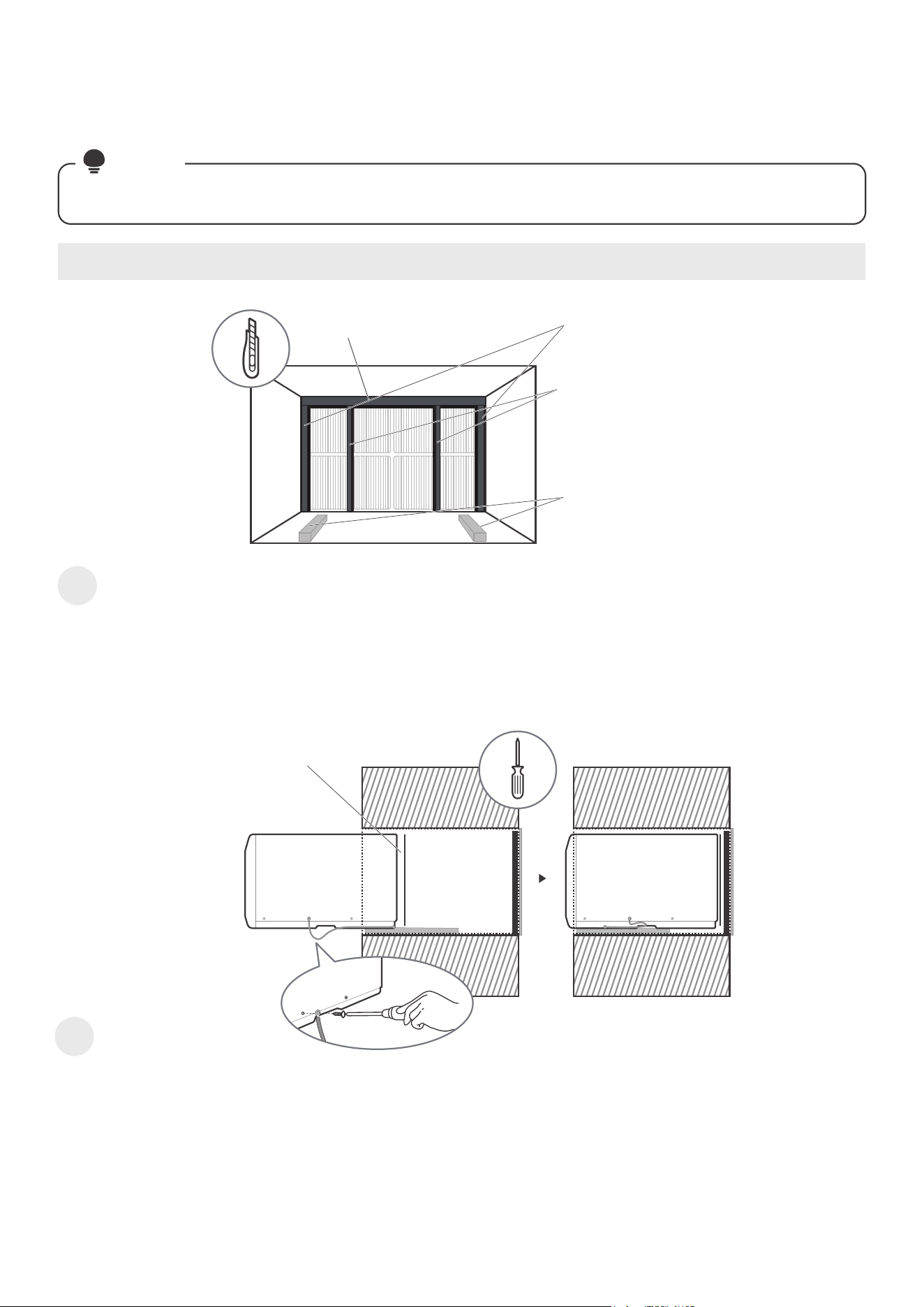

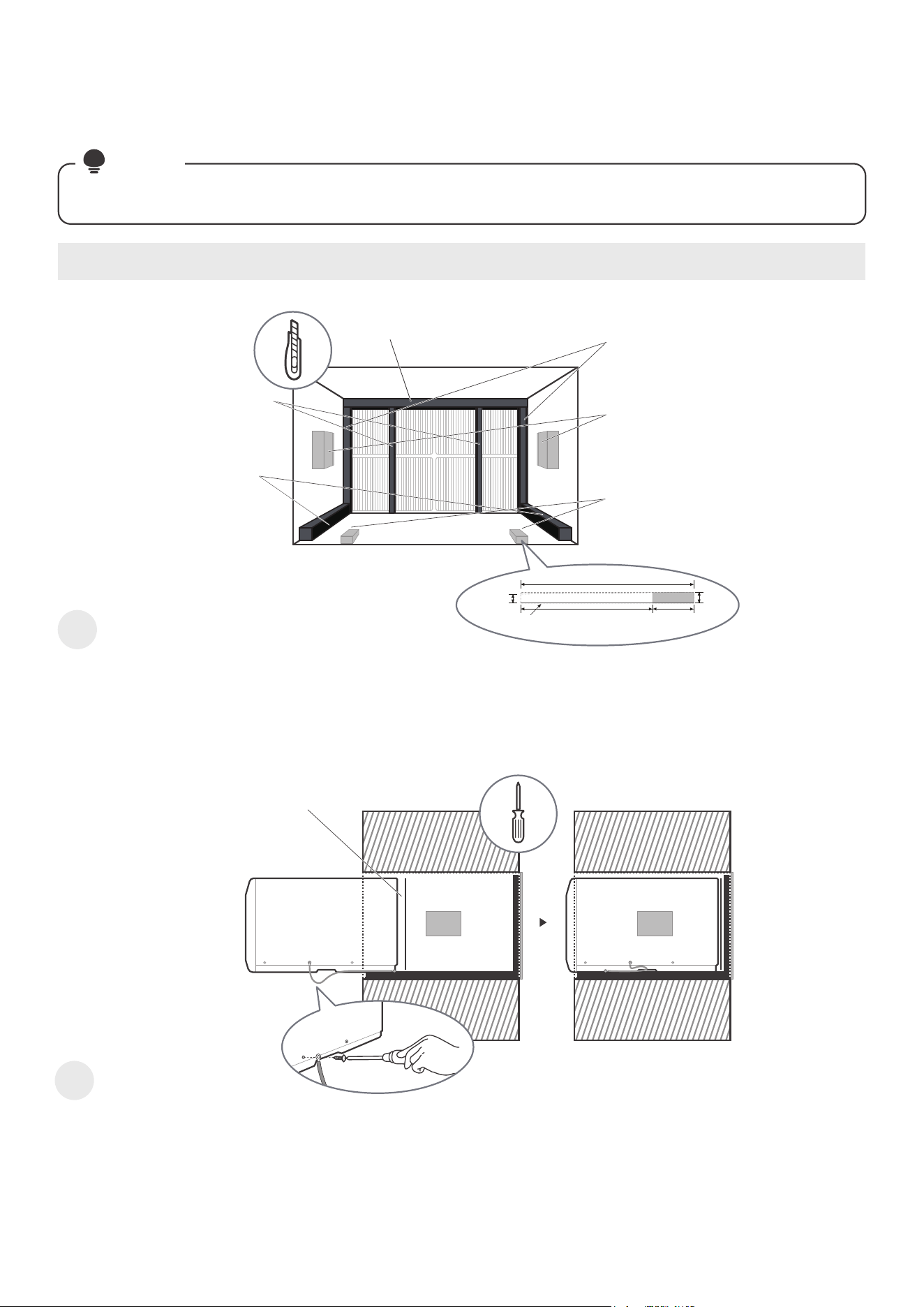

Paste the fixed Seal according to the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
Cut the Seal(NO.12)
to a 14" high, Paste
on the left and right
sides of the sleeve.
Paste the support
blocks(NO.7) in the
center on both sides
of the wall sleeve.
Cut the Seal(NO.14)
to a 14" long, Paste
it on the sleeve left
and right sides of the
bottom edge.
Cut the
Seal(NO.13)
to a 14" high,
Attach it
vertically to the
grille as shown.
Cut the Tapered
Spacer Block
(NO.8) to a 14"
long, Paste it on
the sleeve of the
bottom.
Sleeve Front View
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
2
Complete grounding connection and product embedded wall sleeve.
Take out the unconnected end of the ground wire in the wall sleeve, and then embed the unit into the wall
sleeve, as shown and then hold on. Use a screwdriver to unscrew the second screw below the unit and
tighten the ground wire connection(Make sure that the toothed washer is against the cabinet).
Slide the unit completely to the rear to ensure a good seal, making sure the ground wire does not become
tangled.
18
1
Paste the fixed Seal according to the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
2
Complete grounding connection and product embedded wall sleeve.
Take out the unconnected end of the ground wire in the wall sleeve, and then embed the unit into the wall
sleeve, as shown and then hold on. Use a screwdriver to unscrew the second screw below the unit and
tighten the ground wire connection(Make sure that the toothed washer is against the cabinet).
Slide the unit completely to the rear to ensure a good seal, making sure the ground wire does not become
tangled.
#2 Fedders(19-3/4" Deep)
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and
aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Cut the Seal(NO.12)
to a 14" high, Paste
on the left and right
sides of the sleeve.
Paste the support
blocks(NO.7) in the
center on both sides
of the wall sleeve.
Cut the
Seal(NO.14)
to a 18" long,
Paste it on the
sleeve left and
right sides of
the bottom edge.
Cut the
Seal(NO.13)
to a 14" high,
Attach it
vertically to the
grille as shown.
Cut the Tapered Spacer
Block(NO.8), and Paste
it on the sleeve of the
bottom as shown
(This operation is to
allow the product to
drain properly).
Sleeve Front View
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
17"
4"Cut it
Protection
paper backing
Tapered Spacer Block 1"
3/4"
19
1
Paste the fixed Seal according to the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
2
Complete grounding connection and product embedded wall sleeve.
Take out the unconnected end of the ground wire in the wall sleeve, and then embed the unit into the wall
sleeve, as shown and then hold on. Use a screwdriver to unscrew the second screw below the unit and
tighten the ground wire connection(Make sure that the toothed washer is against the cabinet).
Slide the unit completely to the rear to ensure a good seal, making sure the ground wire does not become
tangled.

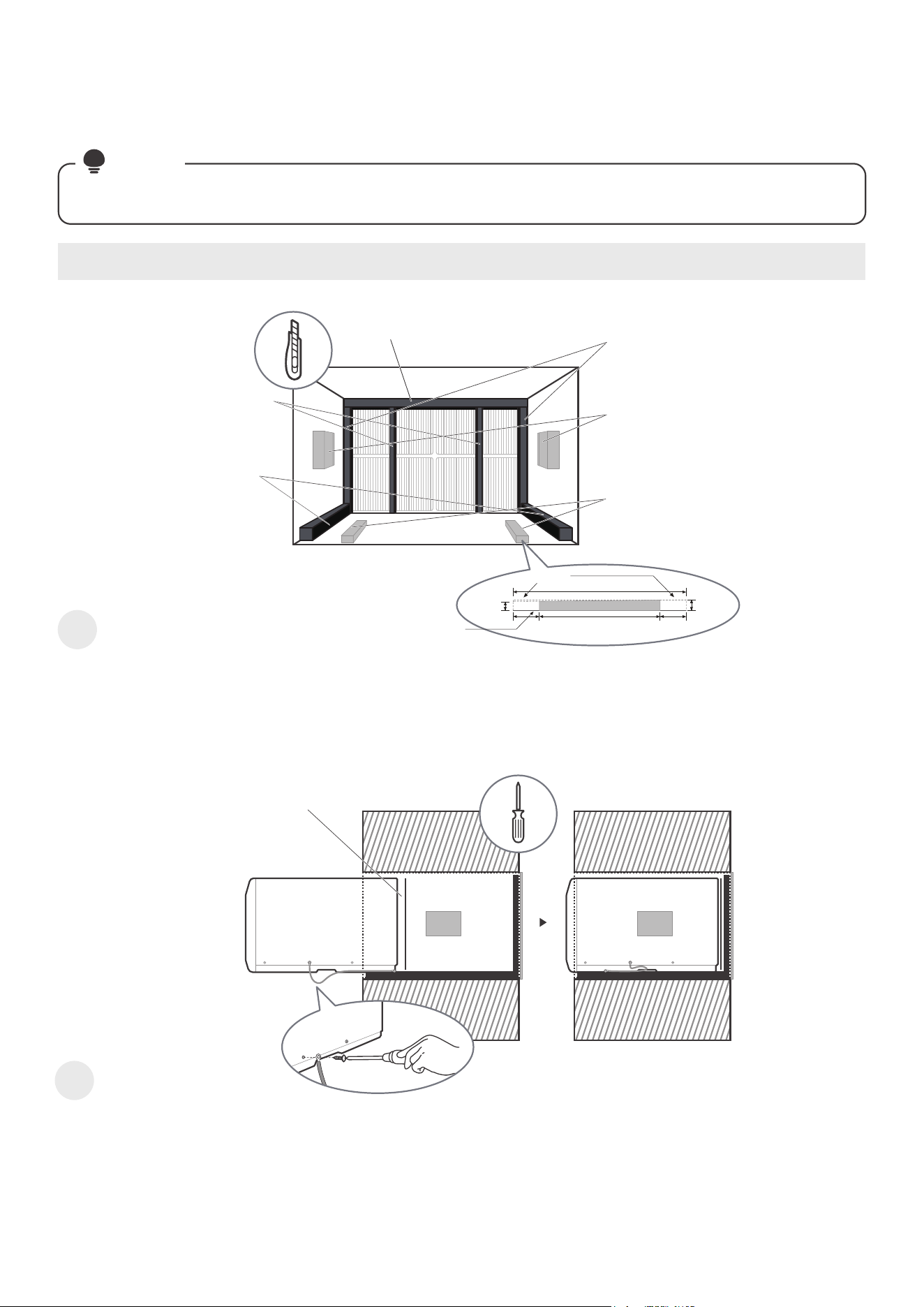

#3 Fedders or Friedrich(16-3/4" Deep)
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and
aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Cut the Seal(NO.12)
to a 14" high, Paste
on the left and right
sides of the sleeve.
Paste the support
blocks(NO.7) in the
center on both sides
of the wall sleeve.
Cut the
Seal(NO.14)
to a 15" long,
Paste it on the
sleeve left and
right sides of
the bottom edge.
Cut the
Seal(NO.13)
to a 14" high,
Attach it
vertically to the
grille as shown.
Cut the Tapered Spacer
Block(NO.8), and Paste
it on the sleeve of the
bottom as shown
(This operation is to allow
the product to drain
properly).
Sleeve Front View
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
17"
2-1/2"2" 12-1/2"
Cut it
Protection
paper backing
1"
3/4"
Tapered Spacer Block
20
1
Paste the fixed Seal according to the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
2
Complete grounding connection and product embedded wall sleeve.
Take out the unconnected end of the ground wire in the wall sleeve, and then embed the unit into the wall
sleeve, as shown and then hold on. Use a screwdriver to unscrew the second screw below the unit and
tighten the ground wire connection(Make sure that the toothed washer is against the cabinet).
Slide the unit completely to the rear to ensure a good seal, making sure the ground wire does not become
tangled.
#4 General Electra/Hotpoint(16-7/8" Deep)
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and
aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Cut the Seal(NO.12)
to a 14" high, Paste
on the left and right
sides of the sleeve.
Cut the Seal(NO.13)
to a 14" high,
Attach it vertically
to the grille as shown.
Cut the Tapered Spacer
Block(NO.8), and Paste
it on the sleeve of the
bottom as shown
(This operation is to allow
the product to drain
properly).
Sleeve Front View
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
17"
4"13"
Cut it
Protection
paper backing
Tapered Spacer Block 1"
3/4"
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
21
1
Paste the fixed Seal according to the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
2
Complete grounding connection and product embedded wall sleeve.
Take out the unconnected end of the ground wire in the wall sleeve, and then embed the unit into the wall
sleeve, as shown and then hold on. Use a screwdriver to unscrew the second screw below the unit and
tighten the ground wire connection(Make sure that the toothed washer is against the cabinet).
Slide the unit completely to the rear to ensure a good seal, making sure the ground wire does not become
tangled.
#5 Sears or Carrier 51S Series(18-5/8" Deep)
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and
aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
Cut the Seal(NO.12)
to a 15" high, Paste
on the left and right
sides of the sleeve.
Cut the Seal(NO.13)
to a 15" high,
Attach it vertically
to the grille as shown.
Paste the Tapered Spacer
Block(NO.8) on the sleeve
of the bottom as shown
(This operation is to allow
the product to drain
properly).
Sleeve Front View
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
22
1
Paste the fixed Seal according to the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
2
Complete grounding connection and product embedded wall sleeve.
Take out the unconnected end of the ground wire in the wall sleeve, and then embed the unit into the wall
sleeve, as shown and then hold on. Use a screwdriver to unscrew the second screw below the unit and
tighten the ground wire connection(Make sure that the toothed washer is against the cabinet).
Slide the unit completely to the rear to ensure a good seal, making sure the ground wire does not become
tangled.
#6 Whirlpool(17-1/8" Deep)
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and
aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
Cut the Seal(NO.12)
to a 15" high, Paste
on the left and right
sides of the sleeve.
Cut the Seal(NO.13)
to a 15" high,
Attach it vertically
to the grille as shown.
Cut the Tapered Spacer
Block(NO.8), and Paste
it on the sleeve of the
bottom as shown
(This operation is to allow
the product to drain
properly).
Sleeve Front View
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
17"
4"
13"
Cut it
Protection
paper backing
Tapered Spacer Block 1"
3/4"
23
1
Paste the fixed Seal according to the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
NOTE: There are two benefits to adding the rear plastic partition:
1. Effective air inlet and outlet interval between the air inlet and outlet grilles at the rear of the unit to improve
the efficiency of air inlet and outlet
2. Play the role of stabilizing unit under product working condition.
2
Complete grounding connection and product embedded wall sleeve.
Take out the unconnected end of the ground wire in the wall sleeve, and then embed the unit into the wall
sleeve, as shown and then hold on. Use a screwdriver to unscrew the second screw below the unit and
tighten the ground wire connection(Make sure that the toothed washer is against the cabinet).
Slide the unit completely to the rear to ensure a good seal, making sure the ground wire does not become
tangled.
#7 Whirlpool(23" Deep)
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and
aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Cut the Seal(NO.12) to a 15"
high, Paste on the left and
right sides of the sleeve.
Cut the Seal(NO.13) to
a 15" high, Attach it vertically
to the grille as shown.
Paste the Tapered Spacer
Block(NO.8) on the sleeve
of the bottom as shown
(This operation is to allow
the product to drain
properly).
Tear the Seal(NO.13) paper
from the back, and attach it
to the top of the sleeve where
it meets the aluminum grille.
For the sleeve with too
much depth, we need to
add centering/support
blocks(No. 7) and Plastic
Divider(No. 15). Please
refer to the figure for
installation.
16-1/2"
You may need
to trim the
length to size.
The blocks
has card slots
into which the
plastic divider
can be inserted.
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
24
1
Paste the fixed Seal according to the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
2
Complete grounding connection and product embedded wall sleeve.
Take out the unconnected end of the ground wire in the wall sleeve, and then embed the unit into the wall
sleeve, as shown and then hold on. Use a screwdriver to unscrew the second screw below the unit and
tighten the ground wire connection(Make sure that the toothed washer is against the cabinet).
Slide the unit completely to the rear to ensure a good seal, making sure the ground wire does not become
tangled.

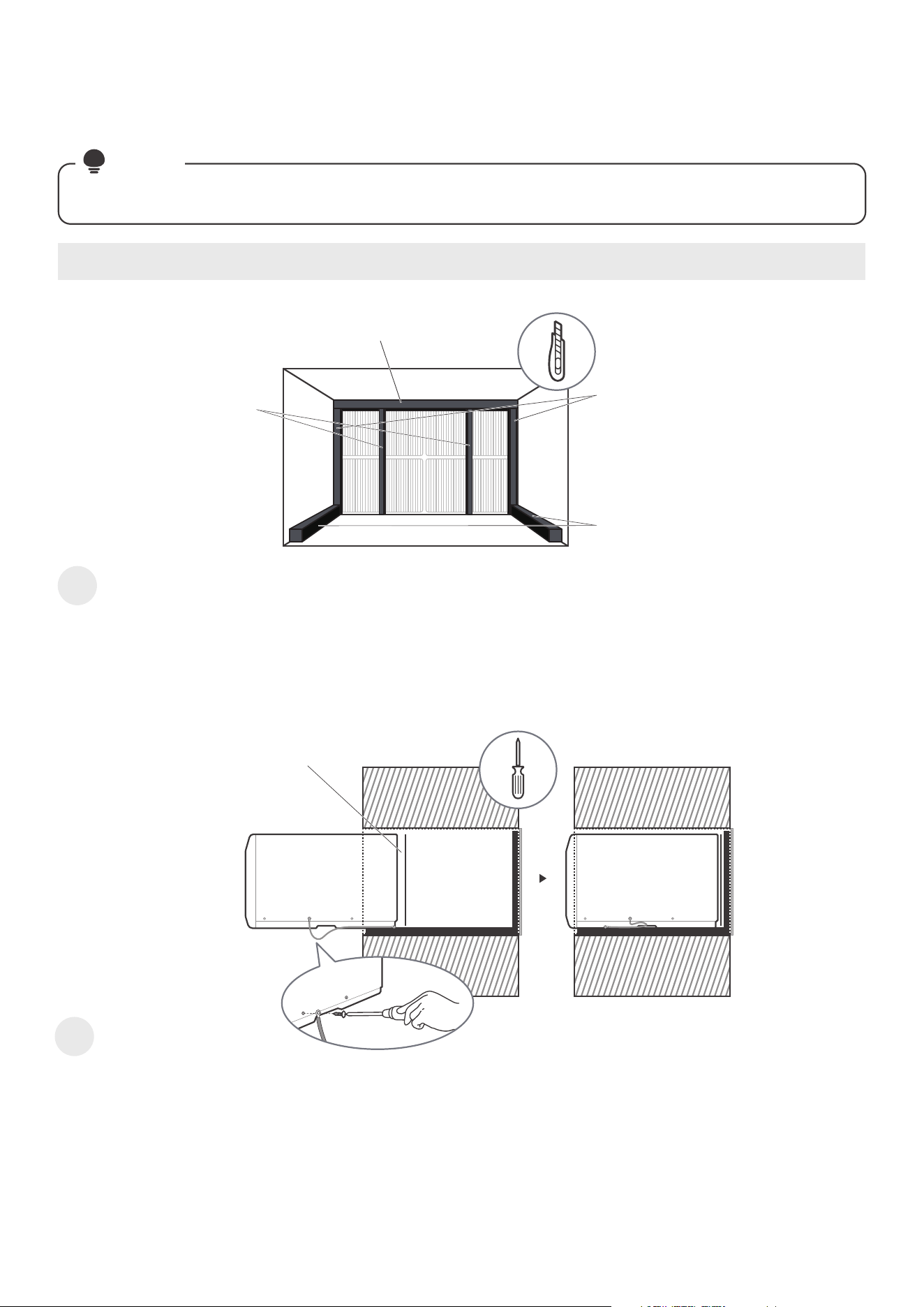

#8 White Westinghouse/Frigidaire/Carrier 52F Series(16/17-1/2" Deep)
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and
aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Tear the Seal(NO.13) paper from the
back, and attach it to the top of the
sleeve where it meets the aluminum
grille.
Cut the Seal(NO.12)
to a 14" high, Paste
on the left and right
sides of the sleeve.
Cut the Seal(NO.14)
to a 14" long, Paste
it on the sleeve left
and right sides of the
bottom edge.
Cut the
Seal(NO.13)
to a 14" high,
Attach it
vertically to the
grille as shown.
Sleeve Front View
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
25
1
Paste the fixed Seal according to the above figure and instructions.
The Seals and blocks shown above are all backed with glue.
You need to tear the paper to paste and fix it When installing.
Please be careful when you cutting.
NOTE: There are two benefits to adding the rear plastic partition:
1. Effective air inlet and outlet interval between the air inlet and outlet grilles at the rear of the unit to improve
the efficiency of air inlet and outlet
2. Play the role of stabilizing unit under product working condition.
2
Complete grounding connection and product embedded wall sleeve.
Take out the unconnected end of the ground wire in the wall sleeve, and then embed the unit into the wall
sleeve, as shown and then hold on. Use a screwdriver to unscrew the second screw below the unit and
tighten the ground wire connection(Make sure that the toothed washer is against the cabinet).
Slide the unit completely to the rear to ensure a good seal, making sure the ground wire does not become
tangled.
#9 White Westinghouse or Frigidaire(22" Deep)
installation guide
Complete the first installation step according to the wall cover installation guide (page 8) and
aluminum grid installation guide (page 9) .
NOTE
Guide to installation before embedding the product into the wall
Cut the Seal(NO.12) to a 14"
high, Paste on the left and
right sides of the sleeve.
Cut the Seal(NO.13) to
a 14" high, Attach it vertically
to the grille as shown.
Paste the Tapered Spacer
Block(NO.8) on the sleeve
of the bottom as shown
(This operation is to allow
the product to drain
properly).
Tear the Seal(NO.13) paper
from the back, and attach it
to the top of the sleeve where
it meets the aluminum grille.
For the sleeve with too
much depth, we need to
add centering/support
blocks(No. 7) and Plastic
Divider(No. 15). Please
refer to the figure for
installation.
15-1/4"
You may need
to trim the
length to size.
The blocks
has card slots
into which the
plastic divider
can be inserted.
Don't forget to place the
plastic grille(NO.6) in the
wall sleeve between the
unit and the aluminum grille.
26

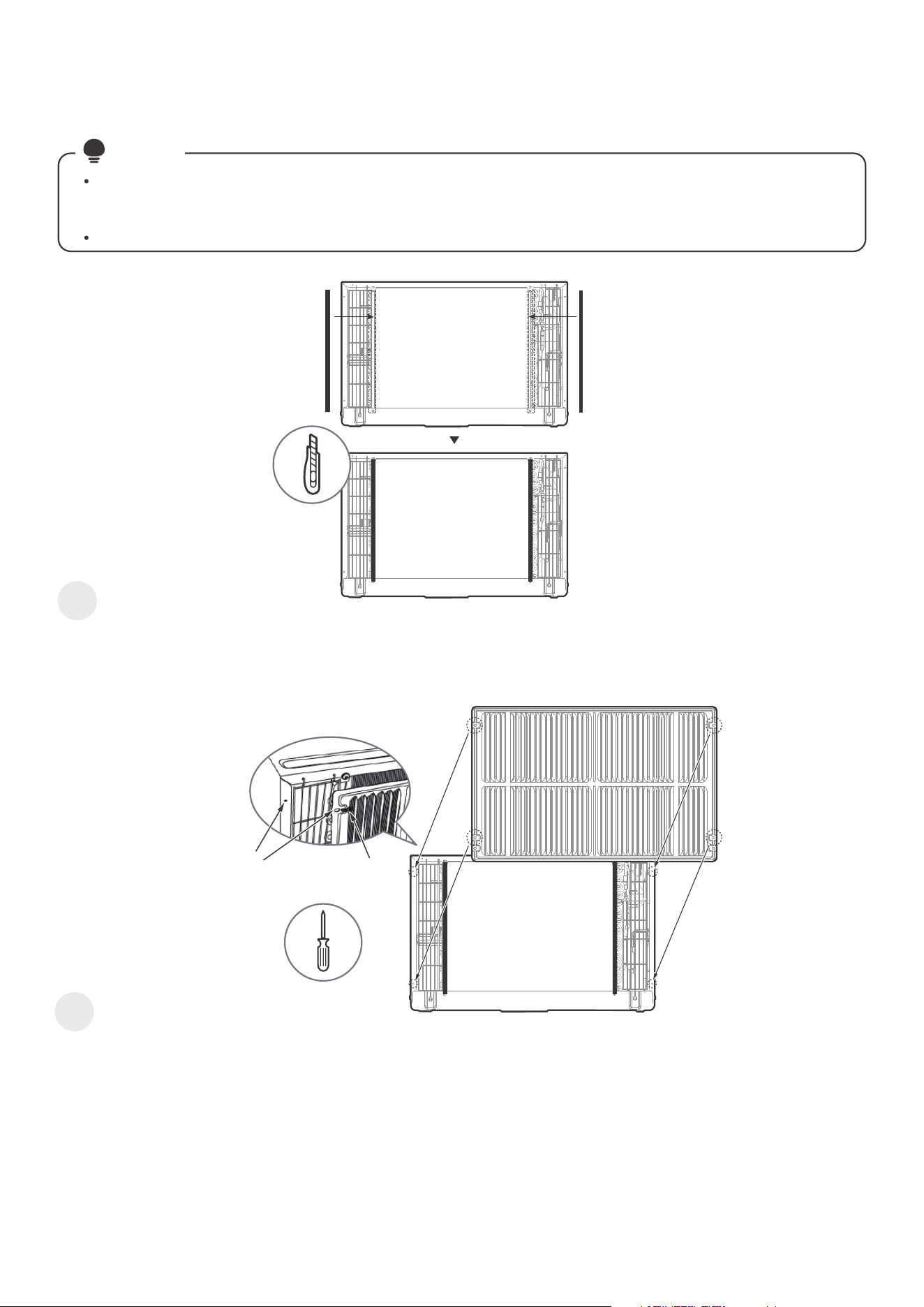

2
Install the unit with the Aluminum Grille and embed it into the Wall Sleeve.
Line up the Aluminum Grille with the rear hole of the unit as shown, then tighten and secure it using Screws
and Screw Washer(NO.16).
The protruding side of the aluminum grille fin needs to be mounted outwards.
If the unit has not been pre-drilled, carefully drill four 1/8" holes through the grille and into the side flange of
the unit, then fasten it with Screws(NO.16). Be careful not to drill into the copper heat exchanger coils.
Finally, insert the unit into the sleeve.
1
Paste the Seals(NO.12) as shown.
Paste the Seals(NO.12) as shown. It provides a safe distance between the fins and the Aluminum Grille, and
acts as a buffer to prevent them from touching.
You can installing aluminum grille at first.
installation guide
The previous directions are the preferable way to mount the new Aluminum Grill. The units performance
is slightly better and the possibility of draughts is reduced. As a last resort, direct mounting of the grille
to the unit can be considered (the installation tutorial follows).
The Aluminum Grille must be installed prior to inserting the unit into the sleeve.
NOTE
Screw(NO.16)
1/8 Hole
Grille &
Flange
Paste the
Seals(NO.12)
27

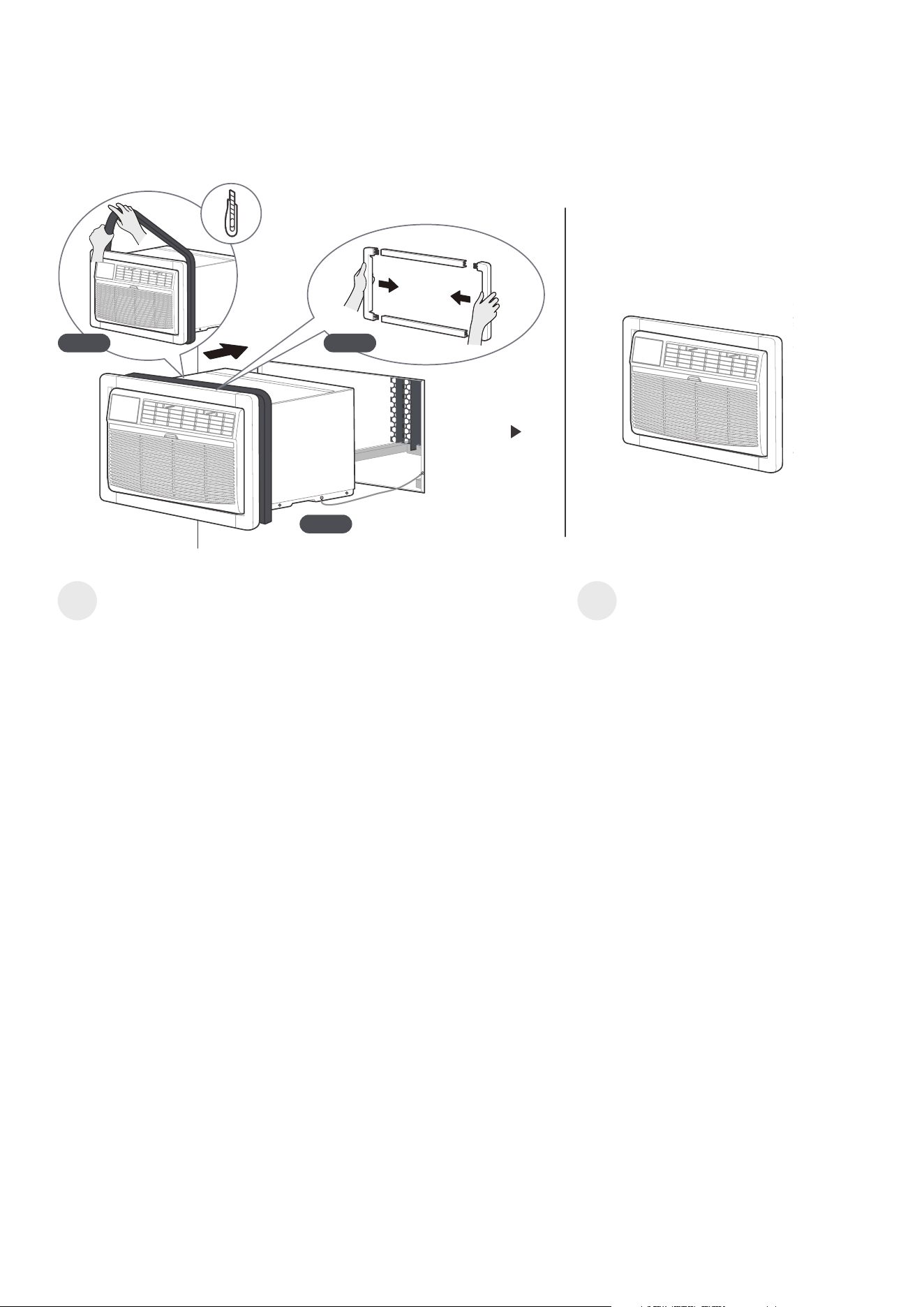

1
Do some cosmetic work.
2
The installation is complete.
Step 1: Assemble the Trim Frame(NO.2) by inserting
top and bottom pieces into side pieces(NO.3), and
embed it into the unit flush with the front panel.
Step 2: Install the Long Stuffer-seal(NO.9) between
the wall-sleeve and the unit.
Wrap the foam tightly around the fuselage and carefully
cut off any excess using a knife.
Step 3: Slide the frame, seal and unit carefully into the Wall
Sleeve for internal fixation, taking care that the grounding
wire is also properly placed and not damaged.
Congratulations on the installation, but
you're not done yet. Take a break! And
then, get to know your product better.
Finally, do some cosmetic work on your product.
installation guide
Step 2
Step 3
Step 1
28
Air directional louvers control air flow direction. Your air conditioner has the 4-way directional system
described below.The louvers will allow you to direct the air flow Up or Horizontal, and Left or Right
throughout the room as needed.Use the center handles to adjust the air directional louvers side-to-side
until the desired Left or Right direction is obtained.Pivot horizontal louvers with your fingertips until the
desired Up or Horizontal direction is obtained.There are a total of 4 possible air directional orientations
available with this system.

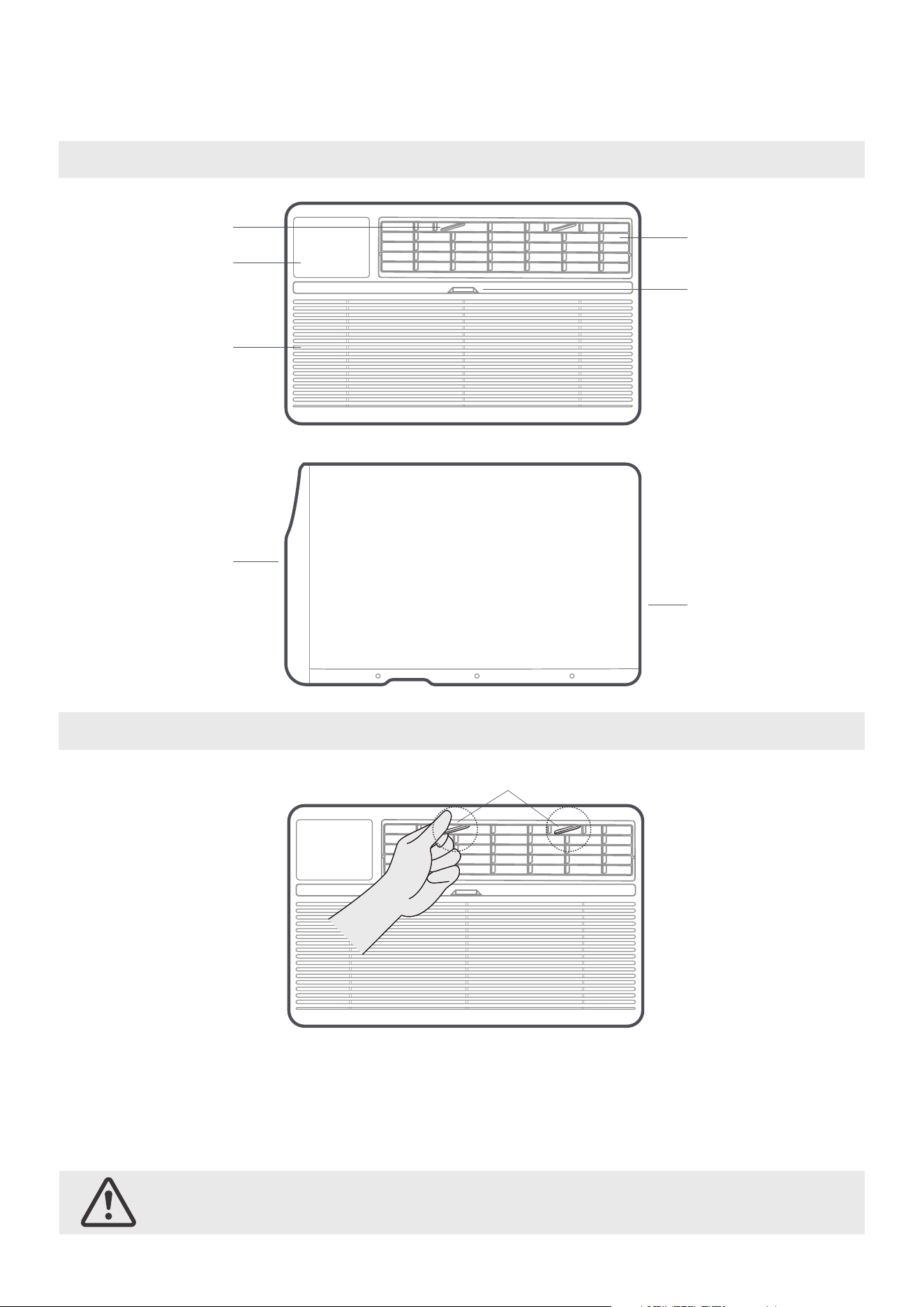

GET TO KNOW YOUR AC.
AC unit overview
Air Direction
Status display
and Display
front
panel
Front Intake
Grille
Rear
Condenser
Vents
Levers
Filter
handshandle
Components of the product
Adjust the Air Direction
Center handles
CAUTION:
Do not stick your fingers in the air outlet, it may cause an injury.
29

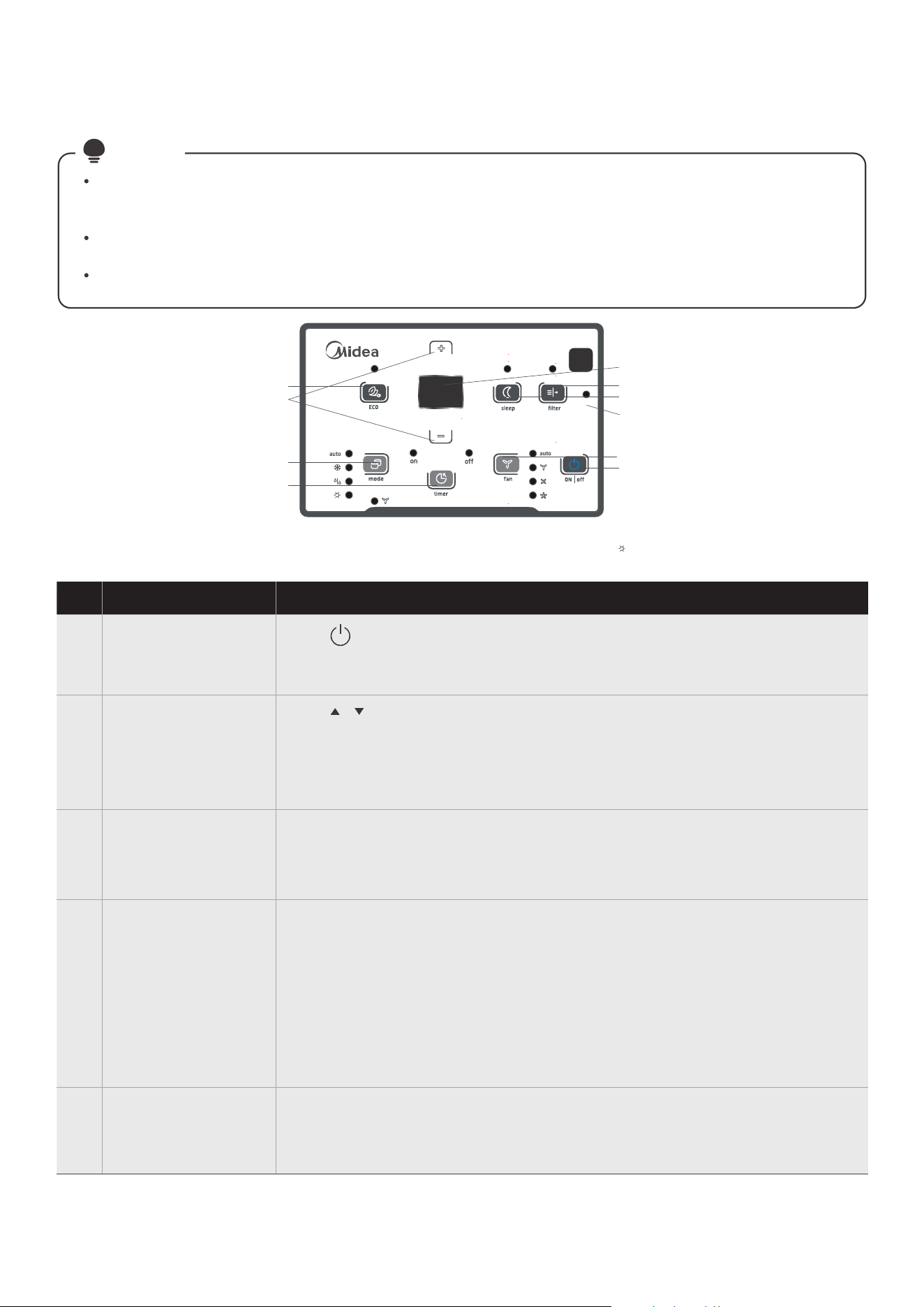

Description
TO ADJUST
FAN SPEEDS:
1
3
2
TO TURN UNIT ON
OR OFF:
TO CHANGE
TEMPERATURE
SETTING:
Press POWER button to turn unit on or off.
Press / UP/DOWN buttonto change temperature setting.
Press to select the Fan Speed in four steps-Auto, Low, Med or High. Each time
the button is pressed, the fan speed mode is shifted. For some models, the fan
speed can not be adjusted under HEAT mode. On Dry mode, the fan speed is
controlled at Low automatically.
SLEEP FEATURE:4
CHECK FILTER
FEATURE:
5
Press Sleep button to initiate the sleep mode. In this mode the selected
temperature will increase (cooling) or decrease (heating) by 2°F/1°C 30
minutes after the mode is selected. The temperature will then increase
(cooling) or decrease(heating) by an other 2°F/1°C after an additional
30 minutes.
This new temperature will be maintained for 7 hours before it returns to the
originally selected temperature. This ends the Sleep mode and the unit will
continue to operate as originally programmed. The Sleep mode program can
be cancelled at any time during operation by pressing the Sleep button again.
Press Check filter button to initiate the feature. This feature is a reminder to
clean the Air Filter for more efficient operation.
The LED(light) will illuminate after 250 hours of operation. To reset after
cleaning the filter, press the Check Filter button and the light will go off.
NOTE: Press or hold either UP or DOWN button until the desired temperature
is seen on the display. This temperature will be automatically maintained
anywhere between 62°F(17°C) and 86°F(30°C). If you want the display to
read the actual room temperature, see To Operate on Fan Only section.
NOTE: The unit will initiate automatically the Energy Saver function under
Cool, Dry, Auto(only Auto-Cooling and Auto-Fan) modes.
Before you begin, thoroughly familiarize yourself with the control panel as shown below and all its
functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit
control alone or with the remote.
This control panel is based on the typical model. Not all the functions describing in this manual are
available for all the models.The machine you purchased may be slightly different.
If the unit breaks off unexpectedly due to the power cut, it will restart with the previous function setting
automatically when the power resumes.
NOTE
GET TO KNOW THE FEATURES.
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
(Cooling Only Model does not have HEAT Mode )
C-sense
6
8
9
2
1
3
4
5
10
7
30
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
Description
TO SELECT THE
OPERATING
MODE:
6
8
7
ENERGY SAVER
FEATURE:
C-SENSE
FEATURE:
Press Energy saver button to initiate this function. This function is available on
COOL, DRY, AUTO (only AUTO-COOLING and AUTO-FAN) modes.The fan will
continue to run for 3 minutes after the compressor shuts off. The fan then
cycles on for 2 minutes at 10 minutes intervals until the room temperature is
above the set temperature, at which time the compressor turns back on and
Cooling Starts.
This feature can be activated from the remote control ONLY. The remote
control serves as a remote thermostat allowing for the precise temperature
control at its location.
To activate the C-SENSE feature, point the remote control towards the unit
and press the C-SENSE button. The remote display is actual temperature at
its location. The remote control will send this signal to the air conditioner every
3 minutes interval until press the C-SENSE button again. If the unit does not
receive the C-SENSE signal during any 7 minutes interval, the unit will beep to
indicate the C-SENSE mode has ended.
To choose operating mode, press Mode button. Each time you press the
button, a mode is selected in a sequence that goes from Auto, Cool, Dry,
heat(cooling only models without) and Fan. The indicator light beside will be
illuminated and remained on once the mode is selected. The unit will initiate
automatically the Energy Saver function under Cool, Dry, Auto(only
Auto-Cooling and Auto-Fan) modes.
When you set the air conditioner in AUTO mode, itwill automatically select
cooling, heating (cooling only models without), or fan only operation
depending on what temperature you have selected and the room
temperature.
The air conditioner will control room temperature automatically round the
temperature point set by you.
The air conditioner will control room temperature automatically round the
temperature point set by you.
In this mode, the fan speed cannot be adjusted, it starts automatically at a
speed according to the room temperature.
To operate on Auto feature:
Choose Cool Mode to set the cooling function. Use the Up and Down
buttons to choose the desired temperature.
When Cool Mode is selected, the fan speed can be adjusted by pressing the
fan button.
To operate on COOL mode:
Choose Heat mode to start heating operation. Use Up and Down buttons to
set the desired temperature.
Press the fan button to select the fan speed. For some models, the fan
speed can't be adjusted.
To operate on HEAT mode (cooling only models are excluded):
Use this function only when cooling is not desired, such as for room air
circulation or to exhaust stale air(optional)-Remember to open the vent
during this function, but keep it closed during cooling for maximum cooling
efficiency. You can choose any fan speed you prefer.
During this function, the display will show the actual room temperature, not
the set temperature as in the cooling mode.
In Fan only mode, the temperature is not adjusted.
To operate on Fan Only:
In this mode, the air conditioner will generally operate in the form of a
dehumidifier. Since the conditioned space is a closed or sealed area, some
degree of cooling will continue.
To operate on Dry mode:
31
Description
DISPLAY:
9
10
TIMER: AUTO
START/STOP
FEATURE:
When the unit is on or off, first press Timer button, the TIMER ON indicator
light illuminates. It indicates the Auto Start program is initiated.
When the time of TIMER ON is displayed, press the Timer button again, the
TIMER OFF indicator light illuminates. It indicates the Auto Stop program is
initiated.
Press or hold the UP or DOWN button to change the Auto time by 0.5 hour
increments, up to 10 hours, then at 1 hour increments up to 24 hours.The
control will count down the time remaining until start.
The selected time will register in 5 seconds, and the system will automatically
revert back to display the previous temperature setting or room temperature
when the unit is on (when the unit is off,there is no display).
Turning the unit ON or OFF at any time or adjusting Turning the unit ON or
OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto
Start/Stop timed program.
Shows the set temperature in "°C" or "°F " and the Auto-timer settings.
While on Fan only mode, it shows the room temperature. If the room
temperature is too high or low, it will display “HI” or “LO”.
Error codes:
AS-Room temperature sensor error-Unplug the unit and plug it back in. If error
repeats, call for service.
ES-Evaporator temperature sensor error-Unplug the unit and plug it back in. If
error repeats, call for service.
HS-Electric heating sensor error-Unplug the unit and plug it back in. If error
repeats, call for service.
CS-The sensor of the outdoor unit condenser is faulty-Unplug the unit and
plug it back in. If error repeats, call for service.
oS-Room temperature sensor error-Unplug the unit and plug it back in. If error
repeats, call for service.
E3-The fan stall error-Unplug the unit and plug it back in. If error repeats, call
for service.
E0-Failure of EEPROM parameter-Unplug the unit and plug it back in. If error
repeats, call for service.
Displays
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
32
One more thing
Additional Notes
1
3
Your AC may look a little different.
Additional things you should know.
All the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different.
The actual shape shall prevail.
Now that you have mastered the operating procedure, here are more features in your control that you should
become familiar with.
Normal Sounds / Sound Performance
High Pitched Chatter
High efficiency compressors may have a high pitched chatter during the cooling cycle.
Sound of Rushing Air
At the front of the unit, you may hear the sound of rushing air being moved by the fan.
Gurgle/Hiss
“Gurgling or hissing” noise may be heard due to refrigerant passing through evaporator during normal
operation.
Vibration
Unit may vibrate and make noise because of poor wall or window construction or incorrect installation.
Pinging or Switching
Droplets of water hitting condenser during normal operation may cause “pinging or switching” sounds.
The Cool circuit has an automatic 3 minutes time delayed start if the unit is turned off and on quickly. This
prevents overheating of the compressor and possible circuit breaker tripping.The fan will continue to run
during this time.
The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from
one to the other, press and hold the Left and Right Temp/Timer buttons at the same time, for 3 seconds.
2
33

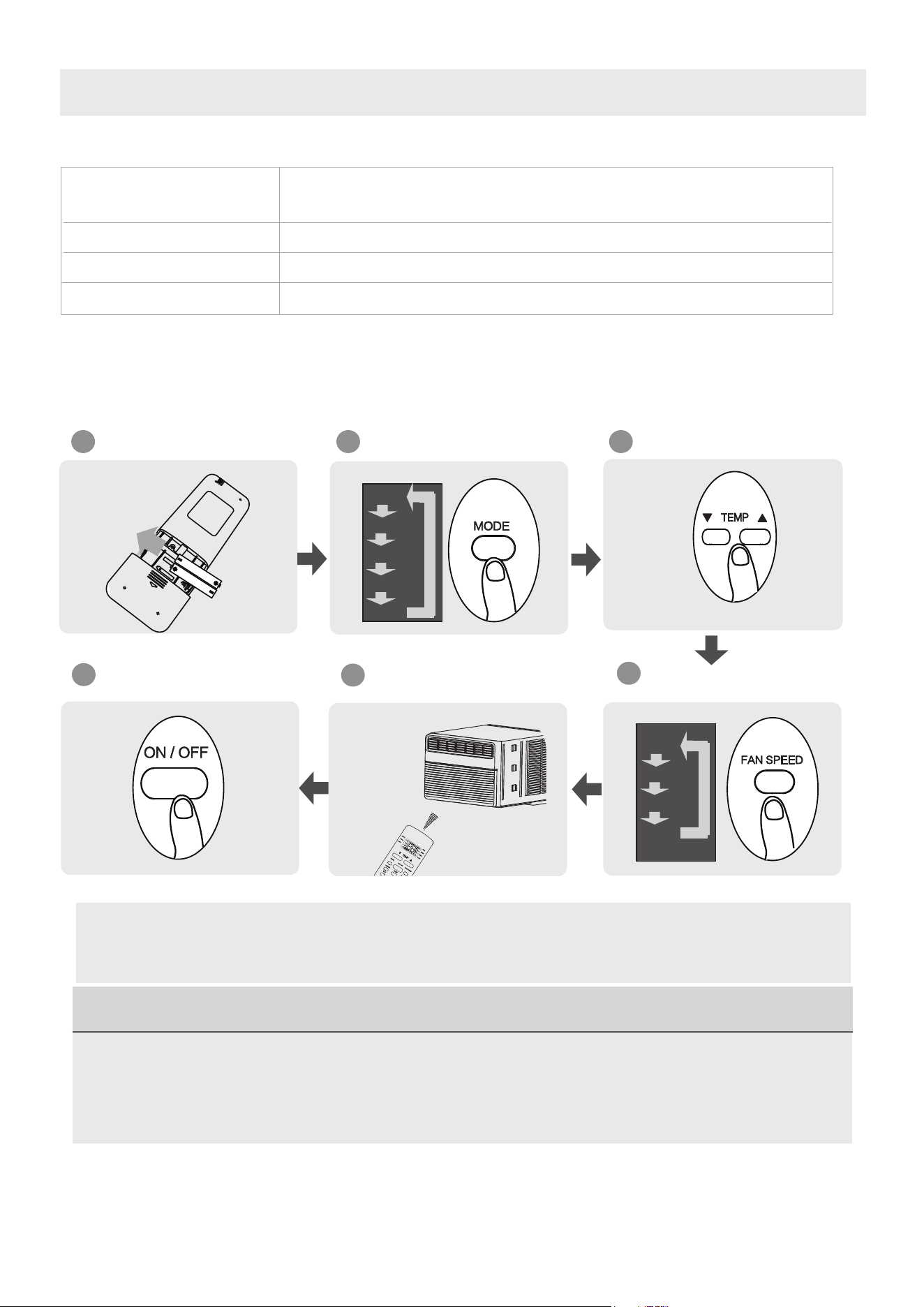

Remote Controller Specifications
RG51G(1)/CEFU1,RG51G(1)/EFU1
Model
Rated Voltage
8m
3.0V( Dry batteries R03/LR03×2)
Environment
Signal Receiving Range
23°F~140°F (-5°C~60°C)
NOT SURE WHAT A FUNCTION DOES?
Refer to the How to Use Basic Functions and How to Use Advanced Functions sections
of this manual for a detailed description of how to use your air conditioner.
SPECIAL NOTE
•
Button designs on your unit may differ slightly from the example shown.
If the indoor unit does not have a particular function, pressing that function’s button on
the remote control will have no effect.
•
When there are wide differentces between “Remote controller Manual” and “USER’S
MANUAL” on function description, the description of “USER’S MANUAL” shall prevail.
•
Quick Start Guide
FIT BATTERIES
POINT REMOTE TOWARD UNITPRESS POWER BUTTON
SELECT MODE
SELECT TEMPERATURE
SELECT FAN SPEED
6
21
3
4
5
AUTO
LOW
MED
HIGH
AUTO
COOL
DRY
HEAT
FAN
34

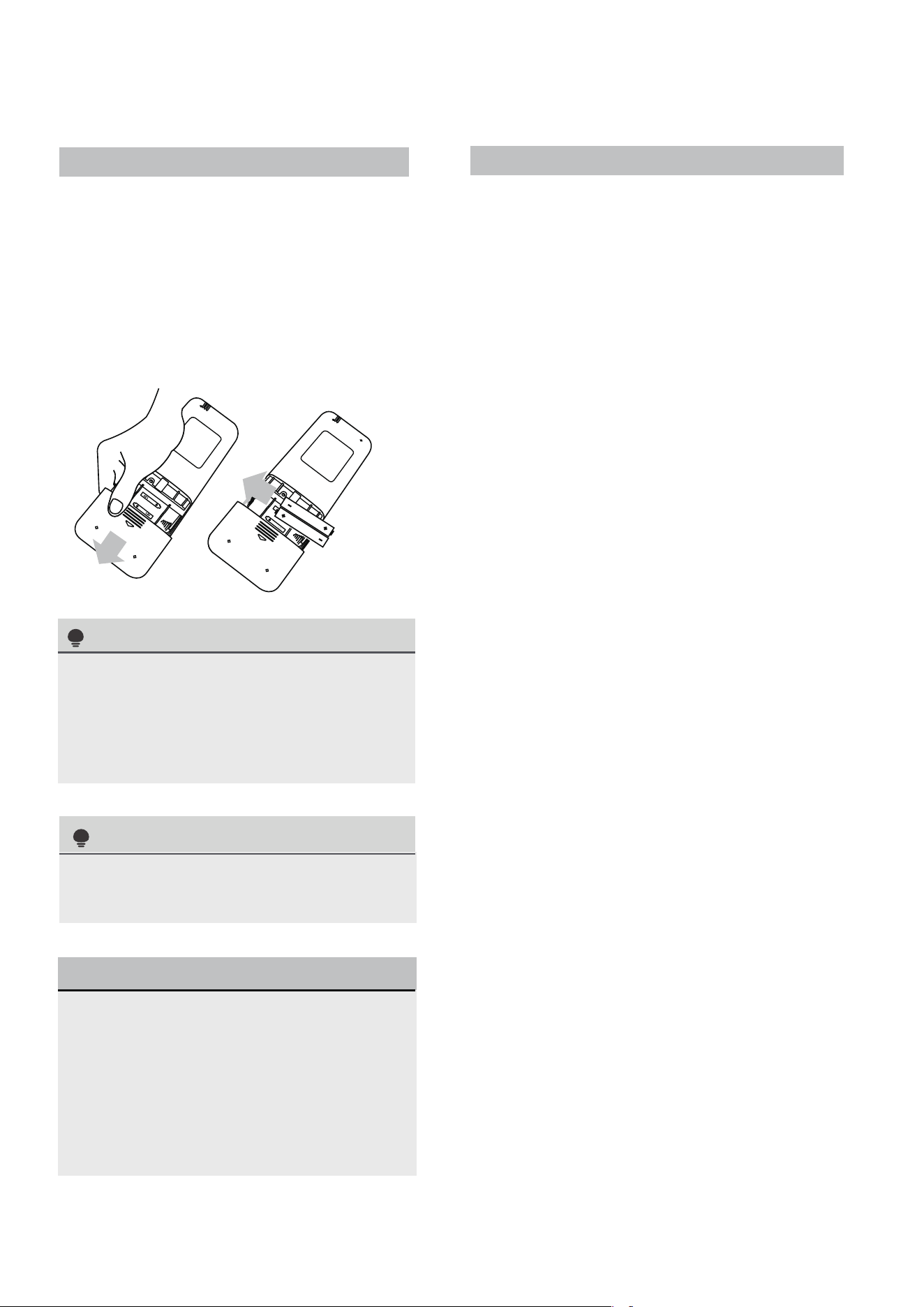

Handling the Remote Controller
TIPS FOR USING REMOTE CONTROL
•
The remote control must be used within 8
meters of the unit.
The unit will beep when remote signal is
received.
Curtains, other materials and direct sunlight
can interfere with the infrared signal
receiver.
Remove batteries if the remote will not be
used more than 2 months.
•
•
•
•
•
•
•
•
•
•
Inserting and Replacing Batteries
Your air conditioning unit may come with two
batteries(some units). Put the batteries in the
remote control before use.
1. Slide the back cover from the remote control
downward, exposing the battery compartment.
2. Insert the batteries, paying attention to match
up the (+) and (-) ends of the batteries with
the symbols inside the battery compartment.
3. Slide the battery cover back into place.
BATTERY NOTES
For optimum product performance:
• Do not mix old and new batteries, or
batteries of different types.
•
Do not leave batteries in the remote control
if you don’t plan on using the device for
more than 2 months.
BATTERY DISPOSAL
Do not dispose of batteries as unsorted
municipal waste. Refer to local laws for
proper disposal of batteries.
The device could comply with the local national
regulations.
In Canada, it should comply with
CAN ICES-3(B)/NMB-3(B).
In USA, this device complies with part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not approved by the
party responsible for compliance could void
user’s authority to operate the equipment.
NOTES FOR USING REMOTE CONTROL
35

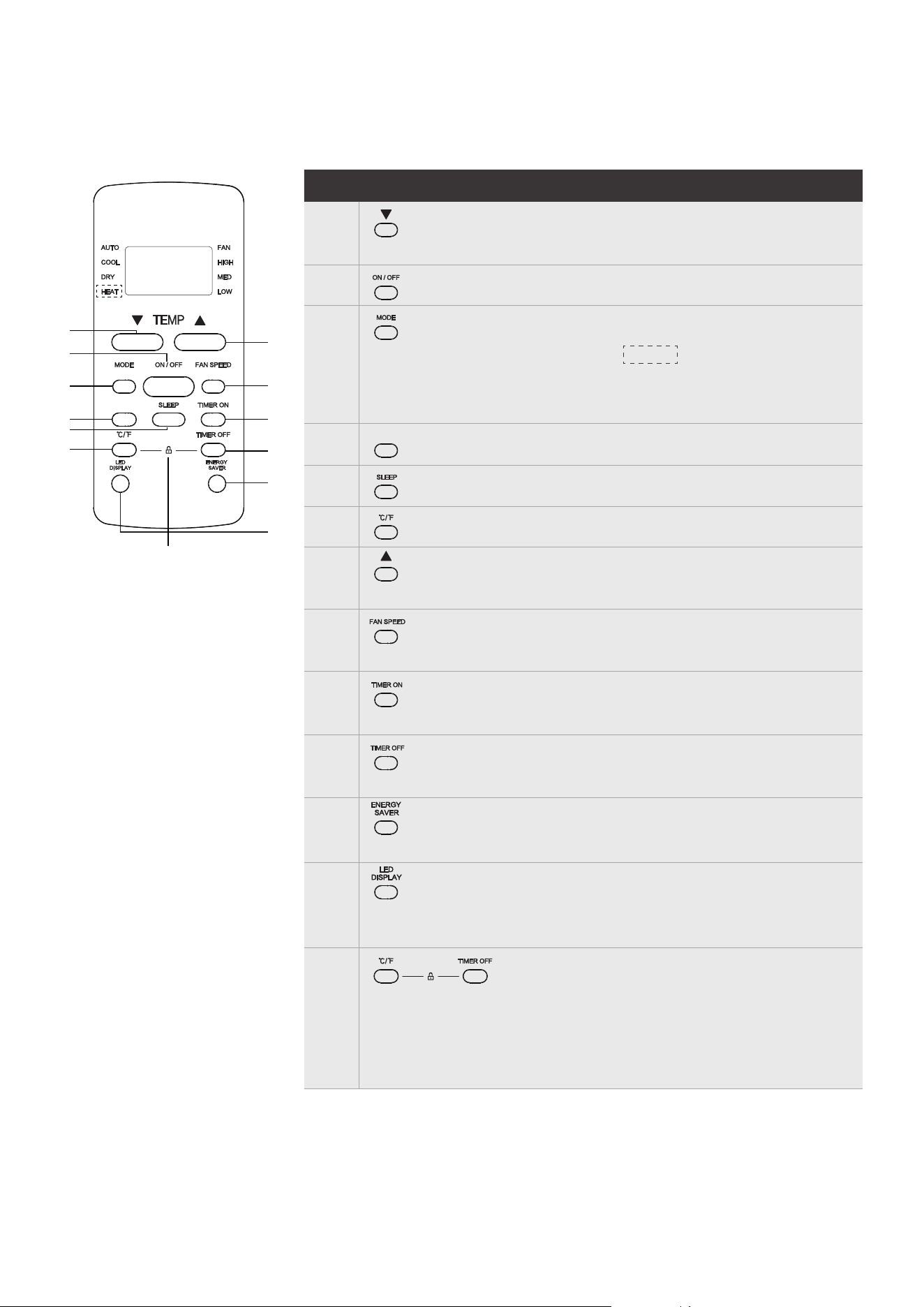

Before you begin using your new air conditioner, make sure to familiarize yourself with its remote
control. The following is a brief introduction to the remote control itself. For instructions on how to
operate your air conditioner, refer to the How to Use Basic Functions section of this manual.
Buttons and Functions
Model:
RG51G(1)/CEFU1
RG51G(1)/EFU1
NOTE: Model RG51G(1)/CEFU1
does not have HEAT feature.
Description
TEMP
No.1
No.4
Decreases temperate in1°F (1°C) increments.
Min. temperature is 62°F(17°C).
1
2
3
4
5
6
7
8
9
10
11
12
13
TEMP
No.7
Increases temperate in1°F (1°C) increments.
Max. temperature is 86°F(30°C).
FAN SPEED
No.8
Selects fan speeds in the following order:
C-SENSE
C-SENSE
C-SENSE
Press this button to activate the C-SENSE mode.
ON/OFF
No.2
Turns the unit on or off.
MODE
AUTO COOL DRY HEAT FAN
No.3
Scrolls through operation modes as follows:
NOTE: Please do notselect HEAT mode if the machine
you purchased is cooling only type.
Heat mode is not supported by the cooling only appliance.
AUTO LOW MED HIGH
No.5
SLEEP
Saves energy during sleeping hours.
No.6
°C/°F
The temperature display between the °C & °F.
TIMER ON
No.9
Sets timer to turn unit on (see How to Use Basic
Functions for instructions).
TIMER OFF
No.10
Sets timer to turn unit off (see How to UseBasic
Functions for instructions).
ENERGY SAVER
No.11
Press this button to activate the Energy saving mode.
Press it again to stop the funtion.
LED DISPLAY
No.12
Turns indoor unit’s LED display and air conditioner
buzzer on and off (model dependent), which create
a comfortable and quiet environment.
LOCK
No.13
Press together °C/°F & TIMER OFF buttons
simultaneously for 5 seconds to lock the keyboard.
Press together the two buttons for 2 seconds to unlock
the keyboard.
36

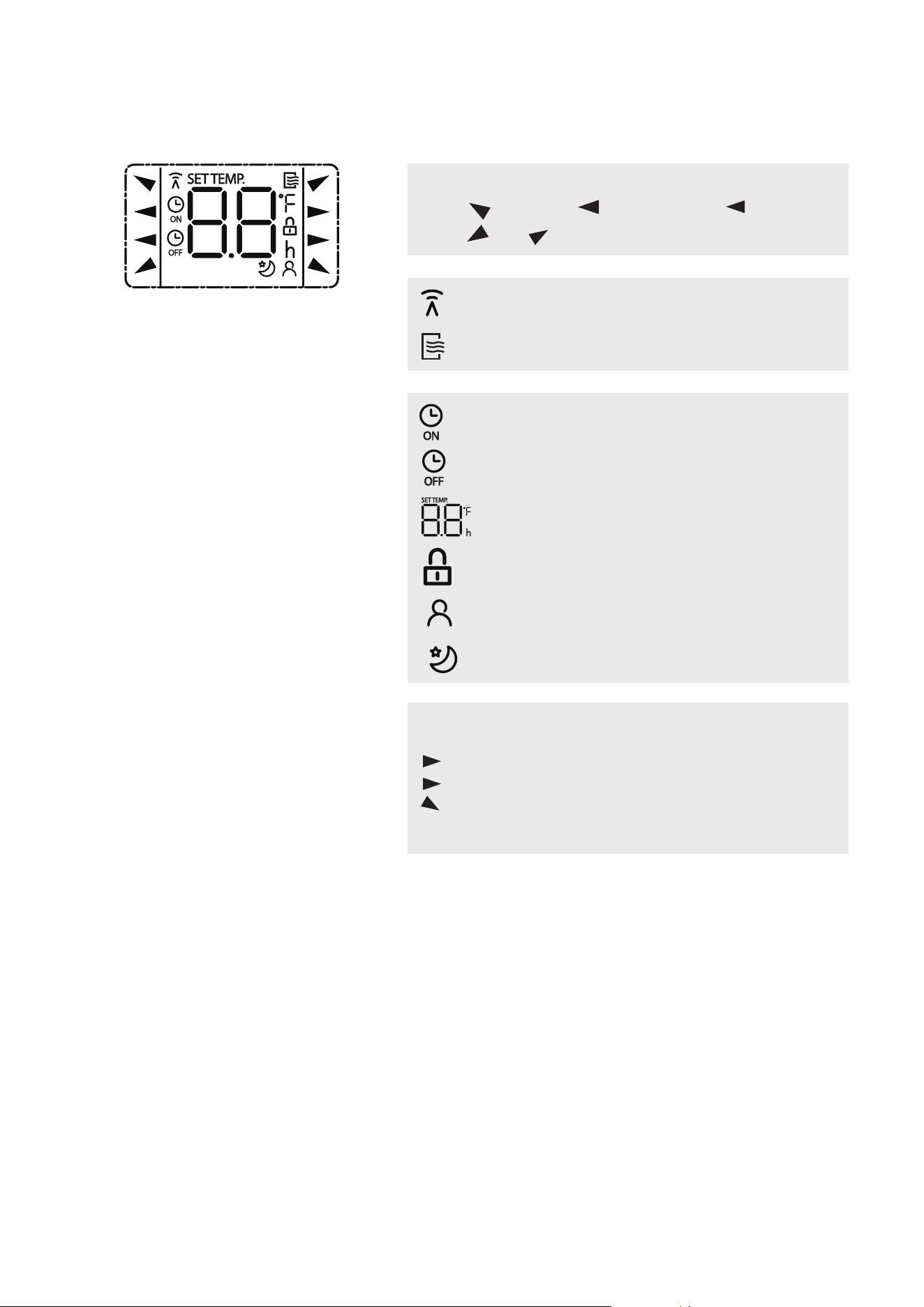

Remote Screen Indicators
Note:
All indicators shown in the figure are for the purpose of clear presentation.
But during the actaul operation, only the relative function signs are shown on the
display window.
Information are displayed when the remote controller is power up.
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
Mode display
AUTO
HEAT
COOL
FAN
DRY
Displayed when data transmitted.
Displayed when remote controller is ON.
Displayed when TIMER ON time is set.
Displayed when TIMER OFF time is set.
Shows set temperature or room temperature,
or time under TIMER setting.
Indicated all the current settings are locked.
Displayed when C-SENSE feature is activated
(some units)
Displayed when SLEEP feature is activated.
Low speed
NO display
Medium speed
High speed
Auto fan speed
HIGH
MED
LOW
Fan speed indication
37

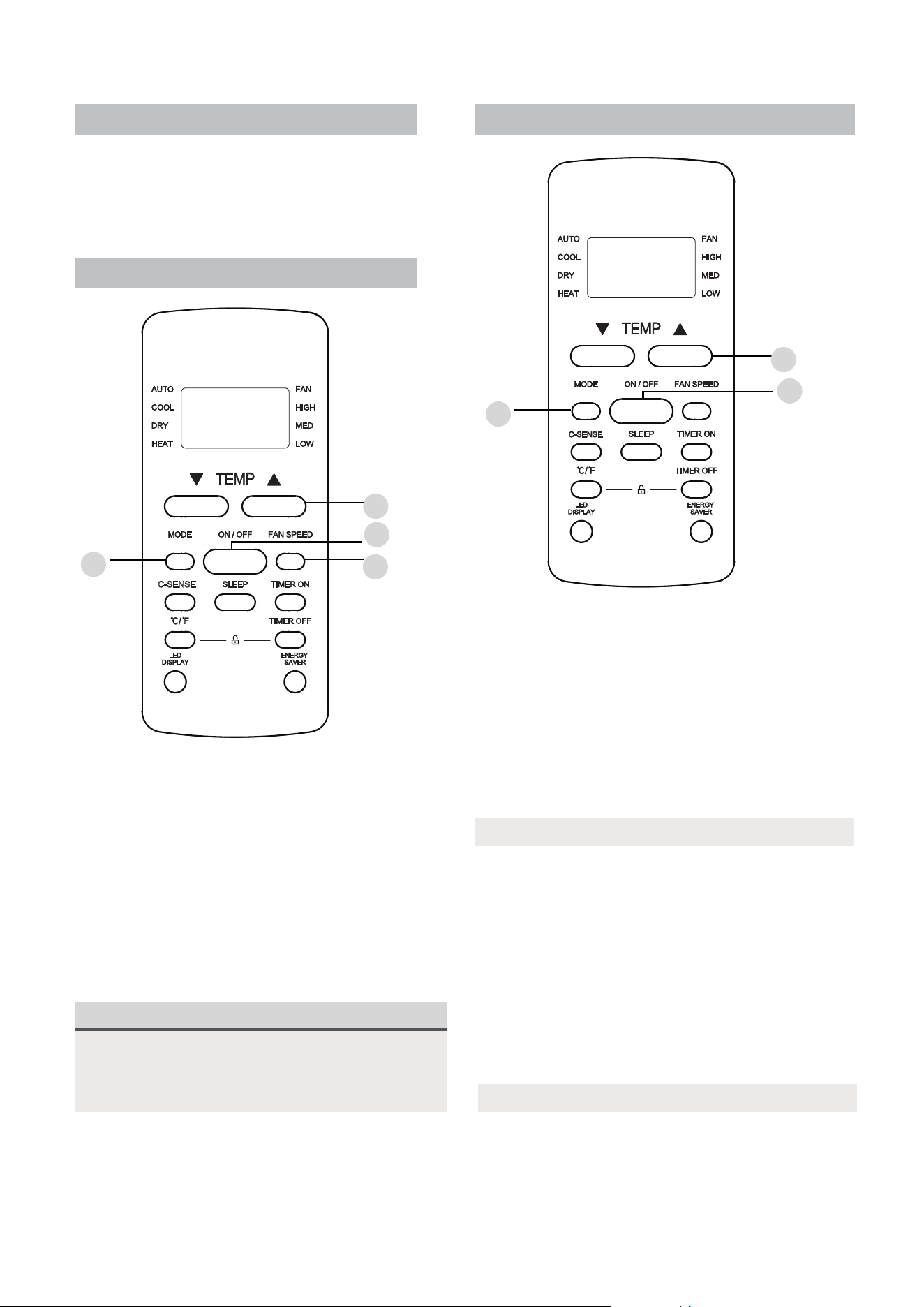

How to Use Basic Functions
1. Press the MODE button to select COOL
mode.
2. Set your desired temperature using the
TEMP or TEMP button.
3. Press FAN button to select the fan speed:
AUTO, LOW, MED or HIGH.
4. Press the ON/OFF button to start the unit.
In AUTO mode, the unit will automatically select
the COOL, FAN, or HEAT operation based on the
set temperature.
1. Press the MODE button to select AUTO.
2. Set your desired temperature using the
TEMP or TEMP button.
3. Press the ON/OFF button to start the unit.
In AUTO mode, the unit will automatically select
the COOL, FAN, HEAT or DRY function based on
the set temperature.
1. Press the MODE button to select AUTO.
2. Set your desired temperature using the
TEMP or TEMP button.
3. Press the ON/OFF button to start the unit.
ATTENTION! Before operation,
please ensure the unit is plugged
in and power is available.
AUTO Mode
SETTING TEMPERATURE
The operating temperature range for units is
62-86°F(17-30°C ). You can increase or
decrease the set temperature 1°F(1°C)
increments.
NOTE: FAN SPEED can’t be set in AUTO mode.
COOL Mode
Basic operation
NOTE: FAN SPEED can’t be set in AUTO mode.
1
3
2
4
1
3
2
C-SENSE
C-SENSE
38

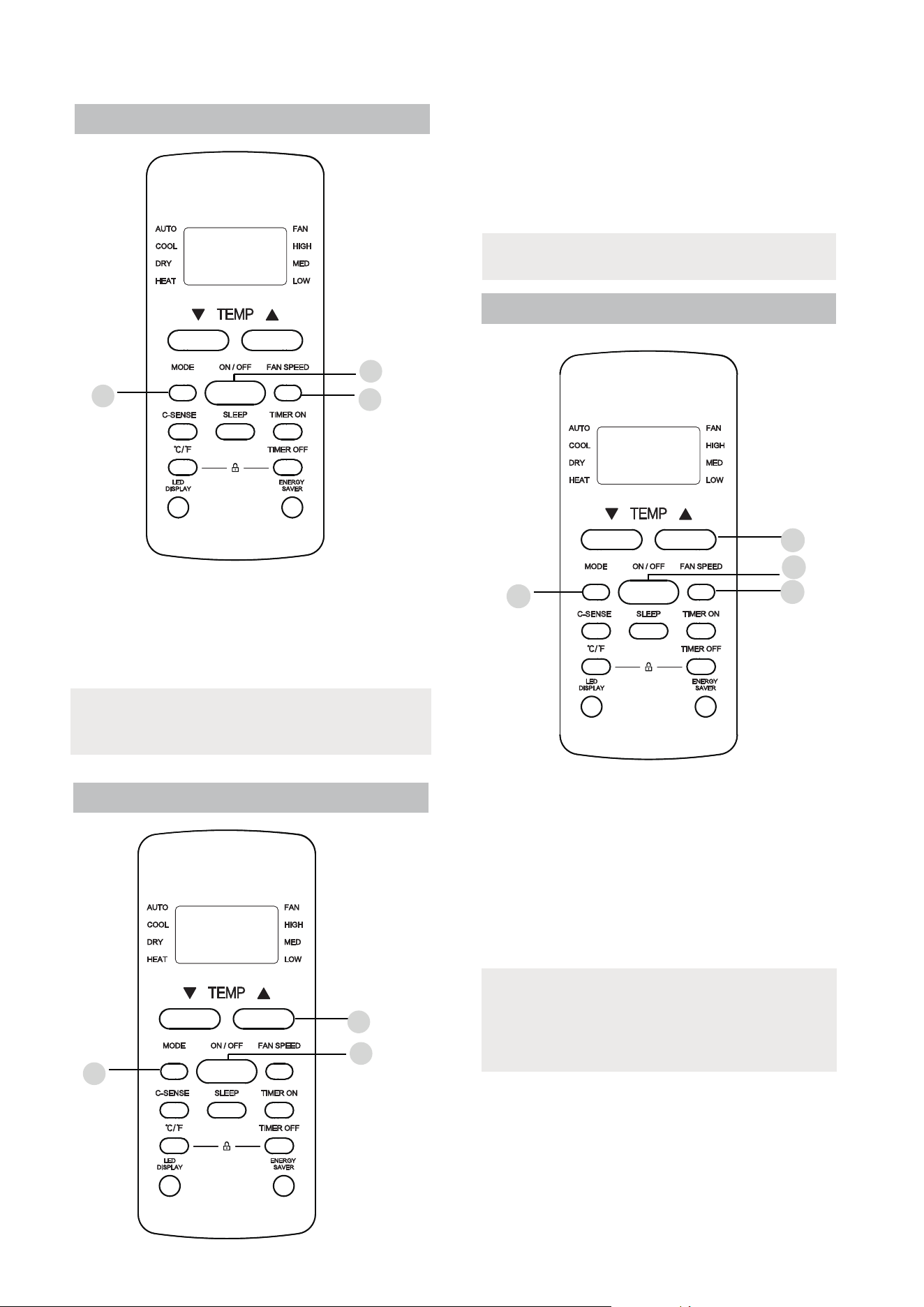

How to Use Basic Functions
1. Press the MODE button to select DRY.
2. Set your desired temperature using the
TEMP or TEMP button.
3. Press the ON/OFF button to start the unit.
1. Press the MODE button to select HEAT
mode.
2. Set your desired temperature using the
TEMP or TEMP button.
3. Press FAN button to select the fan speed:
AUTO, LOW, MED or HIGH.
4. Press the ON/OFF button to start the unit.
1. Press the MODE button to select FAN mode.
2. Press FAN button to select the fan speed:
AUTO, LOW, MED or HIGH.
3. Press the ON/OFF button to start the unit.
1
3
2
1
3
2
button.
1
3
2
4
DRY Mode (dehumidifying)
NOTE: FAN SPEED cannot be changed in
DRY mode.
HEAT Mode (some models)
NOTE: As outdoor temperature drops, the
performance of your unit’s HEAT function
may be affected. In such instances, we
recommend using this air conditioner in
conjunction with other heating appliances.
FAN Mode
NOTE: You can’t set temperature in FAN
mode. As a result, your remote control’s LCD
screen will not display temperature.
C-SENSE
C-SENSE
C-SENSE
39

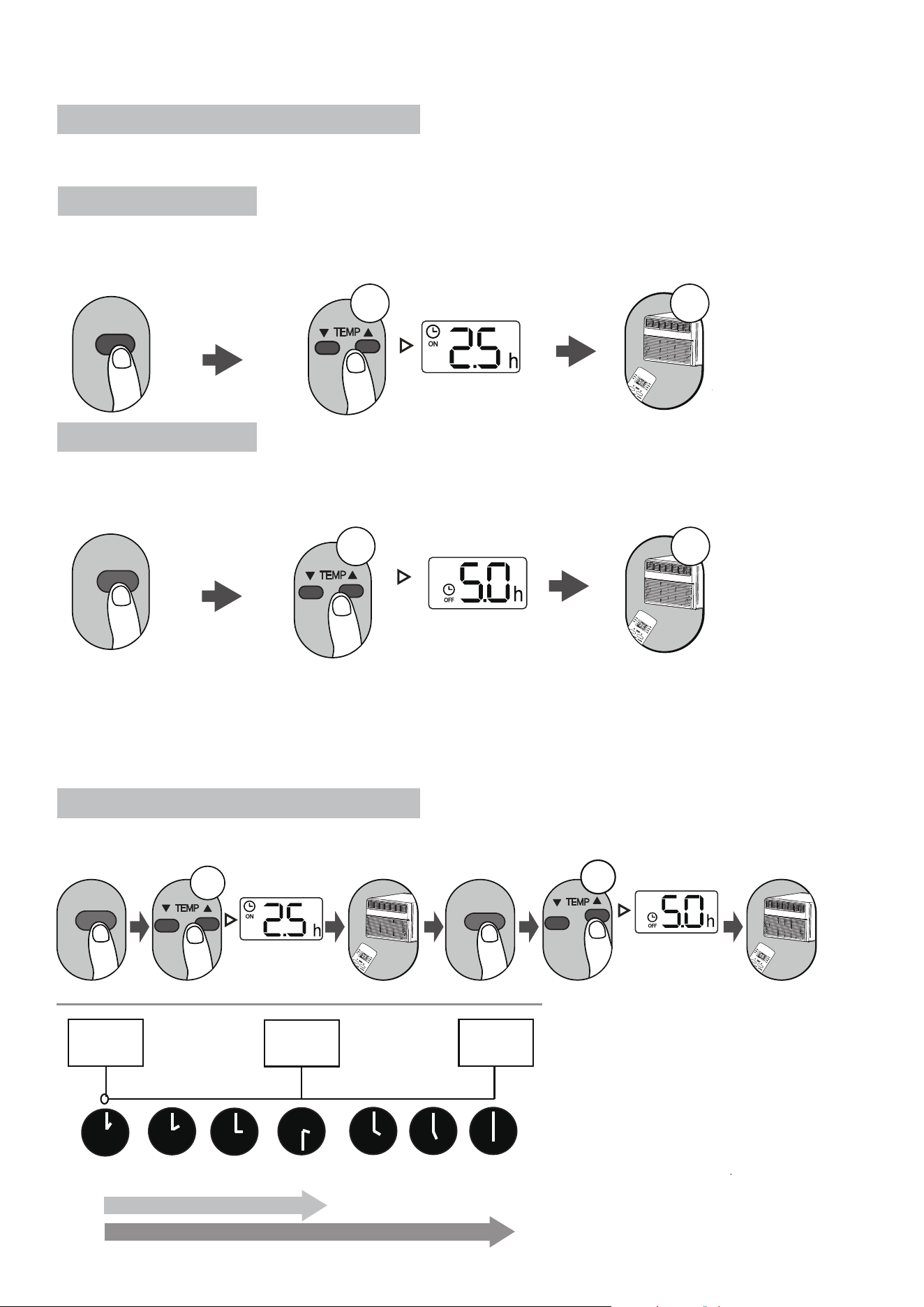

How to Use Basic Functions
Setting the TIMER
TIMER ON setting
TIMER OFF setting
TIMER ON & OFF setting(example)
TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off.
Press TIMER ON button
to initiate the ON time
sequence.
Press Temp. up or down button for
for multiple times to set the desired
time to turn on the unit.
Press Temp. up or down button for
for multiple times to set the desired
time to turn off the unit.
NOTE:
1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments
with each press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour
increments. (For example, press 5 times to get 2.5h, and press 10 times to get 5h,) The timer
will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.
Point remote to unit and wait
1sec, the TIMER ON will be
activated.
Press TIMER OFF button
to initiate the OFF time
sequence.
Point remote to unit and wait
1sec, the TIMER OFF will be
activated.
Current
time 1PM
2:00PM 3:00PM
4PM 5PM
6PM
Timer starts
Unit turns
ON
Unit turns
OFF
3:30PM
Example: If current timer is
1:00PM, to set the timer as above
steps, the unit will turn on 2.5h
later (3:30PM) and turn off at
6:00PM.
TIMER ON
TIMER ON
TIMER OFF
TIMER OFF
x5
Keep in mind that the time periods you set for both functions refer to hours after the current
time.
1sec
1sec
x10
xn
xnxn
2.5 hours later
5 hours later
40

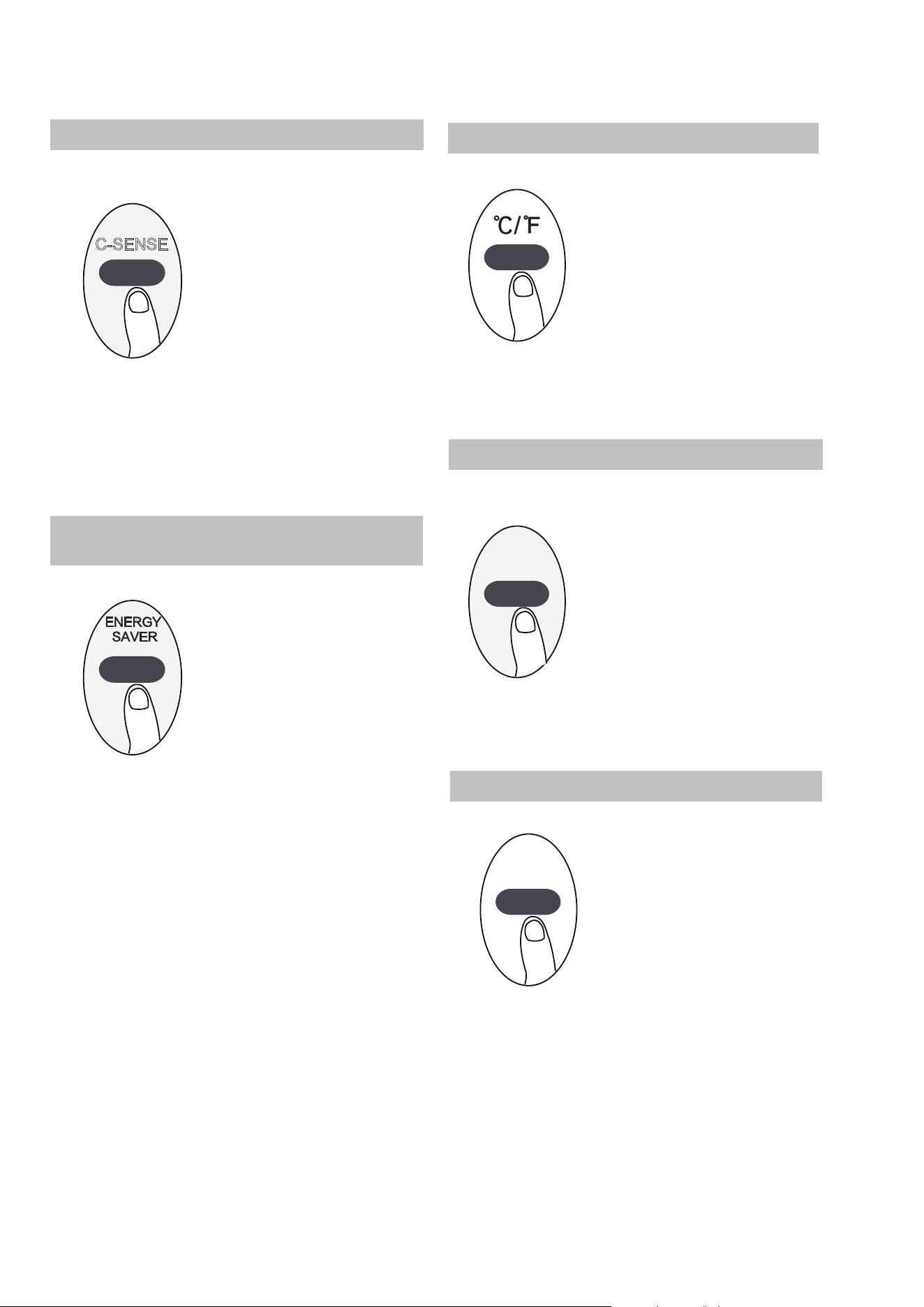

SLEEP function
SLEEP
The SLEEP function is used to decrease
energy use while you sleep (and don t need
the same temperature settings to stay
comfortable). This function can only be
activated via remote control.
The sleep function is not available in Fan or
Dry mode.Please refer to the OWNER’S
MANUAL for more details.
How to Use Advanced Functions
C-SENSE (some models)
Press this button will alternate the temperature
display between the °C & °F.
°C/°F (some models)
ENERGY SAVER function
(some models)
LED DISPLAY
Press C-SENSE button
When the C-SENSE function is activated, the
remote display is actual temperature at its
location. The remote control will send this
signal to the air conditioner every 3 minutes
interval until press the C-SENSE button again.
Press Energy saver button to initiate this
function.
This function is available on COOL, DRY,
AUTO (only AUTO-COOLING and AUTO-FAN)
modes.
Press this button to turn on and turn off the
display on the indoor unit.
Press LED button
LED DISPLAY
C-SENSE
41

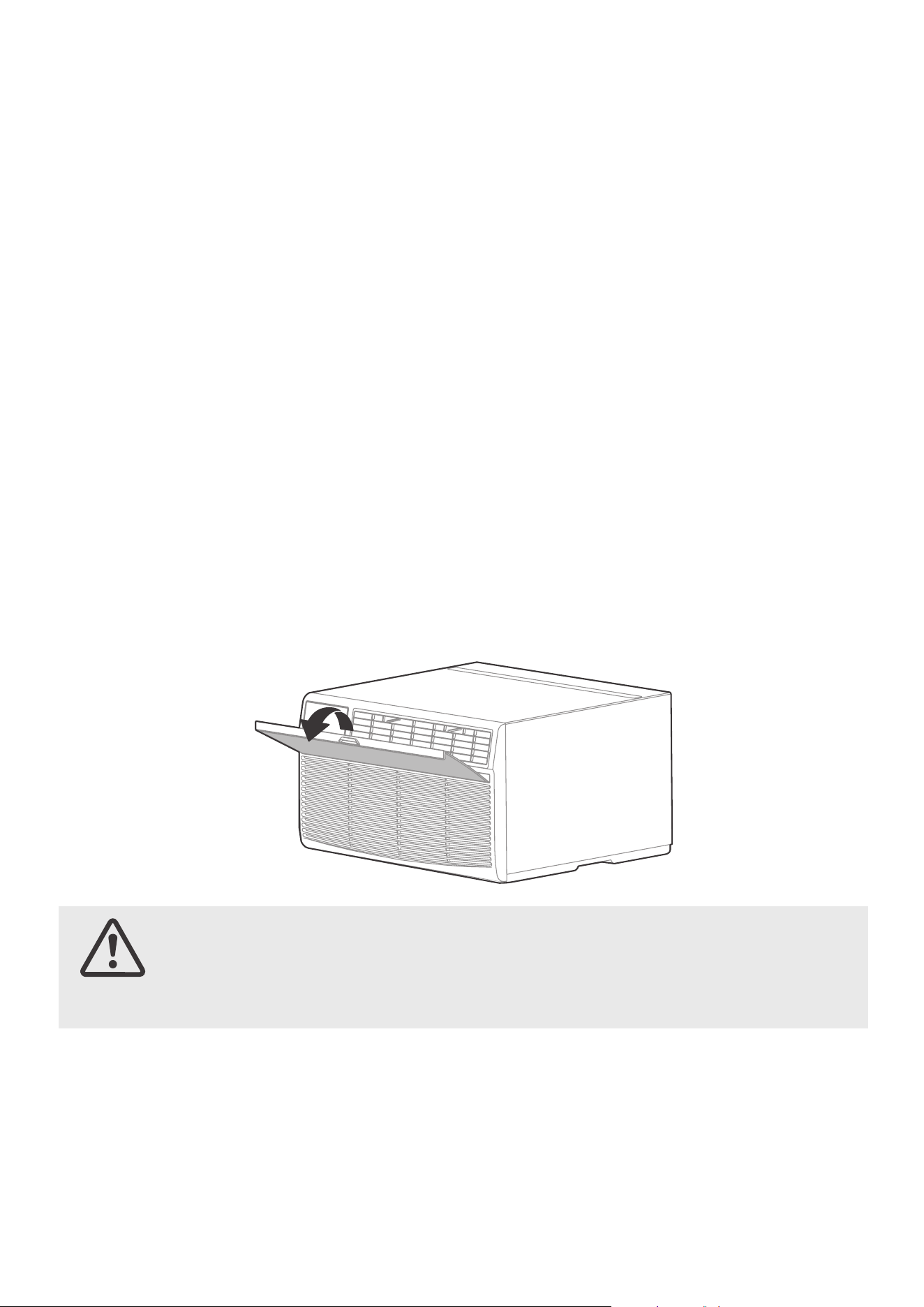

CLEANING & MAINTENANCE
How to clean & change your filter.
Check the air filter at least once a month to see if cleaning is necessary.
Air Filter Cleaning
The air filter should be checked at
least once a month to see if cleaning
is necessary. Trapped particles in the
filter can build up and cause an
accumulation of frost on the
cooling coils.
• Take the filter by the center and pull
up and out.
• Wash the filter using liquid
dishwashing detergent and warm
water. Rinse filter thoroughly. Gently
shake excess water from the filter.
Be sure the filter is thoroughly dry
before replacing. Or, instead of
washing you may vacuum the filter
clean.
Note: Never use hot water over
40°C(104°F) to clean the air filter.
Never attempt to operate the unit
without the air filter.
Energy Saving Note
In order to reach the maximum energy
saving and comfort, it is recommended
to use a cover to insulate the unit when
the unit is not in use. The recommended
size for the unit is 24.4"x14.8"x2.2"
(WxHxD).
Be sure to unplug the air conditioner to
prevent shock or fire hazard. The cabinet
and front may be dusted with an oil-free
cloth or washed with a cloth dampened in
a solution of warm water and mild liquid
dishwashing detergent. Rinse thoroughly
and wipe dry.
Never use harsh cleaners, wax or polish on
the cabinet front.
Be sure to wring excess water from the
cloth before wiping around the controls.
Excess water in or around the controls ma
y
cause damage to the air conditioner.
Plug in air conditioner.
•
•
•
•
Cabinet Cleaning
CAUTION: Clean your air conditioner occasionally to keep it looking new. Be sure to
unplug the unit before cleaning to prevent shock or fire hazards.
CAUTION: If you plan to store the air conditioner during the winter, remove it carefully
from the window according to the installation instructions. Cover it with plastic or return it
to the original carton.
42
Before calling for service, review this list. It may save your time and expense. This list includes common
occurrences that are not the result of defective workman-ship or materials in this appliance.
Air conditioner
does not start.
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or
reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
Power is OFF. Turn power ON.
Air from unit does
not feel cold
enough.
Room temperature below 62°F(17°C). Cooling may not occur until room
temperature rises above 62°F(17°C).
Temperature sensing behind air filter element touching cold coil. Keep it from the
cold coil.
Set to a Lower temperature.
Compressor stopped when changing modes. Wait for 3 minutes after set to the
COOL mode.
Air conditioner
cooling, but room
is too warm- ice
forming on cooling
coil behind
decorative front
.
Outdoor temperature below 64°F(18°C). To defrost the coil, set FAN ONLY mode.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost,
set to FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN
ONLY mode. Then, set temperature to a Higher setting.
Problem Solution
Air conditioner
rapidly
Dirty air filter- air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring air
past cooling coils more frequently.
TROUBLESHOOTING
Problem Solving
43
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: Midea brand，RG51G(1)/CEFU1, RG51G(1)/EFU1
Responsible Party U.S. Contact Information
Midea America Corporation
300 Kimball Dr
Parsippany NJ
07054
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Telephone number or internet contact information: Midea.com/us
FCC Compliance Statement ( products subject to Part 15)
Remote Sensing
Deactivating
Prematurely (Only
remote models)
Remote control not located within range. Place remote control within 20 feet and
pointed in the general direction of the air conditioner unit.
Remote control signal obstructed. Remove obstruction.
Problem Solution
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front.
Noise when unit is
cooling
Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section.
Temperature is set too High, set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air
distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution.
Clear blockage in front of unit.
Doors, windows, registers, etc. Open- cold air escapes. Close doors, windows,
registers.
Unit recently turned on in hot room. Allow additional time to remove Stored heat
from walls, ceiling, floor and furniture.
Air movement sound. This is normal . If to
o loud, set to a slower FAN setting.
Window vibration - poor installation. Refer to installation instructions or check
with installer.
Water dripping
OUTSIDE when
unit is cooling.
Unit removing large quantity of moisture from humid room. This is normal during
excessively humid days.
Room too cold
Set temperature too low. Increase set temperatur.
Water dripping
OUTSIDE when
unit is cooling.
Improper installation. Tilt air conditioner slightly to the outside to allow water
drainage. Refer to installation instructions - check with installer.
The design and specifications are subject to change without prior notice for product improvement.
Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded
to the service website, please check for the latest version.
44
Air Conditioner Limited Warranty
Your product is protected by this Limited Warranty:
Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.
Warranty
• Year full warranty from the date of delivery or the purchase date, whichever is later.
• The date of delivery establishes the warranty period, should service be required.
Midea, through its authorized servicers will:
• Pay all costs for reparing or replacing parts of this appliance which prove to be defective in materials or workmanship.
Consumer will be responsible for:
• Diagnostics, removal, transportation and reinstallation cost required because of service.
• Costs of service calls that are a result of items listed under NORMAL RESPONSABILITIES OF THE CONSUMER**
Midea replacement parts shall be used and will be warranted only for the original warranty.
NORMAL RESPONSABILITIES OF THE CONSUMER**
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:
1. Proper use of the appliance in acordance with instructions provided with the product.
2. Routine maintenance and cleaning necessary to keep the good working condition.
3. Proper installation by an authorized service professional in accordance with instructions provided with the
appliance and in accordance with all local plumbing, electrical and/or gas codes.
4. Proper connection to a grouded power supply of sufficient voltage, replacement of blown fuses, repair of loosen
connections or defects in house wiring.
5. Expenses for making the appliance accessible for servicing.
6. Damages to finish after intallation.
EXCLUSIONS
This warranty does not cover the following:
1) Failure caused by damage to the unit while in y
our possesion (other than damage caused by defect or
malfunction), by its improper installation, or by unreasonable use of the unit, including without limitation, failure to
provide reasonable and necessary maintenance or to follow the written installation and Operating Instructions.
2) Damages caused by services performed by persons other than authorized Midea costumer service; or external
causes such as abuse, misuse, inadequate power supply or acts of God.
3) If the unit is put to commercial, business, rental, or other use or application other than for consumer use, we make
no warranties, express or implied, including but not limited to, any implied warranty of merchantability or fitness
for use or purpose.
4) Products without original serial numbers or products that have serial numbers which have been altered or cannot
be readily determined.
NOTE: Some states do not allow the exclusions or limitation of incidental or consequential damages. So this
limitation or exclusion may not apply to you.
IF YOU NEED SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment Record.
The date on the bill establishes the warranty period, should service be required.
If service is performed, its your best interest to obtain and keep all receipts.
This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.
Service under this warranty must be obtained by following these steps, in order:
1) Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332.
2) If there is a question as to where to obtain service, contact our consumer relations Departament.
Warranty
Two
CW021IU-B(TTW)N8X(XD)NY(NEW)A
16120300A37273
2024
