Elkhart Lake IPC x6413E / x6211E / J6412
Modular Solution
✓
+60˚C
-10˚C
W-LAN
Legend / Notes
Applicable to version 2
Applicable to all Versions
Applicable to version 1
(v1)
(v2)
None

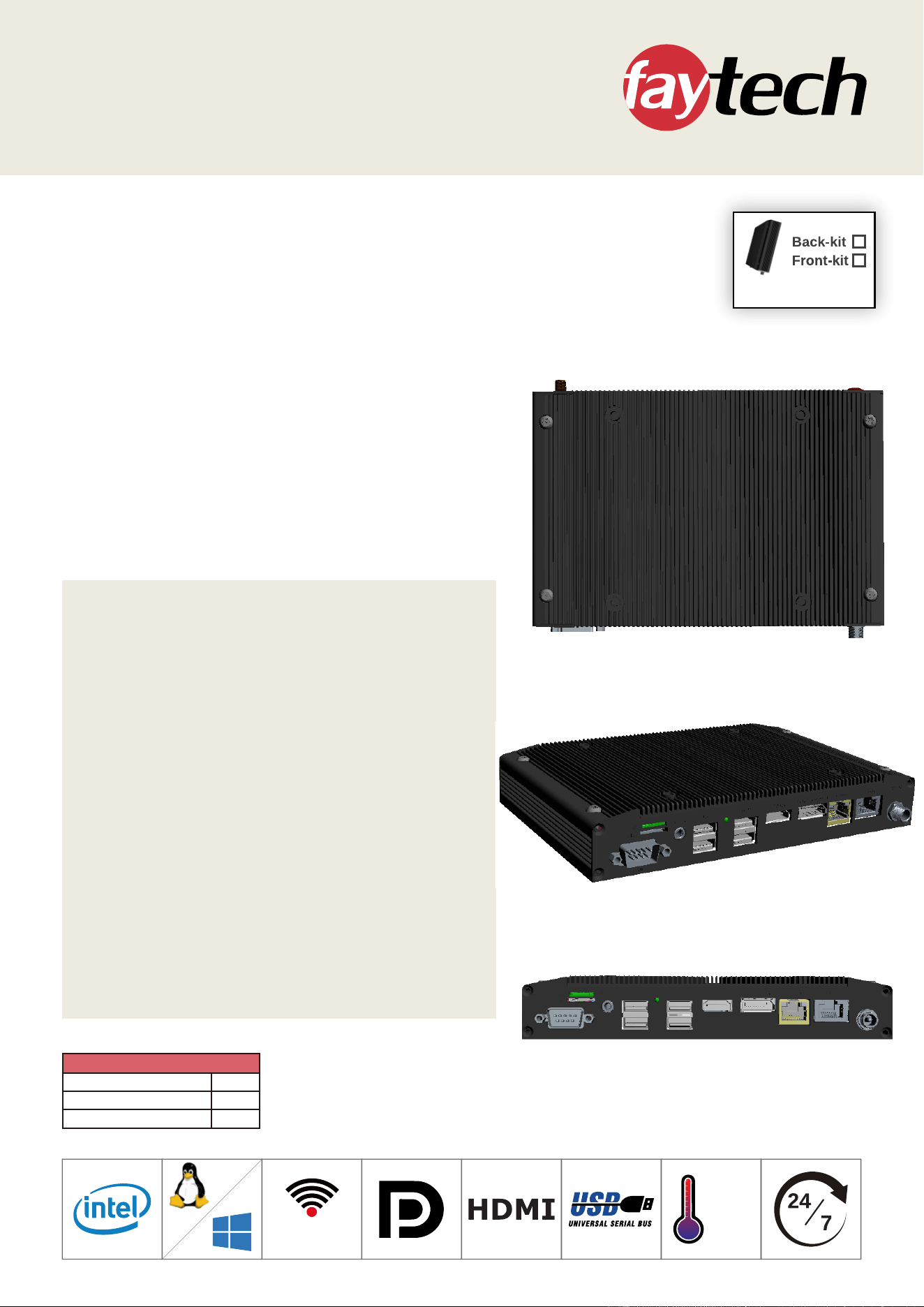

faytech's Intel-board IPC back-kits have a pre-installed Linux
Ubuntu operating system, with Windows 10/11 available on
request. All the IPCs have VESA 100 screw patterns on the back
for easy mounting.
With this solution being a modular system, the back-kit can easily
be connected to any of faytech front-kit models using various
connectors and 4 screws. The IPCs are build for 24/7 operation
and powered by one of the following 3 versions:
• x6413E Mainboard version
Intel
®
Atom
®
x6413E Processor, 4-core w/ 3.00 GHz burst -
8GB RAM & 120GB SSD Storage
• x6211E Mainboard version
Intel
®
Atom
®
x6211E Processor, 2-core w/ 3.00 GHz burst -
4GB RAM & 120GB SSD Storage
• J6412 Mainboard version
Intel
®
Celeron
®
J6412 Processor, 4-core w/ 2.60 GHz burst -
4GB RAM & 120GB SSD Storage
It is the perfect choice for a wide variety of applications, including
industrial automation, control panels, POS systems and digital
signage, with easily switchable front-kits to ensure longevity.
IPCBAX6413E / IPCBAX6211E / IPCBAJ6412
*
)
Front- & Back-kit Concept - User Manual
• Elkhart Lake x6413E Mainboard version (IPCBX6413E)
• Intel
®
Atom
®
x6413E Processor
• 4 cores with 3.00 GHz burst frequency
• 8GB RAM Memory & 120GB SSD Storage (customizable)
• High-performance, standard-cost & good cooling function (suggested for indoor & outdoor use)
• Elkhart Lake x6211E Mainboard version (IPCBX6211E)
• Intel
®
Atom
®
x6211E Processor
• 2 cores with 3.00 GHz burst frequency
• 4GB RAM Memory & 120GB SSD Storage (customizable)
• Standard-performance, low-cost, low-heat & low-power consumption (suggested for outdoor)
• Elkhart Lake J6412 Mainboard version (IPCBJ6412)
• Intel
®
Celeron
®
J6412 Processor
• 4 cores with 2.60 GHz burst frequency
• 4GB RAM Memory & 120GB SSD Storage (customizable)
• High-performance, low-cost, high-heat & high-power consumption (suggested for indoors)
• Pre-installed Linux Ubuntu & Supports Windows 10/11
• Connectors - to mount on front-kit (screwable)
• VESA 100 mounting on back
• Integrated LAN & W-LAN
• 2 year guarantee (24/7 usage)
Product name
Model number / EAN number
Elkhart Lake IPC (x6413E / x6211E / J6412)
IPCBAX6413E / TBD
IPCBAX6211E / TBD
IPCBAJ6412 / TBD
Global Article Code European Article Code Release date (D/M/Y) Version*Global Article Code European Article Code Release date (D/M/Y) Version*
v1 (X6211E)
30305012550
-
30305012548
-
30305012549
-
01/05/2023
v1
(J6412)01/05/2023
v1 (X6413E)01/05/2023
PC System (3 available versions)
CPU Intel
®
Atom
®
x6413E
Intel
®
Atom
®
x6211E
2
Total Cores
4
Burst Frequency
3.00 GHz
Base Frequency
Cache
Mainboard version x6413E (IPCBX6413E) x6211E (IPCBX6211E) J6412 (IPCBJ6412)
Intel
®
Celeron
®
J6412
4
TDP (max. power
consumption)
Graphic Burst Freq.
Graphic Base Freq.
1.50 GHz
1.5MB L2
9 W
750 MHz
500 MHz
8GB RAM
120GB SSD
3.00 GHz
1.30 GHz
1.5MB L2
6 W
750 MHz
350 MHz
4GB RAM
120GB SSD
GPU
Intel
®
UHD Graphics
Memory
1)
1) Memory adjustable upon request: range 4GB-32GB
2) Storage adjustable upon request
Storage
2)
TPM
INFINEON 9672VU2.0 TPM 2.0
Audio
Realtek
®
ALC897 Audio CODEC
Network
10/100/1000Mbit Network; W-LAN
Pre-installed OS
Linux Ubuntu
Supported OS
Linux Ubuntu, Windows 10/11
2.60 GHz
2.00 GHz
1.5MB L2
10 W
800 MHz
400 MHz
4GB RAM
120 GB SSD
Errata and technical modifications reserved
IP Rating
IP40 (if combined with faytech front-kit)
Power
Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 12
Power Consumption (W) TDP (see PC System)
Stand-By Consumption (W) <1
Operation / Mechanical
Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Net weight (kg) 2.10
Gross weight (kg) 2.90 (incl. cartonage)
Housing material Aluminum case
Housing (mm) L × W × H 190.0 × 126.2 × 32.0
Mounting VESA 100
Included in the Delivery
Power Supply (see Power section)
W-LAN Antenna (RP-SMA female)
Short Installation Manual
External Connectors
1x HDMI
2x 10/100/1000Mbit RJ45 Ports (LAN1 PoE)
1x SIM-card slot
1x 12V DC-In (screwable)
1x DisplayPort
1x Micro SD-card slot
1x Wi-Fi Antenna (screwable)
2x USB 2.0
1x Audio Jack
2x USB 3.0
1x COM (RS232)
+ 1x internal RS485 & 1x internal RS232
Connector - front-kit assembly
Various pin connectors with converter for front- / back-kit assembly (see separate pdf sheet)

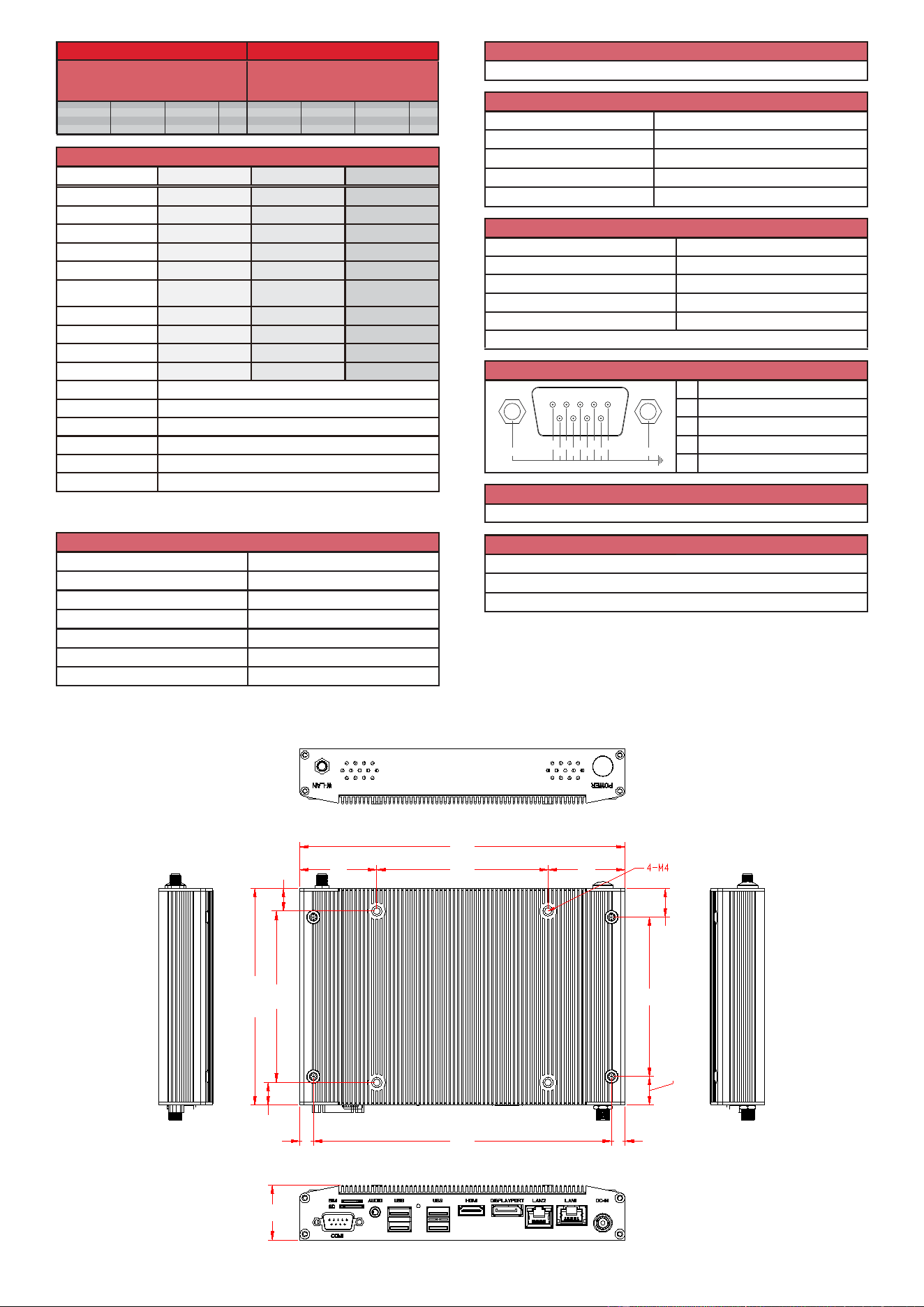

190
126.2
45 100 45
13.1
100
13.1
16.6
93
16.6
8 174 8
32
COM (RS232) Pin Definition
2
3
10
11
5
RXD1
TXD1
GND
GND
GND
1 2 3 4
6 7 8 9
5
11
GND
10
Tolerance：ISO 2768-1c
Changes:
Update Notes:
Version:
v1 - First version
China: +86 755 8958 0612
India: +91 11 49707436
Germany: +49 5542 30374 10
USA: +1 646 843 0877
Japan: +81 366 722 920
www.faytech.com

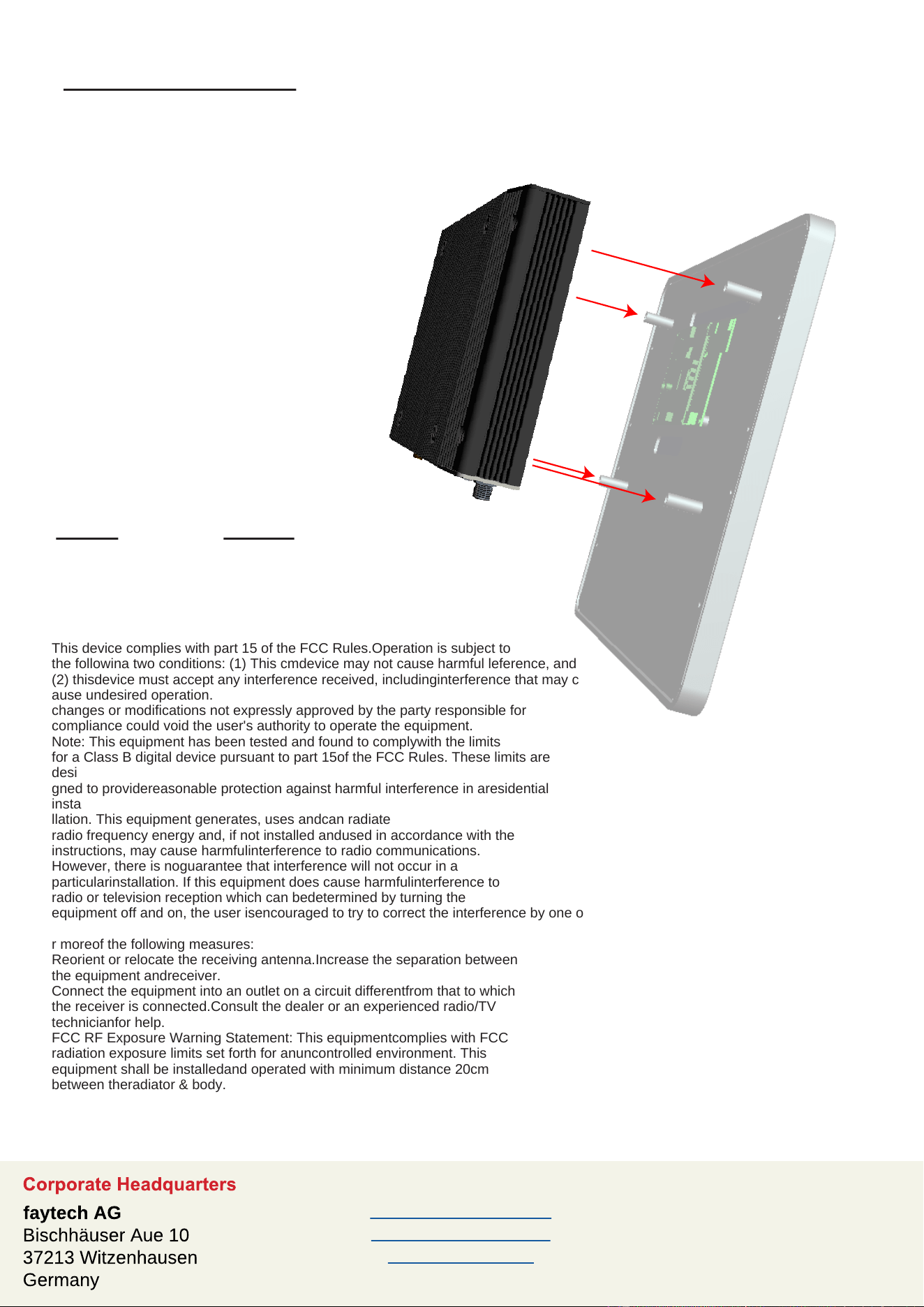

Front- & Back-kit concept:
