Assembled And Divided Into Sections For Shipment • Arrive To Job Site Ready For Installation
MILLWORK* ASSEMBLY SUGGESTIONS:
• Millwork pieces can be pre-fabricated and installed after
bar die installation is completed.
• Millwork can be applied directly to the bar structure or
clips, that slide onto a horizontal anchor, can be
attached to the front panel.
• Outside panels (located in a channel under the top of
the bar) slide out.
• Milled panels attached at the bottom using clips on
the provided vertical hat channels, leaving easy access
to plumbing.
*Millwork to be supplied by others.

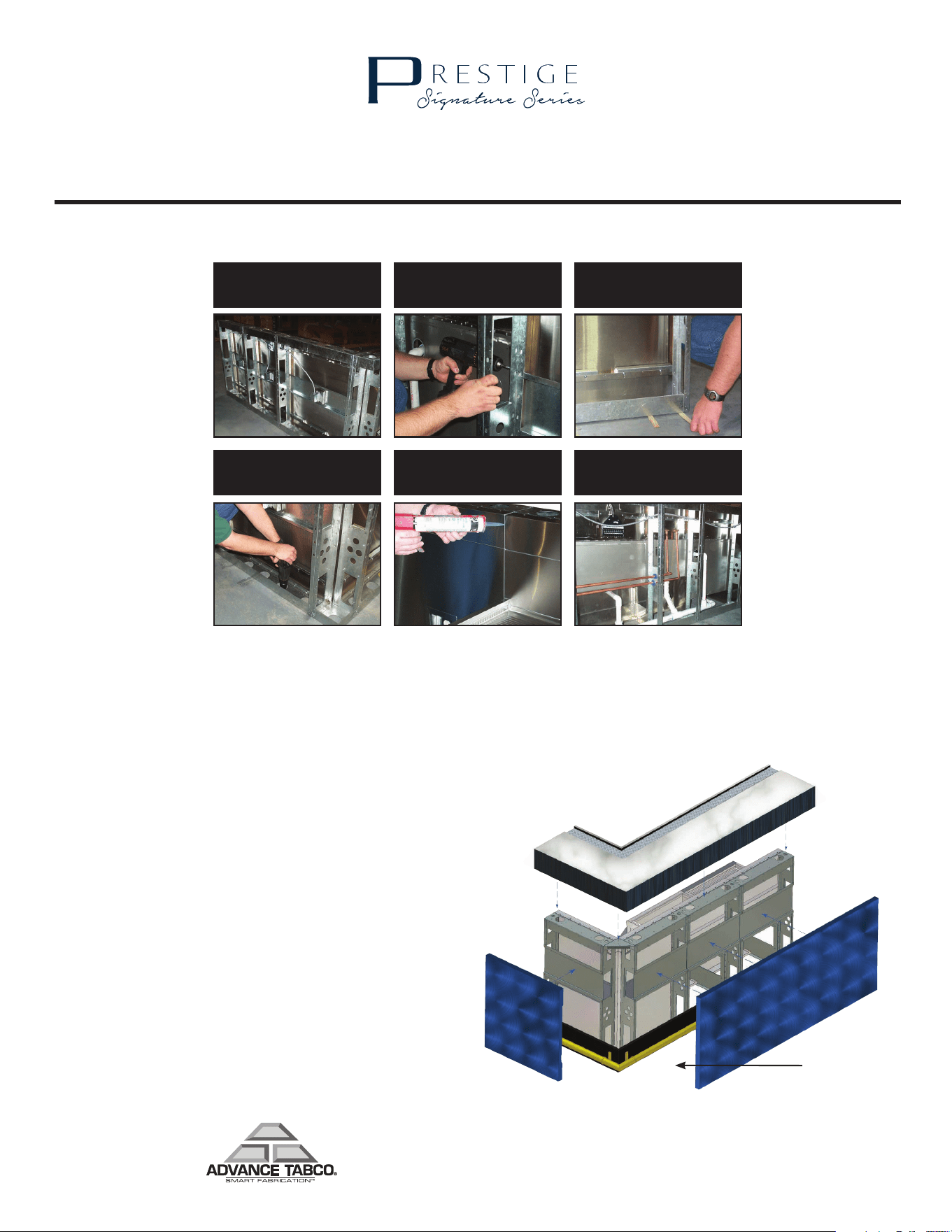

Modular Bar Die System
Installation Guidelines
Step 1: Uncrate
& Set Into Place
Step 4: Secure System
To Floor
Step 5: Silicone Seams Step 6: Install Plumbing,
Electrical & Soda Lines
Step 2: Bolt Together
w/ Self-Tapping Screws
Step 3: Level System
w/ Shims
INSTALLATION INSTRUCTIONS:
Bar Top And Drink Rail Can Be Fabricated
From Equipment Drawings Ahead Of Time.
Front Panels Can
Attach Directly To
Bar Die Structure.
