Write the Serial Number here:
_________________________
9.5 CU.FT. GENERAL PURPOSE MEDICAL
REFRIGERATOR/FREEZER
with MANUAL DEFROST FREEZER COMPARTMENT
CYCLE DEFROST REFRIGERATOR COMPARTMENT
Model No. CP133
M405
CM411L
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
1
IMPORTANT SAFEGUARDS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential
hazards that can kill or injure you and others. All safety messages will
follow the Safety Alert Symbol and either the words ”DANGER” or
“WARNING”.
DANGER means that failure to heed this
safety statement may result in severe
personal injury or death.
WARNING means that failure to heed
this safety statement may result in
extensive product damage, serious
personal injury, or death.
Safety messages will alert you to what the potential hazard is, tell you how to reduce the chance
of injury, and let you know what can happen if the instructions are not followed.
Before the appliance is used, it must be properly positioned and installed
as described in this manual, so read the manual carefully. To reduce the
risk of fire, electrical shock or injury when using the appliance, follow basic
precautions, including the following:
Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter,
and do not use an extension cord.
It is recommended that a separate circuit, serving only your appliance, be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so
can result in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this material. All other servicing should be referred to a qualified technician.
2
Use two or more people to move and install the appliance. Failure to do so can result in back
or other injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60
°
F (16
°
C) and below
90
°
F (32
°
C). This unit must be installed in an area protected from the elements, such as wind,
rain, water spray or drips.
The appliance should not be located next to ovens, radiators or other sources of high heat.
The appliance must be installed with all electrical connections in accordance with state and
local codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
Do not kink or pinch the power supply cord of the appliance.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the appliance to be leveled in order to work properly. You may need to make
several adjustments to level it.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.
Risk of child entrapment
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigerators and freezers are still dangerous, even if they will “just sit in the garage a few
days.”
Before you throw away your old refrigerator or freezer: Take off the doors. Leave
the shelves or drawers in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the refrigerator/freezer.
THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERONS
UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED BY A RESPONSIBLE PERSON TO
ENSURE THAT THEY CAN USE THE APPLIANCE SAFELY. YOUNG CHILDREN SHOULD BE
SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
- SAVE THESE INSTRUCTIONS -
3
Table of Contents
Important Safeguards .................................................................................................... 1 - 2
Location of Parts ................................................................................................................. 3
Technical Information ......................................................................................................... 4
Installation Instructions ................................................................................................. 4 - 7
Before Using Your Appliance .......................................................................................... 4
Installing the Refrigerator/Freezer ............................................................................. 4 - 5
Electrical Connection / Extension Cord ........................................................................... 5
Reversing the Door Swing ......................................................................................... 5 - 6
Door Handle Installation .................................................................................................. 7
Operating Your Refrigerator/Freezer ............................................................................ 7 - 8
Temperature Control ....................................................................................................... 7
Defrosting Your Appliance ......................................................................................... 7 - 8
Care and Maintenance ................................................................................................... 8 - 9
Cleaning Your Appliance / Power Failure / Vacation Time /
Moving your Appliance / Energy-Saving Tips
Troubleshooting ................................................................................................................ 10
Limited Warranty ............................................................................................................... 11

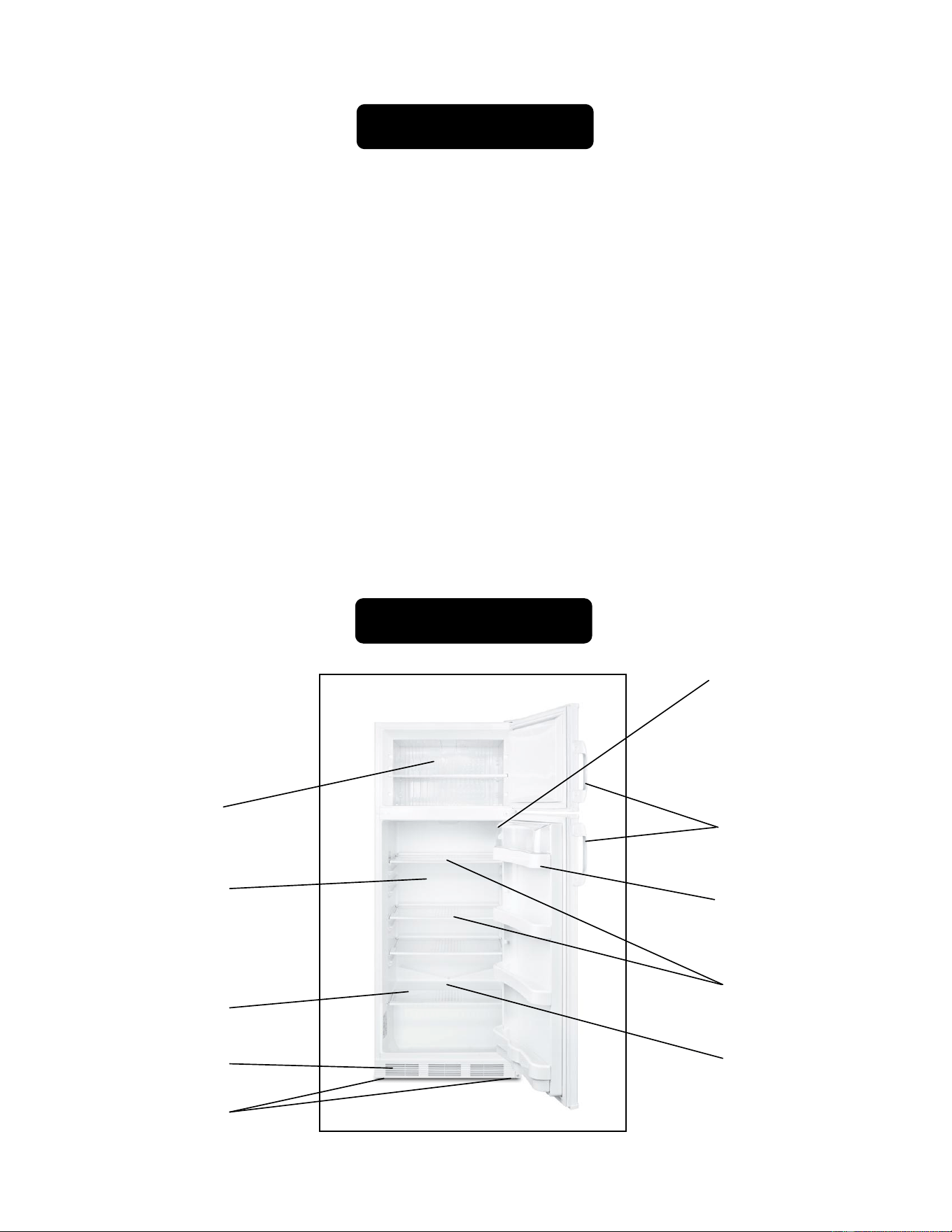

Location of Parts
Temperature control dial
(thermostat), light switch
and interior light
Refrigerator door with
storage compartments
Front ventilation
slots (kick plate)
Leveling legs
Freezer
compartment
with shelf
Wire shelving
Defrost water
outlet
Handles
Glass shelf
Refrigerator
compartment
4
Technical Information
Model Numbers
CP133
Color
White
Capacity
9.5 cu. ft.
Electrical Input
115V AC/60Hz
Rated Current
1.9A
Refrigerant
R134a, 4.9 oz.
Installation
Free-standing
Ship Weight
145 lbs.
Unit Dimensions
(W x D x H)
23.63" x 24.0" x 59.75"
NOTES: 1. This appliance is suitable for storing reagents, pharmaceuticals and other
temperature-sensitive materials. It can also store foodstuffs at an ideal
temperature, but because of its oversized commercial compressor, it is not
designed for household use.
2. Specifications are subject to change without notice.
Installation Instructions
Before Using Your Appliance:
Remove the exterior and interior packing.
Before connecting the unit to a power source, let it stand for approximately 2 hours.
This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
Remove the shelves and clean them and the interior surfaces of the unit with
lukewarm water using a soft cloth.
Installing the Refrigerator/Freezer:
Place the unit on a floor that is strong enough to support the appliance when it is fully
loaded. To level the unit, adjust the two leveling legs at the front.
Models CP133 is designed to be free-standing only, and should not be recessed or
built in. When installing, allow at least 4 inches of space at the top, sides and rear of
the unit, which will allow the proper air circulation to cool the compressor and
condenser.
Locate the unit away from direct sunlight and sources of heat (oven, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase
electrical consumption. Extremely cold ambient temperatures may also affect the
unit's performance.
Avoid locating the unit in moist areas. Too much moisture in the air will cause frost to
form quickly on the evaporator, requiring more frequent defrosting of the freezer
compartment.
5
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Plug the unit into an exclusive, properly installed and grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) prong from the power cord.
Any questions concerning power and/or grounding should be directed toward a
certified electrician or authorized service center.
Electrical Connection:
This unit should be properly grounded for your safety. The power cord of this unit is
equipped with a three-prong plug which mates with a standard three-prong wall outlet to
minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power
cord supplied. For personal safety, this appliance must be properly grounded.
This unit requires a standard 115-volt AC/60Hz electrical outlet with three-prong ground.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet
is properly grounded. When a standard 2-prong wall outlet is encountered, it is your
responsibility and obligation to have it replaced with a properly grounded 3-prong wall
outlet.
To prevent accidental injury, the cord should be secured behind the unit and not left
exposed or dangling.
The unit should always be plugged into its own individual electrical outlet which has a
voltage rating that matches the rating label on the appliance. This provides the best
performance and also prevents overloading house wiring circuits that could cause a fire
hazard from overheated wires. Never unplug the unit by pulling on the power cord.
Always grip the plug firmly and pull straight out from the receptacle. Repair or replace
immediately any power cord that has become frayed or otherwise damaged. Do not use
a cord that shows cracks or abrasion damage along its length or at either end. When
moving the unit, be careful not to damage the power cord.
Extension Cord:
Do not use an extension cord with this appliance. If the power cord is too short, have a
qualified electrician or service technician install an outlet near the appliance.
Reversing the Door Swing:
If you find the direction of opening the doors of the appliance inconvenient, you can
change it. Holes on the opposite side have already been prepared at the factory.
This appliance can be opened from either the right side or the left. By default, the door
hinges are on the right side. If you prefer them on the left, please follow these
instructions and refer to the illustration on the following page.
6
NOTE: All parts removed must be saved to do the reinstallation of the doors.

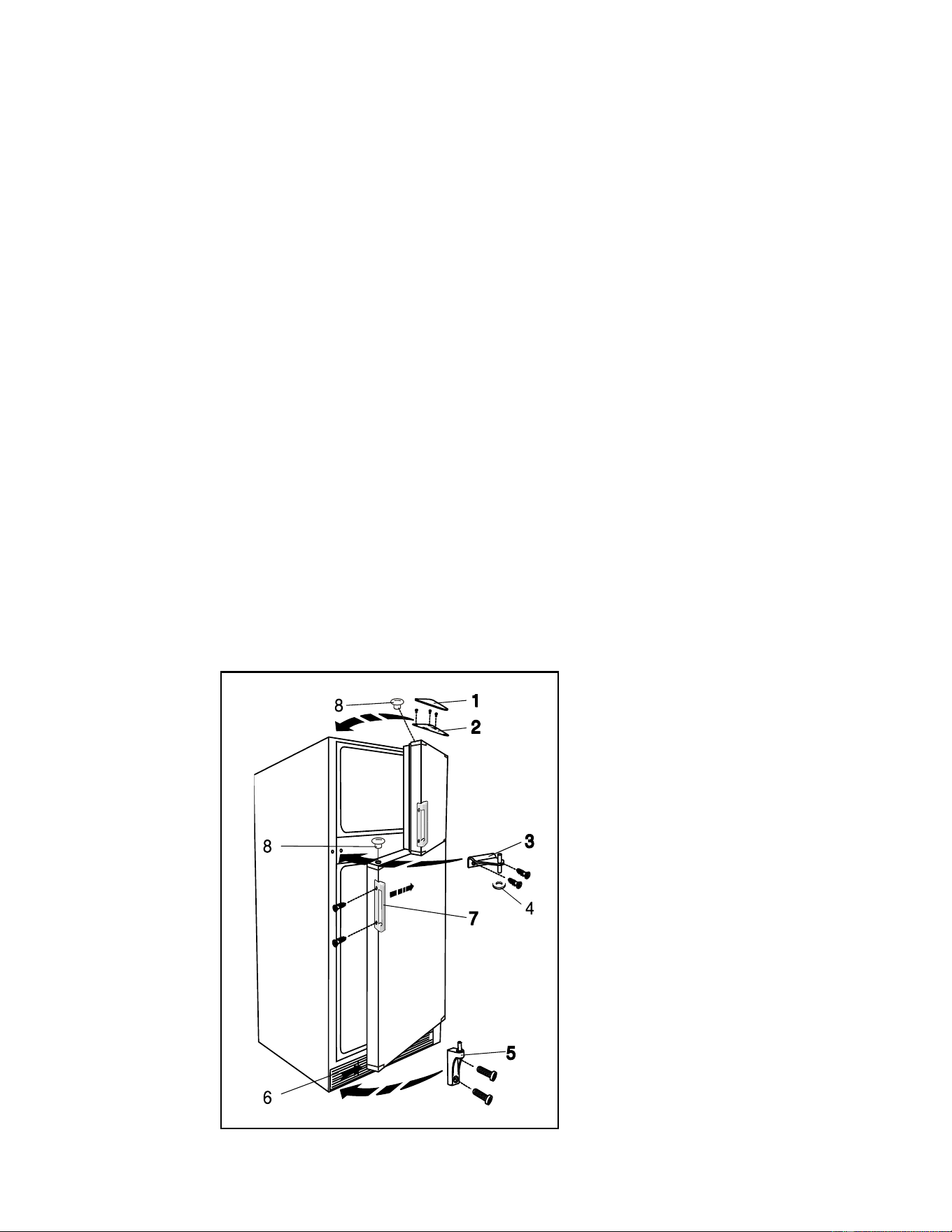

1. Remove the hinge cover on the right top of the cabinet.
2. Remove the three bolts and washers (using a ratchet tool with an 8mm socket) that
holds the top hinge to the cabinet. Keep these for later use.
3. Lift the top hinge straight up to free the pin from the socket on the top of the door.
4. Lift the freezer door and place it on a padded surface to prevent scratching it.
5. Remove the plug buttons from the upper left holes as illustrated and transfer them to
the uncovered holes at the right side. Be sure to press the plug buttons firmly into
the holes.
6. Unscrew the middle hinge and washer. Keep these for later use.
7. Take off the refrigerator door and place it on a padded surface to prevent scratching.
8. Unscrew the lower hinge. Push the kick plate to the right in the new position.
9. Lay the appliance on its back on the floor. Remove, change and replace the bottom
hinge and plugs to the opposite side.
10. Stand the unit upright and replace the refrigerator door.
11. Insert the bottom of the middle hinge into the top of the refrigerator door. With the
door open, screw the middle hinge into the uncovered holes. Do not tighten screw
until you have checked that the door is level.
12. Place the bottom of the freezer door into the top of the middle hinge.
13. Replace the top hinge in the uncovered holes on the top left side of the freezer. Do
not tighten it until you have checked that the door is level.
14. Replace the hinge cover.
15. Should the gasket seals not adhere to the casing of the appliance perfectly, they will
have to be heated from a suitable distance (by means of a hair drier, for example)
and lightly stretched to the required height.
1. Upper hinge cover
2. Upper hinge
3. Middle hinge
4. Middle hinge washer
5. Lower hinge
6. Kick plate
7. Handle
8. Door hinge plug
7
Door Handle Installation:
Each door has two screw holes on each side, allowing you to install a handle (included).
To do so, align the handle with the screw holes on the side you prefer. Fix the handle in
place with the included screws, then cover the screw heads with the handle seals
(included).
Operating Your Refrigerator/Freezer
Temperature Control:
The temperature in the refrigerator compartment is controlled
with a thermostat knob located inside the refrigerator, towards
the upper right-hand corner. Turn the knob clockwise from the
STOP (0) position toward the higher numbers for colder
temperatures. Higher settings on the knob (higher numbers)
mean lower temperatures (colder) in the refrigerator.
On the coldest settings, temperatures in some spots of the
refrigerator compartment may drop below 32°F. Use higher
thermostat settings only when required or recommended.
When the ambient temperature is normal, we recommend a medium setting.
Changes in the ambient temperature affect temperature in the refrigerator
compartment so choose an appropriate setting of the thermostat knob, depending on
ambient conditions.
The temperature in the freezer compartment is also controlled by the refrigerator
thermostat.
When the temperature dial is in the STOP (0) position, the appliance does not
operate (the cooling system is switched off), yet the power supply is not interrupted
(the light goes on when you open the refrigerator door).
The internal temperatures also depend on how often you open the doors.
In all small refrigerators and freezers without interior fans, temperatures are coldest
near the bottom, and occasionally near the rear. Place contents accordingly. It is best
not to operate these units mostly empty. If temperatures are erratic, try putting some
water bottles or freezer packs inside to create a load for the compressor.
NOTES:
1. For best storage, do not over-pack. Be sure the doors close fully.
2. Shelves are adjustable
3. The interior refrigerator light on this unit is controlled by a plunger type switch, so that
the light comes on automatically when the refrigerator door is opened.
4. If the unit is unplugged, has lost power or is turned off, you must wait 3 to 5 minutes
before restarting. If you attempt to restart the unit before this time delay, it will not
start.
Defrosting Your Appliance:
This appliance combines a manual defrost freezer section and an automatic defrost
refrigerator section. The refrigerator compartment defrosts itself. In the freezer
compartment, when frost builds to ½ inch, defrost carefully according to this procedure:
1. Remove contents from the entire unit, taking care that frozen items do not begin to
thaw. Set the thermostat to STOP (0).
Thermostat knob
(design may vary)
8
2. Unplug the appliance. Defrosting is accelerated if the freezer door is left open.
3. Use a sponge or toweling to remove water and melting ice from the freezer floor. After
the frost or ice has melted, dry the interior of the freezer compartment thoroughly.
4. Restart the appliance by plugging it in and turning the thermostat to the desired
position. Once it is cold, return contents to the freezer and refrigerator sections.
CAUTION: Do not use boiling water or an electric device such as a hair dryer to help
speed up the defrosting process because this could damage the plastic parts of
the unit. In addition, never use a sharp or metallic instrument to remove frost as it
may damage the cooling coils and will void the warranty. We recommend using a
plastic scraper.
Care and Maintenance
Cleaning Your Appliance:
1. Unplug the appliance, turn the thermostat to STOP (0) and remove all contents,
including shelves.
2. Wash the inside surfaces with a solution of lukewarm water and vinegar. Wipe dry
with a clean, soft cloth.
3. Wash the shelves with a mild detergent solution, then rinse and dry thoroughly.
4. Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth.
5. Wring excess water out of the sponge or cloth before cleaning the area of the
temperature control or any electrical parts.
6. From time to time, wipe the condenser on the rear wall with a soft
non-metallic brush or vacuum cleaner.
7. After you have cleaned the appliance, reconnect it to the power
supply, reset the thermostat and return all contents to their place.
CAUTION: Failure to unplug the unit could result in electrical shock or
personal injury.
Power Failure:
Most power failures are corrected within a few hours and should not affect the
temperature of your appliance if you minimize the number of times the door is opened. If
the power is going to be off for a longer period of time, take the proper steps to protect
your frozen and chilled items.
Vacation Time:
During long absences, remove all contents. Unplug the appliance, clean it and leave the
doors open slightly to avoid possible formation of condensation, mold or odors.
Moving Your Appliance:
1. Remove the contents.
2. Securely tape down all loose items inside your unit.
3. Turn the leveling legs up to the base to avoid damage.
4. Tape the doors shut.
5. Be sure the appliance stays secure in the upright position during transportation.
9
Energy-Saving Tips:
The unit should be located in the coolest area of the room, away from heat-producing
appliances or heating ducts and out of direct sunlight.
Try not to open the doors too often, especially when the weather is damp and hot.
Once you open a door, close it as soon as possible.
Occasionally check if the appliance is sufficiently ventilated (adequate air circulation
behind the appliance).
Set the thermostat from higher to lower settings as soon as possible (depends on
how loaded the appliance is, ambient temperature, etc.).
Before loading items into the unit, be sure they have cooled to ambient temperature.
A layer of frost and ice increases energy consumption, so defrost the freezer as soon
as the layer is 1/2" thick.
10
Troubleshooting
When using this appliance, you may come across some problems that in many cases
result from improper handling and can easily be eliminated.
TROUBLESHOOTING GUIDE
The appliance fails to operate after being connected to the power source.
Check whether the power supply is active and that the thermostat is not set to the
STOP (0) position.
The compressor is running continuously.
The doors were opened frequently or were left open too long.
The doors are not properly closed (the doors may sag, the gaskets may be dirty or
damaged).
The power supply has been interrupted for a long period of time.
The appliance may have been overloaded with items above room temperature.
There may be inadequate ventilation of the compressor and condenser. (Assure
there is adequate air circulation behind the appliance and wipe the dust from the
condenser.)
Noise
Cooling in refrigeration appliances is enabled by the refrigerating system with
compressor, which produces noise. How noisy the appliance is depends on where it
is placed, how it is used and how old the appliance is.
During the operation of the compressor, the noise of liquid is heard and when
the compressor is not operating, the refrigerant flow is heard. This is a normal
condition and has no influence whatsoever on the lifetime of the appliance.
After starting the appliance, the operation of the compressor and the refrigerant
flow may be louder. This does not mean that something is wrong. Gradually
the noise is reduced.
Sometimes a louder noise is heard, which is unusual for the appliance. This
noise is often a consequence of improper placement of the unit. (The unit
should be placed and leveled firmly on a solid base and it should not touch the
wall or cabinets standing next to it.)
11
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
Limited Warranty
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is
operated and maintained according to instructions attached to or furnished with the product, warrantor will
pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must
be provided by a designated service company. Outside the 48 states, all parts are warranted for one year
from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to
commercially acceptable standards, and are not covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as
filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper
installation, installation not in accordance with electrical or plumbing codes, or use of products not
approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES – LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR.
WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
Phone: (718) 893-3900
Fax: (844) 478-8799
www.medicalrefrigerators.com
Printed in Serbia
WARNING! This product may contain chemicals known to the state of California to
cause cancer or birth defects or other reproductive harm. For more information, visit:
www.summitappliance.com/prop65
Chemicals known by the manufacturer to be present in this product in concentrations
higher than threshold limits: NONE.
