Technical Support and E-Warranty Certificate www.vevor.com/support

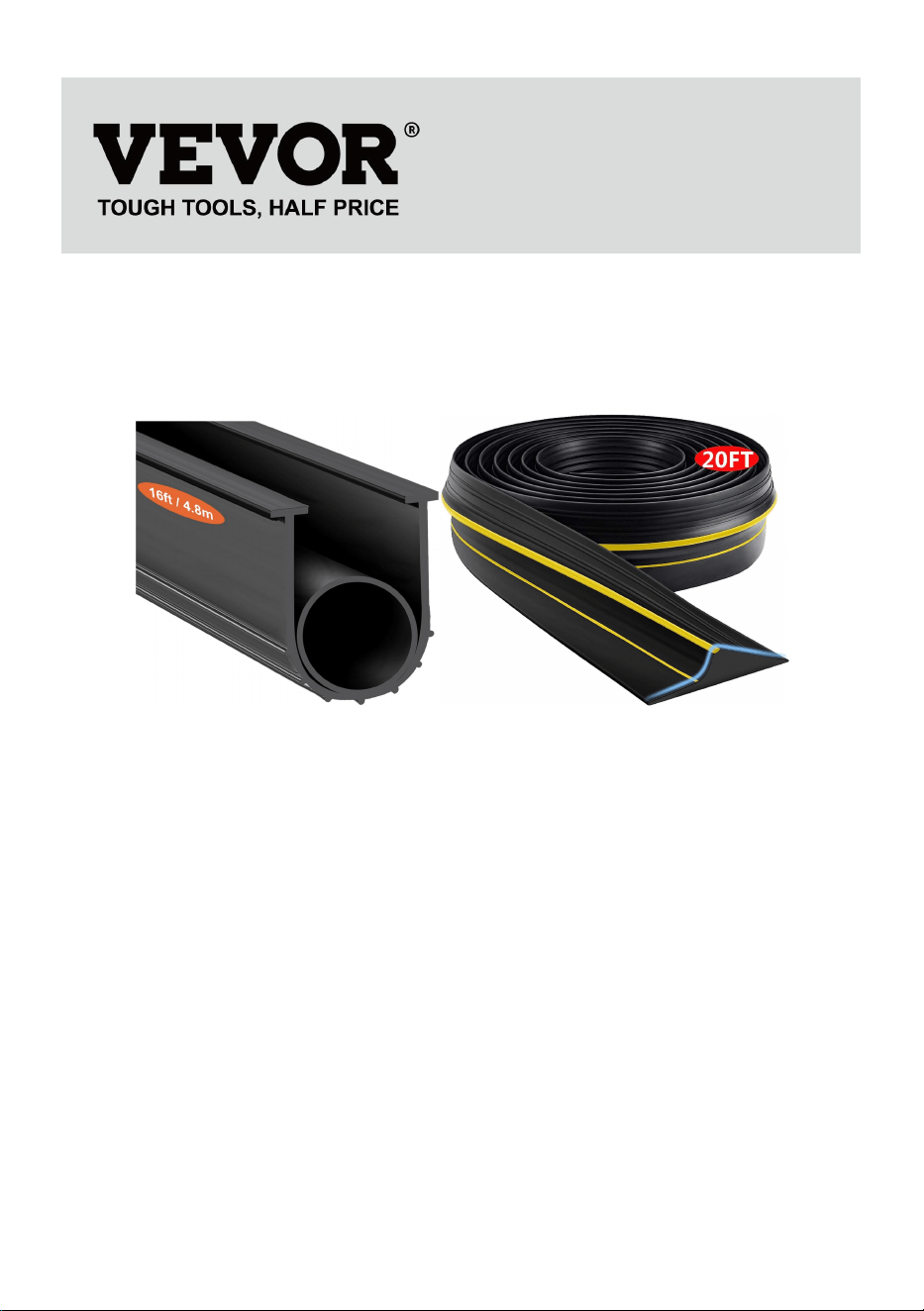

DOOR SEALS KIT USER MANUAL
MODEL:DTMH1925-MXBTMH1591-10FT/DTMH1925-MXBTMH15
91-16FT/DTMH1925-MXBTMH1591-20FT
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major top
brands and does not necessarily mean to cover all categories of tools offered by us. You are
kindly reminded to verify carefully when you are placing an order with us if you are actually saving
half in comparison with the top major brands.
- 1 -
MODEL: DTMH1925-MXBTMH1591-10FT/DTMH1925-MXBTMH15
91-16FT/DTMH1925-MXBTMH1591-20FT
Note: The actual product you receive determines its look.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before
operating. VEVOR reserves a clear interpretation of our user manual. The
appearance of the product shall be subject to the product you received. Please
forgive us that we won't inform you again if there are any technology or software
updates on our product.
DOOR SEALS KIT
- 2 -
WARNING!
Read this material before using this product. Failure to do so can result in
serious injury.
1. This product is not a toy. Do not allow children to play with this item.
2. Use as intended only.
2. Product Introduce
The main material of the door sealing strip is rubber, which mainly solves
the problems of the door is not sealed, dust, insects, outdoor noise,
temperature insulation, heat preservation and other problems;
It is mainly installed in three parts: the gap under the door, the gap between
the door frame and the wall, and the gap between the door frame and the
door. There will be different products for different opening ways of the door.
3.Accessories
4.
Installation Introduction
1. Lay seal on floor in position under door, mark seal position on floor, and
cut the seal to length.
2. The floor should be cleaned with a scrubbing brush and detergent and
left to dry (any contamination on floor will compromise, performance of
- 3 -
adhesive, i.e oil, grease or wax).

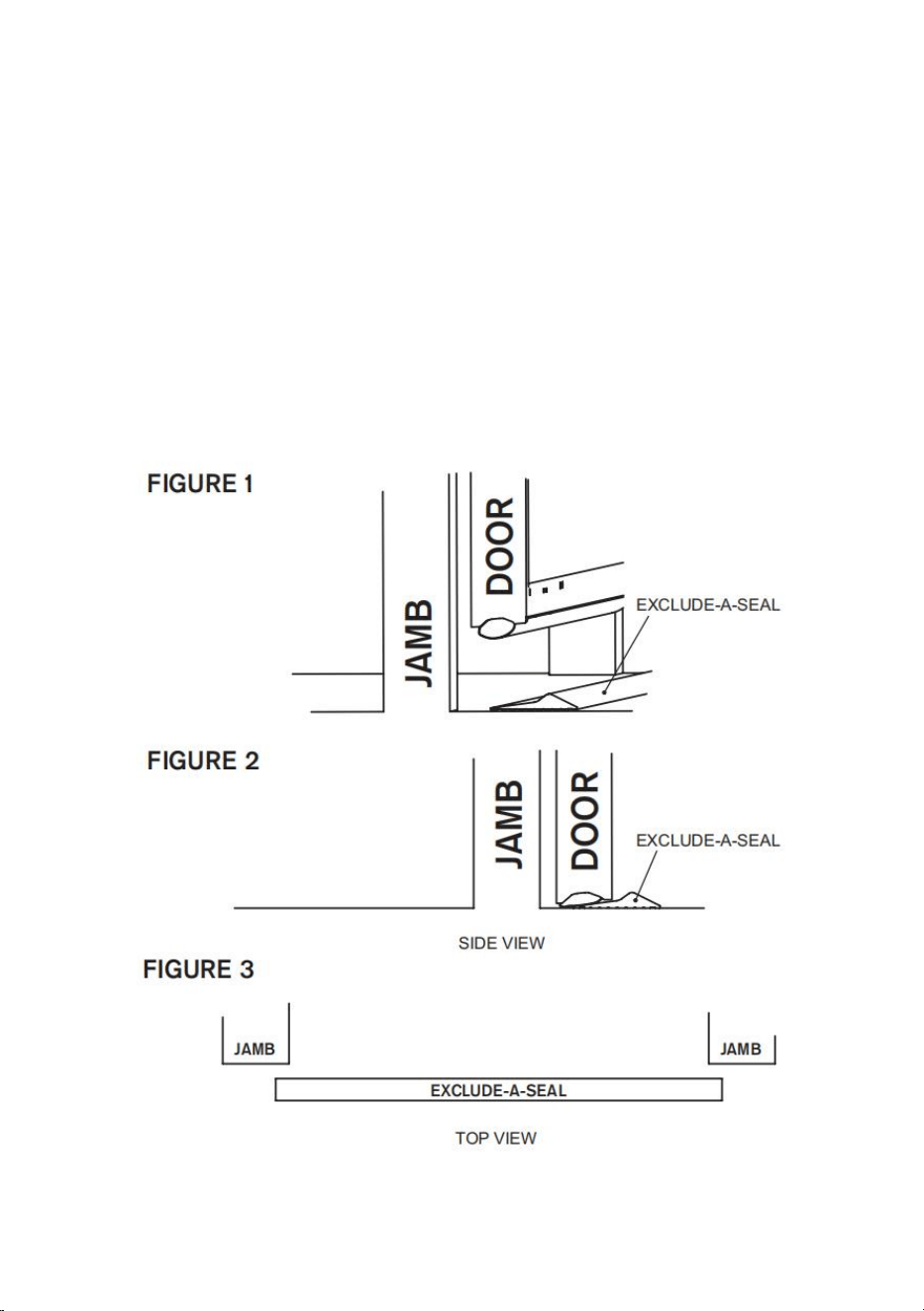

3. Close door with seal underneath it Fig.1, and position seal as shown on
Fig.2. and Fig.3 and mark the floor for location of seal.
4.Apply glue to the sealing position of the bottom plate in Figure 3, and
then install the seals.
5. Insert the "T-shaped heads" at both ends of the sealing strip into the two
guide grooves of the aluminum base plate, slowly inserting from one end of
the aluminum base plate to the other end. If the doors and windows are not
equipped with aluminum bottom guide rails, it is necessary to fix the
aluminum bottom guide rails with screws before installing the sealing strip.
- 4 -
Sketch map:
5.Parameter
Items
Description
1
Name
Door seals set
2
Model
DTMH1925-MXBTMH1591-10ft
3
Parameter
Length：10ft
4
Binding Agent
Quantity:1
Items
Description
1
Name
Door seals set
2
Model
DTMH1925-MXBTMH1591-16ft
3
Parameter
Length：16ft
4
Binding Agent
Quantity:2
Items
Description
1
Name
Door seals set
2
Model
DTMH1925-MXBTMH1591-20ft
3
Parameter
Length
：
20ft
4
Binding Agent
Quantity:2
- 5 -
