NOTE: paper and cardboard templates where
supplied are only to be used as a guide.
Using the actual sink ensures a more
accurate cutout.

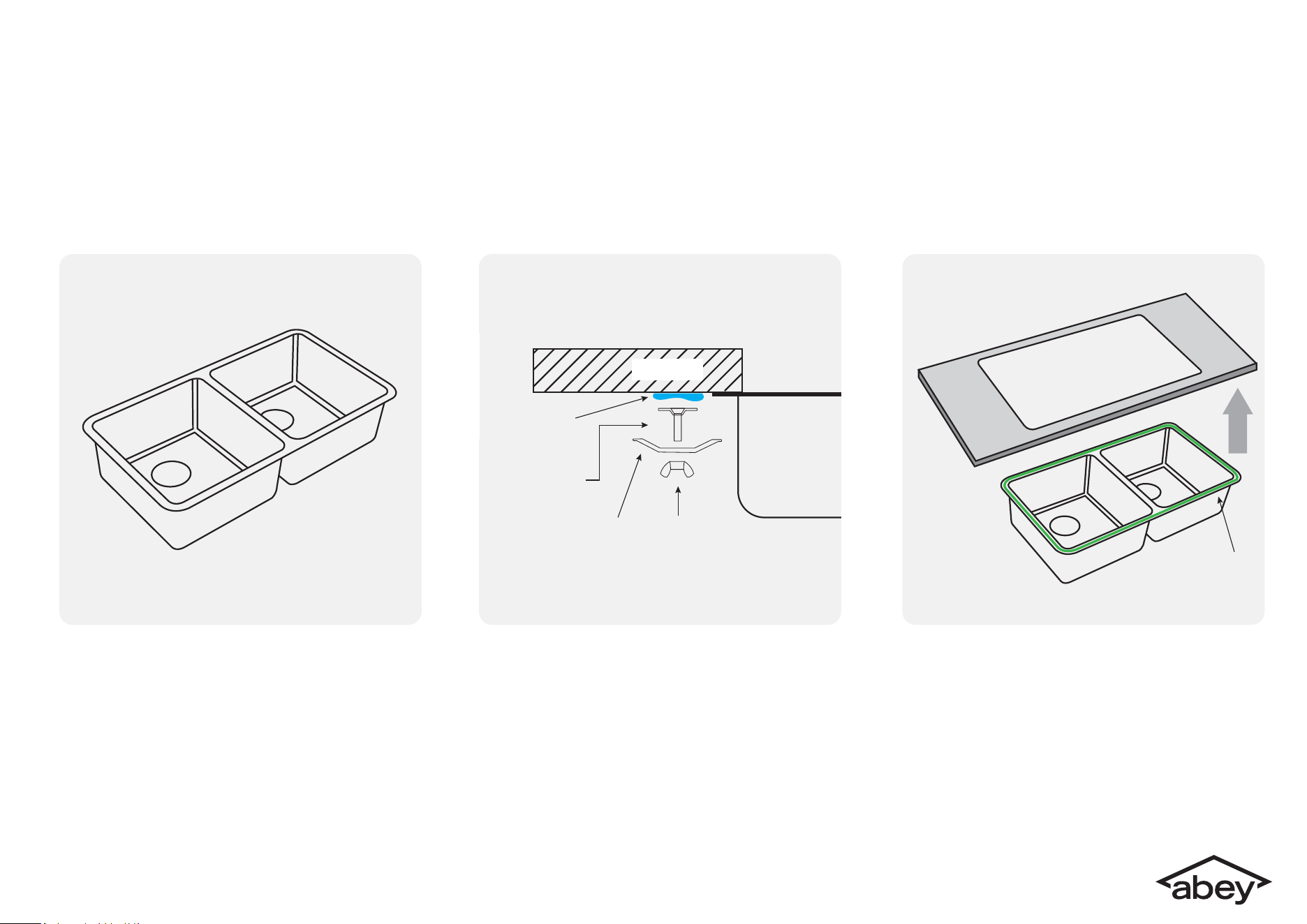

Clean the boom of the countertop and the
top flange (or lip) of the sink with methylated
spirits. Then apply a bead of silicone to the
top edge of the bowl.
Posion sink in place then install the bridge
plates and ghten the nylon nuts. Note each
clip is designed to support >30kg, when used
with stone or stonelike benchtop.
Plates & bolts should be posioned 10mm
from the sink edge.
Use a stone adhesive, to aach bolts to the
underside of the benchtop.
Allow sufficient me for adhesive to cure.
Templates are supplied only as a guide. The physical use of the sink will ensure a more accurate cutout. Abey recommends that undermount sinks and routering of your solid
surface material should be installed by a professional installer for best results. Warranty is voided if epoxy or adhesive is used to secure the sink to the bench.
STAINLESS STEEL UNDERMOUNT SINK
INSTALLATION INSTRUCTIONS
1
SILICONE
SEALANT
32
Stone
Adhesive
Plate
& Bolt
Plate
& Bolt
Nylon
Nut
BENCH
