1
Owner’s Manual
Este manual está disponible en español en la página de
Eaton: Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de
Eaton : Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-
Website verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di
Eaton: Tripplite.Eaton.com/support

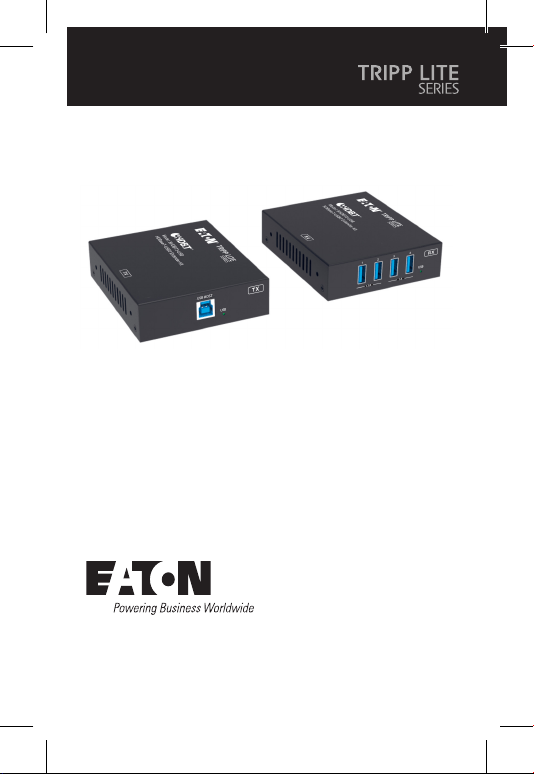

Purchased product
may differ from image.
Model:
BHDBT3-USB
HDBaseT-USB3 Extender Kit
2
Introduction
The BHDBT3-USB USB 3.2 Extender extends a USB signal up
to 328 ft. (100 m) with a single Cat6a cable. The transmitter
includes one USB 3.2 Type-B input, one FSYSNC GPIO input
and one RS-232 pass-through. The receiver includes four USB
3.2 Type-A outputs, one FSYSNC GPIO output and one RS-232
pass-through. Bi-directional 24V PoC is also supported.
Important Safety Instructions
SAVE THESE INSTRUCTIONS
This manual contains instructions and warnings that
should be followed during the installation, operation and
storage of this product. Failure to heed these warnings
may affect your warranty.
• This product contains sensitive electrical components
that may be damaged by electrical spikes, surges,
electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended.
• Caution: The product requires the use of UTP
connectors. Please connect in direct interconnection
method and do not cross connect.
3

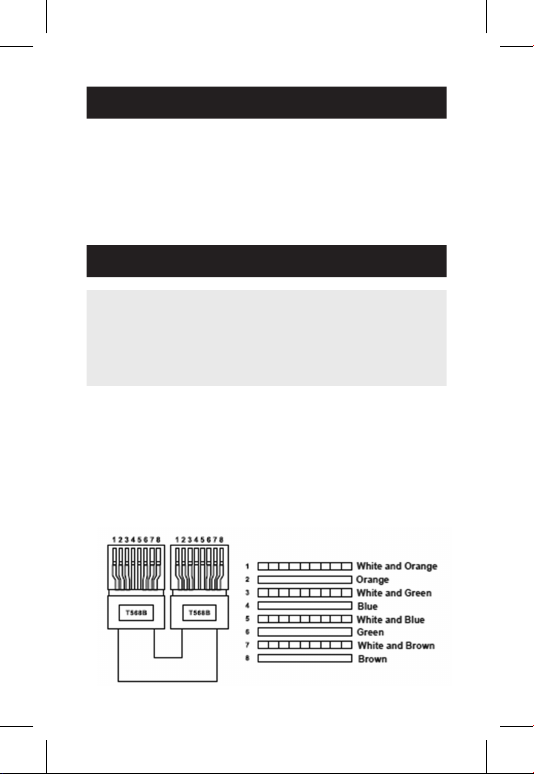

Direct Interconnection Method
Package Contents
• USB 3.2 Extender (Transmitter)
• USB 3.2 Extender (Receiver)
• 24V/2A Locking Power Plug (AS/NZS 3112 Australia; BS
1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America)
• (x2) 3-Pin, 3.5mm Phoenix Connector (Male)
• (x4) Mounting Ear
• (x8) M3x4 Machine Screw
• User Documentation
Product Features
• Extends USB 3.2 connections up to 328 ft. (100 m) over
Cat6a cable.
• USB 3.2 connectivity with data transfer rates up to 5 Gbps.
• Backward compatible with USB 2.0 and 1.1.
• Hardware acceleration for isochronous and bulk transfers.
• USB-A ports 1 and 2 support 5V/1.5A and ports 3 and 4
support 5V/1A on the receiver.
• Supports RS-232 pass-through and FSYNC GPIO pass-
through (for industry camera use).
• Supports bi-directional 24V PoC.
• Plug and play, no driver and setting installation required.
4
Product Overview
Transmitter
1 2 3 45 6 78 9
1
USB HOST: Host port, supports USB 3.2. Connects to a
PC or host.
2
USB LED: USB signal indicator.
▪On: USB signal is detected.
▪Off: USB signal is not detected.
3
HDBT OUT: Connects to the HDBT IN port on receiver
with Cat6a cable.
4
LINK LED: Connection signal indicator.
▪ On: Transmitter and receiver are connected and
linked.
▪ Flashing: Transmitter and receiver link is off due to
USB low-power mode.
▪Off: Transmitter and receiver are not connected.
5
RS-232: 3-pin Phoenix connector, connects to a PC or
control system for RS-232 command pass-through.
6
FSYNC: FSYNC port, used for level pass-through to the
receiver and synchronizes the external devices. The
default level is 3.3V.
7
SERVICE: Firmware update port.
8
POWER LED: The LED will be on when the transmitter is
powered on.
9
DC 24V: DC 24V/2A power input port.
5
Receiver
1 2 3 4 567 89 J
1
USB 1/2: Connects to USB devices. Max output power is
up to 5V/1.5A.
2
USB 3/4: Connects to USB devices. Max output power is
up to 5V/1A.
3
USB LED: USB signal indicator.
▪On: USB signal is detected.
▪Off: USB signal is not detected.
4
HDBT IN: Connects to the HDBT OUT port on
transmitter with Cat6a cable.
5
LINK LED: Connection signal indicator.
▪On: Transmitter and receiver are connected and linked.
▪Flashing: Transmitter and receiver link is off due to
USB low-power mode.
▪Off: Transmitter and receiver are not connected.
6
RS-232: 3-pin Phoenix connector, connects to a PC or
control system for RS-232 command pass-through.
7
FSYNC: FSYNC port, used for receiving level pass-
through from the transmitter and synchronizes the
external devices. Default level is 3.3V.
8
SERVICE: Firmware update port.
9
POWER LED: The LED will be on when the receiver is
powered on.
J
DC 24V: DC 24V/2A power input port.
Product Overview
6

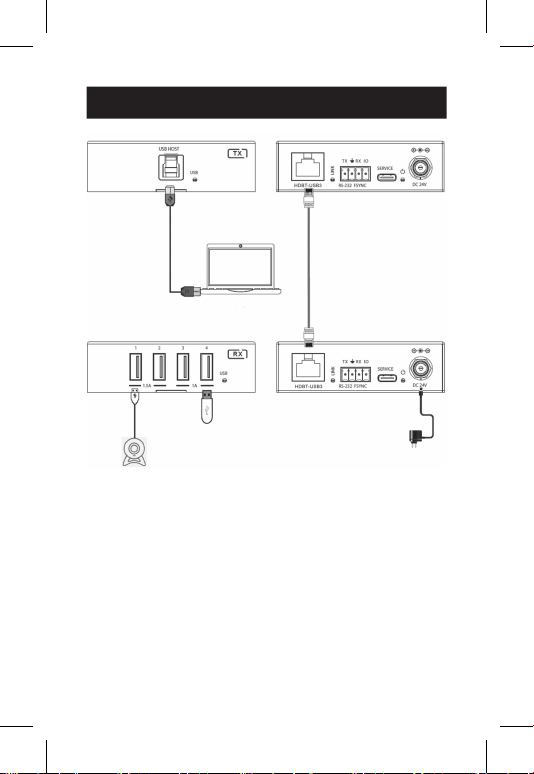

Installation
Transmitter
PC
Cat6a Cable
Receiver
USB Drive
Power
Supply
USB Camera
7
Specifications
Technical
USB Protocol USB 3.2
Transmission Rate Up to 5 Gbps
Network Bandwidth 10G
Transmission
Distance
328 ft. (100 m) over Cat6a
(F/FTP) cable
ESD Protection IEC 61000-4-2:
±8kV (Air-gap discharge), ±4kV
(Contact discharge)
Connections
Transmitter Input: 1 × USB HOST [USB-B, 9-pin
Female]
Output: 1 × HDBT OUT [RJ45, Female]
Control: 1 × RS-232 [3-pin,
3.5 mm Phoenix Connector]
1 × FSYNC [1-pin, 3.5 mm Phoenix
Connector]
1 × SERVICE [USB-C, Update Port]
Receiver Input: 1 × HDBT IN [RJ45, Female]
Output: 4 × USB Devices [USB-A,
9-pin Female]
Control: 1 × RS-232 [3-pin, 3.5 mm
Phoenix Connector]
1 × FSYNC [1-pin, 3.5 mm Phoenix
Connector]
1 × SERVICE [USB-C, Update Port]
8
Mechanical
Housing Metal Enclosure
Color Black
Dimensions
H x W x D
Transmitter / Receiver:
1 x 3.3 x 4 in. (25.5 x 85 x 100 mm)
Weight Transmitter: 0.56 lb. (253 g),
Receiver: 0.57 lb. (260 g)
Power Supply Input: AC 100~240V 50/60 Hz
Output: DC 24V 2A
Power
Consumption
PoC Power Supply: 40W (Max)
Operating
Temperature
32°F ~ 104°F (0°C ~ 40°C)
Storage
Temperature
-4°F ~ 140°F (-20°C ~ 60°C)
Relative Humidity 20~90% RH (Non-condensing)
Specifications
9
Warranty
1-Year Limited Warranty
We warrant our products to be free from defects in
materials and workmanship for a period of one (1) year
from the date of initial purchase. Our obligation under this
warranty is limited to repairing or replacing (at its sole
option) any such defective products. Visit Tripplite.Eaton.
com/support/product-returns before sending any
equipment back for repair. This warranty does not apply to
equipment which has been damaged by accident,
negligence or misapplication or has been altered or
modified in any way.
EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. Some states do not permit limitation or exclusion
of implied warranties; therefore, the aforesaid limitation(s) or
exclusion(s) may not apply to the purchaser.
FCC Notice, Class A
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
10
Note: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to
correct the interference at his own expense. The user must
use shielded cables and connectors with this equipment.
Any changes or modifications to this equipment not
expressly approved by Eaton could void the user's authority
to operate this equipment.
WEEE Compliance Information for Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE)
Directive and implementing regulations, when customers
buy new electrical and electronic equipment from Eaton
they are entitled to:
• Send old equipment for recycling on a one-for-
one, like-for-like basis (this varies depending on
the country)
• Send the new equipment back for recycling
when this ultimately becomes waste
Eaton has a policy of continuous improvement.
Specifications are subject to change without notice. Photos
and illustrations may differ slightly from actual products.
