Everything you need
for your 87L Bar Fridge
is in this User Manual
Version
V1.2 1024
Model/s
EBF87DI
User Manual
02
esatto.house
03
Contents
Page 04
Welcome
Page 05
Safety Warnings
Page 09
Product Overview
Page 10
Getting Started
Page 10
Installation
Page 13
Using Your Bar Fridge
Page 13
Usage Tips
Page 14
Energy Saving Tips
Page 14
Maintenance
& Cleaning
Page 16
FAQs &
Troubleshooting
Page 17
Specications
Page 18
Warranty Information
Page 21
Purchase Details
Page 21
Your Receipt
User Manual
04
Welcome
Congratulations on purchasing your new Bar Fridge. The Esatto brand is proudly
distributed within Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual for information regarding your
product’s parts and labour warranty, or visit us online at: www.residentiagroup.com.au
At Residentia Group, we are customer obsessed and our Support Team are there to
ensure you get the most out of your appliance. Should you want to learn more about your
unit such as the various temperature guides or importantly taking care of the appliance,
our Support Team are here to help.
You can use our online Support Centre at any time by visiting:
→ www.support.residentiagroup.com.au
Or you can contact us via phone by dialing: 1300 11 HELP (4357).
It is important that you read through the following use and care manual thoroughly to
familiarise yourself with the installation and operation requirements of your appliance
to ensure optimum performance.
Again, thank you for choosing an Esatto appliance and we look forward to being
of service to you.
Kind Regards,
The Residentia Team
Residentia Group
—
Head Office
165 Barkly Avenue
Burnley Victoria
Australia 3121
—
ACN
600 546 656
—
Online
residentia.group
www.esatto.house
@esatto.house
—
Postage
PO Box 5177
Burnley
VIC 3121 Australia
—
Telephone
1300 11 4357
—
Email
suppor[email protected]
esatto.house
05
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before rst use, even if you are familiar with this type of product. The safety
precautions enclosed herein reduce the risk of re, electric shock and injury when correctly adhered to.
Make sure you understand all instructions and warnings.
Keep the manual in a safe place for future reference, along with the completed warranty card and purchase
receipt. If you sell or transfer ownership of this product, pass on these instructions to the new owner.
Always follow basic safety precautions and accident prevention measures when using an electrical
appliance, including the following:
IMPORTANT: Pay particular attention to messages that contain the words DANGER, WARNING or
CAUTION. These words are used to alert you to a potential hazard that can seriously injure you and others.
The instructions will tell you how to reduce the chance of injury and let you know what can happen if the
instructions are not followed.
CAUTION
RISK OF FIRE
This symbol alerts you to take care as this appliance contains a ammable
refrigerant (isobutane) and insulation blowing gas (cyclopentane). Do not expose
it to high heat, sparks and open ames.
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of
the appliance, a gas with a high level of environmental compatibility, which is
nevertheless ammable. During transportation and installation of the appliance,
ensure that none of the components of the refrigerant circuit become damaged.
WARNING Do not damage the refrigerant circuit! Never use an appliance with a damaged
refrigerant circuit! If the refrigerant circuit becomes damaged, avoid proximity to open res and all types of
heat and ignition sources. Thoroughly ventilate the room in which the appliance is located.
DANGER: It is hazardous for anyone other than an authorised service person to service this appliance.
In Queensland, the authorised service person MUST hold a Gas Work Authorisation for hydrocarbon
refrigerants to carry out servicing or repairs which involve the removal of covers.
Usage Conditions and Restrictions
• Domestic use only: This appliance is intended for indoor household use only. It is not intended for
commercial, industrial or outdoor use. It is not intended for use in a recreational vehicle.
• Purpose: Do not use this appliance for anything other than its intended purpose. Other uses are not
recommended and may cause re, electric shock or personal injury.
• Attachments: The use of attachments is not recommended by the appliance manufacturer and distributor
as they may be hazardous.
• Improper use: Damage due to improper use, or repairs made by unqualied personnel will void
your warranty. We assume no liability for any eventual damages caused by misuse of the product or
noncompliance with these instructions. Do not arbitrarily disassemble or reconstruct the refrigerator, nor
damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist. Damaged
power cord must be replaced by the manufacturer, its maintenance department or related professionals in
order to avoid danger.
• Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close
or open the door, and accidental injuries might be caused.
Safety Warnings
User Manual
06
• Please pull out the plug in case of power failure or cleaning. Do not connect the refrigerator to power
supply within ve minutes to prevent from damages to the compressor due to successive starts.
• WARNING Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Usage restriction: This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instructions concerning use of the appliance by a person responsible for their safety.
• Children: Supervise young children to ensure they do not play with the appliance. Never allow children to
operate, play with or crawl inside the appliance.
• WARNING Do not use electrical appliances inside the appliance, unless they are of the type
recommended by the manufacturer.
• Explosive or ammable substances: Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance. Do not store or use petrol or any other ammable vapours and
liquids in the vicinity of this or any other appliance. Do not use such substances for cleaning the appliance.
The fumes can create a re hazard or an explosion.
• Damage: Do not use the appliance if the power cord, plug or the appliance itself is damaged. If the cord is
damaged, contact the after sales support line and have the cord replaced by qualied personnel in order
to avoid a hazard.
• WARNING Do not damage the refrigerant circuit.
• Do not modify: Do not attempt to alter or modify this appliance in any way.
• Repair: Do not attempt to repair or replace any part of this appliance unless it is specically
recommended in this manual. All other servicing should be referred to a qualied technician.
Contact the after sales support line for advice.
• WARNING Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance
Electrical Safety
• Voltage: Before connecting and turning on the appliance, ensure the electrical voltage and circuit
frequency correspond to that indicated on the appliance rating label.
• Earthing: This appliance should be properly earthed for your safety. The power cord of this appliance is
equipped with a three-prong plug for use in standard wall outlets to minimise the possibility of electrical
shock. Do not modify the cord and/or plug provided with the appliance. Improper use of the earthed plug
can result in the risk of electric shock.
• Connection: This appliance requires a standard 220-240 V AC 50Hz electrical outlet. Do not overload the
electrical circuit.
• Power cord: Do not kink or damage the power cord; do not leave it exposed or dangling. Secure it at the
back of the appliance so no one steps on or places anything on the cord or against it. Keep the cord out
of reach of children. When moving the appliance, make sure not to damage the power cord. Do not pull
the power cord when pulling the power plug of the refrigerator. Please rmly grasp the plug and pull out
it from the socket directly. Please use a dedicated power socket and the power socket shall not be shared
with other electrical appliances. The power plug should be rmly contacted with the socket or else res
might be caused.
Safety Warnings (Continued)
esatto.house
07
• WARNING When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Auxiliary Items: Do not use an inverter, adaptor or extension cord with this appliance. If the cord is
too short, have a qualied electrician install an outlet near the appliance. Use of an extension cord and an
inverter can negatively aect the performance of the unit.
• Protect from moisture: To protect against the risk of electric shock, do not immerse the unit, cord or plug
in water or spray it with any other liquid. Do not connect or disconnect the electric plug when your hands
are wet. Turn the power switch o before removing the plug from the socket.
• WARNING Disconnect! To reduce the risk of re, electric shock or personal injury, always unplug the
appliance from the socket when not in use, when moving and before cleaning or servicing. Never unplug the
unit by pulling the power cord. Always grip the plug rmly and pull straight out from the power point.
• Electrical work: Any electrical work required for the installation of this appliance should be carried out by
a qualied electrician.
Never use this appliance with a damaged refrigerant circuit! If the coolant circuit becomes damaged, avoid
proximity to open res and all types of heat sources. The room in which the appliance is located should be
ventilated for a few minutes.
Installation
• Heavy: This appliance is heavy, take care when moving it. To avoid back or other injury, consider a two
person lift or mechanical aid when installing it. Failure to do so can result in back or other injury.
• Damage: When unpacking, check the appliance carefully for damage. If it is damaged, do not install the
appliance. Contact our after sales support centre on 1300 11 43 57 for advice on examination or return of
the damaged appliance.
• Protect from moisture: Install the appliance in an indoor area protected from wind, rain, water spray
or drips.
• Protect from heat: Do not install the appliance next to an oven, grill or other source of high heat, or where
it will be exposed to direct sunlight for prolonged periods of time.
• WARNING Ventilation: To ensure proper ventilation, keep any ventilation openings, in the
appliance enclosure or in the built-in structure, clear of obstructions. Ensure adequate air circulation
around the appliance to prevent overheating.
• Level: Install the appliance level in order to ensure proper operation.
Cleaning and Maintenance
• Disconnect: Unplug the appliance before cleaning or servicing. Failure to do so can result in electric
shock, injury or death. Do not connect or disconnect the plug when your hands are wet.
• Flames: Do not let open ames or ignition sources enter the appliance.
• Flammable/explosive substances: Never clean this appliance with ammable uids. Do not store or use
volatile, ammable or explosive propellants or liquids in or close to this or any other appliance. The fumes
can create a re hazard or explosion.
• Solvents: Do not use solvent based cleaning agents or abrasives on the interior as these may damage or
discolour the surfaces of the appliances.
User Manual
08
WARNING Do not use mechanical devices or other means to accelerate the defrosting process. Never
use a sharp or metal instrument to remove frost or clean the appliance. Use a plastic scraper, if necessary.
Service: Do not attempt to repair, modify or replace any part of the appliance unless specically
recommended in this manual. Refer all other servicing to a qualied technician, or contact the after sales
support line for advice on examination or repair of the appliance.
Responsible disposal
Note: At the end of its working life, do not throw this appliance out with your household rubbish. Electrical
and electronic products contain substances that can have a detrimental eect on the environment and
human health if disposed of inappropriately. Observe any local regulations regarding the disposal of
electrical consumer goods and dispose of it appropriately for recycling and recovery of the refrigerant and
blowing agent. Contact your municipal authorities for advice on recycling facilities in your area.
WARNING This refrigeration appliance contains ammable refrigerants and insulation blowing gases,
which must be removed before disposal. Contact your municipal authorities for any codes or regulations
concerning the disposal of such materials.
Safety Warnings (Continued)
esatto.house
09

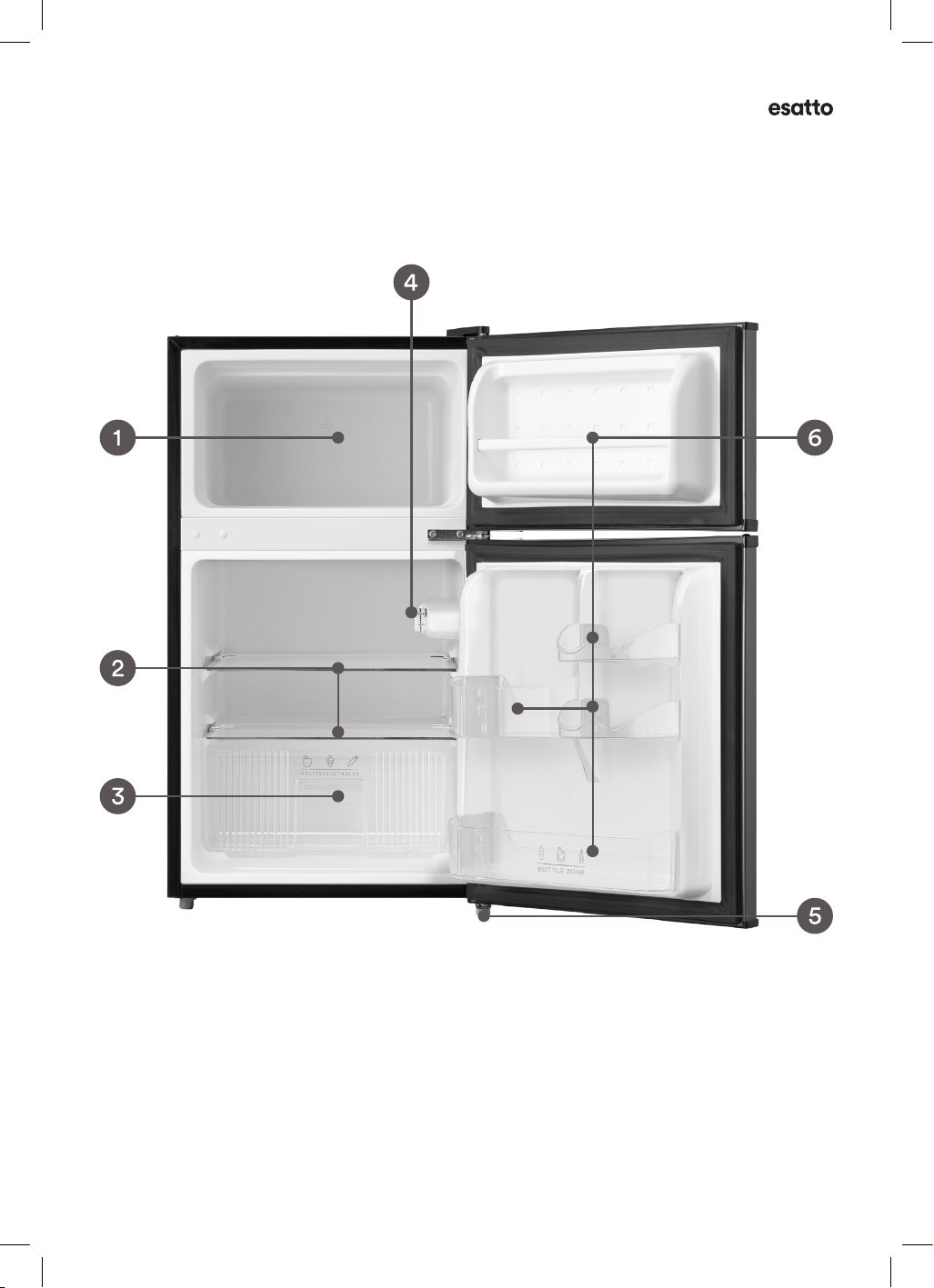

Product Overview
Your Bar Fridge
The images in this user manual are for demonstration purposes only. Your bar fridge may appear dierently.
1. Freezer Compartment
2. Glass Shelves
3. Crisper Drawer
4. Thermostat Controls
5. Adjustable Foot
6. Door Storage Partitions
Key:
User Manual
10
Getting Started
Installation
Unpacking
• Packaging materials: This appliance has been packaged to protect it against transportation damage.
Remove all packaging materials from around and inside the appliance and keep the original packaging
carton and materials in a safe place. It will help prevent any damage if the product needs to be
transported in the future, and you can use it to store the appliance when it is not in use. In the event the
carton is to be disposed of, please recycle all packaging materials where possible.
• Suocation: Plastic wrapping can be a suocation hazard for babies and young children, so ensure all
packaging materials are out of their reach and disposed of safely.
• Power cord: Unwind the power cord to its full length and inspect it for damage. Do not use the appliance
if it or its cord have been damaged or are not working properly. In case of damage, contact our after sales
support line for advice on examination, repair or return of the damaged product.
• Read the manual: Read this manual to familiarise yourself with the appliance. Pay particular attention to
the safety instructions on the previous pages.
• Clean: To remove any dust from transit and storage, clean the interior and exterior surfaces of the
appliance with lukewarm water and a soft cloth. Dry thoroughly. Important: do not use harsh or abrasive
detergents or powders as these will damage the nish.
• Two person installation: Use two or more people to move and install the appliance. Failure to do so can
result in back or other injury.
• Freestanding design: This appliance is designed to be freestanding only, and should not be recessed or
built-in.
• Floor surface: This appliance must be properly positioned on a dry, sturdy, level surface that is strong
enough to support it when it is fully loaded.
• Ambient temperature: The ambient temperatures must correspond to the climate class ( T ) indicated on
the rating plate of the appliance: 16° C – 38° C
• Clearances: Ensure that air can circulate freely around the back of the cabinet, which is necessary to cool
the compressor and condenser. Allow at least 10cm clear space at the back, 10cm at the sides of the unit
and 30cm between the top and any surface above (i.e. a bench top). If you are installing your refrigerator
next to a xed wall, leave sucient space on the hinge side to allow for the door to swing open.
Do NOT install/use the appliance in the following locations/situations:
• In moist areas or areas of high humidity.
• In a recreational vehicle, or for use with an inverter.
• In direct sunlight, near heat sources, next to an open ame, cooking or heating appliance, or near any
other source of high heat.
• Direct sunlight may aect the acrylic coating and heat sources may increase the unit’s power
consumption. For best energy eciency install the appliance in the coolest area of the room.
• In an area with extreme cold ambient temperatures.
• In an area with excessive moisture and high humidity. Make sure it is protected from elements such as
wind, rain, water spray or drips.
• In an area where petrol or other explosive and/or ammable liquids or fumes are used or stored.
The fumes can create a re hazard or explosion.
Levelling the Fridge
a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust both feet so the refrigerator is level.
esatto.house
11
Changing the door swing
Follow the steps below to change the hinge side for the refrigerator door.
1. Remove all food from the inner door liner. Fix the door by tapes;
2. Dismantle top hinge cover, top hinge and hole cap of the other side;
Installation Cont.
Electrical connection
• WARNING It must be possible to disconnect the appliance from the mains power supply; the plug
must therefore be easily accessible after installation.
• Before plugging in your new fridge, let it stand upright for at least 2 hours. This will allow the refrigerant
gases to settle into the compressor and reduce the possibility of a malfunction in the cooling system.
• The appliance must be earthed. The plug of the power supply cord is equipped with a contact for this
purpose. Do not under any circumstances cut or remove the third (earth) prong from the power cord.
If the plug does not t your outlet, consult a licensed electrician for advice to have the outlet changed.
• Plug the unit into a dedicated, properly earthed wall outlet. Ensure that your outlet voltage and circuit
frequency correspond to the voltage stated on the rating label.
• Secure the fridge’s supply cord behind the unit. Do not leave it exposed or dangling to prevent injury and
accidental disconnection from the power supply.
• Adjust the temperature control as described below.
• When rst starting up, and after a period out of use, allow the unit to cool down for at least 2–3 hours
(4 hours if starting up during warm weather in summer) before placing food in the fridge.
The images in this user manual are for demonstration purposes only. Your bar fridge may appear dierently.
Installation (Continued)
8
EN
Install Instruction
Door Right-Left Change
List of tools to be provided by the user
Cross screwdriver
Thin-blade screwdriver
5/16″ socket spanner
Masking tape
Step:
1. Remove all food from the inner door liner.
Fix the door by tapes;
2. Dismantle top hinge cover, top hinge and
hole cap of the other side;
3. Remove freezer chamber door as well as
middle hinge and hole cap of the other
side;
4. Remove refrigerating chamber door and
dismantle bottom hinge and adjustable
foot.
5. Exchange the installation position of
bottom hinge and adjustable foot,then fix
them respectively;
6. Place refrigerating chamber door on
bottom hinge then fix the middle hinge
on left side and insert the hole caps on
right side;
7. Place freezer chamber door on middle
hinge then fix the top hinge,top hinge
cover on left side and insert hole caps on
right side.
The picture above is only for reference. The actual
configuration will depend on the physical product
or statement by the distributor
ATTENTION
Reversible door cannot comply to product with
lock on door.
8
EN
Install Instruction
Door Right-Left Change
List of tools to be provided by the user
Cross screwdriver
Thin-blade screwdriver
5/16″ socket spanner
Masking tape
Step:
1. Remove all food from the inner door liner.
Fix the door by tapes;
2. Dismantle top hinge cover, top hinge and
hole cap of the other side;
3. Remove freezer chamber door as well as
middle hinge and hole cap of the other
side;
4. Remove refrigerating chamber door and
dismantle bottom hinge and adjustable
foot.
5. Exchange the installation position of
bottom hinge and adjustable foot,then fix
them respectively;
6. Place refrigerating chamber door on
bottom hinge then fix the middle hinge
on left side and insert the hole caps on
right side;
7. Place freezer chamber door on middle
hinge then fix the top hinge,top hinge
cover on left side and insert hole caps on
right side.
The picture above is only for reference. The actual
configuration will depend on the physical product
or statement by the distributor
ATTENTION
Reversible door cannot comply to product with
lock on door.
User Manual
12
Installation (Continued)
The images in this user manual are for demonstration purposes only. Your bar fridge may appear dierently.

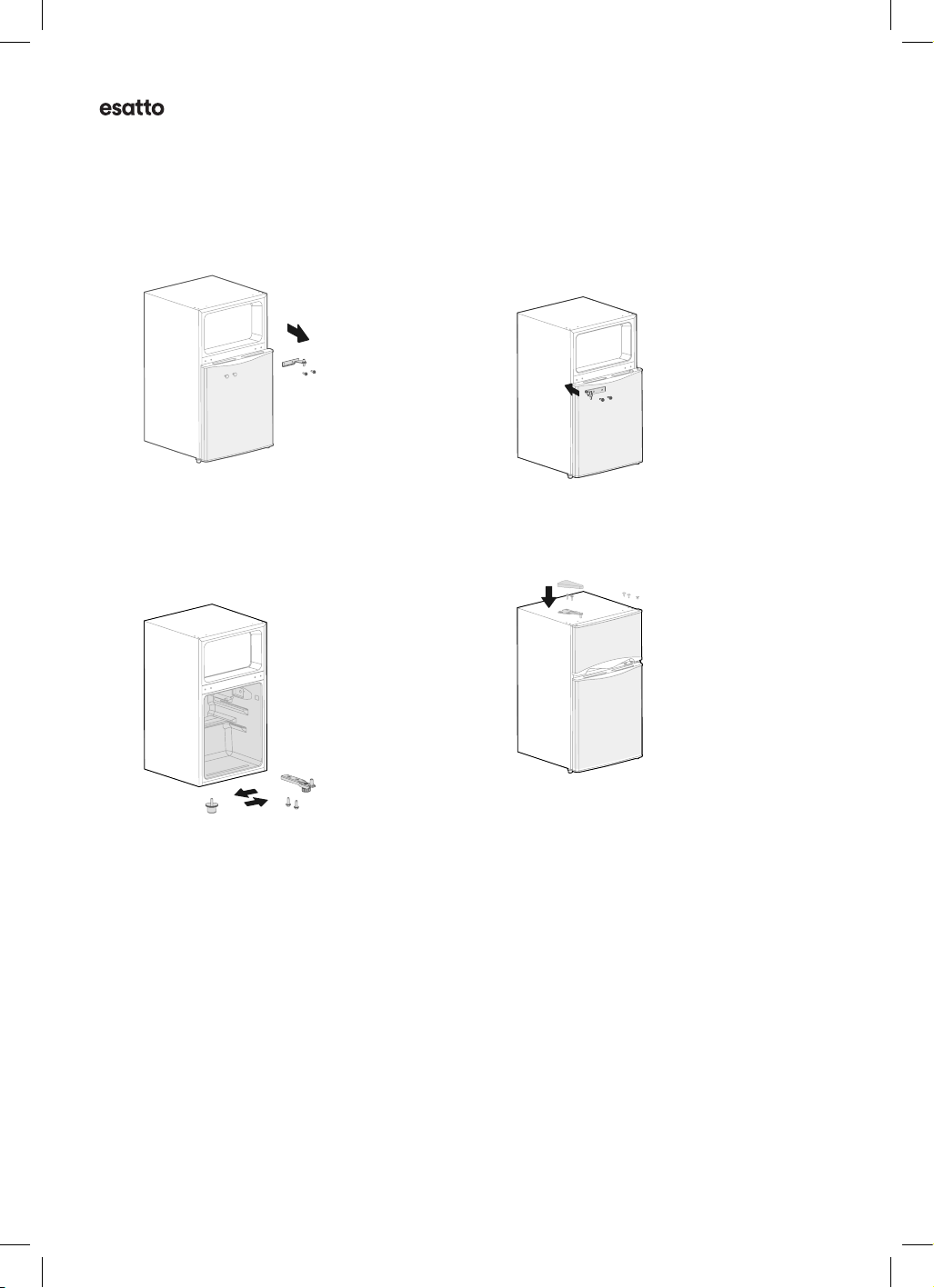

3. Remove freezer chamber door as well as
middle hinge and hole cap of the other side;
4. Remove refrigerating chamber door and
dismantle bottom hinge and adjustable foot.
5. Exchange the installation position of bottom
hinge and adjustable foot,then x them
respectively;
6. Place refrigerating chamber door on bottom
hinge then x the middle hinge on left side and
insert the hole caps on right side;
7. Place freezer chamber door on middle hinge
then x the top hinge,top hinge cover on left
side and insert hole caps on right side.
8
EN
Install Instruction
Door Right-Left Change
List of tools to be provided by the user
Cross screwdriver
Thin-blade screwdriver
5/16″ socket spanner
Masking tape
Step:
1. Remove all food from the inner door liner.
Fix the door by tapes;
2. Dismantle top hinge cover, top hinge and
hole cap of the other side;
3. Remove freezer chamber door as well as
middle hinge and hole cap of the other
side;
4. Remove refrigerating chamber door and
dismantle bottom hinge and adjustable
foot.
5. Exchange the installation position of
bottom hinge and adjustable foot,then fix
them respectively;
6. Place refrigerating chamber door on
bottom hinge then fix the middle hinge
on left side and insert the hole caps on
right side;
7. Place freezer chamber door on middle
hinge then fix the top hinge,top hinge
cover on left side and insert hole caps on
right side.
The picture above is only for reference. The actual
configuration will depend on the physical product
or statement by the distributor
ATTENTION
Reversible door cannot comply to product with
lock on door.
8
EN
Install Instruction
Door Right-Left Change
List of tools to be provided by the user
Cross screwdriver
Thin-blade screwdriver
5/16″ socket spanner
Masking tape
Step:
1. Remove all food from the inner door liner.
Fix the door by tapes;
2. Dismantle top hinge cover, top hinge and
hole cap of the other side;
3. Remove freezer chamber door as well as
middle hinge and hole cap of the other
side;
4. Remove refrigerating chamber door and
dismantle bottom hinge and adjustable
foot.
5. Exchange the installation position of
bottom hinge and adjustable foot,then fix
them respectively;
6. Place refrigerating chamber door on
bottom hinge then fix the middle hinge
on left side and insert the hole caps on
right side;
7. Place freezer chamber door on middle
hinge then fix the top hinge,top hinge
cover on left side and insert hole caps on
right side.
The picture above is only for reference. The actual
configuration will depend on the physical product
or statement by the distributor
ATTENTION
Reversible door cannot comply to product with
lock on door.
8
EN
Install Instruction
Door Right-Left Change
List of tools to be provided by the user
Cross screwdriver
Thin-blade screwdriver
5/16″ socket spanner
Masking tape
Step:
1. Remove all food from the inner door liner.
Fix the door by tapes;
2. Dismantle top hinge cover, top hinge and
hole cap of the other side;
3. Remove freezer chamber door as well as
middle hinge and hole cap of the other
side;
4. Remove refrigerating chamber door and
dismantle bottom hinge and adjustable
foot.
5. Exchange the installation position of
bottom hinge and adjustable foot,then fix
them respectively;
6. Place refrigerating chamber door on
bottom hinge then fix the middle hinge
on left side and insert the hole caps on
right side;
7. Place freezer chamber door on middle
hinge then fix the top hinge,top hinge
cover on left side and insert hole caps on
right side.
The picture above is only for reference. The actual
configuration will depend on the physical product
or statement by the distributor
ATTENTION
Reversible door cannot comply to product with
lock on door.
8
EN
Install Instruction
Door Right-Left Change
List of tools to be provided by the user
Cross screwdriver
Thin-blade screwdriver
5/16″ socket spanner
Masking tape
Step:
1. Remove all food from the inner door liner.
Fix the door by tapes;
2. Dismantle top hinge cover, top hinge and
hole cap of the other side;
3. Remove freezer chamber door as well as
middle hinge and hole cap of the other
side;
4. Remove refrigerating chamber door and
dismantle bottom hinge and adjustable
foot.
5. Exchange the installation position of
bottom hinge and adjustable foot,then fix
them respectively;
6. Place refrigerating chamber door on
bottom hinge then fix the middle hinge
on left side and insert the hole caps on
right side;
7. Place freezer chamber door on middle
hinge then fix the top hinge,top hinge
cover on left side and insert hole caps on
right side.
The picture above is only for reference. The actual
configuration will depend on the physical product
or statement by the distributor
ATTENTION
Reversible door cannot comply to product with
lock on door.
esatto.house
13
Temperature Controls
• Your fridge has one control for regulating the temperature. The temperature control is located on the front
of the freezer above the cavity, visible only when the door is open.
• Depending on your room’s ambient temperature, you may need to adjust the temperature setting to
achieve your desired temperature.
• The temperature options are as follows
→ Turn the temperature control knob to MAX, to lower the internal fridge temperature.
→ Turn the temperature control knob to MIN, to increase the internal fridge temperature.
→ The text on the knob only represents the temperature level, and is not associated with a specic
temperature.
→ When the dial faces “OFF” the unit will not be operating
NOTE: Please adjust the temperature to be in between “MAX” and “ MIN”.
NOTE: The temperature controls are located on the inside of the refrigerator.
Using for the First Time
Before initial start, keep the refrigerator still for 2 hours before connecting it to power supply.
Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in
summer when the ambient temperature is high.
IMPORTANT: Once the unit has started, continuous operation is recommended. Please try and avoid turning
the unit o and on as this may aect the service life.
Using Your Bar Fridge
• Do not store food uncovered in the fridge. Always use good quality, fridge-proof packaging to maintain
food quality. Remove air from packages of solid food and seal bags tightly before freezing.
• Keep portions small to ensure they are frozen (and subsequently defrosted) rapidly.
• Make sure that fresh, unfrozen food packages do not touch food that is already frozen, thus avoiding a
temperature rise in the frozen food.
• When freezing food, do not push food together too much, leave some space for air to circulate around
each item. Do not place packages directly against the back wall.
• When buying frozen food, only buy quantities that you can store straight away; use an insulated container
for your shopping and when you get home, place the food in the chilling compartment immediately.
• When storing pre-packed, commercially frozen food, follow the food manufacturer’s instructions for
storing the food in a home fridge or freezer. Do not exceed any storage times listed on the packaging.
• Once you have opened a packet of frozen food, re-wrap it airtight to prevent surface evaporation which
causes drying or freezer burn.
• Do not place carbonated liquids such as bottles of zzy drink in the chilling compartment as the container
could explode under pressure and damage the chiller.
• Do not refreeze food once it has been defrosted.
• Frozen food which has thawed accidentally should either be used immediately or thrown away.
Alternatively, if the food is uncooked and has not been completely defrosted, it may be cooked and
then refrozen.
• CAUTION! Do not remove items from the chilling compartment if your hands are damp or wet as this
could cause skin abrasions.
Usage Tips
User Manual
14
• The appliance should be placed in the coolest area of the room, away from heat producing appliances or
heating ducts. Please avoid placement in direct sunlight.
• Let hot foods cool to room temperature before placing them in the appliance.
• Never overload the appliance with unfrozen food as this may cause it to freeze slowly and risk food spoilage.
• Be sure to wrap foods properly and wipe containers dry before placing them in the appliance. This cuts
down on frost building up inside in the unit.
• Please do not wrap items in aluminium foil, wax paper or paper towel. This materials interfere with cold
air circulation, making the appliance less ecient.
• Organise and label food to reduce door openings and extended searches. Remove as many items as
needed at one time, ensuring the unit is opened as few times as possible.
Energy Saving Tips
Cleaning
WARNING
Before cleaning the appliance, make sure it is switched o and disconnected from the power supply.
Failure to do so can result in electric shock or injury.
• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling eect and
energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth
dampened with soapy water or diluted detergent.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Please turn o the power before cleaning interior, remove all foods, drinks ,shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and
a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry
naturally before turning on the power.
• For areas that are dicult to clean in the refrigerator (such as narrow gaps or corners), it is recommended
to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary
tools (such as thin sticks) to ensure no contaminants or bacterials accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of
the refrigerator or contaminated food.
• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted
detergent. Dry with a soft cloth or dry naturally.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc.,
and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents
(such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the
fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage
plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or aect electrical
insulation after immersion.
WARNING
Never clean the unit with an abrasive, acid, oil or solvent based cleaning agent. Never use ammable uids
or sprays for cleaning as the fumes from these substances can create a re hazard or explosion.
Maintenance & Cleaning
esatto.house
15
Maintenance & Cleaning (Continued)
Defrosting
• Unplug the power cord.
• Remove the food from the refrigerator and place it properly to prevent food from melting.
• Clear the drain pipe (to use soft materials to prevent damage to the liner), combined with the defrost
preparation of water containers (pay attention to clean the compressor compartment water tray,
• Prevent overow to the ground).
• You can use the natural temperature of the natural defrost, you can also use the ice shovel to eliminate the
frost (to use plastic or wooden ice shovel, to prevent damage to the liner or pipe)
• You can also use the appropriate amount of hot water to speed up the defrost, with a dry towel to dry the
water after defrosting.
• Put the food back and power on again.
User Manual
16
Problem Possible Cause Possible Solution
The appliance
does not
operate.
• The appliance is not plugged in.
• The appliance is turned o.
• The circuit breaker tripped or a
blown fuse.
• Plug in the appliance.
• Turn on power point.
• Reset circuit breaker/replace fuse.
The appliance
is not cold
enough.
• Check the temperature control
setting.
• The door is opened too often, or is
kept open for too long; the door is
not closed completely; hot food has
been placed inside.
• The appliance has recently been
disconnected for a period of time.
• Reduce the temperature.
• Do not open door for 2+ hours; Check
that the door is closed properly and for
any obstructions preventing the door
closing properly; Remove hot food and
let it cool rst before replacing it.
• Plug in the appliance.
The appliance
has an odd
odour.
• Food may not be wrapped properly.
• Food may be rotten.
• The interior may not be clean.
• Check that the food is wrapped tightly.
• Check for rotten food and remove.
• Clean the interior of the appliance.
The internal
light does not
illuminate.
• The appliance is not plugged in.
• The appliance is turned o.
• The circuit breaker tripped or a
blown fuse.
• The light is damaged.
• Plug in the appliance.
• Turn on power point.
• Reset circuit breaker/replace fuse.
• Please contact after sales support.
The door
will not close
properly.
• The appliance is not level.
• The gasket is dirty.
• Food is stacked too high.
• Level the appliance.
• Clean gasket with warm water and
a soft cloth.
• Re-position food so it does not obstruct.
The door
is dicult
to open.
• A dierence in pressure between the
air inside and outside of the unit.
• This is a normal phenomenon and
cannot be avoided.
Moisture forms
on the inside
appliance
walls.
• Hot and humid weather increases
the internal rate of frost build-up.
• The lid is slightly open.
• The lid is kept open too long, or is
opened too frequently.
• This is normal.
• Close the door.
• Open the door less often
Moisture
forms on the
outside of the
appliance.
• The door is slightly open, causing
cold air from inside the appliance
to meet warm, moist air from the
outside.
• Close the door or check for obstructions.
There are
vibrations.
• The appliance is not level.
• The floor is uneven or weak.
• The appliance is touching the wall.
• Level the appliance.
• Be sure your floor can adequately
support the appliance.
• Move the appliance away from the wall
and check it is level.
FAQs and Troubleshooting
esatto.house
17
Model: EBF87DI
Product Dimensions: W 470 × D 492 × H 837 (mm)
Weight (Net): 22.8kg
Total Volume: 87L
Fridge Volume: 61L
Freezer Volume: 26L
Energy Rating: 2 Stars MEPS
Refrigerant/Amount: R600a / 35g
Standards
This product complies with AS/NZS IEC 62552.1/2/3:2018 electrical safety,
and with EN 55014-1:2006+A1:2009 A2:2011 for electromagnetic compatibility.
Specications
6
EN
Install Instruction
INSTALL INSTRUCTION
Before first use
Remove the exterior and interior packing,
wipe the outside thoroughly with a soft dry
cloth and the inside with a wet, lukewarm
cloth.
Avoid placing the cabinet in a narrow recess
or near any heat source, direct sunlight, or
moisture.
Keep the air circulation free around the
cabinet. When installing the unit, ensure
10cm of free space at both sides, 10cm at the
top of the unit, and not more than 7.5cm at
the rear of the unit.
Before connecting your refrigerator to
the power supply, check that the voltage
stated on the rating label of your appliance
corresponds to the voltage in your home.
A different voltage could damage the
appliance.
The appliance must be grounded. The
manufacturer is not responsible for damages
that may occur as a result of usage without
grounding.
Space requirement diagram
B
A
C
D
E
145 °
A B C D E
470 837 492 832 787
Notice: All dimensions in mm
Connecting the appliance
After installing the product, please let it stay
for more than 2 hours before turning on the
power, otherwise it will lead to a decrease
in cooling capacity or a damage to the
product.
2 h
Allow the appliance to run empty for 24
hours so the compartment can cool to the
appropriate temperature.
CAUTION
The refrigerator should always be plugged into
its own individual electrical outlet which has a
voltage rating that matches the rating plate.
When positioning the appliance, ensure the supply
cord is not trapped ordamaged.
Ambient Temperature
Depending on the climate class, this
refrigerator is intended to be used at an
ambient temperature range as specified in
the following table.
The product may not operate properly at
temperatures outside of the specific range.
You can find the climate class on the product
label.
Climate Class
Ambient Temperature
SN +10 °C to +32 °C
N +16 °C to +32 °C
ST +16 °C to +38 °C
T +16 °C to +43 °C
If you have any doubts regarding installation, please
turn to the vendor, to our customer service or to the
nearest Authorised Service Centre.
ATTENTION
The cooling performance and power consumption
of the refrigerator may be aected by the ambient
temperature, the door-opening frequency, and
the location of the refrigerator. We recommend
adjusting the temperature settings as appropriate.
User Manual
18
WARRANTY TERMS AND CONDITIONS
REFRIGERATION
This document sets out the terms and conditions of the
product warranties for Residentia Group Appliances. It is
an important document. Please keep it with your proof of
purchase documents in a safe place for future reference
should you require service for your Appliance.
1. IN THIS WARRANTY
(a) ‘acceptable quality’ as referred to in clause 10 of
this warranty has the same meaning referred to in
the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Residentia Group product
purchased by you accompanied by this document;
(d) ‘ASR’ means Residentia Group authorised service
representative;
(e) ‘Residentia Group’ means Residentia Group Pty Ltd
of 165 Barkly Ave, Burnley VIC 3121, ACN 600 546 656
in respect of Appliances purchased in Australia;
(f ) ‘major failure’ as referred to in clause 10 of this
warranty has the same meaning referred to in the
ACL and includes a situation when an Appliance
cannot be repaired or it is uneconomic for Residentia
Group, at its discretion, to repair an Appliance during
the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal,
domestic or household use (i.e. normal
single family use) as set out in the instruction
manual, the Appliance is warranted against
manufacturing defects for 24 months, following
the date of original purchase of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not
having purchased the Appliance for re-sale, and ‘your’
has a corresponding meaning.
2. This warranty only applies to Appliances purchased
and used in Australia and is in addition to (and does
not exclude, restrict, or modify in any way) any
non-excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or
its ASR will, at no extra charge if your Appliance
is readily accessible for service, without special
equipment and subject to these terms and conditions,
repair or replace any parts which it considers to
be defective. Residentia Group or its ASR may use
remanufactured parts to repair your Appliance. You
agree that any replaced Appliances or parts become
the property of Residentia Group. This warranty does
not apply to light globes, batteries, lters, seals or
similar perishable parts.
4. Parts and Appliances not supplied by Residentia
Group are not covered by this warranty.
Warranty
— THIS WARRANTY IS VALID IN AUSTRALIA ONLY —
esatto.house
19
5. You will bear the cost of transportation, travel and
delivery of the Appliance to and from Residentia
Group or its ASR. If you reside outside of the service
area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and
from Residentia Group or its ASR, in all instances,
unless the Appliance is transported by Residentia
Group or its ASR, the Appliance is transported at
the owner’s cost and risk while in transit to and from
Residentia Group or its ASR.
6. Proof of purchase is required before you can make
a claim under this warranty.
7. You may not make a claim under this warranty unless
the defect claimed is due to faulty or defective parts
or workmanship. Residentia Group is not liable in the
following situations (which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly
maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or
incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional
instructions supplied with the Appliance;
(b) the Appliance is modied without authority from
Residentia Group in writing;
(c) the Appliance’s serial number or warranty seal has
been removed or defaced;
(d) the Appliance was serviced or repaired by anyone
other than Residentia Group, an authorised repairer
or ASR.
8. This warranty, the contract to which it relates and the
relationship between you and Residentia Group are
governed by the law applicable where the Appliance
was purchased.
9. To the extent permitted by law, Residentia Group
excludes all warranties and liabilities (other than as
contained in this document) including liability for any
loss or damage whether direct or indirect arising from
your purchase, use or non use of the Appliance.
10. For Appliances and services provided by Residentia
Group in Australia, the Appliances come with a
guarantee by Residentia Group that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also
entitled to have the Appliance repaired or replaced
if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure. The
benets to you given by this warranty are in addition
to your other rights and remedies under a law in
relation to the Appliances or services to which the
warranty relates.
11. At all times during the Warranty Period, Residentia
Group shall, at its discretion, determine whether
repair, replacement or refund will apply if an
Appliance has a valid warranty claim applicable to it.
12. Missing parts are not covered by warranty.
Residentia Group reserves the right to assess each
request for missing parts in a case by case basis.
Any parts that are not reported missing in the rst
week after purchase will not provide free of charge.
13. To enquire about claiming under this warranty, please
follow these steps:
(a) carefully check the operating instructions,
user manual and the terms of this warranty;
(b) have the model and serial number
of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
14. You accept that if you make a warranty claim,
Residentia Group and its ASR may exchange
information in relation to you to enable Residentia
Group to meet its obligations under this warranty.
IMPORTANT
Before calling for service, please ensure that the steps
in point 13 have been followed.
CONTACT SERVICE
→ Service: 1300 11 HELP (4357)
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
The Australian Consumer Law requires the
inclusion of the following statement with
this warranty:
— THIS WARRANTY IS VALID IN AUSTRALIA ONLY —
User Manual
20
— THIS WARRANTY IS VALID IN NEW ZEALAND ONLY —
NEW ZEALAND WARRANTY TERMS & CONDITIONS
BAR FRIDGES
To help care for your investment, be sure to register your
appliance online. Registration will help you if you need to
arrange service in the future, and serves as a record of your
purchase—including critical information like model number
and serial number – that you can refer to at any time.
Simply visit the below website, or ask your retailer
for help: www.esatto.house/nz/registration
WARRANTY
These products are covered by a warranty for a period
of 24 months from the date of purchase, subject to the
following conditions*. The warranty covers rectication free
of charge of any fault arising from defective materials or
components, or faulty workmanship or assembly.
* The conditions above mentioned are:
1. That the purchaser carefully follows all instructions
packed with the product;
2. That the purchaser and/or installer carefully follows
the installation instructions provided and complies
with electrical wiring regulations, gas and/or plumbing
codes;
3. That the purchaser carefully follows instructions
provided in the owner’s handbook relating to the proper
use and care of the product and does not use the
product for any purpose other than the domestic use for
which it has been designed;
4. Commercial use of the product for professional or
industrial purposes will void this warranty.;
5. That the product was purchased and installed in
New Zealand;
6. That this warranty does not extend to:
a) optional glass lids for hobs apart from claims which
relate to mechanical or physical damage thereof at
the date of purchase;
b) ‘consumable’ parts such as light bulbs or lters;
c) damage to ceramic glass caused by liquid or solid
spill-overs, lack of maintenance, or impact;
d) damage to surface coatings caused by cleaning or
maintenance using products not recommended by
the owner’s handbook;
e) defects caused by normal wear and tear,
accident, negligence, alteration, misuse
or incorrect installations;
f) a product dismantled, repaired or serviced by any
serviceman other than an authorised service agent;
g) a product not in possession of the original
purchaser;
h) damage caused by power outages or surges
i) damage caused by pests
(eg. rats, cockroaches etc.)
7. That if the product is a freestanding microwave oven
or small appliance it must be returned to the dealer/
retailer for servicing. These products, unless stated
otherwise, have a 12 month warranty from original
date of purchase with 24 months on the microwave
magnetron; Waste disposers have a 12 month warranty.
8. The provision of service under this warranty is limited
by a 25km boundary from the retailer where the
product was purchased except for microwaves. Such
travelling outside of these limits will incur commercial
cost to be paid by you, regulated by the number of
kilometres travelled beyond the 25km limit (50km return
trip). Microwaves are to be delivered to the nearest
authorised service agent by the customer.
Please refer to your user manual for any further conditions
that may apply to your specic model.
Nothing herein contained shall be construed in any way
as excluding or limiting your rights under the Consumer
Guarantees Acts 1993.
For Service please visit www.applico.co.nz/service or
contact the dealer/retailer from whom you purchased the
product from or call the 0800 number listed below. If you
are unable to establish the date of purchase, or the fault is
not covered by this warranty, or if the product is found to
be in working order, you will be required to bear all service
call charges.
Registration of this warranty constitutes acceptance of the
terms and conditions of this warranty.
Should you require any assistance, please call Customer
Services on 0800 763 448.
Distributed by Applico Ltd. www.applico.co.nz July 2019
After registering your appliance online, we recommend you
ll out the below information for your reference and keep
this warranty card in a safe place.
Warranty (NZ)
esatto.house
21
Purchase Details
For your records, please record details of your purchase below and staple your receipt to this page.
Your serial number can be found on the rear of your refrigerator
STORE DETAILS
STORE NAME
|
ADDRESS
|
TELEPHONE
|
PURCHASE DATE
|
PRODUCT DETAILS
MODEL NO.
|
SERIAL NO.*
|
Attach your receipt to this page
User Manual
22
A RESIDENTIA
GROUP INITIATIVE
everything
you need
